The Influence of the Axial Rub Added in the Radial Rub on the Wear of the Seal Fins during the High Speed Rub of Labyrinth-Honeycomb Seal
Abstract
:1. Introduction

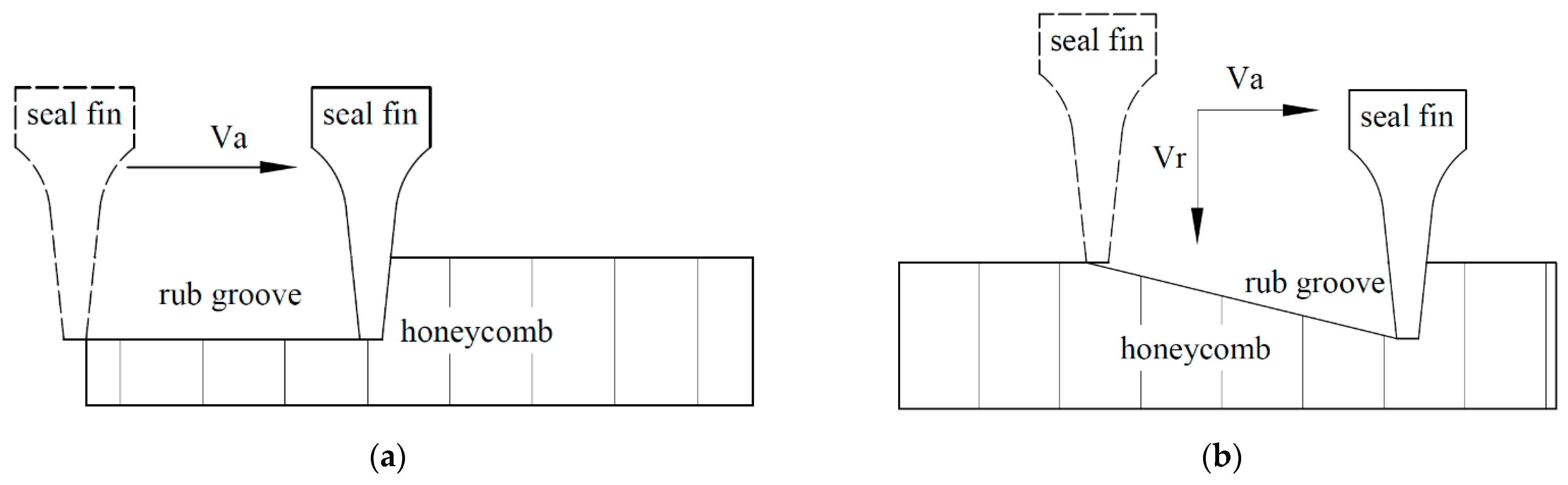

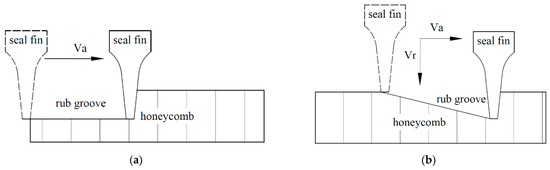

2. Materials and Methods

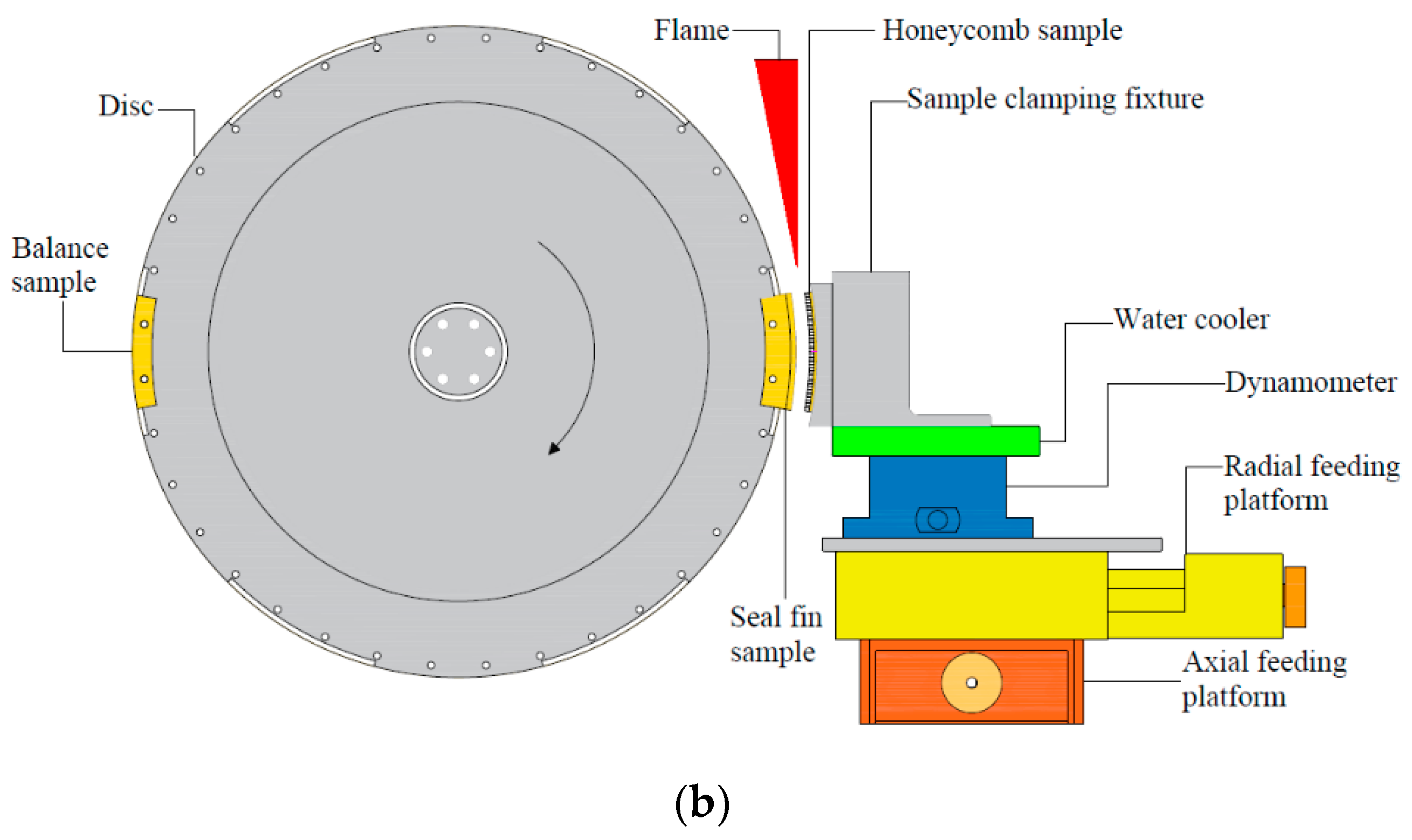

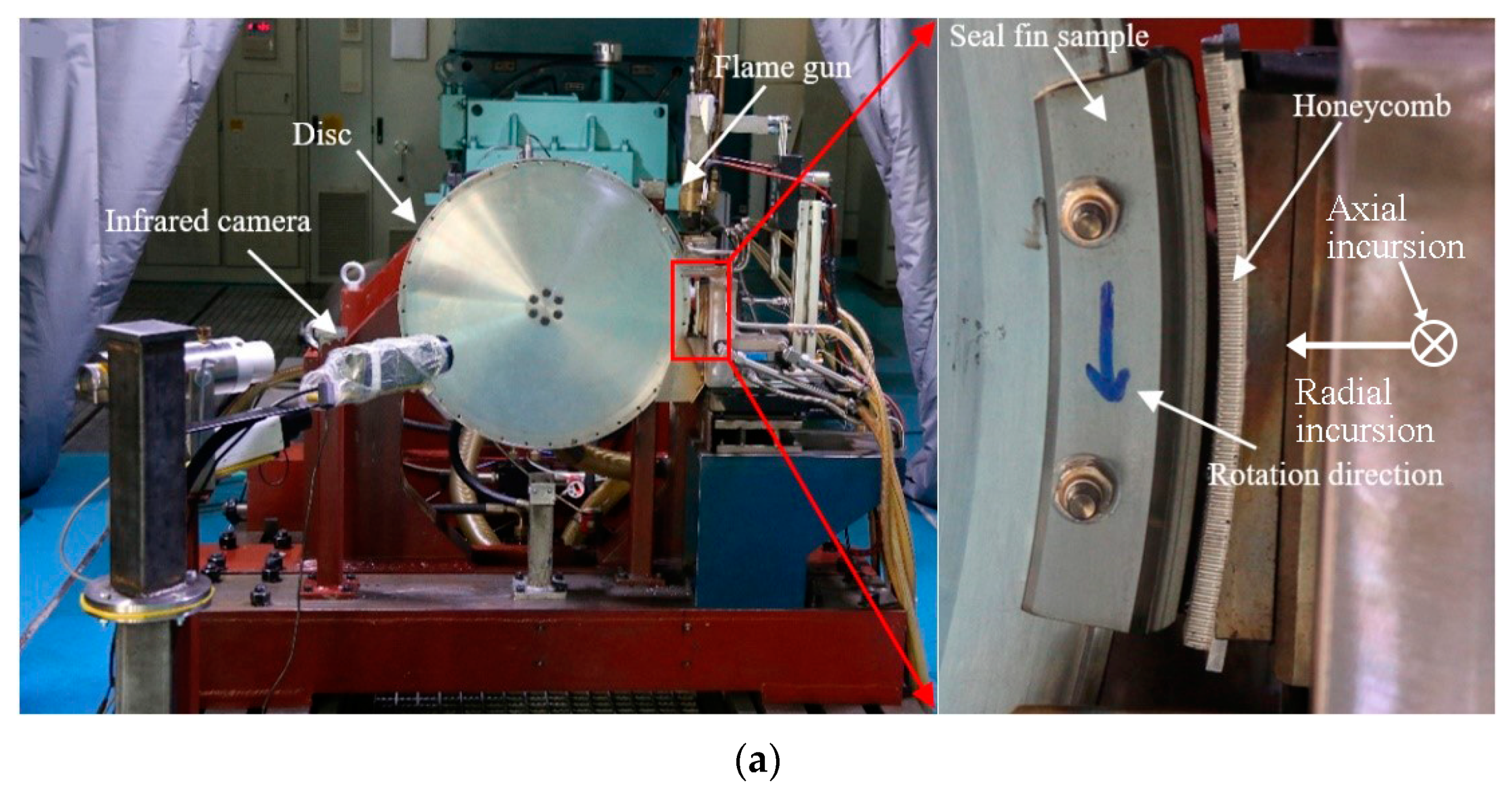

2.1. Test Rig

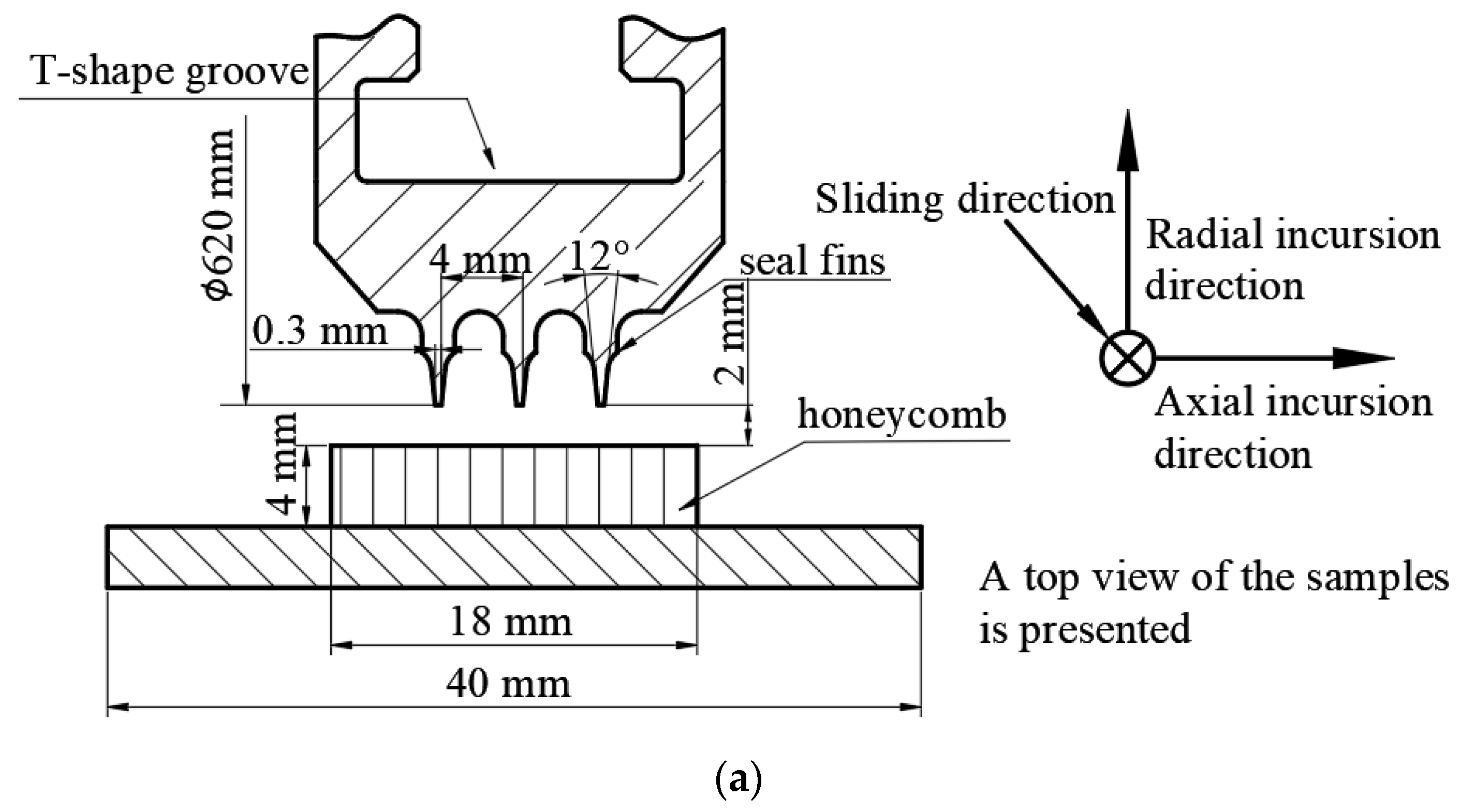

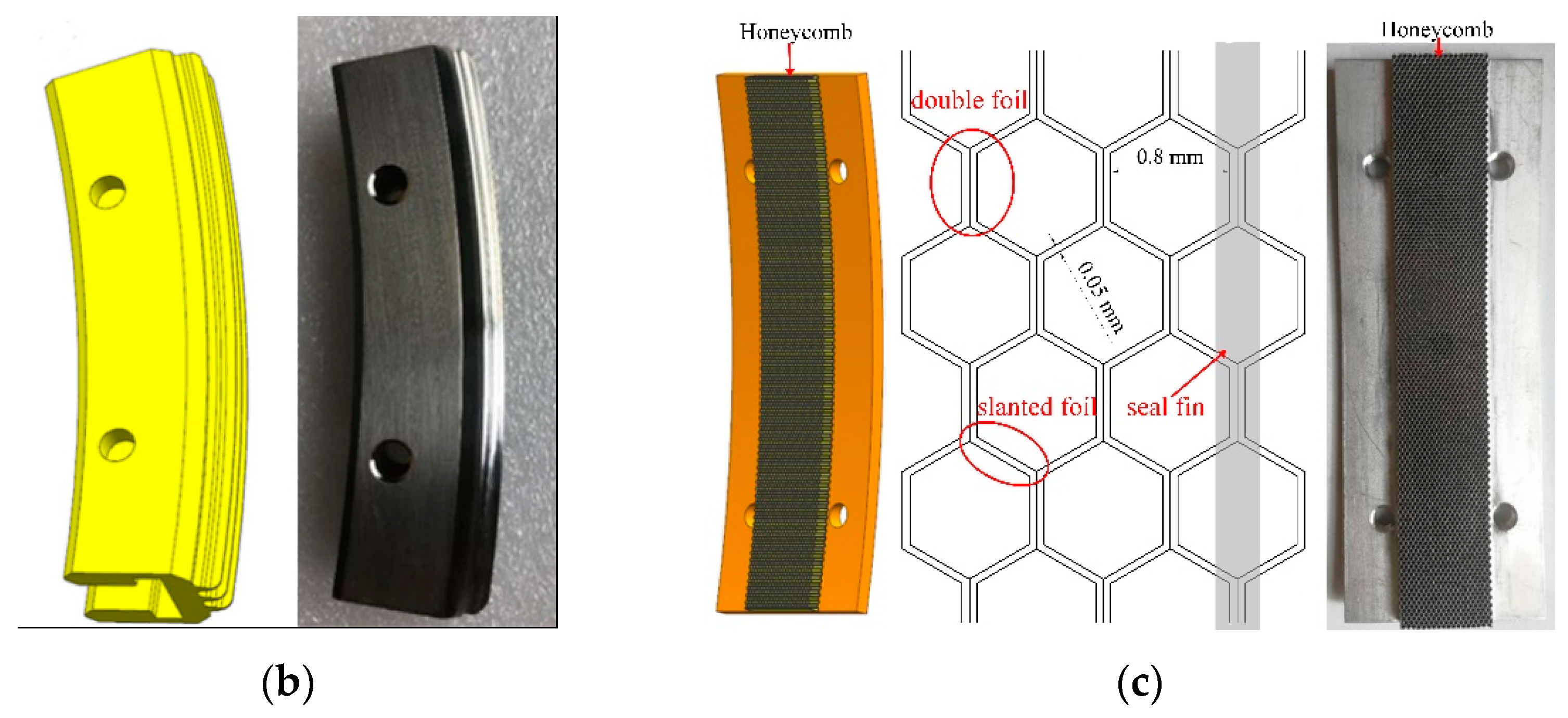

2.2. Test Samples

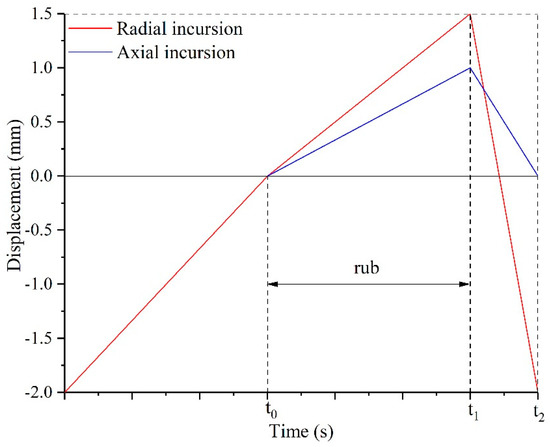

2.3. Test Procedure
2.4. Test Parameters
3. Results

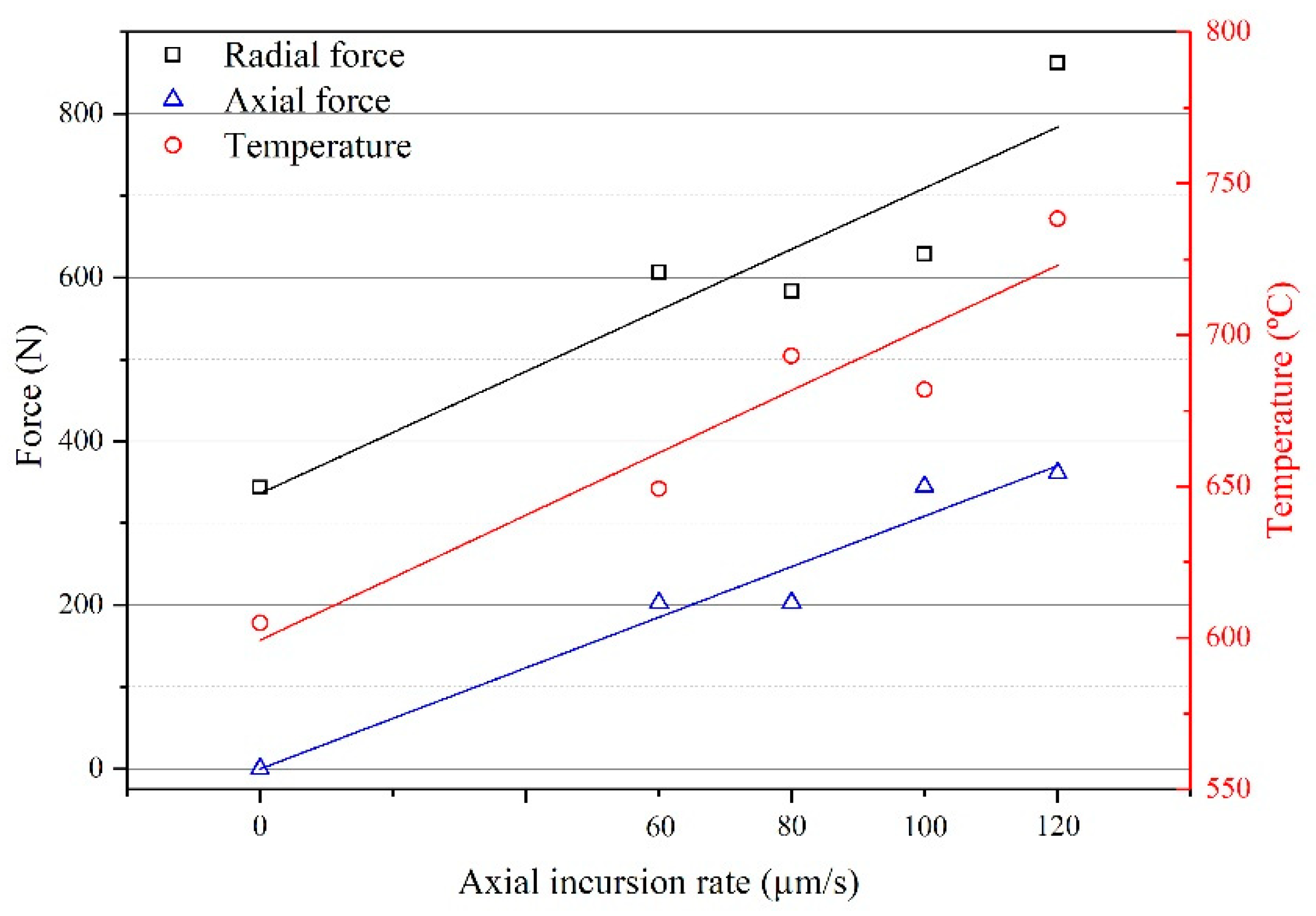

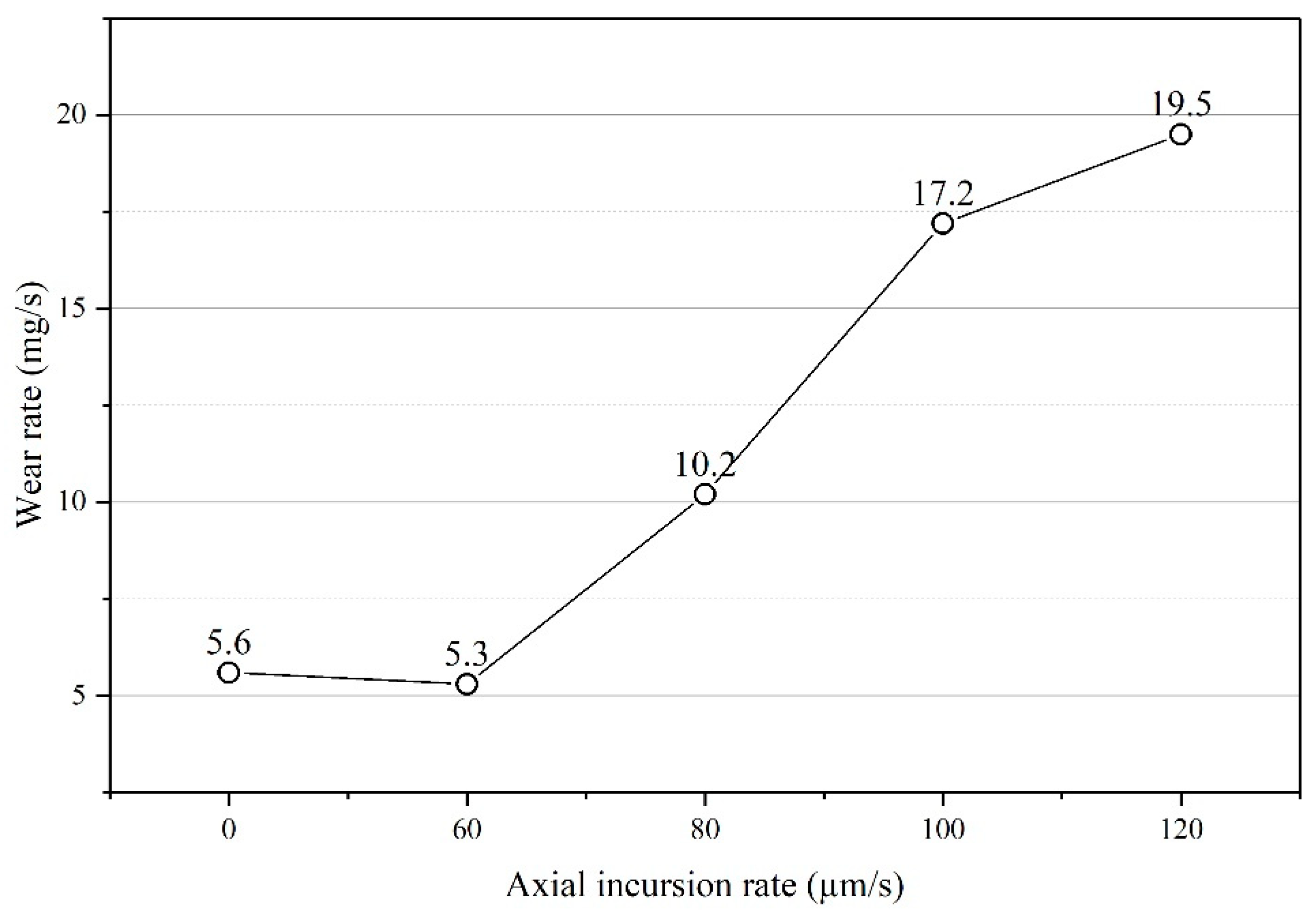

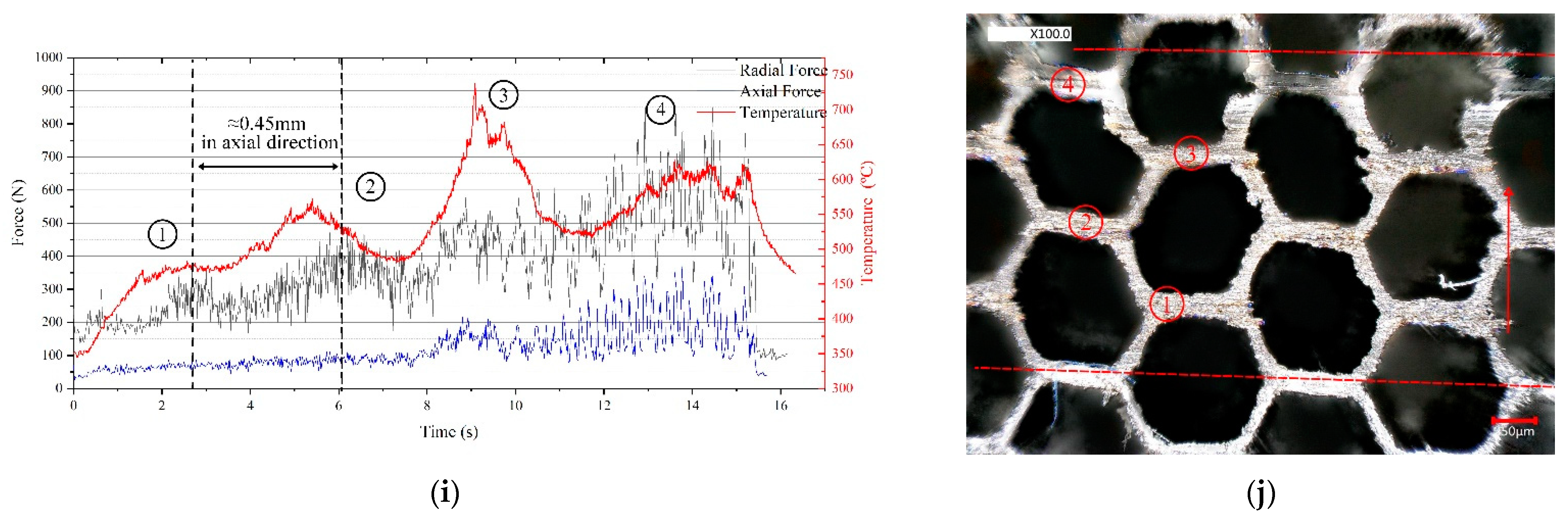

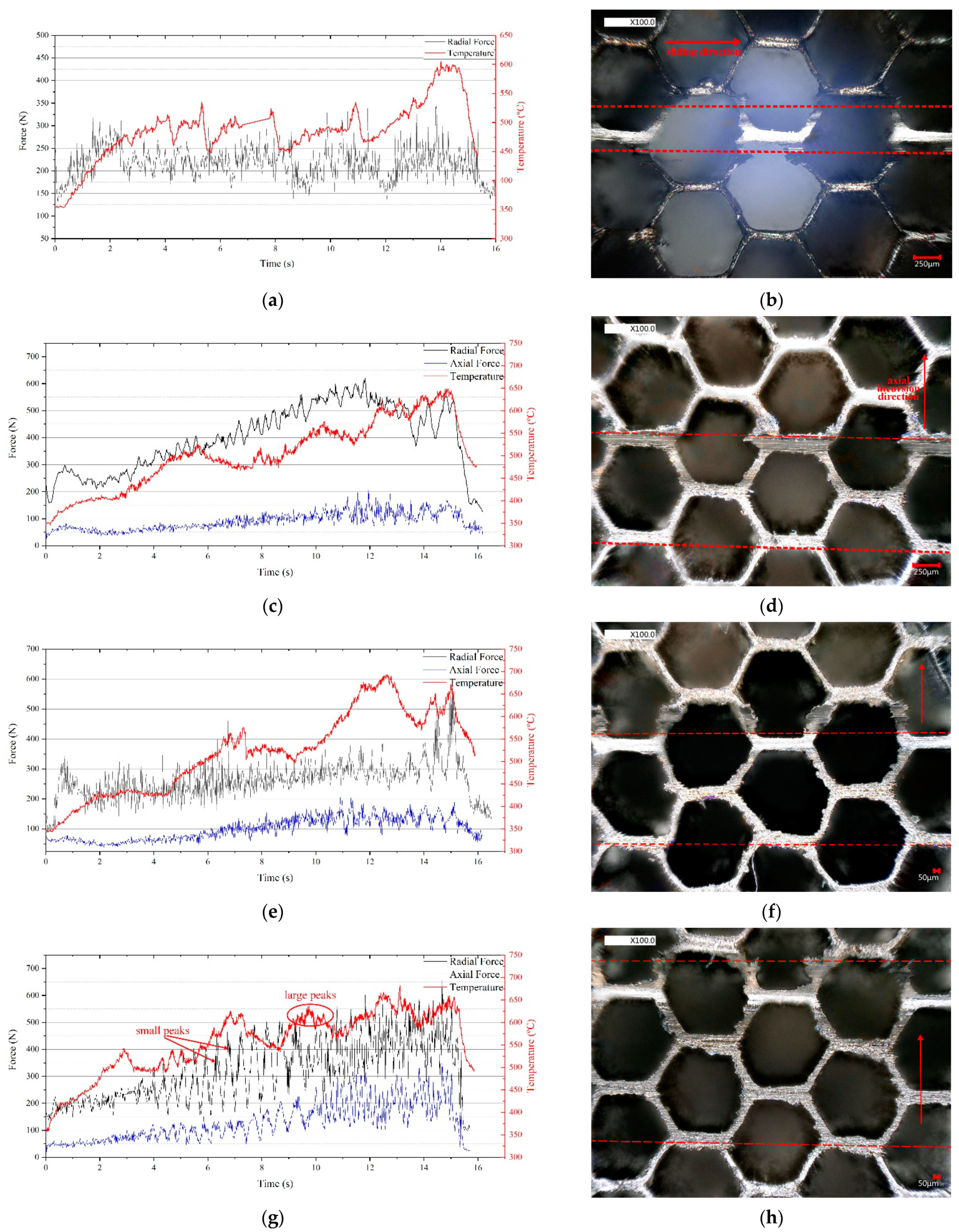

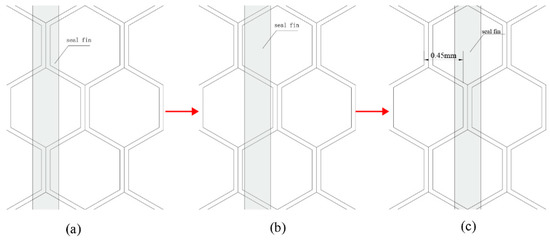

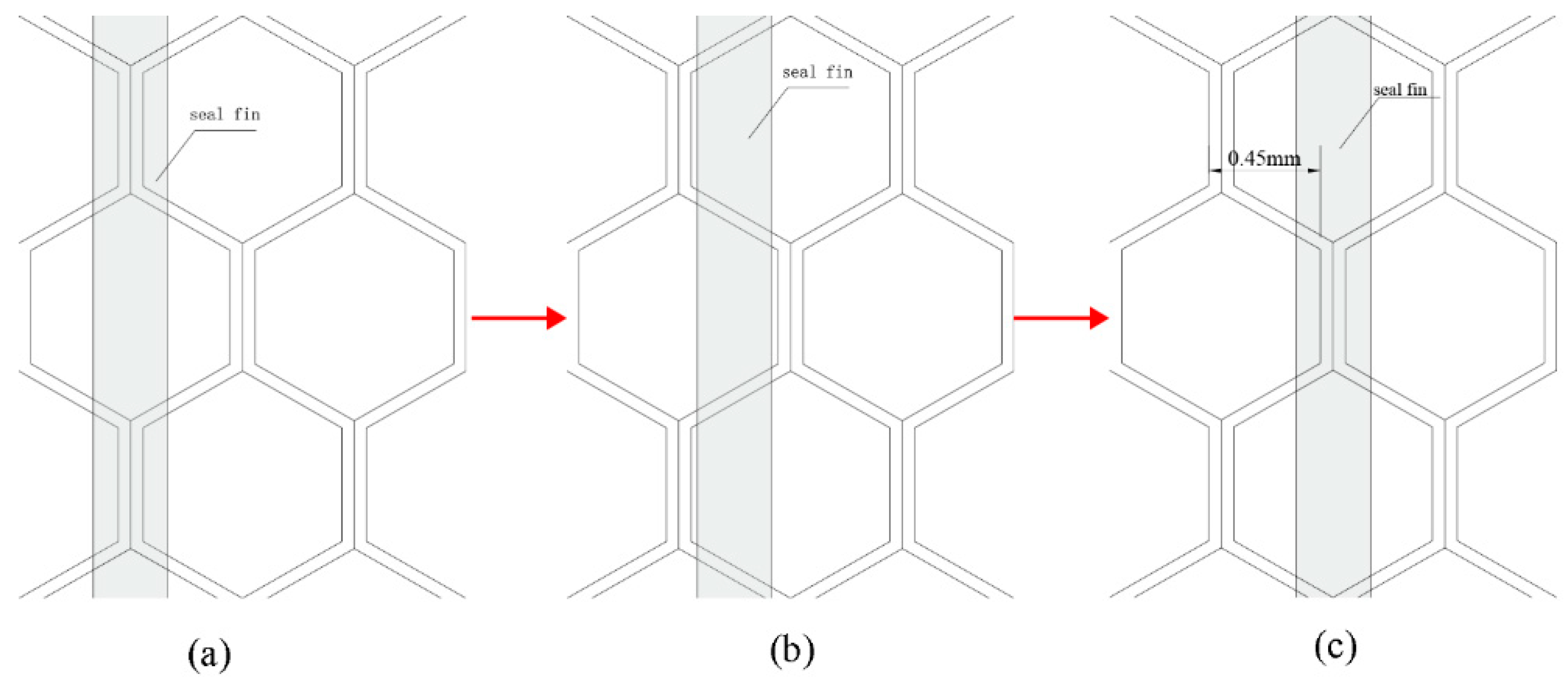

3.1. The Rubbing Forces, Temperature, and the Wear Rate at Different Axial Incursion Rates

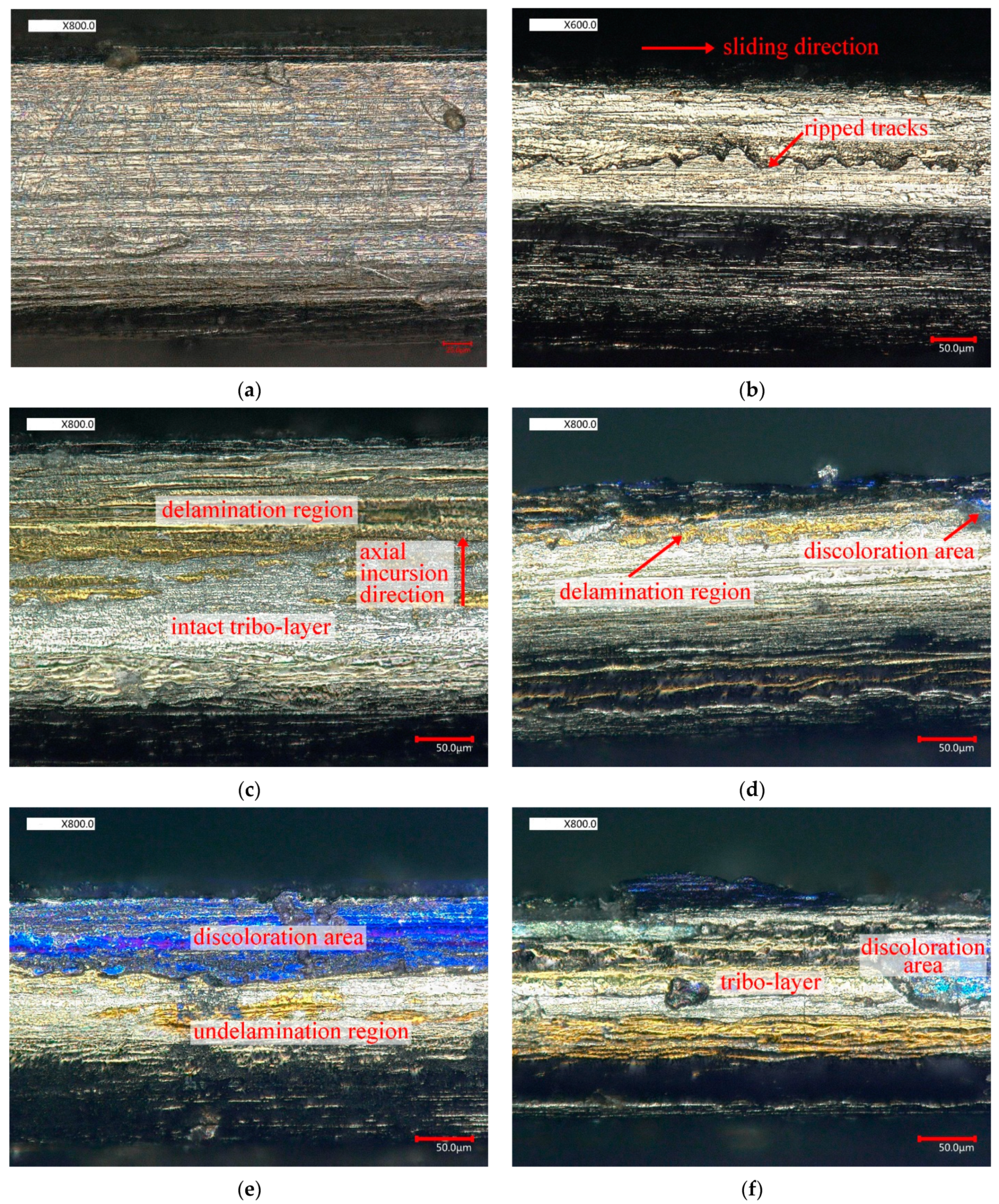

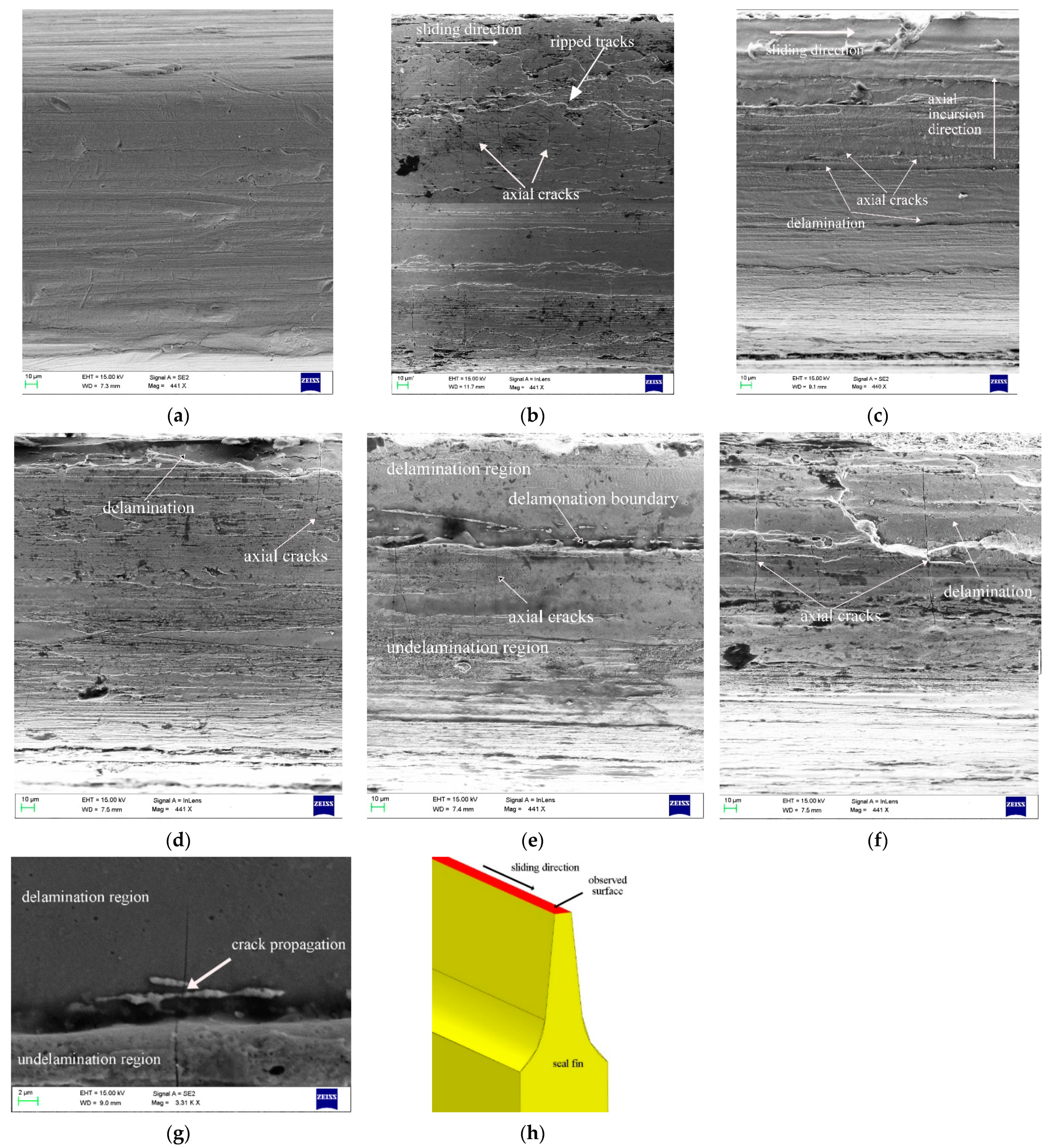

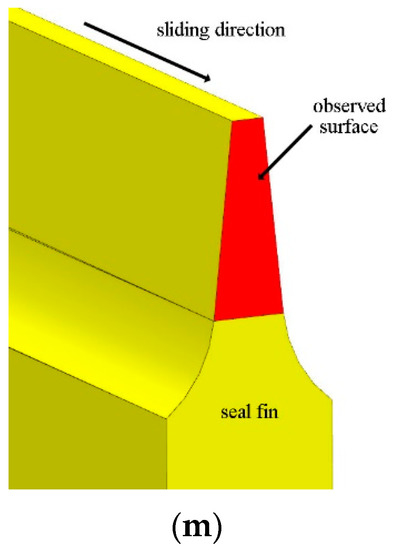

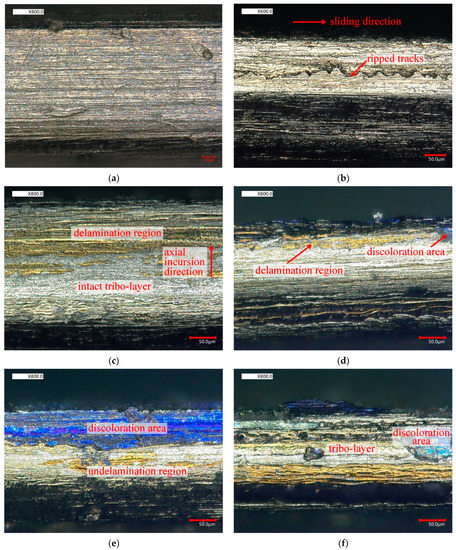

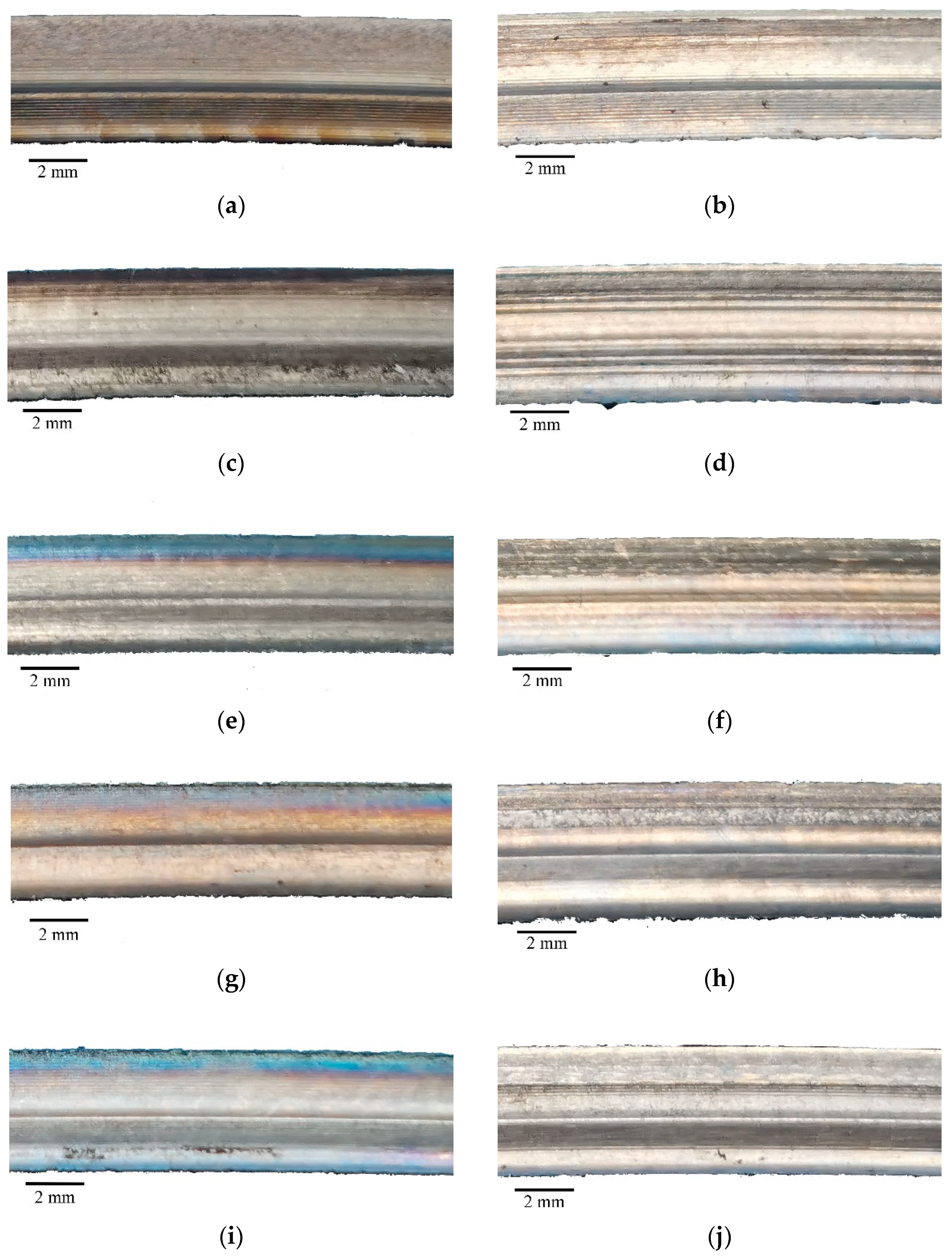

3.2. The Worn Morphology of the Seal Fins

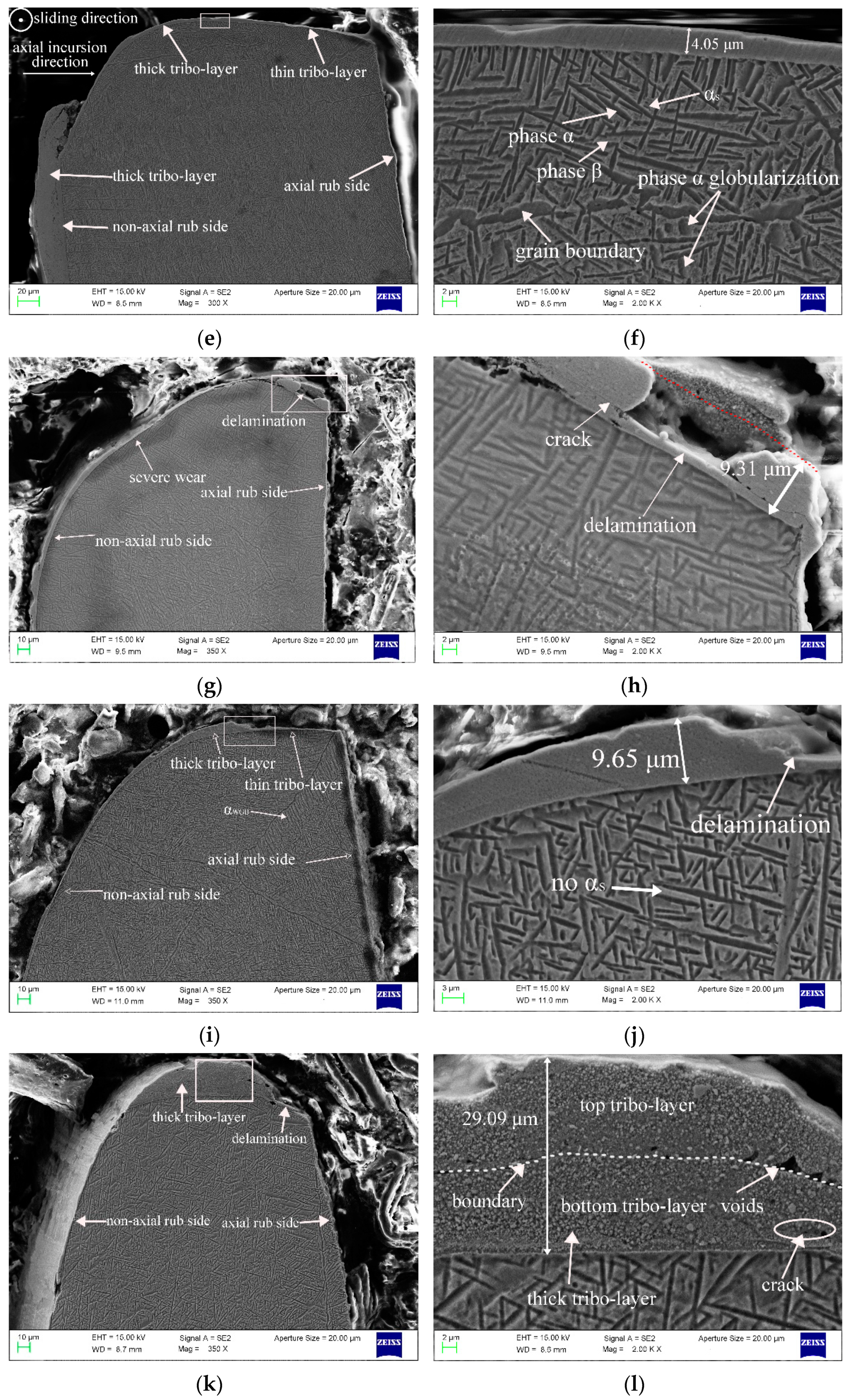

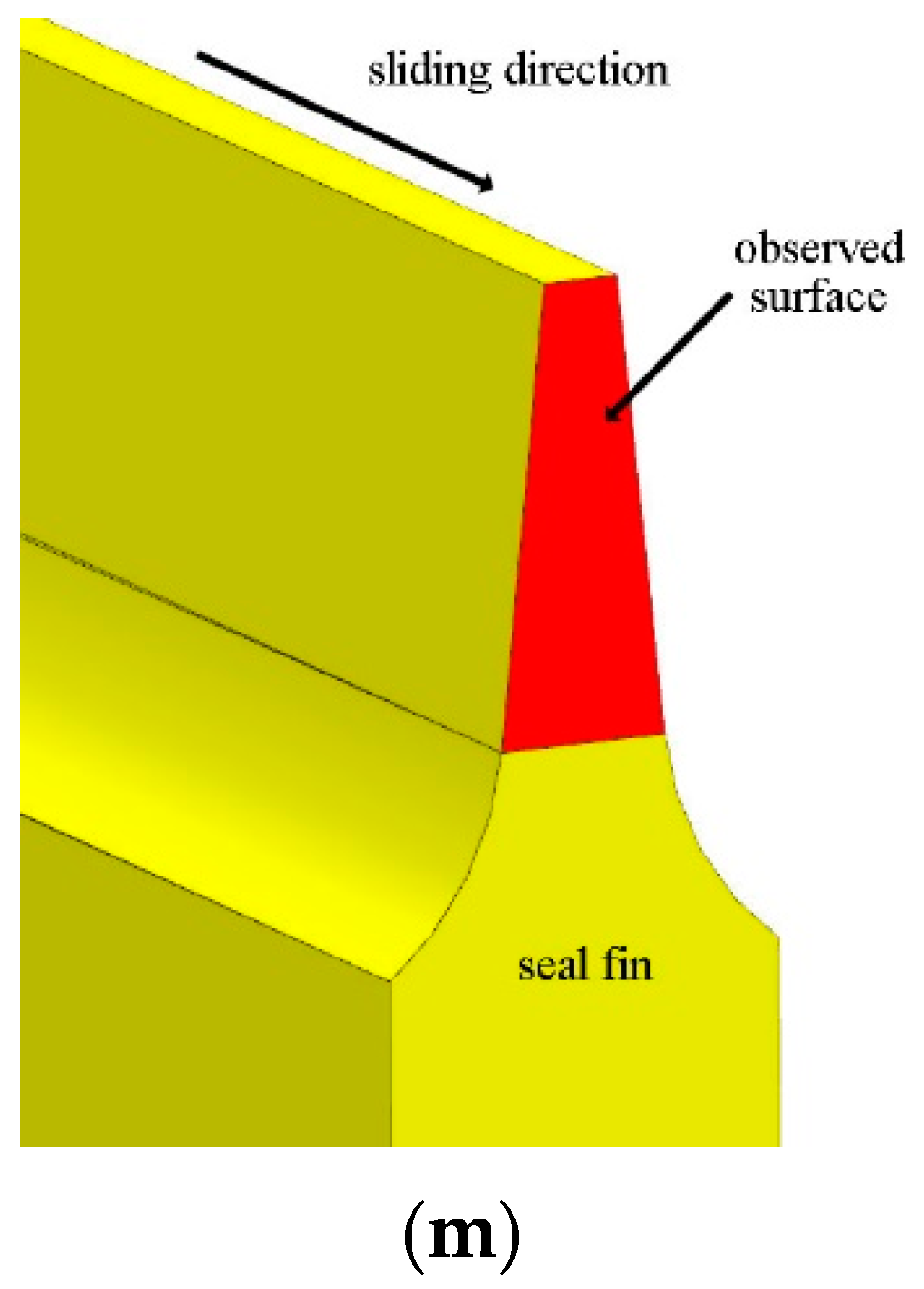

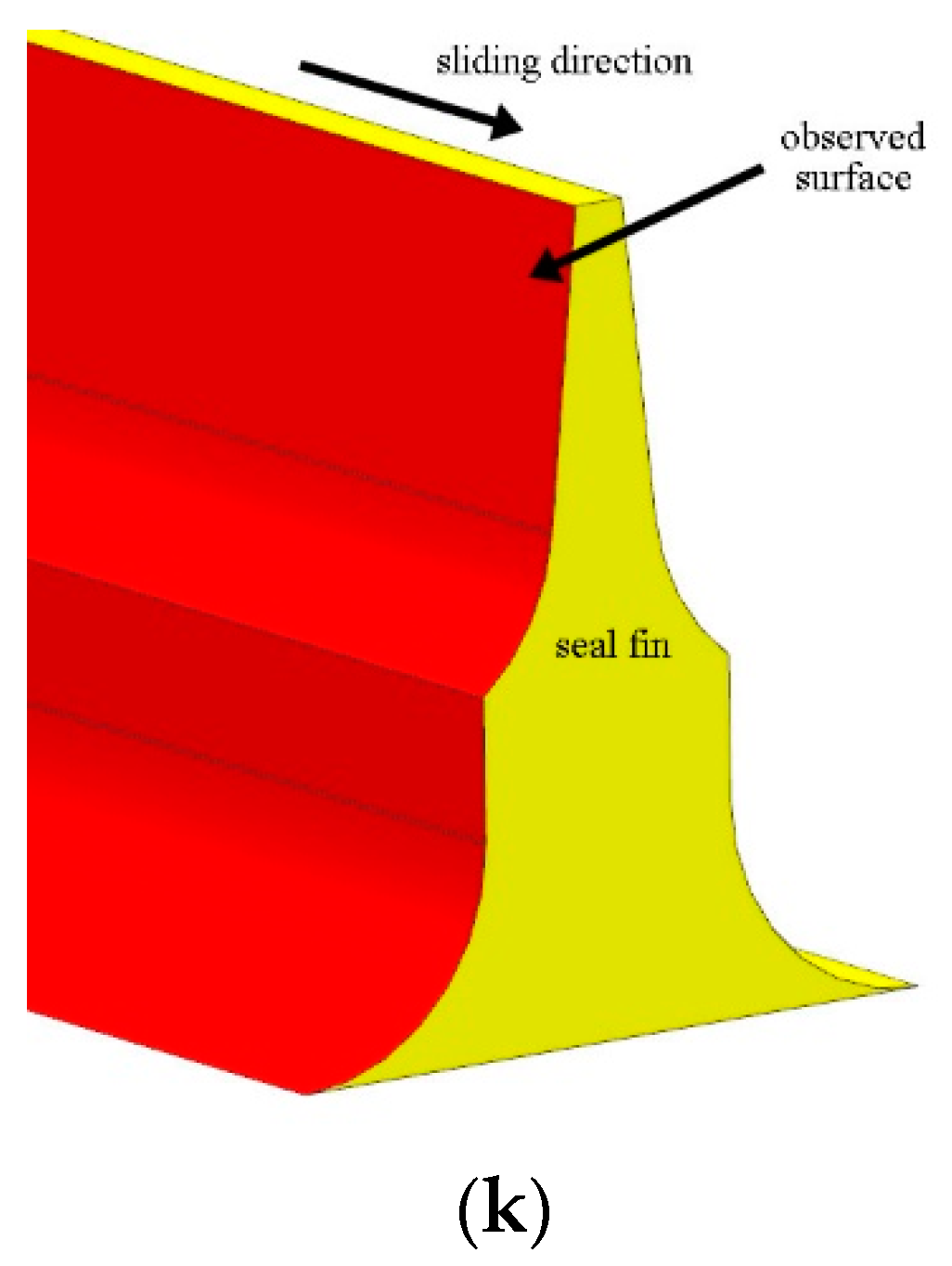

3.3. The Cross-Sectional Morphology of the Seal Fin

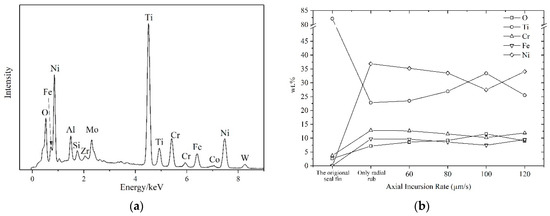

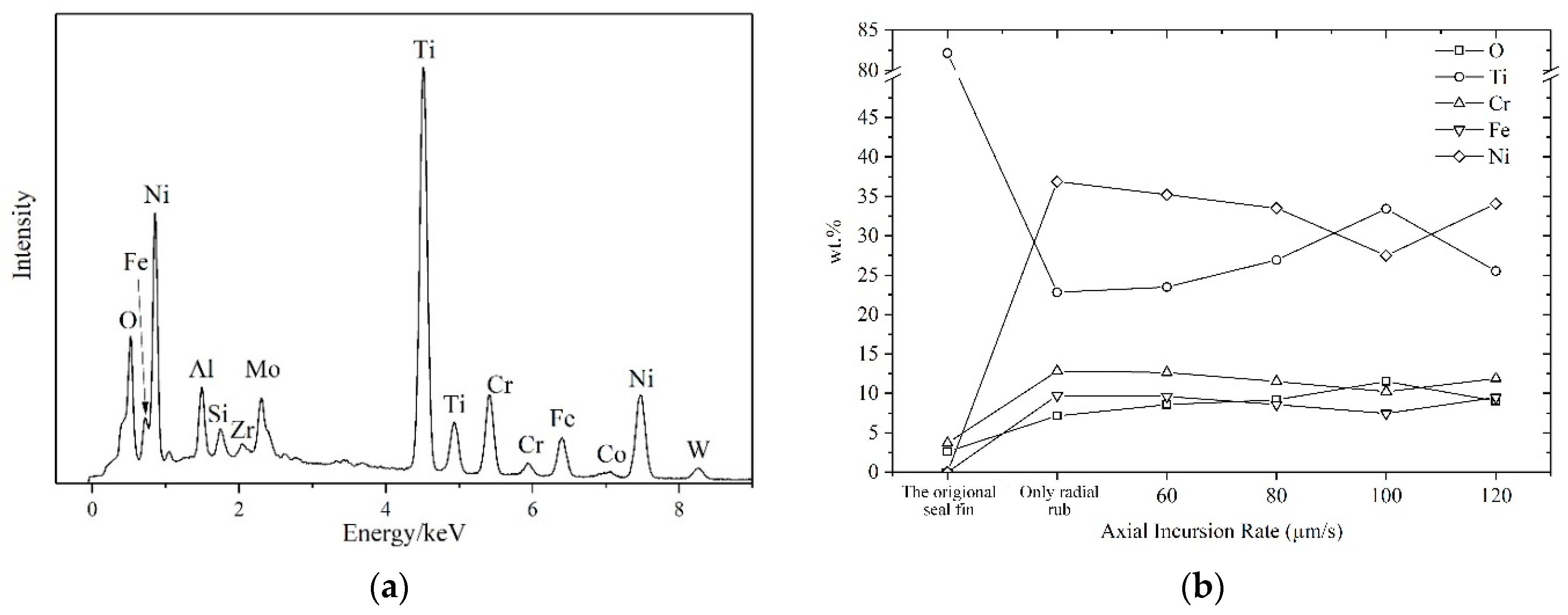

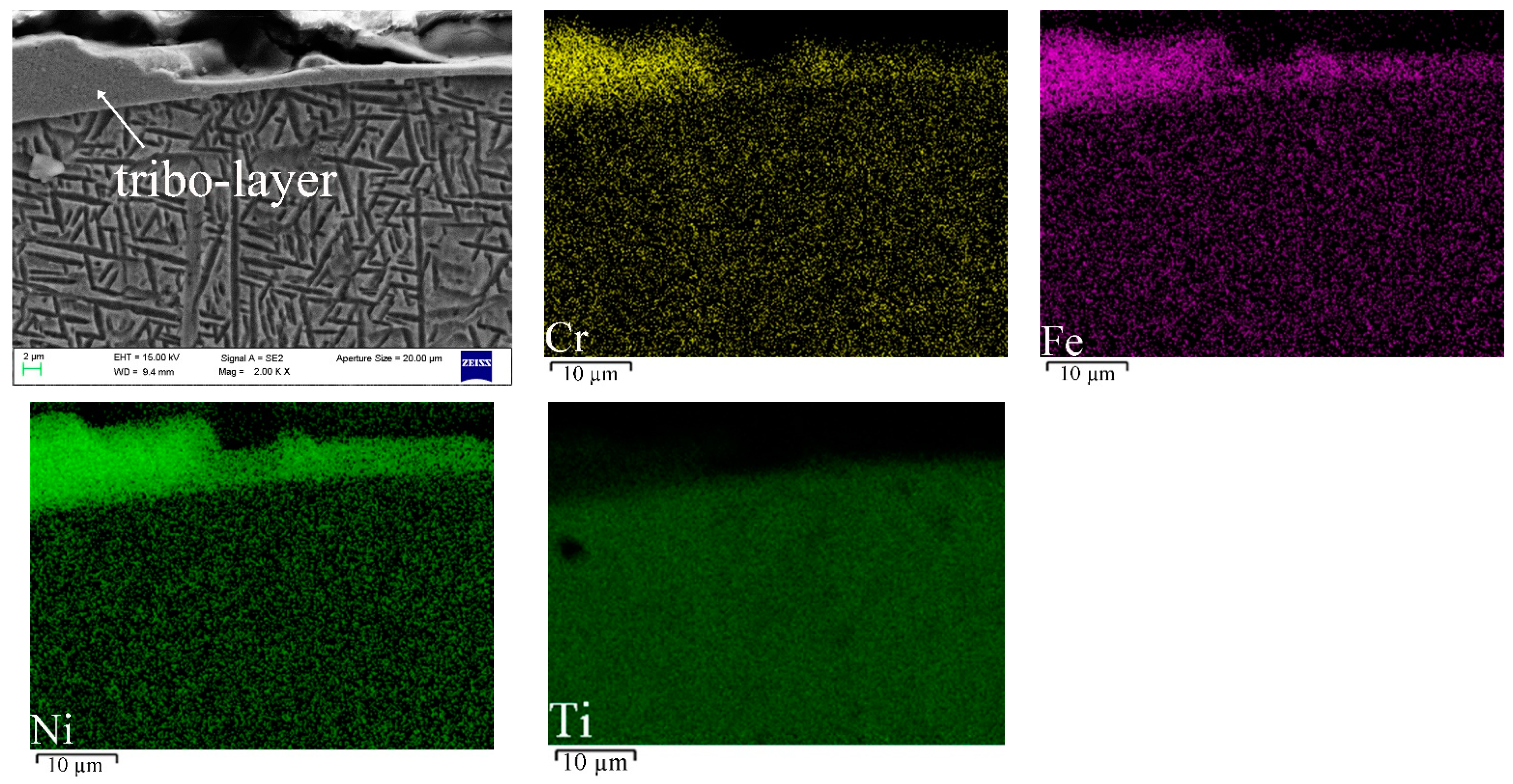

3.4. EDS Results

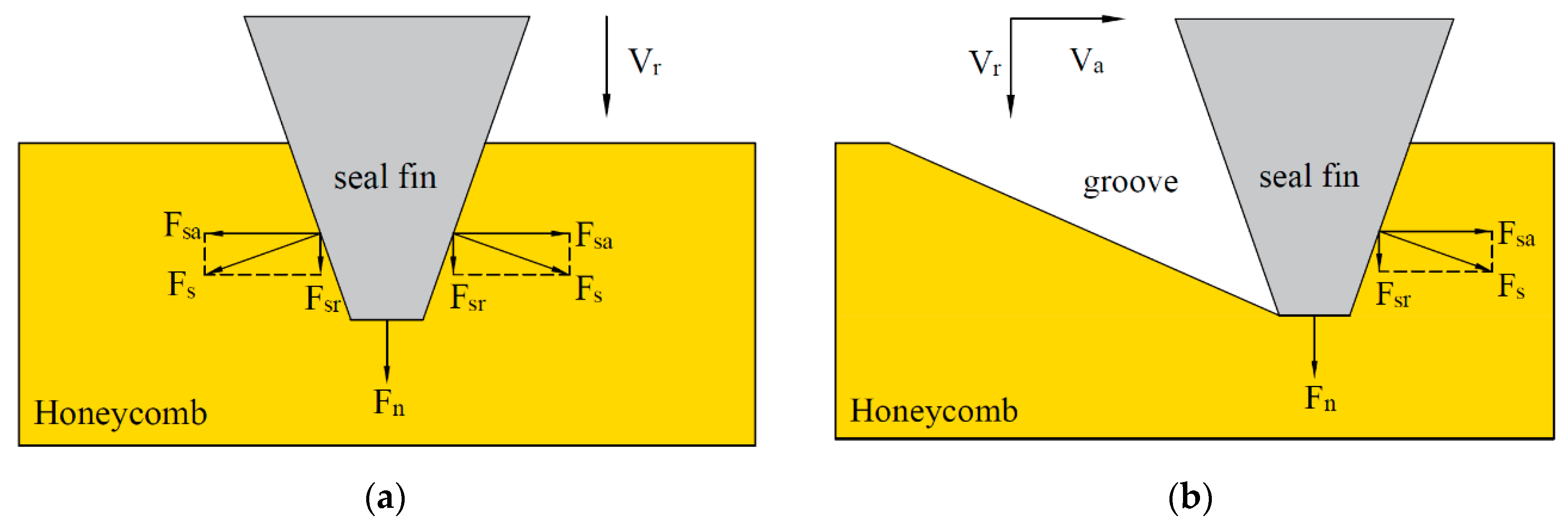

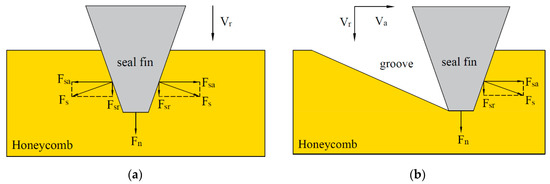

4. Discussion
5. Conclusions
- The maximum rubbing radial force, axial force, and the temperature increase with the axial incursion rate. When the axial incursion rate is high (80, 100, 120 μm/s), the wear rate of the seal fins is higher than that when there is only radial rub and the wear rate continuously increases with the axial incursion rate.
- When the radial incursion rate keeps constant, the axial rub will not change the wear mechanism. The delamination wear is dominated on the top surface of the seal fin, while the metal wear is dominated on the axial rub side of the seal fin.

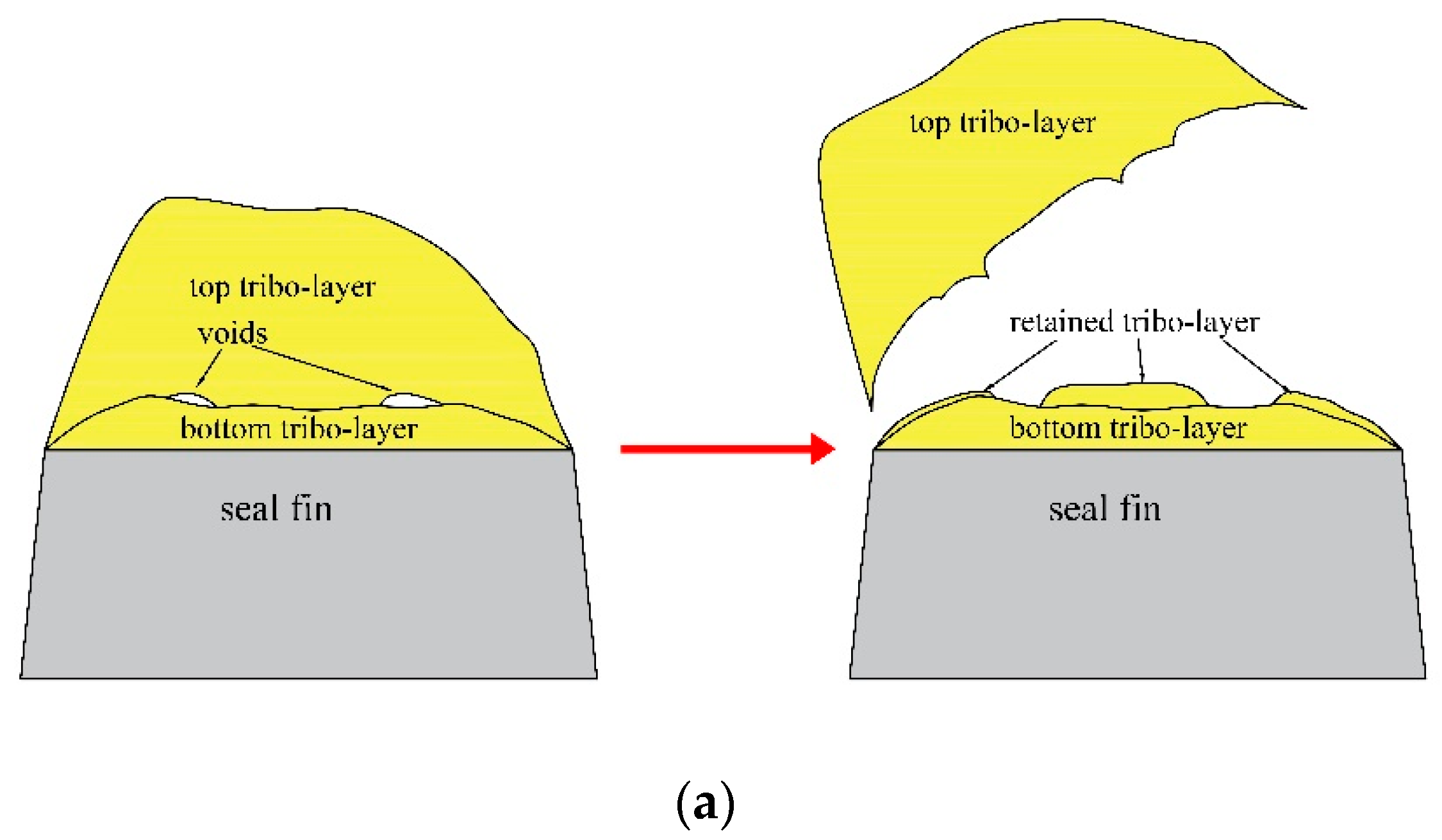

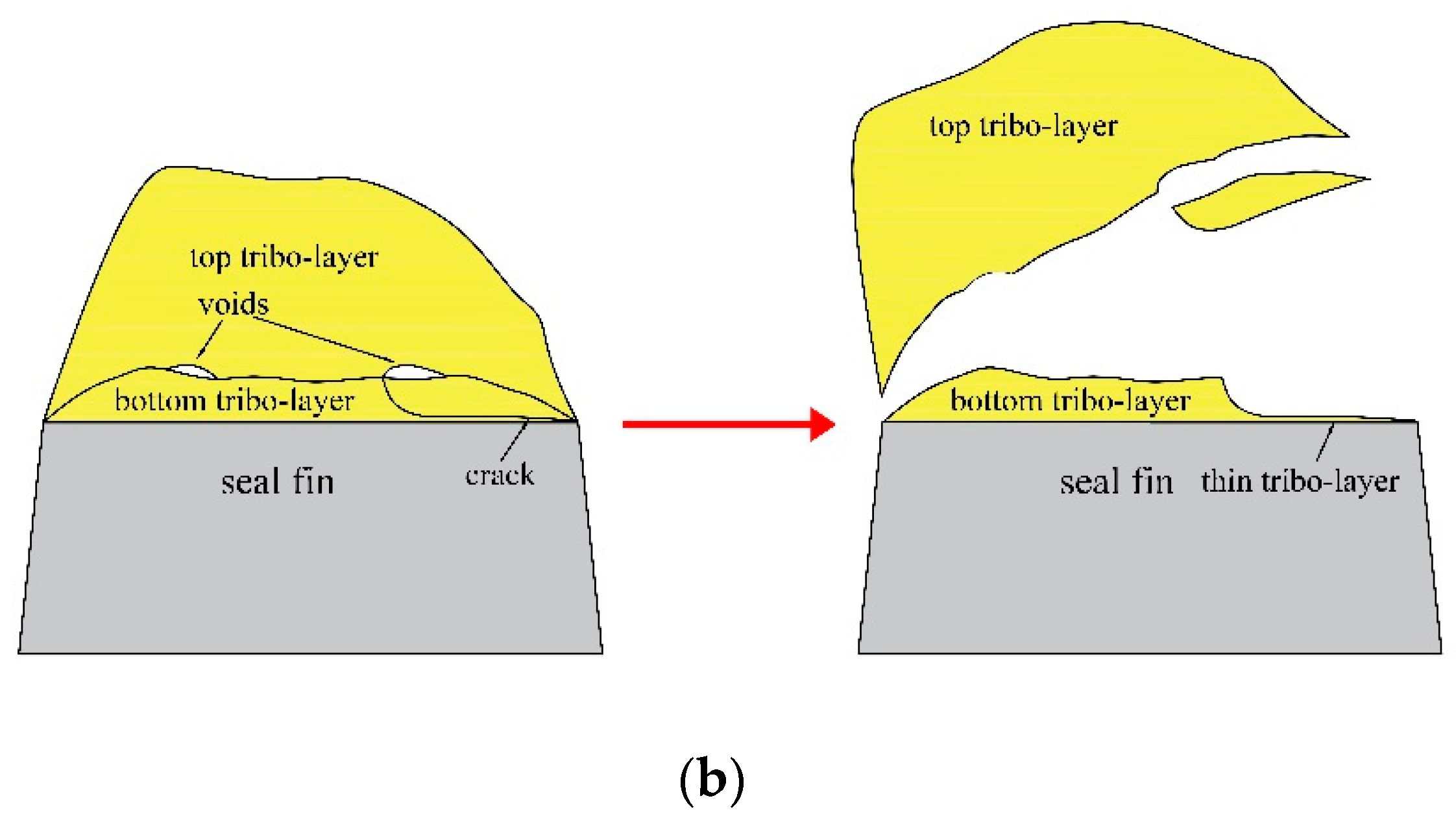

- The tribo-layer on the top surface of the seal fin will thicken with the axial incursion rate. The thick tribo-layer can block the heat transfer to the substrate. However, the thick tribo-layer is more prone to crack under periodical thermomechanical stress and the cracks are wide and deep.

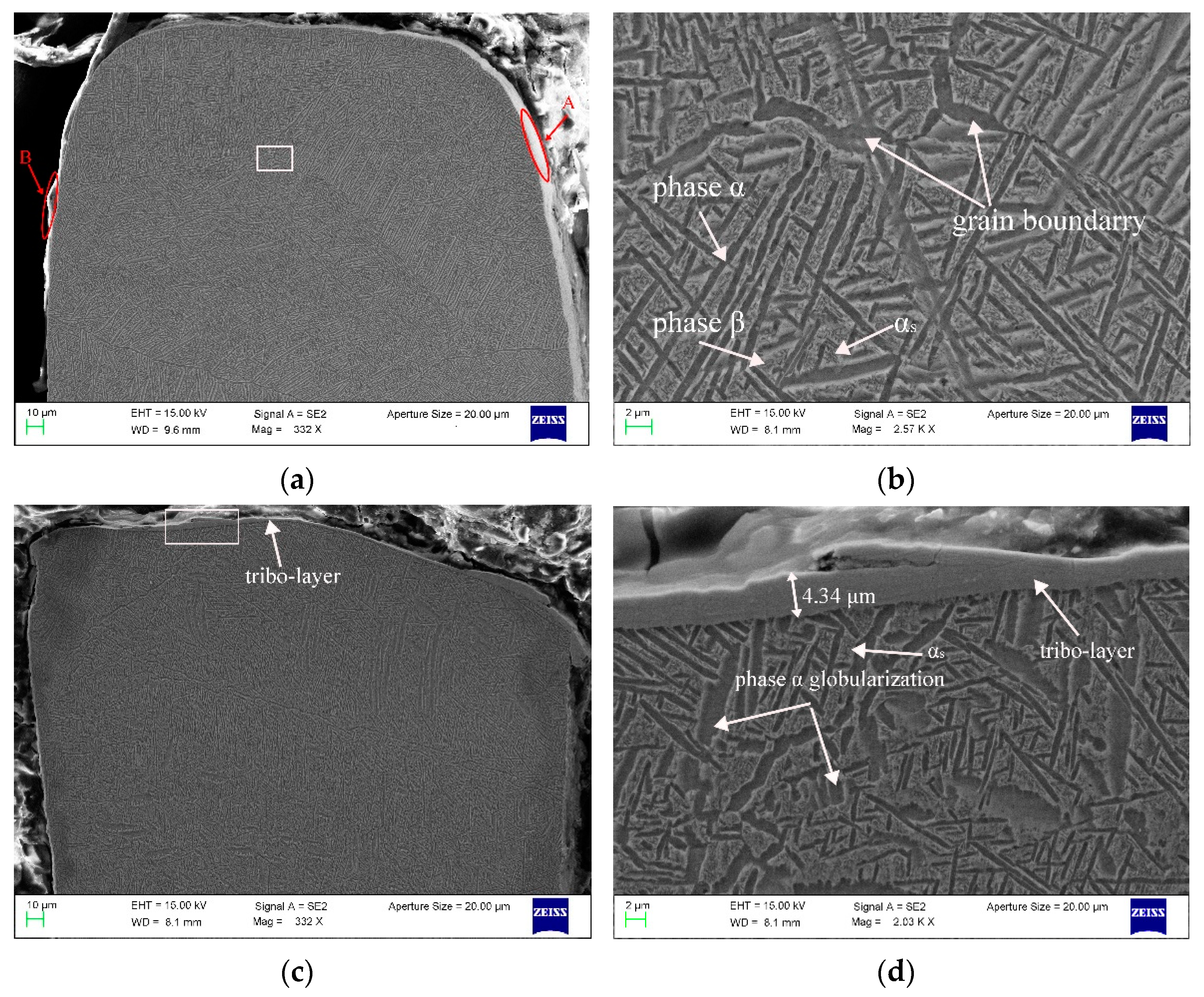

- When the axial incursion rate is low (60 μm/s), slight α phase globularization and dissolution of secondary α phase occur on the substrate microstructure. With the increasing axial incursion rate, the increasing rubbing temperature will induce the complete dissolution of secondary α phase and even the recrystallization of the α phase. The microstructural change of the seal fins will reduce the strength and the cracking resistance of the seal fins, which may lead to the rapid propagation of the cracks during the operation of the aero-engine.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Aslan-Zada, F.E.; Mammadov, V.A.; Dohnal, F. Brush seals and labyrinth seals in gas turbine applications. Proc. Inst. Mech. Eng. Part A J. Power Energy 2012, 227, 216–230. [Google Scholar] [CrossRef]
- Chupp, R.E.; Hendricks, R.C.; Lattime, S.B.; Steinetz, B.M. Sealing in Turbomachinery. J. Propuls. Power 2006, 22, 313–349. [Google Scholar] [CrossRef]
- Ludwig, L.P.; Bill, R.C. Gas Path Sealing in TurbineEngines. ASLE Trans. 1980, 23, 1–22. [Google Scholar] [CrossRef] [Green Version]
- Sporer, D.; Fortuna, D. Braze Materials for Brazing Seal Honeycomb: Trends, Challenges and a Market Outlook. In Proceedings of the 5th International Brazing and Soldering Conference, Las Vegas, NV, USA, 22–25 April 2012; pp. 51–58. [Google Scholar]
- Bill, R.C.; Shiembob, L.T. Some considerations of the performance of two honeycomb gas path seal material systems. Lubr. Eng. 1981, 37, 209–217. [Google Scholar]
- Sporer, D.R.; Shiembob, L.T. Alloy selection for honeycomb gas path seal systems. In Proceedings of the ASEM Turbo Expo 2004: Power for Land, Sea, and Air, Vienna, Austria, 14–17 June 2004; pp. 763–774. [Google Scholar]
- Rathmann, U.; Olmes, S.; Simeon, A. Sealing technology: Rub test rig for abrasive/abradable systems. In Proceedings of the 52nd ASME Turbo Expo 2007, Montreal, Canada, 14–17 May 2007; pp. 223–228. [Google Scholar]
- Zhang, N.; Xuan, H.J.; Guo, X.J.; Guan, C.P.; Hong, W.R. Investigation of high-speed rubbing behavior of labyrinth-honeycomb seal for turbine engine application. J. Zhejiang Univ. A 2016, 17, 947–960. [Google Scholar] [CrossRef] [Green Version]
- Pychynski, T.; Höfler, C.; Bauer, H.J. Experimental Study on the Friction Contact Between a Labyrinth Seal Fin and a Honeycomb Stator. J. Eng. Gas Turbines Power 2015, 138, 062501. [Google Scholar] [CrossRef]
- Munz, O.; Pychynski, T.; Schwitzke, C.; Bauer, H.J. Continued Experimental Study on the Friction Contact between a Labyrinth Seal Fin and a Honeycomb Stator: Slanted Position. Aerospace 2018, 5, 82. [Google Scholar] [CrossRef] [Green Version]
- Hühn, L.; Munz, O.; Schwitzke, C.; Bauer, H. Experimental Investigation on the Rubbing Process of Labyrinth Seals Considering the Material Combination. In Proceedings of the ASME Turbo Expo 2020: Turbomachinery Technical Conference and Exposition, Virtual, Online, 21–25 September 2020. V10AT25A016. [Google Scholar] [CrossRef]
- Munz, O.; Hühn, L.; Schwitzke, C.; Bauer, H.; Fischer, T.; Ulan kyzy, S. Experimental Investigation on the Rubbing Process of Labyrinth Seals Against Honeycomb Liners. In Proceedings of the ASME Turbo Expo 2020: Turbomachinery Technical Conference and Exposition, Virtual, Online, 21–25 September 2020. V10AT25A032. [Google Scholar] [CrossRef]
- Zhang, B.; Marshall, M.; Marshallb, M. Investigating the application of a honeycomb abradable lining in the turbine stage of an aero-engine. Tribol. Int. 2018, 125, 66–74. [Google Scholar] [CrossRef] [Green Version]
- Pychynski, T.; Dullenkopf, K.; Bauer, H.J. Theoretical study on the origin of radial cracks in labyrinth seal fins due to rubbing. In Proceedings of the ASME Turbo Expo: Turbine Technical Conference and Exposition, San Antonio, TX, USA, 3–7 June 2013. [Google Scholar] [CrossRef]
- Hühn, L.; Rieger, F.; Bleier, F.; Schwitzke, C.; Bauer, H.J.; Behnisch, T. Extensive investigations on radial crack formation in labyrinth seals of aircraft engines. In Deutsche Gesellschaft Für Luft-Und Raumfahrt-Lilienthal-Oberth; Deutscher Luft- und Raumfahrtkongress: Friedrichshafen, Germany, 2018; p. 8. [Google Scholar]
- Lu, B.; Ma, X.; Wu, C.; Xuan, H.; Hong, W. The Wear of Seal Fins during High-Speed Rub between Labyrinth Seal Fins and Honeycomb Stators at Different Incursion Rates. Materials 2021, 14, 979. [Google Scholar] [CrossRef] [PubMed]
- Thévenot, M.; Wagner, V.; Paris, J.Y.; Dessein, G.; Chantrait, T. Thermomechanical phenomena and wear flow mechanisms during high speed contact of abradable materials. Wear 2020, 426–427, 1102–1109. [Google Scholar] [CrossRef]
- An, X.; Cai, X.; Wan, M.; Lei, M.; Huang, C.; Zhao, F.; Huang, F. Microstructural Evolution and Element Partitioning in the Phase Transformation of Ti-17 Alloy under Continuous Heating and Cooling Conditions. Metals 2020, 10, 1054. [Google Scholar] [CrossRef]
- Wang, Y.H.; Kou, H.; Chang, H.; Zhu, Z.S.; Zhang, F.S.; Li, J.; Zhou, L. Influence of solution temperature on phase transformation of TC21 alloy. Mater. Sci. Eng. A 2009, 508, 76–82. [Google Scholar] [CrossRef]
- Teixeira, J.D.C.; Appolaire, B.; Aeby-Gautier, E.; Denis, S.; Cailletaud, G.; Späth, N. Transformation kinetics and microstructures of ti17 titanium alloy during continuous cooling. Mater. Sci. Eng. A 2007, 448, 135–145. [Google Scholar] [CrossRef] [Green Version]
- Aeby-Gautier, E.; Bruneseaux, F.; Teixeira, J.D.C.; Appolaire, B.; Geandier, G.; Denis, S. Microstructural formation in Ti alloys: In-situ characterization of phase transformation kinetics. JOM 2007, 59, 54–58. [Google Scholar] [CrossRef]
- Zhang, Q.; Chen, J.; Tan, H.; Lin, X.; Huang, W.D. Microstructure evolution and mechanical properties of laser additive manufactured Ti–5Al–2Sn–2Zr–4Mo–4Cr alloy. Trans. Nonferrous Met. Soc. China 2016, 26, 2058–2066. [Google Scholar] [CrossRef]
- Chen, Y.; Du, Z.; Xiao, S.; Xu, L.; Tian, J. Effect of aging heat treatment on microstructure and tensile properties of a new β high strength titanium alloy. J. Alloys Compd. 2014, 586, 588–592. [Google Scholar] [CrossRef]
- Verdhan, N.; Bhende, D.D.; Kapoor, R.; Chakravartty, J.K. Effect of microstructure on the fatigue crack growth behaviour of a near-α Ti alloy. Int. J. Fatigue 2015, 74, 46–54. [Google Scholar] [CrossRef]
- Xu, J.; Zeng, W.; Zhao, Y.; Jia, Z. Effect of microstructure evolution of the lamellar alpha on impact toughness in a two-phase titanium alloy. Mater. Sci. Eng. A 2016, 676, 434–440. [Google Scholar] [CrossRef]
Composition | Ti | Al | Cr | Zr | Mo | Sn |
---|---|---|---|---|---|---|
Content/% | balance | 5.03 | 3.88 | 1.99 | 4.02 | 2.07 |
Composition | Ni | Cr | Fe | Mo | Co | Al |
---|---|---|---|---|---|---|
Content/% | balance | 21.74 | 19.18 | 8.46 | 1.31 | 0.13 |
Composition | W | Si | C | P | Cu | - |
Content/% | 0.65 | 0.24 | 0.066 | 0.014 | 0.08 | - |
Test No. | Axial Incursion Rate (Vainc) (μm/s) | Axial Incursion Depth (Da) (μm) | Radial Incursion Rate (Vrinc) (μm/s) | Radial Incursion Depth (Dr) (μm) | Temperature (T) (°C) | Rubbing Speed (Vt) (m/s) |
---|---|---|---|---|---|---|
V-1 | 60 | 900 | 100 | 1500 | 350 | 380 |
V-2 | 80 | 1200 | ||||
V-3 | 100 | 1500 | ||||
V-4 | 120 | 1800 |
