Article

Experimental Research of Selected Lattice Structures Developed with 3D Printing Technology

by
Paweł Bogusz
,
Arkadiusz Popławski
*,
Michał Stankiewicz
and
Bartłomiej Kowalski
Faculty of Mechanical Engineering, Military University of Technology, 00-908 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Materials 2022, 15(1), 378; https://doi.org/10.3390/ma15010378
Submission received: 1 December 2021 / Revised: 22 December 2021 / Accepted: 31 December 2021 / Published: 5 January 2022
Browse Figures
Review Reports Versions Notes

Abstract

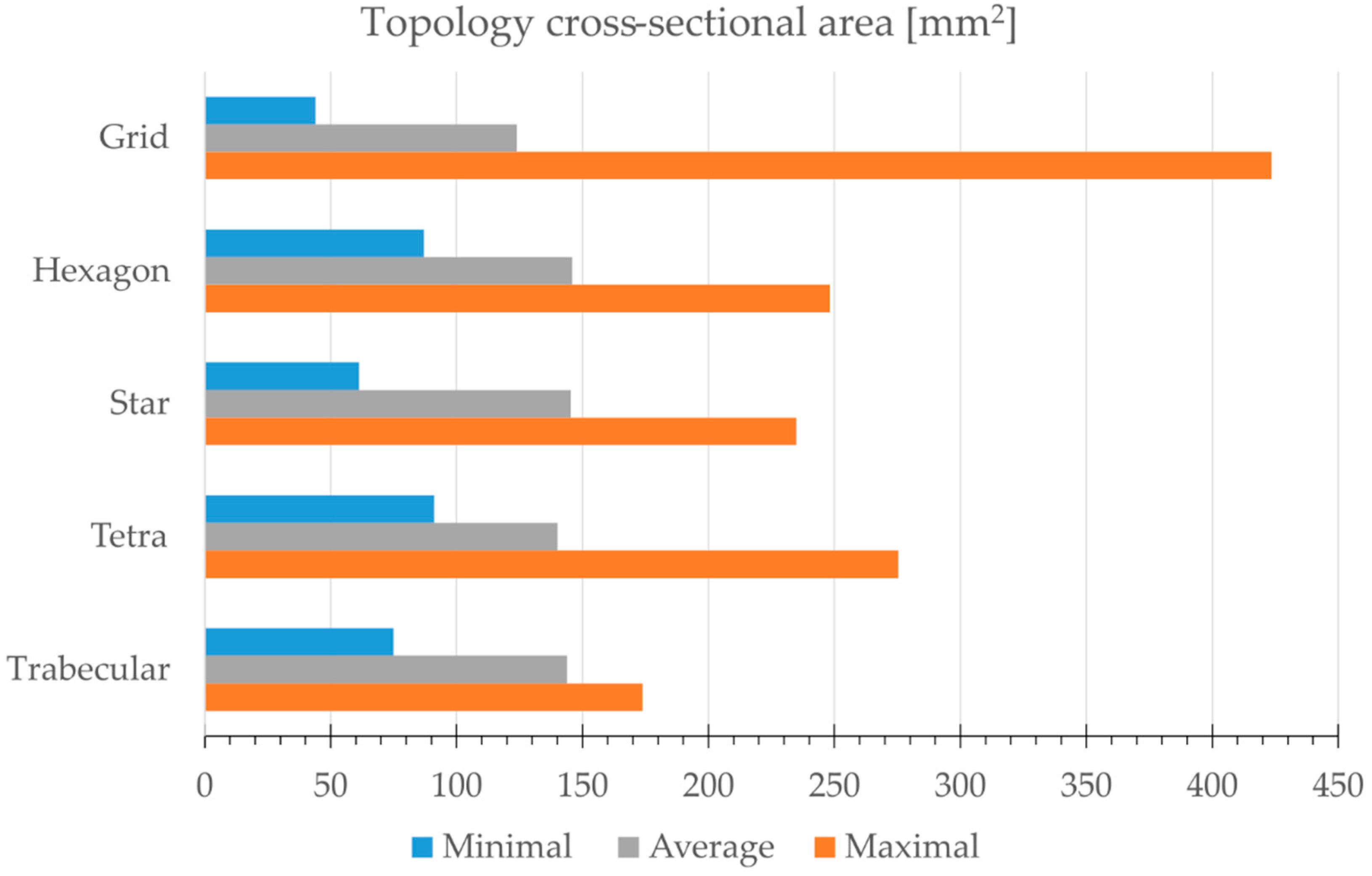

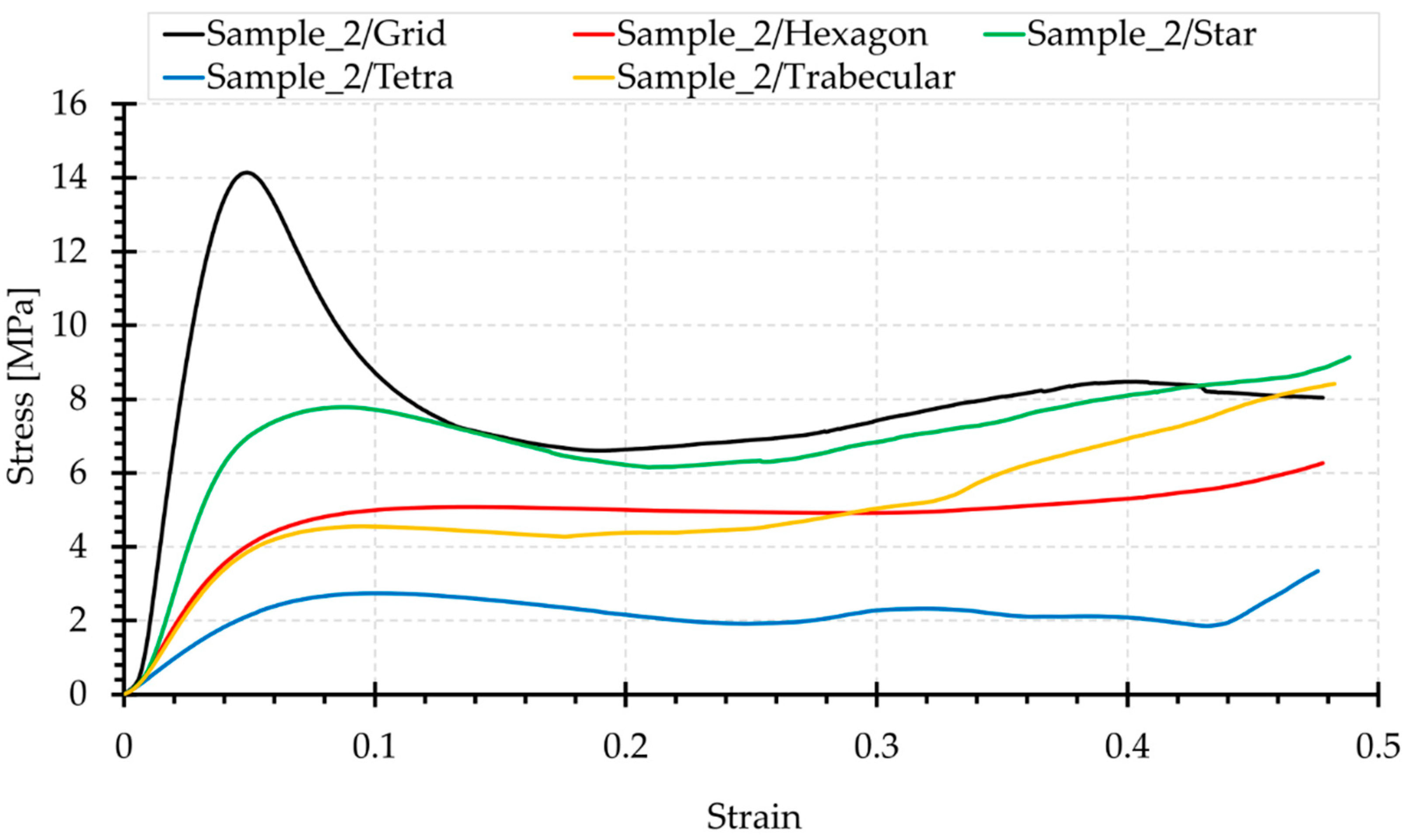

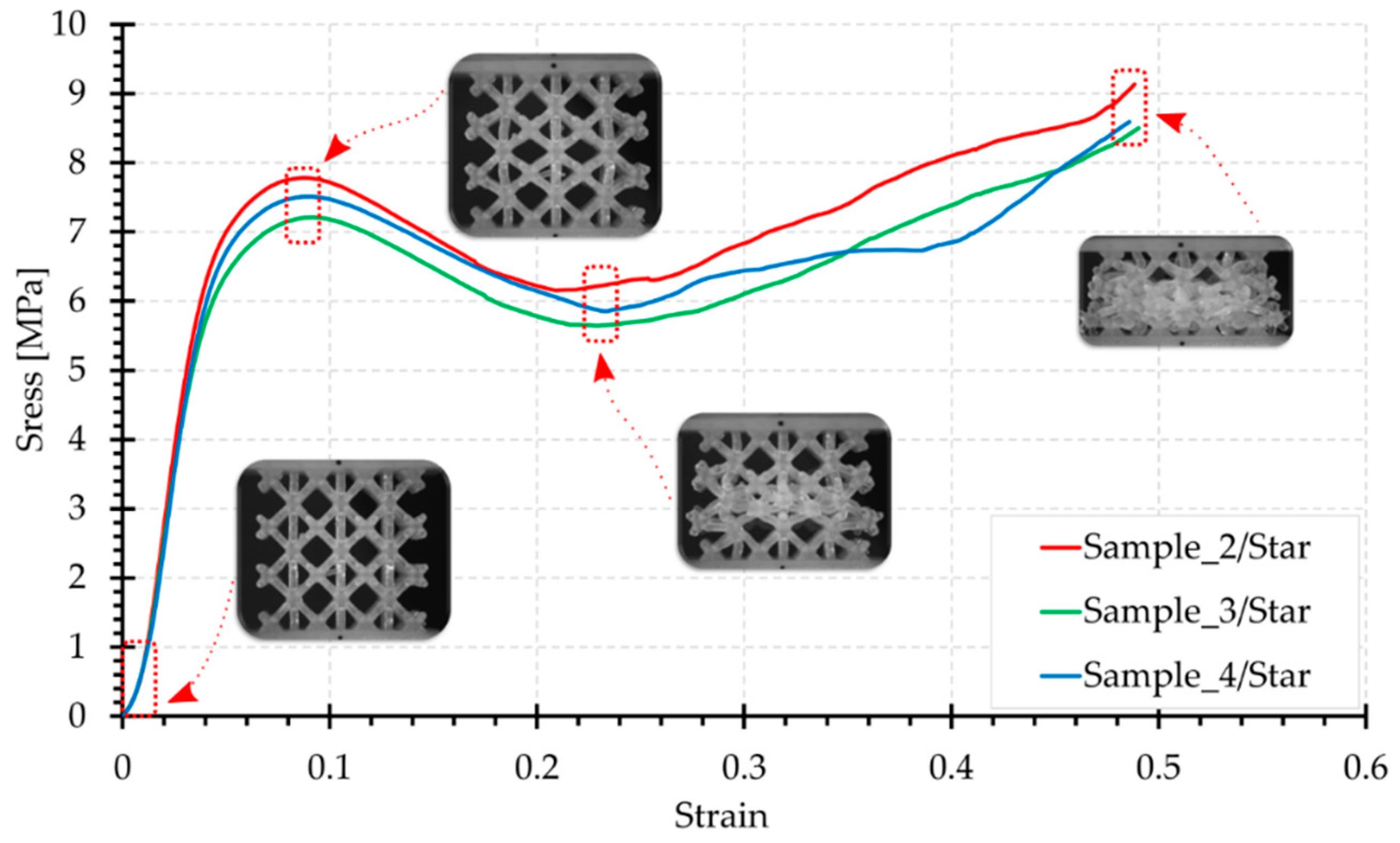

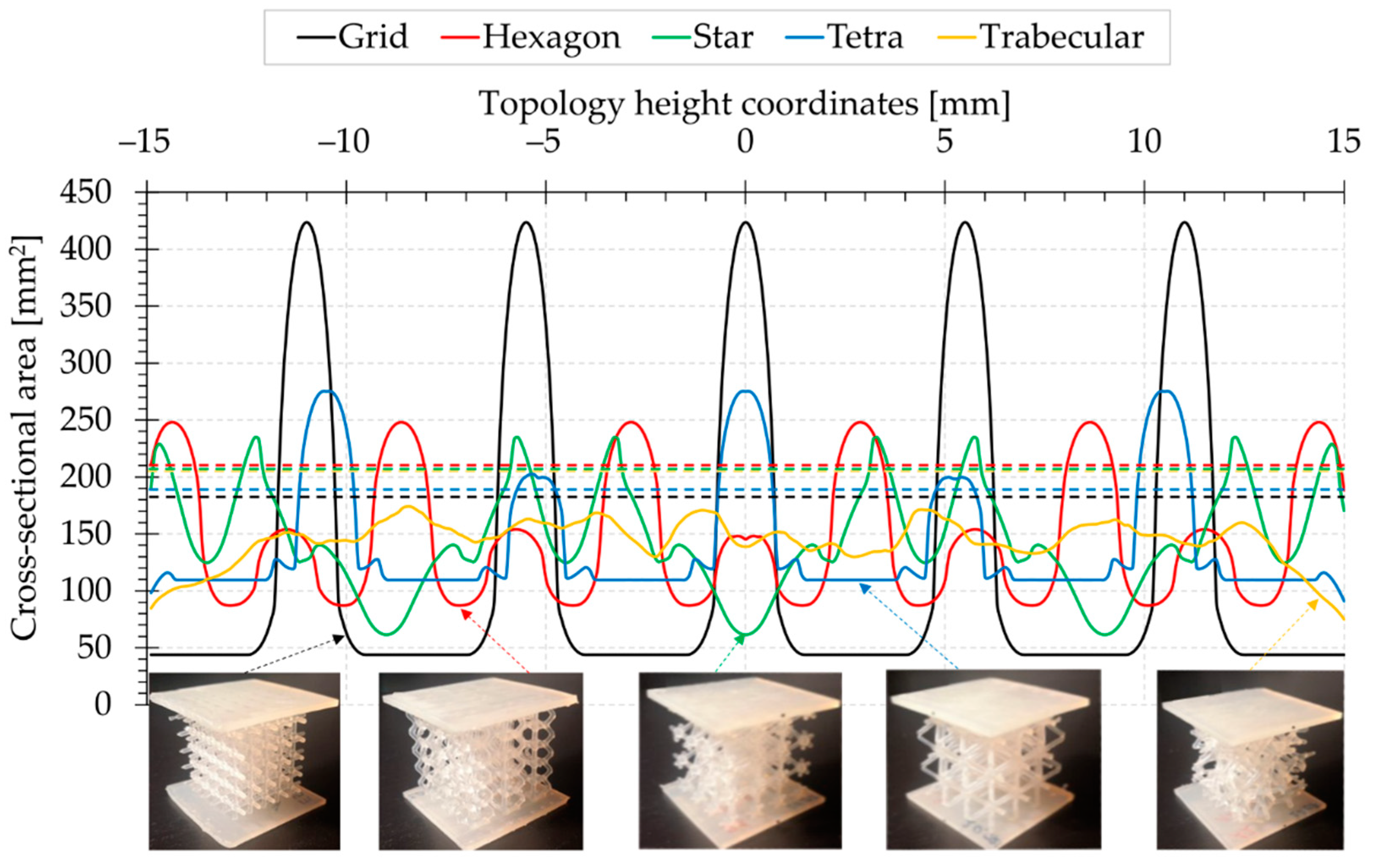

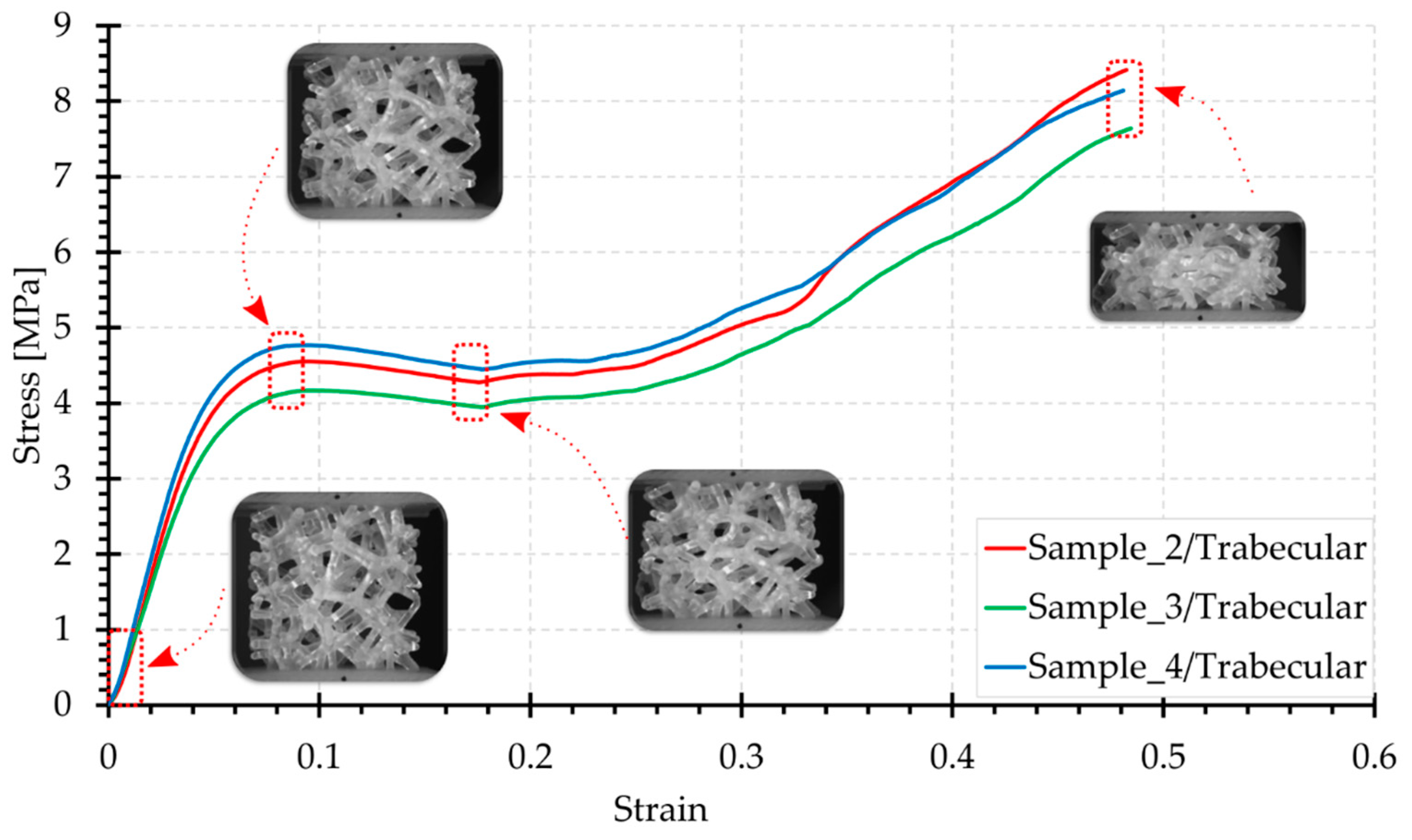

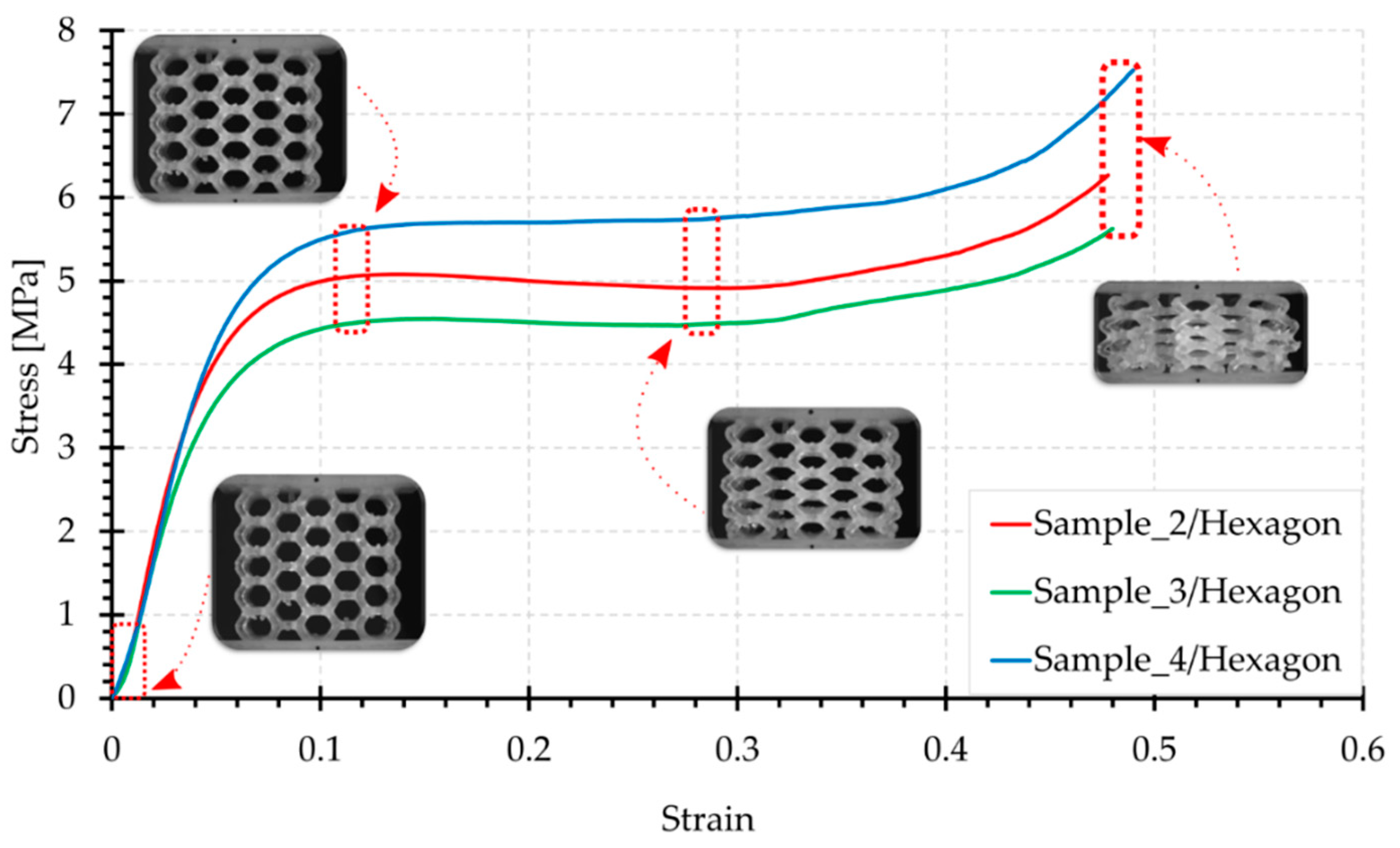

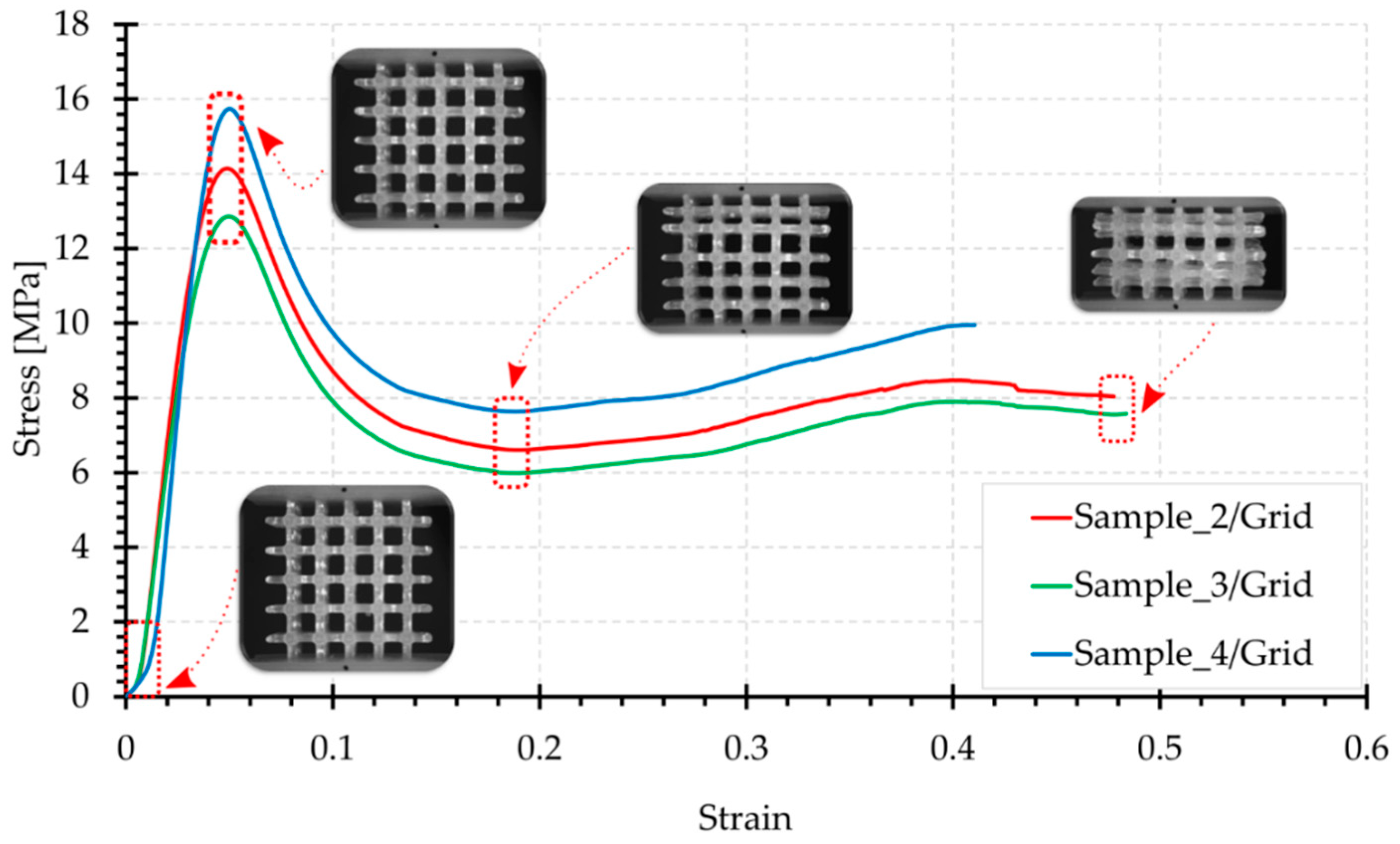

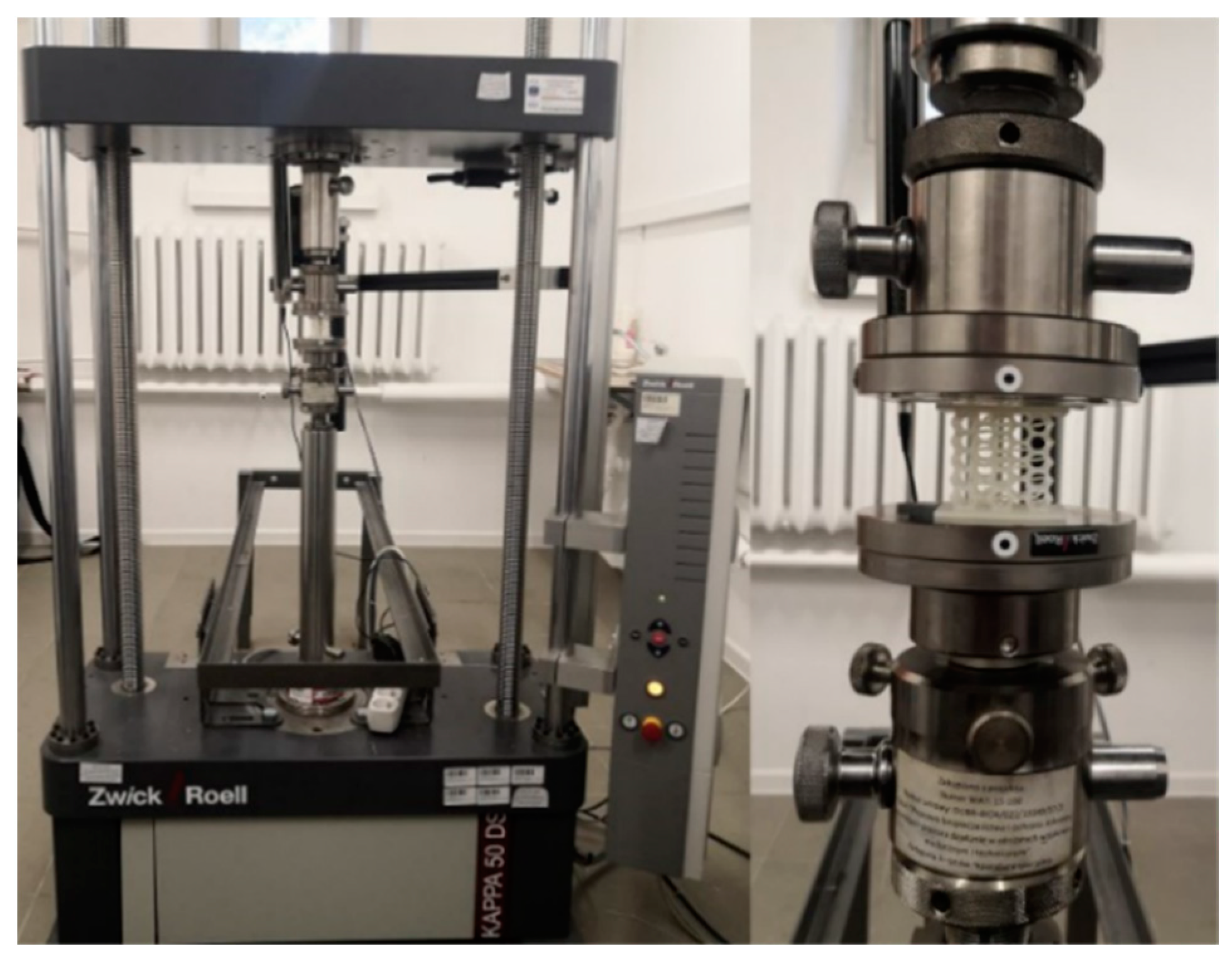

This paper presents the results of the experimental research of 3D structures developed with an SLA additive technique using Durable Resin V2. The aim of this paper is to evaluate and compare the compression curves, deformation process and energy-absorption parameters of the topologies with different characteristics. The structures were subjected to a quasi-static axial compression test. Five different topologies of lattice structures were studied and compared. In the initial stage of the research, the geometric accuracy of the printed structures was analysed through measurement of the diameter of the beam elements at several selected locations. Compression curves and the stress history at the minimum cross-section of each topology were determined. Energy absorption parameters, including absorbed energy (AE) and specific absorbed energy (SAE), were calculated from the compression curves. Based on the analysis of the photographic material, the failure mode was analysed, and the efficiency of the topologies was compared.
Keywords: 3D topologies; lattice structures; 3D printing; additive manufacturing technique; experimental research; energy absorbing test; compression curves 3D topologies; lattice structures; 3D printing; additive manufacturing technique; experimental research; energy absorbing test; compression curves

Share and Cite

MDPI and ACS Style

Bogusz, P.; Popławski, A.; Stankiewicz, M.; Kowalski, B. Experimental Research of Selected Lattice Structures Developed with 3D Printing Technology. Materials 2022, 15, 378. https://doi.org/10.3390/ma15010378

AMA Style

Bogusz P, Popławski A, Stankiewicz M, Kowalski B. Experimental Research of Selected Lattice Structures Developed with 3D Printing Technology. Materials. 2022; 15(1):378. https://doi.org/10.3390/ma15010378

Chicago/Turabian Style

Bogusz, Paweł, Arkadiusz Popławski, Michał Stankiewicz, and Bartłomiej Kowalski. 2022. "Experimental Research of Selected Lattice Structures Developed with 3D Printing Technology" Materials 15, no. 1: 378. https://doi.org/10.3390/ma15010378

APA Style

Bogusz, P., Popławski, A., Stankiewicz, M., & Kowalski, B. (2022). Experimental Research of Selected Lattice Structures Developed with 3D Printing Technology. Materials, 15(1), 378. https://doi.org/10.3390/ma15010378
