The Effect of Magnesium Hydroxide Addition on the Extinguishing Efficiency of Sodium Bicarbonate Powders

Abstract

This article analyzes the possibility of the modification of BC powder (a mixture of sodium bicarbonate and calcium carbonate) with magnesium hydroxide (Mg(OH)₂). Extinguishing efficiency as well as the influence of this additive on other physicochemical properties were determined by performing a 13B fire test, rheological measurements of the powders, thermal tests (thermogravimetry (TG) and differential scanning calorimetry (DSC) in combination with quadrupole mass spectrometry (QMS)) and microscopic observations of the powders’ surface (scanning electron microscope (SEM) with energy dispersive X-ray analysis (EDS)). It was found that the increase of the Mg(OH)₂ content causes deterioration of the rheological properties by increasing the slope angle of the flow curve in relation to the normal stress (the tangent of the flow curve slope varying from 0.258 for 5% of Mg(OH)₂ up to 0.330 for 20% of Mg(OH)₂). However, at the same time, the increased content of Mg(OH)₂ increases the total energy of the chemical decomposition reaction (from −47.27 J/g for 5% of Mg(OH)₂ up to −213.6 J/g for 20% of Mg(OH)₂) resulting in the desirable higher level of heat removal from the fire. The initial extinguishing effect of the fire becomes more effective as the hydroxide content increases (within the first 2 s), but at a later stage (from t = 63 s), the temperature is no longer sufficient (it is below 350 °C) for thermal decomposition of Mg(OH)₂. As such, the optimal content of Mg(OH)₂ is 10–15%. The obtained results allowed for the assessment of the impact of individual powder components on its extinguishing effect and will contribute to the development of science in the field of developing new types of extinguishing powders.

1. Introduction

The powders available in portable firefighting equipment can, in principle, be divided into two groups: ABC powders suitable for extinguishing solids, flammable liquids and gases, and BC powders suitable for extinguishing flammable liquids and gases. Powder extinguishers are expected to be universal, affordable and easy to use, even by amateurs.

The extinguishing mechanism of the extinguishing powders depends on their chemical composition, microstructure and grain size. In the extinguishing process, a cloud of extinguishing powder is directed to the fire to lower the oxygen concentration, absorb heat and capture the radicals of chain reactions. According to modern theories, these radicals are the result of the pyrolytic decomposition of combustible materials, water or other reactions taking place in the fire environment which support the fire [1,2,3,4,5].

After the implementation of the Montreal Protocol (1987) [6], new solutions and new substances were searched for to be used in extinguishers instead of the previously commonly used halon. One of such compounds is magnesium hydroxide. Its addition can prevent powder agglomeration without unnecessary treatments and allow the extinguishing powders to penetrate a flame more effectively. Thanks to this, it can decrease the characteristic temperatures at different stages of the fire and absorb flame more quickly [7,8,9,10,11,12,13].

In the extinguishing process, apart from the mechanism of capturing the radicals of the chain reaction, the granulation of the powders, their particle size and surface modification also play a key role. Finer grinding/milling of the powders increases the total surface area, and thus creates more surface contact between free radicals present in the flame. Surface modification such as a coating can do likewise. As a result, the extinguishing powder allows for more effective neutralization of free radicals and inhibition of the combustion process [1,7,9,10,14,15,16,17,18,19,20,21].

Due to the above mechanism, the extinguishing efficiency depends on the number of products of the endothermic reactions created in the process of thermal decomposition in the gas phase and on the surface of the micrograins. Natural magnesium hydroxide is used commercially as a flame retardant. With a high degree of probability, this property can be attributed to the thermal decomposition of an endoenergetic nature at a temperature of approx. 330 °C. The heat absorbed during this reaction slows the burning process, and the released water hinders access to oxygen [1,8].

In this paper, components of the powder system are magnesium hydroxide, sodium bicarbonate and calcium carbonate. The last two compounds are commonly used in the extinguishing powders [22,23,24,25,26,27], but there is a lack of information about their mutual influence on the extinguishing effect. Hence, studies on the determination of the effect of magnesium hydroxide at the expense of sodium bicarbonate on both the fire extinguishing efficiency and the mechanism of action are justified. This article presents the possibility of replacing sodium bicarbonate with magnesium hydroxide and its results in terms of rheological and thermal properties, as well as the extinguishing efficiency of group B according to European standards. The obtained results will contribute to the development of the new types of extingusihing powders.

2. Materials and Methods

Four mixtures of BC type extinguishing powders consisting of magnesium hydroxide and sodium bicarbonate of various proportions, as well as calcium carbonate (constant amount) and an anti-caking agent in the amount of 5 wt%, were used for the tests. Powders were obtained from Caldic Deutschland GmbH, Am Karlshof 10, 40231 Dusseldorf. Their composition is shown in

Table 1. Composition of the tested fire extinguishing powders.

Sample Number	Mg(OH)2 [wt%]	NaHCO3 [wt%]	CaCO3 [wt%]	Anti-Caking Agent [wt%]
1	5	15	75	5
2	10	10	75	5
3	15	5	75	5
4	20	0	75	5

.

Characterization of the BC Extinguishing Powders

Extinguishing efficiency tests were carried out in accordance with the ISO7165 standard [28] by performing a 13B fire test. In total, 4 dm³ of water and 9 dm³ of heptane of parameters in accordance with the EN 3-7:2004 standard (distillation curve from 84 to 105 °C, the difference between the starting and ending point of distillation of ≤10 °C and the density at 15 °C in the range from 0.680 to 0.720 kg/dm³ [29]) were poured into a metal tray with a diameter of 740 ± 10 mm and a depth of 150 ± 5 mm. The fuel was set on fire and allowed to burn freely for 1 min. After that, extinguishing was started directing the stream of powder to the test fire. During the test, the time of extinguishing the fire and the amount of the remaining extinguishing powder were measured. In addition, the temperature above the flame was measured with the use of 7 thermocouples placed at heights of 0, 25, 50, 75, 100, 125 and 150 cm above the water layer (Figure 1).

The rheological measurements of the powder mixtures were performed with the use of a Brookfield Powder Flow Tester. The flow functions and the density curves as a function of normal stress, compared in terms of caking ability, were determined. The tests were carried out up to stress values of 8.6 kPa. The tested powders were intended for the so-called cartridge-operated fire extinguishers, into which1 kg of the powder was placed. The cylinder of these extinguishers had a diameter of 86 mm. The pressure exerted by 1 kg of the powder on the bottom of a fire extinguisher of this diameter was [29]:

$$p=\frac{F}{S}=\frac{m\cdot g}{\frac{\pi \cdot d^2}{4}}=\frac{1\mathrm{kg}\cdot 9.81\frac{\mathrm{m}}{{\mathrm{s}}^2}}{\frac{\pi \cdot {(86\mathrm{mm})}^2}{4}}=\frac{9.81\mathrm{N}}{5808.8\mathrm{m}{\mathrm{m}}^2}=1.69\mathrm{kPa}$$

(1)

where p is the pressure exerted by the powder on the bottom of the fire extinguisher cylinder [kPa], F is the pressure force expressed as the product of the mass powder and gravity [N], and S is the pressure area expressed as the area of the round bottom of the fire extinguisher cylinder [mm²].

In view of the above, it was reasonable to conduct tests in the normal stress range of a few kPa. Due to the fact that the cartridge-operated fire extinguishers are pressurized devices only at the time of operation, the above calculations did not take into account the influence of the propellant gas. The self-compaction of the powder under its own weight had a much stronger influence on the flow of the powder.

Conducted thermal tests (thermogravimetry (TG) and differential scanning calorimetry (DSC) in combination with quadrupole mass spectrometry (QMS)) helped to compare the properties of the powder compositions in terms of the ability to remove heat from the fire, weight loss and gas identification. TG and DSC tests were carried out using a NETZSCH thermal analyzer, STA 449 F3 Jupiter model equipped with a QMS analyzer, heating the powder sample at a rate of 10 °C/min to a 1000 °C in corundum crucibles. During the test, the mass of the sample was measured, obtaining a thermogravimetric curve, and the determined DSC curve allowed for the identification of energy effects occurring during heating. In addition, the numberof released gases with specific atomic masses was measured using a QMS analyzer. The powders were also observed under the SEM NOVA NANO SEM 200 microscope cooperating with the EDS analyzer by EDAX. These tests were carried out in a low vacuum, and the powder samples were sputtered with carbon before microscopic observation.

3. Results and Discussion

3.1. Rheology of the Extinguishing Powders

From arheological point of view, powders can be divided into four groups: free-flowing, easy flowing, cohesive and very cohesive. The characteristic value qualifying the powder to a given group is the tangent of the flow curve slope to the normal stress axis. This value was calculated on the basis of the following equation [30]:

$$tg\alpha =\frac{UF{S}_{\max }-UF{S}_{\min }}{MPC{S}_{\max }-MPC{S}_{\min }}$$

(2)

where UFS_max is the highest value of the unconfined failure strength [kPa], UFS_min is the lowest value of the unconfined failure strength [kPa], MPCS_max is the highest value of the major principal consolidating stress [kPa], and MPCS_min is the lowest value of the major principal consolidating stress [kPa].

The Jenike powder classification matrix is presented in

Table 2. Classification of the powders from the flow function point of view.

Type of the Powder	$tg\alpha$
Free flowing	<0.10
Easy flowing	<0.25
Cohesive	<0.50
Very cohesive	<1.00

[30].

The flow curves of the tested powders are shown in Figure 2.

Values of the $tg\alpha$ calculated on the basis of Equation (2) and the classification of the powders in terms of their cohesiveness are shown in

Table 3. Classification of the tested powders.

Sample Symbol	$tg\alpha$	Type of the Powder
5% Mg(OH)2	0.258	Cohesive
10% Mg(OH)2	0.282	Cohesive
15% Mg(OH)2	0.307	Cohesive
20% Mg(OH)2	0.330	Cohesive

and in Figure 3.

The conducted measurements show that all of the powders have a tendency to cake, i.e., self-adhere, especially at the consolidation pressure above 2 kPa. In the context of the application use of these powders, this is disadvantageous. This is because lower  values are expected from the extinguishing powders, which allows them to escape from the cylinder. However, in the self-compacting conditions in the cartridge-operated fire extinguishers, these differences are not significant. At the level of normal stress resulting from the pressure of the powder on the fire extinguisher bottom (approx. 1.69 kPa), all analyzed powder samples behaved similarly. As a result, these differences should not be apparent in the context of powder aeration.

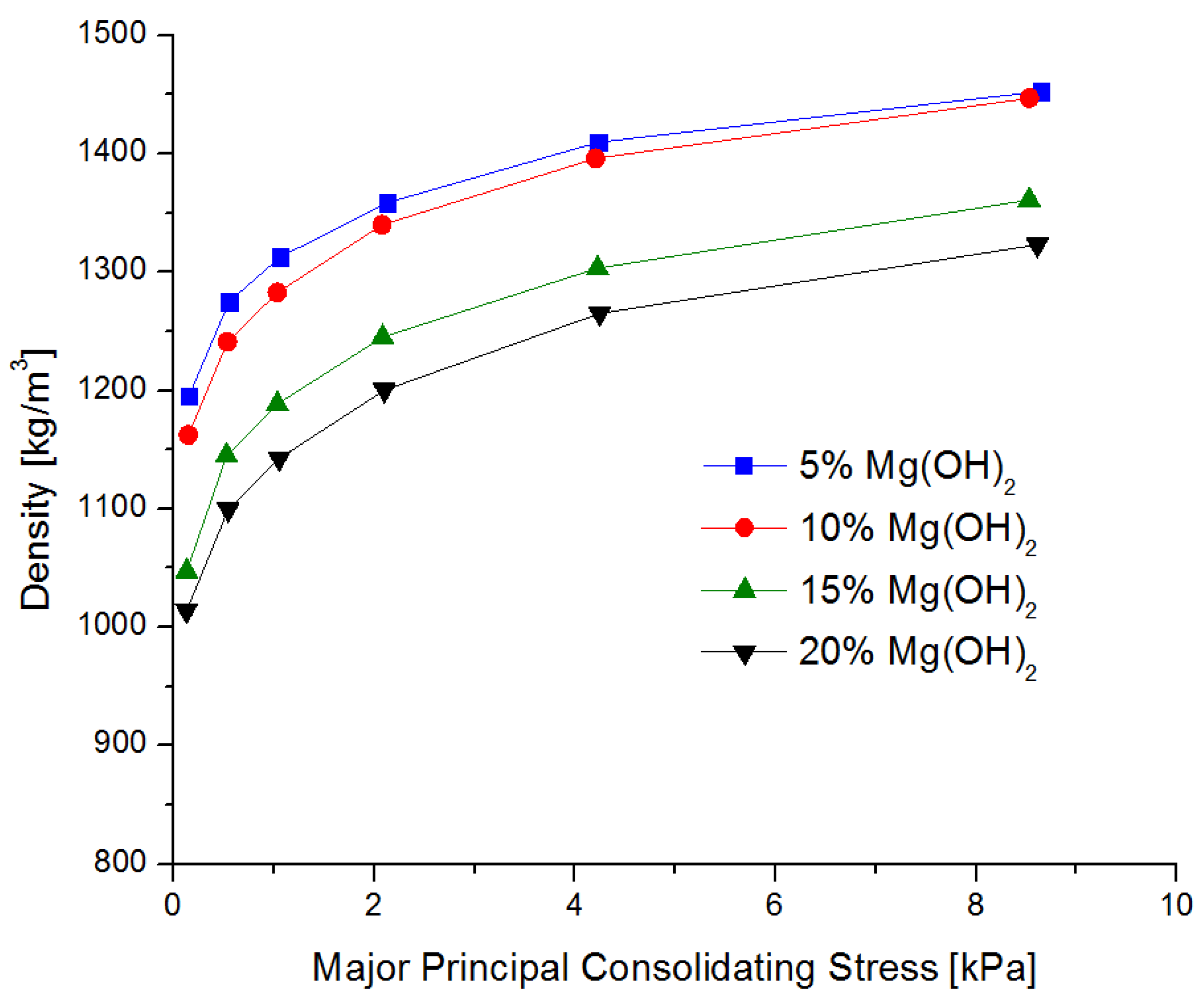

The compaction tendency of the powders was tested in a similar way. The compaction curves are shown in Figure 4.

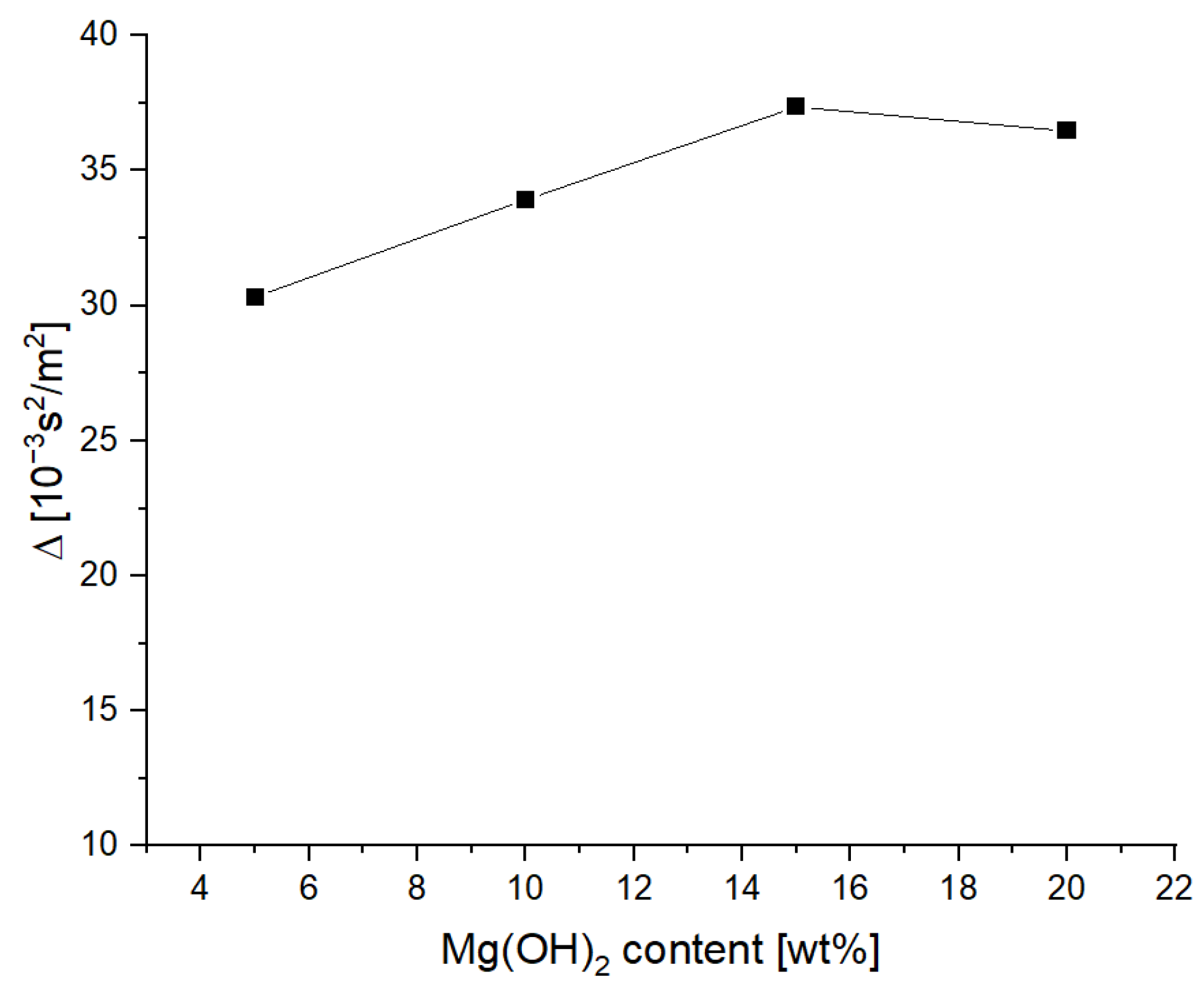

The compaction kinetics, i.e., the $\Delta$ parameter, was determined according to Equation (3) [30]. The results of the compaction kinetics of the powders with different Mg(OH)₂ content are presented in

Table 4. Δ values of the tested powder samples.

Mg(OH)2 Content [wt%]	Δ $[{10}^{-3}\frac{{\mathbf{s}}^2}{{\mathbf{m}}^2}]$
5	30.324
10	33.922
15	37.351
20	36.470

and in Figure 5.

$$\Delta =\frac{d_{\max }-d_{\min }}{MPC{S}_{\max }-MPC{S}_{\min }}[\frac{\mathrm{kg}}{{\mathrm{m}}^3\cdot \mathrm{kPa}}=\frac{\mathrm{kg}\cdot {\mathrm{m}}^2}{{\mathrm{m}}^3\cdot {10}^3\mathrm{N}}={10}^{-3}\frac{\mathrm{kg}}{\mathrm{m}\cdot \mathrm{kg}\cdot \frac{\mathrm{m}}{{\mathrm{s}}^2}}={10}^{-3}\frac{{\mathrm{s}}^2}{{\mathrm{m}}^2}]$$

(3)

where d_max is the highest measured density of the powder [kg/m³], d_min is the lowest measured density of the powder [kg/m³], MPCS_max is the highest value of the major principal consolidating stress [kPa], and MPCS_min is the lowest value of the major principal consolidating stress [kPa].

The value of the Δ parameter increases with the increase in the content of magnesium hydroxide, while after reaching a dozen or so mass percent, it stabilizes at the level of approx. 37 × 10⁻³ $\frac{{\mathrm{s}}^2}{{\mathrm{m}}^2}$ On the other hand, as the magnesium hydroxide content increases, the powder’s density decreases, leaving less space for the propellant gas. This can result in higher ejection energy of a powder containing a higher amount of magnesium hydroxide, which is particularly important in small fires of flammable liquids, where, in addition to the reaction with active radicals from the flame, blowing the flame out of the test fire tray is also expected.

3.2. TG and DSC Analysis

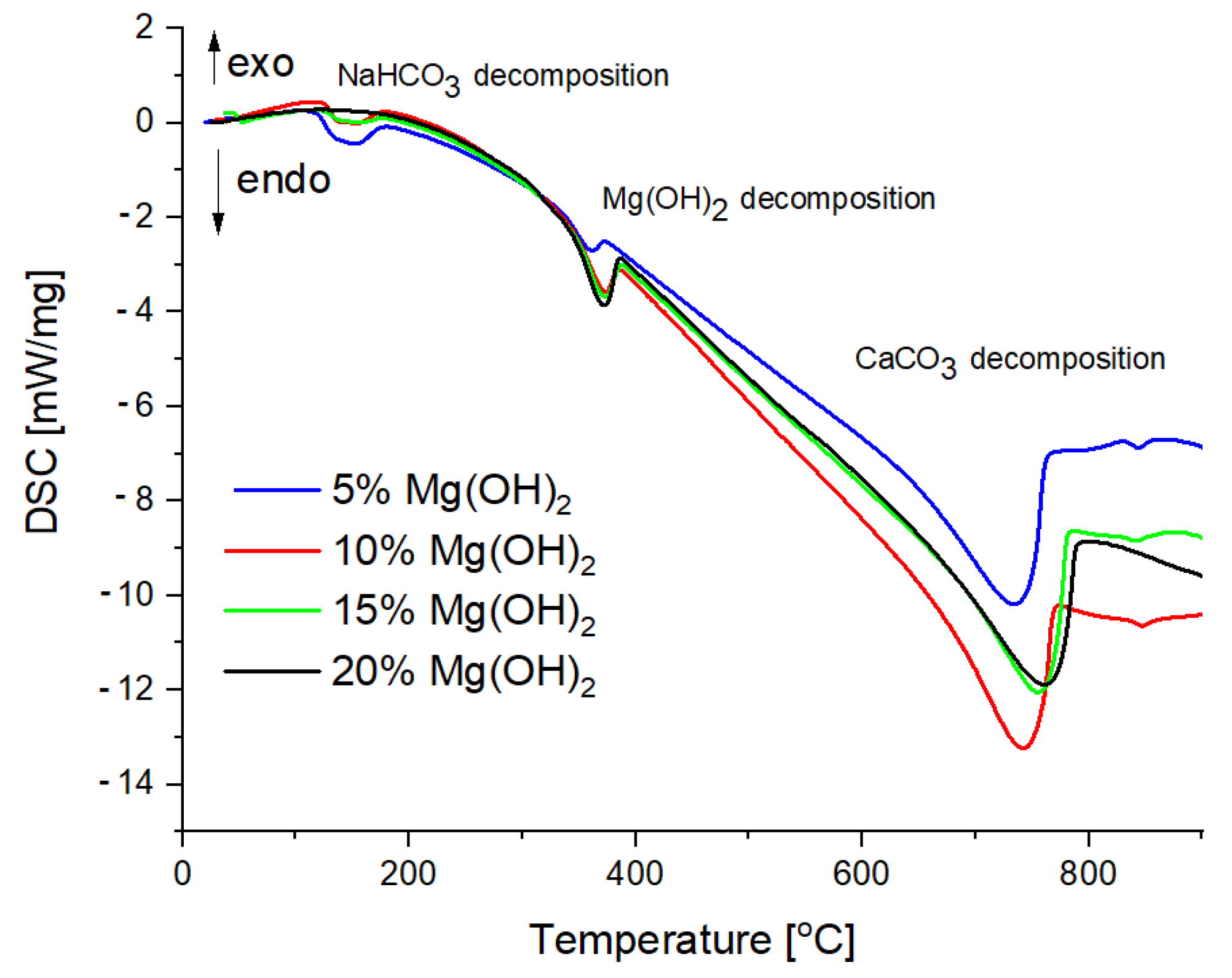

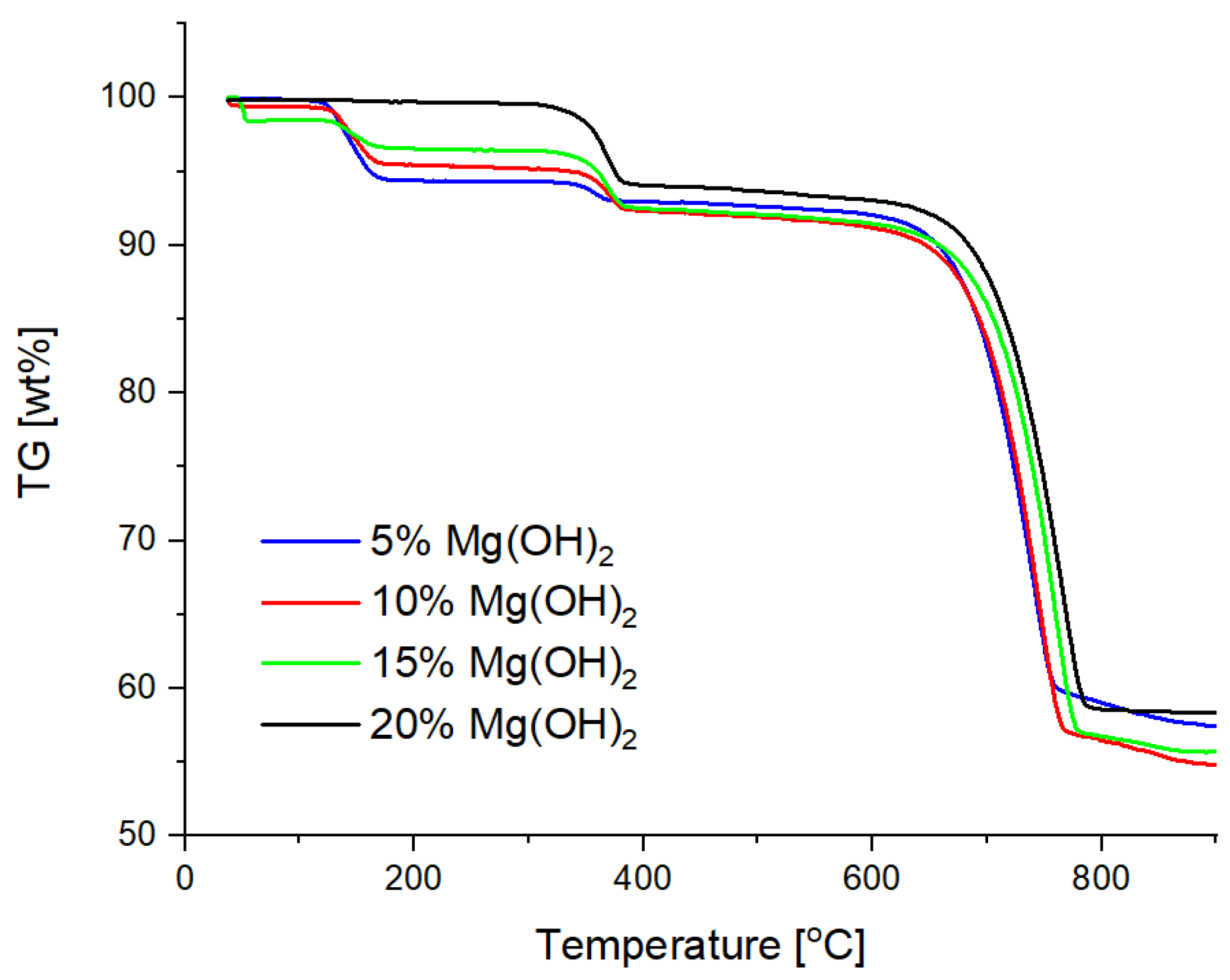

TG curves are shown in Figure 6, whereas DSC curves are shown in Figure 7.

In the temperature range from 100 to 200 °C, the weight loss of the sample occurs due to the gases of 18 and 44 u detected by the QMS analyzer—these are probably gaseous products of sodium bicarbonate decomposition, i.e., carbon dioxide and water. Then, at a temperature of approx. 350 °C, there is a second weight loss of the sample with a gas release of 18 u. This effect is attributed to the thermal decomposition of magnesium hydroxide to magnesium oxide and water. The last effect is a large weight loss at approx. 700 °C, accompanied by a gas release of 44 u, which is attributed to the thermal decomposition of the calcium carbonate. While the decomposition effect of calcium carbonate is similar in individual samples, the decomposition effects of sodium bicarbonate and magnesium hydroxide are the more pronounced the more a given substance is in the sample [31].

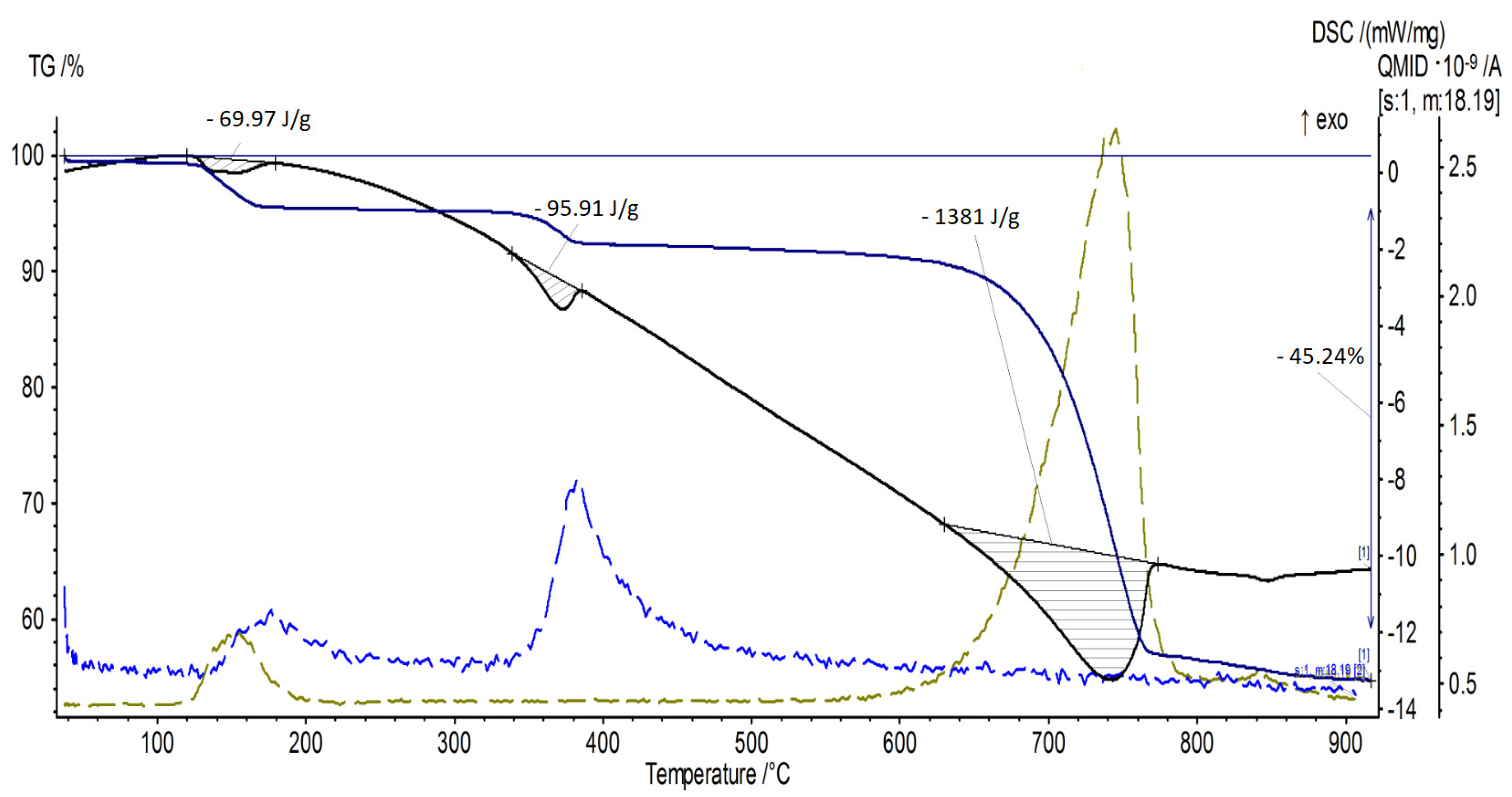

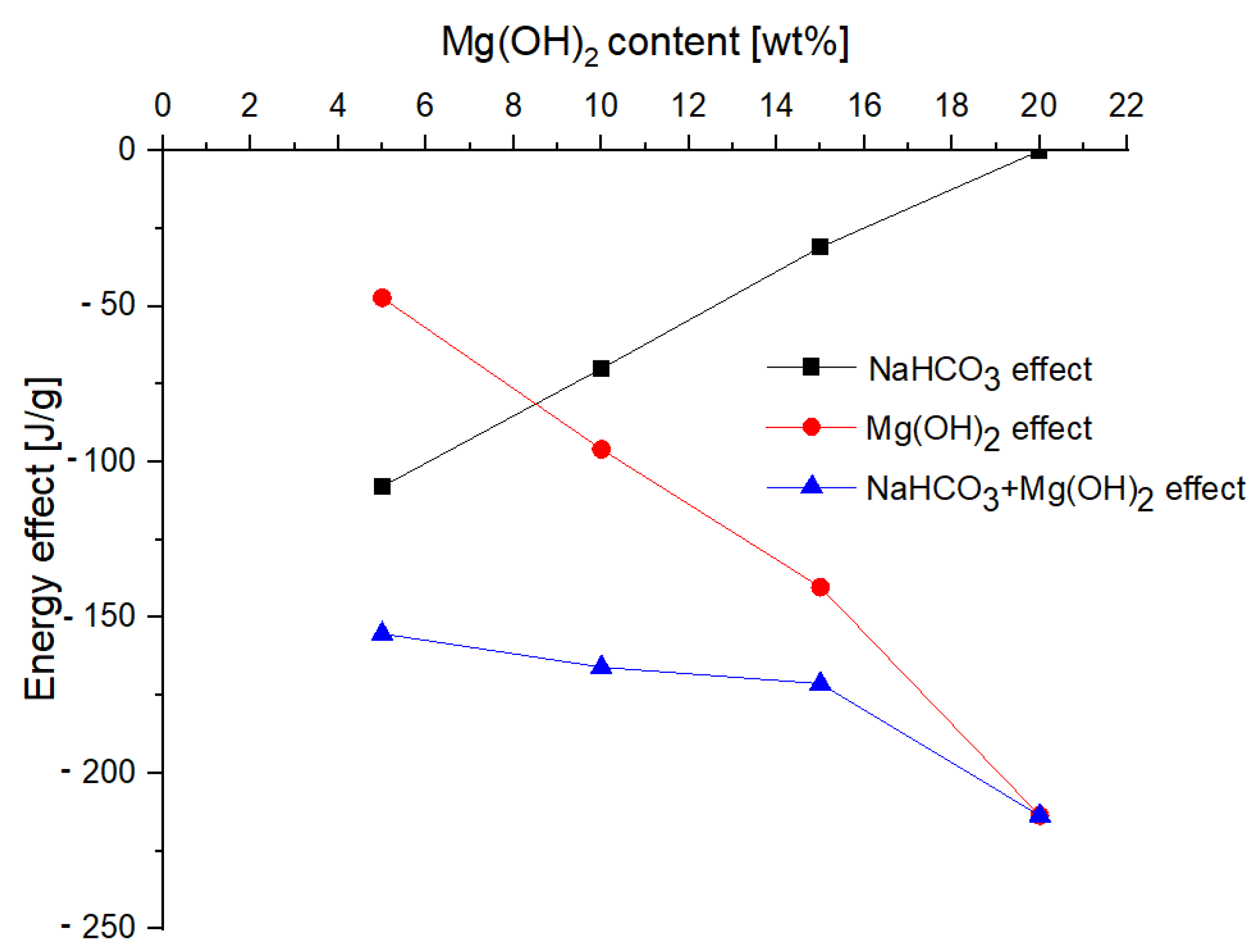

Figure 8 shows in detail both the presence and magnitude of individual energy effects as well as QMS curves showing the emission of gases with a mass of 18 and 44 u. The gas with a mass of 18 u was released in two temperature ranges: approx. 150–200 °C and approx. 350–400 °C. These ranges correspond to the thermal decomposition of sodium bicarbonate and magnesium hydroxide. This gas will be water. In turn, the gas with a mass of 44 u was released in the temperature ranges of approx. 150–200 °C and approx. 650–750 °C. The emission of this gas corresponds to the thermal decomposition of sodium bicarbonate and calcium carbonate. The gas will therefore be carbon dioxide [7,8,32].

Characteristic values of the energy effects from the TG/DSC measurements are presented in

Table 5. Characteristic values of the individual effects from the TG/DSC measurements of the tested powder samples.

Sample Number	Mass Loss [wt%]	Decomposition of NaHCO3 [J/g]	Decomposition of Mg(OH)2 [J/g]	Decomposition of CaCO3 [J/g]	Total Energy Effect [J/g]
1	43.37	−107.9	−47.27	−1410	−1565.17
2	45.24	−69.97	−95.91	−1381	−1546.88
3	44.31	−30.99	−140.2	−1438	−1609.19
4	41.56	0	−213.6	−1582	−1795.60

.

As the content of magnesium hydroxide increases, the value of the endoenergetic effect of its decomposition also increases. Similarly, as a part of reducing the content of sodium bicarbonate, the value of its endoenergetic effect decreases. The comparison of these two effects, as well as their total energy, is presented in Figure 9.

When increasing the content of magnesium hydroxide to the level above 10%, a significant increase in the total energy effect of the thermal decomposition of the extinguishing powder mixture is observed. This effect is caused by the increasing share of the highly endoenergetic effect of the decomposition of magnesium hydroxide to the oxide and water. Based on the measurements, it can be concluded that the bigger the total energy effect is, the higher the share of magnesium hydroxide and the lower the sodium bicarbonate contents are. The energy effect of the decomposition of sodium bicarbonate is lower than that of magnesium hydroxide, therefore the extinguishing powder containing magnesium hydroxide may have better properties from the point of view of heat removal, considering the whole temperature range (0–900 °C) [9,10,11].

3.3. Scanning Electron Microscopy

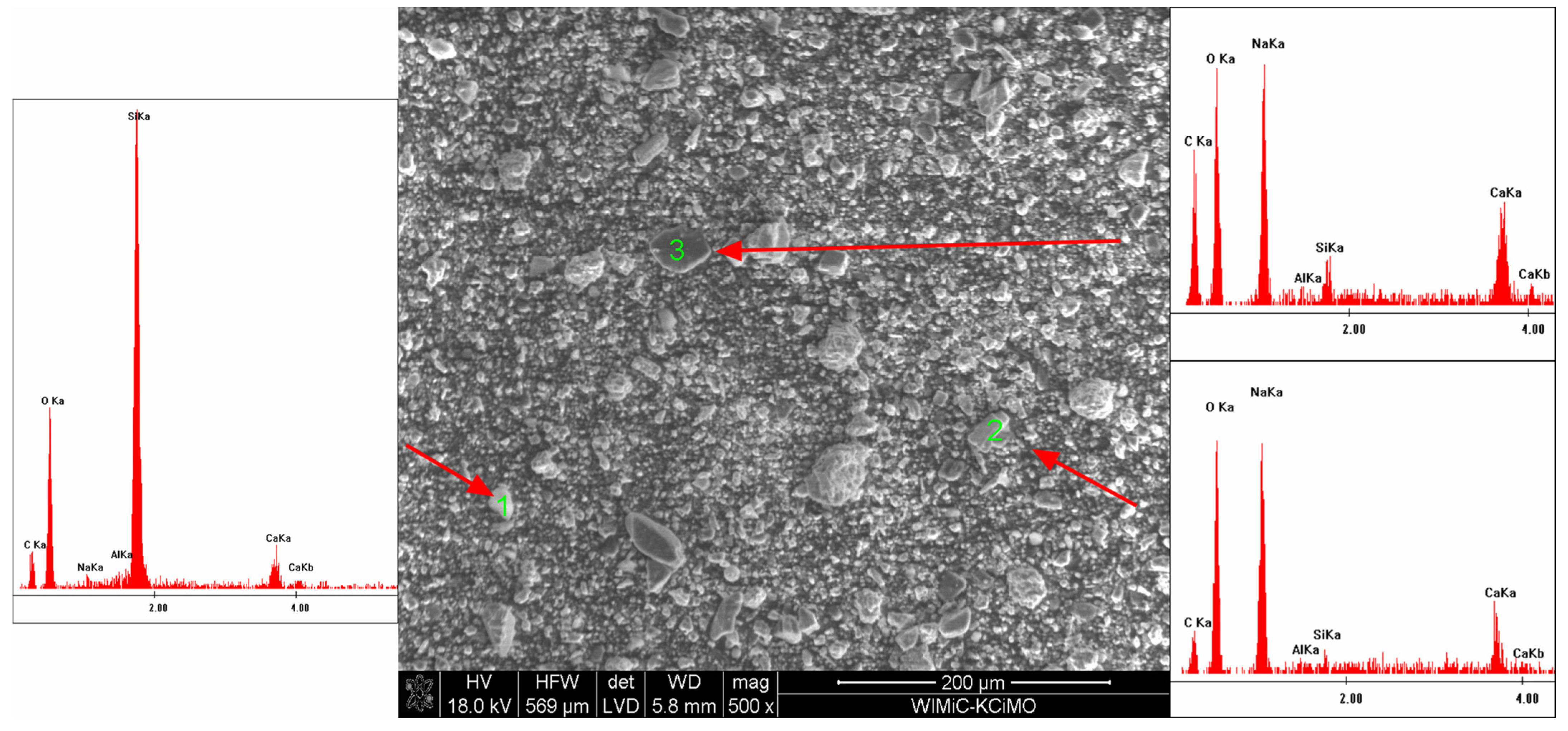

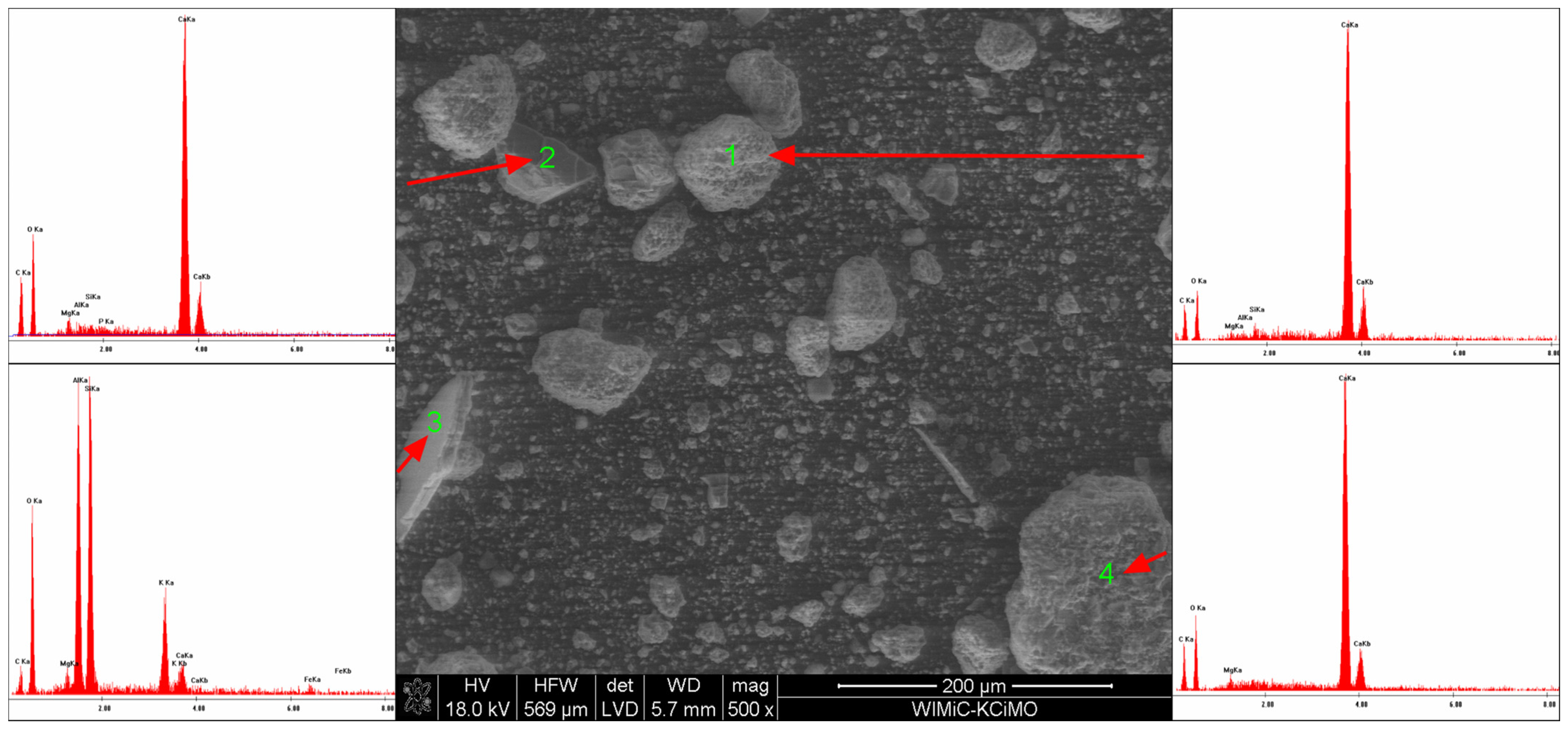

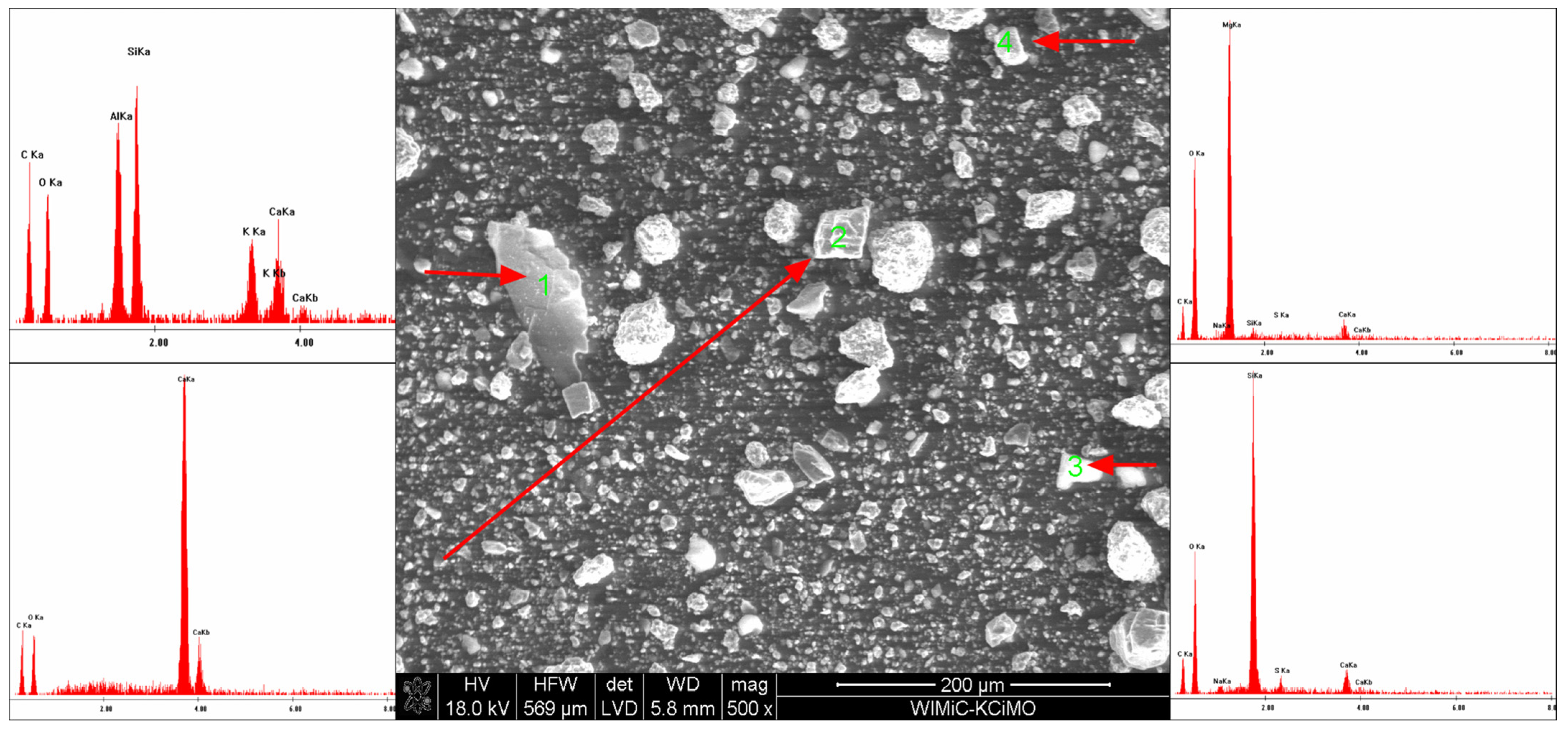

SEM microscope observations have shown that the powder grains have very diverse shapes, from curved to sharp-edged. EDS chemical analysis confirmed the existence of calcium carbonate, sodium bicarbonate and magnesium hydroxide, as well as sodium aluminosilicate. SEM microscopic photographs and the results of the EDS analysis are shown in Figure 10, Figure 11, Figure 12 and Figure 13.

3.4. Fire Tests

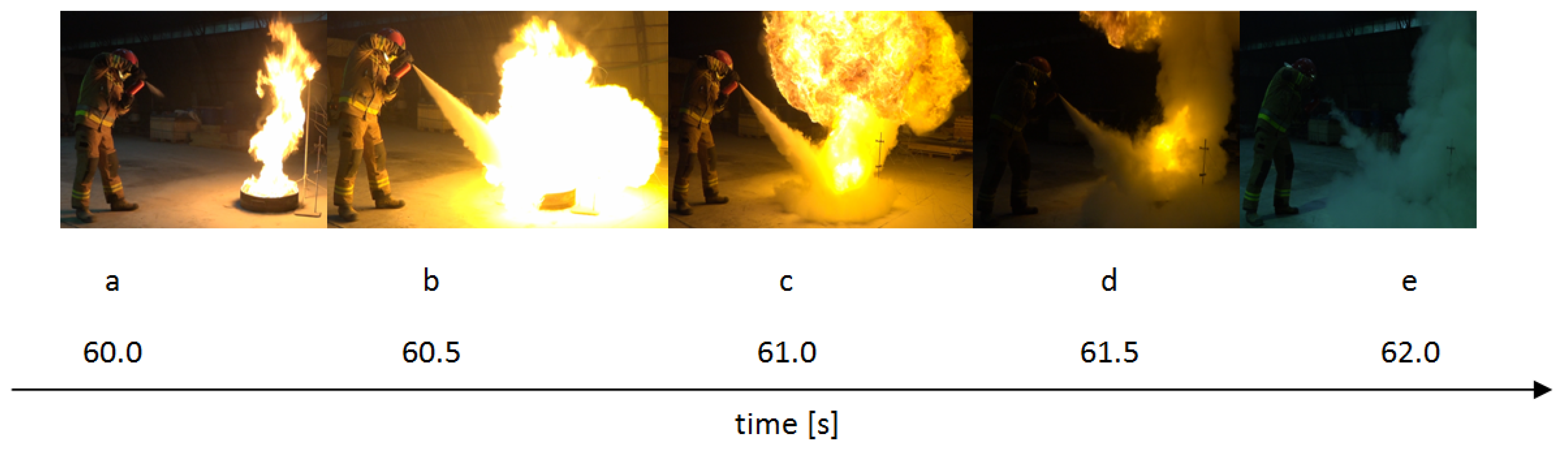

Fire tests were carried out in group B. Four fire tests were carried out for each of the powder mixtures. An exemplary course of fire extinguishing after 60 s from the flashover is shown in Figure 14, while an example of the temperature-time graph for a single measurement is shown in Figure 15. The temperatures were measured from the moment when the fire was ignited (t = 0 s) until the moment of extinction. A characteristic point is the maximum temperature 60 s after the flashover. At this point, the process of fire extinguishing with a one-kilogram fire extinguisher begins, the operating time of which was approx. 6–7 s. The temperature during the test was measured for approx. 70 s (60 s of fuel burning, 6–7 s of extinguishing, 3–4 s after extinguishing the fire).

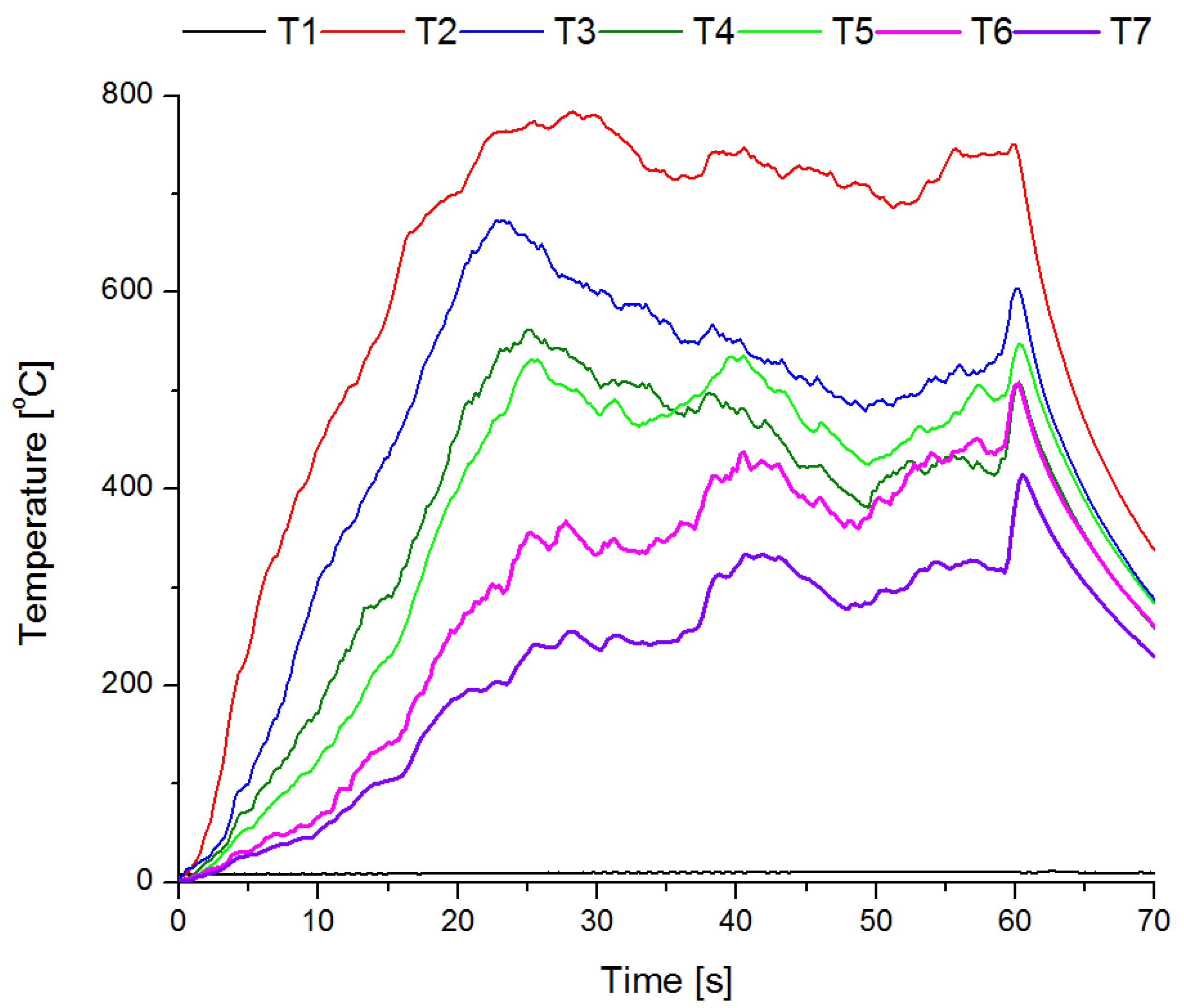

Figure 15 shows that during the first 20 s of the test, the flashover occurs, and then in the range of 20–60 s the temperature stabilizes at each height of the thermocouples above the flame. After 60 s, the temperature drops quickly as a result of the extinguishing. After the flame disappears (maximum 67 s), the air temperature continues to decrease and after 70 s it is from approx. 230 °C to 340 °C, depending on the height above the tray. It can also be seen that the temperature of the water under the fuel layer does not change (9.5 ± 2 °C).

The obtained temperature measurement results were averaged, and then the kinetics of the temperature drop during the extinguishing process were calculated according to Equation (4) [30]:

$$v_{i-j}=\frac{T_i-T_j}{t_i-t_j}[\frac{{}^{°}\mathrm{C}}{\mathrm{s}}]$$

(4)

where v_i−j is the cooling rate [°C/s], T_i is the thermocouple temperature in ‘i’ time (e.g., 60 s) [°C], T_j is the temperature in ‘j’ time (e.g., 61 s) [°C], t_i is the ‘i’ time (e.g., 60 s) [s], and t_j is the ‘j’ time (e.g., 61 s) [s].

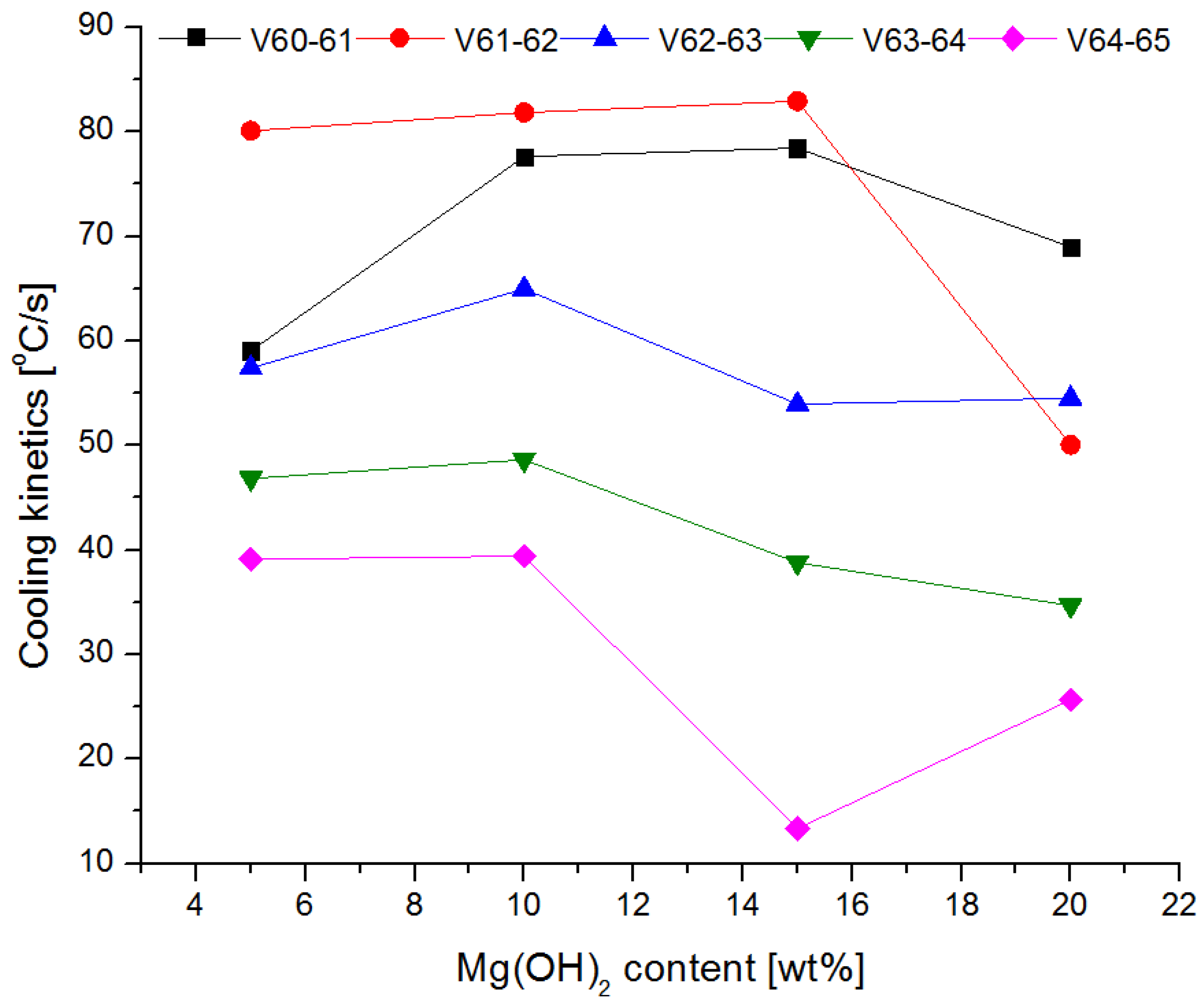

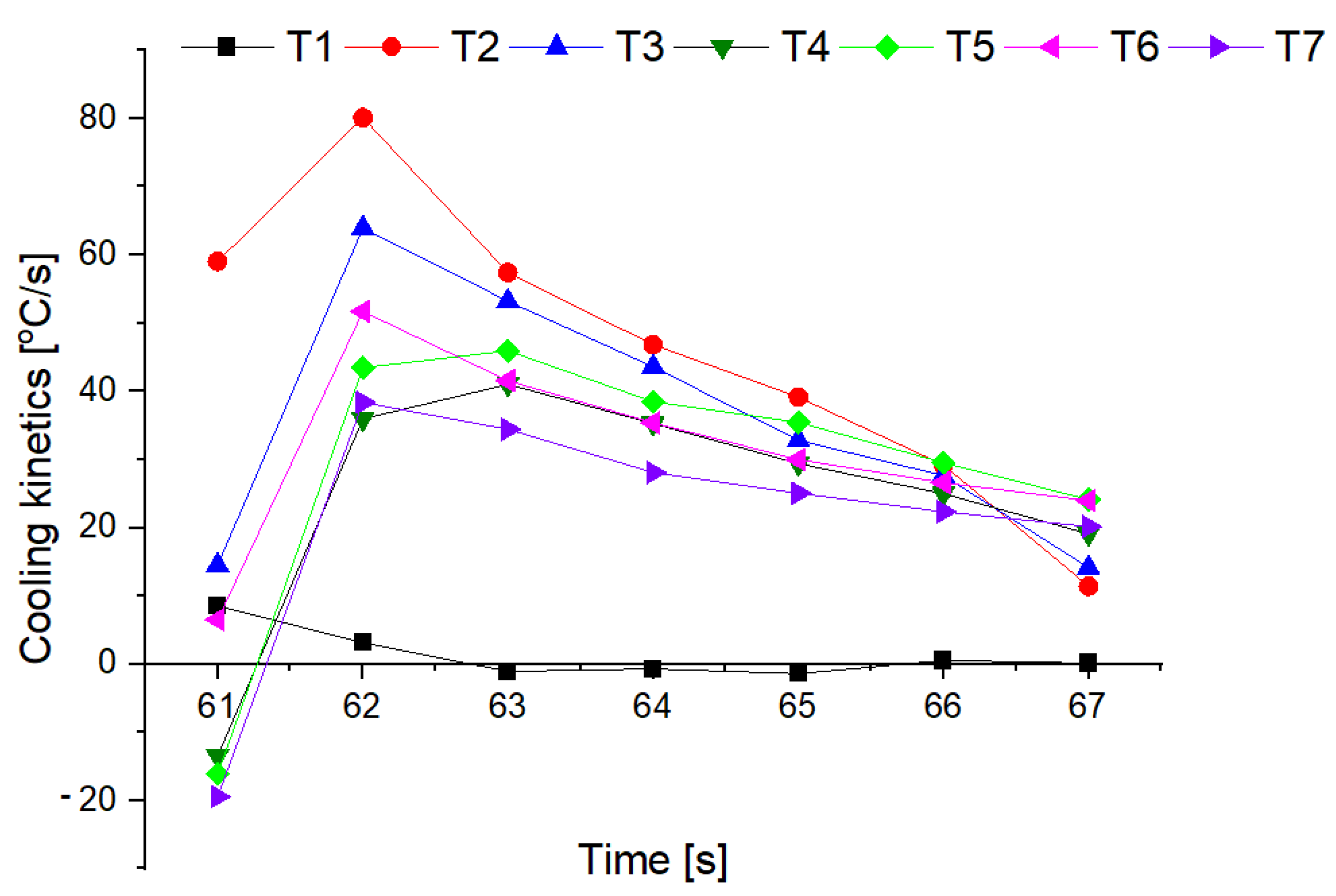

The changes in the cooling rate at different heights above the fire and for individual mixtures of the extinguishing powders are presented in Figure 16 and Figure 17.

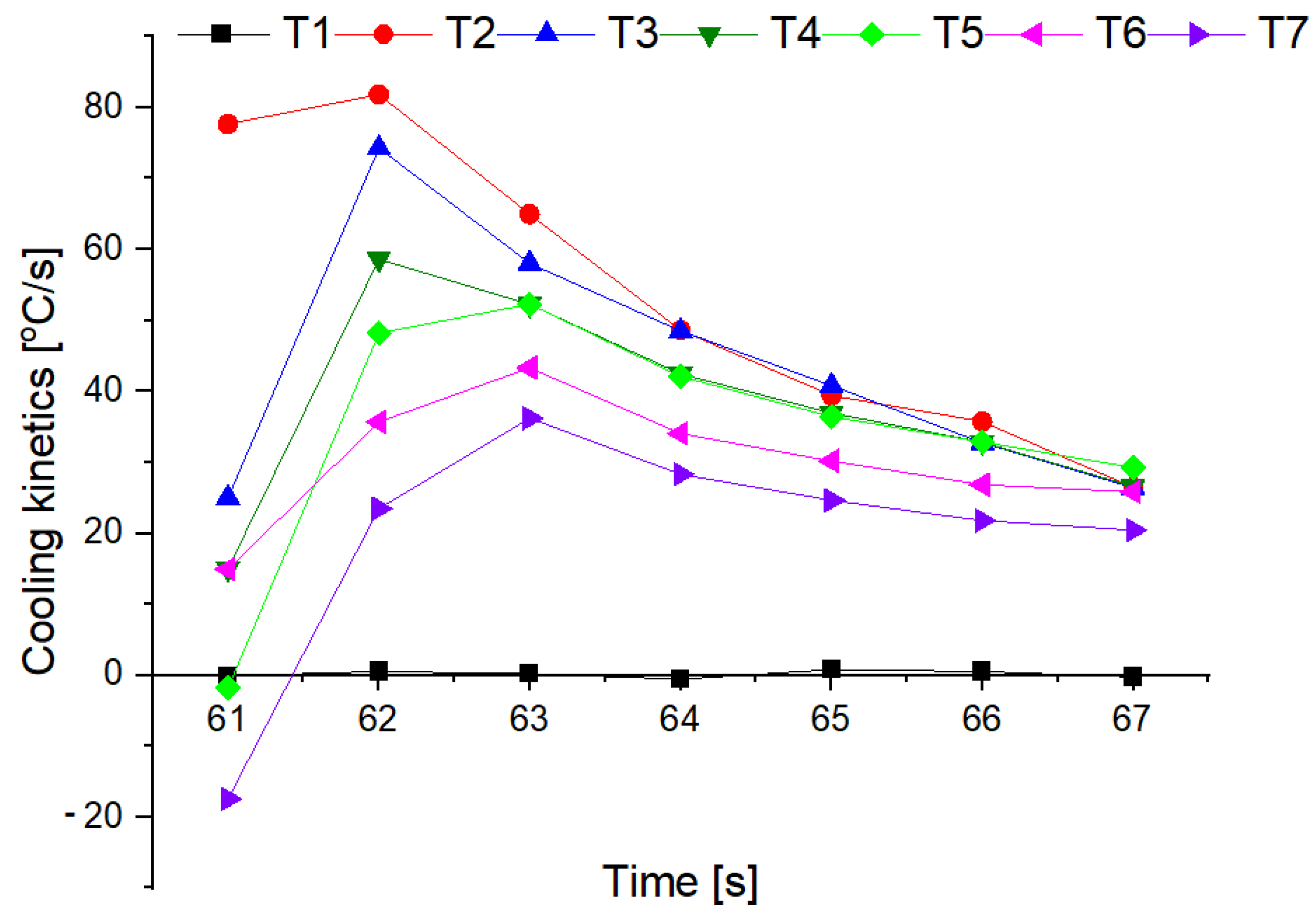

The tests showed that the greatest cooling kinetics during the extinguishing of the test fire occurs within two seconds from the start of extinguishing, regardless of the height of the thermocouples above the tray and the type of powder. The extinguishing kinetics then decrease successively over time (Figure 16 and Figure 17). It can also be noticed that thermocouples at higher heights (above 75 cm) have a negative kinetic value, which means an increase in temperature at the initial extinguishing time. This is the result of the formation of a characteristic ‘fire mushroom’ (flashover) (Figure 14c). This is likely due to the addition (suction) of additional oxygen while the powder is being introduced to the fire. This phenomenon was observed in each extinguishing test. In the case of the powders containing 15% and 20% of magnesium hydroxide, negative values of the cooling rate at low heights were observed (25 cm and 50 cm above the fire). This proves that the fire temperature rises at the end of the extinguishing process, i.e., the fire has not been extinguished.

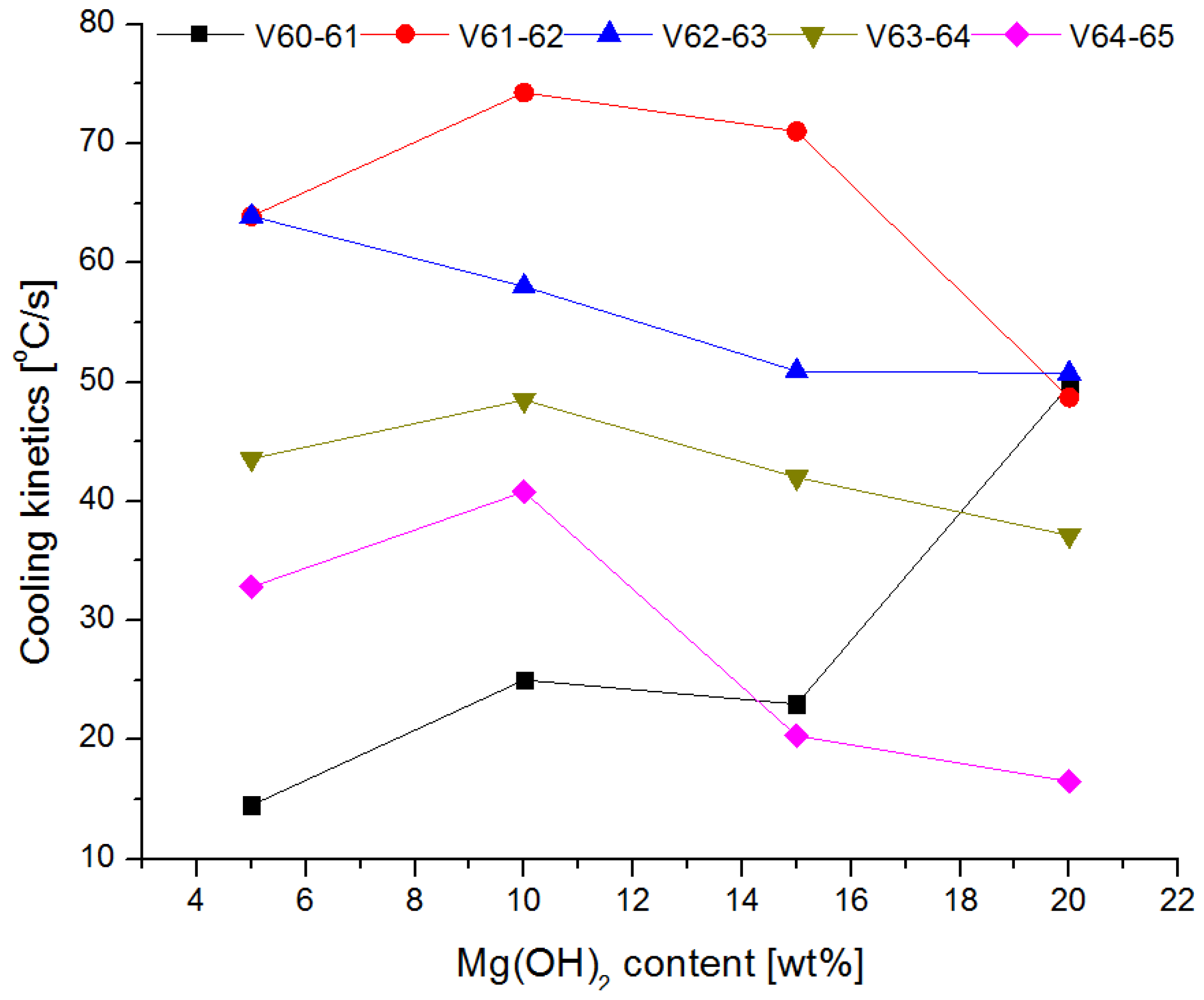

The calculated values of v_i−j for the thermocouples T2, T3 and T5 located 25, 50 and 100 cm from the substrate as a function of Mg(OH)₂ content are presented in Figure 18, Figure 19 and Figure 20.

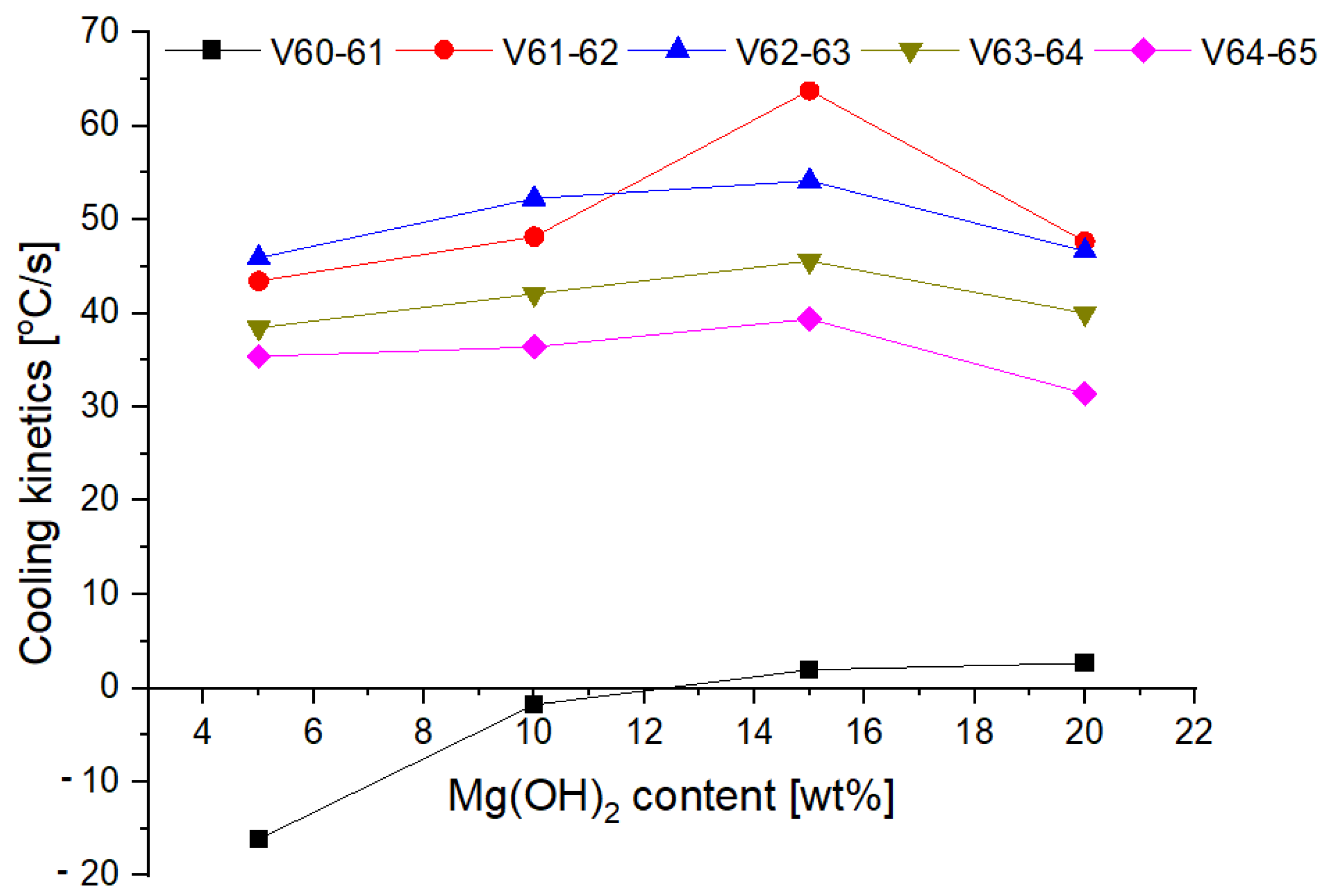

The cooling rate in the first second of extinguishing (v_60–61) increases at each height above the fire, with a slight decrease at 25 cm above the fire for a powder containing 20% of Mg(OH)₂. In further fire extinguishing phases (in particular from t = 63 s), the cooling rate is lower for powders containing a higher proportion of hydroxide. This behavior is due to fact that the fire temperature is too low at this extinguishing stage. The thermal decomposition of NaHCO₃ occurs at a much lower temperature than the thermal decomposition of Mg(OH)₂, the decomposition of which takes place at a temperature of approx. 350 °C. In the final stage of extinguishing the fire, the decreasing temperature prevents the thermal decomposition of Mg(OH)₂, and consequently the heat reception and extinguishing of the fire. It is therefore a reasonable compromise to use a powder with a content of 10–15% of Mg(OH)₂. This mixture allows for a much better heat reception at the beginning of fire extinguishing, and at the end of extinguishing, it shows similar properties.

4. Conclusions

This work investigated the influence of magnesium hydroxide addition on the rheological and extinguishing properties of the BC extinguishing powders. On the basis of the analysis of the tests’ results, the following conclusions were made:

-

The addition of magnesium hydroxide deteriorates the rheological properties and increases the ability to thicken and lump (the tangent of the flow curve slope varying from 0.258 for 5% of Mg(OH)₂up to 0.330 for 20% of Mg(OH)₂),which is disadvantageous from the point of view of using this compound as a fire extinguishing powder in popular portable fire extinguishing equipment;

-

The addition of magnesium hydroxide significantly improves the properties of the powder from the point of view of heat reception (Mg(OH)₂increases the total energy of the chemical decomposition reaction (from −47.27 J/g for 5% of Mg(OH)₂ up to −213.6 J/g for 20% of Mg(OH)₂)), taking into account the entire temperature range, which means that the use of this compound would allow faster heat transferfrom the fire, and thus extinguish the fire using smaller amounts of the extinguishing powder;

-

The EDS analysis confirmed that the composition of the extinguishing powders, in addition to calcium carbonate, sodium bicarbonate and magnesium hydroxide, also includes sodium aluminosilicates and silica;

-

The conducted test fires showed that the complete resignation of sodium bicarbonate in the composition of the extinguishing powder makes it difficult to extinguish the test fire in group B. When the fire temperature drops below 350 °C (from t = 63 s), magnesium hydroxide does not decompose and makes it difficult to collect the heat from the fire;

-

The use of extinguishing powder containing 10–15% of magnesium hydroxide allows for better cooling and extinguishing properties, both at the beginning and at the end of the fire extinguishing process. In the first stage, the fire is extinguished by the decomposition of the magnesium hydroxide (when the temperature is above 350 °C), and finally by sodium bicarbonate (about 200 °C).

The conditions of the atomization of the extinguishing powder in the standard test of the fires from group B showed the formation of the flashover phenomenon, which inhibits its use in portable extinguishing equipment. It follows that the test fire should be extinguished while the extinguisher is in operation, i.e., 6–8 s, which is possible by the reduction of the temperature to 300 °C. It was obtained by the addition of the magnesium hydroxide. We are also conducting additional research to modify the fire tests, taking into account the phenomenon of powder extinguishing agent agglomeration, the flashover phenomenon, and the method of atomization.
