Role of Liquid-Phase Amount in Ceramization of Silicone Rubber Composites and Its Controlling

Abstract

The reliable mechanical properties of ceramizable silicone rubber composites during pyrolysis are necessary for their application in the fire-resistant fields. The effects of liquid-phase amount on the mechanical properties of silicone rubber composites are investigated. The results show a positive correlation between the liquid-phase amount and the flexural strength of the residual products pyrolysis below 800 °C. The nano-γ-Al₂O₃ in the fillers reacts with liquid B₂O₃ to form aluminum borate above 800 °C, which consumes the liquid phase and strengthens the residual products to a certain extent. Increasing the B₂O₃ addition and introducing nano-γ-Al₂O₃ can control the liquid-phase amount in the range of 15% to 30%, which makes the composites have better residual strength and support performance. The residual strength of composites pyrolysis at 500 °C to 1000 °C is higher than 2.50 MPa, and the maximum is up to 18.7 MPa at 1000 °C.

1. Introduction

Silicone rubber has a high pyrolysis temperature (higher than 300 °C) [1]. The main final pyrolysis product is amorphous SiO₂ with oxidation resistance and insulation properties [2,3,4]. Therefore, silicone rubber has been widely used in fire-resistant fields.

Although the amorphous SiO₂ produced by the pyrolysis of silicone rubber has no flammability, it has severe pulverization and poor mechanical properties [5]. Therefore, inorganic fillers need to be introduced into ceramizable silicon rubber composites to form a continuous ceramic body with a certain strength during the pyrolysis process [6,7]. Low melting point sintering additives (B₂O₃, glass frits, APP, etc.) are usually introduced into the composites to decrease the ceramization temperature. For example, Anyszka et al. carried out an investigation on the influence of B₂O₃ (melting point 450 °C) and boron-containing glass (melting point 780 °C) on microstructure and mechanical properties of silicone-basing composites after ceramization. The results show that more glassy phase binds pyrolysis products to form a solider ceramic bodies at 650°C, with the addition of B₂O₃ increased from 6.7 wt.% to 13.3 wt.% [8]. Mansouri et al. add glass frits with a 525 °C melting point into silicone rubber composites. The results show that the glass frits melt below the mica-silica eutectic temperature and combines with inorganic fillers and pyrolysis products to promote the formation of a ceramic. The flexural strength pyrolyzed at 600 °C, 800 °C, and 1000 °C were 0.88 MPa, 2.30 MPa, and 3.53 MPa, respectively [9]. Hu et al. carried out a study about the ceramifying process and mechanical properties of silicone rubber/ammonium polyphosphate/aluminum hydroxide/mica composites. The results show that the composites residues have a certain flexural strength pyrolyzed at 300 °C, 400 °C, 600 °C, 800 °C, and 1000 °C (2.54 MPa, 3.72 MPa, 3.46 MPa, 6.0 MPa, and 9.9 MPa, respectively) and good self-supporting performance [10]. Guo et al. report the influence of the glass frits content on the microstructure of silicone rubber composites. The results show that the flexural strength and impact strength of ceramic residue pyrolyzed at 1000 °C increases with the content of the glass frits. When the content of glass frits are up to 15 phr, the sufficient liquid phase appears to bind the mica and some pyrolysis products to form the stronger ceramic residue [11]. The sufficient liquid phase appearing at the range of 500 °C to 800 °C may also be helpful to improve the residual strength. Nevertheless, the added fillers are converted into liquid phase with decreasing viscosity with elevated temperatures, and then melt dripping behavior of the residues occurs, which negatively affects the ceramifying process [12]. Several papers confirm that low-temperature (500 °C~800 °C) residual strength can be improved to some extent by introducing low melting point glass frits, but the effect is not obvious. The excess liquid phase transformed from glass frits at high temperature is difficult to control, which limits the high-temperature support performance of the residual products. APP can make the composite self-supporting at high temperature, but it is hard to support a load. It is hoped to increase the liquid-phase amount during low-temperature pyrolysis to improve the residual strength. Still, the support performance of the residual products at high temperatures also needs to be guaranteed by decreasing the liquid phase. It is a challenge to improve the residual strength and support performance during the whole pyrolysis process.

In this paper, we increase the addition of B₂O₃ on the basis of others’ research. The B₂O₃ melting (450 °C) and B₂O₃-SiO₂ eutectic (423 °C) increase the liquid phase to reinforce the residual products pyrolysed at low temperature. Meanwhile, nano-γ-Al₂O₃ is added to react with B₂O₃ consuming the excess liquid phase and forming the aluminum borate whisker at elevated temperatures (higher than 800 °C) to improve the support performance of residual products. The influence of liquid-phase amount on the residual strength of the composites is investigated.

2. Materials and Methods

2.1. Materials

Methyl vinyl silicone rubber (Zhonghao Chenguang Chemical Research Institute Co., Ltd., Zigong, China), fumed silica (KS-230T Nanjing Zaisheng New Material Co., Ltd., Nanjing, China), 2,4-Dichlorobenzoyl peroxide (DCBP) (Dongguan Hengcheng silicone Co., Ltd., Dongguan, China), boric oxide (Shanghai Aladdin Biochemical Technology Co., Ltd., Shanghai, China), mica (Shandong Yusuo Chemical Technology Co., Ltd., Linyi, China), nano-γ-Al₂O₃ (10 nm Guangzhou Nano Chemical Technology Co., Ltd., Guangzhou, China), and silicon dioxide (Sinopharm Chemical Reagent Co., Ltd., Shanghai, China) are used in the experiments.

2.2. Preparation

Silicone rubber, fumed silica, SiO₂, mica, B₂O₃, nano-γ-Al₂O₃, and DCBP are mixed evenly in an open mixer, and then vulcanized by a plate vulcanizing machine. The vulcanization pressure is 10 MPa, the vulcanization temperature is 130 °C, and the vulcanization time is 10 min. After that, an oven is used for secondary vulcanization. The vulcanization temperature is 130 °C, and the vulcanization time is 4 h. The formulations of ceramizable silicone rubber composites are listed in

Table 1. Formulations of ceramizable silicone rubber composites.

	Compositions (phr)	Silicone Rubber	SiO2	Mica	B2O3	Nano-γ-Al2O3	Fumed Silica	DCBP
Samples
B12A36		100	24	36	12	36	30	2
B24A36		100	24	36	24	36	30	2
B36A36		100	24	36	36	36	30	2
B48A36		100	24	36	48	36	30	2
B60A36		100	24	36	60	36	30	2
B48A0		100	24	36	48	0	30	2

. The sample symbols are labeled as B₁₂A₃₆, B₂₄A₃₆, B₃₆A₃₆, B₄₈A₃₆, B₆₀A₃₆, and B₄₈A₀.

2.3. Sample Pyrolysis

The rectangular samples are performed in a muffle furnace. It is heated up to the corresponding temperature (500 °C, 600 °C, 700 °C, 800 °C, 900 °C, 1000 °C) at a heating rate of 10 °C min⁻¹ under air atmosphere, held for 30 min, and then cooled to room temperature.

2.4. Characterization

The phase analysis of residual products is characterized by X-ray diffraction with an X-ray diffractometer (Empyrean, Eindhoven, Netherlands). The grinded residual products are corroded with 1 mol L⁻¹ hydrochloric acid for 24 h. The contents of aluminum (C_Al) and boron (C_B) in corrosion solution are analyzed by an Inductively Coupled Plasma-Optical Emission Spectrometer (ICP-OES Prodigy/7, Hudson, MA, USA). The mass ratio of B₂O₃ or nano-γ-Al₂O₃ participating in the reaction is calculated by:

$$\mathrm{R}=\left(1-\frac{C_X\times V\times M_{X_2{O}_3}}{2M_X\times m}\right)\times 100\%$$

M is the relative molecular (atomic) mass, X is Al or B, m is the sampling mass, V is the volume of corrosive solution. The three-point flexural strength of the residual products is tested by an Instron Universal Testing Machine. The loading speed is 2 mm min⁻¹, the sample size is 80 mm $\times$ 10 mm $\times$ 4 mm, and the span is 64 mm. A field emission scanning electron microscope (Quanta + FEG250, FEI Co., Hillsboro, OR, USA) is used to analyze the fracture morphology of samples after flexural strength test. The apparent porosity and bulk density of the pyrolysis samples are measured by Archimedes drainage method. The apparent porosity (${\mathrm{P}}_a$) is calculated by:

$${\mathrm{P}}_a=\frac{m_2-m_0}{m_2-m_1}\times 100\%$$

The bulk density (${\mathsf{\rho }}_b$) is calculated by:

$${\mathsf{\rho }}_b=\frac{m_0}{m_2-m_1}\times {\mathsf{\rho }}_{Ethanol}$$

Dry weight, buoyant weight, and wet weight are represented by m₀, m₁, and m₂. The support performance test of residual products at high temperature is placing the samples (80 mm $\times$ 10 mm $\times$ 4 mm) on two support points with a span (L = 60 mm), and the middle of the samples place a load twice the weight of the sample. The samples are heated up to the same temperature as the pyrolysis at a heating rate of 10 °C min⁻¹ in a muff furnace, and held for 30 min. The distance (d) from the lowest point to the original position is measured. The bending angle ($\mathsf{\theta }$) is calculated by:

$$\tan \mathsf{\theta }=\frac{2d}{L}$$

3. Results and Discussion

3.1. Microstructure of Residual Products

The samples with different B₂O₃ addition are pyrolyzed at 600 °C, and the SEM images of samples’ fracture are shown in Figure 1. It shows that the fracture is loose in sample B₁₂A₃₆ and sample B₂₄A₃₆. No liquid phase enrichment zone can be seen. In sample B₃₆A₃₆, there is some liquid phase enrichment zones that appear around the gas channel. The ceramic phase around the channel is more compact than other areas. The liquid enrichment zones mainly appear around the gas channel, and also distribute sporadically in other areas in sample B₄₈A₃₆. The fracture is smooth, and the liquid phase spreads throughout the ceramic phase in sample B₆₀A₃₆. That makes the compactness of other areas in the ceramic phase similar to that around the gas channel. It illustrates that the compactness of the ceramic phase improves with the addition of B₂O₃.

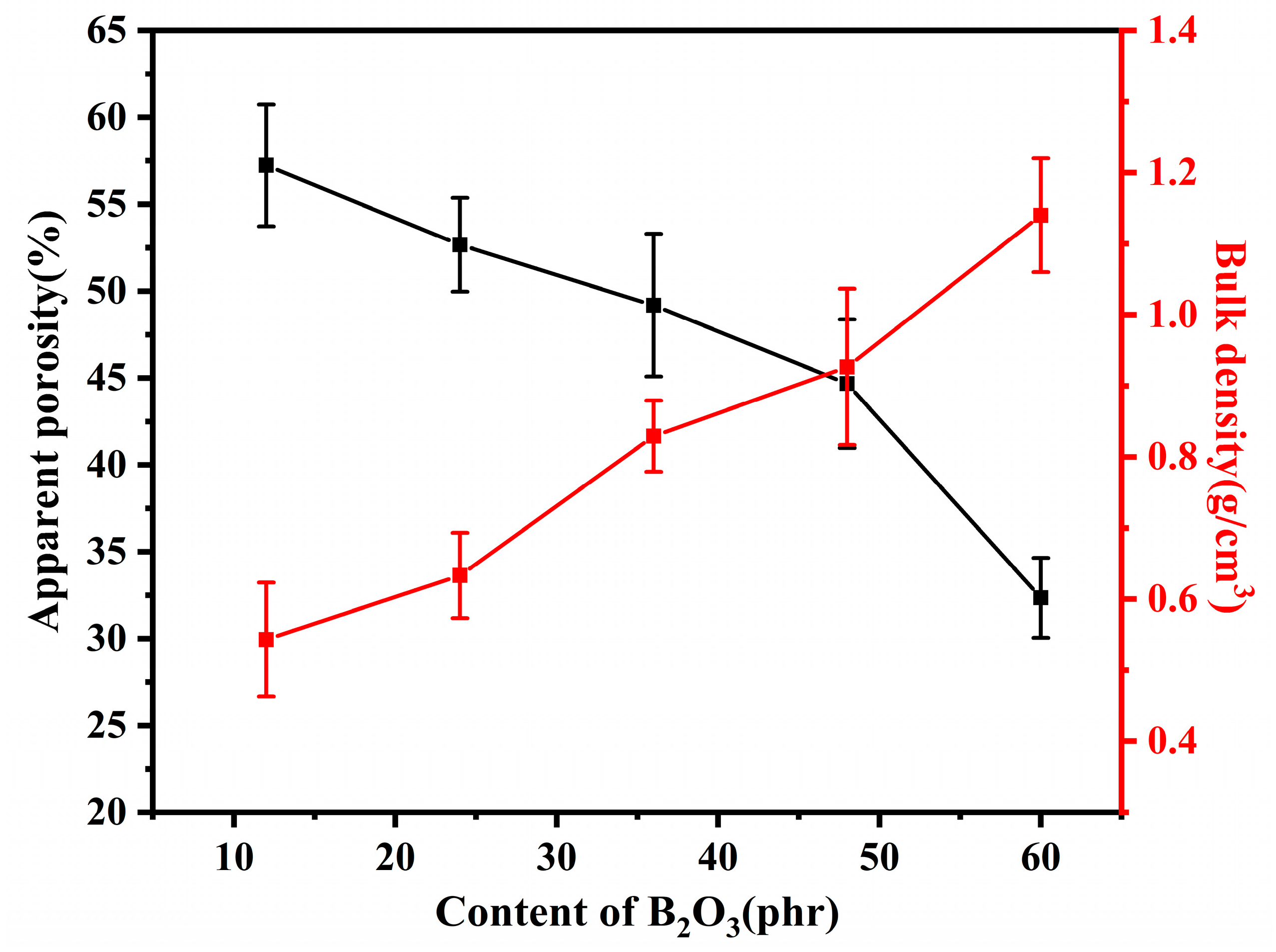

Figure 2 shows the apparent porosity and bulk density of samples with different addition of B₂O₃ pyrolyzed at 600 °C. It is shown that the apparent porosity decreased with the addition of B₂O₃ in the composites, and the bulk density improved with the addition of B₂O₃. Therefore, increasing the addition of B₂O₃ can promote the densification of the ceramic phase.

Sample B₄₈A₃₆ are pyrolyzed at different temperatures, and the SEM images of fracture are shown in Figure 3. It shows that the fracture surface is very coarse at 500 °C. There are many irregular granules at the fracture. At 600 °C, the granules at the fracture are regular spherical. The number of granules increases significantly compared to 500 °C. The granules connect and aggregate into larger granules. At 700 °C, the granules transform into spheroids with smooth surfaces. Granules form connections with each other. The continuous ceramic structure is formed. Granules are still integrity and clear boundary. At 800 °C, most granule boundaries disappear. The ceramic phase is more compact than that at 700 °C. At 900 °C, granule boundaries and pores at the fracture disappear entirely. Small granules can be observed, embedded in the compact ceramic phase. The small granules are entirely spherical. The small particles embedded in the ceramic phase disappear at 1000 °C, and the compactness of the ceramic phase is further improved. Therefore, the compactness of the ceramic phase improves with the temperatures.

3.2. Phase analysis

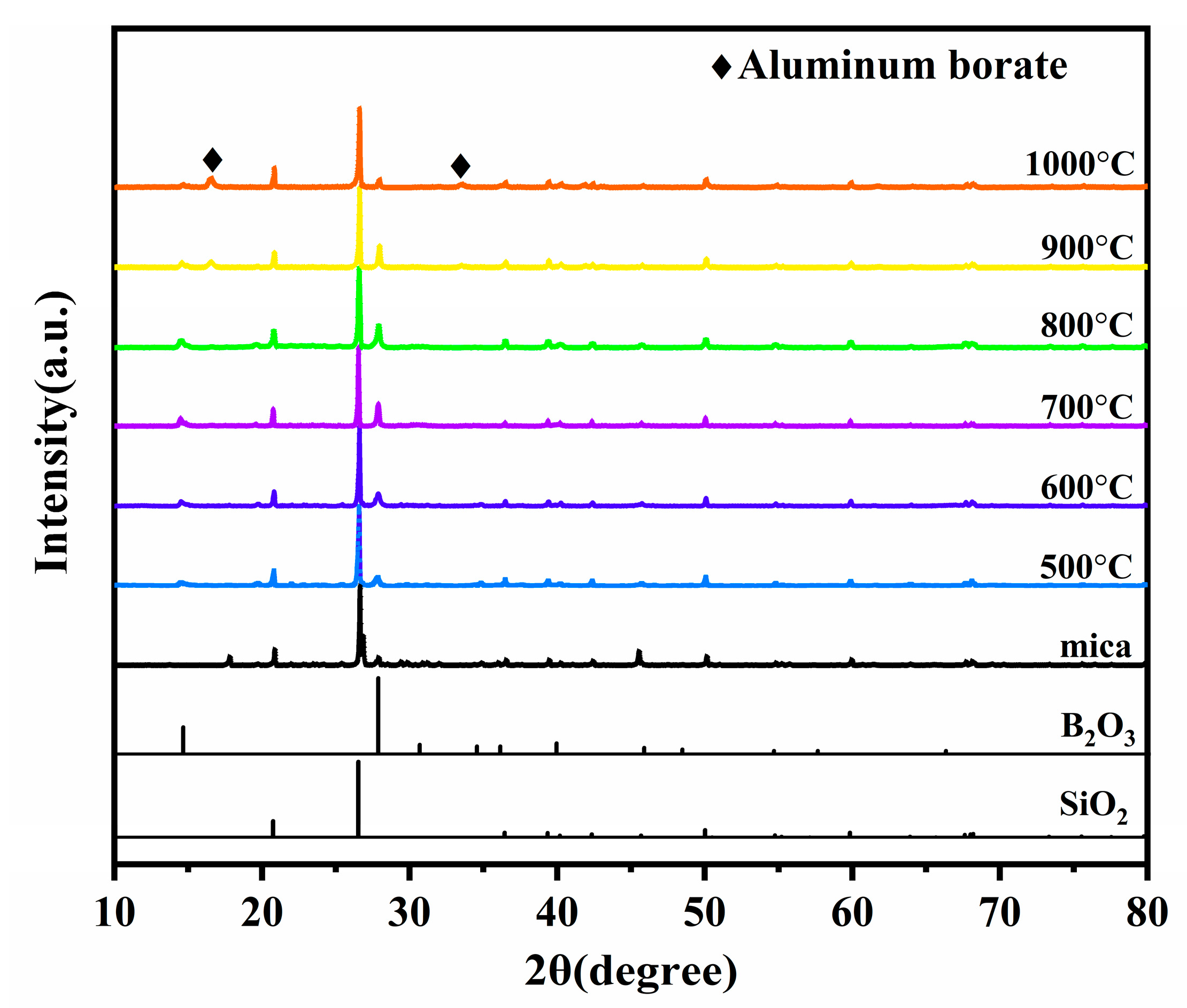

Figure 4 shows the XRD patterns of sample B₄₈A₃₆ pyrolyzed at different temperatures. It is shown that the main phases of the residual products below 800 °C are SiO₂ (PDF 46-1405) and mica. The diffraction peaks of aluminum borate appear when sample B₄₈A₃₆ pyrolyzed at 900 °C and 1000 °C. The consumption of B₂O₃ and nano-γ-Al₂O₃ during the ceramization process is shown in

Table 2. Consumption of B₂O₃ and nano-γ-Al₂O₃ during ceramization process.

Temperature (°C)	Consumption of Nano-γ-Al2O3 (%)	Consumption of B2O3 (%)
900	89	20
1000	89	21

. It shows that the consumption of B₂O₃ is 20% and 21% of the addition, and that of nano-γ-Al₂O₃ both are 89% of the addition at 900 °C and 1000 °C. The measured consumption mass ratio of B₂O₃ and nano-γ-Al₂O₃ deviates from that which forms a single-phase aluminum borate. Therefore, the actual aluminum borate formed is a two-phase mixture [13]. The content of the two phases in the mixture is similar. 2Al₂O₃·B₂O₃ is 85%, and 9Al₂O₃·2B₂O₃ is 15%. The reactions of forming aluminum borate are given by:

2Al₂O₃ (s) + B₂O₃ (l) = 2Al₂O₃·B₂O₃ (s)

(1)

9Al₂O₃ (s) + 2B₂O₃ (l) = 9Al₂O₃·2B₂O₃ (s)

(2)

It illustrates that nano-γ-Al₂O₃ can react with the liquid-state B₂O₃ to form the solid-state aluminum borate above 800 °C. There are aluminum borate whiskers [13,14] in some regions of the ceramic phase. The SEM images of the aluminum borate whisker around the wall of the channels are shown in Figure 5.

3.3. Mechanical Properties

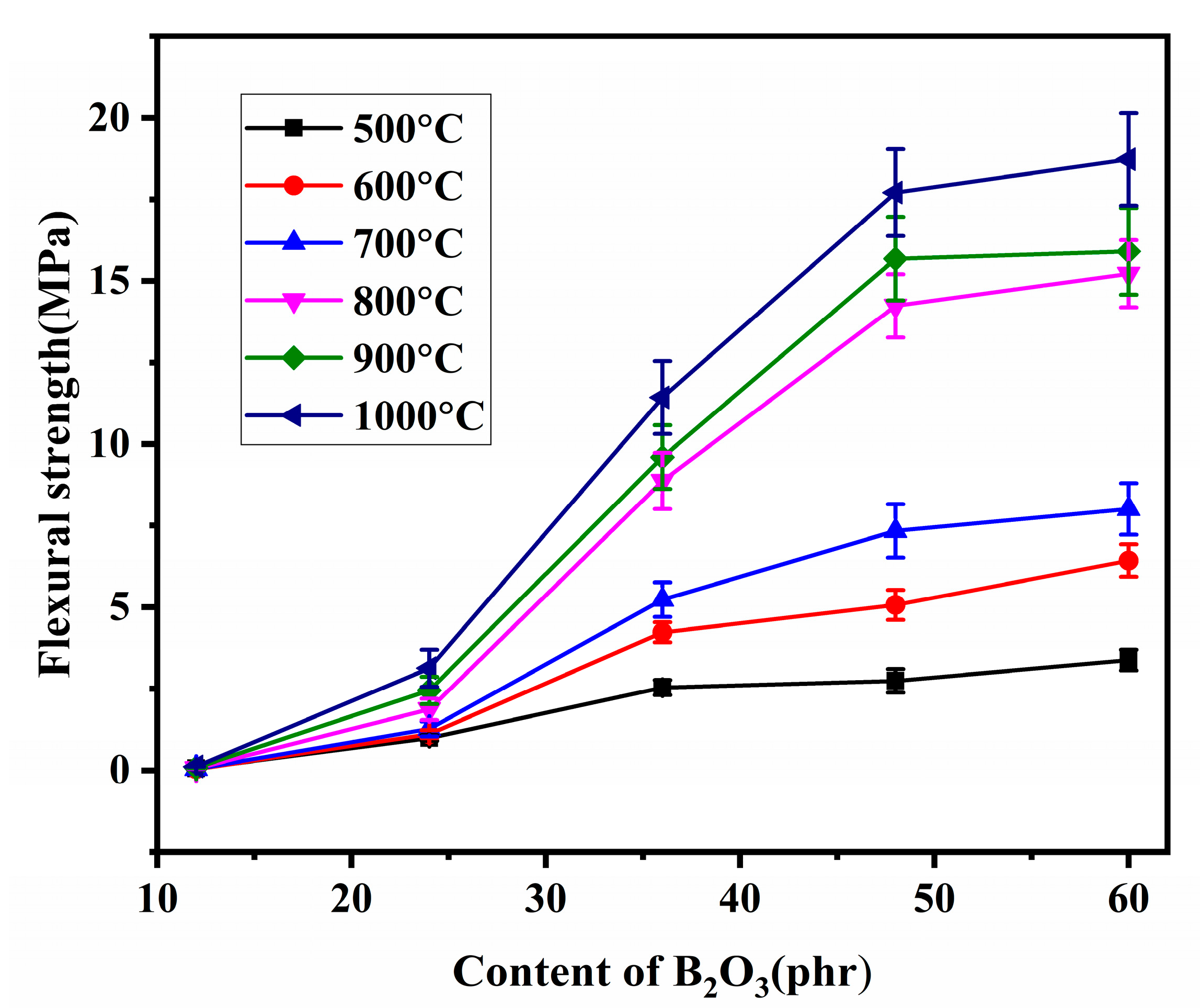

The flexural strength of residual products with different B₂O₃ addition is shown in Figure 6. It shows that the flexural strength of residual products pyrolyzed at the same temperatures improves with the B₂O₃ addition, especially when the pyrolysis temperatures are in the range of 800 °C~1000 °C and the addition of B₂O₃ is less than 48 phr. However, the effect of further addition of B₂O₃ on the flexural strength is not significant.

In addition, the flexural strength of B₁₂A₃₆ and B₂₄A₃₆ pyrolyzed at different temperatures are in the range of 0.06 MPa~0.12 MPa and 0.99 MPa~3.1 MPa. In contrast, B₃₆A₃₆, B₄₈A₃₆, and B₆₀A₃₆ are in the range of 2.50 MPa~11.4 MPa, 2.74 MPa~17.7 MPa, and 3.38 MPa~18.7 MPa, respectively. The flexural strength of the residual products improves with the pyrolysis temperatures. This result is more pronounced when the B₂O₃ is added in the range of 36 phr~60 phr. When the addition of B₂O₃ is higher than 36 phr, there is a sharp improvement of flexural strength from 700 °C to 800 °C, and the flexural strength increases slightly above 800 °C.

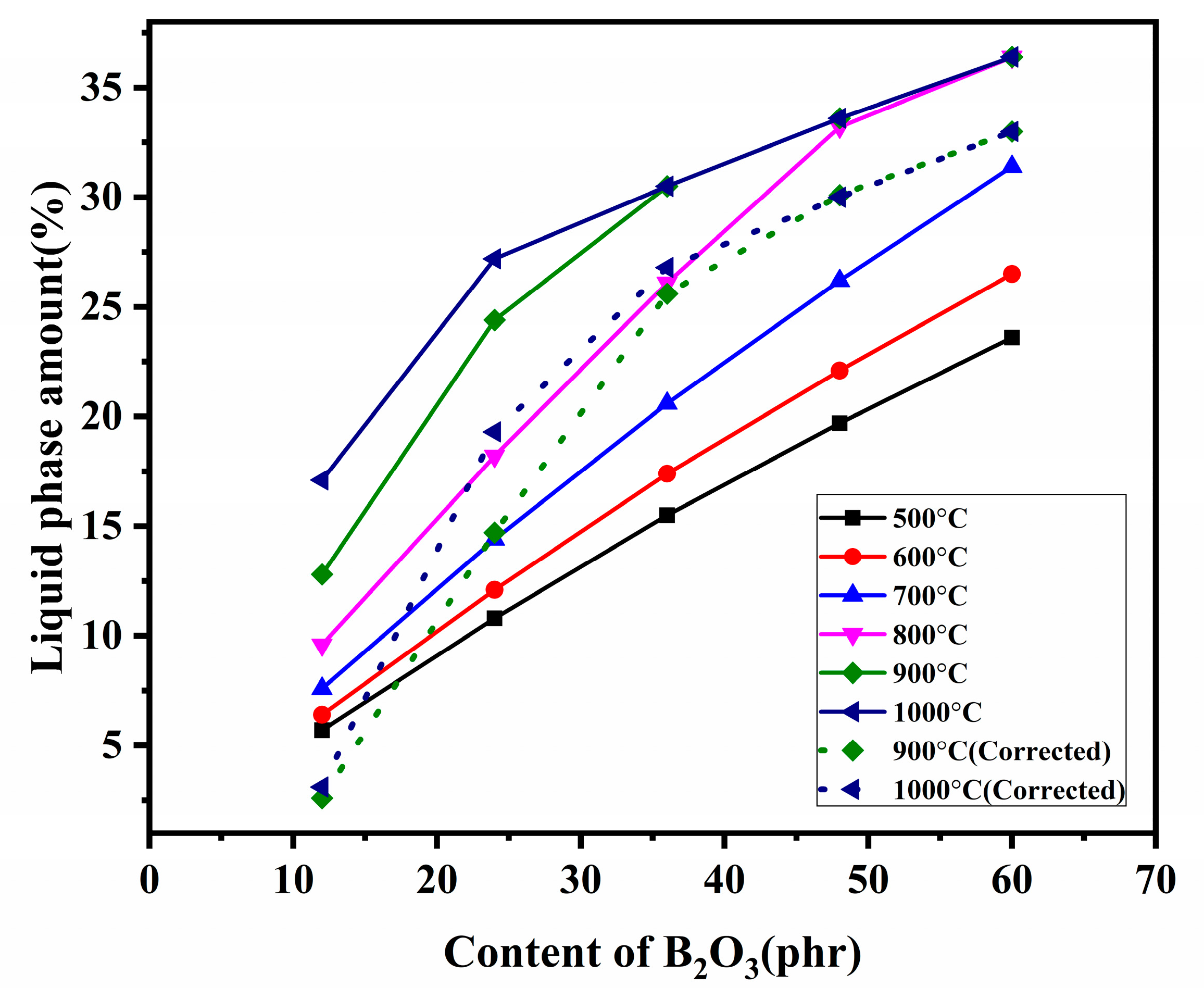

The liquid-phase amount (mass percent) in the composites calculated by the B₂O₃-SiO₂ phase diagram is shown in Figure 7. The sources of SiO₂ in the liquid phase are SiO₂ in the fillers, fumed silica, and amorphous silica (pyrolysis products of silicone rubber) remained after the pyrolysis of composites. The liquid-phase amount represented by the solid lines is calculated according to the addition of B₂O₃. As a result of the formation of aluminum borate consuming the B₂O₃, the corrected content of B₂O₃ in the liquid phase at 900 °C and 1000 °C are the addition amount minus the reaction amount. Thus, the corrected liquid-phase amount in the composites is the dotted line.

In combination with Figure 6 and Figure 7, the improvement trend of the flexural strength is highly consistent with the increasing trend of the liquid-phase amount in the range of 500 °C~800 °C. It is easy to see from the microstructure in Figure 1 that increasing the liquid phase is beneficial to form a more compact structure of the residual products resulting in the mechanical properties [11]. The positive correlation between flexural strength and liquid-phase amount is further proved. The flexural strength of the residual products is higher than 2.50 MPa when the liquid-phase amount is higher than 15%.

When the pyrolysis temperature is higher than 800 °C, the liquid-phase amount is decreased due to the formation of aluminum borate. However, the compactness of the ceramic phase is not affected by that at 900 °C and 1000 °C. The continuous ceramic phase has been formed at 800 °C, as shown in Figure 3, and the formation of aluminum borate whisker that is usually used as reinforce and refractory [15,16,17] reinforces the ceramic phase. Therefore, the flexural strength does not weaken at 900 °C and 1000 °C but improves. In a word, the strengthening effect of aluminum borate whisker and the bonding effect of the liquid phase together affect the flexural strength of residual products pyrolyzed above 800 °C.

In addition, when the pyrolysis temperature is higher than 800 °C and the addition of B₂O₃ is higher than 48 phr, the effect of increasing B₂O₃ to the liquid amount on flexural strength is not obvious. As can be seen from Figure 3, the liquid-phase amount (33%) at 800 °C is enough to form a continuous ceramic phase. Therefore, further increasing the liquid-phase amount to improve flexural strength is meaningless.

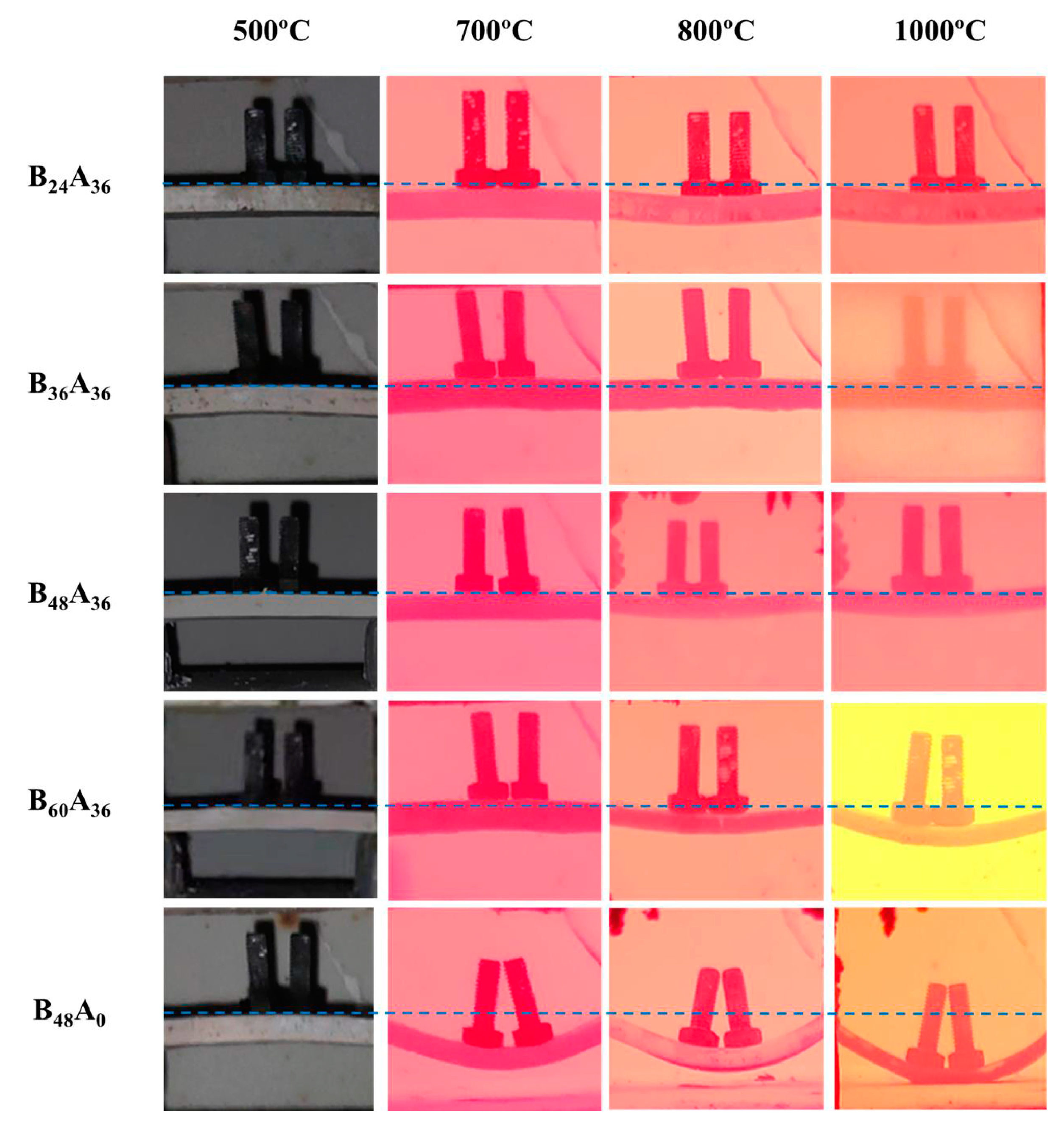

As a result of the flexural strength of B₁₂A₃₆ pyrolyzed at different temperatures less than 1 MPa, it is too weak to support twice their weight. Therefore, the support performance is not able to be measured. The support performance of other residual products is shown in Figure 8, and the bending angle is listed in

Table 3. The bending angle of residual products with different addition of B₂O₃.

Temperature (°C)	Bending Angle (°)
	B24A36	B36A36	B48A36	B60A36	B48A0
500	-	-	-	-	-
700	-	-	-	-	25
800	10	-	12	14	31
1000	10	-	12	20	40

. The smaller the bending angle is, the better support performance of the residual products has. It shows that all the residual products could support twice their weight at 500 °C without deformation. Although B₄₈A₀ has a bending angle of 25°, others also could support the load at 700 °C without deformation. At 800 °C, the bending angle of B₂₄A₃₆ is 10°. The support performance of B₂₄A₃₆ decreases due to the bad flexural strength. B₃₆A₃₆ remains unchanged. B₄₈A₃₆ and B₆₀A₃₆ are 12° and 14°, respectively. The support performance decreases with the addition of B₂O₃. The bending angle of B₄₈A₀ further increases to 31°. When the temperature is up to 1000 °C, the lowest point of the B₄₈A₀ with the bending angle of 40° touches the furnace and loses support capacity. B₂₄A₃₆, B₃₆A₃₆, and B₄₈A₃₆ remain unchanged. The bending angle of B₆₀A₃₆ is up to 20°. The decrease of support performance at 1000 °C is more obvious with the increase of B₂O₃. It is inferred that the residual products of samples with the addition of B₂O₃ less than 48 phr (include 48 phr) have good support performance. The further addition of B₂O₃ causes the decreasing of support performance due to the excess liquid phase. Compared with sample B₄₈A₀, B₄₈A₃₆ has better support performance. Therefore, the addition of nano-γ-Al₂O₃ could significantly improve the support performance of the residual products. According to Figure 4 and Figure 5, and Table 2, the liquid phase is adjusted by forming aluminum borate to a certain extent. The aluminum borate whisker also reinforces the residual products at the same time. It is the reason that the addition of nano-γ-Al₂O₃ improves the support performance. The corrected liquid-phase amount of B₄₈A₃₆ and B₆₀A₃₆ at 1000 °C is 30% and 33%. The support performance of B₄₈A₃₆ is better than that of B₆₀A₃₆ at 1000 °C. Therefore, the introducing of nano-γ-Al₂O₃ can only guarantee the support performance of residual products in a certain range of liquid phase, beyond which the support performance decreases.

In summary, increasing the liquid phase is helpful to improve the flexural strength of residual products. However, the excess liquid phase is harmful to the support performance at elevated temperatures. According to Figure 6, Figure 7 and Figure 8, when the liquid phase is higher than 15%, the composites pyrolyzed at different temperatures have good flexural strength. The liquid phase is higher than 30%, and the support performance of residual products at elevated temperatures decreases significantly. It illustrates that the liquid phase should be controlled at the range of 15% to 30% to guarantee reliable mechanical properties during the pyrolysis process. By increasing the addition of B₂O₃ and introducing nano-γ-Al₂O₃, the liquid phase amount in the composites is controlled within this range during the pyrolysis process, realizing the good residual strength and high-temperature support performance.

4. Conclusions

In combination with the B₂O₃-SiO₂ phase diagram, the liquid phase increases with the addition of B₂O₃ and the pyrolysis temperature. The flexural strength of residual products increases with the liquid phase. The liquid-phase amount is the main factor affecting the flexural strength of the residual products pyrolyzed below 800 °C. Nano-γ-Al₂O₃ can improve the support performance of residual products above 800 °C. The liquid-phase amount is decreased by forming aluminum borate at elevated temperatures. The formed aluminum borate whiskers act as reinforcement, cooperating with liquid-phase amount to affect the flexural strength and the support performance of the residual products above 800 °C. The liquid phase is controlled in the range of 15% to 30% to have good flexural strength and support performance.
