Article

An Enhanced Lemaitre Model and Fracture Map for Cr5 Alloy Steel during High-Temperature Forming Process

School of Materials Science and Engineering, Henan University of Science and Technology, 263 Kaiyuan Avenue, Luoyang 471023, China
*
Author to whom correspondence should be addressed.
Materials 2022, 15(11), 3935; https://doi.org/10.3390/ma15113935
Submission received: 18 April 2022 / Revised: 27 May 2022 / Accepted: 29 May 2022 / Published: 31 May 2022

Abstract

:
To effectively control and predict crack defects in the high-temperature forming process of Cr5 alloy steel, based on the traditional Lemaitre damage model, a new high-temperature damage model of Cr5 alloy steel was proposed which considered the change of material elastic modulus with temperature, the influence of material hydrostatic pressure as well as temperature and strain rate on material damage. Because Cr5 alloy steels are usually forged at high temperatures, tensile testing is an important method to study the damage behaviour of materials. Through the high-temperature tensile test and elastic modulus measurement test of the Cr5 alloy steel, the stress–strain curves and the relationship curves of the elastic modulus value with the temperature of Cr5 alloy steel under different temperatures and strain rates were obtained. A new high-temperature damage model of Cr5 alloy steel was built by introducing the Zener–Hollomon coefficient considering the influence of temperature and strain rate. The established high-temperature damage model was embedded in Forge® finite element software through the program’s secondary development method to numerically simulate the experimental process of Cr5 alloy steel. Comparing the difference between the displacement–load curves of the numerical simulation and the actual test of the tensile process of the experimental samples, the correlation coefficient R2 is 0.987 and the difference between the experimental value and the simulated value of the tensile sample elongation at break is 1.28%. The accuracy of the high-temperature damage model of Cr5 alloy steel established in this paper was verified. Finally, the high-temperature damage map of Cr5 alloy steel was constructed to analyse the variation law of various damage parameters with the temperature and strain rate of the high-temperature damage model of Cr5 alloy steel.

1. Introduction

As the key components of the rolling mill of the steel rolling production line, with the continuous development of the steel rolling industry, the requirements for the hardness and wear resistance of the rolls in industrial production are getting higher and higher. Cr5 alloy steel has been widely used in the production of modern rolls as a substitute for 60CrMnMo, 50CrNiMo, 70Cr3NiMo and Cr4 [1] due to its good hardness, wear resistance and resistance. Fatigue performance has always been one of the key research topics for roll steels in the iron and steel production industry. Many scholars from all over the world have conducted a lot of research into the mechanical properties and fatigue resistance of Cr5 alloy steel and have achieved certain results. Junkai Fan et al. [2] determined the forming properties of Cr5 alloy steel by studying the mechanical properties of Cr5 alloy steel. Qing Gu et al. [3] determined the mechanical properties of Cr5 alloy steel by studying the fatigue behaviour of Cr5 alloy steel. M. Surendran [4] and others determined the fatigue characteristics of Cr5 alloy steel by studying the hoop stress of Cr5 alloy steel. Many scholars conducted in-depth research on the mechanical properties of Cr5 alloy steel, which are beneficial to actual industrial production to a certain extent. However, there have been few studies on the damage performance of this material. Therefore, the current hot forming production plan for Cr5 rolls is often made by trial and error based on actual production experience, and there is no effective method to control crack defects.
Damage mechanics is a discipline that studies the process of material damage evolving with deformation until it is destroyed. It is believed that there are micro-defects distributed inside the material, such as dislocations, micro-cracks, micro-voids, etc. These micro-structures of different scales are typical damage performance [5]. Y.C. Huang et al. studied the damage mechanism of 42CrMo steel and found that the growth and accumulation of pores were the main reasons for alloy fracture [6]. Y.C. Lin et al. studied the fracture mechanism of nickel-based superalloys. They found that the higher the nucleus density formed by micropores is, the worse the plastic deformation ability of the material is, and that the combination of micropores was one of the reasons for the final ductile fracture [7]. Kaimeng Wang et al. conducted tensile experiments on nickel-based superalloys and found that pores were mainly formed around grain boundaries and carbides in grains, and the fracture morphologies are characterized by transgranular fracture and intergranular fracture [8]. Many scholars have conducted in-depth research on the formation mechanism of material cracks which is beneficial to reduce or eliminate the initiation of material damage during plastic deformation. However, no damage model was used to describe the damage behaviour of the materials.
In recent decades, many scholars have performed systematic research on the mechanism of crack generation and the establishment of related models in the material forming process. Freudenthal [9] believed that when the material strain energy reached a critical value, the material would fracture, and proposed the Freudenthal damage model. Cockcroft and Latham [10] believed that the maximum tensile stress in the material deformation process was the cause of material fracture, and proposed the Cockcroft and Latham (CL) damage model. Oyane [11] believed that the pores were produced by the large deformation or the influence of the second phase particles, and proposed the Oyane damage model which considers stress triaxiality. Weitao Jia [12] used the Freudenthal damage model to study the deformation and fracture behaviour of as-cast AZ31B Mg alloy. Qiang Li [13] used the Cockroft and Latham fracture criterion to study the surface cracking of Fe-Cu-C steel. Feuerhack et al. [14] used the Cockcroft and Latham damage criterion to study crack location and shape during extrusion. Aditya Rio Prabowo et al. [15] analysed the reliability of the Cockcroft and Latham damage criterion. Wu Ying et al. [16] used the Oyane fracture criterion to compare and analyse the dent defect failure of the X80 pipeline; Yu Zhang et al. [17] used the Oyane fracture criterion to study the damage and cracking characteristics of AISI 410 stainless steel at high-temperature. Zbigniew Pater [18] used the Oyane damage criterion to systematically study the critical damage value of 100Cr6 steel. Many scholars used the above damage models to effectively predict the damage behaviour during the material forming process which played a guiding role in controlling the damage defects in production. However, these damage models use the correlation function of strain and stress to calculate the damage parameters, and the prediction accuracy is slightly lower [19].
The Lemaitre damage model in damage mechanics was proposed based on the thermodynamic dissipation potential of the material. This phenomenological method has been used to describe the damage of the material, which is closer to the real physical situation, and can more accurately describe the damage evolution behaviour of the material. Manizheh Aghaei et al. [20] studied the tensile process of DP600 steel based on the Lemaitre damage model, and described the micromechanical behaviour of DP600 steel under tensile load. Based on the Lemaitre damage model, Sheng Cai et al. [21] studied the blanking process of T6, and the damage of the material during the blanking process was simulated. Yogeshwar Jasra et al. [22] studied the cracking process of AISI 304 stainless steel based on the Lemaitre damage model, and obtained the failure characteristics of AISI 304 stainless steel. Ashwani Verma et al. [23] simulated the tensile process of the dual-phase steel based on the Lemaitre damage model, and obtained the damage parameters of the dual-phase steel in the tensile state. Based on the Lemaitre damage model, the fatigue life of the alloy was studied and predicted by L.M. Araújo et al. [24]. Kazem Malekipour et al. [25] observed and simulated the damage evolution process of AISI 316L parts based on the Lemaitre damage model. The axial stretching process was simulated, and the damage evolution law of the thin-walled steel pipe was obtained by Sheng He et al. [26]. Many scholars have used the traditional Lemaitre damage model to accurately predict the damage behaviour of different forming processes. Tandon Puneet et al. [27] simulated the establishment of progressive sheet metal forming process based on the Lemaitre damage model and investigated the effectiveness of the Lemaitre damage model in the simulation of the ISF process. However, this model can only be used for the calculation and prediction of damage defects in the cold forming process of metal materials. Because this model does not affect the crack initiation and propagation process of temperature and strain rate during the high-temperature forming process, it cannot be used for the calculation and prediction of damage defects in the high-temperature forming process; On the other hand, this damage model lacks consideration of the effect of temperature-induced elastic modulus changes on material damage [28].
The traditional Lemaitre damage model does not consider the effect of temperature and strain rate on damage, and it is difficult to predict damage behaviour at high temperature. In this paper, considering the influence factors of temperature and strain rate, the high-temperature Lemaitre damage model of Cr5 alloy steel is improved and established, and its high temperature damage map is drawn to accurately predict the damage initiation of Cr5 alloy steel at high temperature.
In order to study the damage law of Cr5 alloy steel at high temperature, the hot tensile test and high temperature elastic modulus measurement test of Cr5 alloy steel were carried out. Based on the test data, a high-temperature Lemaitre damage model of Cr5 alloy steel considering the temperature and strain rate was established to predict its high-temperature damage behaviour. The high-temperature damage model of Cr5 steel was embedded in the finite element software FORGE® to simulate the tensile test of the Cr5 alloy steel. The accuracy of the established high-temperature damage model was verified by comparing the displacement–loads and fracture lengths of the simulation and the test. In order to avoid the crack defect of the Cr5 roll during hot forming, the corresponding Lemaitre high-temperature damage model damage map was proposed.

2. Materials and Test Methods

2.1. Materials and Test Procedures

The material used in the test is Cr5 alloy steel, which is used in conventional industrial production and its chemical compositions are shown in Table 1. The equipment used in the test is a Gleeble-1500D thermal simulation testing machine, as shown in Figure 1. The machine has the function of the real-time calculation of strain, meaning that the strain ε equals ln(L/L0) in real time. In a certain time interval delta t, the strain changed delta ε, then under the linear control of the strain, a strain rate equal to (delta ε)/(delta t) and equal to a constant can be achieved. The central part of the tensile specimen is processed by means of arc transition to ensure that the tensile specimen can be smoothly broken from the central part [29]. The samples have a taper that gradually decreases from the end to the centre, and both ends are stretched with M10 standard thread. The specific shape and size of the tensile specimen are shown in Figure 2, which was prepared in accordance with ASTM E8/E8M-2016a.
Because 800 °C–1150 °C is the common forging temperature range of the Cr5 roll, and the strain rate of the material ranges between 0.01 s−1 and 5 s−1 in actual production, the temperatures used in the test are 800 °C, 850 °C, 900 °C, 950 °C, 1000 °C, 1050 °C, 1100 °C, and 1150 °C, and the real strain rates are set as 0.01 s−1, 0.1 s−1, 1 s−1, 5 s−1 by Gleeble-1500D thermal simulation testing machine, and a tensile test is performed at each temperature and strain rate, and the total number of samples consumed are 32. Using thermocouple wire to measure the temperature of the tensile sample, the tensile specimen was first heated to the specified temperature at a speed of 10 °C/s, and then kept warm for 3 min to eliminate the temperature gradient. Finally, it remained tensile at a predetermined strain rate until fracture.

2.2. Analysis of Test Results

Figure 3 shows the displacement–load curves of the Cr5 alloy steel obtained by tensile tests. Table 2 shows the fracture displacement of the Cr5 alloy steel at different temperatures and strain rates. It can be seen from the figure that at the same strain rate, with the continuous increase in temperature, the fracture displacement of Cr5 alloy steel gradually increases. When the rate is 1 s−1, the fracture displacement of Cr5 alloy steel is 13.89 mm at 800 °C, and the fracture displacement of Cr5 alloy steel is 17.93 mm at 1150 °C. For example, when the temperature is 1000 °C, the fracture displacement of Cr5 alloy steel is 12.83 mm when the strain rate is 0.01 s−1, while the fracture displacement of Cr5 alloy steel is 14.69 mm when the strain rate is 5 s−1. At the same strain rate, with the continuous increase in temperature, the maximum load of Cr5 alloy steel during stretching gradually decreases. For example, when the strain rate is 5 s−1, the maximum load of Cr5 alloy steel when stretched at 800 °C is 1707.44 N and the maximum load of Cr5 alloy steel in tension is 571.53 N at 1150 °C. At the same temperature, with the gradual increase in strain rate, the maximum load of the Cr5 alloy steel during stretching gradually increases. Additionally, when the strain rate is 5 s−1, the load is 250.52 N, and the maximum load when the Cr5 alloy steel is stretched is 571.53 N. The experimental results are consistent with the literature [30]. It can be obtained that the maximum load of Cr5 alloy steel material can be reached when plastic deformation occurs and decreases with the increase in temperature, and its maximum load increases with the increase in strain rate. Additionally, the effect of temperature on the maximum load of Cr5 alloy steel when plastic deformation occurs is greater than the effect of the strain rate. This is because, with the continuous increase in temperature, the Cr5 alloy steel material will recover and recrystallize at high-temperature, and the maximum load required for plastic deformation will gradually decrease due to the softening of the material. However, with the increase in strain rate, the maximum load required for the plastic deformation of Cr5 alloy steel will gradually increase with the increase in the strain rate due to the influence of the deformation degree per unit time [31].
Therefore, in the actual production of Cr5 alloy steel products and the formulation of the hot forming process plan, in order to effectively control crack defects, the highest temperature and a lowest strain rate possible should be selected.

3. Establishment of High-Temperature Damage Model of Cr5 Alloy Steel

3.1. Traditional Lemaitre Damage Model

Damage is a very important factor affecting the quality of metal products. However, studying the damage of a specific material is a very complicated process, which is closely related to the stress state of the material during plastic processing [32]. Therefore, it is of great significance to determine a more reliable material damage model to effectively predict and control the product crack defects.
The Lemaitre damage model is a damage model that clearly expresses the damage of materials and considers more parameters and variables, and can be directly applied to guide the production and manufacture of products in industrial production. The traditional Lemaitre damage model considers the material to be damaged or destroyed when the absolute damage value D suffered by the material during processing is greater than or equal to the critical damage value Dc of the material itself, and its mathematical formula is expressed as follows [33]:
d D = f ( ξ ) σ ¯ 2 2 E S ( 1 D ) 2 d ε ¯
f ( ξ ) = [ 2 3 ( 1 + v ) + 3 ( 1 2 v ) ( σ m σ ¯ ) 2 ]
where dD represents the absolute damage value increment; f ( ξ ) represents the stress triaxiality function; ξ represents the stress triaxiality; E represents the elastic modulus of the material; S represents the anti-damage factor; ε represents the equivalent plastic strain; d ε ¯ represents the equivalent plastic strain increment; v is the Poisson’s ratio of the material; σm represents the mean stress; σ represents the equivalent stress experienced by the material.
However, in actual industrial production, the stress state experienced by materials is often not in a single direction, but in multiple axial stress states. Therefore, the expression of Dc in the Lemaitre damage model under multiaxial stress states is as shown in Formula (3):
D c = D 1 c s U 2 ( 1 - D ) 2 f ( x ) s ¯ 2
where σu and D1c represent the stress limit value and the damage critical value of the material in the tensile test, respectively.
The damage variable D represents the damage degree of the material in the unit. When the value of the damage variable D is 0, there is no damage inside the material. When the damage variable of the material reaches the critical damage value Dc, this means that the material is damaged. In the Lemaitre damage model, the relative damage value Drel, that is, the ratio of the absolute damage value D to the critical damage value Dc, is used to represent the degree of damage inside the material [34], and its specific expression is as follows:
D r e l = D / D c ( 0 D r e l 1 )
All four damage parameters D1c, σu, S and εth in the Lemaitre damage model can be obtained through the tensile test of the material, and the damage parameters at different temperatures and different strain rates that can be obtained through the actual tensile test data according to Formulas (5)–(8) are calculated:
ε t h = ε m
σ U = R m
D 1 c = 1 R B / R m
S = σ U 2 ( ε B ε m ) 2 E D 1 c
where εm is the tensile strain of the material; εB is the fracture strain of the material; Rm is the tensile strength of the material; RB is the breaking strength of the material.

3.2. Modification of Lemaitre Damage Model

Without considering the effect of temperature, the traditional Lemaitre damage model cannot be applied to the high-temperature forming process of the material, and the stress triaxiality term in the damage model is a square term, which is not able to distinguish between the influence of positive and negative hydrostatic stress on the material damage. Therefore, improvements and corrections are required. The Zener–Hollomon equation is a function related to temperature and strain rate, which can describe the rheological behaviour of materials at different temperatures and strain rates. Its specific expression is shown in Equation (9) [35]:
Z = ε ˙ exp [ Q / R T ]
where ε ˙ represents the strain rate of the material; Q represents the deformation activation energy of the material; R is the gas constant; T is the deformation temperature of the material.
In previous experimental studies [36,37], it was found that compressive stress often plays a role in the healing of micro-defects and micro-cracks in the material in the process of plastic deformation, and there is a certain difference with the role of tensile stress in the process of material damage. The traditional Lemaitre damage model does not fully consider the different effects of tensile and compressive stress on the damage of the material. Thus, the damage model often cannot accurately describe the damage of the material. Therefore, the influence of the internal compressive stress of the material on the damage of the material (which will promote crack healing) can be removed through coupling, and the Lemaitre damage model of the Cr5 alloy steel with only tensile stress is obtained. The traditional Lemaitre damage model is modified to obtain the modified Lemaitre damage model [38].
The absolute damage value increment equation of the modified Lemaitre damage model is:
d D = { 0 f ( ξ ) σ ¯ 2 2 E S ( 1 D ) 2 d ε ¯ σ m 0   o r   ε ¯ ε t h σ m > 0   o r   ε ¯ > ε t h
f ( ξ ) = [ 2 3 ( 1 + v ) + 3 ( 1 2 v ) ( σ m σ ¯ ) 2 ]
In order to obtain the Lemaitre damage model of Cr5 alloy steel suitable for different temperatures and different strain rates, the Zener–Hollomon coefficient was coupled with the traditional Lemaitre damage model, and the damage parameter values of the Cr5 alloy steel at different temperatures and different strain rates were obtained. As such, a Lemaitre damage model of the Cr5 alloy steel which is suitable for different temperatures and different strain rates can be built, the Lemaitre damage model can be coupled using the Zener–Hollomon coefficient, and it can be used to manufacture Cr5 alloy steel products at different temperatures and strain rates in industrial production [39].
In summary, the coupled form of the damage parameters in the improved Lemaitre damage model based on the Zener–Hollomon coefficient are:
Z = ε ˙ exp [ Q / R T ]
ε t h = f ε t h ( ln Z )
S = f s ( ln Z )
D 1 c = f D 1 c ( ln Z )
σ U = f σ U ( ln Z )
As a model that can predict the damage of materials, the Lemaitre damage model is closely related to various parameters of the material. As a discipline that describes the damage of materials, damage mechanics are related to the properties of all aspects of materials. As a physical quantity describing the elastic properties of materials, the elastic modulus E is a very fundamental parameter variable in the Lemaitre damage model. The value of the elastic modulus E used in the calculation of the previous Lemaitre damage model is often a constant, and the elastic modulus E value of the material at different temperatures is not measured. The Gleeble-1500D thermal simulation testing machine used in this paper used C-Gauge sensor to accurately measure the elastic modulus E values of Cr5 alloy steel at different temperatures, and these values can be substituted into the Lemaitre damage model so as to obtain a more accurate Lemaitre damage model of the Cr5 alloy steel at different temperatures and different strains.

3.3. Measurement of Elastic Modulus E Value

As one of the essential performance parameters of engineering materials, the modulus of elasticity’s value will fluctuate with different material composition and structure. Especially as the temperature of the material increases, the distance between atoms inside the material will gradually increase and then the bond between atoms will be weakened, resulting in a decreased E value, higher temperature, and greater changes in the value of the elastic modulus. The elastic modulus E values of the same material at room temperature and at high temperature are often quite different. Therefore, in the present paper, the study of the damage of a certain material at high-temperature was performed and the modulus of elasticity is a crucial factor.
The elastic modulus is a physical quantity that describes the elastic properties of materials. The value of the elastic modulus E of the material is quite different under different conditions. Especially under the influence of material temperature, it often changes several times or even dozens of times. It has a great influence on establishing an accurate high-temperature damage model. For Cr5 alloy steel, the elastic modulus value at room temperature is 206 GPa. However, with the temperature of the material rising to a higher temperature, its elastic modulus value sharply decreases. Therefore, this has great influence on the establishment of an accurate high-temperature Lemaitre damage model for Cr5 alloy steel [40]. Previous studies on the Lemaitre damage model have rarely involved attention to the change of material elastic modulus, the research results obtained are often quite different from the actual results and are of low accuracy in terms of material damage prediction. Therefore, in order to improve the accuracy of the high-temperature Lemaitre damage model of Cr5 alloy steel, it is necessary to measure the actual elastic modulus E value of Cr5 alloy steel at different temperatures.
In this study, the elastic modulus E values of Cr5 alloy steel at different temperatures were measured. The measurement tests were performed on a Gleeble-1500D thermal simulation testing machine; the elastic modulus of Cr5 alloy steel was measured at different temperatures for one time each; the samples were heated at 10 °C /s and kept for 3 min to reach the specified temperature; the elastic modulus was then measured at the strain rate of 0.01 s−1; and the elastic modulus E values of Cr5 alloy steel at different temperatures were measured with the help of the C-Gauge sensor of the DSI company in the United States. The specific measurement results are shown in Table 3, whilst the fitting curve of the elastic modulus E value of Cr5 alloy steel and temperature is shown in Figure 4.
It can be seen from Figure 5 that the change curve of the elastic modulus E value of Cr5 alloy steel in the high-temperature stage with temperature is approximately a linear function. Therefore, it can be fitted using a linear function. The relationship curve of the elastic modulus of the Cr5 alloy steel at the high-temperature stage with temperature is obtained as follows:
E = 0.15 T + 176.89
From the analysis of test results, it can be obtained that the elastic modulus E value of Cr5 alloy steel is 55 GPa under the condition of 800 °C and it is only 3.5 GPa at 1150 °C. These are quite different from the elastic modulus of 206 GPa of Cr5 alloy steel at room temperature. Additionally, the fitting function of temperature and elastic modulus has a high linear relationship, and the elastic model at other temperatures can be calculated according to Equation (17). This shows that after the increase in the temperature of Cr5 alloy steel, the atomic spacing inside the material increases, the thermal motion of the molecules intensifies, and then the ability to resist external elastic deformation is weakened.
Figure 6 is a comparison diagram of the damage resistance factor S value of the Lemaitre damage model calculated by substituting the elastic modulus (206 GPa, red) of the Cr5 alloy steel at room temperature and the elastic modulus E value measured by the test (black). This figure shows that the damage resistance factor S value directly calculated by the constant elastic modulus of 206 GPa shows little difference at each temperature. Additionally, at the same temperature, the difference of the damage resistance factor S value under each strain rate is not obvious. However, the S value of the damage resistance factor calculated using the E value measured by the actual elastic modulus measurement test shows obvious differences at each temperature. Additionally, at the same temperature, the value of the damage resistance factor S at each strain rate is also quite different. This shows that the value of the elastic modulus E has great influence over obtaining an accurate material damage model. A more accurate Lemaitre damage model for the Cr5 alloy steel at different temperatures and strain rates can be obtained incorporating the E value measured by the actual elastic modulus measurement test.

3.4. Determination of Damage Model Parameters

The stress and strain data of the Cr5 alloy steel at different temperatures and strain rates can be obtained from the tensile tests. The Lemaitre damage parameters and Zener–Hollomon coefficient values of the Cr5 alloy steel at different temperatures and strain rates can be solved by Formulas (5)–(9). The calculation results are shown in Table 4.

3.5. Lemaitre High-Temperature Damage Model of Cr5 Alloy

Coupling the Lemaitre damage model with the Zener–Hollomon coefficient, a Lemaitre high-temperature damage model of Cr5 alloy steel was founded. The damage parameters in Table 4 were polynomial fitted with ln(Z) based on the least square method. The fitting parameters of the obtained Lemaitre damage model coupled with the Zener–Hollomon coefficient are shown in Table 5. The fitted curve is shown in Figure 7.
It can be seen from Figure 7c that the fitting of anti-damage factor S is greatly dispersed, which may be caused by the difference in the influence degree of temperature and strain rate on S. Finally, the high-temperature damage model of the Cr5 alloy steel Lemaitre can be obtained:
{ d D = { 0 f ( ξ ) σ ¯ 2 2 E S ( 1 D ) 2 d ε ¯ σ m 0   o r   ε ¯ ε t h σ m > 0   o r   ε ¯ > ε t h f ( ξ ) = [ 2 3 ( 1 + v ) + 3 ( 1 2 v ) ( σ m σ ¯ ) 2 ] ƒ ε t h ( l n Z ) = 1.27 0.14 l n Z + 0.006 ( l n Z ) 2 7.997 E 5 ( l n Z ) 3 + 5.81 E 9 ( l n Z ) 4 ƒ S ( l n Z ) = 5.48 0.61 l n Z 0.025 ( l n Z ) 2 4.43 E 4 ( l n Z ) 3 + 2.94 E 6 ( l n Z ) 4 ƒ D 1 c = ( 1.59 0.13 ( l n Z ) 0.66 ) / ( 1 + 0.13 ( l n Z ) 0.66 ) ƒ σ u ( l n Z ) = 1874.31 + 210.91 l n Z 8.46 ( l n Z ) 2 + 0.13 ( l n Z ) 3 1.04 E 5 ( l n Z ) 4
The correlation coefficient R, R-squared R2 and mean square error MSE are often used to measure the linear relationship between two variables. The larger the R and R2 value, the smaller the MSE, and the better the fitting effect. They are calculated as follows:
R = i = 1 N ( X i X ¯ )   ( Y i Y ¯ ) i = 1 N ( X i X ¯ ) 2 i = 1 N ( Y i Y ¯ ) 2
R 2 = i = 1 N ( X i Y ¯ ) 2 i = 1 N ( Y i Y ¯ ) 2
M S E = i = 1 N ( Y i X i ) 2 N
In the formula, X i is the value of the ith simulation; Y i is the ith test value; X ¯ is the average value of the simulation; Y ¯ is the average value of the test value. Substitute the experimental and simulation values of damage strain threshold εth, damage resistance factor S, critical damage value D1c, and ultimate stress value σu into Equations (19)–(21) for calculation, and obtain the data in Table 6.
It can be seen from Table 6 that the correlation coefficient R values obtained after fitting are all above 0.90. This shows that the established Cr5 alloy steel Lemaitre high-temperature damage model has high reliability. It can be seen from Figure 7 that the high-temperature Lemaitre damage model of the Cr5 alloy steel has a strong correlation with the actual test values [41]. This shows that the high-temperature Lemaitre damage model of Cr5 alloy steel can describe the damage characteristics of Cr5 alloy steel at different temperatures and strain rates in industrial production. By coupling and correcting the Lemaitre damage model with the Zener–Hollomon coefficient and the elastic modulus value E of the Cr5 alloy steel at different temperatures, it can provide an effective means of controlling the crack defects of Cr5 alloy steel roll products in the actual industry.

4. Verification Test of High-Temperature Damage Model

4.1. Finite Element Modelling of Tensile Process of Cr5 Alloy Steel

The reliability of the high-temperature damage model of the Cr5 alloy steel Lemaitre can effectively be verified by the finite element simulation technology. Using FORTRAN language, the Cr5 alloy high-temperature damage model was programmed, and it was embedded into Forge® software through dynamic link library, and performed a numerical simulation of tensile test process of Cr5 alloy steel [42]. By comparing the simulation results with the test results, the accuracy of the high-temperature damage model of the Cr5 alloy steel Lemaitre can be verified.
Since only the temperature of the centre of the sample can reach the specified temperature during the actual tensile test, the temperature on both sides gradually decreases and the magnitude of the temperature decrease increases with the distance from the centre of the sample. During the tensile test, a thermocouple wire was used to measure the temperature of the sample and the sample was kept at this temperature. The temperature distribution of the tensile sample with the length of the sample is shown in Figure 8. The length scale takes the centre of the sample as the origin. The temperature of the simulated tensile specimen was set according to the actual temperature distribution. The finite element geometric model and temperature distribution are shown in Figure 9. The mesh size is set to 0.5, the temperature and strain rate refer to the experimental conditions, the Coulomb friction coefficient is 0.3, the heat exchange coefficient is 2000 W/m2·K, and the emissivity is 0.88.

4.2. Verification of Lemaitre High-Temperature Damage Model of Cr5 Alloy Steel

By way of the observation and analysis of the digital simulation results of the tensile test, the displacement–load curves of the Cr5 alloy steel at various temperatures and strain rates are obtained, and the results obtained by digital simulation are compared with the actual tensile test results of the Cr5 alloy steel, as shown in Figure 10.
As can be seen from Figure 10, the displacement–load curve obtained by the tensile simulation test of Cr5 alloy steel is compared with the actual tensile test, and at 800 °C, 850 °C, 900 °C and 950 °C, they basically overlap; at 1000 °C, 1050 °C, 1100 °C and 1150 °C, the deviation is small. By comparison, it can be found that the displacement–load curve obtained by the tensile simulation test is basically consistent with the displacement–load curve obtained by the actual tensile test. The correlation coefficient R2 was used to compare the deviation between the experimental and simulated displacement–load curves. The simulation test data and the displacement–load data of the actual tensile test are brought into Formula (20). It was calculated that R2 = 0.9874.
Figure 11 is a schematic diagram of the comparison of the gauge length and fracture of the simulated tensile specimen of Cr5 alloy steel at 950 °C with a strain rate of 5 s−1 and the actual tensile specimen.
As can be seen from Figure 11, based on the high-temperature damage model of Cr5 alloy steel Lemaitre, under the conditions of 950 °C and strain rate of 5 s−1, the fracture gauge length difference between the numerical simulation tensile specimen and the actual tensile specimen is 1.28%, the difference of the area reduction in the fracture surface is 1.1% and the difference of the area reduction at the centre between the fracture surface and the nearest large end face of the sample is 2.1%. The accuracy and reliability of the high-temperature damage model of Cr5 alloy steel Lemaitre are verified, and it shows that the high-temperature damage model is suitable for predicting the plastic damage of Cr5 alloy steel at different temperatures and strain rates. It can effectively prevent the occurrence of crack defects in the production of Cr5 rolls.

4.3. Damage Map of Lemaitre High-Temperature Damage Model

In order to have a more comprehensive understanding of the damage characteristics of Cr5 alloy steel and to more intuitively discern the relationship between the various damage parameter values of the Lemaitre damage model, the calculated damage parameter values of the Lemaitre high-temperature damage model at different temperatures and different strain rates of Cr5 alloy steel are plotted with their corresponding temperatures and strain rates. The damage map of the Lemaitre high-temperature damage model of the Cr5 alloy steel can be obtained, as shown in Figure 12.
As can be seen from Figure 12a, Cr5 alloy steel ultimate stress value σu is inversely proportional to temperature and proportional to the strain rate. When the temperature is 800 °C and the strain rate is 0.01 s−1, the ultimate stress value σu is 150.95 MPa; when the strain rate is increased to 5 s−1, σu is 347.46 MPa; when the strain rate is 0.01 s−1 and the temperature is increased to 1150 °C, the ultimate stress value σu is 43.28 MPa. It can be seen from the whole relationship diagram that the maximum value of the ultimate stress value σu appears at 800 °C and 5 s−1, and the ultimate stress value σu is 347.46 Mpa; the minimum value of the ultimate stress value σu appears at 1150 °C, 0.01 s−1, and the ultimate stress value σu at this time is 43.28 MPa.
It can be seen from Figure 12b that the damage resistance factor S of the Cr5 alloy steel is proportional to the temperature and inversely proportional to the strain rate. For example, when the strain rate is 0.01 s−1 and the temperature is 800 °C, the damage resistance factor S is 0.059 MPa, and the damage resistance factor S is 0.265 MPa when the strain rate is increased to 5 s−1; when the temperature is increased to 1150 °C, the damage resistance factor S is 0.134 MPa. It can be seen from the whole relationship diagram that the maximum value of the anti-damage factor S appears at 1150 °C, 5 s−1, and the anti-damage factor S at this time is 0.870 Mpa; the minimum value of the anti-damage factor S appears at 800 °C/0.01 s−1, and the damage resistance factor S is 0.059MPa.
It can be seen from Figure 12c that the critical damage value D1c of the Cr5 alloy steel is basically inversely proportional to the temperature and proportional to the strain rate. For example, when the strain rate is 0.01 s−1 and the temperature is 800 °C, the critical damage D1c is 0.919, and the critical damage D1c is 0.995 when the strain rate is increased to 5 s−1; when the temperature is increased to 1150 °C, the critical damage D1c at 1150 °C is 0.701. From the whole relationship diagram, it can be seen that the maximum value of critical damage D1c occurs at 800°C/5 s−1 and the critical damage D1c at this time is 0.995; the minimum value of critical damage D1c occurs at 1150 °C/0.01 s−1, and the critical damage D1c at 0.701.
It can be seen from Figure 12d that the damage strain threshold εth of the Cr5 alloy steel is proportional to the strain rate and has little change under the influence of temperature. For example, when the strain rate is 0.01 s−1 and the temperature is 800 °C, the damage strain threshold εth is 0.17, and the damage strain threshold εth is 0.29 when the strain rate is increased to 5 s−1; when the strain rate is 0.01 s−1 and the temperature is 1150 °C, the damage strain threshold εth is 0.13, and the damage strain threshold εth is 0.28 when the strain rate is increased to 5 s−1. When the strain rate is 1 s−1, the damage strain threshold values εth at 800–1150 °C are 0.22, 0.29, 0.27, 0.26, 0.26, 0.23, 0.23 and 0.22, and the change is not too obvious. It can be seen from the whole relationship diagram that the maximum damage strain threshold εth appears at 850 °C/5 s−1, the damage strain threshold εth at this time is 0.33; and the minimum damage strain threshold εth appears at 1150 °C/0.01 s−1 and the damage strain threshold εth at this time is 0.13.
From the damage diagram of the Lemaitre high-temperature damage model of the Cr5 alloy steel, it can be seen that when the temperature is constant, as the strain rate gradually increases, the critical damage value D1c is basically positively correlated with the damage strain threshold value εth. However, when the strain rate is constant, the correlation between the two is lower with the gradual increase in temperature; when the strain rate is constant, the ultimate stress σu and the damage resistance factor S are basically negatively correlated with the gradual increase in temperature; when the temperature is constant, there is a positive correlation between the ultimate stress σu and the damage resistance factor S as the strain rate gradually increases.

5. Conclusions

In order to accurately predict the crack defects of the Cr5 alloy steel during high-temperature forming. In the present study, the thermal tensile test and elastic modulus measurement experiment of Cr5 alloy under the conditions of 800–1150 °C and 0.01–5 s−1 were carried out, and the high-temperature damage model and damage diagram of the Cr5 alloy steel Lemaitre were established.
The elastic modulus E value of the Cr5 alloy steel decreases with the increase in temperature in the temperature range of 800–1150 °C. This is because when the temperature rises, the atomic spacing inside the material increases, the thermal motion of molecules increases, and then the ability to resist external elastic deformation is weakened. The test results show that the decrease in elastic modulus at high temperature increases the damage resistance factor S. In order to more accurately describe the effect of temperature on the elastic modulus, the functional relationship between the elastic modulus of the Cr5 alloy steel and temperature is determined.
Considering the influence of the temperature and strain rate on the damage of Cr5 alloy steel, Zener–Hollomon coefficient was introduced, the parameters of Lemaitre high-temperature damage model were measured, and the Lemaitre damage model of the Cr5 alloy steel at a high-temperature stage was founded.
The established high-temperature damage model was embedded in a Forge® finite element software through the program’s secondary development method to carry out the numerical simulation calculation of the strength of the experimental samples. Comparing the difference between the simulation and the test displacement–load curve, the obtained correlation coefficient (R2) was 0.987. The fracture gauge length of the tensile specimen differed by 1.28% and the fracture morphology was basically consistent. This shows that the high-temperature damage model of the Cr5 alloy steel Lemaitre established in this paper has high accuracy in predicting the damage behaviour of this material. Finally, the damage map of Cr5 alloy steel at the high-temperature stage was constructed. The relationship between the damage parameters of the high-temperature damage model of Cr5 alloy steel and the deformation temperature and strain rate were analysed. This provides an effective method for controlling crack defects in the Cr5 alloy steel during high-temperature plastic deformation. In this paper, a high temperature damage model is established for Cr5 alloy steel. In the future, the production process of the Cr5 large roller will be simulated and verified in real industry.

Author Contributions

Conceptualization, X.C.; original manuscript writing, L.G.; method theory, X.C.; software, B.Z. and R.B.; data processing and data analysis, L.G.; writing—review, R.B.; revision of the manuscript and final proofread manuscript, B.Z. and L.G. All authors have read and agreed to the published version of the manuscript.

Funding

The research was supported by the National Key R&D Program of China (No. 2020YFB2008400) and the National Natural Science Foundation of China (No. 51575162).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Martínez-Aguilar, E.; Hmŏk, H.; Ariño, J.R.; Beltrones, J.S. First-principles study of the coexisting ferroelectric and ferromagnetic properties of the La0.75Bi0.25CrO3 compound. Comput. Mater. Sci. 2019, 171, 109262. [Google Scholar] [CrossRef]
  2. Fan, J.; Chen, H.; Zhao, W.; Yan, L. Study on Flake Formation Behavior and Its Influence Factors in Cr5 Steel. Materials 2018, 11, 690. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Gu, Q.; Huang, X.; Xi, J.; Gao, Z. The Influence of Magnetic Field on Fatigue and Mechanical Properties of a 35CrMo Steel. Metals 2021, 11, 542. [Google Scholar] [CrossRef]
  4. Surendran, M.; Natarajan, S.; Palani, G.; Bordas, S.P. Linear smoothed extended finite element method for fatigue crack growth simulations. Eng. Fract. Mech. 2019, 206, 551–564. [Google Scholar] [CrossRef]
  5. Zhang, T.; Han, T.; Wu, S. The effect of service time on the microstructure and mechanical properties of 1Cr5Mo steel high temperature fastening nuts. Mech. Eng. Mater. 2021, 45, 61–65. [Google Scholar]
  6. Varandas, L.F.; Catalanotti, G.; Melro, A.R.; Falzon, B.G. On the importance of nesting considerations for accurate computational damage modelling in 2D woven composite materials. Comput. Mater. Sci. 2020, 172, 109323. [Google Scholar] [CrossRef]
  7. Zhan, Z.; Li, H.; Lam, K. Development of a novel fatigue damage model with AM effects for life prediction of commonly-used alloys in aerospace. Int. J. Mech. Sci. 2019, 155, 110–124. [Google Scholar] [CrossRef]
  8. Yang, Z.; Liu, H. A continuum fatigue damage model for the cyclic thermal shocked ceramic-matrix composites. Int. J. Fatigue 2020, 134, 105507. [Google Scholar] [CrossRef]
  9. Zhao, Y.; Noori, M.; Altabey, W.A.; Ghiasi, R.; Wu, Z. A Fatigue Damage Model for FRP Composite Laminate Systems Based on Stiffness Reduction. Struct. Durab. Health Monit. 2019, 13, 85–103. [Google Scholar] [CrossRef] [Green Version]
  10. Wang, X.; Zhang, W.; Ni, J.; Zhang, T.; Gong, J.; Wahab, M.A. Quantitative description between pre-fatigue damage and residual tensile properties of P92 steel. Mater. Sci. Eng. A 2019, 744, 415–425. [Google Scholar] [CrossRef]
  11. Wu, Y.C.; Shao, J.-L.; Zhan, H. Damage characteristics of aluminum nanorod under hypervelocity impact. Comput. Mater. Sci. 2020, 174, 109490. [Google Scholar] [CrossRef]
  12. Navas, V.M.T.; Buljac, A.; Hild, F.; Morgeneyer, T.; Helfen, L.; Bernacki, M.; Bouchard, P.-O. A comparative study of image segmentation methods for micromechanical simulations of ductile damage. Comput. Mater. Sci. 2018, 159, 43–65. [Google Scholar] [CrossRef]
  13. Jia, W.; Ma, L.; Le, Q.; Zhi, C.; Liu, P. Deformation and fracture behaviors of AZ31B Mg alloy at elevated temperature under uniaxial compression. J. Alloys Compd. 2019, 783, 863–876. [Google Scholar] [CrossRef]
  14. Barik, S.K.; Narayanan, R.G.; Sahoo, N. Failure Strain and Fracture Prediction During Shock Tube Impact Forming of AA 5052-H32 Sheet. J. Eng. Mater. Technol. 2021, 143, 031009. [Google Scholar] [CrossRef]
  15. Prabowo, A.R.; Ridwan, R.; Tuswan, T.; Sohn, J.M.; Surojo, E.; Imaduddin, F. Effect of the selected parameters in idealizing material failures under tensile loads: Benchmarks for damage analysis on thin-walled structures. Curved Layer. Struct. 2022, 9, 258–285. [Google Scholar] [CrossRef]
  16. Wu, Y.; Tian, Z.; Li, L. A Comparative Analysis on Failure Criteria of X80 Pipeline Dent Defect. J. Southwest Pet. Univ. 2022, 43, 134. [Google Scholar]
  17. Zhang, Y.; Guo, B.; Li, Q.; Li, X.; Jian, J.; Jin, Y.; Ao, J. Damage and Cracking Prediction of AISI 410 Martensitic Stainless Steel at Elevated Temperatures. Steel Res. Int. 2021, 92, 2100030. [Google Scholar] [CrossRef]
  18. Pater, Z.; Tomczak, J.; Bulzak, T.; Knapiński, M.; Sawicki, S.; Laber, K. Determination of the critical damage for 100Cr6 steel under hot forming conditions. Eng. Fail. Anal. 2021, 128, 105588. [Google Scholar] [CrossRef]
  19. Li, Q.; Guo, B.; Li, X.; Zhang, Y.; Jian, J.; Ao, J.; Tang, Q.; Lu, Y. Fracture prediction of powder metallurgical Fe–Cu–C steel at elevated temperatures via finite element-aided hot tensile tests. J. Mater. Res. Technol. 2021, 12, 423–436. [Google Scholar] [CrossRef]
  20. Terhorst, M.; Feuerhack, A.; Trauth, D.; Klocke, F. Extension of the normalized Cockcroft and Latham criterion with temperature-dependent critical damage values for predicting chevron cracks in solid forward extrusion. Int. J. Mater. Form. 2016, 9, 449–456. [Google Scholar] [CrossRef]
  21. Gao, Y.; Sun, X. Research on dynamic deformation constitutive and damage model parameters of 6008 aluminum alloy for high-speed trains. Explos. Shock. 2021, 41, 118–129. [Google Scholar]
  22. Bagheri, B.; Dehaghani, M.Z.; Karami, Z.; Salmankhani, A.; Rostamiyan, Y.; Zarrintaj, P.; Mashhadzadeh, A.H.; Saeb, M.R. Correlation between surface topological defects and fracture mechanism of γ-graphyne-like boron nitride nanosheets. Comput. Mater. Sci. 2021, 188, 110152. [Google Scholar] [CrossRef]
  23. Aghaei, M.; Ziaei-Rad, S. A micro mechanical study on DP600 steel under tensile loading using Lemaitre damage model coupled with combined hardening. Mater. Sci. Eng. A 2020, 772, 138774. [Google Scholar] [CrossRef]
  24. Cai, S.; Chen, L. Parameter identification and blanking simulations of DP1000 and Al6082-T6 using Lemaitre damage model. Adv. Manuf. 2021, 9, 457–472. [Google Scholar] [CrossRef]
  25. Jasra, Y.; Singhal, S.; Upman, R.; Saxena, R.K. Finite element simulation of stress corrosion cracking in austenitic stainless steel using modified Lemaitre damage model. Mater. Today Proc. 2020, 26, 2314–2322. [Google Scholar] [CrossRef]
  26. Verma, A.; Saxena, R.K. Determination of Lemaitre damage parameters for DP590 steel using Teacher-Learner based optimization. J. Phys. Conf. Ser. 2019, 1240, 012101. [Google Scholar] [CrossRef]
  27. Pavan, K.; Puneet, T. Investigating the capability of the Lemaitre damage model to establish the incremental sheet forming process. Arch. Civ. Mech. Eng. 2022, 22, 66. [Google Scholar]
  28. Araújo, L.; Ferreira, G.; Neves, R.; Malcher, L. Fatigue analysis for the aluminum alloy 7050-T7451 performed by a two scale continuum damage mechanics model. Theor. Appl. Fract. Mech. 2020, 105, 102439. [Google Scholar] [CrossRef]
  29. Malekipour, K.; Mashayekhi, M.; Badrossamay, M. Meso-scale damage mechanics modeling for high cycle fatigue behavior of additively manufactured components. Mech. Mater. 2021, 160, 103951. [Google Scholar] [CrossRef]
  30. Liu, X.B.; Wu, G.L.; Zhou, C.Y. Constitutive modeling of dynamic recrystallization behavior and processing map of Cr5 steel. J. Cent. South Univ. 2016, 23, 3065–3071. [Google Scholar] [CrossRef]
  31. He, S.; Nie, Y.; Bordas, S.P.A.; Yu, P. Damage-Plastic Constitutive Model of Thin-Walled Circular Steel Tubes for Space Structures. J. Eng. Mech. 2020, 146, 04020131. [Google Scholar] [CrossRef]
  32. Sun, X.; Guo, X. Two numerical algorithms of Lemaitre damage model and their comparison. J. Hohai Univ. 2019, 47, 387–392. [Google Scholar]
  33. Patnaik, S.; Semperlotti, F. Variable-order fracture mechanics and its application to dynamic fracture. Npj Comput. Mater. 2021, 7, 27. [Google Scholar] [CrossRef]
  34. Choudhary, T.; Mishra, V.; Goswami, A.; Sarangapani, J. A comprehensive survey on model compression and acceleration. Artif. Intell. Rev. 2020, 53, 5113–5155. [Google Scholar] [CrossRef]
  35. Asim, M.; Jawaid, M.; Khan, A.; Asiri, A.M.; Malik, M.A. Effects of Date Palm fibres loading on mechanical, and thermal properties of Date Palm reinforced phenolic composites. J. Mater. Res. Technol. 2020, 9, 3614–3621. [Google Scholar] [CrossRef]
  36. Bouchard, P.O.; Bourgeon, L.; Fayolle, S.; Mocellin, K. An enhanced Lemaitre model formulation for materials processing damage computation. Int. J. Mater. Form. 2011, 4, 299–315. [Google Scholar] [CrossRef] [Green Version]
  37. Oyane, M. Criteria of ductile fracture strain. Bull. JSME 1972, 15, 1507–1513. [Google Scholar] [CrossRef]
  38. Sun, B.; Xu, Z.-D. A continuum damage-based computational methodology for crack growth simulation of metal films. Bull. Mater. Sci. 2021, 44, 400. [Google Scholar] [CrossRef]
  39. Sharma, A.; Daggumati, S. Computational micromechanical modeling of transverse tensile damage behavior in unidirectional glass fiber-reinforced plastic composite plies: Ductile versus brittle fracture mechanics approach. Int. J. Damage Mech. 2020, 29, 943–964. [Google Scholar] [CrossRef]
  40. Rezwan, A.A.; Jokisaari, A.M.; Tonks, M.R. Modeling brittle fracture due to anisotropic thermal expansion in polycrystalline materials. Comput. Mater. Sci. 2021, 194, 110407. [Google Scholar] [CrossRef]
  41. Kumar, A.; Singh, A.K.; Shrivastva, A.; Mishra, S.; Narasimhan, K. Failure prediction in incremental sheet forming based on Lemaitre damage model. J. Phys. Conf. Ser. 2018, 1063, 012152. [Google Scholar] [CrossRef]
  42. Liu, Y.; Pan, Y.; Yin, D.; Song, S.; Lin, L.; Zhang, M.; Qi, X.; Yao, J. Mechanical properties and thickness-determined fracture mode of hexagonal boron nitride nanosheets under nanoindentation simulations. Comput. Mater. Sci. 2021, 186, 110047. [Google Scholar] [CrossRef]

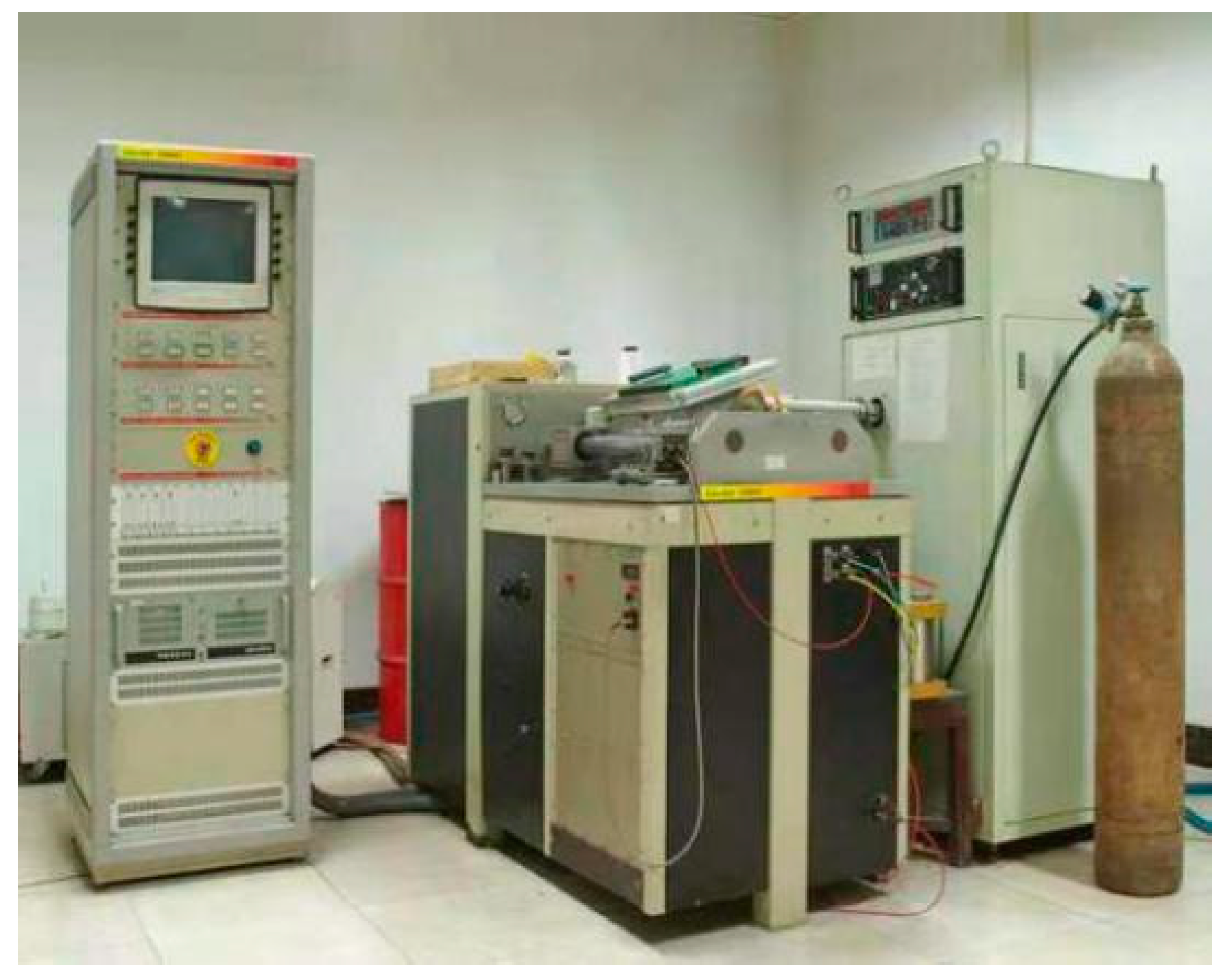

Figure 1. Gleeble-1500D thermal simulation testing machine.
Figure 1. Gleeble-1500D thermal simulation testing machine.
Materials 15 03935 g001

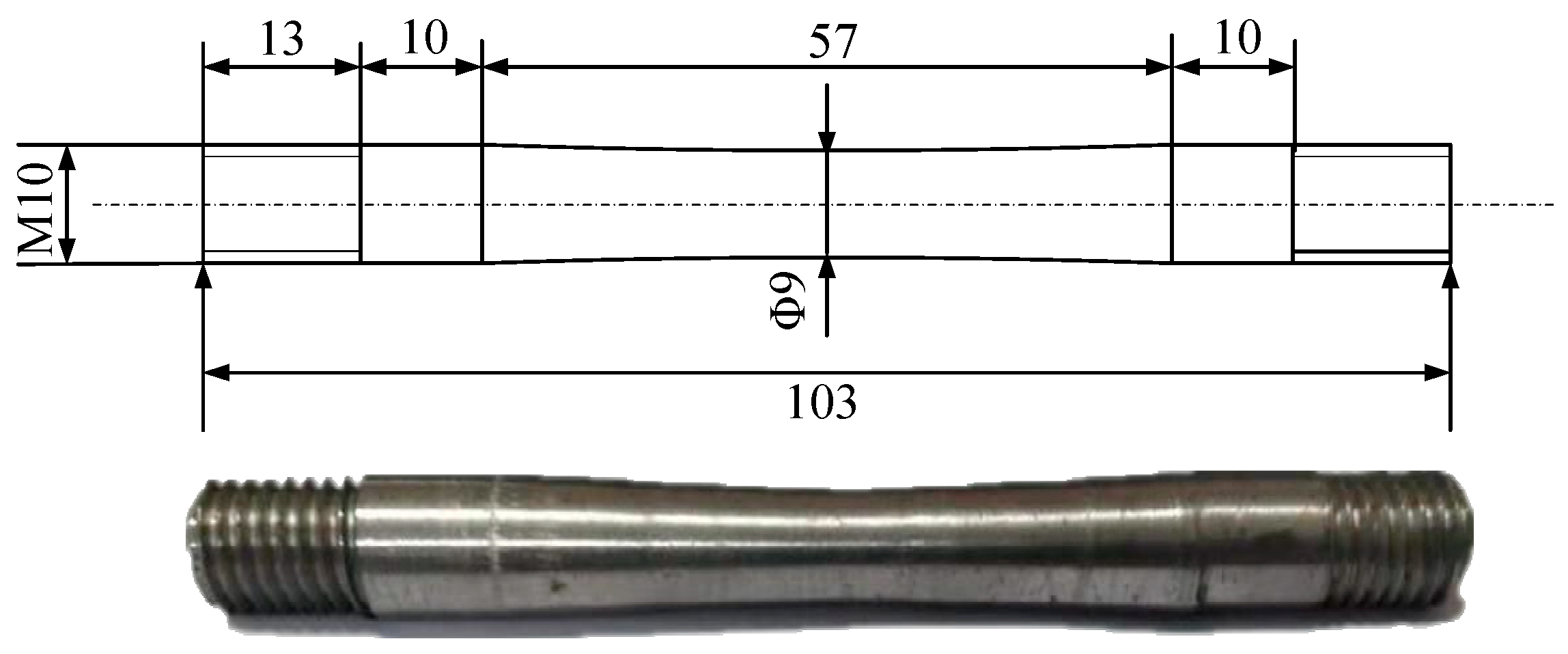

Figure 2. Schematic drawing of specimens for tensile tests (unit: mm).
Figure 2. Schematic drawing of specimens for tensile tests (unit: mm).
Materials 15 03935 g002

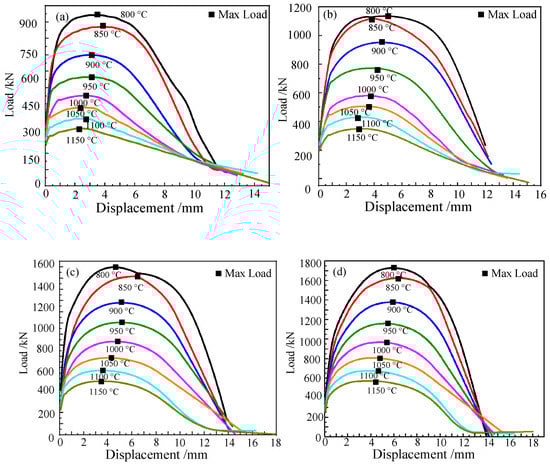

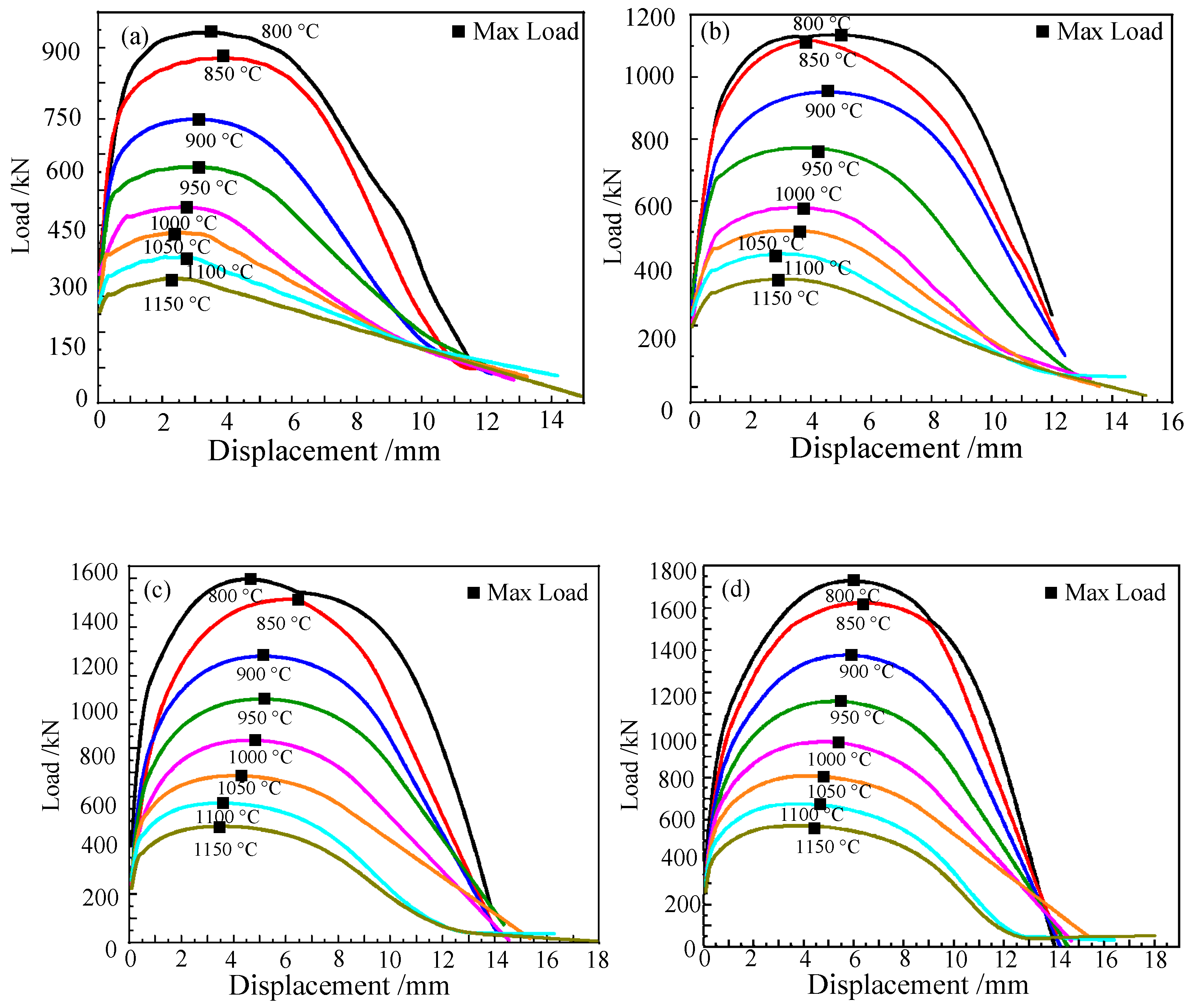

Figure 3. Cr5 steel displacement–load curves with different temperatures and different strain rates: (a) ε ˙ = 0.01 s−1; (b) ε ˙ = 0.1 s−1; (c) ε ˙ = 1 s−1; (d) ε ˙ = 5 s−1.
Figure 3. Cr5 steel displacement–load curves with different temperatures and different strain rates: (a) ε ˙ = 0.01 s−1; (b) ε ˙ = 0.1 s−1; (c) ε ˙ = 1 s−1; (d) ε ˙ = 5 s−1.
Materials 15 03935 g003

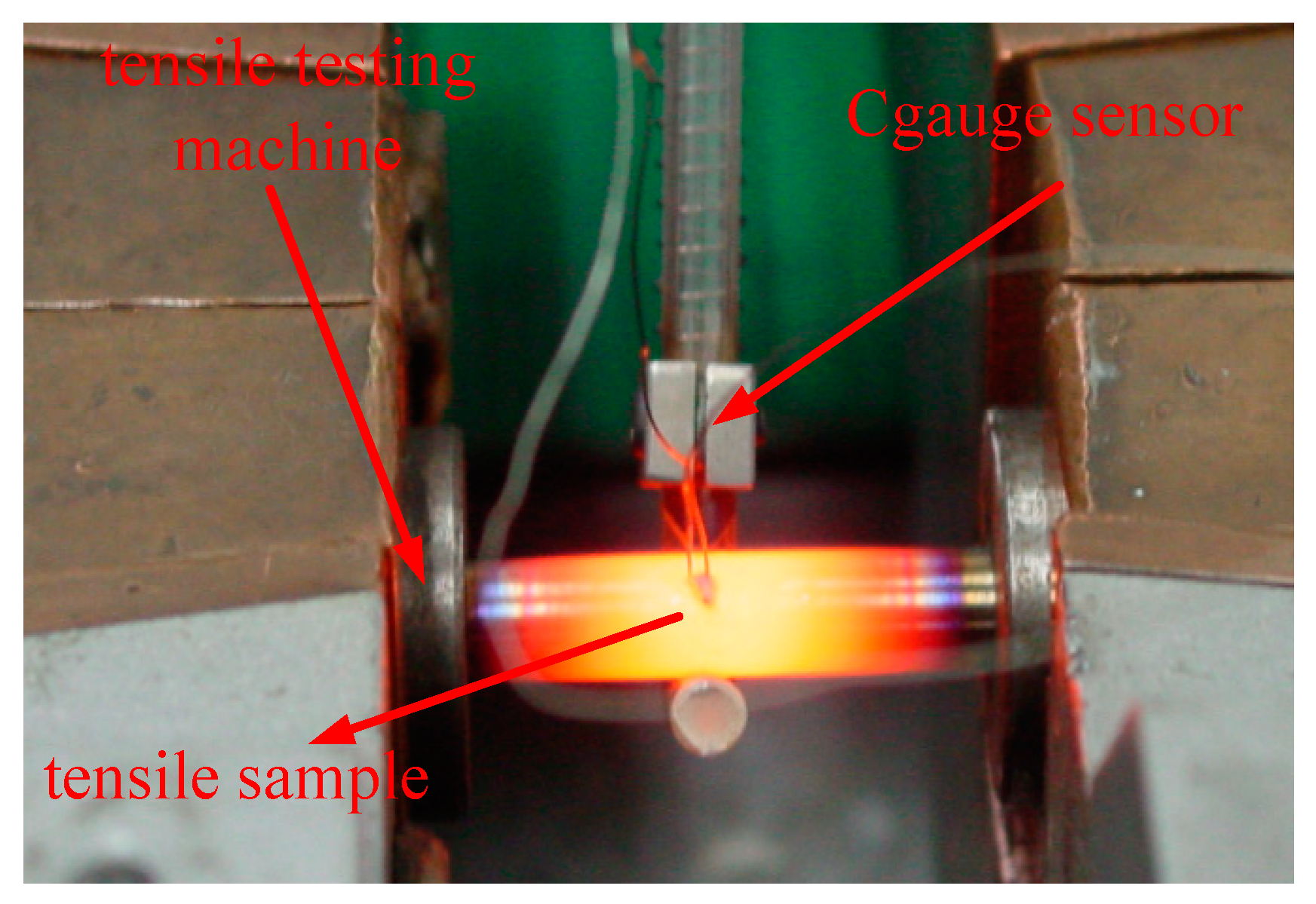

Figure 4. DSI C-Gauge sensor.
Figure 4. DSI C-Gauge sensor.
Materials 15 03935 g004

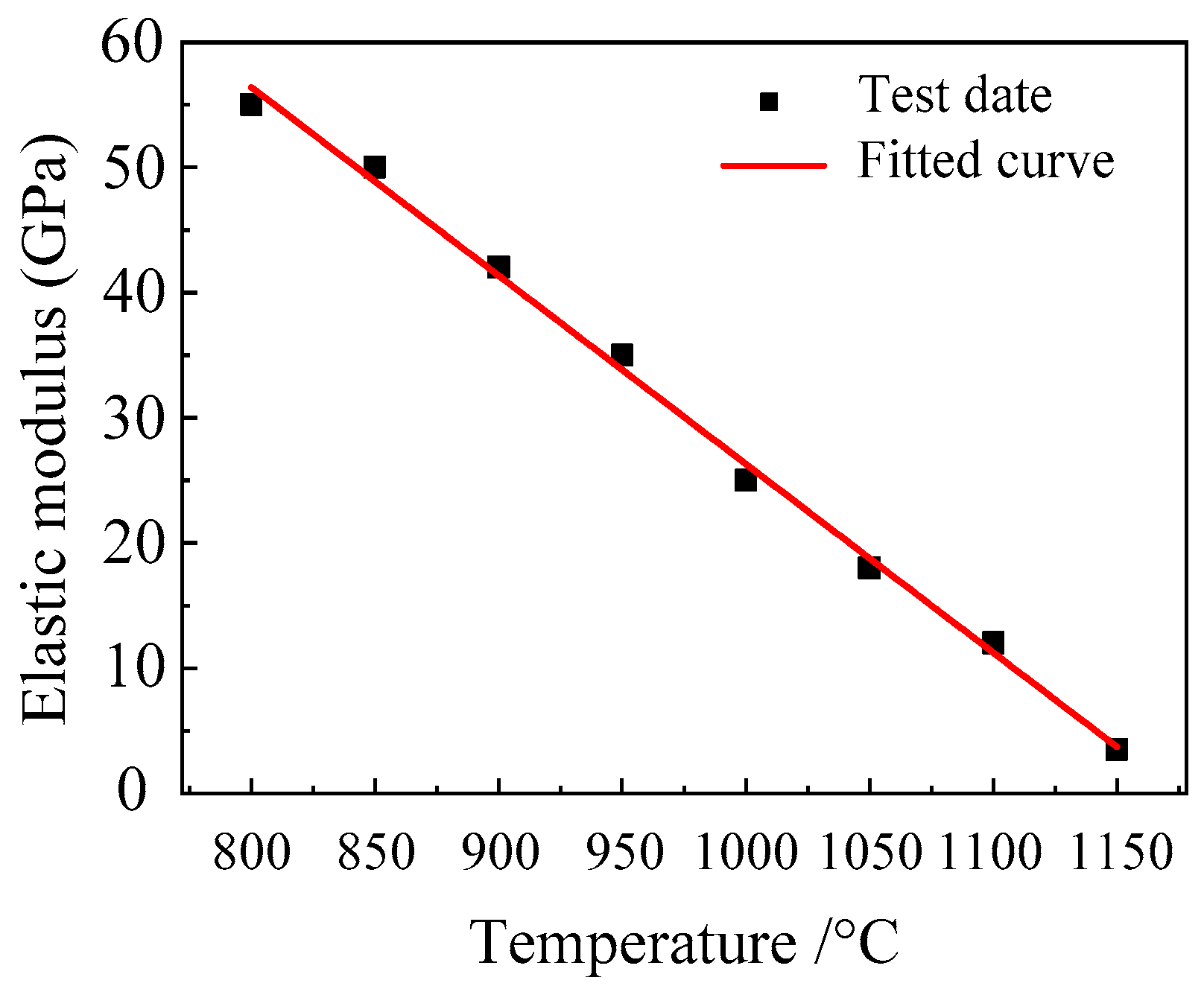

Figure 5. Fitting curve between the E value of the elastic modulus and temperature of the Cr5 alloy steel.
Figure 5. Fitting curve between the E value of the elastic modulus and temperature of the Cr5 alloy steel.
Materials 15 03935 g005

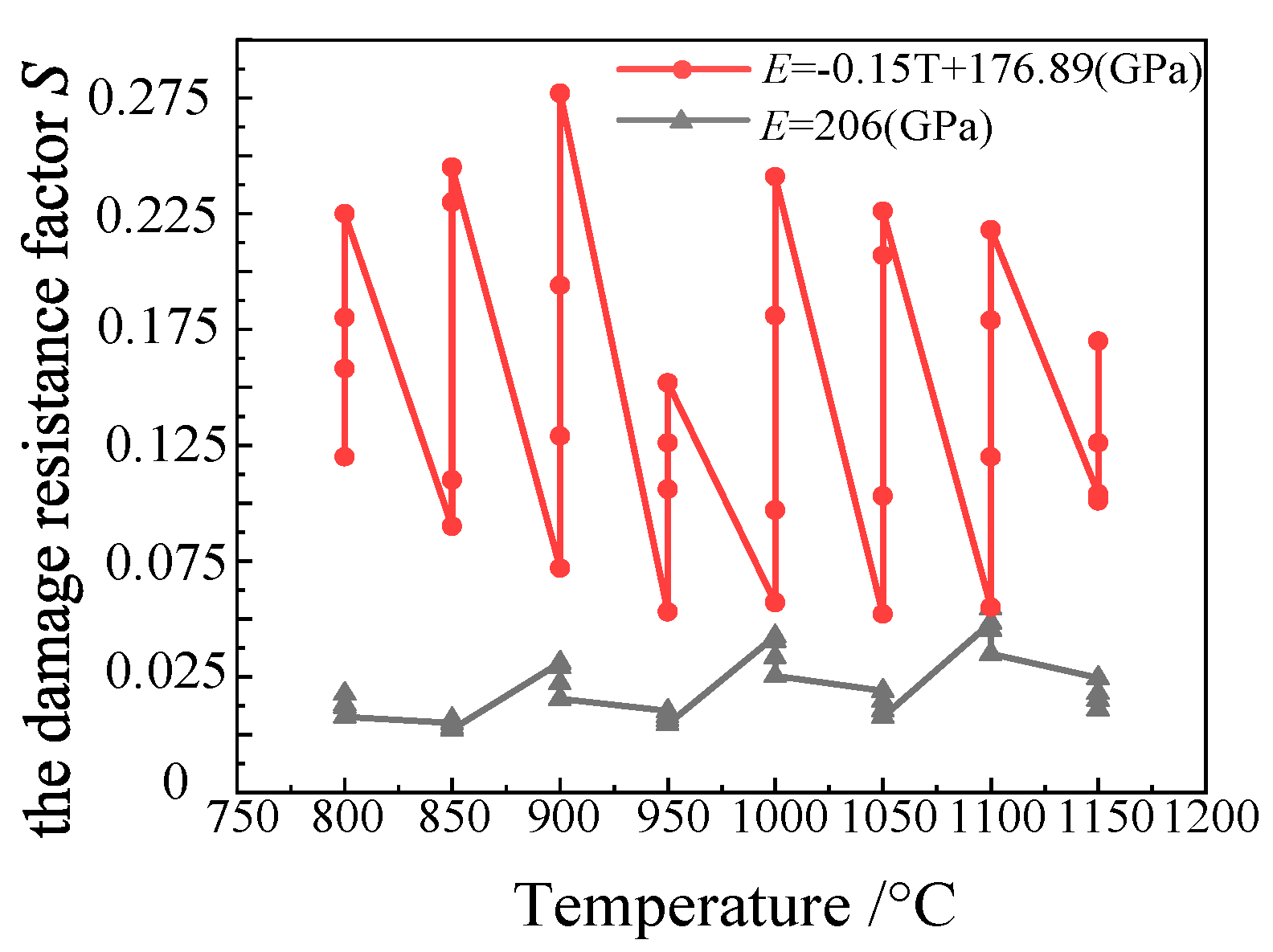

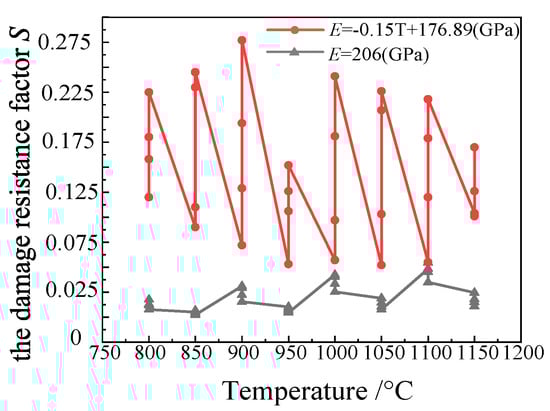

Figure 6. Comparison of the damage parameter S values of Cr5 alloy steel with different elastic moduli.
Figure 6. Comparison of the damage parameter S values of Cr5 alloy steel with different elastic moduli.
Materials 15 03935 g006

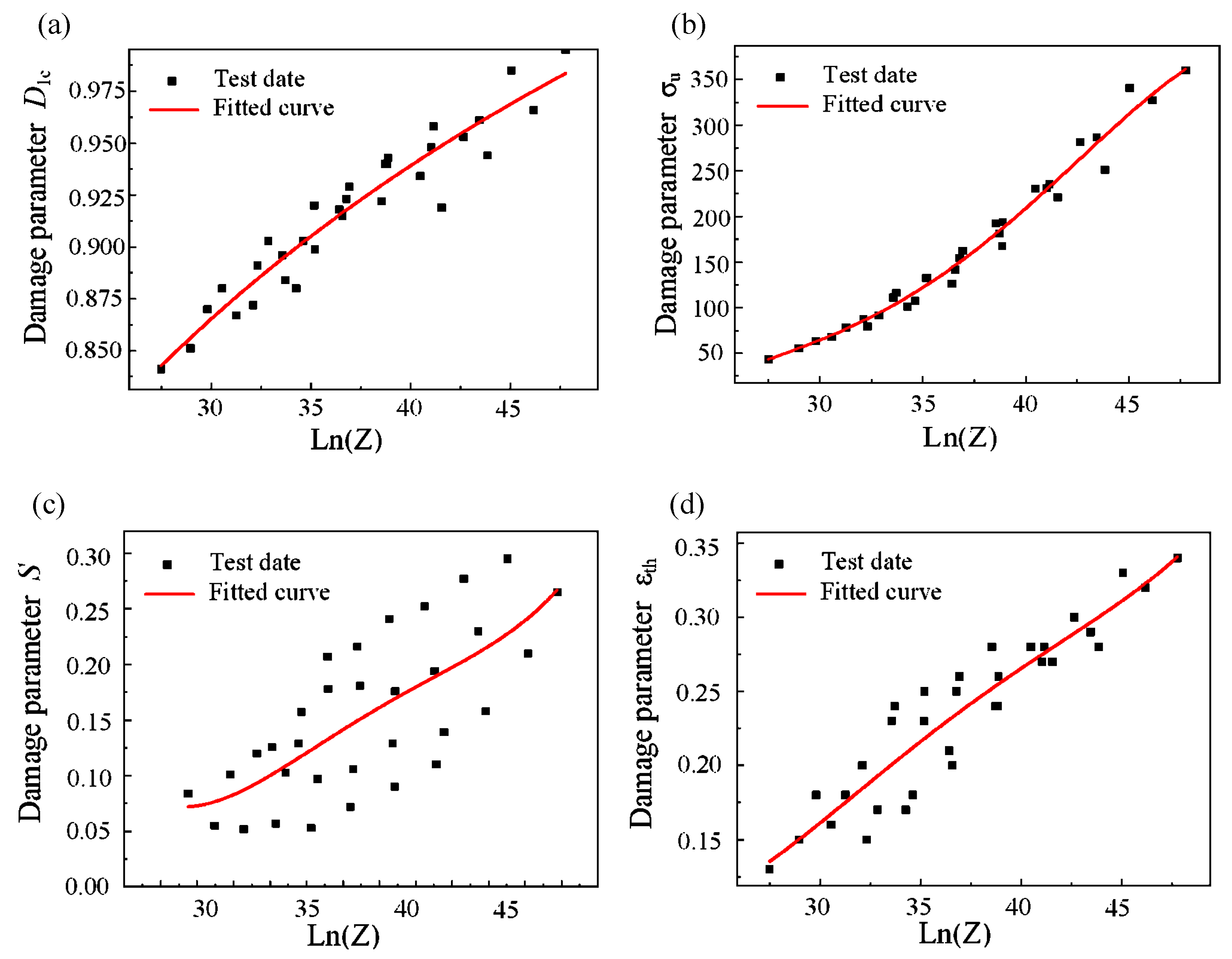

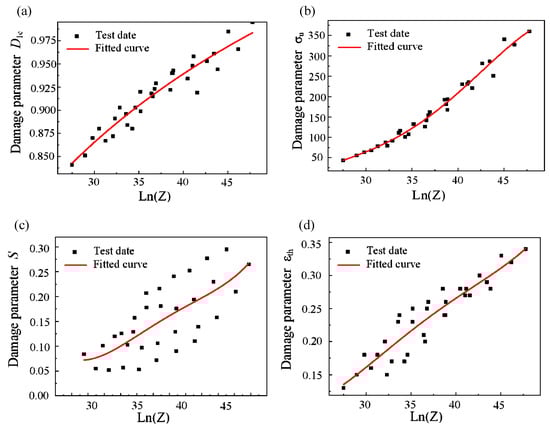

Figure 7. Fitting curve of coupling of Lemaitre damage model and Zener–Hollomon coefficient: (a) D1c-lnZ; (b) σu-lnZ; (c) S-lnZ; (d) εth-lnZ.
Figure 7. Fitting curve of coupling of Lemaitre damage model and Zener–Hollomon coefficient: (a) D1c-lnZ; (b) σu-lnZ; (c) S-lnZ; (d) εth-lnZ.
Materials 15 03935 g007

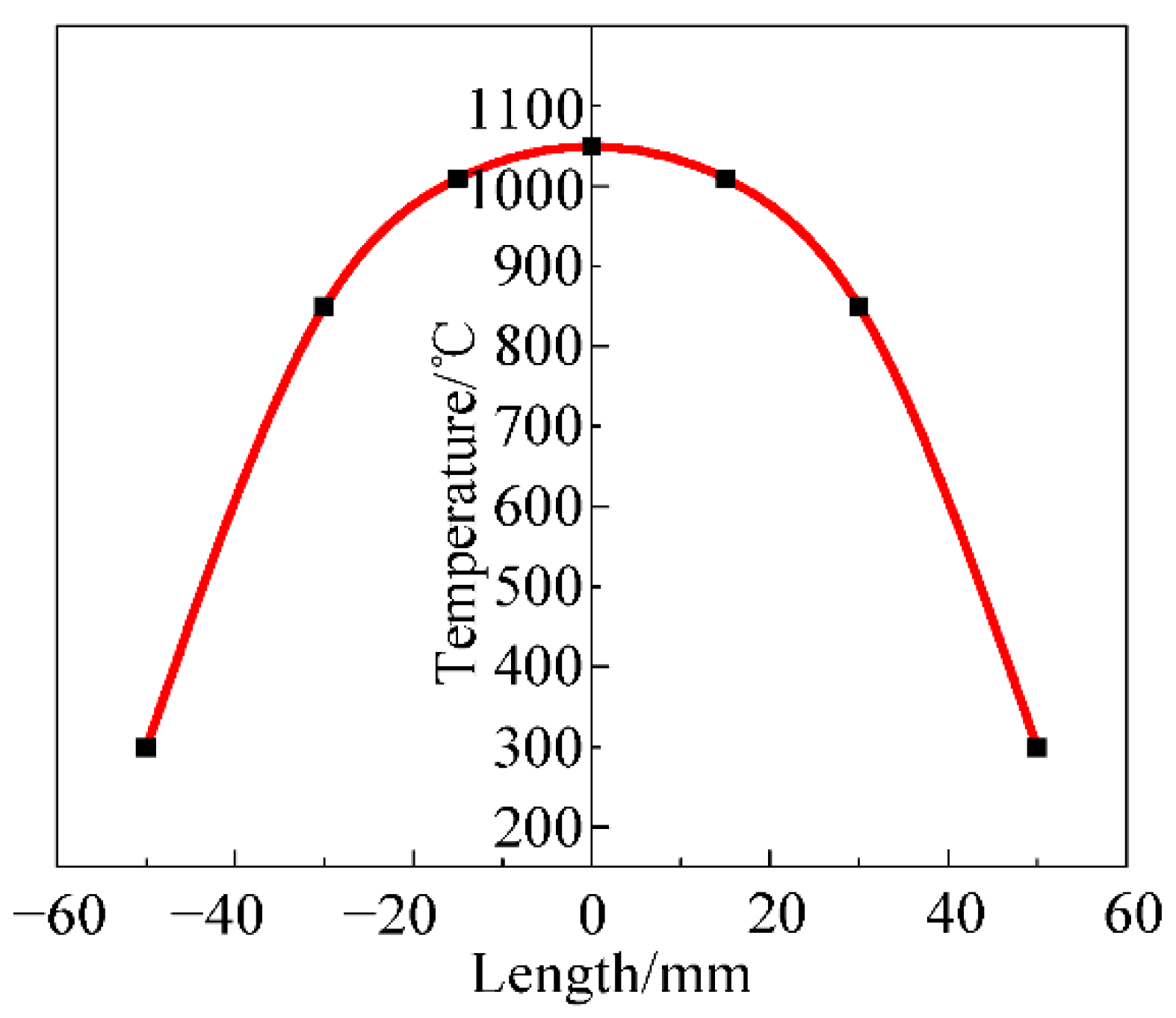

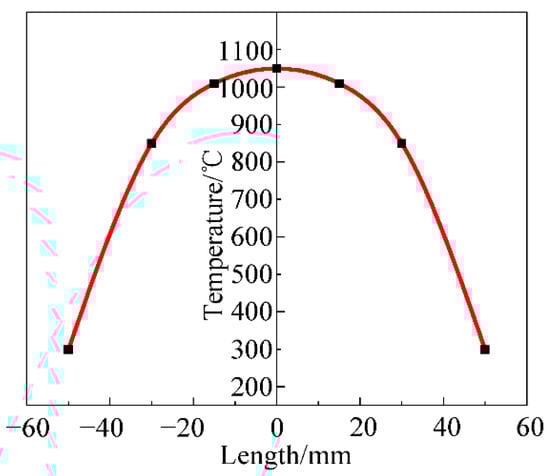

Figure 8. Cr5 alloy steel tensile specimen temperature distribution.
Figure 8. Cr5 alloy steel tensile specimen temperature distribution.
Materials 15 03935 g008

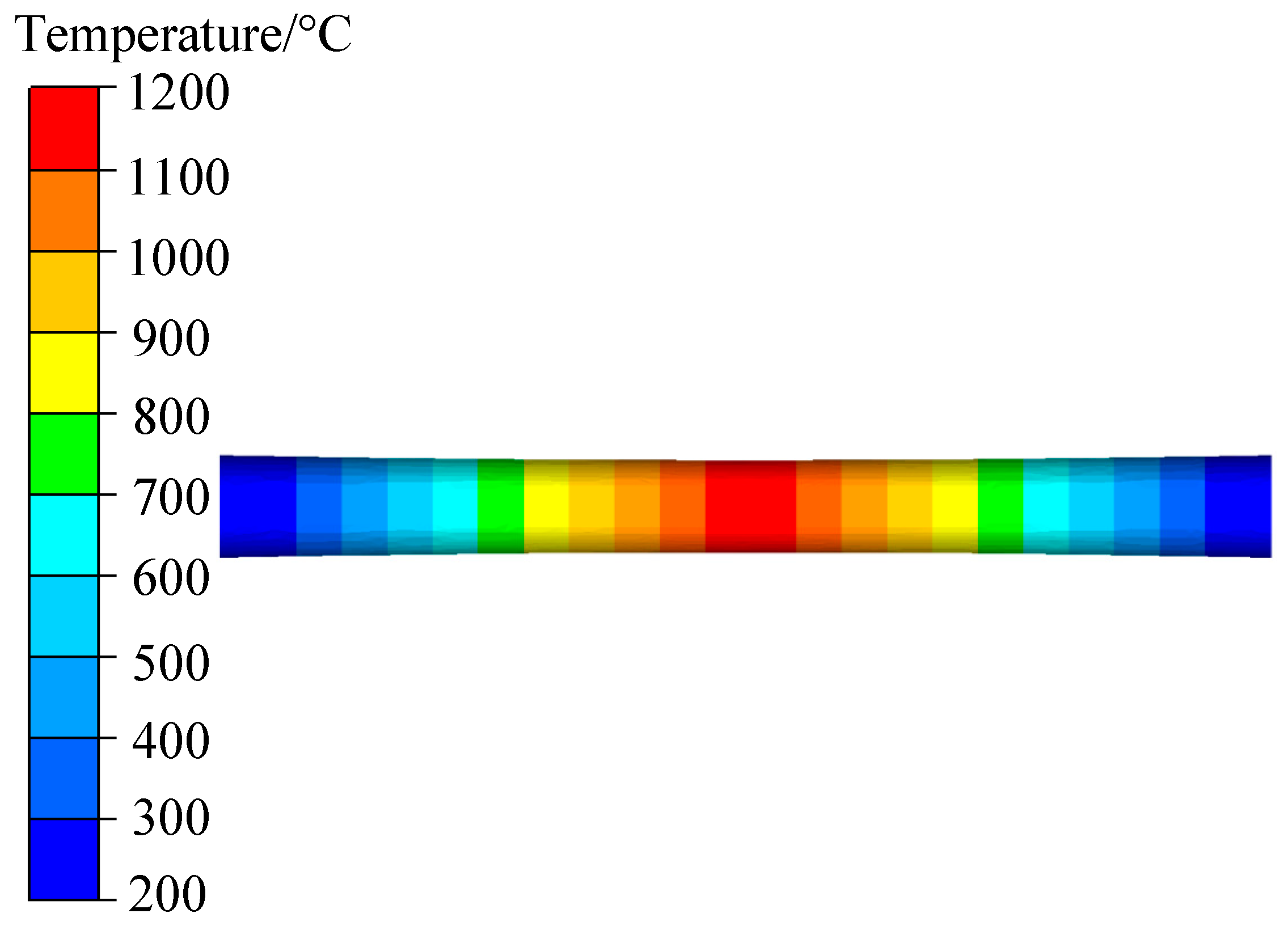

Figure 9. Cr5 alloy steel tensile simulation test modelling schematic diagram.
Figure 9. Cr5 alloy steel tensile simulation test modelling schematic diagram.
Materials 15 03935 g009

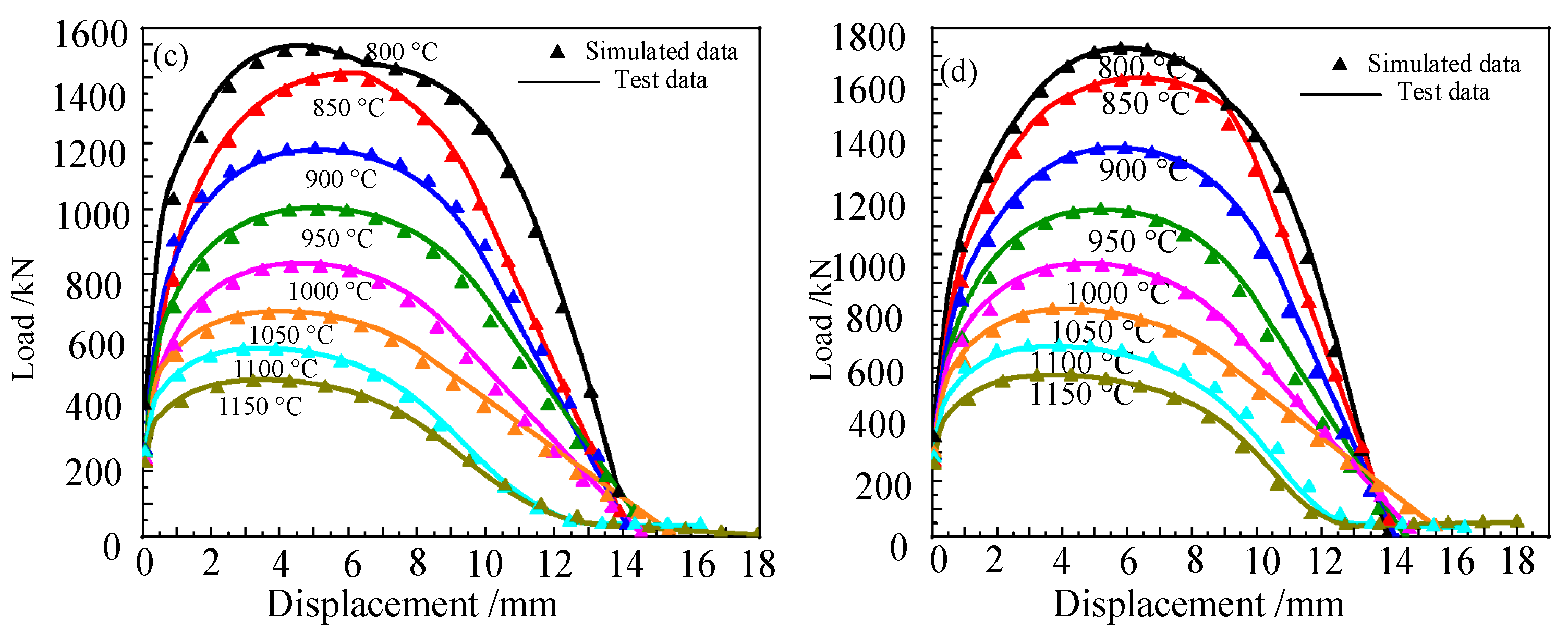

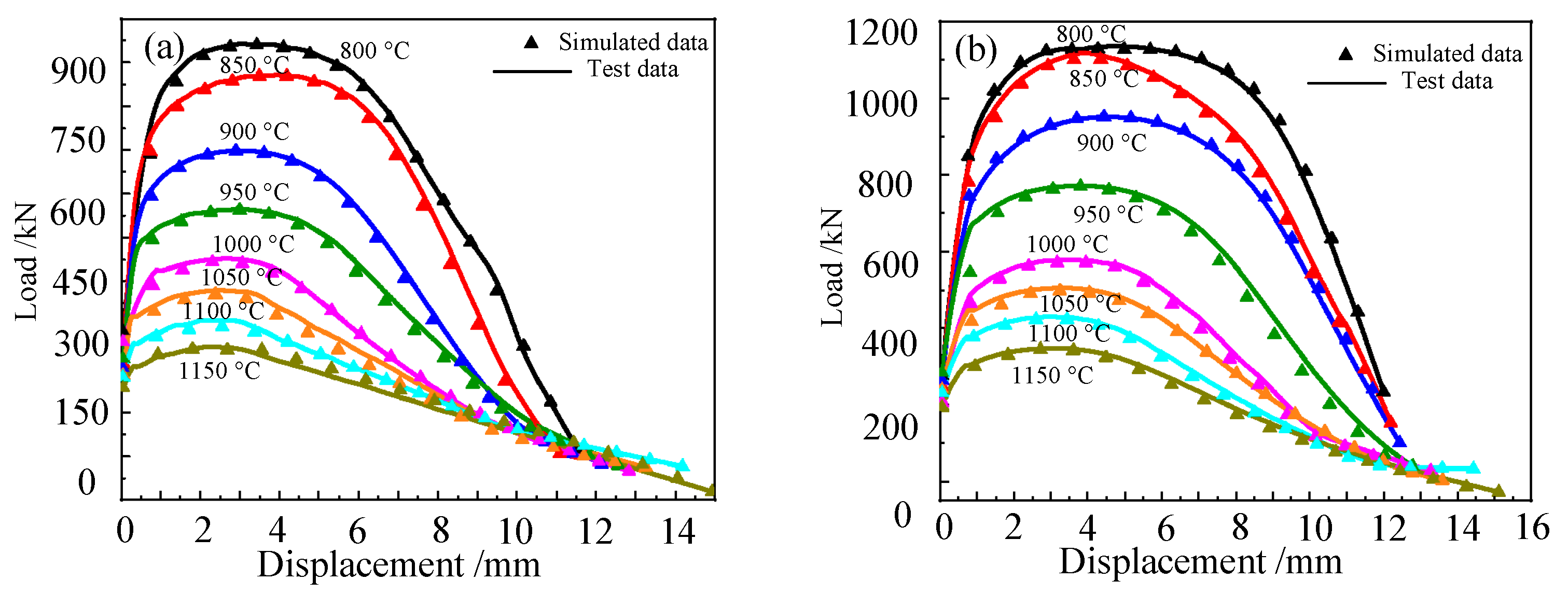

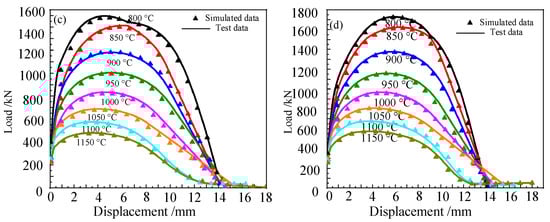

Figure 10. Comparison of displacement–load curves between the simulated tensile test and actual tensile test of Cr5 alloy steel: (a) ε ˙ = 0.01 s−1; (b) ε ˙ = 0.1 s−1; (c) ε ˙ = 1 s−1; (d) ε ˙ = 5 s−1.
Figure 10. Comparison of displacement–load curves between the simulated tensile test and actual tensile test of Cr5 alloy steel: (a) ε ˙ = 0.01 s−1; (b) ε ˙ = 0.1 s−1; (c) ε ˙ = 1 s−1; (d) ε ˙ = 5 s−1.
Materials 15 03935 g010aMaterials 15 03935 g010b

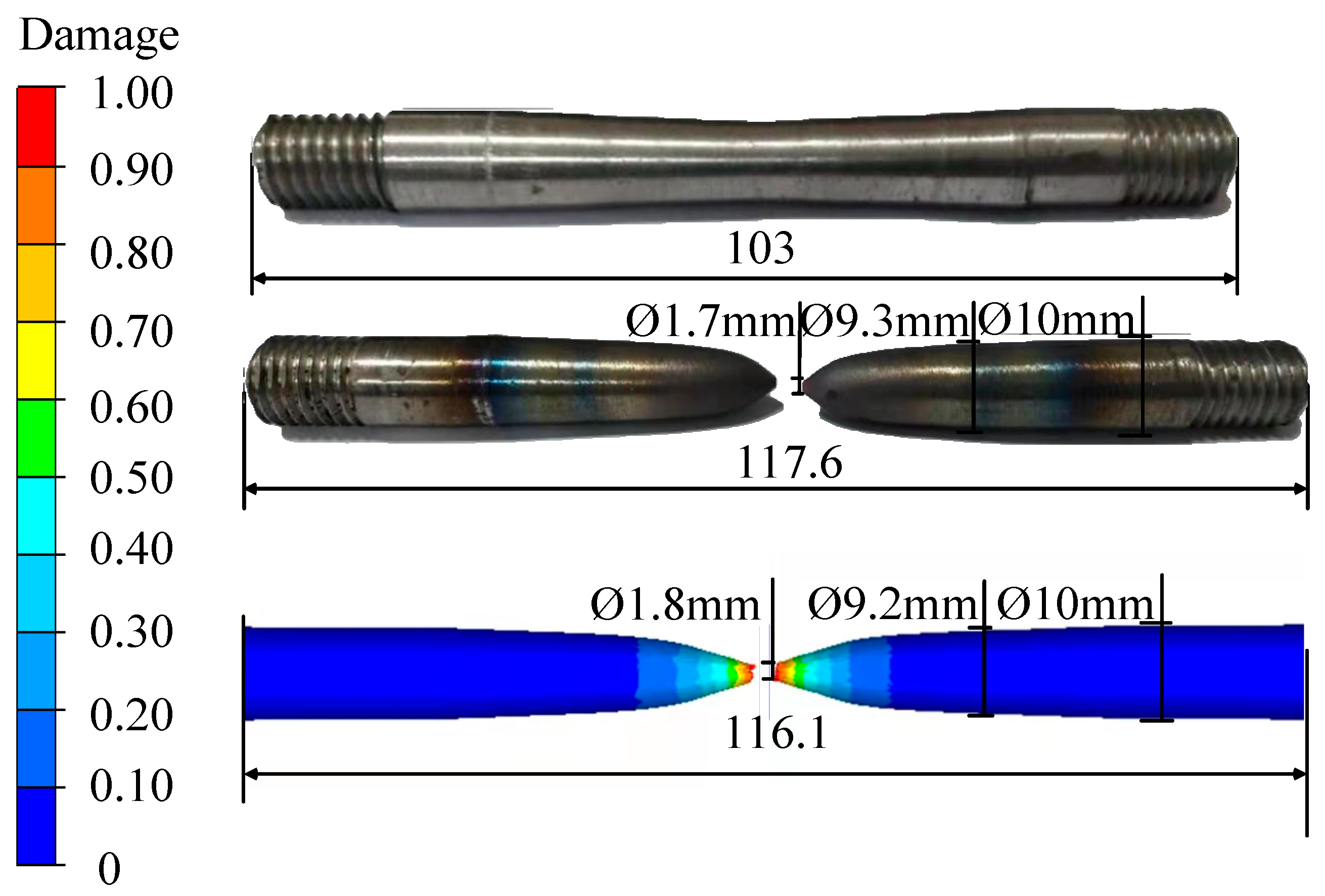

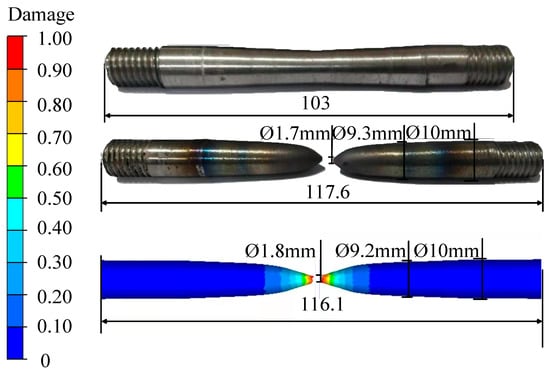

Figure 11. Schematic diagram of the comparison of gauge distance and tensile fracture between simulated tensile specimen and actual tensile specimen at 950 °C and 5 s−1 (unit: mm).
Figure 11. Schematic diagram of the comparison of gauge distance and tensile fracture between simulated tensile specimen and actual tensile specimen at 950 °C and 5 s−1 (unit: mm).
Materials 15 03935 g011

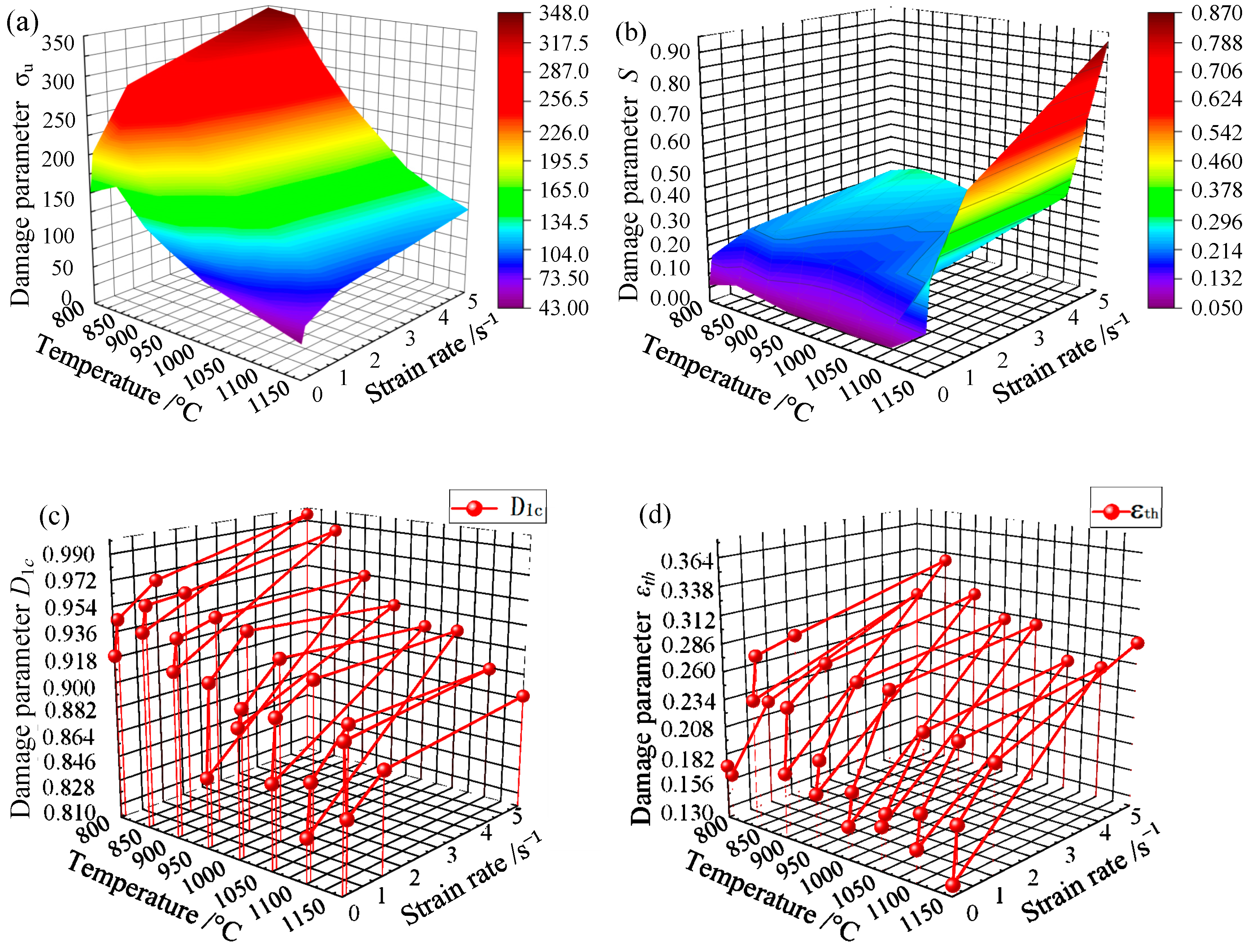

Figure 12. Damage diagram of Lemaitre damage parameters of Cr5 alloy steel: (a) surface diagram based on ultimate stress σu with temperature and strain rate; (b) surface diagram based on anti-damage factor S with temperature and strain rate; (c) surface diagram based on critical damage value D1c with temperature and strain rate; and (d) surface diagram based on damage strain threshold εth with temperature and strain rate.
Figure 12. Damage diagram of Lemaitre damage parameters of Cr5 alloy steel: (a) surface diagram based on ultimate stress σu with temperature and strain rate; (b) surface diagram based on anti-damage factor S with temperature and strain rate; (c) surface diagram based on critical damage value D1c with temperature and strain rate; and (d) surface diagram based on damage strain threshold εth with temperature and strain rate.
Materials 15 03935 g012
Table 1. Chemical compositions of Cr5 steel in wt%.
Table 1. Chemical compositions of Cr5 steel in wt%.
CMnSiCrMoVNiFe
0.520.4530.5474.560.4780.1290.42693.1
Table 2. Fracture displacement of Cr5 alloy steel under different deformation conditions.
Table 2. Fracture displacement of Cr5 alloy steel under different deformation conditions.
Fracture Displacement800 °C850 °C900 °C950 °C1000 °C1050 °C1100 °C1150 °C
0.01 s−111.52 mm11.76 mm12.14 mm12.56 mm12.83 mm13.25 mm14.18 mm14.93 mm
0.1 s−111.86 mm12.08 mm12.44 mm12.79 mm13.28 mm13.59 mm14.43 mm15.12 mm
1 s−113.89 mm13.92 mm14.12 mm14.35 mm14.55 mm15.36 mm16.27 mm17.93 mm
5 s−114.02 mm14.07 mm14.32 mm14.60 mm14.69 mm15.49 mm16.43 mm18.05 mm
Table 3. Determination of elastic modulus E values of Cr5 steel at different temperatures.
Table 3. Determination of elastic modulus E values of Cr5 steel at different temperatures.
Temperature/°C8008509009501000105011001150
E/GPa555042352518123.5
Table 4. Tensile properties, Lemaitre damage parameters and Zener–Hollomon coefficient of Cr5 steel at different temperatures and different strain rates.
Table 4. Tensile properties, Lemaitre damage parameters and Zener–Hollomon coefficient of Cr5 steel at different temperatures and different strain rates.
Tensile Performance ParametersLemaitre Damage ParametersZener–Hollomon Coefficient Value
T/°C ε ˙ /s−1Rm/MPaεmRB/MPaεBD1cσu/MPaS/MPaεthZLnZ
8000.01150.950.1712.210.430.919 150.950.059 0.171.11 × 101841.55
8000.1201.020.1651.450.480.944 201.020.158 0.161.11 × 101943.85
8001277.730.229.40.510.966 277.730.210 0.221.11 × 102046.16
8005347.460.291.580.530.995 347.460.265 0.295.56 × 102047.77
8500.01167.720.249.990.540.940 167.720.090 0.247.36 × 101638.84
8500.1235.590.389.920.570.958 235.590.110 0.287.36 × 101741.14
8501286.440.2911.140.560.961 286.440.230 0.297.36 × 101843.44
8505341.030.335.220.580.985 341.030.295 0.333.68 × 101945.05
9000.01126.170.1810.390.530.918 126.170.072 0.186.58 × 101536.42
9000.1180.980.2410.880.550.940 180.980.129 0.246.58 × 101638.73
9001230.90.2712.070.560.948 230.90.194 0.276.58 × 101741.03
9005281.350.313.130.580.953 281.350.277 0.33.29 × 101842.64
9500.01101.070.1715.180.480.850 101.070.053 0.177.59 × 101434.26
9500.1141.610.212.0530.540.915 141.610.106 0.27.59 × 101536.57
9501193.690.2611.030.570.943 193.690.176 0.267.59 × 101638.87
9505230.580.2815.140.590.934 230.580.252 0.283.79 × 101740.48
10000.0179.4570.158.660.550.891 79.4570.057 0.151.09 × 101432.32
10000.1107.520.1810.40.560.903 107.520.097 0.181.09 × 101534.62
10001162.240.2611.570.580.929 162.240.181 0.261.09 × 101636.93
10005192.580.2815.080.580.922 192.580.241 0.285.44 × 101638.54
10500.0167.7860.169.510.510.860 67.7860.052 0.161.88 × 101330.56
10500.191.3110.178.870.570.903 91.3110.103 0.171.88 × 101432.86
10501132.570.2310.650.620.920 132.570.207 0.231.88 × 101535.17
10505154.450.2511.930.620.923 154.450.266 0.259.37 × 101536.78
11000.0155.2170.159.320.510.831 55.2170.055 0.153.79 × 101228.97
11000.178.0360.1810.370.590.867 78.0360.120 0.183.79 × 101331.27
11001111.010.2311.540.630.896 111.010.229 0.233.79 × 101433.57
11005132.740.2513.350.640.899 132.740.318 0.251.89 × 101535.19
11500.0143.2810.1312.940.480.701 43.2810.134 0.138.81 × 101127.5
11500.163.4660.189.550.610.850 63.4660.291 0.188.81 × 101229.81
1150187.4690.2211.180.640.872 87.4690.526 0.228.81 × 101332.11
11505116.040.2813.420.680.884 116.040.870 0.284.40 × 101433.72
Table 5. Values of the coefficients of the modified Lemaitre damage model for Cr5 steel.
Table 5. Values of the coefficients of the modified Lemaitre damage model for Cr5 steel.
The Values of the Coefficients of the Lemaitre Damage ModelABCDE
Damage strain threshold εth1.27−0.140.006−7.99 × 10−55.81 × 10−9
Anti-damage factor S5.48−0.61−0.025−4.43 × 10−42.94 × 10−6
Critical damage value under uniaxial tension D1c1.590.130.6600
Ultimate stress value under uniaxial tension σu−1874.31210.91−8.460.13−1.04 × 10−5
Table 6. The coefficients of the modified Lemaitre damage model for Cr5 steel.
Table 6. The coefficients of the modified Lemaitre damage model for Cr5 steel.
Difference Analysis of Coefficient ValuesCorrelation Coefficient RR-Squared R2Mean Square Error MSE
Damage strain threshold εth0.920.910.37
Anti-injury factor S0.930.9222.01
Critical damage value D1c0.920.918.99
Ultimate stress value σu0.980.9846.12
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chen, X.; Guo, L.; Zhang, B.; Bai, R. An Enhanced Lemaitre Model and Fracture Map for Cr5 Alloy Steel during High-Temperature Forming Process. Materials 2022, 15, 3935. https://doi.org/10.3390/ma15113935

AMA Style

Chen X, Guo L, Zhang B, Bai R. An Enhanced Lemaitre Model and Fracture Map for Cr5 Alloy Steel during High-Temperature Forming Process. Materials. 2022; 15(11):3935. https://doi.org/10.3390/ma15113935

Chicago/Turabian Style

Chen, Xuewen, Lele Guo, Bo Zhang, and Rongren Bai. 2022. "An Enhanced Lemaitre Model and Fracture Map for Cr5 Alloy Steel during High-Temperature Forming Process" Materials 15, no. 11: 3935. https://doi.org/10.3390/ma15113935

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
