Picosecond Bessel Beam Fabricated Pure, Gold-Coated Silver Nanostructures for Trace-Level Sensing of Multiple Explosives and Hazardous Molecules
Abstract
:1. Introduction
2. Materials and Methods
3. Results
3.1. Fabrication of the Ag NSs
3.2. Fabrication of Au-Coated AgNSs
3.3. Sensing Studies Using the SERS
3.4. SERS Mapping Studies

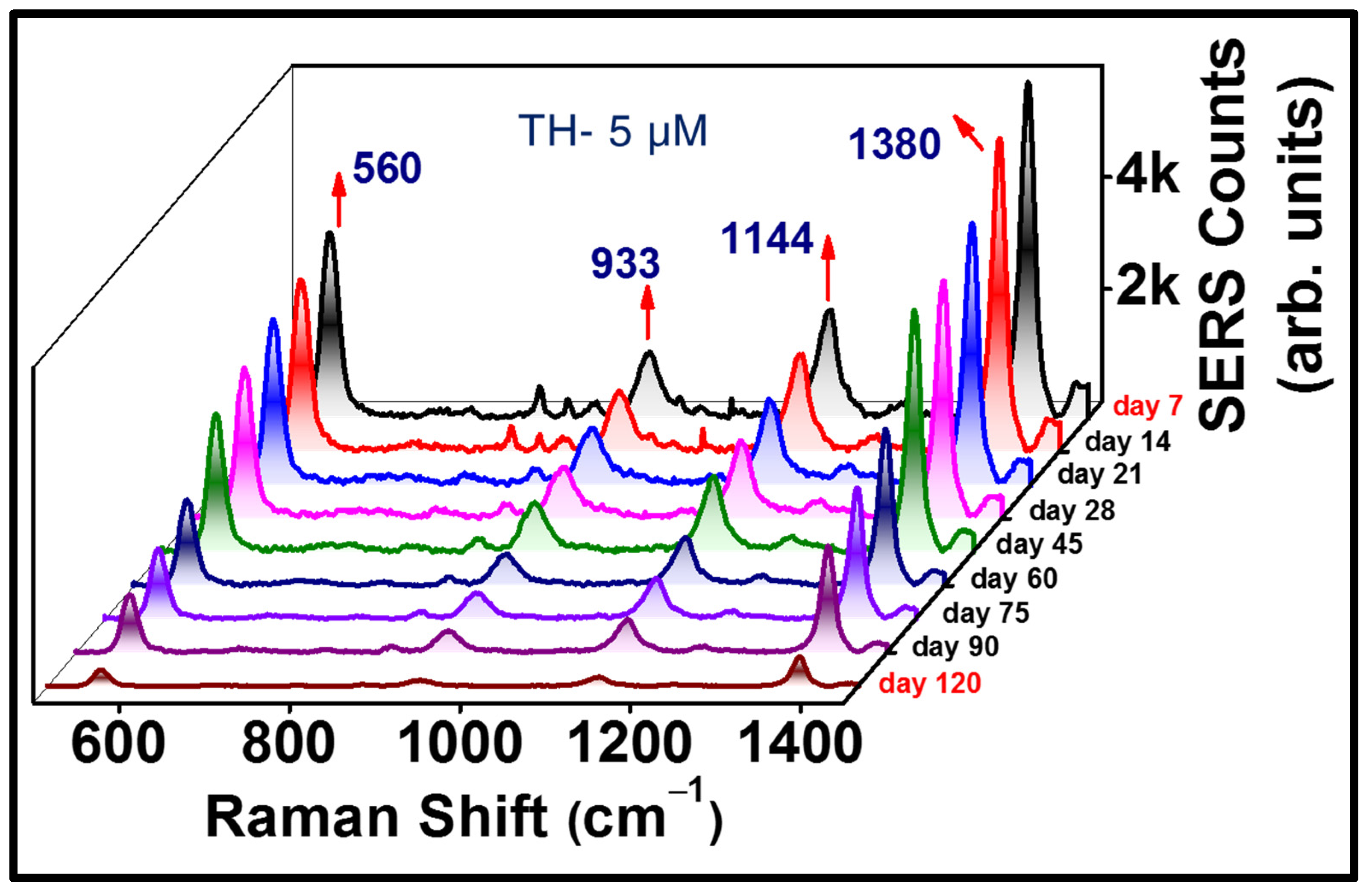

3.5. Aging Studies of the SERS Substrates
3.6. Cooperative Enhancement in the SERS Signal
4. Conclusions
- A qualitative correlation was found between the nano-structural surface roughness and the disparity in plasmonic responses of the different Ag NSs, formed engaging systematically increasing laser pulse energies. Additional detailed studies over large surface areas of these substrates will enable us to quantify the surface roughness and the correlation with SERS performance. Subsequently, excitation energy, wavelength and time scale dependent, wide-ranging Raman studies, were performed engaging the most efficient AgNS2.
- Typical enhancement factors of 5.7 × 104, 7.3 × 105, and 9.3 × 106 were achieved for the three hazardous molecules of PA, TH, and MB, respectively, using the AgNS2.
- The LOD’s for TH, PA, MB, AN, MG, and HEWL were estimated to be 35 nM, 360 nM, 300 pM, 3 µM, 210 pM, and 27 nM, respectively.
- Furthermore, the Raman mapping was performed on that substrate providing an insight to the uniformity of the Raman signal sub-micron scale SERS response. We obtained reasonably good RSD values.
- An attractive improvement in the sensing efficiency was accomplished through optimised Au coating on the AgNS2, originating from the two-body-cooperative (AgNS2 + Au) LSP coupled enhancement SERS signal.
- EF’s of 108 (and a corresponding LOD of 30 pM) was achieved for AgNS2 + 20 nm Au coating. Without coating the corresponding numbers were 7.3 × 105 (35 nM).
- The stability of the substrates was found to be improved post Au coating and we observed only ~70% reduction only in the SERS intensities over a period of 120 days in the coated substrates.
- The batch-to-batch variations in the response from the substrates were carefully investigated and the standard deviation in the SERS counts for a particular analyte (fixed concentration) of our interest were collected from three Ag substrates (produced with same ablation conditions). We found it to be within the experimental error of 100 counts, demonstrating a relative standard deviation (RSD) of <6%.
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Zhang, D.; Gökce, B.; Barcikowski, S. Laser Synthesis and Processing of Colloids: Fundamentals and Applications. Chem. Rev. 2017, 117, 3990–4103. [Google Scholar] [CrossRef] [PubMed]
- Zhang, D.; Liu, R.; Li, Z. Irregular LIPSS Produced on Metals by Single Linearly Polarized Femtosecond Laser. Int. J. Extrem. Manuf. 2022, 4, 015102. [Google Scholar] [CrossRef]
- Zhang, D.; Li, Z.; Sugioka, K. Laser Ablation in Liquids for Nanomaterial Synthesis: Diversities of Targets and Liquids. J. Phys. Photonics 2021, 3, 042002. [Google Scholar] [CrossRef]
- Lin, Z.Y.; Hong, M.H. Femtosecond laser precision engineering: From micron, submicron, to nanoscale. Ultrafast Sci. 2021, 2021, 9783514. [Google Scholar] [CrossRef]
- Zhang, D.; Ranjan, B.; Tanaka, T.; Sugioka, K. Underwater Persistent Bubble-Assisted Femtosecond Laser Ablation for Hierarchical Micro/Nanostructuring. Int. J. Extrem. Manuf. 2020, 2, 015001. [Google Scholar] [CrossRef]
- Nowack, R.L. A Tale of Two Beams: Gaussian Beams and Bessel Beams. In Proceedings of the Project Review Geo-Mathematical Imaging Group, West Lafayette, IN, USA, 14–15 April 2009; pp. 1–10. Available online: https://web.ics.purdue.edu/~nowack/nowackpubs-dir/gmigpaper1.2009.pdf (accessed on 10 April 2022).
- Mcgloin, D.; Dholakia, K. Bessel Beams: Diffraction in a New Light. Contemp. Phys. 2005, 46, 15–28. [Google Scholar] [CrossRef]
- Pavlov, D.; Porfirev, A.; Khonina, S.; Pan, L.; Kudryashov, S.I.; Kuchmizhak, A.A. Coaxial Hole Array Fabricated by Ultrafast Femtosecond-Laser Processing with Spatially Multiplexed Vortex Beams for Surface Enhanced Infrared Absorption. Appl. Surf. Sci. 2021, 541, 148602. [Google Scholar] [CrossRef]
- Stsepuro, N.; Nosov, P.; Galkin, M.; Krasin, G.; Kovalev, M.; Kudryashov, S. Generating Bessel-Gaussian Beams with Controlled Axial Intensity Distribution. Appl. Sci. 2020, 10, 7911. [Google Scholar] [CrossRef]
- Busleev, N.I.; Kudryashov, S.I.; Danilov, P.A.; Porfir’ev, A.P.; Saraeva, I.N.; Rudenko, A.A.; Umanskaya, S.F.; Zayarnyi, D.A.; Ionin, A.A.; Khonina, S.N. Symmetric Nanostructuring and Plasmonic Excitation of Gold Nanostructures by Femtosecond Laguerre–Gaussian Laser Beams. Quantum Electron. 2019, 49, 666–671. [Google Scholar] [CrossRef]
- Kuchmizhak, A.A.; Porfirev, A.P.; Syubaev, S.A.; Danilov, P.A.; Ionin, A.A.; Vitrik, O.B.; Kulchin, Y.N.; Khonina, S.N.; Kudryashov, S.I. Multi-Beam Pulsed-Laser Patterning of Plasmonic Films Using Broadband Diffractive Optical Elements. Opt. Lett. 2017, 42, 2838. [Google Scholar] [CrossRef]
- Syubaev, S.A.; Zhizhchenko, A.Y.; Pavlov, D.V.; Gurbatov, S.O.; Pustovalov, E.V.; Porfirev, A.P.; Khonina, S.N.; Kulinich, S.A.; Rayappan, J.B.B.; Kudryashov, S.I.; et al. Plasmonic Nanolenses Produced by Cylindrical Vector Beam Printing for Sensing Applications. Sci. Rep. 2019, 9, 19750. [Google Scholar] [CrossRef] [PubMed]
- Khonina, S.N.; Kharitonov, S.I.; Volotovskiy, S.G.; Soifer, V.A. Caustics of Non-Paraxial Perfect Optical Vortices Generated by Toroidal Vortex Lenses. Photonics 2021, 8, 259. [Google Scholar] [CrossRef]
- Stoyanov, L.; Zhekova, M.; Stefanov, A.; Stefanov, I.; Paulus, G.G.; Dreischuh, A. Zeroth- and First-Order Long Range Non-Diffracting Gauss–Bessel Beams Generated by Annihilating Multiple-Charged Optical Vortices. Sci. Rep. 2020, 10, 21981. [Google Scholar] [CrossRef] [PubMed]
- Arlt, J.; Dholakia, K. Generation of High-Order Bessel Beams by Use of an Axicon. Opt. Commun. 2000, 177, 297–301. [Google Scholar] [CrossRef]
- Dudutis, J.; Mackevičiūtė, M.; Pipiras, J.; Stonys, R.; Stankevič, V.; Račiukaitis, G.; Gečys, P. Transversal and Axial Modulation of Axicon-Generated Bessel Beams Using Amplitude and Phase Masks for Glass Processing Applications. Opt. Express 2022, 30, 1860. [Google Scholar] [CrossRef]
- Flamm, D.; Grossmann, D.G.; Sailer, M.; Kaiser, M.; Zimmermann, F.; Chen, K.; Jenne, M.; Kleiner, J.; Hellstern, J.; Tillkorn, C.; et al. Structured Light for Ultrafast Laser Micro- and Nanoprocessing. Opt. Eng. 2021, 60, 025105. [Google Scholar] [CrossRef]
- Zannotti, A.; Denz, C.; Alonso, M.A.; Dennis, M.R. Shaping Caustics into Propagation-Invariant Light. Nat. Commun. 2020, 11, 3597. [Google Scholar] [CrossRef]
- Stoian, R.; Bhuyan, M.K.; Rudenko, A.; Colombier, J.P.; Cheng, G. High-Resolution Material Structuring Using Ultrafast Laser Non-Diffractive Beams. Adv. Phys. X 2019, 4, 1659180. [Google Scholar] [CrossRef]
- Chu, D.; Yao, P.; Sun, X.; Yin, K.; Huang, C. Ablation Enhancement of Fused Silica Glass by Femtosecond Laser Double-Pulse Bessel Beam. J. Opt. Soc. Am. B 2020, 37, 3535–3541. [Google Scholar] [CrossRef]
- Demirci, E.; Kaya, E.T.A.; Sahin, R. Direct Micro-Structuring of Si (111) Surfaces through Nanosecond Laser Bessel Beams. Appl. Phys. A Mater. Sci. Process. 2020, 126, 429. [Google Scholar] [CrossRef]
- Jedrkiewicz, O.; Valetti, D.; Di Trapani, P. Etching and Drilling of Through-Holes in Thin Glass by Means of Picosecond Bessel Beams. SN Appl. Sci. 2019, 1, 1267. [Google Scholar] [CrossRef]
- Bhuyan, M.K.; Sugioka, K. Ultrafast Laser Micro and Nano Processing of Transparent Materials—From Fundamentals to Applications. In Springer Series in Materials Science; Springer International Publishing: Berlin/Heidelberg, Germany, 2018; Volume 274, pp. 149–190. [Google Scholar]
- D’amico, C.; Martin, G.; Troles, J.; Cheng, G.; Stoian, R. Multiscale Laser Written Photonic Structures in Bulk Chalcogenide Glasses for Infrared Light Transport and Extraction. Photonics 2021, 8, 211. [Google Scholar] [CrossRef]
- Zhang, Y.; Wang, X.; Zhang, G.; Stoian, R.; Cheng, G. Nano-Crystal and Microstructure Formation in Fluoride Photo-Thermo-Refractive Glass Using Chirp-Controlled Ultrafast Laser Bessel Beams. Nanomaterials 2021, 11, 1432. [Google Scholar] [CrossRef] [PubMed]
- Somayaji, M.; Bhuyan, M.K.; Bourquard, F.; Velpula, P.K.; D’Amico, C.; Colombier, J.P.; Stoian, R. Multiscale Electronic and Thermomechanical Dynamics in Ultrafast Nanoscale Laser Structuring of Bulk Fused Silica. Sci. Rep. 2020, 10, 15152. [Google Scholar] [CrossRef]
- Arita, Y.; Lee, J.; Kawaguchi, H.; Matsuo, R.; Miyamoto, K.; Dholakia, K.; Omatsu, T. Photopolymerization with High-Order Bessel Light Beams. Opt. Lett. 2020, 45, 4080. [Google Scholar] [CrossRef]
- Li, R.; Jin, D.; Pan, D.; Ji, S.; Xin, C.; Liu, G.; Fan, S.; Wu, H.; Li, J.; Hu, Y.; et al. Stimuli-Responsive Actuator Fabricated by Dynamic Asymmetric Femtosecond Bessel Beam for in Situ Particle and Cell Manipulation. ACS Nano 2020, 14, 5233–5242. [Google Scholar] [CrossRef]
- Suarez, R.A.B.; Ambrosio, L.A.; Neves, A.A.R.; Zamboni-Rached, M.; Gesualdi, M.R.R. Experimental Optical Trapping with Frozen Waves. Opt. Lett. 2020, 45, 2514–2517. [Google Scholar] [CrossRef]
- Ali, R.; Pinheiro, F.A.; Dutra, R.S.; Neto, P.A.M. Tailoring Optical Pulling Forces with Composite Microspheres. Phys. Rev. A 2020, 102, 23514. [Google Scholar] [CrossRef]
- Riaud, A.; Baudoin, M.; Thomas, J.-L.; Bou Matar, O. Cyclones and Attractive Streaming Generated by Acoustical Vortices. Phys. Rev. E 2014, 90, 013008. [Google Scholar] [CrossRef]
- Stankevičius, E.; Daugnoraitė, E.; Ignatjev, I.; Kuodis, Z.; Niaura, G.; Račiukaitis, G. Concentric Microring Structures Containing Gold Nanoparticles for SERS-Based Applications. Appl. Surf. Sci. 2019, 497, 143752. [Google Scholar] [CrossRef]
- Sugawara, R.; Sekiguchi, S.; Yagi, T. Formation of Periodic Ripples through Excitation of ~1 Μm Spot Using Femtosecond-Laser Bessel Beam on c-Si. Appl. Surf. Sci. 2015, 353, 400–404. [Google Scholar] [CrossRef]
- Kumar, S.; Eaton, S.M.; Bollani, M.; Sotillo, B.; Chiappini, A.; Ferrari, M.; Ramponi, R.; Di Trapani, P.; Jedrkiewicz, O. Laser Surface Structuring of Diamond with Ultrashort Bessel Beams. Sci. Rep. 2018, 8, 14021. [Google Scholar] [CrossRef] [PubMed]
- Odachi, G.; Hara, K.; Sakamoto, R.; Yagi, T. Pre-Ablation Features Formed by Focusing a Femtosecond Laser Beam with Dual Axicons to c-Si in Vacuum. Appl. Surf. Sci. 2012, 261, 174–181. [Google Scholar] [CrossRef]
- Inoue, R.; Takakusaki, K.; Takagi, Y.; Yagi, T. Micro-Ablation on Silicon by Femtosecond Laser Pulses Focused with an Axicon Assisted with a Lens. Appl. Surf. Sci. 2010, 257, 476–480. [Google Scholar] [CrossRef]
- He, F.; Yu, J.; Tan, Y.; Chu, W.; Zhou, C.; Cheng, Y.; Sugioka, K. Tailoring Femtosecond 1.5-Μm Bessel Beams for Manufacturing High-Aspect-Ratio through-Silicon Vias. Sci. Rep. 2017, 7, 40785. [Google Scholar] [CrossRef]
- Sahin, R.; Morova, Y.; Simsek, E.; Akturk, S. Bessel-Beam-Written Nanoslit Arrays and Characterization of Their Optical Response. Appl. Phys. Lett. 2013, 102, 193106. [Google Scholar] [CrossRef]
- Yalizay, B.; Ersoy, T.; Soylu, B.; Akturk, S. Fabrication of Nanometer-Size Structures in Metal Thin Films Using Femtosecond Laser Bessel Beams. Appl. Phys. Lett. 2012, 100, 2012–2015. [Google Scholar] [CrossRef]
- Podagatlapalli, G.K.; Hamad, S.; Mohiddon, M.A.; Rao, S.V. Fabrication of Nanoparticles and Nanostructures Using Ultrafast Laser Ablation of Silver with Bessel Beams. Laser Phys. Lett. 2015, 12, 36003. [Google Scholar] [CrossRef]
- Naqvi, T.K.; Bajpai, A.; Bharati, M.S.S.; Kulkarni, M.M.; Siddiqui, A.M.; Soma, V.R.; Dwivedi, P.K. Ultra-Sensitive Reusable SERS Sensor for Multiple Hazardous Materials Detection on Single Platform. J. Hazard. Mater. 2021, 407, 124353. [Google Scholar] [CrossRef]
- Podagatlapalli, G.K.; Hamad, S.; Tewari, S.P.; Sreedhar, S.; Prasad, M.D.; Venugopal Rao, S. Silver Nano-Entities through Ultrafast Double Ablation in Aqueous Media for Surface Enhanced Raman Scattering and Photonics Applications. J. Appl. Phys. 2013, 113, 073106. [Google Scholar] [CrossRef]
- Mangababu, A.; Goud, R.S.P.; Byram, C.; Rathod, J.; Banerjee, D.; Soma, V.R.; Rao, S.V.S.N. Multi-functional gallium arsenide nanoparticles and nanostructures fabricated using picosecond laser ablation. Appl. Surf. Sci. 2022, 589, 152802. [Google Scholar] [CrossRef]
- Byram, C.; Moram, S.S.B.; Shaik, A.K.; Soma, V.R. Versatile Gold Based SERS Substrates Fabricated by Ultrafast Laser Ablation for Sensing Picric Acid and Ammonium Nitrate. Chem. Phys. Lett. 2017, 685, 103–107. [Google Scholar] [CrossRef]
- Hamad, S.; Podagatlapalli, G.K.; Mohiddon, M.A.; Soma, V.R. Cost Effective Nanostructured Copper Substrates Prepared with Ultrafast Laser Pulses for Explosives Detection Using Surface Enhanced Raman Scattering. Appl. Phys. Lett. 2014, 104, 263104. [Google Scholar] [CrossRef]
- Byram, C.; Moram, S.S.B.; Soma, V.R. Surface-Enhanced Raman Scattering Studies of Gold-Coated Ripple-like Nanostructures on Iron Substrate Achieved by Femtosecond Laser Irradiation in Water. J. Raman Spectrosc. 2019, 50, 1103–1113. [Google Scholar] [CrossRef]
- Durnin, J. Exact Solutions for Nondiffracting Beams I The Scalar Theory. J. Opt. Soc. Am. A 1987, 4, 651. [Google Scholar] [CrossRef]
- Durnin, J.; Miceli, J.; Eberly, J.H. Diffraction-Free Beams. Phys. Rev. Lett. 1987, 58, 1499–1501. [Google Scholar] [CrossRef]
- Gori, F.; Guattari, G.; Padovani, C. Bessel-Gauss Beams. Opt. Commun. 1987, 64, 491–495. [Google Scholar] [CrossRef]
- Saadati-Sharafeh, F.; Borhanifar, A.; Porfirev, A.P.; Amiri, P.; Akhlaghi, E.A.; Khonina, S.N.; Azizian-Kalandaragh, Y. The Superposition of the Bessel and Mirrored Bessel Beams and Investigation of Their Self-Healing Characteristic. Optik 2020, 208, 164057. [Google Scholar] [CrossRef]
- Khonina, S.N.; Kazanskiy, N.L.; Karpeev, S.V.; Butt, M.A. Bessel Beam: Significance and Applications—A Progressive Review. Micromachines 2020, 11, 997. [Google Scholar] [CrossRef]
- Wu, P.; Sui, C.; Huang, W. Theoretical Analysis of a Quasi-Bessel Beam for Laser Ablation. Photonics Res. 2014, 2, 82. [Google Scholar] [CrossRef]
- Durnin, J.; Eberly, J.H.; Miceli, J.J. Comparison of Bessel and Gaussian Beams. Opt. Lett. 1988, 13, 79. [Google Scholar] [CrossRef]
- Vergöhl, M.; Malkomes, N.; Szyszka, B.; Neumann, F.; Matthée, T.; Bräuer, G. Optimization of the Reflectivity of Magnetron Sputter Deposited Silver Films. J. Vac. Sci. Technol. A Vac. Surf. Film 2000, 18, 1632–1637. [Google Scholar] [CrossRef]
- Chen, D.; Zhang, Y.; Bessho, T.; Kudo, T.; Sang, J.; Hirahara, H.; Mori, K.; Kang, Z. Formation of Reflective and Conductive Silver Film on ABS Surface via Covalent Grafting and Solution Spray. Appl. Surf. Sci. 2015, 349, 503–509. [Google Scholar] [CrossRef]
- Schulz, L.G. The Optical Constants of Silver, Gold, Copper, and Aluminum I The Absorption Coefficient K. J. Opt. Soc. Am. 1954, 44, 357. [Google Scholar] [CrossRef]
- Tan, C.; Nasir, M.Z.M.; Ambrosi, A.; Pumera, M. 3D Printed Electrodes for Detection of Nitroaromatic Explosives and Nerve Agents. Anal. Chem. 2017, 89, 8995–9001. [Google Scholar] [CrossRef]
- Narayana, N.; Kim, J.H.; Santhakumar, H.; Joseph, M.M.; Karunakaran, V. Nanotheranostic Probe Built on Methylene Blue Loaded Cucurbituril [8] and Gold Nanorod: Targeted Phototherapy in Combination with SERS Imaging on Breast Cancer Cells. J. Phys. Chem. B 2021, 125, 13415–13424. [Google Scholar] [CrossRef]
- Novotný, F.; Plutnar, J.; Pumera, M. Plasmonic Self-Propelled Nanomotors for Explosives Detection via Solution-Based Surface Enhanced Raman Scattering. Adv. Funct. Mater. 2019, 29, 1903041. [Google Scholar] [CrossRef]
- Xu, L.M.; Liu, H.G.; Hui, Z.; Hong, M.H. One-step fabrication of metal nanoparticles on polymer film by femtosecond LIPAA method for SERS detection. Talanta 2021, 228, 122204. [Google Scholar] [CrossRef]
- Yang, J.; Li, J.; Du, Z.; Gong, Q.; Teng, J.; Hong, M.H. Laser Hybrid Micro/Nano-structuring of Si Surfaces in Air and its Applications for SERS Detection. Sci. Rep. 2014, 4, 6657. [Google Scholar] [CrossRef]
- Yang, J.; Li, J.B.; Gong, Q.H.; Teng, J.H.; Hong, M.H. High aspect ratio SiNW arrays with Ag nanoparticles decoration for strong SERS detection. Nanotechnology 2014, 25, 465707. [Google Scholar] [CrossRef]
- Cheng, L.; Ma, C.; Yang, G.; You, H.; Fang, J. Hierarchical Silver Mesoparticles with Tunable Surface Topographies for Highly Sensitive Surface-Enhanced Raman Spectroscopy. J. Mater. Chem. A 2014, 2, 4534–4542. [Google Scholar] [CrossRef]
- Agarwal, N.R.; Fazio, E.; Neri, F.; Trusso, S.; Castiglioni, C.; Lucotti, A.; Santo, N.; Ossi, P.M. Ag and Au Nanoparticles for SERS Substrates Produced by Pulsed Laser Ablation. Cryst. Res. Technol. 2011, 46, 836–840. [Google Scholar] [CrossRef]
- Naqvi, T.K.; Bharati, M.S.S.; Srivastava, A.K.; Kulkarni, M.M.; Siddiqui, A.M.; Rao, S.V.; Dwivedi, P.K. Femtosecond laser textured silver/graphene oxide hybrid SERS substrate for detection of an explosive precursor 2,4-DNT. ACS Omega 2019, 4, 17691–17701. [Google Scholar] [CrossRef]
- Basu, N.; Bharathi, M.S.S.; Sharma, M.; Yadav, K.; Parmar, A.S.; Soma, V.R.; Lahiri, J. Large Area Few-layer Hexagonal Boron Nitride as a Raman Enhancement Material. Nanomaterials 2021, 11, 622. [Google Scholar] [CrossRef]
- Xu, K.C.; Zhou, R.; Takei, K.; Hong, M.H. Toward flexible surface enhanced Raman scattering (SERS) sensors for point-of-care diagnostics. Adv Sci. 2019, 6, 1900925. [Google Scholar] [CrossRef]
- Wu, R.; Jin, Q.; Storey, C.; Collins, J.; Gomard, G.; Lemmer, U.; Canham, L.; Kling, R.; Kaplan, A. Gold Nanoplasmonic Particles in Tunable Porous Silicon 3D Scaffolds for Ultra-Low Concentration Detection by SERS. Nanoscale Horiz. 2021, 6, 781–790. [Google Scholar] [CrossRef]
- Zhang, S.; Wu, L.; Wang, W.; Zhang, W.; Gu, J.; Liu, Q.; Zhang, D. Gyroid-Structured Au–Ag Periodic Bimetal Materials for Ultrasensitive SERS Detection. J. Mater. Chem. C 2021, 9, 9137–9141. [Google Scholar] [CrossRef]
- Bai, S.; Hu, A.; Hu, Y.; Ma, Y.; Obata, K.; Sugioka, K. Plasmonic Superstructure Arrays Fabricated by Laser Near-Field Reduction for Wide-Range SERS Analysis of Fluorescent Materials. Nanomaterials 2022, 12, 970. [Google Scholar] [CrossRef]
- Sun, Q.; Xu, Y.; Gao, Z.; Zhou, H.; Zhang, Q.; Xu, R.; Zhang, C. High-Performance Surface-Enhanced Raman Scattering Substrates Based on the ZnO/Ag Core-Satellite Nanostructures. Nanomaterials 2022, 12, 1286. [Google Scholar] [CrossRef]
- Chan, S.; Kwon, S.; Koo, T.W.; Lee, L.P.; Berlin, A.A. Surface-Enhanced Raman Scattering of Small Molecules from Silver-Coated Silicon Nanopores. Adv. Mater. 2003, 15, 1595–1598. [Google Scholar] [CrossRef]
- Pandey, P.; Seo, M.K.; Shin, K.H.; Lee, Y.W.; Sohn, J.I. Hierarchically Assembled Plasmonic Metal-Dielectric-Metal Hybrid Nano-Architectures for High-Sensitivity SERS Detection. Nanomaterials 2022, 12, 401. [Google Scholar] [CrossRef]
- Tommasini, M.; Zanchi, C.; Lucotti, A.; Bombelli, A.; Villa, N.S.; Casazza, M.; Ciusani, E.; De Grazia, U.; Santoro, M.; Fazio, E.; et al. Laser-Synthesized SERS Substrates as Sensors toward Therapeutic Drug Monitoring. Nanomaterials 2019, 9, 677. [Google Scholar] [CrossRef]
- Vendamani, V.S.; Beeram, R.; Rao, S.N.; Pathak, A.P.; Soma, V.R. Trace level detection of explosives and pesticides using robust, low-cost, free-standing silver nanoparticles decorated porous silicon. Opt. Express 2021, 29, 30045–30061. [Google Scholar] [CrossRef]
- Moram, S.S.B. Rigid, Flexible SERS Substrates Fabricated using Femtosecond Laser Pulses for Explosives Detection. Ph.D. Thesis, University of Hyderabad, Hyderabad, India, 2020. [Google Scholar]
- Moram, S.S.B.; Shaik, A.K.; Byram, C.; Hamad, S.; Soma, V.R. Instantaneous Trace Detection of Nitro-Explosives and Mixtures with Nanotextured Silicon Decorated with Ag–Au Alloy Nanoparticles Using the SERS Technique. Anal. Chim. Acta 2020, 1101, 157–168. [Google Scholar] [CrossRef]
- Moram, S.S.B.; Byram, C.; Shibu, S.N.; Chilukamarri, B.M.; Soma, V.R. Ag/Au Nanoparticle-Loaded Paper-Based Versatile Surface-Enhanced Raman Spectroscopy Substrates for Multiple Explosives Detection. ACS Omega 2018, 3, 8190–8201. [Google Scholar] [CrossRef]
- Bharati, M.S.S.; Byram, C.; Soma, V.R. Femtosecond Laser Fabricated Ag@Au and Cu@Au Alloy Nanoparticles for Surface Enhanced Raman Spectroscopy Based Trace Explosives Detection. Front. Phys. 2018, 6, 28. [Google Scholar] [CrossRef]
- Bharati, M.S.S.; Soma, V.R. Flexible Sers Substrates for Hazardous Materials Detection: Recent Advances. Opto-Electron. Adv. 2021, 4, 210048. [Google Scholar] [CrossRef]
- Fan, W.; Xing, L.; Chen, N.; Zhou, X.; Yu, Y.; Liu, S. Promotion Effect of Succinimide on Amyloid Fibrillation of Hen Egg-White Lysozyme. J. Phys. Chem. B 2019, 123, 8057–8064. [Google Scholar] [CrossRef]
- Remmele, R.L.; McMillan, P.; Bieber, A. Raman Spectroscopic Studies of Hen Egg-White Lysozyme at High Temperatures and Pressures. J. Protein Chem. 1990, 9, 475–486. [Google Scholar] [CrossRef]
- Moretti, M.; Allione, M.; Marini, M.; Torre, B.; Giugni, A.; Limongi, T.; Das, G.; Di Fabrizio, E. Raman Study of Lysozyme Amyloid Fibrils Suspended on Super-Hydrophobic Surfaces by Shear Flow. Microelectron. Eng. 2017, 178, 194–198. [Google Scholar] [CrossRef]
- Jaculbia, R.B.; Imada, H.; Miwa, K.; Iwasa, T.; Takenaka, M.; Yang, B.; Kazuma, E.; Hayazawa, N.; Taketsugu, T.; Kim, Y. Single-Molecule Resonance Raman Effect in a Plasmonic Nanocavity. Nat. Nanotechnol. 2020, 15, 105–110. [Google Scholar] [CrossRef]
- Jaiswal, A.; Tian, L.; Tadepalli, S.; Liu, K.K.; Fei, M.; Farrell, M.E.; Pellegrino, P.M.; Singamaneni, S. Plasmonic Nanorattles with Intrinsic Electromagnetic Hot-Spots for Surface Enhanced Raman Scattering. Small 2014, 10, 4287–4292. [Google Scholar] [CrossRef]
- Ko, H.; Singamaneni, S.; Tsukruk, V.V. Nanostructured Surfaces and Assemblies as SERS Media. Small 2008, 4, 1576–1599. [Google Scholar] [CrossRef]
- Yang, F.; Wen, P.; Jia, W.; Li, G.; Yang, C.; Li, B.; Li, D.; Chen, L. A Sandwich SERS Detection System Based on Optical Convergence and Synergistic Enhancement Effects. Analyst 2021, 146, 6132–6138. [Google Scholar] [CrossRef]
- Liu, R.; Zha, Z.; Li, C.; Shafi, M.; Peng, Q.; Liu, M.; Zhang, C.; Du, X.; Jiang, S. Coupling of Multiple Plasma Polarization Modes in Particles-Multilayer Film System for Surface-Enhanced Raman Scattering. APL Photonics 2021, 6, 036104. [Google Scholar] [CrossRef]
- Li, Y. Plasmonic Optics: Theory Applications; SPIE Press: Bellingham, WA, USA, 2017; Volume TT110. [Google Scholar]
- Rodrigo, S.G.; García-Vidal, F.J.; Martín-Moreno, L. Influence of Material Properties on Extraordinary Optical Transmission through Hole Arrays. Phys. Rev. B Condens. Matter Mater. Phys. 2008, 77, 075401. [Google Scholar] [CrossRef]
- Nguyen, H.D.; Moreno, E.; Rudenko, A.; Faure, N.; Sedao, X.; Mauclair, C.; Colombier, J.P.; Stoian, R. Super-Efficient Drilling of Metals with Ultrafast Non-Diffractive Laser Beams. Sci. Rep. 2022, 12, 2074. [Google Scholar] [CrossRef]
SERS Substrate | Analyte Molecules | Peak Position (cm−1) | Lowest Detected Concentration | Analytical Enhancement Factor (AEF) | Limit of Detection (LoD) |
---|---|---|---|---|---|
AgNS2 | TH | 560 | 50 nM | 7.3 × 105 | 35 nM |
PA | 820 | 500 nM | 5.7 × 104 | 360 nM | |
MB | 1623 | 500 pM | 9.3 × 106 | 300 pM | |
AN | 1043 | 5 µM | 2.2 × 103 | 3 µM | |
MG | 1169 | 500 pM | 6.5 × 106 | 210 pM | |
HEWL | 1655 | 50 nM | 1.5 × 105 | 27 nM | |
AgNS2 + 10 nm Au coating | TH | 560 | 5 nM | 1 × 106 | 2 nM |
PA | 820 | 5 nM | 4.7 × 105 | - | |
AgNS2 + 20 nm Au coating | TH | 560 | 50 pM | 1 × 108 | 30 pM |
PA | 820 | 500 pM | 1.3 × 107 | - | |
NB | 590 | 50 pM | 8.7 × 107 | 33 pM | |
AgNS2 + 30 nm Au coating | TH | 560 | 500 pM | 5.5 × 106 | 200 pM |
PA | 820 | 5 nM | 7.3 × 105 | - | |
AgNS1 | TH | 560 | 500 nM | 3.1 × 104 | - |
PA | 820 | 50 µM | 8 × 102 | ||
AgNS3 | TH | 560 | 500 nM | 1.4 × 104 | - |
PA | 820 | 5 µM | 5.3 × 103 | ||
MB | 1623 | 5 nM | 9.6 × 105 | ||
AgNS4 | TH | 560 | 500 nM | 1 × 104 | - |
PA | 820 | 50 µM | 7.5 × 102 |
