Cutting of Diamond Substrate Using Fixed Diamond Grain Saw Wire

1
Department of System Design Engineering, Faculty of Engineering Science, Akita University, Akita 010-8502, Japan
2
SANWA TEKKI CORPORATION, 6-4-6 Minami-Shinagawa, Shinagawa-ku, Tokyo 140-8669, Japan
3
Research & Development Department, Nippon Koki Co., Ltd., Shirakawa 961-8686, Japan
*
Author to whom correspondence should be addressed.
Materials 2022, 15(16), 5524; https://doi.org/10.3390/ma15165524
Submission received: 13 July 2022 / Revised: 2 August 2022 / Accepted: 9 August 2022 / Published: 11 August 2022
(This article belongs to the Special Issue Manufacturing Technology, Materials and Methods)

Abstract

:
This study demonstrates that a single-crystal diamond substrate can be cut along designed lines using the diamond-saw-wire cutting method. We developed an original saw-wire fixed diamond-grain using a bronze solder with a high melting temperature. We created a unique product machine system with a high vacuum furnace and a bronze solder that contains a metallic compound. The diamond cutting mechanism employed in this study is based on the mild wear phenomenon, owing to the friction between the diamond surfaces. A linear relationship between the cutting length and wire feed distance was observed. The relationship can be approximated as y = 0.3622x, where y (μm) is the cutting depth and x (km) is the wire feed distance. The life of the saw-wire was longer than that of the 6000 km wire feed distance and was tested by reciprocating an 8-m short wire at a speed, tension, and cutting force of 150 m/min, 1 N, and 0.2 N, respectively. A single crystal diamond substrate could be cut along the designed line, which was more than 2 mm long. The cutting speed was maintained constant at 0.36 μm/km.

1. Introduction

Micro-wire saw cutting is widely used in traditional manufacturing for fabricating numerous micro-electronic devices. Recently, this technique has been utilized for solar cell manufacturing. Diamond semiconductors have been regarded as power devices, because of their high thermal conductivity and electron mobility [1]. The size of industrial products has reached the two inch diameter of the diamond substrate [2] and therefore the market is expanding rapidly [3]. Generally, the diamond substrate is cut using a revolving blade [4,5], laser beam [6,7], or cleaving method [4]. The blade saw can cut the diamond along a flat surface, rather than a curved surface. Setting up a facility for laser cutting is significantly expensive and time-consuming. The cleaving method is only used for the cleavage plane of diamond crystals [8]. Thin diamond substrates can be cut by the focused ion beam (FIB) process [9].
Comparatively, saw wire cutting along curved lines with less damage is expected to be utilized for cutting diamond substrates. However, saw wire cutting is mainly used for non-diamond substrates [8,10,11]. Conventional wire sawing utilizes a slurry that contains abrasive grains in the cutting liquid, which causes environmental pollution. Recently, an ecofriendly fixed grain-type-saw-wire has been developed, to increase the cutting speed [12]. There are three methods to fix the grain-saw-wire via the grains bonds: using nickel plating [13], polymer adhesive [14], and metal solders [15]. The strength of diamond grains fabricated with metal solder is higher than those fabricated employing the other methods. Ishikawa presented a diamond grain fixed using a metal solder-saw-wire. In this research, the shearing strength of the bronze metal solder was approximately 800 MPa [16], and the diamond grain was strongly fixed. Therefore, the metal solder-saw-wire could be applied for cutting diamond substrates. However, few studies have been conducted on cutting diamond substrates with a diamond wire. A fixed diamond grain saw wire has been used to cut single crystal diamond plates, but the wire life and cutting length were short [17,18].
In this study, first, we improved the saw-wire-fixed grains. The grains were bonded using a reinforced metal solder to the wires by a metallic compound. Next, we investigated a method of producing a diamond saw-wire-fixed-grain using a metal solder in a vacuum chamber. Additionally, we developed a unique solder that contained a metallic compound [19,20,21]. Diamond grains could be bonded to the tungsten wires using this solder, which could be used for cutting extremely tough materials. Furthermore, we discussed the failure of the cutting mode when the micro-wire was less than approximately 100 μm in diameter [15]. Subsequently, we demonstrated that a fixed diamond grain-saw-wire could be used to control cutting of a single-crystal diamond plate. Finally, the cutting mechanism of the diamond plate using diamond grains, which is different from the conventional fixed grain saw wire-technique, was discussed [22].

2. Experimental Procedures

A photograph of the entire system of the fixed diamond grain-saw-wire developed in this study is shown in Figure 1. The soldering conditions used in this study are presented in Table 1. The soldering process is schematically presented in Figure 2. The first step is the gluing of diamond (Figure 1①, Figure 2①–④), bronze alloy, and hydride grains onto a tungsten wire using a gel. The composition of the three powders used to form the mixture are listed in Table 2. The second step is the soldering process, which involves heating in a vacuum furnace (Figure 1③). Conventionally, stages 1 and 2 in the soldering process are conducted separately [23]. In this study, we improved the continuous wire soldering process. The material of the core wire used was tungsten, owing to its stable strength at a maximum heating temperature of 1173 K.
Connecting the atmosphere and the high vacuum was a technical challenge in this study. In our system, a 1.013 × 105 Pa (1 atm) air atmosphere and 10−3 Pa vacuum atmosphere were connected. This was achieved via the three steps of the vacuum process described in Figure 1②. The wire was fed into the vacuum furnace, to melt the solder.

3. Results and Discussions

3.1. Production of the Metal Solder Fixed Diamond Grain-Saw-Wire

The good wettability between the bronze solder, diamond grain, and tungsten core wire is shown in Figure 3. The tensile strength of the tungsten wire does not change after heating to 1173 K, because the recrystallization temperature of tungsten is 1473 K. We produced a fine-saw-wire of 100 µm diameter fixed diamond grain. This wire is one of the finest fixed grain-type diamond-saw-wires currently available in the industry.
The bonding strength (800 MPa) between the diamond and matrix core wire is close to the strength of the bronze solder, which was measured in a previous study [16,24]. Although, this strength is sufficient for the cutting tool, the grain distribution is not as uniform as that of industrial products. Therefore, the diamond-saw-wire produced in our laboratory is currently in the prototype stage.

3.2. Cutting Performance and Tool Life

An industrially produced laser-cut single-crystal diamond substrate (4 mm × 4 mm × 1 mm), as shown in Figure 4, was used for the cutting test, using the fixed-grain-diamond-saw-wire, which was produced using the method described in the previous chapter. The cutting tests (Figure 5) were automatically performed using the conditions in Table 3.
As shown in Figure 6, a saw wire of 8 m in length was attached to the end face (100) of the diamond substrate, and the wire reciprocating motion was automatically repeated so that the diamond could be slowly cut.
The cutting performance of this saw wire on the diamond substrate with a thickness of 1 mm is shown in Figure 7. A linear relationship was found between the cutting depth and wire feed distance. This relationship can be approximated using the formula y = 0.3622 x , where y   μ m is the cutting depth, and x   km is the wire feed distance. It was considered that the liner relationship of this equation is universal. However, the coefficient of 0.3622 depends on factors such as the coating density, solder type, wire speed, cutting load, and temperature.
The cutting speed ( v c ), calculated using the formula y / x was 0.3622 µm/km, which is low and stable. The life of a saw-wire is the time elapsing between the start of its use and the breaking of the wire. As indicated in Figure 5, the life of the saw wire was longer than a 6000 km feed distance, while the length of the wire was 8 m, and it was repeatedly used in the cutting machine. The long life of the saw wire depends on the cutting force, as listed in Table 3. If the force is higher than 0.20 N, the life decreases significantly. As seen in Figure 7, the tested wire did not break, and half of the diamond grains remained.

3.3. Control Cutting

The control cutting of the diamond substrate using the saw-wire is represented in Figure 8. The diameter of the wire was measured as 100 μm and the kerf width of the diamond substrate was 110 μm. The six surfaces of the single-crystal diamond belonged to the (100) plane. The first cutting direction of the saw-wire was [100] and the length was 0.4 mm. The second direction was changed to [010], as shown in Figure 8. Therefore, the diamond was cut in different directions six times. During the cutting process, the cutting speed was constant. Therefore, it was possible to cut with a single saw-wire. We explored the possibility of the control-cutting of the diamond substrate using a saw-wire. However, the cutting speed was too slow to be used in industrial manufacturing. In future, it will be necessary to develop a method to increase the cutting speed.

4. Discussion of the Cutting Mechanism

When a diamond tool cuts materials with a low hardness value, its tip grain scratches and removes the surface of the work materials [22]. However, in the case of the diamond tool cutting diamond substrates, no scratch occurs because both the tool and substrate have the same hardness. Furthermore, an extremely low and stable cutting speed was observed when the diamond substrate was cut. Significantly, the fixed diamond-grain-type saw-wire developed in this study exhibited a long life.
The diamond cutting mechanism in this study had a mild wear phenomenon, owing to the friction between the diamond surfaces. Figure 9 shows the worn and flattened diamond grain after 6000 km of running the saw-wire surface. These flattened diamond grains also maintained a constant cutting speed, as shown in Figure 7.
As shown in Figure 10, no mechanical scratches were noticed, but wear elements and transfer of particles were observed at the diamond surface cut by the saw-wire.
The diamond cutting mechanism applied in this study can be explained using the standard wear mechanism [25], as shown in Figure 11. It was hypothesized that the diamond cutting phenomenon would be consistent with the wear mechanism. Wear of the diamonds occurred in the following five stages:
(i)
Atomic-level diamond surface asperities came into contact with each other.
(ii)
Slip lines occurred on the diamond surface, owing to the contact stress.
(iii)
The crossed area of slip lines generated the diamond wear elements.
(iv)
The wear elements grew with transferred particles.
(v)
Transferred particles were eliminated from the diamond surface.
The size of the wear element was smaller than 100 nm, while the transferred particles were approximately 300 nm in size and, were observed as white particles (Figure 10). Wear volume V is expressed using Holm’s equation, as follows [26]:
V = Z × P × p m ,
where V is the diamond cutting volume; P (N) is the applied cutting load; p m (Pa) is the yield stress of the diamond; (m) is the wire feed distance, and Z (mm3/m) is the wear coefficient. We calculated the Z of diamond for diamond saw-wire cutting, using the test condition parameters listed in Table 4.
We substituted the values listed in Table 3 into Equation (1) and calculated the wear coefficient Z as 1.811 × 10−2. Therefore, Equation (1) can be rewritten as:
V = 1.811 × 10 2 P p m × .               mm 3
Equation (2) can be used to calculate the value of V using the values of P and . It was reasoned that the value of Z could be affected by various factors, such as the diamond grain size, grain density, cutting temperature, cutting liquid type, or additional element in the counter surface. In future studies, the effects of such factors will be investigated.
The application of the method investigated in this study is limited. Moreover, the proposed method is unsuitable for the mass production process because this method has an extremely slow cutting speed; the kerf is 110 μm and the cutting length is limited to 2000 μm.
Based on the wear equation of diamond, the cutting volume exhibits a linear relationship to the applied load and wire feed distance. The contact stress of the grain tip reduces as the shape of the diamond grain tip changes from keen to fiat (Figure 3 and Figure 9). Accordingly, the number of scratches and degree of cutting of the workpiece by the grain tip reduce. However, the diamond cutting by the diamond grain is based on the wear phenomenon that is presented by Equation (2). This is because the stress changes but not the total load P. Therefore, the wear volume of the diamond substrate does not change. It can be concluded that the mild wear amount V is not related to the stress at the grain tip but is related to the applied cutting load P. In future, studies to improve the cutting speed by optimizing the mechanical conditions of cutting load, wire speed, temperature, and additional processing promotion material will be conducted.

5. Conclusions

In this study, we investigated the possibility of cutting a single crystal diamond substrate using a fixed-grain-diamond-saw-wire and the control-cutting of the single-crystal diamond substrate using the saw-wire. The results are summarized as follows:
(1)
A fixed grain diamond-saw-wire was successfully produced in a high vacuum furnace, using bronze solder and by adding titanium hydride powder.
(2)
The relationship between the cutting length and wire-feed distance was linear and can be represented using an approximate formula y = 0.3622 x , where y is the cutting depth and x is the wire feed distance. The coefficient of 0.3622 depends on the test conditions.
(3)
The life of the saw-wire was longer than that of the 6000 km feed distance, which was tested by reciprocating an 8-m short wire at a speed, tension, and cutting force of 150 m/min, 1 N, and 0.2 N, respectively.
(4)
A single crystal diamond substrate could be control-cut along the designed line using the fixed diamond-saw-wire
(5)
The cutting speed of the diamond cutting was maintained constant at 0.36 μm/km (cutting length/feed length of the saw wire).
(6)
The diamond cutting mechanism in this study can be explained by considering the mild wear phenomenon, owing to the friction between the diamond and diamond surfaces.

Author Contributions

Conceptualization, investigation, writing-original draft, O.K.; investigation, methodology, data curation, M.T. and Y.M.; investigation, methodology, resources, M.N., Y.I. and K.M.; investigation, methodology, H.M., J.N., M.K. and A.M.; formal analysis, methodology, project administration, S.I.; supervision, investigation, methodology, T.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the JSPS KAKEMHI Gant Number JP20K05162.

Acknowledgments

We would like to thank Nippon Koki Co., Ltd. and SANWA TEKKI CORPORATION for providing the experimental facilities and their technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kim, S.; Kasu, M. Two-Inch High Quality Diamond Heteroepitaxial Growth on Sapphire for Power Devices. In Proceedings of the 2022 International Conference on Compound Semiconductor Manufacturing Technology, CS MANTECH, Monterey, CA, USA, 2–12 May 2022; 2022; Volume 1, pp. 19–22. Available online: https://csmantech.org/wp-content/acfrcwduploads/field_5e8cddf5ddd10/post_6270/2.1_Two_Inch_high_quality.pdf (accessed on 12 July 2022).
  2. Adamant Namiki Precision Jewel Co., Ltd. High-Quality and Large-Diameter Diamond Substrates. 2022. Available online: https://www.ad-na.com/magazine_en/archives/664 (accessed on 12 July 2022).
  3. EON Research. Diamond Semiconductor Substrates Market Research Report. 2021. Available online: https://www.eonmarketresearch.com/diamond-semiconductor-substrates-market-88165 (accessed on 12 July 2022).
  4. Akiva, C. Modern Diamond Cutting and Polishing. Gems Gemol. 1997, 33, 102–121. Available online: https://www.gia.edu/doc/Modern-Diamond-Cutting-and-Polishing.pdf (accessed on 12 July 2022). [CrossRef]
  5. Gemconcepts Ltd. Diamond Cutting-The Sawing Process of Diamond. Pdf. 2019. Available online: https://gemconcepts.net/diamond-cutting-the-sawing-process (accessed on 12 July 2022).
  6. Guo, B.; Sun, J.; Hua, Y.; Zhan, N.; Jia, J.; Chu, K. Femtosecond Laser Micro/Nano-Manufacturing: Theories, Measurements, Methods, and Applications; Springer: Singapore, 2020; Volume 3, ISBN 4187102000056. [Google Scholar]
  7. Zhang, G.E.; Zhang, B.; Deng, Z.; Chen, J.F. An Experimental Study on Laser Cutting Mechanisms of Polvcrvstalline Diamond Compacts. CIRP Ann.-Manuf. Technol. 2007, 56, 201–204. [Google Scholar] [CrossRef]
  8. Yin, Y.; Gao, Y.; Yang, C. Sawing Characteristics of Diamond Wire Cutting Sapphire Crystal Based on Tool Life Cycle. Ceram. Int. 2021, 47, 26627–26634. [Google Scholar] [CrossRef]
  9. Peripolli, S.B.; Almeida, F.A.; Gomes, L.S.; Oliveira, F.J.; Silva, R.F.; Achete, C.A. CVD Diamond/Substrate Interface FIB Preparation of Cutting Tools. Microsc. Microanal. 2009, 15, 57–58. [Google Scholar] [CrossRef]
  10. Kumar, A.; Melkote, S.N. Diamond Wire Sawing of Solar Silicon Wafers: A Sustainable Manufacturing Alternative to Loose Abrasive Slurry Sawing. Procedia Manuf. 2018, 21, 549–566. [Google Scholar] [CrossRef]
  11. Chung, C.; Tsay, G.D.; Tsai, M.H. Distribution of Diamond Grains in Fixed Abrasive Wire Sawing Process. Int. J. Adv. Manuf. Technol. 2014, 73, 1485–1494. [Google Scholar] [CrossRef]
  12. Liedke, T.; Kuna, M. A Macroscopic Mechanical Model of the Wire Sawing Process. Int. J. Mach. Tools Manuf. 2011, 51, 711–720. [Google Scholar] [CrossRef]
  13. Li, S.; Tang, A.; Liu, Y.; Wang, J.; Cui, D.; Landers, R.G. Analytical Force Modeling of Fixed Abrasive Diamond Wire Saw Machining with Application to SiC Monocrystal Wafer Processing. J. Manuf. Sci. Eng. Trans. ASME 2017, 139, 041003. [Google Scholar] [CrossRef]
  14. Obata, K. Single-Crystal Diamond Cutting Tool for Ultra-Precision Processing. SEI Tech. Rev. 2016, 82, 82–88. Available online: https://global-sei.com/technology/tr/bn82/pdf/82-14.pdf (accessed on 12 July 2022).
  15. Kamiya, O.; Miyano, Y.; Takahashi, M.; Oga, Y.; Chen, Z.W.; Funaoka, K. Soldering process and cutting performance of micro saw wire bonded with diamond grains. Int. J. Mod. Phys. Conf. Ser. 2012, 6, 491–496. [Google Scholar] [CrossRef]
  16. Ishikawa, T.; Kida, T.; Kamiya, O.; Moritoki, H. Grinding Ability of Tungsten-Coated Diamond Composite Sintered Tool. Trans. Jpn. Soc. Mech. Eng. Part A 1997, 63, 2694–2700. [Google Scholar] [CrossRef]
  17. Kamiya, O.; Mori, H.; Ito, M.; Takahashi, M.; Miyano, Y.; Pasang, T.; Nakatsu, M.; Iwama, Y. Development of Fixed Grain Micro-Saw Wire and Cutting Performance. Procedia Manuf. 2017, 13, 161–168. [Google Scholar] [CrossRef]
  18. Mori, H.; Takahashi, K.; Ahamad, B.; Tanaka, H.; Murata, K.; Iwama, Y.; Kamiya, O. Development of Fixed Diamond Grain Saw Wire for Cutting Hard Materials, Proceedings of the Society of Materials Engi-neering for Resources Annual meeting on 26 June 2018. pp. 33–34. Available online: https://jglobal.jst.go.jp/en/detail?JGLOBAL_ID=201802255775486683 (accessed on 13 July 2022). (In Japanese).
  19. Kamiya, O.; Tsuji, D.; Ashihara, F.; Takahashi, M.; Ishikawa, T.; Zhan, W.C. Diamond and Metal Bonding by Active Solder for Micro—Cuttng Wire. Int. J. Mod. Phys. B 2006, 20, 3932–3937. [Google Scholar] [CrossRef]
  20. Kamiya, O.; Miyano, Y.; Takahashi, M.; Kawase, H.; Sekiguchi, K.; Oga, Y.; Suto, M. Development of New Micro Saw Wire Bonded with Diamond Grains Using Metal Solder. Int. J. Soc. Mater. Eng. Resour. 2010, 17, 182–185. [Google Scholar] [CrossRef]
  21. Tanaka, H.; Shiina, Y.; Nakatsu, M.; Kamiya, O. Development of a New Bonded Abrasive Diamond Tool. Int. J. Soc. Mater. Eng. Resour. 2016, 21, 11–15. [Google Scholar] [CrossRef]
  22. Hardin, C.W.; Qu, J.; Shih, A.J. Fixed Abrasive Diamond Wire Saw Slicing of Single-Crystal Silicon Carbide Wafers. Mater. Manuf. Processes 2004, 19, 355–367. [Google Scholar] [CrossRef]
  23. Tadao, I.; Kamiya Osamu, A.U. Wire Saw and Manufacturing Method. Patent 2001-067798. JP, 2002-233963, 2001. Available online: https://www.j-platpat.inpit.go.jp/p0200 (accessed on 12 July 2022).
  24. Ishikawa, T.; Suzuki, K.; Kamiya, O.; Moritoki, H. Relationship between Friable Strength of Synthetic Diamond and Shape Coefficient. Trans. Jpn. Soc. Mech. Eng. Part A 1997, 63, 1791–1796. [Google Scholar] [CrossRef]
  25. Hase, A.; Mishina, H. Study on Elementary Process of Adhesive Wear Using Scanning Probe Microscopy. Tribol. Online 2016, 11, 114–120. [Google Scholar] [CrossRef]
  26. Mishina, H.; Hase, A. Wear Equation for Adhesive Wear Established through Elementary Process of Wear. Wear 2013, 308, 186–192. [Google Scholar] [CrossRef]

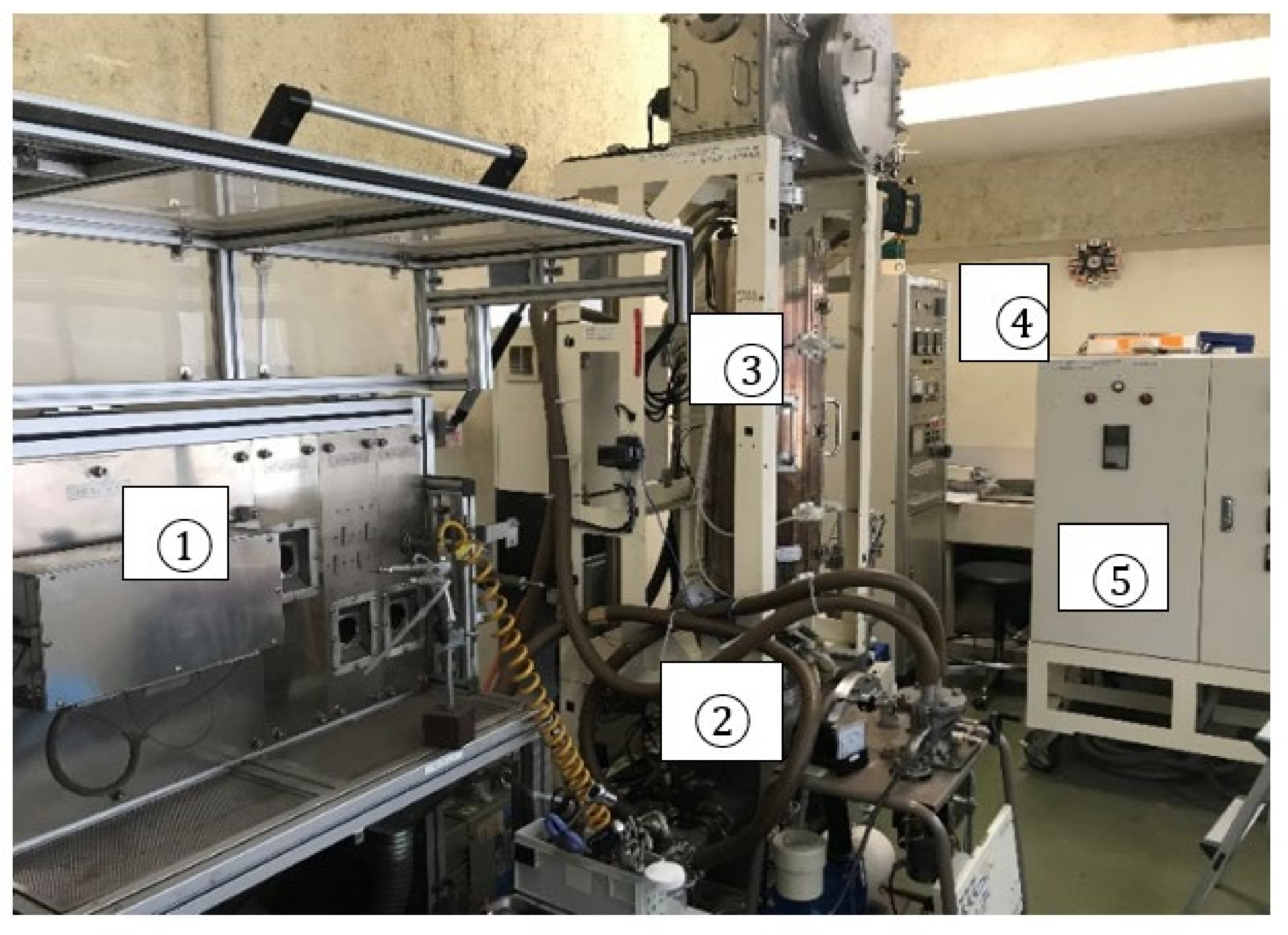

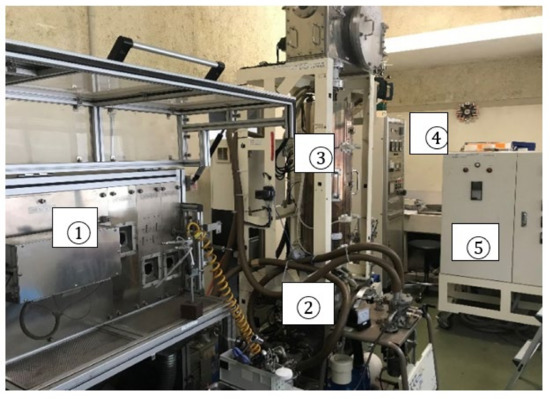

Figure 1. Production system of the diamond saw-wire employing a vacuum furnace. ① Gluing unit of diamond on tungsten wire using a gel. ② Vacuum pump. ③ Heating chamber. ④ Control panel unite. ⑤ Electrical power supply.
Figure 1. Production system of the diamond saw-wire employing a vacuum furnace. ① Gluing unit of diamond on tungsten wire using a gel. ② Vacuum pump. ③ Heating chamber. ④ Control panel unite. ⑤ Electrical power supply.
Materials 15 05524 g001

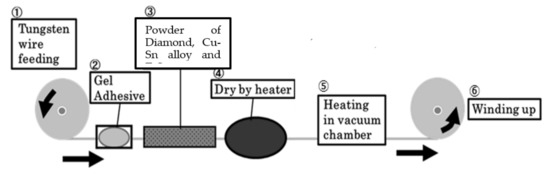

Figure 2. Schematic of continuous wire soldering process for pasting (left) and soldering reaction (right). ① Tungsten wire feeding, ② Gel Adhesive, ③ Powder of Diamond, Cu-Sn alloy and TiO2, ④ Dry by heater, ⑤ Heating in vacuum chamber, ⑥ Winding up.
Figure 2. Schematic of continuous wire soldering process for pasting (left) and soldering reaction (right). ① Tungsten wire feeding, ② Gel Adhesive, ③ Powder of Diamond, Cu-Sn alloy and TiO2, ④ Dry by heater, ⑤ Heating in vacuum chamber, ⑥ Winding up.
Materials 15 05524 g002
Figure 3. Fixed diamond grain saw wire by bronze (Cu-15% Sn) on tungsten-core wire. ① Diamond grain, ② bronze solder, ③ tungsten-core wire. (a) Whole appearance of the saw wire. (b) detail of the diamond grain fixed by the bronze solder.
Figure 3. Fixed diamond grain saw wire by bronze (Cu-15% Sn) on tungsten-core wire. ① Diamond grain, ② bronze solder, ③ tungsten-core wire. (a) Whole appearance of the saw wire. (b) detail of the diamond grain fixed by the bronze solder.
Materials 15 05524 g003

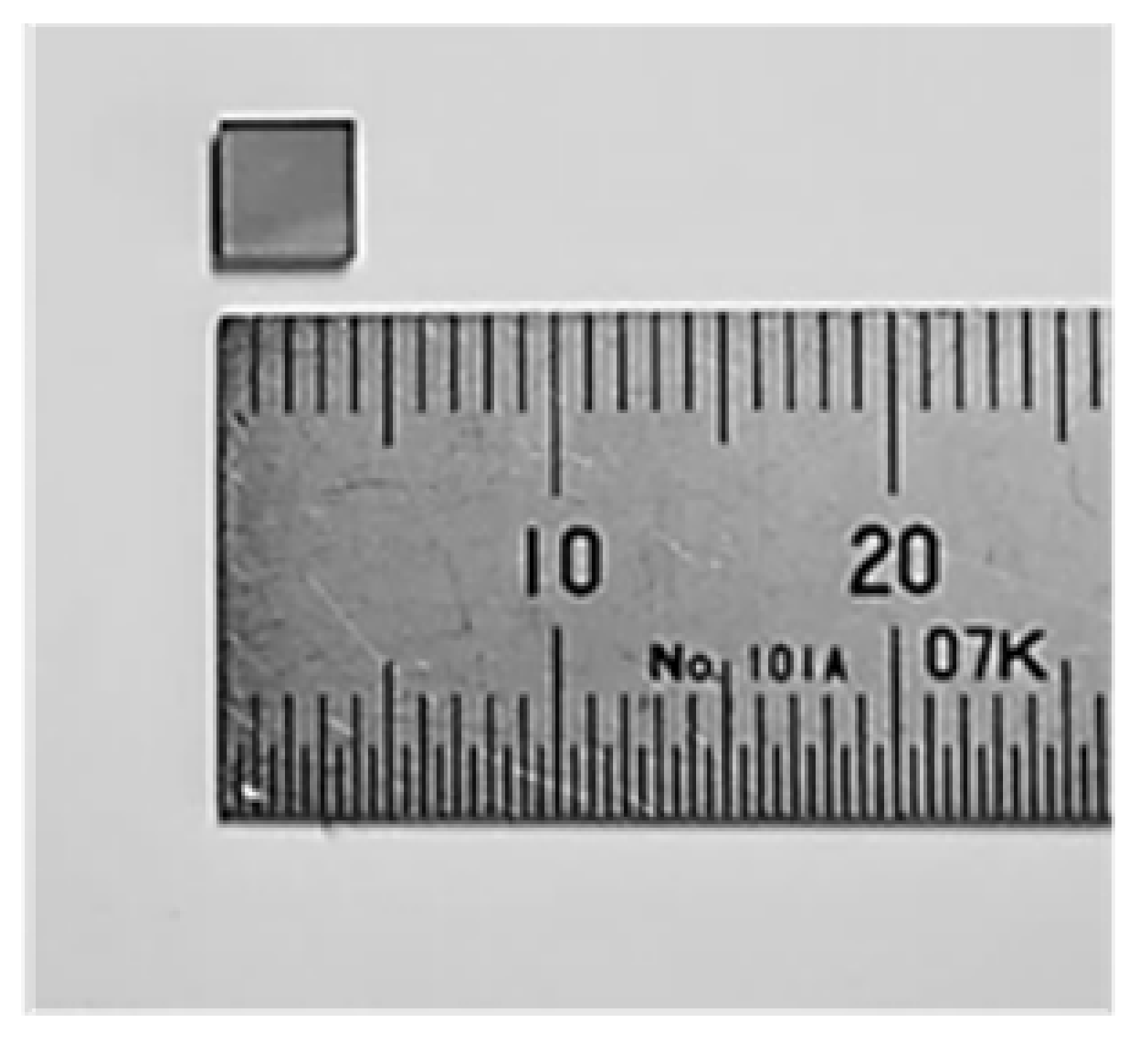

Figure 4. Diamond substrate with dimensions of 4 mm × 4 mm × 1 mm used for the cutting test.
Figure 4. Diamond substrate with dimensions of 4 mm × 4 mm × 1 mm used for the cutting test.
Materials 15 05524 g004

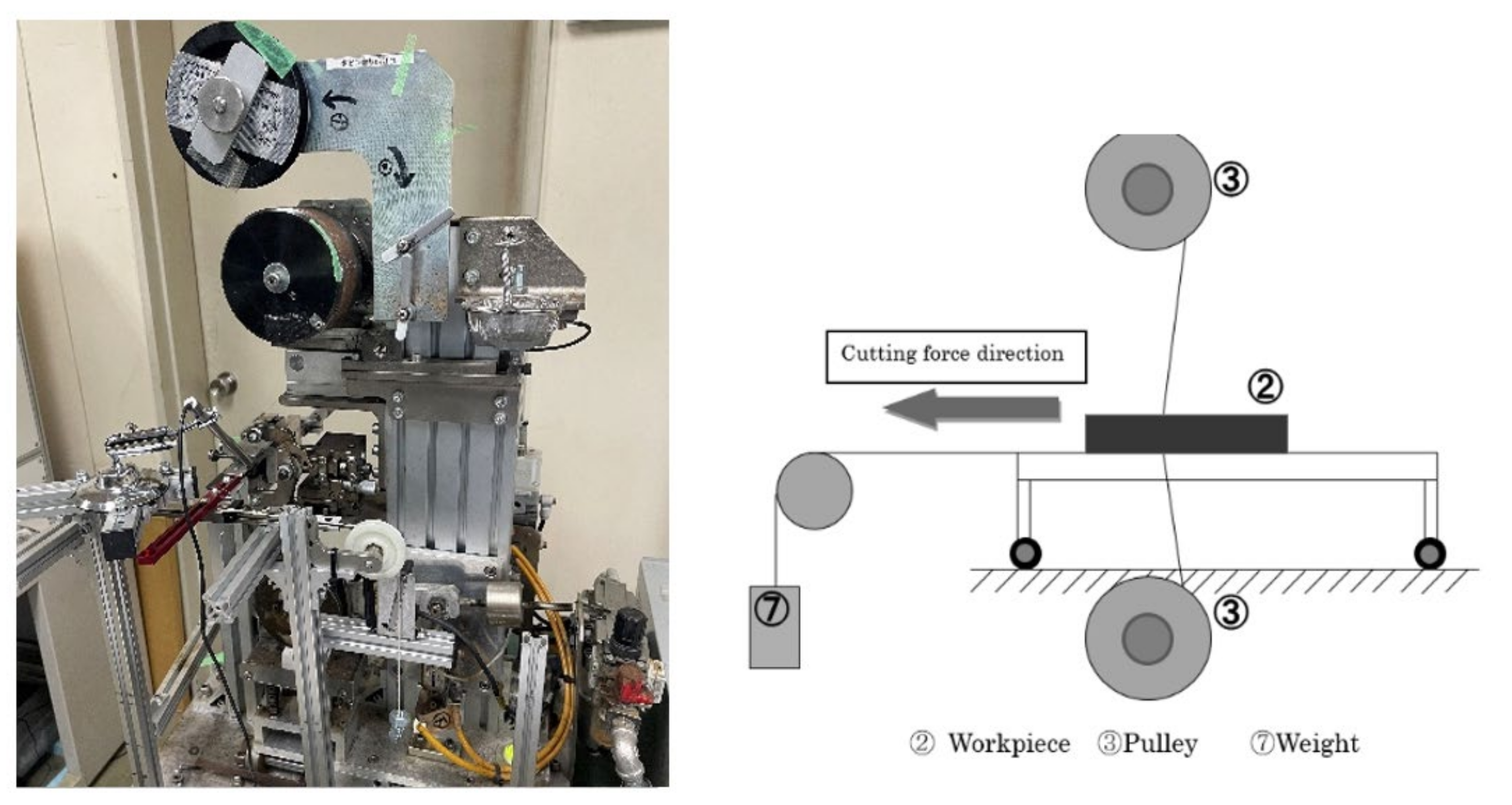

Figure 5. Cutting machine for diamond saw (left), and cutting diagram (right).
Figure 5. Cutting machine for diamond saw (left), and cutting diagram (right).
Materials 15 05524 g005

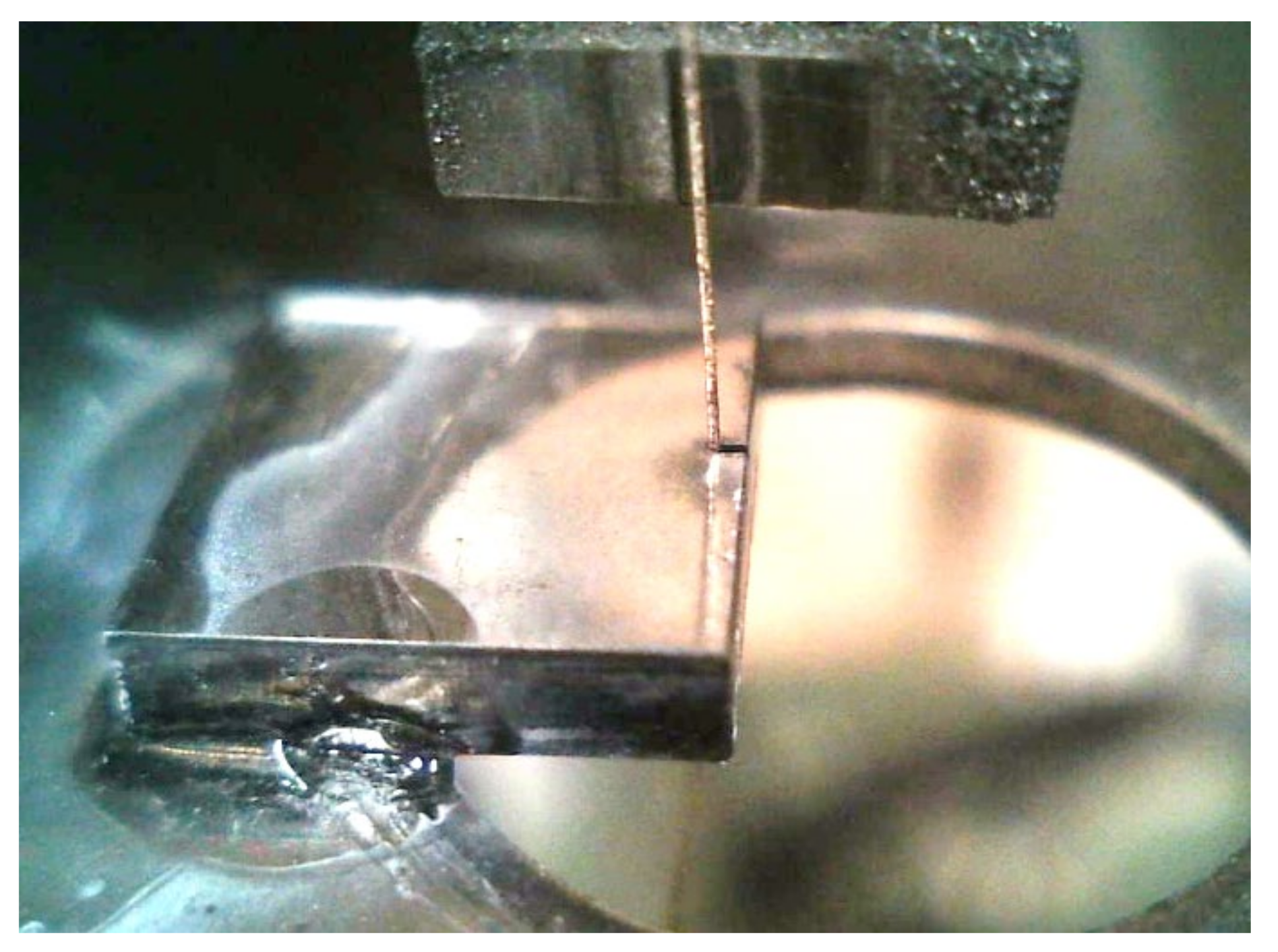

Figure 6. Cutting and manufacturing of a single-crystal diamond using a fixed diamond grain saw wire.
Figure 6. Cutting and manufacturing of a single-crystal diamond using a fixed diamond grain saw wire.
Materials 15 05524 g006

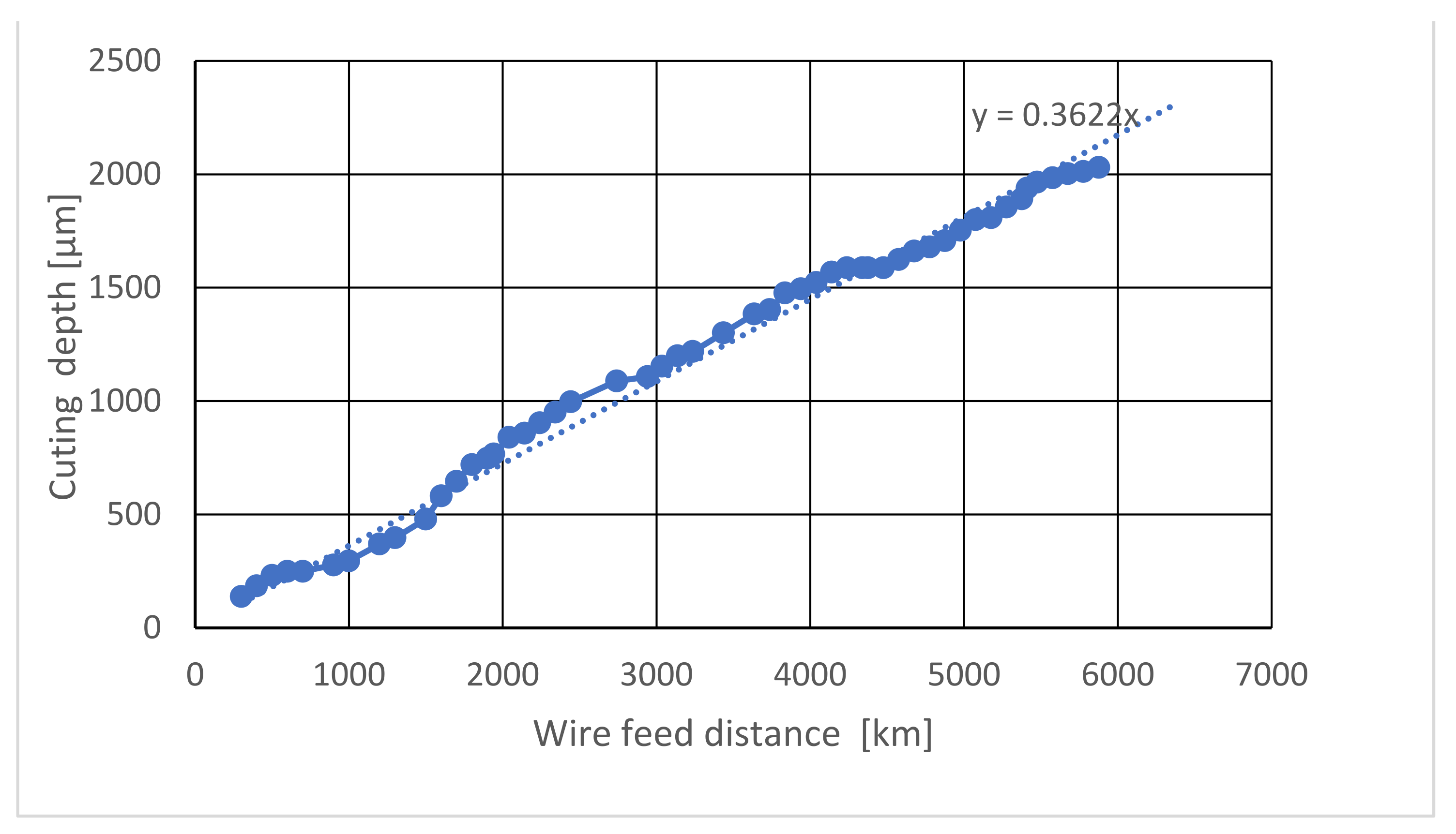

Figure 7. Linear relationship between the cutting depth and wire feed distance. Condition: cutting the diamond substrate using a saw wire with a thickness of 1 mm.
Figure 7. Linear relationship between the cutting depth and wire feed distance. Condition: cutting the diamond substrate using a saw wire with a thickness of 1 mm.
Materials 15 05524 g007

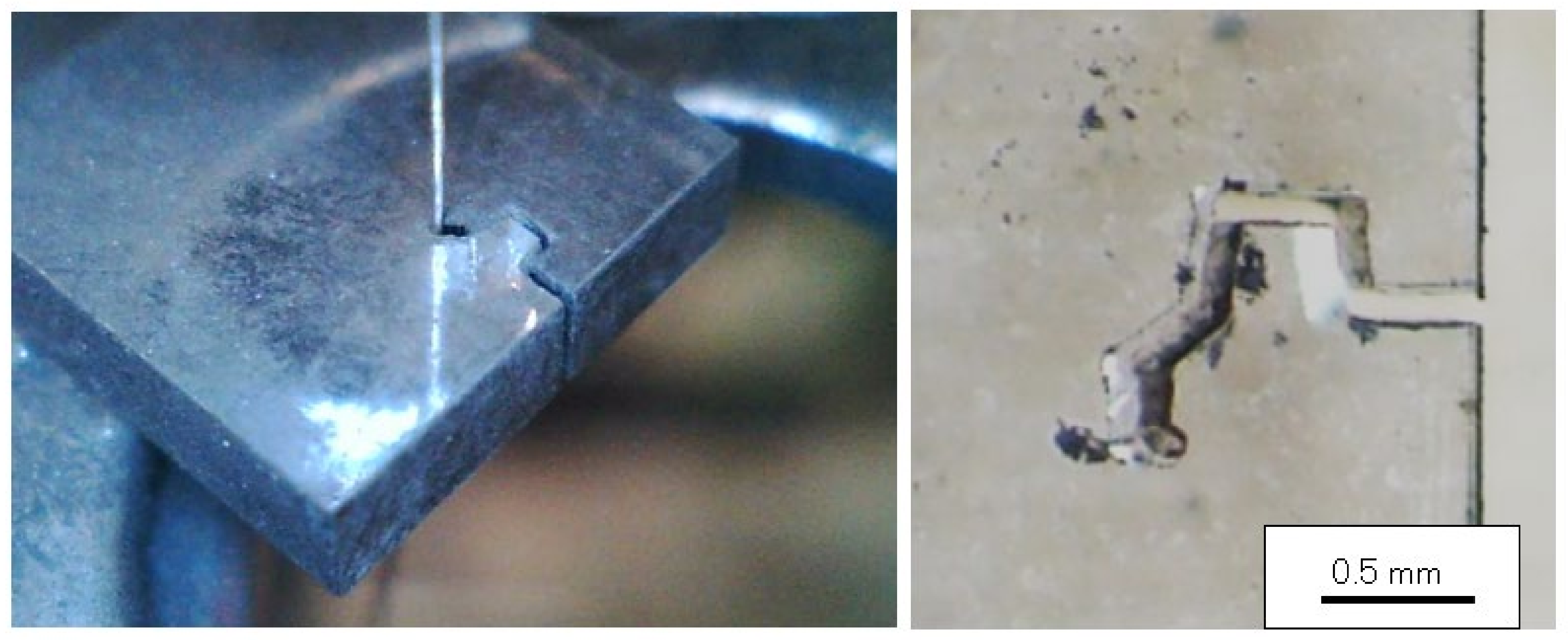

Figure 8. Control cutting of diamond plate with a thickness of 1 mm, using a fixed diamond grain saw-wire. The diameter of wire is 100 μm and the kerf width of the diamond substrate was 110 μm.
Figure 8. Control cutting of diamond plate with a thickness of 1 mm, using a fixed diamond grain saw-wire. The diameter of wire is 100 μm and the kerf width of the diamond substrate was 110 μm.
Materials 15 05524 g008

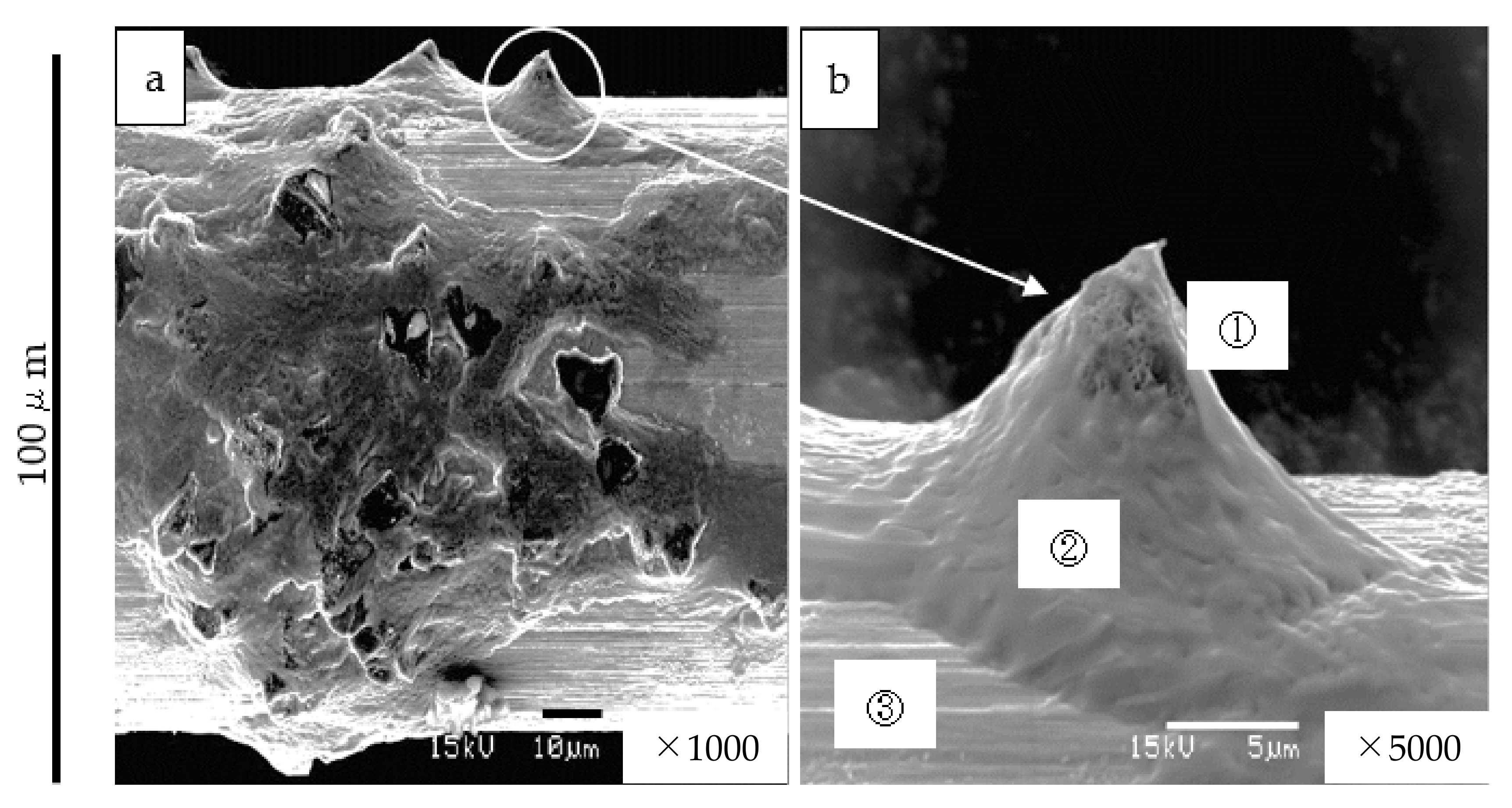

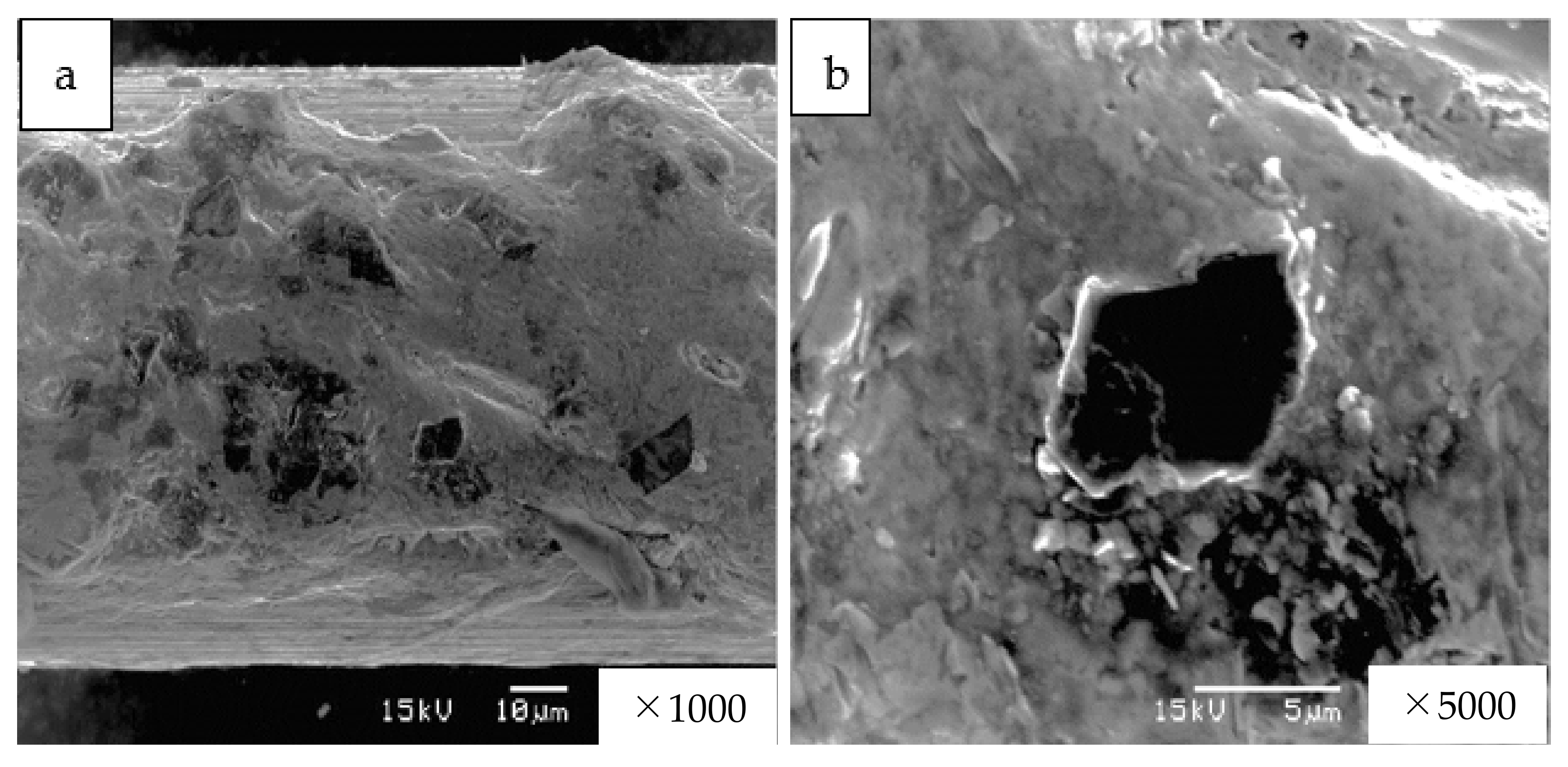

Figure 9. After 6000 km of running the saw-wire, (a) diamond grains existed, (b) worn and flattened surface of diamond grain was observed.
Figure 9. After 6000 km of running the saw-wire, (a) diamond grains existed, (b) worn and flattened surface of diamond grain was observed.
Materials 15 05524 g009

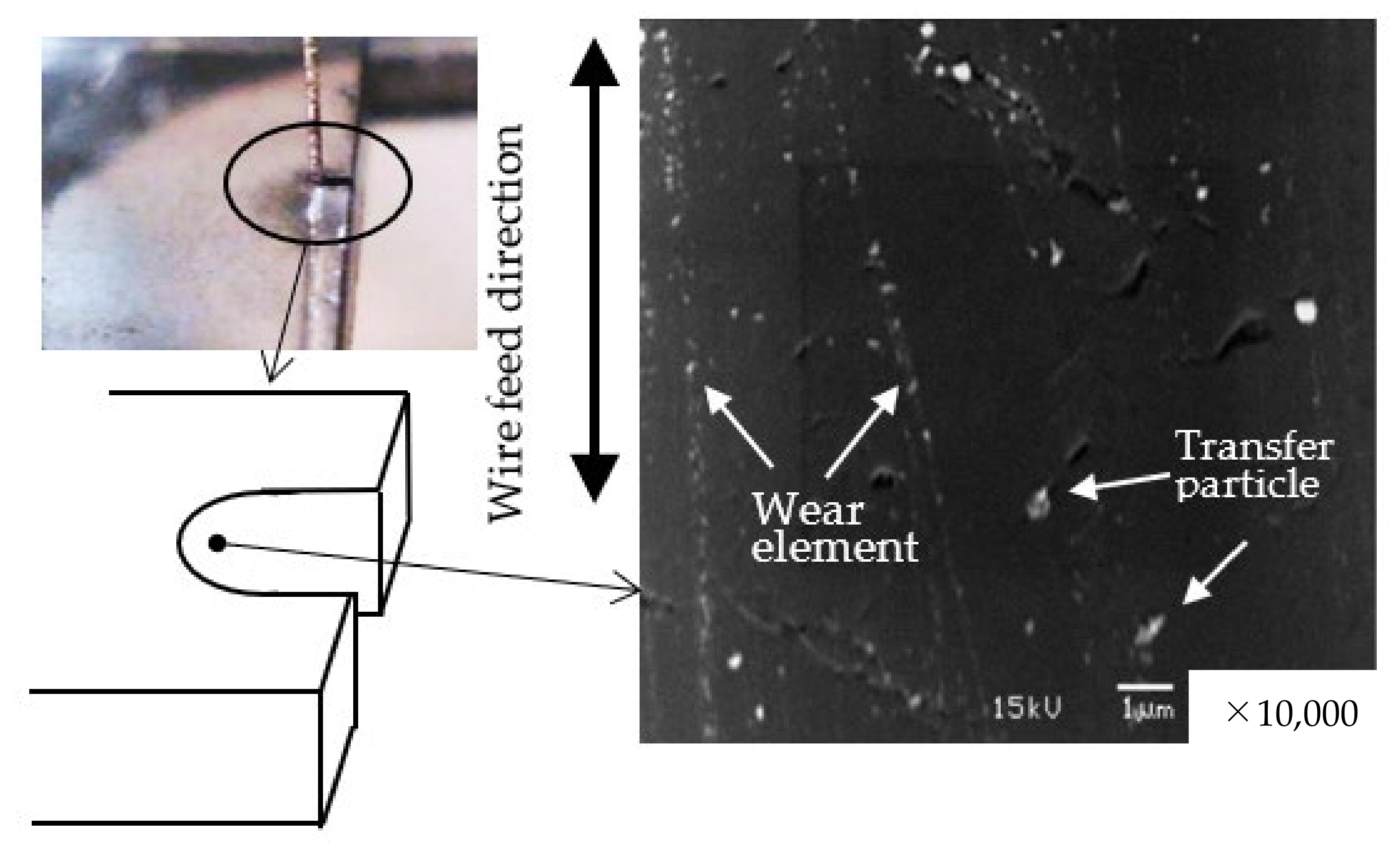

Figure 10. Smooth surface of diamond cutting tip in contact with the saw wire.
Figure 10. Smooth surface of diamond cutting tip in contact with the saw wire.
Materials 15 05524 g010

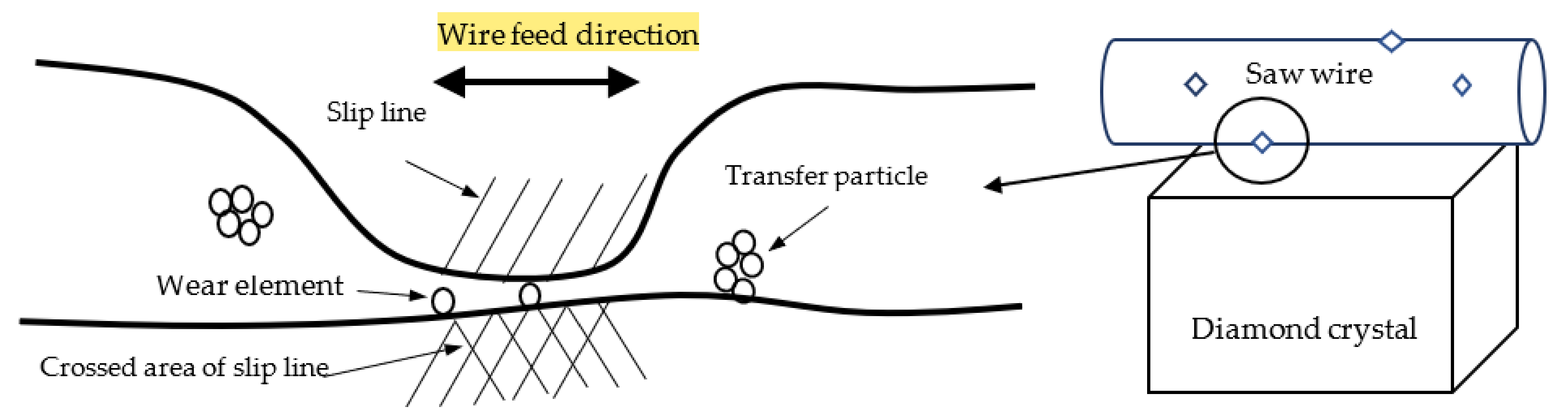

Figure 11. Schematic of the diamond cutting mechanism.
Figure 11. Schematic of the diamond cutting mechanism.
Materials 15 05524 g011
Table 1. Soldering condition.
Table 1. Soldering condition.
ConditionsUnitValue
Tungstain core wire diameter(μm)80
Brazing filler metal Bronze (Cu-15% Sn)
Melting temperature of bronze Tmelt *(K)1071
Diamond grain diameter(μm)3.0
Brazing atmosphere Vacuum (10−2–10−3 Pa)
Redox material Titanium hydride (TiH2)
Temperature of heating chamber(K)1173
Wire production velocity(mm/s)83.3
Tension load(N)1
* Tmelt: melting start temperature.
Table 2. Composition of solder including the diamond grain (mass%).
Table 2. Composition of solder including the diamond grain (mass%).
Bronze
Cu-15% Sn
Titanium Hydride
TiH2
Diamond Grain
φ3 μm
86.28.65.2
Table 3. Cutting conditions for this study.
Table 3. Cutting conditions for this study.
Tension
(N)
Cutting Force (N)Wire Speed
(m/s)
Wire Length
(m)
Cutting
Environment
10.202.58Dry cutting
Table 4. Cutting condition parameters.
Table 4. Cutting condition parameters.
ConditionsUnitValue
V(mm3)3.622 × 10−5
P(N)0.2
pm(GPa)90–100
(m)1.0 × 103
