Modernized Synthesis Technique of Pr₂NiO_4+δ-Based Complex Oxides Using Low-Temperature Salt Melts

Abstract

Phases based on layered lanthanide nickelates are considered as promising electrode materials for various electrochemical devices, including solid oxide fuel cells and electrolysis cells. While such compounds may be prepared using either solid state or solution-assisted syntheses, each of these approaches entails certain problems. In the present work, we propose a novel approach for the simple and straightforward preparation of Pr₂NiO_4+δ-based materials. This approach involves co-melting of initial nitrate components, followed by high-temperature decomposition of the obtained mixture. The developed synthesis method exhibits a number of advantages over conventional techniques, enabling highly dispersed and single-phase powders to be obtained at a reduced synthesis temperature of 1050 °C. Therefore, the results of this work open new possibilities for the cost-effective preparation of Ruddlesden–Popper oxide phases.

1. Introduction

Lanthanide nickelate materials (Ln₂NiO_4+δ, Ln = La, Pr, Nd) constitute an attractive class of complex oxides for applied electrochemical purposes: as electrode materials for solid oxide fuel cells and electrolysis cells [1,2]; as components of cathode materials for lithium-ion batteries [3,4]; as oxygen permeable membranes for oxygen separation [5,6]; as efficient (photo)electrocatalysts toward oxidation [7,8] and hydrogen evolution [9,10] reactions; as components of sensors [11,12,13], etc. Such a wide range of potential applications is due to features in their layered crystal structure, which offer high ionic and electronic transport combined with relatively good chemical stability and mechanical properties, starting from standard conditions and ending with high-temperature operation at 800–1000 °C.

Ln₂NiO_4+δ-based materials involving various doping modifications can be synthesized via a number of synthesis routes, including the standard solid-state reaction method [14], co-precipitation [15], the sol-gel method [16], the nitrate-combustion method [17,18,19], etc. Although materials may be successfully synthesized using these techniques, each has its own inherent disadvantages. For example, in order to ensure a single-phase state of layered nickelates, the solid-state reaction method requires high temperatures and prolonged treatment times. The oxidation by nitrate groups of additional organic substances serving as a fuel for sol-gel and nitrate-combustion techniques involves the release of large quantities of gases, resulting in a highly dispersed and porous residue. The co-precipitation method requires careful control of the process conditions for the simultaneous precipitation of all required cations. In short, the multi-step or time/cost-consuming technological processes involved in the considered methods inspire a search for new convenient and technologically efficient synthesis methods.

In the present work, we present for the first time an original approach developed for the preparation of doped nickelates in single-phase forms at temperatures as low as 1050 °C. The described approach utilizes the corresponding nitrates with no additional substances required (organic, ammonia, precipitator). The further careful calcination of the homogeneous viscous solution that formed during the co-melting of nitrates resulted in highly dispersed powders forming corresponding single-phase products following twice-calcination at 1050 °C.

2. Materials and Methods

In the present work, two widely used synthesis routes were employed for the synthesis of Pr₂Ni_0.9Co_0.1O_4+δ as an example: the solid-state synthesis method (SS) [20] and citrate–nitrate combustion synthesis (CN) [21]. Along with these two routes, a proposed new synthesis approach based on the decomposition of low-temperature molten salts (MS) was conducted.

In the SS method, the following compounds with a purity of 99.5% and above were used: Pr₆O₁₁, NiO and Co₃O₄. The required amounts of the preliminary dried powders were mixed in ethanol media for 1 h via an agate mortar and pestle. The ground powder was pressed into discs to ensure better reactivity of the components and then calcined at 1050 °C for 5 h. After grinding, the calcined samples were then again pressed for further calcination at the same temperature. These steps were repeated twice to achieve good homogeneity of the final powder.

For the CN method, Pr₆O₁₁, metallic nickel and cobalt were mixed in strictly required proportions and then dissolved in a solution of nitric acid. Citric acid was then added in a mole ratio of 1.5:1 to the total metal amount. The obtained solution was evaporated at 240 °C under constant stirring. After being brought to a higher temperature (~350 °C), the obtained substance was ignited, resulting in the formation of a residue, which was ground and calcined at 1050 °C for 5 h in a 3-step process as in the SS method.

The proposed MS method is based on mixing low-temperature nitrate melts of Pr(NO₃)₃·6H₂O, Ni(NO₃)₂·6H₂O and Co(NO₃)₂·6H₂O, followed by their subsequent decomposition. This should result in the formation of a highly dispersed, chemically homogeneous mixture of oxides. For the formation of the target Pr₂Ni_0.9Co_0.1O_4+δ phase, high-temperature calcination is required. Due to the low melting temperature (around 80 °C) of the used nitrates (their crystal hydrate forms), a high-quality and energy-efficient homogeneity of nitrate mixture can be achieved. The relatively simple process of obtaining a single-phase product by the calcination of this mixture additionally involves low energy consumption due to the shorter duration of high-temperature treatments due to the high degree of chemical homogeneity of the mixture. To realize the MS method, the corresponding nitrates taken in the required ratio were placed in an Al₂O₃ crucible and then heated at 86 °C for 10 min. After this, a homogeneous and highly viscous melt was formed. This melt, after its cooling, was calcined at 1050 °C for 5 h. As a result of the high-temperature treatment, the nitrates decomposed to form a highly dispersed ash. The calcined powder was ground and finally synthesized at 1050 °C for 5 h.

To analyze the phase quality of the obtained powders, X-ray powder diffraction (XRD) analysis was performed applying a D/MAX-2200VL/PC diffractometer (Rigaku Co., Ltd., Japan) via the Cu Kα-radiation at room temperature in ambient air in the 2θ range of 20°–80°.

The morphology and elemental composition of the powders were analyzed by scanning electron microscopy (SEM) analysis using a Phenom ProX electron microscope (Thermo Fisher Scientific, USA).

Thermogravimetric analysis (TGA) was performed using a NETZSCH STA 449 F3 Jupiter thermal analyzer in air to evaluate features of the decomposition processes for the powders prepared by all three routes. The measurements were performed from 25 to 1000 °C with a heating rate of 3 °C min^–1 in extra pure (99.999%) argon.

3. Results

3.1. Thermal Behavior of Individual Nitrates

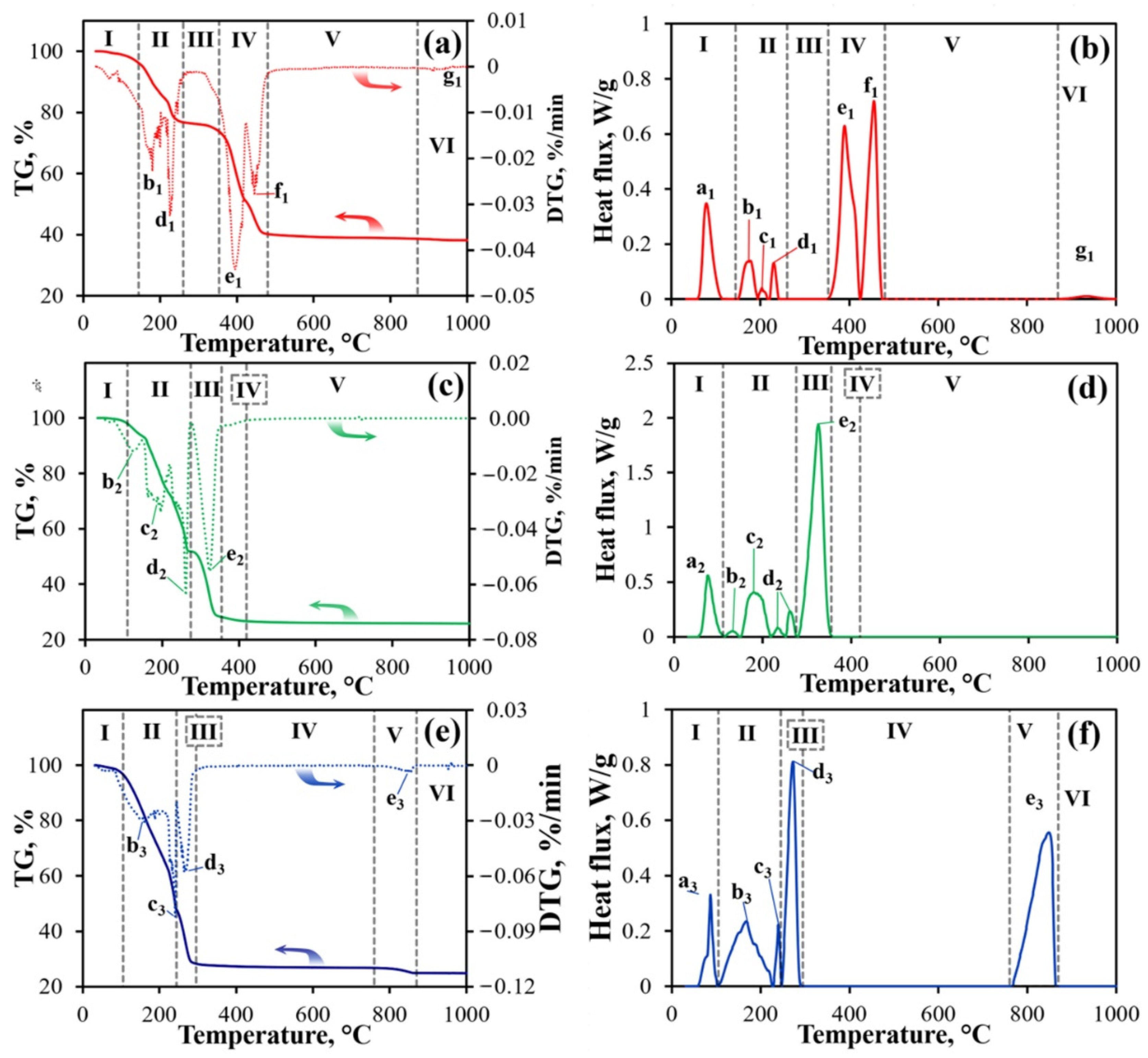

In order to justify the MS method, it is necessary to characterize the initial nitrate salts in terms of their melting points. The experimental results and their analysis are presented in Figure 1 and

Table 1. The main physico-chemical steps of nitrates decomposition revealed by the TG-DSC analysis.

Processes	Peak Index	Tstart, °C	Tpeak, °C	ΔH, kJ mol–1
Pr(NO3)3·6H2O
Melting of Pr(NO3)3·6H2O	a1	60	80	40.2
Pr(NO3)3·6H2O → Pr(NO3)3·3H2O+ 3H2O↑	b1	150	170	17.4
Pr(NO3)3·3H2O = Pr(NO3)3·2H2O + H2O↑	c1	195	200	2.2
Pr(NO3)3·2H2O = Pr(NO3)3 + 2H2O↑	d1	220	230	6.2
Pr(NO3)3 = PrONO3 + 2NO2↑ + 0.5O2	e1	350	390	66.3
PrONO3 = PrO2 + NO2↑	f1	425	455	40.3
2PrO2 = Pr2O3 + 0.5O2↑	g1	~880	-	-
Ni(NO3)2·6H2O
Melting of Ni(NO3)2·6H2O	a2	60	80	40.3
Ni(NO3)2·6H2O = Ni(NO3)2·5H2O + H2O↑	b2	110	140	3.2
Ni(NO3)2·5H2O = Ni(NO3)2·1.5H2O + 3.5H2O↑	c2	150	180	51.1
Ni(NO3)2·1.5H2O = Ni(NO2)2 + O2↑ + 1.5H2O↑	d2	220	230	9.2
2Ni(NO2)2 = Ni2O3 + 4NO + 0.5O2	e2	280	330	85.3
Ni2O3 = 2NiO + 0.5O2		350	-	-
Co(NO3)2·6H2O
Melting of Co(NO3)2·6H2O	a3	60	90	5.6
Co(NO3)2·6H2O = Co(NO3)2 + 6H2O↑	b3	100	170	14.8
Co(NO3)2 = Co(NO2)2 + O2↑	c3	230	240	1.4
3Co(NO2)2 = Co3O4 + 2NO2↑ + 4NO↑	d3	250	270	7.8
Co3O4 = 3CoO + 0.5O2	e3	765	850	9.8

. The chemical compositions of the samples and the ongoing chemical processes were evaluated by analyzing the temperature dependences of weight and heat flux.

The five sections are revealed in the TG curve of Pr(NO₃)₃·6H₂O (Figure 1a). Here, Section I corresponds to the initial heating and melting of this salt [22]. Although the a₁ peak appears at ~60 °C in the DSC curve, no weight loss is observed here. In Section II (144–260 °C), the subsequent removal of water molecules takes place (peaks b₁, c₁, and d₁ [23,24]). Since Section III does not show any weight loss or thermal effects, this section can be taken to correspond to heating of the anhydrous Pr(NO₃)₃. With further heating, praseodymium nitrate decomposes in Section IV. According to the TG and DSC analyses, this decomposition occurs through the two stages (peaks e₁ and f₁ [22]). Most probably, a quasi-stable compound of PrONO₃ could exist [23]. Then, the latter transforms to PrO₂ [22,23]. No visible changes were found in the section V, indicating a simple heating of PrO₂ up to 880 °C. At higher temperatures, a small weight loss can be associated with oxygen desorption from PrO₂ coupled with the formation of Pr₂O₃. The modest DSC-peak associated with this process is due to the small thermal effect of this reaction.

The melting process of Ni(NO₃)₂·6H₂O (peak a₂) occurs at a temperature close to the melting point of Pr(NO₃)₃·6H₂O. As evidenced by the presence of several peaks (b₂, c₂) on the DSC curve, the dehydration process also proceeds stepwise. Based on the analysis of the d2 peak, the dehydration process can be concluded to be accompanied by the partial decomposition of nickel nitrate to nickel nitrite. Thermal decomposition of nickel nitrite to Ni₂O₃ is observed at peak e2, while Ni₂O₃ begins to decompose to stable NiO oxide at a temperature of around 350 °C. The results obtained are consistent with those reported by other groups [25,26].

The melting point of cobalt nitrate hexahydrate, Co(NO₃)₂·6H₂O (Section I), is also close to those of Ni(NO₃)₂·6H₂O and Pr(NO₃)₃·6H₂O (peak a₃). In Section II (105–247 °C) of the TG curve, a rapid weight loss occurs (peak b₃), corresponding to its full dehydration until Co(NO₃)₂ [27]. Section III (247–295 °C) could be related to a Co(NO₃)₂ → Co₃O₄ decomposition (peak d₃) [26]. Apparently, oxide formation is preceded by the partial decomposition of cobalt nitrate to nitrite (peak c₃ [27]). Since no visible transformations occurred in the temperature range of 295–760 °C (Section IV), heating of the Co₃O₄ oxide can proceed. With further heating (760–870 °C), the Co₃O₄ decomposes to CoO in section V (peak e3).

Based on the obtained results, the principal possibility of a stable melt composed of nickel, praseodymium, and cobalt nitrates exists at temperatures from 60 °C to 105 °C. For the preparation of the required melts, we selected a temperature of 85 °C as a certain compromise between melt viscosity and stability.

3.2. Comparison of Three Synthesis Routes

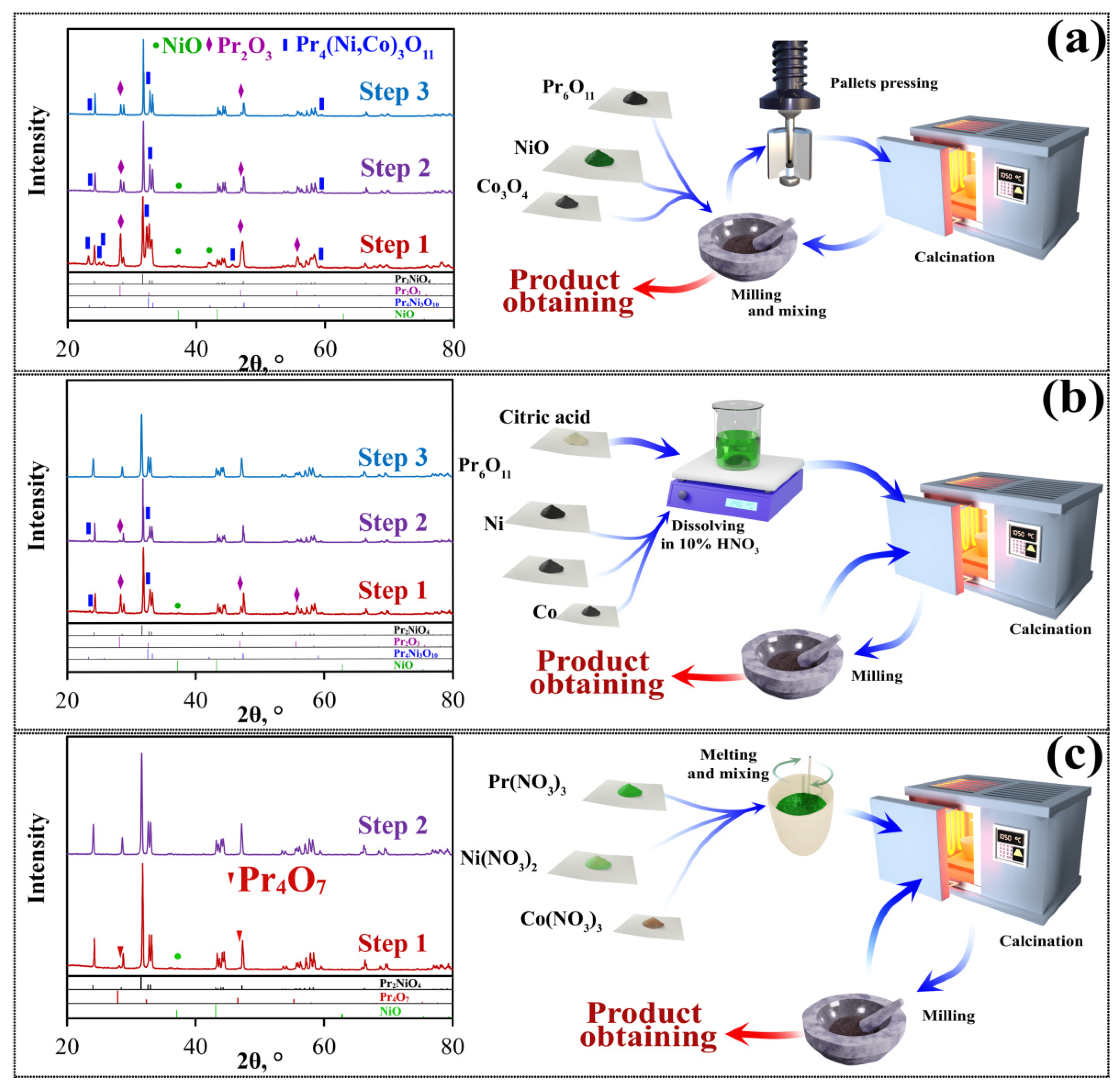

For the purposes of comparison, the same Pr₂Ni_0.9Co_0.1O_4+δ composition obtained by the proposed MS technique was also synthesized using the SS and CN methods. Figure 2 shows the main stage for the powder preparation coupled with the XRD data. According to Figure 2a, no single-phase product is obtained in this work when utilizing the SS method. Following the first calcination, the following impurity phases were detected along with the main layered phase: Pr₆O₁₁ (~20 wt.%), Pr₄(Ni,Co)₃O₁₀ (~22 wt.%) и NiO (~22 wt.%). The weights of these phases after the second calcination decrease down to 12, 8, and ~1 wt.%, respectively. Finally, the third calcination step resulted in the co-existence of two impurities: 8 wt.% of Pr₆O₁₁ and 6 wt.% of Pr₄(Ni,Co)₃O₁₀. Although it is probable that the target complex oxide (Pr₂Ni_0.9Co_0.1O_4+δ) can be obtained in a single-phase form during the SS method if higher temperatures are used, elevated synthesis temperatures are undesirable due to the coarsening of thus-obtained powders.

A similar analysis was carried out for the CN-obtained powders (Figure 2b). Following the first calcination, the powder contained the target layered phase along with a number of impurities, including Pr₆O₁₁ (~21 wt.%), Pr₄(Ni,Co)₃O₁₀ (~8 wt.%), and NiO (~10 wt.%). The second calcination resulted in a considerable decrease of impurity phase quantities to around 2.5 wt.%, 5 wt.% and 2 wt.%, respectively. Finally, the third calcination led to the formation of a pure Pr₂Ni_0.9Co_0.1O_4+δ phase. These results confirm that the solution techniques exhibit advantages over conventional solid-state synthesis, particularly in terms of higher molecular homogenization, which requires lower temperatures to achieve single-phase products.

For the MS-prepared powder, two impurities in small amounts (~2.5 wt.% of Pr₆O₁₁ and ~0.5 wt.% of NiO) were detected following the decomposition of nitrates during the first calcination. In contrast to the two previously-described synthesis techniques, the twice-calcined powder was found to be fully single-phase (Figure 2c).

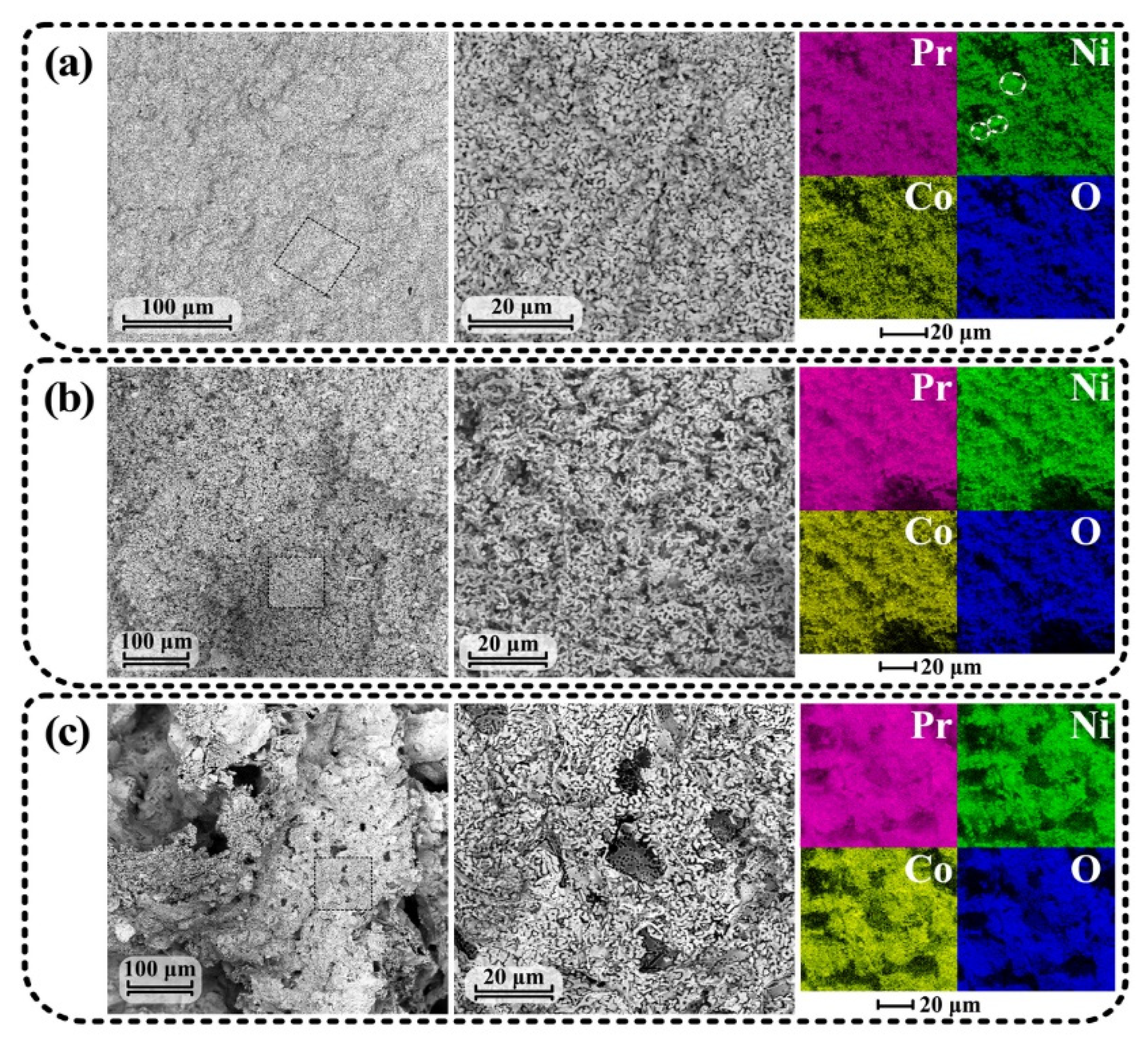

The cross-section of the ceramic materials obtained by the SS, CN and MS routes after their first annealing characterized by means of SEM analysis is shown in Figure 3.

In the SEM images of the calcined sample obtained using the SS method (Figure 3a), highly porous and rather coarse particles of various oxides can be distinguished. The particle size is quite heterogeneous and varies from 0.8 to 7 µm with a median value of 1.2 µm. Element distribution maps show regions enriched with nickel (marked with circles) containing phases such as NiO and Pr₄Ni₃O₁₀. From these facts, it can be concluded that the durations of mixing of the initial substances and isothermal exposure were insufficient.

For the sample obtained by the SS method (Figure 3b), the formation of a disordered porous structure composed of chain and flat components can be seen to have taken place. The particle size varied from 0.6 to 1.1 µm with a median value of 0.85 µm.

From the fracture of the MS-obtained sample (Figure 3c) it can be seen that the sample is highly porous. This might be explained by the release of a high quantity of gases during the decomposition of nitrates. The resulting oxide powder contained elongated grains less than 0.1 μm in thickness and from ~1 to ~4 μm in other directions. The EDX maps showed uniform element distribution, confirming the achievement of high chemical homogeneity following the first annealing step. The crystallite size calculated after the final synthesis temperature was found to be equal to ~40, 15 and 16 nm for the powders prepared by the SS, CN and MS methods, respectively. This indicates that the MS method allows the formation of highly dispersed (agglomerated) particles similarly with various solution techniques, while the SS method is characterized by more coarse particles.

Based on this analysis, it can be concluded that, despite the energy consumption of the SS synthesis method, it did not allow high chemical homogeneity of the powder to be achieved. In contrast, the SS and MS methods are free from this disadvantage.

An important characteristic for powders used for the fabrication of SOFC electrodes is their specific surface, this being the characteristic that directly affects the resulting electrochemical activity. The specific surface area of the SS-prepared powder after first calcination was found to be equal to 4.4 m² g^–1 versus 6.2 m² g^–1 for the CN-prepared powder and 7.0 m² g^–1 for the MS-prepared powder. This allows the latter method to be considered as promising for obtaining complex oxides based on Pr₂NiO_4+δ.

The powders on the nominal Pr₂Ni_0.9Co_0.1O_4+δ composition obtained after the SS, CN and MS methods were further analyzed by TG-DSC in an air-argon mixture with an oxygen partial pressure of 0.17 atm. A heating rate was equal to 1 °C min^{– 1} (Figure 4). Thus, the conditions of the first heating of these samples were partially repeated. As a result, the chemical processes occurring during high-temperature treatment were studied.

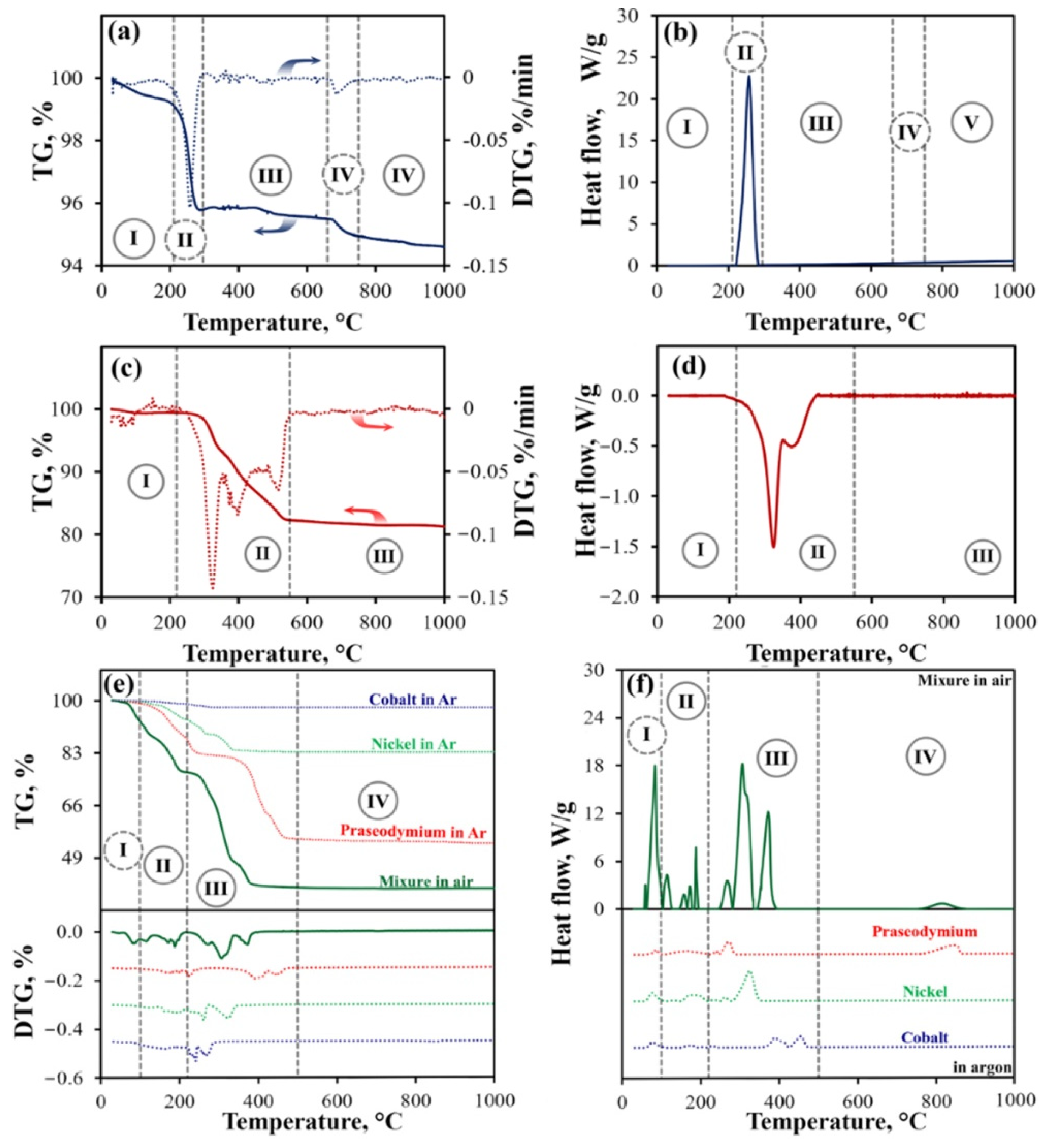

Figure 4a,b present TG, DTA, and DSC data for a mixture of oxides. There are five sections on the TG curve. Apparently, in Section I (25–210 °C), a trace of acetone added to the powder mixture during its grinding was evaporated. In Section II, the thermal decomposition of Pr₆O₁₁ to Pr₂O₃ evidently occurs with the release of O₂. In Sections III–V, the formation of new phases is apparently accompanied by the removal of oxygen from the resulting structures. No significant thermal effects were found on the DSC curve.

Figure 4c,d present the corresponding results for the residue obtained following citrate–nitrate combustion. The TG and DSC curves can be separated by three sections. The weight decreases insignificantly in Section I. In all likelihood, this is associated with the fact that the residue was preliminarily treated at 350 °C (see Experimental section). A significant weight loss occurs in Section II. The DSC analysis reveals two peaks in this section in which intensities greatly differ. While the former peak can be related to the combustion of organic residues, the latter can be attributed to the decomposition of nitrates. As was established earlier, the processes of nitrate decomposition are endothermic, while the combustion of organic substances has an exothermic character. The simultaneous occurrence of two processes leads to a partial decrease in heat release in the temperature range of 330–440 °C. As can be seen from the data presented, heat release ends at the temperature of 440 °C, while mass loss is observed up to 540 °C. Evidently, this is due to a slow removal of gases from the reaction mass, which has a large number of pores.

The TG curve of the mixture of nitrates following their melting (MS method, Figure 4e,f) can be conditionally divided into 4 sections. In Section I, melting of nitrates occurs with a small weight change, but considerable heat effects. In Section II, the TG-DSC curves show complete dehydration of the mixture, which is confirmed by previous results where the reagents were studied individually (Figure 1). When the anhydrous mixture is heated above 250 °C, nitrates start to decompose. This process ends at ~400 °C (Section III), with further heating of the mixture (Section IV) resulting in no significant changes in mass or the appearance of peaks in the DSC curve. Apparently, in this temperature range, mutual diffusion of the formed oxides occurs, which is not tracked according to the TG data.

Figure 4e,f also include the data obtained for individual nitrates. It can be seen that all processes occurring for the individual nitrates are duplicated for the nitrate mixture, taking the nitrate ratio into account. A distinctive feature here is the observed decrease in temperatures for some processes associated with the dehydration of nitrates in the mixture and the decomposition of salts.

The proposed method of the joint nitrate metals’ decomposition is found to be promising for producing nickel-based layered phases. However, this method exhibits certain limitations. First, only nitrates with close melting temperatures can be used; otherwise, no homogeneous melt solution is obtained, which could prevent the subsequent formation of single-phase products. Second, nitrate decomposition is accompanied by an intense release of nitrogen oxides, NO_x, which are acidic components having a detrimental effect on the environment. Finally, the costs of nitrates are, as a rule, higher compared to the corresponding oxides or carbonates. Nevertheless, this approach can be considered suitable for the lab-scale preparation of nano-sized powders of nickelites and other related compounds with a small quantity.

4. Conclusions

In the present work, a nitrate co-melting technique was successfully used for the preparation of the single-phase Pr₂NiO_4+δ-based materials using a relatively mild synthesis regime (twice calcination at 1050 °C for 5 h without using ball milling). This technique was shown to possess advantages over the solid-state synthesis and citrate-nitrate combustion methods, whose utilization requires higher calcination temperatures or prolonged times to obtain the desired product. Thus, the co-melting of nitrates can be considered as a promising approach for the preparation of other layered complex phases based on Ln₂NiO_4+δ.
