Properties of Old Concrete Built in the Former Leipziger Palace
Abstract
:1. Introduction
2. Materials and Methods
2.1. Measurements of Dry Density
2.2. Tests of Water Absorption

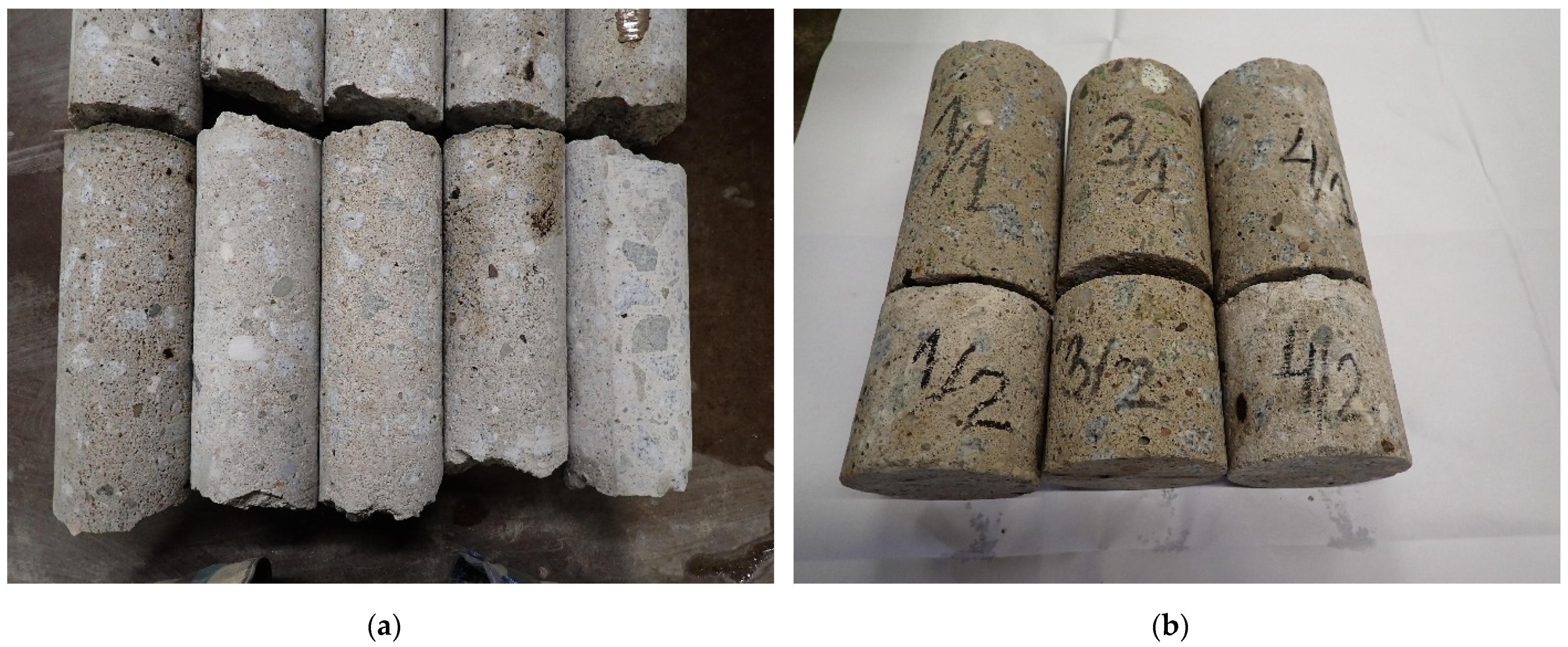

2.3. Determination of Concrete Compressive Strength
2.4. Determination of Concrete Frost Resistance
2.5. Determination of Elasticity Modulus
2.6. Determination of the pH Value
2.7. Measurement of Water-Soluble Chloride Ions (Cl−) and Sulfate Ions (SO42−)
2.8. Scanning Electron Microscopy (SEM) Combined with Energy Dispersive X-ray Spectroscopy (EDS)
2.9. X-ray Diffraction (XRD) Analyses
3. Laboratory Test Results and Discussion

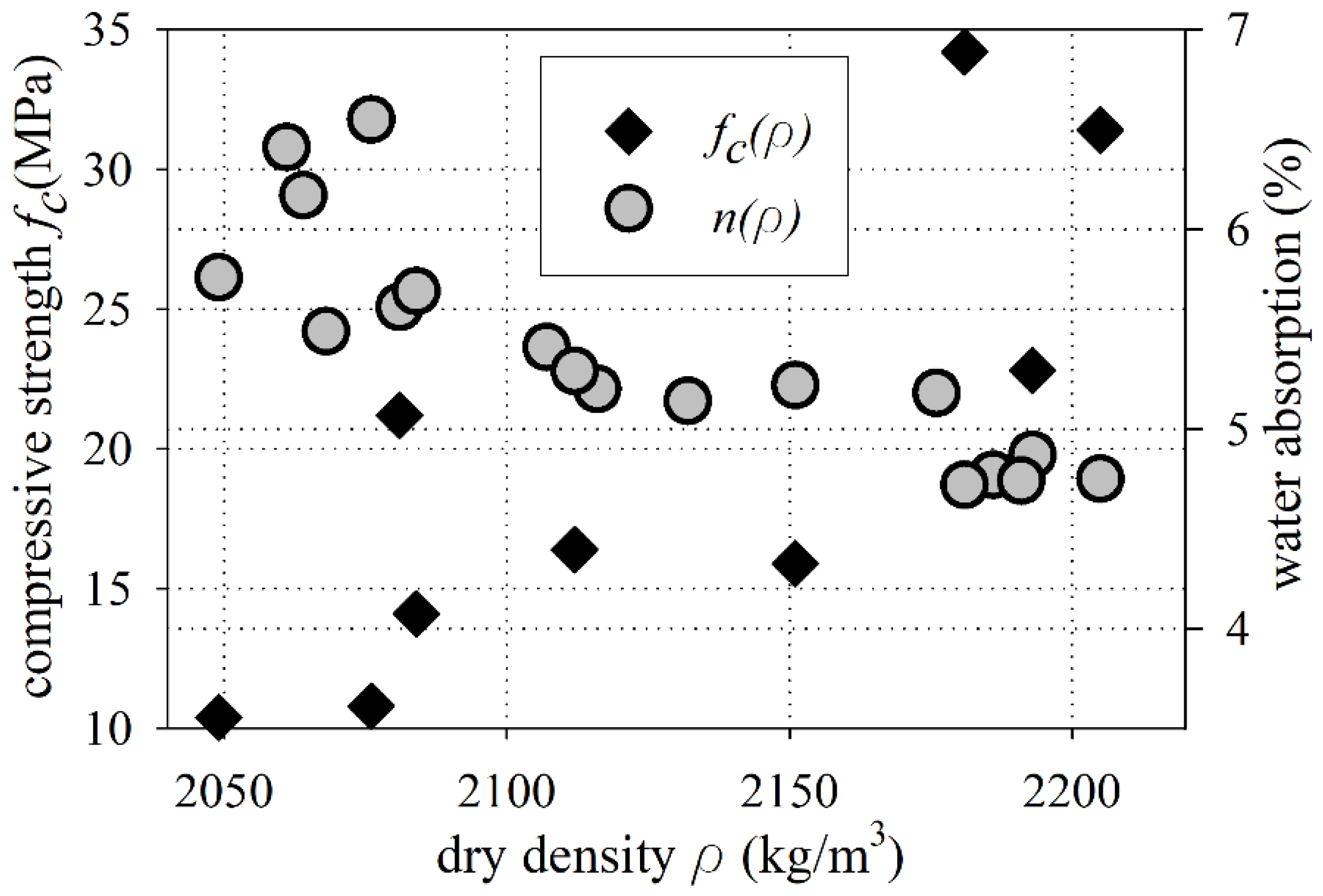

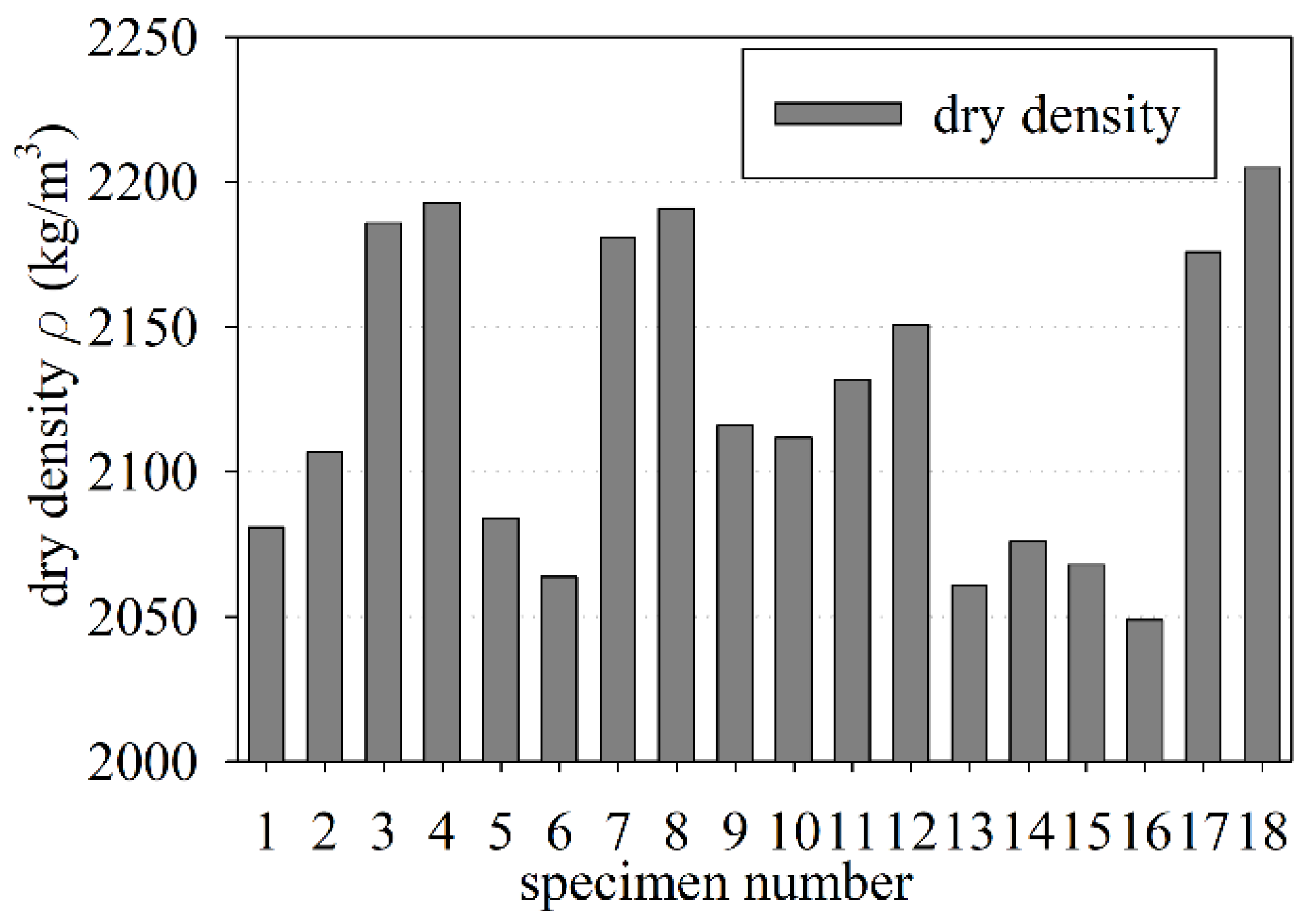

3.1. Measurement of Dry Density
3.2. Measurement of Water Uptake Capacity (Water Absorption Test)

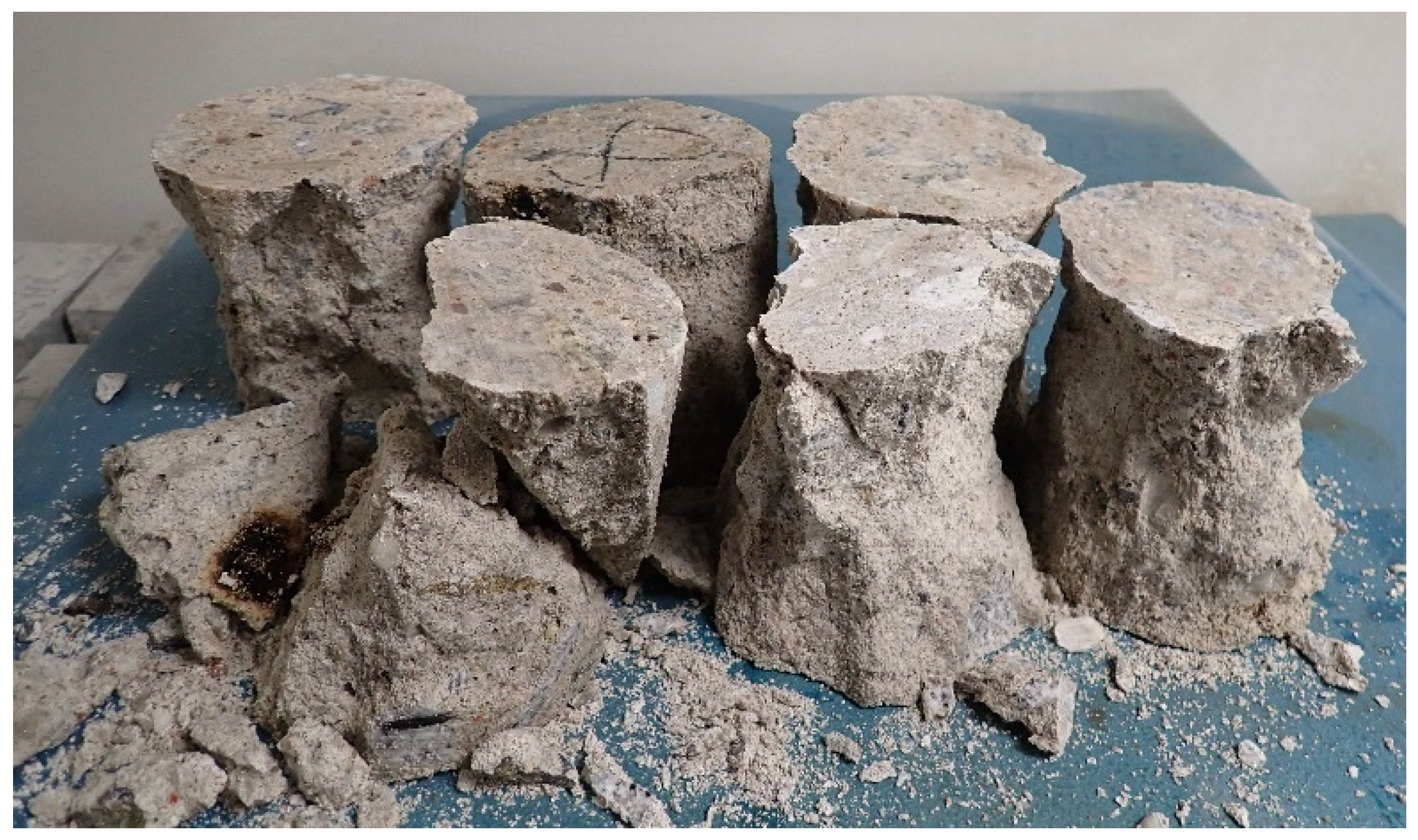

3.3. Old Concrete Compressive Strength

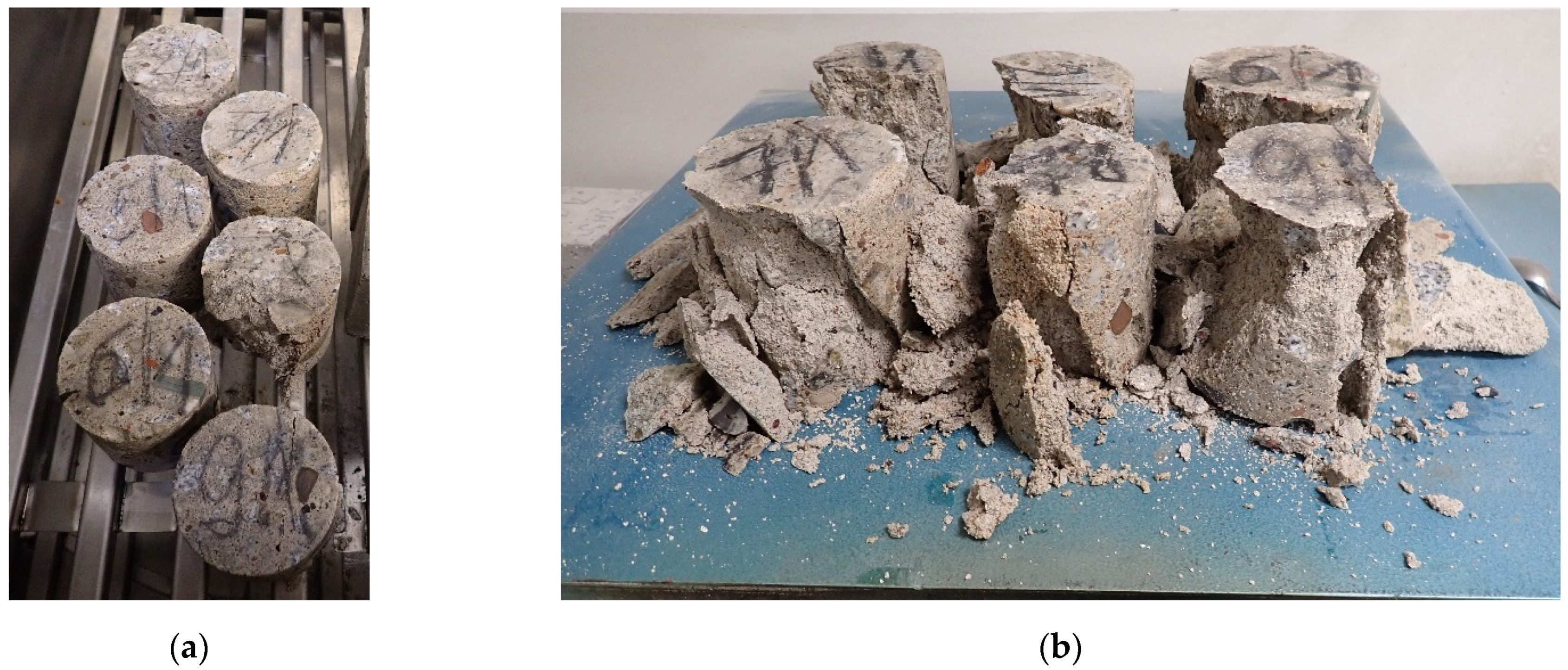

3.4. Old Concrete Frost Resistance

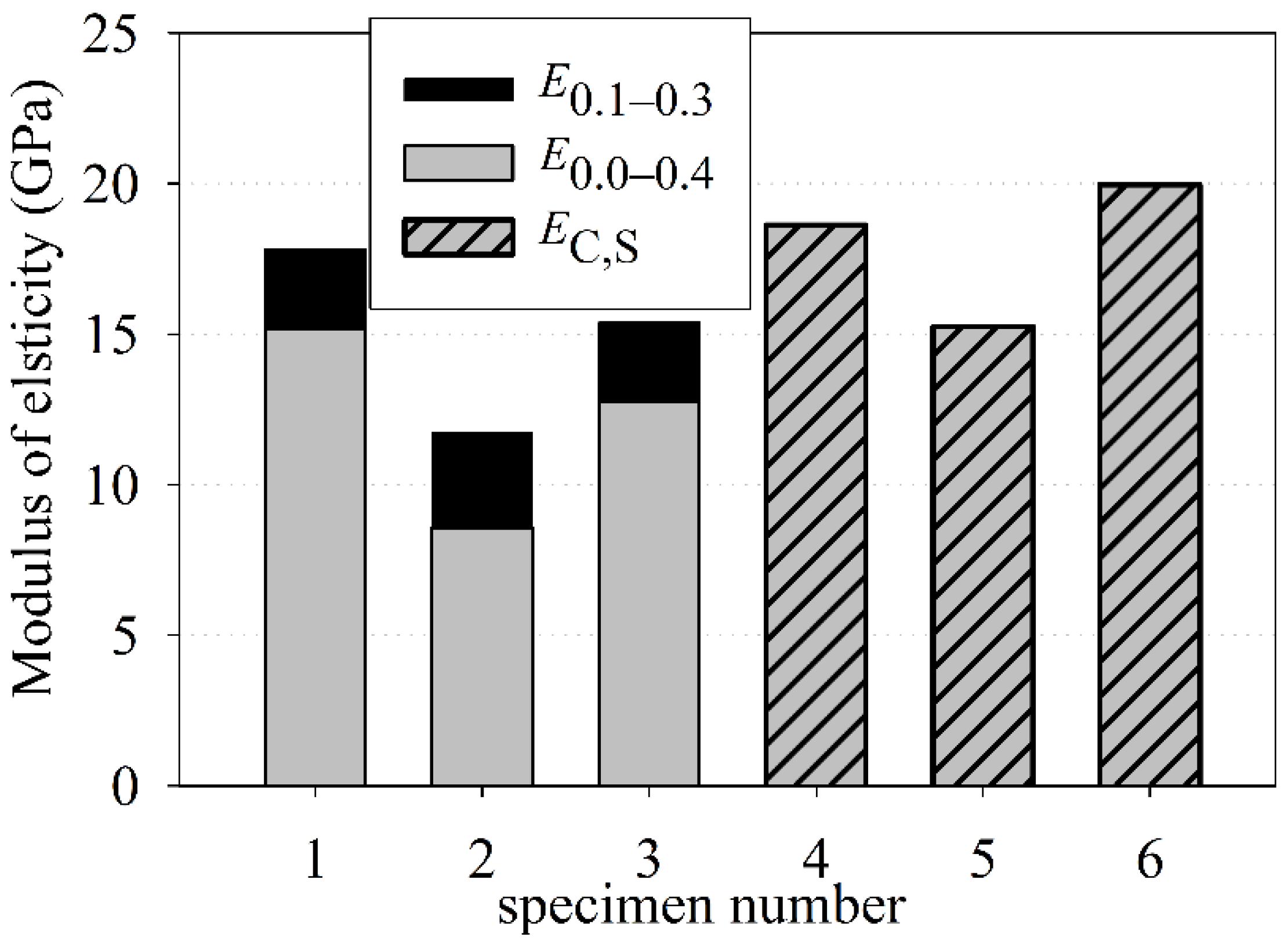

3.5. Modulus of Elasticity in Compression

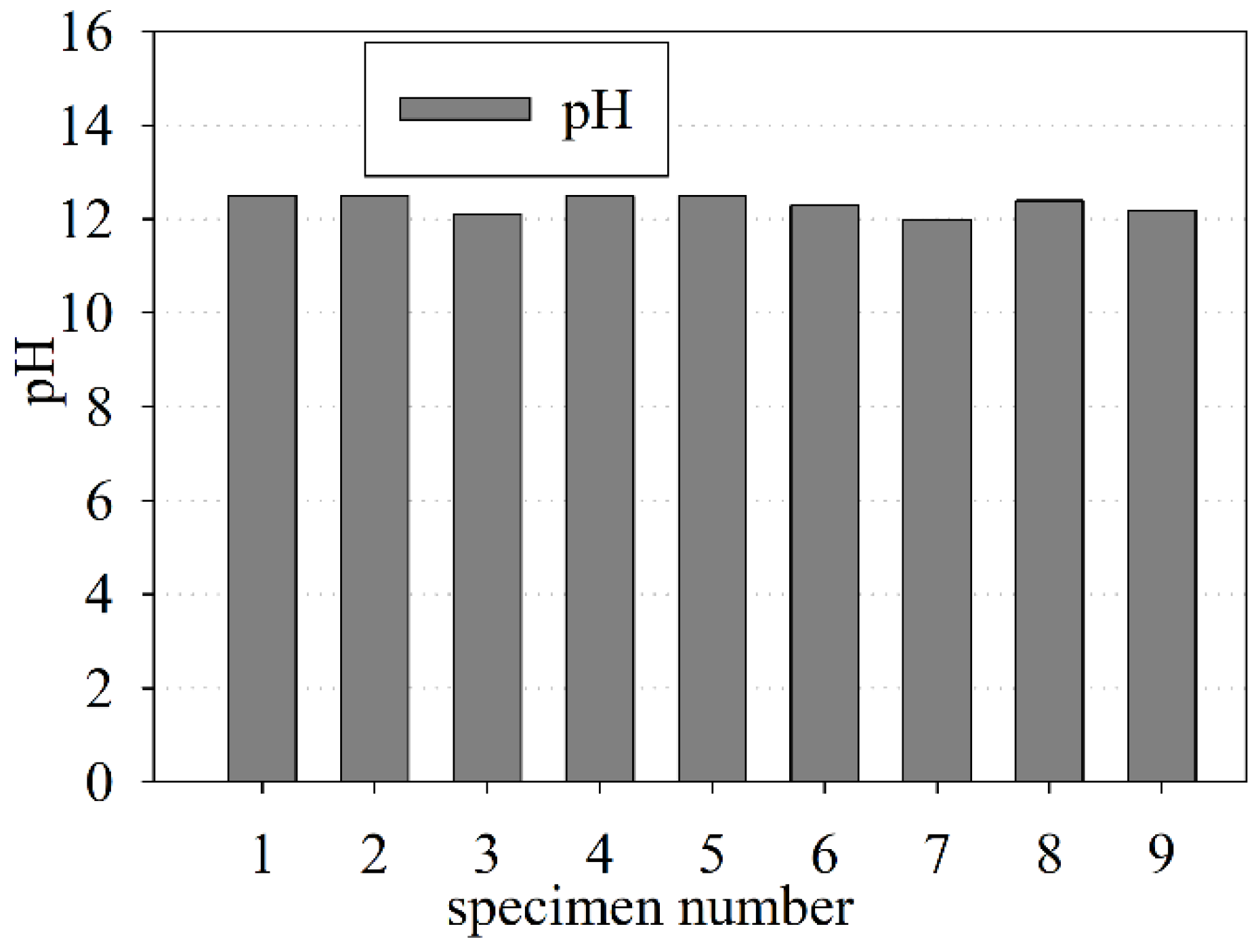

3.6. Determination of the pH Value

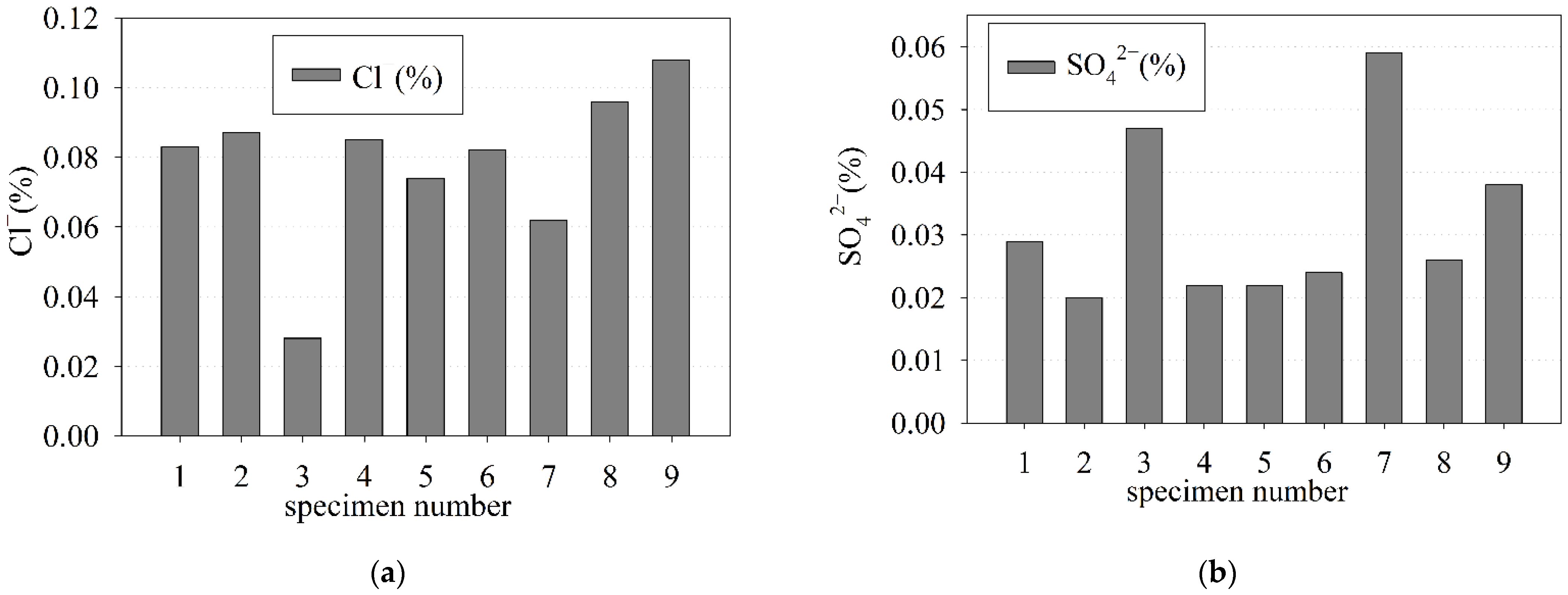

3.7. Measurement of Water-Soluble Chloride Ions (Cl−) and Sulfate Ions (SO42−)

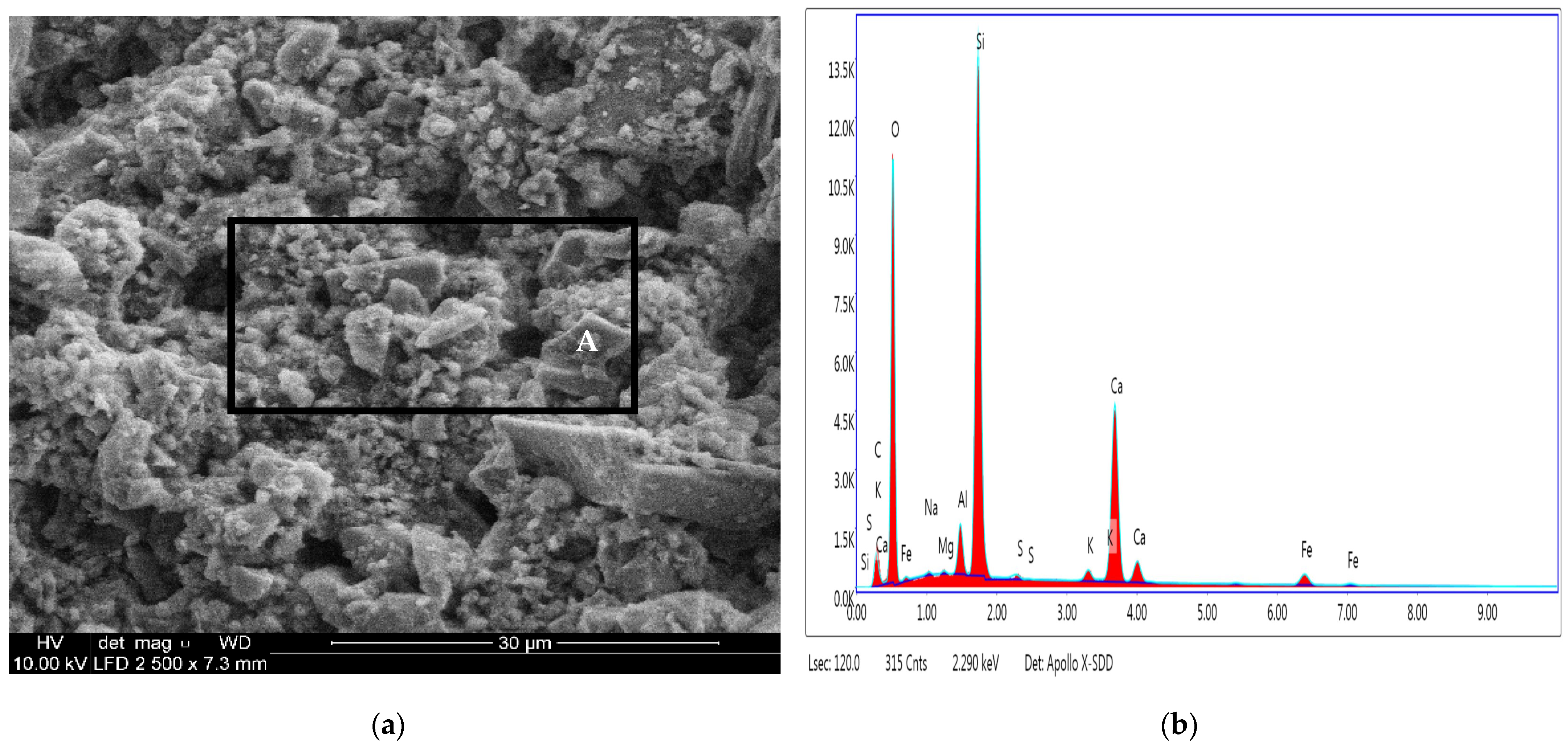

3.8. Results of Scanning Electron Microscopy (SEM) Combined with Energy Dispersive X-ray Spectroscopy (EDS)

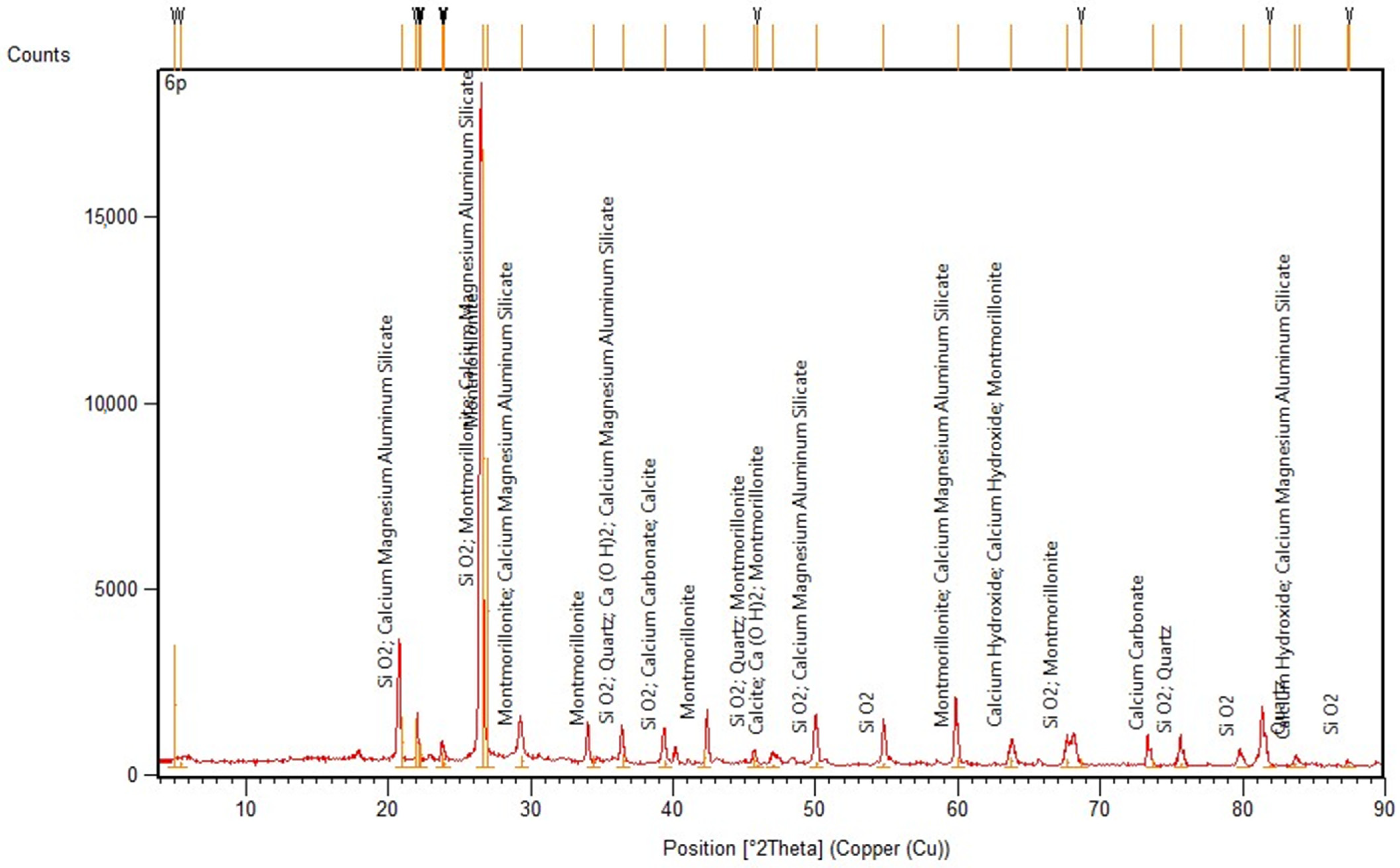

3.9. X-ray Diffraction Analyses
4. Conclusions
- The mean dry density value equalled 2114 kg/m3 and fulfilled the requirements for normal weight concrete.
- The mean value of the water absorption of old concrete equalled 5.39 ± 0.13%, and this concrete could be categorized as having a poor concrete quality.
- The determined characteristic in situ compressive cube strength fck,is,cube of the concrete in the old structure equalled 11.4 MPa. while the mean in situ compressive strength value was 19.7 ± 2.8 MPa.
- The C8/10 compressive strength class was estimated for the old concrete basement walls structures.
- The old concrete did not have freezing resistance properties due to a more than 20% difference between the compressive strength before and after 50 freezer cycles, and because cracks appeared on the old concrete cores after 50 freezer cycles.
- The mean value of the stabilized secant modulus of elasticity EC,S was 17.95 GPa.
- The mean value of the pH of the investigated old concrete was 12.33 ± 0.06 and was in the safety range.
- The changes in the chemical and mineral composition of the concrete structure had an impact on its porosity/permeability as a function of the time of exposure to atmospheric conditions and water.
- Taking into account the data, the content of chloride and sulphate ions were 0.03 ± 0.11 and 0.02 ± 0.06% dry weight in the concrete, respectively. The obtained values were the result of the chemical processes occurring in the concrete.
- The chemical composition (SEM/EDS) and X-ray composition (XRD) indicated the domination of certain compounds in the old concrete structure, such as calcium-magnesium–aluminium–silicate hydrate (C-M-A-S-H), CaCO3 (calcite), and Ca(OH)2–portlandite.
- The old concrete had a layer structure formed from the products of the cement hydration process.
- The registered chemical compounds were the products of the reacted clinker phases included in the cement used for concrete, including many years of exposure to the atmospheric conditions and water.
- The old concrete did not meet most of the current standard requirements (see Appendix A, Table A1), nevertheless, after proper protection and strengthening of the old building structural system, it could carry new design loads for an extended working life.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Appendix A
Properties | Investigated Old Concrete | Requirements for New Concrete |
---|---|---|
concrete strength class | C8/10 | min. C16/20 or C30/37 for XC2 or XA1 exposure class |
dry density | 2124 kg/m3 | about 2300 kg/m3 |
water absorption | 5.26% | below 4% |
frost resistance | not passed | yes |
modulus of elasticity | 17.95 GPa | 29–32 GPa |
pH value | 12.33 | 12.5 to 13.5 |
chloride ions by mass of cement | 0.5% | below 0.2% |
References
- Moussard, M.; Garibaldi, P.; Curbach, M. The invention of Reinforced concrete (1848—1906). In Proceedings of the High Tech Concrete: Where Technology and Engineering Meet—Proceedings of the 2017 fib Symposium, Maastricht, The Netherlands, 12–14 June 2017; Springer International Publishing: Berlin/Heidelberg, Germany, 2017; pp. 2785–2794. [Google Scholar]
- Jahren, P.; Sui, T. History of Concrete a Very Old and Modern Material; World Scientific Publishing Co. Pte. Ltd. & Chemical Industry Press: Singapore, 2018; ISBN 978-981-314-573-3. [Google Scholar]
- Bao, Y.; Zhang, Y.-S. RESEARCH OF 4500-YEAR-OLD CONCRETE. In Role of Concrete in Sustainable Development; Thomas Telford Publishing: London, UK, 2003; pp. 605–616. [Google Scholar]
- Lydon, F.D. Concrete Mix Design; Applied Science Publishers: London, UK; New York, NY, USA, 1982; ISBN 0-85334-162-1. [Google Scholar]
- Ziolkowski, P.; Niedostatkiewicz, M. Machine Learning Techniques in Concrete Mix Design. Materials 2019, 12, 1256. [Google Scholar] [CrossRef] [Green Version]
- Ambroziak, A.; Ziolkowski, P. Concrete compressive strength under changing environmental conditions during placement processes. Materials 2020, 13, 4577. [Google Scholar] [CrossRef] [PubMed]
- Cruz, A.; Coffey, V.; Chan, T.H.T.; Perovic, M. Engineering in heritage conservation. J. Cult. Herit. Manag. Sustain. Dev. 2021. in print. [Google Scholar] [CrossRef]
- Faber, K.T.; Casadio, F.; Masic, A.; Robbiola, L.; Walton, M. Looking Back, Looking Forward: Materials Science in Art, Archaeology, and Art Conservation. Annu. Rev. Mater. Res. 2021, 51, 435–460. [Google Scholar] [CrossRef]
- Hadzima-Nyarko, M.; Mišetić, V.; Morić, D. Seismic vulnerability assessment of an old historical masonry building in Osijek, Croatia, using Damage Index. J. Cult. Herit. 2017, 28, 140–150. [Google Scholar] [CrossRef]
- Liel, A.B.; Lynch, K.P. Vulnerability of Reinforced-Concrete-Frame Buildings and Their Occupants in the 2009 L’Aquila, Italy, Earthquake. Nat. Hazards Rev. 2012, 13, 11–23. [Google Scholar] [CrossRef]
- Mase, L.Z.; Likitlersuang, S.; Tobita, T. Ground Motion Parameters and Resonance Effect During Strong Earthquake in Northern Thailand. Geotech. Geol. Eng. 2021, 39, 2207–2219. [Google Scholar] [CrossRef]
- Stręk, A.M.; Lasowicz, N.; Kwiecień, A.; Zajac, B.; Jankowski, R. Highly dissipative materials for damage protection against earthquake-induced structural pounding. Materials 2021, 14, 3231. [Google Scholar] [CrossRef] [PubMed]
- Khatami, S.M.; Naderpour, H.; Mortezaei, A.; Razavi, S.M.N.; Lasowicz, N.; Jankowski, R. Effective gap size index for determination of optimum separation distance preventing pounding between buildings during earthquakes. Appl. Sci. 2021, 11, 2322. [Google Scholar] [CrossRef]
- Tanapalungkorn, W.; Mase, L.Z.; Latcharote, P.; Likitlersuang, S. Verification of attenuation models based on strong ground motion data in Northern Thailand. Soil Dyn. Earthq. Eng. 2020, 133, 106145. [Google Scholar] [CrossRef]
- Ahmed, M.S.; Morita, H. An analysis of housing structures’ earthquake vulnerability in two parts of Dhaka city. Sustain. 2018, 10, 1106. [Google Scholar] [CrossRef] [Green Version]
- Tsang, H.-H.; Wenzel, F. Setting structural safety requirement for controlling earthquake mortality risk. Saf. Sci. 2016, 86, 174–183. [Google Scholar] [CrossRef]
- Paulík, P.; Bačuvčík, M.; Brodňan, M.; Koteš, P.; Vičan, J. Reconstruction of the Oldest Reinforced Concrete Bridge in Slovakia in Krásno nad Kysucou. Procedia Eng. 2016, 156, 334–339. [Google Scholar] [CrossRef] [Green Version]
- Rabiega, J.; Sadowski, K.; Biliszczuk, J.H.P. Evaluation of bearing capacity of Zwierzyniecki Bridge across old Odra river in Wrocław (Ocena nośności mostu Zwierzynieckiego nad Starą Odrą we Wrocławiu). Inżynieria I Bud. 2005, 61, 265–268. [Google Scholar]
- Sena-Cruz, J.; Ferreira, R.M.; Ramos, L.F.; Fernandes, F.; Miranda, T.; Castro, F. Luiz bandeira bridge: Assessment of a historical reinforced concrete (RC) bridge. Int. J. Archit. Herit. 2013, 7, 628–652. [Google Scholar] [CrossRef]
- Słomka-Słupik, B.; Podwórny, J.; Grynkiewicz-Bylina, B.; Salamak, M.; Bartoszek, B.; Drzyzga, W.; Maksara, M. Concrete examination of 100-year-old bridge structure above the kłodnica river flowing through the agglomeration of upper silesia in gliwice: A case study. Materials 2021, 14, 981. [Google Scholar] [CrossRef]
- Onysyk, J.; Biliszczuk, J.; Prabucki, P.; Sadowski, K.; Toczkiewicz, R. Strengthening the 100-year-old reinforced concrete dome of the Centennial Hall in Wrocław. Struct. Concr. 2014, 15, 30–37. [Google Scholar] [CrossRef]
- Witzany, J.; Zigler, R. Rehabilitation Design of a Historic Concrete Arch Bridge in Prague from the Early 20th Century. J. Perform. Constr. Facil. 2020, 34, 04020056. [Google Scholar] [CrossRef]
- Wolert, P.J.; Kolodziejczyk, M.K.; Stallings, J.M.; Nowak, A.S. Non-destructive Testing of a 100-Year-Old Reinforced Concrete Flat Slab Bridge. Front. Built Environ. 2020, 6, 31. [Google Scholar] [CrossRef]
- Jóźwiak-Niedźwiecka, D.; Tucholski, Z. Reinforced concrete viaduct from begining of the 20th century—Microstructure analysis of 100 years old concrete (Wiadukt żelbetowy z początków XX wieku—Analiza mikrostruktury stuletniego betonu). Drog. I Most. 2010, 9, 23–37. [Google Scholar]
- Hellebois, A.; Launoy, A.; Pierre, C.; De Lanève, M.; Espion, B. 100-year-old Hennebique concrete, from composition to performance. Constr. Build. Mater. 2013, 44, 149–160. [Google Scholar] [CrossRef]
- Hellebois, A.; Espion, B. Concrete properties of a 1904 Hennebique reinforced concrete viaduct. WIT Trans. Built Environ. 2011, 118, 589–600. [Google Scholar] [CrossRef]
- Blanco, A.; Segura, I.; Cavalaro, S.H.P.; Chinchón-Payá, S.; Aguado, A. Sand-Cement Concrete in the Century-Old Camarasa Dam. J. Perform. Constr. Facil. 2016, 30, 04015083. [Google Scholar] [CrossRef] [Green Version]
- Ambroziak, A.; Malinowski, M. A 95-Year-Old Concrete Arch Bridge: From Materials Characterization to Structural Analysis. Materials 2021, 14, 1744. [Google Scholar] [CrossRef]
- Ambroziak, A.; Haustein, E.; Niedostatkiewicz, M. Chemical, Physical, and Mechanical Properties of 95-Year-Old Concrete Built-In Arch Bridge. Materials 2020, 14, 20. [Google Scholar] [CrossRef] [PubMed]
- Trägårdh, J.; Lagerblad, B. Leaching of 90-Year Old Concrete Mortar in Contact with Stagnant Water; Swedish Cement and Concrete Research Institute: Stockholm, Sweden, 1998. [Google Scholar]
- Gebauer, J.; Harnik, A.B. Microstructure and composition of the hydrated cement paste of an 84 year old concrete bridge construction. Cem. Concr. Res. 1975, 5, 163–169. [Google Scholar] [CrossRef]
- Melchers, R.E.; Chaves, I.A. Durable Steel-Reinforced Concrete Structures for Marine Environments. Sustainability 2021, 13, 13695. [Google Scholar] [CrossRef]
- Ambroziak, A.; Haustein, E.; Kondrat, J. Chemical and Mechanical Properties of 70-Year-Old Concrete. J. Mater. Civ. Eng. 2019, 31, 04019159. [Google Scholar] [CrossRef]
- Melchers, R.E.; Li, C.Q.; Davison, M.A. Observations and analysis of a 63-year-old reinforced concrete promenade railing exposed to the North Sea. Mag. Concr. Res. 2009, 61, 233–243. [Google Scholar] [CrossRef] [Green Version]
- Castro-Borges, P.; De Rincón, O.T.; Moreno, E.I.; Torres-Acosta, A.A.; Martínez-Madrid, M.; Knudsen, A. Performance of a 60-year-old concrete pier with stainless steel reinforcement. Mater. Perform. 2002, 41, 50–55. [Google Scholar]
- Dilena, M.; Dell’Oste, M.F.; Gubana, A.; Morassi, A.; Polentarutti, F.; Puntel, E. Structural survey of old reinforced concrete elevated water tanks in an earthquake-prone area. Eng. Struct. 2021, 234, 111947. [Google Scholar] [CrossRef]
- Medeiros-Junior, R.A.; Lima, M.G.; Yazigi, R.; Medeiros, M.H.F. Carbonation depth in 57 years old concrete structures. Steel Compos. Struct. 2015, 19, 953–966. [Google Scholar] [CrossRef]
- Richard, B.; Epaillard, S.; Cremona, C.; Elfgren, L.; Adelaide, L. Nonlinear finite element analysis of a 50 years old reinforced concrete trough bridge. Eng. Struct. 2010, 32, 3899–3910. [Google Scholar] [CrossRef]
- Pettigrew, C.S.; Barr, P.J.; Maguire, M.; Halling, M.W. Behavior of 48-Year-Old Double-Tee Bridge Girders Made with Lightweight Concrete. J. Bridg. Eng. 2016, 21, 04016054. [Google Scholar] [CrossRef]
- Papé, T.M.; Melchers, R.E. The effects of corrosion on 45-year-old pre-stressed concrete bridge beams. Struct. Infrastruct. Eng. 2011, 7, 101–108. [Google Scholar] [CrossRef]
- Dasar, A.; Hamada, H.; Sagawa, Y.; Yamamoto, D. Deterioration progress and performance reduction of 40-year-old reinforced concrete beams in natural corrosion environments. Constr. Build. Mater. 2017, 149, 690–704. [Google Scholar] [CrossRef]
- Czaderski, C.; Motavalli, M. 40-Year-old full-scale concrete bridge girder strengthened with prestressed CFRP plates anchored using gradient method. Compos. Part B Eng. 2007, 38, 878–886. [Google Scholar] [CrossRef]
- Sohail, M.G.; Kahraman, R.; Ozerkan, N.G.; Alnuaimi, N.A.; Gencturk, B.; Dawood, M.; Belarbi, A. Reinforced Concrete Degradation in the Harsh Climates of the Arabian Gulf: Field Study on 30-to-50-Year-Old Structures. J. Perform. Constr. Facil. 2018, 32, 04018059. [Google Scholar] [CrossRef]
- Qazweeni, J.; Daoud, O. Concrete deterioration in a 20-years-old structure in Kuwait. Cem. Concr. Res. 1991, 21, 1155–1164. [Google Scholar] [CrossRef]
- Zhang, J.; Li, C.; Xu, F.; Yu, X. Test and Analysis for Ultimate Load-Carrying Capacity of Existing Reinforced Concrete Arch Ribs. J. Bridg. Eng. 2007, 12, 4–12. [Google Scholar] [CrossRef]
- Prassianakis, I.N.; Giokas, P. Mechanical properties of old concrete using destructive and ultrasonic non-destructive testing methods. Mag. Concr. Res. 2003, 55, 171–176. [Google Scholar] [CrossRef]
- Khan, I.; François, R.; Castel, A. Structural performance of a 26-year-old corroded reinforced concrete beam. Eur. J. Environ. Civ. Eng. 2012, 16, 440–449. [Google Scholar] [CrossRef]
- Chen, C.; Chen, X.; Li, X. Dynamic Compressive Behavior of 10-Year-Old Concrete Cores after Exposure to High Temperatures. J. Mater. Civ. Eng. 2020, 32, 04020076. [Google Scholar] [CrossRef]
- Zhu, H.; Duan, F.; Shao, J.; Shi, W.; Lin, Z. Material and durability study of a 10-year old crumb rubber concrete bridge deck in Tianjin China. Mag. Concr. Res. 2019, 73, 499–511. [Google Scholar] [CrossRef]
- Kou, S.-C.; Poon, C.-S. Mechanical properties of 5-year-old concrete prepared with recycled aggregates obtained from three different sources. Mag. Concr. Res. 2008, 60, 57–64. [Google Scholar] [CrossRef]
- Dasar, A.; Patah, D.; Hamada, H.; Sagawa, Y.; Yamamoto, D. Applicability of seawater as a mixing and curing agent in 4-year-old concrete. Constr. Build. Mater. 2020, 259, 119692. [Google Scholar] [CrossRef]
- Grzegorczyk, B.; Tomaszkiewicz, A. Wrocławskie pałace czynszowe Carla Schmidta i Friedricha Barchewitza powstałe w latach siedemdziesiątych XIX stulecia. Rocz. Wrocławski 2000, 6, 179–203. [Google Scholar]
- CEN (European Committee for Standardization). EN 12504-1 Testing Concrete in Structures—Part 1: Cored Specimens—Taking, Examining and Testing in Compression; CEN (European Committee for Standardization): Brussels, Belgium, 2009. [Google Scholar]
- CEN (European Committee for Standardization). EN 12390-13 Testing Hardened Concrete—Part 13: Determination of Secant Modulus of Elasticity in Compression; CEN (European Committee for Standardization): Brussels, Belgium, 2013. [Google Scholar]
- ASTM C469M-14 Standard Test Method for Static Modulus of Elasticity and Poisson’s Ratio of Concrete in Compression; ASTM International (American Society for Testing and Materials): West Conshohocken, PA, USA, 2014.
- Khoury, S.; Aliabdo, A.A.H.; Ghazy, A. Reliability of core test—Critical assessment and proposed new approach. Alexandria Eng. J. 2014, 53, 169–184. [Google Scholar] [CrossRef] [Green Version]
- CEN (European Committee for Standardization). EN 12390-7 Testing Hardened Concrete—Part 7: Density of Hardened Concrete; CEN (European Committee for Standardization): Brussels, Belgium, 2019. [Google Scholar]
- CEN (European Committee for Standardization). EN 13369 Common Rules for Precast Concrete Products; CEN (European Committee for Standardization): Brussels, Belgium, 2001; ISBN 0000105058. [Google Scholar]
- CEN (European Committee for Standardization). EN 12390-3 Testing Hardened Concrete. Compressive Strength of Test Specimens; CEN (European Committee for Standardization): Brussels, Belgium, 2019. [Google Scholar]
- PN-88/B-06250 Normal Concrete; PKN (Polish Committee for Standardization): Warsaw, Poland, 1988.
- ISO (International Organization for Standardization). ISO 1920-10 Testing of Concrete—Part 10: Determination of Static Modulus of Elasticity in Compression; ISO (International Organization for Standardization): Geneva, Switzerland, 2010. [Google Scholar]
- CEN (European Committee for Standardization). EN 1992-1-1 Eurocode 2: Design of Concrete Structures—Part 1-1: General Rules and Rules for Buildings.; CEN (European Committee for Standardization): Brussels, Belgium, 2004. [Google Scholar]
- ISO 10523 Water Quality—Determination of pH; ISO (International Organization for Standardization): Geneva, Switzerland, 2008.
- CEN (European Committee for Standardization). EN 1744-1:2009+A1 Tests for Chemical Properties of Aggregates—Part 1: Chemical Analysis; CEN (European Committee for Standardization): Brussels, Belgium, 2009. [Google Scholar]
- CEN (European Committee for Standardization). EN 206:2013+A1:2016 Concrete—Specification, Performance, Production and Conformity; CEN (European Committee for Standardization): Brussels, Belgium, 2016. [Google Scholar]
- ACI (American Concrete Institute). Building Code Requirements for Structural Concrete; ACI (American Concrete Institute): Farmington Hills, MI, USA, 2019; ISBN 9781641950565. [Google Scholar]
- Report No. 192. Diagnosis and Assessment of Concrete Structures—State-of-Art; CEB-FIP (Euro-International Committee for Concrete-International Federation for Pre-stressing): Lausanne, Switzerland, 1989.
- Zhang, S.P.; Zong, L. Evaluation of relationship between water absorption and durability of concrete materials. Adv. Mater. Sci. Eng. 2014, 2014, 650373. [Google Scholar] [CrossRef] [Green Version]
- Hallauer, O. Die Entwicklung der Zusammensetzung von Beton für Wasserbauten. Mtteilungsblaetter Bundesanst. Wasserbaut. 1989, 65, 39–56. [Google Scholar]
- Bestimmungen für die Ausführung von Bauwerken aus Eisenbeton; DAfStB (Deutscher Ausschuss für Stahlbeton): Berlin, Germany, 1916.
- Rules for the Construction and Maintenance of Road Bridges (Przepisy o Budowie i Utrzymaniu Mostów Drogowych); Pomorska Drukarnia Rolnicza S. A.: Warszawa, Poland, 1926.
- PN-B-195 Concrete and Reinforced Concrete Structures; Structural Analysis and Design. PKN (Polish Committee for Standardization): Warsaw, Poland, 1934.
- Petrounias, P.; Giannakopoulou, P.; Rogkala, A.; Stamatis, P.; Lampropoulou, P.; Tsikouras, B.; Hatzipanagiotou, K. The Effect of Petrographic Characteristics and Physico-Mechanical Properties of Aggregates on the Quality of Concrete. Minerals 2018, 8, 577. [Google Scholar] [CrossRef] [Green Version]
- CEN (European Committee for Standardization). EN 13791 Assessment of In-Situ Compressive Strength in Structures and Precast Concrete Components; CEN (European Committee for Standardization): Brussels, Belgium, 2019. [Google Scholar]
- Stojanović, G.; Radovanović, M.; Krstić, D.; Ignjatović, I.; Dragaš, J.; Carević, V. Determination of pH in powdered concrete samples or in suspension. Appl. Sci. 2019, 9, 3257. [Google Scholar] [CrossRef] [Green Version]
- Abdulrahman, A.S.; Mohammad, I.; Mohammad, S.H. Corrosion inhibitors for steel reinforcement in concrete: A review. Sci. Res. Essays 2011, 6, 4152–4162. [Google Scholar] [CrossRef] [Green Version]
- Duffó, G.S.; Farina, S.B.; Giordano, C.M. Characterization of solid embeddable reference electrodes for corrosion monitoring in reinforced concrete structures. Electrochim. Acta 2009, 54, 1010–1020. [Google Scholar] [CrossRef]
- Hansson, C.M.; Poursaee, A.; Jaffer, S.J. Corrosion of Reinforcing Steel Bars in Concrete. Masterbuilder 2012, 12, 106–124. [Google Scholar]
- ACI (American Concrete Institute). ACI 318-14 Building Code Requirements for Structural Concrete; ACI (American Concrete Institute): Farmington Hills, MI, USA, 2014. [Google Scholar]
- Kim, M.J.; Kim, K.B.; Ann, K.Y. The influence of C3A content in cement on the chloride transport. Adv. Mater. Sci. Eng. 2016, 2016, 5962821. [Google Scholar] [CrossRef] [Green Version]
- BS 8110-1:1985 Structural Use of Concrete. Code of Practice for Design and Construction; BSI (British Standards Institution): London, UK, 1985.
Investigation Subject | References | Location |
---|---|---|
123-year-old concrete bridge | Paulík [17] | Slovakia |
107-year-old bridge | Rabiega et al. [18] | Poland |
104-year-old bridge | Sena-Cruz et al. [19] | Portugal |
100-year-old bridge | Słomka-Słupik et al. [20] | Poland |
100-year-old reinforced concrete dome | Onysyk et al. [21] | Poland |
100-year-old bridge | Witzany and Zigler [22] | Czech Republic |
100-year-old reinforced concrete flat slab bridge | Wolert et al. [23] | USA |
100-year-old reinforced concrete viaduct | Jóźwiak-Niedźwiecka and Tucholsk [24] | Poland |
95-year-old viaduct | Hellebois et al. ([25,26]) | Belgium |
95-year-old concrete dam | Blanco et al. [27] | Spain |
95-year-old concrete arch bridge | Ambroziak and Malinowski [28], Ambroziak et al. [29] | Poland |
90-year old concrete mortar | Trägårdh and Lagerblad [30] | Sweden |
84-year-old reinforced concrete bridge | Gebauer and Harni [31] | Switzerland |
80-year-old reinforced concrete structure | Melchers and Chaves [32] | Australia |
70-years-old concrete office building | Ambroziak et al. [33] | Poland |
63-year-old reinforced concrete promenade | Melchers et al. [34] | Scotland |
60-year-old concrete pier | Castro-Borges et al. [35] | Mexico |
60-years-old reinforced concrete elevated water tanks | Dilena et al. [36] | Italy |
57-years-old concrete viaducts | Medeiros-Junior et al. [37] | Brazil |
50-years-old reinforced concrete trough bridge | Richard et al. [38] | Sweden |
48-year-old concrete bridge girders | Pettigrew et al. [39] | USA |
45-year-old Sorell Causeway bridge | Papé and Melchers [40] | Australia |
40-year-old reinforced concrete beams | Dasar et al. [41] | Japan |
40-year-old concrete bridge girder | Czaderski and Motavalli [42] | Switzerland |
30-to-50-year-old concrete structures | Sohail et al. [43] | Arabian Gulf region |
20-year-old concrete office building | Qazweeni and Daoud [44] | Kuwait |
28-year-old reinforced concrete arch ribs | Zhang et al. [45] | China |
28-year-old concrete | Prassianakis and Giokas [46] | Greece |
26-year-old reinforced concrete beam | Khan et al. [47] | France |
10-year-old concrete | Chen [48] | China |
10-year-old crumb rubber concrete bridge deck | Zhu et al. [49] | China |
5-year-old concrete prepared with recycled aggregates | Kou and Poon [50] | China |
4-year-old mortar cement | Dasar et al. [51] | Japan |
Type of Element | Mg | Al | Si | S | K | Na | Ca | Fe |
---|---|---|---|---|---|---|---|---|
% | 0.24 | 3.94 | 43.85 | 0.39 | 1.93 | 0.22 | 41.18 | 8.25 |
