1. Introduction
Concrete-filled steel tube is a steel–concrete composite member formed by filling core concrete inside the steel tube [
1]. Through the synergistic effect of steel tube and concrete, the shortcomings of the two materials forming structural components alone are overcome [
2]. The structure makes full use of the good tensile properties of steel and compressive properties of concrete, so it is widely used in large-span bridge structures, super high-rise frame structures, and other practical engineering [
3]. Concrete-filled steel tube is mainly divided into a rectangular section of concrete-filled steel tube and a circular section of concrete-filled steel tube according to the different cross-section forms [
4,
5]. The interfacial bonding stress of concrete-filled steel tube is composed of three parts: the chemical adhesion force, the mechanical bite force and the interface friction force. The chemical adhesion force is the adsorption force between the core concrete and the inner surface of the steel tube in the process of setting and hardening, which is related to the mix proportions of concrete; the unevenness of concrete embedded in stainless steel tube will generate mechanical bite force, and the mechanical bite force is related to inner surface roughness of the steel tube and the shear strength of concrete; when the concrete and the tube slip relative to each other, the interface friction force is generated, and the interface friction force is related to the steel tube restraint and friction coefficient of steel–concrete interface.
In cold areas, the concrete structure will suffer from freeze–thaw damage [
6], which will degrade the concrete structure from the outside to the inside [
7] and affect the bond performance between the steel pipe and the concrete [
8]. In the actual working conditions, the steel tube and the concrete in the concrete-filled steel tube are often in different loading states, so the load is transmitted through the interface between the steel pipe and the concrete [
9]. Therefore, the bond performance of the steel pipe and the concrete is the synergistic force between the two materials [
10].
The height-to-diameter ratio [
11], the diameter-to-thickness ratio [
12], the concrete strength [
13], cross-sectional dimension [
14], the concrete age, etc., all had different degrees of influence on the bond performance between the steel tube and the concrete in concrete-filled steel tubes [
15]. Liu et al. [
12] investigated the bond performance between the round steel tube (square steel tube) and the concrete in concrete-filled steel tubes and found that the bond–slip curve shape of round steel tube concrete and square steel tube concrete was similar. The bond strength between the steel tube and the concrete increased with the increase in the height-to-diameter ratio of the steel tube; the bond strength decreased with the increase in the diameter-to-thickness ratio, while it increased slightly with the increase in concrete age. Xu et al. [
13] found the larger the water–cement ratio of the core concrete, the smaller the interfacial bond strength between the steel tube and the concrete. Tao et al. [
14] pointed out that the bond strength between the steel tube and the concrete decreased greatly with the increase in section size and concrete age, so the bond strength given by the specification was not safe enough. Nguyen et al. [
16] investigated the interface between steel and concrete in concrete-filled steel tubes through the nonlinear finite element analyses method. Chen et al. [
17] investigated the interfacial bond behavior of high strength concrete-filled steel tube after exposure to elevated temperatures and cooled by a fire hydrant, and the results show that the load–slip curves of the loaded end and the free end of the specimen were similar and could be divided into three typical curves; the strain on the outer surface of the steel tube was exponentially distributed with the distance from the loading end.
The freeze–thaw cycle has an extremely bad effect on concrete structures, and many scholars have studied the effect of freeze–thaw cycles on concrete-filled steel tube structures [
18,
19]. The research on concrete-filled steel tube structures in a freeze–thaw environment mainly focuses on the performance of concrete-filled steel tube short columns [
20,
21]. Yang et al. [
22] conducted an experimental study on the axial compression of short columns of square and circular concrete-filled steel tubes under a freeze–thaw environment and found that the elastic modulus of the specimen decreased with the increase in the number of freeze–thaw cycles, and the bearing capacity of the concrete-filled steel tube short columns decreased, which is consistent with the conclusion obtained by Wang [
23]. Li et al. [
24] found that the effect of freeze–thaw cycles on the load–slip curve of concrete-filled steel tube columns was not obvious, but the interfacial bond performance of concrete-filled steel tube columns showed a downward trend, where the bond strength continued to decline, and the interface slip continued to increase. Shen et al. [
25] point out that the initial stiffness of concrete-filled steel tube columns increased with the increase in concrete strength grade, while the freeze–thaw cycles have little effect on the axial compressive bearing capacity of concrete-filled steel tube columns.
However, there are few studies on shear bond performance at the interface of concrete-filled steel tubes with different sections after freeze–thaw cycles. In addition, few studies have considered the effect of concrete strength on shear bond performance at the interface of concrete-filled steel tubes after freeze–thaw cycles. The purpose of this paper is to investigate the effects of the numbers of freeze–thaw cycles, section types of steel tube, and concrete strength on the failure mode, bond strength, and peak slip of concrete-filled steel tube. It can promote the application of concrete-filled steel tubes in cold areas.
3. Results and Discussion
3.1. Failure Mode
The failure modes of the push-out specimens are shown in
Figure 7. It can be seen that the failure modes of the round and square steel tube specimens were similar. In addition, the effect of freeze–thaw cycles on the failure modes of the push-out specimens was not significant. These observations agree with the findings of Li [
24] and Shen [
25]. In the initial stage of loading, with the increase in the load, the displacement of the loading end increased continuously, but the displacement growth rate was slow while the displacement of the free end did not change. With the increase in the load, the displacement of the free end began to increase, but the increase rate was lower than that of the loaded end and some push-out specimens made a spitting sound at this time. When the push-out load reached the peak value, the load decreased and then continued to increase after reaching the bottom. There was no obvious buckling of the stainless steel tube or obvious damage to the concrete edge at the loading end. This agrees with the findings of Li [
30].
3.2. Shear Bond Strength and Peak Slip
The maximum load, maximum shear bond strength, and the peak slip (slip at maximum shear bond strength) of push-out specimens after freeze–thaw cycles are shown in
Table 4. The Peak slip is the average of the free end slip and the loaded end slip. The average bond strength of round steel tube specimens and square steel tube specimens is determined with Equation (1) and Equation (2), respectively:
where
is the shear bond strength;
is the push-out load;
is the diameter of steel tube;
a is the side length of square steel tube;
is the bond length between steel tube and concrete.
3.2.1. Shear Bond Strength after Freeze–Thaw Cycles
The shear bond strength of the round and square steel tube push-out specimens after freeze–thaw cycles are shown in
Figure 8a,b. It can be seen that the shear bond strengths of these specimens all showed a downward trend with the increase in the number of freeze–thaw cycles. This agrees with the findings of Shen [
25]. After 10 freeze–thaw cycles and 20 freeze–thaw cycles, the shear bond strength of the round steel tube push-out specimen with 30 MPa decreased by 20.16% and 33.33%, respectively, while that of the square steel tube push-out specimen with 30 MPa decreased by 9.88% and 50.62%, respectively. The reason is that when the concrete structure is exposed to a freeze–thaw environment, the pore solution in the capillary turns into ice, causing volume expansion and creating water pressure. When the expansion force exceeds the tensile strength of the concrete, micro cracks begin to occur and radiate to the surrounding cement paste, thereby causing damage to the concrete [
31]. The freeze–thaw damage is exacerbated by the increasing number of freeze–thaw cycles [
32].
In addition, with the increase in concrete strength, the shear bond strength between the steel tube and concrete also increased, while the degree of decrease in shear bond strength after freeze–thaw cycles was reduced. After 10 freeze–thaw cycles and 20 freeze–thaw cycles, the shear bond strength of the round steel tube push-out specimen with 45 MPa decreased by 17.59% and 25.01%, respectively, while that of the square steel tube push-out specimen with 45 MPa decreased by 4.55% and 43.18%, respectively. The reasons for this are as follows: on the one hand, when the water–cement ratio is large, the concrete is fully hydrated, resulting in greater porosity, resulting in more serious freeze–thaw damage; on the other hand, the greater the water–cement ratio, the lower the strength of concrete and the lower the frost resistance, resulting in shear bond performance between the concrete and steel tube after freeze–thaw cycles. Moreover, the shear bond strength of the round steel tube push-out specimen was higher than that of square steel tube push-out specimen. After 20 freeze–thaw cycles, the shear bond strength of round steel tube push-out specimen with 30 MPa/45 MPa was 0.86 MPa/1.62 MPa, while that of square steel tube push-out specimen with 30 MPa/45 MPa was 0.40 MPa/0.50 MPa.
The relationship between the shear bond strength of C30 round steel tube specimen and the number of freeze–thaw cycles was fitted as follows (
n is the number of freeze–thaw cycles):
The strength conversion coefficient of the round steel tube specimen’s shear bond strength (
a) was fitted as follows:
The conversion coefficient of round steel tube specimen’s shear bond strength and square steel tube specimens shear bond strength (
b) was fitted as follows:
The strength conversion coefficient of the square steel tube specimen’s shear bond strength (
c) was fitted as follows:
Table 5 lists the contrast between the experimental values (
) and the calculated values (
) of each group specimens. As shown in
Table 5, the calculated values have a good correlation with the experimental values.
3.2.2. Peak Slip after Freeze–Thaw Cycles
The peak slip of the round and square steel tube push-out specimens after freeze–thaw cycles are shown in
Figure 9a,b. It can be seen that the peak slip of both the round and square steel tube push-out specimens presented an upward trend with the increase in the number of freeze–thaw cycles. After 10 and 20 freeze–thaw cycles, the peak slip of the round steel tube push-out specimen with 30 MPa increased by 6.89% and 11.49%, respectively, while that of the square steel tube push-out specimen with 30 MPa increased by 7.04% and 0.37%, respectively. These observations agree with the findings of Liu [
12]. The reasons are as follows: on the one hand, the freeze–thaw cycle damages the bond performance of concrete and steel tube, so when external loads are applied the steel tube and concrete are more likely to slide, increasing the slip value; on the other hand, the elastic modulus of the concrete decreased after freeze–thaw cycles, resulting in a decrease in the overall stiffness of the specimen [
21].
The relationship between the slip of C30 round steel tube specimen and the number of freeze–thaw cycles was fitted as follows (
n is the number of freeze–thaw cycles):
The strength conversion coefficient of the round steel tube specimen’s slip (
) was fitted as follows:
The conversion coefficient of round steel tube specimen’s slip and square steel tube specimen’s slip (
) were fitted as follows:
The strength conversion coefficient of the square steel tube specimen’s slip (
) was fitted as follows:
Table 6 lists the contrast between the experimental values (
) and the calculated values (
) of each group of specimens. As shown in
Table 6, except for the C45 square steel tube specimen, the calculated values have a good correlation with the experimental values. However, the error value of a C45 square steel tube specimen is also within 30%.
3.3. Load–Slip Curve

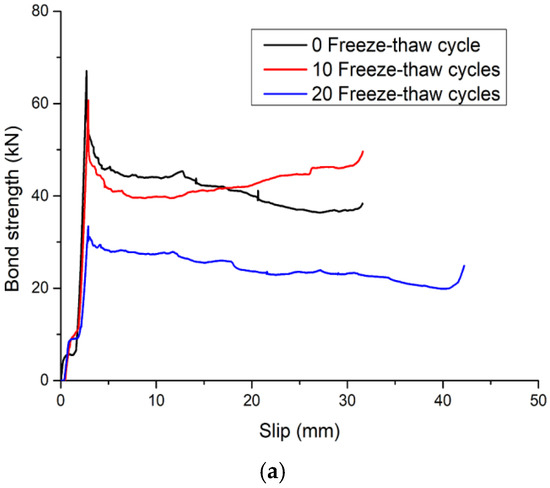

The load–slip curves of the round and square steel tube push-out specimens after different freeze–thaw cycles are shown in
Figure 10 and
Figure 11, respectively. There is no obvious difference between the load–slip curve shape of the round and square specimens. In addition, the shape of the load–slip curve of the steel tube push-out specimen was not significantly affected by the concrete strength and the freeze–thaw cycle. However, there were more significant differences in shear stiffness, and the shear stiffness of the specimens showed a decreasing trend after freeze–thaw cycles; this was due to the damage of the bonding surface caused by the freeze–thaw cycles, resulting in a decrease in the bond strength, and at the same time, the slippage between the steel pipe and the concrete increased; the shear stiffness of the specimens showed an increasing trend with the increase in concrete strength, which was due to the improvement of concrete strength that increased the mechanical bite force between concrete and steel tube, thereby improving the bond strength of the steel tube push-out specimen and reducing the slip between the concrete and steel tube.
The load–slip curve of the steel tube push-out specimen was roughly divided into four stages:
At this stage, it mainly depended on the chemical adhesion between the steel tube and the core concrete to bear the external load. At this time, the bond performance between the core concrete and the steel tube was good, the free end did not slip, the slip at the loading end was also small, and the load–displacement curve was linear. As the number of freeze–thaw cycles increased, the interface between the steel tube and the core concrete was damaged, resulting in a decrease in chemical adhesion;
With the continuous increase in external load, the chemical adhesion between the steel tube and the core concrete was gradually lost. The free end began to slip, and the slip between the steel tube and the core concrete increased continuously. At this time, it mainly depended on the mechanical bite force and the interface friction to bear the external load. After the freeze–thaw cycle, the damage of the freeze–thaw to the concrete and the damage of the external load to the concrete affected each other, resulting in the decrease in the bond strength and the increase in the peak slip, which reduced the slope of the load–slip curve;
After reaching the ultimate load, the load suddenly decreased, the relative slip of the core concrete increased rapidly, and the curve had an obvious peak point. At this stage, it mainly depended on the residual mechanical bite force and the interface friction to bear the external load. As the number of freeze–thaw cycles increased, the concrete became loose, resulting in a decrease in mechanical bite force and interfacial frictional;
When the bond strength dropped to a certain level, it rose again. The reason for this is that the core concrete and the steel tube have a “Pinching effect” (as shown in
Figure 12) [
30,
33], and the interfacial friction gradually increased, increasing the bond strength, and the interfacial cohesive force reached a dynamic equilibrium again, thereby improving the bond strength between the steel tube and the core concrete.
