Effect of Cold Working on the Properties and Microstructure of Cu-3.5 wt% Ti Alloy
Abstract
:1. Introduction
2. Experimental Procedure
3. Results
4. Discussion
5. Conclusions

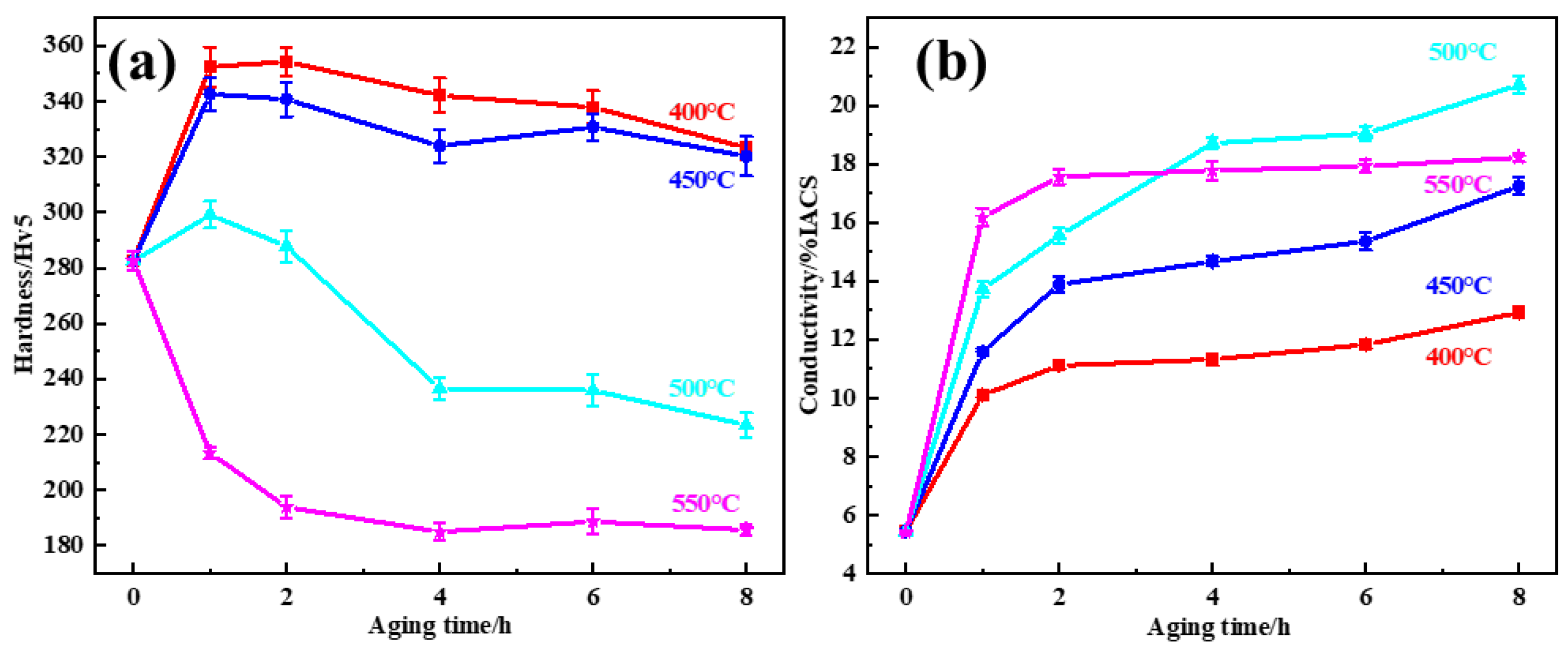

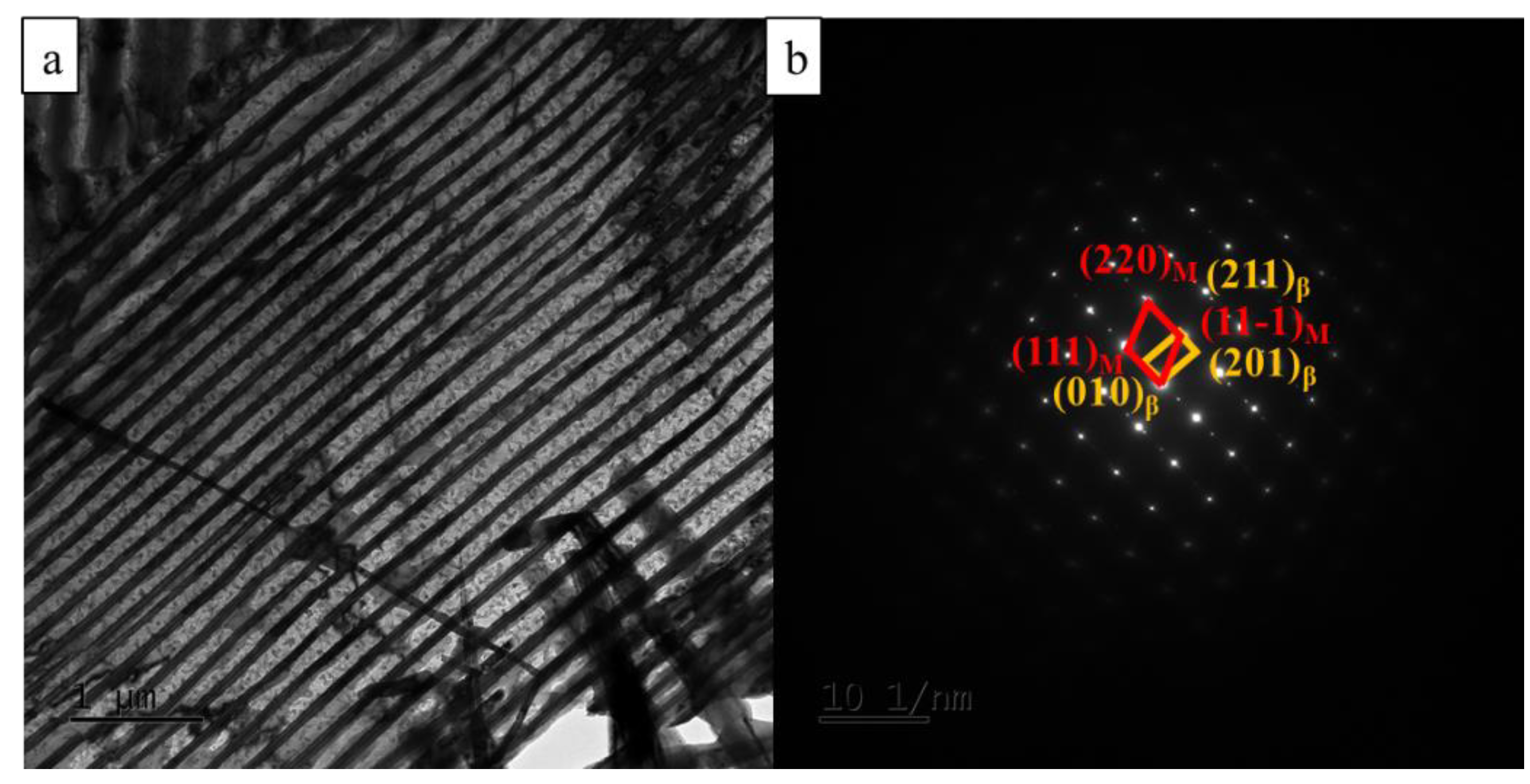

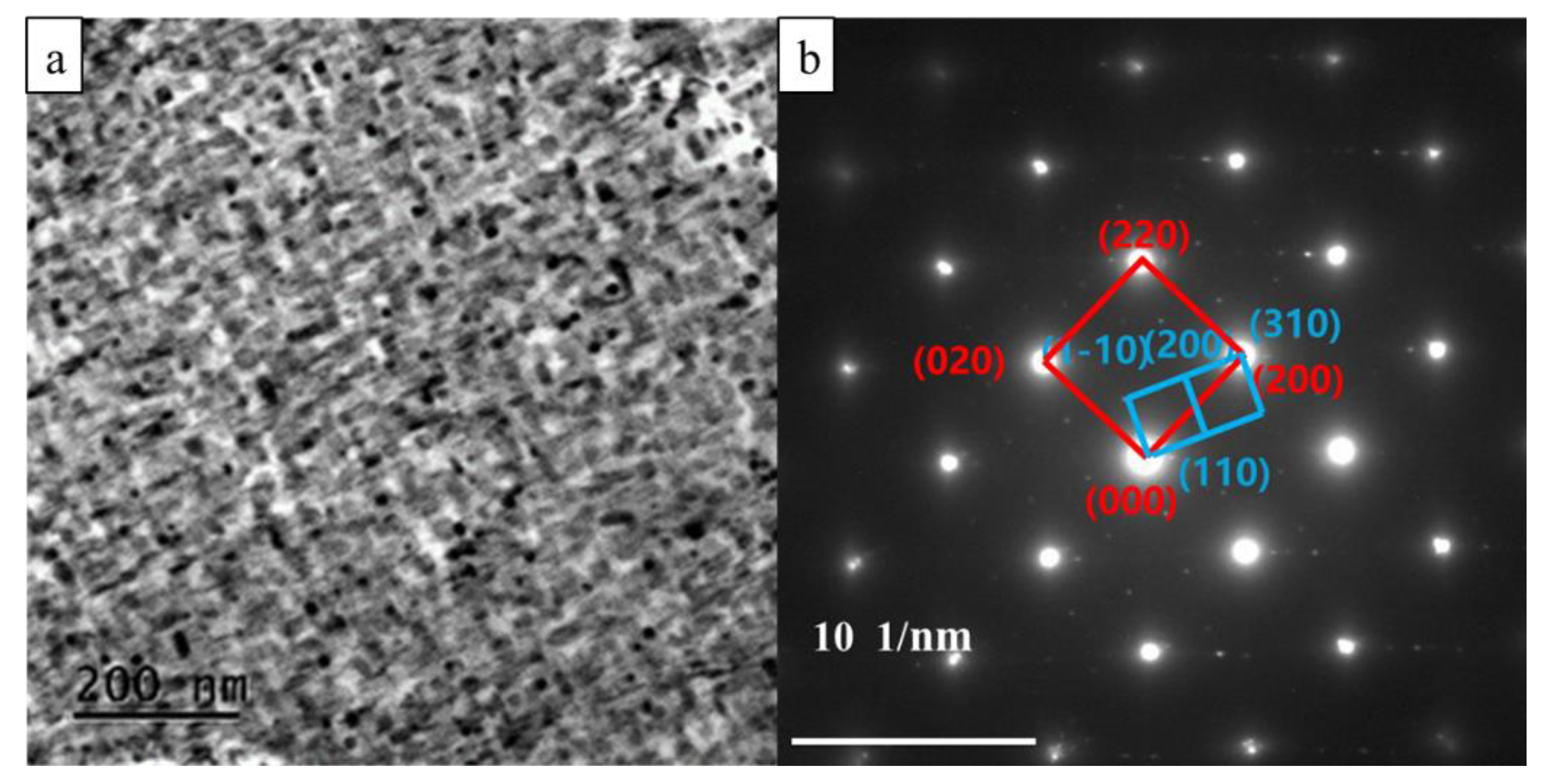

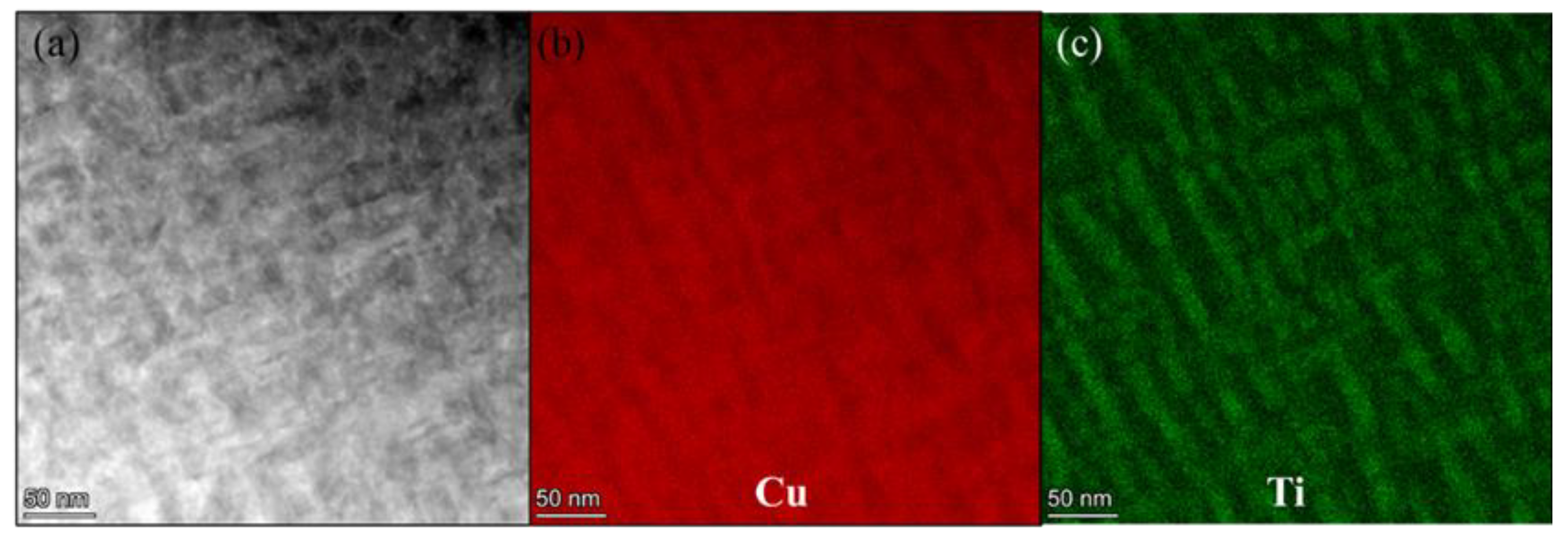

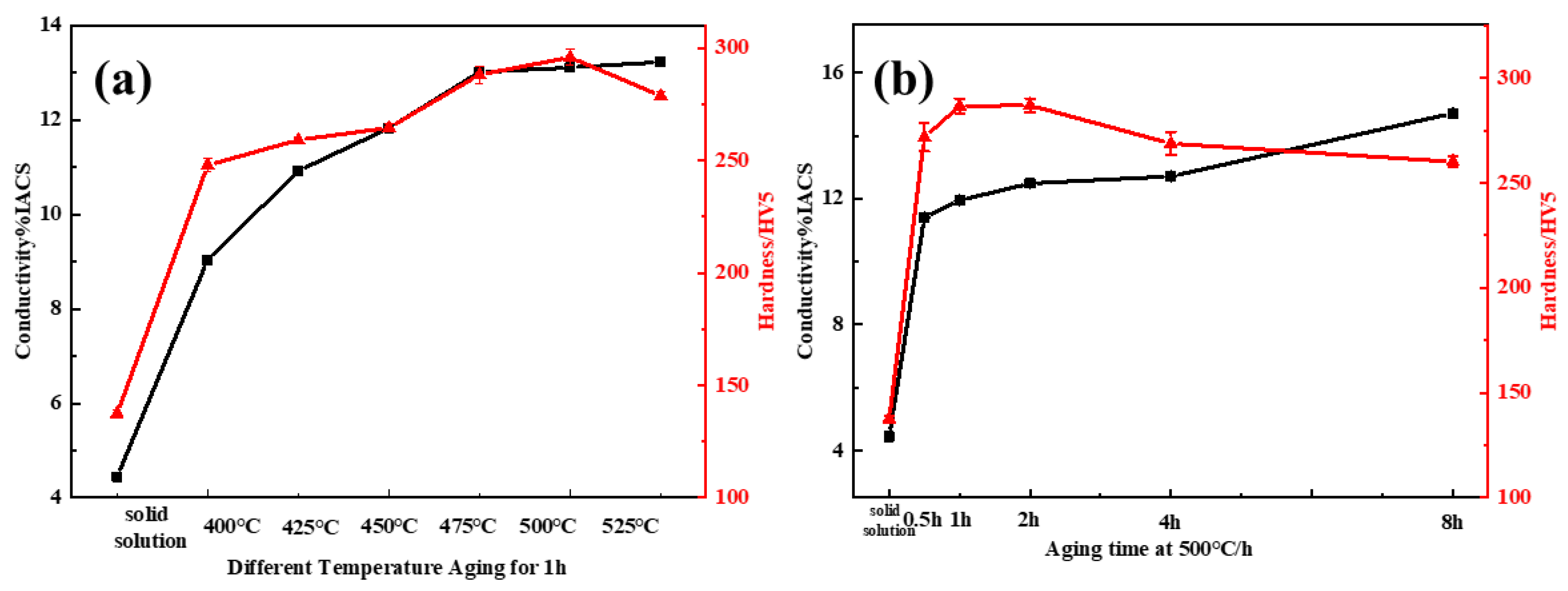

- Cu-3.5Ti alloys were strengthened by the β’-Cu4Ti metastable phase during aging, with the extension of the aging time, the metastable phase transformed into the equilibrium β-Cu4Ti phase.

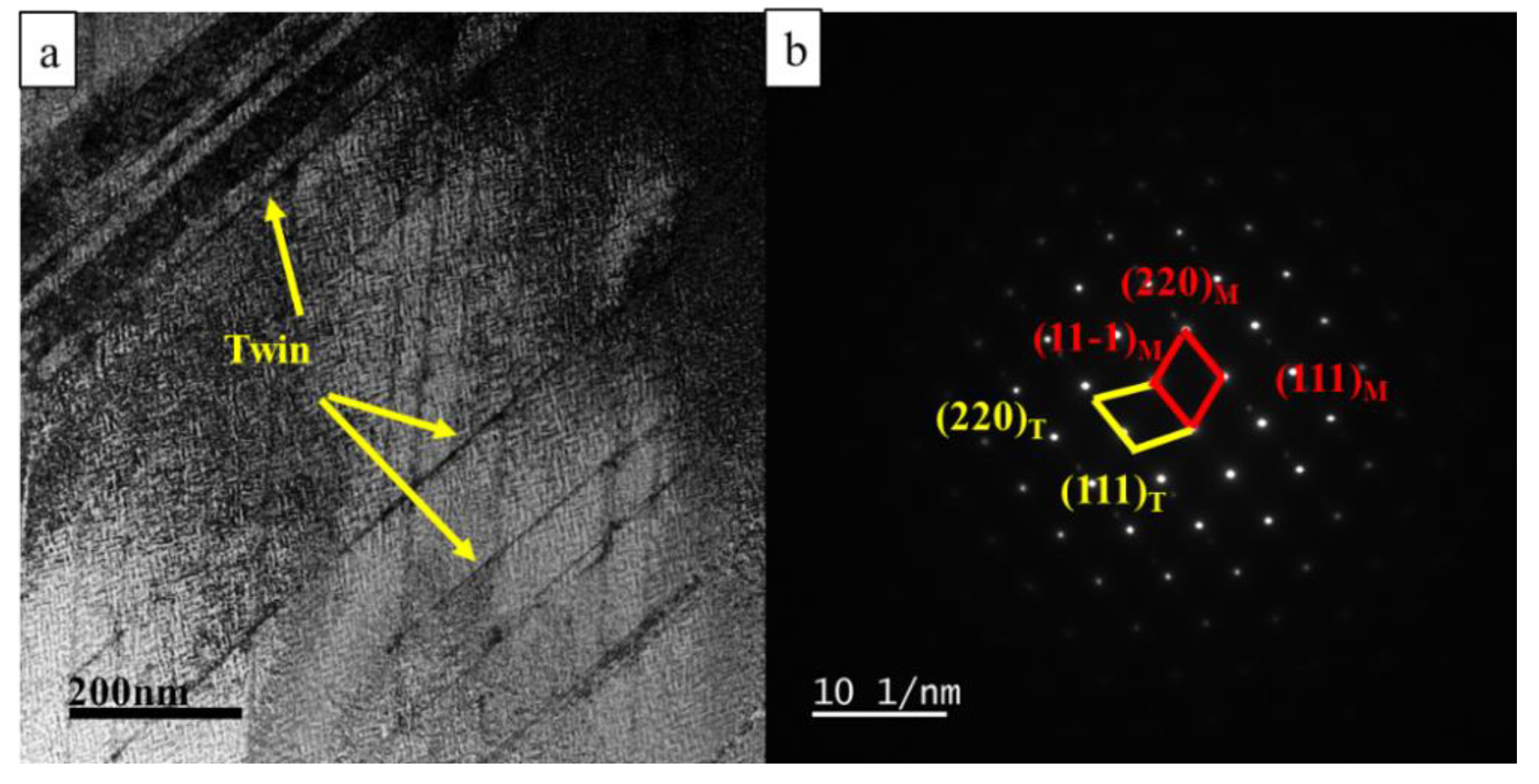

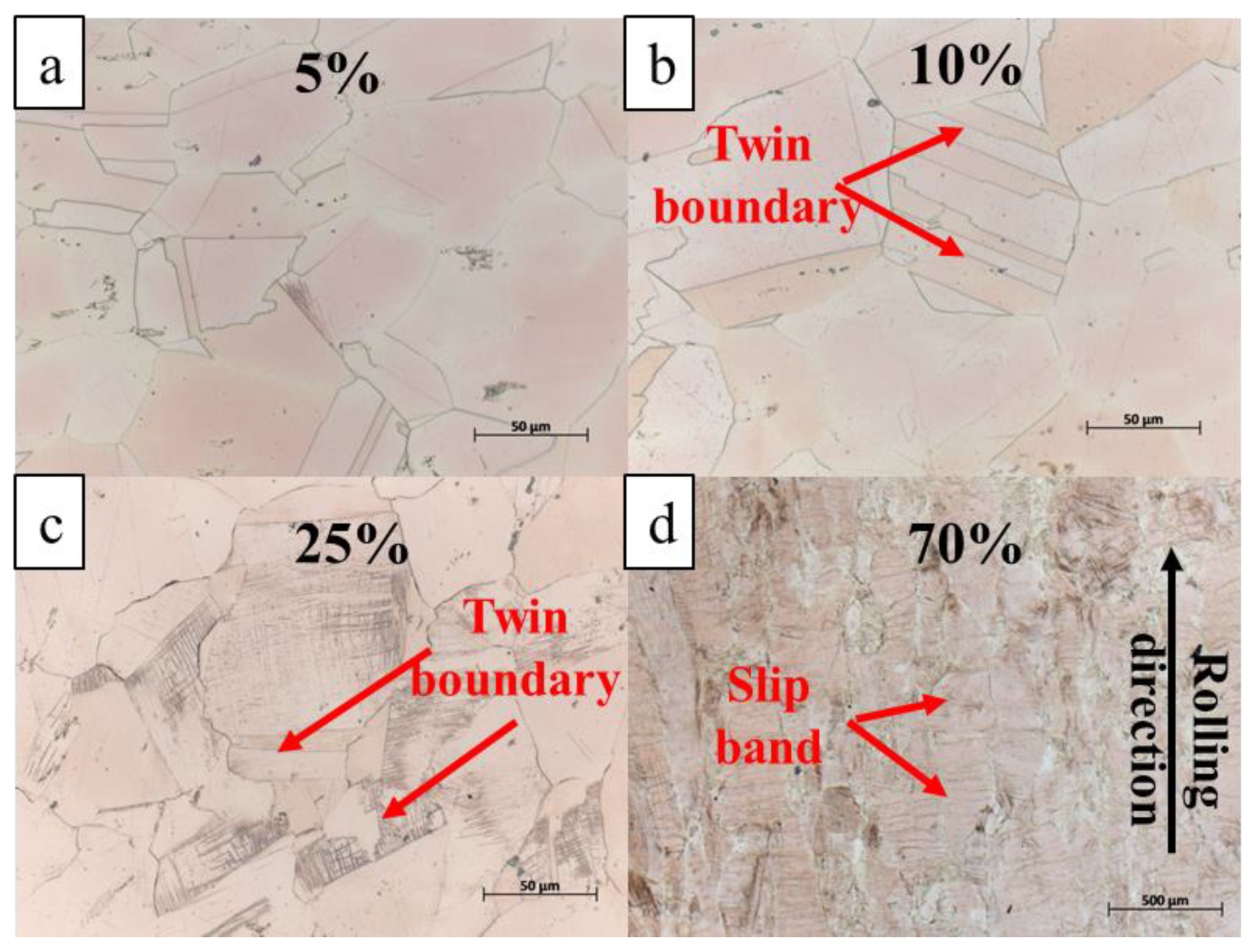

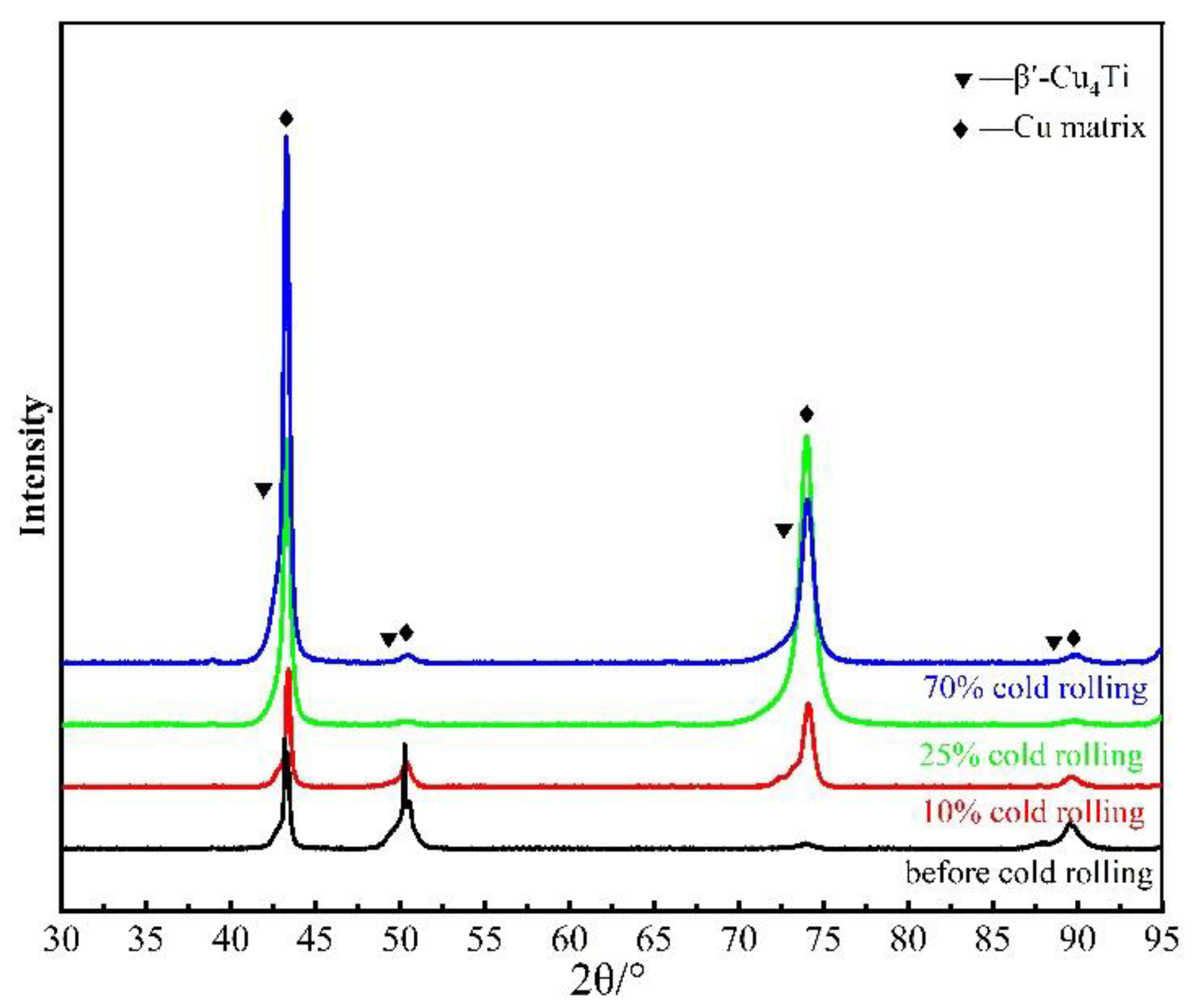

- Deformation after aging would cause the metastable phase to dissolve into the matrix, and the twins and slip bands generated during deformation would accelerate the precipitation of the metastable β’-Cu4Ti phase in aging treatment, reduce the precipitation of β’-Cu4Ti phase temperature of the precipitation phase, and make the β’-Cu4Ti phase finer.

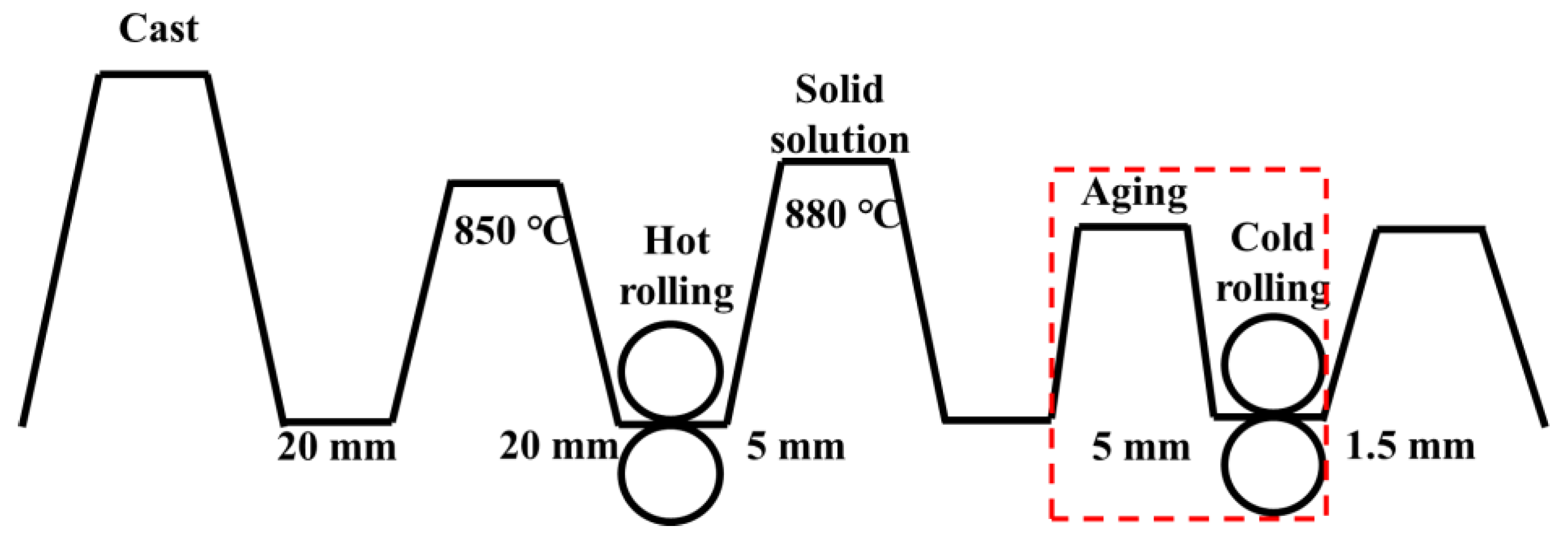

- The optimal heat treatment is 500 °C for 2 h + 70% deformation + 450 °C for 2 h, the corresponding conductivity and hardness are 13.88% IACS and 340.78 Hv.
Author Contributions
Funding
Conflicts of Interest
References
- Laughlin, D.E.; Cahn, J.W. Spinodal decomposition in age hardening copper-titanium alloys. Acta Metall. 1975, 23, 329–339. [Google Scholar] [CrossRef]
- Datta, A.; Soffa, W.A. The structure and properties of age hardened Cu-Ti alloys. Acta Metall. 1976, 24, 987–1001. [Google Scholar] [CrossRef]
- Soffa, W.A.; Laughlin, D.E. High-strength age hardening copper–titanium alloys: Redivivus. Prog. Mater. Sci. 2001, 49, 347–366. [Google Scholar] [CrossRef]
- Knights, R.; Wilkes, P. The precipitation of titanium in copper and copper-nickel base alloys. Acta Metall. 1973, 21, 1503–1514. [Google Scholar] [CrossRef]
- Sinning, H.R.; Haasen, P. The fatigue behaviour of spinodally decomposed Cu-4at% Ti single crystals. Scr. Metall. 1981, 15, 85–90. [Google Scholar] [CrossRef]
- Rouxel, B.; Cayron, C.; Bornand, J.; Sanders, P.; Logé, R.E. Micro-addition of Fe in highly alloyed Cu-Ti alloys to improve both formability and strength. Mater. Des. 2022, 213, 110340. [Google Scholar] [CrossRef]
- Lomakin, I.; Castillo-Rodríguez, M.; Sauvage, X. Microstructure, mechanical properties and aging behaviour of nanocrystalline copper–beryllium alloy. Mater. Sci. Eng. A 2019, 744, 206–214. [Google Scholar] [CrossRef]
- Hariram, M.; Theerath, D.; Chakravarthy, P.; Kumar, R.A. Influence of Cold work on aging response of C17200-Beryllium Copper Alloy C17200. Mater. Today Proc. 2017, 4, 11188–11193. [Google Scholar] [CrossRef]
- Liu, F.; Li, J.; Peng, L.; Huang, G.; Xie, H.; Ma, J.; Mi, X. Simultaneously enhanced hardness and electrical conductivity in a Cu-Ni-Si alloy by addition of Cobalt. J. Alloys Compd. 2021, 862, 158667. [Google Scholar] [CrossRef]
- Lei, Q.; Li, Z.; Wang, M.P.; Zhang, L.; Xiao, Z.; Jia, Y.L. The evolution of microstructure in Cu-8.0Ni-1.8Si-0.15Mg alloy during aging. Mater. Sci. Eng. A 2010, 527, 6728–6733. [Google Scholar] [CrossRef]
- Wang, X.; Xiao, Z.; Qiu, W.-t.; Li, Z.; Liu, F. The evolution of microstructure and properties of a Cu–Ti–Cr–Mg–Si alloy with high strength during the multi-stage thermomechanical treatment. Mater. Sci. Eng. A 2020, 803, 140510. [Google Scholar] [CrossRef]
- Nagarjuna, S.; Sharma, K.K.; Sudhakar, I.; Sarma, D.S. Age hardening studies in a Cu–4.5Ti–0.5Co alloy. Mater. Sci. Eng. A 2001, 313, 251–260. [Google Scholar] [CrossRef]
- Monzen, R.; Hosoda, T.; Takagawa, Y.; Watanabe, C. Bend formability and strength of Cu-Be-Co alloys. J. Mater. Sci. 2011, 46, 4284–4289. [Google Scholar] [CrossRef] [Green Version]
- Liu, W.; Li, J.; Chen, X.; Ji, M.; Xiao, X.; Wang, H.; Yang, B. Effect of vanadium on the microstructure and kinetics of discontinuous precipitation in Cu–3.2Ti–0.2Fe alloy. J. Mater. Res. Technol. 2021, 14, 121–136. [Google Scholar] [CrossRef]
- Semboshi, S.; Takasugi, T. Fabrication of high-strength and high-conductivity Cu–Ti alloy wire by aging in a hydrogen atmosphere. J. Alloys Compd. 2013, 580, S397–S400. [Google Scholar] [CrossRef]
- Huang, L.; Cui, Z.; Meng, X.; Zhang, X.; Zhang, X.; Song, X.; Tang, N.; Xiao, Z.; Lei, Q.; Li, Z. Effects of microelements on the microstructure evolution and properties of ultrahigh strength Cu–Ti alloys. Mater. Sci. Eng. A 2021, 823, 141581. [Google Scholar] [CrossRef]
- Semboshi, S.; Kaneno, Y.; Takasugi, T.; Masahashi, N. Suppression of discontinuous precipitation in Cu-Ti alloys by aging in a hydrogen atmosphere. Metall. Mater. Trans. A 2020, 51, 3704–3712. [Google Scholar] [CrossRef]
- Semboshi, S.; Kaneno, Y.; Takasugi, T.; Masahashi, N. High strength and high electrical conductivity Cu-Ti alloy wires fabricated by aging and severe drawing. Metall. Mater. Trans. A 2018, 49, 4956–4965. [Google Scholar] [CrossRef]
- Si, L.; Zhou, L.; Zhu, X.; Sanhua, L.; Leinuo, S.; Qiyi, D. Microstructure and property of Cu–2.7Ti–0.15Mg–0.1Ce–0.1Zr alloy treated with a combined aging process. Mater. Sci. Eng. A 2016, 650, 345–353. [Google Scholar] [CrossRef]
- Fukamachi, K. Kinetics and thermodynamics associated with age hardening of Cu–4at%Ti alloy. Mater. Sci. Eng. A 2020, 788, 139411. [Google Scholar] [CrossRef]
Nominal Composition | Ti | Cu |
---|---|---|
Cu-3.5Ti | 3.58 | Bal. |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Huang, L.; Peng, L.; Mi, X.; Zhao, G.; Huang, G.; Xie, H.; Zhang, W. Effect of Cold Working on the Properties and Microstructure of Cu-3.5 wt% Ti Alloy. Materials 2022, 15, 8042. https://doi.org/10.3390/ma15228042
Huang L, Peng L, Mi X, Zhao G, Huang G, Xie H, Zhang W. Effect of Cold Working on the Properties and Microstructure of Cu-3.5 wt% Ti Alloy. Materials. 2022; 15(22):8042. https://doi.org/10.3390/ma15228042
Chicago/Turabian StyleHuang, Lue, Lijun Peng, Xujun Mi, Gang Zhao, Guojie Huang, Haofeng Xie, and Wenjing Zhang. 2022. "Effect of Cold Working on the Properties and Microstructure of Cu-3.5 wt% Ti Alloy" Materials 15, no. 22: 8042. https://doi.org/10.3390/ma15228042
