Re-Examination of the Microstructural Evolution in Undercooled Co-18.5at.%B Eutectic Alloy

Abstract

The undercooling (∆T) dependencies of the solidification pathways, microstructural evolution, and recalescence behaviors of undercooled Co-18.5at.%B eutectic alloys were systematically explored. Up to four possible solidification pathways were identified: (1) A lamellar eutectic structure consisting of the FCC–Co and Co₃B phase forms, with extremely low ΔT; (2) The FCC–Co phase primarily forms, followed by the eutectic growth of the FCC–Co and Co₂B phases when ΔT < 100 K; (3) As the ΔT increases further, the FCC–Co phase primarily forms, followed by the metastable Co₂₃B₆ phase with the trace of an FCC–Co and Co₂₃B₆ eutectic; (4) When the ΔT increases to 277 K, the FCC–Co phase primarily forms, followed by an FCC–Co and Co₃B eutectic, which is similar in composition to the microstructure formed with low ΔT. The mechanisms of the microstructural evolution and the phase selection are interpreted on the basis of the composition segregation, the skewed coupled zone, the strain-induced transformation, and the solute trapping. Moreover, the prenucleation of the primary FCC–Co phase was also detected from an analysis of the different recalescence behaviors. The present work not only enriches our knowledge about the phase selection behavior in the undercooled Co–B system, but also provides us with guidance for controlling the microstructures and properties practically.

1. Introduction

As a ubiquitous phenomenon in nature, solidification plays a critical role in metallurgy processing and it determines the final performance of the products [1]. Most solidification behaviors take place outside of the equilibrium state because of the rapid cooling rate or the large undercooling (∆T), which result in various microstructures and properties [2,3]. So far, the microstructural evolution and phase selection behaviors of undercooled melts have been investigated in many systems, such as the Mn–Si [4] and Cu–Sn [5] systems, using cyclic overheating combined with glass fluxing [6], directional solidification [5], and laser melting [7], with in situ observations [8] or numerical simulations [9], to manipulate and control the microstructures and properties. For instance, the uniform nature and refinement of the grains can be obtained as the ∆T increases, which can effectively improve the yield strength [10] and the physical properties [11]. The L2₁-type phases in the Ni–Mn–X phases (X = In, Sn, Sb) are in favor of the enhancement of the magnetic-induced shape memory effect properties [12]. Therefore, it is of great importance to theoretically understand the microstructural evolution and phase selection behaviors during the nonequilibrium solidification.

There are mainly four types of intermetallic compounds in M–B systems (M = Fe, Co, Ni): MB, M₂B, M₃B, and M₂₃B₆, whose formations are dependent on the solidification routes [13,14], which are affected by the composition and technology parameters, such as the cooling rate, the undercooling, the holding time, etc., and which show different magnetic properties because of the different contents of boron. It is worth noting that the Co₂₃B₆ metastable phase is usually regarded as a good candidate for enhancing the soft properties [15], and, in addition, the Co₂B phase with the higher boron content has an intrinsic hardness of about 816 HV, which is comparable to the hard chromium (860 HV). Its high hardness makes it a potential wear-resisting protective coating [16]. In a word, the Co–B system also shows great potential for application if the phase and morphologies can be tuned properly.

Therefore, in the next step, we focused on research about the manipulation mechanisms of the microstructure evolution and the phase selection during the solidification process in the Co–B system, with the aim of manipulating the types and morphologies of the phases to achieve the expected properties. For a better comparison, the research on the solidification behaviors of the Fe–B and Ni–B systems is briefly interpreted. As is well known, M–B systems (M = Fe, Co, Ni) are good candidates for investigating the microstructural evolution and phase selection behaviors since the ∆T dependencies of the morphologies, such as dendrite, lamellar eutectic, anomalous eutectic, etc., and the phases, including solid solutions and intermetallic compounds, are not only manifold, but are also involute. So far, many studies have been conducted mainly on the bases of competitive nucleation and competitive growth. The ΔT dependencies of the solidification pathways are found to be relatively unequivocal in the Fe–B and Ni–B systems. For example, with an increase in the ΔT, the solidification products change from the stable Fe₂B phase to the metastable Fe₂₃B₆ phase, and then to the metastable Fe₃B phase [17]. Quirinale et al. [18] studied the in situ solidification process, which is dependent on the cooling rate, in electrostatically levitated Fe₈₃B₁₇ alloys, and the results show that the growth of the equilibrium Fe₂B/α-Fe phases was suppressed, which resulted in the formation of the metastable Fe₂₃B₆ phase when the cooling rate was greater than 60 K/s. For the Ni–B systems, Xu et al. [19] found that the α-Ni + Ni₃B lamellar/anomalous eutectics formed at a low ΔT of 75 K in the Ni-15.6at.% B alloys, while the metastable eutectic reaction (L→α-Ni + Ni₂₃B₆) occurred when the ΔT increased to 262 K. A more precise critical ΔT was estimated to be 157 K for the competitive nucleation between the Ni₂₃B₆ and Ni₃B phases [20,21]. However, up to now, the microstructural evolution and phase selection behaviors of the Co–B systems have still not been clarified, and many conflicting reports can be found. For example, Wei et al. [22] found that when ΔT > 60 K, the metastable Co₂₃B₆ phases nucleate preferentially, unlike the Co₃B phases in the Co_79.3B_20.7 alloy, which can be preserved at room temperature if the cooling rate is larger than 25 K min⁻¹ [23]. Li et al. [24] studied the ΔT dependence of the microstructural evolution of a Co₇₅B₂₅ alloy and found that only the α-Co and Co₂B phases were observed over all of the achieved ΔT ranges. In the recent work of Liu et al. [14], up to five solidification pathways were revealed in the solidification of an undercooled Co_79.3B_20.7 alloy, and the primary phase changes from Co₃B to Co₂B to Co₂₃B₆, and then to a α-Co + Co₃B eutectic as the ΔT increases. However, the mentioned pathways above were not observed in the alloy with the composition of Co₈₀B₂₀ [13], which is similar to the composition of Co_79.3B_20.7. Instead of Co₂B, Co₂₃B₆, and α-Co + Co₃B eutectics, the primary α-Co phase was found when the ΔT > 120 K. Obviously, the microstructural evolution and phase selection behaviors are still a controversial issue and are over-dependent on the alloy composition.

In the current work, the Co-18.5at.%B eutectic alloys were solidified by glass fluxing methods to systematically study the ∆T-dependent microstructural evolution and phase selection behaviors. We not only focused on the competition of the primary phases, but we also studied the phase selection behaviors of the residual liquid. The ∆T-dependent solidification pathways for the Co-18.5at.%B eutectic alloy are identified, and the formation mechanism of the FCC-Co + Co₂B (FCC-Co + Co₃B) eutectic, with small or ultrahigh ∆T, are discussed from several aspects, including the composition segregation, the skewed coupled zone, the strain-induced transformation, and the solute trapping. Moreover, the prenucleation of the primary FCC–Co phase was also detected from the analysis of the different recalescence behaviors.

2. Materials and Methods

The Co-18.5at.%B eutectic master alloys were prepared by arc-melting a mixture of cobalt tablets and boron blocks, with purities higher than 99.99%. The alloys were melted under an argon atmosphere in a water-cooled copper crucible, where the titanium getters were melted first to absorb the rest oxygen. Each master ingot of 50 g was turned over and remelted at least four times to ensure the chemical homogeneity. The final mass loss of each ingot was found to be within ±0.15 g. The obtained ingots were then cut into small pieces, with an average mass of about 3 g, which were to be used as the sample candidates for the undercooling experiments. One of them was analyzed by a scanning electron microscope (SEM) and electron backscatter diffraction (EBSD) to observe the as-cast microstructures.

The quartz tubes and the sample candidates for the undercooling experiments were placed in an alcoholic solution and were washed by ultrasonic waves to avoid potential heterogeneous nucleation substrates. The B₂O₃ flux was placed above the sample in the quartz tube to remove the impurities and to prevent the sample from oxidizing. The B₂O₃ flux was dehydrated at 1050 K, for 6 h in advance, to remove the gas and moisture. The quartz crucible was inserted within the high-frequency induction coil of a vacuum chamber, which was located in an in situ observation facility, for rapid solidification. After two rounds of evacuation, to a pressure of 3.0 × 10⁻³ Pa, the vacuum chamber was back-filled by a high-purity argon gas to a pressure of 5 × 10⁻² MPa. The temperature of the melt during solidification was monitored by a two-color pyrometer, and the accuracy for the measured temperature is within ±1 K. The samples were first heated to 800 K and were held therein for 10 min to completely melt the B₂O₃ flux. After that, the samples were overheated to about 1800 K and were held therein for 10 min (the eutectic point, T_E, is about 1406 K). Then the power was switched off to allow the undercooled melt to cool down naturally. Each sample was cyclically heated and cooled down several times until the desired undercooling was obtained. The solidification process was recorded in situ by an infrared temperature measurement system: Raytek MR1SB (Santa Cruz, CA, USA).

The as-solidified samples were prepared following the standard metallographic procedures, i.e., hot mounting in resin, grinding with 220#-to-4000# sandpapers, and polishing. The phase morphologies and constitutions, as well as the relevant orientation relationships, were characterized by SEM and EBSD, which were attached to the FEI Quanta 650F (Hillsborough, OR, USA). The transmission electron microscopy (TEM) lamellas were cut from the prepolished surface by using a dual-beam-focused ion beam (FIB) workstation (FEI Helios NanoLab 600). The TEM observations were conducted under a JEOL JEM-2200FS (JEOL, Tokyo, Japan) microscope.

3. Results

3.1. Original Microstructure and Phase Constitution

The microstructure and phase constitution of the as-cast Co-18.5at.%B eutectic alloy are presented in Figure 1. It can be seen that the master alloy used here has a complete lamellar structure, with a lamellar spacing of about 3 μm, and it consists of the FCC/HCP–Co and orthogonal Co₃B phases. In cases of near-equilibrium solidification, the coupling growth of the two phases determines the fully lamellar eutectic microstructures. The HCP–Co phase is the result of the solid-state phase transformation from the FCC–Co phase after solidification [25]. Moreover, a small amount of the tetragonal Co₂B phase can also be detected in Figure 1b, which is likely due to the eutectoid decomposition of the Co₃B phase at about 1118 K [26].

3.2. Cooling Histories

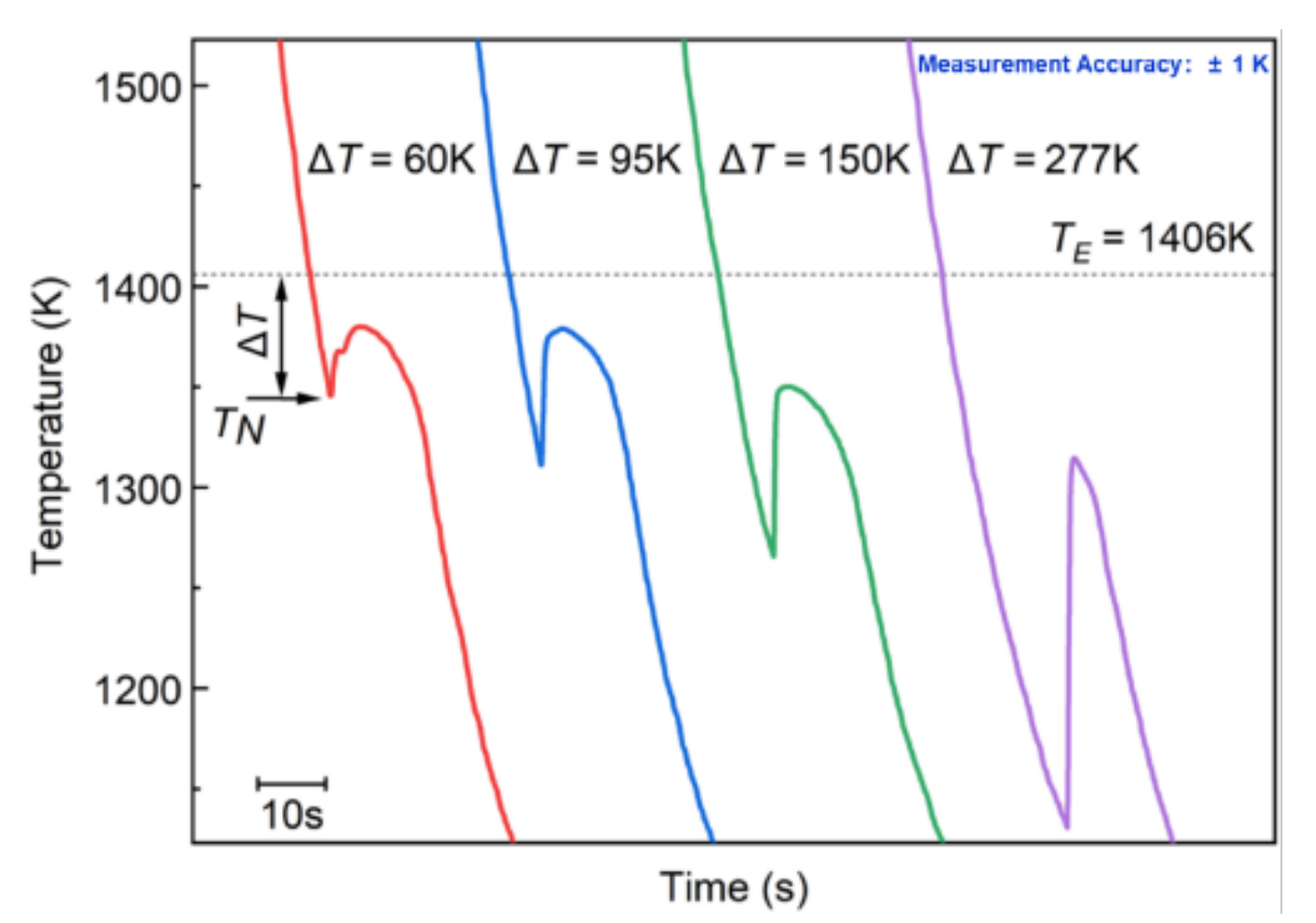

Figure 2 shows the natural cooling curves of the undercooled Co-18.5at.%B eutectic alloy, with an ∆T = 60 K, an ∆T = 95 K, an ∆T = 150 K, and an ∆T = 277 K. The undercooling (∆T) is defined as the difference between the congruent eutectic temperature, T_E, and the initial nucleation temperature, T_N, which is indicated by the black arrow. For ΔT = 60 K, two recalescence events are available: the overheated melt is cooled with a first recalescence event at an T_N = 1346 K, and it then experiences the second recalescence event. Generally, the two recalescence events should correspond to two different crystallization behaviors, which will be analyzed hereinafter, in combination with the morphologies. The recalescence degree, ΔT_R, is about 32 K, and is defined as the temperature increase from the T_N to the maximum arrest temperature, T_R, which can be used to predict the solid fraction for the solidification of undercooled melts [27]. After that, the temperature decreases monotonously, which indicates the end of the solidification process, and the beginning of the solid-state phase transformations, e.g., Co₃B→FCC-Co+Co₂B and FCC-Co→HCP-Co may occur during cooling [28,29].

For ΔT = 95 K, ΔT = 150 K, and ΔT = 277 K, only one recalescence event was observed during the cooling processes. Two possibilities may result in the disappearance of the second recalescence event: (1) Only one transformation process takes place during solidification; (2) The two transformation processes may share the same feature in the temperature increase, which results in the overlap of the recalescence peaks [13]. These two possibilities will be proven through the as-solidified microstructures later. The thermal-plateau time was found to be shortened, which could be attributed to the larger nucleation rate and the more homogeneously distributed nuclei, as well as to the larger growth driving force, which is due to the lower growth temperature [30].

3.3. Microstructures

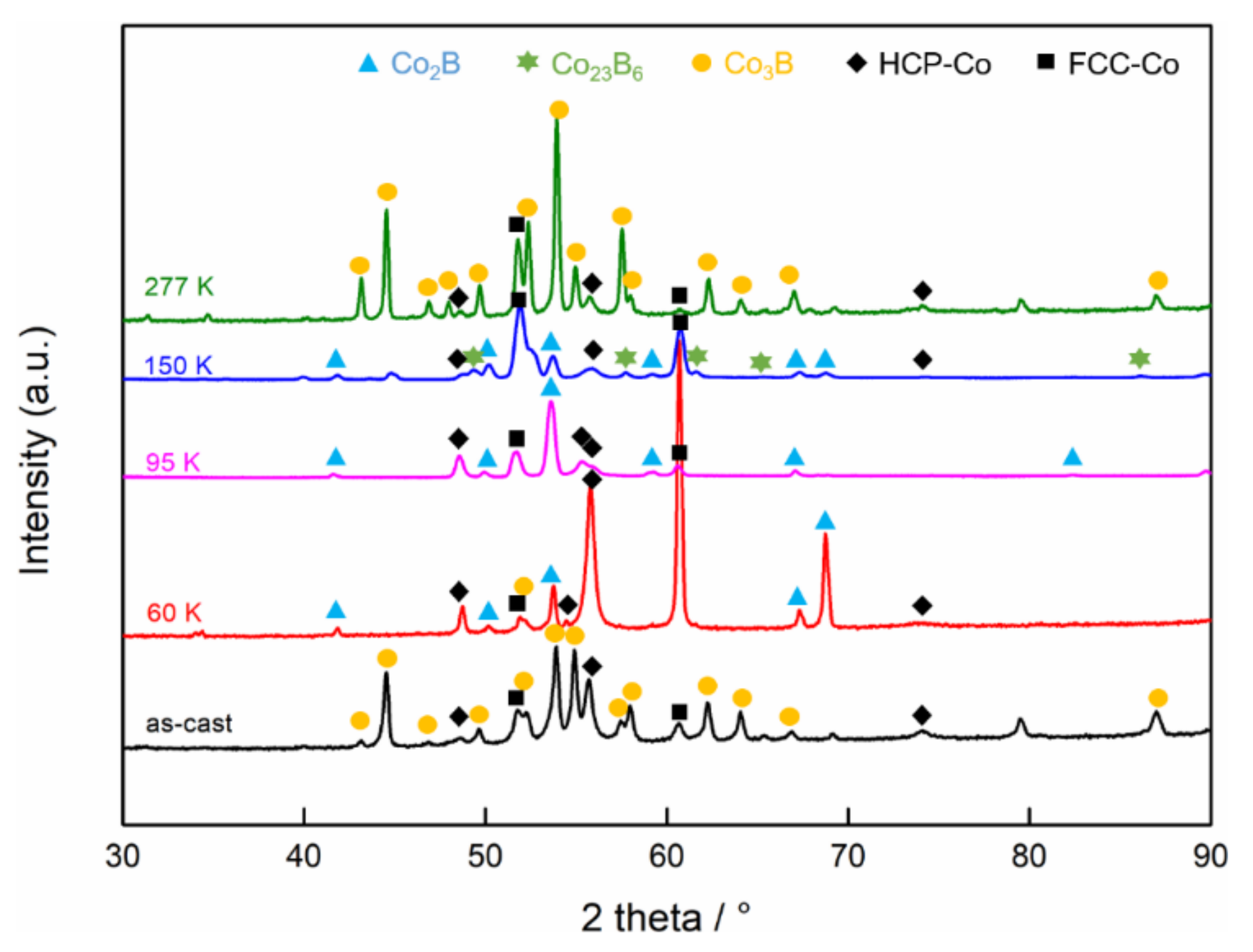

The typical XRD spectrums of the Co-18.5at.%B eutectic alloys with different undercoolings are shown in Figure 3. The as-cast sample consists of the FCC/HCP–Co and orthorhombic Co₃B phases, and, as the undercooling increases, the Co₃B phase is substituted by the tetragonal Co₂B phase at the small undercoolings of 60 K and 95 K, and then an FCC phase (Co₂₃B₆ phase proved by further TEM analysis later) takes place when the ΔT = 150 K, and Co₃B forms again at an ultrahigh undercooling of 277 K. To better understand the microstructure evolution as the undercooling increases, Figure 4 depicts the morphology evolution of the Co-18.5at.%B alloys with different undercoolings. For ΔT = 60 K, the primary dendritic or ellipsoidal structures of the FCC–Co phases are surrounded by fine regular lamellar eutectics, and the lamellar eutectics are predominant, as is seen in Figure 4a,a1. The ellipsoidal FCC–Co is a result of the dendrite fragmentation caused by the remelting because of the recalescence. In the case of ΔT = 95 K, the primary FCC–Co dendrites are fully broken, and parts of the growing coupled eutectic lamella are slightly coarsened, as is indicated in Figure 4b,b1. As the ΔT increases further to 150 K, the microstructure is characterized by a dispersion of the primary FCC–Co phases in an unknown matrix (Figure 4c). Closer observation (Figure 4c1) reveals that the matrix should only consist of a single phase, and that it exhibits features similar to the typical intermetallic compounds [23]. A similar microstructure was also found in our previous work [31], and the unknown matrix turned out to be the metastable Co₂₃B₆ phase. At the maximal undercooling obtained in the present work (ΔT = 277 K), the microstructures evolve into the finer globular FCC–Co phases, with smaller sizes and larger fractions, surrounded by the anomalous eutectic containing submicron-sized FCC–Co particles. In such cases, all of the FCC–Co dendrites are remelted because of the enhanced heat release, as is seen in Figure 4d. It should be pointed out that, for the representative microstructures with four different undercoolings shown in Figure 4, the primary FCC–Co phase and the second phase of either the eutectics or the single matrix coexist, which should correspond to two different recalescence events. However, for ΔT = 95 K, ΔT = 150 K, and ΔT = 277 K, only one recalescence event can be observed in Figure 2, which indicates that the two transformation processes share the same feature: a temperature increase, which results in the overlap of the recalescence peaks.

The microstructures were further analyzed by EBSD to confirm the phase constitutions and the relevant orientation relationships. Figure 5 shows the EBSD phase map and the orientation maps for the Co-18.5at.%B eutectic alloys solidified with ΔT = 60 K. The SEM-ETD image shown in Figure 5a indicates that the primary FCC–Co phase and the refined lamellar eutectic colonies were selected, as denoted by the blue box. Figure 5b represents the phase constituents, which exhibited the FCC–Co, HCP–Co, and Co₂B phases in the analyzed area marked by the red, green, and blue colors, respectively. The phase constitution of the lamellar eutectic colonies is unexpectedly indexed as FCC–Co/HCP–Co + Co₂B, rather than as FCC–Co/HCP–Co + Co₃B, with an average confidence index above 95%. The majority of the FCC–Co phase in the primary phase is transformed to HCP–Co. In addition, one should note that a number of Co₂B grains can be found in the ellipsoidal primary phase, which is also observed in [31]. In such cases, no Co₃B grains are detected. Figure 5c,d shows the EBSD inverse pole figure (IPF) maps for the FCC–Co and Co₂B phases. Several eutectic colonies can be discerned, and the constituent phases of the lamellar eutectics grow cooperatively since the eutectic orientation is fixed. The development of ellipsoidal FCC–Co phases could be attributed to the dendrite fragmentation during the post-recalescence stage since the neighboring grains share the same orientation.

The Co₂B matrix is characterized in greater detail by using TEM analysis in order to ensure the phase type. Figure 6 displays the TEM analysis of the FIB lift-out lamellar prepared from the location shown in Figure 5b. Figure 6a presents a TEM bright-field image, showing a lower magnification overview. The primary phase corresponds to the bottom half of the image, and the matrix corresponds to the top half of the image. The selected area diffraction (SAD) patterns for the two regions are shown in Figure 6b,c, which demonstrate that the matrix is in the orthorhombic Co₂B phase, with a = b = 0.51 nm and c = 0.41 nm, which is consistent with the result of JCPDS: 25-0241.

Figure 7 shows the EBSD phase map and the orientation maps for the Co-18.5at.%B eutectic alloys solidified with ΔT = 95 K. Figure 7a indicates that both the coarsened eutectic and the fragmented anomalous eutectic were selected, as is denoted by the blue box. The phase constituents of the eutectics are still indexed as FCC–Co/HCP–Co + Co₂B. Figure 7c,d shows the EBSD IPF maps for the FCC–Co and Co₂B phases. The orientations of the FCC–Co and Co₂B phases in the fragmented anomalous eutectic region are slightly deflected because of the remelting caused by the large recalescence, while the orientations of the FCC–Co and Co₂B phases in the coarsened eutectic appear to have not been affected.

Figure 8 shows the EBSD phase map and the orientation maps for the Co-18.5at.%B eutectic alloys solidified with ΔT = 150 K. Figure 8a indicates that the single-phase matrix and the primary FCC–Co phase are both involved. The single-phase matrix is unsurprisingly indexed as FCC–Co, as is shown in Figure 8b, which was also encountered in our previous work [31]. The single-phase matrix should be the Co₂₃B₆ phase. The Co₂₃B₆ and FCC–Co phases have the same space group of 225, and the lattice parameter of the Co₂₃B₆ unit cell happens to be three times that for the FCC–Co, indicating that the two phases periodically repeat the same geometric symmetrical structure, which results in misindexing during the EBSD characterization. The misindexing of the Co₂₃B₆ phase is further confirmed hereinafter using TEM. Figure 8c,d shows the EBSD IPF maps for the FCC–Co/ Co₂₃B₆ matrix and the HCP–Co phases. The neighboring ellipsoidal primary FCC–Co phases should originate from the fragmentation of one dendrite since they share the same orientation. The IPF map for the FCC Co₂₃B₆ matrix is colorful, which indicates that the Co₂₃B₆ matrix is texture-free. The matrix exhibits the coarsened equiaxial Co₂₃B₆ phase with a slight trace of the FCC–Co + Co₂₃B₆ eutectic because some fine FCC–Co particles can be found in the matrix (Figure 8c). The HCP–Co phase, which results from the partial solid-state phase transformation of FCC–Co, is only found within the ellipsoidal primary phase. Two variations and the corresponding pole figures are taken as an example to indicate that the Blackburn orientation relationship is obeyed between the parent FCC–Co and the associated HCP–Co (Figure 8e). Figure 8f shows the corresponding pole figures for the FCC Co₂₃B₆ matrix next to the two HCP–Co variations, and no fixed orientation relationship can be found among them.

The FCC Co₂₃B₆ matrix is characterized in greater detail by using TEM analysis to verify and distinguish the FCC–Co and Co₂₃B₆ phases. Figure 9 displays the TEM analysis of the FIB lift-out lamella prepared from the location shown in Figure 8b. Figure 9a presents a TEM bright-field image, showing a lower magnification overview. The ellipsoidal primary phase corresponds to the top half of the image, and the FCC matrix corresponds to the bottom half of the image. The selected area diffraction (SAD) patterns for the two regions are shown in Figure 9b,c, which demonstrates that the FCC matrix is actually the Co₂₃B₆ phase.

Figure 10 shows the EBSD phase map and the orientation maps for the Co-18.5at.%B eutectic alloys solidified with ΔT = 277 K. Figure 10a indicates that both the granular primary phase and the anomalous eutectic were selected, as is denoted by the blue box. In this case, the phase constituents of the eutectics are indexed as FCC–Co/HCP–Co + Co₃B, which is the eutectic structure obtained under the near-equilibrium condition. Figure 10c,d shows the EBSD IPF maps for the FCC–Co and Co₃B phases. The orientations of the FCC–Co and Co₃B phases in the anomalous eutectic region appeared to be well-orientated, which might be due to the lower T_R achieved by the recalescence (Figure 2).

The Co₃B matrix is also further ensured by the TEM analysis. Figure 11 displays the TEM analysis of the FIB lift-out lamella prepared from the location shown in Figure 10b. Figure 9a presents a TEM bright-field image. The selected area diffraction (SAD) patterns for the two regions are shown in Figure 11b,c, which demonstrates that the matrix is in the orthorhombic Co₃B phase, with a = 0.51 nm, b = 0.66 nm, and c = 0.47 nm, which fits well with the result of JCPDS: 12-0443.

On the basis of the foregoing characterization results, we conclude that there are at least four possible solidification pathways for the Co-18.5at.%B eutectic alloy: (1) The lamellar eutectic structure (Figure 1), which consists of the FCC–Co and Co₃B phase forms, under equilibrium or near-equilibrium solidification conditions, with extremely low ΔT, since the coupled growth of the eutectic is easily broken with the increasing ΔT [13]. As a result, the FCC–Co phase precipitates as the primary phase; (2) The FCC–Co phase primarily forms, followed by the eutectic growth of the FCC–Co and Co₂B phases when the ΔT is relatively low (ΔT < 100 K) (Figure 4a,b, Figure 5 and Figure 6); (3) As the ΔT increases further, the FCC–Co phase primarily forms, followed by a metastable Co₂₃B₆ phase, with a trace of an FCC–Co and Co₂₃B₆ eutectic, rather than an FCC–Co and Co₂B eutectic (Figure 8 and Figure 9); (4) When the ΔT increases to a certain degree, e.g., 277 K in the present work (Figure 10), the FCC–Co phase primarily forms, followed by the FCC–Co and Co₃B eutectic, which is similar to the composition of the microstructure formed with low ΔT. The difference between them lies in the fact that the types of eutectics are different. The FCC–Co and Co₃B eutectic, formed with low ΔT, is a regular lamellar eutectic, whereas the eutectic formed with ΔT = 277 K is an anomalous eutectic, which is characterized by a dispersion of the fine globular FCC–Co particles in the Co₃B matrix.

4. Discussion

4.1. Formation of FCC–Co/Co₂B Eutectic with ΔT Less Than 100 K

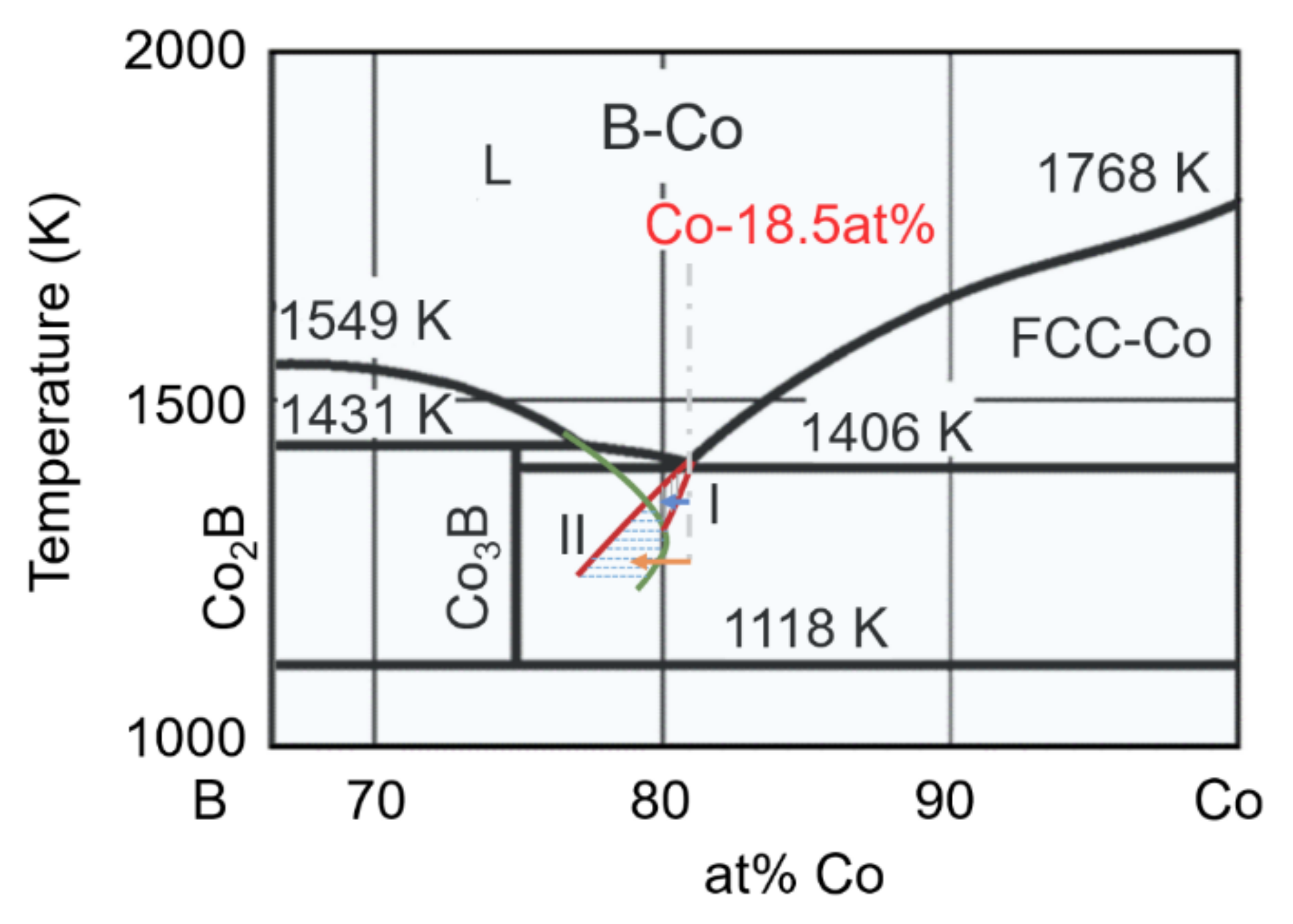

According to the phase diagram of the Co–B system [26], the Co-18.5at.%B alloy is at the equilibrium eutectic point, which should be constituted by the FCC–Co and orthogonal Co₃B phases. However, in the present work, the eutectic is composed of the FCC–Co and tetragonal Co₂B phases, rather than the FCC–Co/Co₃B eutectic forms, following the primary FCC–Co phase when the ΔT < 100 K. Despite the fact that this phenomenon has been observed and verified in the Co–B system by many researchers [14,24], the formation mechanism is still controversial. Li et al. [24] thought that the suppression of the peritectic reaction of liquid and Co₂B into Co₃B could result in the formation of an FCC–Co/Co₂B eutectic in the Co₇₅B₂₅ alloy. Liu et al. [14] attribute the formation of the FCC–Co/Co₂B eutectic in the Co_79.3B_20.7 alloy to the remelting and resolidification of the Co₂₃B₆ phase, i.e., the Co₂₃B₆ phase primarily forms, but it is subsequently remelted and resolidified, along with the remaining liquid, into the FCC–Co/Co₂B eutectic when 85 K < ΔT < 281 K. In our previous work [31], the reason of the formation of the FCC–Co/Co₂B eutectic is that the composition of the remaining liquid becomes extremely rich in boron because of the massive precipitation of the primary Co with the application of the magnetic field. In this work, although no magnetic field was applied, the volume fraction (f_s) of the precipitated FCC–Co phase is still large, e.g., f_s (ΔT = 60 K) = 27%, and f_s (ΔT = 95 K) = 39%, indicating that, in these cases, the composition of the remaining liquid remains rich in boron. This may make a contribution to the formation of the FCC–Co/Co₂B eutectic, although it may not be the main reason.

In the present work, since the FCC–Co/Co₂B eutectic is formed from the residual liquid, the theories on the suppression of the peritectic reaction (L + Co₂B → Co₃B) [24] and the remelting and resolidification of the Co₂₃B₆ phase [14] are supposed to be inappropriate. Therefore, the concept of a eutectic coupled zone is employed herein to obtain a decent explanation. The eutectic coupled zone representing the growth temperature/composition region is where an entirely eutectic microstructure forms [32].

It is well known that there are two types of eutectic coupled zones: the symmetric coupled zone and the skewed coupled zone. A symmetric coupled zone generally exists in a eutectic system of the nonfaceted/nonfaceted type. A skewed coupled zone is often found in a eutectic system of the faceted/nonfaceted type, and it is normally skewed towards the faceted phase owing to its persistent growth difficulties. Moreover, the growing rate of the phases will be suppressed significantly when undercooling is ultrahigh because of the sluggish kinetic diffusion [32], i.e., the skewed coupled zone is a finite scope above a certain nucleation temperature, T_R.

It has been proven that skewed coupled zones exist in the Co–B eutectic system [13]. The growth difficulties associated with the faceted Co₃B and Co₂B phases, as compared to the solid-solution of the FCC-Co phase, result in the eutectic coupled zones skewing towards the faceted Co₃B and Co₂B phases. Figure 12 shows a part of the phase diagram of a Co–B alloy with skewed coupled zones. The first coupled zone skewed toward the faceted Co₃B phase is made up of the extension of the liquidus lines of the Co₃B and FCC–Co phases, which is named after Region I, as is shown in Figure 12. The second coupled zone (Region II), which is skewed toward the faceted Co₂B phase, is composed of the extension of the liquidus lines of the Co₂B and FCC–Co phases. For an alloy with the composition of Co-18.5at.%B (grey dashed dotted line), solidification occurs via a normal phase transformation process, according to the Co–B phase diagram, when the ΔT is very low, i.e., when the liquid solidifies into the FCC-Co/Co₃B eutectic phases simultaneously under the near-equilibrium condition. With the ΔT slightly increases, the primary FCC–Co phase forms preferentially, since the FCC–Co solid solution phase invariably has a priority in the nucleation, compared to the intermetallic compounds, such as Co₃B, Co₂B, and Co₂₃B₆ [13]. The precipitation of the primary FCC–Co phase ensures that the residual liquid is rich in boron, i.e., the composition of the residual liquid shifts into the first skewed coupled zone (Region I), as is indicated by the blue arrow. As a result, in such a case, the primary FCC–Co combined with the FCC–Co/Co₃B eutectic should be obtained. Unfortunately, this very low ΔT is hard to achieve under the current experimental conditions. With the ΔT increasing further, e.g., to 60 K, the composition segregation of the residual liquid caused by the precipitation of the primary FCC–Co phase shifts into the second skewed coupled zone (Region II), as is indicated by the orange arrow, which results in a final solidified microstructure that is made up of the primary FCC–Co and FCC–Co/Co₂B eutectic. It is worth mentioning that, despite the fact that the skewed eutectic regions are not calculated accurately herein, they do exist in the Co–B systems, and they could be a probable explanation for the formation of the FCC–Co/Co₂B eutectic. To verify this assumption, an intensive study of the calculation of the skewed coupled zones in the Co–B system could be a focus in future work.

It is important to note that the strain-induced transformation may also contribute to the formation of the FCC–Co/Co₂B eutectic to some extent. Wang et al. [33] studied the influence of the pressure on the phase stability and found that, under a high pressure of 80 kbar, the Co₂B phase, rather than the Co₃B phase, was obtained in the Co₈₀B₂₀ amorphous alloy because the pressure causes volume shrinkage, which favors the formation of a Co₂B phase with a high density. During the recalescence, in addition to the remelting effect as the temperature increases, the driving pressure for the fluid flow could also increase dramatically [34]. Liu et al. [35] argued that the origin of the strain effects could be attributed to the transfer from the volume mobility to the interdendritic transport of the melt through the crisscrossing solid skeleton obtained after dendritic coherency, where the materials start to develop strength. Hunt also points out that this volume change could contribute to the negative pressure near the S/L interfaces, which could lead to the formation of microcavities [36], the collapse of which produces extremely high positive pressures during recalescence. Therefore, the accumulated stresses in the primary dendrite network during rapid solidification may stimulate the formation of the FCC–Co/Co₂B eutectic. A further experimental verification and an in-depth analysis are required to confirm this assumption.

4.2. Formation of FCC–Co/Co₃B Anomalous Eutectic with High ΔT

When the ΔT is extremely high (277 K), the final solidification microstructure is made up of the granular primary FCC–Co phase and the FCC–Co/Co₃B anomalous eutectic, which is similar to the microstructure achieved when the ΔT is very low. This may be attributable to the appearance of the solute trapping caused by the extremely high ΔT. When the ΔT is extremely high, the primary FCC–Co dendrite is supersaturated with more solute. Moreover, the solidification time is significantly shortened compared to the low ΔT. As a result, the diffusion of the atoms is largely weakened, which causes the effect of solute trapping, with no deviation in the composition [37]. In our previous work, the FCC–Co and Co₃B phase grows faster than that in the low ΔT, at approximately 1.4 m/s and 0.8 m/s [13], respectively, which increases the partition coefficient, K_V, and the liquid and solid compositions could be similar. It is noted that the enlarged difference in the growth velocity between the FCC–Co and Co₃B phases could effectively manipulate the morphologies; i.e., the coupling growth mechanism is broken thoroughly, and the regular lamellar eutectic is transferred to the anomalous eutectic. The great heat release remelts the FCC–Co phases into the dispersed particles embedded in the Co₃B matrix. A similar phenomenon was also reported in Co–Si alloys [38] under nonequilibrium solidification.

4.3. Prenucleation of Primary FCC–Co Phase

It is acknowledged that large amounts of the primary FCC–Co phases are found in all the final solidification microstructures with different ΔTs. However, the recalescence degree, ΔT_R, which is obtained from the undercooling curves, is not actually so conspicuous, and the ΔT_R acquired from the undercooling curves is the superposition heat release of several phases. For convenience, we think that the ΔT_R represents the heat release of the primary FCC–Co, since the recalescence and heat release of the primary FCC–Co phase is predominant within the extremely short solidification time obtained from the cooling curves. For example, when the ΔT = 60 K, the volume fraction of the primary FCC–Co phase is approximately 25%, but the temperature increases because the latent heat release is only 22 K. Generally, the recalescence degree, ΔT_R, is in proportion to the nucleation and the growth. The larger ΔT_R is related to the shorter thermal-plateau time, and the greater nonequilibrium solid fraction during recalescence, according to the dendric fragmentation model [39]. The ΔT-dependent recalescence degree, ΔT_R1, is depicted in Figure 13a, where the scattered points were obtained experimentally, and the solid lines are the fitted results. It is clear that the recalescence degree, ΔTF_R1, increases with the increase in the ΔT because of the enhanced nonequilibrium effect. The calculated critical hypercooling ΔT is about 395 K when all the melt solidifies during the recalescence, and there is no residual liquid that can be solidified into a secondary phase (g_rl = 0). The obtained ΔT is not beyond 277 K, which indicates that our experimental condition is nonadiabatic. Hence, the heat release compared to the temperature increase during recalescence cannot be neglected. The fraction of the residual liquid g_rl-dependent ΔT_R, with consideration to the prenucleation, can be expressed by Equation (1) [40]:

$$g_{\mathrm{rl}}\approx 1-\frac{C_{\mathrm{P}}}{\Delta H_{\mathrm{m}}}\left(\Delta T_{\mathrm{R}}+\varphi t\right)-f_{\mathrm{s}}\left(T\right)$$

(1)

where the C_p and ΔH_m are the thermal capacity and the latent heat of the fusion, respectively (C_p = 30.6 J/mol/K [41], and ΔH_m = 16.06 KJ/mol [22] for the primary FCC–Co phase); t, which is equal to approximately 0.3 s, is the recalescence time, which is much larger than those for the pure metals or the solid solution alloys (0.001–0.01 s); $\varphi$ is the cooling rate, which is about 20 K/s in the present work; and $f_{\mathrm{s}}\left(T\right)$ is a function of the temperature, which denotes the fraction of prenucleation.

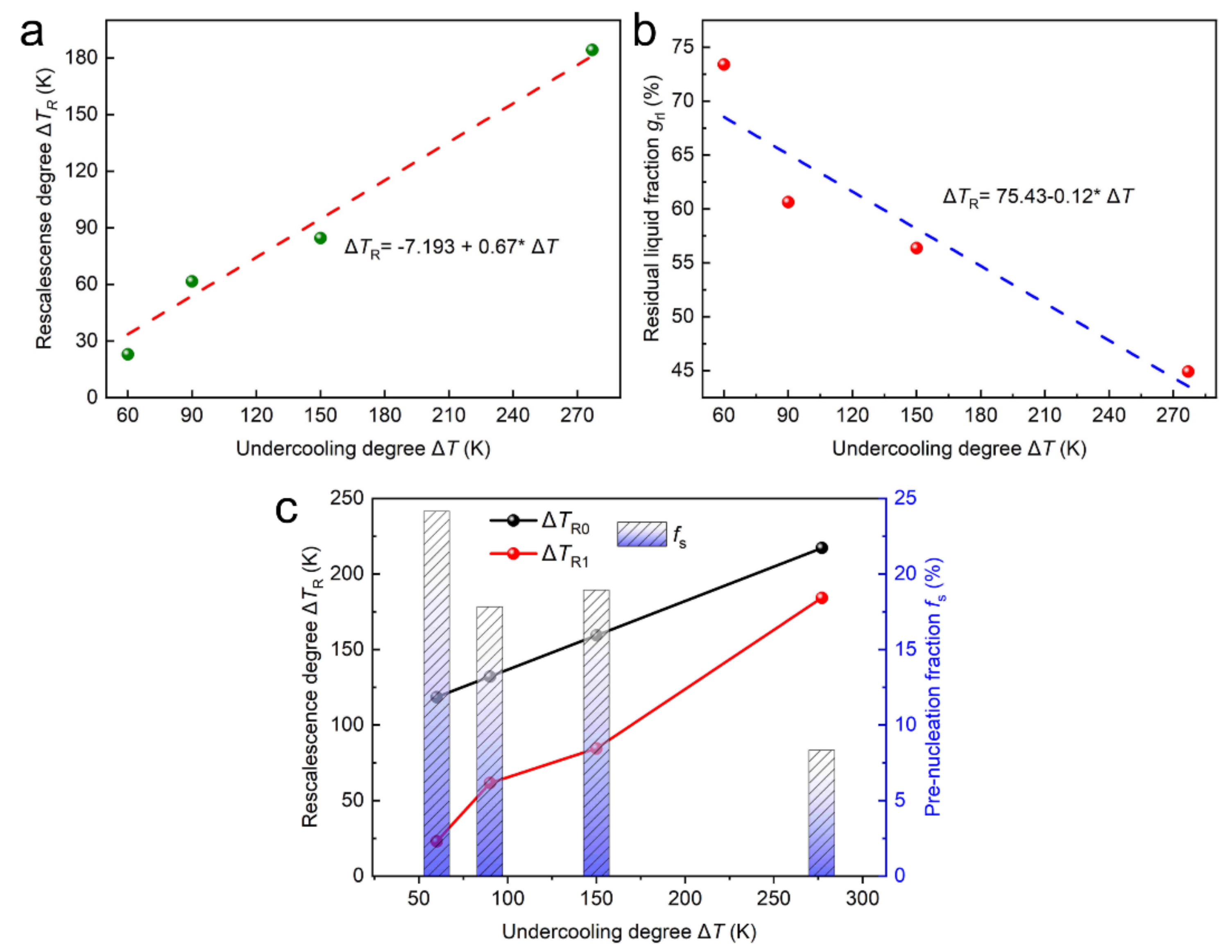

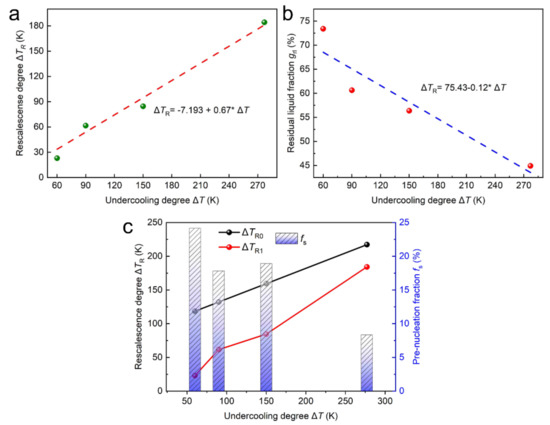

Figure 13b shows the ΔT dependence of the fraction of the residual liquid, which was obtained from the statistical analysis of the SEM morphologies shown in Figure 3. With the enhancement of the ΔT, the recalescence degree increases, and the residual liquid after recalescence is reduced. Therefore, the theoretical recalescence degree, ΔT_R0, could be obtained according to Equation (1), combined with the statistical result shown in Figure 10b, and the assumption that f_s(T) = 0. The ΔT_R0 shown in Figure 10c is larger than the ΔT_R1, and the difference decreases as the ΔT increases. This may be, in part, because the experimental condition in the present work is nonadiabatic. Another possible reason is the pre-nucleation [42] of the primary phase. It is well known that the atomic bonds of crystals are only partly broken upon melting, and there are a lot of short-range orderings (SROs) that correspond to the solid crystal in the melts within a wide temperature range above the T_m [43]. The SROs that change with the overheating temperature are metastable, and the liquid–liquid structure transition (LLST) [44,45,46] can be induced when the overheating temperature exceeds a critical value [47]. These SROs could be acting as the sites for nucleation, which may increase the volume fraction of the primary FCC–Co, but they do not contribute to the temperature increase during recalescence. The f_s(T) in this work can be calculated by Equation (2):

$$f_{\mathrm{s}}\left(T\right)=\frac{C_{\mathrm{P}}}{\Delta H_{\mathrm{m}}}\left(\Delta T_{\mathrm{R}0}-\Delta T_{\mathrm{R}1}\right)$$

(2)

The calculated f_s(T) is shown in Figure 13c with the blue-column diagram. The f_s(T) decreases as the ΔT increases, which indicates that the intrinsic existing SROs causing the prenucleation decrease with the increasing ΔT. In the present work, in order to achieve a high ΔT, normally a higher overheating temperature is required. In such cases, the application of higher overheating temperatures may induce the LLST, resulting in the consumption and dissolution of the SROs. On the contrary, when a low ΔT is expected, a smaller overheating temperature is usually exerted. As a result, the liquid is full of SROs since it has not experienced the LLST. This may be why the ΔT_R1 obtained from the cooling curves is lower than the theoretical ΔT_R0.

It is worth noting that we have put forward the idea that the retained FCC–Co clusters within the heterogeneous melts could affect the recalescence behaviors; yet, the degree of recalescence is actually the heat release of all the phases, and not a single phase. Here, we came up the hypothesis and performed the appropriate treatments for the convenience of analysis. However, it is more accurate that the alloy systems with simpler solidification paths and single-phase recalescence are more appropriate for that goal. In addition, the discussions still need further attention and should be verified by dedicated experiments in future work, e.g., by the systematic variation of the overheating temperature and the holding time, etc.

5. Conclusions

The undercooling (∆T) dependencies of the solidification pathways, the microstructural evolution, and the recalescence behaviors in undercooled Co-18.5at.%B eutectic alloys were systematically explored, and the conclusions are as follows:

(1)

The solidification paths are as follows: (1) The regular lamellar eutectic colonies consisting of the FCC–Co and Co₃B phase nucleate at a near-equilibrium solidification with extremely low ΔT; (2) As the ΔT increased slightly, the Co₃B phase was substituted by the Co₂B phase, with a mixture of the lamellar and anomalous eutectic for ΔT < 100 K. (3) With the ΔT increasing further, the Co₂B phase changed to the metastable Co₂₃B₆ phase for ΔT < 200 K, with the ripened primary α-Co ellipsoid due to the remelting effect; (4) When the ΔT is extremely high, the Co₃B phase takes place again, with refined α-Co particles for ΔT > 200 K, where the composition is similar to that of the microstructure formed with low ΔT;

(2)

The mechanism of the phase selection is interpreted on the basis of the composition segregation, the skewed coupled zone, the strain-induced transformation, and the solute trapping. When ΔT < 100 K, the Co₂B phase nucleates preferentially within the residual liquid, which is attributed to the existence of the FCC–Co/Co₂B pseudo-eutectic region and the accumulated strain during recalescence. Moreover, the Co₃B phase forms at an ultrahigh ΔT, which results from the solute trapping during the rapid solidification;

(3)

The recalescence behaviors of the primary FCC–Co phase were analyzed, and the prenucleation solid fraction, owing to the existence of solid-like clusters or SROs within the heterogenous melt, decreases as the undercooling increases and, hence, the recalescence degree rises dramatically.
