Preparation and Chromaticity Control of CoTiO3/NiTiO3 Co-Coated TiO2 Composite Pigments

by
Yuan Chen
1,2,3,4,
Wei Guo
3,
Yuan Huang
3,
Ying Chang
1,2,3,4,
Zhishun Wei
1,2,3,4,
Jiuxin Jiang
1,2,3,4,
Pascal Boulet
4,5 and
Marie-Christine Record
4,6,*
1
Hubei Provincial Key Laboratory of Green Light Industrial Materials, Hubei University of Technology, Wuhan 430068, China
2
Collaborative Innovation Center for Green Lightweight Materials and Processing, Hubei University of Technology, Wuhan 430068, China
3
School of Materials and Chemical Engineering, Hubei University of Technology, Wuhan 430068, China
4
New Materials and Green Manufacturing Talent Introduction and Innovation Demonstration Base, Wuhan 430068, China
5
MADIREL, CNRS, Faculty of Sciences, Aix-Marseille University, CEDEX 20, 13397 Marseille, France
6
IM2NP, CNRS, Faculty of Sciences, Aix-Marseille University, CEDEX 20, 13397 Marseille, France
*
Author to whom correspondence should be addressed.
Materials 2022, 15(4), 1456; https://doi.org/10.3390/ma15041456
Submission received: 1 January 2022 / Revised: 1 February 2022 / Accepted: 10 February 2022 / Published: 16 February 2022
Browse Figures
Versions Notes

Abstract

:
In this study, home-made amorphous TiO2 microspheres with good mono-dispersity and large numbers of mesopores on the surface were used as substrates. The intermediate microspheres were obtained by adding Co/Ni sources with different Co/Ni molar ratios in a water bath and making them react by water bath heating. By calcining the intermediate microspheres deposited on the TiO2 ones, a core–shell structured spherical CoTiO3/NiTiO3 inorganic composite pigment was prepared. The synthesized pigments were characterized by X-ray diffraction (XRD), Raman spectroscopy, field-emission scanning electron microscopy (FE-SEM), transmission electron microscopy (TEM), energy dispersive X-ray spectrometry (EDS), laser particle size (LPS) analysis and colorimetry. The results show that when the calcination temperature is 800 °C and the Co/Ni molar ratio is 0.5:0.5, the pigments consist of a TiO2 core and outer ilmenite CoTiO3/NiTiO3 shell. Moreover, the surface of the product microspheres is smooth, and the particles are of regular sphericity with a uniform particle size of about 1.8 μm. The colorimetric analysis from the samples calcined at 800 °C shows color changes from yellow-green to dark green as the Co/Ni molar ratio increases (0.1:0.9 to 0.9:0.1). A Co/Ni molar ratio that is too high or too low results in the formation of by-products such as Co3O4 or NiO, respectively, which adhere to the product surface and affect the chromaticity of the product. This work has enabled the chromatic modulation of yellow-green inorganic pigments, providing a solution for the preparation of spherical inorganic pigments that are more suitable for industrial inkjet printing.

1. Introduction

Owing to excellent weather resistance, thermal stability and high hiding power, inorganic pigments are widely used in ceramics, high temperature materials, inks, coating materials and plastics [1,2,3,4,5]. However, most inorganic pigments contain toxic elements such as heavy metals, making inorganic pigments not only costly, but also have adverse effects on human health and the environment, which severely restricts their development [6,7,8]. Therefore, the pigment industry necessitates the development of new inorganic pigments or the improvement of existing technology to eliminate or greatly reduce the harmful effects of toxic elements on human health in conventional inorganic pigments [9,10,11,12,13,14,15].
In recent years, cobalt-based green and nickel-based yellow pigments, such as CoTiO3 and NiTiO3 ilmenite, have been proposed as feasible alternatives to chromium-based green and lead chromium/lead antimony-based yellow pigments, respectively, due to their low toxicity, excellent performance in green/yellow color and corrosion resistance [9,16,17,18,19,20,21]. In the structure of CoTiO3 (or NiTiO3), both Co2+ (or Ni2+) and Ti4+ cations occupy alternating layers of octahedral sites, each layer being composed of a unique type of element, giving it good chemical stability. There are many methods for the preparation of CoTiO3 or NiTiO3 pigments, such as the solid-state reaction method [22,23], co-precipitation method [24,25], sol-gel method [26,27,28,29], thermal decomposition method [30], combustion method [31,32], etc. The traditional solid phase reaction method is easy to employ and does not introduce impurities, but the temperature required to synthesize pigments is high, generally exceeding 1000 °C, which often leads to severe sintering, increasing the particle size of the pigment and causing agglomeration [33,34]. Compared to the solid phase reaction method, the wet chemical method requires a lower reaction temperature but tends to introduce impurities, and the synthesized pigments are not homogeneous in particle size and also tend to agglomerate. The uneven particle size and poor sphericity of the pigments often result in poor flow of the pigment particles when used in inkjet printing technology, and the pigment particles often clog the printheads. Sekhar et al. [26] obtained CoTiO3 by calcining precursors prepared by the sol-gel method at 700 °C, and Wang et al. [17] synthesized NiTiO3 nano-yellow pigments by calcining organic polymer precursors of NiTiO3 at 600 °C and 800 °C. All these results indicate that CoTiO3 green pigments and NiTiO3 yellow pigments can be synthesized by wet chemical methods below 1000 °C.
In order to improve the dispersibility and coloring power of pigment particles, researchers have worked on the synthesis of nano- or micro-sized pigments [9,20,35]. The higher specific surface area and smaller particle size allow the pigment particles to achieve relatively good properties. In addition, the pigment particles often exhibit better optical properties due to their uniform particle size distribution and regular particle morphology [36]. As the technology for preparing TiO2 nano- or micro-sized microspheres is relatively mature, researchers often use them as substrates to synthesize CoTiO3 or NiTiO3 on their surface to prepare inorganic green or yellow composite pigments. Among them, Zou et al. [9] synthesized spherical CoTiO3@TiO2 green composite pigments using amorphous nano spherical TiO2 as a substrate at 800 °C, and He et al. [37] used a similar method to synthesize spherical NiTiO3@TiO2 yellow composite pigments.
A literature research reveals that there are many studies on the synthesis of either CoTiO3 or NiTiO3 on the surface of TiO2 to prepare composite pigment powders [9,20,37]. However, to our knowledge, there is no literature reporting on the co-synthesis of both CoTiO3 and NiTiO3 on the surface of TiO2. In this study, home-made amorphous TiO2 microspheres with good mono-dispersity and large numbers of mesopores on the surface were used as substrates. Intermediate microspheres were obtained by adding Co/Ni sources with different Co/Ni molar ratios in a water bath and making them react by water bath heating. Subsequently, composite pigments with CoTiO3/NiTiO3 co-coated on the TiO2 surface were prepared by calcination of the intermediate microspheres, and the modulation of the pigment particle morphology and chromaticity was achieved.

2. Materials and Methods

2.1. Materials

The raw materials were urea (CH4N2O, Sinopharm Chemical Reagent Co., Shanghai, China, >99.5%), anhydrous ethanol (C2H5OH, Sinopharm Chemical Reagent Co., Shanghai, China, >99.5%), Co(NO3)2·6H2O (Aldrich, Wuxi, China, ACS reagent), NiCl2·6H2O (Aldrich, Wuxi, China, ACS reagent) and tetrabutyl titanate (TBOT, Shanghai Macklin Biochemical Co., Shanghai, China, >99.5%). Solutions were prepared with deionized water (Molecular Lab water ultra-purifier, Shanghai, China).
The precursor TiO2 microspheres used in this study were homemade using a low-temperature modified Stöber method, which was previously reported by our group [38]. In this method, aqueous KCl and tetrabutyl titanate were added to ethanol and reacted at a low temperature of −10 °C for 5 h. The precursor was then collected by centrifugation, washed three times with alcohol and once with water, and subsequently freeze-dried, resulting in amorphous TiO2 microspheres.

2.2. Synthesis of NiTiO3/CoTiO3 Co-Coated TiO2 Composite Pigments

The preparation process of the composite pigment powders is shown in Figure 1.
The TiO2 microspheres prepared using the above method (0.3 g) were first ultrasonically dispersed in 100 mL of deionized water, and then Co(NO3)2·6H2O, NiCl2·6H2O and 12 g urea were added under magnetic stirring for 10 min. The molar ratios of Co/Ni/TiO2 were 0.1:0.9:1, 0.3:0.7:1, 0.5:0.5:1, 0.7:0.3:1, and 0.9:0.1:1. The above suspensions were subsequently heated in a water bath at 80 °C under magnetic stirring for 8 h to obtain intermediate microspheres according to the reaction equations:
Co2+ + 2OH− → Co(OH)2,
Ni2+ + 2OH− → Ni(OH)2,
The precipitate was then collected by centrifugation, washed three times with water, and dried at 50 °C for 12 h. The dried sample was calcined at 800 °C for 3 h. The corresponding reaction equations are as follows:
CoO + TiO2 → CoTiO3,
NiO + TiO2 → NiTiO3,

2.3. Characterization Techniques

The structural properties of the products were characterized by X-ray diffraction (XRD) using an X-ray diffractometer (PANalytical, Empyrean, Almelo, Netherlands) with Cu Kα radiation (λ = 0.154 nm) and a 2θ scan range of 20°–75° at a rate of 2°/min. Raman spectra were recorded on a XploRA PLUS spectrometer (HORIBA, Lille, France) using a 532 nm wavelength laser source.
The morphologies and elemental ratio of the samples were determined by a field-emission scanning electron microscope (FE-SEM, SU8010, Hitachi, Tokyo, Japan) operating at 5 kV with an energy dispersive X-ray spectrometer (EDS, X-MaxN, OXFORD, Oxford, Britain). TEM and HRTEM images were obtained using a transmission electron microscope (TEM, JEM-2100, JEOL, Tokyo, Japan) with an acceleration voltage of 200 kV.
A laser particle size (LPS) analyzer (Malvern MS 2000, Malvern, Britain) was employed to characterize the size distribution of the powders. The photographs of the synthesized composite pigments were obtained directly with a Canon m50 camera. The color tones of the pigments were evaluated by measuring L*, a*, and b* parameters with a colorimeter CR-10Plus (Konica Minolta, Tokyo, Japan), in which L* indicates the color lightness (from 0 (black) to 100 (white)), a* denotes the red/green intensity (negative and positive values correspond to green and red colors, respectively), and b* represents the yellow/blue intensity (negative and positive values correspond to blue and yellow colors, respectively).

3. Results

3.1. X-ray Diffraction

Figure 2 shows the XRD patterns of the products after calcination at 800 °C for samples with different Co/Ni molar ratios. As shown in Figure 2a, when the Co/Ni molar ratio is 0.1:0.9, the products mainly consist of CoTiO3 and/or NiTiO3 (the diffraction peaks of CoTiO3 and NiTiO3 are very similar in position), NiO and anatase TiO2.
The presence of NiO diffraction peaks indicates that the reaction between NiO and TiO2 is not complete, and there is a surplus of NiO. This might be because the CoTiO3 and NiTiO3 produced by the reaction of the Co and Ni sources with TiO2, respectively, are coated on the surface of the TiO2 microspheres, preventing the further reaction of NiO with TiO2 and resulting in a surplus of NiO. As the amount of Co source increases, the NiO peak gradually disappears. When the Co/Ni molar ratio is increased to 0.9:0.1, as shown in Figure 2e, the diffraction pattern suggests the presence of Co3O4 phase in the product, which could similarly be due to the excess of Co source and the pre-formed CoTiO3 and NiTiO3 on the surface of the microspheres hindering the further reaction of CoO with TiO2. Further oxidation of the remaining CoO at high temperature results in the formation of Co3O4.
In addition, the results in Figure 2 show that the crystalline forms of TiO2 in the product are also influenced by the Co/Ni ratio. The home-made precursor TiO2 microspheres are amorphous [38], and when the Co/Ni ratio was low, the precursor TiO2 was converted to anatase phase in addition to reacting with Co and Ni sources; when the Co/Ni ratio was high, both anatase and rutile phases of TiO2 could be found in the products. The reason for this phenomenon could be that the presence of a Co source is more favorable to the formation of rutile phase TiO2, which also affects the brightness values of the products.

3.2. Raman Spectroscopy

Because the diffraction peaks of CoTiO3 and NiTiO3 are very similar in position, making it difficult to distinguish between the two by X-ray diffraction, the structural properties and phase changes of the samples were further investigated by Raman spectroscopy. Figure 3a–c show the Raman spectra of the products after calcination at 800 °C for samples with Co/Ni molar ratios of 0.1:0.9, 0.5:0.5 and 0.9:0.1, respectively. Seven peaks from P1 to P7 can be observed in Figure 3a. A review of the literature shows that the characteristic peaks of anatase TiO2 are around 637.7, 515 and 396 cm−1 [39], corresponding to the three peaks at P4, P5 and P6 in Figure 3a. The characteristic peaks of NiTiO3 are around 238, 284, 338 and 705 cm−1, corresponding to the peaks at P1, P2, P3 and P7 in Figure 3a [40]. This indicates that when the Co/Ni molar ratio is 0.1:0.9, the product is dominated by NiTiO3. When the Co/Ni molar ratio is increased to 0.9:0.1, peaks P1, P2, P3 and P7 shift to P1′, P2′, P3′ and P7′ in Figure 3c, which correspond to those of CoTiO3 (the characteristic peaks of CoTiO3 are around 237, 266, 335 and 695 cm−1 [9]). It is worth mentioning that, in Figure 3a, the peak near 460 cm−1 corresponds to the characteristic peak of NiTiO3 [40], which can be explained by the fact that when the Co/Ni molar ratio is very low, and the phase in the product is dominated by NiTiO3. As the Co/Ni molar ratio increases, the peak shifts to near 445 cm−1 in Figure 3c, a position that corresponds to the characteristic peak of the rutile phase TiO2 [41]. This is in agreement with the XRD results in Figure 2, where the rutile phase appears in the product when the Co/Ni molar ratio is high, as seen in Figure 2e. The change in the position of the peaks between Figure 3a,c indicates that the product changes from being NiTiO3 dominated to CoTiO3 dominated as the Co/Ni molar ratio increases.

3.3. FE-SEM Observations

Figure 4 shows FE-SEM images of the precursor TiO2 microspheres, the intermediate microspheres at a Co/Ni molar ratio of 0.5:0.5 and the resulting composite pigment powder after calcination at 800 °C. The surface of the precursor TiO2 microspheres is mesoporous, the sphericity of the microspheres is regular and the particle size is relatively uniform, as can be seen in Figure 4(a1,a2). The detailed microscopic and structure characterization of the precursor TiO2 microspheres has already been reported by us [38]. Figure 4(b1,b2) shows many flakes attached to the surface of the intermediate microspheres, which are probably the reaction products of Co and Ni salts with urea during the water bath heating process (see Equations (1) and (2)). As the precursor TiO2 is a porous structured microsphere, and TiO2 tends to adsorb hydroxyl groups, this makes it easier for Co(OH)2 and Ni(OH)2 to be generated and attached to the TiO2 surface during the water bath process. Figure 4(c1,c2) shows that, after calcination, the flakes attached to the surface of the synthesized microspheres have disappeared due to the solid phase reaction between the oxides generated by the decomposition of Co(OH)2 and Ni(OH)2 at high temperatures and TiO2, which yields CoTiO3 and NiTiO3 on the surface of the synthesized microspheres (see Equations (3) and (4)), which agrees with the results of X-ray diffraction and Raman spectroscopy. For further proof, EDS analysis of the red boxed area in Figure 4(c2) was carried out to determine the elements of the product, and the results are shown in Figure 5. The spectrum confirms the presence of Ti, Ni, Co and O elements in the product, indicating that CoTiO3 and NiTiO3 were indeed generated on the surface of the synthesized microspheres. The estimated atomic ratios of these elements are close to the nominal ones. In contrast to the results of Zou et al. [9,20], the pigment particles prepared in this work have better mono-dispersity and a more homogeneous particle size while ensuring the purity of the sample, making them more suitable for industrial inkjet printing.
Figure 6 shows the FE-SEM images of the samples with different Co/Ni molar ratios after calcination at 800 °C. As shown in Figure 6(a1,a2), at a Co/Ni molar ratio of 0.1:0.9, many particles approximately 100 μm in size are attached to the surface of the calcined product. Combined with the XRD results in Section 3.1, we can conclude that these particles are mainly NiO left over from the incomplete reaction with TiO2. From Figure 4(c1,c2) and Figure 6(b1,b2), it can be stated that: (i) the remaining particles on the surface of the synthesized microspheres gradually decrease in number as the amount of Co source increases, and (ii) when the Co/Ni molar ratio is 0.5:0.5, the surface of the product microspheres is the smoothest, and the synthesized particles have regular sphericity and are homogeneous in size. Laser particle size analysis of the sample with a Co/Ni molar ratio of 0.5:0.5 was carried out, and the results are shown in Figure 7. It can be seen that the average particle size of composite pigments is around 1.8 μm. With a further increase in the Co/Ni molar ratio at 0.7:0.3 and 0.9:0.1, Figure 6(c1,c2,d1,d2) indicate that the number of particles attached to the surface of the synthesized microspheres gradually increases again. When the Co/Ni molar ratio is 0.9:0.1, it can be seen in Figure 6(d1,d2) that, similar to the situation when the Co/Ni molar ratio is 0.1:0.9, the particles attached to the product surface are mainly Co3O4 formed by further oxidation of the remaining CoO that has not reacted completely with TiO2.

3.4. TEM Images

The microstructures of the obtained composite pigments with a Co/Ni molar ratio of 0.5:0.5 were further characterized by TEM, and the images are shown in Figure 8. The as-prepared pigments’ diameter was mainly around 1.8 μm (Figure 8a), which is consistent with the FE-SEM and laser particle size analysis results shown in Figure 4(c1,c2) and Figure 7, respectively. The composite pigment powder has a typical core–shell structure with a relatively smoothed out layer that is approximately 80 nm thick (Figure 8a). The high-resolution TEM (HRTEM) image of the particle edge provides information on the phase of the shell of the composite pigment. As shown in Figure 8b, the outer layer exhibits clear lattice fringes, which denotes a crystalline structure. The inter-planar spacing was calculated to be around 0.27 nm, which is consistent with the distance between two (104) crystal planes of ilmenite CoTiO3 and NiTiO3 [9,37]. By combining XRD and Raman results, we can conclude that when the Co/Ni ratio is 0.5:0.5, the prepared composite pigment particles consist of an outer CoTiO3/NiTiO3 shell and inner TiO2 core.

3.5. Colorimetric Analysis

Figure 9 shows photographs of the composite pigment powders obtained after calcination at 800 °C for samples with different Co/Ni molar ratios. Figure 10 depicts the values of the colorimetric parameters of the corresponding composite pigment powders shown in Figure 9. As can be seen from Figure 9, the color of the calcined product changes from yellow-green to dark green as the Co/Ni molar ratio increases, and this trend is further confirmed by the values of the colorimetric parameters (Figure 10).
As seen from the results in Figure 10, the luminosity values (L*) of the calcined products decrease from 60.1 to 42.4 as the Co content increases. This might be due to the solid phase reaction of bright TiO2 with NiO and CoO to generate green CoTiO3 and yellow NiTiO3, respectively, which act as a shell covering the surface of TiO2, resulting in a decrease in the luminosity values (L*) of the calcined products. Meanwhile, as the Co content increases, the excess black Co3O4 phase in the product shades the surface of the spherical powder, which leads to a decrease in the luminosity values (L*) of the calcined products [42].
The yellow values (b*) show a similar trend, decreasing from 18.3 to 1.7 as the amount of Ni source decreases, resulting in a decrease in the quantity of yellow NiTiO3 formed by the solid phase reaction with TiO2.
The green values (−a*) tend to increase and then decrease with the increase in Co content. The green values reach the maximum value of 16.6 when the Co/Ni molar ratio is 0.5:0.5, and then decrease. The reason for the initial increase in the green values is the increase in Co content, which causes TiO2 to react with more CoO in the solid phase to form more CoTiO3, which is green in color. As the Co content increases further, excess black Co3O4 phase is generated, which shades the CoTiO3 and leads to a decrease in the green values of the calcined products. The variation in the green values with the Co/Ni molar ratio for the samples prepared in this work follows a similar tendency to that observed by Zou et al. [9] with an increasing and then decreasing trend.
The colorimetric analysis shows that the change in phase composition leads to a difference in the color properties of the products, and the experimental results show that the chromaticity properties of the pigments can be modulated by changing the molar ratio of Co/Ni.

4. Conclusions

In this study, CoTiO3/NiTiO3 co-coated TiO2 core–shell structure composite pigment particles were prepared by wet chemical synthesis and high-temperature calcination using as substrates amorphous TiO2 microspheres with good mono-dispersity and a large number of mesopores on the surface. When the calcination temperature is 800 °C and the Co/Ni molar ratio is 0.5:0.5, the obtained product consists of a TiO2 core and outer ilmenite CoTiO3/NiTiO3 shell, and no impurities such as Co3O4 or NiO are found. The Raman spectroscopy technique has allowed us to identify the phases NiTiO3 and CoTiO3. The surface of the microspheres is smooth, and the particles are of regular sphericity, with a uniform particle size of about 1.8 μm. As the Co content increases, the luminosity (L*) and yellow (b*) values of the calcined products decrease (L* value: from 60.1 to 42.4, and b* value: from 18.3 to 1.7), and the green values (−a*) show increasing and then decreasing trends (−a* value: from 11.6 to 16.6 and then to 7.0). At the same time, the color of the product changes from yellow-green to dark green. A Co/Ni molar ratio that is too high or too low results in the formation of by-products such as Co3O4 or NiO, respectively, which adhere to the product’s surface and affect the chromaticity of the product. This work has enabled the chromatic modulation of yellow-green inorganic pigments, providing a solution for the preparation of spherical inorganic pigments that are more suitable for industrial inkjet printing.

Author Contributions

Conceptualization, Y.C. (Yuan Chen) and Y.C. (Ying Chang); methodology, Y.C. (Yuan Chen) and M.-C.R.; software, Z.W. and J.J.; validation, Y.C. (Yuan Chen), P.B., and M.-C.R.; formal analysis, Y.C. (Yuan Chen); investigation, W.G. and Y.H.; resources, Y.C. (Yuan Chen); data curation, W.G.; writing—original draft preparation, Y.C. (Yuan Chen); writing—review and editing, M.-C.R. and P.B.; visualization, Z.W. and J.J.; supervision, Y.C. (Ying Chang) and M.-C.R.; project administration, Y.C. (Yuan Chen); funding acquisition, Y.C. (Yuan Chen). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Hubei Province, grant number 2020CFB408, the Scientific Research Program of Hubei Provincial Department of Education, grant number Q20201401 and the Hubei Provincial Key Laboratory of Green Materials for Light Industry, grant number 201710A06. The APC was funded by the Natural Science Foundation of Hubei Province.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sun, S.J.; Hao, D.; Hou, X.F. Preparation of CaCO3-TiO2 composite particles and their pigment properties. Materials 2018, 11, 1131. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Zhang, H.; Sun, S.; Liu, W.; Ding, H.; Zhang, J. Synthesis of perovskite by solid-phase method with metatitanic acid and calcium carbonate and its pigment properties investigation. Materials 2020, 13, 1508. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Primo, J.O.; Borth, K.W.; Peron, D.C.; Teixeira, V.C.; Galante, D.; Bittencourt, C.; Anaissi, F.J. Synthesis of green cool pigments (CoxZn1-xO) for application in NIR radiation reflectance. J. Alloys Compd. 2019, 780, 17–24. [Google Scholar] [CrossRef]
  4. Wei, G.Y.; Qu, J.K.; Yu, Z.H.; Li, Y.; Guo, Q.; Qi, T. Mineralizer effects on the synthesis of amorphous chromium hydroxide and chromium oxide green pigment using hydrothermal reduction method. Dye. Pigment. 2015, 113, 487–495. [Google Scholar] [CrossRef]
  5. Yang, H.; Mu, B.; Li, S.; Wang, X.W.; Wang, A.Q. Preparation and coloring mechanism of MAl2O4/CoAl2O4/quartz sand (M = Ca or Ba) composite pigments. Mater. Chem. Phys. 2022, 276, 125413. [Google Scholar] [CrossRef]
  6. Cao, L.Y.; Fei, X.; Zhao, H.B. Environmental substitution for PbCrO4 pigment with inorganic-organic hybrid pigment. Dye. Pigment. 2017, 142, 100–107. [Google Scholar] [CrossRef]
  7. Masui, T.; Takeuchi, N.; Nakado, H.; Imanaka, N. Novel environment-friendly green pigments based on rare earth cuprate. Dye. Pigment. 2015, 113, 336–340. [Google Scholar] [CrossRef]
  8. Li, Z.F.; Du, Y.; Chen, Z.T.; Sun, D.; Zhu, C. Synthesis and characterization of cobalt doped green ceramic pigment from tannery sludge. Ceram. Int. 2015, 41, 12693–12699. [Google Scholar] [CrossRef]
  9. Zou, J.; Zheng, W. TiO2@CoTiO3 complex green pigments with low cobalt content and tunable color properties. Ceram. Int. 2016, 42, 8198–8205. [Google Scholar] [CrossRef]
  10. Jose, S.; Joshy, D.; Narendranath, S.B.; Periyat, P. Recent advances in infrared reflective inorganic pigments. Sol. Energy Mater. Sol. Cells 2019, 194, 7–27. [Google Scholar] [CrossRef]
  11. Menon, S.G.; Swart, H.C. Microwave-assisted synthesis of blue-green NiAl2O4 nanoparticle pigments with high near-infrared reflectance for indoor cooling. J. Alloys Compd. 2020, 819, 152991. [Google Scholar] [CrossRef]
  12. Farha, A.H.; Ibrahim, M.M.; Mansour, S.A. Ga-doped ZnO nanostructured powder for cool-nanopigment in environment applications. Materials 2020, 13, 5152. [Google Scholar] [CrossRef] [PubMed]
  13. Chen, J.G.; Yu, Y.; Feng, A.H.; Mi, L.; Xiu, H.X.; Yu, Y. Optical properties and radiation stability of SiO2/ZnO composite pigment prepared by co-sintering method. Ceram. Int. 2022, 48, 754–759. [Google Scholar] [CrossRef]
  14. Shah, K.W.; Huseien, G.F.; Kua, H.W. A State-of-the-art review on core–shell pigments nanostructure preparation and test methods. Micro 2021, 1, 55–85. [Google Scholar] [CrossRef]
  15. Chen, C.L.; Han, A.J.; Ye, M.Q.; Wang, J.Y.; Chen, X. A new thermal insulation ceramic pigment: Ce-doped Y3Al5O12 compounds combined with high near-infrared reflectance and low thermal conductivity. J. Alloys Compd. 2021, 886, 161257. [Google Scholar] [CrossRef]
  16. Moghtada, A.; Shahrouzianfar, A.; Ashiri, R. Facile synthesis of NiTiO3 yellow nano-pigments with enhanced solar radiation reflection efficiency by an innovative one-step method at low temperature. Dye. Pigment. 2017, 139, 388–396. [Google Scholar] [CrossRef]
  17. Wang, J.-L.; Li, Y.-Q.; Byon, Y.-J.; Mei, S.-G.; Zhang, G.-L. Synthesis and characterization of NiTiO3 yellow nano pigment with high solar radiation reflection efficiency. Powder Technol. 2013, 235, 303–306. [Google Scholar] [CrossRef]
  18. Giraldi, T.R.; Dias, J.A.; Baggio, C.M.; Maestrelli, S.C.; Oliveira, J.A. Anatase-to-rutile transition in co-doped TiO2 pigments. J. Sol-Gel Sci. Technol. 2017, 83, 115–123. [Google Scholar] [CrossRef]
  19. Vijayalakshmi, R.; Rajendran, V. Synthesis, structural characterisation and optical properties of nanoparticles of MTiO3 (M = Ni and Co) obtained by the chemical method. Int. J. Nanoparticles 2013, 6, 28–37. [Google Scholar] [CrossRef]
  20. Zou, J.; Chen, Y.P.; Zhang, P. Influence of Crystallite size on color properties and NIR reflectance of TiO2@NiTiO3 inorganic pigments. Ceram. Int. 2021, 47, 12661–12666. [Google Scholar] [CrossRef]
  21. Saber, N.B.; Mezni, A.; Alrooqi, A.; Altalhi, T. Facile one-pot solvothermal approach to produce inorganic binary TiO2@NiTiO3 and ternary Au-TiO2@NiTiO3 yellow nano-pigment for environmental and energy use. Mater. Res. Express 2021, 8, 045016. [Google Scholar] [CrossRef]
  22. Thejus, P.K.; Krishnapriya, K.V.; Nishanth, K.G. A cost-effective intense blue colour inorganic pigment for multifunctional cool roof and anticorrosive coatings. Sol. Energy Mater. Sol. Cells 2021, 219, 110778. [Google Scholar] [CrossRef]
  23. Zhang, L.B.; Wu, P.; Chen, H.; Yuan, L.; Yang, G.; Xie, H.; Liang, D.; Xie, J.; Deng, L. Effect of calcination temperature on visible near-infrared reflectance of aluminum-doped chromium. Mater. Sci. Semicond. Process. 2020, 105, 104672. [Google Scholar] [CrossRef]
  24. Gabal, M.A.; Angari, Y.M.; Obaid, A.Y. Structural characterization and activation energy of NiTiO3 nanopowders prepared by the co-precipitation and impregnation with calcinations. C. R. Chim. 2013, 16, 704–711. [Google Scholar] [CrossRef]
  25. He, R.L.; Hocking, R.K.; Tsuzuki, T. Co-doped ZnO nanopowders: Location of cobalt and reduction in photocatalytic activity. Mater. Chem. Phys. 2012, 132, 1035–1040. [Google Scholar] [CrossRef]
  26. Sekhar, M.C.; Reddy, B.P.; Prakash, B.P.; Park, S.-H. Effects of annealing temperature on phase transformation of CoTiO3 nanoparticles and on their structural, optical, and magnetic properties. J. Supercond. Nov. Magn. 2020, 33, 407–415. [Google Scholar] [CrossRef]
  27. Sadjadi, M.S.; Zare, K.; Khanahmadzadeh, S.; Enhessari, M. Structural characterization of NiTiO3 nanopowders prepared by stearic acid gel method. Mater. Lett. 2008, 62, 3679–3681. [Google Scholar] [CrossRef]
  28. Lu, J.; Jiang, Y.; Zhang, Y.; Huang, J.; Xu, Z. Preparation of gas sensing CoTiO3 nanocrystallites using EDTA as the chelating agent in a sol-gel process. Ceram. Int. 2015, 41, 3714–3721. [Google Scholar] [CrossRef]
  29. Yu, F.; Yang, J.; Ma, J.; Du, J.; Zhou, Y. Preparation of nanosized CoAl2O4 powders by sol-gel and sol-gel-hydrothermal methods. J. Alloys Compd. 2009, 468, 443–446. [Google Scholar] [CrossRef]
  30. Gabal, M.A.; Hameed, S.A.; Obaid, A.Y. CoTiO3 via cobalt oxalate-TiO2 precursor. Synthesis and characterization. Mater. Charact. 2012, 71, 87–94. [Google Scholar] [CrossRef]
  31. Ai, S.H.; Zheng, H.D.; Yu, J.C. Preparation and reflectance spectrum modulation of Cr2O3 green pigment by solution combustion synthesis. Materials 2020, 13, 1540. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Rasouli, S.; Danaee, I. Effect of preparation method on the anti-corrosive properties of nanocrystalline Zn-CoO ceramic pigments. Mater. Corros. 2011, 62, 405–410. [Google Scholar] [CrossRef]
  33. Anjana, P.S.; Sebastian, M.T. Synthesis, characterization, and microwave dielectric properties of ATiO3 (A = Co, Mn, Ni) ceramics. J. Am. Ceram. Soc. 2010, 89, 2114–2117. [Google Scholar] [CrossRef]
  34. Tong, Y.P.; Fu, J.; Chen, Z. Synthesis, characterization, and NIR reflectance of highly dispersed NiTiO3 and NiTiO3/TiO2 composite pigments. J. Nanomater. 2016, 52, 829–883. [Google Scholar] [CrossRef]
  35. Legodi, M.A.; de Waal, D. The preparation of magnetite, goethite, hematite and maghemite of pigment quality from mill scale iron waste. Dye. Pigment. 2007, 74, 161–168. [Google Scholar] [CrossRef]
  36. Demarchis, L.; Sordello, F.; Minella, M.; Minero, C. Tailored properties of hematite particles with different size and shape. Dye. Pigment. 2015, 115, 204–210. [Google Scholar] [CrossRef]
  37. He, X.; Wang, F.; Liu, H.; Li, J.; Niu, L. Synthesis and coloration of highly dispersed NiTiO3@TiO2 yellow pigments with core-shell structure. J. Eur. Ceram. Soc. 2017, 37, 2965–2972. [Google Scholar] [CrossRef]
  38. Chang, Y.; He, P.; Wei, Z.; Chen, Y.; Wang, H.; Wu, C.; Zhou, Z.; Huang, H.; Kowalska, E.; Dong, S. Three-dimensional monodispersed TiO2 microsphere network formed by a sub-zero sol-gel method. Mater. Lett. 2020, 268, 127592. [Google Scholar] [CrossRef]
  39. Mathpal, M.C.; Tripathi, A.K.; Singh, M.K.; Gairola, S.P.; Pandey, S.N.; Agarwal, A. Effect of annealing temperature on Raman spectra of TiO2 nanoparticles. Chem. Phys. Lett. 2012, 555, 182–186. [Google Scholar] [CrossRef]
  40. Lopes, K.P.; Cavalcante, L.S.; Simões, A.Z.; Varela, J.A.; Longo, E.; Leite, E.R. NiTiO3 powders obtained by polymeric precursor method: Synthesis and characterization. J. Alloys Compd. 2009, 468, 327–332. [Google Scholar] [CrossRef]
  41. Zou, J. Low temperature preparation of Cr-doped rutile pigments with good colour properties. Dye. Pigment. 2013, 97, 71–76. [Google Scholar] [CrossRef]
  42. Yadav, M.K.; Kothari, A.V.; Gupta, V.K. Preparation and characterization of bi- and trimetallic titanium based oxides. Dye. Pigment. 2011, 89, 149–154. [Google Scholar] [CrossRef]
Materials 15 01456 g001 550

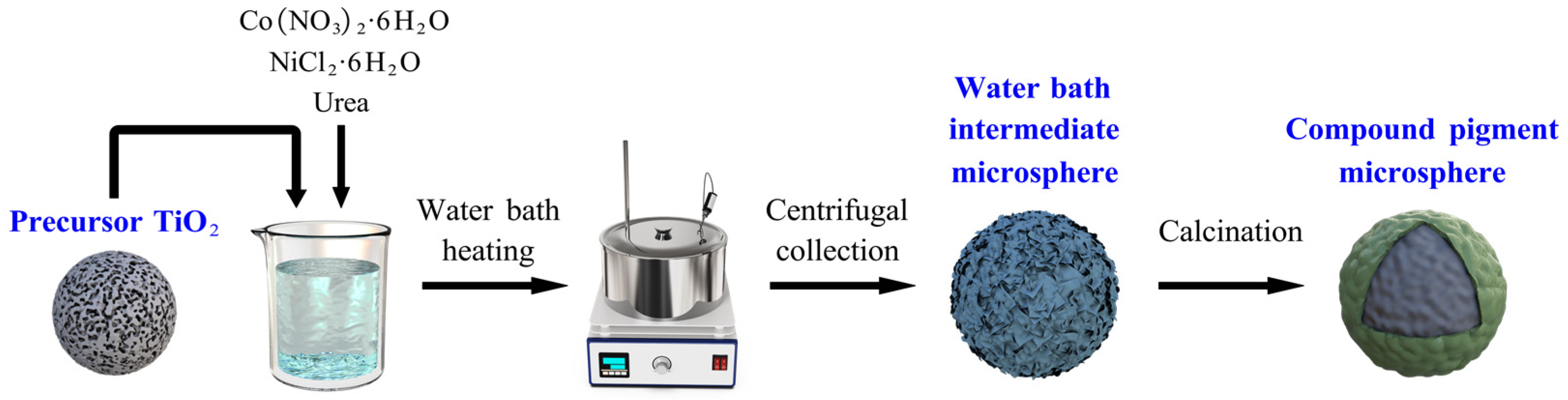

Figure 1. Process diagram for the preparation of composite pigment powders.
Figure 1. Process diagram for the preparation of composite pigment powders.
Materials 15 01456 g001
Materials 15 01456 g002 550
Figure 2. XRD patterns of the products after calcination at 800 °C for samples with different Co/Ni molar ratios: (a) 0.1:0.9, (b) 0.3:0.7, (c) 0.5:0.5, (d) 0.7:0.3, (e) 0.9:0.1.
Figure 2. XRD patterns of the products after calcination at 800 °C for samples with different Co/Ni molar ratios: (a) 0.1:0.9, (b) 0.3:0.7, (c) 0.5:0.5, (d) 0.7:0.3, (e) 0.9:0.1.
Materials 15 01456 g002
Materials 15 01456 g003 550
Figure 3. Raman spectra of products after calcination at 800 °C for samples with different Co/Ni ratios: (a) 0.1:0.9, (b) 0.5:0.5, (c) 0.9:0.1.
Figure 3. Raman spectra of products after calcination at 800 °C for samples with different Co/Ni ratios: (a) 0.1:0.9, (b) 0.5:0.5, (c) 0.9:0.1.
Materials 15 01456 g003
Materials 15 01456 g004 550
Figure 4. FE-SEM images of (a1,a2) the home-made TiO2 precursor microspheres, (b1,b2) the intermediate microspheres at a Co/Ni molar ratio of 0.5:0.5 and (c1,c2) the composite pigment powder obtained after calcination of the powder in (b1,b2) at 800 °C.
Figure 4. FE-SEM images of (a1,a2) the home-made TiO2 precursor microspheres, (b1,b2) the intermediate microspheres at a Co/Ni molar ratio of 0.5:0.5 and (c1,c2) the composite pigment powder obtained after calcination of the powder in (b1,b2) at 800 °C.
Materials 15 01456 g004
Materials 15 01456 g005 550

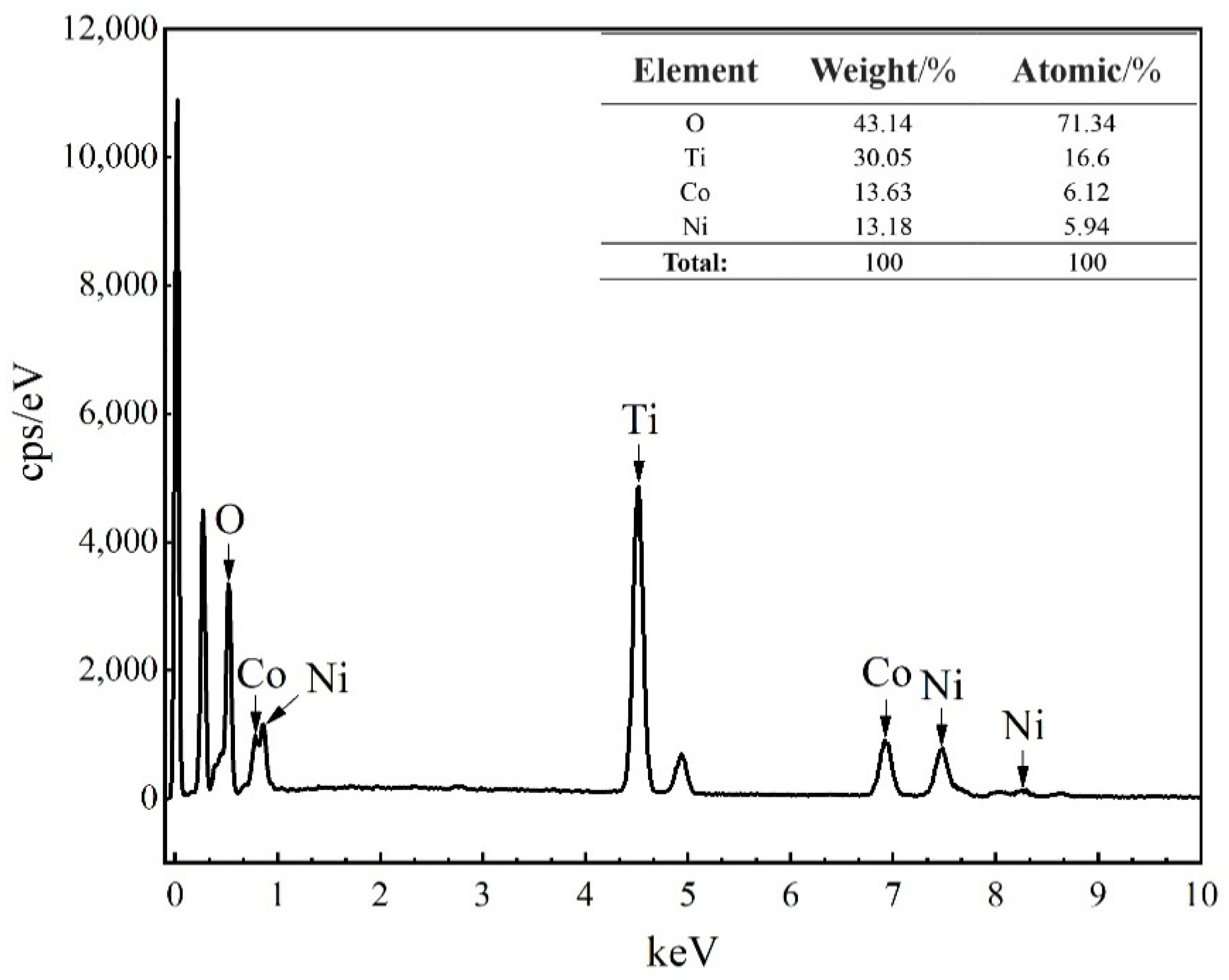

Figure 5. EDS spectrum of products calcined at 800 °C with a Co/Ni ratio of 0.5:0.5 (the analyzed area corresponds to the red box marked in Figure 4(c2)).
Figure 5. EDS spectrum of products calcined at 800 °C with a Co/Ni ratio of 0.5:0.5 (the analyzed area corresponds to the red box marked in Figure 4(c2)).
Materials 15 01456 g005
Materials 15 01456 g006 550

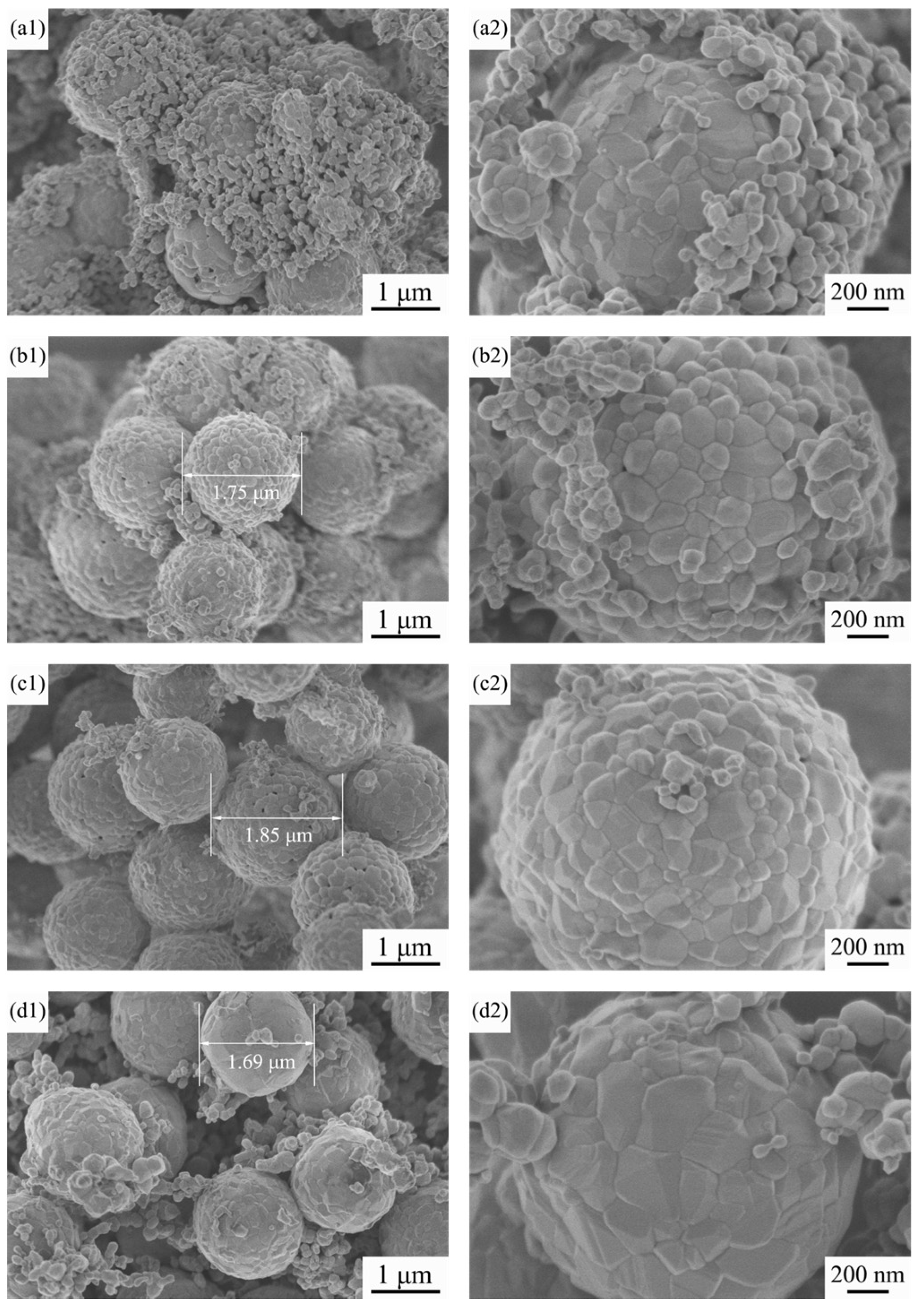

Figure 6. FE-SEM images of the intermediate microspheres after calcination at 800 °C for different Co/Ni molar ratios: (a1,a2) 0.1:0.9, (b1,b2) 0.3:0.7, (c1,c2) 0.7:0.3, (d1,d2) 0.9:0.1.
Figure 6. FE-SEM images of the intermediate microspheres after calcination at 800 °C for different Co/Ni molar ratios: (a1,a2) 0.1:0.9, (b1,b2) 0.3:0.7, (c1,c2) 0.7:0.3, (d1,d2) 0.9:0.1.
Materials 15 01456 g006
Materials 15 01456 g007 550

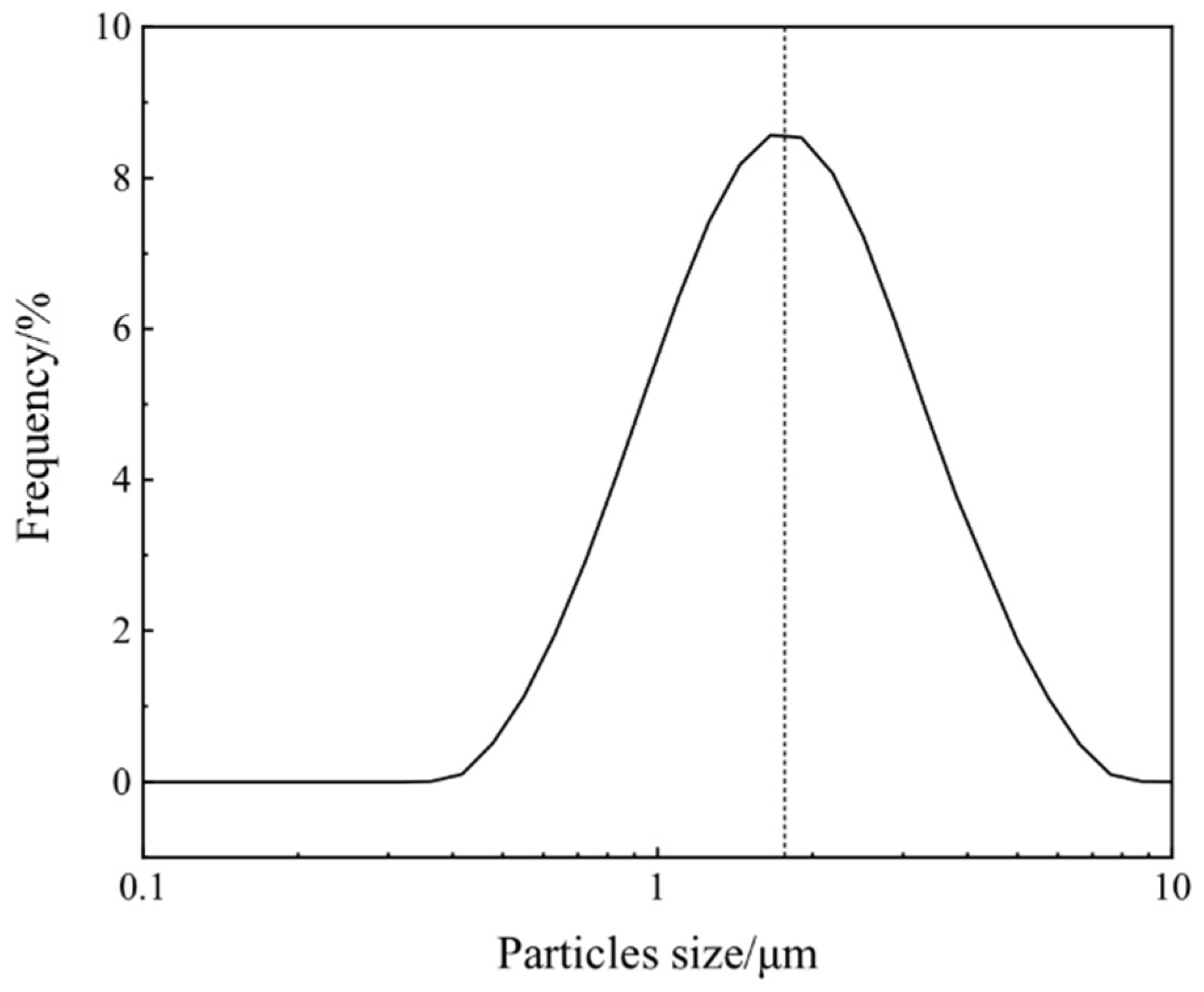

Figure 7. Particle size distribution of the composite pigment powder obtained after calcination at 800 °C for a Co/Ni molar ratio of 0.5:0.5.
Figure 7. Particle size distribution of the composite pigment powder obtained after calcination at 800 °C for a Co/Ni molar ratio of 0.5:0.5.
Materials 15 01456 g007
Materials 15 01456 g008 550

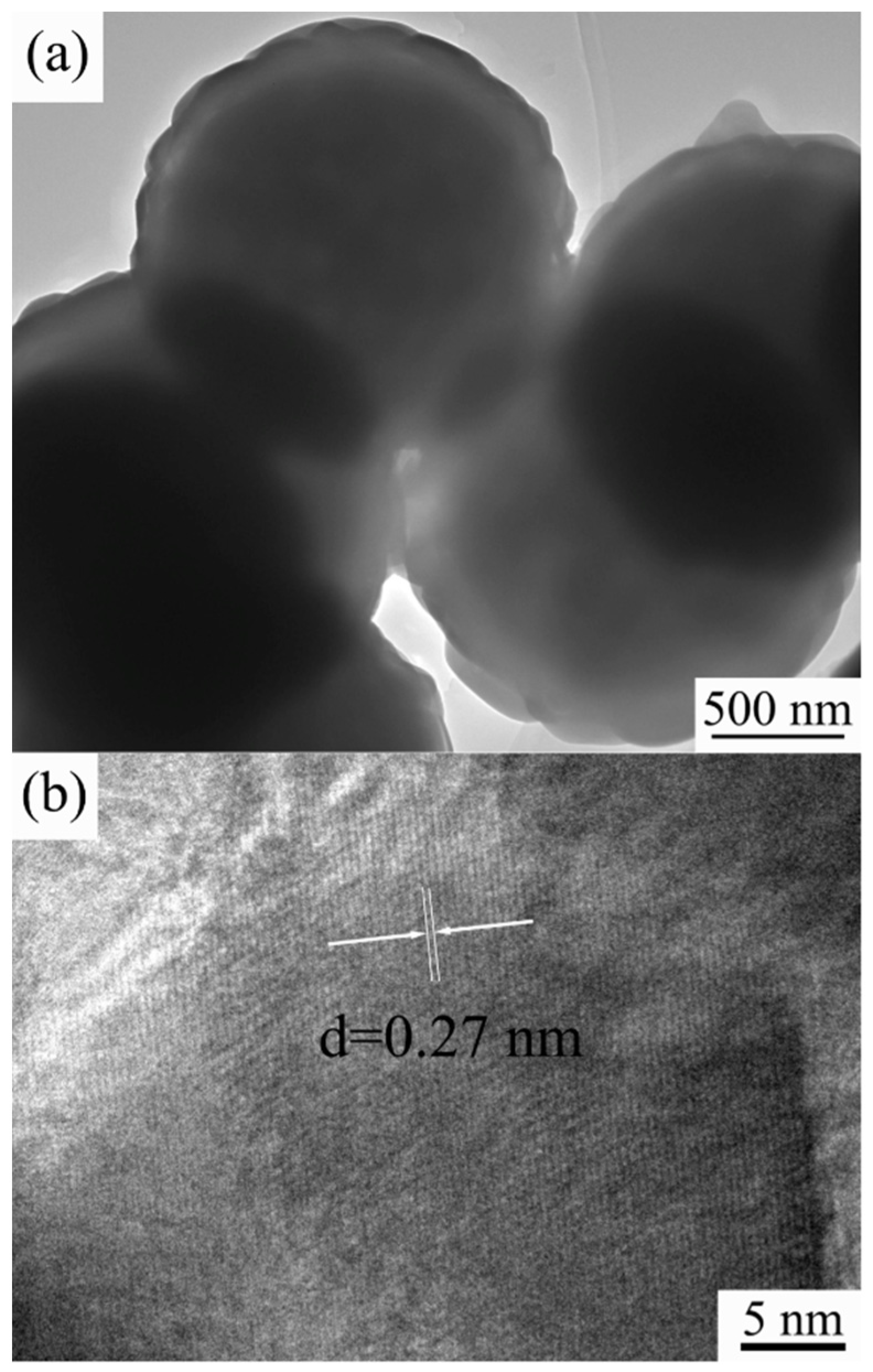

Figure 8. TEM (a) and HRTEM (b) images of the prepared composite pigments with a Co/Ni molar ratio of 0.5:0.5.
Figure 8. TEM (a) and HRTEM (b) images of the prepared composite pigments with a Co/Ni molar ratio of 0.5:0.5.
Materials 15 01456 g008
Materials 15 01456 g009 550

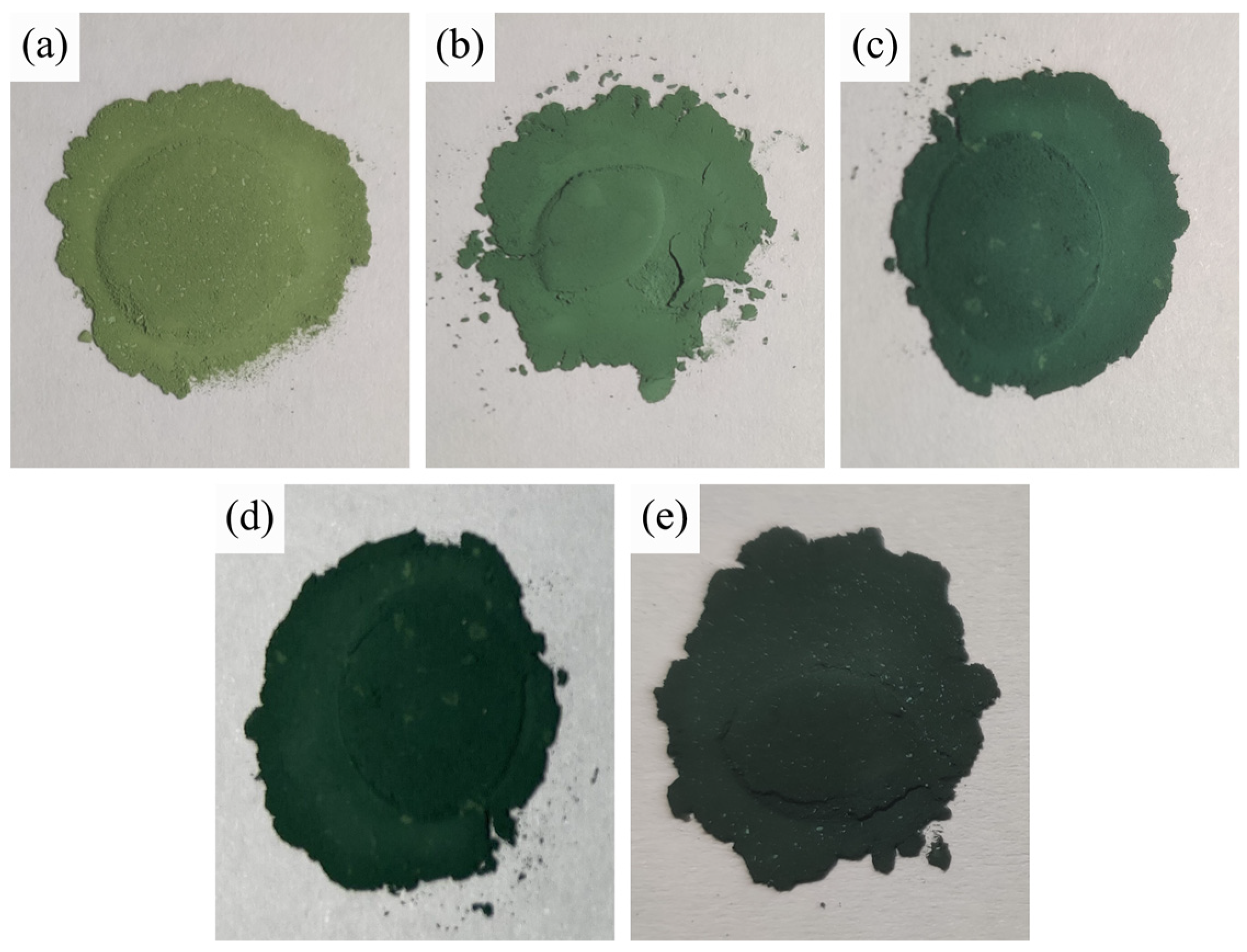

Figure 9. Photographs of the composite pigment powders obtained after calcination at 800 °C for samples with different Co/Ni molar ratios: (a) 0.1:0.9, (b) 0.3:0.7, (c) 0.5:0.5, (d) 0.7:0.3, (e) 0.9:0.1.
