Tuning the Defects of Two-Dimensional Layered Carbon/TiO2 Superlattice Composite for a Fast Lithium-Ion Storage

by
Bingheng Liu
1,2,3,
Bo Gu
2,3,
Jingxian Wang
2,3,
Anchang Li
2,3,
Ming Zhang
2,3,* and
Zhongrong Shen
1,2,3,*
1
College of Chemistry, Fuzhou University, Fuzhou 350108, China
2
CAS Key Laboratory of Design and Assembly of Functional Nanostructures, and Fujian Key Laboratory of Nanomaterials, Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences, Fuzhou 350002, China
3
Xiamen Key Laboratory of Rare Earth Photoelectric Functional Materials, Xiamen Institute of Rare Earth Materials, Haixi Institute, Chinese Academy of Sciences, Xiamen 361021, China
*
Authors to whom correspondence should be addressed.
Materials 2022, 15(5), 1625; https://doi.org/10.3390/ma15051625
Submission received: 24 January 2022 / Revised: 9 February 2022 / Accepted: 10 February 2022 / Published: 22 February 2022
Browse Figures
Versions Notes

Abstract

:
Defect engineering is one of the effective ways to improve the electrochemical property of electrode materials for lithium-ion batteries (LIB). Herein, an organic functional molecule of p-phenylenediamine is embedded into two-dimensional (2D) layered TiO2 as the electrode for LIB. Then, the 2D carbon/TiO2 composites with the tuning defects are prepared by precise control of the polymerization and carbothermal atmospheres. Low valence titanium in metal oxide and nitrogen-doped carbon nanosheets can be obtained in the carbon/TiO2 composite under a carbonization treatment atmosphere of N2/H2 gas, which can not only increase the electronic conductivity of the material but also provide sufficient electrochemical active sites, thus producing an excellent rate capability and long-term cycle stability. The prepared composite can provide a high capacity of 396.0 mAh g−1 at a current density of 0.1 A g−1 with a high capacitive capacity ratio. Moreover, a high specific capacity of 80.0 mAh g−1 with retention rate of 85% remains after 10,000 cycles at 3.0 A g−1 as well as the Coulomb efficiency close to 100%. The good rate-capability and cycle-sustainability of the layered materials are ascribed to the increase of conductivity, the lithium-ion transport channel, and interfacial capacitance due to the multi-defect sites in the layered composite.

Graphical Abstract

1. Introduction

The development of the next-generation electrode materials for high-power density LIB is one of the main domains that we urgently need to focus on. Two-dimensional metal oxides are considered to be one kind of potential electrode material for high-performance LIB due to their short active paths and highly exposed active sites on the surface. However, the low electronic conductivity seriously restricts their electrochemical properties [1,2,3,4,5]. Therefore, the combination of 2D metal oxide and carbon nanosheet is an effective solution to improve the conductivity of the metal oxide [6,7].
Recently, we have successfully inserted amine molecules (benzylamine, benzidine, and 3,3′-diaminobenzidine) into the interlayer of 2D-layered TiO2 nanosheets through the “wedge reaction”, and subsequently synthesized a layer-by-layer stacked carbon/TiO2 nanosheet superlattice composite with an excellent capability as the electrodes for LIB [8,9]. Well-defined interlayered graphene-like carbon nanosheets have been prepared after in situ polymerization and carbonization of amine molecular monomers between 2D-layered metal oxide. However, the carbothermal reaction in the final carbonization process needs a step of sintering the carbon precursor into the stable graphene-like carbon nanosheets, which leads to the reduction of the doped Ni and TiO2, resulting in an unclear lithium-ion storage mechanism in the 2D-layered carbon/TiO2 superlattice composites.
Recently, as Ti3+ have been reported to exhibit a faster electron transfer rate than Ti4+, it is attractive to enhance the conductivity of TiO2 by the partial reduction of Ti4+ [10,11,12]. Meanwhile, it is well known that doping nitrogen atoms with relatively high electronegativity and a small atomic radius into the host carbon is beneficial to enhance the insertion of lithium-ions, and then affects the charge and discharge capability in the process of the electrochemical lithium storage [13]. On the other hand, the introduction of nitrogen as a donor state can improve the conductivity of the carbon materials [14,15,16,17,18,19,20,21]. Moreover, nitrogen doping can be obtained by in situ growth of small nitrogen-containing molecules and carbon sources, or by direct thermal decomposition of nitrogen-containing organic precursors. Peng et al. have reported using melamine and pitch as nitrogen sources and the carbon precursors to synthesize N-doped 2D carbon nanosheets by a molten salt method for LIB, which demonstrates a high capacity of more than 800 mAh g−1 at a current density of 0.1 A g−1 [22]. Zheng et al. have reported to directly pyrolyze nitrogen-containing zeolite imidazolate skeleton ZIF-8 into N-doped 3D carbon material under N2 [23]. Additionally, an amount as high as 17.7 wt% nitrogen-content in the carbon material can significantly improve the cycle stability of the electrode. Therefore, it is of great significance for carbon precursors to be intercalated between 2D-layered metal oxide nanosheets in the confined polymerization systems, in order to increase the conductivity of the composites.
Herein, we demonstrate that defect engineering can be used to improve the electrochemical properties of layered carbon/TiO2 superlattice composites. By precise control of the polymerization and carbothermal atmospheres, low valence titanium in metal oxide and nitrogen-doped carbon nanosheets can be obtained in the carbon/TiO2 superlattice composite. By optimizing the polymerization and carbonization conditions of the interlaminar p-phenylenediamine (p-PDA) molecules under different atmospheres (N2, N2/H2, and H2), p-PDA is successfully converted into a stable N-doped carbon nanosheet between 2D-layered metal oxide after the carbothermal reaction. Moreover, the formation of Ti3+ defects is a conductive favored in the lattice-distorted metal oxide layer, which further enhances the electrochemical lithium storage properties. The main framework and interlayer regulation of this kind of metal oxide/carbon composite structure provide experience for the construction of various self-assembled 2D-layered metal oxide/carbon nanosheet superlattice composites.

2. Materials and Methods

2.1. Material Preparation

Benzylamine/Ni-doped TiO2 (benzylamine/NTO) was used as the start material according to our previous report [8,9]. P-phenylenediamine/NTO was prepared by the molecular exchange reaction of p-phenylenediamine (1 g) with benzylamine/NTO (1 g) at 100 °C for 5 h in water (60 mL). The produced P-phenylenediamine/NTO was then subjected to pretreatment at 200 °C for 6 h in the O2 atmosphere. The temperature was then raised to 400 °C and treated for 6 h to obtain Poly-p-PDA/NTO. Next, the Poly-p-PDA/NTO was subjected to heat treatment at 500 °C for 3 h at N2, N2/H2 or H2 atmosphere, respectively. Finally, three carbon/TiO2 composites were obtained after the cleaning of the reduced Ni particles in the structure with 0.1 M HCl acid solution and a large amount of distilling water.

2.2. Electrochemical Characterization

The electrode slurry was prepared by mixing 80 wt% active material (carbon/TiO2), 10 wt% Vulcan carbon XC-72 (Cabot, Billerica, MA, USA) and 10 wt% polyvinylidene fluoride (HSV900, Kejing, Hefei, Anhui, China)/N-methyl-2-pyrrolidone (NMP, Dodochem, Suzhou, Jiangsu, China, anhydrous, 99.5%). The slurry was coated onto a copper foil and dried at 110 °C in a vacuum oven overnight. Electrochemical tests were carried out with a standard CR2032 button cell. Lithium metal and Celgard 2500 (Dodochem, Suzhou, Jiangsu, China) were used as the counter electrode and the diaphragm, respectively. The mass loading of the active material was about 2 mg cm−2. The electrolyte solution was 1.0 M LiPF6 in ethylene carbonate/diethylene carbonate (v/v = 1:1) (water < 10 ppm). The constant current charge/discharge cycle tests were conducted on the Neware battery cycler (Shenzhen Neware, Shenzhen, China). Cyclic voltammetry measurement was conducted on the CHI 760E electrochemical workstation (Shanghai Chenghua, Shanghai, China).

3. Results

P-PDA molecules were inserted into layered Ni-doped TiO2 nanosheets to prepare p-phenylenediamine/Ni-doped TiO2 (p-PDA/NTO) by following a similar method, as reported in our previous work [9]. After exploring the oxidative polymerization methods under different conditions, a regular and strictly layered structure was obtained for the poly-p-phenylenediamine/Ni-doped TiO2 (poly-p-PDA/NTO) composite. The polymerized samples were then subjected to carbonization treatments in different atmospheres (N2, N2/H2, and H2) and treated with an acid solution to remove the reduced Ni particles in the structures.
The degree of polymerization can be judged by the detailed characterization of the functional groups in the organic molecules between metal oxide layers. Figure 1a is the Fourier transform infrared spectra (FTIR) data for the samples before and after the polymerization treatments under different conditions. In detail, the p-PDA/NTO exhibits a C-N stretching vibration peak (alkyl) at 1050 and 1100 cm−1, a C-N stretching vibration peak (aryl) at 1260 cm−1, and an N-H bending vibration peak of the amino group on the aromatic ring at 1512 cm−1 is also displayed. With the increase of the polymerization temperature, the strength of the N-H bond decreases significantly, which indicates that amino groups in phenylenediamine are coupled to each other during the polymerization process. Moreover, full polymerization of p-PDA molecules under O2 can reduce the loss of carbon in the subsequent high-temperature carbonization process. However, it is worth noting that self-oxidation will lead to the degradation of organic matter. At a higher processing temperature, poly-p-PDA/NTO is severely self-oxidized, and the degradation of interlayer organic matter causes the layer spacing to decrease, and at the same time the layered TiO2 is partially transformed into anatase particles, resulting in the collapse of the layered structure. Therefore, it is particularly important to obtain the p-PDA/NTO samples with a higher polymerization degree and less oxidative degradation as much as possible. The thermogravimetric analysis (TG) curve in Figure 1b shows that the carbon nanosheet in the composite with a lower polymerization temperature has a relatively lower thermal stability, and poly-p-PDA/NTO samples at 200 and 200/300 °C all show an obvious weight loss below 400 °C in O2 atmosphere, which is due to the incomplete oxidative polymerization and the evaporation of free amino/aromatic rings between metal oxide layers at the lower temperatures. However, the weight loss for poly-p-PDA/NTO at 200/400 °C is negligible until 600 °C, indicating full oxidation with a two-step polymerization at 200/400 °C. Moreover, the carbon content in poly-p-PDA/NTO at 200/400 °C is similar to the other samples except for the influence of water.
Taking into account the advantages of heteroatom doping and oxygen defects into the electrode material for increasing energy storage sites and conductivity, in this work, the sample of poly-p-PDA/NTO at 200/400 °C are subjected to carbonization treatments under three different gases (N2, N2/H2, H2) to carry out defect modification. Three kinds of carbon/TiO2 composites can be obtained after the removal of Ni elements through the acid treatment of the sample after carbonization, as different carbonization conditions (N2, N2/H2, H2) can calibrate the defective structure of 2D-layered carbon/TiO2 superlattice composites, which can further affect their electrochemical lithium storage properties. In the process of carbonization, N2 can avoid the loss of heteroatom N in the carbon nanosheet to the greatest extent, which can produce a large number of topological defects and improve the conductivity of the composite as well as the intercalation properties of lithium ions [24]. Although it is not conducive for nitrogen doping in the reduction system, when H2 is present in the carbonization atmosphere, Ti4+ in layered TiO2 can be partially reduced to low-valent titanium dioxide (Tix+, x < 4), and the reduced Ni particles endow a large number of oxygen vacancies in the lattice of metal oxide; both of them can improve the conductivity of the composite material. Figure 1c is the X-ray diffraction (XRD) patterns of the carbon/TiO2 composites after the treatments in different gases (N2, N2/H2, H2), which are abbreviated as carbon/TiO2@N2, carbon/TiO2@H2, and carbon/TiO2@ N2/H2, respectively. The typical diffraction peaks of 001, 002, and 003 in the XRD patterns for each sample represent the regular layered structure, indicating the structure of carbon/TiO2 composite is stable during the carbonization process under different treatment atmospheres. As the Ni elements are precipitated during the carbonization treatment under the reducing atmosphere and can be washed away in the subsequent acidification process, lots of oxygen defects are introduced into the lattice of the layered TiO2. However, a weak diffraction peak of the anatase phase can be noticed from the XRD patterns as the defects caused by the reduction of Ni atoms induce the rearrangement of TiO6 octahedron in the layered TiO2, resulting in a small amount of the anatase phase. Figure 1d–f and Figure S1 represent the scanning electron microscope (SEM) images of the layered materials before and after the carbothermal reaction under three different gases. Generally, there is no obvious morphology difference for the three carbon/TiO2 superlattice composites.
The X-ray photoelectron spectroscopy (XPS) spectra of Ti 2p and N 1s for the carbon/TiO2 composites are shown in Figure 2. The band on the Ti 2p spin-orbital of carbon/TiO2 composites can be deconvolved into a characteristic peak with a Ti 2p3/2 binding energy center at 458.2 eV and 464.0 eV; this is a typical characteristic of Ti4+ [25]. In addition to the shoulder peak at lower binding energies, the Ti of carbon/TiO2@ N2/H2 and carbon/TiO2@H2 exhibit obvious Ti3+ splitting signals at the binding energy positions of 457.5 eV and 463.2 eV, respectively. The XPS spectra of Ti 2p confirm that Ti4+ in TiO2 have been partially reduced to Tix+ (x < 4) at the presence of H2 gas. This increase in the Ti3+ concentration can be attributed to the existence of lattice distortion, which allows for more accessible sites for the reduction of Ti4+ to Ti3+ under H2. The metal oxide layer in the 2D carbon/TiO2 composite is also rich in oxygen vacancies due to the formation of reduced titanium dioxide [26,27]. Figure 2d–f exhibits the deconvoluted N 1s core level spectra for the carbon/TiO2 composites. Four different N-containing functional peaks can be found from the N 1s peaks, termed as the pyridinic N peak at 398.1 eV, pyrrolic/pyridine N peak at 399.8 eV, quaternary N peak at 402.3 eV and oxidized N peak at 405.5 eV. No contribution of amine or amide has been found, indicating a good polymerization and carbonization of the p-PDA precursor molecules. Among four types of N-doped carbon sites, the pyridinic type N has been reported to exhibit a good lithium storage capacity [28,29,30]. Comparing the pyridinic N of the three samples, the amount of pyridinic N in carbon/TiO2@H2 is the lowest, indicating a nitrogen loss for the carbon/TiO2 with the treatment under the H2 atmosphere. Notably, the intensity of oxidized N peak in carbon/TiO2@N2/H2 is higher than others, which is in coexistence with the reduced Ti3+ in the composite as shown in the fitting result of Ti 2p, indicating a good structure stability of Ti3+ in the carbon/TiO2@N2/H2.
Additionally, oxygen defects were also studied by using electron paramagnetic resonance spectroscopy (EPR), and the g value of the oxygen radical derived from the EPR spectroscopy (Figure 3a) is 2.003, a typical characteristic of the single-electron capturing oxygen vacancies [27], which further verifies the generation of rich oxygen vacancies in layered TiO2 due to the partial transition of Ti4+ to Tix+ (x < 4). The intensity of carbon/TiO2@N2/H2 and carbon/TiO2@H2 at g = 2.003 is higher than that of carbon/TiO2@N2, indicating a higher reduction activity for carbon/TiO2 after the carbonization treatment at the presence of H2. Meanwhile, carbon/TiO2@H2 demonstrates the highest signal intensity of oxygen radicals among the three composites. Moreover, the heat treatment atmosphere is important for the polymerization and carbonization of anilines to derive N-doped carbon materials. The content of the nitrogen element in the carbon material will decrease as some amino groups in the N-doped carbon layer react to form volatile ingredients (such as NH3) in the presence of H2 gas, whereas, the number of defects increases in the carbon skeleton of carbon/TiO2 composites due to the consumption of nitrogen. TG curves in Figure 3b show the thermal stability of the carbon/TiO2 composites. Under the oxidative treatment, the sample of carbon/TiO2@H2 begins to lose weight at 226.0 °C, and the corresponding temperature of carbon/TiO2@N2/H2 is 312.2 °C, which is 510.8 °C for carbon/TiO2@N2. In comparison, the carbon content of poly-p-PDA/NTO, carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2 are 17.0%, 14.9%, 15.4%, and 14.4%, respectively. Nonetheless, the samples of carbon/TiO2@N2 and carbon/TiO2@N2/H2 maintain a high N/C ratio during the carbonization process at the presence of N2. The values of the N/C molar ratio in carbon/TiO2 composites (Figure 3c) measured by the elemental analyzer further confirm the inevitable loss of small molecular monomer and the necessity of N2 during the carbonization process. Raman spectra of the composites are also performed and the results are shown in Figure 3d. The Raman peaks for these carbon/TiO2 composites are relatively wide, indicating a structural disorder [31]. Generally, the D band at 1372 cm−1 and the G band at 1590 cm−1 represent the degree of defect and graphitization, respectively. Therefore, the R-value (ID/IG, the ratio of integrated intensity of the D band to the integrated intensity of the G band) of the sample for carbon/TiO2@N2 and carbon/TiO2@N2/H2 exhibit a similar crystalline structure, as shown in Figure 3d.
To compare the conductivity difference of the carbon/TiO2 composites after the treatments in different gases, a blocked cell was used to evaluate the total conductivity of the samples; the corresponding results are shown in Figure S2. The conductivity of carbon/TiO2@N2/H2 is the highest with a value of 1.51 mS cm−1, while the conductivity of carbon/TiO2@H2 and carbon/TiO2@N2 is 0.47 mS cm−1 and 0.029 mS cm−1, respectively, which are one or two orders of magnitude lower than that of carbon/TiO2@N2/H2. It is known that Tix+ (x < 4) with a low chemical valence can greatly improve the electron transport rate. Moreover, due to the generation of reduced titanium, part of O2− in TiO2 lattice is converted into O2 and removed, making the 2D metal oxide layer rich in a large number of oxygen vacancies, which further improves the electronic conductivity. Moreover, the protection of N2 to N-doped carbon layer in the carbon/TiO2 composite also results in the highest conductivity for carbon@N2/H2. However, there is no similar comprehensive structure to improve conductivity for carbon/TiO2@N2 and carbon/TiO2@ H2. The absence of reduced titanium in carbon/TiO2@N2 makes its conductivity the lowest one among the three carbon/TiO2 composites. Therefore, the highest conductivity is finally achieved for carbon/TiO2@N2/H2 among the three composites.
Nevertheless, as reported in previous studies [32,33], the high-speed intercalation/deintercalation ability of Li+ in regular layered structures is related to sufficient active sites in the electrode materials. It is well known that the N-doped carbon layer can stabilize the interface between the electrode and the electrolyte during the charge/discharge cycling [33]. The conductivity improved by reductive titanium dioxide is also beneficial to the charge and discharge capacity at different rates. To check the lithium storage and rate capability of the 2D-layered carbon/TiO2 composites, standard CR2032 coin cells were assembled with metallic Li as the counter electrode. Figure 4a and Figure S3 show the rate capabilities and the corresponding charge/discharge curves of carbon/TiO2 composites at the current densities ranging from 0.1 A g−1 to 12.8 A g−1 within an electrochemical voltage window between 0.05 and 3 V. As a reference, the electrochemical performances for the sample of poly-p-PDA/NTO composite were also checked under the same conditions. The comparative performance of the precursor-layered titanic acid and graphite is presented in our previous work [9]. The low Coulomb efficiency (carbon/TiO2@N2 = 50.6%, carbon/TiO2@N2/H2 = 51.2%, and carbon/TiO2@H2 = 49.0%) at the first charge-discharge cycle for all the samples could be attributed to the irreversible formation of a solid electrolyte interfacial film (SEI) on the surface of the lithium anode due to the decomposition of electrolyte. This process at the electrode/electrolyte interface usually reacts irreversibly on the first several cycles until forming a stable SEI layer, which is a necessary component for lithium-ion batteries. The role of the SEI layer involves the prevention of further electrolyte decomposition to maintain cycling ability. During the second cycle, the discharge capacity decreases to 450.7, 361.6, and 395.6 mAh g−1 with a corresponding charge capacity of 489.8, 361.5, and 409.0 mAh g−1 for carbon/TiO2@N2, carbon/TiO2@H2, and carbon/TiO2@N2/H2, respectively, leading to a high coulombic efficiency. This high coulombic efficiency after the second cycles indicates the good reversibility of lithiation/delithiation processes in the composites. The specific capacities for all carbon/TiO2 composites are higher than that of uncarbonized poly-p-PDA/NTO composite at various current densities, as the amount of electrochemically active sites in the carbon/TiO2 materials increase after the removal of Ni. Moreover, the regularization and defects of the carbon skeleton, the rich oxygen vacancies in the TiO2 layer, and the enhanced conductivity for carbon/TiO2 composites are all benefited for the outstanding electrochemical activity. Electrochemical impedance spectroscopy data (Figure S4) for carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2 at the high frequency region demonstrates a slightly difference in value dominated by charge transfer for the three materials. However, it can still be demonstrated that the formation products of Ti3+ and oxygen vacancies have greater conductivity when H2 is present in the carbonization. The specific capacity drops moderately with the increase of current density for all the electrode materials. Carbon/TiO2@N2/H2 exhibits the best rate and capability performance among all the carbon/TiO2 electrodes. The discharge capacity for carbon/TiO2@N2/H2 is 396.0, 300.0, 241.7, 189.8, 138.8, 94.7, 61.8, and 48.0 mAh g−1 at the current of 0.1, 0.2, 0.4, 0.8, 1.6, 3.2, 6.4, and 12.8 A g−1, respectively. Moreover, after turning back the current density from 12.8 A g−1 to 0.2 A g−1, the specific capacity of carbon/TiO2@N2/H2 rapidly reverts to 270.0 mAh g−1, indicating a good stability. The excellent electrochemical performance for carbon/TiO2@N2/H2 can be explained by the existence of sufficient defect sites on the N-doped carbon/TiO2 skeleton and the high conductivity of the layered material [34,35]; nitrogen doping in the 2D carbon layer leads to the structural distortion of the ideal graphene structure, while pyridine N formed at edges and defects can promote the vertical diffusion of lithium ions [36,37], thus leading to a high specific capacity. Moreover, the charge distribution on the surface of TiO2 treated by H2 is more uniform due to the reduced titanium and a large number of oxygen vacancies [38]. The unique nitrogen doping in the carbon and reduced Ti3+ in the metal oxide contribute to the overall high electronic conductivity of the material, which greatly improves the Li deintercalation/intercalation kinetics under different current densities. Notably, without the high conductivity of Tix+ (x < 4), carbon/TiO2@N2 demonstrates the lowest specific capacity and rate stability at all currents.
To distinguish the reaction mechanisms during the electrochemical process, electrochemical cyclic voltammetry (CV) tests were carried out in the voltage range of 0.05 V–3 V to evaluate the lithium-ion diffusion kinetics in the carbon/TiO2 composites. Figure 4b shows cyclic voltammograms for the three carbon/TiO2 composites at a scan rate of 0.5 mV s−1. The redox peaks appearing at 1.78/1.16 V, 1.62/1.20 V, and 1.57/1.28 V correspond to the intercalation/deintercalation of Li+ in the TiO2 lattice of carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2, respectively. Moreover, the peak intensity and integral area of carbon/TiO2@N2/H2 and carbon/TiO2@H2 at the peak current are higher than the value of carbon/TiO2@N2, which is mainly due to the increase of conductivity by the reduced Tix+ (x < 4) in the composites [39]. Meanwhile, the potential difference of the cathode/positive peaks for carbon/TiO2@N2 is larger than that of carbon/TiO2@N2/H2 and carbon/TiO2@H2, which is due to the higher polarization phenomenon resulted by the worse conductivity of carbon/TiO2@N2, as shown in Figure S2. The phenomenon is consistent with the result of the rate performance. It is worth noting that a unique anode peak appears at the CV curve of carbon/TiO2@H2 at around 2.12 V, which is possibly due to the existence of the higher content of anatase in carbon/TiO2@H2. However, the existence of anatase particles is controlled by diffusion during energy storage, rather than the capacitive type (Figure S5), thus resulting in a slower rate capability for carbon/TiO2@H2 versus carbon/TiO2@N2/H2.
The charge storage contribution of diffusion/capacitive can usually be judged according to the formula i = avb, where i (mA) represents the peak current, v (mV s−1) represents the scan rate, and a and b represent two adjustable parameters according to the previous report [40,41,42]. When b is 0.5 or 1.0, this represents that the electrochemical lithium storage is controlled by diffusion and capacitance, respectively. Figure 4c is a plot of the linear relationship between the cathode/anode peak currents at different scan rates for the three carbon/TiO2 composites. It can be observed from the data that the b values of the cathode/anode peaks for carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2 are 0.94/0.93, 0.85/0.86, and 0.88/0.88, respectively. Therefore, the charge storage mode in carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2 is mainly dominated by capacitive contribution. To further quantitatively analyze the contribution of capacitive to the total capacity, the formulas i(V) = k1v + k2v1/2 and i(V)/v1/2 = k1v1/2 + k2 are used for data fitting to determine the values of K1 and K2, and then the contribution ratio of capacitance is quantitatively analyzed [40]. The contribution rate of capacitive and diffusion controlled charge storage for carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2 at different scan rates are shown in Figure 4d and Figure S6, the peak values of the capacitive contribution ratio for carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2 are 88.6%, 78.6%, and 78.4%, respectively. With the increase of scan rate, the proportion of the capacitive contribution for all the carbon/TiO2 composites slowly increases, which demonstrates a faster power output for the three carbon/TiO2 composites in Li+ transmission.
The good rate performance of the carbon/TiO2@N2/H2 composite was further demonstrated by cycling the coin cells in the voltage range of 0.05–3 V. The cells were firstly activated for five cycles at a current density of 0.1 A g−1 before switching to 0.5 A g−1 for the cycle stability tests (Figure 5a). A quick drop of the capacity can be found for all composites, which is attributed to the formation of SEI and the gradual activation of electrochemically active sites in the structure with the cycling [22,43,44]. The discharge specific capacities at the six cycles are 343.7 mAh g−1 for carbon/TiO2@N2/H2. However, the discharge capacity continuously drops within the first 30 cycles and then slightly increases with the following 500 cycles (Figure 5a). For carbon/TiO2@N2/H2, the discharge capacity was finally stabilized at 301.6 mAh g−1. Moreover, high coulomb efficiency of ≈100% still maintains for the composite, indicating an excellent cycling stability. The stable and stacked 2D-layered carbon/TiO2 structure is beneficial in cycle stability. Additionally, Figure 5b is the cycle stability of carbon/TiO2@N2/H2 at a high current density of 3.0 A g−1. In the beginning 35 cycles, the capacity slightly decreases to 94.1 mAh g−1, and then slowly increases to 118.0 mAh g−1 in the following 2000 cycles. Afterward, the charge/discharge specific capacity begins to decay slowly as the number of cycles increases. However, a high discharge capacity of 80.0 mAh g−1 is still maintained after 10,000 cycles, which corresponds to the capacity retention rate of 85%. The rich O vacancies in the 2D-layered carbon/TiO2@N2/H2 and the defects in the 2D N-doped carbon nanosheet provide sufficient interface energy storage spaces and electrochemically active sites. The “sandwich” type layer-by-layer stacked nano-structure also greatly promotes the insertion/extraction of lithium ions in the confined space between the interlayer. Therefore, the structured regulation in different carbonization atmospheres is very beneficial to obtain excellent cycle stability. There is a wide application space in LIB after doping control and interlayer modification on the substrate of 2D metal oxide/carbon nanosheets with a regular structure. However, the loss of the small molecules during the high-temperature carbonization reaction inevitably leads to the inevitable decline of the capacity and conductivity. It is still a great challenge to realize 2D-layered metal oxide/carbon nanosheet superlattice composites with high energy density and high-power density.

4. Conclusions

In summary, 2D-layered carbon/TiO2 composite with a high conductivity has been synthesized by tuning the defects of low valence titanium in the metal oxide and nitrogen species in the carbon nanosheet under a processing atmosphere of N2/H2 gas. The resultant composite exhibits an excellent rate capability and good cycle stability. The superior electrochemical performance can be ascribed to the existence of reduced titanium and the high amount of N-doped carbon nanosheet in the 2D-layered carbon/TiO2, which not only increases the electronic conductivity of the material but also provide sufficient electrochemical active sites. Moreover, the 2D-layered structure provides enough lithium-ion transport channels and interface capacitance in the process of quick lithium-ion transmission. Defect manipulation in a confined space provides a new direction for the modification of a wide range of 2D materials. The prepared 2D carbon/TiO2 composite can provide a high capacity of 396.0 mAh g−1 at a current density of 0.1 A g−1. Moreover, a high specific capacity of 80.0 mAh g−1 with the capacity retention rate of 85% remains after 10,000 charging/discharging cycles at 3.0 A g−1 as well as the Coulomb efficiency close to 100%. The nanosheet composite with orderly arrangement is expected to be one of the promising anodes for the next generation lithium-ion batteries. It is believed that the intriguing layered superlattice structure can be further extended to the preparation of many other kinds of N-doped carbon nanosheet/metal oxide nanosheet superlattice composites for wide applications, including energy storage for alkaline-ion batteries.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma15051625/s1, chemicals; materials characterization; electrical resistances measurements; Figure S1: SEM image of Poly-p-PDA/NTO@200/400°C; Figure S2: (a) The optical picture of the two-electrodes blocked cell. (b) The electronic conductivity of carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2; Figure S3: Charge/discharge curves of carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2 under the current densities of 0.1, 0.2, 0.4, 0.8, 1.6, 3.2, 6.4, 9.6, and 12.8 A g−1; Figure S4: The impedance spectra of carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2; Figure S5: b-values and the relationship between the anode peak current and the scan rate of carbon/TiO2@H2 in a logarithmic format at about 2.1 V; Figure S6: Contribution ratio of the capacitive and diffusion-controlled charge storage at 0.1, 0.3, 0.5, 0.7, and 0.9 mv s−1 for carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2.

Author Contributions

Data curation, methodology, writing—original draft, B.L.; validation and resources, B.G., J.W. and A.L.; writing—review and editing, funding acquisition, and conceptualization, M.Z. and Z.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the State Key Laboratory of New Ceramic and Fine Processing Tsinghua University (No. KFZD202003) and the National Natural Science Foundation of China (No. 21905282).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dylla, A.G.; Henkelman, G.; Stevenson, K.J. Lithium insertion in nanostructured TiO2 (B) architectures. Acc. Chem. Res. 2013, 46, 1104–1112. [Google Scholar] [CrossRef] [PubMed]
  2. Wu, Q.; Xu, J.; Yang, X.; Lu, F.; He, S.; Yang, J.; Fan, H.; Wu, M. Ultrathin anatase TiO2 nanosheets embedded with TiO2-B nanodomains for lithium-ion storage: Capacity enhancement by phase boundaries. Adv. Energy. Mater. 2014, 5, 1401756. [Google Scholar] [CrossRef]
  3. Cheng, X.; Hu, M.; Huang, R.; Jiang, J. Hf-free synthesis of anatase TiO2 nanosheets with largely exposed and clean {001} facets and their enhanced rate performance as anodes of lithium-ion battery. ACS Appl. Mater. Int. 2014, 6, 19176–19183. [Google Scholar] [CrossRef]
  4. Wang, D.; Kou, R.; Choi, D.; Yang, Z.; Nie, Z.; Li, J.; Saraf, L.V.; Hu, D.; Zhang, J.; Graff, G.L.; et al. Ternary self-assembly of ordered metal oxide-graphene nanocomposites for electrochemical energy storage. ACS Nano 2010, 4, 1587–1595. [Google Scholar] [CrossRef] [PubMed]
  5. Hou, J.; Qu, S.; Yang, M.; Zhang, J. Materials and electrode engineering of high capacity anodes in lithium ion batteries. J. Power Sources 2020, 450, 227697. [Google Scholar] [CrossRef]
  6. Zhao, Y.; Wang, L.; Sougrati, M.T.; Feng, Z.; Leconte, Y.; Fisher, A.; Srinivasan, M.; Xu, Z. A review on design strategies for carbon based metal oxides and sulfides nanocomposites for high performance Li and Na ion battery anodes. Adv. Energy Mater. 2017, 7, 1601424. [Google Scholar] [CrossRef]
  7. Mo, R.; Lei, Z.; Sun, K.; Rooney, D. Facile synthesis of anatase TiO2 quantum-dot/graphene-nanosheet composites with enhanced electrochemical performance for lithium-ion batteries. Adv. Mater. 2014, 26, 2084–2088. [Google Scholar] [CrossRef]
  8. Fu, W.; Li, Y.; Chen, M.; Hu, Y.; Liu, B.; Zhang, K.; Zhan, C.; Zhang, M.; Shen, Z. An orderly arrangement of layered carbon nanosheet/TiO2 nanosheet stack with superior artificially interfacial lithium pseudocapacity. J. Power Sources 2020, 468, 228363. [Google Scholar] [CrossRef]
  9. Hu, Y.; Li, Y.; Cheng, J.; Chen, M.; Fu, W.; Liu, B.; Zhang, M.; Shen, Z. Intercalation of carbon nanosheet into layered TiO2 grain for highly interfacial lithium storage. ACS Appl. Mater. Int. 2020, 12, 21709–21719. [Google Scholar] [CrossRef]
  10. Yao, Z.; Yin, H.; Zhou, L.; Pan, G.; Wang, Y.; Xia, X.; Wu, J.; Wang, X.; Tu, J. Ti3+ self-doped li4Ti5O12 anchored on N-doped carbon nanofiber arrays for ultrafast lithium-ion storage. Small 2019, 15, 1905296. [Google Scholar] [CrossRef]
  11. Huang, S.; Zhang, L.; Lu, X.; Liu, L.; Liu, L.; Sun, X.; Yin, Y.; Oswald, S.; Zou, Z.; Ding, F.; et al. Tunable pseudocapacitance in 3d TiO2-δ nanomembranes enabling superior lithium storage performance. ACS Nano 2017, 11, 821–830. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Chen, J.; Song, W.; Hou, H.; Zhang, Y.; Jing, M.; Jia, X.; Ji, X. Ti3+ self-doped dark rutile TiO2 ultrafine nanorods with durable high-rate capability for lithium-ion batteries. Adv. Funct. Mater. 2015, 25, 6793–6801. [Google Scholar] [CrossRef]
  13. Wang, X.; Sun, G.; Routh, P.; Kim, D.H.; Huang, W.; Chen, P. Heteroatom-doped graphene materials: Syntheses, properties and applications. Chem. Soc. Rev. 2014, 43, 7067–7098. [Google Scholar] [CrossRef] [Green Version]
  14. Czerw, R.; Terrones, M.; Charlier, J.C.; Blase, X.; Foley, B.; Kamalakaran, R.; Grobert, N.; Terrones, H.; Tekleab, D.; Ajayan, P.M.; et al. Identification of electron donor states in N-doped carbon nanotubes. Nano Lett. 2001, 1, 457–460. [Google Scholar] [CrossRef] [Green Version]
  15. Nevidomskyy, A.H.; Csanyi, G.; Payne, M.C. Chemically active substitutional nitrogen impurity in carbon nanotubes. Phys. Rev. Lett. 2003, 91, 105502. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Latil, S.; Roche, S.; Mayou, D.; Charlier, J.C. Mesoscopic transport in chemically doped carbon nanotubes. Phys. Rev. Lett. 2004, 92, 256805. [Google Scholar] [CrossRef] [PubMed]
  17. Xu, J.; Wang, M.; Wickramaratne, N.P.; Jaroniec, M.; Dou, S.; Dai, L. High-performance sodium ion batteries based on three-dimensional anode from nitrogen-doped graphene foams. Adv. Mater. 2015, 27, 2042–2048. [Google Scholar] [CrossRef]
  18. Xiao, K.; Liu, Y.; Hu, P.; Yu, G.; Sun, Y.; Zhu, D. N-type field-effect transistors made of an individual nitrogen-doped multiwalled carbon nanotube. J. Am. Chem. Soc. 2005, 127, 8614–8617. [Google Scholar] [CrossRef]
  19. Qiao, L.; Zheng, W.; Xu, H.; Zhang, L.; Jiang, Q. Field emission properties of N-doped capped single-walled carbon nanotubes: A first-principles density-functional study. J. Chem. Phys. 2007, 126, 164702. [Google Scholar] [CrossRef]
  20. Zhong, Z.; Lee, G.; Mo, C.; Hong, S.; Kang, J. Tailored field-emission property of patterned carbon nitride nanotubes by a selective doping of substitutional N (sN) and pyridine-like N (pN) atoms. Chem. Mater. 2007, 19, 2918–2920. [Google Scholar] [CrossRef]
  21. Yang, S.; Shin, W.; Kang, J. The nature of graphite- and pyridinelike nitrogen conFigureurations in carbon nitride nanotubes: Dependence on diameter and helicity. Small 2008, 4, 437–441. [Google Scholar] [CrossRef] [PubMed]
  22. Peng, T.; Tan, Z.; Zhang, M.; Li, L.; Wang, Y.; Guan, L.; Tan, X.; Pan, L.; Fang, H.; Wu, M. Facile and cost-effective manipulation of hierarchical carbon nanosheets for pseudocapacitive lithium/potassium storage. Carbon 2020, 165, 296–305. [Google Scholar] [CrossRef]
  23. Zheng, F.; Yang, Y.; Chen, Q. High lithium anodic performance of highly nitrogen-doped porous carbon prepared from a metal-organic framework. Nat. Commun. 2014, 5, 5261. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Li, Y.; Zhou, Z.; Wang, L. CN(x) nanotubes with pyridinelike structures: P-type semiconductors and Li storage materials. J. Chem. Phys. 2008, 129, 104703. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, Y.; Xue, X.; Liu, P.; Wang, C.; Yi, X.; Hu, Y.; Ma, L.; Zhu, G.; Chen, R.; Chen, T.; et al. Atomic substitution enabled synthesis of vacancy-rich two-dimensional black TiO2-x nanoflakes for high-performance rechargeable magnesium batteries. ACS Nano 2018, 12, 12492–12502. [Google Scholar] [CrossRef] [PubMed]
  26. Kang, S.; Jo, Y.; Prasanna, K.; Santhoshkumar, P.; Joe, Y.; Vediappan, K.; Gnanamuthu, R.; Lee, C. Bandgap tuned and oxygen vacant TiO2−x anode materials with enhanced electrochemical properties for lithium ion batteries. J. Ind. Eng. Chem. 2019, 71, 177–183. [Google Scholar] [CrossRef]
  27. Ye, K.; Li, K.; Lu, Y.; Guo, Z.; Ni, N.; Liu, H.; Huang, Y.; Ji, H.; Wang, P. An overview of advanced methods for the characterization of oxygen vacancies in materials. TrAC-Trend. Anal. Chem. 2019, 116, 102–108. [Google Scholar] [CrossRef]
  28. Zhang, X.; Zhu, G.; Wang, M.; Li, J.; Lu, T.; Pan, L. Covalent-organic-frameworks derived N-doped porous carbon materials as anode for superior long-life cycling lithium and sodium ion batteries. Carbon 2017, 116, 686–694. [Google Scholar] [CrossRef]
  29. Reddy, A.L.M.; Srivastava, A.; Gowda, S.R.; Gullapalli, H.; Dubey, M.; Ajayan, P.M. Synthesis of nitrogen-doped graphene films for lithium battery application. ACS Nano 2010, 4, 6337–6342. [Google Scholar] [CrossRef] [Green Version]
  30. Ma, C.; Shao, X.; Cao, D. Nitrogen-doped graphene nanosheets as anode materials for lithium ion batteries: A first-principles study. J. Mater. Chem. 2012, 22, 8911–8915. [Google Scholar] [CrossRef]
  31. Shah, S.A.; Shen, X.; Xie, M.; Zhu, G.; Ji, Z.; Zhou, H.; Xu, K.; Yue, X.; Yuan, A.; Zhu, J.; et al. Nickel@nitrogen-doped carbon@MoS2 nanosheets: An efficient electrocatalyst for hydrogen evolution reaction. Small 2019, 15, 1804545. [Google Scholar] [CrossRef]
  32. Wang, B.; Xu, B.; Liu, T.; Liu, P.; Guo, C.; Wang, S.; Wang, Q.; Xiong, Z.; Wang, D.; Zhao, X. Mesoporous carbon-coated LiFePO4 nanocrystals co-modified with graphene and Mg2+ doping as superior cathode materials for lithium ion batteries. Nanoscale 2014, 6, 986–995. [Google Scholar] [CrossRef] [PubMed]
  33. Ma, Y.; Zhang, C.; Ji, G.; Lee, J. Nitrogen-doped carbon-encapsulation of Fe3O4 for increased reversibility in Li+ storage by the conversion reaction. J. Mater. Chem. 2012, 22, 7845–7850. [Google Scholar] [CrossRef]
  34. Wood, K.N.; O’Hayre, R.; Pylypenko, S. Recent progress on nitrogen/carbon structures designed for use in energy and sustainability applications. Energy Environ. Sci. 2014, 7, 1212–1249. [Google Scholar] [CrossRef]
  35. Ding, Z.; Zhao, L.; Suo, L.; Jiao, Y.; Meng, S.; Hu, Y.; Wang, Z.; Chen, L. Towards understanding the effects of carbon and nitrogen-doped carbon coating on the electrochemical performance of Li4Ti5O12 in lithium ion batteries: A combined experimental and theoretical study. Phys. Chem. Chem. Phys. 2011, 13, 15127–15133. [Google Scholar] [CrossRef]
  36. Das, D.; Kim, S.; Lee, K.R.; Singh, A.K. Li diffusion through doped and defected graphene. Phys. Chem. Chem. Phys. 2013, 15, 15128–15134. [Google Scholar] [CrossRef] [Green Version]
  37. Kong, X.; Chen, Q. Improved performance of graphene doped with pyridinic n for Li-ion battery: A density functional theory model. Phys. Chem. Chem. Phys. 2013, 15, 12982–12987. [Google Scholar] [CrossRef]
  38. Lee, J.; Li, Z.; Zhu, L.; Xie, S.; Cui, X. Ti3+ self-doped TiO2 via facile catalytic reduction over Al(acac)3 with enhanced photoelectrochemical and photocatalytic activities. Appl. Catal. B-Environ. 2018, 224, 715–724. [Google Scholar] [CrossRef]
  39. Duan, J.; Hou, H.; Liu, X.; Yan, C.; Liu, S.; Meng, R.; Hao, Z.; Yao, Y.; Liao, Q. In situ Ti3+-doped TiO2 nanotubes anode for lithium ion battery. J. Porous Mater. 2016, 23, 837–843. [Google Scholar] [CrossRef]
  40. Wang, J.; Polleux, J.; Lim, J.; Dunn, B. Pseudocapacitive contributions to electrochemical energy storage in TiO2 (anatase) nanoparticles. J. Phys. Chem. C 2007, 111, 14925–14931. [Google Scholar] [CrossRef]
  41. Brezesinski, T.; Wang, J.; Polleux, J.; Dunn, B.; Tolbert, S.H. Templated nanocrystal-based porous TiO2 films for next-generation electrochemical capacitors. J. Am. Chem. Soc. 2009, 131, 1802–1809. [Google Scholar] [CrossRef] [PubMed]
  42. Augustyn, V.; Come, J.; Lowe, M.A.; Kim, J.W.; Taberna, P.L.; Tolbert, S.H.; Abruna, H.D.; Simon, P.; Dunn, B. High-rate electrochemical energy storage through Li+ intercalation pseudocapacitance. Nat. Mater. 2013, 12, 518–522. [Google Scholar] [CrossRef] [PubMed]
  43. Mao, Y.; Duan, H.; Xu, B.; Zhang, L.; Hu, Y.; Zhao, C.; Wang, Z.; Chen, L.; Yang, Y. Lithium storage in nitrogen-rich mesoporous carbon materials. Energy Environ. Sci. 2012, 5, 7950–7955. [Google Scholar] [CrossRef]
  44. Yan, Y.; Yin, Y.; Xin, S.; Guo, Y.; Wan, L. Ionothermal synthesis of sulfur-doped porous carbons hybridized with graphene as superior anode materials for lithium-ion batteries. Chem. Commun. (Camb.) 2012, 48, 10663–10665. [Google Scholar] [CrossRef] [PubMed]
Materials 15 01625 g001 550

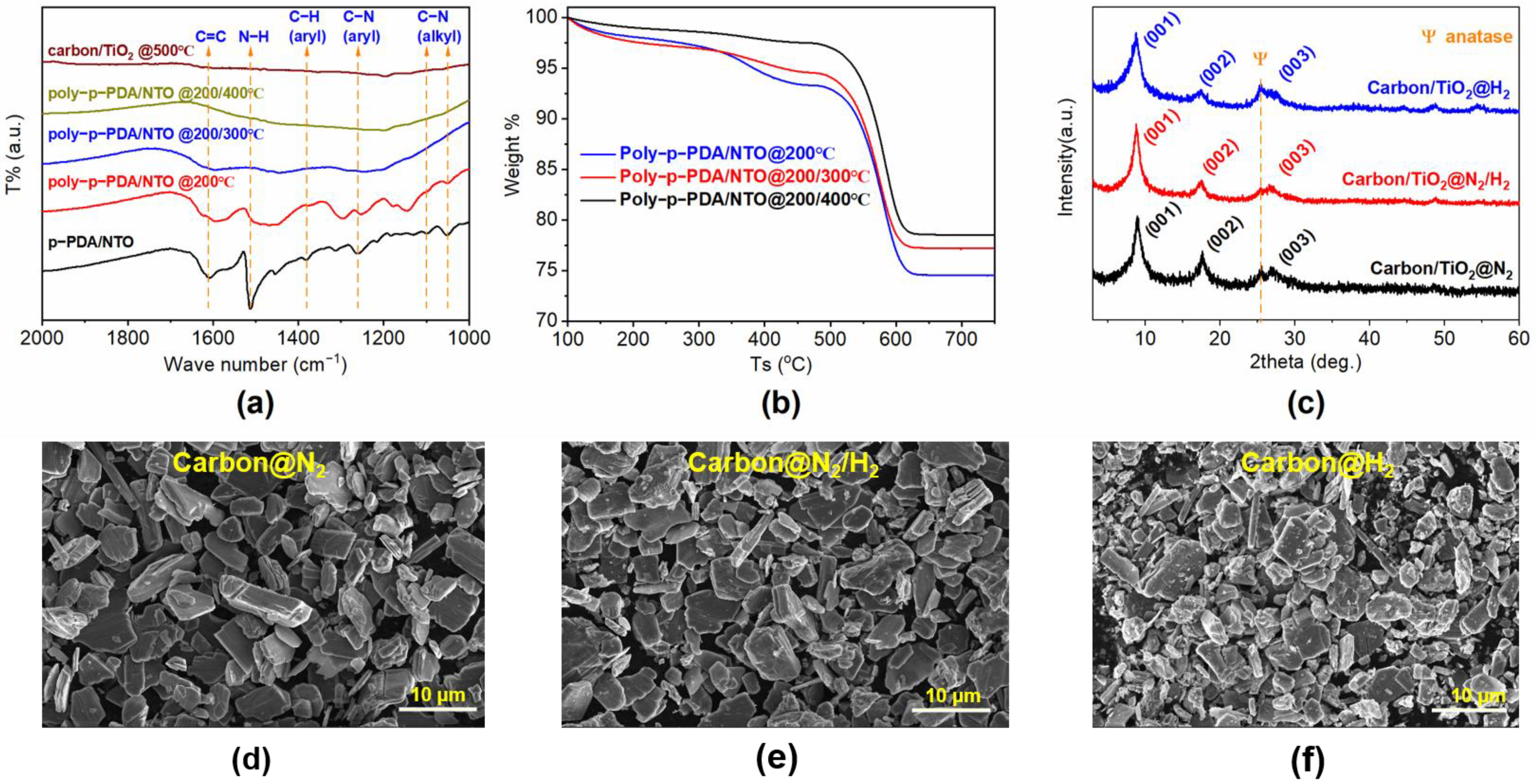

Figure 1. (a) FTIR data for the samples before and after the polymerization treatments under different conditions; (b) TG curves for the samples of poly-p-PDA/NTO under different treatment temperatures; (c) XRD patterns and (d–f) SEM images of the carbon/TiO2 composites after the treatments in different gases.
Figure 1. (a) FTIR data for the samples before and after the polymerization treatments under different conditions; (b) TG curves for the samples of poly-p-PDA/NTO under different treatment temperatures; (c) XRD patterns and (d–f) SEM images of the carbon/TiO2 composites after the treatments in different gases.
Materials 15 01625 g001
Materials 15 01625 g002 550

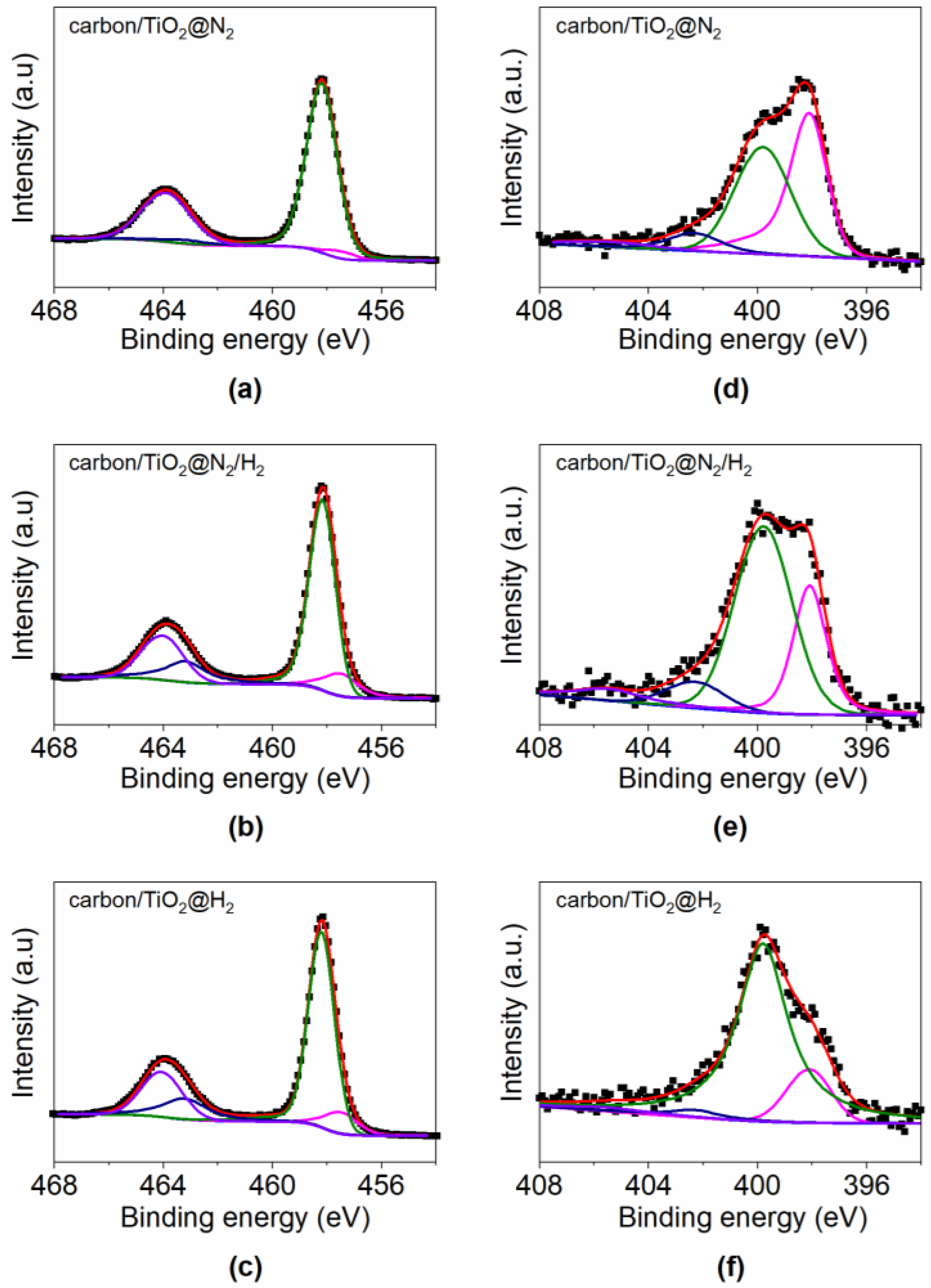

Figure 2. The XPS spectra of (a–c) Ti 2p and (d–f) N 1s for the carbon/TiO2 composites.
Figure 2. The XPS spectra of (a–c) Ti 2p and (d–f) N 1s for the carbon/TiO2 composites.
Materials 15 01625 g002
Materials 15 01625 g003 550

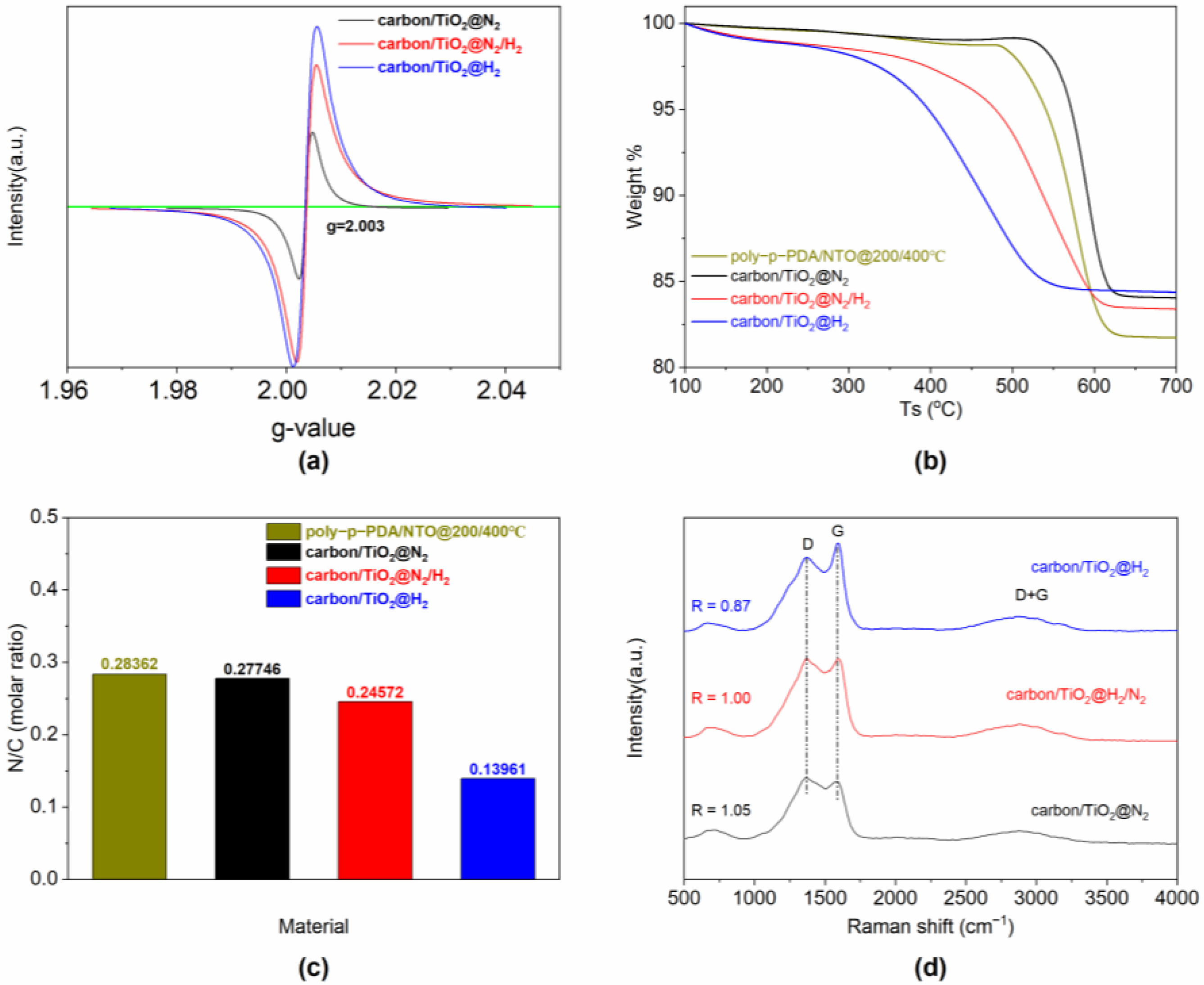

Figure 3. (a) EPR spectroscopy for various carbon/TiO2 composites; (b) TG curves for poly-p-PDA/NTO, carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2 in air; (c) N/C molar ratio in carbon/TiO2 composites measured by elemental analyzer; (d) Raman spectra for various carbon/TiO2 composites.
Figure 3. (a) EPR spectroscopy for various carbon/TiO2 composites; (b) TG curves for poly-p-PDA/NTO, carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2 in air; (c) N/C molar ratio in carbon/TiO2 composites measured by elemental analyzer; (d) Raman spectra for various carbon/TiO2 composites.
Materials 15 01625 g003
Materials 15 01625 g004 550

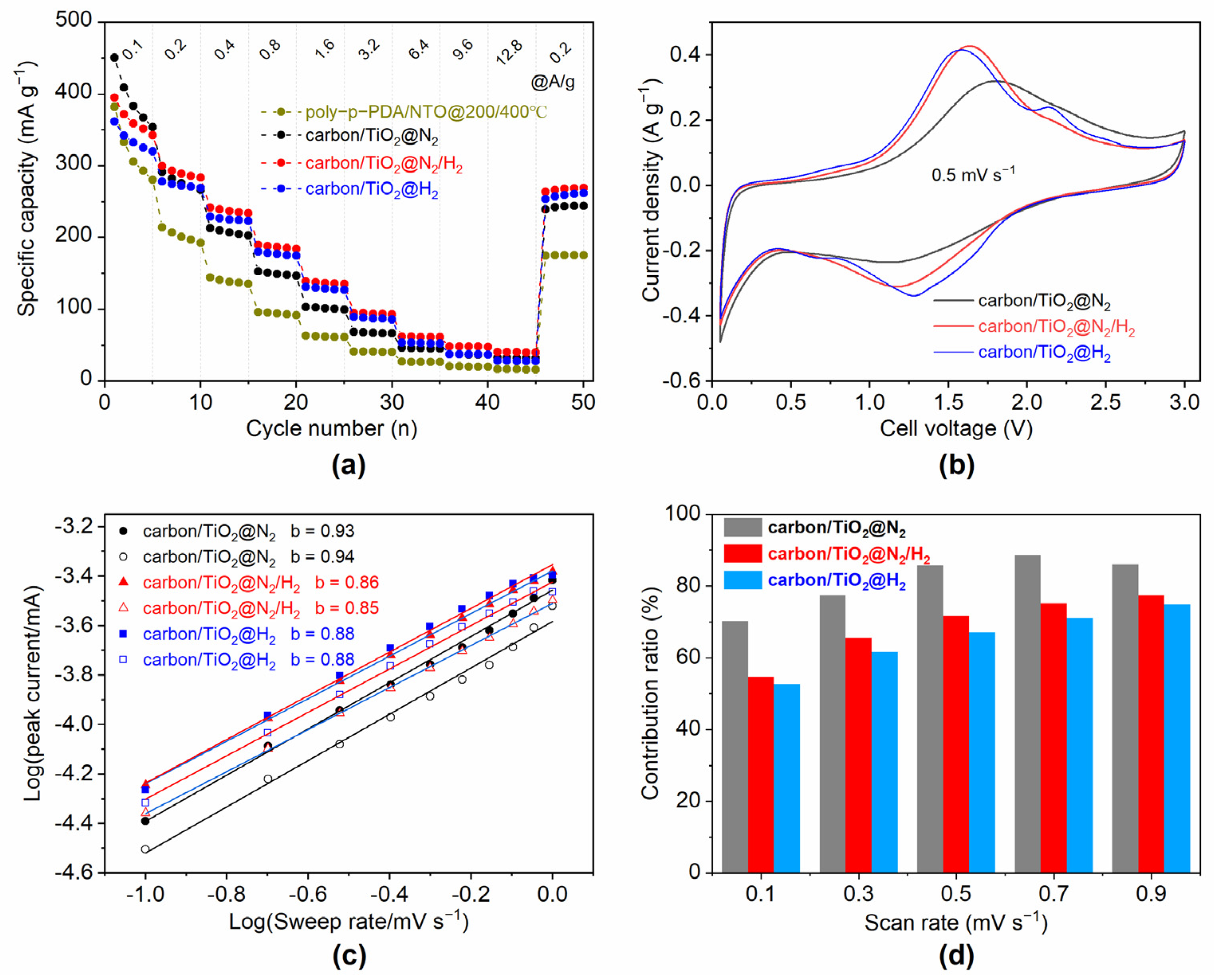

Figure 4. (a) Rate capabilities for poly-p-PDA/NTO, carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2; (b) the cyclic voltammogram curves for carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2; (c) relationship between the peak currents and scan rates in logarithmic format; (d) contribution ratio of the capacitive and diffusion-controlled charge storage at different scan rates for carbon/TiO2 composites.
Figure 4. (a) Rate capabilities for poly-p-PDA/NTO, carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2; (b) the cyclic voltammogram curves for carbon/TiO2@N2, carbon/TiO2@N2/H2, and carbon/TiO2@H2; (c) relationship between the peak currents and scan rates in logarithmic format; (d) contribution ratio of the capacitive and diffusion-controlled charge storage at different scan rates for carbon/TiO2 composites.
Materials 15 01625 g004
Materials 15 01625 g005 550

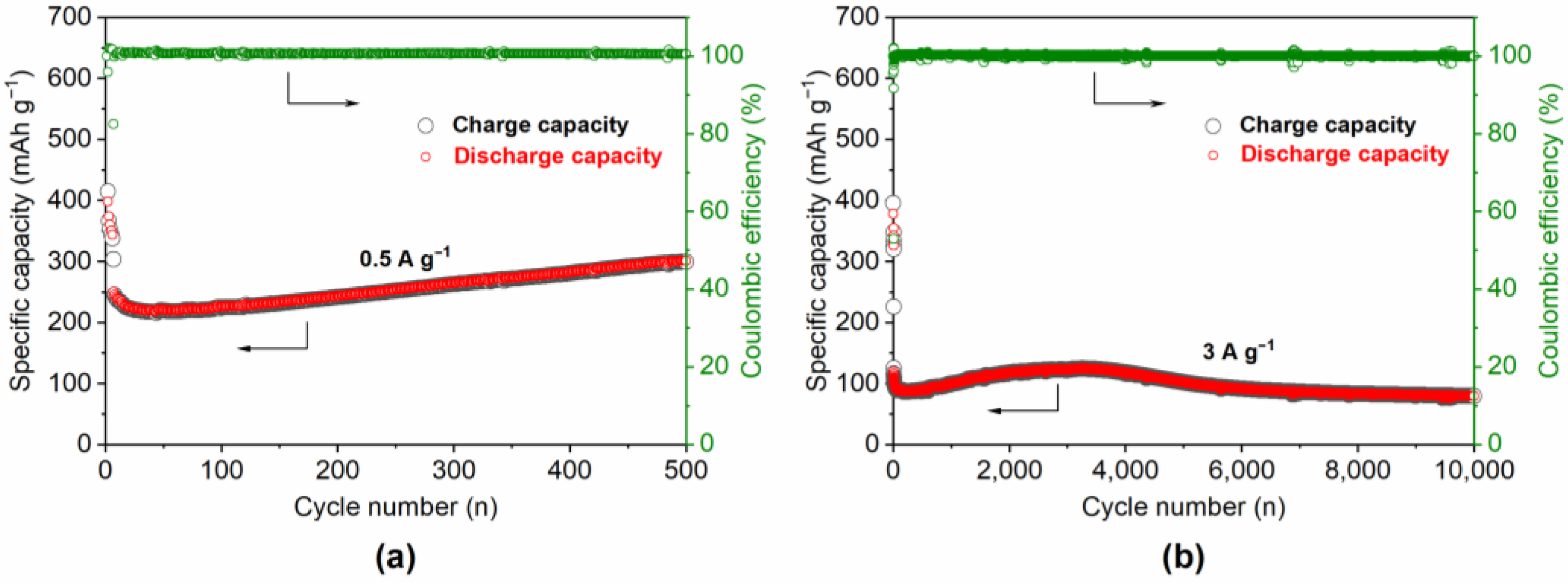

Figure 5. The cycling performance of the coin cell with carbon/TiO2@N2/H2 composite at a current density of (a) 0.5 and (b) 3 A g−1.
Figure 5. The cycling performance of the coin cell with carbon/TiO2@N2/H2 composite at a current density of (a) 0.5 and (b) 3 A g−1.
Materials 15 01625 g005
