Article

Synthesis of Si-Modified Pseudo-Boehmite@kaolin Composite and Its Application as a Novel Matrix Material for FCC Catalyst

by
Chengyuan Yuan
,
Zhongfu Li
,
Lei Zhou
and
Guannan Ju
*
School of Materials Science and Engineering, Shandong University of Technology, Zibo 255000, China
*
Author to whom correspondence should be addressed.
Materials 2022, 15(6), 2169; https://doi.org/10.3390/ma15062169
Submission received: 10 February 2022 / Revised: 1 March 2022 / Accepted: 14 March 2022 / Published: 15 March 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
Fluid catalytic cracking (FCC) has been the primary processing technology for heavy oil. Due to the inferior properties of heavy oil, an excellent performance is demanded of FCC catalysts. In this work, based on the acid extracting method, Si-modified pseudo-boehmite units (Si-PB) are constructed in situ and introduced into the structure of kaolin to synthesize a Si-PB@kaolin composite. The synthesized Si-PB@kaolin is further characterized and used as a matrix material for the FCC catalyst. The results indicate that, compared with a conventional kaolin matrix, a Si-PB@kaolin composite could significantly improve the heavy oil catalytic cracking performance of the prepared FCC catalyst because of its excellent properties, such as a larger surface area, a higher pore volume, and a good surface acidity. For the fresh FCC catalysts, compared with the FCC catalysts using conventional kaolin (Cat-1), the gasoline yield and total liquid yield of the catalyst containing Si-PB@kaolin (Cat-2) could obviously increase by 2.06% and 1.55%, respectively, with the bottom yield decreasing by 2.64%. After vanadium and nickel contamination, compared with Cat-1, the gasoline yield and total liquid yield of Cat-2 could increase by 1.97% and 1.24%, respectively, with the bottom yield decreasing by 1.80 percentage points.

1. Introduction

Fluid catalytic cracking (FCC) is an important process for crude oil, in which FCC catalysts have played a key role [1,2,3]. Recently, with crude oil becoming increasingly inferior, the demand for an excellent catalytic cracking performance of FCC catalysts has greatly increased [4,5,6,7,8]. Usually, FCC catalysts are made of zeolites, a binder, and a matrix material. For heavy oil catalytic cracking, an FCC catalyst not only needs to be of high quality for zeolites, but also needs to exhibit an excellent performance for the matrix material, with qualities such as a large surface area, a high pore volume and abundant surface acidity to promote the diffusion and pre-cracking of heavy oil molecules in the FCC catalyst [9,10,11,12,13].
Kaolin has been mostly used as the matrix material for FCC catalyst preparation because of its attractive physico-chemical properties, such as excellent hydro-thermal stability, high mechanical strength, and good thermal conductivity [14,15]. However, conventional kaolin commonly lacks pore structure and surface acid sites, which has made the conventional kaolin unsatisfactory for the present preparation demands of FCC catalysts [16,17,18]. Therefore, increasing attention has been paid to the synthesis of various modified kaolin materials with large surface areas, high pore volumes and good surface acidity [19]. Among them, acid extraction is the most-used method to improve the surface area, pore volume and surface acidity for conventional kaolin by extracting alumina species from the framework of kaolin [20,21]. However, the method of acid extraction has been seriously restricted in terms of practical application because of issues such as material loss and acidic waste solution [22]. Pseudo-boehmite (PB) is a kind of aluminum-based matrix material for FCC catalysts with the formula of AlOOH·nH2O (n = 0.08 − 0.62) and possesses a large surface area, a high pore volume and plenty of acid sites in contrast with kaolin [23]. Recently, it has been reported that Si modification could improve the surface area, the pore volume and the surface acidity of conventional pseudo-boehmite even further [24,25].
Based on the above fact, to improve the structural properties and surface acidity of conventional kaolin, Si-modified pseudo-boehmite (Si-PB) was constructed in situ and introduced into the structure of kaolin based on the acid-extraction method to synthesize the Si-modified pseudo-boehmite@kaolin composite material (Si-PB@kaolin) described in this work. Compared with a conventional kaolin matrix material, the surface area, pore volume, surface acidity and cracking activity of Si-PB@kaolin are all much higher. As a matrix material, the synthesized Si-PB@kaolin could greatly improve the heavy oil catalytic cracking performance of prepared FCC catalysts. More importantly, the synthesis method of Si-PB@kaolin in this work could also avoid the above-mentioned issues of acid extraction, which gives it good practical application prospects.

2. Materials and Methods

2.1. Materials

Industrial-grade Kaolin, REY zeolite and alumina sol were provided by Shanxi Tengmao Technology Company, Hejin, China. Analytically pure Na2SiO3·9H2O, NaAlO2, and H2SO4 were purchased from Sinopharm Chemical Reagent Company, Shanghai, China. All chemicals were used as received without further purification.

2.2. Synthesis of Si-PB@kaolin Composite

The synthesis procedure of the Si-PB@kaolin composite is shown in Scheme 1. As shown, kaolin was first calcined at 850 °C for 2 h. Then, 50 g of calcined kaolin was mixed with 250 mL of H2SO4 solution and stirred at 90 °C for 3 h to carry out acid extraction. After this, 50 mL aqueous solutions of 10 g Na2SiO3·9H2O and 50 mL aqueous solution of 4 g NaAlO2 were simultaneously added into the above slurry dropwise. Then, the pH of the above-obtained slurry was adjusted to around 8.5 by ammonia water, in which the secondary units of Si-PB were constructed in the structure of kaolin through a neutralization reaction with the extracting Al species [26]. After this, the obtained slurry was statically aged for another 4 h and then filtrated, washed and dried to obtain the Si-PB@kaolin composite. Before the FCC catalyst preparation, the synthesized Si-PB@kaolin composite was necessarily ion exchanged by NH4Cl solution to decrease its Na2O contents to an appropriate range.

2.3. Preparation of FCC Catalysts

Compared FCC catalyst: REY zeolite, alumina sol, conventional kaolin and deionized water were fully mixed, and then the above slurry was spray-dried to make a micro-sphere FCC catalyst (Cat-1). The components’ mass ratio for Cat-1 was REY: alumina sol (based on Al2O3): conventional kaolin = 35:10:55.
FCC catalyst containing Si-PB@kaolin: First, REY zeolite, alumina sol, Si-PB@kaolin, conventional kaolin and deionized water were fully mixed, and then the above slurry was spray-dried to make a micro-sphere FCC catalyst (Cat-2). The components’ mass ratio for Cat-2 was REY: alumina sol (based on Al2O3): Si-PB@kaolin: conventional kaolin = 35:10:10:45.

2.4. Characterizations and Evaluations

X-ray diffraction (XRD, Rigaku corporation, Akishima-shi, Tokyo, Japan) was carried out on a Rigaku D/max-2200 PC X-Ray diffractometer with CuK-Alpha radiation (k = 0.15418 nm), operating at 40 kV, 40 mA, and scanning from 5° to 75° at a speed of 0.01 °/s. N2 adsorption–desorption measurement at −196 °C was performed on a Micromeritics ASAP 2010 instrument (Micromeritics instrument corporation, Norcross, GA, USA) to characterize the textural properties. The Brunauer–Emmett–Teller (BET) method and the Barrett–Joyner–Halenda (BJH) method were used to determine the surface areas and pore volumes of the samples. NH3 temperature programmed desorption (NH3-TPD) was performed on a Micromeritics AUTOCHEM II 2920 (Micromeritics instrument corporation, Norcross, GA, USA) in the range of 100–500 °C at a heating rate of 15 °C/min. The adsorption of ammonia on the samples was performed at room temperature, followed by removing physically adsorbed ammonia at 100 °C for 1 h in pure flowing nitrogen. The Fourier transform infrared spectra after pyridine adsorption (Py-FTIR) and 2,6-di-tert-butylpyridine (DTBPy-FTIR) were obtained on a Bruker Tensor 27 FT-IR spectrometer (Bruker Company, Karlsruhe, Germany). All samples were activated at 300 °C for 3 h before Py and DTBPy adsorption. Physically adsorbed Py and DTBPy on acid sites were removed by a vacuum molecular pump at 150 °C for 2 h. The micro activity test (MAT) that was used to evaluate the cracking activities of FCC catalysts treated by hydro-thermal processing was performed on micro-cracking reaction equipment (WF-2006, Beijing Huayang, Beijing, China). The scanning electron microscopy (SEM, Hitachi Ltd., Tokyo, Japan) micrographs were obtained by a Hitachi S4800 electron microscope with 1 nm resolution at 15 kV and magnification from 30× to 800,000×.
The heavy oil catalytic cracking evaluations for FCC catalysts treated by hydro-thermal processing were performed at 530 °C on an advance cracking evaluation (ACE) unit developed by Kayser Technology Inc. Company, Houston, Texas, America, with the catalyst/oil weight ratio being 5. Gaseous products were analyzed using a GC-3000 online chromatograph produced by INFICON Company (New York, NY, USA) according to the UOP method 539. GC-3000 used four chromatographic modules for detection, and the work temperature was 0–50 °C. The carrier gases used were helium, hydrogen, nitrogen, and argon. Simulated distillation of liquid products was carried out using a 7890B chromatograph produced by Agilent Technologies Inc. (Santa Clara, CA, USA) according to the SH/T 0558 procedure. The working environmental temperature of Agilent 7890B was 15–35 °C. Retention time repeatability was <0.0008 min. Carrier and makeup gas settings were selectable for helium, hydrogen, nitrogen, and argon/methane. Coke deposited on the catalyst was quantified with a CO2 analyzer produced by Servomex Group Co., Ltd. (Sussex, England, UK). The detection range of the CO2 analyzer was 0–20%. When the detection value was lower than 0.4%, the regeneration step was considered to be completed. The conversion and yields of dry gas (H2 + C1 + C2), LPG (liquefied petroleum gas) (C3 + C4), gasoline (C5 < bp < 221 °C), diesel (221 °C < bp < 343 °C), bottom (bp > 343 °C), and coke were calculated. The paraffin (P), olefin (O), naphthene (N), and aromatic (A) contents (PONA analysis) of the cracked gasoline were analyzed by gas chromatography (Varian CP-3380). The heavy oil was provided by Lanzhou Petrochemical Company, Lanzhou, China. The properties of heavy oil are listed in Table 1.

3. Results

3.1. Characterization Results

The XRD patterns for kaolin, calcined kaolin and the Si-PB@kaolin composite are exhibited in Figure 1. As shown, the characteristic diffraction peaks for conventional kaolin appeared at around 12.3°, 20.2°, 21.3°, 24.8°, 35.0°, 36.0°, 38.4°, 39.2°, 45.5°, 55.2°, and 62.5°, respectively, which are in good agreement with the standard XRD pattern of kaolinite [27]. For the calcined kaolin and Si-PB@kaolin composite samples, the characteristic diffraction peaks of kaolin disappeared, leaving a wide diffraction peak in the range of 15–30° due to the structure destruction caused by calcination [28]. Compared with calcined kaolin, several new wide diffraction peaks appeared at around 13.5°, 38.0°, 49.3° and 65.4°, respectively, for the Si-PB@kaolin composite, which could be attributed to the characteristic diffractions of Si-PB and suggested the successful construction of Si-PB secondary units into the structure of kaolin [29].
Figure 2 shows the N2 adsorption–desorption isotherms for the conventional kaolin, the calcined kaolin and the Si-PB@kaolin composite. As shown, both the conventional kaolin and the calcined kaolin displayed the characteristic N2 adsorption–desorption isotherms of macro-porous materials, indicating that the conventional kaolin and calcined kaolin mainly contained macro-pores that were derived from the accumulation of particles [30]. Compared with the conventional kaolin and calcined kaolin samples, the N2 adsorption–desorption isotherm for the Si-PB@kaolin composite was very different and displayed the isotherm feature of meso-porous material with an obvious hysteresis loop in the range of P/P0 = 0.4–1, which indicated that there were plenty of meso-pores in the structure of the Si-PB@kaolin composite due to the construction of Si-PB secondary units [31].
The pore structure properties for the conventional kaolin, the calcined kaolin and the Si-PB@kaolin composite are listed in Table 2. It can be seen that the surface areas and pore volumes for the conventional kaolin were 23 m2/g and 0.10 cm3/g, respectively. After calcination, the surface areas and pore volumes for the calcined kaolin decreased to 9 m2/g and 0.04 cm3/g, respectively, due to the structure destruction. In contrast, because of the introduction of the Si-PB secondary units, the surface areas and pore volumes for the Si-PB@kaolin composite clearly increased to 106 m2/g and 0.28 cm3/g, respectively, which were much higher values than those of the conventional kaolin and the calcined kaolin.
Surface acidity is an important property of matrix materials for FCC catalysts. The NH3-TPD profiles for the conventional kaolin, the calcined kaolin and the Si-PB@kaolin composite are exhibited in Figure 3. As shown, the conventional kaolin, the calcined kaolin and the Si-PB@kaolin composite all displayed a broad NH3-desorption peak in the temperature range of 100–450 °C. Compared with the conventional kaolin and the calcined kaolin, the NH3-desorption peak area for the Si-PB@kaolin composite was much higher, indicating that there were much more surface acid sites on the Si-PB@kaolin composite [32].
Py-FTIR was also used to confirm the type of acid sites for the conventional kaolin, the calcined kaolin and the Si-PB@kaolin composite. As shown in Figure 4, the conventional kaolin and the calcined kaolin only exhibited an IR band at around 1450 cm−1 that was attributed to L acid sites [33], which suggested that the surface acid sites for the conventional kaolin and the calcined kaolin were mainly L acid sites. However, compared with the conventional kaolin and the calcined kaolin, in addition to the band at around 1450 cm−1, the Si-PB@kaolin composite exhibited a new IR band at around 1540 cm−1 that could be attributed to B acid sites [34], indicating that both L acid sites and B acid sites existed on the surface of the Si-PB@kaolin composite. It has been widely accepted that B acid sites are very favorable for catalytic cracking and are usually non-existent in conventional matrix materials such as kaolin and pseudo-boehmite for FCC catalysts [35], which would make the Si-PB@kaolin composite an ideal matrix material for FCC catalysts.
The specific acid site quantities for the conventional kaolin, the calcined kaolin and the Si-PB@kaolin composite are listed in Table 2. As shown, the total quantity of acid sites of the Si-PB@kaolin composite was significantly higher than that of the conventional kaolin and the calcined kaolin and could reach to 97.7 μmol/g, which could be attributed to the introduction of Si-PB secondary units. Moreover, in addition to L acid sites, there were also 11.3 μmol/g B acid sites for the Si-PB@kaolin composite.

3.2. Characterizations for Prepared FCC Catalysts

The physico-chemical properties for prepared FCC catalysts are listed in Table 3. As shown, the surface areas and pore volumes for Cat-1 with the conventional kaolin as the matrix material were 201.2 m2/g and 0.25 cm3/g, respectively. Compared with Cat-1, the surface areas and pore volumes for Cat-2 containing the Si-PB@kaolin composite clearly increased to 227.5 m2/g and 0.33 cm3/g, respectively. Furthermore, because of the excellent properties of the Si-PB@kaolin composite, such as a large surface area, a high pore volume and abundant acid sites, the Smeso, Vmeso, total acid sites, B/L and MAT for Cat-2 all obviously increased in contrast with Cat-1.
In addition to the above physico-chemical properties, the acid site accessibility has also been considered as an important parameter for FCC catalysts [36]. Herein, Py-FTIR and DTBPy-FTIR were used to estimate the acid sites accessibilities for the prepared FCC catalysts through the method reported by Yuan et al. [37]. Figure 5 shows the Py-FTIR and DTBPy-FTIR values for the prepared FCC catalysts. As shown, the characteristic adsorption peaks for Py and DTBPy appeared at around 1540 cm−1 and 3400 cm−1, respectively.
The characteristic peak area ratios (APy/ADTBPy) derived from FTIR for the prepared FCC catalysts are shown in Figure 6. As reported by Yuan et al., for different FCC catalysts, a higher value of APy/ADTBPy means higher accessibility to acid sites [37]. It can be seen from Figure 6 that the APy/ADTBPy value of Cat-2 was much bigger than that of Cat-1, suggesting that Si-PB@kaolin could obviously enhance the accessibility to acid sites of a prepared FCC catalyst compared with conventional kaolin matrix material.
Figure 7 shows the SEM images for the prepared FCC catalysts. It can be seen from Figure 7a,b that both the micro-spheres of Cat-1 and Cat-2 possessed good sphericity. Compared with Cat-1 using the conventional kaolin matrix material (Figure 7c), the micro-sphere surface of Cat-2 containing the Si-PB@kaolin composite matrix material (Figure 7d) seemed to be much less compacted. Further, it can be clearly seen from the images of the surface detail that there were much more gaps and pores on the surface of Cat-2 (Figure 7f) in contrast with Cat-1 (Figure 7e), which shows that Cat-2 would be greatly helpful for the diffusion of heavy oil molecules and thus could promote the use of Cat-2 for heavy oil catalytic cracking.

3.3. Evaluation Results for Heavy Oil Catalytic Cracking

The heavy oil catalytic cracking performances of the fresh FCC catalysts are listed in Figure 8. It can be seen that the heavy oil catalytic cracking performance of Cat-2 obviously improved by using the Si-PB@kaolin composite as matrix in contrast with Cat-1. Compared with Cat-1, the bottom yield of Cat-2 decreased by 2.64%; meanwhile, the gasoline yield and total liquid yield (LPG+gasoline+diesel) of Cat-2 were obviously increased by 2.06% and 1.55%, respectively, suggesting the excellent performance of heavy oil catalytic cracking for Cat-2.
The prepared FCC catalysts were also contaminated by V and Ni through the impregnation method (V: 5000 ppm; Ni: 3000 ppm) to investigate the differences in their anti-heavy metal contamination performances. As shown in Figure 9, Cat-2 exhibited a better anti-heavy metal contamination performance than Cat-1. Compared with Cat-1, the bottom yield of Cat-2 decreased by 1.80% with gasoline yield and total liquid yield increasing by 1.97% and 1.24%, respectively, which indicated the good anti-heavy metal contamination performance of Cat-2, containing the Si-PB@kaolin composite matrix material.
The results of the PONA analysis and the research octane number (RON) of cracked gasoline are shown in Table 4. As shown, compared with Cat-1, the paraffin content of gasoline for Cat-2 was lower, while the amounts of olefins, naphthenes and aromatics were higher, which resulted in a higher RON for Cat-2.

4. Conclusions

In this work, a Si-modified pseudo-boehmite@kaolin composite (Si-PB@kaolin) was synthesized by an in situ construction method based on acid extraction and further used as a novel matrix material for FCC catalyst preparation. In contrast with conventional kaolin matrix material, the properties of the Si-PB@kaolin composite, such as a large surface area, pore volume and surface acidity, were significantly promoted by the introduction of Si-modified pseudo-boehmite secondary units, which created excellent physico-chemical properties and acid site accessibility for the prepared FCC catalyst. The evaluation results suggested that, compared with the catalyst using conventional kaolin matrix material, the FCC catalyst containing Si-PB@kaolin exhibited much better heavy oil catalytic cracking and anti-heavy metal contamination performances. Furthermore, the synthesis procedure of the Si-PB@kaolin composite is simple and low-cost, which gives it good prospects for application.

Author Contributions

Conceptualization, C.Y. and G.J.; validation, C.Y.; formal analysis, C.Y; investigation, C.Y., Z.L., and L.Z.; resources, C.Y., Z.L., L.Z. and G.J.; data curation, C.Y.; writing—C.Y.; writing—review and editing, C.Y., Z.L., L.Z. and G.J.; visualization, C.Y., Z.L., L.Z. and G.J. supervision, C.Y. project administration, C.Y. and G.J.; funding acquisition, G.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (grant number: 21902008).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, Y.-M. Recent advances in FCC technology. Powder Technol. 2006, 163, 2–8. [Google Scholar] [CrossRef]
  2. Rodríguez, E.; Izaddoust, S.; Valecillos, J.; Bilbao, J.; Arandes, J.M.; Castaño, P.; Epelde, E.; Elordi, G. Lessening coke formation and boosting gasoline yield by incorporating scrap tire pyrolysis oil in the cracking conditions of an FCC unit. Energy Convers. Manag. 2020, 224, 113327–113339. [Google Scholar] [CrossRef]
  3. Rodríguez, E.; Palos, R.; Gutiérrez, A.; Arandes, J.M.; Bilbao, J. Scrap tires pyrolysis oil as a co-feeding stream on the catalytic cracking of vacuum gasoil under fluid catalytic cracking conditions. Waste Manag. 2020, 105, 18–26. [Google Scholar] [CrossRef] [PubMed]
  4. Shu, Y.; Travert, A.; Schiller, R.; Ziebarth, M.S.; Wormsbecher, R.; Cheng, W.-C. Effect of Ionic Radius of Rare Earth on USY Zeolite in Fluid Catalytic Cracking: Fundamentals and Commercial Application. Top. Catal. 2018, 58, 334–342. [Google Scholar] [CrossRef]
  5. Vogt, E.T.C.; Weckhuysen, B.M. Fluid catalytic cracking: Recent developments on the grand old lady of zeolite catalysis. Chem. Rev. 2015, 44, 7342–7370. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Li, K.; Valla, J.; Garcia-Martinez, J. Realizing the Commercial Potential of Hierarchical Zeolites: New Opportunities in Catalytic Cracking. ChemCatChem 2013, 6, 46–66. [Google Scholar] [CrossRef]
  7. Du, X.; Gao, X.; Zhang, H.; Li, X.; Liu, P. Effect of cation location on the hydrothermal stability of rare earth-exchanged Y zeolites. Catal. Commun. 2013, 35, 17–22. [Google Scholar] [CrossRef]
  8. Mi, S.; Wei, T.; Sun, J.; Liu, P.; Li, X.; Zheng, Q.; Gong, K.; Liu, X.; Gao, X.; Wang, B.; et al. Catalytic function of boron to creating interconnected mesoporosity in microporous Y zeolites and its high performance in hydrocarbon cracking. J. Catal. 2017, 347, 116–126. [Google Scholar] [CrossRef]
  9. Ishihara, A.; Wakamatsu, T.; Nasu, H.; Hashimoto, T. Preparation of amorphous silica-alumina using polyethylene glycol and its role for matrix in catalytic cracking of n-dodecane. Appl. Catal. A Gen. 2014, 478, 58–65. [Google Scholar] [CrossRef]
  10. Ishihara, A.; Negura, H.; Hashimoto, T.; Nasu, H. Catalytic properties of amorphous silica-alumina prepared using malic acid as a matrix in catalytic cracking of n-dodecane. Appl. Catal. A Gen. 2010, 388, 68–76. [Google Scholar] [CrossRef]
  11. Ishihara, A.; Nakajima, K.; Hirado, M.; Hashimoto, T.; Nasu, H. Novel method for generating large mesopores in an amor-phous silica–alumina by controlling the pore size with the gel skeletal reinforcement and its catalytic cracking properties as a catalyst matrix. Chem. Lett. 2011, 40, 558–560. [Google Scholar] [CrossRef]
  12. Ishihara, A.; Kimura, K.; Owaki, A.; Inui, K.; Hashimoto, T.; Nasu, H. Catalytic cracking of VGO by hierarchical ZSM-5 zeolite containing mesoporous silica–aluminas using a Curie point pyrolyzer. Catal. Commun. 2012, 28, 163–167. [Google Scholar] [CrossRef]
  13. Ishihara, A.; Inui, K.; Hashimoto, T.; Nasu, H. Preparation of hierarchical β and Y zeolite-containing mesoporous silica–aluminas and their properties for catalytic cracking of n-dodecane. J. Catal. 2012, 295, 81–90. [Google Scholar] [CrossRef]
  14. Ravichyandran, J.; Sivasankar, B. Properties and catalytic activity of acid-modified montmorillonite and vermiculite. Clays Clay Miner. 1997, 45, 854–858. [Google Scholar] [CrossRef]
  15. Rong, T.-J.; Xiao, J.-K. The catalytic cracking activity of the kaolin-group minerals. Chem. Lett. 2002, 57, 297–301. [Google Scholar] [CrossRef]
  16. He, M.-Y. The development of catalytic cracking catalysts: Acidic property related catalytic performance. Catal. Today 2002, 73, 49–55. [Google Scholar] [CrossRef]
  17. Liu, H.; Ma, J.; Gao, X. Synthesis, characterization and evaluation of a novel resid FCC catalyst based on in situ synthesis on kaolin microspheres. Catal. Lett. 2006, 110, 229–234. [Google Scholar] [CrossRef]
  18. Qi, Y.P.; Chen, S.L.; Dong, P.; Xu, K.; Shen, B. Novel macroporous residua FCC catalysts. J. Fuel Chem. Technol. 2006, 34, 685–690. [Google Scholar]
  19. Rao, W.; Lv, G.; Liao, L. Modification of kaolinite and its effect on the catalytic cracking performance of fluid catalytic cracking. J. Am. Ceram. Soc. 2019, 6, 848–854. [Google Scholar]
  20. Lenarda, M.; Storaro, L.; Talon, A.; Moretti, E.; Riello, P. Solid acid catalysts from clays: Preparation of mesoporous catalysts by chemical activation of metakaolin under acid conditions. J. Colloid Interface Sci. 2007, 311, 537–543. [Google Scholar] [CrossRef]
  21. Perissinotto, M.; Lenarda, M.; Storaro, L.; Ganzerla, R. Solid acid catalysts from clays: Acid leached metakaolin as isopropanol dehydration and 1-butene isomerization catalyst. J. Mol. Catal. A Chem. 1997, 121, 103–109. [Google Scholar] [CrossRef]
  22. Lussier, R.J. A novel clay-based catalytic material?preparation and properties. J. Catal. 1991, 129, 225–237. [Google Scholar] [CrossRef]
  23. Yang, Y.; Xu, Y.; Han, B.; Xu, B.; Liu, X.; Yan, Z. Effects of synthetic conditions on the textural structure of pseudo-boehmite. J. Colloid Interface Sci. 2016, 469, 1–7. [Google Scholar] [CrossRef] [PubMed]
  24. Murrell, L.L. Catalysts Comprising Silica Supported on a Boehmite-Like Surface, Their Preparation and Use. U.S. Patent No. 4,708,945, 13 April 1987. [Google Scholar]
  25. Zheng, J.; Luo, Y.; Mu, X.; Shu, X. Effect of silica modification on the structure and cracking properties of industurial alumina materials. Acta Pet. Sin. (Pet. Process. Sect.) 2012, 26, 846–851. [Google Scholar]
  26. Hou, X.; Wang, X.; Xu, G.; Zhang, S.; Zheng, J.; Zhou, K. Effects of acidity and pore size of silica alumina materials on contact cracking of vacuum residues. Acta Pet. Sin. (Pet. Process. Sect.) 2019, 35, 1045–1051. [Google Scholar]
  27. Liu, H.; Zhao, H.; Gao, X.; Ma, J. A novel FCC catalyst synthesized via in situ overgrowth of NaY zeolite on kaolin microspheres for maximizing propylene yield. Catal. Today 2007, 125, 163–168. [Google Scholar] [CrossRef]
  28. Yuan, Y.; Chen, H.; Lin, J.; Ji, Y. Surface modification of calcined kaolin with toluene diisocyanate based on high energy ball milling. Appl. Surf. Sci. 2013, 284, 214–221. [Google Scholar] [CrossRef]
  29. Toledo-Chávez, G.; Paniagua-Rodríguez, J.-C.; Zárate-Medina, J.; Maya-Yescas, R. Reactions analysis during the synthesis of pseudo-boehmite as precursor of gamma-alumina. Catal. Today 2016, 271, 207–212. [Google Scholar] [CrossRef]
  30. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution. Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef] [Green Version]
  31. Zhao, D.Y.; Huo, Q.S.; Feng, J.L.; Chmelka, B.F.; Stucky, G.D. Nonionic Triblock and Star Diblock Copolymer and Oligomeric Surfactant Syntheses of Highly Ordered, Hydrothermally Stable, Mesoporous Silica Structures. J. Am. Chem. Soc. 1998, 120, 6024–6036. [Google Scholar] [CrossRef]
  32. Thomas, O.; Guillaume, C.; Houalla, M. Quantitative IR characterization of the acidity of various oxide catalysts. Microporous Mesoporous Mater. 2005, 82, 99–104. [Google Scholar]
  33. Xue, Z.; Zhang, T.; Ma, J.; Miao, H.; Fan, W.; Zhang, Y.; Li, R. Accessibility and catalysis of acidic sites in hierarchical ZSM-5 prepared by silanization. Microporous Mesoporous Mater. 2012, 151, 271–276. [Google Scholar] [CrossRef]
  34. Yuan, C.; Tan, Z.; Pan, Z.; Zhang, H.; Gao, X. Research on catalytic cracking performance improvement of waste FCC catalyst by magnesium modification. China Pet. Process. Petrochem. 2018, 20, 48–55. [Google Scholar]
  35. Hosseinpour, N.; Mortazavi, A.; Bazyari, A.; Khodadadi, A.A. Synergetic effects of Y-zeolite and amorphous silica-alumina as main FCC catalyst components on triisopropylbenzene cracking and coke formation. Fuel Process. Technol. 2009, 90, 171–179. [Google Scholar] [CrossRef]
  36. Thibault-Starzyk, F.; Stan, I.; Abelló, S.; Bonilla, A.; Thomas, K.; Fernandez, C.; Gilson, J.-P.; Pérez-Ramírez, J. Quantification of enhanced acid site accessibility in hierarchical zeolites—The accessibility index. J. Catal. 2009, 264, 11–14. [Google Scholar] [CrossRef]
  37. Yuan, C.; Wang, Z.; Zhang, H.; Tan, Z.; Pan, Z.; Gao, X. Preparation of core-shell composite of Y@mesoporous alumina and its application in heavy oil cracking. China Pet. Process. Petrochem. 2016, 18, 29–35. [Google Scholar]
Materials 15 02169 sch001 550

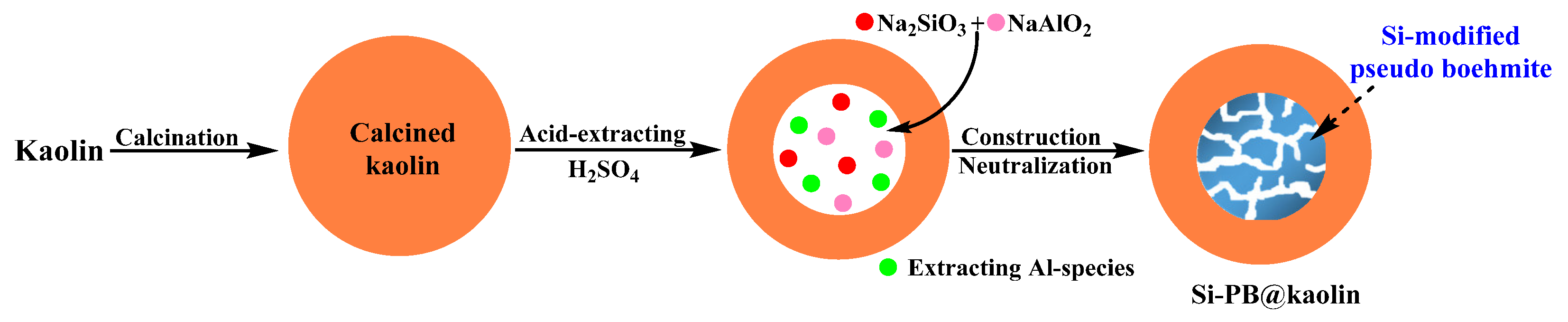

Scheme 1. Synthesis procedure of Si-PB@kaolin composite.
Scheme 1. Synthesis procedure of Si-PB@kaolin composite.
Materials 15 02169 sch001
Materials 15 02169 g001 550

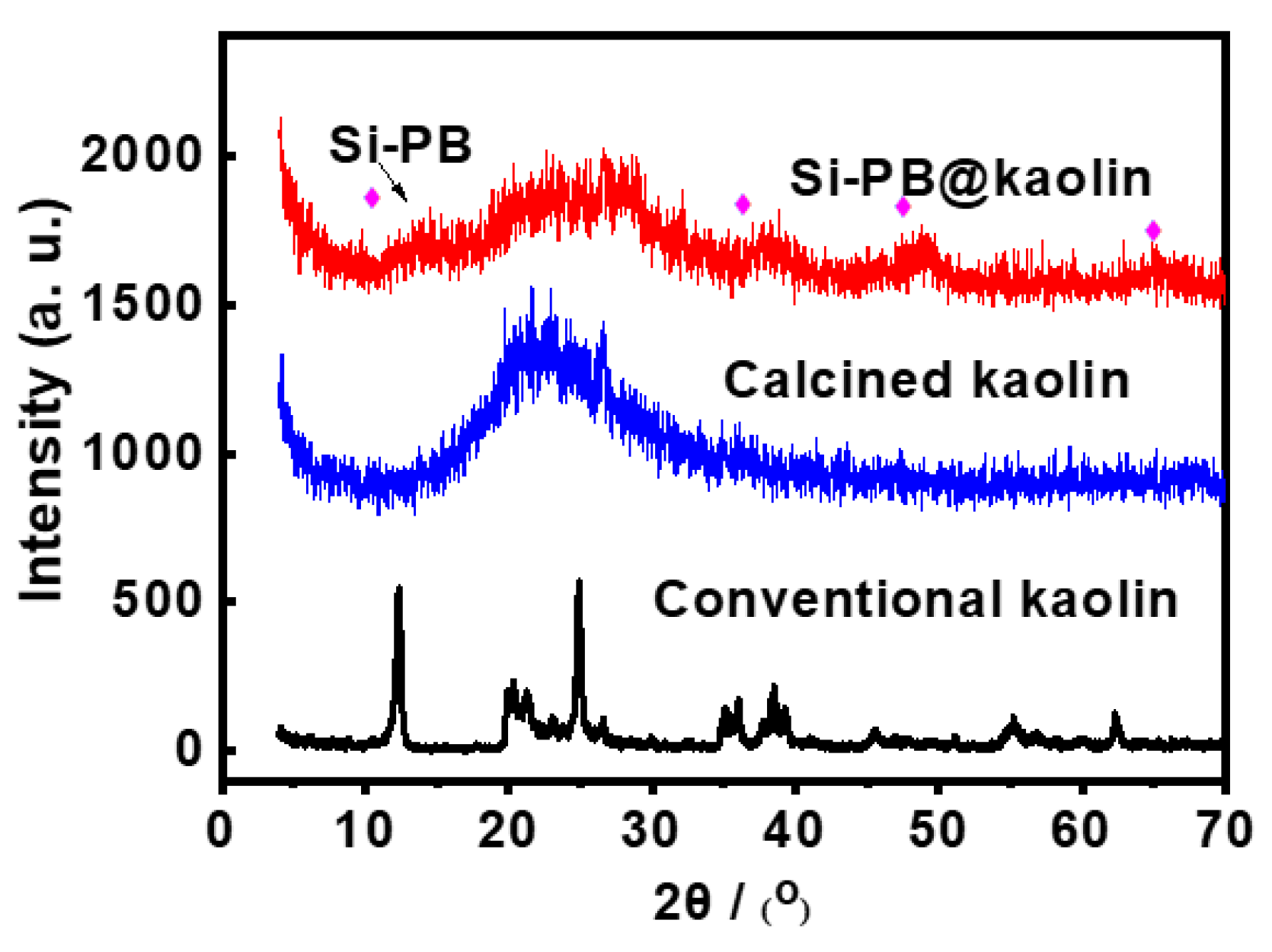

Figure 1. XRD patterns for kaolin, calcined kaolin and Si-PB@kaolin composite.
Figure 1. XRD patterns for kaolin, calcined kaolin and Si-PB@kaolin composite.
Materials 15 02169 g001
Materials 15 02169 g002 550
Figure 2. N2 adsorption–desorption isotherms for conventional kaolin, calcined kaolin and Si-PB@kaolin composite.
Figure 2. N2 adsorption–desorption isotherms for conventional kaolin, calcined kaolin and Si-PB@kaolin composite.
Materials 15 02169 g002
Materials 15 02169 g003 550
Figure 3. NH3-TPD profiles for conventional kaolin, calcined kaolin and Si-PB@kaolin composite.
Figure 3. NH3-TPD profiles for conventional kaolin, calcined kaolin and Si-PB@kaolin composite.
Materials 15 02169 g003
Materials 15 02169 g004 550

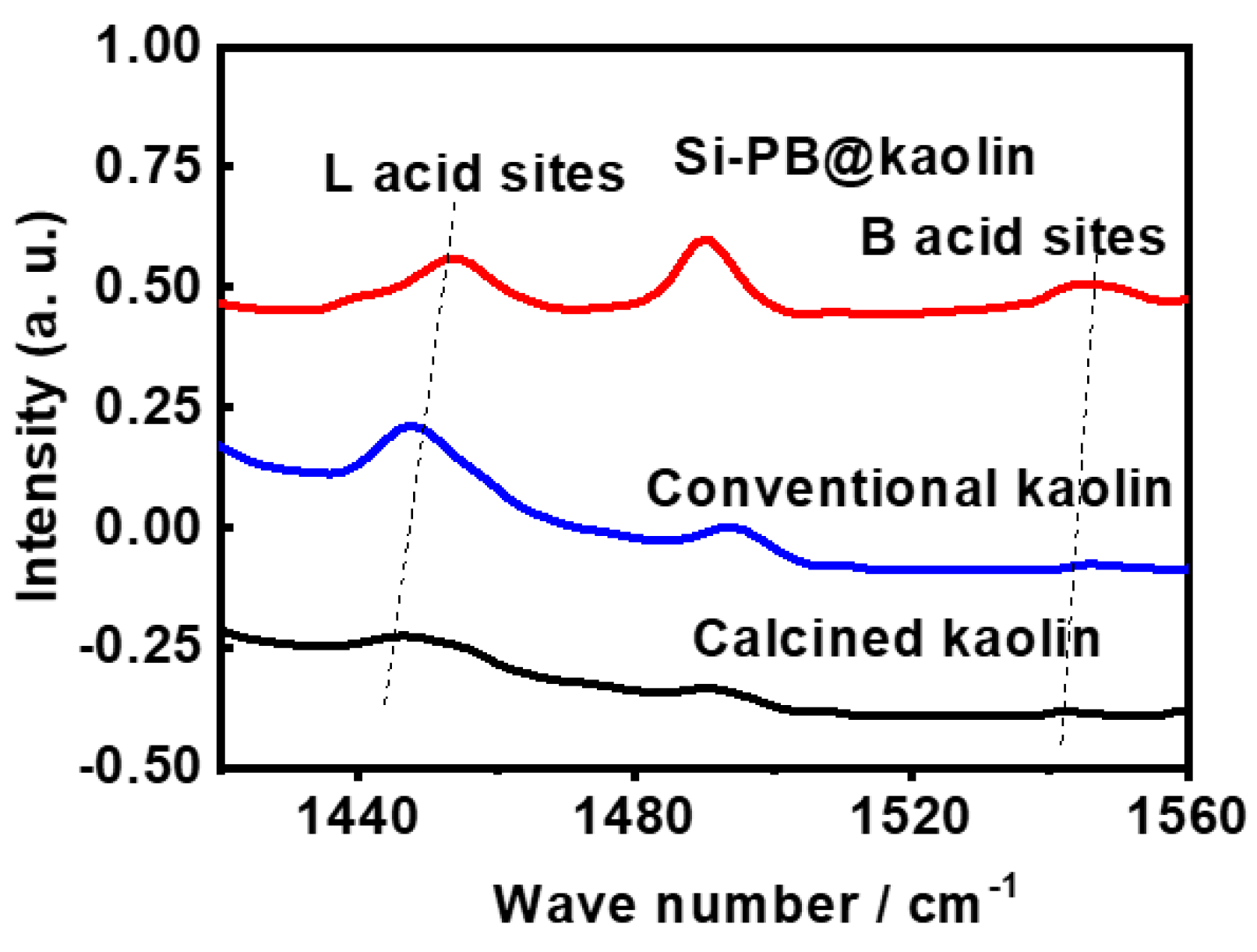

Figure 4. Py-FTIR spectra for conventional kaolin, calcined kaolin and Si-PB@kaolin.
Figure 4. Py-FTIR spectra for conventional kaolin, calcined kaolin and Si-PB@kaolin.
Materials 15 02169 g004
Materials 15 02169 g005 550

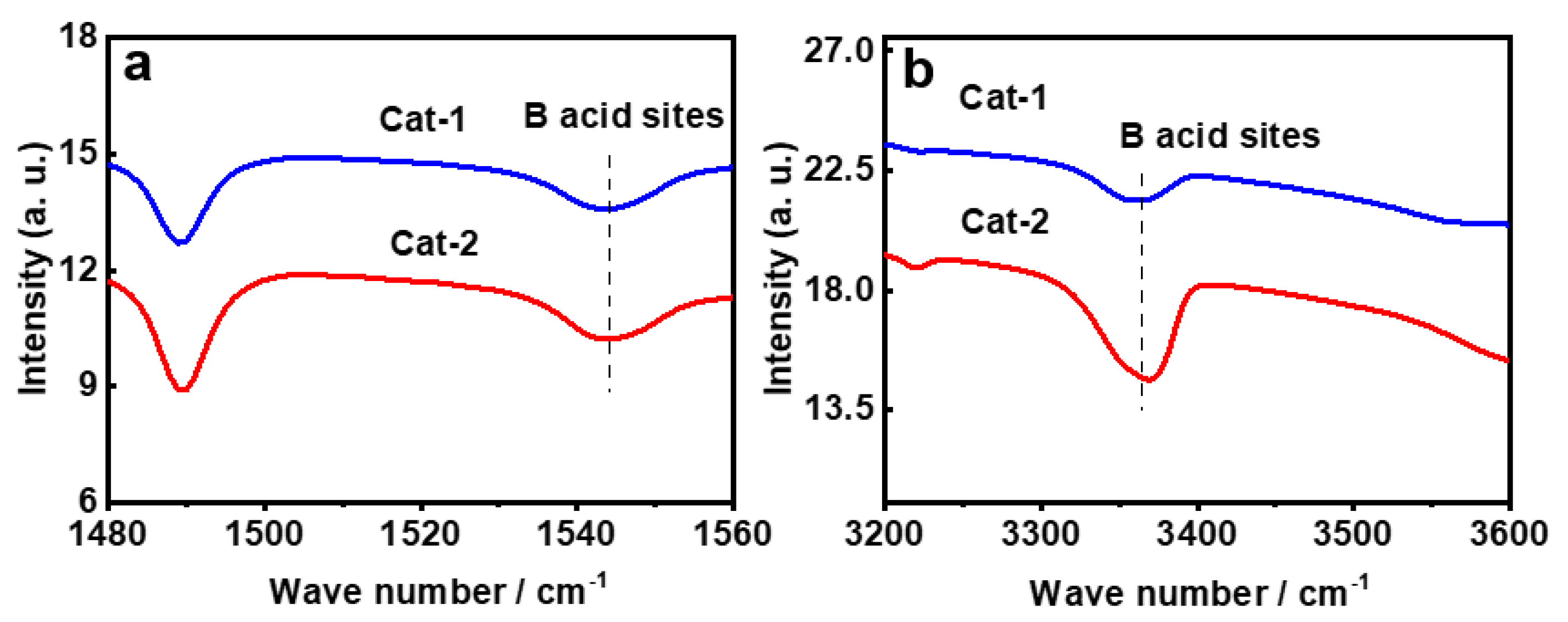

Figure 5. Py-FTIR (a) and DTBPy-FTIR (b) for prepared FCC catalysts.
Figure 5. Py-FTIR (a) and DTBPy-FTIR (b) for prepared FCC catalysts.
Materials 15 02169 g005
Materials 15 02169 g006 550
Figure 6. Acid site accessibilities of prepared FCC catalysts.
Figure 6. Acid site accessibilities of prepared FCC catalysts.
Materials 15 02169 g006
Materials 15 02169 g007 550

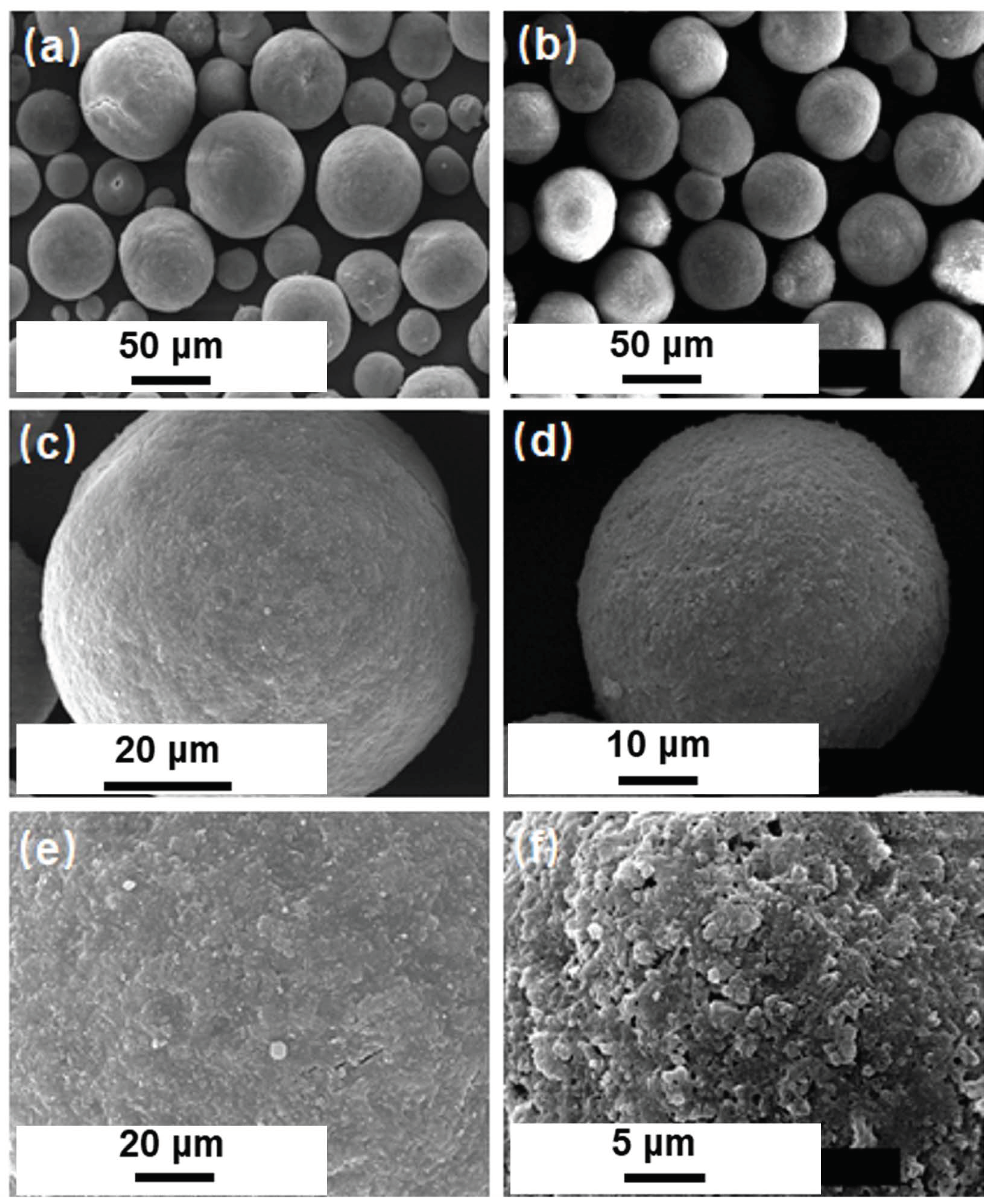

Figure 7. SEM images of prepared FCC catalysts: (a) total appearance of Cat-1; (b) total appearance of Cat-2; (c) single microspheres of Cat-1; (d) single microspheres of Cat-2; (e) surface detail of Cat-1; (f) surface detail of Cat-2).
Figure 7. SEM images of prepared FCC catalysts: (a) total appearance of Cat-1; (b) total appearance of Cat-2; (c) single microspheres of Cat-1; (d) single microspheres of Cat-2; (e) surface detail of Cat-1; (f) surface detail of Cat-2).
Materials 15 02169 g007
Materials 15 02169 g008 550
Figure 8. Heavy oil catalytic cracking performances of fresh FCC catalysts.
Figure 8. Heavy oil catalytic cracking performances of fresh FCC catalysts.
Materials 15 02169 g008
Materials 15 02169 g009 550

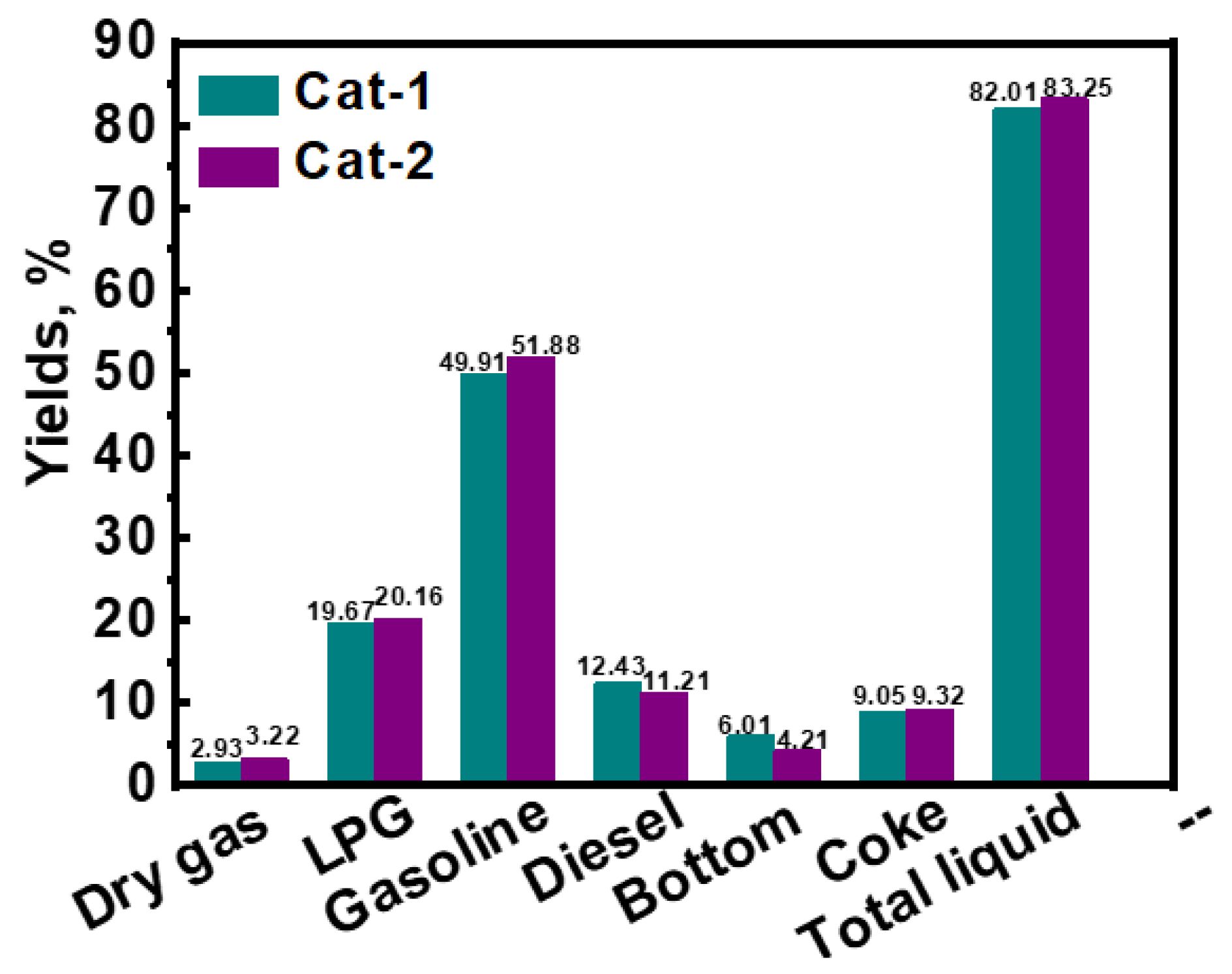

Figure 9. Heavy oil catalytic cracking performances of contaminated FCC catalysts.
