Experimental Study on High-Temperature Damage Repair of Concrete by Soybean Urease Induced Carbonate Precipitation
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Preparation and Treatment of Specimen
2.2.1. Specimen Preparation

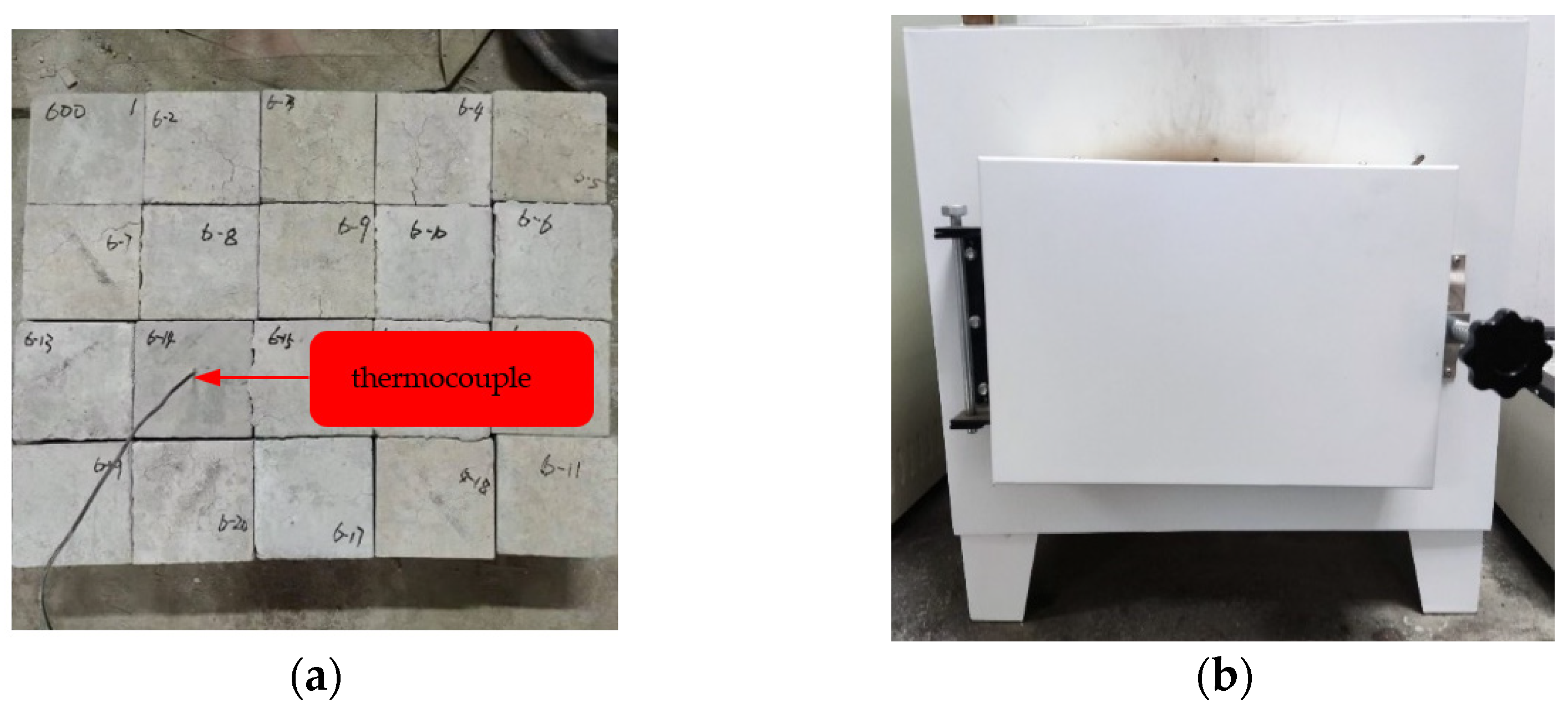

2.2.2. High-Temperature Treatment
2.3. Test Methods

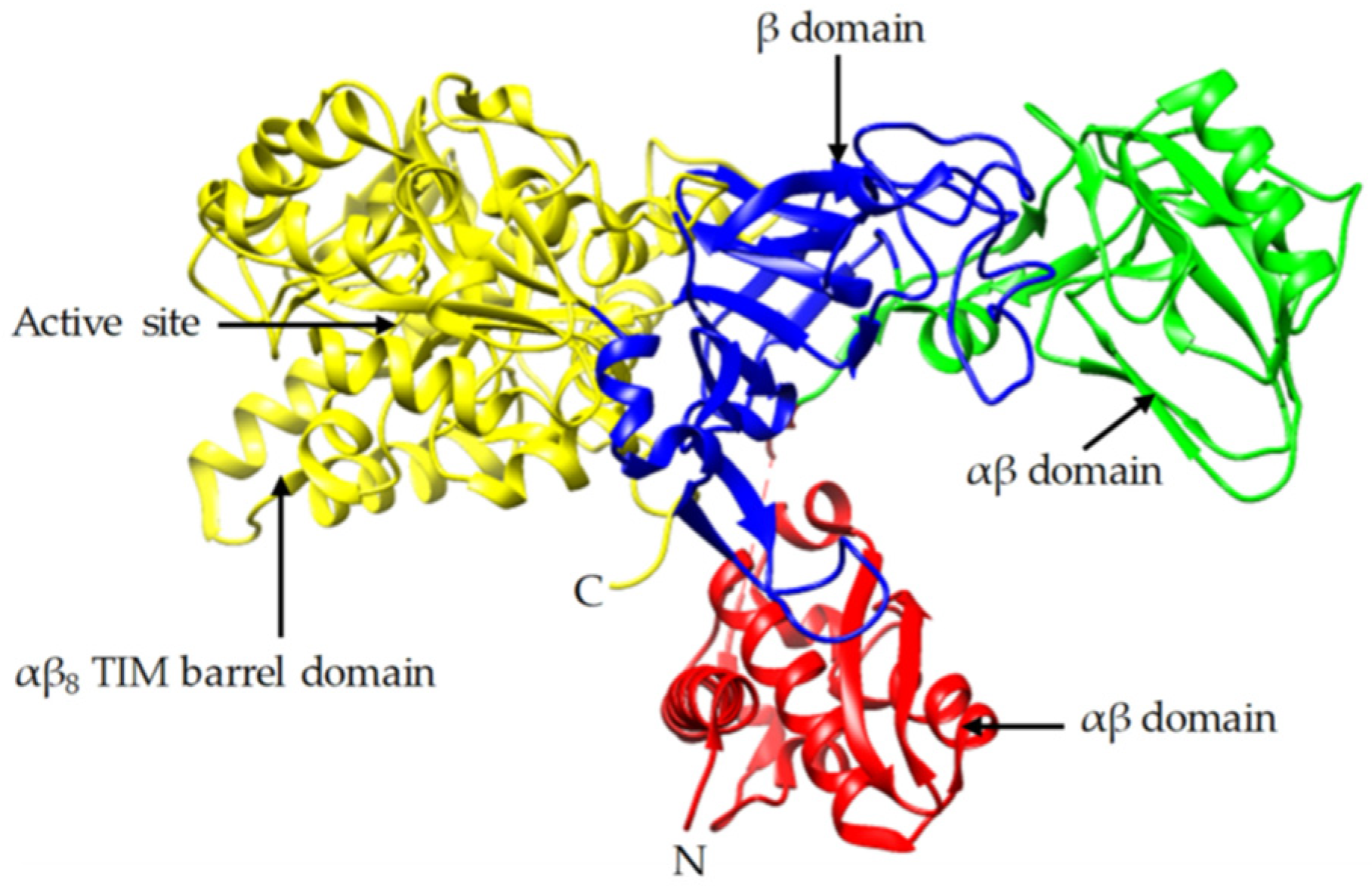

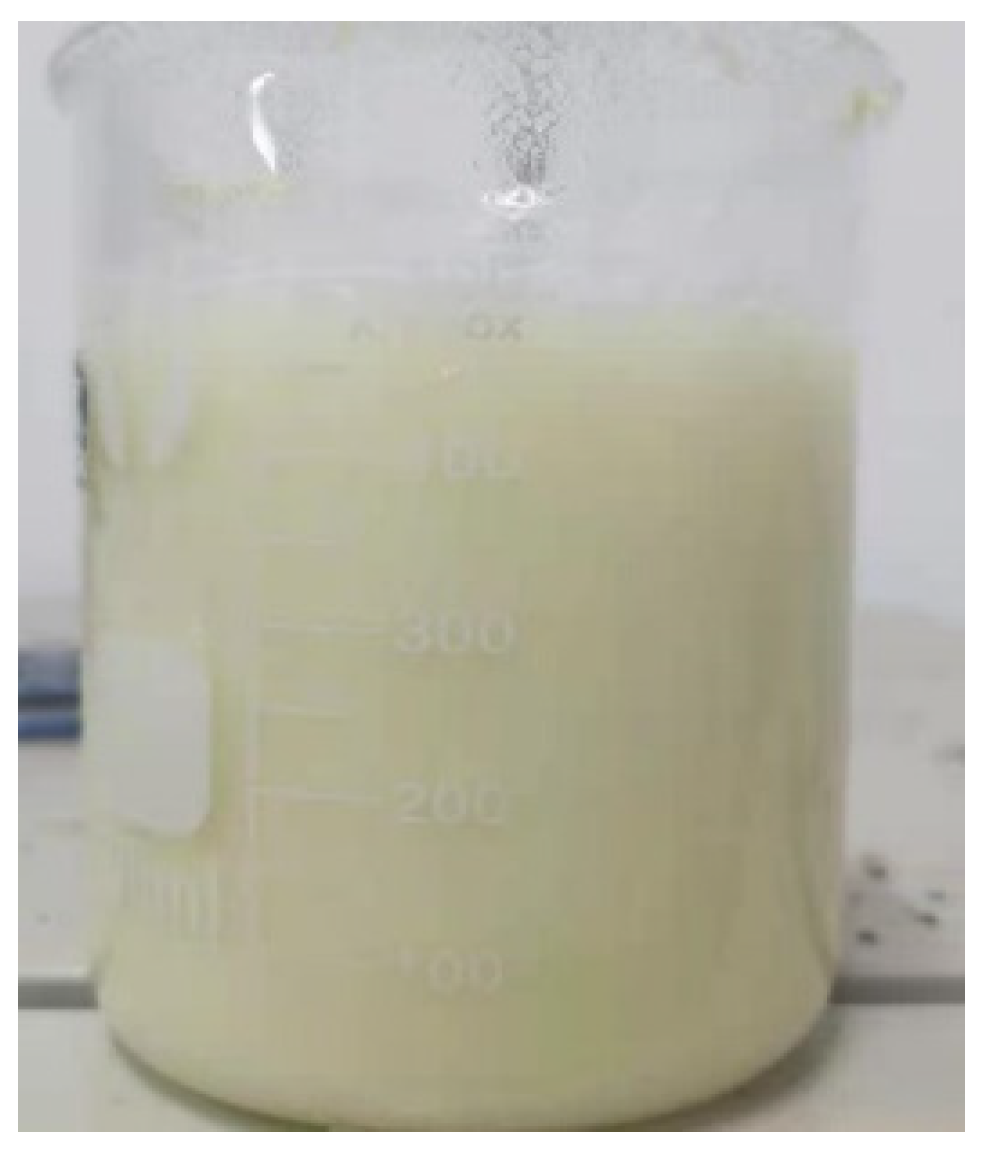

2.3.1. Extraction of Soybean Urease

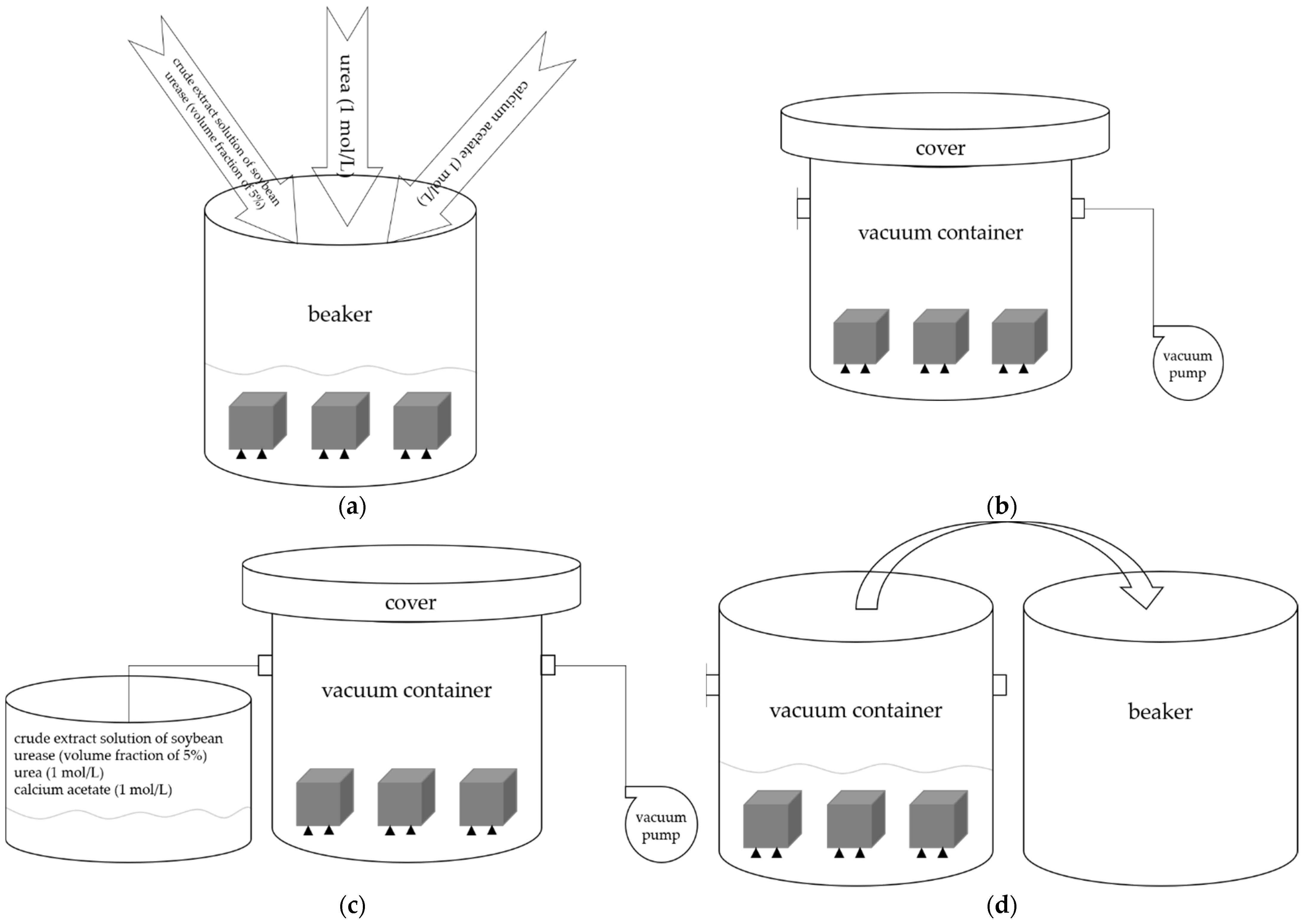

2.3.2. Different Repair Methods
2.3.3. SEM and EDS Experiments
2.3.4. Surface Film Thickness

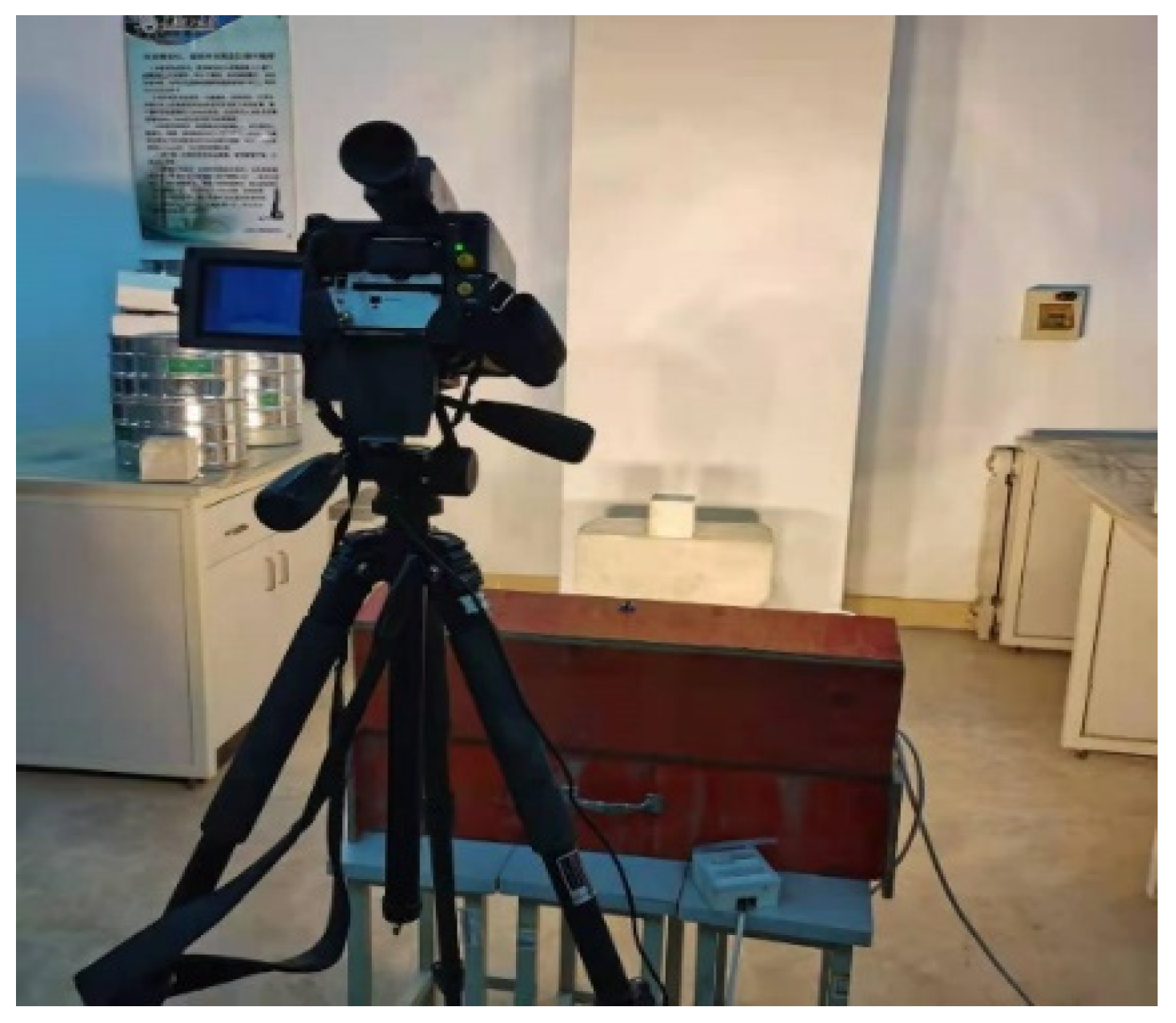

2.3.5. Infrared Thermal Image
2.3.6. Water Absorption Test
2.3.7. Compressive Strength Test
2.3.8. Specimens’ Information
3. Results and Discussion
3.1. Apparent Characteristics
3.2. EDS Analysis
3.3. SEM Analysis

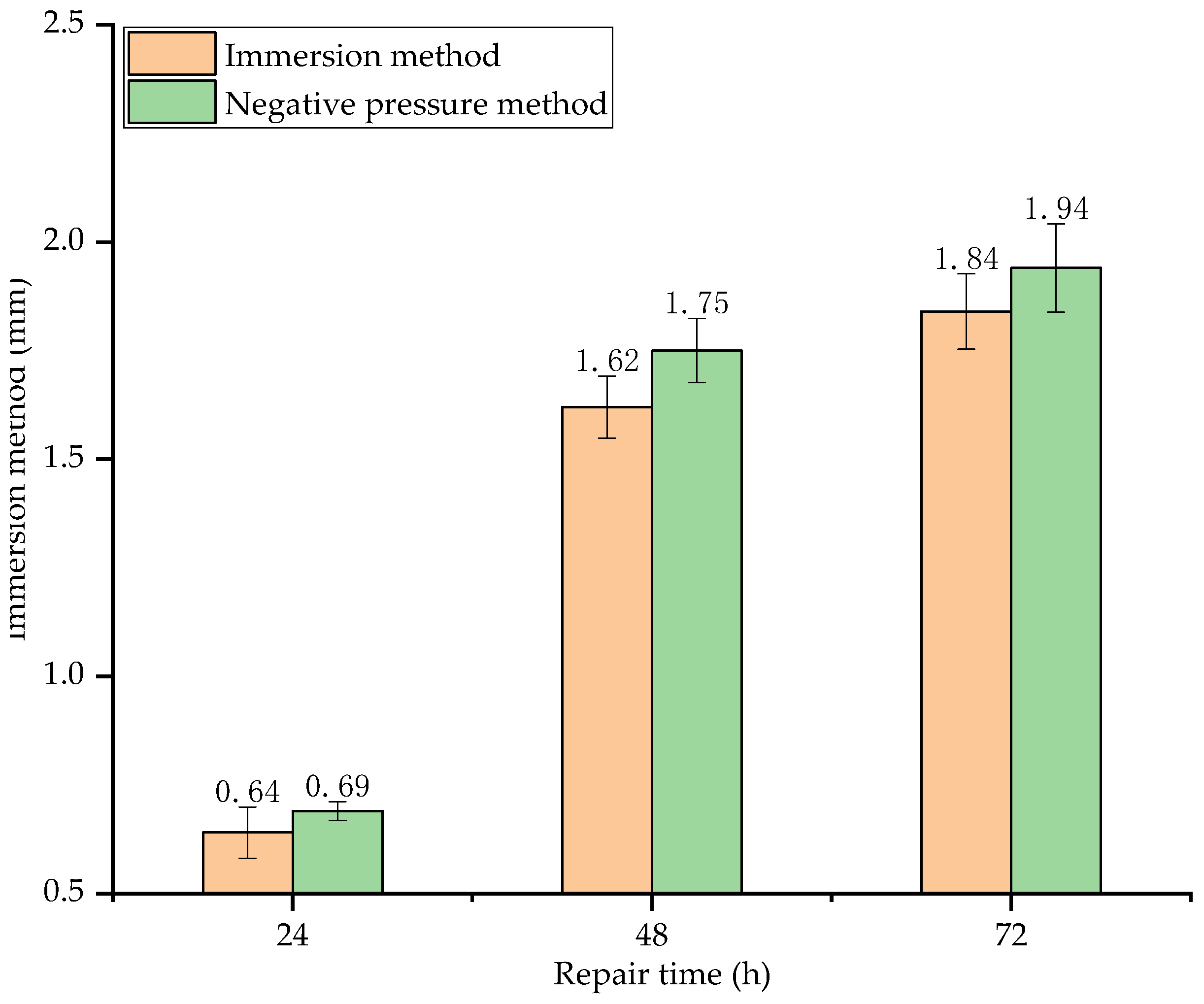

3.4. Surface Film Thickness

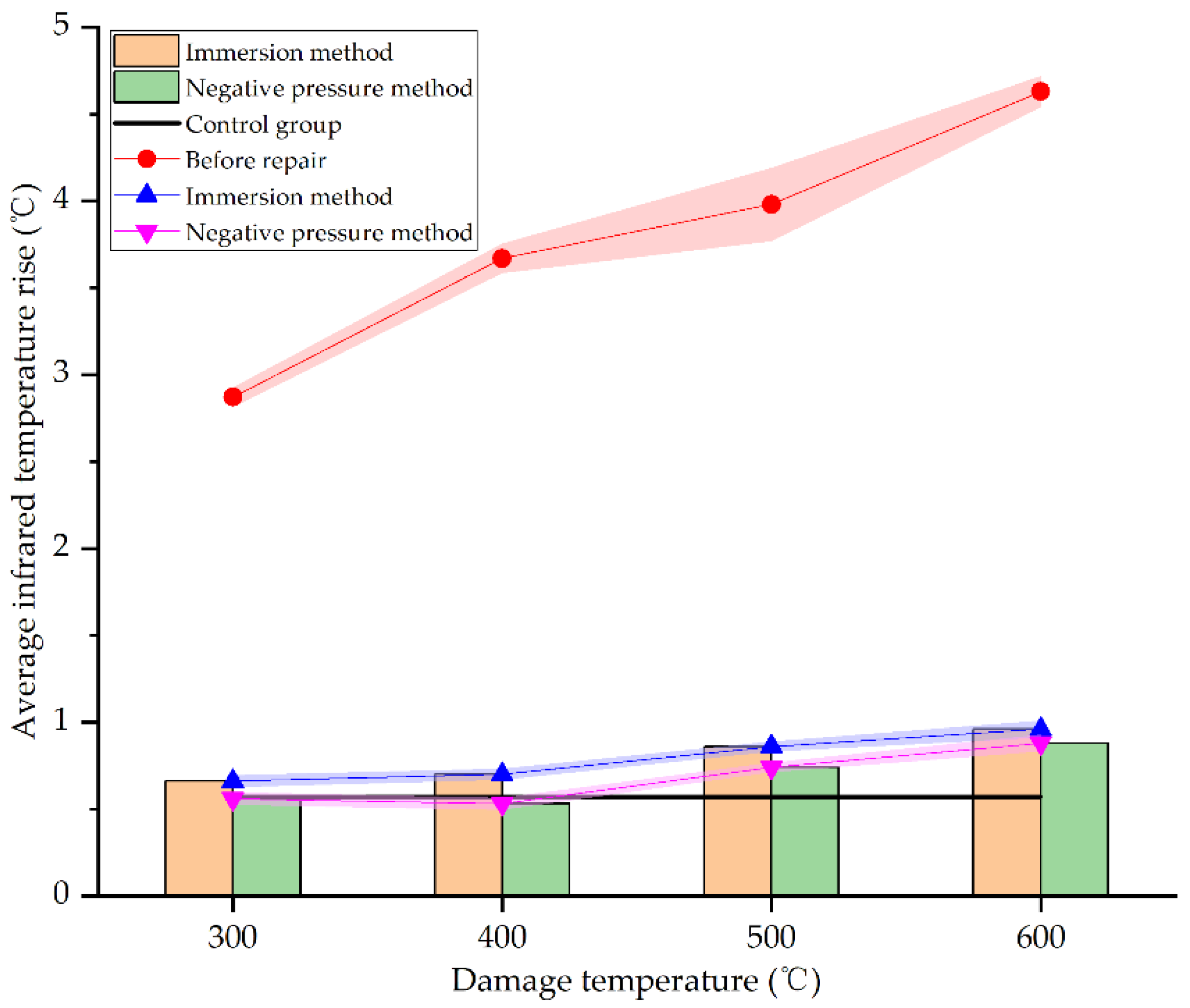

3.5. Average Infrared Temperature Increase
3.6. Water Absorption
3.7. Compressive Strength
4. Conclusions
- (1)
- From the results of EDS and SEM, CaC2O4 and CaCO3 crystals are formed, CaCO3 crystals are larger, and the depose effect is better; these two kinds of crystals make the concrete denser.
- (2)
- From the results of apparent characteristics, surface film thickness, and average infrared temperature increase, SICP has a good effect on the surface repair of high-temperature damage of concrete; the repair effect of the negative pressure method is slightly better than that of the immersion method.
- (3)
- From the results of water absorption and compressive strength, SICP has a certain effect on the recovery of mechanical properties and durability of damaged concrete; the repair effect of the negative pressure method is obviously better than that of the immersion method.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Du, H. New Methods for Fire Damage Detection and Evaluation of Reinforced Concrete Structures; Chemical Industry Press: Beijing, China, 2018. [Google Scholar]
- Wu, B.; Yuan, J.; Wang, G. Experimental Research on The Mechanical Properties of HSC after High Temperature. China Civ. Eng. J. 2000, 2, 8–12, 34. [Google Scholar] [CrossRef]
- Gao, R.; Xu, Q.; Li, X.; Wang, Q.; Yu, L. Experimental Research on Resistance of Concrete to Chloride Penetration after High Temperature. J. Build. Mater. 2014, 17, 690–694. [Google Scholar] [CrossRef]
- Mohammadhosseini, H.; Yatim, J.M. Microstructure and Residual Properties of Green Concrete Composites Incorporating Waste Carpet Fibers and Palm Oil Fuel Ash at Elevated Temperatures. J. Clean. Prod. 2017, 144, 8–21. [Google Scholar] [CrossRef]
- Mohammadhosseini, H.; Lim, N.H.A.S.; Sam, A.R.M.; Samadi, M. Effects of Elevated Temperatures on Residual Properties of Concrete Reinforced with Waste Polypropylene Carpet Fibres. Arab. J. Sci. Eng. 2018, 43, 1673–1686. [Google Scholar] [CrossRef]
- Ruan, T.; Spandley, N.; Johnson, C.; Poursaee, A. The Impact of Fire and Fire Extinguishing Method on the Corrosion Behavior of the Steel Bars in Concrete Pore Solution. Fire Saf. J. 2015, 78, 196–201. [Google Scholar] [CrossRef]
- Wang, T. Crack Control of Buildings; General Institute of Architecture, Ministry of Metallurgy: Beijing, China, 1985. [Google Scholar]
- de Melo, M.; Wheatley, R.; Gibbin, N.; Gonzalez-Quesada, M.; Harwood, K. Assessment and Repair of a Fire-Damaged Pre-Stressed Concrete Bridge. Struct. Eng. Int. 2014, 24, 408–413. [Google Scholar] [CrossRef]
- Goushis, R.; Mini, K.M. Effectiveness of Polymeric and Cementitious Materials to Secure Cracks in Concrete under Diverse Circumstances. Int. J. Adhes. Adhes. 2022, 114, 103099. [Google Scholar] [CrossRef]
- Kannan, U.; Gafoor, S.A.; Srivastava, S.; Nithyadharan, M.; Gupta, S.S.; Maliyekkal, S.M. A Waste-Derived Nanocomposite Sealant for Repairing Micro-Cracks in Concrete. J. Build. Eng. 2022, 48, 103965. [Google Scholar] [CrossRef]
- Liu, F. Experiment and Analysis of Realkalisation Repairing on Reinforced Concrete after High Temperature. Master’s Thesis, South China University of Technology, Guangzhou, China, 2013. [Google Scholar]
- De Belie, N.; Gruyaert, E.; Al-Tabbaa, A.; Antonaci, P.; Baera, C.; Bajare, D.; Darquennes, A.; Davies, R.; Ferrara, L.; Jefferson, T.; et al. A Review of Self-Healing Concrete for Damage Management of Structures. Adv. Mater. Interfaces 2018, 5, 1800074. [Google Scholar] [CrossRef]
- Wang, R. Study on Biomineralization Process of Calcium Carbonate Mediated by Microbe and Its Application in Restoration of Cement-Based Materials Defects. Ph.D. Thesis, Southeast University, Nanjing, China, 2009. [Google Scholar]
- Whiffin, V.S. Microbial CaCO3 Precipitation for the Production of Biocement. Ph.D. Thesis, Murdoch University, Perth, Australia, 2004. [Google Scholar]
- Ortega-Villamagua, E.; Gudiño-Gomezjurado, M.; Palma-Cando, A. Microbiologically Induced Carbonate Precipitation in the Restoration and Conservation of Cultural Heritage Materials. Molecules 2020, 25, 5499. [Google Scholar] [CrossRef]
- Hamed Khodadadi, T.; Kavazanjian, E.; van Paassen, L.; DeJong, J. Bio-Grout Materials: A Review. In Proceedings of the Grouting 2017, Honolulu, HI, USA, 9–12 July 2017; American Society of Civil Engineers: Honolulu, HI, USA, 2017; pp. 1–12. [Google Scholar]
- Chen, Y.; Gao, Y.; Ng, C.W.W.; Guo, H. Bio-Improved Hydraulic Properties of Sand Treated by Soybean Urease Induced Carbonate Precipitation and Its Application Part 1: Water Retention Ability. Transp. Geotech. 2021, 27, 100489. [Google Scholar] [CrossRef]
- Cheng, L.; Cord-Ruwisch, R. Selective Enrichment and Production of Highly Urease Active Bacteria by Non-Sterile (Open) Chemostat Culture. J. Ind. Microbiol. Biotechnol. 2013, 40, 1095–1104. [Google Scholar] [CrossRef] [PubMed]
- Werner, E.A. The Presence of Urease in the Nodules on the Roots of Leguminous Plants. Nature 1923, 112, 202. [Google Scholar] [CrossRef]
- Mobley, H.L.; Island, M.D.; Hausinger, R.P. Molecular Biology of Microbial Ureases. Microbiol. Rev. 1995, 59, 451–480. [Google Scholar] [CrossRef] [PubMed]
- Zhou, D.; Liu, Y.; Ma, X. Extracting of Urease from Soybean and Its Influencing Factors. Soybean Sci. 2008, 108, 704–707. [Google Scholar]
- Gu, R. Determination of Urease Activity in Soybean Milk and Its Thermal Stability. Food Res. Dev. 1993, 3, 31–33. [Google Scholar]
- Yuan, H.; Liu, K.; Yuan, Y. Affecting Analysis of Multi-Factors on Soybean Urease-Induced Calcium Carbonate Precipitation. J. Synth. Cryst. 2021, 50, 375–380. [Google Scholar] [CrossRef]
- Gao, Y.; He, J.; Tang, X.; Chu, J. Calcium Carbonate Precipitation Catalyzed by Soybean Urease as an Improvement Method for Fine-Grained Soil. Soils Found. 2019, 59, 1631–1637. [Google Scholar] [CrossRef]
- Gao, Y.; Meng, H.; He, J.; Qi, Y.; Hang, L. Field Trial on Use of Soybean Crude Extract for Carbonate Precipitation and Wind Erosion Control of Sandy Soil. J. Cent. South Univ. 2020, 27, 3320–3333. [Google Scholar] [CrossRef]
- Chen, Y.; Gao, Y.; Guo, H. Bio-Improved Hydraulic Properties of Sand Treated by Soybean Urease Induced Carbonate Precipitation and Its Application Part 2: Sand-Geotextile Capillary Barrier Effect. Transp. Geotech. 2021, 27, 100484. [Google Scholar] [CrossRef]
- Li, Q. Study on Microstructure-Damage Evolution of C80 High Performance Concrete Subjected to High Temperature. Master’s Thesis, Taiyuan University of Technology, Taiyuan, China, 2017. [Google Scholar]
- GB/T 50081-2019; Standard for Test Methods of Concrete Physical and Mechanical Properties. China Architecture & Building Press: Beijing, China, 2019.
- GB/T 50082-2009; Standard for Test Methods of Long-Term Performance and Durability of Ordinary Concrete. China Architecture & Building Press: Beijing, China, 2009.
- Ahenkorah, I.; Rahman, M.M.; Karim, M.R.; Beecham, S.; Saint, C. A Review of Enzyme Induced Carbonate Precipitation (EICP): The Role of Enzyme Kinetics. Sustain. Chem. 2021, 2, 92–114. [Google Scholar] [CrossRef]
- Du, H.; Zhang, X. Synthetical Evaluation and Application of Infrared Imaging and Electro Chemistry Technique on Fire Damage of Reinforced Concrete Structures. China Civ. Eng. J. 2004, 7, 41–46. [Google Scholar]
- GB/T 19870-2018; Industrial Inspecting Thermal Imager. Standards Press of China: Beijing, China, 2018.
- GB/T 11969-2020; Test Methods of Autoclaved Aerated Concrete. Standards Press of China: Beijing, China, 2020.
- Fan, Y.; Du, H.; Wei, H. Characteristics of Soybean Urease Mineralized Calcium Carbonate and Repair of Concrete Surface Damage. J. Wuhan Univ. Technol.-Mat. Sci. Edit. 2021, 36, 70–76. [Google Scholar] [CrossRef]
- Chunxiang, Q.; Jianyun, W.; Ruixing, W.; Liang, C. Corrosion Protection of Cement-Based Building Materials by Surface Deposition of CaCO3 by Bacillus Pasteurii. Mater. Sci. Eng. C 2009, 29, 1273–1280. [Google Scholar] [CrossRef]
Cement (kg/m3) | Water (kg/m3) | Aggregate (kg/m3) | Sand (kg/m3) | Superplasticizer (kg/m3) | w/b | Slump (mm) |
---|---|---|---|---|---|---|
430 | 165 | 1130 | 720 | 1.15 | 0.38 | 152 |
Test | Sample Size (mm) | Repair Methods | Damage Temperature (°C) | Repair Time (h) |
---|---|---|---|---|
Apparent characteristics | 40 × 40 × 40 | Negative pressure method | 600 | 72 |
EDS | White sediments from the surface of repaired specimen | Negative pressure method | 600 | 72 |
SEM | Small blocks from the interior of repaired specimens | Immersion and negative pressure methods | 600 | 72 |
Surface film thickness | 40 × 40 × 40 | Immersion and negative pressure methods | 300, 400, 500, 600 | 24, 48, 72 |
Infrared thermal image | 40 × 40 × 40 | Immersion and negative pressure methods | 300, 400, 500, 600 | 72 |
Water absorption | 40 × 40 × 40 | Immersion and negative pressure methods | 300, 400, 500, 600 | 72 |
Compressive strength | 40 × 40 × 40 | Immersion and negative pressure methods | 300, 400, 500, 600 | 72 |
Sample | C | O | Ca | Total |
---|---|---|---|---|
upper | 28.08 | 57.82 | 14.10 | 100 |
bottom | 18.82 | 64.03 | 17.14 | 100 |
