Electrical Resistivity Measurements for Nondestructive Evaluation of Chloride-Induced Deterioration of Reinforced Concrete—A Review
Abstract

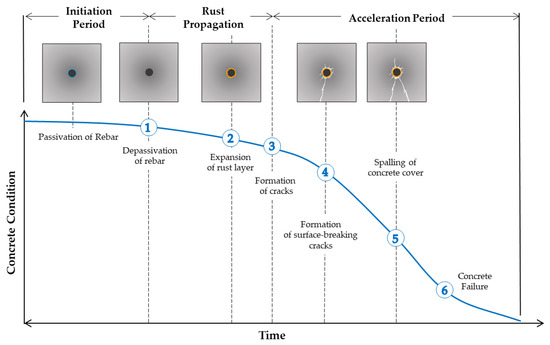

:1. Introduction
2. Materials and Methods
Concrete Specimen Preparation

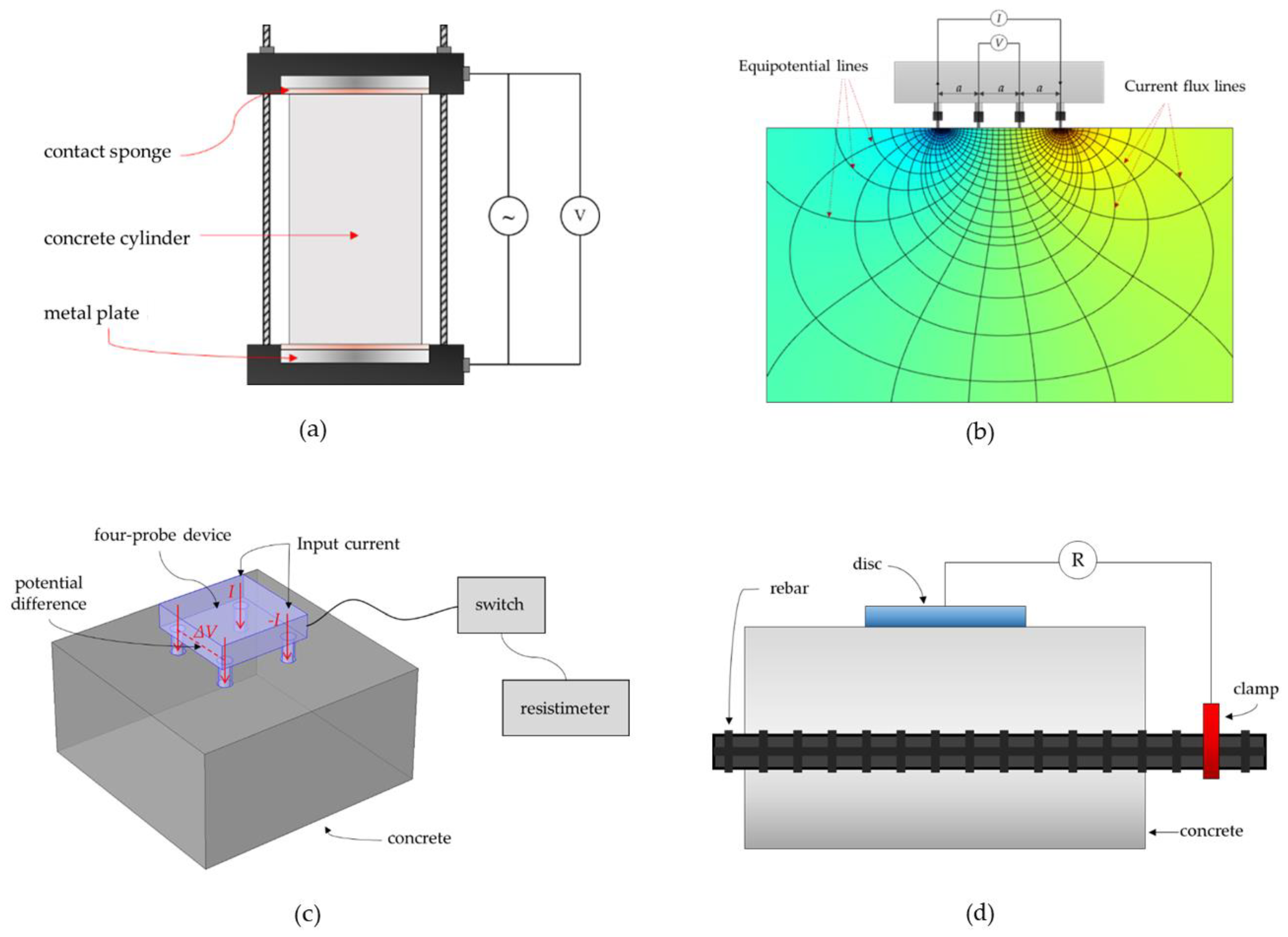

3. Measurement Techniques
3.1. Two-Point Uniaxial Method
3.2. Four-Point Wenner Probe Method
3.3. Four-Probe Square Array Method
3.4. Electrode–Disc Test Method
3.5. Resistivity Meter through Resistance Measurements
4. Correlation of Electrical Resistivity to Various Factors for Steel Corrosion in Concrete
4.1. Concrete Degree of Saturation
4.2. Chloride Penetration

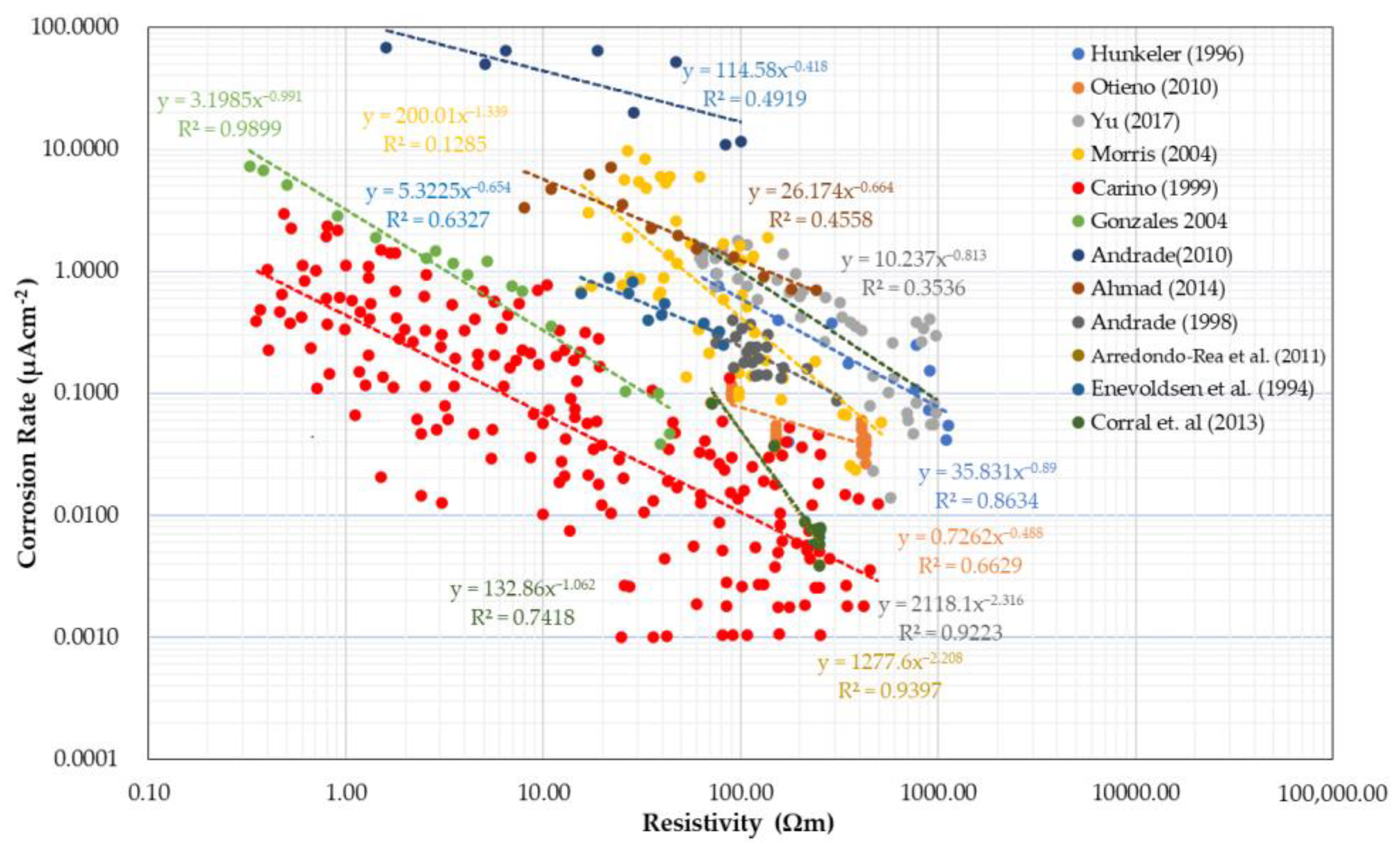

4.3. Corrosion Rate
5. Other Factors Interfering with the Values of Electrical Resistivity of Concrete

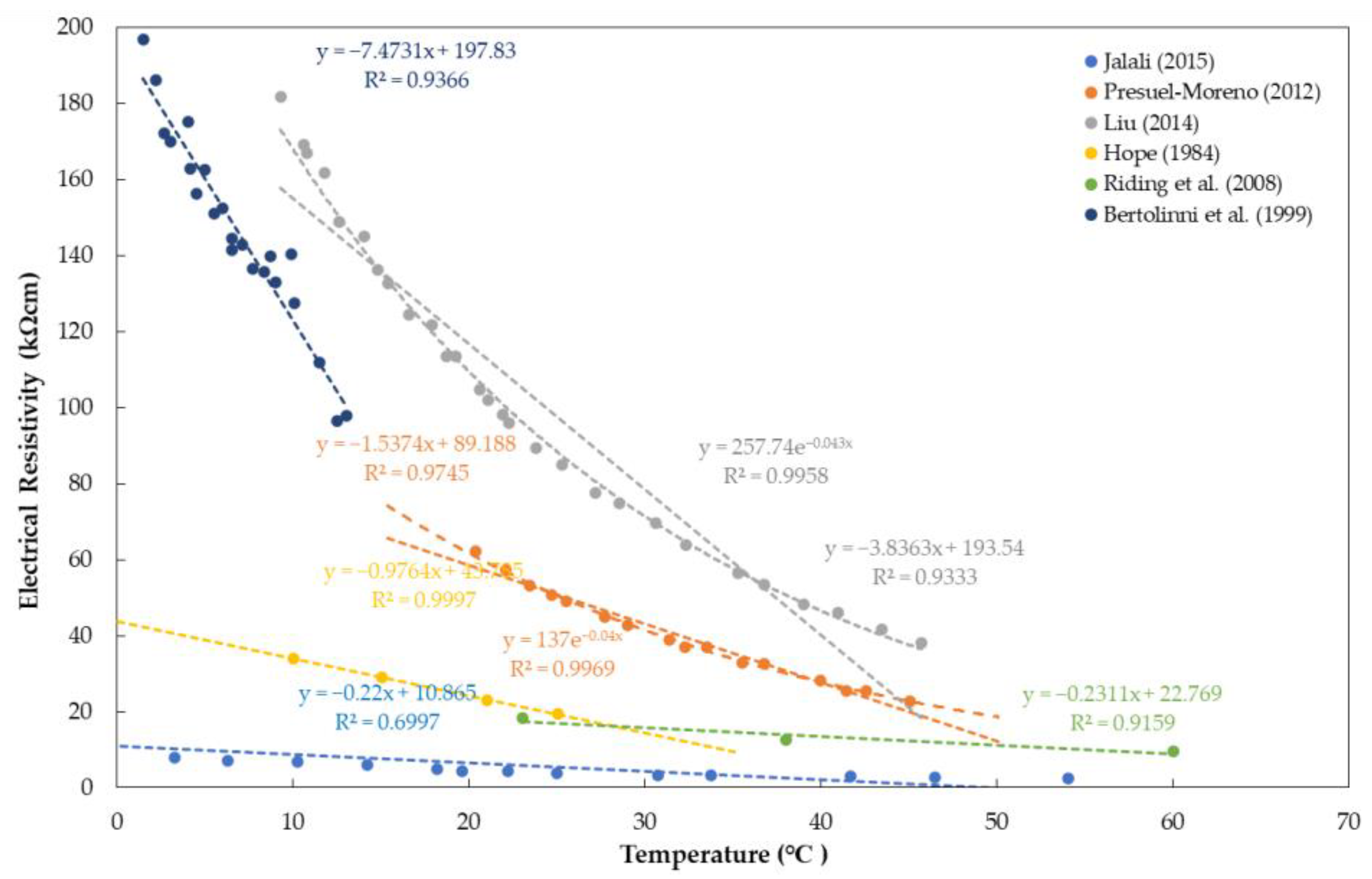

5.1. Effect of Temperature of Concrete

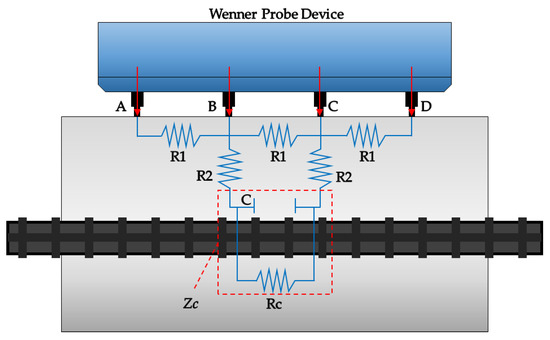

5.2. Effect of Presence of Steel Reinforcements
5.2.1. Effect of Configuration of Electrode (Spacing, Direction, and Orientation)
5.2.2. Effect of Measurement Distance on Embedded Steel
5.2.3. Diameter of Embedded Steel
5.2.4. Effect of Concrete Cover
5.3. Effect of Specimen Geometry
5.4. Presence of Defects in Concrete
5.4.1. Surface-Breaking Cracks
5.4.2. Delamination Defects

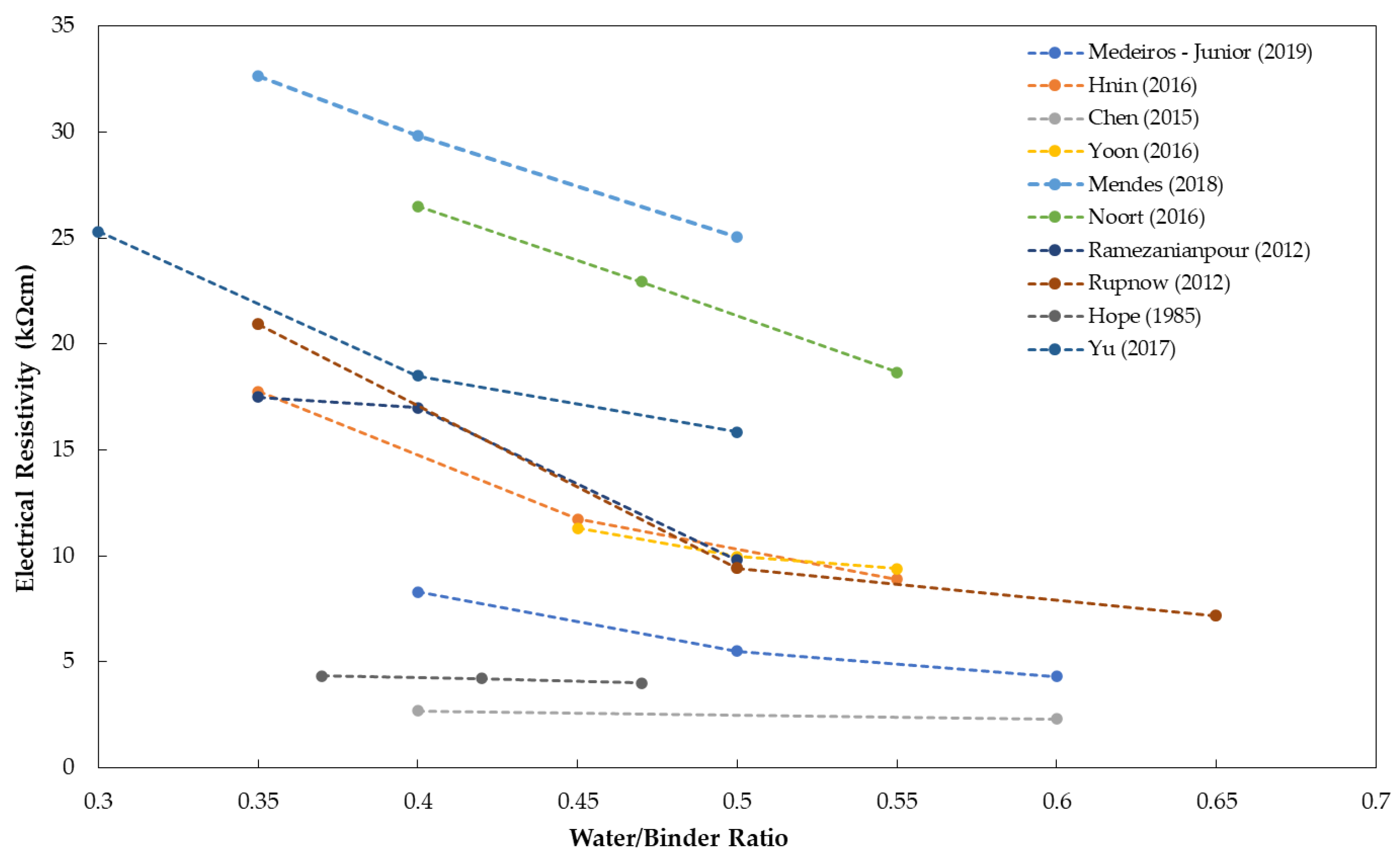

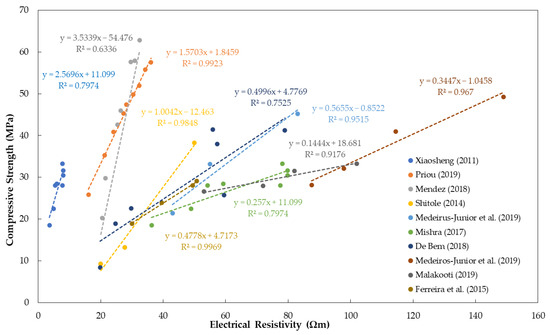

5.5. Concrete Composition
6. Discussion of Findings
7. Conclusions
- (1)
- After conducting an extensive literature review, this study was able to review and evaluate the correlation of electrical resistivity (ER) to critical parameters related to the electrochemical processes of steel in concrete, such as degree of water saturation, chloride diffusivity and chloride penetration, corrosion risk, and corrosion rate. It was observed that ER values showed a downward trend as the value of the three critical parameters increased. Therefore, it can be inferred that ER measurements are effective for condition assessment of chloride-induced deterioration in reinforced concrete materials. Furthermore, ER measurements could be used to evaluate the activity of corrosion after the propagation of rust in corroded steel is initiated, though there is a lack of a strong theoretical link between ER and corrosion damage;
- (2)
- However, variations in values are still observed in the relationships reported by different researchers in the literature. The variations are generally attributed to the fact that ER values are affected by various material and environmental parameters that are not really related to the corrosion process of steel in concrete. This study reviewed and summarized the effects of temperature, presence of rebars, delamination defects, presence of cracks, concrete composition, compressive strength, and specimen geometry, among others;
- (3)
- Therefore, it can be concluded that, based on the current studies in the literature, electrical resistivity evaluation is recommendable to be used at a project (or site) level under similar test conditions. Test regions with relatively low ER values can be interpreted as a higher corrosive environment in the initiation period of corrosion and can be further used to estimate corrosion activity and kinetics of steel corrosion in concrete;
- (4)
- It was also recommended that more studies are needed using electrical resistivity (ER) values to compare the conditions of reinforced concrete structures distributed at national-network levels. This research recommended four directions of future research toward the use of ER evaluation as an NDE tool for network-level application: (1) consolidation of the standard test method for electrical resistivity measurements, (2) more systematic studies to investigate the effects of combined parameters on electrical resistivity measurements values, (3) more study to use the ER in the context of combined NDE methods for comprehensive evaluation of chloride-induced deterioration in concrete structures, in which advanced data fusion techniques by machine learning and deep learning models could be useful, and (4) further developing ER data collection methods using advanced smart technologies such as real-time health monitoring technique and robotics-assisted autonomous data measurements, which enable more reliable, consistent, and rapid data collection in large concrete structures in the field.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Venkatesan, P.; Rajendran, A.; Srinivasan, S.; Kannan, S. Corrosion of Reinforced Concrete Exposed to Marine Atmosphere. Trans. SAEST 2003, 38, 53–56. [Google Scholar]
- Pacheco-Torgal, F. Introduction. In Eco-Efficient Repair and Rehabilitation of Concrete Infrastructures; Elsevier: Amsterdam, The Netherlands, 2018; pp. 1–12. [Google Scholar]
- Bouteiller, V.; Cherrier, J.-F.; L’Hostis, V.; Rebolledo, N.; Andrade, C.; Marie-Victoire, E. Influence of humidity and temperature on the corrosion of reinforced concrete prisms. Eur. J. Environ. Civ. Eng. 2012, 16, 471–480. [Google Scholar] [CrossRef]
- Marquez, J.S.; Nokken, M.R. Evaluation of saturation on surface electrical resistivity measurements. In Proceedings of the Annual Conference of the Canadian Society for Civil Engineering, Regina, SK, Canada, 27–30 May 2015; Volume 1, pp. 445–454. [Google Scholar]
- Murugan, U. Assessment condition of RC corroded column by non-destructive testing methods. Mater. Today Proc. 2020, 45, 6645–6648. [Google Scholar] [CrossRef]
- Gao, Y.; Suryanto, B.; Chai, H.; Forde, M. Evaluating the effect of corrosion on shear-critical RC beams by integrated NDT. Dev. Built Environ. 2021, 7, 100050. [Google Scholar] [CrossRef]
- Bhargava, K.; Ghosh, A.; Mori, Y.; Ramanujam, S. Analytical model for time to cover cracking in RC structures due to rebar corrosion. Nucl. Eng. Des. 2006, 236, 1123–1139. [Google Scholar] [CrossRef]
- Fang, C.; Lundgren, K.; PLoS, M.; Gylltoft, K. Bond behaviour of corroded reinforcing steel bars in concrete. Cem. Concr. Res. 2006, 36, 1931–1938. [Google Scholar] [CrossRef]
- Kashani, M.M.; Lowes, L.N.; Crewe, A.; Alexander, N. Finite element investigation of the influence of corrosion pattern on inelastic buckling and cyclic response of corroded reinforcing bars. Eng. Struct. 2014, 75, 113–125. [Google Scholar] [CrossRef]
- Pantazopoulou, S.J.; Papoulia, K.D. Modeling Cover -Cracking due to Reinforcement Corrosion in Rc Structures. Engineering 2001, 127, 342–351. [Google Scholar] [CrossRef]
- Kashani, M.M.; Crewe, A.J.; Alexander, N.A. Nonlinear cyclic response of corrosion-damaged reinforcing bars with the effect of buckling. Constr. Build. Mater. 2013, 41, 388–400. [Google Scholar] [CrossRef]
- Ma, Y.; Zhang, J.; Wang, L.; Liu, Y. Probabilistic prediction with Bayesian updating for strength degradation of RC bridge beams. Struct. Saf. 2013, 44, 102–109. [Google Scholar] [CrossRef]
- Chen, F.; Baji, H.; Li, C.-Q. A comparative study on factors affecting time to cover cracking as a service life indicator. Constr. Build. Mater. 2018, 163, 681–694. [Google Scholar] [CrossRef]
- Alexander, M.; Beushausen, H. Durability, service life prediction, and modelling for reinforced concrete structures—Review and critique. Cem. Concr. Res. 2019, 122, 17–29. [Google Scholar] [CrossRef]
- Bezuidenhout, S.R.; Van Zijl, G.P. Corrosion propagation in cracked reinforced concrete, toward determining residual service life. Struct. Concr. 2019, 20, 2183–2193. [Google Scholar] [CrossRef]
- Ramezanianpour, A.A.; Pilvar, A.; Mahdikhani, M.; Moodi, F. Practical evaluation of relationship between concrete resistivity, water penetration, rapid chloride penetration and compressive strength. Constr. Build. Mater. 2011, 25, 2472–2479. [Google Scholar] [CrossRef]
- Ormellese, M.; Berra, M.; Bolzoni, F.; Pastore, T. Corrosion inhibitors for chlorides induced corrosion in reinforced concrete structures. Cem. Concr. Res. 2006, 36, 536–547. [Google Scholar] [CrossRef]
- Tuutti, K. Corrosion of Steel in Concrete Report No. 4; Swedish Cement and Concrete Research Institute: Stockholm, Sweden, 1982. [Google Scholar]
- Aveldaño, R.R.; Ortega, N.F. Characterization of concrete cracking due to corrosion of reinforcements in different environments. Constr. Build. Mater. 2011, 25, 630–637. [Google Scholar] [CrossRef]
- Angst, U.M. Challenges and opportunities in corrosion of steel in concrete. Mater. Struct. 2018, 51, 4. [Google Scholar] [CrossRef] [Green Version]
- Sohail, M.G.; Kahraman, R.; Alnuaimi, N.A.; Gencturk, B.; Alnahhal, W.; Dawood, M.; Belarbi, A. Electrochemical behavior of mild and corrosion resistant concrete reinforcing steels. Constr. Build. Mater. 2019, 232, 117205. [Google Scholar] [CrossRef]
- Hou, B.; Li, X.; Ma, X.; Du, C.; Zhang, D.; Zheng, M.; Xu, W.; Lu, D.; Ma, F. The cost of corrosion in China. NPJ Mater. Degrad. 2017, 1, 4. [Google Scholar] [CrossRef]
- Dunn, R.C.; Ross, R.A.; Davis, G.D. Corrosion monitoring of steel reinforced concrete structures using embedded instrumentation. NACE—Int. Corros. Conf. Ser. 2010, 1–10. Available online: https://www.researchgate.net/publication/254547209_Corrosion_Monitoring_of_Steel_Reinforced_Concrete_Structures_Using_Embedded_Instrumentation/references (accessed on 31 January 2022).
- Kim, Y.S.; Lim, H.K.; Kim, J.J.; Hwang, W.S.; Park, Y.S. Corrosion Cost and Corrosion Map of Korea—Based on the Data from 2005 to 2010. Corros. Sci. Technol. 2011, 10, 52–59. [Google Scholar] [CrossRef]
- Dhir, R.; Byars, E.; Chan, Y.; Shabaan, I. ISAT Prediction of Concrete Durability. In Proceedings of the British Institute of No-Destructive Testing International Conference for NDT in Civil Engineering, Liverpool, UK, 14–16 April 1993; pp. 1–15. [Google Scholar]
- Andrade, C.; D’Andrea, R. The use of electrical resistivity as a NDT for the specification of concrete durability. In Proceedings of the Concrete under Severe Conditions: Environment and Loading-Proceedings of the 6th International Conference on Concrete under Severe Conditions, CONSEC’10, Merida Yucatan, Mexico, 7–9 June 2010; Volume 1, pp. 195–200. [Google Scholar] [CrossRef]
- Verma, S.K.; Bhadauria, S.S.; Akhtar, S. Monitoring Corrosion of Steel Bars in Reinforced Concrete Structures. Sci. World J. 2014, 2014, 957904. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Sbartaï, Z.M.; Laurens, S.; Balayssac, J.P.; Ballivy, G.; Arliguie, G. Effect of concrete moisture on radar signal amplitude. ACI Mater. J. 2006, 103, 419–426. [Google Scholar] [CrossRef]
- Law, D.W.; Cairns, J.H. Evaluation of Corrosion Loss of Steel Reinforcing Bars in Concrete Usinglinear Polarisation Resistance Measurements. Civil Eng. 2007. Available online: https://www.ndt.net/article/ndtce03/papers/p015/p015.htm (accessed on 21 May 2020).
- Moreno, M.; Morris, W.; Alvarez, M.; Duffó, G. Corrosion of reinforcing steel in simulated concrete pore solutions: Effect of carbonation and chloride content. Corros. Sci. 2004, 46, 2681–2699. [Google Scholar] [CrossRef]
- Avila-Mendoza, J.; Flores, J.M.; Castillo, U.C. Effect of Superficial Oxides on Corrosion of Steel Reinforcement Embedded in Concrete. Corrosion 1994, 50, 879–885. [Google Scholar] [CrossRef]
- Huet, B.; L’Hostis, V.; Miserque, F.; Idrissi, H. Electrochemical behavior of mild steel in concrete: Influence of pH and carbonate content of concrete pore solution. Electrochim. Acta 2005, 51, 172–180. [Google Scholar] [CrossRef]
- González, J.A.; Andrade, C. Effect of Carbonation, Chlorides and Relative Ambient Humidity on the Corrosion of Galvanized Rebars Embedded in Concrete. Br. Corros. J. 1982, 17, 21–28. [Google Scholar] [CrossRef]
- Hou, J.; Chung, D. Effect of admixtures in concrete on the corrosion resistance of steel reinforced concrete. Corros. Sci. 2000, 42, 1489–1507. [Google Scholar] [CrossRef]
- Zaki, A.; Chai, H.K.; Aggelis, D.G.; Alver, N. Non-Destructive Evaluation for Corrosion Monitoring in Concrete: A Review and Capability of Acoustic Emission Technique. Sensors 2015, 15, 19069–19101. [Google Scholar] [CrossRef]
- Kim, W. Ground Penetrating Radar Application for Non-Destructive Testing: Bridge Deck Inspection and Dowel Bar Detection. Ph.D. Dissertation, January 2003. Available online: https://scholarsmine.mst.edu/doctoral_dissertations/1477 (accessed on 22 March 2022).
- Klysz, G.; Balayssac, J.-P.; Laurens, S. Spectral analysis of radar surface waves for non-destructive evaluation of cover concrete. NDT E Int. 2004, 37, 221–227. [Google Scholar] [CrossRef]
- Lai, W.W.-L.; Kou, S.; Tsang, W.; Poon, C. Characterization of concrete properties from dielectric properties using ground penetrating radar. Cem. Concr. Res. 2009, 39, 687–695. [Google Scholar] [CrossRef]
- Lai, W.-L.; Kind, T.; Stoppel, M.; Wiggenhauser, H.; Lai, W.W.-L. Measurement of Accelerated Steel Corrosion in Concrete Using Ground-Penetrating Radar and a Modified Half-Cell Potential Method. J. Infrastruct. Syst. 2013, 19, 205–220. [Google Scholar] [CrossRef]
- Kordatos, E.Z.; Strantza, M.; Soulioti, D.V.; Matikas, T.E.; Aggelis, D.G. Combined NDT methods for characterization of subsurface cracks in concrete. Smart Sens. Phenom. Technol. Netw. Syst. 2011, 7982, 79820W. [Google Scholar] [CrossRef]
- Bagavathiappan, S.; Lahiri, B.; Saravanan, T.; Philip, J.; Jayakumar, T. Infrared thermography for condition monitoring—A review. Infrared Phys. Technol. 2013, 60, 35–55. [Google Scholar] [CrossRef]
- Washer, G.; Bolleni, N.; Fenwick, R. Thermographic Imaging of Subsurface Deterioration in Concrete Bridges. Transp. Res. Rec. J. Transp. Res. Board 2010, 2201, 27–33. [Google Scholar] [CrossRef]
- John, G.; Hladky, K.; Gaydecki, P.; Dawson, J. Laser ultrasonic inspection of concrete structures. Phase 1. NDT E Int. 1997, 30, 259. [Google Scholar] [CrossRef]
- Ervin, B.L.; Kuchma, D.A.; Bernhard, J.T.; Reis, H. Monitoring Corrosion of Rebar Embedded in Mortar Using High-Frequency Guided Ultrasonic Waves. J. Eng. Mech. 2009, 135, 9–19. [Google Scholar] [CrossRef]
- Carino, N.J. Nondestructive Techniques to Investigate Corrosion Status in Concrete Structures. J. Perform. Constr. Facil. 1999, 13, 96–106. [Google Scholar] [CrossRef]
- Rodríguez, P.; Ramírez, E.; González, J.A. Methods for studying corrosion in reinforced concrete. Mag. Concr. Res. 1994, 46, 81–90. [Google Scholar] [CrossRef]
- Vedalakshmi, R.; Balamurugan, L.; Saraswathy, V.; Kim, S.-H.; Ann, K.Y. Reliability of Galvanostatic Pulse Technique in assessing the corrosion rate of rebar in concrete structures: Laboratory vs field studies. KSCE J. Civ. Eng. 2010, 14, 867–877. [Google Scholar] [CrossRef]
- Mansfeld, F. Discussion:Electrochemical Techniques for Studying Corrosion of Reinforcing Steel: Limitations and Advantages. Corrosion 2005, 61, 739–742. [Google Scholar] [CrossRef]
- Koleva, D.A.; De Wit, J.H.W.; Van Breugel, K.; Lodhi, Z.F.; Van Westing, E. Investigation of Corrosion and Cathodic Protection in Reinforced Concrete. J. Electrochem. Soc. 2007, 154, P52–P61. [Google Scholar] [CrossRef]
- Holloway, L.; Birbilis, N.; Forsyth, M. Long Term Monitoring of a Reinforced Concrete Remediation Method in a Marine Environment. In Proceedings of the EUROCORR 2004—European Corrosion Conference: Long Term Prediction and Modelling of Corrosion, Nice, France, 1 December 2004; Available online: https://research.monash.edu/en/publications/long-term-monitoring-of-a-reinforced-concrete-remediation-method- (accessed on 16 July 2020).
- Mendes, S.E.; Oliveira, R.L.; Cremonez, C.; Pereira, E.; Pereira, E.; Medeiros-Junior, R.A. Electrical resistivity as a durability parameter for concrete design: Experimental data versus estimation by mathematical model. Constr. Build. Mater. 2018, 192, 610–620. [Google Scholar] [CrossRef]
- Rupnow, T.D.; Icenogle, P.J. Surface Resistivity Measurements Evaluated as Alternative to Rapid Chloride Permeability Test for Quality Assurance and Acceptance. Transp. Res. Rec. J. Transp. Res. Board 2012, 2290, 30–37. [Google Scholar] [CrossRef]
- Paredes, M.; Jackson, N.M.; El Safty, A.; Dryden, J.; Joson, J.; Lerma, H.; Hersey, J. Precision Statements for the Surface Resistivity of Water Cured Concrete Cylinders in the Laboratory. Adv. Civ. Eng. Mater. 2012, 1, 104268. [Google Scholar] [CrossRef]
- Spragg, R.P.; Castro, J.; Nantung, T.; Paredes, M.; Weiss, J. Variability Analysis of the Bulk Resistivity Measured Using Concrete Cylinders. Adv. Civ. Eng. Mater. 2012, 1, 104596. [Google Scholar] [CrossRef] [Green Version]
- Chen, C.-T.; Chang, J.-J.; Yeih, W.-C. The effects of specimen parameters on the resistivity of concrete. Constr. Build. Mater. 2014, 71, 35–43. [Google Scholar] [CrossRef]
- Minagawa, H.; Hisada, M. Consideration about chloride ion diffusion coefficient estimated by electric resistivity of concrete exposed in tidal zone. Sustain. Constr. Mater. Technol. 2013, 2013, e372. [Google Scholar]
- Lim, Y.-C.; Noguchi, T.; Cho, C.-G. A quantitative analysis of the geometric effects of reinforcement in concrete resistivity measurement above reinforcement. Constr. Build. Mater. 2015, 83, 189–193. [Google Scholar] [CrossRef]
- Polder, R.; Andrade, C.; Elsener, B.; Vennesland, Ø.; Weidert, R.; Raupach, M. Rilem Technical Committees Rilem Tc 154-Emc: Electrochemical Techniques for Measuring. Mater. Struct. Constr. 2001, 33, 603–611. [Google Scholar] [CrossRef]
- Hornbostel, K.; Larsen, C.K.; Geiker, M.R. Relationship between concrete resistivity and corrosion rate—A literature review. Cem. Concr. Compos. 2013, 39, 60–72. [Google Scholar] [CrossRef]
- Elices, M.; Valiente, A.; Caballero, L.; Iordachescu, M.; Fullea, J.; Sanchez, J.; López-Serrano, V. Failure analysis of prestressed anchor bars. Eng. Fail. Anal. 2012, 24, 57–66. [Google Scholar] [CrossRef] [Green Version]
- Sanchez, J.; Fullea, J.; Andrade, C.; Gaitero, J.J.; Porro, A. AFM study of the early corrosion of a high strength steel in a diluted sodium chloride solution. Corros. Sci. 2008, 50, 1820–1824. [Google Scholar] [CrossRef]
- Azarsa, P.; Gupta, R. Electrical Resistivity of Concrete for Durability Evaluation: A Review. Adv. Mater. Sci. Eng. 2017, 2017, 8453095. [Google Scholar] [CrossRef] [Green Version]
- Nguyen, A.; Klysz, G.; Deby, F.; Balayssac, J.-P. Evaluation of water content gradient using a new configuration of linear array four-point probe for electrical resistivity measurement. Cem. Concr. Compos. 2017, 83, 308–322. [Google Scholar] [CrossRef]
- Gucunski, N.; Imani, A.; Romero, F.; Nazarian, S.; Yuan, D.; Wiggenhauser, H.; Shokouhi, P.; Taffe, A.; Kutrubes, D. Nondestructive Testing to Identify Concrete Bridge Deck Deterioration; National Academies of Sciences, Engineering, and Medicine: Washington, DC, USA, 2012. [Google Scholar] [CrossRef]
- Gucunski, N.; Romero, F.; Kruschwitz, S.; Feldmann, R.; Abu-Hawash, A.; Dunn, M. Multiple Complementary Nondestructive Evaluation Technologies for Condition Assessment of Concrete Bridge Decks. Transp. Res. Rec. J. Transp. Res. Board 2010, 2201, 34–44. [Google Scholar] [CrossRef]
- Gucunski, N.; Pailes, B.; Kim, J.; Azari, H.; Dinh, K. Capture and Quantification of Deterioration Progression in Concrete Bridge Decks through Periodical NDE Surveys. J. Infrastruct. Syst. 2017, 23. [Google Scholar] [CrossRef]
- Sengul, O. Use of electrical resistivity as an indicator for durability. Constr. Build. Mater. 2014, 73, 434–441. [Google Scholar] [CrossRef]
- Van Noort, R.; Hunger, M.; Spiesz, P. Long-term chloride migration coefficient in slag cement-based concrete and resistivity as an alternative test method. Constr. Build. Mater. 2016, 115, 746–759. [Google Scholar] [CrossRef]
- Layssi, H.; Ghods, P.; Alizadeh, A.R.; Salehi, M. Electrical Resistivity of Concrete. Concr. Int. 2015, 37, 293–302. [Google Scholar]
- Sengul, O.; Gjørv, O.E. Electrical Resistivity Measurements for Quality Control during Concrete Construction. ACI Mater. J. 2008, 105, 541–547. [Google Scholar] [CrossRef]
- Isfahani, F.T.; Redaelli, E.; Lollini, F.; Li, W.; Bertolini, L. Effects of Nanosilica on Compressive Strength and Durability Properties of Concrete with Different Water to Binder Ratios. Adv. Mater. Sci. Eng. 2016, 2016, 8453567. [Google Scholar] [CrossRef] [Green Version]
- Liu, Y.; Paredes, M.; Deuble, A. Review and Evaluation of Techniques for Measurement s of Concrete Resistivity. In Proceedings of the Transportation Research Board (TRB) 94th Annual Meeting, Washington, DC, USA, 11–15 January 2015; Volume 3750. [Google Scholar]
- Pilvar, A.; Ramezanianpour, A.A.; Rajaie, H. Comparison of Four Electrical Measurement Methods with Bulk Diffusion for Assessing the Chloride Resistance of Concretes. Iran. J. Sci. Technol. Trans. Civ. Eng. 2016, 40, 327–336. [Google Scholar] [CrossRef]
- Lim, T.Y.D.; Teng, S.; Bahador, S.D.; Gjørv, O.E. Durability of Very-High-Strength Concrete with Supplementary Cementitious Materials for Marine Environments. ACI Mater. J. 2016, 113, 95–103. [Google Scholar] [CrossRef]
- Presuel-Moreno, F.; Liu, Y. Temperature effect on electrical resistivity measurements on mature saturated concrete. NACE—Int. Corros. Conf. Ser. 2012, 7, 5678–5696. [Google Scholar]
- Ferreira, R.M.; Castro-Gomes, J.P.; Costa, P.; Malheiro, R. Effect of metakaolin on the chloride ingress properties of concrete. KSCE J. Civ. Eng. 2015, 20, 1375–1384. [Google Scholar] [CrossRef]
- Torres-Acosta, A.A.; Presuel-Moreno, F.; Andrade, C. Electrical Resistivity as Durability Index for Concrete Structures. ACI Mater. J. 2019, 116, 245–253. [Google Scholar] [CrossRef]
- Hunkeler, F. The resistivity of pore water solution—A decisive parameter of rebar corrosion and repair methods. Constr. Build. Mater. 1996, 10, 381–389. [Google Scholar] [CrossRef]
- Otieno, M.B.; Alexander, M.G.; Beushausen, H.D. Suitability of Various Measurement Techniques for Assessing Corrosion in Cracked Concrete. ACI Mater. J. 2010, 107, 481–489. [Google Scholar] [CrossRef]
- Yu, B.; Liu, J.; Chen, Z. Probabilistic evaluation method for corrosion risk of steel reinforcement based on concrete resistivity. Constr. Build. Mater. 2017, 138, 101–113. [Google Scholar] [CrossRef]
- Morris, W.; Vico, A.; Vazquez, M. Chloride induced corrosion of reinforcing steel evaluated by concrete resistivity measurements. Electrochim. Acta 2004, 49, 4447–4453. [Google Scholar] [CrossRef]
- González, J.; Miranda, J.M.; Feliu, S. Considerations on reproducibility of potential and corrosion rate measurements in reinforced concrete. Corros. Sci. 2004, 46, 2467–2485. [Google Scholar] [CrossRef]
- Garzon, A.; Sanchez, J.; Andrade, C.; Rebolledo, N.; Menéndez, E.; Fullea, J. Modification of four point method to measure the concrete electrical resistivity in presence of reinforcing bars. Cem. Concr. Compos. 2014, 53, 249–257. [Google Scholar] [CrossRef]
- Ahmad, S. An experimental study on correlation between concrete resistivity and reinforcement corrosion rate. Anti-Corros. Methods Mater. 2014, 61, 158–165. [Google Scholar] [CrossRef]
- Andrade, C. Influencia de la humedad relativa y la temperatura en las velocidades de corrosión de estructuras de hormigón Influence of relative humidity and temperature on-site corrosion rates. Mater. Constr. 1998, 48, 5–17. [Google Scholar] [CrossRef]
- Arredondo-Rea, S.P.; Corral-Higuera, R.; Neri-Flores, M.A.; Gómez-Soberón, J.M.; Almeraya-Calderón, F.; Castorena-González, J.H.; Almaral-Sánchez, J.L. Electrochemical corrosion and electrical resistivity of reinforced recycled aggregate concrete. Int. J. Electrochem. Sci. 2011, 6, 475–483. [Google Scholar]
- Hope, B.B.; Pergamon, J.N.; Enevoldsen, C.M. Hansson Department of Materials and Metallurgical Engineering Queen’s University, Kingston, Canada K7L 3N6 Department of Civil Engineering Queen’s University, Kingston, Canada K7L 3N6. Science 1994, 24, 1373–1382. [Google Scholar]
- Corral, H.R.; Arredondo, R.S.; Almaral, S.J.; Gómez, S.J. Corrosión por cloruros del acero de refuerzo embebido en concreto con agregado grueso reciclado y materiales cementantes suplementarios. Rev. Ing. Constr. 2013, 28, 21–35. [Google Scholar] [CrossRef] [Green Version]
- Silva, J.; Jalali, S.; Ferreira, R.M. Estimating Long-Term Durability Parameters Based on Electrical Resistivity Measurements. In Proceedings of the International Conference on Energy Efficient Technologies for Sustainability (ICEETS), Nagercoil, India, 7–8 April 2016. [Google Scholar] [CrossRef]
- Liu, Y.; Presuel-Moreno, F.J. Normalization of Temperature Effect on Concrete Resistivity by Method Using Arrhenius Law. ACI Mater. J. 2014, 111, 433–442. [Google Scholar] [CrossRef]
- Hope, B.B.; Ip, A.K.; Manning, D.G. Corrosion and electrical impedance in concrete. Cem. Concr. Res. 1985, 15, 525–534. [Google Scholar] [CrossRef]
- Riding, K.A.; Poole, J.L.; Schindler, A.K.; Juenger, M.C.G.; Folliard, K.J. Simplified concrete resistivity and rapid chloride permeability test method. ACI Mater. J. 2008, 105, 390–394. [Google Scholar] [CrossRef] [Green Version]
- Bertolini, L.; Polder, R.B. Concrete resistivity and reinforcement corrosion rate as a function of temperature and humidity of the environment. TNO Build. Constr. Res. TNO Rep. 97-BT-R0574 1997, 273, 12466–12475. [Google Scholar]
- Wei, X.; Xiao, L. Influence of the aggregate volume on the electrical resistivity and properties of portland cement concretes. J. Wuhan Univ. Technol. Sci. Ed. 2011, 26, 965–971. [Google Scholar] [CrossRef]
- Priou, J.; Lecieux, Y.; Chevreuil, M.; Gaillard, V.; Lupi, C.; Leduc, D.; Rozière, E.; Guyard, R.; Schoefs, F. In situ DC electrical resistivity mapping performed in a reinforced concrete wharf using embedded sensors. Constr. Build. Mater. 2019, 211, 244–260. [Google Scholar] [CrossRef]
- Shitole, A.D.; Mathapati, S. Relation between Compressive Strength & Electrical Resistivity of Microsilica Concrete. Int. J. Mech. Eng. Robot. 2014, 2, 15–18. [Google Scholar]
- De Medeiros-Junior, R.A.; Munhoz, G.D.S.; de Medeiros, M.H.F. Correlations between water absorption, electrical resistivity and compressive strength of concrete with different contents of pozzolan. Rev. ALCONPAT 2019, 9, 152–166. [Google Scholar] [CrossRef] [Green Version]
- Mishra, R. KEarly Age Strength and Electrical Resistivity of Concrete as Durability Indicator through Maturity. Int. J. Earth Sci. Eng. 2017, 10, 677–682. [Google Scholar] [CrossRef]
- Medeiros-Junior, R.; Gans, P.S.; Pereira, E.; Pereira, E. Electrical Resistivity of Concrete Exposed to Chlorides and Sulfates. ACI Mater. J. 2019, 116, 119–130. [Google Scholar] [CrossRef]
- Thomas, R.J.; Maguire, M. Final Report (No. UT-19.09). In Investigation of Concrete Electrical Resistivity as a Performance Based Test; Utah Department of Transportation: Logan, UT, USA, 2019. [Google Scholar]
- Samson, G.; Deby, F.; Garciaz, J.-L.; Perrin, J.-L. A new methodology for concrete resistivity assessment using the instantaneous polarization response of its metal reinforcement framework. Constr. Build. Mater. 2018, 187, 531–544. [Google Scholar] [CrossRef]
- Presuel-Moreno, F.J.; Liu, Y.; Suares, A. Final Report: Characterization of New and Old Concrete Structures Using Surface Resistivity Measurements; ROSA P: Washington, DC, USA, 2010; p. 263.
- AASHTO TP 95-11; Standard Test Method for Surface Resistivity Indication of Concrete’s Ability to Resist Chloride Ion Penetration. AASHTO: Washington, DC, USA, 2011; pp. 1–6.
- Proceq. Resipod Family: Operating Instructions; Proceq: Schwerzenbach, Switzerland, 2013; p. 25. [Google Scholar]
- Taillet, E.; Lataste, J.; Rivard, P.; Denis, A. Non-destructive evaluation of cracks in massive concrete using normal dc resistivity logging. NDT E Int. 2014, 63, 11–20. [Google Scholar] [CrossRef]
- Millard, S.G.; Ghassemi, S.; Bunger, J.; Jafar, M. Assessing the electrical resistivity of concrete structures for corrosion durability studies. In Proceedings of the Third International Symposium on “Corrosion of Reinforcement in Concrete Construction”, Belfry Hotel, Wishaw, UK, 21–24 May 1990. [Google Scholar]
- Cabassut, L.; Bourget, M.; Frappa, M.; Al Heib, M.; Viguier, C.; Guérin, J. Contribution of electrical and acoustic methods in the evaluation of the condition of accessible underground pipework and its environment. Geol. Soc. Lond. Eng. Geol. Spéc. Publ. 1997, 12, 193–200. [Google Scholar] [CrossRef]
- Polder, R.; Andrade, C.; Elsener, B.; Vennesland, Ø.; Gulikers, J.; Weidert, R.; Raupach, M. Test methods for on site measurement of resistivity of concrete. Mater. Struct. 2000, 33, 603–611. [Google Scholar] [CrossRef]
- Hover, K.C. The influence of water on the performance of concrete. Constr. Build. Mater. 2011, 25, 3003–3013. [Google Scholar] [CrossRef]
- Charmchi, G. The Role of Concrete Maturity in Resistivity-Based Performance Specifications. Master’s Thesis, University of Toronto, Toronto, ON, Canada, 2015. [Google Scholar]
- López, W.; González, J. Influence of the degree of pore saturation on the resistivity of concrete and the corrosion rate of steel reinforcement. Cem. Concr. Res. 1993, 23, 368–376. [Google Scholar] [CrossRef]
- Spragg, R.; Villani, C.; Snyder, K.; Bentz, D.; Bullard, J.W.; Weiss, W. Factors that Influence Electrical Resistivity Measurements in Cementitious Systems. Transp. Res. Rec. J. Transp. Res. Board 2013, 2342, 90–98. [Google Scholar] [CrossRef] [Green Version]
- Rajabipour, F.; Weiss, W. Electrical conductivity of drying cement paste. Mater. Struct. 2006, 40, 1143–1160. [Google Scholar] [CrossRef]
- Zaccardi, Y.A.V.; Di Maio, A. Electrical resistivity measurement of unsaturated concrete samples. Mag. Concr. Res. 2014, 66, 484–491. [Google Scholar] [CrossRef] [Green Version]
- Babor, D.; Plian, D.; Judele, L. Environmental Impact of Concrete. Bull. Polytech. Inst. Jassy Constr. Archit. Sect. 2009, LV, 27–36. Available online: https://www.researchgate.net/profile/Dan-Babor/publication/40497595_Environmental_Impact_of_Concrete/links/00463521e326c1d892000000/Environmental-Impact-of-Concrete.pdf (accessed on 22 February 2022).
- Li, Q.; Xu, S.; Zeng, Q. The effect of water saturation degree on the electrical properties of cement-based porous material. Cem. Concr. Compos. 2016, 70, 35–47. [Google Scholar] [CrossRef]
- Hussain, R.R.; Ishida, T. Enhanced electro-chemical corrosion model for reinforced concrete under severe coupled action of chloride and temperature. Constr. Build. Mater. 2011, 25, 1305–1315. [Google Scholar] [CrossRef]
- Reichling, K.; Raupach, M.; Klitzsch, N. Determination of the distribution of electrical resistivity in reinforced concrete structures using electrical resistivity tomography. Mater. Corros. 2014, 66, 763–771. [Google Scholar] [CrossRef]
- Shi, C.; Sánchez, A.P.; Torgal, F.P. Carbon Dioxide Sequestration in Cementitious Construction Materials. Methods Mech. Case Stud. 2018, 1, 474. [Google Scholar]
- Fares, M.; Villain, G.; Bonnet, S.; Lopes, S.P.; Thauvin, B.; Thiery, M. Determining chloride content profiles in concrete using an electrical resistivity tomography device. Cem. Concr. Compos. 2018, 94, 315–326. [Google Scholar] [CrossRef] [Green Version]
- Tayebani, B.; Mostofinejad, D. Penetrability, Corrosion Potential, and Electrical Resistivity of Bacterial Concrete. J. Mater. Civ. Eng. 2019, 31, 04019002. [Google Scholar] [CrossRef]
- Kosior-Kazberuk, M.; Jezierski, W. Evaluation of concrete resistance to chloride ions penetration by means of electric resistivity monitoring. J. Civ. Eng. Manag. 2005, 11, 109–114. [Google Scholar] [CrossRef]
- Presuel-Moreno, F.J. Effect of w/cm and Composition on Correlations of Concrete Electrical Resistivity and Chloride Migration Coefficients. Key Eng. Mater. 2016, 711, 21–28. [Google Scholar] [CrossRef]
- Neville, A. Chloride attack of reinforced concrete: An overview. Mater. Struct. 1995, 28, 63–70. [Google Scholar] [CrossRef]
- Gjorv, O.E. Durability design and quality assurance of major concrete infrastructure. Adv. Concr. Constr. 2013, 1, 45–63. [Google Scholar] [CrossRef]
- Obla, K.H.; Lobo, C.L.; Kim, H. Tests and Criteria for Concrete Resistant to Chloride Ion Penetration. ACI Mater. J. 2016, 113, 621–631. [Google Scholar] [CrossRef]
- ASTM I American Society for Testing and Materials. ASTM C 1202 Standard Test Method for Electrical Indication of Concrete’s Ability to Resist Chloride Ion Penetration; ASTM International: West Conshohocken, PA, USA, 2017; pp. 1–6. [Google Scholar] [CrossRef]
- Ghosh, P.; Tran, Q. Correlation Between Bulk and Surface Resistivity of Concrete. Int. J. Concr. Struct. Mater. 2014, 9, 119–132. [Google Scholar] [CrossRef]
- FDOT. FM 5-578 Florida Method of Test for Concrete Resistivity as an Electrical Indicator of Its Permeability; Florida Department of Transportation: Tallahassee, FL, USA, 2004; pp. 4–7. Available online: https://trace.tennessee.edu/cgi/viewcontent.cgi?referer=https://www.google.com.hk/&httpsredir=1&filename=0&article=2048&context=utk_gradthes&type=additional (accessed on 22 February 2022).
- Kessler, R.J.; Powers, R.G.; Paredes, M.A. Resistivity measurements of water saturated concrete as an indicator of permeability. NACE—Int. Corros. Conf. Ser. 2005, 2005, 1–10. [Google Scholar]
- Jenkins, A. Final Report-Surface Resistivity as an Alternative for Rapid Chloride Permeability Test of Hardened Concrete (FHWA-KS-14-15); Kansas Department of Transportation: Topeka, KS, USA, 2015; Volume 39. Available online: https://rosap.ntl.bts.gov/view/dot/28687/dot_28687_DS1.pdf? (accessed on 22 February 2022).
- Ghosh, P.; Tran, Q. Influence of parameters on surface resistivity of concrete. Cem. Concr. Compos. 2015, 62, 134–145. [Google Scholar] [CrossRef]
- ASTM Standard C1760; ASTM Standard C1760—Standard Test Method for Bulk Electrical Conductivity of Hardened Concrete. ASTM International: West Conshehocken, PA, USA, 2021. [CrossRef]
- Melchers, R.E. Long-Term Durability of Marine Reinforced Concrete Structures. J. Mar. Sci. Eng. 2020, 8, 290. [Google Scholar] [CrossRef] [Green Version]
- Alonso, C.; Castellote, M.; Andrade, C. Chloride threshold dependence of pitting potential of reinforcements. Electrochim. Acta 2002, 47, 3469–3481. [Google Scholar] [CrossRef]
- Deby, F.; Carcassès, M.; Sellier, A. Probabilistic approach for durability design of reinforced concrete in marine environment. Cem. Concr. Res. 2009, 39, 466–471. [Google Scholar] [CrossRef]
- Morris, W.; Moreno, E.; Sagüés, A. Practical evaluation of resistivity of concrete in test cylinders using a Wenner array probe. Cem. Concr. Res. 1996, 26, 1779–1787. [Google Scholar] [CrossRef]
- Wu, F.; Gong, J.-H.; Zhang, Z. Calculation of corrosion rate for reinforced concrete beams based on corrosive crack width. J. Zhejiang Univ. A 2014, 15, 197–207. [Google Scholar] [CrossRef] [Green Version]
- Kim, J.; Kee, S.; Yee, J. Corrosion Monitoring of Reinforcing Bars in Cement Mortar Exposed to Seawater Immersion-and-dry Cycles. J. Korea Inst. Struct. Maint. Insp. 2018, 22, 10–18. [Google Scholar] [CrossRef]
- Andrade, C.; Alonso, C. On-site measurements of corrosion rate of reinforcements. Constr. Build. Mater. 2001, 15, 141–145. [Google Scholar] [CrossRef]
- Elsener, B. Corrosion rate of steel in concrete—Measurements beyond the Tafel law. Corros. Sci. 2005, 47, 3019–3033. [Google Scholar] [CrossRef]
- Bertolini, L.; Elsener, B.; Pedeferri, P.; Redaelli, E.; Polder, R.B. Corrosion of Steel in Concrete: Prevention, Diagnosis, Repair, 2nd ed.; Wiley-VCH: Weinheim, Germany, 2013. [Google Scholar] [CrossRef]
- Gowers, K.R.; Millard, S.G. Measurement of Concrete Resistivity for Assessment of Corrosion Severity of Steel Using Wenner Technique. ACI Mater. J. 1999, 96, 536–541. [Google Scholar] [CrossRef]
- Hornbostel, K.; Elsener, B.; Angst, U.; Larsen, C.K.; Geiker, M.R. Limitations of the use of concrete bulk resistivity as an indicator for the rate of chloride-induced macro-cell corrosion. Struct. Concr. 2017, 18, 326–333. [Google Scholar] [CrossRef] [Green Version]
- Yoon, I.-S.; Nam, J.-W. Effect of water and chloride content on electrical resistivity in concrete. Comput. Concr. 2016, 18, 565–575. [Google Scholar] [CrossRef] [Green Version]
- Lim, Y.-C.; Noguchi, T.; Cho, C.-G. Mathematical modeling for quantitative estimation of geometric effects of nearby rebar in electrical resistivity measurement. Cem. Concr. Compos. 2018, 90, 82–88. [Google Scholar] [CrossRef]
- Alhajj, M.A.; Palma-Lopes, S.; Villain, G. Accounting for steel rebar effect on resistivity profiles in view of reinforced concrete structure survey. Constr. Build. Mater. 2019, 223, 898–909. [Google Scholar] [CrossRef]
- Lim, Y.-C.; Kim, T.-S.; Hwang, C.-S. Modeling for apparent resistivity estimation along direction of electrode array above rebar in electrical resistivity measurement. J. Build. Eng. 2020, 31, 101417. [Google Scholar] [CrossRef]
- Zhang, J.; Monteiro, P.J.M.; Morrison, H.F. Noninvasive Surface Measurement of Corrosion Impedance of Reinforcing Bar in Concrete—Part 1: Experimental Results. ACI Mater. J. 2001, 98, 116–125. [Google Scholar] [CrossRef]
- Zhang, J.; Monteiro, P.J.M.; Morrison, H.F. Noninvasive Surface Measurement of Corrosion Impedance of Reinforcing Bar in Concrete—Part 2: Forward Modeling. ACI Mater. J. 2002, 99, 242–249. [Google Scholar] [CrossRef]
- Zhang, J.; Monteiro, P.J.M.; Morrison, H.F.; Mancio, M. Noninvasive Surface Measurement of Corrosion Impedance of Reinforcing Bar in Concrete—Part 3: Effect of Geometry and Material Properties. ACI Mater. J. 2004, 101, 273–280. [Google Scholar] [CrossRef]
- Fahim, A.; Ghods, P.; Alizadeh, R.; Salehi, M.; Decarufel, S. CEPRA: A New Test Method for Rebar Corrosion Rate Measurement. ASTM Spec. Tech. Publ. 2019, STP 1609, 59–80. [Google Scholar] [CrossRef]
- Yu, J.; Sasamoto, A.; Iwata, M. Wenner method of impedance measurement for health evaluation of reinforced concrete structures. Constr. Build. Mater. 2018, 197, 576–586. [Google Scholar] [CrossRef]
- Alonso, C.; Andrade, C.; González, J. Relation between resistivity and corrosion rate of reinforcements in carbonated mortar made with several cement types. Cem. Concr. Res. 1988, 18, 687–698. [Google Scholar] [CrossRef]
- Song, H.W.; Saraswathy, V. Corrosion monitoring of reinforced concrete structures—A review. Int. J. Electrochem. Sci. 2007, 2, 1–28. [Google Scholar]
- Elkey, W.; Sellevold, E. Electrical Resistivity of Concrete; Publication No. 80; Norwegian Public Road Administration: Oslo, Norway, 1995.
- Surf|Concrete Surface Resistivity|Giatec Scientific Inc. Available online: https://www.giatecscientific.com/products/concrete-ndt-devices/surf-surface-resistivity/ (accessed on 23 April 2020).
- COST 509; Corrosion and Protection of Metals in Contact with Concrete, Final Report. European Commission: Brussels, Belgium, 1997.
- Castellote, M.; Andrade, C.; Alonso, M.C. Standardization, to a Reference of 25 °C, of Electrical Resistivity for Mortars and Concretes in Saturated or Isolated Conditions. ACI Mater. J. 2002, 99, 119–128. [Google Scholar] [CrossRef]
- Shi, C.; Stegemann, J.A.; Caldwell, R.J. Effect of Supplementary Cementing Materials on the Specific Conductivity of Pore Solution and Its Implications on the Rapid Chloride Permeability Test (AASHTO T277 and ASTM C1202) Results. ACI Mater. J. 1998, 95, 389–394. [Google Scholar] [CrossRef]
- McCarter, W.; Starrs, G.; Chrisp, T. Electrical conductivity, diffusion, and permeability of Portland cement-based mortars. Cem. Concr. Res. 2000, 30, 1395–1400. [Google Scholar] [CrossRef]
- Millard, S.G. Wenner Reinforced Concrete Resistivity Measurement Techniques. Proc. Inst. Civ. Eng. 1991, 91, 71–88. [Google Scholar] [CrossRef]
- Alhozaimy, A.; Hussain, R.R.; Al-Negheimish, A. Electro-chemical investigation for the effect of rebar source and surface condition on the corrosion rate of reinforced concrete structures under varying corrosive environments. Constr. Build. Mater. 2020, 244, 118317. [Google Scholar] [CrossRef]
- Weydert, R.; Gehlen, C. Electrolytic resistivity of cover concrete: Relevance, measurement and interpretation. Durab. Build. Mater. Compon. 1999, 1, 409–419. [Google Scholar]
- Sengul, O.; Gjørv, O.E. Effect of Embedded Steel on Electrical Resistivity Measurements on Concrete Structures. ACI Mater. J. 2009, 106. [Google Scholar] [CrossRef]
- Salehi, M.; Ghods, P.; Isgor, O.B. Numerical investigation of the role of embedded reinforcement mesh on electrical resistivity measurements of concrete using the Wenner probe technique. Mater. Struct. 2016, 49, 301–316. [Google Scholar] [CrossRef]
- Salehi, M. Numerical Investigation of the Effects of Cracking and Embedded Reinforcement on Surface Concrete Resistivity Measurements Using Wenner Probe. Master’s Thesis, Carleton University, Ottawa, ON, Canada, 2013; p. 171. [Google Scholar] [CrossRef] [Green Version]
- Robles, K.; Yee, J.-J.; Kee, S.-H. Effect of the Geometrical Constraints to the Wenner Four-Point Electrical Resistivity Test of Reinforced Concrete Slabs. Sensors 2021, 21, 4622. [Google Scholar] [CrossRef] [PubMed]
- Yamashita, M. Resistivity Correction Factor for Four-Probe Method on Circular Semiconductors I. Jpn. J. Appl. Phys. 1987, 26, 1550–1554. [Google Scholar] [CrossRef]
- Bryant, J.W.; Weyers, R.E.; de la Garza, J.M. In-place resistivity of bridge deck concrete mixtures. ACI Mater. J. 2009, 106, 114–122. [Google Scholar] [CrossRef] [Green Version]
- Lataste, J.; Sirieix, C.; Breysse, D.; Frappa, M. Electrical resistivity measurement applied to cracking assessment on reinforced concrete structures in civil engineering. NDT E Int. 2003, 36, 383–394. [Google Scholar] [CrossRef]
- Chouteau, M.; Beaulieu, S. An Investigation on Application of the Electrical Resistivity Tomography Method to Concrete Structures. In Proceedings of the Geophysics 2002 the 2nd Annual Conference on the Application of Geophysical and NDT Methodologies to Transportation Facilities and Infrastructure, Los Angeles, CA, USA, 15–19 April 2002; pp. 3–10. [Google Scholar]
- Wiwattanachang, N.; Giao, P.H. Monitoring crack development in fiber concrete beam by using electrical resistivity imaging. J. Appl. Geophys. 2011, 75, 294–304. [Google Scholar] [CrossRef]
- Shah, A.A.; Ribakov, Y. Non-destructive measurements of crack assessment and defect detection in concrete structures. Mater. Des. 2008, 29, 61–69. [Google Scholar] [CrossRef]
- Morales, M. Experimental Investigation of the Effects of Embedded Rebar, Cracks, Chloride Ingress and Corrosion on Electrical Resistivity Measurements of Reinforced Concrete. Master’s Thesis, Oregon State University, Corvallis, OR, USA, 2015. [Google Scholar]
- Otieno, M.; Beushausen, H.; Alexander, M. Resistivity-based chloride-induced corrosion rate prediction models and hypothetical framework for interpretation of resistivity measurements in cracked RC structures. Mater. Struct. 2015, 49, 2349–2366. [Google Scholar] [CrossRef]
- Zhao, Q.; Zhang, K.; Zhu, S.; Xu, H.; Cao, D.; Zhao, L.; Zhang, R.; Yin, W. Review on the Electrical Resistance/Conductivity of Carbon Fiber Reinforced Polymer. Appl. Sci. 2019, 9, 2390. [Google Scholar] [CrossRef] [Green Version]
- Robles, K.P.V.; Kim, D.-W.; Yee, J.-J.; Lee, J.-W.; Kee, S.-H. Electrical Resistivity Measurements of Reinforced Concrete Slabs with Delamination Defects. Sensors 2020, 20, 7113. [Google Scholar] [CrossRef] [PubMed]
- Hnin, S.W.; Sancharoen, P.; Tangtermsirikul, S. Effects of Concrete Mix Proportion on Electrical Resistivity of Concrete. Mater. Sci. Forum 2016, 866, 68–72. [Google Scholar] [CrossRef]
- Ramezanianpour, A.; Jovein, H.B. Influence of metakaolin as supplementary cementing material on strength and durability of concretes. Constr. Build. Mater. 2012, 30, 470–479. [Google Scholar] [CrossRef]
- Polder, R.B.; Peelen, W.H. Characterisation of chloride transport and reinforcement corrosion in concrete under cyclic wetting and drying by electrical resistivity. Cem. Concr. Compos. 2002, 24, 427–435. [Google Scholar] [CrossRef]
- Lübeck, A.; Gastaldini, A.; Barin, D.; Siqueira, H. Compressive strength and electrical properties of concrete with white Portland cement and blast-furnace slag. Cem. Concr. Compos. 2012, 34, 392–399. [Google Scholar] [CrossRef]
- De Bem, D.H.; Lima, D.P.B.; Medeiros-Junior, R.A. Effect of chemical admixtures on concrete’s electrical resistivity. Int. J. Build. Pathol. Adapt. 2018, 36, 174–187. [Google Scholar] [CrossRef]
- Guo, X.; Shi, H.; Dick, W.A. Compressive strength and microstructural characteristics of class C fly ash geopolymer. Cem. Concr. Compos. 2010, 32, 142–147. [Google Scholar] [CrossRef]
- Visintin, P.; Ali, M.M.; Albitar, M.; Lucas, W. Shear behaviour of geopolymer concrete beams without stirrups. Constr. Build. Mater. 2017, 148, 10–21. [Google Scholar] [CrossRef]
- Albitar, M.; Ali, M.M.; Visintin, P. Experimental study on fly ash and lead smelter slag-based geopolymer concrete columns. Constr. Build. Mater. 2017, 141, 104–112. [Google Scholar] [CrossRef]
- Ataei, A.; Bradford, M.A.; Liu, X. Experimental study of composite beams having a precast geopolymer concrete slab and deconstructable bolted shear connectors. Eng. Struct. 2016, 114, 1–13. [Google Scholar] [CrossRef]
- Provis, J.L.; Bernal, S.A. Geopolymers and Related Alkali-Activated Materials. Annu. Rev. Mater. Res. 2014, 44, 299–327. [Google Scholar] [CrossRef]
- Cai, J.; Pan, J.; Li, X.; Tan, J.; Li, J. Electrical resistivity of fly ash and metakaolin based geopolymers. Constr. Build. Mater. 2020, 234, 117868. [Google Scholar] [CrossRef]
- Safari, S. Early-Age Mechanical Properties and Electrical Resistivity of Geopolymer Composites. Master’s Thesis, Brunel University, London, UK, April 2016. [Google Scholar]
- Parastegari, N.; Mostofinejad, D.; Poursina, D. Use of bacteria to improve electrical resistivity and chloride penetration of air-entrained concrete. Constr. Build. Mater. 2019, 210, 588–595. [Google Scholar] [CrossRef]
- Vijay, K.; Murmu, M. Self-repairing of concrete cracks by using bacteria and basalt fiber. SN Appl. Sci. 2019, 1, 1344. [Google Scholar] [CrossRef] [Green Version]
- AASHTO T 358-21; Standard Method of Test for Surface Resistivity Indication of Concrete’s Ability to Resist Chloride Ion Penetration. American Association of State Highway and Transportation Official: Washington, DC, USA, 2015.
- Sadowski, L. Methodology for Assessing the Probability of Corrosion in Concrete Structures on the Basis of Half-Cell Potential and Concrete Resistivity Measurements. Sci. World J. 2013, 2013, 714501. [Google Scholar] [CrossRef] [Green Version]
- Kennedy, C.; Philip-Kpae, F.O.; Oruene, W. Comparative Half Cell Potential and Concrete Resistivity Corrosion Probability Assessment of Embedded Coated Steel Reinforcement in Concrete Accelerated Environment. Int. J. Sci. Eng. Res. 2018, 9, 141–159. [Google Scholar] [CrossRef]
- Bourreau, L.; Gaillet, L.; Bouteiller, V.; Schoefs, F.; Thauvin, B.; Schneider, J. Better understanding of tide’s influence on half-cell potential measurements for reinforced concrete in marine environment. In Proceedings of the IABSE Symposium, Nantes 2018 Tomorrow’s Megastructures, Nantes, France, 19–21 September 2018; pp. S24-73–S24-78. [Google Scholar] [CrossRef]
- Kyung, J.W.; Yokota, M.; Leelalerkiet, V.; Ohtsu, M. Practical Use of Half-Cell Potential Method for NDE of Corrosion of Reinforced Concrete Structure. Key Eng. Mater. 2004, 270–273, 1638–1644. [Google Scholar] [CrossRef]
- Perez, J.A.V.; Guzmán, E.M.A.; Molina, W.M.; García, H.L.C.; Moreno, I.T.; Sánchez, M.A. Evaluation of the Electrical Resistivity, Ultrasonic Pulse Velocity and Mechanical Properties in Portland Cement Pastes Type II. Key Eng. Mater. 2020, 841, 198–202. [Google Scholar] [CrossRef]
- Sertçelik, I.; Kurtulus, C.; Sertcelik, F.; Peksen, E.; Aşçı, M.; Asci, M. Investigation into relations between physical and electrical properties of rocks and concretes. J. Geophys. Eng. 2018, 15, 142–152. [Google Scholar] [CrossRef] [Green Version]
- Diab, S.; Soliman, M.; Ahmed, N. Electrical Resistivity, Permeability and Mechanical Properties of Rubberized Concrete. Build. Tomorrow’s Soc. 2018, 1–9. Available online: https://www.csce.ca/elf/apps/CONFERENCEVIEWER/conferences/2019/pdfs/PaperPDFVersion_62_0426111919.pdf (accessed on 28 February 2022).
- Liu, B.; Guo, Q.; Li, S.; Liu, B.; Ren, Y.; Pang, Y.; Guo, X.; Liu, L.; Jiang, P. Deep Learning Inversion of Electrical Resistivity Data. IEEE Trans. Geosci. Remote Sens. 2020, 58, 5715–5728. [Google Scholar] [CrossRef] [Green Version]
- Thiyagarajan, K.; Acharya, P.; Piyathilaka, L.; Kodagoda, S. Numerical Modeling of the Effects of Electrode Spacing and Multilayered Concrete Resistivity on the Apparent Resistivity Measured Using Wenner Method. In Proceedings of the 2020 15th IEEE Conference on Industrial Electronics and Applications (ICIEA), Kristiansand, Norway, 9–13 November 2020; pp. 200–206. [Google Scholar] [CrossRef]
- Rymarczyk, T.; Kłosowski, G.; Kozłowski, E. A Non-Destructive System Based on Electrical Tomography and Machine Learning to Analyze the Moisture of Buildings. Sensors 2018, 18, 2285. [Google Scholar] [CrossRef] [Green Version]
- Guzmán-Torres, J.A.; Zalapa-Damian, A.; Domínguez-Mota, F.J.; Alonso-Guzmán, E.M. Data Science and Machine Learning Technique for Predicting Electrical Resistivity in Recycled Concrete with Nopal as Addition. Adv. Eng. Forum 2021, 40, 43–62. [Google Scholar] [CrossRef]
- Zhang, J.; Zhang, M.; Dong, B.; Ma, H. Quantitative evaluation of steel corrosion induced deterioration in rubber concrete by integrating ultrasonic testing, machine learning and mesoscale simulation. Cem. Concr. Compos. 2022, 128, 104426. [Google Scholar] [CrossRef]
- Torres, J.A.G.; Mota, F.J.D.; Alonso-Guzmán, E.M.; Martínez-Molina, W.; Ruiz, J.G.T.; Chavez-Garcia, H.L.; Seras, M.A.N.; Sánchez, M.A. Prediction of the Tensile Strength and Electrical Resistivity of Concrete with Organic Polymer and their Influence on Carbonation Using Data Science and a Machine Learning Technique. Key Eng. Mater. 2020, 862, 72–77. [Google Scholar] [CrossRef]
- Candelaria, M.D.E.; Kee, S.-H.; Lee, K.-S. Prediction of Compressive Strength of Partially Saturated Concrete Using Machine Learning Methods. Materials 2022, 15, 1662. [Google Scholar] [CrossRef]
- Guzmán-Torres, J.A.; Domínguez-Mota, F.J.; Alonso-Guzmán, E.M. A multi-layer approach to classify the risk of corrosion in concrete specimens that contain different additives. Case Stud. Constr. Mater. 2021, 15, e00719. [Google Scholar] [CrossRef]
- Chun, P.-J.; Ujike, I.; Mishima, K.; Kusumoto, M.; Okazaki, S. Random forest-based evaluation technique for internal damage in reinforced concrete featuring multiple nondestructive testing results. Constr. Build. Mater. 2020, 253, 119238. [Google Scholar] [CrossRef]
- Kan, Y.; Pei, K.; Lin, D. Using Acoustic Emission Technique for Monitoring Real-time Fracture Behavior within Reinforced Concrete Structure Element under Load Test. In Proceedings of the 17th World Conference on Nondestructive Testing, Shanghai, China, 25–28 October 2008; pp. 25–28. [Google Scholar]
- Yu, H.; Caseres, L. An embedded multi-parameter corrosion sensor for reinforced concrete structures. Mater. Corros. 2011, 63, 1011–1016. [Google Scholar] [CrossRef]
- Duffó, G.S.; Farina, S.B. Development of an embeddable sensor to monitor the corrosion process of new and existing reinforced concrete structures. Constr. Build. Mater. 2009, 23, 2746–2751. [Google Scholar] [CrossRef]
- Taffese, W.; Nigussie, E.; Isoaho, J. Internet of Things based Durability Monitoring and Assessment of Reinforced Concrete Structures. Procedia Comput. Sci. 2019, 155, 672–679. [Google Scholar] [CrossRef]
- Sophocleous, M.; Savva, P.; Petrou, M.F.; Atkinson, J.K.; Georgiou, J. A Durable, Screen-Printed Sensor for In Situ and Real-Time Monitoring of Concrete’s Electrical Resistivity Suitable for Smart Buildings/Cities and IoT. IEEE Sens. Lett. 2018, 2, 1–4. [Google Scholar] [CrossRef] [Green Version]
- Gucunski, N.; Maher, A.; Basily, B.B.; La, H.M. Robotic Platform RABIT for Condition Assessment of Concrete Bridge Decks using Multiple NDE Technologies. HDKBR INFO Mag. 2013, 3, 4. [Google Scholar]
- La, H.M.; Gucunski, N.; Dana, K.; Kee, S.-H. Development of an autonomous bridge deck inspection robotic system. J. Field Robot. 2017, 34, 1489–1504. [Google Scholar] [CrossRef] [Green Version]
- Gucunski, N.; Basily, B.; Kim, J.; Yi, J.; Duong, T.; Dinh, K.; Kee, S.-H.; Maher, A. RABIT: Implementation, performance validation and integration with other robotic platforms for improved management of bridge decks. Int. J. Intell. Robot. Appl. 2017, 1, 271–286. [Google Scholar] [CrossRef]
Reference | Specimen Geometry | Correlation Equation | R2 | Method (ER) | Method (Diffusivity) | Curing Condition | Age | Binder | w/c Ratio |
---|---|---|---|---|---|---|---|---|---|
[67] | Concrete Disk (100 mm dia. 50 mm thick) | y = 69.12x + 0.49 | 0.98 | TEM | RCPT | Lime–water (20 °C) | 3, 7, 14, 28, 90, 365 days | OPC, with other Pozzolanic matls. | 0.35, 0.40, 0.45 |
[68] | Cube (150 mm) | y = 125.22x − 0.54 | 0.86 | - | RCMT | water (20 °C) | 7, 14, 27, 28, 56, 91 days | Cement | 0.40–0.55 |
[69] | Cylinder (100 mm dia. × 200 mm) | y = 106.44x − 1.39 | 0.93 | TEM | RCPT | - | - | - | - |
WPM | |||||||||
[70] | Cube (100 mm) | y = 1333.7x + 1.06 | 0.99 | TEM | RCPT | water (20°C) | 3, 7, 14, 28, 90, 180, 365 days | Fly Ash Cement | 0.40 |
Cylinders | |||||||||
[71] | Cube (100 mm), (100 mm dia. Core cylinders | y = 102.32x + 3.0 | 0.93 | Computed through conductance | RCPT | water (20–25 °C) | Periodically for 4 months | Cement with Nano Silica | 0.50, 0.55, 0.65 |
[72] | Cylinder (100 mm dia. × 200 mm) | y = 26.363x + 0.32 | 0.66 | WPM | RCPT | Lime–water (21 °C) | 28 days | Fly Ash and Slag Cement | 0.41 |
[73] | Cylinder (100 mm dia. × 200 mm) | y = 4.831x + 0.74 | 0.93 | WPM | RCPT, RCMT | Lime–water (23 ± 2 °C), | 28, 91 days | PC with Silica Fume | 0.35, 0.45 |
[74] | Cylinder (100 mm dia. × 200 mm) | y = 134.56x − 0.45 | 0.93 | WPM | RCMT | water (25 °C) | 7,28, 56, 90 days | OPC, OPC with other Materials | 0.25, 0.28, 0.35 |
Cube (100 mm) | |||||||||
[75] | Cylinder (100 mm dia. × 200 mm) | y = 87.167x + 0.95 | 0.60 | TEM, WPM | RCMT | Room and Elevated Temp. (34 °C) | 91–100 days, 365 days, 1.5 years, 2 years, | Cement with Slag and silica Fume | 0.35, 0.41, 0.47 |
[76] | Cylinder (100 mm dia. × 200 mm) | y = 43.673x − 1.95 | 0.73 | WPM | RCMT RCPT | Lime–water (20 ± 3 °C), | 28 days | Cement with Metakaolin | 0.45, 0.60 |
Cube(100 mm) | |||||||||
Cube (150 mm) | |||||||||
[77] | Cylinder (100 mm dia. × 200 mm) | y = 104.62x − 1.49 | 0.68 | WPM | - | - | 2.5 years | with Microsilica | 0.32–0.35 |
[77] | Cube (100 mm) | y = 104.62x − 1.49 | 0.68 | WPM | - | - | 2.5 years | with Microsilica | 0.32–0.35 |
Reference | Specimen Geometry | Regression Equation | (R2) | Measurement Method | Measurement Method (Corrosion Rate) | Curing Condition | Age | Type of Binder | w/c Ratio |
---|---|---|---|---|---|---|---|---|---|
[78] | - | y = 35.831x−0.89 | 0.65 | - | LPR | - | - | - | - |
[79] | Beam (100 mm × 100 mm × 500 mm) | y = 0.7262x−0.488 | 0.57 | WPM | LPR | NaCl (5%) curing | 28, 90 days | PC | 0.40, 0.55 |
[80] | cylinder (150 mm dia. × 300 mm) | y = 132.86x−1.062 | 0.66 | WPM | Inverse of ER | - | - | OPC | 0.41 |
[81] | cylinder (15 cm dia. × 22 cm) | y = 200.01x−1.339 | 0.53 | Computed using Resistivity meter | LPR | 1000 days | Cement | 0.40, 0.60 | |
[45] | - | y = 0.4359x−0.807 | 0.64 | - | - | - | - | - | - |
[82] | Slab (133 × 133 × 7 cm) | y = 3.1985x−0.991 | 0.95 | - | LPR | - | - | Cement | 0.50 |
[83] | Slab (160 cm × 140 cm × 10 cm) | y = 114.58x−0.418 | 0.60 | Computed using Galvanostat | LPR | - | - | - | - |
[84] | Prism (65 mm × 100 mm × 300 mm) | y = 26.174x−0.664 | 0.82 | TEM | LPR | NaCl (5%) curing | - | Cement | 0.45 |
[85] | cylinder (75 mm dia. × 150 mm) | y = 10.237x−0.813 | 0.45 | - | LPR | water curing | - | OPC | 0.50 |
[86] | cylinder (150 mm dia. × 300 mm) | y = 2118.1x−2.316 | 0.90 | - | - | NaCl (3.5%) curing | Monthly (for 6 months) | PC | 0.48 |
[87] | - | y = 5.3225x−0.654 | 0.75 | - | - | - | 3, 5, 12 months | PC | 0.50 |
[88] | cylinder (150 mm dia. × 300 mm) | y = 1277.6x−2.208 | 0.90 | - | - | NaCl (3.5%) curing | Monthly (for 1 year) | Portland Cement | 0.48 |
References | Specimen Geometry | Regression Equation | R2 | Measurement Method | Curing Condition | Binder | w/c Ratio |
---|---|---|---|---|---|---|---|
[89] | 50 mm cube | y = −0.22x + 10.865 | 0.70 | WPM | water (20 °C) | - | 0.55 |
[75] | Cylinder | y = −1.5374x + 89.188 | 0.91 | WPM | water | PC with FA | 0.41 |
[90] | Cylinder | y = −3.8363x + 193.54 | 0.93 | WPM | water | PC with FA | 0.41 |
[91] | 25 × 25 × 100 mm prism | y = −0.9764x + 43.785 | 0.99 | Computed through Resistance Values | - | Normal PC | 0.37, 0.42, 0.47, 0.57 |
[92] | Cylinder (100 mm dia. × 200 mm) | y = −0.2311x + 22.769 | 0.92 | - | - | PC with FA | 0.32–0.53 |
[93] | 100 × 100 × 300 prism | y = −7.4731x + 197.83 | 0.94 | - | - | OPC | 0.45, 0.65 |
Reference | Specimen Geometry | Regression Equation | R2 | Measurement Method | Curing Condition | Age | Binder | w/c Ratio |
---|---|---|---|---|---|---|---|---|
[94] | y = 2.5696x + 11.1 | 0.79 | - | water (23 ± 2 °C) | 7, 28 days | OPC | 0.55 | |
[95] | Slab/beam/cylindrical sample | y = 1.5703x + 1.85 | 0.99 | WPM | water | - | PC | 0.40, 0.45, 0.50 |
[51] | cylinder (100 mm dia. × 200 mm) | y = 3.5339x − 54.48 | 0.63 | WPM | - | 28 days | PC with admixtures | 0.32–0.72 |
[96] | 150 mm cube | y = 1.0042x − 12.46 | 0.98 | WPM | - | 3, 7, 28 days | OPC, some samples with silica fume | 0.5 |
[97] | cylinder (100 mm dia. × 200 mm) | y = 0.5655x − 0.85 | 0.95 | WPM | water (23 ± 2 °C) | 28 days | PC | 0.42, 0.48, 0.54, 0.60 |
[98] | 100 mm cube | y = 0.257x + 11.10 | 0.8 | - | - | 3, 7, 28 days | PC with slag | 0.55 |
[93] | cylinder (100 mm dia. × 200 mm) | y = 0.4996x + 4.78 | 0.75 | WPM | - | 28 days | PC with limestone | - |
[99] | cylinder (100 mm dia. × 200 mm) | y = 0.3447x − 1.05 | 0.97 | WPM | water (23 ± 2 °C) | 3, 7, 28 days | PC | 0.42, 0.48, 0.54, 0.60 |
[100] | cylinder, prism | y = 0.1444x + 18.68 | 0.92 | WPM | - | 7, 14, 28, 56 days | Different Cement type | 0.44 |
[76] | Cubes and Cylinders | y = 0.4778x + 4.72 | 0.99 | WPM | water (20 ± 3 °C) | 7, 14, 28, 90, 180 days | Cement with admixtures | 0.45, 0.60 |
Chloride Penetration Levels According to Electrical Resistivity of Concrete [KΩ CM] | ||||||
---|---|---|---|---|---|---|
References: | Very High | High | Moderate | Low | Very Low | Negligible |
[52,104,129,130] | – | <12 | 12–31 | 21–37 | 37–254 | >254 |
[131] | – | <7 | 7–13 | 13–24.3 | 24.3–191 | >191 |
[62] | – | <6.7 | 6.7–11.7 | 11.7–20.6 | 20.6–141.1 | >141.1 |
[132] | – | <16 | 16–28 | 28–50 | 50–343 | >343 |
[101] | – | <5 | 5–10 | 10–20 | 20–200 | >200 |
[133] | <5 | 5–7.5 | 7.5–15 | 15–35 | >35 | – |
Corrosion Risk Level | Corrosion Rate [μAcm−2] |
---|---|
Passive/very low | <0.2 |
Low/moderate | 0.2–0.5 |
Moderate/high | 0.5–1.0 |
Very high | >1.0 |
Corrosion Risk According to Electrical Resistivity of Concrete (kΩ⋅cm) | ||||
---|---|---|---|---|
References | High | Moderate | Low | Negligible |
[58,154,158] | <10 | 10–50 | 50–100 | >100 |
[155,156] | <5 | 5–10 | 10–20 | >20 |
[104,157] | ≤10 | 10–50 | 50–100 | ≥100 |
Parameter | Relationship to ER | Research Gap |
---|---|---|
Degree of Saturation | Inversely proportional to ER values |
|
Chloride Ion Penetration | Inversely proportional to ER values in a linear scale |
|
Corrosion Rate | Inversely proportional to ER values in a logarithmic scale |
|
Temperature | Inversely proportional to ER values in both linear and exponential scale |
|
Presence of Steel Reinforcement, Electrode Spacing and Configuration, Presence of Cracks, and Presence of Delamination Defects | Variations in ER values are observed with respect to the mentioned parameters |
|
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Robles, K.P.V.; Yee, J.-J.; Kee, S.-H. Electrical Resistivity Measurements for Nondestructive Evaluation of Chloride-Induced Deterioration of Reinforced Concrete—A Review. Materials 2022, 15, 2725. https://doi.org/10.3390/ma15082725
Robles KPV, Yee J-J, Kee S-H. Electrical Resistivity Measurements for Nondestructive Evaluation of Chloride-Induced Deterioration of Reinforced Concrete—A Review. Materials. 2022; 15(8):2725. https://doi.org/10.3390/ma15082725
Chicago/Turabian StyleRobles, Kevin Paolo V., Jurng-Jae Yee, and Seong-Hoon Kee. 2022. "Electrical Resistivity Measurements for Nondestructive Evaluation of Chloride-Induced Deterioration of Reinforced Concrete—A Review" Materials 15, no. 8: 2725. https://doi.org/10.3390/ma15082725
