A New BCN Compound with Monoclinic Symmetry: First-Principle Calculations

Abstract

In this study, we predicted and investigated a new light-element compound B-C-N in Pm phase, denoted as Pm-BCN, using density functional theory. Pm-BCN is mechanically, dynamically, and thermodynamically stable. The elastic moduli of Pm-BCN are larger than those of other B-C-N and light-element compounds, such as P2₁3 BN, B₂C₃, P4/m BN, Pnc2 BN, and dz4 BN. By studying the mechanical anisotropy of elastic moduli, we proved that Pm-BCN is a mechanically anisotropic material. In addition, the shear anisotropy factors A₂ and A_Ba of Pm-BCN are smaller than those of the seven B-C-N compounds mentioned in this paper. Pm-BCN is a semiconductor material with an indirect and wide band gap, suggesting that Pm-BCN can be applied in microelectronic devices.

1. Introduction

Designing new light-element atoms based on boron, carbon, and nitrogen, which easily form strong covalent bonds to form compounds, is an important method of finding new multifunctional materials. New theoretically proposed materials include superhard materials [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16], direct bandgap materials [17,18], hydrogen and lithium storage materials [19,20], and metal materials that can be used for the preparation of battery cathode materials [1,4,21,22].

Three new carbon allotropes with an orthogonal structure, oP-C₁₆, oP-C₂₀, and oP-C₂₄, were proposed based on first-principles calculations [1], all of which showed metallicity. The hardness of oP-C₁₆, oP-C₂₀, and oP-C₂₄ are 47.5, 49.6, and 55.3 GPa, respectively. The ideal shear strengths of oP-C₁₆, oP-C₂₀, and oP-C₂₄ are higher than those of Cu and Fe, and Al. Yu et al. [23] predicted and studied a new sp² hybrid BN polymorph, Pnc2 BN, which showed mechanical and dynamic stability, and found that the elastic properties of Pnc2 BN are better than those of dz4 BN. The indirect band gap of Pnc2 BN calculated using the Heyd–Scuseria–Ernzerhof (HSE06) functional is 3.543 eV, indicating that Pnc2 BN has semiconductor properties. On the basis of density functional theory (DFT) calculations [24,25], m-B₃CN₃ and m-B₂C₃N₂, two new superhard BCN compounds, were designed by Xing et al. [5]. The shear modulus B, bulk modulus G, and Young’s modulus E of m-B₃CN₃ and m-B₂C₃N₂ are 345, 778, and 346, respectively; the B, G, and E for m-B₃CN₃ and m-B₂C₃N₂ are little bit larger than those of o-BC₆N [2], t-BC₆N-1 [2], and t-BC₆N-2 [2]. Both m-B₃CN₃ and m-B₂C₃N₂ are superhard materials because both compounds have a hardness in excess of 40 GPa. The structural properties, anisotropy characteristics, elastic characteristics, and electronic properties, as well as the stability, of P4/m BN were investigated by Yu et al. [26]. By adopting DFT, Xing et al. established and studied CN and BCN₂ compounds with superhard characteristics and a space group of C2/m [4]. The hardness of CN is 58.63 GPa, and it is a semiconductor material, whereas BCN₂ is metallic. A superhard material, t-C₈B₂N₂, was designed by Zhu et al. [10] and Wang et al. [11]. The bulk modulus of t-C₈B₂N₂ was found to be 383.4 [10] and 383.0 GPa [11], and the hardness was 64.7 [10] and 63.2 GPa [11].

In this study, we predicted a BCN polymorph, Pm BCN, which is mechanically and dynamically stable. We analyzed the structural, mechanical, and electronic characteristics of Pm BCN through first-principles calculations.

2. Theoretical Methods

On the basis of DFT calculations [24,25], we proposed and investigated a new light-element compound using the Cambridge Serial Total Energy Package (CASTEP) [27]. We adopted the generalized gradient approximation (GGA) with the Perdew–Burke–Ernzerhof (PBE) [28] and local density approximation (LDA) [29] functionals to describe the exchange and correlation potentials. To ensure that the crystal structure of Pm-BCN was optimal, we used Broyden–Fletcher–Goldfarb–Shanno (BFGS) [30] for geometry optimization. The convergence accuracy during optimization was less than 0.001 eV. We described the valence electrons by ultrasoft pseudopotentials [31]. We adopted the Monkhorst–Pack k-points for the k-points separation of 6 × 16 × 7 and found that the plane wave cut-off energy E_cut-off is 500 eV for Pm-BCN. For the phonon spectra of Pm-BCN, we used the density functional perturbation theory (DFPT) approach [32], and for the electronic band structures of Pm-BCN, we adopted the HSE06 hybrid functional [33]. In addition, we used the Voigt–Reuss–Hill (VRH) approximations [34,35,36] to calculate the bulk modulus and shear modulus.

3. Results and Discussion

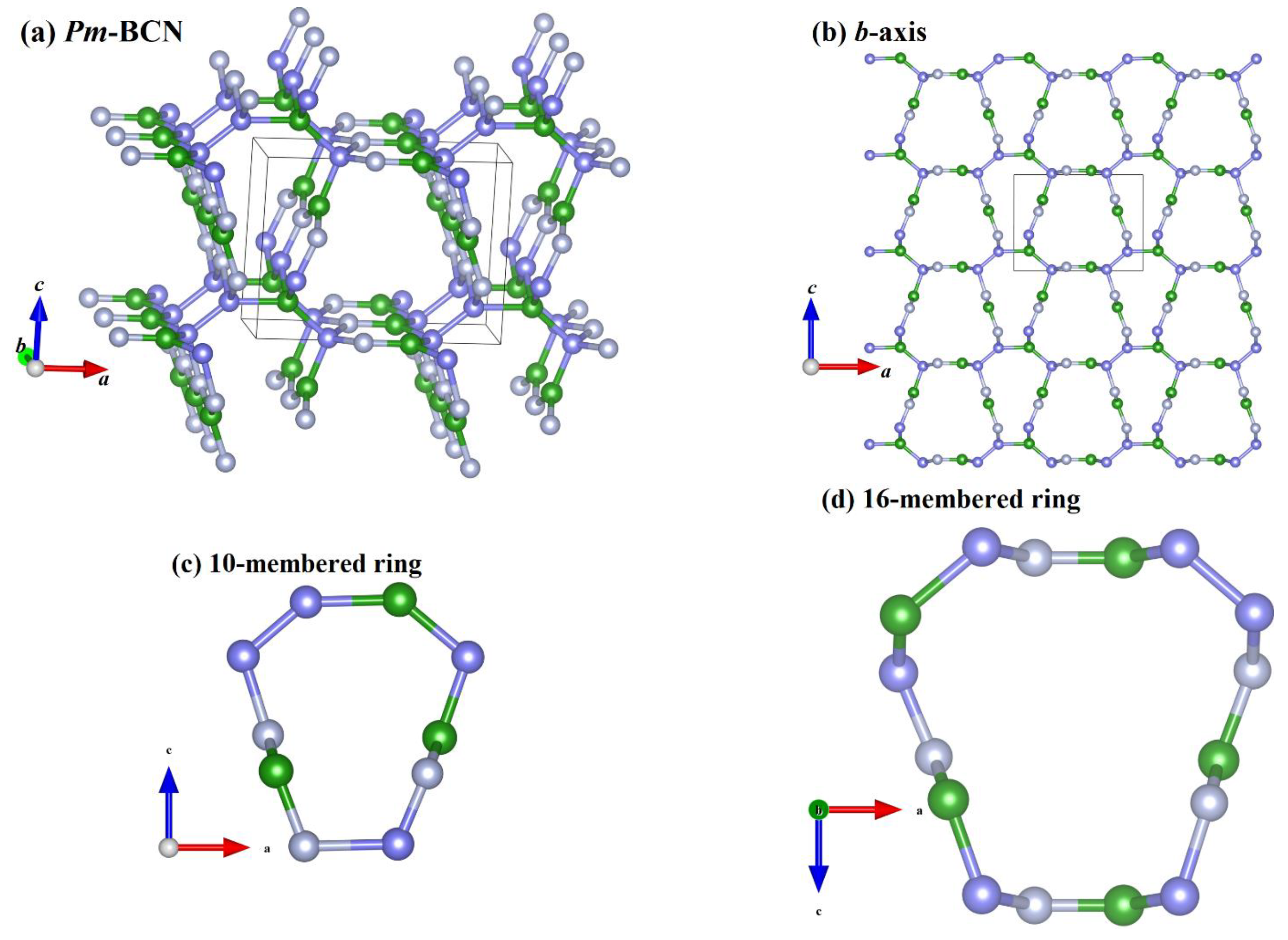

The crystal structure of Pm-BCN and its structure along the b-axis are shown in Figure 1a,b, respectively. Blue, gray, and purple spheres represent the B, N, and C atoms, respectively. In addition to the common rings such as the 4- and 6-membered rings in the crystal structures of Pm-BCN, two larger rings, a 10- and a 16-membered ring, are present in the crystal structure, the structures of which are depicted in Figure 1c,d. The 4-membered ring consists of one B, one N, and two C atoms; the 6-membered ring consists of one B, one N, and four C atoms; the 10-membered ring consists of three B, three N, and four C atoms. The 16-membered ring consists of five B, five N, and six C atoms. The conventional Pm-BCN cell contains 12 atoms. Because Pm-BCN has a monoclinic system, the crystal structure of Pm-BCN is not symmetrical, and the position of each atom is different. Boron atoms occupy four positions: B1 1a (0.11803, 0.00000, and 0.20845), B3 1a (0.22107, 0.00000, and 0.73817), B10 1b (0.80293, 0.50000, and 0.62435), and B12 1b (0.59805, 0.50000, and 0.04251); nitrogen atoms occupy four positions: N2 1a (0.78254, 0.00000, and 0.74717), N7 1b (0.18971, 0.50000, and 0.61515), N8 1b (0.87536, 0.50000, and 0.36710), and N11 1b (0.40657, 0.50000, and 0.04285); and carbon atoms occupy four positions: C4 1a (0.88003, 0.00000, and 0.20041), C5 1a (0.71892, 0.00000, and 0.01576), C6 1a (0.29294, 0.00000, and 0.01183), and C9 1b (0.11385, 0.50000, and 0.37443).

Table 1. Crystal lattice parameters of Pm BCN and other B-C-N compounds.

		a	b	c	β	V	ρ
Pm BCN	GGA	7.2538	2.5387	5.4260	89.960	24.981	2.448
	LDA	7.1697	2.5043	5.3334	89.219	23.938	2.555
t-C8B2N2	GGA a	2.5470		10.9470		17.781	3.402
	LDA b	2.5250		10.8540		17.092	3.539
Imm2 BCN	GGA	2.5451	2.5658	10.9077		17.808	3.434
	GGA c	2.5453	2.5658	10.9169		17.822
	GGA d	2.5480	2.5690	10.9130		17.859
	LDA	2.5129	2.5313	10.7687		17.125	3.571
	LDA c	2.5127	2.5309	10.7659		17.212
I-4m2 BCN	GGA	2.5648		10.9948		18.081	3.382
	GGA c	2.5641		10.9892		18.063
	GGA d	2.5670		11.0020		18.124
	LDA	2.5301		10.8420		17.101	3.525
	LDA c	2.5298		10.8396		17.343

^a [11], ^b [10], ^c [14], ^d [37].

shows the crystal lattice parameters of the B-C-N compounds. The crystal lattice parameters of Imm2 BCN and I-4m2 BCN are close to those previously reported [14]; therefore, the crystal lattice parameters of Pm-BCN reported in this manuscript are both convincing and reliable.

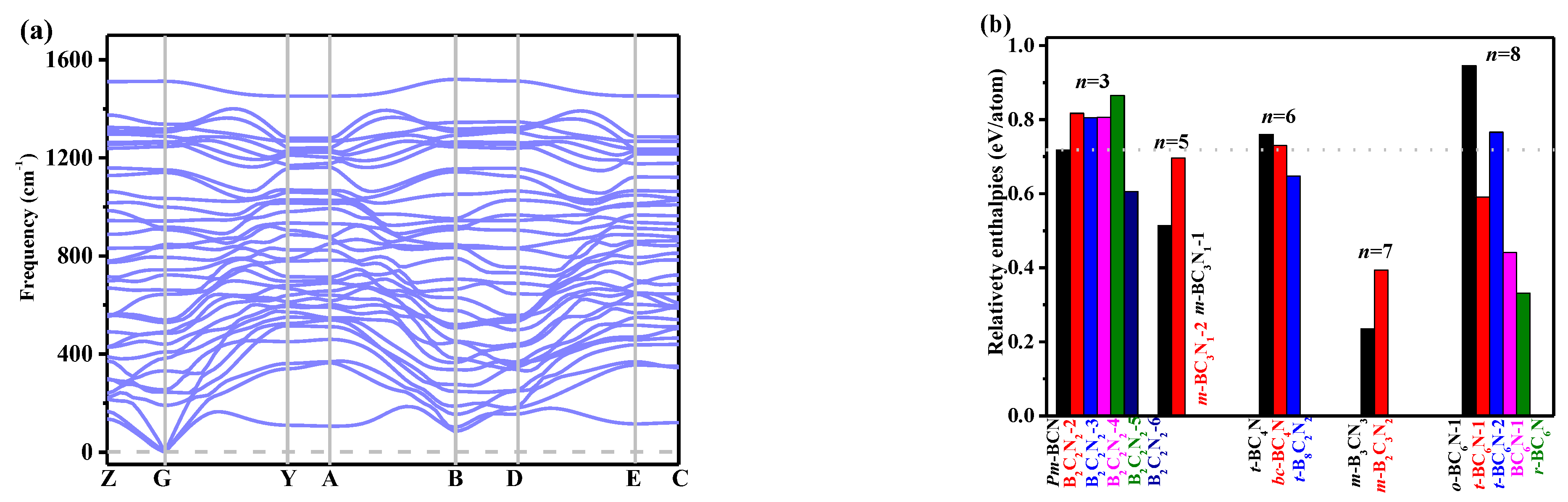

The stability of Pm-BCN through phonon spectra (Figure 2a), relative enthalpy (Figure 2b), and elastic parameters. In Figure 2a, no curve appears below zero, so Pm-BCN is dynamically stable. We calculated the formation energies of B-C-N compounds as: ΔH = H_BxCyNz/m-xH_c-BN/n-yH_diamond/p. As several B-C-N compounds have an equal number of nitrogen and boron atoms, here, x is equal to z; m, n, and p are the B_xC_yN_z unit and atom numbers of the conventional cell for B-C-N compounds, c-BN, and diamond. The formation energy of Pm-BCN is 0.7182 eV/atom, which is slightly lower than those of o-BC₆N-1, t-BC₆N-2 [2], B₂C₂N₂-2, B₂C₂N₂-3, B₂C₂N₂-4, and B₂C₂N₂-5 [38]. We found that the Pm-BCN is a metastable phase. Notably, B-C-N compounds with positive formation energies are not unusual [2,4,5,7,8,38].

For the monoclinic structure, the Born mechanical stability conditions are [39]: C₁₁ > 0, C₂₂ > 0, C₃₃ > 0, C₄₄ > 0, C₅₅ > 0, C₆₆ > 0, [C₁₁ + C₂₂ + C₃₃ + 2 (C₁₂ + C₁₃ + C₂₃)] > 0, (C₃₃C₅₅ − $C_{35}^2$) > 0, (C₄₄C₆₆ − $C_{46}^2$) > 0, (C₂₂ + C₃₃ − 2C₂₃) > 0, [C₂₂ (C₃₃C₅₅ − $C_{35}^2$) + 2 C₂₃C₂₅C₃₅ − $C_{23}^2$C₅₅ − $C_{25}^2$C₃₃] > 0, {2[C₁₅C₂₅ (C₃₃C₁₂ − C₁₃ C₂₃) + C₁₅C₃₅(C₂₂C₁₃ − C₁₂C₂₃) + C₂₅C₃₅ (C₁₁C₂₃ − C₁₂C₁₃)] − [$C_{15}^2$(C₂₂C₃₃ − $C_{23}^2$) + $C_{25}^2$(C₁₁C₃₃ − $C_{13}^2$) + $C_{35}^2$(C₁₁C₂₂ − $C_{12}^2$)] + C₅₅B} > 0, and B = C₁₁C₂₂C₃₃ − C₁₁$C_{23}^2$ − C₂₂$C_{13}^2$ − C₃₃$C_{12}^2$ + 2C₁₂C₁₃C₂₃.

Table 2. Calculated elastic constants (GPa) and elastic moduli (GPa) of Pbca XN, Imm2 BCN, and I-4m2 BCN.

		C11	C12	C13	C15	C22	C23	C25	C33	C35	C44	C46	C55	C66	B	G	E
Pm BCN	GGA	339	50	184	8	770	48	0.4	400	10	194	8	75	189	225	153	374
	LDA	364	61	212	16	829	59	2	405	20	203	12	73	199	245	154	382
m-B2C3N2	GGA a	723	97	178	11	936	43	7	871	21	326	−2	394	395	351	367	816
m-B3CN3	GGA a	684	123	181	21	841	47	−7	841	63	304	2	375	387	345	346	778
t-C8 B2N2	GGA b	987	39	143					890		368			389	390	379	858
Imm2 BCN	GGA	963	23	144		898	141		395		395		457	343	367	394
	GGA c	962	22	143		894	140		819		400		456	343	365	394	839
I-4m2 BCN	GGA	853	45	133					753		377			327	342	358
	GGA c	857	47	135					755		377			328	345	358	798

^a [5], ^b [10], ^c [14].

lists the C_ij values of Pm-BCN and other B-C-N compounds. Table 2 shows that the elastic constants of Pm-BCN determined by LDA are slightly higher than those determined by GGA. All the elastic constants of Pm-BCN satisfy the above equation for a monoclinic system, proving that Pm-BCN is mechanically stable. We calculated the G and B of B-C-N compounds by using the Voigt–Reuss–Hill approximation [34,35,36]. The B_V, B_R, G_V, and G_R are given by [38]:

$$B_V=[C_{11}+C_{22}+C_{33}+2(C_{12}+C_{13}+C_{23})]/9$$

(1)

$$G_V=[C_{11}+C_{22}+C_{33}+3(C_{44}+C_{55}+C_{66})-(C_{12}+C_{13}+C_{23})]/15$$

(2)

$$\begin{array}{l}{B}_R=\Delta [(C_{33}{C}_{55}-C_{35}^2)(C_{11}+C_{22}-2C_{12})+(C_{23}{C}_{55}-C_{25}{C}_{35})(2C_{12}-2C_{11}-C_{23})+(C_{13}{C}_{35}-C_{15}{C}_{33})\\ (C_{15}-2C_{25})+(C_{13}{C}_{55}-C_{15}{C}_{35})(2C_{12}+2C_{23}-C_{13}-2C_{22})+2(C_{13}{C}_{25}-C_{15}{C}_{23})(C_{25}-C_{15})+A{]}^{-1}\end{array}$$

(3)

$$\begin{array}{l}{G}_R=15\{4[(C_{33}{C}_{55}-C_{35}^2)(C_{11}+C_{22}+C_{12})+(C_{23}{C}_{55}-C_{25}{C}_{35})(C_{11}-C_{12}-C_{23})+\\ (C_{13}{C}_{35}-C_{15}{C}_{33})(C_{15}+C_{25})+(C_{13}{C}_{55}-C_{15}{C}_{35})(C_{22}-C_{12}-C_{23}-C_{13})+\\ (C_{13}{C}_{25}-C_{15}{C}_{23})(C_{15}-C_{25})+A]/\Delta +3[(C/\Delta )+(C_{44}+C_{66})/(C_{44}{C}_{66}-C_{46}^2)]{\}}^{-1}\end{array}$$

(4)

$$A=C_{11}(C_{22}{C}_{55}-C_{25}^2)-C_{12}(C_{12}{C}_{55}-C_{15}{C}_{25})+C_{15}(C_{12}{C}_{25}-C_{15}{C}_{22})+C_{25}(C_{23}{C}_{35}+C_{25}{C}_{33})$$

(5)

$$C=C_{11}{C}_{22}{C}_{33}-C_{11}{C}_{23}^2-C_{22}{C}_{13}^2-C_{33}{C}_{12}^2+2C_{12}{C}_{13}{C}_{23}$$

(6)

$$\begin{array}{l}\Delta =2[C_{15}{C}_{25}(C_{33}{C}_{12}-C_{13}{C}_{23})+C_{15}{C}_{35}(C_{22}{C}_{13}-C_{12}{C}_{23})+C_{25}{C}_{35}(C_{11}{C}_{23}-C_{12}{C}_{13})]-[C_{15}^2(C_{22}{C}_{33}-C_{23}^2)\\ +C_{25}^2(C_{11}{C}_{33}-C_{13}^2)+C_{35}^2(C_{11}{C}_{22}-C_{12}^2)+(C_{11}{C}_{22}{C}_{33}-C_{11}{C}_{23}^2-C_{22}{C}_{13}^2-C_{33}{C}_{12}^2+2C_{12}{C}_{13}{C}_{23})C_{55}]\end{array}$$

(7)

$$B=(B_V+B_R),G=(G_V+G_R)$$

(8)

Young’s modulus E is calculated by E = 9BG/(3B + G), and Table 2 lists the calculated elastic moduli of B-C-N compounds. The elastic moduli of Pm-BCN are less than those of other B-C-N compounds, and larger than those of other light element compounds, such as Pnc2 BN [23], P4/m BN [26], P2₁3 BN [40], B₂C₃ [41], dz4 BN [42], etc.

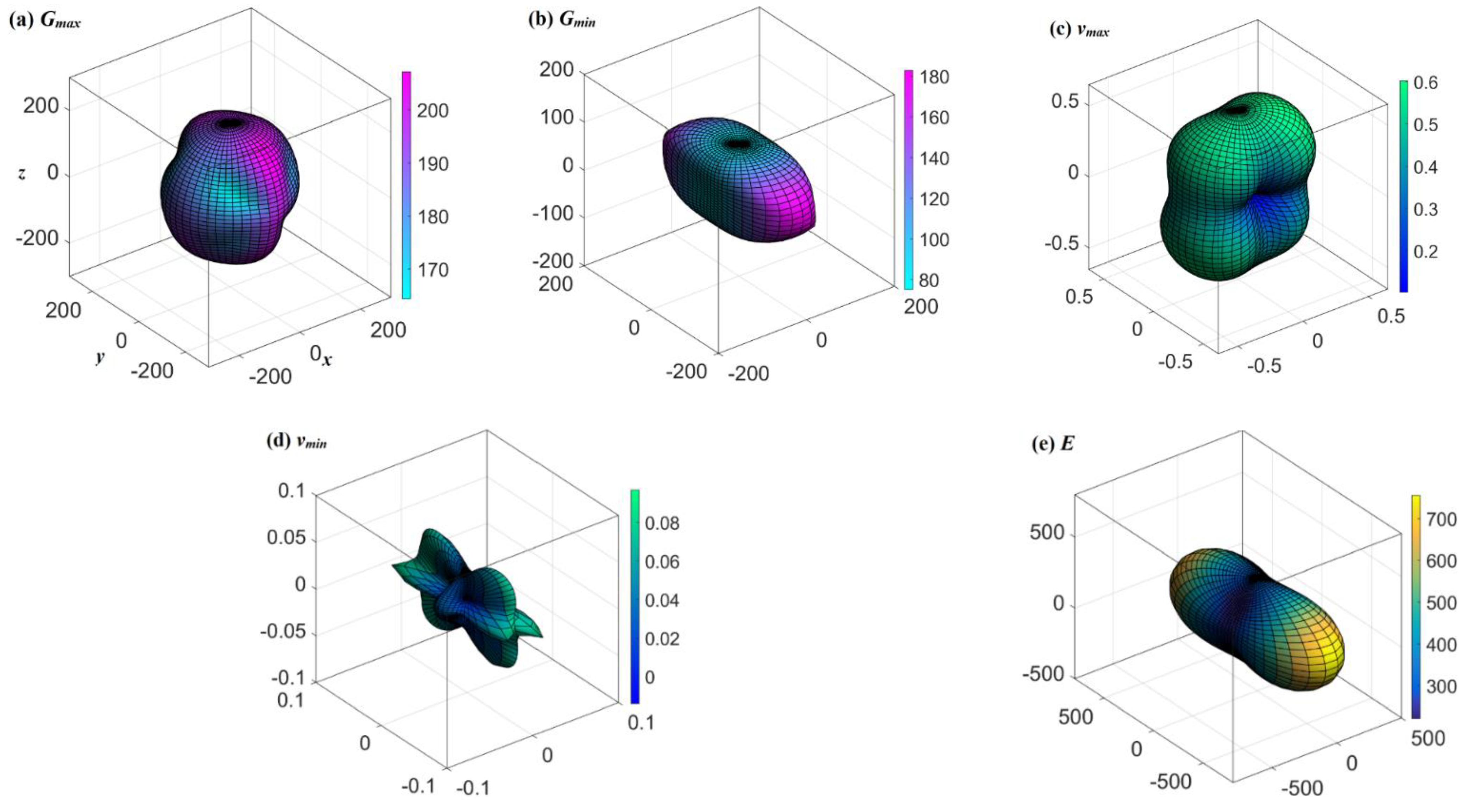

According the ElAM codes [43], we investigated the anisotropic elastic properties of Pm-BCN. The G, v, and E are illustrated in Figure 3a–e, respectively. The three-dimensional (3D) graphics of G, v, and E of Pm-BCN are not regular spheres, as shown in Figure 3. If a material possesses isotropic properties, its 3D diagram should be a regular sphere, and any shape deviating from a sphere indicates anisotropy [44,45,46,47,48,49,50]. So, we found that the G, v, and E of Pm-BCN exhibit anisotropic elastic properties. The G_max/G_min and E_max/E_min ratios are used to characterize the anisotropic elastic properties of G and E, which are 207.12/75.11 = 2.76 and 755.31/221.89 = 3.40 for Pm-BCN, respectively. As shown by the G_max/G_min and E_max/E_min ratios, the anisotropic elastic properties of Pm-BCN show that it has a greater shear modulus than B₂C₃N₂ and B₂CN₂ [5], but a smaller one than BCN₂ [4]. BCN₂ has the largest Young’s modulus among Pm-BCN, B₂C₃N₂, and B₂CN₂; B₂C₃N₂ shows the weakest anisotropy in E.

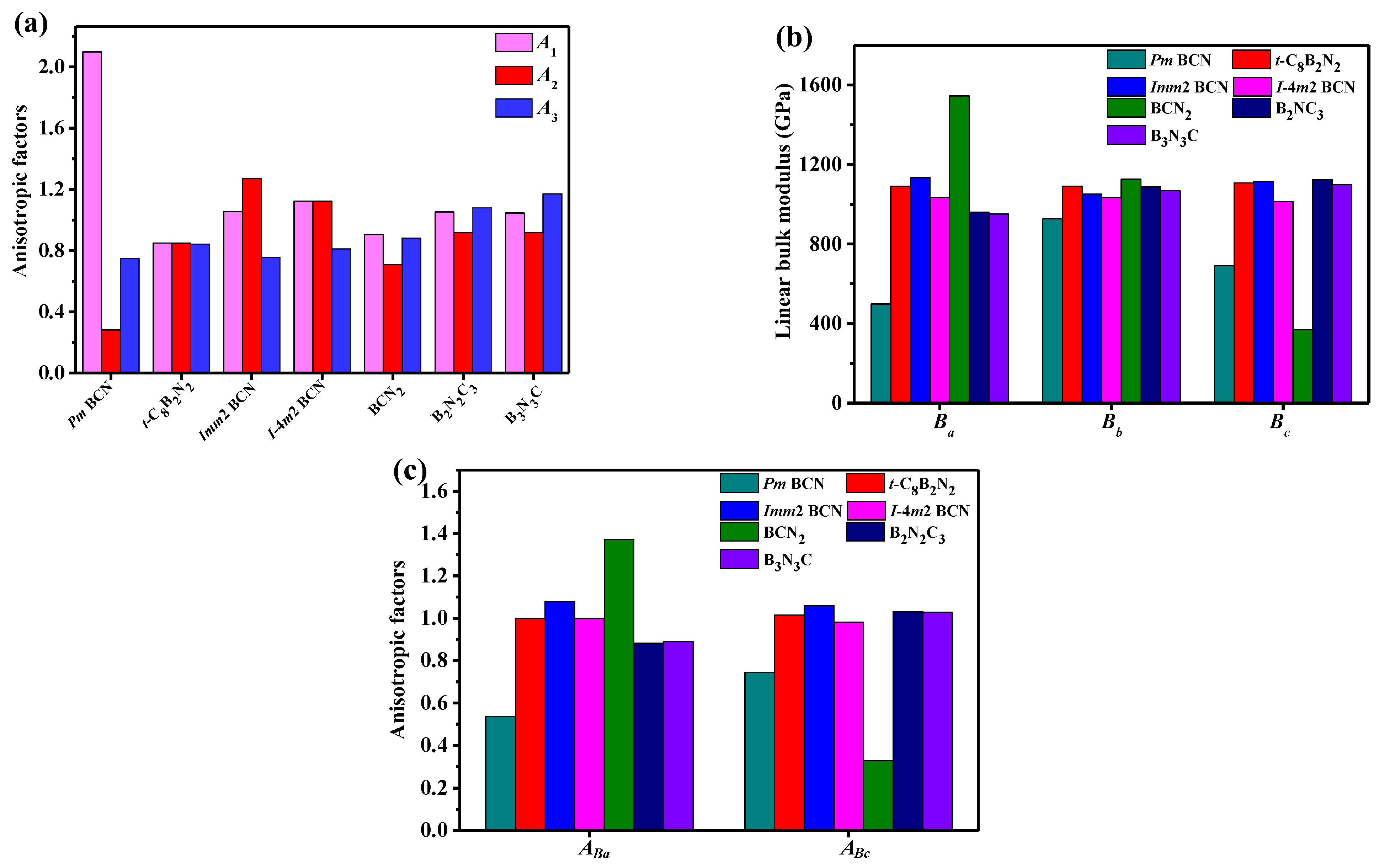

For mechanical anisotropy in G, the shear anisotropy factor is an index of the mechanical anisotropy of atomic bonding in different shear planes. A₁, A₂, and A₃ represent the shear anisotropic factor for the (100) shear plane between [011] and [010] directions, the (010) shear plane between [101] and [001] directions, and the (001) shear plane between [110] and [010] directions, respectively. A1 = 4C44/(C11 + C33 − 2C13), A₁ = 4C₅₅/(C₂₂ + C₃₃ − 2C₂₃), A₃ = 4C₆₆/(C₁₁ + C₂₂ − 2C₁₁) [51,52]. The A₁, A₂, and A₃ of carbon allotropes of seven B-C-N compounds are illustrated in Figure 4a. We found that the A₁, A₂, and A₃ of isotropic materials should be one; however, as shown in Figure 4a, the A₁ of Pm-BCN is much greater than one, whereas the A₂ of Pm-BCN is much lower than one, so Pm-BCN exhibits a larger anisotropy at the (100) and (010) shear plane. Among these seven B-C-N compounds, the (100), (010), and (001) shear planes of t-C₈B₂N₂ show minimal differences, implying that the anisotropies at the three planes of the shear modulus of t-C₈B₂N₂ are similar. The B along the a, b, and c axes, B_a, B_b, and B_c, were calculated as [51,53]: B_a = Λ/(1 + α + β), B_b = B_a/α, and B_c = B_a/β, and Λ = C₁₁ + 2C₁₂ + C₂₂α² + 2C₁₃β + C₃₃β² + 2C₂₃αβ, α = [(C₁₁ − C₁₂)(C₃₃ − C₁₃) − (C₂₃ − C₁₃)(C₁₁ − C₁₃)]/[(C₃₃ − C₁₃) (C₂₂ − C₁₂) − (C₁₃ − C₂₃)(C₁₁ − C₁₃)], and β = [(C₂₂ − C₁₂)(C₁₁ − C₁₃) − (C₁₁ − C₁₂)(C₂₃ − C₁₂)]/[(C₂₂ − C₁₂)(C₃₃ − C₁₃) − (C₁₂ − C₂₃) (C₁₃ − C₂₃)]. The anisotropy of the bulk moduli along the a and c directions with respect to the b directions are described by: A_Ba = B_a/B_b, A_Bc = B_c/B_b. Figure 4b,c shows the B_a, B_c, A_Ba, and A_Bc of the seven B-C-N compounds. The B_a and B_c of the seven B-C-N compounds differ. The B_a of BCN₂ is the largest, and Pm-BCN exhibits the smallest linear bulk modulus B_a. Although BCN₂ has the largest linear bulk modulus B_a, its linear bulk modulus B_c is the smallest. Figure 4c shows that the anisotropy of B along the a direction, A_Ba, of t-C₈B₂N₂ and I-4m2 BCN, and the A_Bc of B₂N₂C₃ and B₃N₃C are very close to one, indicating that the B of these materials is less anisotropic along the a and c axes. Additionally, Pm-BCN exhibits the largest anisotropy in A_Ba, and BCN₂ has the largest anisotropy in A_Bc.

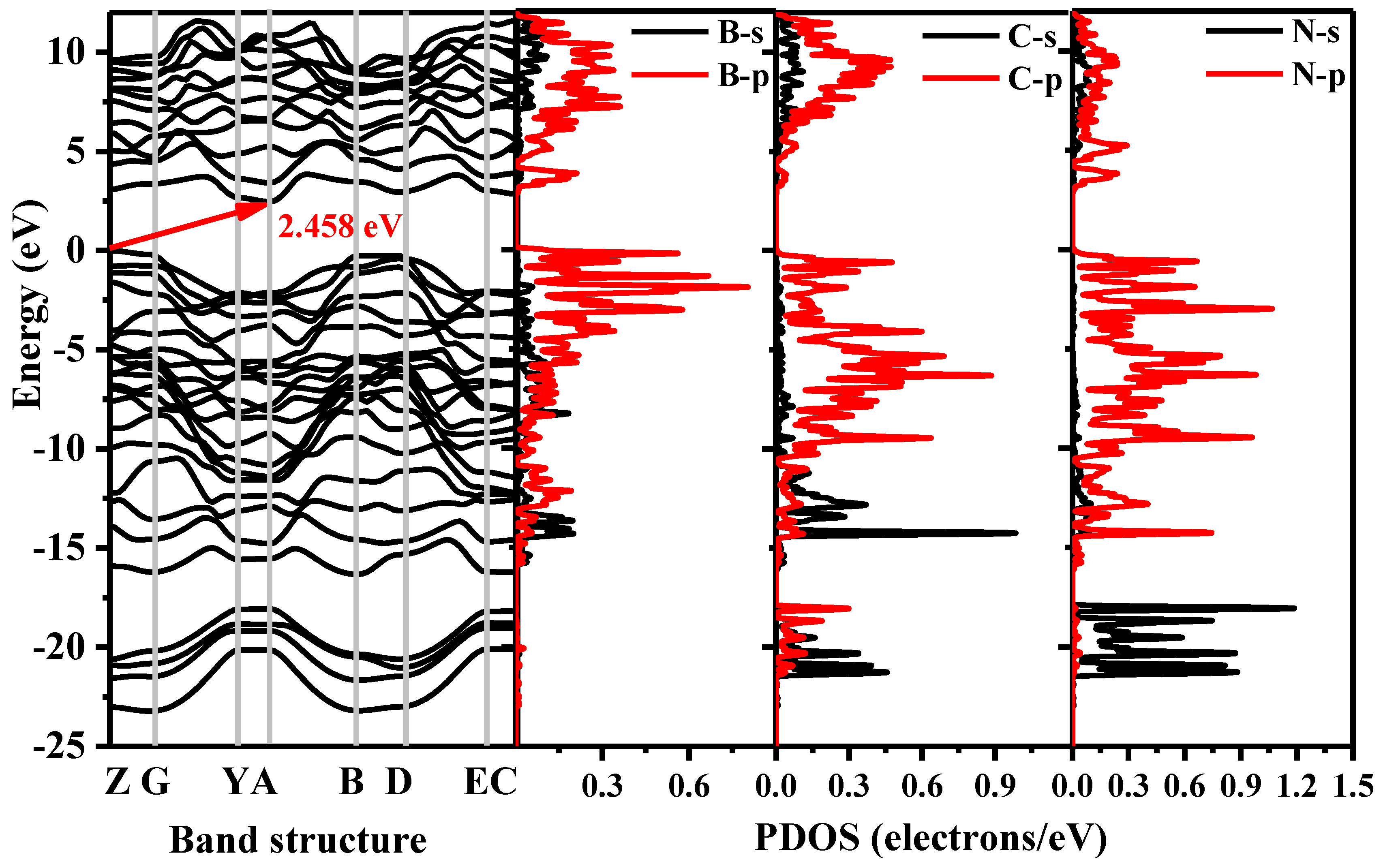

The electronic band structure and the PDOS of Pm-BCN obtained by the HSE06 function are shown in Figure 5, where the dashed line of zero energy (0 eV) indicates the Fermi level (E_F). The valence band maximum (VBM) of Pm-BCN is located at Z (0.0, 0.0, 0.5), and its conduction band minimum (CBM) appears at A (0.5, 0.5, 0.0). Pm-BCN has an indirect and wide band gap of 2.458 eV, therefore it is clearly a semiconductor. The PDOS can be divided into three parts: the first region ranges from −23 to −18 eV, the second region ranges from approximately −16 eV to the Fermi level, and the third region ranges approximately from 2.5 to 10 eV. The first region is dominated from the p orbital, which is primarily from the N-s, C-s, and C-p orbitals. The N-p state and C-s orbitals provide a major contribution to the −16 to −12 eV of the second region. From −12 eV to the Fermi level, the distributions of the B-p, C-p, and N-p orbitals are much greater than that of s orbitals. From 2.5 to 10 eV, the distribution of N-p orbitals is slightly smaller than that of B-p and C-p orbitals. To further understand the chemical bonds, Figure 6 plots the electron localization function (ELF) of Pm-BCN. ELF is an excellent measure of the strength of covalent bonds. Here, B-C and B-N bonding are strongly covalent, whereas the C-N bonding is weakly covalent. The band decomposed charge densities of VBM and CBM of Pm-BCN are depicted in Figure 6b,c, respectively. The B atom is the main contributor to the CBM; the C atom contributes a small amount to the CBM but is the main contributor to the VBM; and the N atom makes a small contribution to the VBM.

4. Conclusions

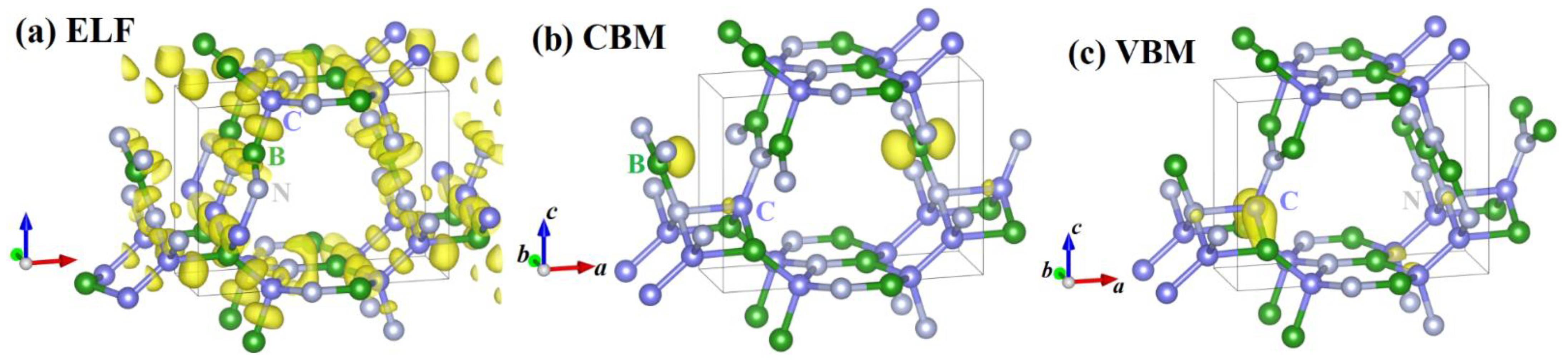

Based on DFT calculations, in this study, we designed and predicted a new light-element compound, Pm-BCN. First, by analyzing the phonon spectrum, we found that the elastic constants and relative enthalpy of Pm-BCN are theoretically stable. Second, we found that Pm-BCN has an indirect and wide band gap and is a semiconductor material. Third, we showed that the B10 position is the main contributor to the CBM, the C9 position provides a small contribution to the CBM but the main contribution to the VBM, and the N8 position is a minor contributor to the VBM. Finally, we found that the elastic anisotropy in E and the G of Pm-BCN are slightly smaller than those of BCN₂ according to E_max/E_min and G_max/G_min, whereas the shear anisotropy factor A₂ and the anisotropy of B along the a direction with respect to the b direction A_Ba of Pm-BCN are smaller than those of t-C₈B₂N₂, I-4m2 BCN, Imm2 BCN, B₂N₂C₃, BNC₂, and B₃N₃C.
