Prediction of Bearing Capacity of the Square Concrete-Filled Steel Tube Columns: An Application of Metaheuristic-Based Neural Network Models
Abstract
:1. Introduction
2. Methods

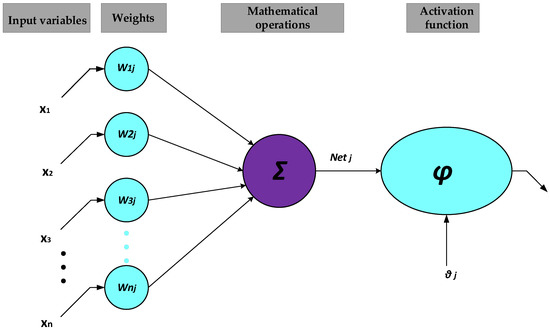

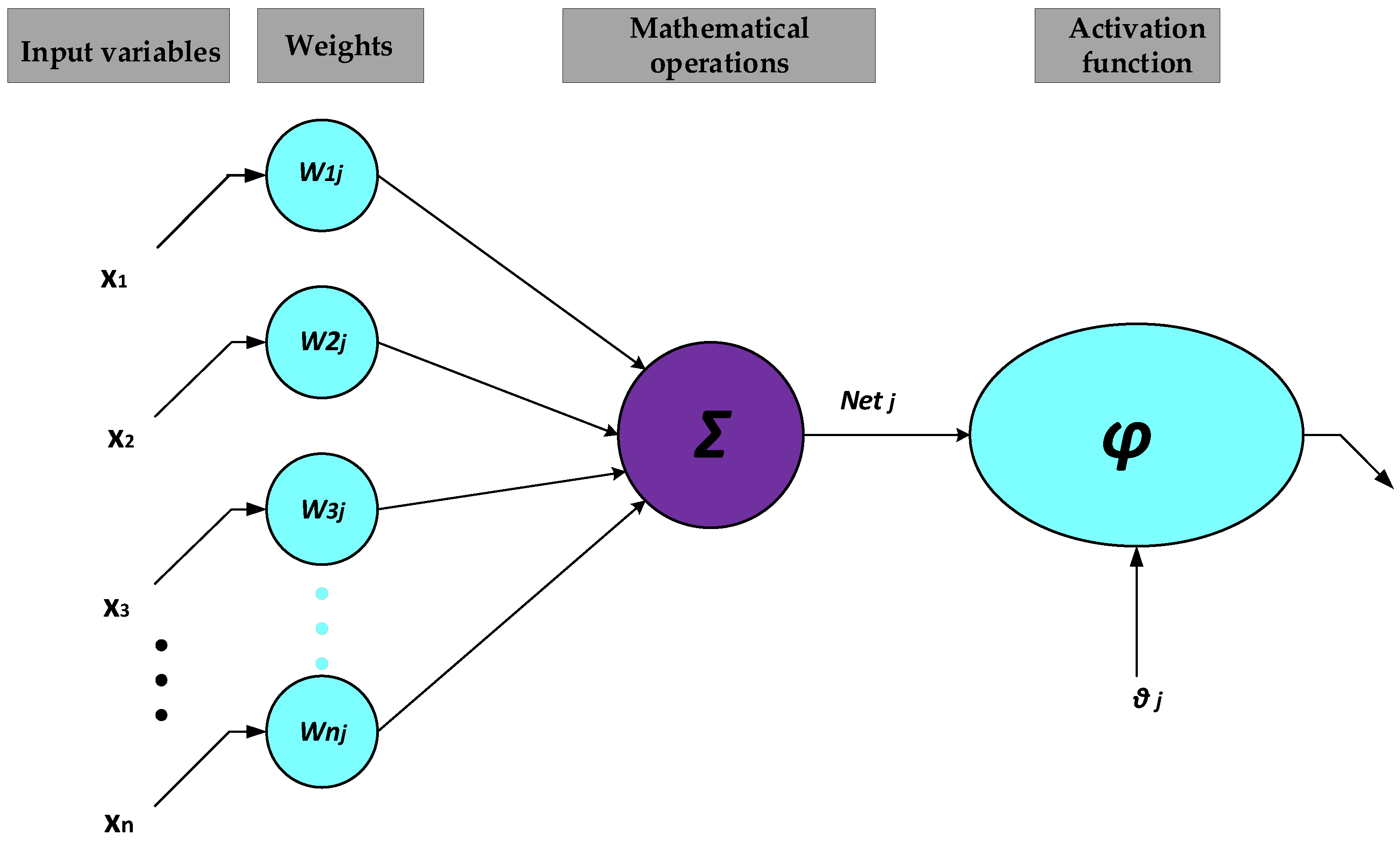

2.1. Artificial Neural Network

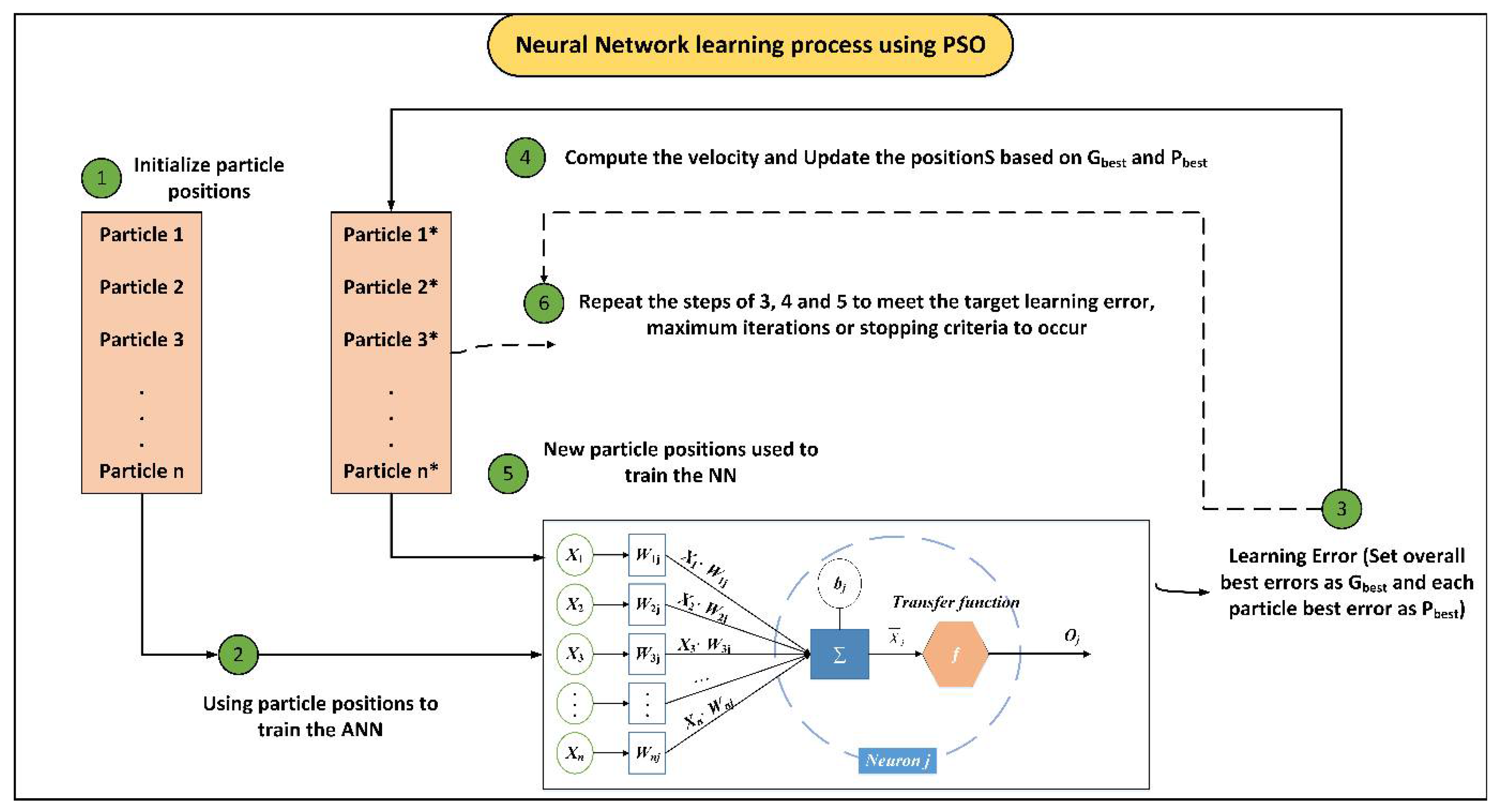

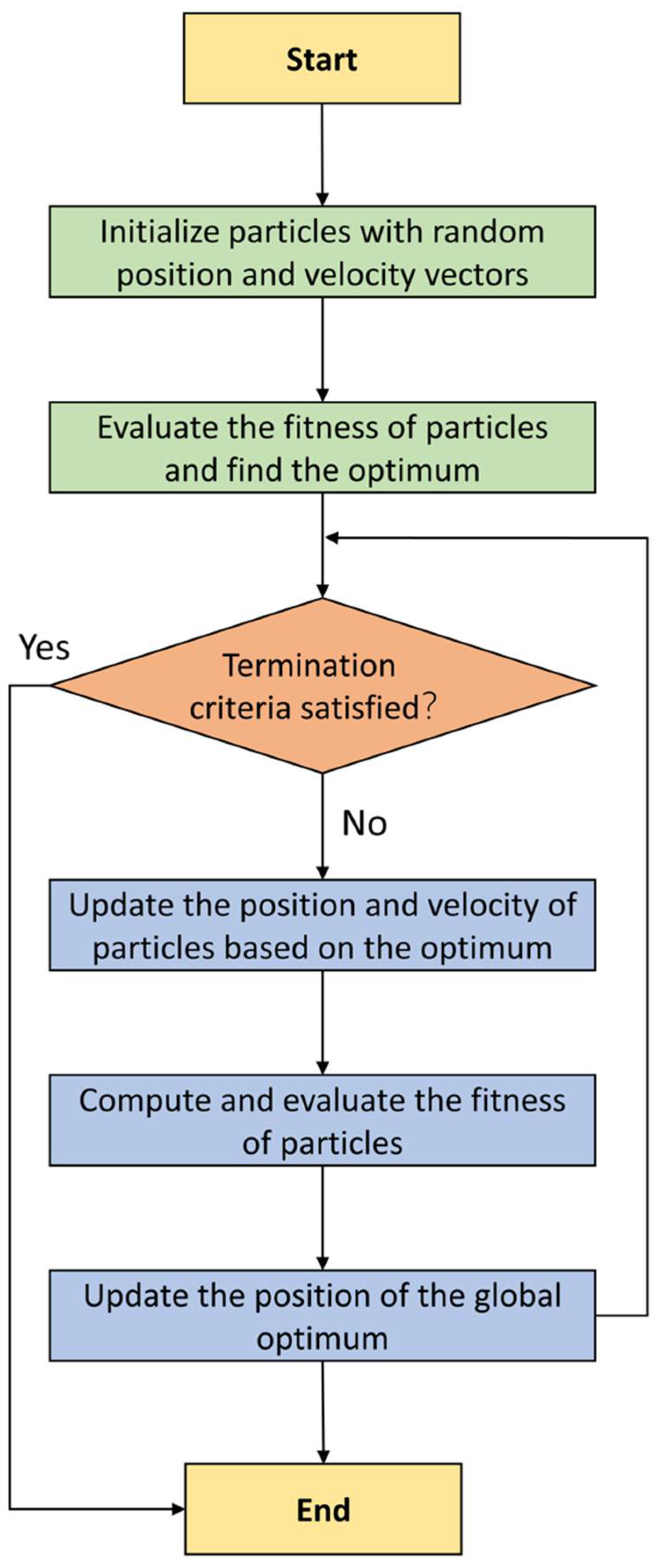

2.2. Particle Swarm Optimization

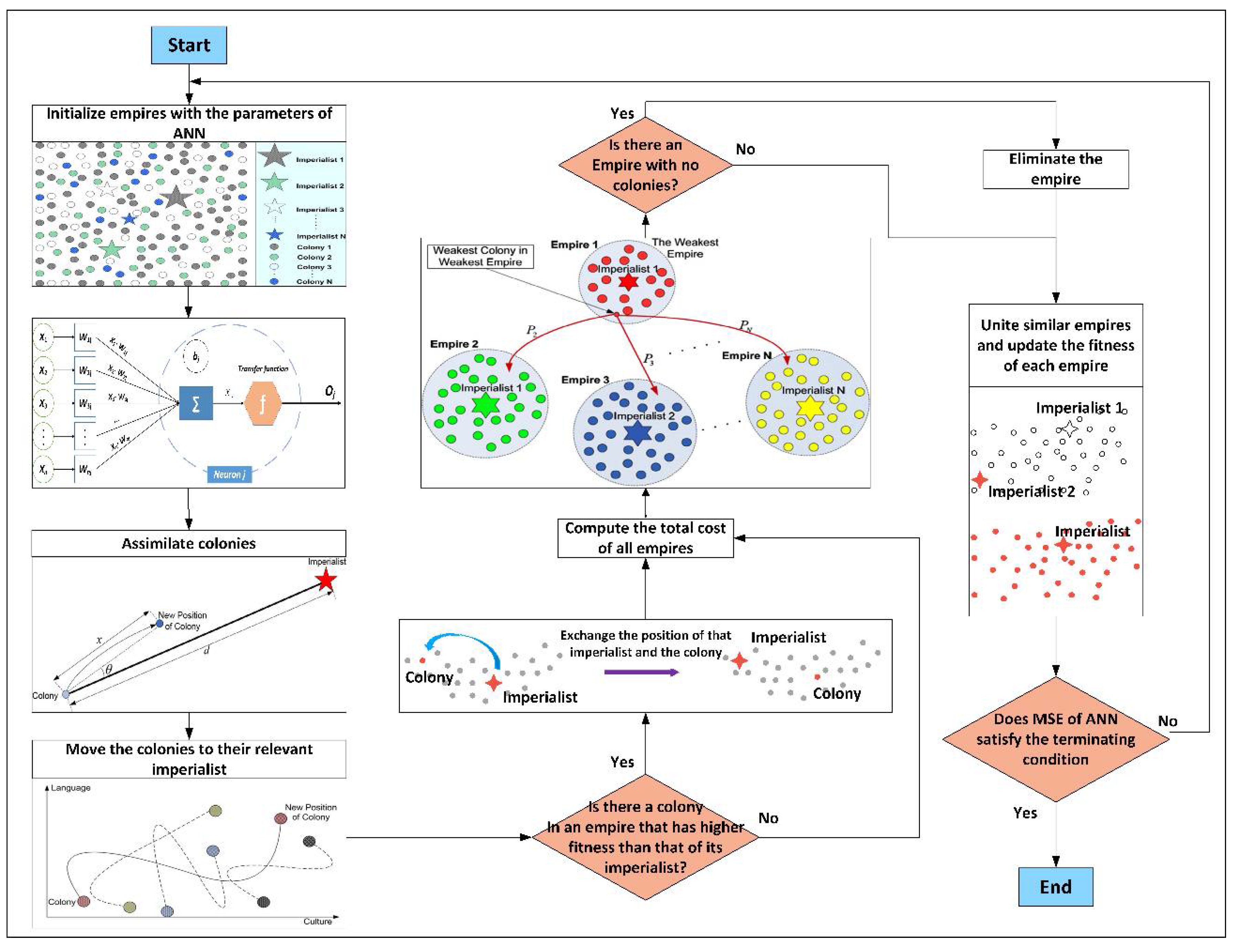

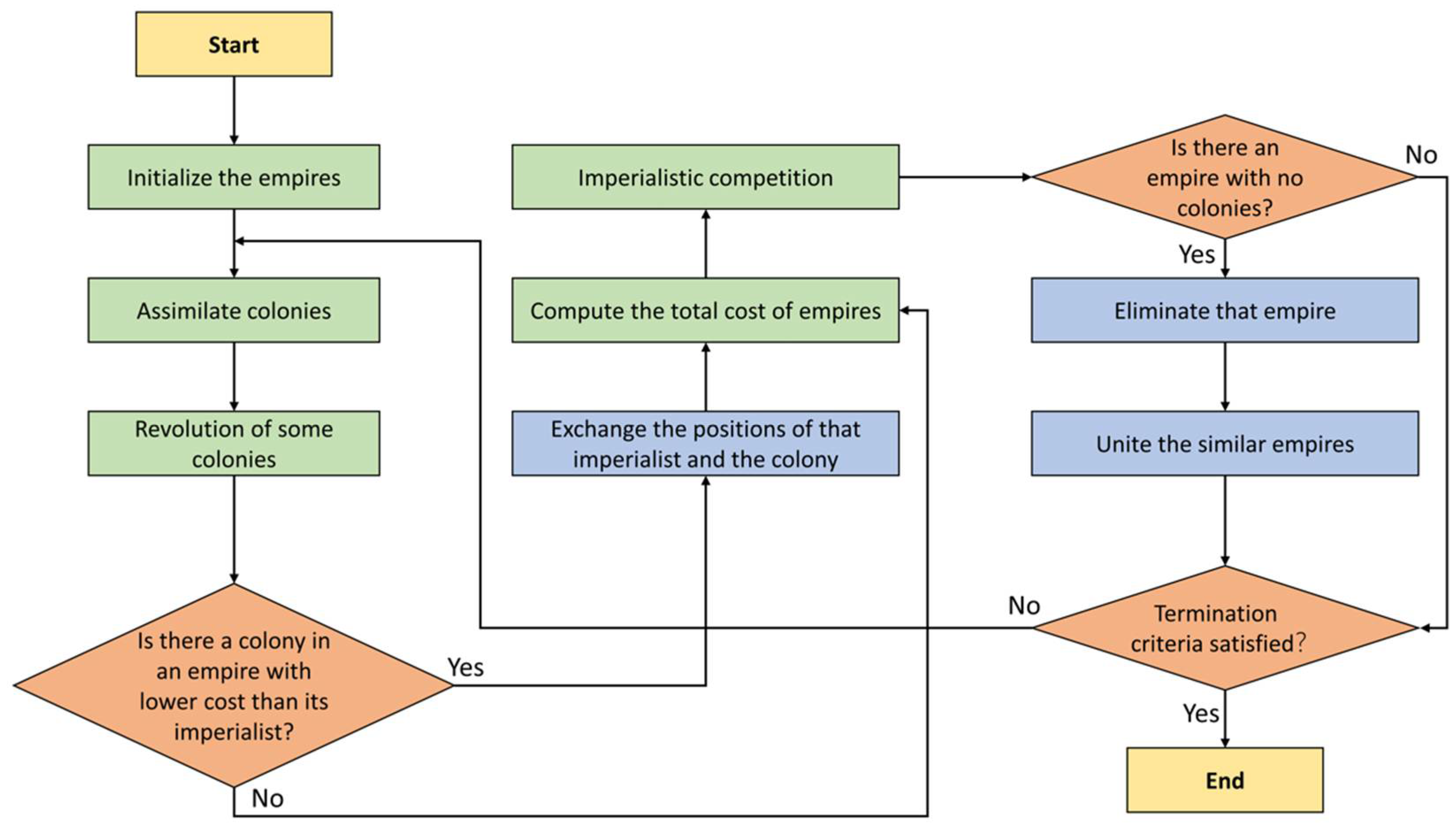

2.3. Imperialism Competitive Algorithm
2.4. Metaheuristic-Based ANN Models
3. Data Source and Input Parameters
3.1. Background

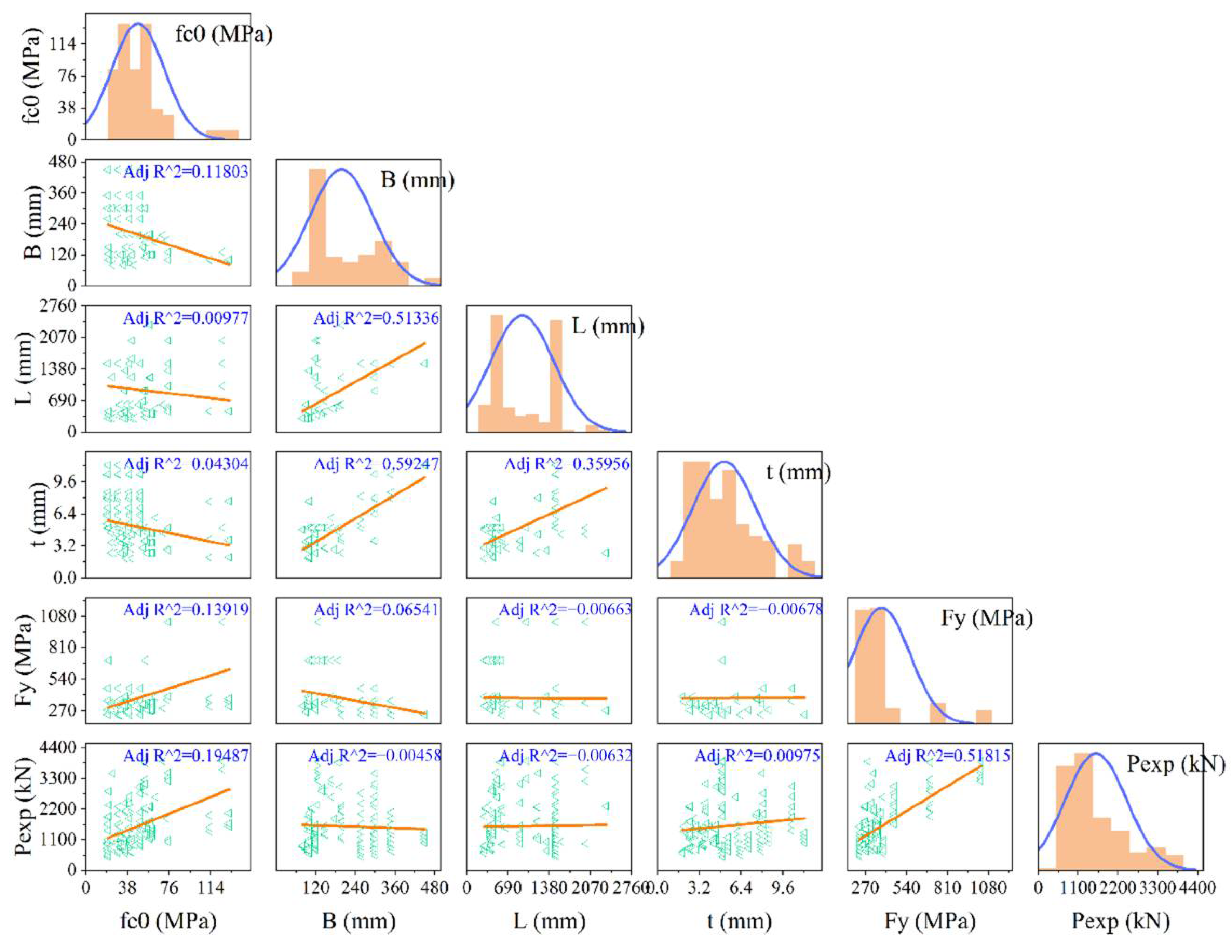

3.2. Data Source
4. CFST Prediction
5. Results and Discussion
6. Sensitivity Analysis
7. Limitations and Future Investigations
8. Conclusions
- Both metaheuristic-based ANN approaches performed an acceptable performance in the prediction phase, as they were able to offer values for bearing capacity close to those measured in the laboratory.
- This study’s results indicated that the PSO-ANN model performed much better than the ICA-ANN model in both the model construction and evaluation processes. R2 values of 0.936 and 0.873 for PSO-ANN and ICA-ANN modelsindicate that PSO is more powerful than the ICA method at determining the optimal weights and biases of ANN.
- The comparison between measured bearing capacities together with those predicted by metaheuristic-based ANN models as well as different standards showed that both POS-ANN and ICA-ANN models are more accurate compared to available standards. This confirmed that such intelligent techniques are needed to be used in order to obtain closer bearing capacities to the measured values.

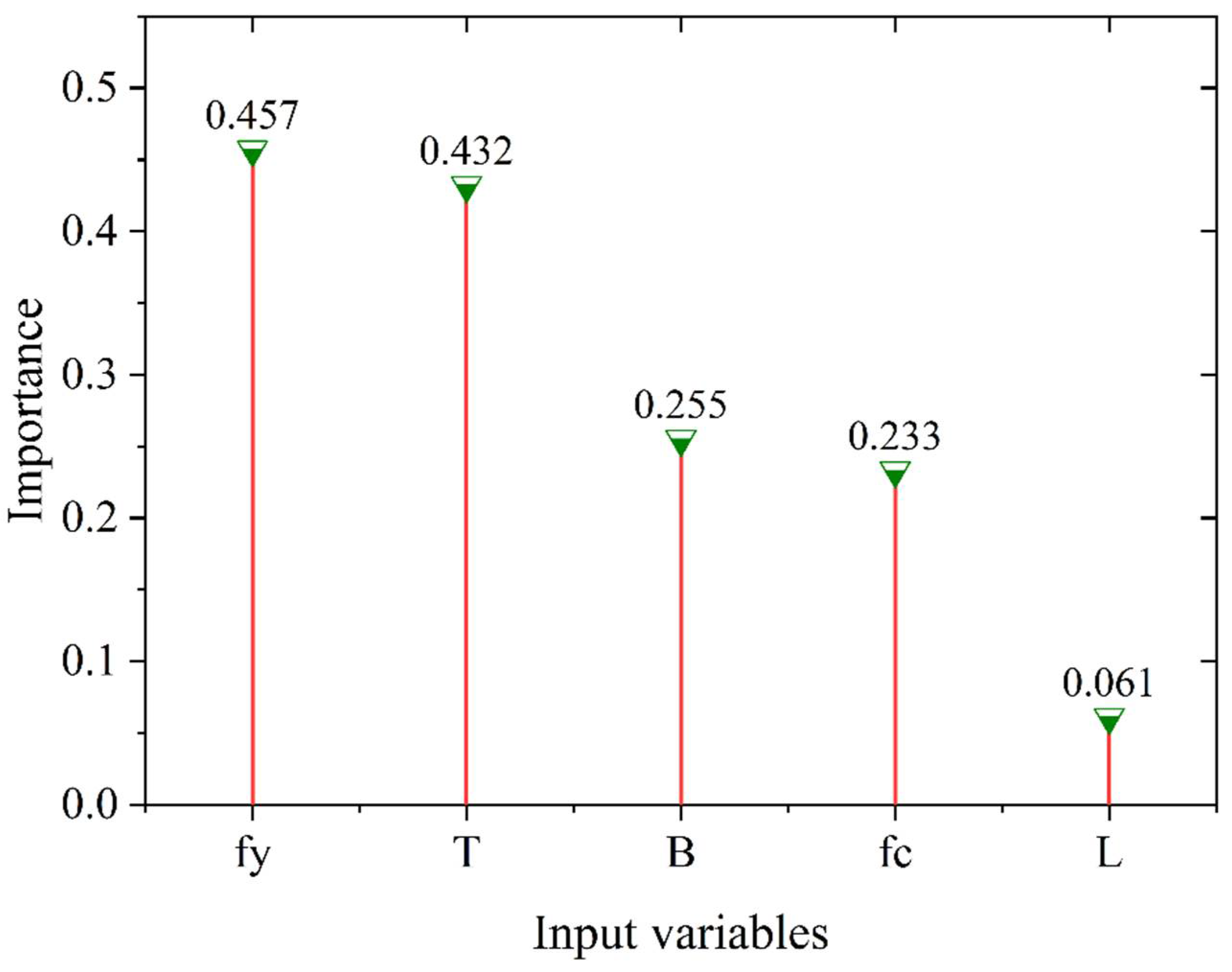

- Results of feature importance indicated that fy and T, with significant correlations of 0.457 and 0.432 respectively, have the highest effects on the bearing capacity of SCFST columns. Therefore, a higher level of care regarding these parameters and their designs should be considered in the laboratory while tests are planned and conducted.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Pires, T.A.C.; Rodrigues, J.P.C.; Silva, J.J.R. Fire resistance of concrete filled circular hollow columns with restrained thermal elongation. J. Constr. Steel Res. 2012, 77, 82–94. [Google Scholar] [CrossRef]
- De Lorenzis, L.; Stratford, T.J.; Hollaway, L.C. Structurally deficient civil engineering infrastructure: Concrete, metallic, masonry and timber structures. In Strengthening and Rehabilitation of Civil Infrastructures Using Fibre-Reinforced Polymer (FRP) Composites; Woodhead Publishing-Elsevier: Sawston, UK, 2008; pp. 1–44. [Google Scholar]
- Shen, S.-L.; Wang, Z.-F.; Sun, W.-J.; Wang, L.-B.; Horpibulsuk, S. A field trial of horizontal jet grouting using the composite-pipe method in the soft deposits of Shanghai. Tunn. Undergr. Sp. Technol. 2013, 35, 142–151. [Google Scholar] [CrossRef]
- Chitawadagi, M.V.; Narasimhan, M.C.; Kulkarni, S.M. Axial strength of circular concrete-filled steel tube columns—DOE approach. J. Constr. Steel Res. 2010, 66, 1248–1260. [Google Scholar] [CrossRef]
- De Oliveira, W.L.A.; De Nardin, S.; de Cresce El, A.L.H.; El Debs, M.K. Influence of concrete strength and length/diameter on the axial capacity of CFT columns. J. Constr. Steel Res. 2009, 65, 2103–2110. [Google Scholar] [CrossRef]
- Hunaiti, Y.M. Composite action of foamed and lightweight aggregate concrete. J. Mater. Civ. Eng. 1996, 8, 111–113. [Google Scholar] [CrossRef]
- Giakoumelis, G.; Lam, D. Axial capacity of circular concrete-filled tube columns. J. Constr. Steel Res. 2004, 60, 1049–1068. [Google Scholar] [CrossRef]
- Gupta, P.K.; Sarda, S.M.; Kumar, M.S. Experimental and computational study of concrete filled steel tubular columns under axial loads. J. Constr. Steel Res. 2007, 63, 182–193. [Google Scholar] [CrossRef]
- Han, L.-H.; Li, W.; Bjorhovde, R. Developments and advanced applications of concrete-filled steel tubular (CFST) structures: Members. J. Constr. Steel Res. 2014, 100, 211–228. [Google Scholar] [CrossRef]
- Zheng, Y.; Usami, T.; Ge, H. Ductility evaluation procedure for thin-walled steel structures. J. Struct. Eng. 2000, 126, 1312–1319. [Google Scholar] [CrossRef]
- Liu, J.; Teng, Y.; Zhang, Y.; Wang, X.; Chen, Y.F. Axial stress-strain behavior of high-strength concrete confined by circular thin-walled steel tubes. Constr. Build. Mater. 2018, 177, 366–377. [Google Scholar] [CrossRef]
- Sakino, K.; Nakahara, H.; Morino, S.; Nishiyama, I. Behavior of centrally loaded concrete-filled steel-tube short columns. J. Struct. Eng. 2004, 130, 180–188. [Google Scholar] [CrossRef]
- Tao, Z.; Wang, Z.-B.; Yu, Q. Finite element modelling of concrete-filled steel stub columns under axial compression. J. Constr. Steel Res. 2013, 89, 121–131. [Google Scholar] [CrossRef]
- Han, L.-H.; Liu, W.; Yang, Y.-F. Behaviour of concrete-filled steel tubular stub columns subjected to axially local compression. J. Constr. Steel Res. 2008, 64, 377–387. [Google Scholar] [CrossRef]
- Skalomenos, K.A.; Hatzigeorgiou, G.D.; Beskos, D.E. Parameter identification of three hysteretic models for the simulation of the response of CFT columns to cyclic loading. Eng. Struct. 2014, 61, 44–60. [Google Scholar] [CrossRef]
- Zhang, W.H.; Wang, R.; Zhao, H.; Lam, D.; Chen, P. Axial-load response of CFST stub columns with external stainless steel and recycled aggregate concrete: Testing, mechanism analysis and design. Eng. Struct. 2022, 256, 113968. [Google Scholar] [CrossRef]
- Natalli, J.F.; Xavier, E.M.; Costa, L.C.B.; Rodrigues, B.H.; Sarmanho, A.M.C.; Peixoto, R.A.F. New methodology to analyze the steel–concrete bond in CFST filled with lightweight and conventional concrete. Mater. Struct. 2021, 54, 13. [Google Scholar] [CrossRef]
- Chen, W.; Sarir, P.; Bui, X.-N.; Nguyen, H.; Tahir, M.M.; Armaghani, D.J. Neuro-genetic, neuro-imperialism and genetic programing models in predicting ultimate bearing capacity of pile. Eng. Comput. 2020, 36, 1101–1115. [Google Scholar] [CrossRef]
- Parsajoo, M.; Armaghani, D.J.; Mohammed, A.S.; Khari, M.; Jahandari, S. Tensile strength prediction of rock material using non-destructive tests: A comparative intelligent study. Transp. Geotech. 2021, 31, 100652. [Google Scholar] [CrossRef]
- Du, C.; Liu, X.; Liu, Y.; Tong, T. Prediction of the Interface Shear Strength between Ultra-High-Performance Concrete and Normal Concrete Using Artificial Neural Networks. Materials 2021, 14, 5707. [Google Scholar] [CrossRef]
- Kovačević, M.; Lozančić, S.; Nyarko, E.K.; Hadzima-Nyarko, M. Modeling of compressive strength of self-compacting rubberized concrete using machine learning. Materials 2021, 14, 4346. [Google Scholar] [CrossRef]
- Armaghani, D.J.; Harandizadeh, H.; Momeni, E.; Maizir, H.; Zhou, J. An optimized system of GMDH-ANFIS predictive model by ICA for estimating pile bearing capacity. Artif. Intell. Rev. 2021, 55, 2313–2350. [Google Scholar] [CrossRef]
- Li, C.; Zhou, J.; Armaghani, D.J.; Li, X. Stability analysis of underground mine hard rock pillars via combination of finite difference methods, neural networks, and Monte Carlo simulation techniques. Undergr. Sp. 2021, 6, 379–395. [Google Scholar] [CrossRef]
- Armaghani, D.J.; Mohamad, E.T.; Narayanasamy, M.S.; Narita, N.; Yagiz, S. Development of hybrid intelligent models for predicting TBM penetration rate in hard rock condition. Tunn. Undergr. Sp. Technol. 2017, 63, 29–43. [Google Scholar] [CrossRef]
- Asteris, P.G.; Rizal, F.I.M.; Koopialipoor, M.; Roussis, P.C.; Ferentinou, M.; Armaghani, D.J.; Gordan, B. Slope Stability Classification under Seismic Conditions Using Several Tree-Based Intelligent Techniques. Appl. Sci. 2022, 12, 1753. [Google Scholar] [CrossRef]
- Mahmood, W.; Mohammed, A.S.; Asteris, P.G.; Kurda, R.; Armaghani, D.J. Modeling Flexural and Compressive Strengths Behaviour of Cement-Grouted Sands Modified with Water Reducer Polymer. Appl. Sci. 2022, 12, 1016. [Google Scholar] [CrossRef]
- Asteris, P.G.; Lourenço, P.B.; Roussis, P.C.; Adami, C.E.; Armaghani, D.J.; Cavaleri, L.; Chalioris, C.E.; Hajihassani, M.; Lemonis, M.E.; Mohammed, A.S. Revealing the nature of metakaolin-based concrete materials using artificial intelligence techniques. Constr. Build. Mater. 2022, 322, 126500. [Google Scholar] [CrossRef]
- Khajehzadeh, M.; Keawsawasvong, S.; Sarir, P.; Khailany, D.K. Seismic Analysis of Earth Slope Using a Novel Sequential Hybrid Optimization Algorithm. Period. Polytech. Civ. Eng. 2022, 66, 355–366. [Google Scholar] [CrossRef]
- Jiang, H.; Mohammed, A.S.; Kazeroon, R.A.; Sarir, P. Use of the Gene-Expression Programming Equation and FEM for the High-Strength CFST Columns. Appl. Sci. 2021, 11, 10468. [Google Scholar] [CrossRef]
- Zarringol, M.; Thai, H.-T.; Thai, S.; Patel, V. Application of ANN to the design of CFST columns. In Proceedings of the Structures; Elsevier: Amsterdam, The Netherlands, 2020; Volume 28, pp. 2203–2220. [Google Scholar]
- Luat, N.-V.; Shin, J.; Lee, K. Hybrid BART-based models optimized by nature-inspired metaheuristics to predict ultimate axial capacity of CCFST columns. Eng. Comput. 2020, 38, 1421–1450. [Google Scholar] [CrossRef]
- Liao, J.; Asteris, P.G.; Cavaleri, L.; Mohammed, A.S.; Lemonis, M.E.; Tsoukalas, M.Z.; Skentou, A.D.; Maraveas, C.; Koopialipoor, M.; Armaghani, D.J. Novel Fuzzy-Based Optimization Approaches for the Prediction of Ultimate Axial Load of Circular Concrete-Filled Steel Tubes. Buildings 2021, 11, 629. [Google Scholar] [CrossRef]
- Vu, Q.-V.; Truong, V.-H.; Thai, H.-T. Machine learning-based prediction of CFST columns using gradient tree boosting algorithm. Compos. Struct. 2021, 259, 113505. [Google Scholar] [CrossRef]
- Tran, V.-L.; Thai, D.-K.; Kim, S.-E. Application of ANN in predicting ACC of SCFST column. Compos. Struct. 2019, 228, 111332. [Google Scholar] [CrossRef]
- Ren, Q.; Li, M.; Zhang, M.; Shen, Y.; Si, W. Prediction of ultimate axial capacity of square concrete-filled steel tubular short columns using a hybrid intelligent algorithm. Appl. Sci. 2019, 9, 2802. [Google Scholar] [CrossRef] [Green Version]
- Le, T.-T. Practical machine learning-based prediction model for axial capacity of square CFST columns. Mech. Adv. Mater. Struct. 2020, 29, 1782–1797. [Google Scholar] [CrossRef]
- Seghier, M.E.A.B.; Gao, X.-Z.; Jafari-Asl, J.; Thai, D.-K.; Ohadi, S.; Trung, N.-T. Modeling the nonlinear behavior of ACC for SCFST columns using experimental-data and a novel evolutionary-algorithm. In Proceedings of the Structures; Elsevier: Amsterdam, The Netherlands, 2021; Volume 30, pp. 692–709. [Google Scholar]
- Mai, S.H.; Seghier, M.E.A.B.; Nguyen, P.L.; Jafari-Asl, J.; Thai, D.-K. A hybrid model for predicting the axial compression capacity of square concrete-filled steel tubular columns. Eng. Comput. 2022, 38, 1205–1222. [Google Scholar] [CrossRef]
- Specht, D.F. A general regression neural network. IEEE Trans. Neural Netw. 1991, 2, 568–576. [Google Scholar] [CrossRef] [Green Version]
- Al-Bared, M.A.M.; Mustaffa, Z.; Armaghani, D.J.; Marto, A.; Yunus, N.Z.M.; Hasanipanah, M. Application of hybrid intelligent systems in predicting the unconfined compressive strength of clay material mixed with recycled additive. Transp. Geotech. 2021, 30, 100627. [Google Scholar] [CrossRef]
- Paji, M.K.; Gordan, B.; Biklaryan, M.; Armaghani, D.J.; Zhou, J.; Jamshidi, M. Neuro-swarm and Neuro-imperialism Techniques to Investigate the Compressive Strength of Concrete Constructed by Freshwater and Magnetic Salty Water. Measurement 2021, 182, 109720. [Google Scholar] [CrossRef]
- Simpson, P.K. Artificial Neural Systems: Foundations, Paradigms, Applications, and Implementations; Pergamon: Oxford, UK, 1990; ISBN 0080378943. [Google Scholar]
- Jahed Armaghani, D.; Hajihassani, M.; Yazdani Bejarbaneh, B.; Marto, A.; Tonnizam Mohamad, E. Indirect measure of shale shear strength parameters by means of rock index tests through an optimized artificial neural network. Meas. J. Int. Meas. Confed. 2014, 55, 487–498. [Google Scholar] [CrossRef]
- Khandelwal, M.; Marto, A.; Fatemi, S.A.; Ghoroqi, M.; Armaghani, D.J.; Singh, T.N.; Tabrizi, O. Implementing an ANN model optimized by genetic algorithm for estimating cohesion of limestone samples. Eng. Comput. 2017, 34, 307–317. [Google Scholar] [CrossRef]
- Shao, Z.; Armaghani, D.J.; Bejarbaneh, B.Y.; Mu’azu, M.A.; Mohamad, E.T. Estimating the Friction Angle of Black Shale Core Specimens with Hybrid-ANN Approaches. Measurement 2019, 145, 744–755. [Google Scholar] [CrossRef]
- Basheer, I.A.; Hajmeer, M. Artificial neural networks: Fundamentals, computing, design, and application. J. Microbiol. Methods 2000, 43, 3–31. [Google Scholar] [CrossRef]
- Dreyfus, G. Neural Networks: Methodology and Applications; Springer: Berlin/Heidelberg, Germany, 2005; ISBN 3540288473. [Google Scholar]
- Kennedy, J.; Eberhart, R.C. A discrete binary version of the particle swarm algorithm. In Proceedings of the 2009 IEEE international conference on Systems, Man and Cybernetics, Systems, Man, and Cybernetics, San Antonio, TX, USA, 11–14 October 2009; Computational Cybernetics and Simulation. Volume 5, pp. 4104–4108. [Google Scholar]
- Brownlee, J. Clever Algorithms: Nature-Inspired Programming Recipes; Brownlee, J., Ed.; Lulu Press, Inc.: Morrisville, NC, USA, 2011; ISBN 1446785068. [Google Scholar]
- Poli, R.; Kennedy, J.; Blackwell, T. Particle swarm optimization. Swarm Intell. 2007, 1, 33–57. [Google Scholar] [CrossRef]
- Atashpaz-Gargari, E.; Lucas, C. Imperialist competitive algorithm: An algorithm for optimization inspired by imperialistic competition. In Proceedings of the IEEE Congress on Evolutionary Computation, CEC 2007, Singapore, 25–28 September 2007; pp. 4661–4667. [Google Scholar]
- Mohamad, E.T.; Li, D.; Murlidhar, B.R.; Armaghani, D.J.; Kassim, K.A.; Komoo, I. The effects of ABC, ICA, and PSO optimization techniques on prediction of ripping production. Eng. Comput. 2019, 36, 1355–1370. [Google Scholar] [CrossRef]
- Khandelwal, M.; Mahdiyar, A.; Armaghani, D.J.; Singh, T.N.; Fahimifar, A.; Faradonbeh, R.S. An expert system based on hybrid ICA-ANN technique to estimate macerals contents of Indian coals. Environ. Earth Sci. 2017, 76, 399. [Google Scholar] [CrossRef]
- Armaghani, D.J.; Koopialipoor, M.; Marto, A.; Yagiz, S. Application of several optimization techniques for estimating TBM advance rate in granitic rocks. J. Rock Mech. Geotech. Eng. 2019, 11, 779–789. [Google Scholar] [CrossRef]
- Lee, Y.; Oh, S.-H.; Kim, M.W. The effect of initial weights on premature saturation in backpropagation learning. In Proceedings of the IJCNN-91-Seattle International Joint Conference on Neural Networks, Seattle, WA, USA, 8–14 July 1991; Volume 1, pp. 765–770. [Google Scholar]
- Mohamad, E.T.; Faradonbeh, R.S.; Armaghani, D.J.; Monjezi, M.; Majid, M.Z.A. An optimized ANN model based on genetic algorithm for predicting ripping production. Neural Comput. Appl. 2017, 28, 393–406. [Google Scholar] [CrossRef]
- Tran-Ngoc, H.; Khatir, S.; Ho-Khac, H.; De Roeck, G.; Bui-Tien, T.; Wahab, M.A. Efficient Artificial neural networks based on a hybrid metaheuristic optimization algorithm for damage detection in laminated composite structures. Compos. Struct. 2021, 262, 113339. [Google Scholar] [CrossRef]
- Mohamad, E.T.; Armaghani, D.J.; Momeni, E.; Yazdavar, A.H.; Ebrahimi, M. Rock strength estimation: A PSO-based BP approach. Neural Comput. Appl. 2018, 30, 1635–1646. [Google Scholar] [CrossRef]
- Mohammed, A.; Kurda, R.; Armaghani, D.J.; Hasanipanah, M. Prediction of compressive strength of concrete modified with fly ash: Applications of neuro-swarm and neuro-imperialism models. Comput. Concr. 2021, 27, 489–512. [Google Scholar]
- Zeng, J.; Roy, B.; Kumar, D.; Mohammed, A.S.; Armaghani, D.J.; Zhou, J.; Mohamad, E.T. Proposing several hybrid PSO-extreme learning machine techniques to predict TBM performance. Eng. Comput. 2021, 1–17. [Google Scholar] [CrossRef]
- Mahdiyar, A.; Armaghani, D.J.; Marto, A.; Nilashi, M.; Ismail, S. Rock Tensile Strength Prediction Using Empirical and Soft Computing Approaches. Bull. Eng. Geol. Environ. 2019, 78, 4519–4531. [Google Scholar] [CrossRef]
- Song, T.-Y.; Han, L.-H.; Yu, H.-X. Concrete filled steel tube stub columns under combined temperature and loading. J. Constr. Steel Res. 2010, 66, 369–384. [Google Scholar] [CrossRef]
- Lachemi, M.; Hossain, K.M.A.; Lambros, V.B. Self-consolidating concrete filled steel tube columns? Design equations for confinement and axial strength. Struct. Eng. Mech. 2006, 22, 541–562. [Google Scholar] [CrossRef]
- Li, N.; Wang, L.; Xi, Y.; Wang, H.; Guan, T.; Dong, F.; Sui, C.; Cui, W. The experimental research on axial compression performance of concrete-filled steel square tube strengthened by internal transverse stiffened bars. Funct. Mater. 2017, 24, 5–433. [Google Scholar] [CrossRef]
- Xiang, X.; Cai, C.S.; Zhao, R.; Peng, H. Numerical analysis of recycled aggregate concrete-filled steel tube stub columns. Adv. Struct. Eng. 2016, 19, 717–729. [Google Scholar] [CrossRef]
- Feng, P.; Cheng, S.; Bai, Y.; Ye, L. Mechanical behavior of concrete-filled square steel tube with FRP-confined concrete core subjected to axial compression. Compos. Struct. 2015, 123, 312–324. [Google Scholar] [CrossRef]
- Chen, Z.; Ning, F.; Mo, L. Experimental study and mechanism analysis of concrete-filled square steel tubular columns reinforced inclined square stirrups under axial compression. Front. Mater. 2021, 8, 92. [Google Scholar] [CrossRef]
- Reddy, G.S.R.; Bolla, M.; Patton, M.L.; Adak, D. Comparative study on structural behaviour of circular and square section-Concrete Filled Steel Tube (CFST) and Reinforced Cement Concrete (RCC) stub column. In Proceedings of the Structures; Elsevier: Amsterdam, The Netherlands, 2021; Volume 29, pp. 2067–2081. [Google Scholar]
- Huang, Z.; Uy, B.; Li, D.; Wang, J. Behaviour and design of ultra-high-strength CFST members subjected to compression and bending. J. Constr. Steel Res. 2020, 175, 106351. [Google Scholar] [CrossRef]
- Zhu, T.; Liang, H.; Lu, Y.; Li, W.; Zhang, H. Axial behaviour of slender concrete-filled steel tube square columns strengthened with square concrete-filled steel tube jackets. Adv. Struct. Eng. 2020, 23, 1074–1086. [Google Scholar] [CrossRef]
- Phan, D.H.H.; Patel, V.I.; Liang, Q.Q.; Al Abadi, H.; Thai, H.-T. Simulation of uniaxially compressed square ultra-high-strength concrete-filled steel tubular slender beam-columns. Eng. Struct. 2021, 232, 111795. [Google Scholar] [CrossRef]
- Tao, Z.; Han, L.-H.; Wang, D.-Y. Experimental behaviour of concrete-filled stiffened thin-walled steel tubular columns. Thin-Walled Struct. 2007, 45, 517–527. [Google Scholar] [CrossRef]
- Zhu, M.; Liu, J.; Wang, Q.; Feng, X. Experimental research on square steel tubular columns filled with steel-reinforced self-consolidating high-strength concrete under axial load. Eng. Struct. 2010, 32, 2278–2286. [Google Scholar] [CrossRef]
- Chen, B.; Liu, X.; Li, S. Performance investigation of square concrete-filled steel tube columns. J. Wuhan Univ. Technol. Sci. Ed. 2011, 26, 730–736. [Google Scholar] [CrossRef]
- Yang, Y.F.; Han, L.H. Concrete filled steel tube (CFST) columns subjected to concentrically partial compression. Thin-Walled Struct. 2012, 50, 147–156. [Google Scholar] [CrossRef]
- Lee, S.-H.; Choi, Y.-H.; Kim, Y.-H.; Choi, S.-M. Structural performance of welded built-up square CFST stub columns. Thin-walled Struct. 2012, 52, 12–20. [Google Scholar] [CrossRef]
- Prabhu, G.G.; Sundarraja, M.C. Behaviour of concrete filled steel tubular (CFST) short columns externally reinforced using CFRP strips composite. Constr. Build. Mater. 2013, 47, 1362–1371. [Google Scholar] [CrossRef]
- Aslani, F.; Uy, B.; Tao, Z.; Mashiri, F. Behaviour and design of composite columns incorporating compact high-strength steel plates. J. Constr. Steel Res. 2015, 107, 94–110. [Google Scholar] [CrossRef]
- Ding, F.; Liu, J.; Liu, X.; Yu, Z.; Li, D. Mechanical behavior of circular and square concrete filled steel tube stub columns under local compression. Thin-Walled Struct. 2015, 94, 155–166. [Google Scholar] [CrossRef] [Green Version]
- Sarir, P.; Chen, J.; Asteris, P.G.; Armaghani, D.J.; Tahir, M.M. Developing GEP tree-based, neuro-swarm, and whale optimization models for evaluation of bearing capacity of concrete-filled steel tube columns. Eng. Comput. 2019, 37, 1–19. [Google Scholar] [CrossRef]
- Liou, S.W.; Wang, C.M.; Huang, Y.F. Integrative discovery of multifaceted sequence patterns by frame-relayed search and hybrid PSO-ANN. J. Univers. Comput. Sci. 2009, 15, 742–764. [Google Scholar]
- Hecht-Nielsen, R. Kolmogorov’s mapping neural network existence theorem. In Proceedings of the International Conference on Neural Networks, San Diego, CA, USA, 21–24 June 1987; IEEE Press: New York, NY, USA, 1987; Volume 3, pp. 11–13. [Google Scholar]
- Mohamad, E.T.; Armaghani, D.J.; Noorani, S.A.; Saad, R.; Alvi, S.V.; Abad, N.K. Prediction of flyrock in boulder blasting using artificial neural network. Electron. J. Geotech. Eng. 2012, 17, 2585–2595. [Google Scholar]
- Saghatforoush, A.; Monjezi, M.; Faradonbeh, R.S.; Armaghani, D.J. Combination of neural network and ant colony optimization algorithms for prediction and optimization of flyrock and back-break induced by blasting. Eng. Comput. 2016, 32, 255–266. [Google Scholar] [CrossRef]
- Ebrahimi, E.; Monjezi, M.; Khalesi, M.R.; Armaghani, D.J. Prediction and optimization of back-break and rock fragmentation using an artificial neural network and a bee colony algorithm. Bull. Eng. Geol. Environ. 2016, 75, 27–36. [Google Scholar] [CrossRef]
- Alavi Nezhad Khalil Abad, S.V.; Yilmaz, M.; Jahed Armaghani, D.; Tugrul, A. Prediction of the durability of limestone aggregates using computational techniques. Neural Comput. Appl. 2016, 29, 423–433. [Google Scholar] [CrossRef]
- Jahed Armaghani, D.; Mohd Amin, M.F.; Yagiz, S.; Faradonbeh, R.S.; Abdullah, R.A. Prediction of the uniaxial compressive strength of sandstone using various modeling techniques. Int. J. Rock Mech. Min. Sci. 2016, 85, 174–186. [Google Scholar] [CrossRef]
- Armaghani, D.J.; Asteris, P.G. A comparative study of ANN and ANFIS models for the prediction of cement-based mortar materials compressive strength. Neural Comput. Appl. 2020, 33, 4501–4532. [Google Scholar] [CrossRef]
- Momeni, E.; Yarivand, A.; Bagher Dowlatshahi, M.; Jahed Armaghani, D. An Efficient Optimal Neural Network Based on Gravitational Search Algorithm in Predicting the Deformation of Geogrid-Reinforced Soil Structures. Transp. Geotech. 2020, 26, 100446. [Google Scholar] [CrossRef]
- Zhou, J.; Asteris, P.G.; Armaghani, D.J.; Pham, B.T. Prediction of ground vibration induced by blasting operations through the use of the Bayesian Network and random forest models. Soil Dyn. Earthq. Eng. 2020, 139, 106390. [Google Scholar] [CrossRef]
- Zhou, J.; Qiu, Y.; Zhu, S.; Armaghani, D.J.; Khandelwal, M.; Mohamad, E.T. Estimation of the TBM advance rate under hard rock conditions using XGBoost and Bayesian optimization. Undergr. Sp. 2020, 6, 506–515. [Google Scholar] [CrossRef]
- Hasanipanah, M.; Monjezi, M.; Shahnazar, A.; Armaghani, D.J.; Farazmand, A. Feasibility of indirect determination of blast induced ground vibration based on support vector machine. Measurement 2015, 75, 289–297. [Google Scholar] [CrossRef]
- Lu, S.; Koopialipoor, M.; Asteris, P.G.; Bahri, M.; Armaghani, D.J. A Novel Feature Selection Approach Based on Tree Models for Evaluating the Punching Shear Capacity of Steel Fiber-Reinforced Concrete Flat Slabs. Materials 2020, 13, 3902. [Google Scholar] [CrossRef] [PubMed]
- Koopialipoor, M.; Jahed Armaghani, D.; Hedayat, A.; Marto, A.; Gordan, B. Applying various hybrid intelligent systems to evaluate and predict slope stability under static and dynamic conditions. Soft Comput. 2019, 23, 5913–5929. [Google Scholar] [CrossRef]
- Code, P. Eurocode 4: Design of Structures for Earthquake Resistance-Part 1: General Rules, Seismic Actions and Rules for Buildings; European Committee for Standardization: Brussels, Belgium, 2005. [Google Scholar]
- Verron, S.; Tiplica, T.; Kobi, A. Fault Detection and Identification with a New Feature Selection Based on Mutual Information. J. Process Control 2008, 18, 479–490. [Google Scholar] [CrossRef] [Green Version]

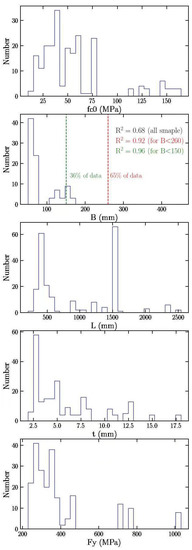

Parameter | Min | Max | Average | Std. Dev |
---|---|---|---|---|
fc (MPa) | 10 | 164 | 55.66 | 35.25 |
B (mm) | 50.8 | 450 | 208.55 | 106.80 |
L (mm) | 210 | 2540 | 937.10 | 575.45 |
T (mm) | 1.94 | 18 | 5.90 | 3.70 |
fy (MPa) | 229 | 1030.60 | 394.60 | 184.25 |
Pexp (kN) | 329 | 8912 | 2139 | 1802.60 |
Parameter | Min | Max | Average | Std. Dev |
---|---|---|---|---|
fc (MPa) | 20 | 130.8 | 47.70 | 24 |
B (mm) | 80 | 450 | 198.50 | 94.90 |
L (mm) | 295 | 2340 | 927.75 | 530.10 |
T (mm) | 1.94 | 11.25 | 5.10 | 2.40 |
fy (MPa) | 231 | 1030.60 | 377.20 | 184.60 |
Pexp (kN) | 490 | 3922 | 1588 | 843.70 |

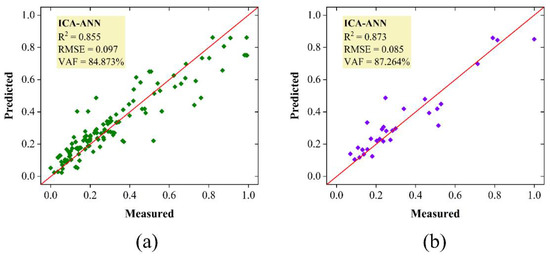

Metaheuristic-Based ANN Model | Training | ||
---|---|---|---|
VAF (%) | R2 | RMSE | |
ICA-ANN | 84.873 | 0.855 | 0.097 |

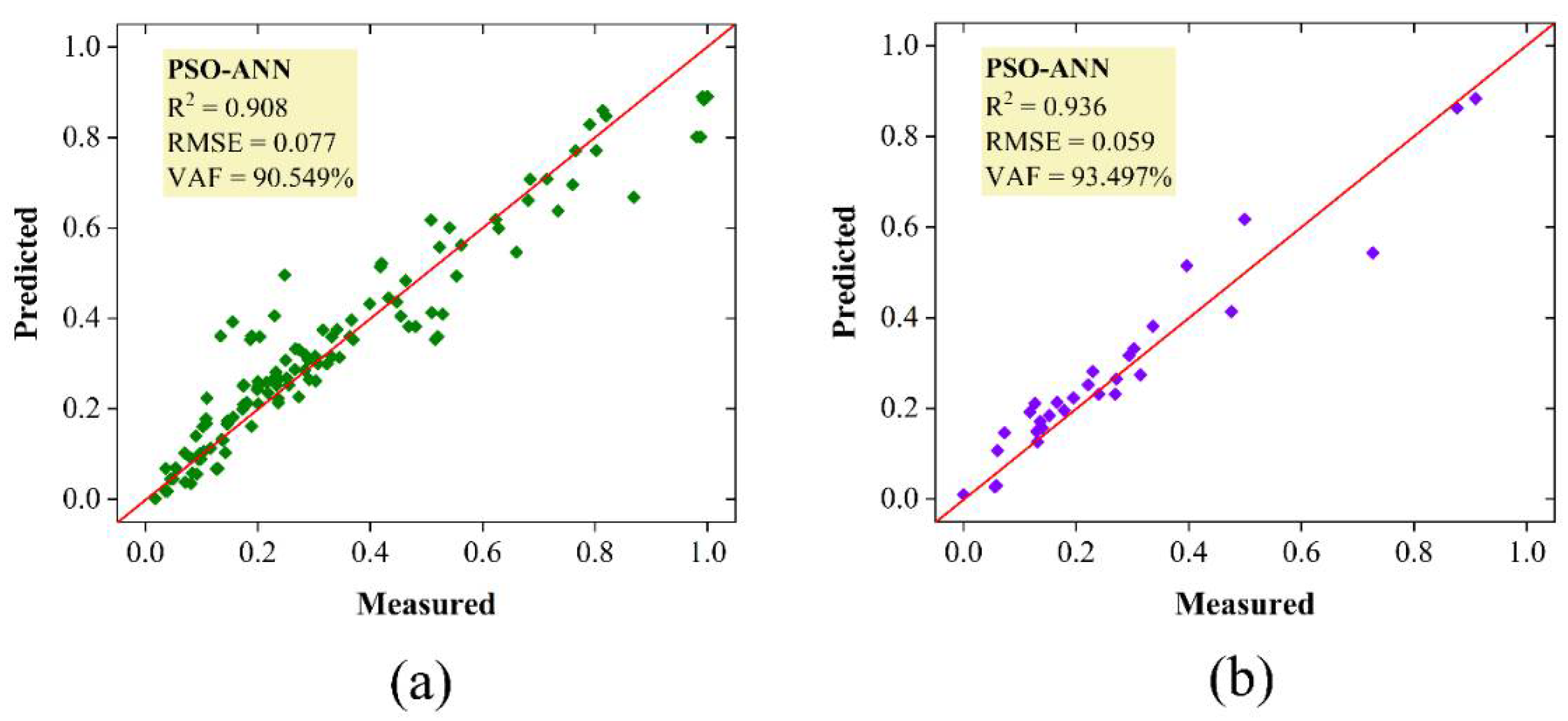

PSO-ANN | 90.549 | 0.908 | 0.077 |
Model | Testing | ||
ICA-ANN | 87.264 | 0.873 | 0.085 |
PSO-ANN | 93.497 | 0.936 | 0.059 |
Model | Training + Testing | ||
ICA-ANN | 85.296 | 0.857 | 0.094 |
PSO-ANN | 91.125 | 0.913 | 0.074 |
No. | PExp | PPSO-ANN | PICA-ANN | PEC4 | PACI |
---|---|---|---|---|---|
(kN) | (kN) | (kN) | (kN) | (kN) | |
1 | 2275 | 2230 | 2163 | 2785 | 2520 |
2 | 1760 | 1625 | 1577 | 2751 | 2418 |
3 | 2985 | 2823 | 2738 | 2666 | 2415 |
4 | 3900 | 3723 | 3612 | 3441 | 3073 |
5 | 768 | 845 | 680 | 660 | 656 |
6 | 1426 | 1403 | 1361 | 1176 | 1059 |
7 | 1302 | 1445 | 1464 | 1136 | 1025 |
8 | 990 | 1007 | 1018 | 923 | 858 |
9 | 965 | 854 | 829 | 826 | 775 |
10 | 890 | 895 | 868 | 783 | 738 |
11 | 1530 | 1552 | 1505 | 1240 | 1127 |
12 | 1367 | 1355 | 1314 | 1202 | 1094 |
13 | 1088 | 971 | 942 | 940 | 932 |
14 | 1176 | 1269 | 1290 | 994 | 930 |
15 | 1160 | 1042 | 1011 | 900 | 851 |
16 | 1090 | 923 | 896 | 858 | 815 |
17 | 1630 | 1841 | 1890 | 1299 | 1190 |
18 | 1484 | 1592 | 1602 | 1262 | 1159 |
19 | 934 | 849 | 824 | 601 | 560 |
20 | 1934 | 2145 | 2242 | 1502 | 1477 |
21 | 2828 | 2995 | 3109 | 2445 | 2383 |
22 | 2238 | 2279 | 2300 | 2517 | 2284 |
23 | 956 | 1029 | 1070 | 1205 | 1127 |
24 | 3302.4 | 3450 | 3556 | 3666 | 3502 |
25 | 3203.8 | 3256 | 3280 | 3666 | 3502 |
26 | 3611.6 | 3523 | 3418 | 4383 | 4112 |
27 | 3474 | 3240 | 3120 | 4988 | 4695 |
28 | 840 | 732 | 702 | 572 | 553 |
29 | 860 | 799 | 775 | 619 | 593 |
30 | 1575 | 1592 | 1545 | 1404 | 1313 |
