Effect of the Addition of Steel Fibers on the Bonding Interface and Tensile Properties of Explosion-Welded 2A12 Aluminum Alloy and SS-304 Steel
Abstract
:1. Introduction
2. Materials and Methods
Experimental Procedure
3. Results and Discussion

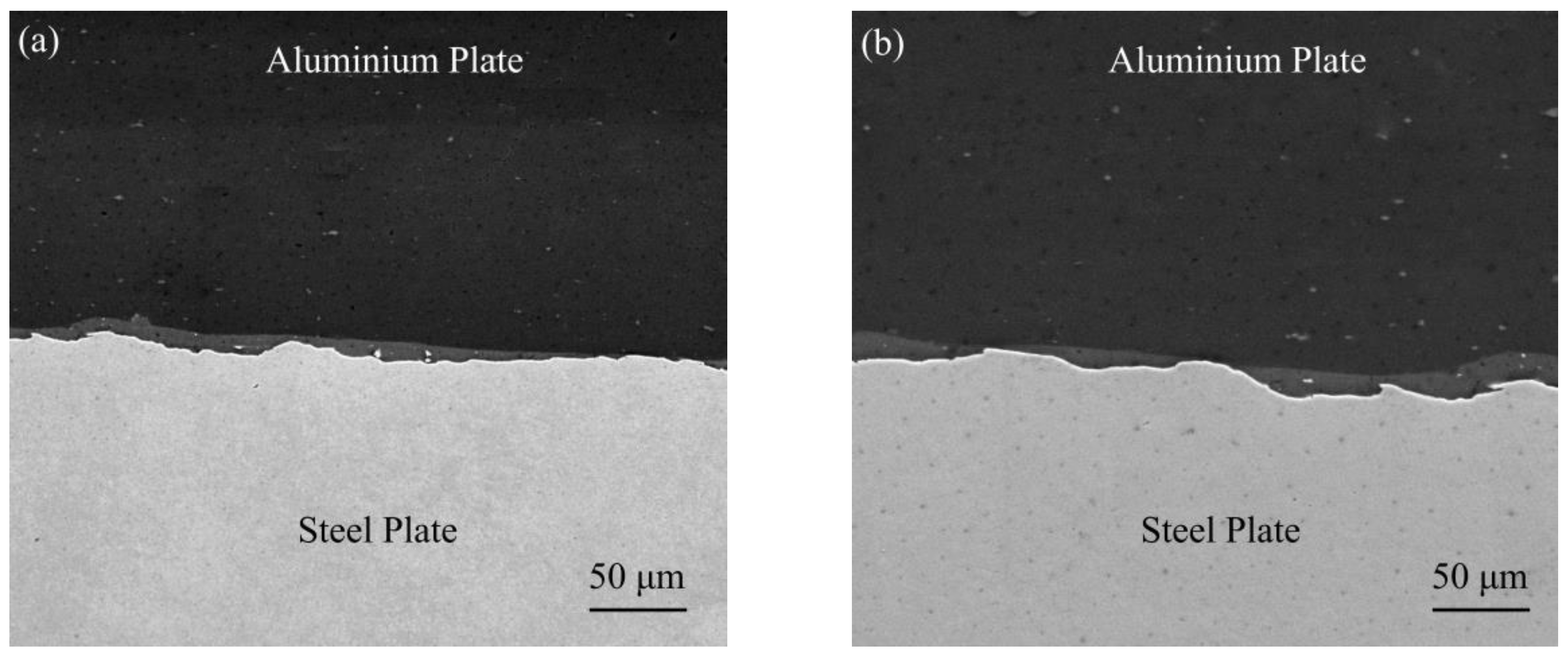

3.1. Interface Evolution Mechanism
3.2. Energy Spectrum Analysis
3.3. Microhardness Analysis
3.4. Mechanical Property Testing
3.5. Fracture Appearance Analysis
4. Conclusions
- (1)

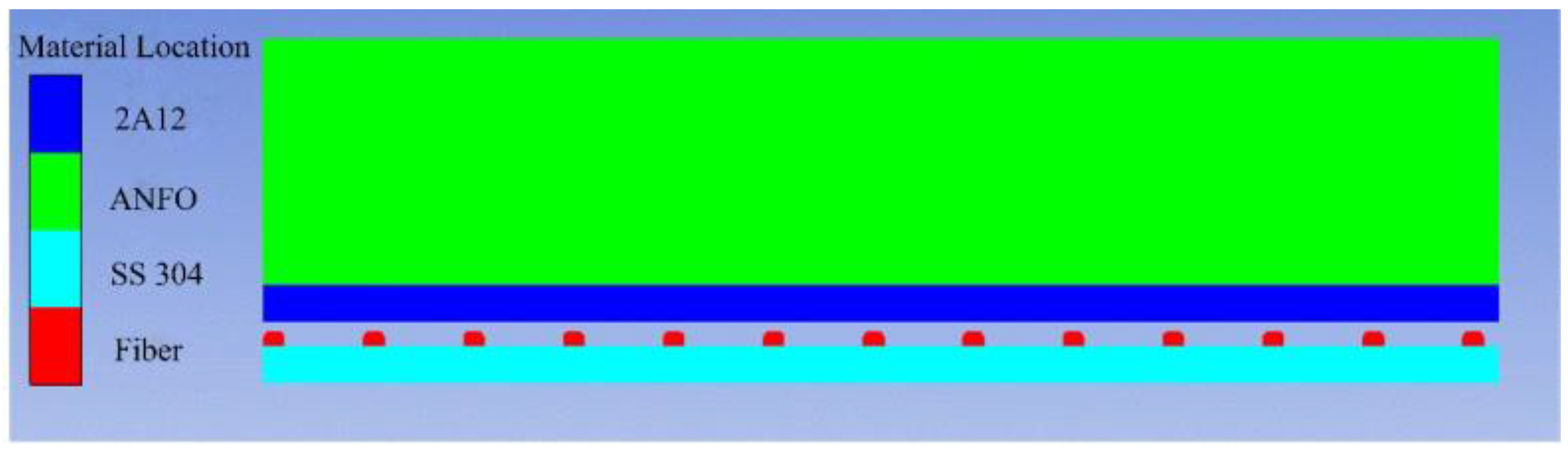

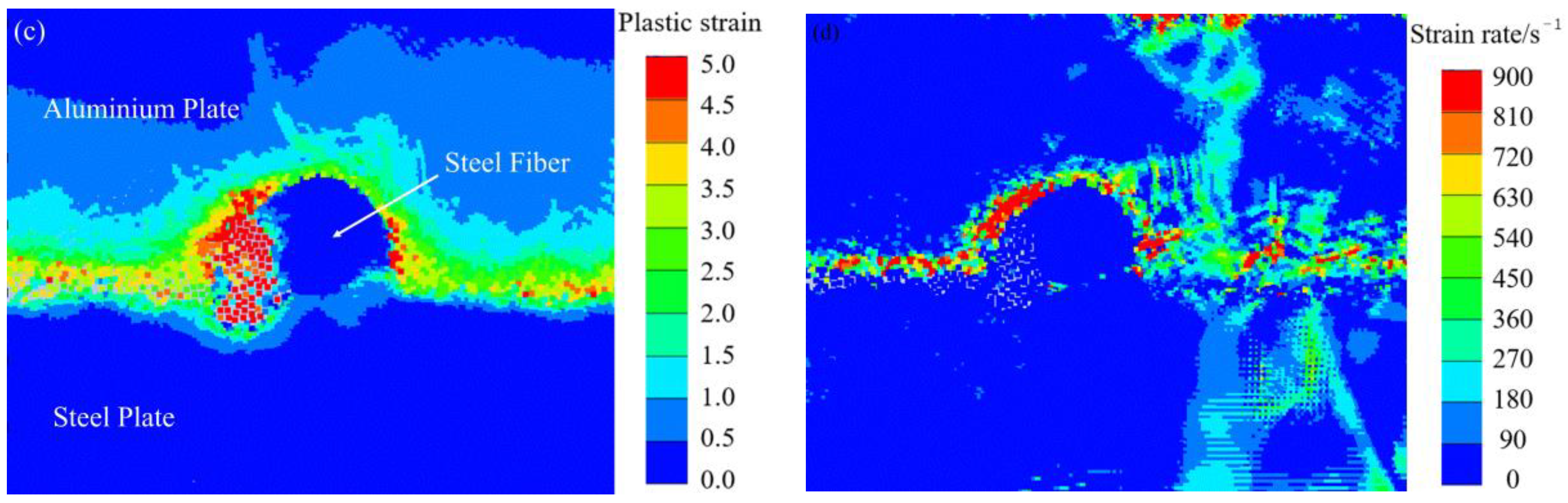

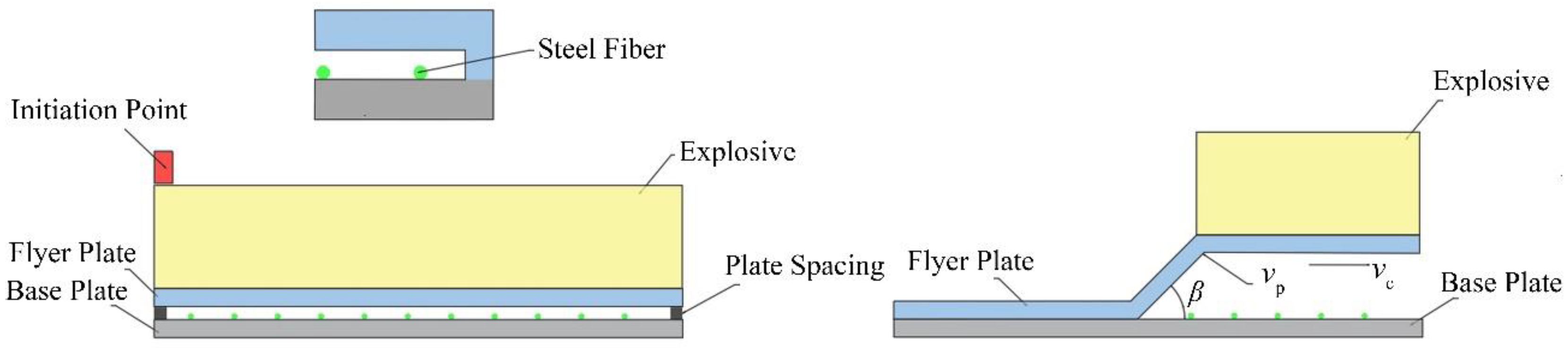

- The SPH simulation method proved that there was a certain angle formed by the steel fiber, the base plate, and the composite plate, which blocked the direction of the jet so that the jet accumulated on one side of the steel fiber to form an environment with high temperature, high pressure, and high strain rate, thereby forming a vortex area. The residual stress of the jet particles in the vortex region forced them to undergo strong stirring, producing cracks, holes, and air pores in the vortex region.
- (2)

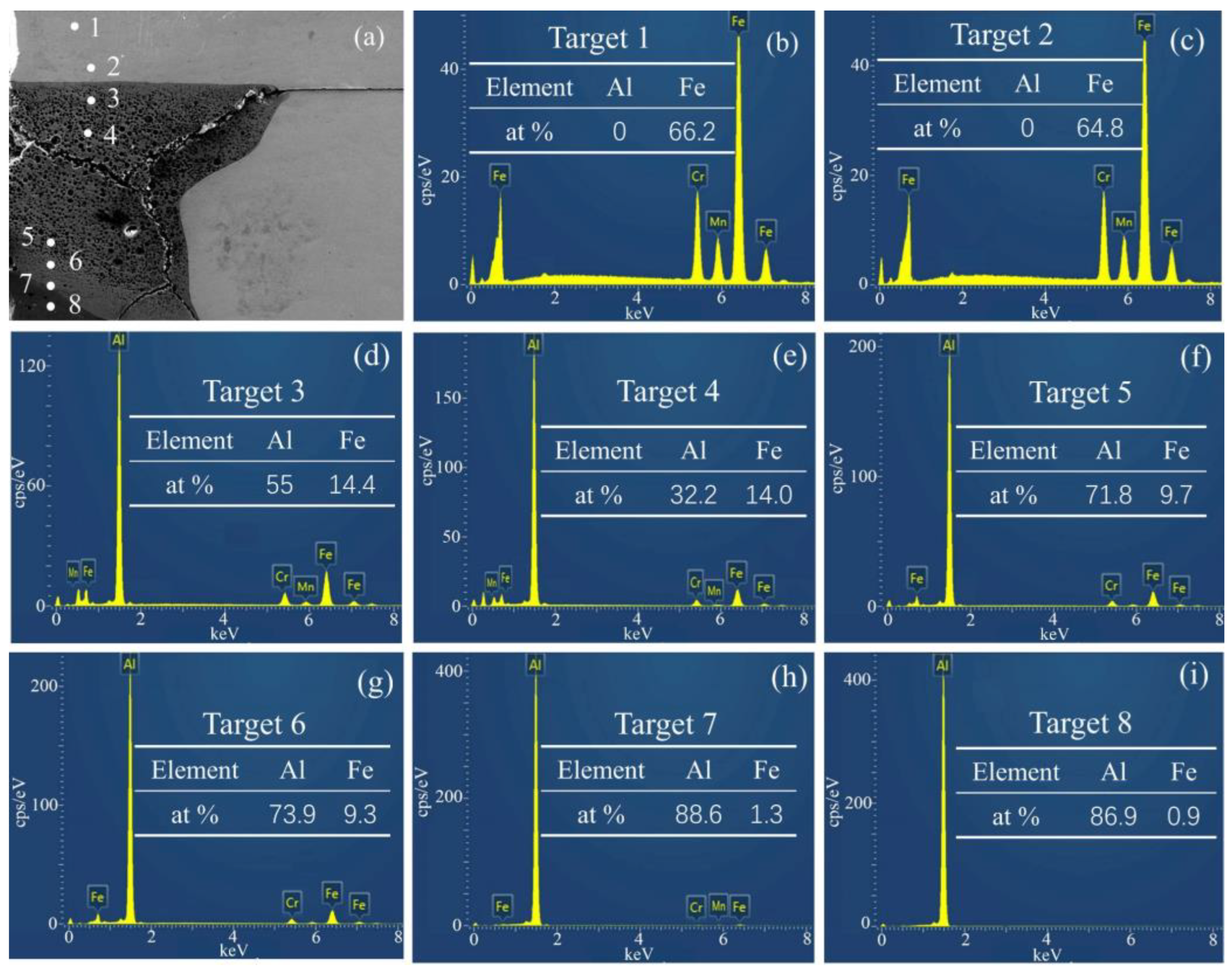

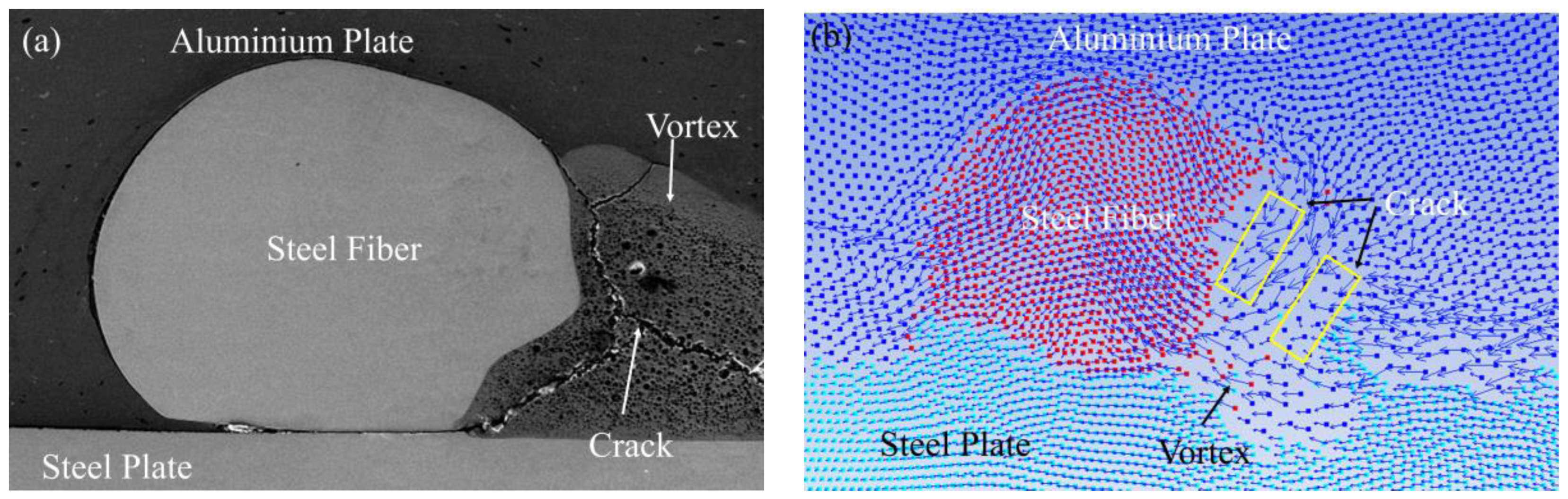

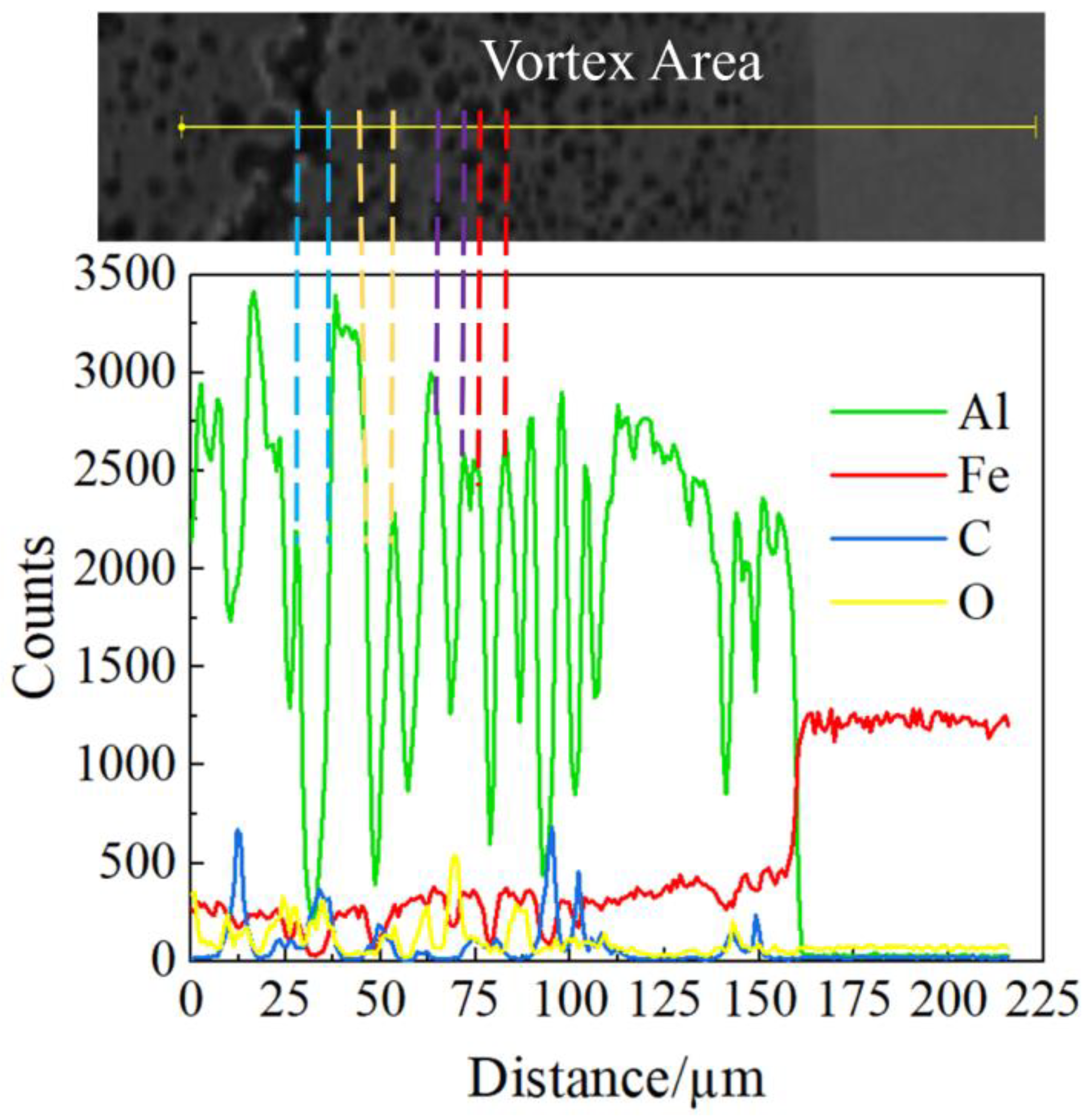

- SEM and EDS analysis proved the following two points. 1. The main reason for cracks, holes, and air pores in the vortex area was the formation of a large number of brittle intermetallic compounds, and the brittle intermetallic compound was mainly FeAl. 2. due to the blocking effect of steel fiber on the jet, the transition of elements at the interface of the composite plate with steel fiber was relatively fast.
- (3)

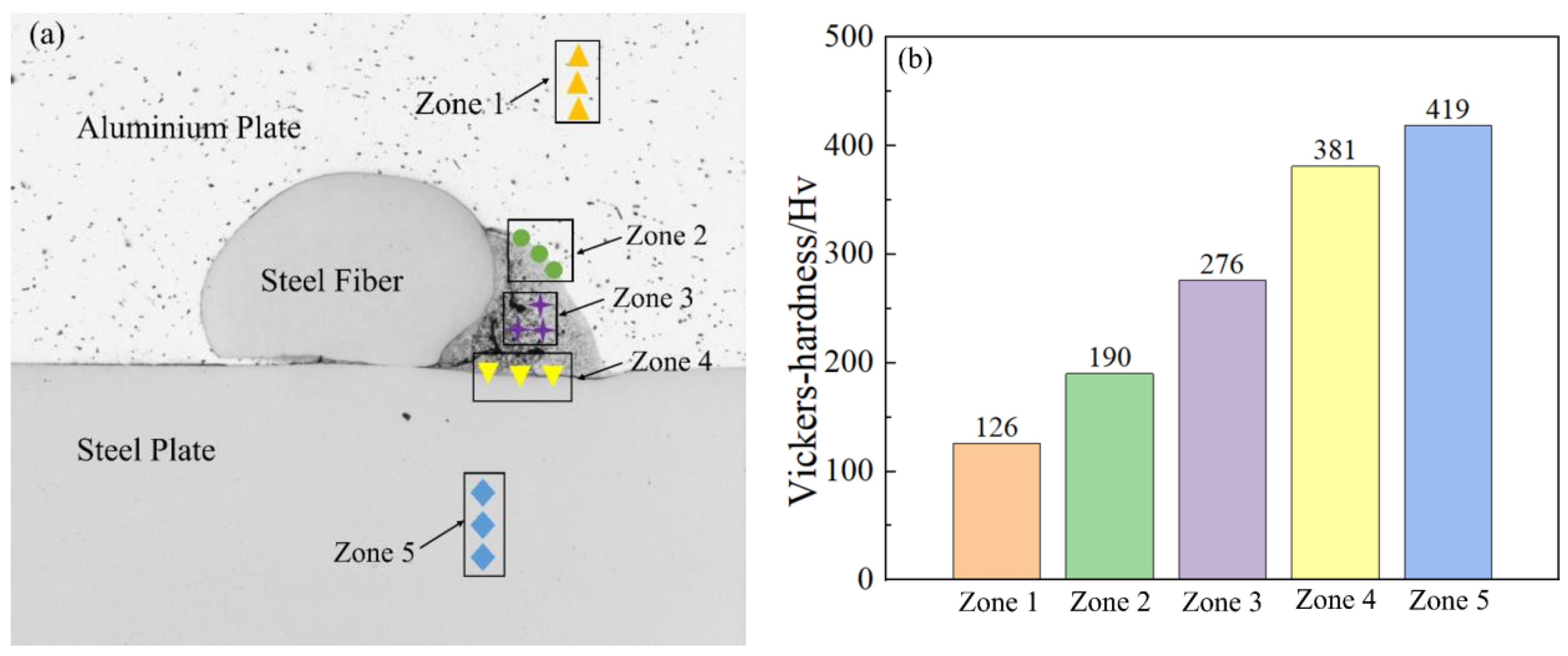

- Microhardness test results revealed that the cracks, holes, and air pores in the vortex region influenced the microhardness of the bonding interface to a certain extent. As the microhardness of 2A12 aluminum was relatively small, the microhardness increased with the decrease in 2A12 aluminum content in the vortex region.
- (4)

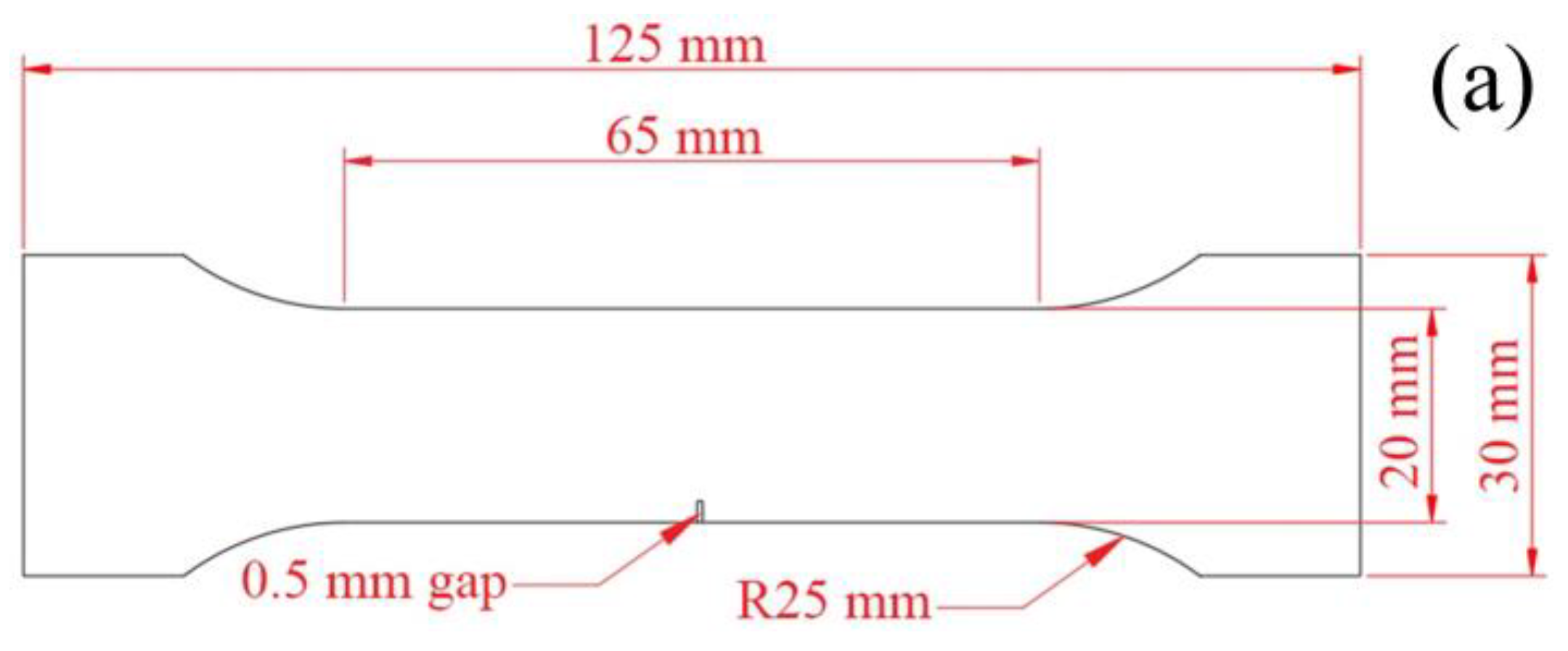

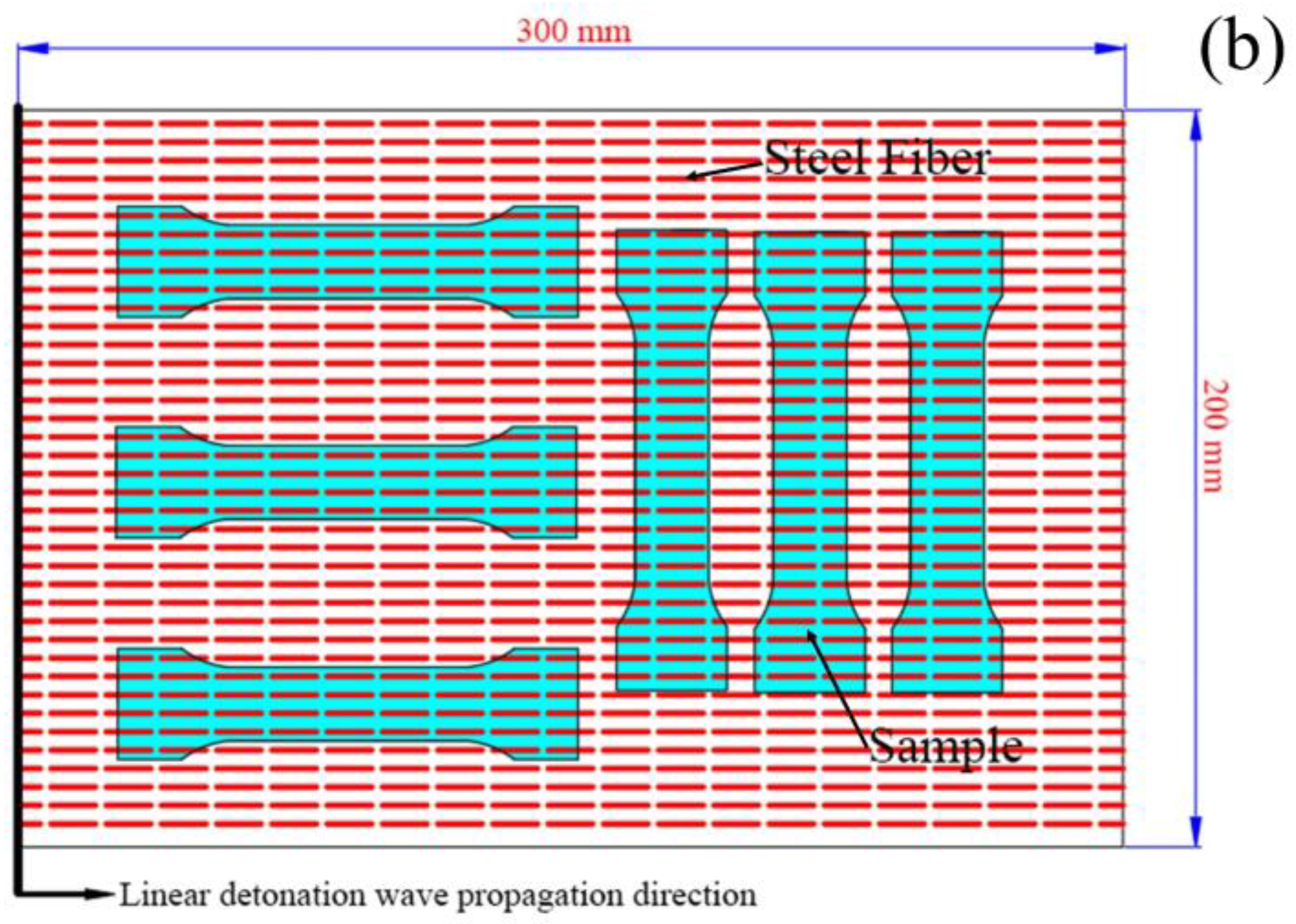

- The tensile test on the universal specimen machine proved that adding steel fibers could improve the antitensile properties of the steel-aluminum composite plates. The larger the diameter of steel fiber, the more obvious the tensile properties are. The main reason is that the steel fiber material is S20910 stainless steel, which was significantly strengthened during the explosion process.
- (5)

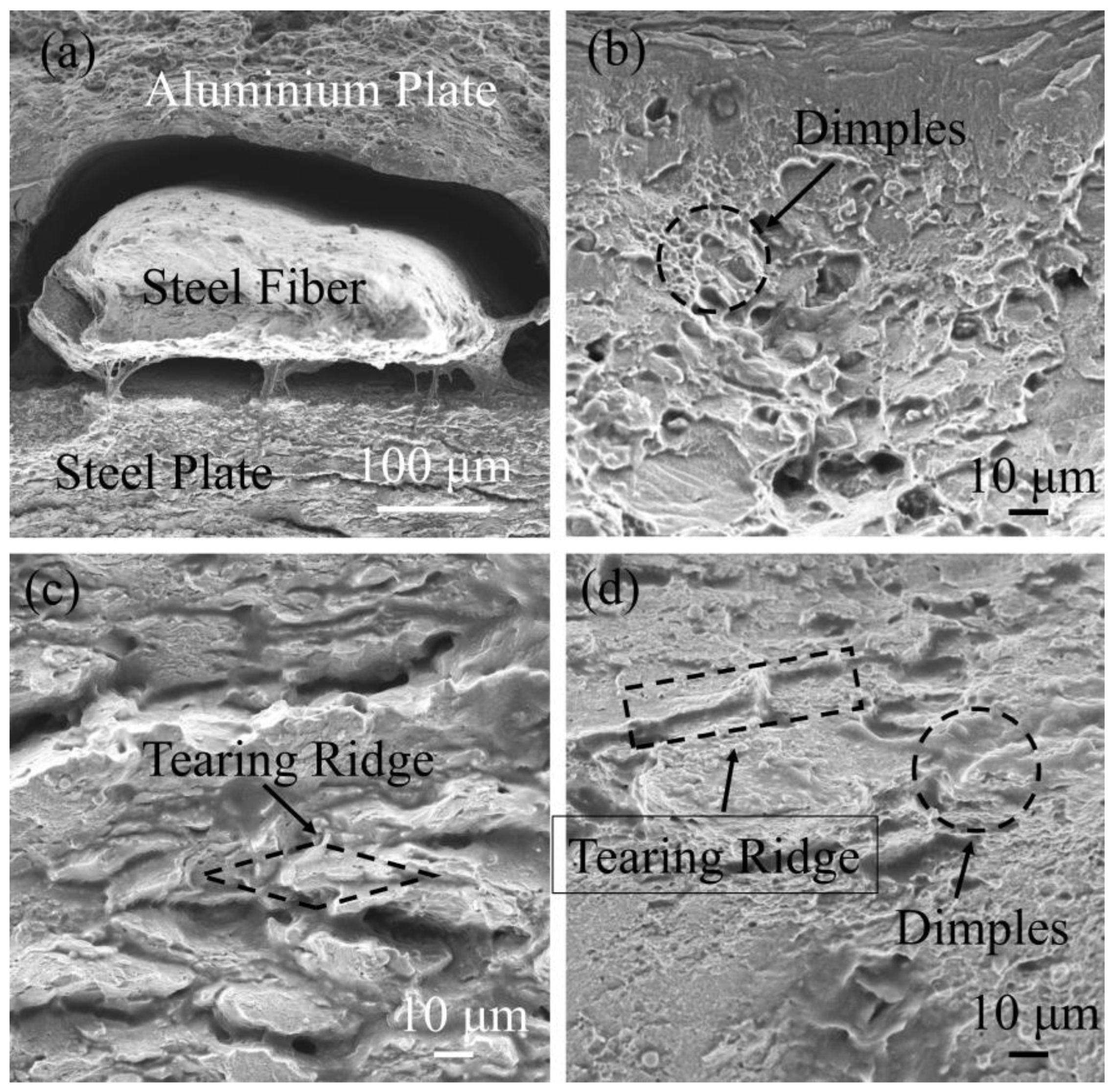

- Fracture morphology analysis indicated that 2A12 aluminum had a typical ductile fracture. The ductile fracture far from the bonding interface was more obvious because of explosion strengthening. The SS-304 stainless steel layer and steel fiber were quasi-cleavage fractures, and the steel fibers showed a necking phenomenon during fracture.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Zeng, X.Y.; Li, X.J.; Chen, X.; Wang, X.-H.; Yan, H.-H. Numerical and experimental studies on the explosive welding of plates with different initial strength. Weld. World 2019, 63, 967–974. [Google Scholar] [CrossRef]
- Wu, X.; Shi, C.; Fang, Z.; Lin, S.; Sun, Z. Comparative study on welding energy and Interface characteristics of titanium-aluminium explosive composites with and without interlayer. Mater. Des. 2021, 197, 109279. [Google Scholar] [CrossRef]
- Zhang, Z.L.; Liu, M.B. Numerical studies on explosive welding with ANFO by using a density adaptive SPH method. J. Manuf. Process. 2019, 41, 208–220. [Google Scholar] [CrossRef]
- Zhang, H.; Jiao, K.X.; Zhang, J.L.; Liu, J. Microstructure and mechanical properties investigations of copper-steel composite fabricated by explosive welding. Mater. Sci. Eng. A 2018, 731, 278–287. [Google Scholar] [CrossRef]
- Gulenc, B. Investigation of interface properties and weldability of aluminum and copper plates by explosive welding method. Mater. Des. 2008, 29, 275–278. [Google Scholar] [CrossRef]
- Chu, Q.; Tong, X.; Xu, S.; Zhang, M.; Li, J.; Yan, F.; Yan, C. Interfacial investigation of explosion-welded titanium/steel bimetallic plates. J. Mater. Eng. Perform. 2020, 29, 78–86. [Google Scholar] [CrossRef]
- Kundu, S.; Ghosh, M.; Laik, A.; Bhanumurthy, K.; Kale, G.; Chatterjee, S. Diffusion bonding of commercially pure titanium to 304 stainless steel using copper interlayer. Mater. Sci. Eng. A 2005, 407, 154–160. [Google Scholar] [CrossRef]
- Ghosh, M.; Bhanumurthy, M.; Kale, G.B.; Krishnan, J.; Chatterjee, S. Diffusion bonding of titanium to 304 stainless steel. J. Nucl. Mater. 2003, 322, 235–241. [Google Scholar] [CrossRef]
- Gao, X.L.; Zhang, L.J.; Liu, J.; Zhang, J.-X. Porosity and microstructure in pulsed Nd:YAG laser welded Ti6Al4V sheet. J. Mater. Process. Technol. 2014, 214, 1316–1325. [Google Scholar] [CrossRef]
- Akbari, M.; Saedodin, S.; Toghraie, D.; Shoja-Razavi, R.; Kowsari, F. Experimental and numerical investigation of temperature distribution and melt pool geometry during pulsed laser welding of Ti6Al4V alloy. Opt. Laser Technol. 2014, 59, 52–59. [Google Scholar] [CrossRef]
- Yu, H.P.; Xu, Z.D.; Fan, Z.S.; Zhao, Z.; Li, C. Mechanical property and microstructure of aluminum alloy-steel tubes joint by magnetic pulse welding. Mater. Sci. Eng. A 2013, 561, 259–265. [Google Scholar] [CrossRef]
- Geng, H.; Mao, J.; Zhang, X.; Li, G.; Cui, J. Strain rate sensitivity of Al-Fe magnetic pulse welds. J. Mater. Process. Technol. 2018, 262, 1–10. [Google Scholar] [CrossRef]
- Liu, J.G.; Cai, W.C.; Liu, L.; Han, J. Investigation of interfacial structure and mechanical properties of titanium clad steel sheets prepared by a brazing-rolling process. Mater. Sci. Eng. A 2017, 703, 386–398. [Google Scholar] [CrossRef]
- Xie, G.M.; Yang, D.H.; Luo, Z.A.; Li, M.; Wang, M.-K.; Misra, R.D.K. The determining role of Nb interlayer on interfacial microstructure and mechanical properties of Ti/steel clad plate by vacuum rolling cladding. Materials 2018, 11, 1983. [Google Scholar] [CrossRef] [Green Version]
- Zheng, Y.M. Explosive Welding and Explosive Composite Material; National Defense Industry Press: Beijing, China, 2017. [Google Scholar]
- Zhou, N. Study on Penetration Resistance and Damage Mechanism of Explosive Composite Functional Gradient Target. Ph.D. Thesis, Nanjing University of Science and Technology, Nanjing, China, 2014. [Google Scholar]
- Wang, B.; Xiong, J.; Wang, X.J.; Ma, L.; Zhang, G.-Q.; Wu, L.-Z.; Feng, J.-C. Energy absorption efficiency of carbon fiber reinforced polymer laminates under high velocity impact. Mater. Des. 2013, 50, 140–148. [Google Scholar] [CrossRef]
- Mahfuz, H.; Zhu, Y.; Haque, A.; Abutalib, A.; Vaidya, U.; Jeelani, S.; Gama, B.; Gillespie, J.; Fink, B. Investigation of high-velocity impact on integral armor using finite element method. Int. J. Impact Eng. 2000, 24, 203–217. [Google Scholar] [CrossRef]
- Yang, M.; Xu, J.F.; Chen, D.G.; Ma, H.; Shen, Z.; Zhang, B.; Tian, J. Understanding interface evolution during explosive welding of silver foil and Q235 substrate through experimental observation coupled with simulation. Appl. Surf. Sci. 2021, 566, 150703.1–150703.10. [Google Scholar] [CrossRef]
- Sun, Z.R.; Shi, C.G.; Shi, H.; Li, F.; Gao, L.; Wang, G. Comparative study of energy distribution and interface morphology in parallel and double vertical explosive welding by numerical simulations and experiments. Mater. Des. 2020, 195, 109027. [Google Scholar] [CrossRef]
- Sun, W.; Li, X.J.; Yan, H.H.; Hokamoto, K. Effect of Initial Hardness on Interfacial Features in Underwater Explosive Welding of Tool Steel SKS3. J. Mater. Eng. Perform. 2014, 23, 421–428. [Google Scholar] [CrossRef]
- Chen, X.Q.; Zhang, K.Y.; Zhan, F.M. Experiment and analysis of underwater explosive welding repair. Blasting 2004, 21, 3. [Google Scholar]
- Liang, H.; Luo, N.; Li, X.J.; Sun, X.; Shen, T.; Ma, Z. Joining of Zr 60 Ti 17 Cu 12 Ni 11 bulk metallic glass and aluminium 1060 by underwater explosive welding method. J. Manuf. Process. 2019, 45, 115–122. [Google Scholar]
- Zhang, Z.H.; Xue, J.X. Influence of droplet impact direction on weld quality. J. South China Univ. Technol. 2019, 47, 138–144. [Google Scholar]
- Wu, Y.K.; Wu, R.; Zhang, M.Y.; Tan, S.; Lu, J.; Jiang, F. Enhancing explosive weldability of thick precipitate-hardened alloys. J. Manuf. Process. 2022, 77, 339–347. [Google Scholar] [CrossRef]
- Zhou, Q.; Liu, R.; Chen, P.W.; Zhu, L. Microstructure characterization and tensile shear failure mechanism of the bonding interface of explosively welded titanium-steel composite. Mater. Sci. Eng. A 2021, 820, 141559. [Google Scholar] [CrossRef]
- Zheng, Z.M.; Yang, Z.S. Explosive Processing; National Defense Industry Press: Beijing, China, 1981. [Google Scholar]
- Zhou, Q.; Liu, R.; Zhou, Q.; Ran, C.; Fan, K.S.; Xie, J.; Chen, P.W. Effect of microstructure on mechanical properties of titanium-steel explosive welding interface. Mater. Sci. Eng. A 2022, 830, 142260. [Google Scholar] [CrossRef]
- Yang, M.; Ma, H.; Shen, Z.; Chen, D.-G.; Deng, Y.-X. Microstructure and mechanical properties of Al-Fe meshing bonding interfaces manufactured by explosive welding. Trans. Nonferrous Met. Soc. China 2019, 29, 680–691. [Google Scholar] [CrossRef]
- Chu, Q.; Zhang, M.; Li, J.; Yan, C. Experimental and numerical investigation of microstructure and mechanical behavior of titanium/steel interfaces prepared by explosive welding. Mater. Sci. Eng. A 2017, 689, 323–331. [Google Scholar] [CrossRef]
- Gloc, M.; Wachowski, M.; Plocinki, T.; Kurzydlowski, K.J. Microstructural and microanalysis investigations of bond titanium grade1/low alloy steel st52-3N obtained by explosive welding. J. Alloys Compd. 2016, 671, 446–451. [Google Scholar] [CrossRef]
- Yang, M.; Ma, H.; Shen, Z.; Huang, Z.; Tian, Q.; Tian, J. Dissimilar material welding of tantalum foil and Q235 steel plate using improved explosive welding technique. Mater. Des. 2020, 186, 108348. [Google Scholar] [CrossRef]
- Zhang, H.; Jiao, K.X.; Zhang, J.L.; Liu, J. Experimental and numerical investigations of interface characteristics of copper/steel composite prepared by explosive welding. Mater. Des. 2018, 154, 140–152. [Google Scholar] [CrossRef]
- Bazarnik, P.; Adamczyk, C.B.; Gałka, A.; Płonka, B.; Sniezek, L.; Cantoni, M.; Lewandowska, M. Mechanical and microstructural characteristics of Ti6Al4V/AA2519 and Ti6Al4V/AA1050/AA2519 laminates manufactured by explosive welding. Mater. Des. 2016, 111, 146–157. [Google Scholar] [CrossRef]
- Zeng, X.; Wang, Y.; Li, X.; Li, X.-J.; Zhao, T.-J. Effects of gaseous media on interfacial microstructure and mechanical properties of titanium/steel explosive welded composite plate. Fusion Eng. Des. 2019, 148, 111292.1–111292.9. [Google Scholar] [CrossRef]
- Ning, J.; Zhang, L.J.; Xie, M.X.; Yang, H.-X.; Yin, X.-Q.; Zhang, J.-X. Microstructure and property inhomogeneity investigations of bonded Zr/Ti/steel trimetallic sheet fabricated by explosive welding. J. Alloys Compd. 2017, 698, 835–851. [Google Scholar] [CrossRef]
- Wu, T.; Yang, C.L. Influence of pulse TIG welding thermal cycling on the microstructure and mechanical properties of explosively weld titanium/steel joint. Vacuum 2022, 197, 110817. [Google Scholar] [CrossRef]
- Hoseini, M.M.; Tolaminejad, B. Weldability window and the effect of interface morphology on the properties of Al/Cu/Al laminated composites fabricated by explosive welding. Mater. Des. 2015, 86, 516–525. [Google Scholar] [CrossRef]
- Jiang, S.; Shen, J.; Nagasaka, T.; Muroga, T.; Sagara, A.; Ohnuki, S.; Hokamoto, K.; Tanaka, S.; Inao, D.; Morizono, Y.; et al. Interfacial characterization of dissimilar-metals bonding between vanadium alloy and Hastelloy X alloy by explosive welding. J. Nucl. Mater. 2020, 539, 152322. [Google Scholar] [CrossRef]
- Akbari, M.S.A.A.; Farhadi, S.P. Experimental investigation of explosive welding of cp-titanium/AISI 304 stainless steel. Mater. Des. 2009, 30, 459–468. [Google Scholar] [CrossRef]
- Aceves, S.M.; Espinosa, L.F.; Elmer, J.W.; Huber, R. Comparison of Cu, Ti and Ta interlayer explosively fabricated aluminum to stainless steel transition joints for cryogenic pressurized hydrogen storage. Int. J. Hydrogen Energy 2015, 40, 1490–1503. [Google Scholar] [CrossRef] [Green Version]
- Zhang, Z.L.; Feng, D.; Liu, M.B. Investigation of explosive welding through whole process modeling using a density adaptive SPH method. J. Manuf. Process. 2018, 35, 169–189. [Google Scholar] [CrossRef]
- Nassiri, A.; Abke, T.; Daehn, G. Investigation of melting phenomena in solid-state welding processes. Scr. Mater. 2019, 168, 61–66. [Google Scholar] [CrossRef]
- Song, J.; Kostka, A.; Veehmayer, M.; Raabe, D. Hierarchical microstructure of explosive joints: Example of titanium to steel cladding. Mater. Sci. Eng. A 2011, 528, 2641–2647. [Google Scholar] [CrossRef]
- Carvalho, G.; Galvo, I.; Mendes, R.; Leal, R.; Loureiro, A. Explosive welding of aluminium to stainless steel using carbon steel and niobium interlayers. J. Mater. Process. Technol. 2020, 283, 116707. [Google Scholar] [CrossRef]
- Venkateswaran, P.; Xu, Z.H.; Li, X.; Reynolds, A.P. Determination of mechanical properties of Al–Mg alloys dissimilar friction stir welded interface by indentation methods. J. Mater. Sci. 2009, 44, 4140–4147. [Google Scholar] [CrossRef]
- Wang, Y.X.; Beom, H.G.; Sun, M.; Lin, S. Numerical simulation of explosive welding using the material point method. Int. J. Impact Eng. 2011, 38, 51–60. [Google Scholar] [CrossRef]
- Zheng, Y.M.; Huang, G.R.; Chen, S.H. Strengthening of metals in explosive composites. Eng. Blasting 2000, 6, 7–25. [Google Scholar]
Material | Density ρ/(g cm−3) | Detonation Velocity D/(m s−1) | Specific Internal Energy E0/(kg cm−3) | Detonation Pressure /MPa | Heat Capacity Ratio |
---|---|---|---|---|---|
ANFO | 0.681 | 2430 | 2.484 | 1160 | 2.5 |
Material | Density ρ/(g·cm−3) | Yield Strength σb/MPa | Vickers Hardness /Hv | Wave Velocity C0/(m·s−1) | Melting Point T/K | Specific Heat Cp /(J·kg−1·K−1) | Thermal Conductivity K/(W·m−1·K−1) |
---|---|---|---|---|---|---|---|
2A12 aluminum | 2.79 | 354 | 110 | 5328 | 933 | 940 | 237 |
S20910 steel | 7.88 | 380 | 201 | 4569 | 1450 | 476 | 14 |
SS-304 steel | 7.93 | 515 | 200 | 5790 | 1400 | 500 | 21.5 |
Element | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
---|---|---|---|---|---|---|---|---|
iron | 66.2% | 64.8% | 14.4% | 10% | 9.7% | 9.3% | 1.3% | 0.9% |
aluminum | 0 | 0 | 55% | 32.2% | 71.8% | 73.9% | 88.6% | 86.9% |
Serial No. | First Group of Data/MPa | Second Group of Data/MPa | Third Group of Data/MPa | Mean Value/MPa |
---|---|---|---|---|
1− | 449.53 | 435.35 | 406.72 | 420.53 |
2− | 462.11 | 456.41 | 450.11 | 456.21 |
3− | 497.36 | 479.85 | 478.65 | 485.29 |
4− | 582.79 | 557.06 | 546.59 | 562.15 |
5+ | 442.36 | 438.93 | 425.15 | 435.48 |
6+ | 450.77 | 448.27 | 444.95 | 447.99 |
7+ | 474.48 | 468.88 | 448.09 | 463.80 |
8+ | 500.05 | 480.38 | 472.14 | 484.19 |
