Flexural Behavior of Corroded Concrete Beams Strengthened with Carbon Fiber-Reinforced Polymer

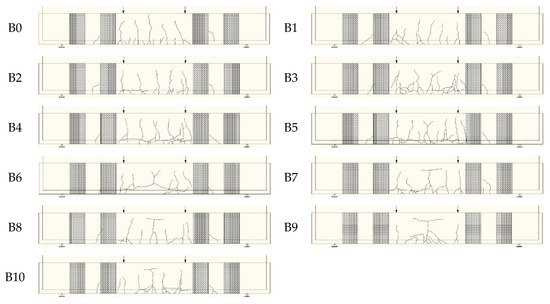

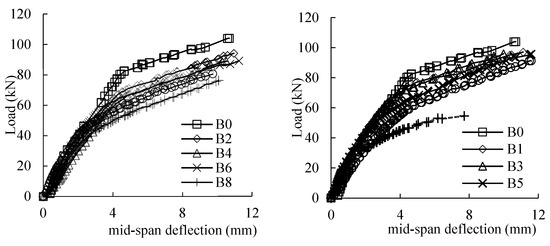

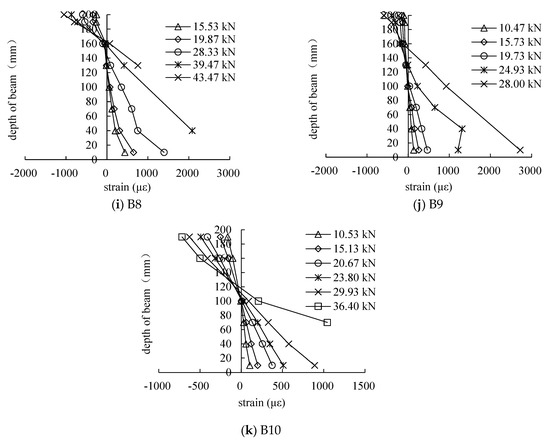

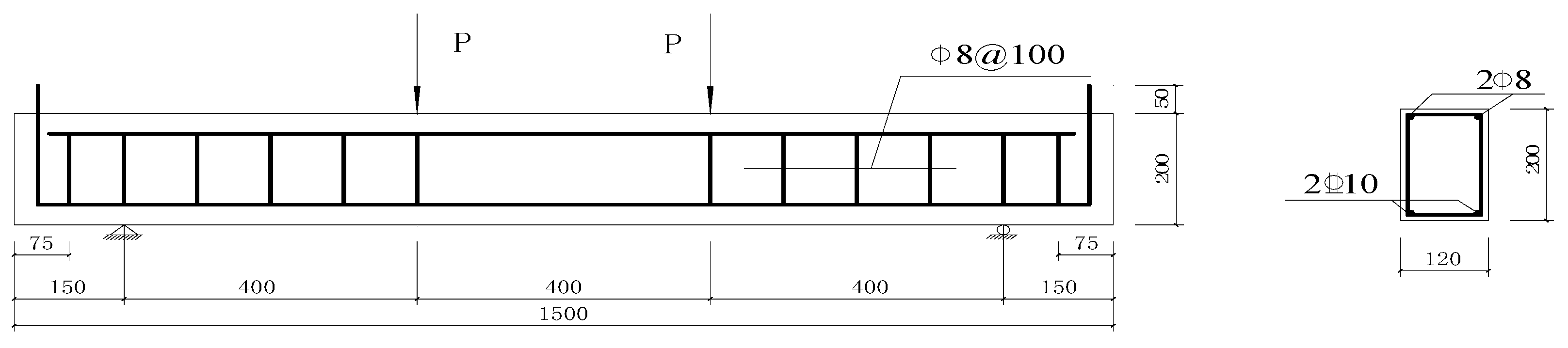

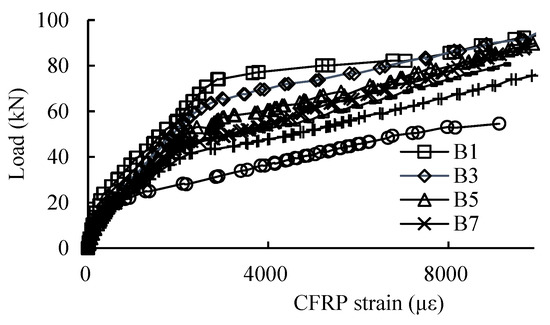

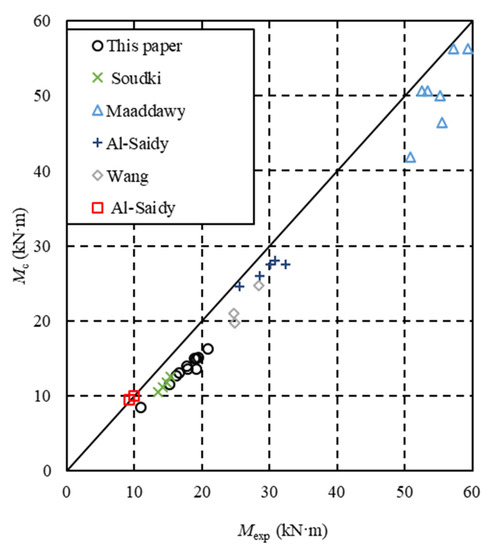

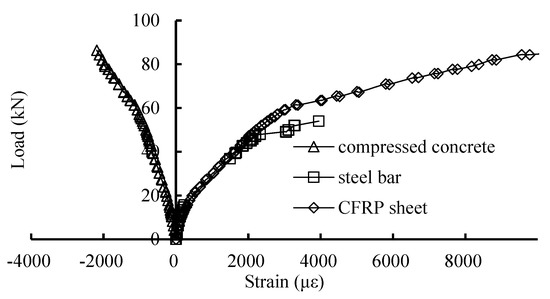

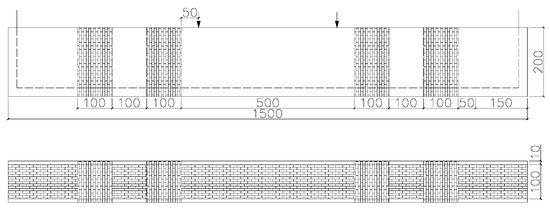

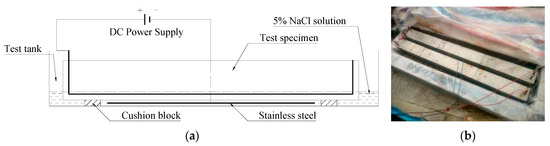

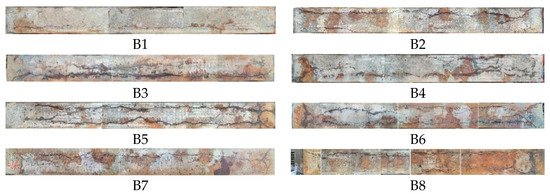

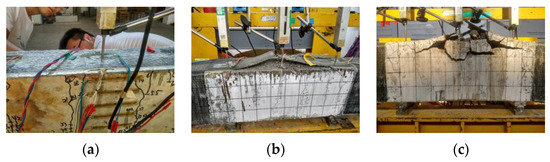

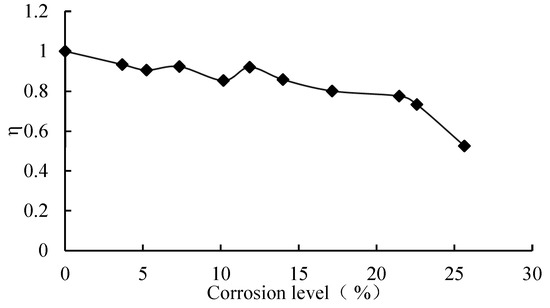

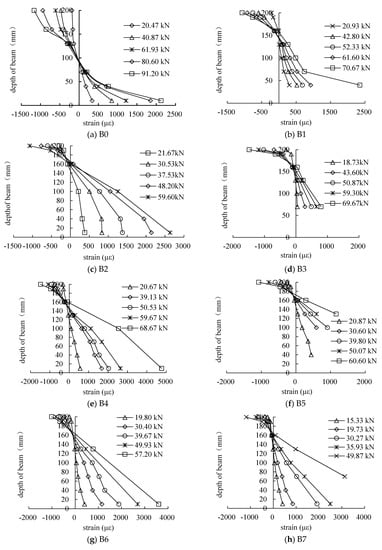

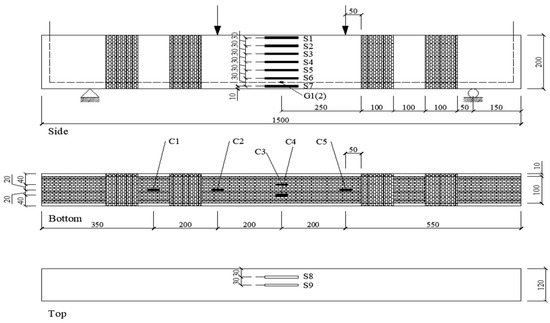

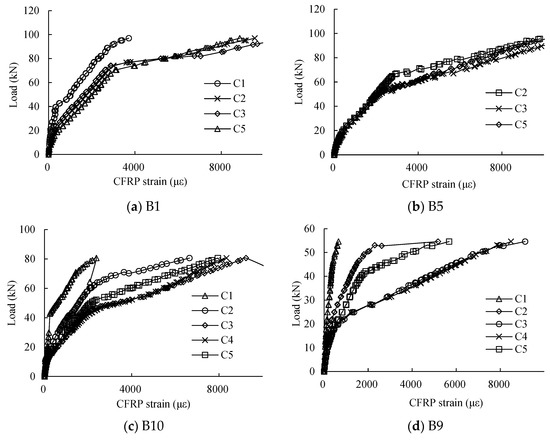

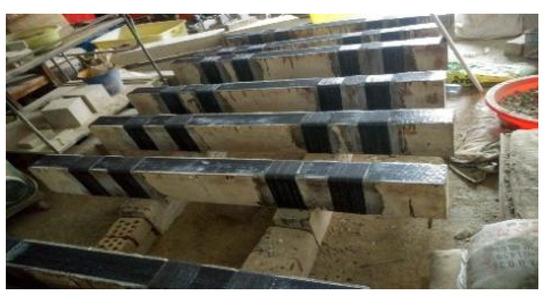

The present study investigates the flexural behavior of reinforced concrete (RC) beams; the longitudinal reinforcing rebars of the beams were corroded and then strengthened with carbon fiber-reinforced polymer (CFRP). The corrosion of the longitudinal tension reinforcing rebars in eleven beam specimens was accelerated in order to obtain different corrosion levels. Afterwards, the beam specimens were strengthened by bonding one layer of CFRP sheets to the tension side to restore the strength loss due to the corrosion. The failure modes, flexural capacity, and midspan deflection of the specimens with different corrosion levels of the longitudinal tension reinforcing rebars were obtained by the four-point bending test. It was found that the flexural capacity of the beam specimens decreased with the increase in the corrosion level of the longitudinal tension reinforcing rebars and that the relative flexural strength was only 52.5% when the corrosion level was 25.6%. The stiffness of the beam specimens decreased significantly when the corrosion level was higher than 20%. Through a regression analysis of the test results, a model for the flexural bearing capacity of the corroded RC beams strengthened with CFRP was proposed in the study.
