Modelling of Chloride Transport in the Standard Migration Test including Electrode Processes
Abstract
:1. Introduction
- The ion profiles in the material that can be used for the calculation of the ion diffusion coefficients in the non-steady state (from the ion-penetration depth), with and without the electrode processes.
- The electroneutrality in the sample tested with and without integrating the electrode processes in order to highlight the need for the consideration of the electrode processes in the chloride migration model proposed.
2. Experimental Program
2.1. Materials

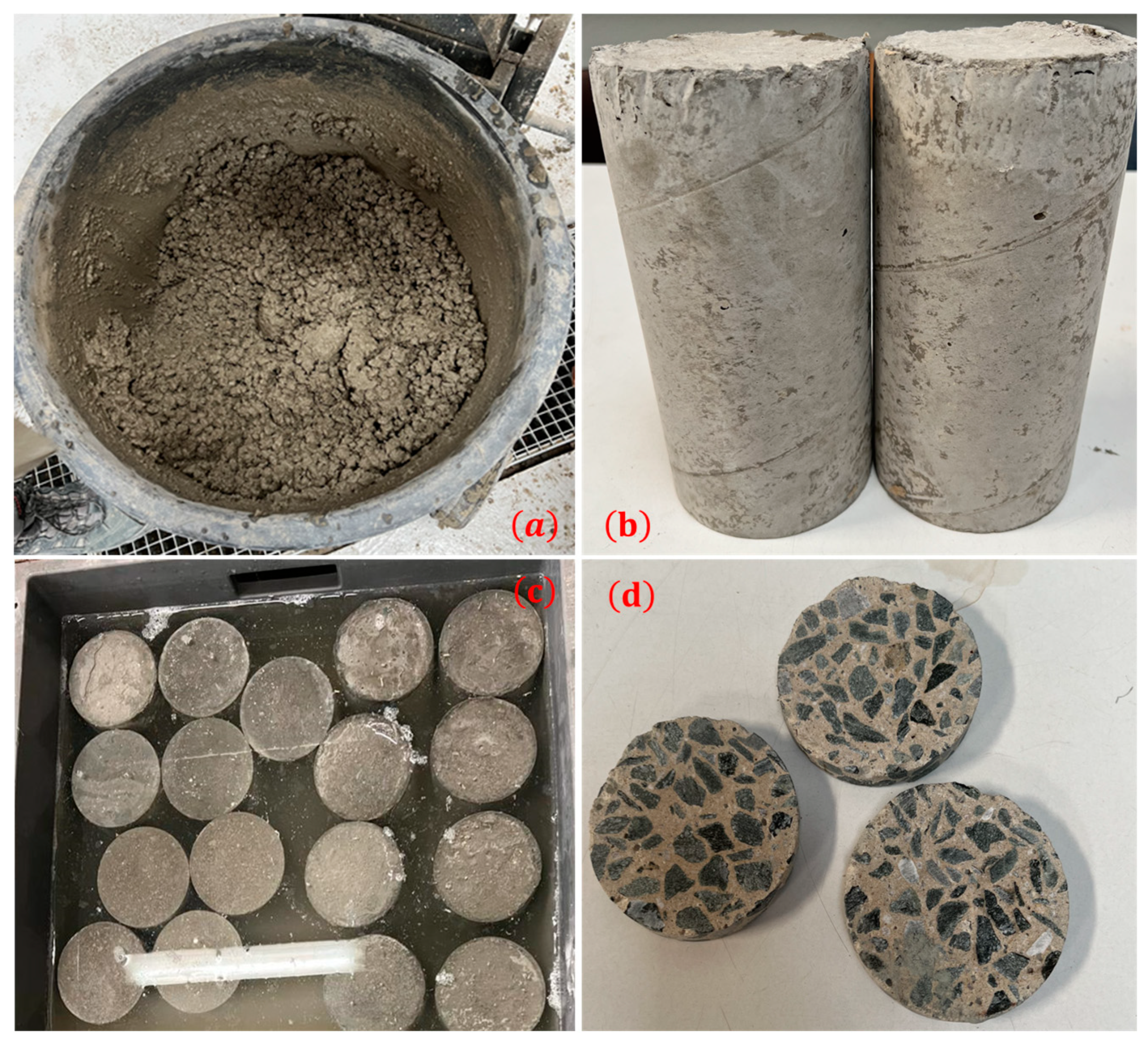

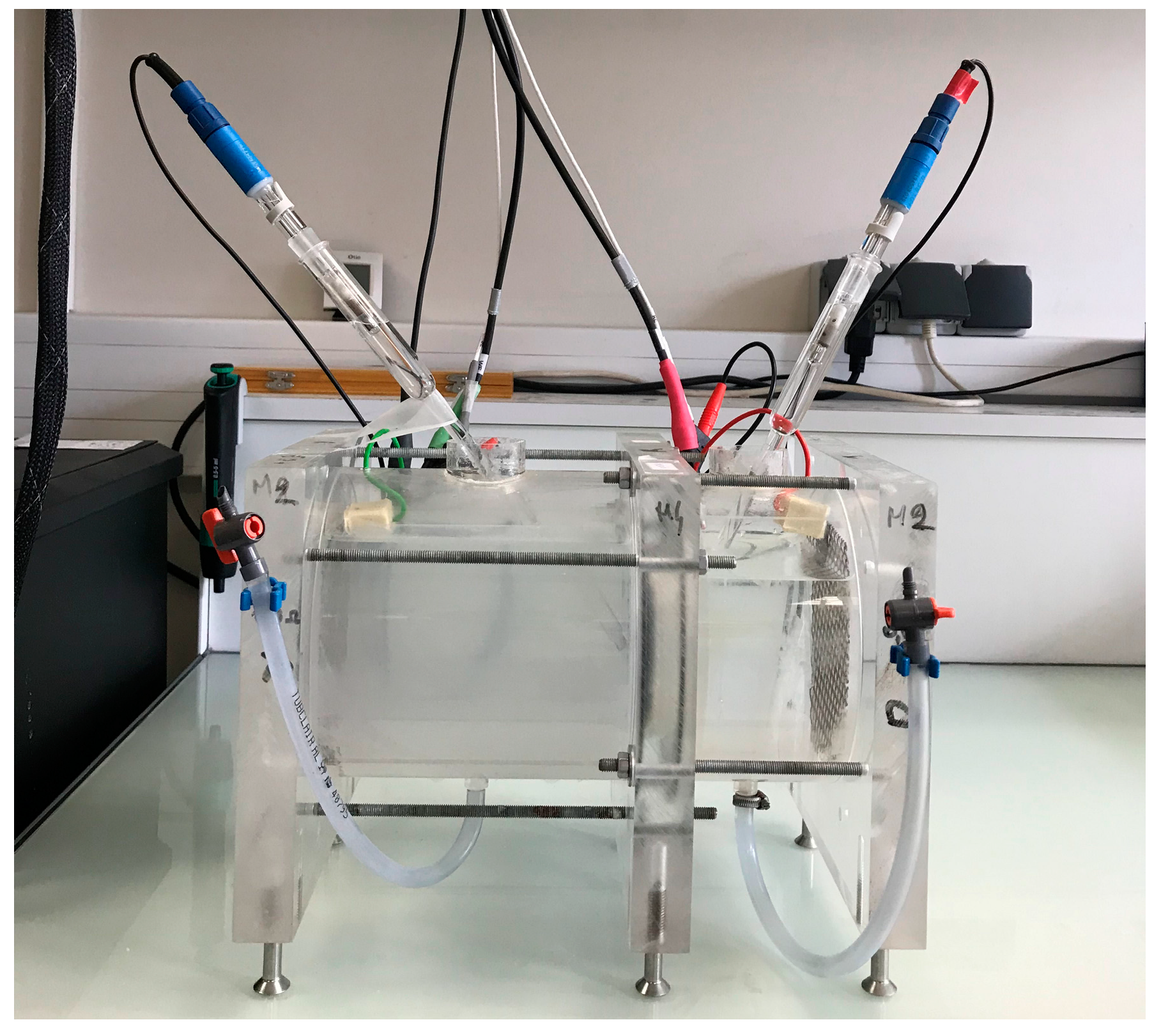

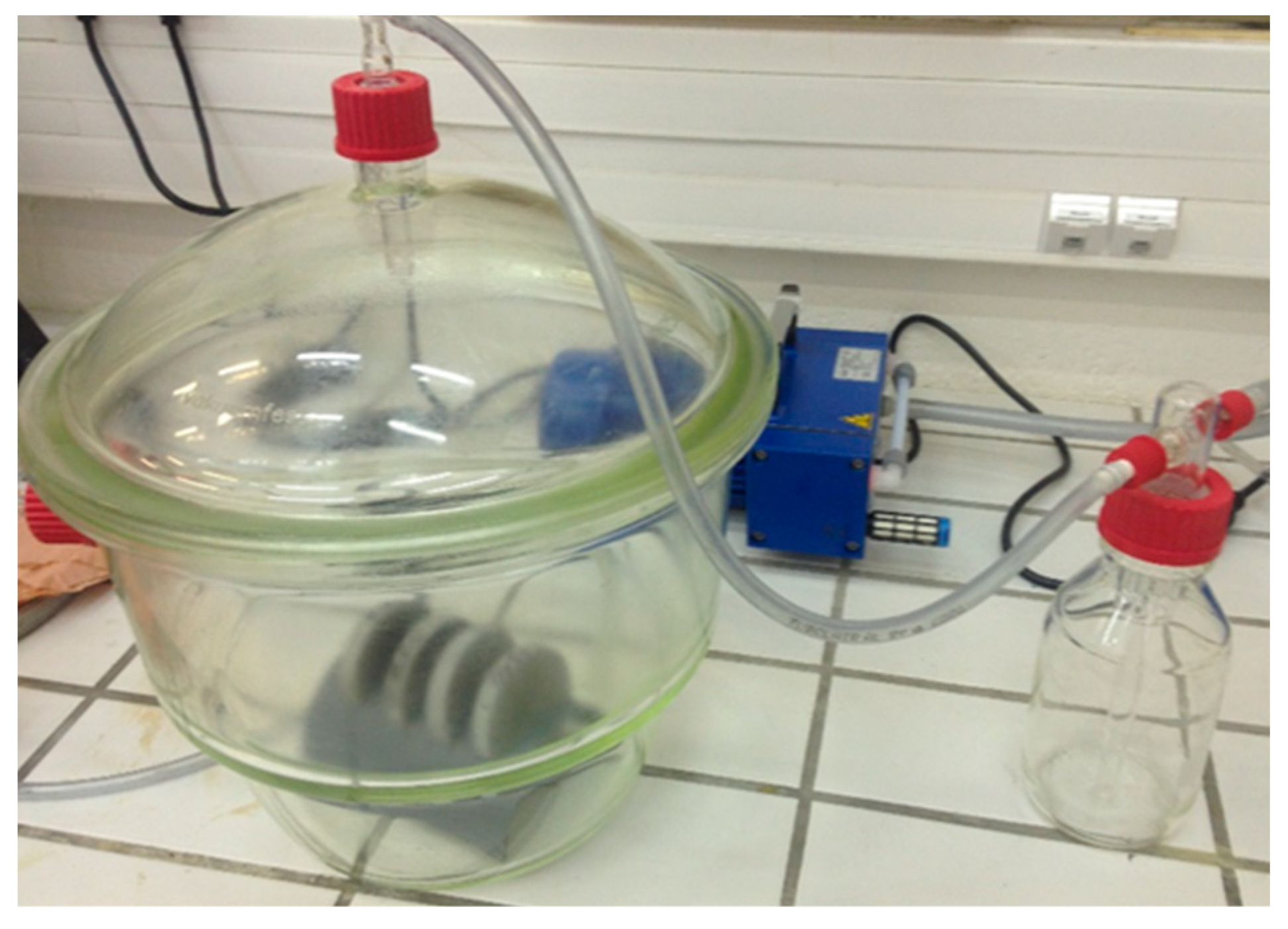

2.2. Tests and Procedure
3. Methodology
3.1. Modelling Principle
3.2. Case Study
4. Results and Discussion

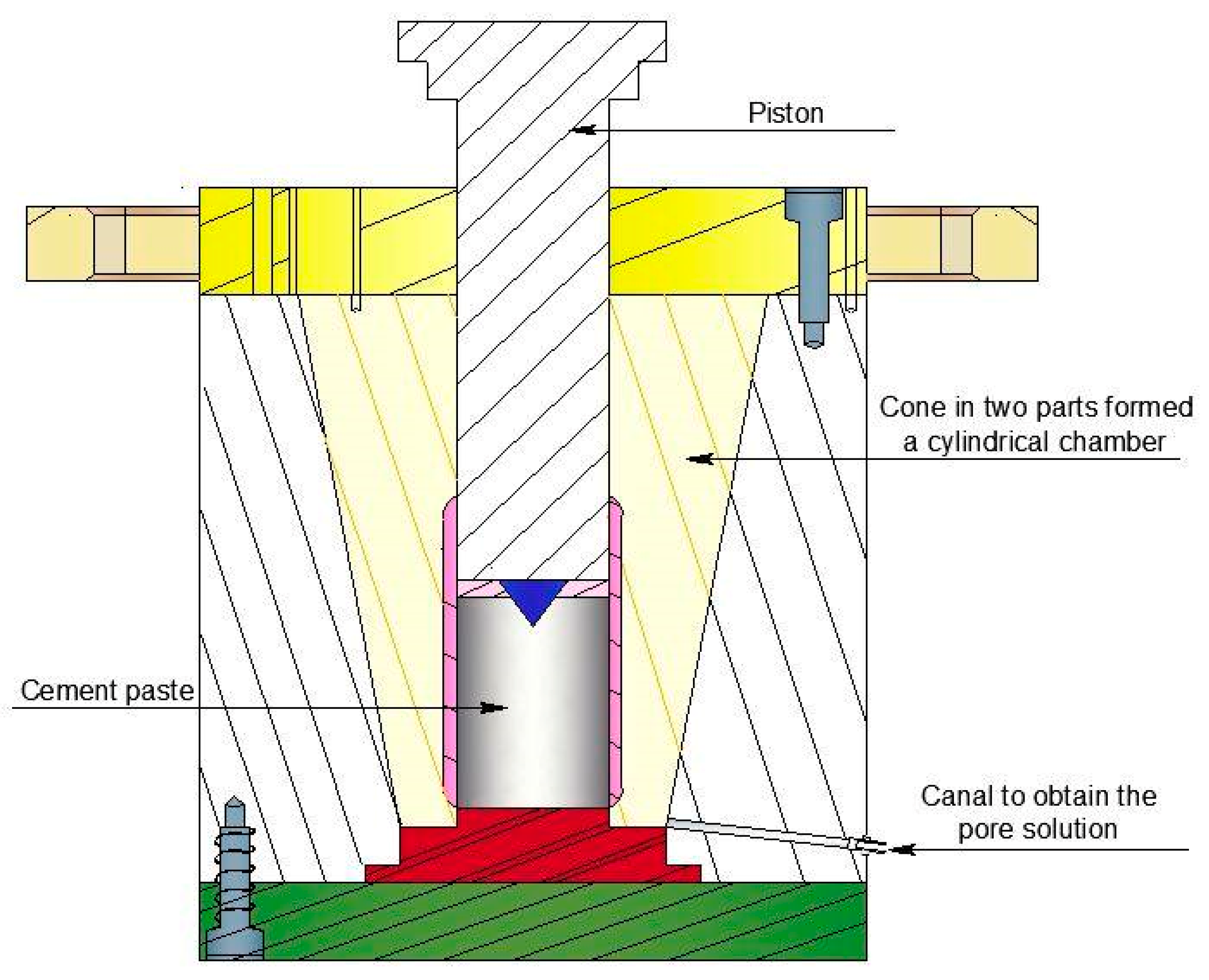

4.1. The Water Porosity and Chemical Composition of the Pore Solution

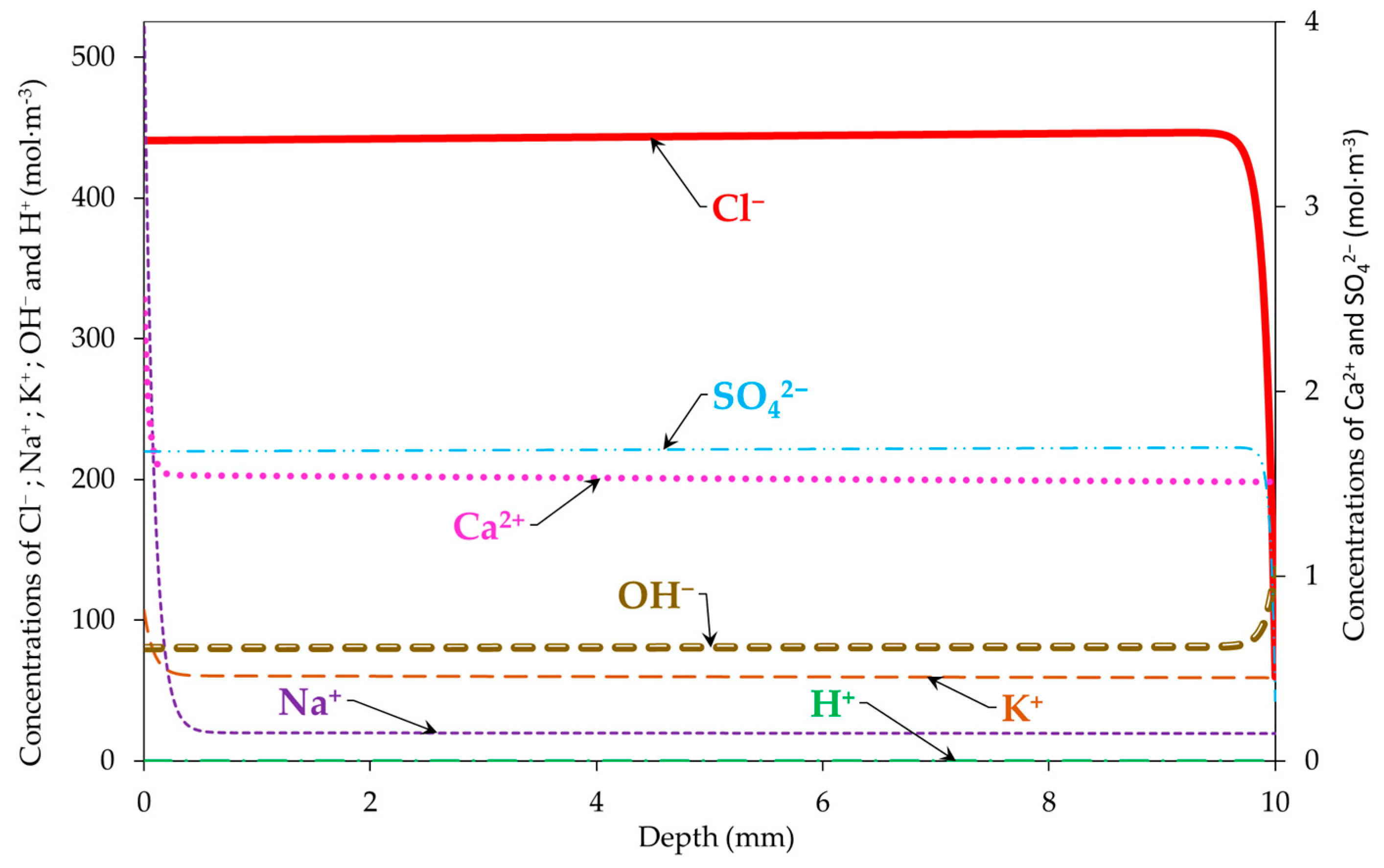

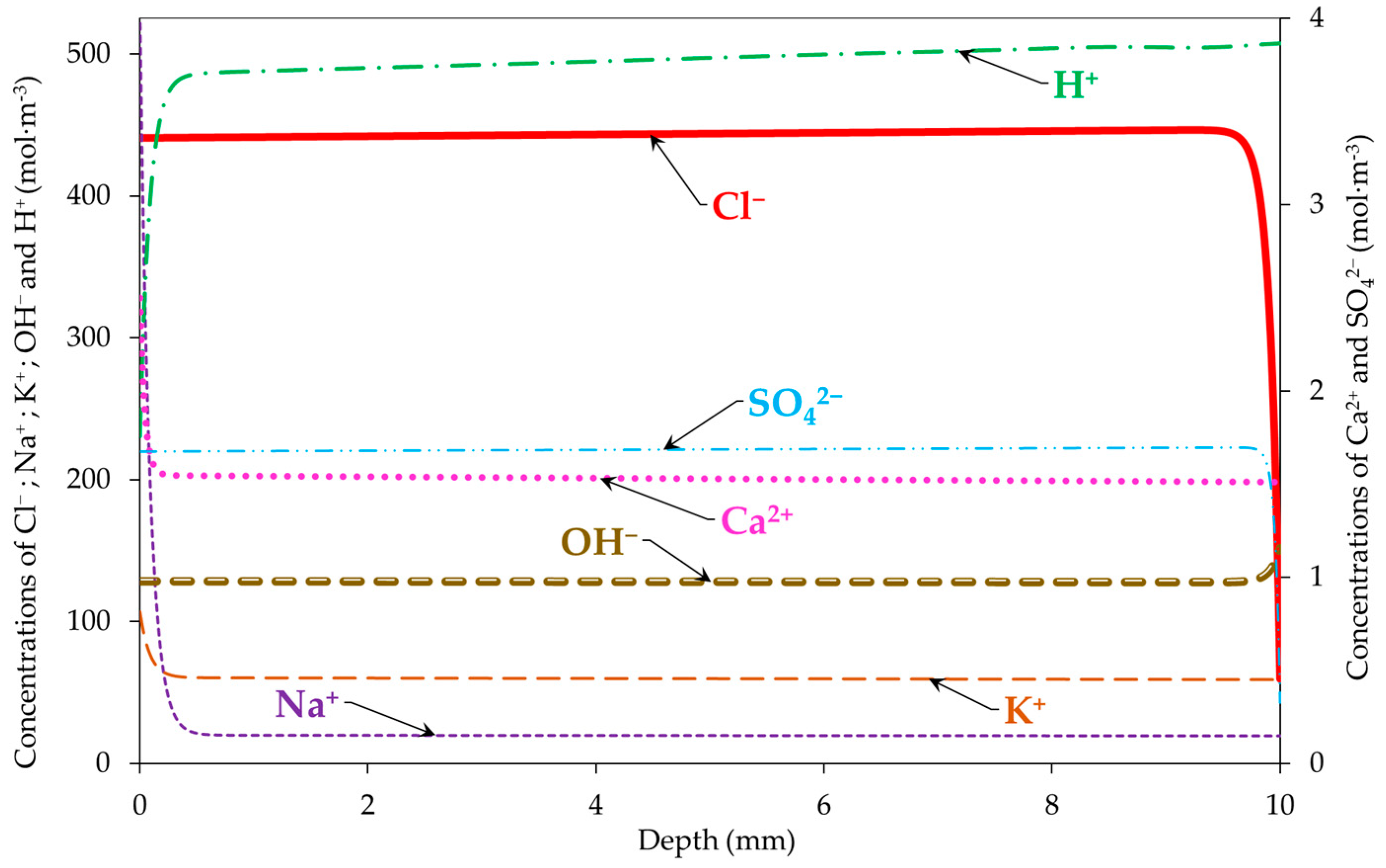

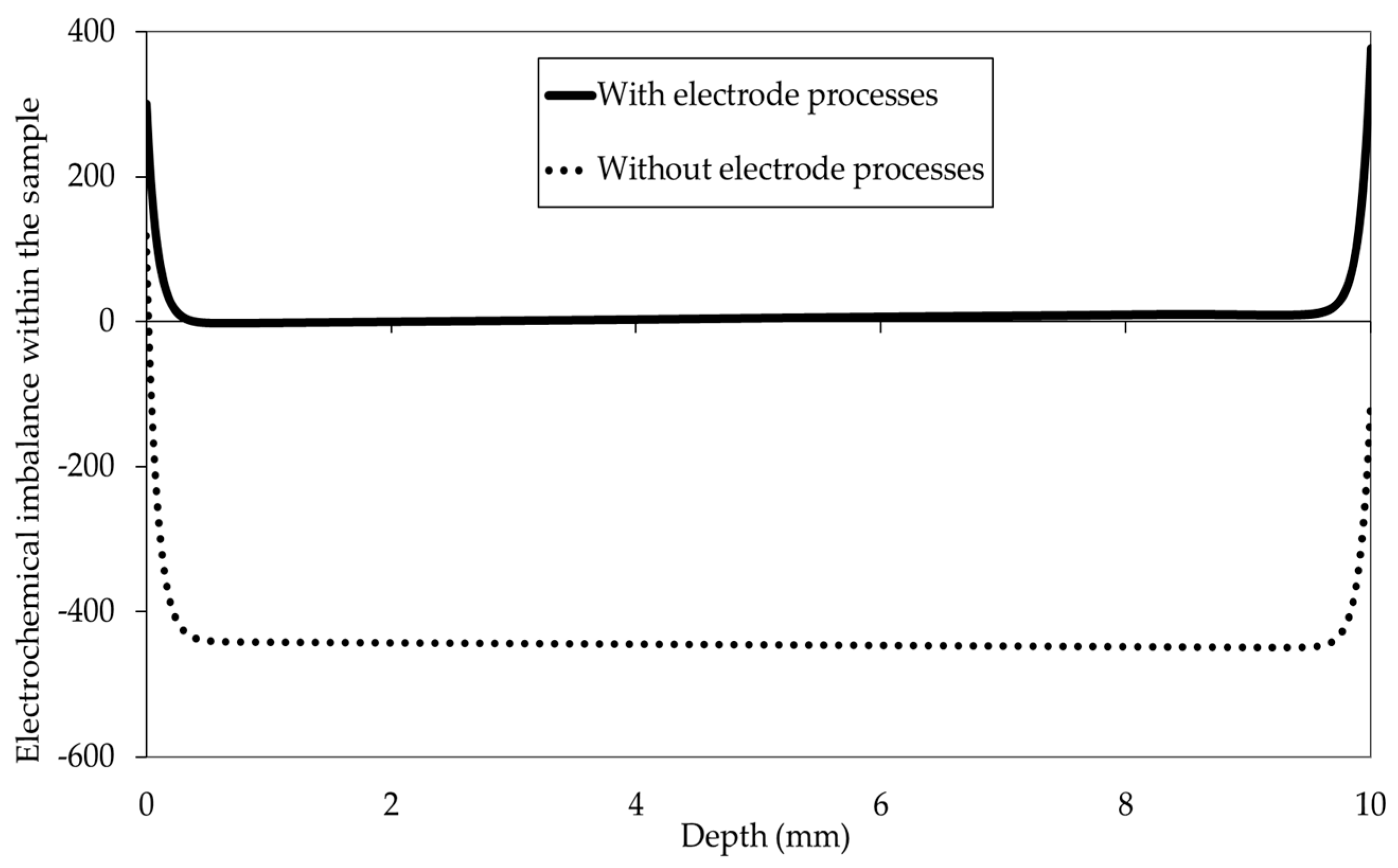

4.2. Numerical Results
5. Conclusions
- The proposed model allows for the simulation of the standard migration test in the steady and non-steady states taking into consideration the real pore solution of the material tested and the dissolution/precipitation phenomena during the migration. The modelling was applied to OPC-based materials.
- The outputs of the proposed model are the ion profiles of the material tested during the migration test.
- The numerical results show the need to take into consideration the electrode processes in chloride migration modelling in order to better simulate the standard migration test. The proposed model can be applied to any material whose porosity and pore solution composition are known.
- The proposed model could be improved by taking into consideration more solid phases of the material such as C-S-H, oxychloride, etc. for thermodynamic equilibrium coupling. Furthermore, it would be interesting to couple the proposed multi-ion diffusion model with moisture and heat transfer for application to the prediction of the durability of reinforced concrete structures exposed to chlorides in tidal zones.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Poupard, O.; Aït-Mokhtar, A.; Dumargue, P. Impedance spectroscopy in reinforced concrete: Experimental procedure for monitoring steel corrosion part II: Polarization effect. J. Mat. Sc. 2003, 38, 3521–3526. [Google Scholar] [CrossRef]
- Rusheng, Q.; Qiang, L.; Chuanqing, F.; Yunsheng, Z.; Yixuan, W.; Xianyu, J. Atmospheric chloride-induced corrosion of steel-reinforced concrete beam exposed to real marine-environment for 7 years. Ocean Eng. 2023, 286, 115675. [Google Scholar]
- Wang, H.; Jiang, M.; Hang, M.; Yang, Y.; Zhou, X.; Liu, X.; Xu, G. Inhibition resistance and mechanism of migrating corrosion inhibitor on reinforced concrete under coupled carbonation and chloride attack. J. Build. Eng. 2023, 76, 107398. [Google Scholar]
- Golewski, G.L. The Effect of the Addition of Coal Fly Ash (CFA) on the Control of Water Movement within the Structure of the Concrete. Materials 2023, 16, 5218. [Google Scholar] [CrossRef] [PubMed]
- Yang, W.; Ye, X.; Li, R.; Yang, J. Effect of Stray Current on Corrosion and Calcium Ion Corrosion of Concrete Reinforcement. Materials 2022, 15, 7287. [Google Scholar] [CrossRef] [PubMed]
- Liu, F.; Zou, Y.; Wang, B.; Yuan, X. The Effect of Stray Current on Calcium Leaching of Cement-Based Materials. Materials 2022, 15, 2279. [Google Scholar] [CrossRef]
- Kumar, S.; Rai, B.; Biswas, R.; Samui, P.; Kim, D. Prediction of rapid chloride permeability of self-compacting concrete using Multivariate Adaptive Regression Spline and Minimax Probability Machine Regression. J. Build. Eng. 2020, 32, 101490. [Google Scholar] [CrossRef]
- Cherif, R.; Hamami, A.E.A.; Aït-Mokhtar, A.; Siddique, R. Chemical properties of pore solution of hardened cement pastes with mineral additions. Adv. Cem. Res. 2021, 33, 331–341. [Google Scholar] [CrossRef]
- Lehner, P.; Koubová, L.; Rosmanit, M. Study of Effect of Reference Time of Chloride Diffusion Coefficient in Numerical Modelling of Durability of Concrete. Buildings 2022, 12, 1443. [Google Scholar] [CrossRef]
- Zhang, F.; Wei, F.; Wu, X.; Hu, Z.; Li, X.; Gao, L. Study on Concrete Deterioration and Chloride Ion Diffusion Mechanism by Different Aqueous NaCl-MgSO4 Concentrations. Buildings 2022, 12, 1843. [Google Scholar] [CrossRef]
- Sanjuán, M.Á.; Rivera, R.A.; Martín, D.A.; Estévez, E. Chloride Diffusion in Concrete Made with Coal Fly Ash Ternary and Ground Granulated Blast-Furnace Slag Portland Cements. Materials 2022, 15, 8914. [Google Scholar] [CrossRef] [PubMed]
- Fan, Z.; Su, D.; Zhang, Z.; Zhong, M.; Zhang, X.; Xiong, J.; Li, P. Transfer Parameter Analysis of Chloride Ingress into Concrete Based on Long-Term Exposure Tests in China’s Coastal Region. Materials 2022, 15, 8517. [Google Scholar] [CrossRef]
- Szweda, Z.; Gołaszewski, J.; Ghosh, P.; Lehner, P.; Konečný, P. Comparison of Standardized Methods for Determining the Diffusion Coefficient of Chloride in Concrete with Thermodynamic Model of Migration. Materials 2023, 16, 637. [Google Scholar] [CrossRef] [PubMed]
- Andrade, C. Calculation of chloride diffusion coefficients in concrete from ionic migration measurements. Cem. Concr. Res. 1993, 23, 724–742. [Google Scholar] [CrossRef]
- Amiri, O.; Aït-Mokhtar, A.; Dumargue, P.; Touchard, G. Electrochemical modelling of chloride migration in cement-based materials: Part I: Theoretical basis at microscopic scale. Electrochim. Acta 2001, 46, 1267–1275. [Google Scholar] [CrossRef]
- Bourbatache, K.; Millet, O.; Aït-Mokhtar, A. Ionic transfer in charged porous media. Periodic homogenization and parametric study on 2D microstructures. Int. J. Heat Mass Transf. 2012, 55, 5979–5991. [Google Scholar] [CrossRef]
- Bourbatache, K.; Millet, O.; Aït-Mokhtar, A.; Amiri, O. Modeling the Chlorides Transport in Cementitious Materials By Periodic Homogenization. Transp. Por. Med. 2012, 94, 437–459. [Google Scholar] [CrossRef]
- Andrade, C.; Prieto, M.; Tanner, P.; Tavares, F.; Andrea, R. Testing and modelling chloride penetration into concrete. Constr. Build. Mater. 2013, 39, 9–18. [Google Scholar] [CrossRef]
- Nguyen, P.T.; Amiri, O. Study of the chloride transport in unsaturated concrete: Highlighting of electrical double layer, temperature and hysteresis effects. Constr. Build. Mater. 2016, 122, 284–293. [Google Scholar] [CrossRef]
- Dehkordi, E.R.; Moodi, F.; GivKashi, M.R.; Ramezanianpour, A.A.; Khani, M. Software simulation of chloride ions penetration into composite of pre-fabricated geopolymer permanent formworks (PGPFs) and substrate concrete. J. Build. Eng. 2022, 51, 104344. [Google Scholar] [CrossRef]
- Liu, Q.-F.; Shen, X.; Savija, B.; Meng, Z.; Tsang, D.C.W.; Sepasgozar, S.; Schlangen, E. Numerical study of interactive ingress of calcium leaching, chloride transport and multi-ions coupling in concrete. Cem. Concr. Res. 2023, 165, 107072. [Google Scholar] [CrossRef]
- Xia, J.; Li, L. Numerical simulation of ionic transport in cement paste under the action of externally applied electric field. Constr. Build. Mater. 2013, 39, 51–59. [Google Scholar] [CrossRef]
- Fenaux, M.; Reyes, E.; Gálvez, J.C.; Moragues, A. Modelling the transport of chloride and other ions in cement-based materials. Cem. Concr. Compos. 2019, 97, 33–42. [Google Scholar] [CrossRef]
- Steefel, C.I.; Appelo, C.A.J.; Arora, B.; Jacques, D.; Kalbacher, T.; Kolditz, O.; Lagneau, V.; Lichtner, P.C.; Mayer, K.U.; Meeussen, J.C.L.; et al. Reactive transport codes for subsurface environmental simulation. Comput. Geosci. 2015, 19, 445–478. [Google Scholar] [CrossRef]
- Guo, B.; Hong, Y.; Qiao, G.; Ou, J.; Li, Z. Thermodynamic modeling of the essential physicochemical interactions between the pore solution and the cement hydrates in chloride-contaminated cement-based materials. J. Colloid Interface Sci. 2018, 531, 56–63. [Google Scholar] [CrossRef] [PubMed]
- Mao, L.; Hu, Z.; Xia, J.; Feng, G.L.; Azim, I.; Yang, J.; Liu, Q.F. Multi-phase modelling of electrochemical rehabilitation for ASR and chloride affected concrete composites. Compos. Struct. 2019, 207, 176–189. [Google Scholar] [CrossRef]
- Sanchez, T.; Conciatori, D.; Laferriere, F.; Sorelli, L. Modelling capillary effects on the reactive transport of chloride ions in cementitious materials. Cem. Concr. Res. 2020, 131, 106033. [Google Scholar] [CrossRef]
- Yu, Y.; Zhang, Y.X. Coupling of chemical kinetics and thermodynamics for simulations of leaching of cement paste in ammonium nitrate solution. Cem. Concr. Res. 2017, 95, 95–107. [Google Scholar] [CrossRef]
- Tran, V.Q.; Soive, A.; Baroghel-Bouny, V. Modelisation of chloride reactive transport in concrete including thermodynamic equilibrium, kinetic control and surface complexation. Cem. Concr. Res. 2018, 110, 70–85. [Google Scholar] [CrossRef]
- Tran, V.; Soive, A.; Bonnet, S.; Khelidj, A. A numerical model including thermodynamic equilibrium, kinetic control and surface complexation in order to explain cation type effect on chloride binding capability of concrete. Constr. Build. Mater. 2018, 191, 608–618. [Google Scholar] [CrossRef]
- Jensen, M.M.; De Weerdt, K.; Johannesson, B.; Geiker, M.R. Framework for reactive mass transport: Phase change modeling of concrete by a coupled mass transport and chemical equilibrium model. Comput. Mater. Sci. 2014, 92, 213–223. [Google Scholar] [CrossRef]
- Jensen, M.M.; De Weerdt, K.; Johannesson, B.; Geiker, M.R. Use of a multi-species reactive transport model to simulate chloride ingress in mortar exposed to NaCl solution or sea-water. Comput. Mater. Sci. 2015, 105, 75–82. [Google Scholar] [CrossRef]
- Cherif, R.; Hamami, A.E.A.; Aït-Mokhtar, A.; Bosschaerts, W. Thermodynamic equilibria-based modelling of reactive chloride transport in blended cementitious materials. Cem. Concr. Res. 2022, 156, 106770. [Google Scholar] [CrossRef]
- Truc, O.; Ollivier, J.P.; Carcassès, M. A new way for determining the chloride diffusion coefficient in concrete from steady state migration test. Cem. Concr. Res. 2000, 30, 217–226. [Google Scholar] [CrossRef]
- NF P18-459; Concrete—Testing Hardened Concrete—Testing Porosity and Density. Afnor EDITIONS: La Plaine Saint-Denis, France, 2010.
- Longuet, P.; Burglen, L.; Zelwer, A. The liquid phase of hydrated cement. Rev. Mater. Constr. 1973, 676, 35–41. [Google Scholar]
- Barneyback, R.S.; Diamond, S. Expression and Analysis of Pore Fluids from Hardened Cement Pastes and Mortars. Cem. Concr. Res. 1981, 11, 279–285. [Google Scholar] [CrossRef]
- Castellote, M.; Andrade, C.; Alonso, C. Measurement of the steady and non-steady-state chloride diffusion coefficients in a migration test by means of monitoring the conductivity in the anolyte chamber. Comparison with natural diffusion tests. Cem. Concr. Res. 2001, 31, 1411–1420. [Google Scholar] [CrossRef]
- Bogas, J.A.; Gomes, A. Non-steady-state accelerated chloride penetration resistance of structural lightweight aggregate concrete. Cem. Concr. Compos. 2015, 60, 111–122. [Google Scholar] [CrossRef]
- Andersson, K.; Allard, B.; Bengtsson, M.; Magnusson, B. Chemical composition of cement pore solutions. Cem. Concr. Res. 1989, 19, 327–332. [Google Scholar] [CrossRef]
- Castellote, M.; Andrade, C.; Alonso, M.C. Changes in Concrete pore size distribution due to electrochemical chloride migration trials. Mater. J. 1999, 96, 314–319. [Google Scholar]
- Huang, Q.; Wang, C.; Zeng, Q.; Yang, C.; Luo, C.; Yang, K. Deterioration of mortars exposed to sulfate attack under electrical field. Constr. Build. Mater. 2016, 117, 121–128. [Google Scholar]
Composition | CaO | SiO2 | Al2O3 | Fe2O3 | SO3 | K2O | Na2O | Chlorides | Density | Blaine Finesses (m²/kg) |
---|---|---|---|---|---|---|---|---|---|---|
CEM I (wt; %) | 64.20 | 20.50 | 5.00 | 3.90 | 2.5 | 0.29 | 0.05 | 1.4 | 3.80 | 405 |
Boundary Conditions | ||
---|---|---|
Upstream (x = 0, t) [mol∙m−3] | Downstream (x = L, t) [mol∙m−3] | |
CCl− | 500 | 0 |
CNa+ | 525 | 25 |
CK+ | 83 | 83 |
COH− | 108 | 108 |
CCa2+ | 0 | 0 |
CSO42− | 0 | 0 |
Concrete (t = 0, 0 < x < L) | |
---|---|
φ [%] | 12 |
CCl− [mol∙m−3] | 4 |
CNa+ [mol∙m−3] | 51 |
CK+ [mol∙m−3] | 117 |
COH− [mol∙m−3] | 164 |
CCa2+ [mol∙m−3] | 2 |
CSO42− [mol∙m−3] | 2 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Kribes, Z.-E.; Cherif, R.; Aït-Mokhtar, A. Modelling of Chloride Transport in the Standard Migration Test including Electrode Processes. Materials 2023, 16, 6200. https://doi.org/10.3390/ma16186200
Kribes Z-E, Cherif R, Aït-Mokhtar A. Modelling of Chloride Transport in the Standard Migration Test including Electrode Processes. Materials. 2023; 16(18):6200. https://doi.org/10.3390/ma16186200
Chicago/Turabian StyleKribes, Zine-Eddine, Rachid Cherif, and Abdelkarim Aït-Mokhtar. 2023. "Modelling of Chloride Transport in the Standard Migration Test including Electrode Processes" Materials 16, no. 18: 6200. https://doi.org/10.3390/ma16186200
