Duplex Coating Combing Vanadate-Intercalated Layered Double Hydroxide and Ce-Doped Sol–Gel Layers on Aluminum Alloy for Active Corrosion Protection

by
Kai Wei
1,†,
Xuejie Zhao
1,†,
Zhe Zhang
1,
Yujie Yuan
1,
Wenquan Kong
1 and
You Zhang
1,2,*
1
College of New Materials and Chemical Engineering, Beijing Institute of Petrochemical Technology, Beijing 102617, China
2
Beijing Key Lab of Special Elastomeric Composite Materials, Beijing 102617, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Materials 2023, 16(2), 775; https://doi.org/10.3390/ma16020775
Submission received: 9 November 2022 / Revised: 12 December 2022 / Accepted: 26 December 2022 / Published: 12 January 2023
(This article belongs to the Special Issue Corrosion of Materials: Evaluation, Testing, Protection, and Failure Analysis)
Browse Figures
Versions Notes

Abstract

:
In this study, a duplex coating system (LDH-V/SG-Ce) of vanadate-intercalated layered double hydroxide (LDH) and Ce-doped sol–gel (SG) layers was developed for the purpose of active corrosion protection of the aluminum alloy AA2024. ZnAl-LDH film was grown in situ on the surface of an aluminum alloy using a hydrothermal method and intercalated with V2O74− anions as corrosion inhibitors, and sealed with a Ce (III)-doped silane coating using a sol–gel technique. Scanning electron microscopy (SEM), Fourier transform infrared spectroscopy (FTIR) and X-ray diffraction (XRD) analyses were used to analyze the microstructure, surface functional groups and structure of the LDH-V/SG-Ce film. The uniform and compact silane layer was covered both in the pores and on top of the LDH film. The results of glow discharge optical emission spectroscopy (GDOES) indicated that V2O74− and Ce (III) ions were loaded in the LDH layer and silane film, respectively. The potentiodynamic polarization results showed that the corrosion current density of the bilayer system in the presence of corrosion inhibitors was reduced to 1.92 × 10−8 A/cm2. Electrochemical impedance spectroscopy (EIS) results showed that the LDH-V/SG-Ce duplex coating could provide effective protection for the aluminum alloy after being exposed to a corrosive solution for 14 days.

1. Introduction

As a structural material, aluminum alloy has a wide range of applications, especially in the fields of building, electrical and aerospace engineering [1,2,3,4]. Uncontrolled corrosion damage of metal is easily ignored by people, and often leads to mechanical failure or even disastrous accidents. In the past, chromate conversion coating was mainly used as one of the most effective methods in aluminum alloy surface treatment technology. However, Cr6+ can cause serious pollution to the environment and even serious harm to human health [5,6,7]. Research on the development of new anticorrosion coatings, such as anodic oxidation [8,9], electroplating [10,11], organic coatings [12,13] and LDH [14,15,16], is of great significance for replacing chromate conversion coatings and realizing the long-term corrosion protection of aluminum alloys. With a single film system, it is often difficult to meet the corrosion resistance requirements of practical application scenarios of aluminum alloys. The method of constructing composite films can effectively combine the advantages of multiple films and overcome the defects of a single film. To construct composite films, it is necessary to consider the functionality of each film and the adhesion between the films. At present, a film surface with good mechanical performance is usually used as the topcoat to resist the erosion of the external environment. When the outer film loses its function, the bottom film, coated with a corrosion inhibitor, will prevent corrosion of the solution by releasing the corrosion inhibitor [17]. The method of loading corrosion inhibitors directly determines whether the composite films can achieve long-term corrosion resistance.
Layered double hydroxide (LDH) can be used as a smart protective film for storing corrosion inhibitors due to its unique 3D nanosheet array layered structure and interlayer anion exchange capacity [18,19,20]. Using in situ growth, LDH film can form a system composed of interlayer anions and metal cations with good adhesion on the metal surface [21,22]. The intermediate layer can retard the corrosion process by absorbing the most important corrosive chloride ions. At the same time, the intermediate layer can also be used as a storage location for anionic corrosion inhibitors [23,24]. An inherently self-healing and antibacterial film of inorganic Li-Al layered double hydroxide film modified by adding 2-guanidinosuccinic acid (GSA) was prepared on the surface of a 6N01-T5 aluminum alloy, which has enhanced corrosion resistance. After the coating is damaged, the interlayer GSA is released and adsorbed on the metal substrate surface to form a film [25]. Various anionic corrosion inhibitors have been successfully intercalated in LDH films, and the anticorrosion performance of films loaded with different corrosion inhibitors on the AA2024 substrate has been compared. Among them, vanadate anion has the best performance in providing long-term anticorrosion effects [26]. LDH nanocontainers doped with vanadate anions as corrosion inhibitors offer a well-defined self-healing effect and confer corrosion protection properties by direct synthesis and anion-exchange approaches [27].
However, the surface of LDH film is rough, due to the nonuniformity of the LDH grain growth process. There are a lot of defects at the micrometer level where the corrosive solution can reach the substrate [28]. Using a sealing treatment with silane sol–gel coating can improve the defects of the LDH layer and the adhesion of silane film on the surface of an aluminum alloy. As the first gateway to resist corrosion, a silane sol–gel coating can also realize the loading and release of different corrosion inhibitors in multilayers through inhibitors (especially cationic inhibitors) [29].
A double-layer system consisting of an LDH conversion film covered by a sol–gel film containing vanadate inhibitor was used in a study of the active corrosion protection on AA2024. This system has efficient active corrosion protection and self-healing capability [30]. In our previous work [31], a double-doped LDH container containing cerium and vanadate ions was prepared using a two-step method. The results showed that the double-doped film provides enhanced corrosion resistance, and that there is a potential synergistic effect between Ce and V2O74−.
In this study, a vanadate-intercalated LDH and cerium-doped sol–gel (SG) double coating system (LDH-V/SG-Ce) was developed for active corrosion protection of the aluminum alloy AA2024. To enhance the corrosion protection of AA2024, the potential synergistic effect between Ce and VO3− in the dual inhibitor system was studied.

2. Materials and Methods

2.1. Preparation of Materials

The aluminum alloy AA2024 plates (with a nominal composition in wt.% of Cu 3.9, Mg 1.2, Mn 0.42, Cr 0.1, Zn 0.24, Ti 0.1 and balanced Al) used in this work were cut to 50 mm × 50 mm × 5 mm size for convenient processing. The samples were progressively polished to 1500 grit with SiC sandpapers, cleaned in deionized water and ethanol, and dried using cold air.

2.2. Synthesis of LDH-V Film by Anion-Exchange Reaction

A 300 mL mixed solution of 0.05 M Zn(NO3)2·6H2O (99 wt.%, Aladdin, Shanghai, China) and 0.3 M NaNO3 (AR, Sinopharm Chemical Reagent Co., Ltd., Shanghai, China) was prepared with pH in the neutral range (6.3) by adding 1% ammonia. The aluminum alloy samples were placed vertically in the mixed solution at a constant temperature of 70 °C for 24 h. After the reaction, the samples were taken out, rinsed with deionized water and ethanol (>98%), and then dried in cold air. After the above steps, LDH-N films were prepared on the surface of the samples.
LDH-V films were obtained by immersion of LDH-N samples in 0.1 M NaVO3 (AR, Macklin, Shanghai, China) solution (pH = 8.8). The anion-exchange reaction was carried out at 45 °C for 2 h. After immersion, the fabricated films were washed with deionized water and ethanol, then dried in cold air.

2.3. Synthesis of LDH-V/SG-Ce Film

As starting materials, 30 mL ethanol was dissolved in 14 mL deionized water. Then, 24 mL γ-glycidyloxypropyltrimethoxysilane (GPTMS, C9H20O5Si, 97%, Aladdin, Beijing, China) was slowly added to the obtained mixture. The mixed solution was stirred for 1 h to obtain gel A. For gel B, 6 mL ethyl acetoacetate (C6H10O3, 99.8%, Beijing Chemical Works, Beijing, China) was dissolved in 12 mL ethanol. Next, 12 mL tetraethylorthosilicate (TEOS, C8H20O4Si, 98%, Macklin, Shanghai, China) was slowly added into the mixed solution. To adjust the pH, 1.2 mL glacial acetic acid (CH3COOH, AR, Beijing Chemical Works, Beijing, China) was added. The resulting solution was stirred for 1 h to obtain gel B. The prepared gel B was dropped into gel A and stirred for 30 min. Next, 0.01 M Ce(NO3)3·6H2O (99.5%, Macklin, Beijing, China) was added into the solution, with stirring at 25 °C for 30 min to obtain the gel-doped Ce3+ we named SG-Ce. The previously prepared LDH-V sample was coated using a static dip-coating method at a pulling rate of 90 mm/min. After the lifting, the surfaces of the samples needed to be dried in cold air to prevent the gel from gathering at the hole and causing sagging. The samples were sequentially subjected to 60 °C for 3 h, 90 °C for 1 h, and 120 °C for 30 min using the temperature gradient drying method. Three parallel samples were required in order to study the morphology, composition, and corrosion performance.

2.4. Characterization

The crystal structure of LDH was measured with the scanning range from 3 to 70° using glancing angle X-ray diffraction (GAXRD) with Cu Kα1 (λ = 0.154 nm) radiation. The surface morphology of the synthesized LDH was detected using a field emission scanning electron microscope (SEM, JEOL JSM-7800) under 10 kV accelerating voltage, and energy dispersive spectrum (EDS, Oxford Instrument Isis 300) was used to study the chemical composition. All samples were sprayed with a gold layer to provide surface conductivity. The types of functional groups and chemical bonds in LDH were obtained from Fourier transform infrared (FTIR) spectra using a Bruker Tensor 27 OPUS spectrometer in the range of 4000–400 cm−1. The samples were quantitatively analyzed using glow discharge optical emission spectroscopy (GDOES, HORIBA GD Profiler 2). At 650 Pa pressure and 30 W power, the depth profile of the samples was analyzed using copper with a diameter of 4 mm as the anode. Electrochemical impedance spectroscopy (EIS) and potentiodynamic polarization measurements were carried out using the Wuhan Corrtest CS350 electrochemical workstation. A typical three-electrode system was used to measure the electrochemical behavior of the film. The sample to be tested was a working electrode with an exposure area of 1 cm2, a high-purity platinum plate as the counter electrode, and an Ag/AgCl electrode as a reference electrode. The tests were carried out in a cell using 3.5 wt.% NaCl solution at room temperature. After the open circuit potential (OCP) was stabilized, the electrochemical impedance spectroscopy (EIS) test was conducted. The amplitude of the sine wave was ±10 mV, and the frequency range was 104–10−2 Hz. The impedance spectrum data obtained were simulated by an equivalent circuit. The scanning speed of the Tafel dynamic potential polarization test was 1 mV·s−1, and the scanning range was from −0.25 V to +0.5 V (relative to OCP).

3. Results

3.1. Microstructure and Chemical Composition of the Coatings

Figure 1a,b illustrate the microscopic morphologies of LDH-N film, showing the typical LDH film morphology. The LDH layer formed by the interconnection of hexagonal nanosheets about 2–3 μm in size grows compactly and completely and covers the surface of the AA2024 substrate. It is worth noting that several LDH clusters grow above the compact layer, which may be due to the influence of intermetallics of the AA2024 substrate on the growth process of LDH nanocrystals [32]. The LDH film on the AA2024 surface is basically completely covered after being dip-coated once using the sol–gel method. Except for the flower cluster positions, the LDH film is mainly entirely covered, as shown in Figure 1c. The presence of Si in the LDH flower clusters indicates that the sol–gel matrix would infiltrate into the LDH pores during the curing process. This approach can effectively improve the binding force between LDH and SG layers. However, uneven coverage at the top of LDH flower clusters may cause a lot of stress and cracks or other defects could form [33]. After dip-coating twice, as shown in Figure 1d, the LDH-V/SG-Ce composite film has good uniformity, and the surface is flat without obvious defects.
The XRD patterns of LDH films on AA2024 substrates are depicted in Figure 2a. The main characteristic reflections (003) and (006), at about 10 and 20°, respectively, represent the formation of LDH intercalated with NO3−. After the anion-exchange reaction, the positions of the characteristic peaks are almost unchanged. The diffraction reflection (003) shifts to a lower angle, which indicates that the vanadate anion is successfully intercalated in the form of HV2O73−/V2O74− [34]. Figure 2b shows the FTIR spectra of the LDH-V films before and after modification with gel-doped Ce3+. A strong absorption band around 3450 cm−1 can be identified as the hydroxyl stretching band m (OHstr), which is caused by the interlayer water molecules in the LDH nanosheet array structure and the water adsorbed on the surface of silane film. Another weak band centered at around 1633 cm−1 is generated by the hydroxyl deformation mode of water δ (H2O) [14]. In the range 500–800 cm−1, the bands are attributed to M-O and M-O-M lattice vibrations [26]. The bands around 620 and 570 cm−1 in the LDH-V film may come from the V-O-V bond, while the absorption peak around 964 cm−1 may come from the V-O bond [35]. Combined with XRD analysis, the successful intercalation of vanadate anion in LDH can be obtained. For the LDH-V/SG-Ce film, the peak at around 1256 cm−1 is attributed to the vibration of epoxy groups [36]. The absorption bands around 1201 cm−1 and 3370 cm−1 are associated with the Si-O-CH3 and Si-OH vibrations, respectively [37]. The C-H peak around 2936 cm−1 belongs to the carbon chain in silane [38]. Two characteristic peaks at 1149 cm−1 and 1012 cm−1 are attributed to the stretching vibration of the Si-O-Si bond in the silicon-based network structure in the film [39]. By comparing the infrared spectra of LDH-V and LDH-V/SG-Ce films, it was found that the characteristic absorption peaks of LDH almost disappeared. The results of FTIR and SEM analysis indicate that SG layers are successfully prepared and covered on the surface of LDH film.
Figure 3a shows a cross-section SEM image of LDH-V/SG-Ce film. Regions I, II, and III represent SG, LDH film, and the AA2024 matrix, respectively. The SG film of 1–2 μm covers the LDH film of 2–3 μm. It can be clearly seen that the SG and LDH layers are cross-linked at the interface [17]. The SG layer infiltrates into the LDH layer, indicating that they are tightly combined. In the GDOES diagram in Figure 3b, the element content of Si in Region II gradually decreases; this also proves that the SG matrix penetrates the LDH film. The element content of O is relatively high in Regions I and II, due to the main film-forming material, SiO2, in the SG layer and Al(OH)4− and Zn(OH)+ in the LDH film, respectively [40]. The gradual decrease of Zn in Region I may come from LDH flower clusters being covered by SG coating. The element content change of Cu can be used as the basis to distinguish between LDH film and AA2024 substrate. The distribution of V in LDH film is close to the AA2024 substrate surface, which indicates that the intercalation of vanadate anion is successful. A small amount of Ce is detected, proving that it is feasibly loaded in the SG film [41].

3.2. Corrosion Behavior of the Coating

Figure 4 shows the potentiodynamic polarization curves of different film systems exposed in 3.5 wt.% NaCl solution. Table 1 shows a series of parameters of potentiodynamic polarization curves obtained using the Tafel linear extrapolation method, including corrosion potential (Ecorr), corrosion current (Icorr), anode slope (ba) and cathode slope (bc). The Icorr of the LDH-V decreases, and the Ecorr moves to a negative direction, after the intercalation of the vanadate anion. Moreover, the value of bc becomes higher, indicating that the vanadate anion as a cathodic inhibitor inhibited the corrosion process on AA2024 [42]. The Ecorr of LDH-V/SG-Ce film added with double corrosion inhibitors increases significantly to −0.554 V, and the slope of the polarization curve in the anode area shifts, indicating that Ce3+ acts on the AA2024 surface in the form of an anodic corrosion inhibitor [43]. The Icorr reaches the minimum value, which is nearly two orders of magnitude lower than that of the AA2024 matrix. This is due to the sealing effect of silane film on LDH film, which prevents the corrosion solution from penetrating the film. The products formed by two types of corrosion inhibitors on the surface of AA2024 prevent the corrosion solution from making contact with the metal surface. The synergistic effect of the Ce3+ anode type and vanadate anion cathode type inhibitors inhibited corrosion.
EIS measurement was used to investigate the anticorrosion performance of the samples exposed in 3.5 wt.% NaCl solution. EIS data are shown as both Nyquist and Bode impedance plots, as presented in Figure 5a,b, respectively. Three relaxation time constants can be observed in the Bode plot of Figure 5b: (i) high-frequency range (103–105 Hz) is associated with the presence of sol–gel coating at the interface between coating and corrosive solution; (ii) intermediate-frequency range (100–102 Hz) is associated with the presence of SG/LDH layer; (iii) low-frequency range (10−2 Hz) is related to corrosion activity [28]. The capacitive arc radius of the LDH-V/SG-Ce is the largest, meaning it has the best corrosion resistance. The higher the impedance modulus in the low-frequency region, the better the corrosion resistance of the coating [19]. The highest impedance modulus at a low frequency of LDH-V/SG-Ce, which is nearly an order of magnitude higher than the LDH film, also indicates this point. This is due to the physical barrier effect formed by the good combination of the sol–gel film and the LDH film.
It is worth noting that the capacitive arc radius of the LDH-V/SG-Ce sample is significantly increased and the low-frequency impedance modulus is stable at taller than 105 Ω·cm2 after immersion in 3.5 wt.% NaCl solution for 2 and 14 days, indicating that corrosion resistance becomes stronger with the extension of immersion time. This is related to the release of corrosion inhibitors of Ce3+ and vanadate anion during immersion. At the early stage of immersion (2 days), vanadate ions are released and adsorbed on the surface of the substrate at the most corrosion-prone alloy phase position [44]. With extended immersion time, Ce ions reach the substrate surface with the corrosive solution and form a Ce oxide film to prevent the corrosive solution from corroding the substrate [45].
The electrical equivalent circuits (EEC) shown in Figure 6 are used to fit the EIS results. Figure 6a–c show the EEC of LDH-N, LDH-V and LDH-V/SG-Ce samples, respectively. Table 2 lists the key parameters for EEC calculation. Rs, Rsg, Rct, R1 and R2 represent solution resistance, silane film resistance, adsorption film of vanadate anion resistance, oxide of LDH film resistance and charge transfer resistance, respectively [46,47]. CPEsg, CPE2, CPE1 and CPEdl represent SG film capacitance, adsorption film capacitance, LDH film capacitance and electric double layer capacitance, respectively. Obviously, the highest Rct and lowest CPEdl indicate that the LDH-V/SG-Ce sample has excellent corrosion resistance.

4. Discussion

As described in Figure 7, the corrosion resistance mechanism of the composite coating can be divided into the following three points: (i) After the hydrolysis of the sol–gel film, a large number of silane alcohol groups are generated. These groups combine with the metal hydroxide of the LDH film during the curing process to form covalent bonds of Si-O-Si and Si-O-Me, making the sol–gel layer closely combine with the LDH film [48]. (ii) In the corrosion process of an aluminum alloy, aluminum spontaneously oxidizes to form an oxide film, which creates a local weak acidic environment. The aluminum alloy AA2024 contains a variety of alloying elements, resulting in an uneven microstructure. It is composed of multiple intermetallic phases (IMPs), such as CuAl2 and ZnAl2. In addition, these areas lack protective oxide film and are prone to local corrosion and intergranular corrosion. Vanadate anion, in the form of V2O74−, inhibits the adsorption of oxygen at these sites, thus inhibiting the redox reaction and hindering corrosion with the cathodic corrosion inhibitor [42,47,49]. (iii) During the corrosion process, Ce3+ is partially oxidized to Ce4+ and attaches to the aluminum alloy substrate in the form of Ce2O3/Ce(OH)3 or CeO2/Ce(OH)4 to prevent further corrosion [45,50,51,52]. Eventually, the synergistic effect of the two inhibitors together inhibits the occurrence of corrosion.

5. Conclusions

In summary, the duplex coating system (LDH-V/SG-Ce) consisting of vanadate-intercalated layered double hydroxide (LDH) and cerium-doped sol–gel (SG) system has been demonstrated to be useful for the active anticorrosion of an aluminum alloy. The ZnAl-LDH film was grown in situ on an aluminum alloy surface using a hydrothermal method, intercalated with V2O74− anions as corrosion inhibitors, and sealed with a Ce (III)-doped silane coating using a sol–gel technique. Microscopic morphology and composition tests revealed the LDH layer to have many micropore defects, and flower cluster protrusions on the surface were completely coated by a SG-Ce film. On the other hand, the penetration of the sol–gel layer into the LDH layer greatly enhances the binding force. GDOES tests showed that the thickness of the composite coating was 3–4 μm and that two inhibitors were successfully loaded. EIS measurements showed that the impedance modulus of the LDH/SG coating increased by one order of magnitude after being exposed to a 3.5 wt.% NaCl solution for 14 days, indicating that the release of the corrosion inhibitor forms a new film on the surface of the substrate, and effectively improves the composite corrosion resistance. The polarization curve indicates that the corrosion protection mechanism of AA2024 by composite coating may come from the synergistic effect of the anode corrosion inhibitor (Ce) and cathode corrosion inhibitor (V2O74−). Furthermore, the corrosion current density of the bi-layer system was reduced to 1.92 × 10−8 A/cm2 in the presence of corrosion inhibitors. The composite coating system effectively implemented the function of active corrosion protection, and provided a new idea for a multi-layer corrosion protection system.

Author Contributions

Conceptualization, Y.Z.; methodology, Y.Z., K.W. and X.Z.; validation, Z.Z., W.K. and Y.Y.; formal analysis, K.W. and X.Z.; investigation, K.W. and X.Z.; resources, Y.Z.; data curation, Y.Z.; writing—original draft preparation, K.W. and X.Z.; writing—review and editing, W.K., Z.Z., Y.Y. and Y.Z; supervision, Y.Z.; funding acquisition, Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Beijing Municipality, grant numbers 2182017 and 2202017.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zou, Y.; Liu, Q.; Jia, Z.; Xing, Y.; Ding, L.; Wang, X. The intergranular corrosion behavior of 6000-series alloys with different Mg/Si and Cu content. Appl. Surf. Sci. 2017, 405, 489–496. [Google Scholar] [CrossRef]
  2. Lee, W.-S.; Liu, M.-H. Effects of directional grain structure on impact properties and dislocation substructure of 6061-T6 aluminium alloy. Mater. Sci. Technol. 2013, 30, 1719–1727. [Google Scholar] [CrossRef]
  3. Quevedo, M.C.; Galicia, G.; Mayen-Mondragon, R.; Llongueras, J.G. Role of turbulent flow seawater in the corrosion enhancement of an Al–Zn–Mg alloy: An electrochemical impedance spectroscopy (EIS) analysis of oxygen reduction reaction (ORR). J. Mater. Res. Technol. 2018, 7, 149–157. [Google Scholar] [CrossRef]
  4. Elabar, D.; La Monica, G.; Santamaria, M.; Di Quarto, F.; Skeldon, P.; Thompson, G. Anodizing of aluminium and AA 2024-T3 alloy in chromic acid: Effects of sulphate on film growth. Surf. Coatings Technol. 2017, 309, 480–489. [Google Scholar] [CrossRef]
  5. del Olmo, R.; Mohedano, M.; Matykina, E.; Arrabal, R. Permanganate loaded Ca-Al-LDH coating for active corrosion protection of 2024-T3 alloy. Corros. Sci. 2022, 198, 110144. [Google Scholar] [CrossRef]
  6. Du, J.; Wang, Z.; Wei, Z.; Yao, J.; Song, H. An environmental friendly self-healing coating with Silane/Ce-ZSM-5 zeolite structure for corrosion protection of aluminum alloy. Surf. Coat. Technol. 2022, 436, 128290. [Google Scholar] [CrossRef]
  7. Mohammadi, I.; Shahrabi, T.; Mahdavian, M.; Izadi, M. A novel corrosion inhibitive system comprising Zn-Al LDH and hybrid sol-gel silane nanocomposite coating for AA2024-T3. J. Alloy. Compd. 2022, 909, 164755. [Google Scholar] [CrossRef]
  8. Guo, F.; Cao, Y.; Wang, K.; Zhang, P.; Cui, Y.; Hu, Z.; Xie, Z. Effect of the Anodizing Temperature on Microstructure and Tribological Properties of 6061 Aluminum Alloy Anodic Oxide Films. Coatings 2022, 12, 314. [Google Scholar] [CrossRef]
  9. Liu, N.; Jiang, B.; Ji, Z.; Cui, P.; Wang, Y.; Song, H. Salt spray corrosion and electrochemical corrosion property of anodic oxide films on ADC12 aluminum alloy. Mod. Phys. Lett. B 2021, 36, 2150571. [Google Scholar] [CrossRef]
  10. Wang, Y.; Yuan, Z.; Zhang, Z.; Xin, Y.; Fujita, T.; Wei, Y. In situ one-step fabrication of superhydrophobic layered double hydroxide on Al alloys for anti-corrosion. Appl. Surf. Sci. 2022, 593, 2150571. [Google Scholar] [CrossRef]
  11. Caporali, S.; Fossati, A.; Lavacchi, A.; Perissi, I.; Tolstogouzov, A.; Bardi, U. Aluminium electroplated from ionic liquids as protective coating against steel corrosion. Corros. Sci. 2022, 50, 534–539. [Google Scholar] [CrossRef]
  12. Han, X.; Li, N.; Wu, B.; Li, D.; Pan, Q.; Wang, R. Microstructural characterization and corrosion resistance evaluation of chromate-phosphate/water-soluble resin composite conversion coating on Al surfaces. Prog. Org. Coat. 2022, 173, 107205. [Google Scholar] [CrossRef]
  13. Gad, S.M.; Emad, S.; Zhou, X.; Lyon, S.B.; Jin, Z.; Dagwa, I.M. Effectiveness of strontium zinc phosphosilicate on the corrosion protection of AA2198-T851 aluminium alloy in sodium chloride solution. Corros. Sci. 2022, 209, 110725. [Google Scholar] [CrossRef]
  14. Pancrecious, J.K.; Vineetha, S.; Bill, U.S.; Gowd, E.B.; Rajan, T. Ni-Al polyvanadate layered double hydroxide with nanoceria decoration for enhanced corrosion protection of aluminium alloy. Appl. Clay Sci. 2021, 211, 106199. [Google Scholar] [CrossRef]
  15. Tedim, J.; Bastos, A.; Kallip, S.; Zheludkevich, M.; Ferreira, M. Corrosion protection of AA2024-T3 by LDH conversion films. Analysis of SVET results. Electrochim. Acta 2016, 210, 215–224. [Google Scholar] [CrossRef] [Green Version]
  16. Pancrecious, J.K.; Gopika, P.; Suja, P.; Ulaeto, S.B.; Gowd, E.B.; Rajan, T. Role of layered double hydroxide in enhancing wear and corrosion performance of self-lubricating hydrophobic Ni-B composite coatings on aluminium alloy. Colloids Surf. A Physicochem. Eng. Asp. 2021, 634, 128017. [Google Scholar] [CrossRef]
  17. Saleh, T.A.; Haruna, K.; Nur, M.M.; Alharbi, B. Synthesis of Amine Grafted Poly (Acrylic-Maleic) as an efficient inhibitor against stainless steel corrosion in a highly saline medium. Prog. Org. Coat. 2022, 170, 106974. [Google Scholar] [CrossRef]
  18. Lin, K.; Luo, X.; Pan, X.; Zhang, C.; Liu, Y. Enhanced Corrosion Resistance of LiAl-Layered Double Hydroxide (LDH) Coating Modified with a Schiff Base Salt on Aluminum Alloy by One Step in-Situ Synthesis at Low Temperature. Appl. Surf. Sci. 2019, 463, 1085–1096. [Google Scholar] [CrossRef]
  19. Liu, J.; Shi, H.; Yu, M.; Du, R.; Rong, G.; Li, S. Effect of divalent metal ions on durability and anticorrosion performance of layered double hydroxides on anodized 2A12 aluminum alloy. Surf. Coat. Technol. 2019, 373, 56–64. [Google Scholar] [CrossRef]
  20. Shchukin, D.G. Container-based multifunctional self-healing polymer coatings. Polym. Chem. 2013, 4, 4871–4877. [Google Scholar] [CrossRef]
  21. Rani, K.M.; Palanisamy, P.N. Synthesis and Characterization of Mesoporous, Nanostructured Zinc Aluminium Carbonate Layered Double Hydroxides (ZAC-LDHs) and Its Calcined Product (CZA-LDH). J. Inorg. Organomet. Polym. Mater. 2018, 28, 1127–1135. [Google Scholar] [CrossRef]
  22. Vieira, D.E.L.; Salak, A.N.; Ferreira, M.G.S.; Vieira, J.M.; Brett, C.M.A. Ce-substituted Mg-Al layered double hydroxides to prolong the corrosion protection lifetime of aluminium alloys. Appl. Surf. Sci. 2021, 573, 151527. [Google Scholar] [CrossRef]
  23. Liu, G.; Lu, X.; Zhang, X.; Zhang, T.; Wang, F. Improvement of corrosion resistance of PEO coatings on Al alloy by formation of ZnAl layered double hydroxide. Surf. Coat. Technol. 2022, 441, 128528. [Google Scholar] [CrossRef]
  24. Ayemi, G.; Marcelin, S.; Thérias, S.; Leroux, F.; Normand, B. Synergy effect between layer double hydroxide (LDH) and EDDS for corrosion inhibition of carbon steel. Appl. Clay Sci. 2022, 222, 106497. [Google Scholar] [CrossRef]
  25. Li, J.; Lin, K.; Luo, X.; Zhang, H.; Cheng, Y.F.; Li, X.; Liu, Y. Enhanced corrosion protection property of Li-Al layered double hydroxides (LDHs) film modified by 2-guanidinosuccinic acid with excellent self-repairing and self-antibacterial properties. Appl. Surf. Sci. 2019, 480, 384–394. [Google Scholar] [CrossRef]
  26. Zhang, Y.; Liu, J.; Li, Y.; Yu, M.; Li, S.; Xue, B. Fabrication of inhibitor anion-intercalated layered double hydroxide host films on aluminum alloy 2024 and their anticorrosion properties. J. Coat. Technol. Res. 2015, 12, 293–302. [Google Scholar] [CrossRef]
  27. Zheludkevich, M.; Poznyak, S.; Rodrigues, L.; Raps, D.; Hack, T.; Dick, L.F.P.; Nunes, T.; Ferreira, M.G.S. Active protection coatings with layered double hydroxide nanocontainers of corrosion inhibitor. Corros. Sci. 2010, 52, 602–611. [Google Scholar] [CrossRef]
  28. Hao, L.; Yan, T.; Zhang, Y.; Zhao, X.; Lei, X.; Xu, S.; Zhang, F. Fabrication and anticorrosion properties of composite films of silica/layered double hydroxide. Surf. Coat. Technol. 2017, 326, 200–206. [Google Scholar] [CrossRef]
  29. del Olmo, R.; Tiringer, U.; Milošev, I.; Visser, P.; Arrabal, R.; Matykina, E.; Mol, J. Hybrid sol-gel coatings applied on anodized AA2024-T3 for active corrosion protection. Surf. Coat. Technol. 2021, 419, 127251. [Google Scholar] [CrossRef]
  30. Yasakau, K.; Kuznetsova, A.; Kallip, S.; Starykevich, M.; Tedim, J.; Ferreira, M.; Zheludkevich, M. A novel bilayer system comprising LDH conversion layer and sol-gel coating for active corrosion protection of AA2024. Corros. Sci. 2018, 143, 299–313. [Google Scholar] [CrossRef]
  31. Zhang, Y.; Li, Y.; Ren, Y.; Wang, H.; Chen, F. Double-doped LDH films on aluminum alloys for active protection. Mater. Lett. 2017, 192, 33–35. [Google Scholar] [CrossRef]
  32. Li, Y.; Li, S.; Zhang, Y.; Yu, M.; Liu, J. Fabrication of superhydrophobic layered double hydroxides films with different metal cations on anodized aluminum 2198 alloy. Mater. Lett. 2015, 142, 137–140. [Google Scholar] [CrossRef]
  33. Smalenskaite, A.; Kaba, M.M.; Grigoraviciute-Puroniene, I.; Mikoliunaite, L.; Zarkov, A.; Ramanauskas, R.; Morkan, I.A.; Kareiva, A. Sol–Gel Synthesis and Characterization of Coatings of Mg-Al Layered Double Hydroxides. Materials 2019, 12, 3738. [Google Scholar] [CrossRef] [Green Version]
  34. Tedim, J.; Zheludkevich, M.; Bastos, A.; Salak, A.; Lisenkov, A.; Ferreira, M. Influence of preparation conditions of Layered Double Hydroxide conversion films on corrosion protection. Electrochim. Acta 2013, 117, 164–171. [Google Scholar] [CrossRef]
  35. Markova-Velichkova, M.; Iordanova, R.; Dimitriev, Y. Glass Formation in the V2O5-MoO3-ZnO System. Phys. Status Solidi C 2011, 8, 3159–3162. [Google Scholar] [CrossRef]
  36. Kim, J.; Wong, P.; Wong, K.; Sodhi, R.; Mitchell, K. Adsorption of BTSE and γ-GPS organosilanes on different microstructural regions of 7075-T6 aluminum alloy. Appl. Surf. Sci. 2007, 253, 3133–3143. [Google Scholar] [CrossRef]
  37. Yu, M.; Liu, Y.; Liu, J.; Li, S.; Xue, B.; Zhang, Y.; Yin, X. Effects of cerium salts on corrosion behaviors of Si–Zr hybrid sol–gel coatings. Chin. J. Aeronaut. 2015, 28, 600–608. [Google Scholar] [CrossRef] [Green Version]
  38. Al-Saadi, S.; Raman, R.S.; Panter, C. A Two-Step Silane Coating Incorporated with Quaternary Ammonium Silane for Mitigation of Microbial Corrosion of Mild Steel. ACS Omega 2021, 6, 16913–16923. [Google Scholar] [CrossRef]
  39. Park, E.S.; Ro, H.W.; Nguyen, C.V.; Jaffe, R.L.; Yoon, D.Y. Infrared Spectroscopy Study of Microstructures of Poly(silsesquioxane)s. Chem. Mater. 2008, 20, 1548–1554. [Google Scholar] [CrossRef]
  40. Bouali, A.C.; Serdechnova, M.; Yasakau, K.A.; Lutz, A.; Wiese, G.; Terryn, H.; Ferreira, M.G.S.; Zheludkevich, M.L. The Role of Cu-Based Intermetallic on the Direct Growth of a ZnAl LDH Film on AA2024. J. Electrochem. Soc. 2022, 169, 081501. [Google Scholar] [CrossRef]
  41. Zhang, G.; Wu, L.; Tang, A.; Ma, Y.; Song, G.L.; Zheng, D.; Jiang, B.; Atrens, A.; Pan, F. Active Corrosion Protection by a Smart Coating Based on a MgAl-Layered Double Hydroxide on a Cerium-Modified Plasma Electrolytic Oxidation Coating on Mg Alloy AZ31. Corros. Sci. 2018, 139, 370–382. [Google Scholar] [CrossRef] [Green Version]
  42. Iannuzzi, M.; Kovac, J.; Frankel, G. A study of the mechanisms of corrosion inhibition of AA2024-T3 by vanadates using the split cell technique. Electrochim. Acta 2007, 52, 4032–4042. [Google Scholar] [CrossRef] [Green Version]
  43. Lei, L.; Wang, X.; Tang, Q.; Chen, S.; Zhu, Z.; Xu, L. Surface characterization of growth process for cerium conversion coating on magnesium alloy and its anticorrosion mechanism. Surf. Interface Anal. 2014, 46, 556–563. [Google Scholar] [CrossRef]
  44. Hurley, B.L.; Qiu, S.; Buchheit, R.G. Raman Spectroscopy Characterization of Aqueous Vanadate Species Interaction with Aluminum Alloy 2024-T3 Surfaces. J. Electrochem. Soc. 2011, 158, C125–C131. [Google Scholar] [CrossRef] [Green Version]
  45. Lei, L.; Shi, J.; Wang, X.; Liu, D.; Xu, H. Microstructure and electrochemical behavior of cerium conversion coating modified with silane agent on magnesium substrates. Appl. Surf. Sci. 2016, 376, 161–171. [Google Scholar] [CrossRef]
  46. Ralston, K.D.; Young, T.L.; Buchheit, R.G. Electrochemical Evaluation of Constituent Intermetallics in Aluminum Alloy 2024-T3 Exposed to Aqueous Vanadate Inhibitors. J. Electrochem. Soc. 2009, 156, C135–C146. [Google Scholar] [CrossRef]
  47. Li, J.; Hurley, B.; Buchheit, R. Inhibition Performance Study of Vanadate on AA2024-T3 at High Temperature by SEM, FIB, Raman and XPS. J. Electrochem. Soc. 2015, 162, C219–C227. [Google Scholar] [CrossRef] [Green Version]
  48. Zhu, D.; van Ooij, W.J. Corrosion Protection of Metals by Water-Based Silane Mixtures of Bis-[Trimethoxysilylpropyl]Amine and Vinyltriacetoxysilane. Prog. Org. Coat 2004, 49, 42–53. [Google Scholar] [CrossRef]
  49. Kharitonov, D.S.; Örnek, C.; Claesson, P.M.; Sommertune, J.; Zharskii, I.M.; Kurilo, I.I.; Pan, J. Corrosion Inhibition of Aluminum Alloy AA6063-T5 by Vanadates: Microstructure Characterization and Corrosion Analysis. J. Electrochem. Soc. 2018, 165, C116–C126. [Google Scholar] [CrossRef] [Green Version]
  50. Liu, J.; Zhang, Y.; Yu, M.; Li, S.; Xue, B.; Yin, X. Influence of Embedded ZnAlCe-NO3- Layered Double Hydroxides on the Anticorrosion Properties of Sol-Gel Coatings for Aluminum Alloy. Prog. Org. Coat. 2015, 81, 93–100. [Google Scholar] [CrossRef]
  51. Rodič, P.; Milošev, I. Corrosion Inhibition of Pure Aluminium and Alloys AA2024-T3 and AA7075-T6 by Cerium(III) and Cerium(IV) Salts. J. Electrochem. Soc. 2015, 163, C85–C93. [Google Scholar] [CrossRef]
  52. Hill, J.-A.; Markley, T.; Forsyth, M.; Howlett, P.C.; Hinton, B.R. Corrosion inhibition of 7000 series aluminium alloys with cerium diphenyl phosphate. J. Alloy. Compd. 2011, 509, 1683–1690. [Google Scholar] [CrossRef]
Materials 16 00775 g001 550
Figure 1. SEM images of (a,b) LDH-N film, (c) LDH-V/SG-Ce film (one layer of SG, red dotted circle for EDS detection) and (d) LDH-V/SG-Ce film (two layers of SG).
Figure 1. SEM images of (a,b) LDH-N film, (c) LDH-V/SG-Ce film (one layer of SG, red dotted circle for EDS detection) and (d) LDH-V/SG-Ce film (two layers of SG).
Materials 16 00775 g001
Materials 16 00775 g002 550

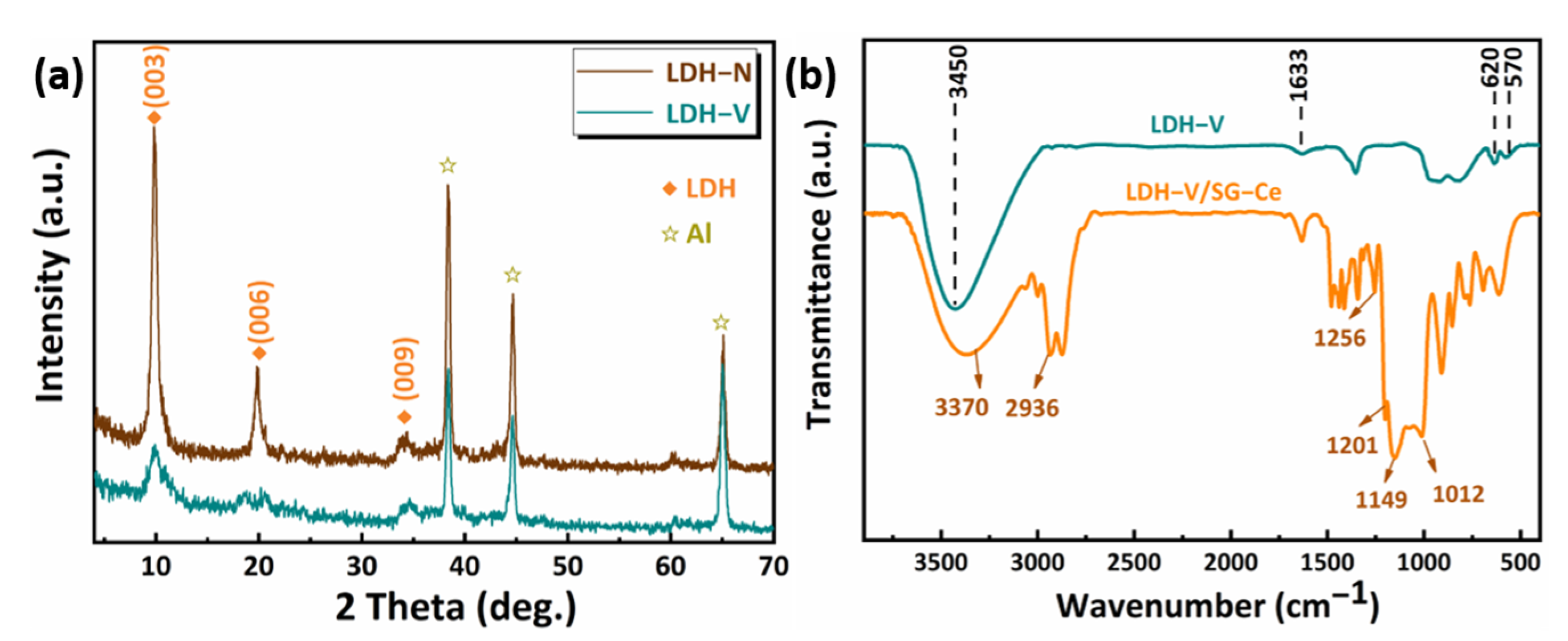

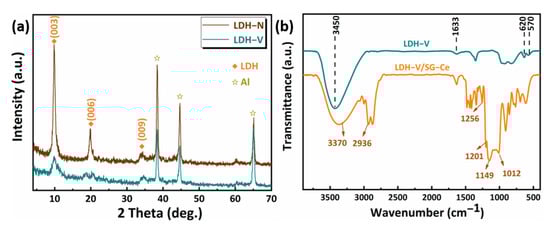

Figure 2. (a) XRD patterns of LDH-N and LDH-V films; (b) FTIR spectra of LDH-V and LDH-V/SG-Ce films.
Figure 2. (a) XRD patterns of LDH-N and LDH-V films; (b) FTIR spectra of LDH-V and LDH-V/SG-Ce films.
Materials 16 00775 g002
Materials 16 00775 g003 550

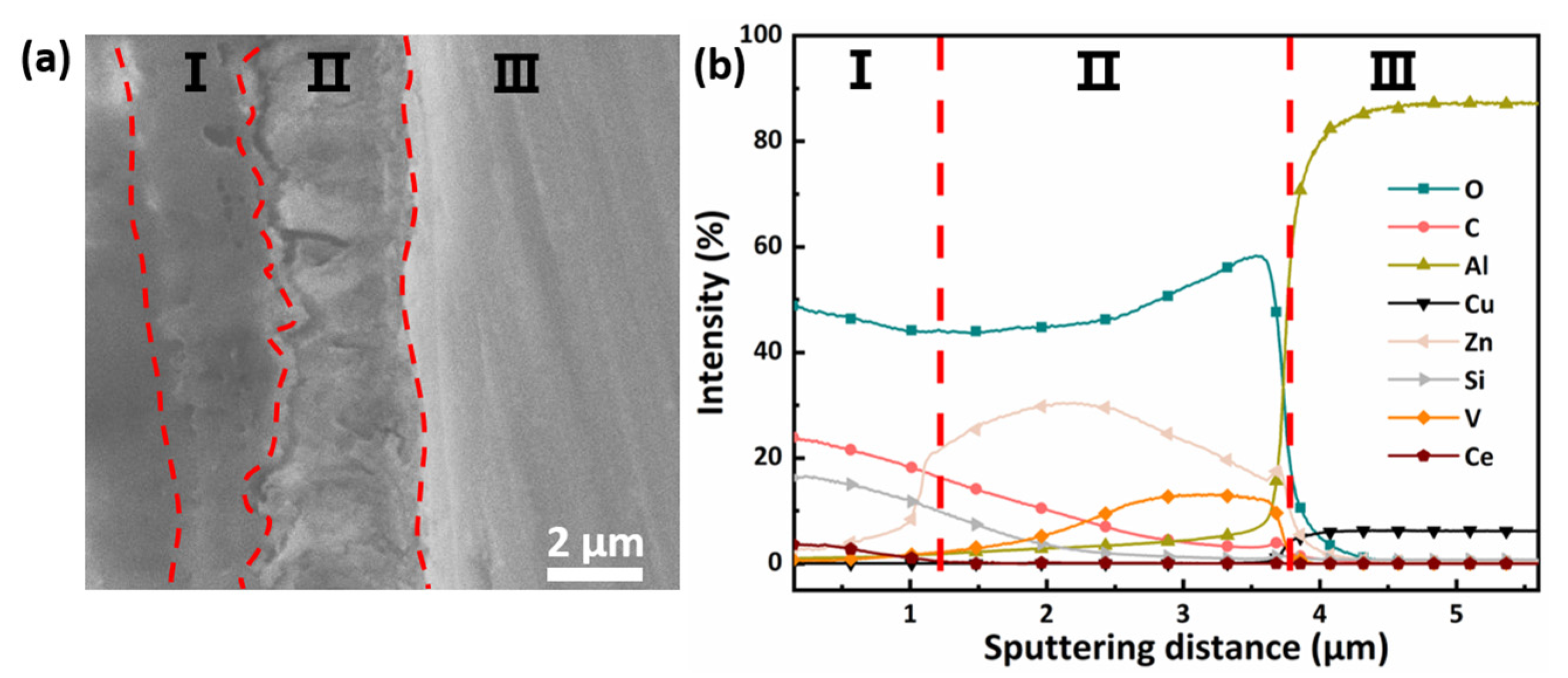

Figure 3. (a) Cross-section SEM image and (b) GDOES depth profile of LDH-V/SG-Ce (I: SG film; II: LDH film; III: AA2024 matrix).
Figure 3. (a) Cross-section SEM image and (b) GDOES depth profile of LDH-V/SG-Ce (I: SG film; II: LDH film; III: AA2024 matrix).
Materials 16 00775 g003
Materials 16 00775 g004 550

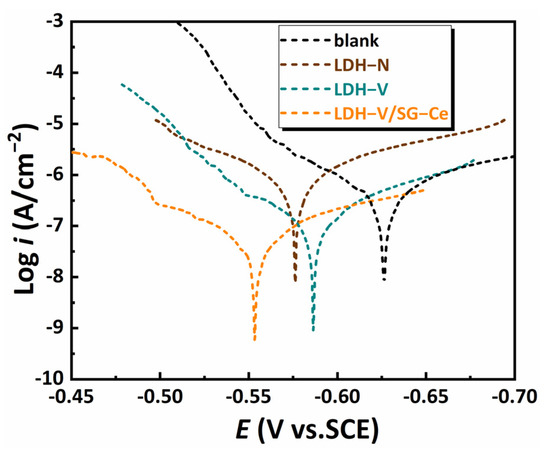

Figure 4. Potentiodynamic polarization curves for samples exposed in 3.5 wt.% NaCl solution.
Figure 4. Potentiodynamic polarization curves for samples exposed in 3.5 wt.% NaCl solution.
Materials 16 00775 g004
Materials 16 00775 g005 550

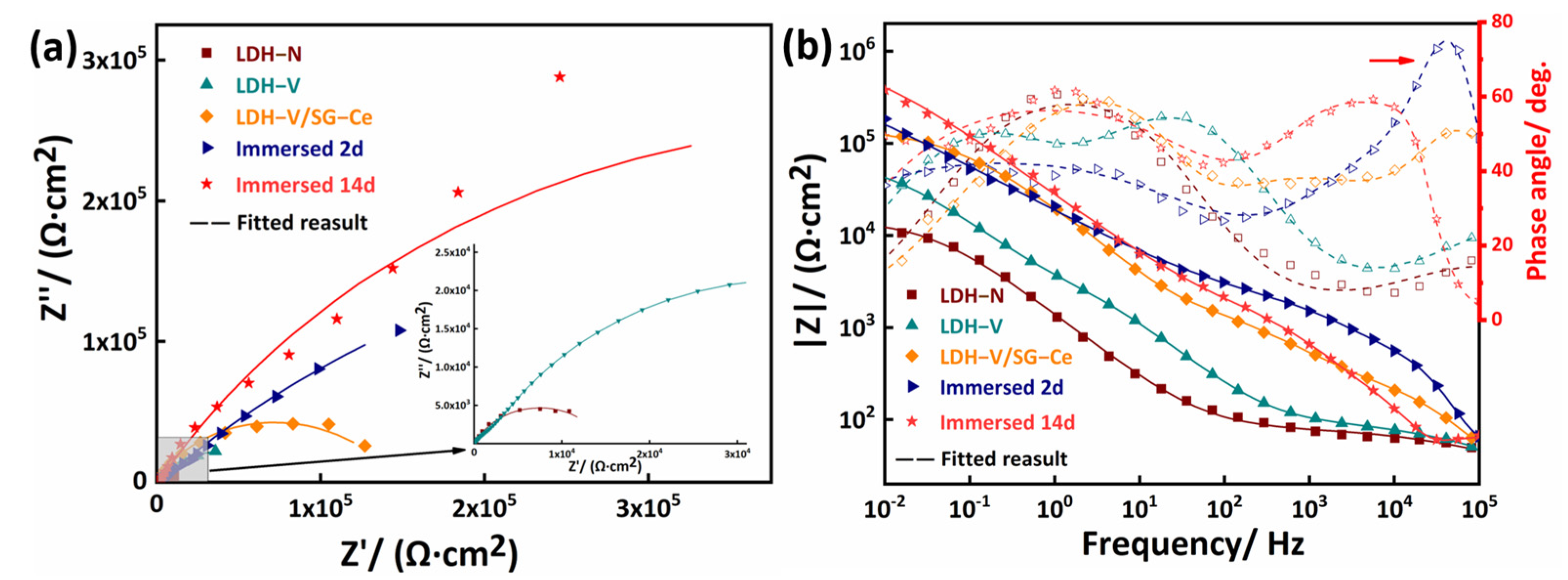

Figure 5. (a) Nyquist plots and (b) Bode plots of LDH and LDH/SG samples exposed in 3.5 wt.% NaCl solution for 2 days and 14 days (gray part in (a) is a partial enlargement).
Figure 5. (a) Nyquist plots and (b) Bode plots of LDH and LDH/SG samples exposed in 3.5 wt.% NaCl solution for 2 days and 14 days (gray part in (a) is a partial enlargement).
Materials 16 00775 g005
Materials 16 00775 g006 550

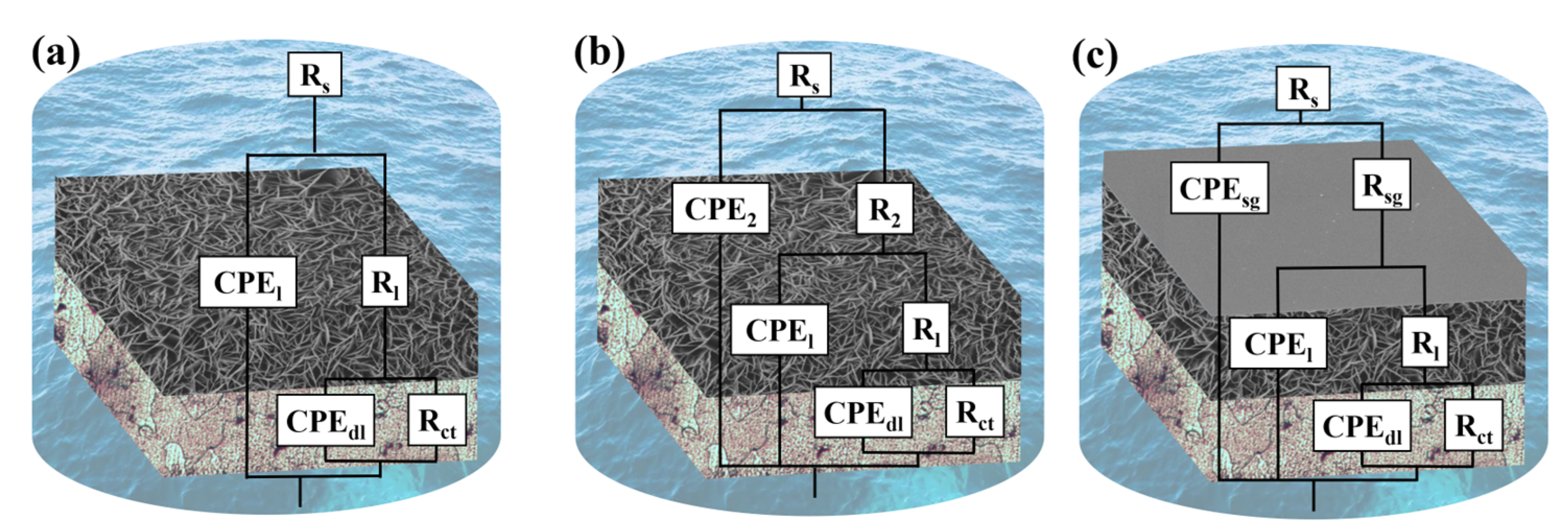

Figure 6. Equivalent circuits employed for fitting the impedance spectra of LDH-N coated system (a), LDH-V coated system (b) and LDH-V/SG-Ce coated system (c).
Figure 6. Equivalent circuits employed for fitting the impedance spectra of LDH-N coated system (a), LDH-V coated system (b) and LDH-V/SG-Ce coated system (c).
Materials 16 00775 g006
Materials 16 00775 g007 550

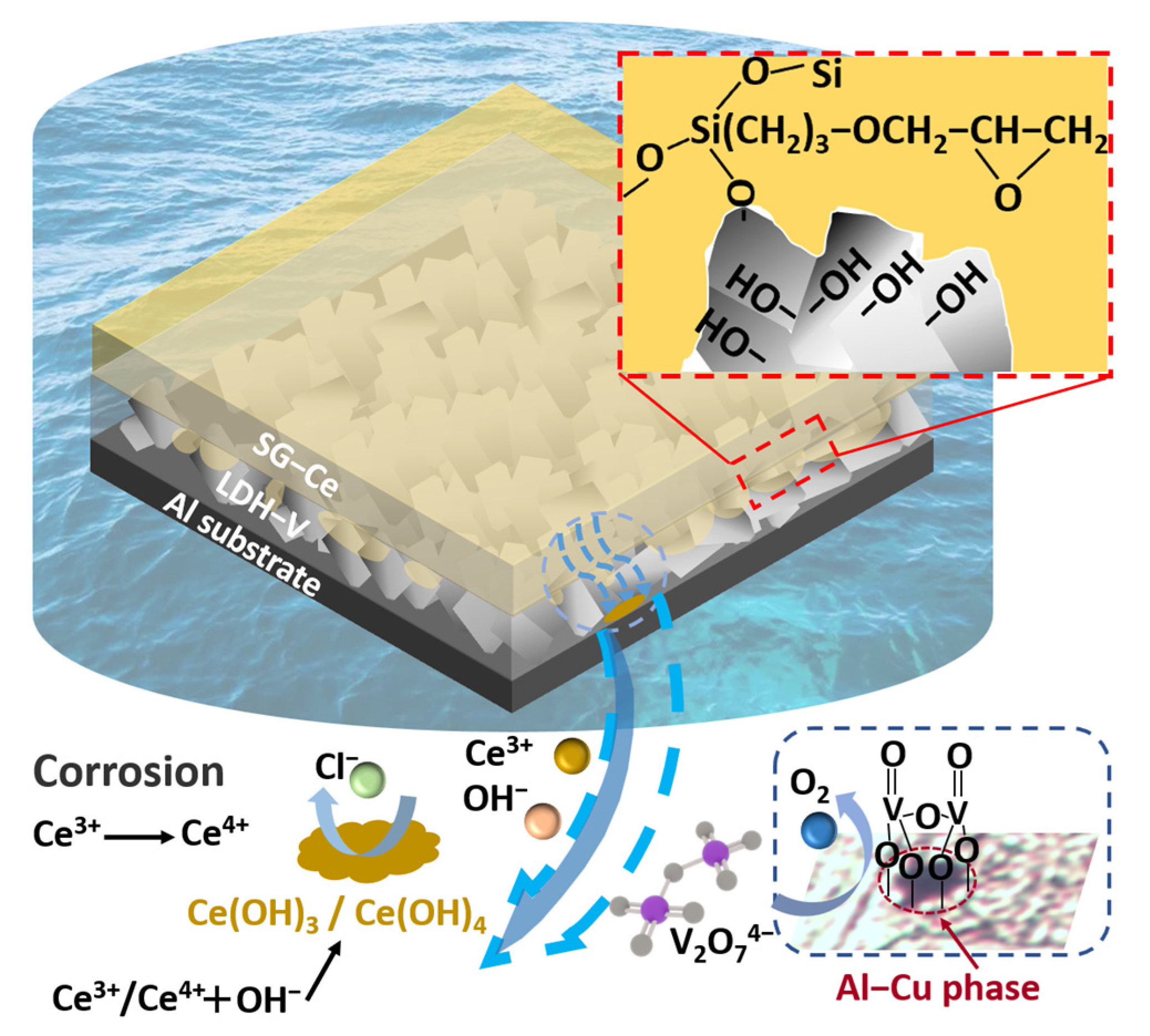

Figure 7. Schematic representation of coating formation mechanism of LDH/SG composite film.
Figure 7. Schematic representation of coating formation mechanism of LDH/SG composite film.
Materials 16 00775 g007
Table
Table 1. Parameters of potentiodynamic polarization curves for samples exposed in 3.5 wt.% NaCl solution.
Table 1. Parameters of potentiodynamic polarization curves for samples exposed in 3.5 wt.% NaCl solution.
Title 1Ecorr (V)Icorr (A/cm2)ba/(V/dec)bc/(V/dec)
Blank−0.6241.457 × 10−60.2460.324
LDH-N−0.5763.570 × 10−70.2630.279
LDH-V−0.5870.795 × 10−70.2270.235
LDH-V/SG-Ce−0.5541.920 × 10−80.3420.348
Table
Table 2. EIS fitting parameters of the coating systems.
Table 2. EIS fitting parameters of the coating systems.
SampleLDH-NLDH-VLDH-V/SG-CeImmersing 2 DaysImmersing 14 Days
Rs/Ω cm226.427.3428.1860.7767.76
CPEsg/μF cm−2//3.63 × 10−84.83 × 10−106.63 × 10−10
Rsg/Ω cm2//166.10355.0184.59
CPE2/μF cm−2/2.89 × 10−5///
R2/Ω cm2/5125///
CPEl/μF cm−21.92 × 10−51.68 × 10−51.05 × 10−57.19 × 10−71.26 × 10−6
Rl/Ω cm253.8692.01266617431851
CPEdl/μF cm−21.70 × 10−45.63 × 10−53.43 × 10−62.14 × 10−59.46 × 10−6
Rct/Ω cm214,95169,257146,150853,230889,010
