Stability Modification of Dye-sensitized Solar Cells by Ruthenium Dyes Embedded on Eggshell Membranes

by
Naoki Tanifuji
1,*,
Takeshi Shimizu
1,*,
Akihiro Shimizu
2,
Kaho Shimizu
2,
Kizuna Abe
2,
Miki Tanaka
2,
Heng Wang
3 and
Hirofumi Yoshikawa
4,*
1
Chemistry and Biochemistry Division, Department of Integrated Engineering, National Institute of Technology, Yonago College, 4448 Hikona-cho, Yonago 683-8502, Tottori, Japan
2
Department of Materials Science, National Institute of Technology, Yonago College, Yonago 683-8502, Tottori, Japan
3
School of Material and Chemical Engineering, Zhengzhou University of Light Industry, Zhengzhou 450002, China
4
School of Engineering, Kwansei Gakuin University, 2-1 Gakuen, Sanda 669-1337, Hyogo, Japan
*
Authors to whom correspondence should be addressed.
Materials 2023, 16(20), 6654; https://doi.org/10.3390/ma16206654
Submission received: 1 September 2023 / Revised: 22 September 2023 / Accepted: 25 September 2023 / Published: 11 October 2023
(This article belongs to the Special Issue Science and Technology of Advanced Materials Applied to Society: Including Collections from the Latest Papers of KRIS 2023)
Browse Figures
Versions Notes

Abstract

:
Dye-sensitized solar cells (DSSCs) have been one of the most promising technologies to convert sunlight into electricity repeatedly based on the mechanism that dyes inject/accept electron into the metal oxides/from redox mediator. Specifically, N719 ([RuL2(NCS)2], L: 4,4′-dicarboxy-2,2′-bipyridine), immobilized on TiO2 through the interaction between its ligands (-COO− and -NCS) and the oxygen on the TiO2 surface, has been used as a conventional DSSC dye with high voltage. Nevertheless, -NCS ligands have been removed from Ru2+ in N719 due to UV irradiation and exchanged with H2O or OH− in electrolyte, resulting in voltage drop. In this work, we developed the first DSSC using the N719-adsorbed Eggshell (ESM)-TiO2 composite to maintain the immobilization of N719 on TiO2 through electrostatic interaction between the protein of ESM and N719. The DSSC using the composite maintained the voltage even after 12 h light irradiation, although the voltage of DSSC without ESM dropped drastically. It means that the ESM contributed to stable photovoltaic performances of DSSCs through the protection of NCS ligands of N719.

Graphical Abstract

1. Introduction

Renewable energies, such as solar, wind, wave and hydro power, have attracted much attention as the solution to increasing energy and environmental concerns [1]. Among them, dye-sensitized solar cells (DSSCs), one of the most promising technologies to convert sunlight into electricity, have been intensely developed due to their lower cost and easier fabrication [2,3]. The typical DSSC, which is composed of a working electrode with dye chemically attached to anatase-TiO2, a counter electrode, and electrolyte solution including redox mediator I−/I3−, operates under the following principles [4]: First, the dyes inject electrons into the conduction band of anatase-TiO2 upon their excitation by incident light. Second, the injected electrons are transported to the counter electrode through a wire, and then the redox mediator I3− is reduced to I− on the counter electrode. Finally, the excited dye then returns to its original state by accepting electrons from the redox mediator I− on the working electrode. As mentioned above, the metal oxide layers, such as anatase-TiO2 and ZnO, play an important role in improving the performance of DSSCs by immobilizing dyes through the interaction between the ligands of dyes and oxygen on the metal oxides [5,6,7]. In the conventional DSSCs, N719 ([RuL2(NCS)2]•2TBA (L = 2,2′-bipyridyl-4-4,4′-dicarboxylic acid; TBA = tetra-n-butylammonium) [8,9] have been used as dyes with the ligands (-COO− and -NCS) interacting with oxygen on the surface of TiO2 and acting as modulators of the voltages of DSSCs. [10,11,12]. The -COO− group, the major linker to oxygen on TiO2 surface, injects electron into the conduction band of TiO2 from N719 and elevates the lowest unoccupied molecular orbital (LUMO) energy of N719 [13,14]. The -NCS group, which is the minor linker to the TiO2 surface, retrieves electron from a redox mediator and lowers the highest occupied molecular orbital (HOMO) energy [15,16]. This HOMO-LUMO gap modulation determines the absorption wavelength between 300 and 800 nm, resulting in the DSSCs exhibiting a high voltage of 0.7 V [4]. However, the -NCS ligand has been removed from Ru2+ in N719 by UV irradiation and exchanged with H2O or OH− in electrolyte, resulting in a drop in voltage and photocurrent density [17,18,19,20] (Figure 1). A low-cost and simple solution has also been required for wider application of DSSCs. This suggests that the problem in DSSC technology can be solved by a low-cost system to protect the -NCS ligand of N719.
As a solution to the problem, we focused on the structure of eggshell membrane (ESM). ESM, which has been generally discarded as an unwanted byproduct of egg consumption worldwide, is a waste product with enormous energy potential [21]. ESM has the hydrophobic structure composition of collagen-like proteins with organic substituents, such as hydroxyl, amine and sulfonic groups [22], resulting in ESM being applied to fuel cells as an insoluble proton-conducting membrane through their substituents [21,23,24]. Recently, ESMs have been utilized as low-cost and available biotemplates for the preparation of inorganic nanomaterials [23,24,25,26,27] and adsorbents for the removal of water pollutants [28,29], due to their good adsorption of organic materials and metal ions [30,31] into the hydrophobic cavity. These applications contribute as a simultaneous solution to environmental issues and decrease in waste [30]. Furthermore, it is expected that ESM can serve as a functional material to immobilize dyes in DSSCs, because of its adsorption ability in hydrophobic cavity. As demonstrated in a recent report on solar cells containing biomaterials [32] such as mycobacterial protein (conversion efficiency η: 1%) [33], bamboo (η: 5.4%) [34], chitosan (η: 1.8%) [35] and spinach (retention of max current density after irradiation: 77.78%) [36], the use of biomaterials may be critical to the development of a new class of sustainable and greener solar cells.
In this work, for the first time, we report the adsorption of N719 ruthenium dyes on ESMs and the results for the application of ESMs to DSSC (Figure 2). We compare the photovoltaic performance and stability to those of a DSSC without ESMs. Based on the results, we discuss the role of ESMs in preventing the degradation of N719 dyes after long irradiation.

2. Materials and Methods

2.1. Materials

All materials were used without further purification. N719, ethanol, 4-t-butyl phenol, I2, LiI and acetonitrile were purchased from Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan). Aqueous titanium oxide precursor solution was obtained from Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan) and Peccell Technologies, Inc. (DSSC experiment kit, PEC-TOM02, Yokohama, Japan). FTO-coated glass slides were purchased from Nishinoda Denko Co., Ltd. (Osaka, Japan).

2.2. Preparation

2.2.1. EMS

The inner ESM was obtained from a gently broken commercial chicken egg, washed with distilled water and dried at 25 °C in the air for 24 h. The ESM was ground into powder in an agate mortar.

2.2.2. N719-Adsorbed ESM-TiO2 Composite

ESM powder (400 mg) was soaked in a solution of water/ethanol (50:50 vol%), including 1 mg of N719. Then, the residue, N719-adsorbed ESM, was obtained and dried at 25 °C. To achieve a strong interaction between the TiO2 and N719-adsorbed ESM, we performed an in situ synthesis of anatase-TiO2 by using the sol-gel method [37,38,39]. N719-adsorbed ESM-TiO2 composite was obtained by adding N719-adsorbed ESM to the aqueous titanium oxide precursor solution. The composite was pasted onto the FTO substrate several times and heated at 60 °C for a few hours. This substrate was used as the working electrode of the DSSC (the loading area: 1 cm × 1 cm).

2.3. Characterization

2.3.1. Scanning Electron Microscopy (SEM) with Energy Dispersion X-ray Spectroscopy (EDX)

SEM was performed on JSM-6610 (JEOL, Tokyo, Japan) to observe the morphology of the samples. The samples (ESM and N719-adsorbed ESM-TiO2 composite) on carbon tapes were sputtered with gold in vacuo three times for 2 min. SEM observation was conducted under high vacuum at a voltage of 15 kV and a working distance of 10 mm in secondary electron mode.
EDX was performed to reveal the distribution of the components, N719 and TiO2, and absence of eggshell on ESM by calculation of the fluorescence X-ray yield derived from Ru, Ti and Ca. The observation was conducted under the same conditions as those of SEM observations in the EDX with a silicon drift detector (JED-2300, JEOL).

2.3.2. X-ray Diffraction (XRD)

The XRD measurement was performed to confirm the form of TiO2 in N719-adsorbed ESM. The XRD pattern of N719-adsorbed ESM was recorded in the 2θ angles of 5–60° on a Rigaku MiniFlex600 (Rigaku, Tokyo, Japan) diffractometer using a Cu-target tube at a voltage of 40 kV, a current of 15 mA and a step scan of 0.02°. The intensities were averaged by calculating four times.

2.3.3. UV-Vis Spectroscopy

Diffuse-reflectance ultraviolet-visible (UV-vis) spectroscopy was performed to confirm the composition of N719-adsorbed ESM-TiO2 composite. The spectra of ESM powder, anatase-TiO2, N719-adsorbed ESM and N719-adsorbed ESM-TiO2 composite were obtained using UV-3600 UV-vis-NIR spectrophotometer (Shimadzu, Kyoto, Japan) in air.

2.4. Fabrication of DSSCs

N719-adsorbed ESM-TiO2 composite working electrode and the Pt-sputtered counter FTO electrode were placed face-to-face and assembled into C1. The electrolyte solution was composed of 0.5 M 4-t-butyl phenol, 0.05 M I2 and 0.1 M LiI in acetonitrile. For control experiments, we prepared the DSSC-designated C2 by using the N719-TiO2 composite, made by the same in situ sol-gel method without ESM, working electrode (the loading area: 2 cm × 4 cm).

2.5. The Photovoltaic Performance Measurement

The photocurrent density (J) versus voltage (V) characteristics for C1 and C2 were measured before and after 12 h of irradiation by using an IVP-2010 (ASAHI Spectra, Tokyo, Japan) under simulated sunlight from a solar simulator (irradiation unevenness of location: <±2%; HAL-320W, ASAHI Spectra). The light intensity, AM1.5 (100 mW cm−2), was calibrated with a pyranometer (H9958-50; ASAHI Spectra).

3. Results and Discussion

Figure 3a,b shows an SEM image of the surface of ESM powder. It was revealed that the ESM powder was a spherical aggregate composed of thin fiber. This is because collagen, interwoven and coalescing fiber in ESM was cut by grind in the mortar. Additionally, no Ca ion was detected in the ESM (Figure 3c,d and Figure S1a–d, Table 1, and Tables S1–S4). According to EDX mapping (Figure 3e,f), Ru and Ti were homogeneously detected on the surface of N719-adsorbed ESM-TiO2 composite, indicating that N719 and TiO2 were distributed on the surface of the ESM fibers homogeneously. Moreover, Figure 4a shows an XRD pattern of the N719-adsorbed ESM-TiO2 composite. The peaks were assigned to (101), (004), (200), (105) and (211) of anatase TiO2 (quasi-stable phase) [38], although a part of TiO2 forms a rutile-form (most stable phase). In addition, a strong absorption occurred at 325 and 525 nm in the UV-Vis spectroscopic observation of N719-absorbed ESM-TiO2 composite (Figure 4b). These absorption peaks were assigned as superposition of TiO2 and the phenyl groups of their amino acids in ESM (300 nm), N719 (380, 525 nm) and TiO2 (325 nm). Therefore, the N719-adsorbed ESM-TiO2 composite was composed of the homogeneous EMS, N719 and TiO2, and it was evident that TiO2 was prepared through the in situ method without decay of N719.
The photovoltaic performances of DSSCs were evaluated using the illustrated structure in Figure 5a, and the J-V curves of the C1 and C2 were obtained before and after 12 h irradiation, respectively (Figure 5b,c). Although C1 exhibited lower photocurrent densities and voltages than C2, before irradiation, the photovoltaic performances of C1 were higher than those of C2 after 12 h irradiation. The activation, the gradual resistance-decrease process, might occur in C1 during irradiation [40], enhancing the photovoltaic performances after 12 h irradiation in C1. In addition, Table 2 and Table 3 show the photovoltaic performances, short-circuit photocurrent densities JSC, open-circuit voltages VOC, fill factors (FF) and power conversion efficiencies (PCE) of C1 and C2 before and after irradiation, respectively. Before irradiation, C1 and C2 showed a JSC of 0.441 and 0.682 mA cm−2, a VOC of 0.212 and 0.356 V, a FF of 0.337 and 0.347 and a PCE of 0.005 and 0.10%, respectively. On the other hand, after irradiation, C1 and C2 showed a JSC of 0.643 and 0.071 mA cm−2, a VOC of 0.232 and 0.063 V, a FF of 0.347 and 0.223 and a PCE of 0.008 and 0.001%, respectively. It was revealed that ESM-composition improved the photovoltaic stability, although the photocurrent densities and voltages were lower.
It is assumed that the enhanced stability of C1 was due to the protection of the -NSC ligand of N719 dyes in ESMs’ hydrophobic cavity. As shown in Figure 6, conventional N719, bound to the surface of TiO2 through the interaction between carboxylate and oxygen, has lost -NCS ligands by irradiation, resulting in a voltage drop in C2. In addition, photocurrent density was also lowered because of loss of the electron acceptor from the redox mediator I− in electrolyte through the redox reaction of I−/I3−. On the other hand, in this work, -NCS ligand remained because it was surrounded by the ESMs’ cavity [41,42]. Additionally, UV light with a wavelength of 300 nm was absorbed in the phenyl groups of ESMs’ amino acids, such as Phe and Tyr [43] (Figure 4b), maintaining the molecular structure of N719 and the photovoltaic performances in C1. As shown in Figure 3b, N719-ESM could accept electron from the redox mediator I− even after irradiation, which likely enhanced the stability of photovoltaic performances of DSSCs.

4. Conclusions

We developed a prototypical DSSC using N719-adsorbed ESM-TiO2 composites as a working electrode, which is the first example of a DSSC containing ESM. We showed that the new DSSC exhibited more stable performance than a conventional DSSC without ESM. This stability was caused by protection of the dye by ESMs’ structure with the hydrophobic cavity. The present findings thus suggest a novel and effective application for the widely available ESMs, which in the past have mainly been used for the adsorption of chemicals such as organic dyes. However, the photovoltaic performances were significantly lower than those in previously reported DSSCs (Table S5) [2,3,33,34,35], which was likely caused by contamination of rutile TiO2, insulating ESM and a small amount of N719 in the electrodes. To improve the values, the DSSC should be optimized by using pure anatase TiO2, electronic conductive porous materials and a large amount of N719.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma16206654/s1, Figure S1: EDX spectra at the position 002 (a), 003 (b), 004 (c), and 005 (d) of ESM; Table S1: Elemental analysis at the position 002 of ESM; Table S2: Elemental analysis at the position 003 of ESM; Table S3: Elemental analysis at the position 004 of ESM; Table S4: Elemental analysis at the position 005 of ESM; Table S5: The comparison among the conversion efficiencies of DSSCs.

Author Contributions

Conceptualization, N.T.; methodology, N.T. and H.Y.; investigation, T.S., A.S., K.S., K.A., M.T. and H.W.; writing—original draft preparation, N.T.; writing—review and editing, T.S.; visualization, T.S.; supervision, N.T. and H.Y. All authors have read and agreed to the published version of the manuscript.

Funding

JSPS KAKENHI Grant Nos. JP 26288091, 23550169, 21K14727, 19K22222, 20H04680, 20H04646, and 24108716. T.S. is thankful for the financial support for this work from Research Foundation for the Electrotechnology of Chubu (R-03114) and Electric Technology Research Foundation of Chugoku. We were also supported by GEAR 5.0 Project of the National Institute of Technology (KOSEN) in Japan.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

This work was supported by Grants-in-Aid for Early-Career Scientists (Grant No. 21K14727 for T.S.) Scientific Research (B) and (C) (No. 26288091 and 23550169 for N.T.), and Scientific Research on the Innovative Area “Coordination Programming” (area 2107, No. 24108716 for H.Y.) from the Ministry of Education, Culture, Sports, Science, and Technology (MEXT). N.T. is thankful for the financial support and the supply of chemical data on eggshell membrane from Research Foundation for Kewpie Corporation. GEAR 5.0 Project of the National Institute of Technology (KOSEN) support is also gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, X.; Li, C.; Grätzel, M.; Kostecki, R.; Mao, S.S. Nanomaterials for renewable energy production and storage. Chem. Soc. Rev. 2012, 41, 7909–7937. [Google Scholar] [CrossRef]
  2. O’Regan, B.; Gratzel, M. A low-cost, high-efficiency solar cell based on dye-sensitized colloidal TiO2 films. Nature 1991, 354, 737–740. [Google Scholar] [CrossRef]
  3. Grätzel, M. Solar energy conversion by dye-sensitized photovoltaic cells. Inorg. Chem. 2005, 44, 6841–6851. [Google Scholar] [CrossRef]
  4. Carella, A.; Borbone, F.; Centore, R. Research progress on photosensitizers for DSSC. Front Chem. 2018, 6, 481. [Google Scholar] [CrossRef]
  5. Song, C.E.; Ryu, K.Y.; Hong, S.J.; Bathula, C.; Lee, S.K.; Shin, W.S.; Lee, J.C.; Choi, S.K.; Kim, J.H.; Moon, S.J. Enhanced Performance in Inverted Polymer Solar Cells with D-π-A-Type Molecular Dye Incorporated on ZnO Buffer Layer. ChemSusChem 2013, 6, 1445–1454. [Google Scholar] [CrossRef]
  6. Khadtare, S.; Bansode, A.S.; Mathe, V.L.; Shrestha, N.K.; Bathula, C.; Han, S.H.; Pathan, H.M. Effect of Oxygen Plasma Treatment on Performance of ZnO Based Dye Sensitized Solar Cells. J. Alloys Compd. 2017, 724, 348–352. [Google Scholar] [CrossRef]
  7. Khadtare, S.; Ansari, A.S.; Pathan, H.M.; Han, S.H.; Mahadevan, K.M.; Mane, S.D.; Bathula, C. Silver Nanoparticles Loaded ZnO Photoelectrode with Rose Bengal as a Sensitizer for Dye Sensitized Solar Cells. Inorg. Chem. Commun. 2019, 104, 155–159. [Google Scholar] [CrossRef]
  8. Nguyen, P.T.; Andersen, R.A.; Skou, E.M.; Lund, T. Dye stability and performances of dye-sensitized solar cells with different nitrogen additives at elevated temperatures can sterically hindered pyridines prevent dye degradation? Sol. Energy Mater. Sol. Cells 2010, 94, 1582–1590. [Google Scholar] [CrossRef]
  9. Kashif, M.K.; Nippe, M.; Duffy, N.W.; Forsyth, C.M.; Chang, C.J.; Long, J.R.; Spiccia, L.; Bach, U. Stable dye-sensitized solar cell electrolytes based on cobalt(ii)/(iii) complexes of a hexadentate pyridyl ligand. Angew. Chem. Int. Ed. 2013, 52, 5527–5531. [Google Scholar] [CrossRef]
  10. Mori, S.; Fukuda, S.; Sumikura, S.; Takeda, Y.; Tamaki, Y.; Suzuki, E.; Abe, T. Charge-transfer processes in dye-sensitized NiO solar cells. J. Phys. Chem. C 2008, 112, 16134–16139. [Google Scholar] [CrossRef]
  11. Fan, J.; Liu, S.; Yu, J. Enhanced photovoltaic performance of dye-sensitized solar cells based on TiO2 nanosheets/graphene composite films. J. Mater. Chem. 2012, 22, 17027–17036. [Google Scholar] [CrossRef]
  12. Chung, I.; Lee, B.; He, J.; Chang, R.P.H.; Kanatzidis, M.G. All-solid-state dye-sensitized solar cells with high efficiency. Nature 2012, 485, 486–489. [Google Scholar] [CrossRef] [PubMed]
  13. Park, Y.; Jung, Y.M.; Sarker, S.; Lee, J.J.; Lee, Y.; Lee, K.; Oh, J.J.; Joo, S.W. Temperature-dependent infrared spectrum of (Bu4N)2[Ru(dcbpyH)2-(NCS)2] on nanocrystalline TiO2 surfaces. Sol. Energy Mater. Sol. Cells 2010, 94, 857–864. [Google Scholar]
  14. Filippo, D.A.; Simona, F.; Edoardo, M.; Mohammad, K.N.; Michael, G. Absorption Spectra and Excited State Energy Levels of the N719 Dye on TiO2 in Dye-Sensitized Solar Cell Models. J. Phys. Chem. C 2011, 115, 8825–8831. [Google Scholar]
  15. Johansson, E.M.J.; Hedlund, M.; Siegbahn, H.; Rensmo, H. Electronic and molecular surface structure of Ru(tcterpy)(NCS)3 and Ru(dcbpy)2(NCS)2 adsorbed from solution onto nanostructured TiO2: A photoelectron spectroscopy study. J. Phys. Chem. B 2005, 109, 22256–22263. [Google Scholar] [CrossRef]
  16. Yusuke, O.; Keitaro, S.; Liyuan, H.; Yoshitaka, T. Possibility of NCS Group Anchor for Ru Dye Adsorption to Anatase TiO2(101) Surface: A Density Functional Theory Investigation. J. Phys. Chem. C 2015, 119, 234–241. [Google Scholar]
  17. Junghänel, M.; Tributsch, H. Role of nanochemical environments in porous TiO2 in photocurrent efficiency and degradation in dye sensitized solar cells. J. Phys. Chem. B 2005, 109, 22876–22883. [Google Scholar] [CrossRef]
  18. Nour-Mohhamadi, F.; Nguyen, S.D.; Boschloo, G.; Hagfeldt, A.; Lund, T. Determination of the light-induced degradation rate of the solar cell sensitizer N719 on TiO2 nanocrystalline particles. J. Phys. Chem. B 2005, 109, 22413–22419. [Google Scholar] [CrossRef]
  19. Agrell, H.G.; Lindgren, J.; Hagfeldt, A. Degradation mechanisms in a dye-sensitized solar cell studied by UV-VIS and IR spectroscopy. Sol. Energy 2003, 75, 169–180. [Google Scholar] [CrossRef]
  20. Yoshida, C.; Nakajima, S.; Shoji, Y.; Itoh, E.; Momiyama, K.; Kanomata, K.; Hirose, F. In Situ Observation of Structural Change in N719 Dye Molecule in Dye Sensitized Solar Cells with a Light Exposure and a Heat Treatment. J. Electrochem. Soc. 2012, 159, H881–H884. [Google Scholar] [CrossRef]
  21. Tanifuji, N.; Shimizu, T.; Yoshikawa, H.; Tanaka, M.; Nishio, K.; Ida, K.; Shimizu, A.; Hasebe, Y. Assessment of Eggshell Membrane as a New Type of Proton-Conductive Membrane in Fuel Cells. ACS Oemga 2022, 7, 12637–12642. [Google Scholar] [CrossRef] [PubMed]
  22. Allen, S.J.; Koumanova, B. Decolourisation of Water/Wastewater Using Adsorption (Review). J. Univ. Chem. Technol. Metall. 2005, 40, 175–192. [Google Scholar]
  23. Zhang, Y.; Liu, Y.; Ji, X.; Banks, C.E.; Zhang, W. Flower-like hydroxyapatite modified carbon paste electrodes applicable for highly sensitive detection of heavy metal ions. J. Mater. Chem. 2011, 21, 7552–7554. [Google Scholar] [CrossRef]
  24. Su, H.; Dong, Q.; Han, J.; Zhang, D.; Guo, Q. Biogenic synthesis and photocatalysis of Pd-PdO nanoclusters reinforced hierarchical TiO2 films with interwoven and tubular conformations. Biomacromolecules 2008, 9, 499–504. [Google Scholar] [CrossRef] [PubMed]
  25. Sabu, U.; Tripathi, N.; Logesh, G.; Rashad, M.; Joy, A.; Balasubramanian, M. Development of Biomorphic C-ZnO with in Situ Formation of ZnS Using Eggshell Membrane as Bio-Template. Ceram. Int. 2020, 46, 22869–22875. [Google Scholar] [CrossRef]
  26. Ruhaimi, A.H.; Ab Aziz, M.A. Spherical CeO2 Nanoparticles Prepared Using an Egg-Shell Membrane as a Bio-Template for High CO2 Adsorption. Chem. Phys. Lett. 2021, 779, 138842. [Google Scholar] [CrossRef]
  27. Garay-Rodríguez, L.F.; Luévano-Hipólito, E.; Torres-Martínez, L.M. Renewable formic acid production from CO2 reduction using green ZnO nanoarchitectures. Mater. Sci. Semicond. Process. 2023, 161, 107458. [Google Scholar] [CrossRef]
  28. Salman, D.D.; Ulaiwi, W.S.; Tariq, N.M. Determination the optimal conditions of Methylene blue adsorption by the chicken egg shell membrane. Int. J. Poult. Sci. 2012, 11, 391–396. [Google Scholar] [CrossRef]
  29. Jalu, R.G.; Chamada, T.A.; Kasirajan, D.R. Calcium oxide nanoparticles synthesis from hen eggshells for removal of lead (Pb(II)) from aqueous solution. Environ. Chall. 2021, 4, 100193. [Google Scholar] [CrossRef]
  30. Pramanpol, N.; Nitayapat, N. Adsorption of reactive dye by eggshell and its membrane. Nat. Sci. 2006, 40, 192–197. [Google Scholar]
  31. Arami, M.; Yousefi Limaee, N.; Mahmoodi, N.M. Investigation on the adsorption capability of egg shell membrane towards model textile dyes. Chemosphere 2006, 65, 1999–2008. [Google Scholar] [CrossRef] [PubMed]
  32. Mahalingam, S.; Nugroho, A.; Floresyona, D.; Lau, S.K.; Manap, A.; Chia, H.C.; Afandi, N. Bio and non-bio materials-based quasi-solid state electrolytes in DSSC: A review. Int. J. Energy Res. 2022, 46, 5399–5422. [Google Scholar] [CrossRef]
  33. Perera, A.S.; Subbaiyan, N.K.; Kalita, M.; Wendel, S.O.; Samarakoon, T.N.; D’Souza, F.; Bossmann, S.H. A hybrid 254 soft solar cell based on the mycobacterial porin MspA linked to a sensitizer-viologen diad. J. Am. Chem. Soc. 2013, 255, 6842–6845. [Google Scholar] [CrossRef] [PubMed]
  34. Chou, C.S.; Chen, C.Y.; Lin, S.H.; Lu, W.H.; Wu, P. Preparation of TiO2/bamboo-charcoal-powder composite particles and their applications in dye-sensitized solar cells. Adv. Powder Technol. 2015, 26, 711–717. [Google Scholar] [CrossRef]
  35. Chawla, P.; Srivastava, A.; Tripathi, M. Performance of chitosan based polymer electrolyte for natural dye sensitized solar cell. Environ. Prog. Sustain. Energy 2019, 38, 630–634. [Google Scholar] [CrossRef]
  36. Koli, P. Characterization, stability, and feasibility of long-term use of light-absorbing components of aqueous spinach extract-based photogalvanic electrolyte. Sci. Rep. 2022, 12, 13518. [Google Scholar] [CrossRef] [PubMed]
  37. Kinsinger, N.M.; Wong, A.; Li, D.; Villalobos, F.; Kisailus, D. Nucleation and crystal growth of nanocrystalline anatase and rutile phase TiO2 from a water-soluble precursor. Cryst. Growth Des. 2010, 10, 5254–5261. [Google Scholar] [CrossRef]
  38. Kazemi, M.; Mohammadizadeh, M.R. Superhydrophilicity and photocatalytic activity of sol-gel deposited nanosized titania thin films. Thin Solid Films 2011, 519, 6432–6437. [Google Scholar] [CrossRef]
  39. Chena, L.; Pang, X.; Yu, G.; Zhang, J. In-situ coating of MWNTs with sol-gel TiO2 nanoparticles. Adv. Mat. Lett. 2010, 1, 75–78. [Google Scholar] [CrossRef]
  40. Gao, M.; Shen, Z.; Liu, X.; Yue, G.; Huo, J.; Dong, C.; Tan, F. Tungsten Phosphide Microsheets In-Situ Grown on Carbon Fiber as Counter Electrode Catalyst for Efficient Dye-Sensitized Solar Cells. Adv. Mater. Interfaces 2023, 10, 2201494. [Google Scholar] [CrossRef]
  41. Saritha, F.; Aiswarya, N.; Aswath Kumar, R.; Dileep, K.V. Structural analysis and ensemble docking revealed the binding modes of selected progesterone receptor modulators. J. Biomol. Struct. Dyn. 2023, 42, 1–9. [Google Scholar] [CrossRef] [PubMed]
  42. Covarrubias, A.S.; Bergfors, T.; Jones, T.A.; Högbom, M. Structural mechanics of the pH-dependent activity of β-carbonic anhydrase from Mycobacterium tuberculosis. J. Biol. Chem. 2006, 281, 4993–4999. [Google Scholar] [CrossRef] [PubMed]
  43. Crombie, G.; Snider, R.; Faris, B.; Franzblau, C. Lysine-Drived Cross-Links in The Egg Shell Membrane. Biochim. Biophys. Acta (BBA)-Biomembr. 1981, 640, 365–367. [Google Scholar] [CrossRef]
Materials 16 06654 g001
Figure 1. The schematic illustration of the interaction between N719 and TiO2 through carboxylate and the surface of TiO2, and the conventional DSSC degradation mechanism by long irradiation.
Figure 1. The schematic illustration of the interaction between N719 and TiO2 through carboxylate and the surface of TiO2, and the conventional DSSC degradation mechanism by long irradiation.
Materials 16 06654 g001
Materials 16 06654 g002

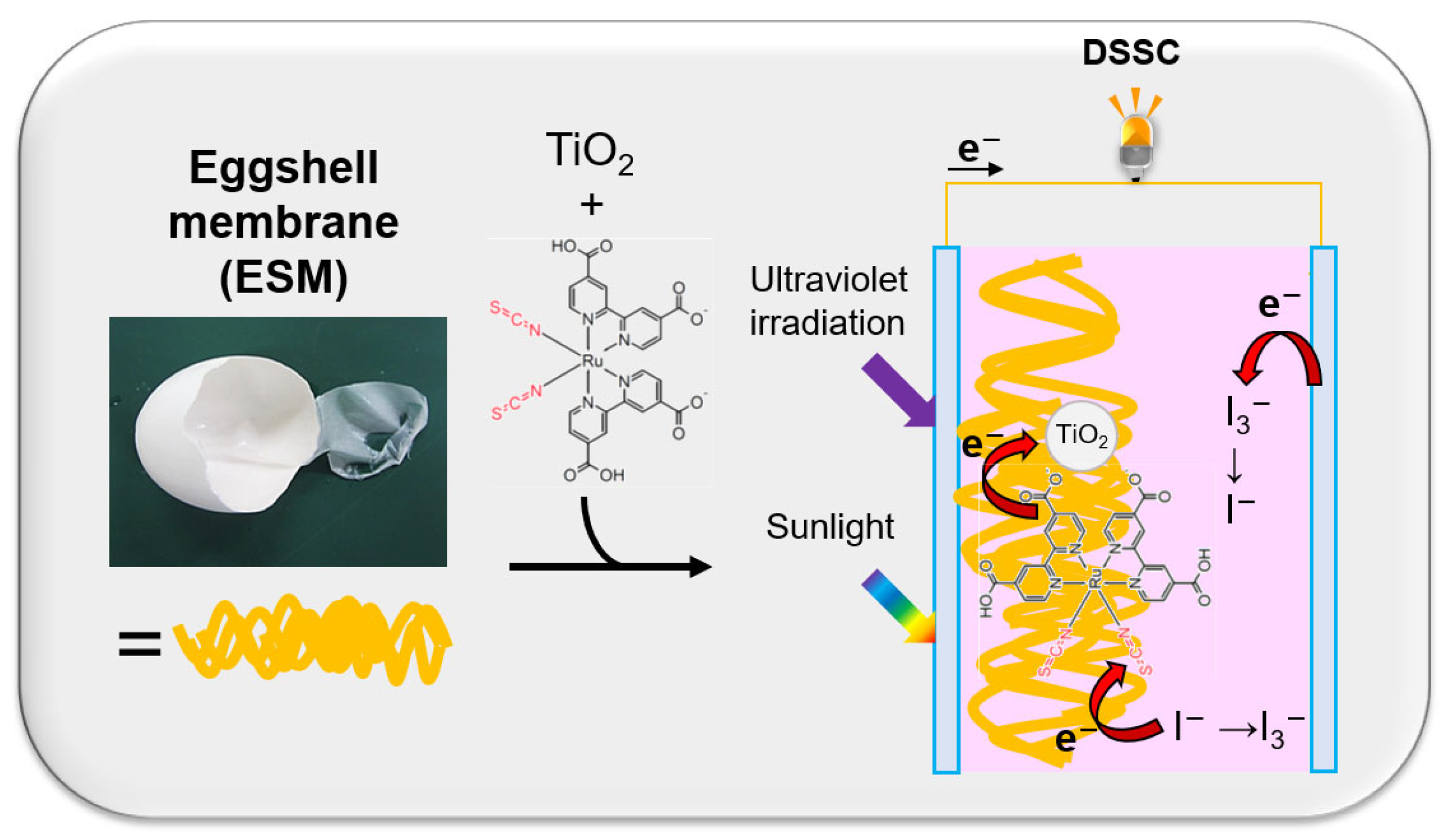

Figure 2. Experimental methodology scheme.
Figure 2. Experimental methodology scheme.
Materials 16 06654 g002
Materials 16 06654 g003

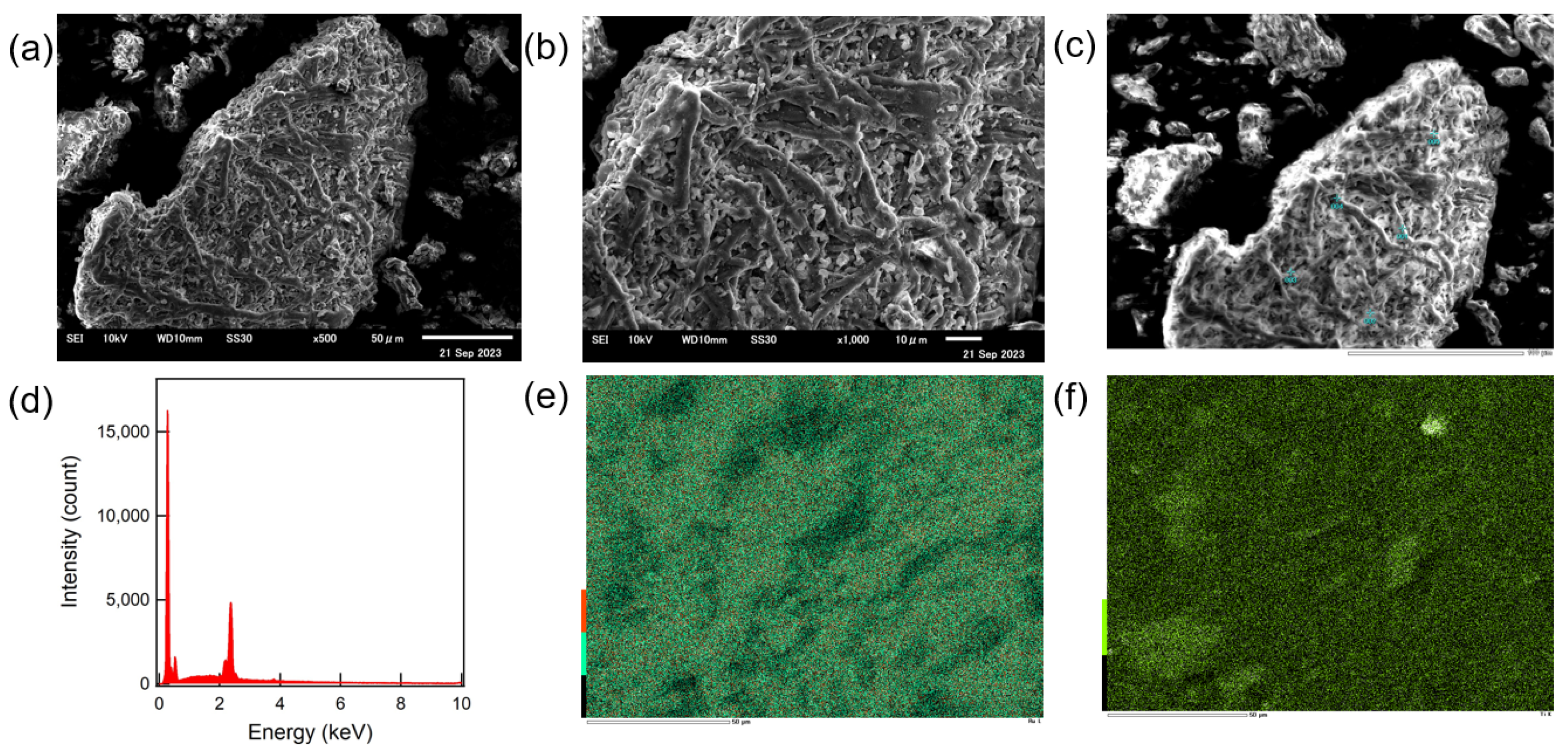

Figure 3. SEM images of ESM powder, magnification of 500 (a) and 1000 (b). Elemental analysis area of Ca in ESM (five light blue points 001, 002, 003, 004, and 005; (c) EDX spectrum at the position 001 (d). EDX mapping of the N719-adsorbed ESM-TiO2 composite; Ru (e) and Ti (f).
Figure 3. SEM images of ESM powder, magnification of 500 (a) and 1000 (b). Elemental analysis area of Ca in ESM (five light blue points 001, 002, 003, 004, and 005; (c) EDX spectrum at the position 001 (d). EDX mapping of the N719-adsorbed ESM-TiO2 composite; Ru (e) and Ti (f).
Materials 16 06654 g003
Materials 16 06654 g004

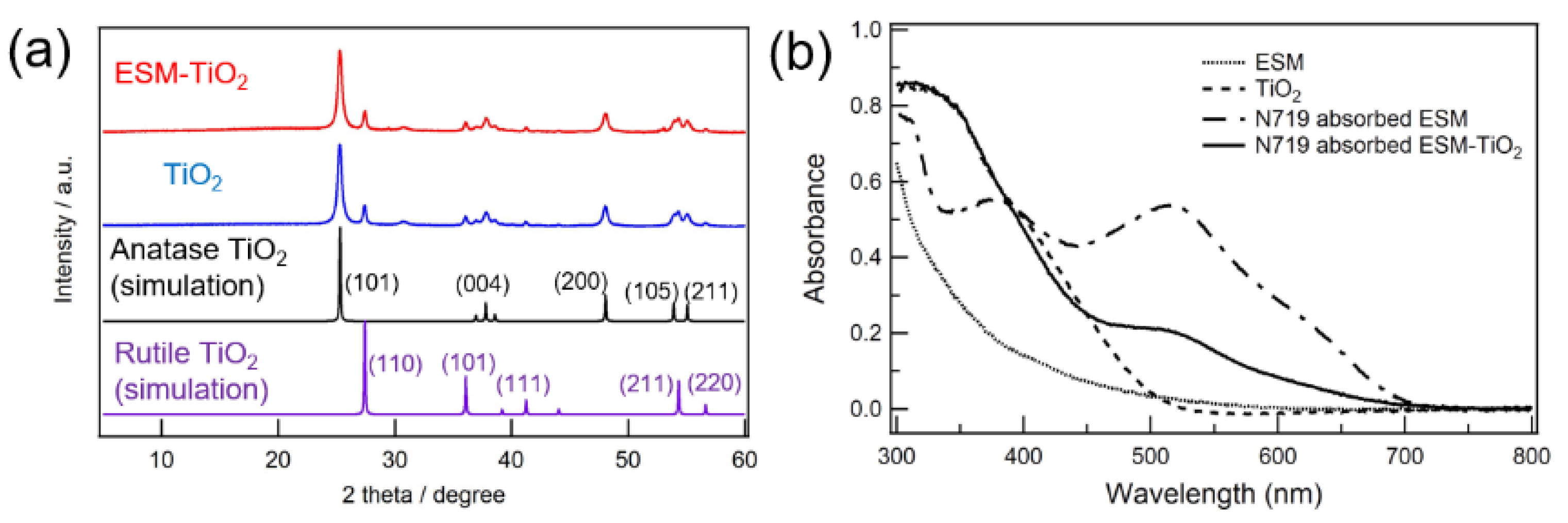

Figure 4. (a) XRD patterns of the ESM-TiO2 composite, TiO2, and simulated data of TiO2 (database identifier: ICSD 9852 (anatase), ICSD 23697 (rutile)). (b) UV-vis spectra for ESM, TiO2, the N719-adsorbed ESM and the N719-adsorbed ESM-TiO2 composite.
Figure 4. (a) XRD patterns of the ESM-TiO2 composite, TiO2, and simulated data of TiO2 (database identifier: ICSD 9852 (anatase), ICSD 23697 (rutile)). (b) UV-vis spectra for ESM, TiO2, the N719-adsorbed ESM and the N719-adsorbed ESM-TiO2 composite.
Materials 16 06654 g004
Materials 16 06654 g005

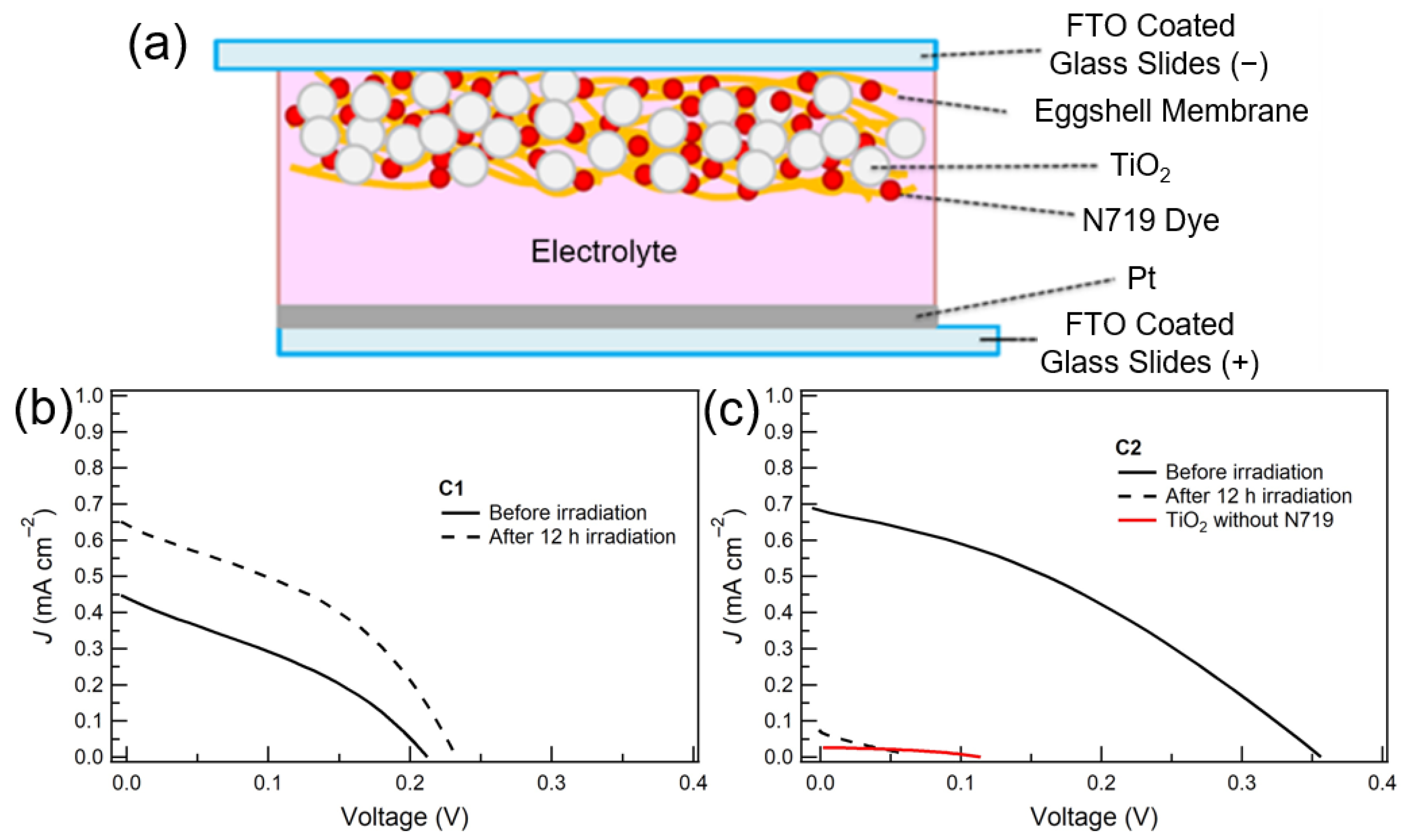

Figure 5. (a) Schematic view of C1. J-V curves for the as-prepared C1 (b) and C2 (c) before and after 12 h of light irradiation.
Figure 5. (a) Schematic view of C1. J-V curves for the as-prepared C1 (b) and C2 (c) before and after 12 h of light irradiation.
Materials 16 06654 g005
Materials 16 06654 g006

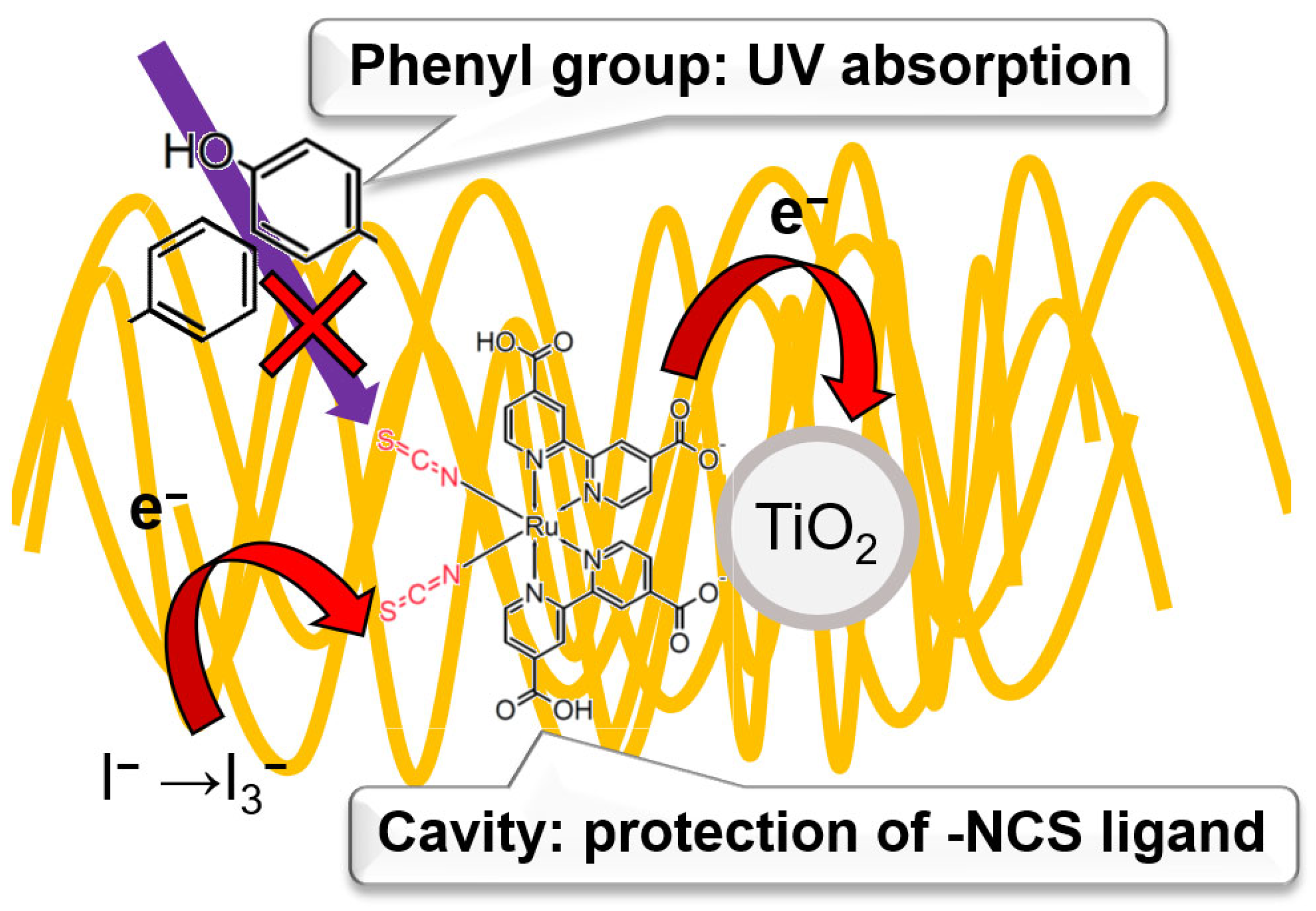

Figure 6. Schematic illustration of the N719-protection mechanism of ESM.
Figure 6. Schematic illustration of the N719-protection mechanism of ESM.
Materials 16 06654 g006
Table 1. The elemental analysis at the 001 point.
Table 1. The elemental analysis at the 001 point.
ElementEnergy
[keV]		Atomic Ratio
[%]
C0.27772.87
N0.39213.88
O0.5259.18
S2.3073.10
Mo2.2930.60
Au2.1210.38
Table 2. The performances (mean values) of C1 and C2 before irradiation.
Table 2. The performances (mean values) of C1 and C2 before irradiation.
DSSCShort-Circuit Current Density
JSC
[mA cm−2]		Open Circuit Voltage
VOC
[V]		Max Power Density
Pmax
[mW cm−2]		FFPCE
[%]
C10.4410.2120.0320.3370.005
C20.6820.3560.0850.4010.100
Table 3. The performances (mean values) of C1 and C2 after 12 h irradiation.
Table 3. The performances (mean values) of C1 and C2 after 12 h irradiation.
DSSCShort-Circuit Current Density
JSC
[mA cm−2]		Open Circuit Voltage
VOC
[V]		Max Power Density
Pmax
[mW cm−2]		FFPCE
[%]
C10.6430.2320.0600.3470.008
C20.0710.0630.0010.2230.001
TiO2
(Comparison)		0.057---0.008---0.001
