Study on Low-Temperature Performance Decay of Composite-Modified Porous Asphalt Mixture under Medium- and High-Temperature Water Erosion
Abstract
:1. Introduction
2. Materials and Methods
2.1. Raw Materials
2.2. Sample Processing

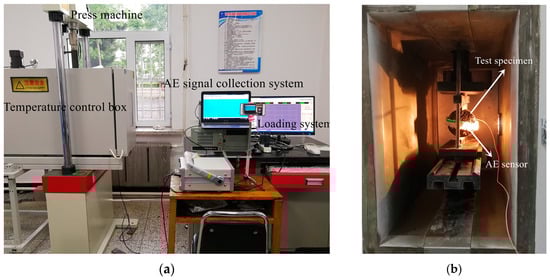

2.3. Low-Temperature Splitting Test and Acoustic Emission Parameters
3. Results and Discussion
3.1. Analysis of Low-Temperature Splitting Test Parameters

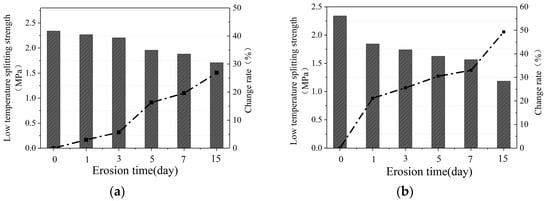

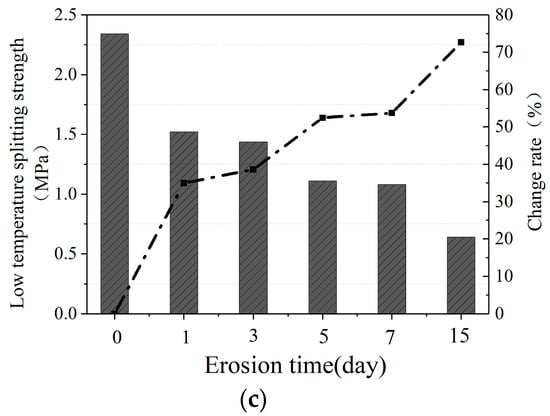

3.1.1. Low-Temperature Splitting Strength

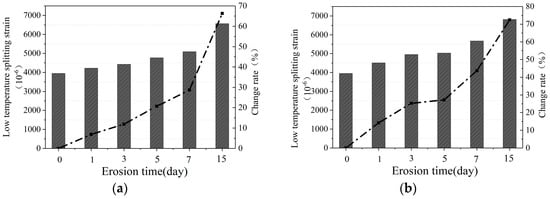

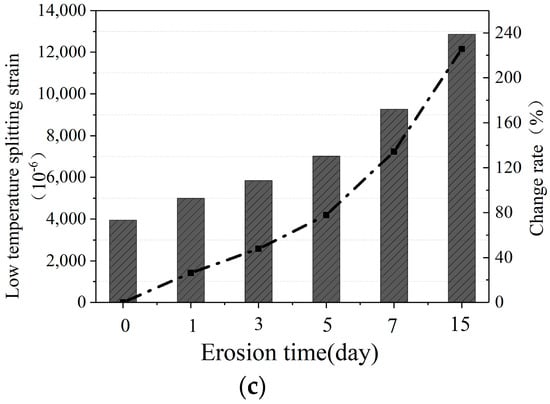

3.1.2. Low-Temperature Splitting Failure Strain

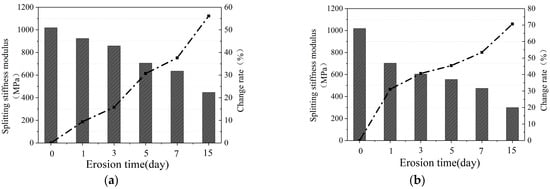

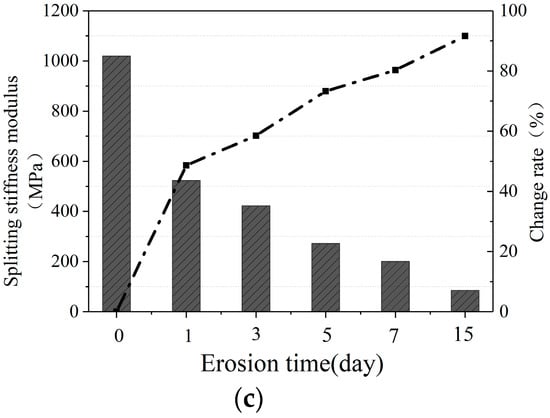

3.1.3. Low-Temperature Splitting Stiffness Modulus

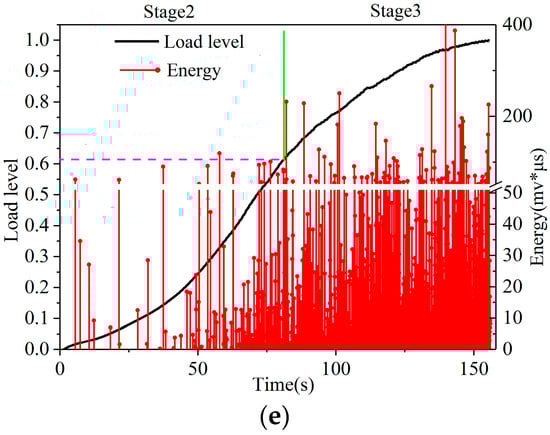

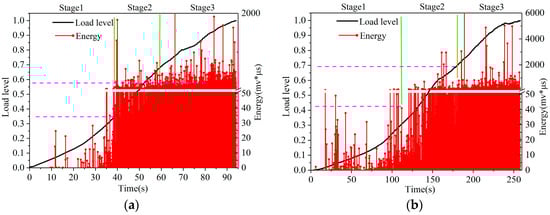

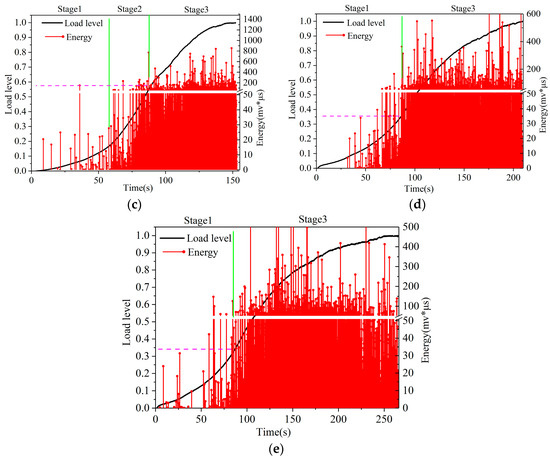

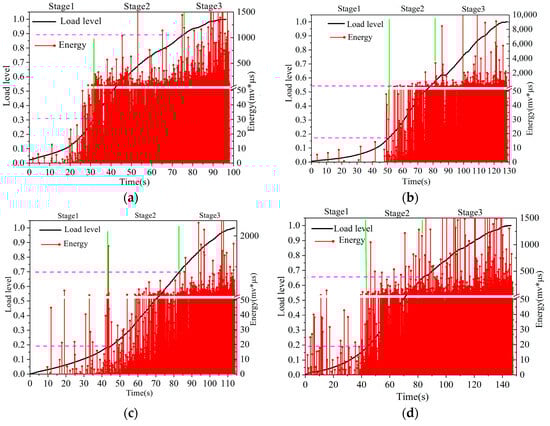

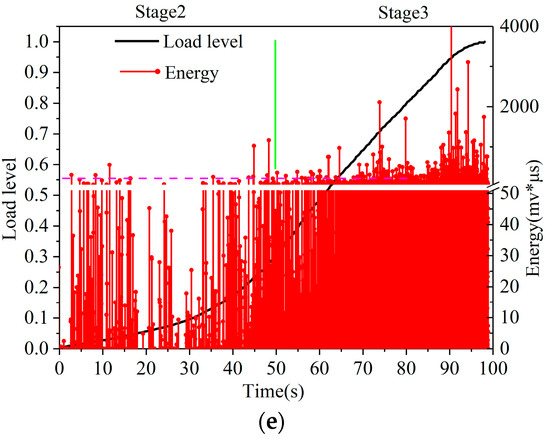

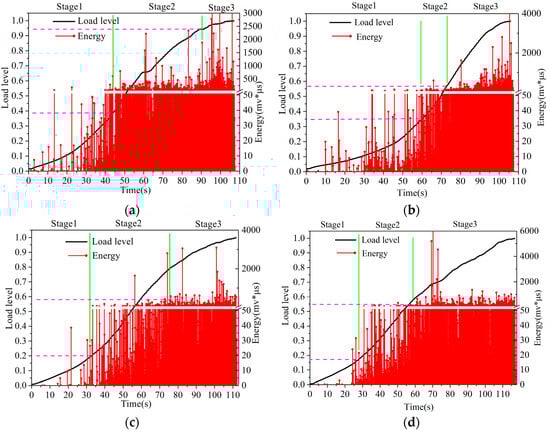

3.2. Analysis of Acoustic Emission Parameters of CM-PAC
4. Conclusions
- (1)
- After water erosion at 20 °C, 40 °C, and 60 °C, the low-temperature splitting strength and low-temperature splitting stiffness modulus of CM-PAC gradually decrease with the increase in water erosion time, and the low-temperature splitting failure strain gradually increases.
- (2)
- Under the same erosion time, the higher the temperature of water, the more significant the amplitude of changes in the above parameters.
- (3)
- As the water erosion time increases, the internal crack propagation stage and failure stage of the specimen under load will dramatically advance.
- (4)
- As the water temperature and water erosion time increase, the acoustic emission energy value of the CM-PAC specimen slightly decreases during the splitting process. The higher the water temperature, the longer the erosion time, and the more severe the damage inside the CM-PAC.
- (5)
- The application of acoustic emission technology in the splitting process can identify the damage process of CM-PAC under medium- and high-temperature water erosion, and clarify the changes in the failure pattern of CM-PAC specimens during the entire splitting–loading stage. This better reveals the effect of medium- to high-temperature water on the degradation of CM-PAC performance.
- (6)
- The conclusion of this study is based on indoor experimental results. It partly reveals the influence of water on the low-temperature crack resistance of pavement materials. However, for practical service pavements, both water volume and temperature are time-varying. Further research is needed to obtain more meaningful conclusions based on actual conditions.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Mo, L.; Huurman, M.; Wu, S.; Molenaar, A. Investigation into stress states in porous asphalt concrete on the basis of FE-modelling. Finite Elem. Anal. Des. 2007, 43, 333–343. [Google Scholar] [CrossRef]
- Goh, S.W.; You, Z.P. Mechanical Properties of Porous Asphalt Pavement Materials with Warm Mix Asphalt and RAP. J. Transp. Eng. 2012, 138, 90–97. [Google Scholar] [CrossRef]
- De Pascale, B.; Tataranni, P.; Lantieri, C.; Bonoli, A.; Vignali, V. Mechanical performance and environmental assessment of porous asphalt mixtures produced with EAF steel slags and RAP aggregates. Constr. Build. Mater. 2023, 400, 132889. [Google Scholar] [CrossRef]
- Chen, S.Y.; Gu, L.H.; Tu, Z.H.; Ma, T.; Kang, L.Q. Mechanical Properties of Porous Asphalt Mixtures Containing Styrene-Butadiene-Styrene and High-Viscosity Modifiers. J. Mater. Civ. Eng. 2023, 35, 04022417. [Google Scholar] [CrossRef]
- Geng, J.; Chen, M.; Shang, T.; Li, X.; Kim, Y.R.; Kuang, D. The Performance of Super Absorbent Polymer (SAP) Water-Retaining Asphalt Mixture. Materials 2019, 12, 1964. [Google Scholar] [CrossRef] [PubMed]
- Davoodi, A.; Esfahani, M.A.; Bayat, M.; Mohammadyan-Yasouj, S.E. Evaluation of performance parameters of cement mortar in semi-flexible pavement using rubber powder and nano silica additives. Constr. Build. Mater. 2021, 302, 124166. [Google Scholar] [CrossRef]
- Ziari, H.; Divandari, H.; Akbar, S.M.S.A.; Hosseinian, S.M. Investigation of the Effect of Crumb Rubber Powder and Warm Additives on Moisture Resistance of SMA Mixtures. Adv. Civ. Eng. 2021, 2021, 6653594. [Google Scholar] [CrossRef]
- Gupta, A.; Lastra-Gonzalez, P.; Castro-Fresno, D.; Rodriguez-Hernandez, J. Laboratory Characterization of Porous Asphalt Mixtures with Aramid Fibers. Materials 2021, 14, 1935. [Google Scholar] [CrossRef]
- Disfani, M.M.; Mohammadinia, A.; Narsilio, G.A.; Aye, L. Performance evaluation of semi-flexible permeable pavements under cyclic loads. Int. J. Pavement Eng. 2020, 21, 336–346. [Google Scholar] [CrossRef]
- Sapkota, K.; Yaghoubi, E.; Wasantha, P.L.P.; Van Staden, R.; Fragomeni, S. Mechanical Characteristics and Durability of HMA Made of Recycled Aggregates. Sustainability 2023, 15, 5594. [Google Scholar] [CrossRef]
- Ameri, M.; Esfahani, M.A. Evaluation and Performance of Hydrated Lime and Limestone Powder in Porous Asphalt. Road Mater. Pavement 2008, 9, 651–664. [Google Scholar] [CrossRef]
- Wang, J.; Ng, P.L.; Gong, Y.H.; Su, H.; Du, J.S. Experimental Study of Low Temperature Performance of Porous Asphalt Mixture. Appl. Sci. 2021, 11, 4029. [Google Scholar] [CrossRef]
- Moghaddam, F.R.; Kari, M.; Ameli, A.; Babagoli, R. Evaluation of the Effect of SBS on Performance Behavior of Stone Matrix Asphalt Mixture Containing Mineral Fiber. J. Mater. Civ. Eng. 2023, 35, 04023326. [Google Scholar] [CrossRef]
- Ulutas, K.; Yakut, S.; Bozoglu, D.; Sitilbay, B.; Karasahin, M.; Yardim, S.; Deger, D. How does the isophthalic unsaturated polyester affect the dielectric properties, the glass transition, and the ductility of bitumen? Road Mater. Pavement Design 2023. [Google Scholar] [CrossRef]
- Costa, D.B.; Neto, O.D.M.M.; Lucena, L.C.D.F.L.; Lucena, A.E.D.F.L.; Luz, P.M.S.G. Effects of recycling agents and methods on the fracture and moisture resistance of asphalt mixtures with high RAP contents. Constr. Build. Mater. 2023, 367, 130312. [Google Scholar] [CrossRef]
- Ma, X.; Li, Q.; Cui, Y.-C.; Ni, A.-Q. Performance of porous asphalt mixture with various additives. Int. J. Pavement Eng. 2018, 19, 355–361. [Google Scholar] [CrossRef]
- Xu, B.; Chen, J.Y.; Zhou, C.H.; Wang, W.Y. Study on Marshall Design parameters of porous asphalt mixture using limestone as coarse aggregate. Constr. Build. Mater. 2016, 124, 846–854. [Google Scholar] [CrossRef]
- Hu, J.; Ma, T.; Zhu, Y.; Huang, X.; Xu, J.; Chen, L. High-viscosity modified asphalt mixtures for double-layer porous asphalt pavement: Design optimization and evaluation metrics. Constr. Build. Mater. 2021, 271, 121893. [Google Scholar] [CrossRef]
- Li, X.; Shen, J.; Ling, T.; Du, H. Multi-Index Evaluation for Anticracking Performance of Epoxy Porous Asphalt Mixtures Based on Overlay Test. J. Mater. Civ. Eng. 2022, 34, 04022336. [Google Scholar] [CrossRef]
- Benaboud, S.; Takarli, M.; Pouteau, B.; Allou, F.; Dubois, F.; Hornych, P.; Nguyen, M.L. Fatigue process analysis of aged asphalt concrete from two-point bending test using acoustic emission and curve fitting techniques. Constr. Build. Mater. 2021, 301, 124109. [Google Scholar] [CrossRef]
- Ragni, D.; Takarli, M.; Petit, C.; Graziani, A.; Canestrari, F. Use of acoustic techniques to analyse interlayer shear-torque fatigue test in asphalt mixtures. Int. J. Fatigue 2020, 131, 105356. [Google Scholar] [CrossRef]
- Alawneh, M.; Soliman, H.; Anthony, A. Characterizing the Effect of Freeze-Thaw Cycling on Pore Structure of Asphalt Concrete Mixtures Using X-ray CT Scanning. Materials 2023, 16, 6254. [Google Scholar] [CrossRef]
- Fu, L.X.; Jiao, Y.B.; Chen, X.H. Reinforcement evaluation of different fibers on fracture resistance of asphalt mixture based on acoustic emission technique. Constr. Build. Mater. 2022, 314, 125606. [Google Scholar] [CrossRef]
- Kong, L.; Lu, Z.; He, Z.; Shen, Z.; Xu, H.; Yang, K.; Yu, L. Characterization of crack resistance mechanism of fiber modified emulsified asphalt cold recycling mixture based on acoustic emission parameters. Constr. Build. Mater. 2022, 327, 126939. [Google Scholar] [CrossRef]
- Behzad, B. An Acoustic Emission-Based Test to Evaluate Low Temperature Behavior of Asphalt Materials; University of Illinois at Urbana-Champaign: Champaign, IL, USA, 2013. [Google Scholar]
- Qiu, X.; Xu, J.; Xu, W.; Yang, Q.; Wang, F.; Yuan, J. Diagnosis of damage evolution process for asphalt mixtures using pattern recognition with acoustic emission signals. Constr. Build. Mater. 2021, 280, 122536. [Google Scholar] [CrossRef]
- Wei, H.; Zhang, H.; Li, J.; Zheng, J.; Ren, J. Effect of loading rate on failure characteristics of asphalt mixtures using acoustic emission technique. Constr. Build. Mater. 2023, 364, 129835. [Google Scholar] [CrossRef]
- Liang, C.; Ma, J.; Zhou, P.; Ma, G.; Xu, X. Fracture Damage Properties of SBS-Modified Asphalt Mixtures Reinforced with Basalt Fiber after Freeze-Thaw Cycles Using the Acoustic Emission Approach. Appl. Sci. 2020, 10, 3301. [Google Scholar] [CrossRef]
- Cheng, Y.; Chai, C.; Zhang, Y.; Chen, Y.; Zhu, B. A New Eco-Friendly Porous Asphalt Mixture Modified by Crumb Rubber and Basalt Fiber. Sustainability 2020, 11, 5754. [Google Scholar] [CrossRef]
- E20, JTG; Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering. Ministry of Transport of the People’s Republic of China: Beijing, China, 2011.
Index | Apparent Specific Density (g/cm3) | Los Angeles Abrasion (%) | Crushed Stone Value (%) |
---|---|---|---|
Coarse aggregate | 3.527 | 12.9 | 13.9 |
Fine aggregate | 3.389 | - | - |
Filler | 2.722 | - | - |
Properties | Results | Chinese Standard |
---|---|---|
Penetration (25 °C, 0.1 mm) | 65.2 | 60–80 |
Softening point (°C) | 64.2 | ≥55 |
Ductility (5 °C, cm) | 34.5 | ≥30 |
Flash point (°C) | 264 | ≥230 |
Elastic recovery (25 °C, %) | 91.7 | ≥65 |
Erosion Duration (Days) | 0 | 1 | 3 | 5 | 7 | 15 | Temperature (°C) |
---|---|---|---|---|---|---|---|
Number of test pieces | 3 | 3 | 3 | 3 | 3 | 3 | 20 |
3 | 3 | 3 | 3 | 3 | 40 | ||
3 | 3 | 3 | 3 | 3 | 60 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Chai, C.; Zhang, D.; Wang, Z.; Ding, G. Study on Low-Temperature Performance Decay of Composite-Modified Porous Asphalt Mixture under Medium- and High-Temperature Water Erosion. Materials 2023, 16, 7079. https://doi.org/10.3390/ma16227079
Chai C, Zhang D, Wang Z, Ding G. Study on Low-Temperature Performance Decay of Composite-Modified Porous Asphalt Mixture under Medium- and High-Temperature Water Erosion. Materials. 2023; 16(22):7079. https://doi.org/10.3390/ma16227079
Chicago/Turabian StyleChai, Chao, Da Zhang, Zhongkun Wang, and Guangya Ding. 2023. "Study on Low-Temperature Performance Decay of Composite-Modified Porous Asphalt Mixture under Medium- and High-Temperature Water Erosion" Materials 16, no. 22: 7079. https://doi.org/10.3390/ma16227079
