Mechanisms of Heat-Treatment-Induced Cracking in Additively Manufactured IN738 Alloy

by
Kesong Miao
1,*,
Ziyi Ding
2,
Rengeng Li
1,
Xia Ji
3,
Xiutao Duan
3,
Rui Yao
1,
Peng Chen
1 and
Hao Wu
1
1
Key-Laboratory for Light-weight Materials, Nanjing Tech University, Nanjing 211816, China
2
School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150001, China
3
Falcon Tech Co., Ltd., Wuxi 214000, China
*
Author to whom correspondence should be addressed.
Materials 2023, 16(23), 7316; https://doi.org/10.3390/ma16237316
Submission received: 28 October 2023 / Revised: 23 November 2023 / Accepted: 23 November 2023 / Published: 24 November 2023
Browse Figures
Versions Notes

Abstract

:
The present study conducts a comprehensive study on heat-treatment-induced cracking of Inconel 738 (IN738) alloy fabricated by laser powder bed fusion (LPBF) using scanning electron microscopy (SEM), energy dispersion spectrum (EDS), and electron backscatter diffraction (EBSD). The results indicate that the macroscopic crack is dominantly triggered by the strain-age cracking mechanism and propagates along grain boundaries. The initiation of cracking is facilitated by the superimposition of residual stress induced by the LPBF process and contraction stress induced by precipitation, while the reopening of compress pores at grain boundaries weakens the grain boundaries and provides fast channels for cracking. These results revealed the coupling effects in triggering heat-treatment-induced cracking, offering a fundamental guideline for crack control during heat treatment of additively manufactured IN738 alloy.

1. Introduction

The IN738 alloy is widely used in aerospace gas turbine components in place of heat-resistant steels and IN718 [1], owing to its excellent properties, including high strength, heat resistance, and corrosion resistance [2,3]. The recent rapid development of metal additive manufacturing technologies has shed new light on the fabrication of IN738 components used in the aerospace industry due to its capacity to produce small batches efficiently and reduce machining steps [4,5]. Moreover, LPBF enables complex geometry of parts that traditional casts cannot reach, making it competitive against cast IN738 [6,7].
The primary additive manufacturing technologies adopted for IN738 include laser metal deposition (LMD), electron powder bed fusion (EPBF), and LPBF. The LMD is a process that involves producing melt tracks via relative movement between the deposition source and the workpiece [8]. Closed layers can be achieved by depositing multiple tracks next to each other and allowing suitable track overlap. The final parts with complex geometry were fabricated by depositing multiple layers on top of each other. The LMD IN738 typically exhibits directional epitaxial growth with cracks propagating along the build direction in grain boundaries alongside the presence of liquid film [9]. Although reducing laser power and scanning speed could be beneficial to reduce cracking in LMD [10,11], preheated substrates ranging from 700 to 1050 °C are required to achieve crack-free deposits [12]. The EPBF heats metal powders with a high-energy electron beam with preheated substrates, which melts and gradually builds into the desired geometry [13]. It is crucial to note that the process takes place under high vacuum and elevated bed-temperature conditions, typically around 1000 °C for Ni-based superalloys. It allows for low thermal gradients throughout the material, ensuring high-purity materials with minimal residual stress [14]. However, the parts fabricated with EPBF are limited in size and vacuum system maintenance requires additional expense, limiting its commercial application. This process of LPBF is analogous to that of EPBF, except that it utilizes a laser as the heating source, and generally, no preheating is employed [6]. The parts fabricated with LPBF show higher geometrical accuracy than those with LMD, meanwhile offering a wider range of size options compared to those with EPBF. The LPBF enables fast cooling rates, which generally result in finer grains and improved mechanical properties, accompanied by a higher level of residual stresses [15].
Although high-alloyed IN738 exhibits advanced mechanical properties, it also endures high crack sensitivity, which is further exacerbated by the high residual stresses and temperature gradients introduced by the LPBF process [16,17]. Most of the current research on LPBF IN738 has focused on the modification of scanning strategies to achieve crack-free components in an as-built state. For example, Cloot et al. investigated the crack formation of IN738LC processed by LPBF using Gaussian and doughnut profiles. It revealed that increasing scan speed could reduce cracking density at the expense of increasing porosity [18]. Wang et al. found that a medium energy input is suitable for achieving the best density [15]. In addition, they suggested that the scanning speed has a significant impact on the porosity, especially at the lower laser input. Zhou et al. reported that porosity minimization (<0.4%) is achieved when the energy densities range from 69 J/mm3 to 139 J/mm3 by evading the keyhole effect and lack of fusion [16]. During the rapid solidification of LPBF, precipitation-strengthening in Ni-based superalloys is inhibited due to the limited formation of the dominant strengthening phase, γ’ [19]. Thus, heat treatment for LPBF IN738 components is indispensable before application. However, the effect of postheat treatment is still an open question. Take hot isostatic pressing (HIP) as an example; some studies suggested that HIP could remove defects during the LBPF process and achieve better mechanical properties [20]. Other research reported that only internal defects can be closed while the surface defects are fully remained [21]. Furthermore, cracking after HIP treatment has also been reported [22], while heat-treatment-induced cracking is more common in other heat treatments [23,24]. However, less attention was paid to the mechanisms of heat-treatment-induced cracking in LPBF IN738.
The primary cracking modes in LPBF IN738 include solidification cracking, liquation cracking, ductility dip cracking, and strain-age cracking [25,26,27]. Solidification cracking generally occurs in the last period of solidification [18,28]. The high-temperature gradient induced by the LPBF process results in insufficient fluidity of the interdendritic liquid phase, which makes it challenging to coordinate the thermal shrinkage of the solid phase, thus inducing solidification cracking [29]. Liquation cracking occurs after the nominal solidification. Due to the rapid solidification process of LPBF, elemental segregation could present and form low melting point regions, leading to the appearance of liquid film when the bulk material is at an elevated temperature [27,30]. The above two mechanisms are accompanied by a liquid phase, which will leave characteristic features in the vicinity of the cracking. Ductility dip cracking is typically observed at temperatures within the range of 0.7 to 0.5 times the melting point of the alloy, where the alloy always suffers a rapid reduction in ductility [3]. The prevailing theories for ductility dip cracking involve grain boundary sliding and impurity embrittlement [10]. It is suggested that grain boundary morphology is vital to ductility dip cracking [10,31]. Long and straight grain boundaries exhibit low resistance to ductility dip cracking, which is caused by severe strain localization at triple grain boundary junctions [10]. In contrast, tortuous grain boundaries showed better susceptibility for ductility dip cracking [31]. Strain-age cracking is generally induced by the precipitation of hardening particles (e.g., γ’ phase for IN738 alloy) [10,27,31]. Volume shrinkage due to the precipitation will generate local stress at grain boundaries in polycrystalline, leading to higher susceptibility to intergranular cracking [27]. Moreover, sluggish precipitation kinetics is generally accepted to resist strain-age cracking, e.g., replacement of γ’ phase with slowly precipitated γ’’ phase as a strengthening source to achieve crack-free nickel-based alloys [3].
This study investigated the cracking behavior of the IN738 alloy that underwent heat treatment at 1130 °C for 3 h. A detailed microstructure characterization before and after heat treatment was systematically conducted, with extra care taken on the heat treatment induced cracking. Based on the results, mechanisms of heat treatment induced cracking in LPBF IN738 alloy and the effects of precipitate, pores, and residual stress on the cracking were discussed.

2. Materials and Methods

In this study, spherical IN738 powders with diameters of 15–45 μm were used as raw materials. The chemical composition of powders is shown in Table 1. The samples were prepared using the LPBF technique with EOS 290 equipment on a 316 L stainless steel substrate (chemical composition is listed in Table 2). The laser station used Yb-fiber laser as the source, providing a high power of up to 400 W and a focus diameter of 100 μm. The LPBF process parameters can be found in Table 3. These parameters achieved selective laser melting, i.e., the metal powders being liquefied [32]. After fabrication, the as-built sample (denoted as AB) was removed from the substrate and then subjected to heat treatment at 1130 °C for 3 h at a heating rate of 20 °C/min, followed by air cooling at a cooling rate of 50 °C/min (the sample denoted as HT). The heat treatment was carried out in a muffle furnace without inert gas, giving excellent resistance to oxidation of IN738 [33].
To observe the microstructure, the samples, with dimensions of 10 × 10 × 10 mm3, were subjected to mechanical grinding and polishing. The vertical planes of the AB and HT samples were ground with sandpaper ranging from 600 to 4000 grit and then polished to a smoothness of 0.05 μm on polishing clothes. The grain and precipitate characteristics were observed using a TESCAN scanning electron microscope (SEM), coupling with a backscattered electron (BSE) detector. The energy dispersive X-ray spectroscopy (EDS) analysis was performed with SEM equipment to analyze the chemical composition and distribution of elements. The electron backscatter diffraction (EBSD) measurements were performed with EDAX equipment mounted on the SEM equipment with a step size of 1 μm. The EBSD test results were processed and analyzed by Aztec software (Version 2.1). The specimens for transmission electron microscopy (TEM) analysis were prepared by the twin-jet electropolisher (TJ100-SE) with a solution of 10 vol.% perchloric acid and 90 vol.% ethanol at the temperature of −30 °C. The TEM characterization was carried out on JEOL JEM-F200 with a voltage of 200 kV. For the evaluation of mechanical properties, the Vickers hardness of the samples was measured using QNESS Q10 CHD Master+ with a load of 5 kg. The residual stresses in the samples were determined by X-ray diffraction using Proto LXRD, with the utilization of Mn Kα radiation operated at 30 kV and 25 mA.

3. Results

The heat treatment for IN738 is generally designed for dissolving the Laves phase and generating precipitates. Figure 1 shows the microstructure of AB and HT samples, respectively. As shown in Figure 1a,b, the AB sample contained elongated cellular structures, which exhibited a preferred arrangement along the build direction (BD). The high-magnification image (Figure 1c) demonstrates the formation of granular precipitates in the cellular structure. The precipitates possessed typical structural characteristics of the Laves phase, which is generally reported in the literature [34]. After the heat treatment, the grain morphology slightly changed (Figure 1d), accompanied by the dissolution of the dendritic distribution of the Laves phase (Figure 1e). In addition, large particulate precipitates with a size of 200–860 nm, γ’, have uniformly precipitated within the grains. The formation of γ’ was further confirmed by TEM, as shown in Figure 2. The bright-field image (Figure 2a) demonstrates the size and morphology of γ’ that are consistent with that in the BSE images (Figure 1), while the γ’ phase was identified by selected area electron diffraction, as shown in Figure 2b.
The chemical compositions of AB and HT samples were further characterized by EDS and listed in Table 4. The B, C, and Zr were not included in the analysis due to the inaccuracy of EDS measurements for light and low-content elements. The compositions of AB and HT were consistent with that of the powder. It suggested that the constituent elements did not volatilize appreciably during the laser additive manufacturing process, owing to the high boiling points of the constituent elements. The main element composition of γ’ is Ni, Ti, and Al, showing a light-gray contrast in the BSE images (Figure 1e,f). Meanwhile, there were also small precipitates with a size of 170–280 nm (carbides) that precipitated at the grain boundaries. Due to the enrichment of elements such as Nb and Ta, the carbides show a bright contrast in Figure 1e,f, as marked by arrows. The EDS analysis was carried out on carbides (Figure 3), and the results are listed in Table 5. The enrichment of Ti, Nb, and Ta could be found, confirming they were MC-type carbides, which is consistent with other reports [35]. Due to the formation of precipitation and carbides, the hardness increased from 395.5 HV (AB sample) to 421.0 HV (HT sample). Figure 1g showed that macroscopic cracks with a length of more than 3 mm appeared at the top of the HT sample, initiated from the top surface and propagating along BD.
It is worth mentioning that compared to the AB sample, a number of spherical pores can be observed in the HT sample with random distribution with respect to BD, as shown in the inset of Figure 1d. To clarify that such bias is not induced due to the localized field of view, five rectangular areas with dimensions of 500 μm × 375 μm were randomly selected in the AB and HT samples, respectively, and the pore sizes in the areas were measured. Thus, the porosity of the samples can be obtained by dividing the pore area by the region area. The porosity of the AB sample is 0.5%, while as a comparison, the porosity of the HT sample increased to 1.3%. Both the spherical morphology and distribution of pores in the HT sample suggested that it might originate from the volume expansion of gas inside the sample under high-temperature conditions, and the formation process will be discussed in Section 4.2.
Figure 4a,c shows the inverse pole figure (IPF) maps of the AB sample and HT sample in the vertical direction, both featuring columnar crystals parallel to the BD. The AB sample exhibited an average grain size of 15.6 μm, while the HT sample exhibited an average grain size of 16.1 μm. It is indicated that there are no significant alterations in the grain size before and after the heat treatment, although the grain morphology slightly changed. Based on the EBSD data, the geometrically necessary dislocation (GND) maps were calculated according to the method proposed by W. Pantleon [36], and the results are shown in Figure 4b,d. The AB sample exhibited an average GND of 2.6 × 1014 mm−2, while the HT sample exhibited an average GND of 2.3 × 1014 mm−2, suggesting that the heat-treatment process does not significantly alter the GND density. Furthermore, the high dislocation density regions are mainly localized at grain boundaries in grains with relatively high length-to-width ratios and present a tendency to be parallel to the BD.
To clarify the mechanism of the heat-treatment-induced crack in Figure 1g, an EBSD scan was performed in the region near the crack tip, as shown in Figure 5a. The crack displayed a dominant tendency to propagate along the high-angle grain boundaries. Figure 5b shows the kernel average misorientation (KAM) map of the identical region, which is a measure of local plastic deformation. It is apparent that higher KAM is present on both sides of the crack, shown in green, in contrast to the low KAM region (shown in blue) in the grain interior. However, the deformation localization near the crack did not show distinct features compared with that near the high-angle grain boundaries, as highlighted by arrows in Figure 5b.
Figure 6a shows the microstructure of the cracks in the HT sample, while the enlarged view of the crack surface is displayed in Figure 6b, as indicated by the red rectangle. The SEM images exhibited a high-density γ’ phase on the crack surface. It is worth noting that γ’ phases on the crack surface in the HT sample exhibited a larger size compared with that observed in Figure 1. Then, EDS mapping scans of the major alloying elements were executed in the identical area in Figure 6b. The distribution of Al, Ti, Si, Cr, Co, and W were characterized by EDS and are shown in Figure 6c–h, respectively. No significant elemental segregation was found near the crack. Although the EDS signals from some areas of crack surfaces were shaded due to geometrical relation, the collected information indicated the occurrence of Ti and Al enrichment on the crack surfaces.
Considering the features of crack propagation along the grain boundaries, the uncracked grain boundaries in the HT sample were further characterized, as shown in Figure 7a. It was found that the spherical pores observed in Figure 1d had a directional alignment feature. The alignment direction could be with a small angle to BD (as depicted by the white dashed line) or a large angle to BD (as depicted by the orange dashed line). Both types are not significantly different in terms of single pore morphology. Figure 7b presents a magnified image of the area highlighted by the red rectangle in Figure 7a. It was seen that the γ’ phase was uniformly distributed, independent of pores. Moreover, carbides with brighter contrast and different morphology can be observed between the pores, as emphasized by the arrows. The IPF map from EBSD results (Figure 7c) further identified that these pores are distributed at grain boundaries. It is worth mentioning that grain boundaries neighbored pores displayed higher curvature, i.e., form the more tortuous grain boundaries near pores. The KAM map of the identical regions suggests that deformation tends to accumulate at both grain boundaries and pore-grain interfaces, with the latter being more localized, as shown in Figure 7d.

4. Discussion

The AB sample was crack-free and had low porosity in the present study. After heat treatment at 1130 °C for 3 h, which is generally utilized as a solid solution process to dissolve Lave phases, macroscopic cracking occurred in the HT sample with the porosity increased simultaneously. The crack microstructure did not exhibit features of liquation or resolidification. Thus, solidification cracking and liquation cracking mechanisms can be ruled out. The results showed that cracking propagated along tortuous grain boundaries, accompanied by large-sized γ’ phase and elemental enrichment of Ti and Al on the crack surface. It is suggested that the current cracking could be attributed to strain-age cracking. The reason and the dominant factor that affected the cracking will be discussed in the following paragraphs.

4.1. The Effect of Precipitates

The γ’ phase plays a vital role in IN738 alloy as a primary strengthening source. The phase has a nominal chemical composition of Ni3(Al, Ti) and exhibits a low lattice parameter mismatch (coherent) with the nickel matrix, allowing fast precipitation kinetics. The effect of γ’ phase on crack susceptibility involves the following aspects: (i) Degradation of deformation capability. Despite the limited strengthening capacity reported for the large-sized γ’ phase [37], the precipitation of the γ’ phase led to the formation of dislocation loops by the Orowan mechanism, inducing weakening of the deformation capability [38,39]. Moreover, the precipitation reaction is suggested to contribute to the higher strength of the grain interior than the grain boundaries, facilitating the deformation (e.g., deformation induced by thermal stress) to be localized to the grain boundaries [27]. It is well supported by the GND distribution (Figure 4) and the KAM map (Figure 5 and Figure 7), where higher GND density and lattice misorientation near grain boundaries could be observed. (ii) Contraction stress due to γ’ phase precipitation. Rapid solidification for additive manufacturing resulted in the solid solution of Ti, Al, and other elements in the Ni matrix in IN738. As the heat treatment proceeded, the γ’ phase precipitated and consumed the Ti and Al in the Ni matrix. Since the atomic radius of Ti and Al is larger than that of Ni atoms, the process of Ni atoms refilling the positions taken by Ti and Al atoms causes the volume shrinkage of the Ni matrix. The intergranular mutual restraint in polycrystalline impeded the full release of volume shrinkage strain, inducing contraction stress on grain boundaries. It is noteworthy that the concentration of the elements forming the γ’ phase has an essential effect on cracking, which is well described by the Prager−Shira diagram [3]. The nickel-based alloys exhibited higher cracking susceptibility with increasing Ti and Al content. It has also been reported that higher Ti and Al content promote γ’ phase precipitation [2], leading to strain-age cracking by raising significant shrinkage stresses when the residual stresses are not sufficiently relieved. In addition, a few small-sized carbides were observed at grain boundaries. It is believed that they may serve as pinning for grain boundary sliding and control the grain size [40]. It could contribute to the formation of tortuous grain boundaries, as shown in Figure 7. It revealed that further compositional modulation or adjustment of the LPBF parameters to evade Ti and Al segregation is worth conducting in future work.

4.2. The Effect of Pores

On the one hand, pores at grain boundaries in the HT sample reduced the contact area between grains, lowered grain boundary strength, and provided fast channels for crack propagation, leading to the degradation of crack resistance. On the other hand, these pores facilitated the formation of tortuous grain boundaries. The tortuous grain boundaries could obstruct grain boundary sliding by interlocking, avoiding drastic strain localization at the triple junction of grain boundaries, as supported in Figure 7d. It was reported to be positive to evade ductility dip cracking [10,31]. However, the pore size in the present study is so large that the former detrimental mechanism took the primary role.
The mechanism for the increasing porosity of the HT sample is interpreted as follows: The laser additive manufacturing is processed in a flowing argon atmosphere. The melt pool undergoes directional motion driven by Marangoni convection, folding the liquid metal over the surface while simultaneously entraining argon bubbles [41]. During the solidification process, these pores may be compressed or even completely closed under the action of thermal shrinkage strain, leaving high internal gas pressure inside. With elevated temperatures, the pore pressure rose, and the strength of the Ni matrix dropped, facilitating pore growth [42]. Moreover, the contraction stress at grain boundaries, as discussed in Section 4.1, would also assist the pore growth. The spherical morphology is driven by reducing the stress concentration around pores. In addition, due to the obstacle effects of pores to dendrite growth in the melt, the dendrite growth direction is thus redirected, leading to a significant difference in orientation on both sides of the pores, which in turn resulted in the formation of grain boundaries along the pores [43], as shown in Figure 7. The current results suggest the need for precise regulation of LPBF parameters in future work to avoid the introduction of argon bubbles, even if they are extremely small in the as-built sample.

4.3. The Effect of Residual Stress

Both γ’ phase precipitation and pore formation are spatially randomly distributed, independent of BD (Figure 7), yet macroscopic cracks have an apparent tendency to propagate along the BD. It is suggested that additional factors contribute to the macroscopic cracking.
Residual stress is acknowledged as a crucial factor promoting strain-age cracking, which is widely reported in welding [37,44,45,46]. During the cooling process following welding, thermal stresses and external weld restraints may cause notable residual stress to develop in the joint. In the case of the LPBF process, the rapid heating and cooling process can introduce high initial residual stresses into the material [47,48,49]. The residual stresses of the LPBF parts have proven to have spatial distribution patterns [50,51]. As the last area to solidify, the thermal shrinkage at the top area is limited by the presolidified layers [52,53,54,55,56], resulting in the tensile residual stress perpendicular to the BD. The residual stresses on the top surface of the AB and HT samples were measured via XRD. The schematic of the test point is illustrated as an insert in Figure 8a. It was suggested that tensile residual stresses of up to 457.6 MPa were present on the surface in the AB samples, which is perpendicular to the BD. After heat treatment of 1130 °C for 3 h, the complete relief of residual stress was achieved in the HT sample, consistent with the generally reported minimizing and homogenizing residual stress with heat treatment at temperatures above 1000 °C [57]. Such results were further confirmed by the d-spacing versus sin2(Psi) relationship shown in Figure 8b,c. It is also notable that although heat treatment can relieve residual stresses, the rapid precipitation of γ’ mentioned in Section 4.1 implies that contraction stress resulting from phase transformation will accumulate when the material remains at a high level of residual stress (not fully relieved by heat treatment). Whilst the grain boundary paralleled the BD, the residual stress direction was in line with the shrinkage stress direction, and the superimposed local stresses intensified, exceeding the grain boundary strength and inducing cracking. The remaining tensile residual stress in the early stages of heat treatment provided extra drive force for crack initiation and propagation along the BD. Future research on heat treatment optimization should consider taking low-temperature annealing as the first heat treatment to reduce residual stress while avoiding precipitation.

5. Conclusions

In this study, microstructure variations before and after heat treatment at 1130 °C for 3 h were systematically characterized to clarify the mechanism for heat-treatment-induced cracking in LPBF IN738. The following conclusions have been reached:
(i)
The heat-treatment-induced cracking in the present study is attributed to strain-age cracking.
(ii)
The crack propagated was driven by the superimposition of contraction stress induced by precipitation and residual stress induced by the LPBF process. The former is facilitated by local enrichment of Ti and Al in the early stage of heat treatment when the residual stress is not fully relieved by heat treatment.
(iii)
The formation of large-sized pores after heat treatment is attributed to the reopening of compressed argon bubbles. The pores weaken the grain boundaries and provide fast channels for cracking.
To avoid heat-treatment-induced cracking, careful modifications are required for fabrication and heat-treatment processes to reduce residual stresses, and the sluggish kinetics of γ’ phase precipitation or eliminate pores.

Author Contributions

Conceptualization, K.M. and Z.D.; data curation, Z.D.; formal analysis, R.L.; investigation, Z.D. and R.L.; methodology, R.L.; project administration, K.M.; resources, X.J. and X.D.; supervision, H.W.; validation, R.Y. and P.C.; visualization, R.Y. and P.C.; writing—original draft preparation, K.M.; writing—review and editing, X.J., X.D. and H.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Key Research & Development Plan (Grant No. 2022YFB3707100), the National Natural Science Foundation of China (Grant No. 52201122), the Jiangsu Funding Program for Excellent Postdoctoral Talent (No. 2022ZB366), and China Postdoctoral Science Foundation Funded Project (No. 2023M731636).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare that they have no known competing financial interest or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Vakili-Tahami, F.; Adibeig, M.R. Investigating the Possibility of Replacing IN 738LC Gas Turbine Blades with IN 718. J. Mech. Sci. Technol. 2015, 29, 4167–4178. [Google Scholar] [CrossRef]
  2. Reed, R.C. The Superalloys: Fundamentals and Applications; Cambridge University Press: Cambridge, UK, 2006; ISBN 978-0-521-85904-2. [Google Scholar]
  3. Dupont, J.N.; Lippold, J.C.; Kiser, S.D. Welding Metallurgy and Weldability of Nickel-Base Alloys; Wiley-Interscience: Hoboken, NJ, USA, 2009; ISBN 978-0-470-08714-5. [Google Scholar]
  4. Singamneni, S.; Lv, Y.; Hewitt, A.; Chalk, R.; Thomas, W.; Jordison, D. Additive Manufacturing for the Aircraft Industry: A Review. J. Aerosp. Eng. 2019, 8, 215. [Google Scholar] [CrossRef]
  5. Blakey-Milner, B.; Gradl, P.; Snedden, G.; Brooks, M.; Pitot, J.; Lopez, E.; Leary, M.; Berto, F.; du Plessis, A. Metal Additive Manufacturing in Aerospace: A Review. Mater. Des. 2021, 209, 110008. [Google Scholar] [CrossRef]
  6. Volpato, G.M.; Tetzlaff, U.; Fredel, M.C. A Comprehensive Literature Review on Laser Powder Bed Fusion of Inconel Superalloys. Addit. Manuf. 2022, 55, 102871. [Google Scholar] [CrossRef]
  7. Mostafaei, A.; Ghiaasiaan, R.; Ho, I.-T.; Strayer, S.; Chang, K.-C.; Shamsaei, N.; Shao, S.; Paul, S.; Yeh, A.-C.; Tin, S.; et al. Additive Manufacturing of Nickel-Based Superalloys: A State-of-the-Art Review on Process-Structure-Defect-Property Relationship. Prog. Mater. Sci. 2023, 136, 101108. [Google Scholar] [CrossRef]
  8. Feenstra, D.R.; Banerjee, R.; Fraser, H.L.; Huang, A.; Molotnikov, A.; Birbilis, N. Critical Review of the State of the Art in Multi-Material Fabrication via Directed Energy Deposition. Curr. Opin. Solid State Mater. Sci. 2021, 25, 100924. [Google Scholar] [CrossRef]
  9. Hu, Y.L.; Lin, X.; Song, K.; Jiang, X.Y.; Yang, H.O.; Huang, W.D. Effect of Heat Input on Cracking in Laser Solid Formed DZ4125 Superalloy. Opt. Laser Technol. 2016, 86, 1–7. [Google Scholar] [CrossRef]
  10. Zhang, X.; Chen, H.; Xu, L.; Xu, J.; Ren, X.; Chen, X. Cracking Mechanism and Susceptibility of Laser Melting Deposited Inconel 738 Superalloy. Mater. Des. 2019, 183, 108105. [Google Scholar] [CrossRef]
  11. Ramakrishnan, A.; Dinda, G.P. Direct Laser Metal Deposition of Inconel 738. Mater. Sci. Eng. A 2019, 740–741, 1–13. [Google Scholar] [CrossRef]
  12. Xu, J.; Lin, X.; Guo, P.; Hu, Y.; Wen, X.; Xue, L.; Liu, J.; Huang, W. The Effect of Preheating on Microstructure and Mechanical Properties of Laser Solid Forming IN-738LC Alloy. Mater. Sci. Eng. A 2017, 691, 71–80. [Google Scholar] [CrossRef]
  13. Zhang, L.-C.; Liu, Y.; Li, S.; Hao, Y. Additive Manufacturing of Titanium Alloys by Electron Beam Melting: A Review. Adv. Eng. Mater. 2018, 20, 1700842. [Google Scholar] [CrossRef]
  14. Körner, C. Additive Manufacturing of Metallic Components by Selective Electron Beam Melting—A Review. Int. Mater. Rev. 2016, 61, 361–377. [Google Scholar] [CrossRef]
  15. Wang, H.; Zhang, X.; Wang, G.B.; Shen, J.; Zhang, G.Q.; Li, Y.P.; Yan, M. Selective Laser Melting of the Hard-to-Weld IN738LC Superalloy: Efforts to Mitigate Defects and the Resultant Microstructural and Mechanical Properties. J. Alloys Compd. 2019, 807, 151662. [Google Scholar] [CrossRef]
  16. Zhou, W.; Tian, Y.; Tan, Q.; Qiao, S.; Luo, H.; Zhu, G.; Shu, D.; Sun, B. Effect of Carbon Content on the Microstructure, Tensile Properties and Cracking Susceptibility of IN738 Superalloy Processed by Laser Powder Bed Fusion. Addit. Manuf. 2022, 58, 103016. [Google Scholar] [CrossRef]
  17. Xu, J.; Ding, Y.; Gao, Y.; Wang, H.; Hu, Y.; Zhang, D. Grain Refinement and Crack Inhibition of Hard-to-Weld Inconel 738 Alloy by Altering the Scanning Strategy during Selective Laser Melting. Mater. Des. 2021, 209, 109940. [Google Scholar] [CrossRef]
  18. Cloots, M.; Uggowitzer, P.J.; Wegener, K. Investigations on the Microstructure and Crack Formation of IN738LC Samples Processed by Selective Laser Melting Using Gaussian and Doughnut Profiles. Mater. Des. 2016, 89, 770–784. [Google Scholar] [CrossRef]
  19. Shaikh, A.S.; Schulz, F.; Minet-Lallemand, K.; Hryha, E. Microstructure and Mechanical Properties of Haynes 282 Superalloy Produced by Laser Powder Bed Fusion. Mater. Today Commun. 2021, 26, 102038. [Google Scholar] [CrossRef]
  20. Rickenbacher, L.; Etter, T.; Hövel, S.; Wegener, K. High Temperature Material Properties of IN738LC Processed by Selective Laser Melting (SLM) Technology. Rapid Prototyp. J. 2013, 19, 282–290. [Google Scholar] [CrossRef]
  21. Sotov, A.V.; Agapovichev, A.V.; Smelov, V.G.; Kokareva, V.V.; Dmitrieva, M.O.; Melnikov, A.A.; Golanov, S.P.; Anurov, Y.M. Investigation of the IN-738 Superalloy Microstructure and Mechanical Properties for the Manufacturing of Gas Turbine Engine Nozzle Guide Vane by Selective Laser Melting. Int. J. Adv. Manuf. Technol. 2020, 107, 2525–2535. [Google Scholar] [CrossRef]
  22. Boswell, J. Development of Aero Engine Component Manufacturing Using Laser Additive Manufacturing; MERLIN, European Commission: Essen, Germany, 2014. [Google Scholar]
  23. Peng, H.; Shi, Y.; Gong, S.; Guo, H.; Chen, B. Microstructure, Mechanical Properties and Cracking Behaviour in a Γ’-Precipitation Strengthened Nickel-Base Superalloy Fabricated by Electron Beam Melting. Mater. Des. 2018, 159, 155–169. [Google Scholar] [CrossRef]
  24. Shakil, S.I.; Smith, N.R.; Yoder, S.P.; Ross, B.E.; Alvarado, D.J.; Hadadzadeh, A.; Haghshenas, M. Post Fabrication Thermomechanical Processing of Additive Manufactured Metals: A Review. J. Manuf. Process. 2022, 73, 757–790. [Google Scholar] [CrossRef]
  25. Harrison, N.J.; Todd, I.; Mumtaz, K. Reduction of Micro-Cracking in Nickel Superalloys Processed by Selective Laser Melting: A Fundamental Alloy Design Approach. Acta Mater. 2015, 94, 59–68. [Google Scholar] [CrossRef]
  26. Platl, J.; Bodner, S.; Hofer, C.; Landefeld, A.; Leitner, H.; Turk, C.; Nielsen, M.-A.; Demir, A.G.; Previtali, B.; Keckes, J.; et al. Cracking Mechanism in a Laser Powder Bed Fused Cold-Work Tool Steel: The Role of Residual Stresses, Microstructure and Local Elemental Concentrations. Acta Mater. 2022, 225, 117570. [Google Scholar] [CrossRef]
  27. Tang, Y.T.; Panwisawas, C.; Ghoussoub, J.N.; Gong, Y.; Clark, J.W.G.; Németh, A.A.N.; Mccartney, D.G.; Reed, R.C. Alloys-by-Design: Application to New Superalloys for Additive Manufacturing. Acta Mater. 2021, 202, 417–436. [Google Scholar] [CrossRef]
  28. Zhang, L.; Li, Y.; Zhang, S.; Zhang, Q. Selective Laser Melting of IN738 Superalloy with a Low Mn+Si Content: Effect of Energy Input on Characteristics of Molten Pool, Metallurgical Defects, Microstructures and Mechanical Properties. Mater. Sci. Eng. A 2021, 826, 141985. [Google Scholar] [CrossRef]
  29. Jena, A.; Atabay, S.E.; Brochu, M. Microstructure and Mechanical Properties of Crack-Free Inconel 738 Fabricated by Laser Powder Bed Fusion. Mater. Sci. Eng. A 2022, 850, 143524. [Google Scholar] [CrossRef]
  30. Chauvet, E.; Kontis, P.; Jägle, E.A.; Gault, B.; Raabe, D.; Tassin, C.; Blandin, J.-J.; Dendievel, R.; Vayre, B.; Abed, S.; et al. Hot Cracking Mechanism Affecting a Non-Weldable Ni-Based Superalloy Produced by Selective Electron Beam Melting. Acta Mater. 2018, 142, 82–94. [Google Scholar] [CrossRef]
  31. Boswell, J.H.; Clark, D.; Li, W.; Attallah, M.M. Cracking during Thermal Post-Processing of Laser Powder Bed Fabricated CM247LC Ni-Superalloy. Mater. Des. 2019, 174, 107793. [Google Scholar] [CrossRef]
  32. Olakanmi, E.O. Selective Laser Sintering/Melting (SLS/SLM) of Pure Al, Al-Mg, and Al-Si Powders: Effect of Processing Conditions and Powder Properties. J. Mater. Process. Technol. 2013, 213, 1387–1405. [Google Scholar] [CrossRef]
  33. Hu, Y.; Kang, W.; Zhang, H.; Chu, C.; Wang, L.; Hu, Y.; Ding, Y.; Zhang, D. Hot Corrosion Behavior of IN738LC Alloy Formed by Selective Laser Melting. Corros. Sci. 2022, 198, 110154. [Google Scholar] [CrossRef]
  34. Zhang, L.; Li, Y.; Zhang, Q.; Zhang, S. Microstructure Evolution, Phase Transformation and Mechanical Properties of IN738 Superalloy Fabricated by Selective Laser Melting under Different Heat Treatments. Mater. Sci. Eng. A 2022, 844, 142947. [Google Scholar] [CrossRef]
  35. Sanchez, S.; Smith, P.; Xu, Z.; Gaspard, G.; Hyde, C.J.; Wits, W.W.; Ashcroft, I.A.; Chen, H.; Clare, A.T. Powder Bed Fusion of Nickel-Based Superalloys: A Review. Int. J. Mach. Tools Manuf. 2021, 165, 103729. [Google Scholar] [CrossRef]
  36. Pantleon, W. Resolving the Geometrically Necessary Dislocation Content by Conventional Electron Backscattering Diffraction. Scr. Mater. 2008, 58, 994–997. [Google Scholar] [CrossRef]
  37. Wang, H.; Han, K.; Peng, F.; Zhang, B. Strain-Age Cracking in Vacuum Electron Beam Welded IN738LC Alloy during Post-Weld Heat Treatment. Vacuum 2021, 194, 110588. [Google Scholar] [CrossRef]
  38. Grant, B.M.B.; Francis, E.M.; Quinta da Fonseca, J.; Daymond, M.R.; Preuss, M. Deformation Behaviour of an Advanced Nickel-Based Superalloy Studied by Neutron Diffraction and Electron Microscopy. Acta Mater. 2012, 60, 6829–6841. [Google Scholar] [CrossRef]
  39. Xu, J.; Gruber, H.; Boyd, R.; Jiang, S.; Peng, R.L.; Moverare, J.J. On the Strengthening and Embrittlement Mechanisms of an Additively Manufactured Nickel-Base Superalloy. Materialia 2020, 10, 100657. [Google Scholar] [CrossRef]
  40. Liu, T.; Xia, S.; Li, H.; Zhou, B.; Bai, Q. Effect of the Pre-Existing Carbides on the Grain Boundary Network during Grain Boundary Engineering in a Nickel Based Alloy. Mater. Charact. 2014, 91, 89–100. [Google Scholar] [CrossRef]
  41. Leung, C.L.A.; Marussi, S.; Atwood, R.C.; Towrie, M.; Withers, P.J.; Lee, P.D. In Situ X-Ray Imaging of Defect and Molten Pool Dynamics in Laser Additive Manufacturing. Nat. Commun. 2018, 9, 1355. [Google Scholar] [CrossRef]
  42. Tammas-Williams, S.; Withers, P.J.; Todd, I.; Prangnell, P.B. Porosity Regrowth during Heat Treatment of Hot Isostatically Pressed Additively Manufactured Titanium Components. Scr. Mater. 2016, 122, 72–76. [Google Scholar] [CrossRef]
  43. Li, W.; Qian, D.; Mysore Nagaraja, K.; Sun, C. Modeling Study of Porosity’s Effect on Grain Evolution during Directed Energy Deposition. Mater. Lett. 2022, 307, 131009. [Google Scholar] [CrossRef]
  44. Taheri, M.; Halvaee, A.; Kashani-Bozorg, S.F. Effect of Pre- and Post-Weld Heat Treatment on Microstructure and Mechanical Properties of GTD-111 Superalloy Welds. Met. Mater. Int. 2021, 27, 1173–1192. [Google Scholar] [CrossRef]
  45. Zhang, G.; Xiao, C.; Taheri, M. Effect of Nd:YAG Pulsed Laser Welding Process on the Liquation and Strain-Age Cracking in GTD-111 Superalloy. J. Manuf. Process. 2020, 52, 66–78. [Google Scholar] [CrossRef]
  46. Kazempour-Liasi, H.; Tajally, M.; Abdollah-Pour, H. Effects of Pre- and Post-Weld Heat Treatment Cycles on the Liquation and Strain-Age Cracking of IN939 Superalloy. Eng. Res. Express 2019, 1, 025026. [Google Scholar] [CrossRef]
  47. Fang, Z.-C.; Wu, Z.-L.; Huang, C.-G.; Wu, C.-W. Review on Residual Stress in Selective Laser Melting Additive Manufacturing of Alloy Parts. Opt. Laser Technol. 2020, 129, 106283. [Google Scholar] [CrossRef]
  48. Bartlett, J.L.; Li, X. An Overview of Residual Stresses in Metal Powder Bed Fusion. Addit. Manuf. 2019, 27, 131–149. [Google Scholar] [CrossRef]
  49. Bertini, L.; Bucchi, F.; Frendo, F.; Moda, M.; Monelli, B.D. Residual Stress Prediction in Selective Laser Melting A Critical Review of Simulation Strategies. Int. J. Adv. Manuf. Technol. 2019, 105, 609–636. [Google Scholar] [CrossRef]
  50. Phan, T.Q.; Strantza, M.; Hill, M.R.; Gnaupel-Herold, T.H.; Heigel, J.; D’Elia, C.R.; Dewald, A.T.; Clausen, B.; Pagan, D.C.; Ko, J.Y.P.; et al. Elastic Residual Strain and Stress Measurements and Corresponding Part Deflections of 3D Additive Manufacturing Builds of IN625 AM-Bench Artifacts Using Neutron Diffraction, Synchrotron X-Ray Diffraction, and Contour Method. Integr. Mater. Manuf. Innov. 2019, 8, 318–334. [Google Scholar] [CrossRef]
  51. Pant, P.; Salvemini, F.; Proper, S.; Luzin, V.; Simonsson, K.; Sjöström, S.; Hosseini, S.; Peng, R.L.; Moverare, J. A Study of the Influence of Novel Scan Strategies on Residual Stress and Microstructure of L-Shaped LPBF IN718 Samples. Mater. Des. 2022, 214, 110386. [Google Scholar] [CrossRef]
  52. Serrano-Munoz, I.; Fritsch, T.; Mishurova, T.; Trofimov, A.; Apel, D.; Ulbricht, A.; Kromm, A.; Hesse, R.; Evans, A.; Bruno, G. On the Interplay of Microstructure and Residual Stress in LPBF IN718. J. Mater. Sci. 2021, 56, 5845–5867. [Google Scholar] [CrossRef]
  53. Malmelöv, A.; Hassila, C.-J.; Fisk, M.; Wiklund, U.; Lundbäck, A. Numerical Modeling and Synchrotron Diffraction Measurements of Residual Stresses in Laser Powder Bed Fusion Manufactured Alloy 625. Mater. Des. 2022, 216, 110548. [Google Scholar] [CrossRef]
  54. Pant, P.; Proper, S.; Luzin, V.; Sjöström, S.; Simonsson, K.; Moverare, J.; Hosseini, S.; Pacheco, V.; Peng, R.L. Mapping of Residual Stresses in As-Built Inconel 718 Fabricated by Laser Powder Bed Fusion: A Neutron Diffraction Study of Build Orientation Influence on Residual Stresses. Addit. Manuf. 2020, 36, 101501. [Google Scholar] [CrossRef]
  55. Goel, S.; Neikter, M.; Capek, J.; Polatidis, E.; Colliander, M.H.; Joshi, S.; Pederson, R. Residual Stress Determination by Neutron Diffraction in Powder Bed Fusion-Built Alloy 718: Influence of Process Parameters and Post-Treatment. Mater. Des. 2020, 195, 109045. [Google Scholar] [CrossRef]
  56. Syed, A.K.; Ahmad, B.; Guo, H.; Machry, T.; Eatock, D.; Meyer, J.; Fitzpatrick, M.E.; Zhang, X. An Experimental Study of Residual Stress and Direction-Dependence of Fatigue Crack Growth Behaviour in as-Built and Stress-Relieved Selective-Laser-Melted Ti6Al4V. Mater. Sci. Eng. A 2019, 755, 246–257. [Google Scholar] [CrossRef]
  57. Zhou, W.; Tian, Y.; Wei, D.; Tan, Q.; Kong, D.; Luo, H.; Huang, W.; Zhu, G.; Shu, D.; Mi, J.; et al. Effects of Heat Treatments on the Microstructure and Tensile Properties of IN738 Superalloy with High Carbon Content Fabricated via Laser Powder Bed Fusion. J. Alloys Compd. 2023, 953, 170110. [Google Scholar] [CrossRef]
Materials 16 07316 g001
Figure 1. Microstructure of AB and HT samples. (a–c) BSE images of the AB sample with different magnifications. (d–f) BSE images of the HT sample with different magnifications. (g) SEM image of crack morphology in the HT sample.
Figure 1. Microstructure of AB and HT samples. (a–c) BSE images of the AB sample with different magnifications. (d–f) BSE images of the HT sample with different magnifications. (g) SEM image of crack morphology in the HT sample.
Materials 16 07316 g001
Materials 16 07316 g002

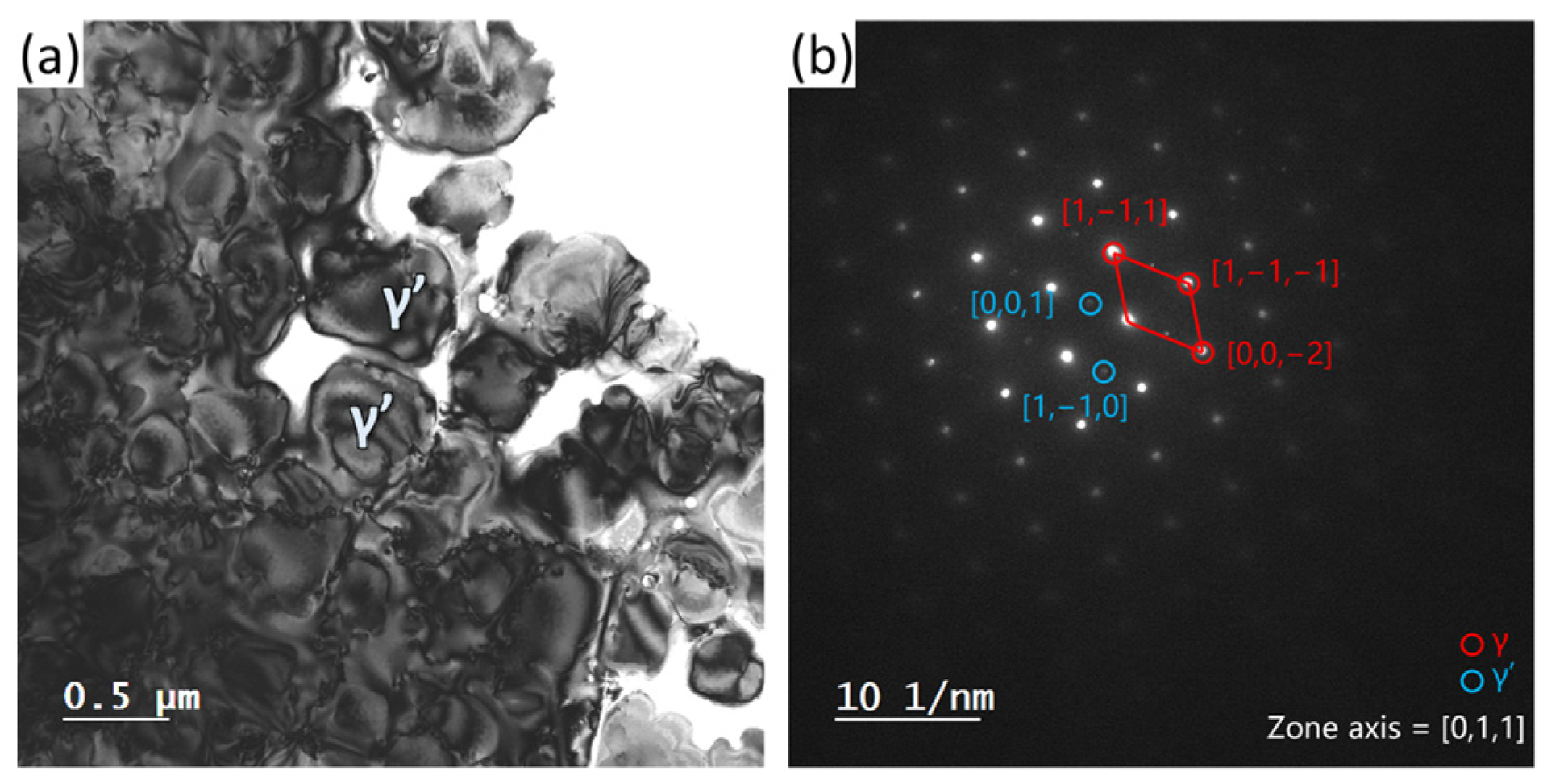

Figure 2. The TEM identification of precipitates. (a) Bright-field image. (b) Selected area electron diffraction.
Figure 2. The TEM identification of precipitates. (a) Bright-field image. (b) Selected area electron diffraction.
Materials 16 07316 g002
Materials 16 07316 g003

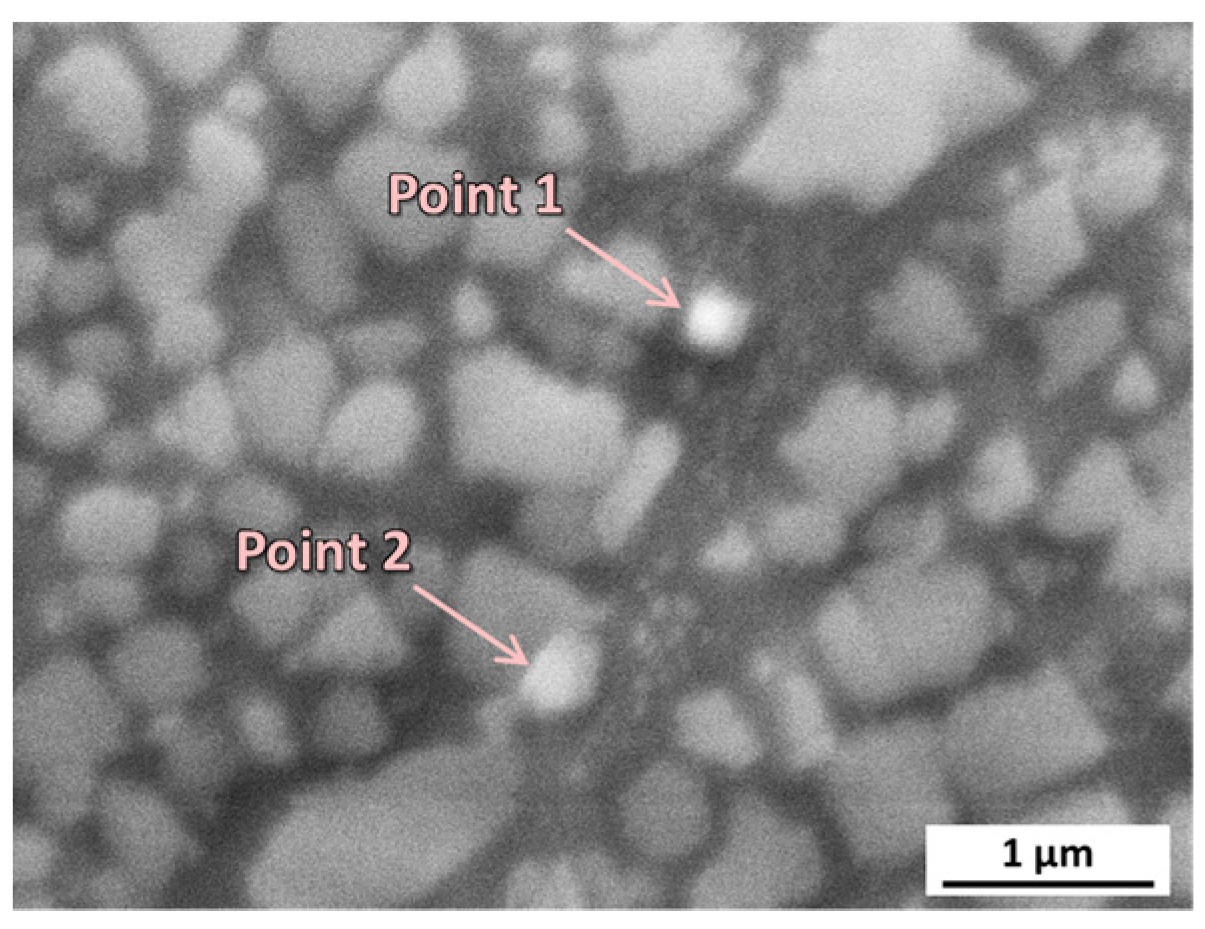

Figure 3. Schematic of EDS analysis for carbides.
Figure 3. Schematic of EDS analysis for carbides.
Materials 16 07316 g003
Materials 16 07316 g004

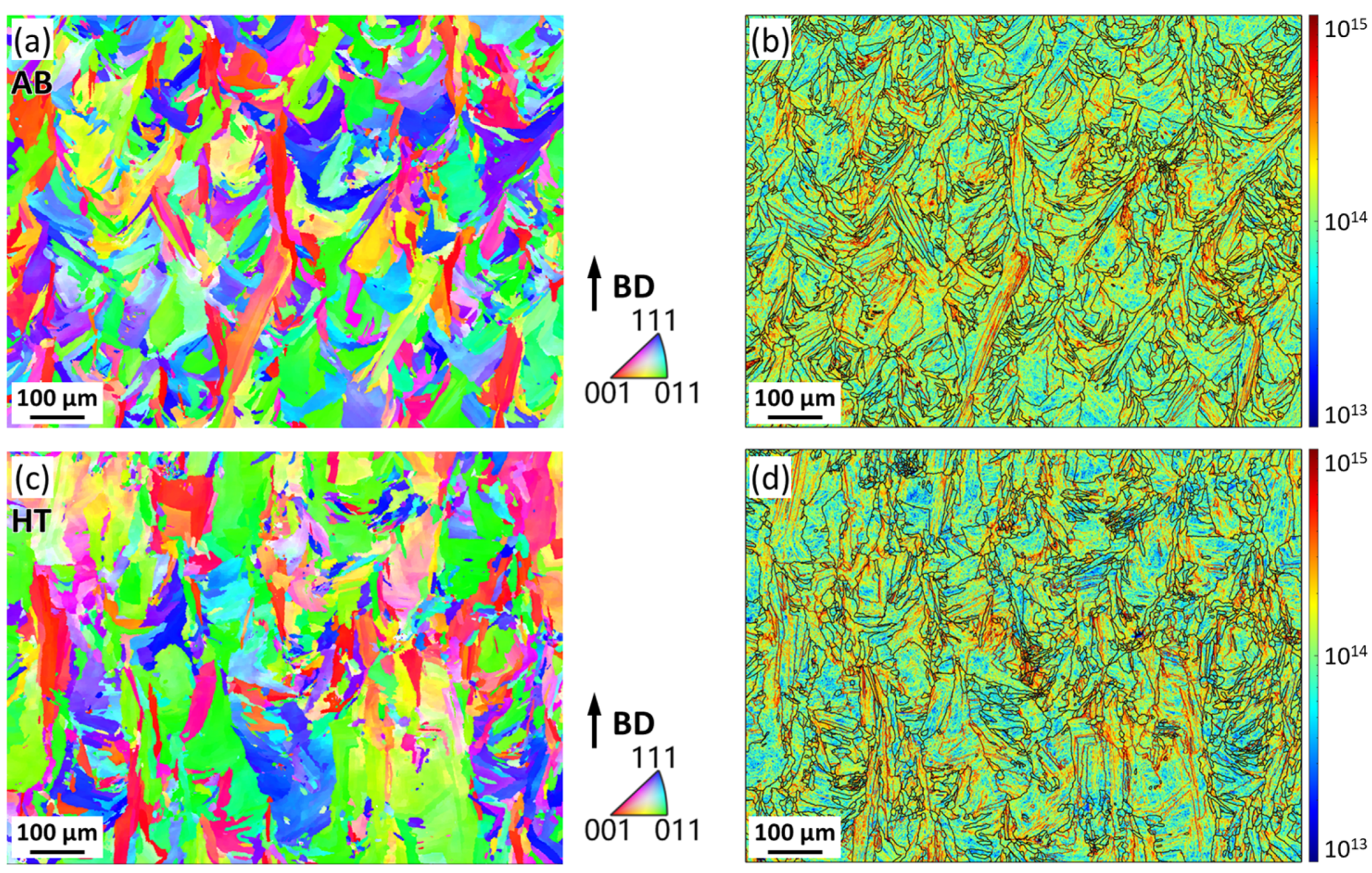

Figure 4. IPF maps of (a) AB sample and (c) HT sample; GND maps of (b) AB sample and (d) HT sample.
Figure 4. IPF maps of (a) AB sample and (c) HT sample; GND maps of (b) AB sample and (d) HT sample.
Materials 16 07316 g004
Materials 16 07316 g005

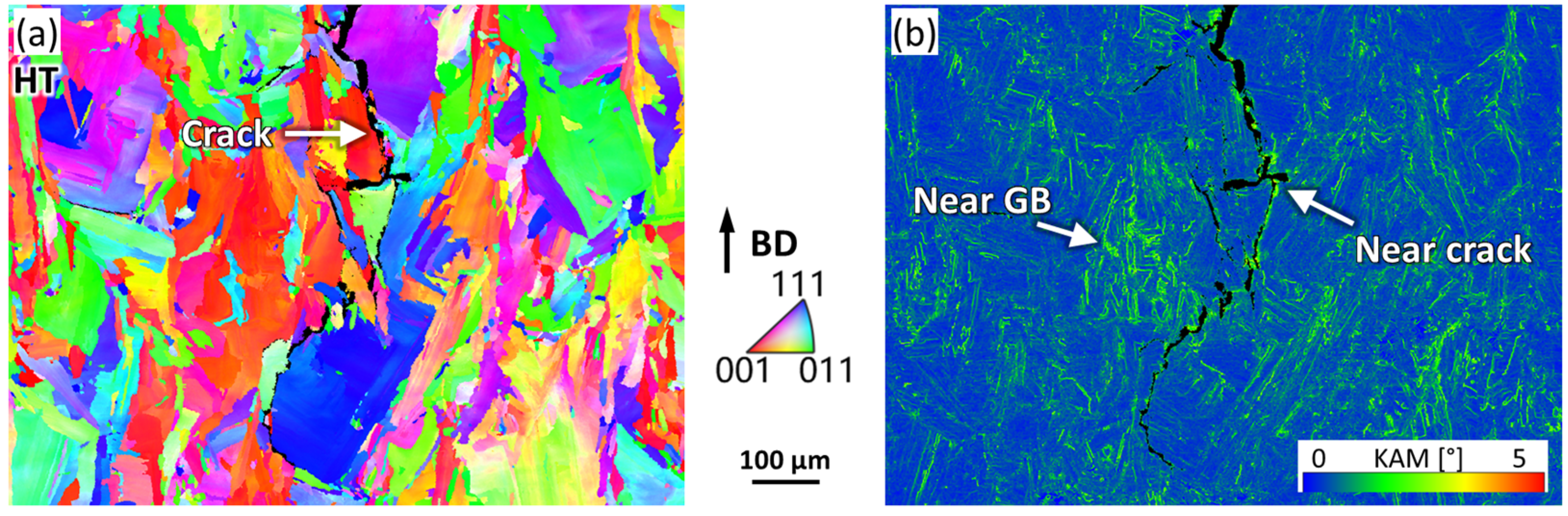

Figure 5. EBSD images of crack morphology in HT sample: (a) IPF map; (b) KAM map.
Figure 5. EBSD images of crack morphology in HT sample: (a) IPF map; (b) KAM map.
Materials 16 07316 g005
Materials 16 07316 g006

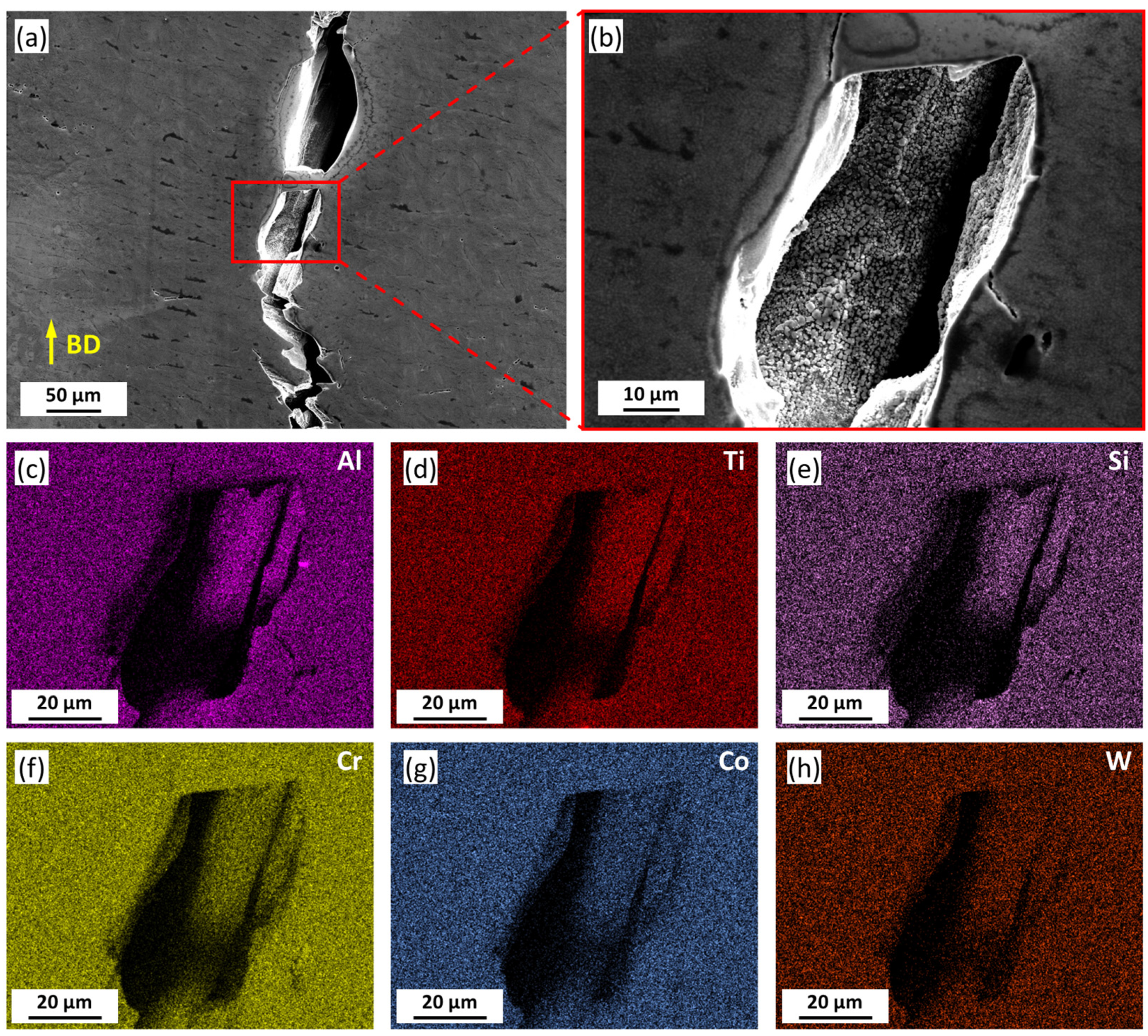

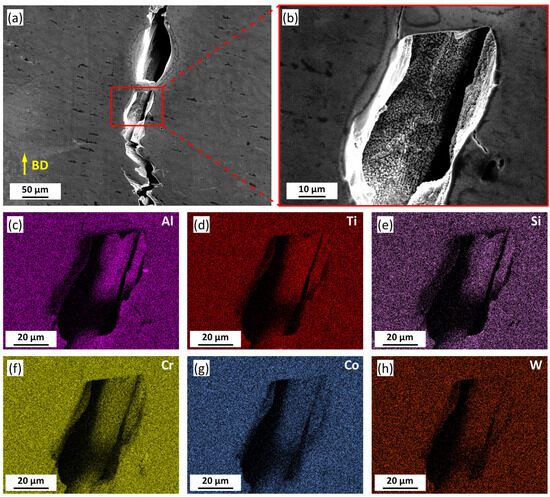

Figure 6. Microstructure of the crack surface in HT sample (a) low magnification SEM image; (b) high magnification SEM image. Element distribution of (c) Al, (d) Ti, (e) Si, (f) Cr, (g) Co, and (h) W.
Figure 6. Microstructure of the crack surface in HT sample (a) low magnification SEM image; (b) high magnification SEM image. Element distribution of (c) Al, (d) Ti, (e) Si, (f) Cr, (g) Co, and (h) W.
Materials 16 07316 g006
Materials 16 07316 g007

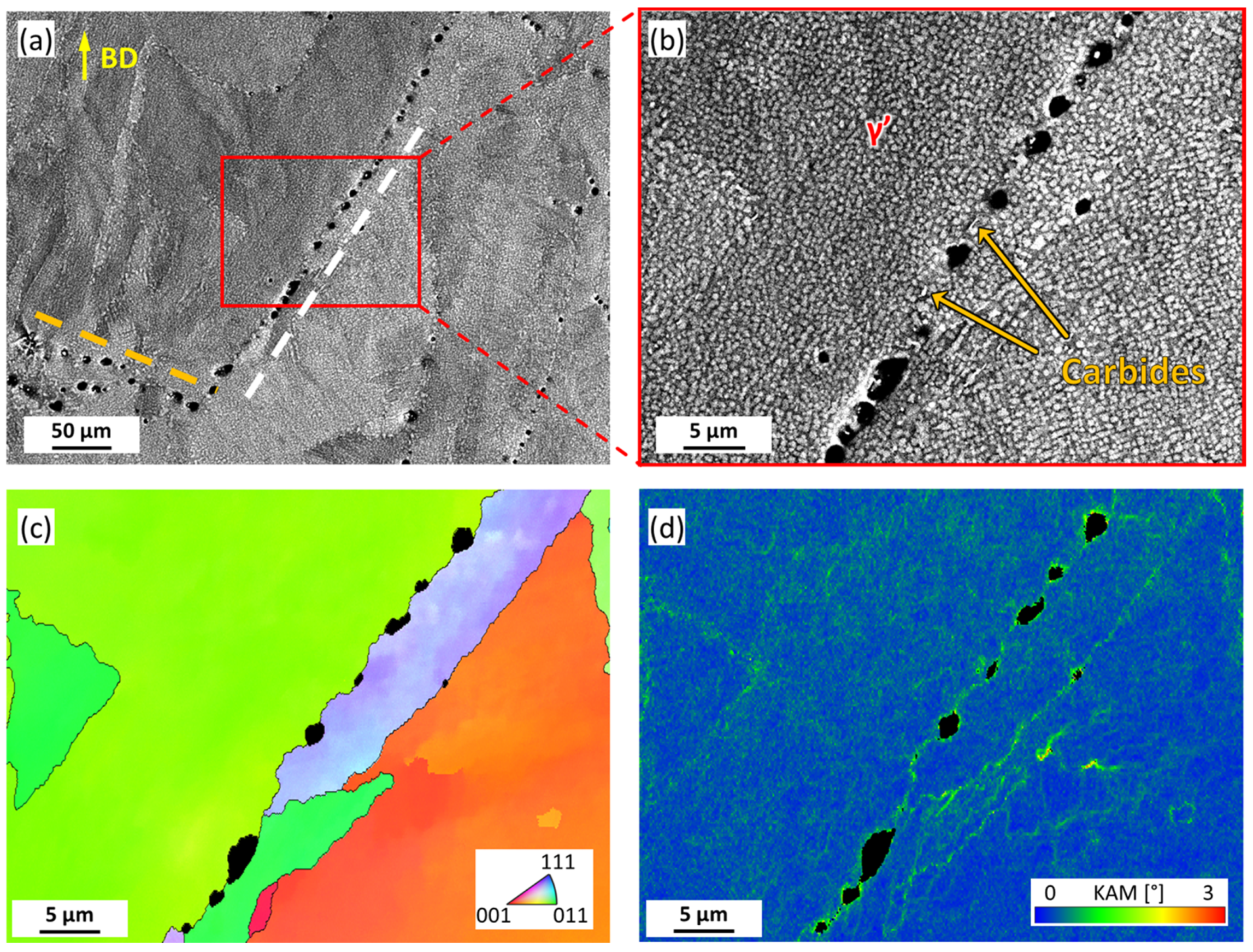

Figure 7. Intergranular microstructure of HT sample. (a) low magnification BSE image; (b) high magnification BSE image. (c) IPF map and (d) KAM map from EBSD results of identical region of (b).
Figure 7. Intergranular microstructure of HT sample. (a) low magnification BSE image; (b) high magnification BSE image. (c) IPF map and (d) KAM map from EBSD results of identical region of (b).
Materials 16 07316 g007
Materials 16 07316 g008

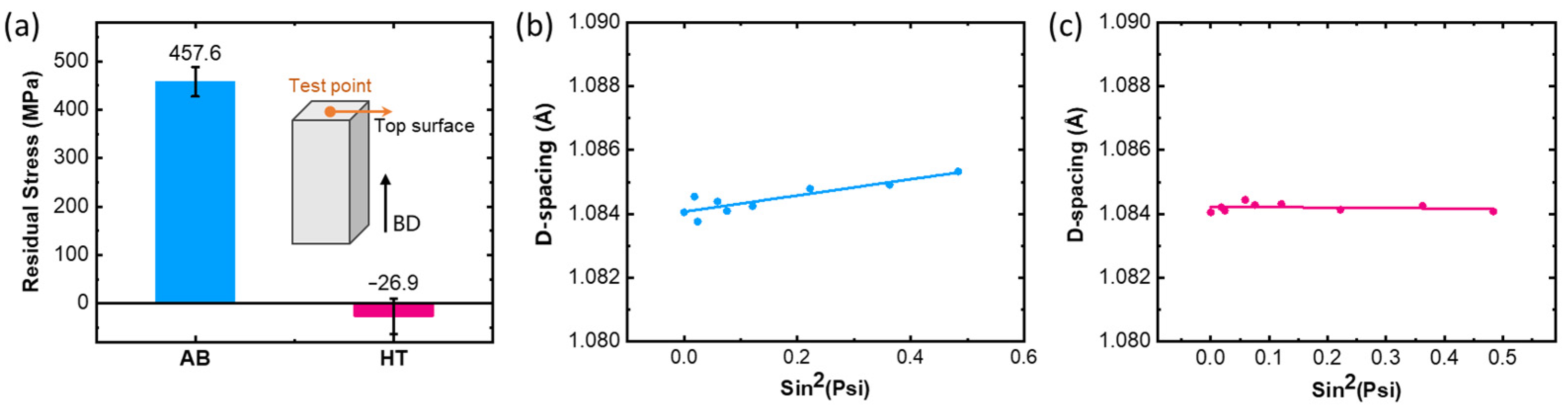

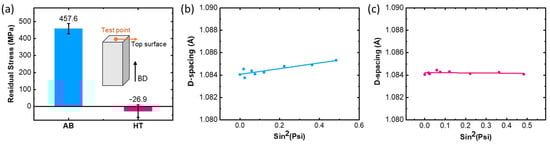

Figure 8. Residual stress in the AB and HT samples. (a) Schematic of the test point and the residual stress results. The d-spacing versus sin2(Psi) relationships of (b) AB sample and (c) HT sample.
Figure 8. Residual stress in the AB and HT samples. (a) Schematic of the test point and the residual stress results. The d-spacing versus sin2(Psi) relationships of (b) AB sample and (c) HT sample.
Materials 16 07316 g008
Table 1. Nominal chemical composition of IN738 powders.
Table 1. Nominal chemical composition of IN738 powders.
ElementNiAlTiCrCoMoNbTaWZrBC
wt. %Bal.3.43.416.08.51.80.91.72.60.050.010.11
Table 2. Nominal chemical composition of 316 L stainless steel substrate.
Table 2. Nominal chemical composition of 316 L stainless steel substrate.
ElementFeCMnPSSiCrNiMoN
wt. %Bal.0.082.000.0450.030.7516–1810–142–30.1
Table 3. The LPBF process parameters.
Table 3. The LPBF process parameters.
Laser PowerScan SpeedLayer ThicknessHatch LengthScan Strategy
280 W980 mm/s40 μm100 μm67° rotation
Table 4. Chemical compositions of AB and HT samples.
Table 4. Chemical compositions of AB and HT samples.
SampleElementNiAlTiCrCoMoNbTaW
ABwt. %Bal.3.373.7016.088.341.680.862.213.38
at. %Bal.7.184.4417.798.141.010.530.701.06
HTwt. %Bal.3.373.7016.068.371.670.832.263.26
at. %Bal.7.174.4417.778.161.000.520.721.03
Table 5. EDS analysis for carbides.
Table 5. EDS analysis for carbides.
PositionElementNiAlTiCrCoMoNbTaW
Point 1wt. %Bal.1.0210.8716.337.240.803.338.922.16
Point 2wt. %Bal.0.9713.9015.506.580.734.5311.942.05
