Fabrication of SiC Porous Ceramics by Foaming Method
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials

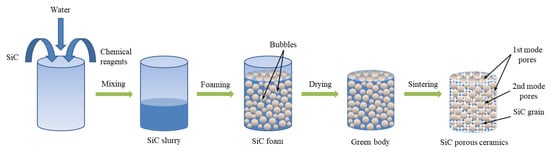

2.2. Preparation of SiC Porous Ceramics
2.3. Properties Testing and Characterization
3. Results and Discussion

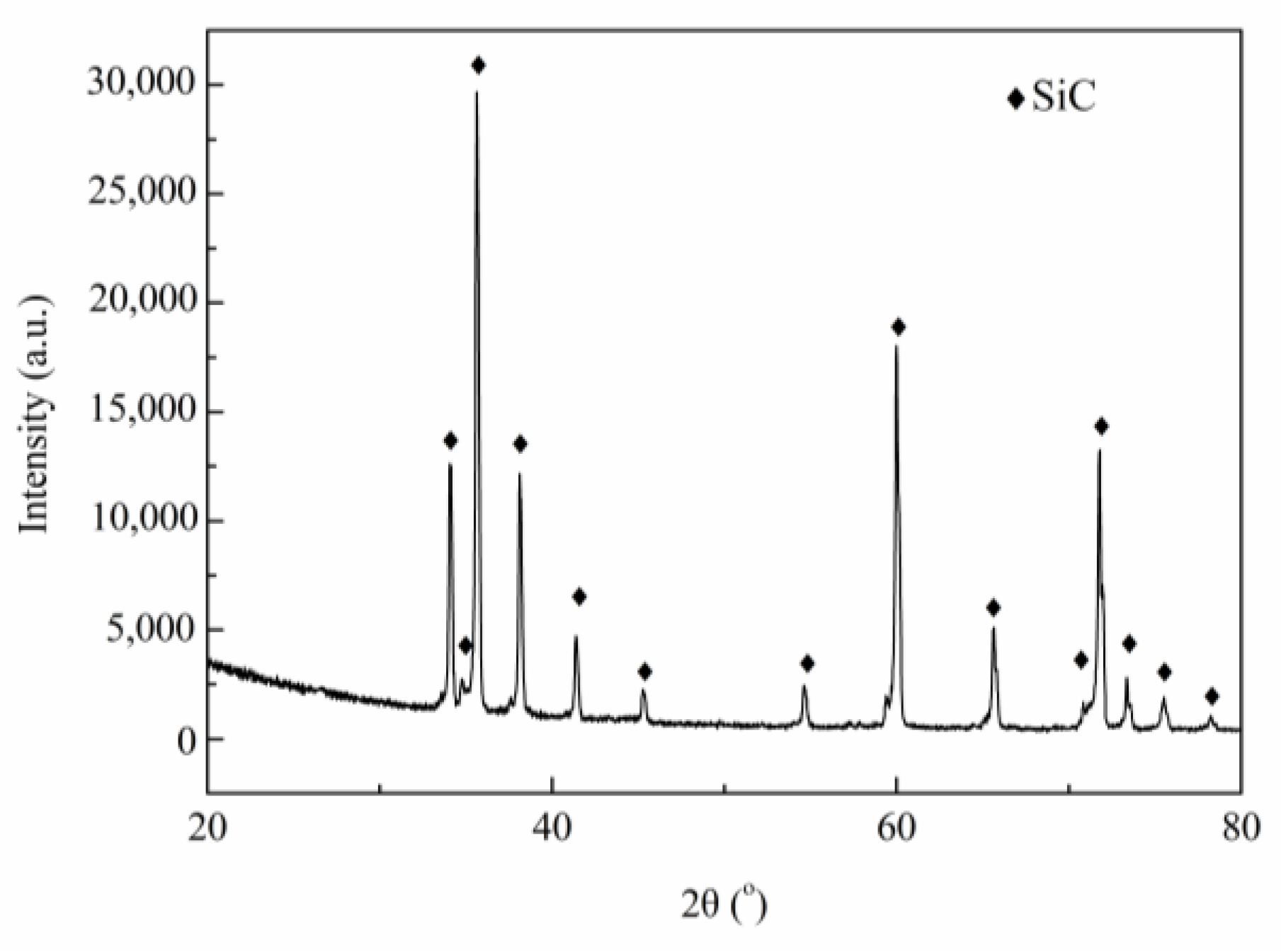

3.1. Physical Phase Analysis of SiC Porous Ceramics

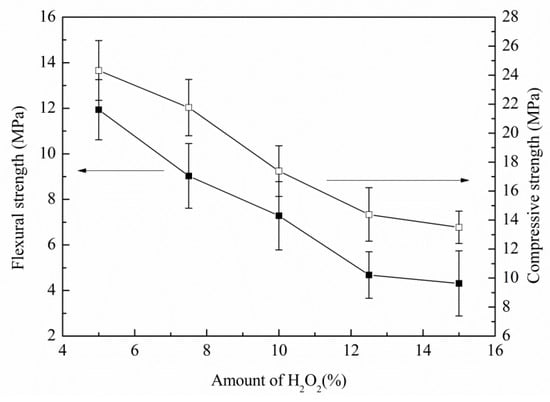

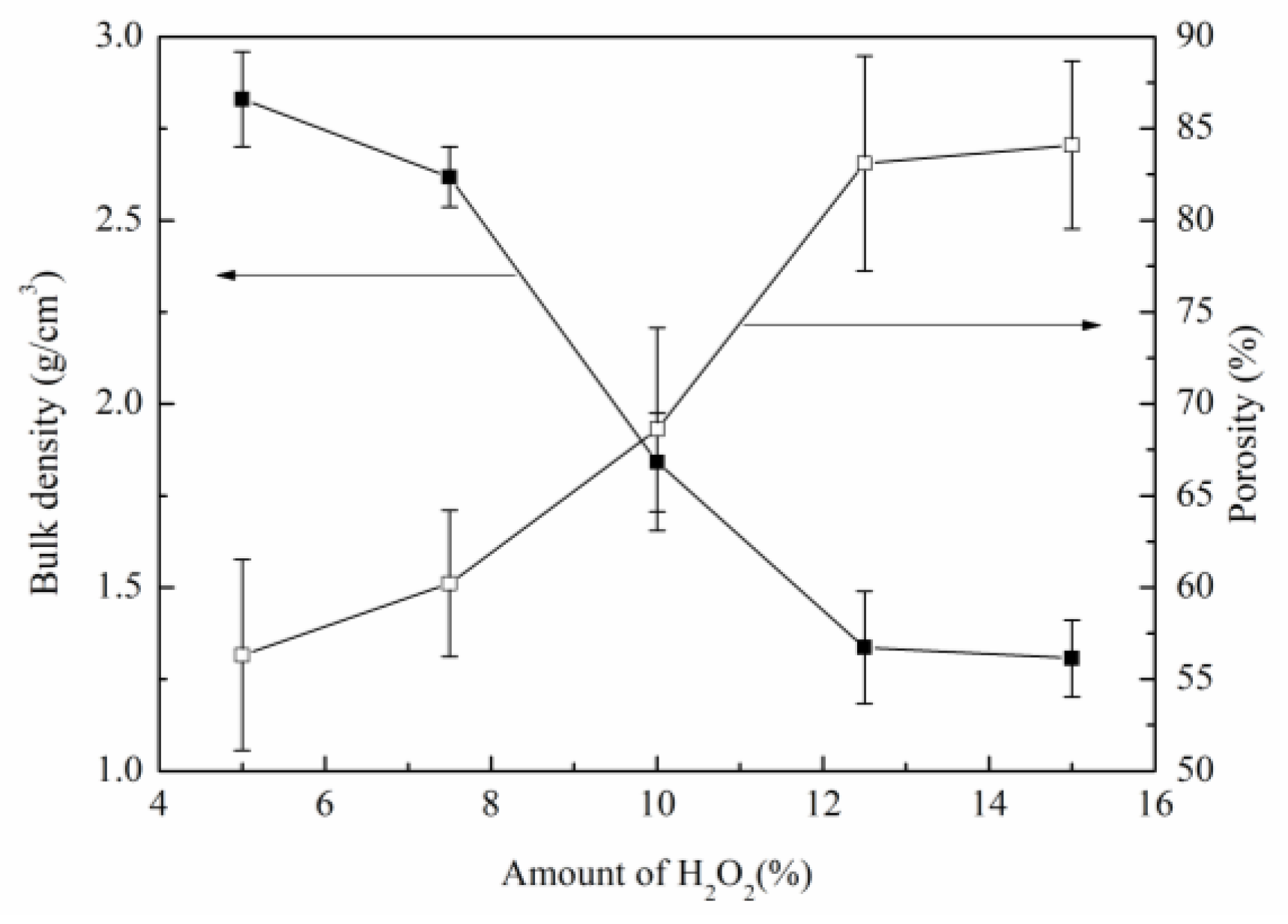

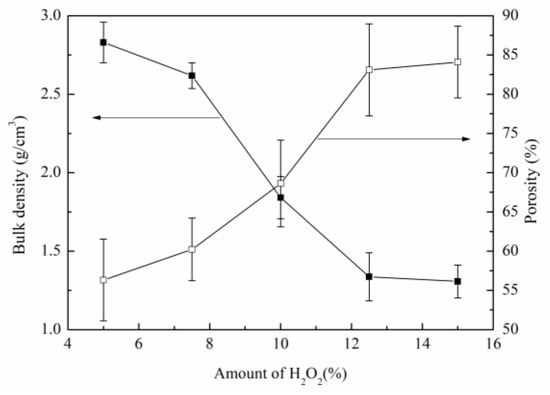

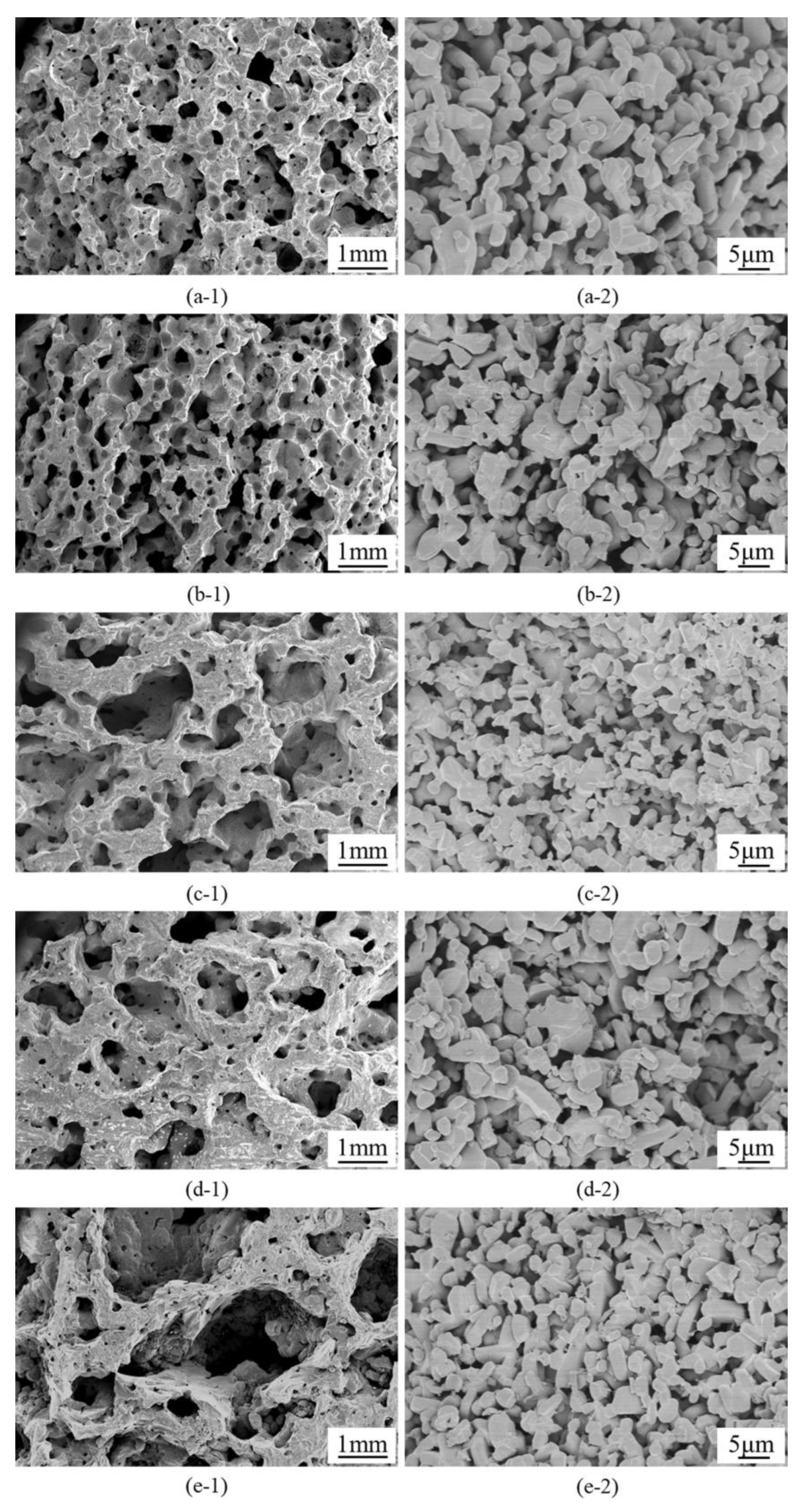

3.2. Effect of H2O2 Addition on the Pore Structure of SiC Porous Ceramics

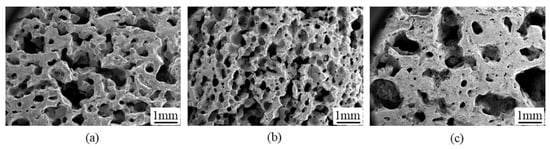

3.3. Effect of Foaming Temperature on SiC Porous Ceramics

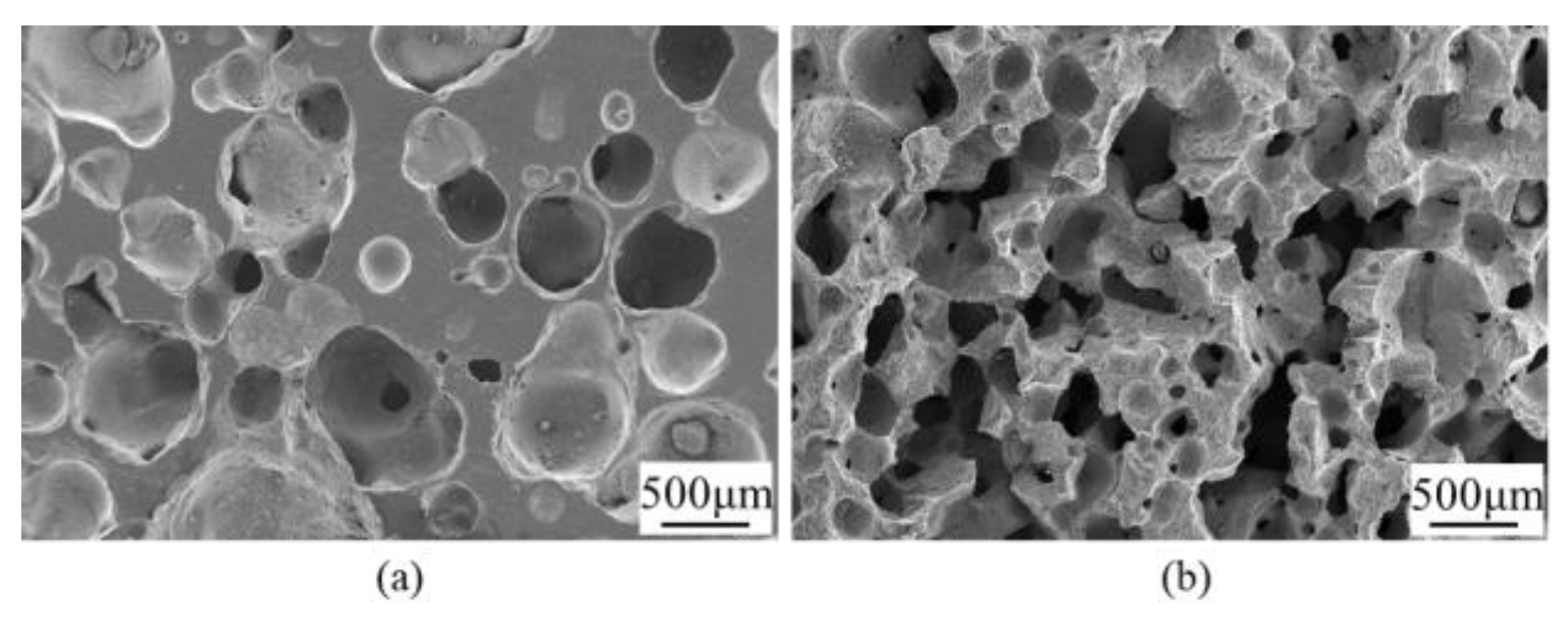

3.4. Effect of Surfactant on SiC Porous Ceramics
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Jiang, Q.; Xie, Y.; Ji, L.; Zhong, Z.; Xing, W. Low-temperature sintering of a porous SiC ceramic filter using water glass and zirconia as sintering aids. Ceram. Int. 2021, 47, 26125–26133. [Google Scholar] [CrossRef]
- Siddharth; Jana, P.; Dietrich, S.; Roy, S. Effect of SiC particle size on the strength and stiffness of porous Si3N4–SiC composites fabricated via a low-temperature sintering process. Mater. Sci. Eng. A 2023, 864, 144614. [Google Scholar] [CrossRef]
- Liang, X.; Li, Y.; He, Z.; Yan, W.; Tan, F.; Wang, Q.; Zhu, T.; Sang, S. The effect of cellular structure on the strength and combustion properties of SiC porous ceramics. Ceram. Int. 2021, 48, 2538–2545. [Google Scholar] [CrossRef]
- Zhang, B.; Huang, H.; Lu, X.; Xu, X.; Yao, J. Fabrication and properties of SiC porous ceramics using a polyurethane preparation process. Ceram. Int. 2018, 44, 16589–16593. [Google Scholar] [CrossRef]
- Fan, Z.D.; Wei, C.H.; Yu, L.H.; Xia, Z.; Cai, J.S.; Tian, Z.N.; Zou, G.F.; Dou, S.X.; Sun, J.Y. 3D Printing of Porous Nitro-gen-Doped Ti3C2 MXene Scaffolds for High-Performance Sodium-Ion Hybrid Capacitors. ACS Nano 2020, 14, 867–876. [Google Scholar] [CrossRef] [PubMed]
- Dong, B.; Min, Z.; Guan, L.; Zheng, X.; Wang, L.; Wang, Q.; Yin, C.; Wang, Y.; Zhang, R.; Wang, F.; et al. Porous mullite-bonded SiC filters prepared by foaming-sol-gel-tape casting for high-efficiency hot flue gas filtration. Sep. Purif. Technol. 2022, 295, 121338. [Google Scholar] [CrossRef]
- Han, F.; Zhong, Z.; Yang, Y.; Wei, W.; Zhang, F.; Xing, W.; Fan, Y. High gas permeability of SiC porous ceramics reinforced by mullite fibers. J. Eur. Ceram. Soc. 2016, 36, 3909–3917. [Google Scholar] [CrossRef]
- Xue, F.; Zhou, K.; Wu, N.; Luo, H.; Wang, X.; Zhou, X.; Yan, Z.; Abrahams, I.; Zhang, D. Porous SiC ceramics with dendritic pore structures by freeze casting from chemical cross-linked polycarbosilane. Ceram. Int. 2018, 44, 6293–6299. [Google Scholar] [CrossRef]
- Arbi, H.M.; Yadav, A.A.; Kumar, Y.A.; Moniruzzaman, M.; Alzahmi, S.; Obaidat, I.M. Polypyrrole-Assisted Ag Doping Strategy to Boost Co(OH)2 Nanosheets on Ni Foam as a Novel Electrode for High-Performance Hybrid Supercapacitors. Nanomaterials 2022, 12, 3982. [Google Scholar] [CrossRef]
- Kumar, A.; Kumar, A.; Chandra, R. Fabrication of porous silicon filled Pd/SiC nanocauliflower thin films for high performance H2 gas sensor. Sens. Actuators B Chem. 2018, 264, 10–19. [Google Scholar] [CrossRef]
- Liao, M.; Guo, C.; Guo, W.; Hu, T.; Qin, H.; Gao, P.; Xiao, H. Hydrogen production in microreactor using porous SiC ceramic with a pore-in-pore hierarchical structure as catalyst support. Int. J. Hydrogen Energy 2020, 45, 20922–20932. [Google Scholar] [CrossRef]
- Chang, B.B.; Guo, Y.Z.; Li, Y.C.; Guan, X.; Liu, P.; Peng, Z. Hierarchical porous carbon derived from recycled waste filter paper as high-performance supercapacitor electrodes. RCS Adv. 2015, 5, 72019–72027. [Google Scholar] [CrossRef]
- Wang, J.C.; Oschatz, M.; Biemelt, T.; Borchardt, L.; Senkovska, I.; Lohe, M.R.; Kaskel, S. Synthesis, characterization, and hy-drogen storage capacities of hierarchical porous carbide derived carbon monolith. J. Mater. Chem. 2012, 22, 23893–23899. [Google Scholar] [CrossRef]
- Sun, S.; Xia, Q.; Feng, D.; Qin, Z.; Ru, H. Combining robocasting and alkali-induced starch gelatinization technique for fabricating hierarchical porous SiC structures. Addit. Manuf. 2022, 56, 102938. [Google Scholar] [CrossRef]
- Liu, D.; Gui, K.; Wang, M.; Zhu, M.; Niu, J.; Bao, Y. A novel hierarchical structure comprised of biomass-derived porous carbon and silicon carbide nanowires for highly efficient microwave absorption. Ceram. Int. 2022, 48, 16033–16041. [Google Scholar] [CrossRef]
- Wang, L.H.; Shao, H.H.; Hu, X.B.; Xu, X.G. Hierarchical Porous Patterns of n-type 6H-SiC Crystals via Photo-electrochemical Etching. J. Mater. Sci. Technol. 2013, 29, 655–661. [Google Scholar] [CrossRef]
- Lucio, M.D.S.; Kultayeva, S.; Kim, Y.-W. Improved mechanical strength and thermal resistance of porous SiC ceramics with gradient pore sizes. J. Eur. Ceram. Soc. 2022, 42, 6785–6794. [Google Scholar] [CrossRef]
- Bowen, J.J.; Mooraj, S.; Goodman, J.A.; Peng, S.; Street, D.P.; Roman-Manso, B.; Davidson, E.C.; Martin, K.L.; Rueschhoff, L.M.; Schiffres, S.N.; et al. Hierarchically porous ceramics via direct writing of preceramic polymer-triblock copolymer inks. Mater. Today 2022, 58, 71–79. [Google Scholar] [CrossRef]
- Zhao, J.; Ru, H.; Xu, Y.; Chang, L.; Wang, W.; Yue, X.; Zhang, C. Improvement in strength of SiC reticulated porous ceramics. Mater. Technol. 2015, 31, 53–57. [Google Scholar] [CrossRef]
- Hanna, S.B.; Awaad, M.; Ajiba, N.A.; Saad, E.A. Characterization of Porous Alumino-Silicate Bonded SiC-Ceramics Prepared by Hand-Pressing and Extrusion Methods. Silicon 2018, 10, 1961–1972. [Google Scholar] [CrossRef]
- Bai, J.; Yang, X.; Shi, Y.; Xu, S.; Yang, J. Fabrication of directional SiC porous ceramics using Fe2O3 as pore-forming agent. Mater. Lett. 2012, 78, 192–194. [Google Scholar] [CrossRef]
- Gu, T.; Chen, F.; Shen, Q.; Zhang, L. Low-temperature preparation of porous SiC ceramics using phosphoric acid as a pore-forming agent and a binder. Ceram. Int. 2019, 45, 16470–16475. [Google Scholar] [CrossRef]
- Fukushima, M.; Colombo, P. Silicon carbide-based foams from direct blowing of polycarbosilane. J. Eur. Ceram. Soc. 2012, 32, 503–510. [Google Scholar] [CrossRef]
- Sundermann, E.; Viedt., J. Method of manufacturing ceramic foam bodies. U.S. Patent 3,745,201, 10 July 1973. [Google Scholar]
- Studart, A.R.; Gonzenbach, U.T.; Tervoort, E.; Gauckler, L.J. Processing Routes to Macroporous Ceramics: A Review. J. Am. Ceram. Soc. 2006, 89, 1771–1789. [Google Scholar] [CrossRef]
- Qiu, J.; Li, J.; Smirnov, K. Combustion synthesis of high porosity SiC foam with nanosized grains. Ceram. Int. 2010, 36, 1901–1904. [Google Scholar] [CrossRef]
- Yuan, B.; Wu, H.; Sun, X.; Wang, G.; Li, H. Fabrication of porous alumina green bodies from suspension emulsions by gelcasting. Mater. Lett. 2012, 81, 151–154. [Google Scholar] [CrossRef]
- Li, J.; Yuan, W.; Deng, C.; Zhu, H. Porous SiC/SiCN composite ceramics fabricated by foaming and reaction sintering. J. Eur. Ceram. Soc. 2017, 37, 1131–1134. [Google Scholar] [CrossRef]
- Han, L.; Huang, L.; Li, F.L.; Wang, J.K.; Pei, Y.T.; Zeng, Y.; Jia, Q.L.; Zhang, H.J.; Zhang, S.W. Low-temperature preparation of Si3N4/SiC porous ceramics via foam-gelcasting and microwave-assisted catalytic nitridation. Ceram. Int. 2018, 44, 11088–11093. [Google Scholar] [CrossRef]
- Wu, Q.; Sun, H. Preparation and properties of porous ceramics from nickel slag by aerogel gelcasting. Ceram. Int. 2022, 48, 33058–33065. [Google Scholar] [CrossRef]
- Kumar, Y.A.; Kim, H.J. Preparation and electrochemical performance of NiCo2O4@NiCo2O4 composite nanoplates for high performance supercapacitor applications. New J. Chem. 2018, 42, 19971–19978. [Google Scholar] [CrossRef]
- Shi, K.; Ma, Q.; Su, T.; Wang, Z. Preparation of porous materials by selective enzymatic degradation: Effect of in vitro degradation and in vivo compatibility. Sci. Rep. 2020, 10, 7031. [Google Scholar] [CrossRef] [PubMed]
- Johari, N.; Fathi, M.H.; Golozar, M.A.; Erfani, E.; Samadikuchaksaraei, A. Poly(ε-caprolactone)/nano fluoridated hydroxy-apatite scaffolds for bone tissue engineering: In vitro degradation and biocompatibility study. J. Mater. Sci. Mater. Med. 2011, 23, 763–770. [Google Scholar] [CrossRef] [PubMed]
- Li, X.; Tao, M.; Pan, M.; Liu, W.; Gao, Z.; Yuan, H.; Ma, C. The preparation and properties of high-strength porous mullite ceramics by a novel non-toxic gelcasting process. J. Eur. Ceram. Soc. 2022, 42, 6015–6024. [Google Scholar] [CrossRef]
- Li, X.; Li, S.; Yin, Z.; Shi, W.; Tao, M.; Liu, W.; Gao, Z.; Ma, C. Foam-gelcasting preparation and properties of high-strength mullite porous ceramics. Ceram. Int. 2023, 49, 6873–6879. [Google Scholar] [CrossRef]
- Ryshkewitch, E. Compression strength of porous sintered alumina and zirconia; 9 to cera-mography. J. Am. Ceram. Soc. 1953, 36, 65–68. [Google Scholar] [CrossRef]
- Brezny, R.; Green, D.J.; Dam, C.Q. Evaluation of Strut Strength in Open-Cell Ceramics. J. Am. Ceram. Soc. 1989, 72, 885–889. [Google Scholar] [CrossRef]
- Lin, F.; Ng, J.K.; Huang, Y.Y.; Huang, C.; Zeng, H.B. Formation and stability of oil-laden foam: Effect of surfactant and hy-drocarbon solvent. Can. J. Chem. Eng. 2021, 99, 2658–2669. [Google Scholar] [CrossRef]
- Brun, M.; Delample, M.; Harte, E.; Lecomte, S.; Leal-Calderon, F. Stabilization of air bubbles in oil by surfactant crystals: A route to produce air-in-oil foams and air-in-oil-in-water emulsions. Food Res. Int. 2015, 67, 366–375. [Google Scholar] [CrossRef]
Amount of H2O2 (wt.%) | Strength Loss Rate of SiC Porous Ceramics after Acid Corrosion (%) | Strength Loss Rate of SiC Porous Ceramics after Alkali Corrosion (%) |
---|---|---|
5 | 0.83 ± 0.15 | 1.25 ± 0.14 |
10 | 0.91 ± 0.23 | 1.36 ± 0.38 |
15 | 1.88 ± 0.35 | 2.50 ± 0.27 |
20 | 2.00 ± 0.42 | 2.67 ± 0.34 |
25 | 3.08 ± 0.29 | 3.85 ± 0.26 |
Foaming Temperature (°C) | Bulk Density (g/cm3) | Porosity (%) | Flexural Strength (MPa) | Compressive Strength (MPa) |
---|---|---|---|---|
75 | 2.71 ± 0.09 | 45.85 ± 2.69 | 11.39 ± 1.85 | 25.37 ± 2.41 |
85 | 2.62 ± 0.08 | 60.22 ± 3.98 | 9.03 ± 1.42 | 21.76 ± 1.94 |
95 | 2.02 ± 0.05 | 64.24 ± 2.01 | 7.01 ± 1.33 | 20.43 ± 2.12 |
SDS Amounts (%) | Porosity (%) | Flexural Strength (MPa) | Compressive Strength (MPa) |
---|---|---|---|
0 | 43.51 ± 2.45 | 11.28 ± 2.07 | 26.75 ± 3.47 |
0.1 | 60.22 ± 3.98 | 9.03 ± 1.42 | 21.76 ± 1.94 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Zhao, J.; Ban, X.; Yang, Y.; Yuan, Z.; Ru, H.; Su, D. Fabrication of SiC Porous Ceramics by Foaming Method. Materials 2023, 16, 1342. https://doi.org/10.3390/ma16041342
Zhao J, Ban X, Yang Y, Yuan Z, Ru H, Su D. Fabrication of SiC Porous Ceramics by Foaming Method. Materials. 2023; 16(4):1342. https://doi.org/10.3390/ma16041342
Chicago/Turabian StyleZhao, Jing, Xiaoqi Ban, Yifan Yang, Zhigang Yuan, Hongqiang Ru, and Desheng Su. 2023. "Fabrication of SiC Porous Ceramics by Foaming Method" Materials 16, no. 4: 1342. https://doi.org/10.3390/ma16041342
