Mathematical Model for Oil Recovery Prediction of Polymer Microsphere Conformance Control Based on the Stream Tube Method
Abstract
:1. Introduction
2. Theoretical Model Establishment

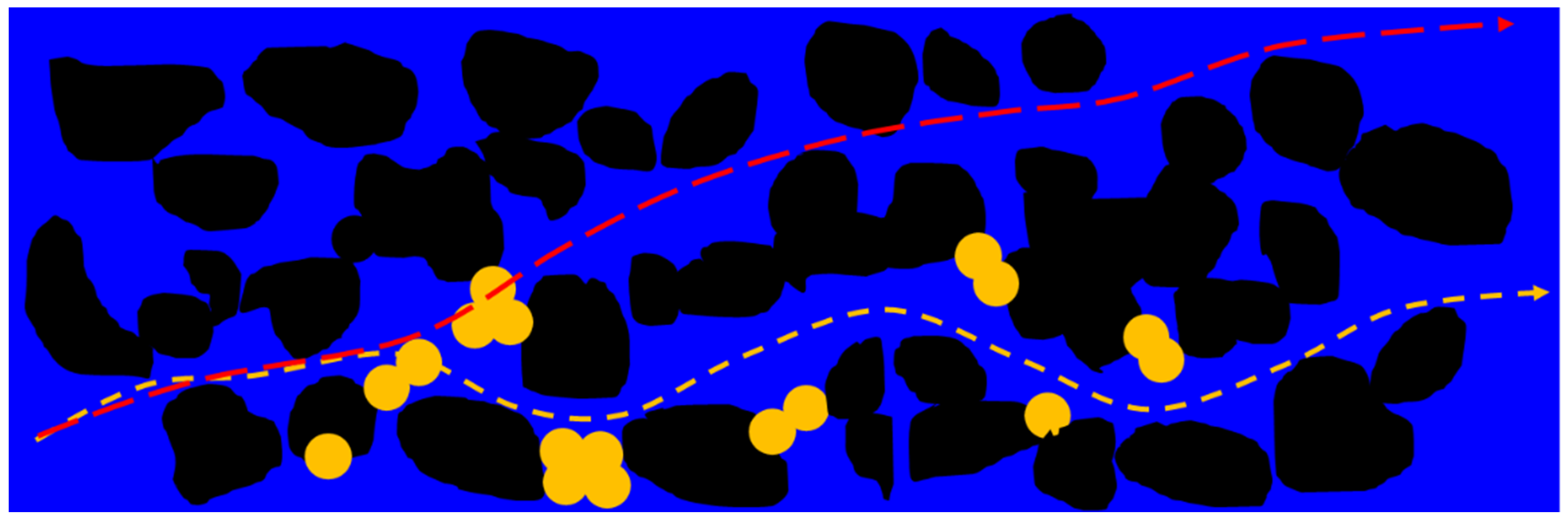

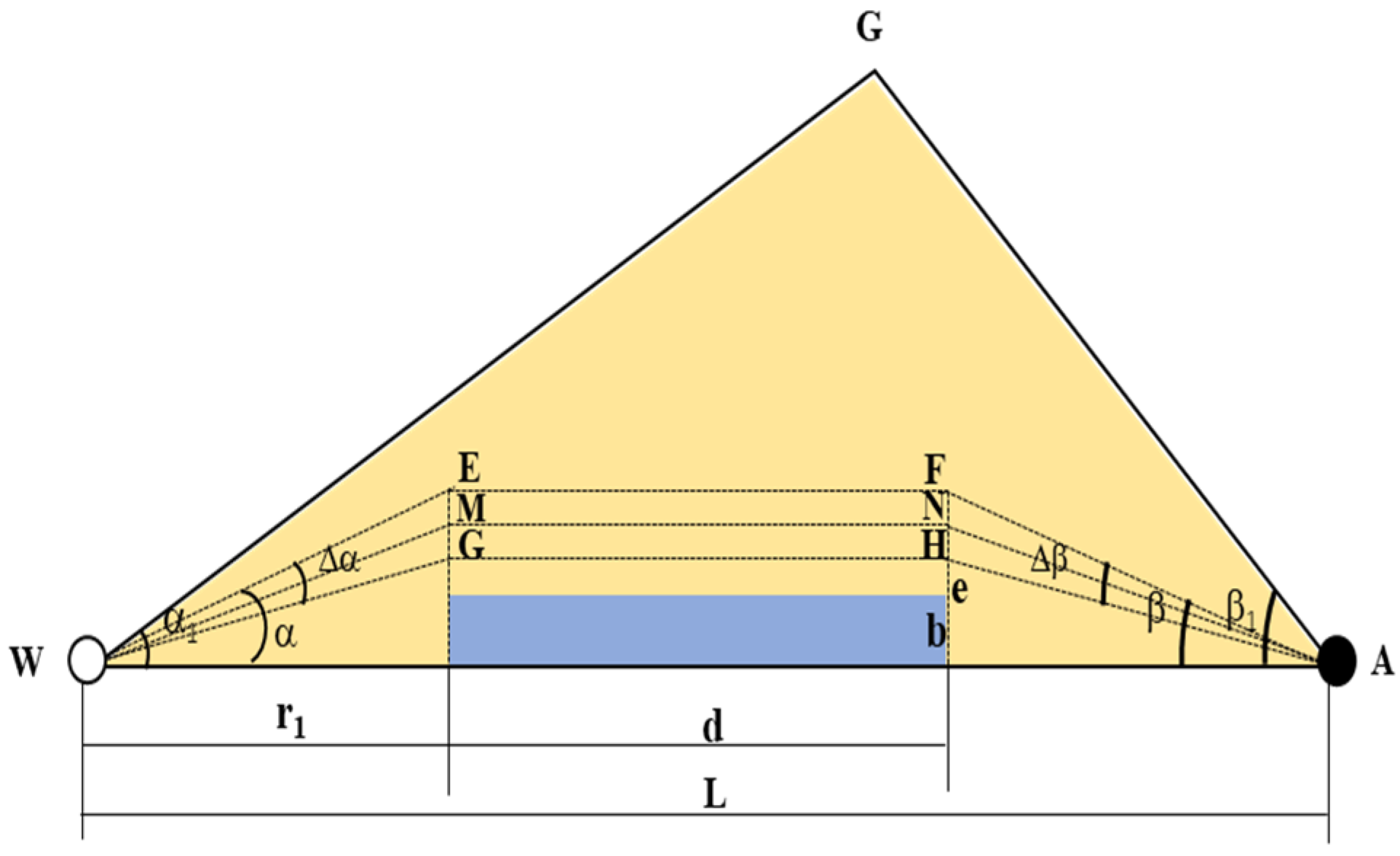

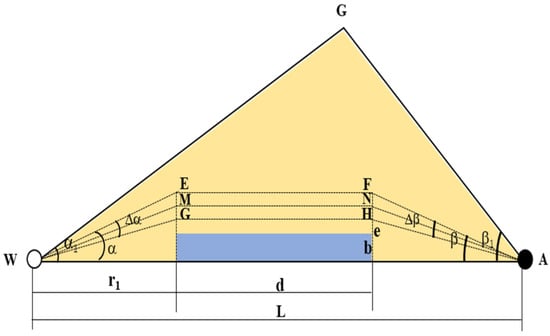

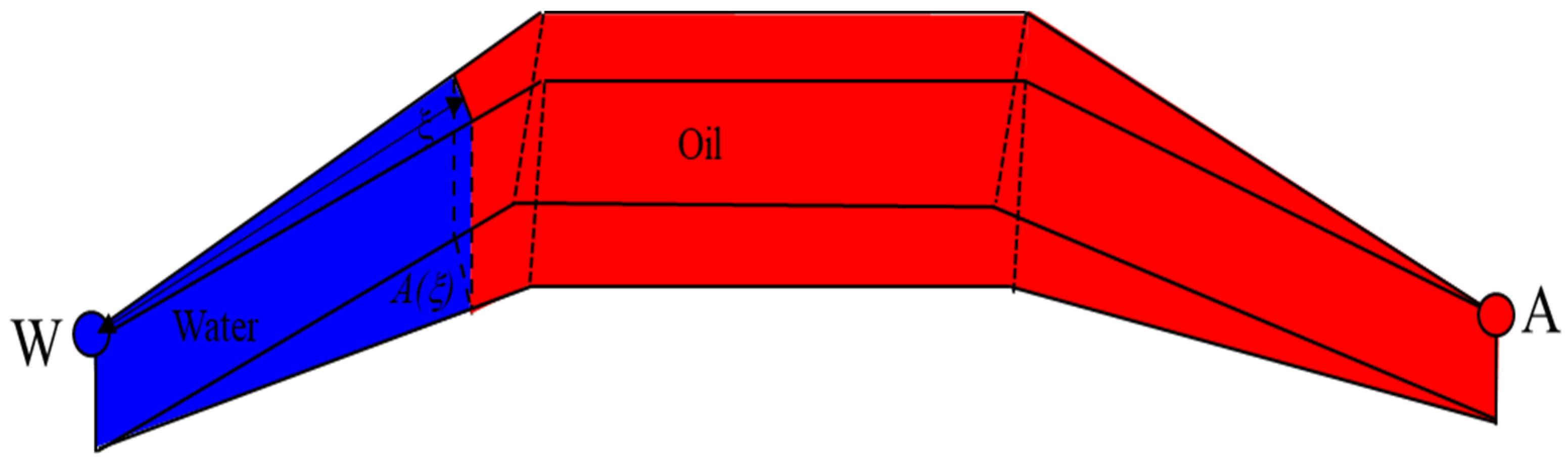

2.1. Stream Tube Model
2.2. Oil Displacement Efficiency

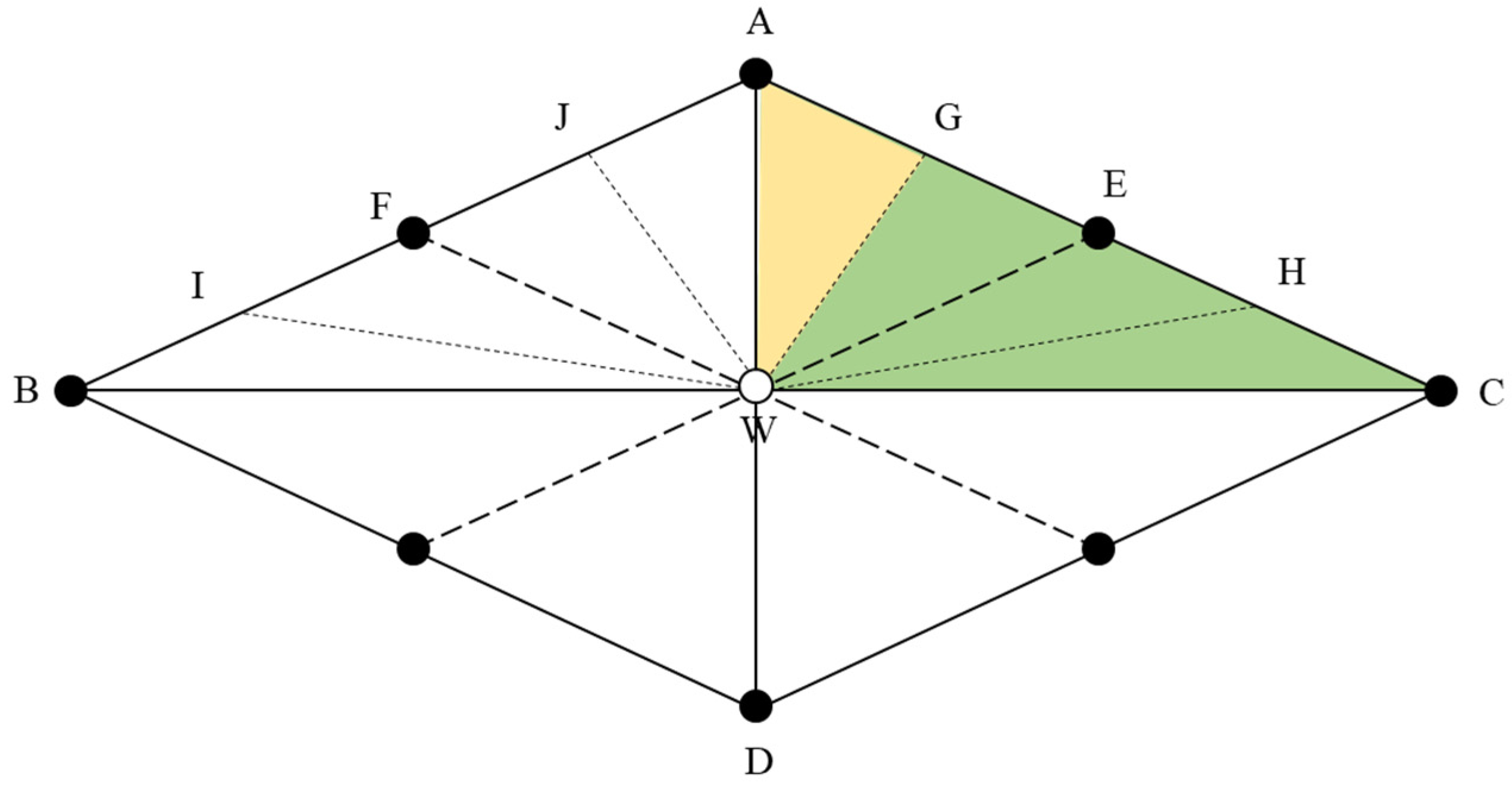

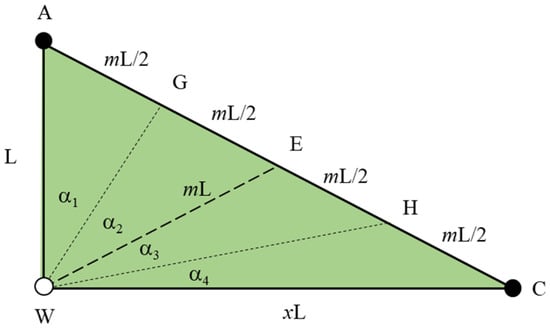

2.3. Areal Sweep Efficiency
2.4. Vertical Sweep Efficiency
3. Adapt Ability Analysis

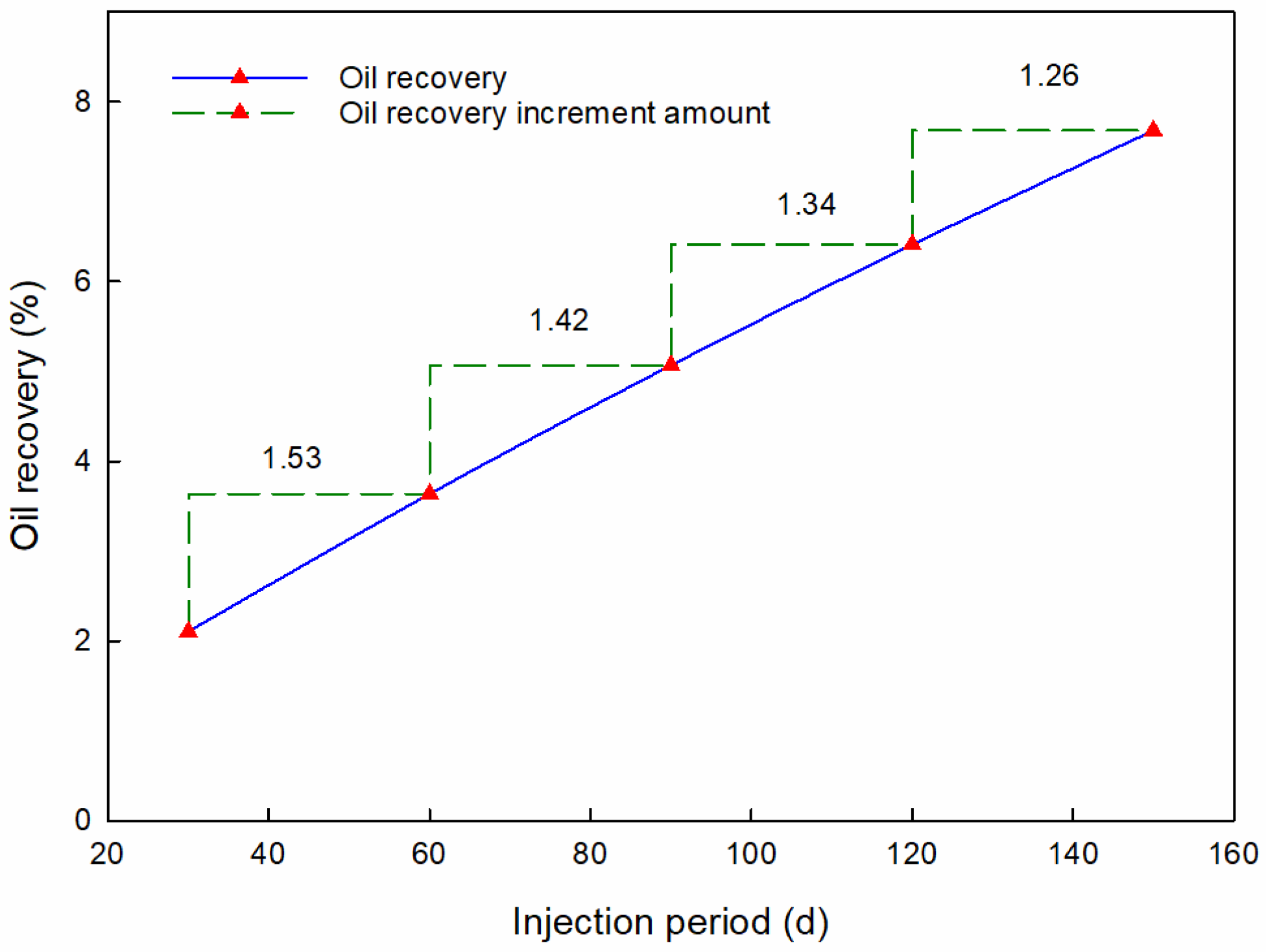

3.1. Injection Period
3.2. Injection Rate

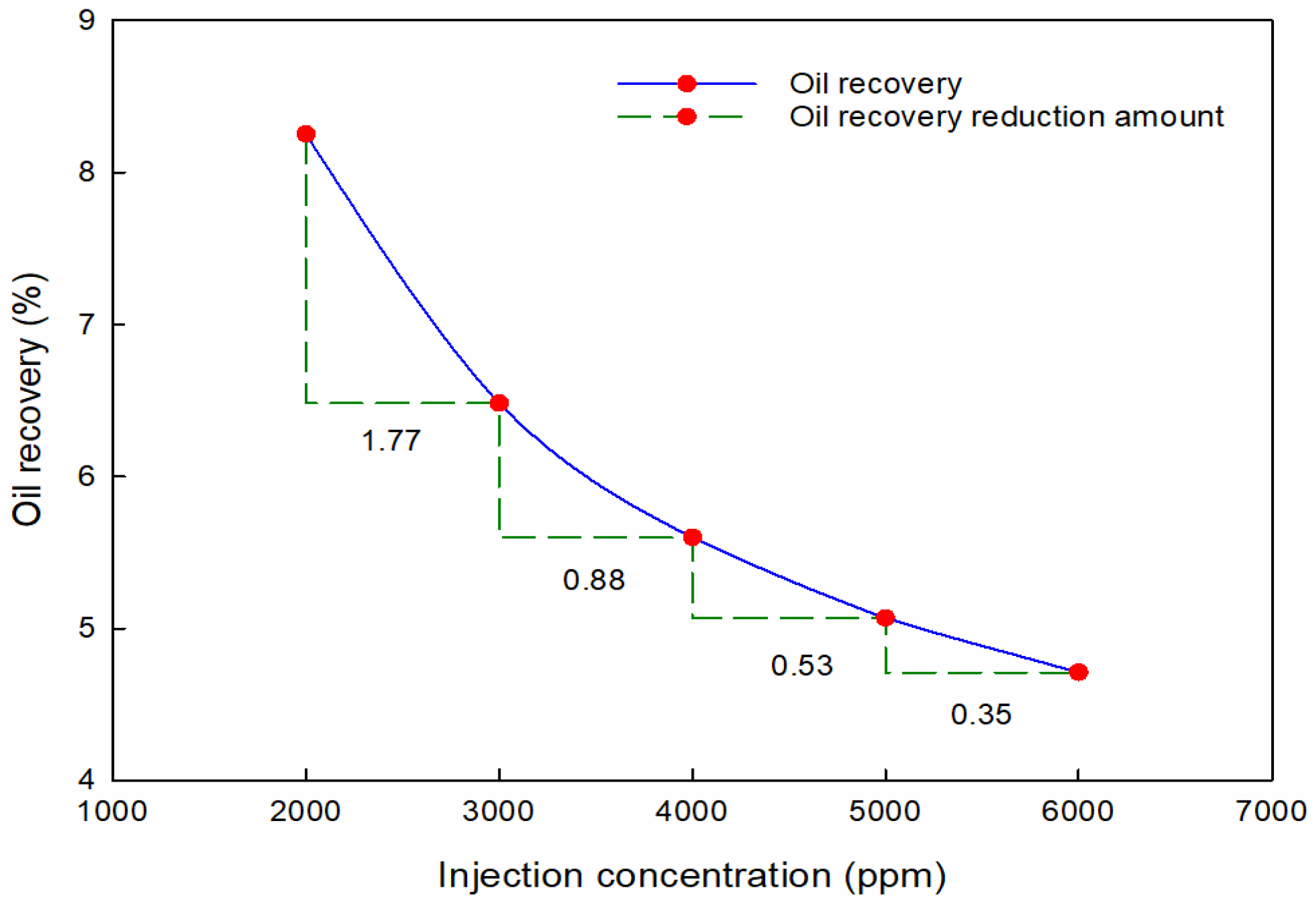

3.3. Injection Concentration

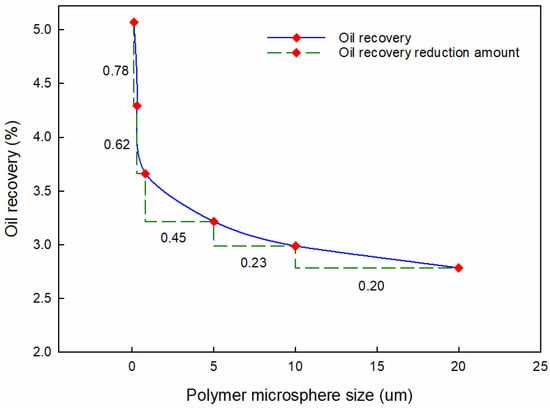

3.4. Polymer Microsphere Size
4. Comparison with Field Application
4.1. Reservoir Background

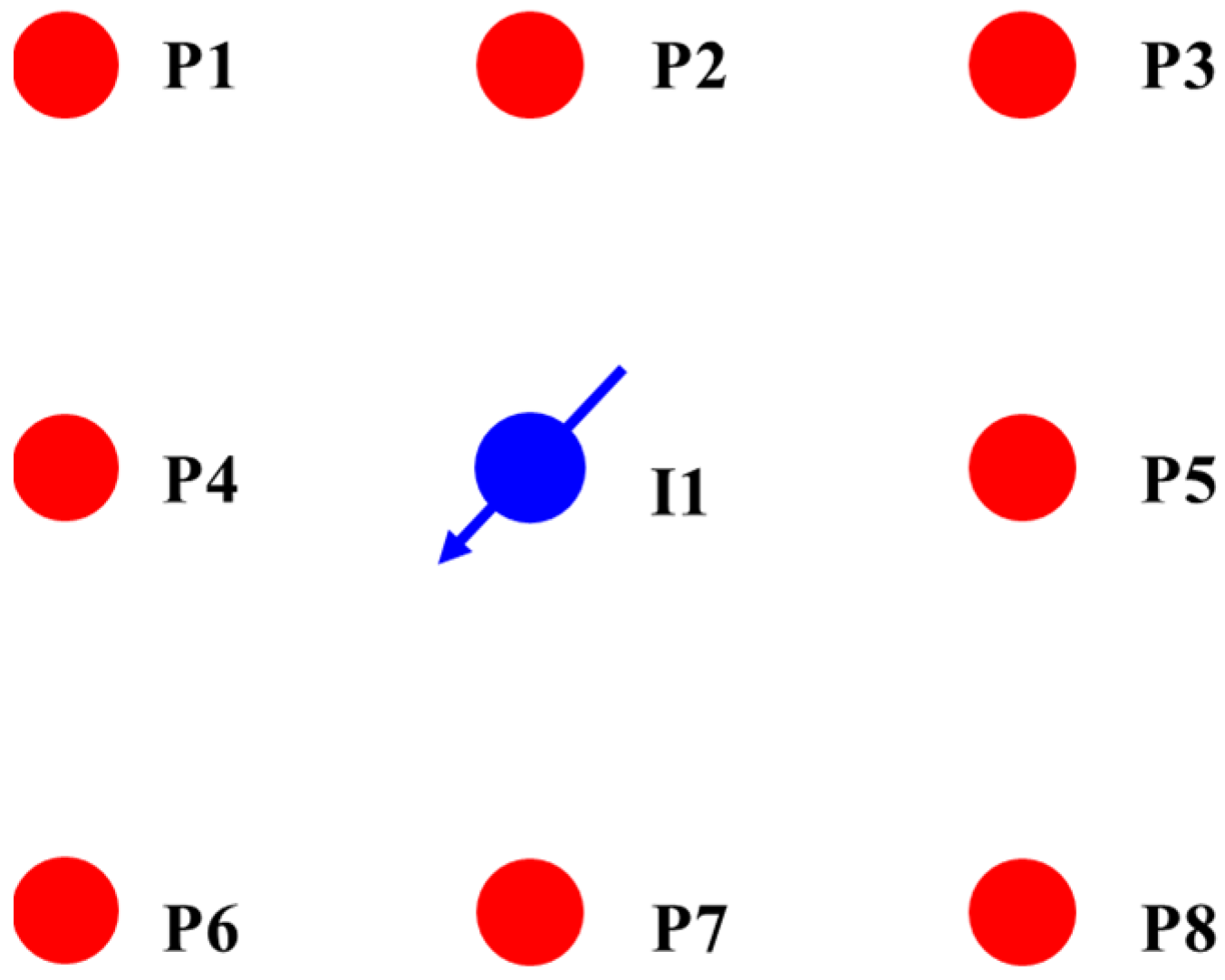

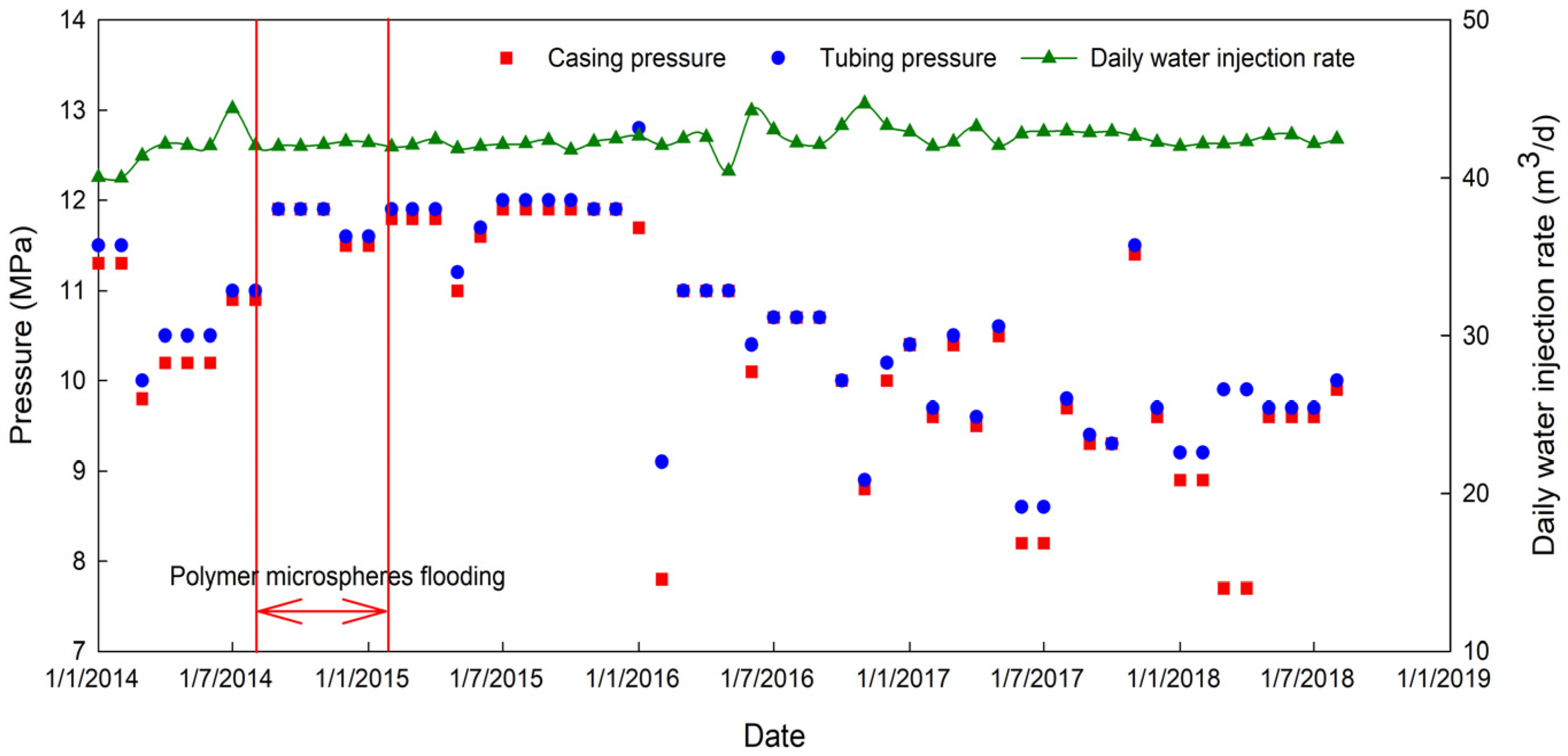

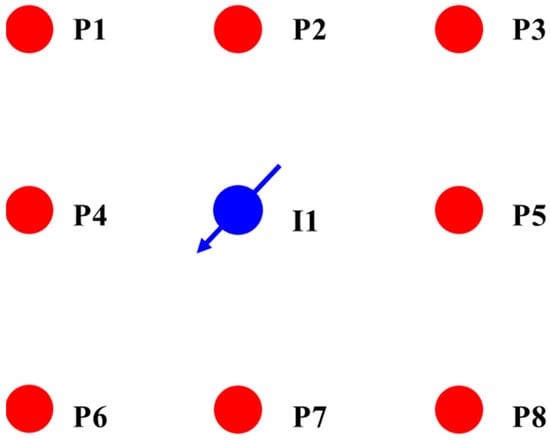

4.2. Field Application Scheme of Polymer Microsphere Flooding

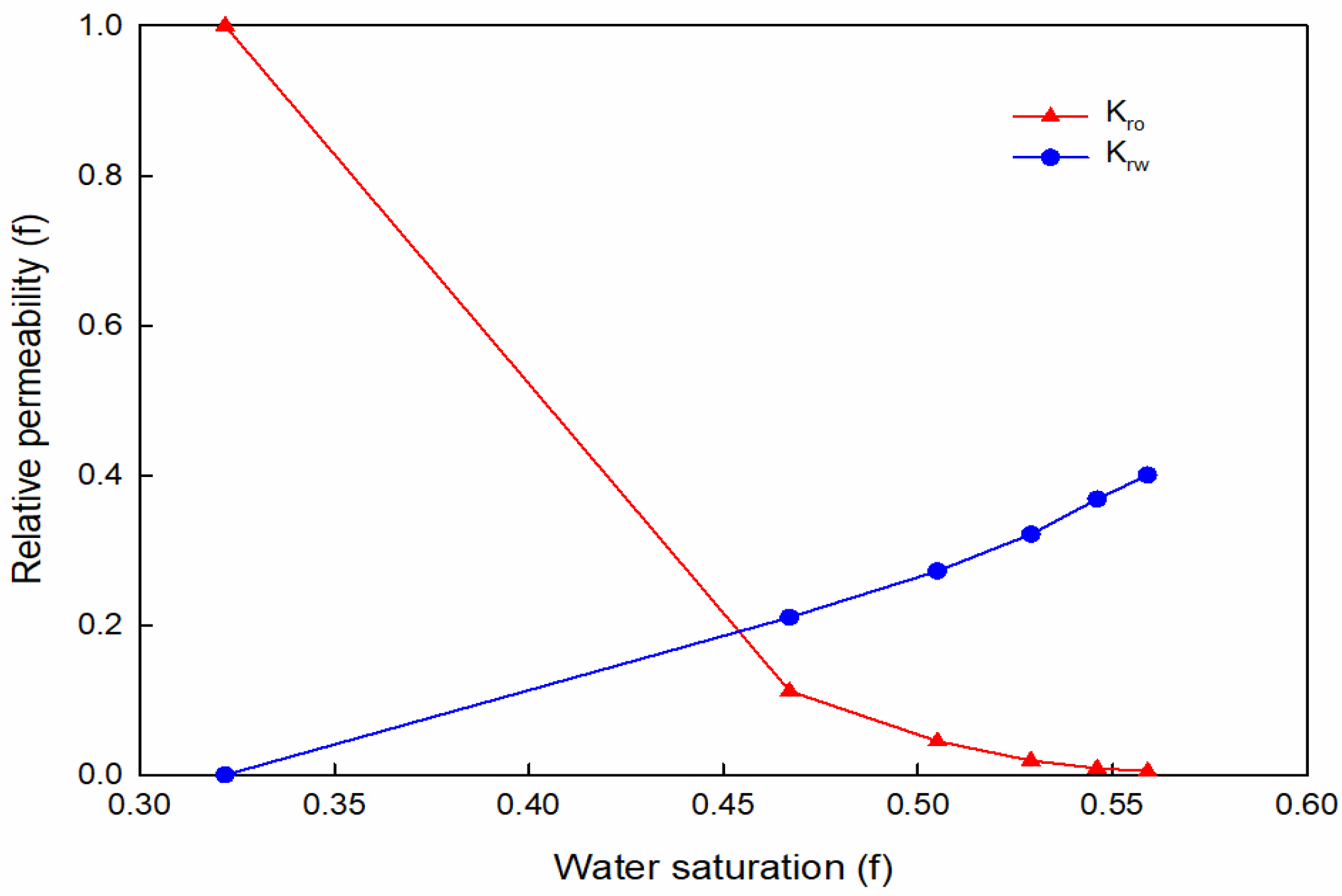

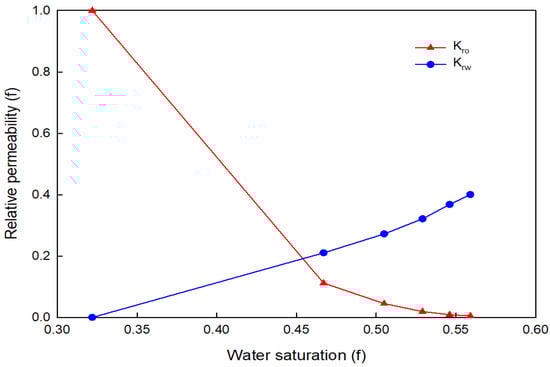

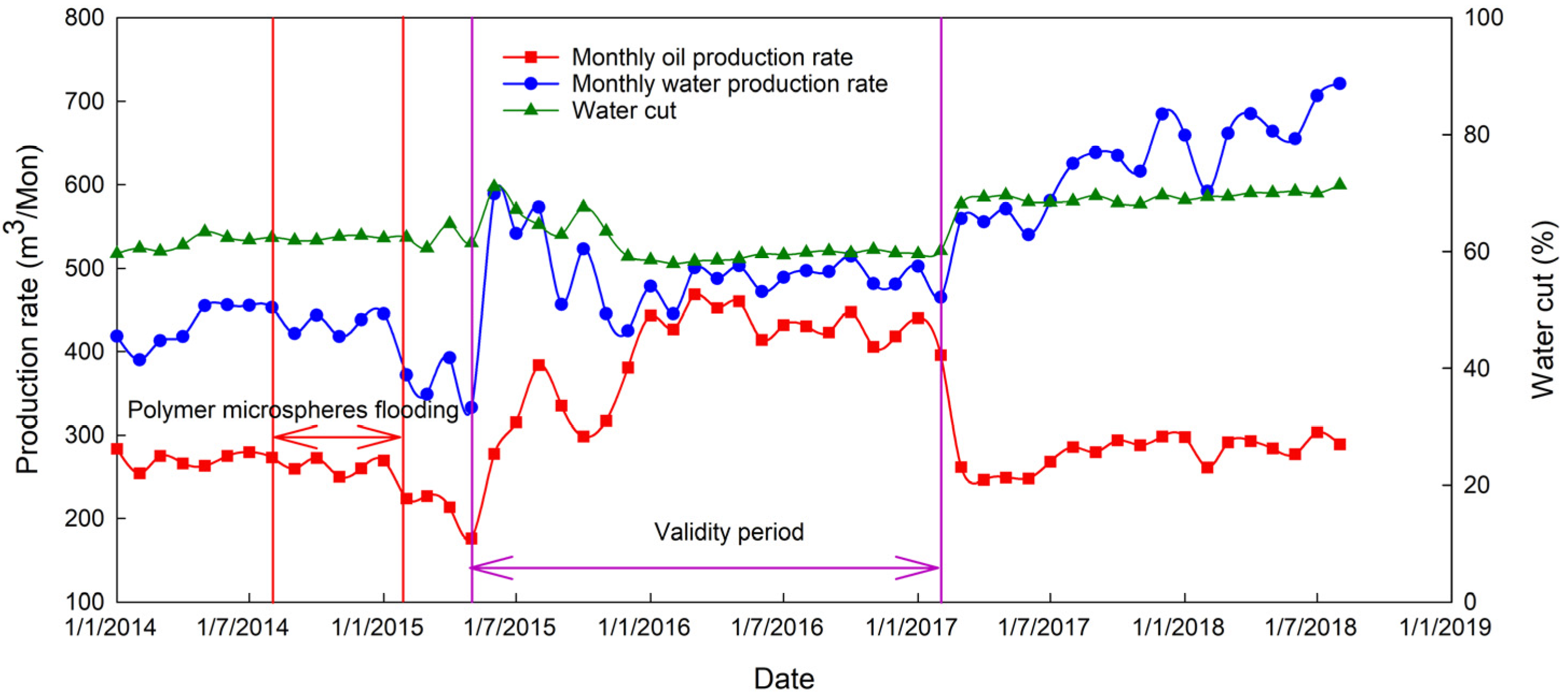

4.3. Oil Recovery Comparison
5. Conclusions
- (1)
- The recovery factor calculation model can quickly and accurately evaluate the oil recovery performance of polymer microspheres’ conformance control. The equivalent mobility ratio was introduced to optimize the vertical sweep efficiency calculation method. A trapezoidal flow tube is proposed to characterize the streamline shape after PMs’ conformance control, and to calculate the areal sweep efficiency.
- (2)
- A series of adaptability analyses on the injection period, injection rate, injection concentration, and PMs’ size are conducted in order to reveal how these functional parameters affect results. The results indicate that long-term injection of small size and low concentration benefits higher oil recovery.
- (3)
- The theoretical oil recovery obtained from the proposed model is 1.37%, and the actual oil recovery of field application is 1.22%, with an error of 0.15%. The recovery factor calculated by the theoretical model agrees better with the field application. This model not only provides a faster and more accessible tool to predict and evaluate the production performance of the PMs’ flooding process, but also could be used to optimize the injection scheme of PMs’ conformance control.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Juan, Z. Study on Gas Channeling Pattern and Optimization Method of CO2 Injection in C4 + 5 Oil Reservoir in W Oil Region of Northern. Ph.D. Dissertation, Northwest University, Xi’an, China, 2018. [Google Scholar]
- Jiayao, L. Study on Secondary Encryption Scheme of CXCY Block in Low Permeability Reservoir. Master’s Dissertation, Northeast Petroleum University, Daqing, China, 2020. [Google Scholar]
- Yuan, S.; Wang, Q. New Progress and Prospect of Oilfields Development Technologies in China. Pet. Explor. Dev. 2018, 45, 657–668. [Google Scholar] [CrossRef]
- Hu, W.; Wei, Y.; Bao, J. Development of the Theory and Technology for Low Permeability Reservoirs in China. Pet. Explor. Dev. 2018, 45, 646–656. [Google Scholar] [CrossRef]
- Hu, W. The Present and Future of Low Permeability Oil and Gas in China. Strateg. Study CAE 2009, 11, 29–37. [Google Scholar]
- Jia, C. Development Challenges and Future Scientific and Technological Researches in China’s Petroleum Industry Upstream. ACTA Pet. Sin. 2020, 41, 1445–1464. [Google Scholar]
- Dang, X. Development Status and Prospect Analysis of Low Permeability Reservoirs in China. Petrochem. Ind. Technol. 2018, 25, 149. [Google Scholar]
- Wang, Z. Analysis of Water Injection Development Process and Technology in Low Permeability Oilfield. Mod. Chem. Res. 2019, 3, 152–154. [Google Scholar]
- Pang, Z.; Li, Y.; Wang, B.; Huang, C.; Duan, W.; Yao, Z. Analysis of Influence Factors of Oil Displacement Efficiency in Ultra-Low Permeability Reservoir. Unconv. Oil Gas 2017, 4, 76–81. [Google Scholar]
- Wang, D.W.; Fang, J.K.; Liu, X.M.; Zhang, J.F.; Shu, D.W.; Zhang, X.Q. Preparation of Colored Polymer Microspheres and Research Progress Thereof in Textile Dyeing and Printing. J. Text. Res. 2019, 40, 175–182. [Google Scholar]
- Chen, X.; Li, Y.; Liu, Z.; Li, X.; Zhang, J.; Zhang, H. Core- and Pore-scale Investigation on the Migration and Plugging of Polymer Microspheres in a Heterogeneous Porous Media. J. Petrol. Sci. Eng. 2020, 195, 107636. [Google Scholar] [CrossRef]
- Yang, H.; Kang, W.; Yin, X.; Tang, X.; Song, S.; Lashari, Z.A.; Bai, B.; Sarsenbekuly, B. Research on Matching Mechanism Between Polymer Microspheres with Different Storage Modulus and Pore Throats in the Reservoir. Powder Technol. 2017, 313, 191–200. [Google Scholar] [CrossRef]
- Wu, T.; Zheng, M.; Zhou, Z.; Yang, H.; Cao, R. New Method for Plugging Performance Evaluation of Polymeric Nanospheres in Low Permeability Reservoir. Fault-Block Oil Gas F. 2018, 25, 498–501. [Google Scholar]
- Sun, Z.; Wu, X.; Kang, X.; Lu, X.; Li, Q.; Jiang, W.; Zhang, J. Comparison of Oil Displacement Mechanisms and Performances Between Continuous and Dispersed Phase Flooding Agents. Pet. Explor. Dev. 2019, 46, 121–129. [Google Scholar] [CrossRef]
- Jia, Y.; Haien, Y.; Cheng, C.; Li, Z.; Hou, G.; Yuan, X.; Zhao, W.; Zhang, Z.; Liu, T. Field Application and Performance Evaluation of Polymer Microsphere Profile Control in Low Permeability Oil Reservoir. SPE-197198-MS. In Proceedings of the Abu Dhabi International Petroleum Exhibition & Conference, Abu Dhabi, United Arab Emirates, 11–14 November 2019. [Google Scholar]
- Zhao, Y.; Li, S.; Zhang, W.; Jing, W.; Fang, H. Effect evaluation of polymer microspheres profile control in Chi 46 Chang 8 reservoir. Petrochem. Ind. Appl. 2018, 37, 84–88. [Google Scholar]
- Tian, Y.; Yi, Y.; Li, Z.; Bi, T.; Nan, Y. Application and effect analysis of polymer microsphere in Ansai oilfield. Chem. Eng. Equip. 2018, 98–100. [Google Scholar] [CrossRef]
- Liao, C. Research on the adaptability of polymer elastic microsphere profile control in Fang169 fault block. China Pet. Chem. Ind. 2016, 249. [Google Scholar]
- Han, J.; Sun, W.; Bai, Y.; Zhang, Q.; Fan, X. Fluid Seepage Characteristics of Low Permeability Reservoir Based on the Real Sandstone Microscopic Water Flooding Experiment: Taking the Chang 6 Reservoir in Wangpanshan as an Example. Geol. Sci. Technol. Inf. 2018, 37, 89–95. [Google Scholar]
- Yan, W.; Sun, J. Analysis of research present situation of microscopic remaining oil. Prog. Geophys. 2016, 31, 2198–2211. [Google Scholar]
- Mitchell, J.; Chandrasekera, T.C.; Holland, D.J.; Gladden, L.F.; Fordham, E.J. Magnetic resonance imaging in laboratory petrophysical core analysis. Phys. Rep. 2013, 526, 165–225. [Google Scholar] [CrossRef]
- Iglauer, S.; Fernø, M.A.; Shearing, P.; Blunt, M.J. Comparison of residual oil cluster size distribution, morphology and saturation in oil-wet and water-wet sandstone. J. Colloid Interf. Sci. 2012, 375, 187–192. [Google Scholar] [CrossRef]
- Yadali Jamaloei, B.; Asghari, K.; Kharrat, R.; Ahmadloo, F. Pore-scale two-phase filtration in imbibition process through porous media at high- and low-interfacial tension flow conditions. J. Petrol. Sci. Eng. 2010, 72, 251–269. [Google Scholar] [CrossRef]
- Yu, Q.; Zhao, M.; Lin, Z. A Study of the Displacement Efficiency and the Conformance Factor in Waterflooded Sandstone Reservoirs in China (2). Pet. Explor. Dev. 1989, 3, 46–54. [Google Scholar]
- Yu, Q.; Zhao, M.; Lin, Z. A Study of the Displacement Efficiency and the Conformance Factor in Waterflooded Sandstone Reservoirs in China (1). Pet. Explor. Dev. 1989, 2, 48–52. [Google Scholar]
- Du, L.; Chen, Q.; Dai, S. Application of Oil-water Relative Permeability Curve and Dynamic Data to Defining Waterflood Sweep Situation. Pet. Geol. Recovery Effic. 2003, 10, 45–47. [Google Scholar]
- Zhang, L.; Li, T.; Cai, R.; Li, T.; Gai, C.; Fan, Z. Study on Oil Displacement efficiency and Sweep efficiency in Water Flooding Oilfield. Inn. Mong. Petrochem. Ind. 2004, 30, 135–137. [Google Scholar]
- Xie, W.; Ding, Y.; Peng, Z. Research on Sweep Efficiency of Inverted Nine—Spot Pattern in Low Permeability Reservoir. J. Chongqing Univ. Sci. Technol. 2021, 23, 34–38. [Google Scholar]
- Zhang, S.; Liu, B.; Zhong, S. Calculation method for areal sweep efficiency of irregular well pattern. Pet. Geol. Oilfield Dev. Daqing 2010, 29, 49–52. [Google Scholar]
- Zhang Lihua, L.Z. Determination of areal sweep efficiency of pattern flooding by use of simulator. J. China Univ. Pet. Nat. Sci. Ed. 1998, 12, 86–98. [Google Scholar]
- Fan, J.; Zhang, Z.; Zaladuxin, A.B. A model for the calculation of the sweep efficiency in a heterogeneous oil reservoir. Acta Pet. Sin. 1993, 14, 92–98. [Google Scholar]
- Fassihi, M.R. New correlation for calculation of vertical coverage and areal sweep efficiency. SPE 1986, 1, 604–606. [Google Scholar] [CrossRef]
- Pitts, G.N.; Crawford, P.B. Low areal sweep efficiencies in flooding heterogeneous rock. In Proceedings of the SPE Production Techniques Symposium, Wichita Falls, TX, USA, 14–15 May 1970. [Google Scholar]
- Prats, M. The breakthrough sweep efficiency of the staggered line drive. SPE 756G. Trans. AIME 1956, 207, 361–362. [Google Scholar] [CrossRef]
- Slobod, R.L.; Caudle, B.H. X-ray shadowgraph studies of areal sweepout eficiencies. SPE 211G. In Proceedings of the Fall Meeting of the Petroleum Branch of AIME, Houston, TX, USA, 1–3 October 1952. [Google Scholar]
- Muskat, M. Flow of homogeneous fluids through porous media. Soil Sci. 1937, 46, 169. [Google Scholar] [CrossRef]
- Shen, F.; Cheng, L.; Huang, S.; Zhao, W.; Liu, X. Calculation of Sweep Efficiency for Water Flooding Development of Conventional Heavy Oil Using the Stream-tube Method. Oil Drill. Prod. Technol. 2016, 38, 645–649. [Google Scholar]
- Lv, D.; Tang, H.; Guo, F. Study of areal sweep efficiency for invert 9-spot pattern of low permeability reservoir. J. Southwest Pet. Univ. Nat. Sci. Ed. 2012, 34, 147–153. [Google Scholar]
- Liu, C.; Fan, Z.; Xu, A. A Calculation Method for the Areal Sweep Efficiency of Heavy oil Reservoirs by Non-piston Like Water Flood in Inverted Nine-spot Pattern. Oil Drill. Prod. Technol. 2018, 40, 228–233. [Google Scholar]
- Sun, Q.; Zhou, H.; Hu, Y.; Shi, H.; Wang, J. Calculation Method of Area Sweep Efficiency of Non-piston Water Flooding for Inverted 9-spot Pattern. Complex Hydrocarb. Reserv. 2018, 11, 52–56. [Google Scholar]
- Zhongyuan, J.; Li, J. Study on Areal Sweep Efficiency of Five-Spot Well Pattern Based on Sreamline Model. J. Chongqing Univ. Sci. Technol. 2016, 18, 36–40. [Google Scholar]
- Shu, J.; Tang , H.; Wang, Y.Y.; Lv, D.L.; Wang, B.; Yang, C. Study on Areal Sweep Efficiency of Square Inverted Nine-spot Well Pattern with Crack. Fault-Block Oil Gas Field 2014, 21, 360–363. [Google Scholar]
- Wang, Q.; Ji, B.; Nie, J. Calculation Methods of Sweep Efficiency Under Different Viscosity Ratios for Polymer Flooding Process. Oil Gas Geol. 2014, 35, 551–555. [Google Scholar]
- Zhou, Y.; Tang, H.; Lv, D.; Tang, H.; Guo, F. Areal Sweep Efficiency of Staggered Well Pattern of Horizontal Wells in Low Permeability Reservoirs. Lithol. Reserv. 2012, 24, 124–128. [Google Scholar]
- Shen, R.; Gao, S.; Hu, Z.; Duan, B. Calclating method and its application of water-flooding swept coefficient for low-permeability oil reservoirs. Pet. Geol. Oilfield 2013, 32, 60–65. [Google Scholar]
- Cao, R.; Ma, M.; Guo, X. Calculation Method of Plane Sweep Coefficient for Water Flooding in Low Permeability Reservoir Based on Flow Tube Model. Pet. Geol. Recovery Effic. 2021, 28, 100–108. [Google Scholar]
- Wu, Z.; Huiqing, L.; Cao, P.; Yang, R. Experimental investigation on improved vertical sweep efficiency by steam-air injection for heavy oil reservoirs. Fuel 2021, 285, 119–138. [Google Scholar] [CrossRef]
- Wang, Z. Study on Sweep Efficiency and Front of Offshore Heterogeneous Thick Oil Layer for Polymer Flooding. Ph.D. Dissertation, China University of Petroleum (Beijing), Beijing, China, 2017. [Google Scholar]
- Zhang, J.; Qu, X.; Jin, J.; Ma, K.; Zheng, X. A New Vertical Sweep Efficiency Prediction Model for Water-Flooding Thick Oil Reservoirs. Spec. Oil Gas Reserv. 2017, 24, 103–106. [Google Scholar]
- Lan, Y. Study about the Sweep Coefficient and Oil Displacement Efficiency of Chemical Flooding. Ph.D. Dissertation, Daqing Petroleum Institute, Daqing, China, 2006. [Google Scholar]
- Nie, J. Computing Method Research on Sweep Efficiency of Polymer Flooding for Five-Spot Pattern. Master’s Dissertation, China University of Geosciences, Beijing, China, 2010. [Google Scholar]
- Clermont, J.R. Analysis of incompressible three-dimensional flows using the concept of stream tubes in relation with a transformation of the physical domain. Rheol. Acta 1988, 27, 357–362. [Google Scholar] [CrossRef]
- Bereaux, Y.; Clermont, J.R. The Stream Tube Method and Memory Integral Constitutive Equation Non-newtonian Fluids Using. Int. Lournal Numer. Methods Fluids 1995, 21, 371–389. [Google Scholar] [CrossRef]
- Clermont, J.R.; de La Lande, M.E. Numerical Simulation of Three-Dimensional Duct Flows of Incompressible Fluids by Using the Stream-Tube Method Part I: Newtonian Equation. Theor. Comput. Fluid Dyn. 1993, 4, 129–149. [Google Scholar] [CrossRef]
- Ander, P.; Clermont, J. Experimental and Numerical Study of the swelling of a viscoelastic liquid using the stream tube method and a kinematic singularity approximation. J. Non-Newton. Fluid 1990, 38, 1–29. [Google Scholar] [CrossRef]
- Ramezanpour, M.; Siavashi, M. Application of SiO2–water nanofluid to enhance oil recovery. J. Therm. Anal. Calorim. 2019, 135, 565–580. [Google Scholar] [CrossRef]
- Sun, X.; Alhuraishawy, A.K.; Bai, B.; Wei, M. Combining preformed particle gel and low salinity waterflooding to improve conformance control in fractured reservoirs. Fuel 2018, 221, 501–512. [Google Scholar] [CrossRef]
No. | Factors | Parameter Design Value | Default Value |
---|---|---|---|
1 | Injection period (d) | 50, 70, 90, 120, 150 | 90 |
2 | Injection rate (m3/d) | 25, 30, 35, 40, 45 | 40 |
3 | Injection concentration (ppm) | 2000, 3000, 4000, 5000, 6000 | 5000 |
4 | Polymer microsphere size (µm) | 0.1, 0.3, 0.8, 5, 10, 20 | 0.1 |
No. | Parameters Name | Default Value | No. | Parameter Name | Default Value |
---|---|---|---|---|---|
1 | Well spacing (m) | 300 | 12 | Expansion ratio | 5 |
2 | m | 1 | 13 | Irreducible water saturation (f) | 0.322 |
3 | C | 0.0864 | 14 | Split coefficient of injection volume (f) | 0.25 |
4 | Inner zone permeability (10−3 µm2) | 30 | 15 | Blocking rate (f) | 0.4 |
5 | Outer zone permeability (10−3 µm2) | 25 | 16 | Oil displacement efficiency (f) | 0.3 |
6 | Crude oil viscosity (MPa) | 1.80 | 17 | Vertical sweep efficiency (f) | 0.42 |
7 | Porosity (f) | 0.2 | 18 | Permeability variation coefficient (f) | 0.4 |
8 | Threshold pressure gradient (MPa/m) | 0.01 | 19 | Water viscosity (MPa) | 0.46 |
9 | Hole diameter (m) | 0.1 | 20 | Equivalent mobility ratio | 10 |
10 | Polymer microsphere density (g/cm3) | 1.2 | 21 | Recovery of polymer microsphere (f) | 0.85 |
11 | Water flooding recovery (f) | 0.4 | 22 | Production pressure differential (MPa) | 25 |
No. | Parameter Name | Default Value | No. | Parameter Name | Default Value |
---|---|---|---|---|---|
1 | Well spacing (m) | 360 | 12 | Expansion ratio | 2.6 |
2 | m | 1 | 13 | Irreducible water saturation (f) | 0.322 |
3 | C | 0.0864 | 14 | Split coefficient of injection volume (f) | 0.125 |
4 | Inner zone permeability (10−3 µm2) | 131 | 15 | Blocking rate (f) | 0.8 |
5 | Outer zone permeability (10−3 µm2) | 18.32 | 16 | Oil displacement efficiency (f) | 0.42 |
6 | Crude oil viscosity (MPa) | 1.95 | 17 | Vertical sweep efficiency (f) | 0.76 |
7 | Porosity (f) | 0.12 | 18 | Permeability variation coefficient (f) | 0.37 |
8 | Threshold pressure gradient (MPa/m) | 0.01 | 19 | Water viscosity (MPa) | 0.46 |
9 | Hole diameter (m) | 0.1 | 20 | Equivalent mobility ratio | 1.8 |
10 | Polymer microsphere density (g/cm3) | 1.1 | 21 | Recovery of polymer microsphere (f) | 0.86 |
11 | Water flooding recovery (f) | 0.4 | 22 | Production pressure differential (MPa) | 24 |
Parameter | Value |
---|---|
Size (nm) | 800 |
Concentration (ppm) | 5000 |
Rate (m3/d) | 42 |
Injection period (d) | 160 |
