Black Silicon: Breaking through the Everlasting Cost vs. Effectivity Trade-Off for SERS Substrates

by
Lena Golubewa
1,2,
Hamza Rehman
2,
Yaraslau Padrez
1,
Alexey Basharin
2,
Sumit Sumit
2,
Igor Timoshchenko
1,
Renata Karpicz
1,
Yuri Svirko
2 and
Polina Kuzhir
2,*
1
Department of Molecular Compound Physics, State Research Institute Center for Physical Sciences and Technology, Sauletekio Av. 3, 10257 Vilnius, Lithuania
2
Department of Physics and Mathematics, Center for Photonics Sciences, University of Eastern Finland, Yliopistokatu 7, 80101 Joensuu, Finland
*
Author to whom correspondence should be addressed.
Materials 2023, 16(5), 1948; https://doi.org/10.3390/ma16051948
Submission received: 31 December 2022 / Revised: 22 February 2023 / Accepted: 26 February 2023 / Published: 27 February 2023
(This article belongs to the Special Issue Advances in Surface-Enhanced Raman Spectroscopy and Materials Characterization)
Browse Figures
Review Reports Versions Notes

Abstract

:
Black silicon (bSi) is a highly absorptive material in the UV-vis and NIR spectral range. Photon trapping ability makes noble metal plated bSi attractive for fabrication of surface enhanced Raman spectroscopy (SERS) substrates. By using a cost-effective room temperature reactive ion etching method, we designed and fabricated the bSi surface profile, which provides the maximum Raman signal enhancement under NIR excitation when a nanometrically-thin gold layer is deposited. The proposed bSi substrates are reliable, uniform, low cost and effective for SERS-based detection of analytes, making these materials essential for medicine, forensics and environmental monitoring. Numerical simulation revealed that painting bSi with a defected gold layer resulted in an increase in the plasmonic hot spots, and a substantial increase in the absorption cross-section in the NIR range.

1. Introduction

Silicon is the most widely used electronics and photonics semiconducting material. Although a polished silicon possesses a high reflectivity in the ultraviolet (UV) [1], visible (vis) and near infrared (NIR) range [2], the micro-structuring of silicon may make it remarkably absorptive [3,4,5]. As a result, the micro-structured silicon surface acquires a deep black color, and it is often referred to as “black silicon” (bSi).
Having been discovered accidentally, bSi was initially considered an unwanted side-product [6]; however, nowadays it is undergoing a rebirth because of new opportunities it opens in a number of applications. The surface of bSi may comprise of various shapes and geometries, including needles, pyramids, cones, pillars, holes, columns, etc., which enhance absorption and suppress light scattering [7] via effective light trapping [8]. The suppression of specular reflectance and enhancement of absorbance can be described in terms of the structural defects in the Si lattice or impurities (specifically sulfur) which appear during surface micro-structuring [7]. These defects and impurities create IR absorbing states in the band gap and are also responsible for the trapping of photoexcited carriers (for flat silicon, the band gap is 1.07 eV) [9]. The absorbance caused by these defects is enhanced by multiple reflections between the microstructures of bSi, which, in turn, suppresses specular reflection and increases absorbance.
The significant increase in absorbance in UV-vis and NIR spectral ranges by bSi, compared to bulk silicon, spans the applications of bSi to many areas, including solar cells [10,11], photo-electrocatalysis [12,13], visible light and NIR sensors [9,14]. Moreover, there is also a trend to replace indium gallium arsenide and germanium in commercial NIR photodetectors [15] with bSi because it is cost-effective and enables integration of the photodetectors into a silicon platform.
The high absorptive properties of bSi in a wide spectral range are also beneficial for nanoplasmonic applications, including surface enhanced Raman spectroscopy (SERS) [16], which employs the enhancement of the light field in the vicinity of the metal surface, where the eigenfrequency of the electron ensemble match the light frequency. If the molecules of the analyte are situated in the vicinity of the interface between the metal plasmonic particle and the environment, the surface plasmon resonance (SPR) results in an increase in the Raman scattering cross-section by several orders of magnitude, allowing one to detect trace amounts of molecules adsorbed onto the interface [17,18]. When using bSi as a supporting material for the formation of plasmonic nanostructures, significant UV-vis–NIR absorption and the phenomenon of light-trapping by the micro- and nano-structured surface of bSi may drastically increase the local electromagnetic field enhancement on the metal–environment interface. This, in its turn, will cause the increase in the Raman signal of the adsorbed molecules of the analyte.
The SERS approach is a reliable method for detecting low concentrations of molecules [19], investigating molecule–molecule [20] or molecule–surface [21] interactions, investigating living cells functions [22] and detecting pesticides [23] and poisons [24], which obviously extends its applications from fundamental science to practice, including biomedicine, forensics, environment, security, etc. However, obtaining very specific information from analytes in the form of a ‘fingerprint’ vibrational spectra, SERS exhibits some drawbacks, which significantly reduce its applications in real life. Namely, SERS substrate fabrication always presents a trade-off between stability, cost, efficiency, reliability, uniformity, density of hot-spots and scalability. Commonly used approaches for SERS substrate fabrication are based either on colloidal solutions of noble metal nanoparticles or nanostructured surfaces of noble metal slabs and films. The former usually give significant enhancement of Raman intensity; however, they are non-stable [25], storage condition-dependent [26], inconvenient in routine use [27], require immobilization on the flat surface for measuring [28], poorly reproducible and non-uniform [27,28]. The latter allows one to control the density of hot spots and to be fabricated in large areas, but they are expensive and give rather limited signal enhancement.
Pronounced surface micro-structuring of bSi in combination with exceptional absorbance may serve as a regular, stable and highly uniform support for plasmonic nanostructures, ensuring a strong Raman signal enhancement. However, strong dependence of SPR on the geometry of plasmonic structures [29,30,31] and their three-dimensional organization implies bSi profile control.
Nano- and micro-structured bSi can be fabricated by metal-assisted chemical etching, femtosecond laser assisted fabrication [8,32], laser chemical etching [7], wet chemical etching and reactive ion etching (RIE) [33]. The latter is the most suitable option when aiming for uniform surface structure coverage over large areas. The RIE system uses a plasma source consisting of highly reactive ion species, and when they bombard the sample, a chemical reaction takes place that selectively erodes away the sample surface [34].
In the present study, we fabricate bSi by using room temperature (RT) Inductively Coupled Plasma (ICP) RIE in such a way that the created surface profile supports a gold plasmonic layer of a thickness as low as almost ten nanometers with distributed cracks that still provides satisfactory Raman signal enhancement. Fabrication by RT ICP-RIE, instead of cryogenic ICP-RIE, and an extremely reduced defected gold layer allowed for a significant reduction in the cost of obtaining the bSi-based substrates. We developed the ‘recipe’ for fabrication of bSi substrates by supporting SERS signal enhancement at the NIR (785 nm) excitation, which meets biomedical application requirements and does not lead to overheating and thermal damage of the analyte that may occur at the vis-range excitation [35,36,37]. Moreover, uniformity of vertically aligned hot spots on bSi microstructures and the opportunity to control their spatial distribution over large areas open the way towards the detection of extremely low amounts of molecules, though the integration of the signal obtained from the whole substrate area has uniform signal enhancement. We show that bSi based SERS substrates provide a breakthrough in the trade-off between cost and efficiency, making this an important step towards a simple, effective, low-cost and reliable sensing technique.

2. Materials and Methods

Single side polished 2“x 275 ± 25 μm p-doped Si <100> wafer with bulk resistivity of 1–30 Ohm∙cm was used for the fabrication of black silicon SERS substrates. To ensure that the surface impurities of the substrate did not affect the fabrication process, the wafers were pre-cleaned with acetone and isopropyl alcohol in an ultrasonic bath at 60 W/20 °C for 10 min and 5 min, respectively. To further ensure that there were no left-over dirt particles, the wafers were oxygen plasma treated for 2 min at 20 sccm flow rate and at a radio frequency (RF) power of 150 W, using Plasma-Etch (PE-50, Plasma Etch Inc.; Carson City, NV, USA).
To obtain bSi with different surface profiles suitable for SERS and to optimize the procedure of bSi fabrication and gold coating, the Bosch etching process was used [38,39]. This cost efficient and relatively fast method allows one to obtain uniformly distributed high aspect ratio relief features. Through the cyclic Bosch process, we can obtain self-masked black silicon structures within a single RIE system under controlled environmental conditions.
The process consists of the following two steps: (i) formation of plasma-polymerized fluorocarbon islands from C4F8 gas [40] serving as a mask, and (ii) etching using SF6/O2 gas combination. For the deposition stage, ICP is employed in addition to RIE. This step allows producing high density plasma with low ion bombardment energy at lower pressures needed for micro-masking. Helium backside cooling was used to keep the temperature of the wafer controlled. The deposition/etching parameters used for bSi fabrication are presented in Table 1. The time of etching stage varied in the range of 18–30 min to reveal its influence on the bSi surface geometrical features. Morphological analysis was performed using Zeiss LEO 1550 scanning electron microscope (SEM). All presented images were obtained at 5 kV acceleration voltage using the InLens detector. The SEM images of bSi samples etched at different times are presented in Figure 1. The sizes of related bSi geometrical features are summarized in Table 2. All dimensional characteristics were extracted from SEM images using open-source ImageJ software.
The next step was bSi coating with the gold layer using Q300T Plus magnetron sputter (Quorum Technologies Ltd.; Lewes, UK) at a pressure of 0.001 mbar and sputter current of 80 mA. The bSi samples that were etched at different times and had different surface areas were covered with a layer of gold under the same conditions for which 25 nm of gold on a flat SiO2 substrate occurs. Hereinafter, bSi sputtered with Au are labeled as bSi18, bSi25 and bSi30, related to their etching times of 18, 25 and 30 min, respectively.
Further, the bSi/Au substrates were treated with N2 to protect them from undesired adsorption on their surface before coating them with the analyte. Quartz slides were sputtered with gold (SiO2/Au) under the same conditions as bSi substrates, to be used for comparison.
Measurements for all fabricated SiO2/Au and bSi/Au substrates were performed under the same conditions. The substrates were incubated for 4 h in a solution of 4-mercaptobenzoic acid (4-MBA, HSC6H4CO2H; Sigma; Saint Louis, MO, USA) of a concentration of 0.005 mol/L in ethanol to facilitate the formation of a molecular monolayer on the gold surface of these substrates, through the -SH group. After that, all the samples were washed with ethanol for 10 min so that unbounded 4-MBA molecules were removed. The samples were dried with N2 before proceeding with Raman measurements.
Raman and SERS measurements of 4-MBA (bulk) and 4-MBA self-assembled monolayers (SAM) on SiO2/Au and bSi/Au, respectively, were performed by inVia (Renishaw, UK) Raman spectrometer. Two excitation lasers were used, with wavelengths of 785 nm and 514 nm, delivering 5 mW and 3 mW, respectively, on the sample surface at an exposure time of 10 s. The grating 1200 line/mm and a microscope air objective of ×50 magnification, NA 0.75 were utilized. The intensity was recorded as counts per second, and simple baseline correction was performed for better spectral graphical representation. Spectra were collected from at least three points on the sample and then averaged.
To evaluate structural uniformity of the substrates, SERS mapping was performed over an area of 10 × 10 μm2 with 1 μm spatial resolution at 785 nm excitation wavelength, delivering 0.3 mW on the sample surface for an exposure time equal to 5 s.

3. Experimental Results

Sputtering of the bSi samples with gold resulted in the formation of plasmonic nanostructures of various shapes. Typical silicon-gold structures are presented in Figure 2. Gold nanostructure parameters (thickness, shape, uniformity) are summarized in Table 3. The more developed surface of samples bSi25 and bSi30 contributed to the formation of an almost two-times thinner layer of gold, compared to sample bSi18. The gold layer is non-continuous in all samples; however, some differences between the samples are revealed. In bSi18, the area in the pillar base proximity remains uncovered, but the gold layer is uniform and dense between the rarely distributed thin pillars. In contrast, in case of bSi25 and bSi30, the pillars and their close vicinities are covered by a somewhat-uniform gold pattern, while the interpillar areas are not gold painted (see Figure 2B,D,F). As a result, the Si band is always present in the Raman and SERS spectra, collected from the surfaces.
This peculiarity of the bSi-based SERS substrates can be employed to determine the concentrations of reagents in solutions. The Raman signal from Si serves as a reference to normalize the SERS signal of the detected molecules at hot spots, in terms of their non-uniform distribution over the surface [41]. The pillars in all three samples are densely covered with gold nanoparticles, which may serve as hot spots for SERS (see Figure 1A,C,E and corresponding inset).
In all three analyzed cases, bSi/Au substrates comprise quasi-cylindrical ‘pillars’ covered with defected gold (enriched with crucks or ‘plasmonic holes’), which might be beneficial for substantial SERS enhancement.
To evaluate the efficiency of the fabricated substrates for SERS applications, we used 4-MBA as a standard test molecule [42]. It exhibits a characteristic Raman spectrum (see Figure 3) and may form a self-assembled monolayer (SAM) of molecules on the surfaces covered with gold, through the formation of covalent bonding S-Au [43]. This process is easily monitored in Raman and SERS spectra as the band 2570 cm−1 arising from -SH in 4-MBA disappears in the spectrum of SAM and a new band associated with S-Au at 257 cm−1 appears [44]. To reveal the effect of bSi structures in the enhancements of the Raman signal intensity, we used quartz slides sputtered with gold under equivalent conditions, as a reference. The spectrum of SAM of 4-MBA on the SiO2/Au obtained at 785 nm excitation is presented in Figure 3. The gold nanostructures formed on the flat SiO2 surface gave no Raman intensity enhancement, as no characteristic 4-MBA bands were detected except the Raman spectrum of SiO2 substrate itself.
In contrast to the SiO2/Au substrate with SAM of 4-MBA, all bSi/Au substrates provided the enhancement of 4-MBA Raman signal. The enhancement of Raman signal occurs when the excitation wavelength coincides with the wavelength of surface plasmons. The bSi/Au substrates with 4-MBA SAMs were analyzed under 514 nm and 785 nm excitation. No resonances were detected for 514 nm excitation, while for the excitation at 785 nm, significant Raman signal enhancement was obtained (see Figure 4A,B for 514 nm and 785 nm excitation, respectively). The characteristic bands in SERS spectra of 4-MBA on bSi/Au substrates and their assignments are summarized in Table 4.
The obtained experimental results are in good agreement with the simulations performed in [45]. The maximum of the absorption cross-section for Si@Au core@shell structures, with characteristic dimensions of 68–88 nm diameter for Si core and 21 nm thickness of the gold shell, is around 780–800 nm, and thinning of the gold layer results in the red shift of the absorption cross-section of nanostructures of this type. These structures correspond to the bSi apex with a gold cap for all bSi samples in our experiments. Moreover, it was demonstrated in [45] that vertical alignment of the groups of gold nanostructures with diameters of 50 nm, which are overlapped with each other and form dumbbell-like structures, have weakly pronounced absorption cross-section maxima of around 500–520 nm and intense absorption cross-section maxima in the NIR range (600–1000 nm). These simulations explain the high 4-MBA SERS signal of molecular monolayers on all the bSi/Au substrates under the 785 nm excitation and support insignificant but observable SERS spectra of 4-MBA molecules detected with 514 nm excitation from bSi18. As it follows from the parameters of the gold layer summarized in Table 3 and simulation results [45], only semi-spheres with a radius of 25 nm exhibit satisfactory absorption at 500–520 nm, which can provide SERS signal enhancement. The decrease in the gold layer thickness, which occurred for the samples bSi25 and bSi30 due to their more developed surface and larger cone-like structures, led to no SERS signal enhancement at 514 nm excitation. However, the vertical alignment of gold nanostructures and silicon core provided bSi25 and bSi30 with efficiency in NIR (see Figure 4).
The substrates were tested for the uniformity of the SERS signal enhancement. All studied bSi substrates are characterized by quite uniform SERS intensity distributions, and the standard deviations for the 1588 cm−1 band intensity of 4-MBA molecules were 6.1%, 5.2% and 4.3% (see Figure 5). However, the bSi18 substrate, due to the circumstances described above, provides significantly larger SERS signal enhancement.

4. Numerical Simulation

Along with the Si@Au core@shell structures responsible for SERS enhancement in the NIR range, cracks in the thin gold layer covering the silicon pillars (see Figure 2) may give rise to a strong enhancement of the local electric field, due to plasmon hot spots localized on the cracks’ edges. The light absorption of bSi/Au substrates comprising bSi quasi-cylindrical ‘pillars’ covered with a defected (i.e., enriched with plasmonic hot spots) gold layer was studied by averaging the light scattered over the pilar surface. The scattering cross-section of a pillar illuminated by a plane wave along the pillar axis and the polarization in a perpendicular direction to this axis can be described in terms of the dipole moments of hot spots randomly distributed on its surface as the following [47,48]:
σ = k 0 4 6 π ε 0 2 E 0 2 ∑ i p i 2
where p i is the dipole moment of the ith hot spot, summation is carried out over all hot spots on the pillar, and E 0 and k 0 are amplitude and wave number of the incident wave, respectively.
One can observe from Figure 6 that cracks in the gold layer increase the pillar absorption cross-section in the near-IR spectral range, i.e., plasmon hot spots provide up to one order of a magnitude enhancement for the gold-plated pillar at wavelengths longer than 800 nm. However, for all types of bSi geometries, in the visual part of the spectrum, the absorption cross-section of pillars covered with a perfect gold layer slightly exceeds that of the pillars having cracks in the gold coating. By comparing the data, one can see that a decrease in the gold layer thickness from 25 nm to 13 nm can be compensated by the larger size of the pillars (bSi25 and bSi30 geometries in Figure 6).
The electric field distribution along the surface of the gold painted pillars were obtained using Comsol Multiphysics by using parameters (pillar size, distance between pillars, gold thickness and crack size) we observed in the experiment (see Table 3). By considering different distributions of the hot spots over a pillar surface, we calculated the absorption cross-section of an individual pillar. The absorbance of the whole bSi surface was obtained by using periodic boundary conditions. The values and dispersion law of silicon refraction index and extinction coefficient were taken from [49].
Figure 7 shows absorbance of an array of gold covered silicon pillars with different distributions of cracks. One can see that in the wavelength range 800–2000 nm, the covering of bSi with a defected gold layer increases the absorbance because of local field enhancement at the gold layer defects. Specifically, in the NIR spectral range, the absorbance of bSi covered with cracked gold is 4–8 times higher than that of samples comprising an array of smooth bSi/Au pillars.
For all samples, in the vicinity of the reflection suppression ‘threshold’ wavelength (500–750 nm), the measured reflectivity was 30–35% higher than those obtained by numerical simulation. Such a discrepancy originates from the uncontrollable doping of silicon in the course of RIE [50] that was not taken into account in the numerical simulation, aiming at a qualitative rather than quantitative description of the reflectance spectra.

5. Discussion

Both numerical and experimental results demonstrate that sputtering with very a thin (approx. 10 nm) but cracked gold layer allows one to achieve stronger—in comparison with ‘pyramidal’ bSi [45]—enhancement of the Raman signal. Importantly, silicon outperforms cheaper glass materials as a plasmonic nanostructures support because the etch rate of glass is very low and is only 1/40th of the Si etch rate with fluorine radicals [51]. This makes micro-structuring of glass by ICR-RIE much more complex and time-consuming than bSi fabrication. Glasses are inhomogeneous, both chemically and structurally, and this inhomogeneity significantly complicates 3D or even 2D patterning, while the charging effects, which accompany the etching process of dielectrics, may drastically influence the reaction progress.
In terms of the choice of fabrication method, RT ICP-RIE also outperforms other techniques, including MACE, which requires using gold (Au), silver (Ag), aluminum (Al), copper (Cu) and nickel (Ni) catalysts [52]. In the one-step MACE process, metal on the surface emerges from the etching aqueous solutions, containing metal nitrates, while in the two-step MACE process, metals are physically deposited on the silicon surface before the chemical etching step [53]. After the etching step, a metal catalyst moves inside the Si wafer and locates itself at the bottom of silicon structures (deep in the pore), preventing formation of the 3D distribution of hot spots. However, such a 3D arrangement of the plasmonic hot spots on the bSi surface increases (in comparison with 2D distribution) the probability for the molecules of the analyte to meet a hot spot, thus significantly improving the sensitivity. Moreover, we demonstrate that cracks in the gold layer and gaps between the deposited gold islands provide significant enhancement of the Raman signal.
To sum up, we demonstrated that bSi offers the cheapest, most efficient, and reliable SERS substrate. The cost reduction was achieved by (i) the use of RT ICP-RIE instead of more complex and expensive cryogenic ICP-RIE, and (ii) the reduction in gold layer thickness. Until very recently, all the proposed SERS substrate fabrication techniques were based on very thick noble metal layers. For instance, in [54], the Ag layer thickness was 150 nm to achieve satisfactory Raman signal. In [55], the authors used a 100 nm thick layer of gold (RT ICP-RIE), in [56], the gold layer thickness was even larger and amounted to 400 nm (cryo-ICP-RIE), and in [57], the thickness of the deposited aluminum layer was around 1000 nm (ICP-RIE, temperature not stated). However, when the noble metal layer is of hundreds of nanometers, the 3D packaging of plasmonic nanostructures does not occur. Black silicon only serves as a supporting material for 2D nanoparticle distribution, so that the substrate could be replaced by another, easy to manufacture rough material. In the bSi structures fabricated and analyzed in this study, the geometry of the bSi is used to provide efficient Raman signal enhancement in full.

6. Conclusions

We fabricated the black Si substrate with the controllable surface profile covered in a ten nanometers thick gold layer. The SERS measurements with 4-MBA revealed that the fabricated substrates allow one to obtain satisfactory Raman signal enhancement with excellent spatial uniformity (less than 6% signal intensity variation over a 20 × 20 μm2 area) at the NIR excitation. The obtained results indicate that bSi can be employed for scalable fabrication of affordable SERS substrates, which may become a stable, simple and reliable consumable material in laboratory routine, providing relatively high sensitivity at low cost.
Numerical simulation was performed to calculate the absorbance of bSi/Au samples by considering the geometrical features of silicon pillars and non-perfect coverage with gold. According to modeling results, for all geometries of bSi surface relief, we observed a substantial increase in the NIR absorption cross-section of individual bSi pillars covered with the defected gold, in which cracks work as plasmonic hot spots. For more developed bSi surfaces (e.g., bSi25 and bSi30 in Table 3), even the sputtering of the structure with very thin, <15 nm, but cracked gold allows us to achieve strong Raman signal due to significant enhancement of the local field in the vicinity of the densely distributed hot spots.

Author Contributions

Conceptualization and design of the experimental study, P.K. and L.G.; data acquisition, L.G., H.R. and S.S.; black silicon substrate fabrication, H.R. and S.S.; data analysis and interpretation, L.G., Y.P., H.R., I.T. and R.K.; absorption theory and simulations, A.B. and L.G.; paper drafting, L.G., H.R. and Y.P.; paper revision, editing and final version preparation, L.G., R.K., P.K. and Y.S. All authors have read and agreed to the published version of the manuscript.

Funding

The study was accomplished with the financial support of Academy of Finland (Flagship Programme PREIN, decision 320166, and grant 343393), Horizon 2020 RISE DiSeTCom (Project No. 823728) and Horizon Europe FLORIN (Project No. 101086142).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available from the correspondent author by reasonable request.

Acknowledgments

The authors are grateful to Isaac Otto from the University of Eastern Finland for the SEM measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lv, J.; Zhang, T.; Zhang, P.; Zhao, Y.; Li, S. Review Application of Nanostructured Black Silicon. Nanoscale Res. Lett. 2018, 13, 110. [Google Scholar] [CrossRef] [PubMed]
  2. Yuan, H.C.; Yost, V.E.; Page, M.R.; Stradins, P.; Meier, D.L.; Branz, H.M. Efficient Black Silicon Solar Cell with a Density-Graded Nanoporous Surface: Optical Properties, Performance Limitations, and Design Rules. Appl. Phys. Lett. 2009, 95, 123501. [Google Scholar] [CrossRef]
  3. Lu, J.; Zhuang, W.; Yang, W.; Zhang, X.; Su, G.; Gong, X.; Yuan, J.; Sui, J.; Zhou, Y.; Zhang, G.; et al. Enhanced Absorption in the Wide Wavelength Range: Black Silicon Decorated with Few-Layer PtS2. J. Phys. Chem. C 2021, 125, 27335–27343. [Google Scholar] [CrossRef]
  4. Sarkar, S.; Elsayed, A.A.; Nefzaoui, E.; Drevillon, J.; Basset, P.; Marty, F.; Anwar, M.; Yu, Y.; Zhao, J.; Yuan, X.; et al. NIR and MIR Absorption of Ultra-Black Silicon (UBS). Application to High Emissivity, All-Silicon, Light Source. In Proceedings of the IEEE International Conference on Micro Electro Mechanical Systems (MEMS), Virtual, 25–29 January 2019; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2019; Volume 2019, pp. 860–862. [Google Scholar]
  5. Zhang, P.; Li, S.; Liu, C.; Wei, X.; Wu, Z.; Jiang, Y.; Chen, Z. Near-Infrared Optical Absorption Enhanced in Black Silicon via Ag Nanoparticle-Induced Localized Surface Plasmon. Nanoscale Res. Lett. 2014, 9, 519. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Fan, Z.; Cui, D.; Zhang, Z.; Zhao, Z.; Chen, H.; Fan, Y.; Li, P.; Zhang, Z.; Xue, C.; Yan, S. Recent Progress of Black Silicon: From Fabrications to Applications. Nanomaterials 2021, 11, 41. [Google Scholar] [CrossRef] [PubMed]
  7. Wu, C.; Crouch, C.H.; Zhao, L.; Carey, J.E.; Younkin, R.; Levinson, J.A.; Mazur, E.; Farrell, R.M.; Gothoskar, P.; Karger, A. Near-Unity below-Band-Gap Absorption by Microstructured Silicon. Appl. Phys. Lett. 2001, 78, 1850–1852. [Google Scholar] [CrossRef]
  8. Wen, Z.; Shi, H.; Yue, S.; Li, M.; Zhang, Z.; Wang, R.; Song, Q.; Xu, Z.; Zhang, Z.; Hou, Y. Large-Scale Black Silicon Induced by Femtosecond Laser Assisted With Laser Cleaning. Front. Phys. 2022, 10, 235. [Google Scholar] [CrossRef]
  9. Zhong, H.; Ilyas, N.; Song, Y.; Li, W.; Jiang, Y. Enhanced Near-Infrared Absorber: Two-Step Fabricated Structured Black Silicon and Its Device Application. Nanoscale Res. Lett. 2018, 13, 316. [Google Scholar] [CrossRef]
  10. Chai, J.Y.H.; Wong, B.T.; Juodkazis, S. Black-Silicon-Assisted Photovoltaic Cells for Better Conversion Efficiencies: A Review on Recent Research and Development Efforts. Mater. Today Energy 2020, 18, 100539. [Google Scholar] [CrossRef]
  11. Ali, M.; Zhou, F.; Chen, K.; Kotzur, C.; Xiao, C.; Bourgeois, L.; Zhang, X.; MacFarlane, D.R. Nanostructured Photoelectrochemical Solar Cell for Nitrogen Reduction Using Plasmon-Enhanced Black Silicon. Nat. Commun. 2016, 7, 11335. [Google Scholar] [CrossRef] [Green Version]
  12. Oh, K.; Joanny, L.; Gouttefangeas, F.; Fabre, B.; Dorcet, V.; Lassalle-Kaiser, B.; Vacher, A.; Mériadec, C.; Ababou-Girard, S.; Loget, G. Black Silicon Photoanodes Entirely Prepared with Abundant Materials by Low-Cost Wet Methods. ACS Appl. Energy Mater. 2019, 2, 1006–1010. [Google Scholar] [CrossRef]
  13. Jian, J.X.; Liao, J.X.; Zhou, M.H.; Yao, M.M.; Chen, Y.J.; Liang, X.W.; Liu, C.P.; Tong, Q.X. Enhanced Photoelectrochemical Water Splitting of Black Silicon Photoanode with PH-Dependent Copper-Bipyridine Catalysts. Chem.—A Eur. J. 2022, 28, e202201520. [Google Scholar] [CrossRef] [PubMed]
  14. Bogue, R. Novel Infrared Detectors Based on Black Silicon. Sens. Rev. 2010, 30, 59–62. [Google Scholar] [CrossRef]
  15. Hu, F.; Dai, X.-Y.; Zhou, Z.-Q.; Kong, X.-Y.; Sun, S.-L.; Zhang, R.-J.; Wang, S.-Y.; Lu, M.; Sun, J. Black Silicon Schottky Photodetector in Sub-Bandgap near-Infrared Regime. Opt. Express 2019, 27, 3161. [Google Scholar] [CrossRef] [PubMed]
  16. Bodelón, G.; Montes-García, V.; Pérez-Juste, J.; Pastoriza-Santos, I. Surface-Enhanced Raman Scattering Spectroscopy for Label-Free Analysis of P. aeruginosa Quorum Sensing. Front. Cell Infect. Microbiol. 2018, 8, 143. [Google Scholar] [CrossRef] [PubMed]
  17. Pérez-Jiménez, A.I.; Lyu, D.; Lu, Z.; Liu, G.; Ren, B. Surface-Enhanced Raman Spectroscopy: Benefits, Trade-Offs and Future Developments. Chem. Sci. 2020, 11, 4563–4577. [Google Scholar] [CrossRef] [Green Version]
  18. Wang, J.; Lin, W.; Cao, E.; Xu, X.; Liang, W.; Zhang, X. Surface Plasmon Resonance Sensors on Raman and Fluorescence Spectroscopy. Sensors 2017, 17, 2719. [Google Scholar] [CrossRef] [Green Version]
  19. Tzeng, Y.; Lin, B.Y. Silver SERS Adenine Sensors with a Very Low Detection Limit. Biosensors 2020, 10, 53. [Google Scholar] [CrossRef]
  20. Costas, C.; López-Puente, V.; Bodelón, G.; González-Bello, C.; Pérez-Juste, J.; Pastoriza-Santos, I.; Liz-Marzán, L.M. Using Surface Enhanced Raman Scattering to Analyze the Interactions of Protein Receptors with Bacterial Quorum Sensing Modulators. ACS Nano 2015, 9, 5567–5576. [Google Scholar] [CrossRef]
  21. Morton, S.M.; Jensen, L. Understanding the Molecule-Surface Chemical Coupling in SERS. J. Am. Chem. Soc. 2009, 131, 4090–4098. [Google Scholar] [CrossRef]
  22. Kneipp, J. SERS for Sensing and Imaging in Live Cells. In Principles and Clinical Diagnostic Applications of Surface-Enhanced Raman Spectroscopy; Elsevier: Amsterdam, The Netherlands, 2021; pp. 303–325. ISBN 9780128211212. [Google Scholar]
  23. Bernat, A.; Samiwala, M.; Albo, J.; Jiang, X.; Rao, Q. Challenges in SERS-Based Pesticide Detection and Plausible Solutions. J. Agric. Food Chem. 2019, 67, 12341–12347. [Google Scholar] [CrossRef]
  24. Wang, Y.; Li, P.; Lin, D.; Chen, J.; Zhang, Y.; Yang, L. Ethanol-Extraction SERS Strategy for Highly Sensitive Detection of Poisons in Oily Matrix. Spectrochim. Acta—Part A Mol. Biomol. Spectrosc. 2021, 259, 119883. [Google Scholar] [CrossRef] [PubMed]
  25. Mo, S.; Shao, X.; Chen, Y.; Cheng, Z. Increasing Entropy for Colloidal Stabilization. Sci. Rep. 2016, 6, 36836. [Google Scholar] [CrossRef] [Green Version]
  26. Shi, L.; Zhang, L.; Tian, Y. Rational Design of Surface-Enhanced Raman Scattering Substrate for Highly Reproducible Analysis. Anal. Sens. 2022, 2022, e202200064. [Google Scholar] [CrossRef]
  27. Khnykina, K.A.; Baranov, M.A.; Babaev, A.A.; Dubavik, A.Y.; Fedorov, A.V.; Baranov, A.V.; Bogdanov, K.V. Comparison Study of Surface-Enhanced Raman Spectroscopy Substrates. J. Phys. Conf. Ser. 2021, 1984, 12020. [Google Scholar] [CrossRef]
  28. Mikac, L.; Gotić, M.; Gebavi, H.; Ivanda, M. The Variety of Substrates for Surface-Enhanced Raman Spectroscopy. In Proceedings of the 2017 IEEE 7th International Conference on Nanomaterials: Applications & Properties, (NAP 2017), Odessa, Ukraine, 10–15 September 2017. [Google Scholar] [CrossRef]
  29. Guo, R.; Hakala, T.K.; Törmä, P. Geometry Dependence of Surface Lattice Resonances in Plasmonic Nanoparticle Arrays. Phys. Rev. B 2017, 95, 155423. [Google Scholar] [CrossRef] [Green Version]
  30. Juluri, B.K.; Zheng, Y.B.; Ahmed, D.; Jensen, L.; Huang, T.J. Effects of Geometry and Composition on Charge-Induced Plasmonic Shifts in Gold Nanoparticles. J. Phys. Chem. C 2008, 112, 7309–7317. [Google Scholar] [CrossRef]
  31. Du, C.; Yang, W.; Peng, S.; Shi, D. Optimal Geometry Parameter for Plasmonic Sensitivities of Individual Au Nanopoarticle Sensors. Phys. Chem. Chem. Phys. 2019, 21, 7654–7660. [Google Scholar] [CrossRef]
  32. Serpenguzel, A. Luminescence of Black Silicon. J. Nanophoton. 2008, 2, 021770. [Google Scholar] [CrossRef] [Green Version]
  33. Jansen, H.; de Boer, M.; Burger, J.; Legtenberg, R.; Elwenspoek, M. The Black Silicon Method II:The Effect of Mask Material and Loading on the Reactive Ion Etching of Deep Silicon Trenches. Microelectron. Eng. 1995, 27, 475–480. [Google Scholar] [CrossRef] [Green Version]
  34. Cui, Z. Nanofabrication: Principles, Capabilities and Limits, 2nd ed.; Springer International Publishing: Cham, Switzerland, 2017; ISBN 9783319393612. [Google Scholar]
  35. Lawrence, K.P.; Douki, T.; Sarkany, R.P.E.; Acker, S.; Herzog, B.; Young, A.R. The UV/Visible Radiation Boundary Region (385–405 Nm) Damages Skin Cells and Induces “Dark” Cyclobutane Pyrimidine Dimers in Human Skin in Vivo. Sci. Rep. 2018, 8, 12722. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Godley, B.F.; Shamsi, F.A.; Liang, F.Q.; Jarrett, S.G.; Davies, S.; Boulton, M. Blue Light Induces Mitochondrial DNA Damage and Free Radical Production in Epithelial Cells. J. Biol. Chem. 2005, 280, 21061–21066. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Yuan, X.; Song, Y.; Song, Y.; Xu, J.; Wu, Y.; Glidle, A.; Cusack, M.; Ijaz, U.Z.; Cooper, J.M.; Huang, W.E.; et al. Effect of Laser Irradiation on Cell Function and Its Implications in Raman Spectroscopy. Appl. Environ. Microbiol. 2018, 84, 8. [Google Scholar] [CrossRef] [Green Version]
  38. Laermer, F.; Urban, A. MEMS at Bosch—Si Plasma Etch Success Story, History, Applications, and Products. Plasma Process. Polym. 2019, 16, 1800207. [Google Scholar] [CrossRef]
  39. Blauw, M.A.; Zijlstra, T.; van der Drift, E. Balancing the Etching and Passivation in Time-Multiplexed Deep Dry Etching of Silicon. J. Vac. Sci. Technol. B Microelectron. Nanom. Struct. 2001, 19, 2930. [Google Scholar] [CrossRef]
  40. Labelle, C.B.; Opila, R.; Kornblit, A. Plasma Deposition of Fluorocarbon Thin Films from C-C4F8 Using Pulsed and Continuous Rf Excitation. J. Vac. Sci. Technol. A Vacuum Surfaces Film. 2005, 23, 190–196. [Google Scholar] [CrossRef]
  41. Fu, H.; Bao, H.; Zhang, H.; Zhao, Q.; Zhou, L.; Zhu, S.; Wei, Y.; Li, Y.; Cai, W. Quantitative Surface-Enhanced Raman Spectroscopy for Field Detections Based on Structurally Homogeneous Silver-Coated Silicon Nanocone Arrays. ACS Omega 2021, 6, 18928–18938. [Google Scholar] [CrossRef]
  42. Ho, C.H.; Lee, S. SERS and DFT Investigation of the Adsorption Behavior of 4-Mercaptobenzoic Acid on Silver Colloids. Colloids Surfaces A Physicochem. Eng. Asp. 2015, 474, 29–35. [Google Scholar] [CrossRef]
  43. Barriet, D.; Yam, C.M.; Shmakova, O.E.; Jamison, A.C.; Lee, T.R. 4-Mercaptophenylboronic Acid SAMs on Gold: Comparison with SAMs Derived from Thiophenol, 4-Mercaptophenol, and 4-Mercaptobenzoic Acid. Langmuir 2007, 23, 8866–8875. [Google Scholar] [CrossRef]
  44. Mhlanga, N.; Ntho, T.A. A Theoretical Study of 4-Mercaptobenzoic Acid Assembled on Ag for Surface-Enhanced Raman Scattering Applications. Mater. Today Commun. 2021, 26, 101698. [Google Scholar] [CrossRef]
  45. Golubewa, L.; Karpicz, R.; Matulaitiene, I.; Selskis, A.; Rutkauskas, D.; Pushkarchuk, A.; Khlopina, T.; Michels, D.; Lyakhov, D.; Kulahava, T.; et al. Surface-Enhanced Raman Spectroscopy of Organic Molecules and Living Cells with Gold-Plated Black Silicon. ACS Appl. Mater. Interfaces 2020, 12, 50971–50984. [Google Scholar] [CrossRef] [PubMed]
  46. Michota, A.; Bukowska, J. Surface-Enhanced Raman Scattering (SERS) of 4-Mercaptobenzoic Acid on Silver and Gold Substrates. J. Raman Spectrosc. 2003, 34, 21–25. [Google Scholar] [CrossRef]
  47. Klyuchnik, A.V.; Kurganov, S.Y.; Lozovik, Y.E. Plasmons at a Hole in a Screen. Phys. Solid State 2003, 45, 1793–1797. [Google Scholar] [CrossRef]
  48. Rytov, S.M.; Kravtsov, Y.A.; Tatarskii, V.I. Wave Propagation through Random Media, Principles of Statistical Radiophysics 4; Springer: Berlin/Heidelberg, Germany, 1978; ISBN 9783642726842. [Google Scholar]
  49. Schinke, C.; Christian Peest, P.; Schmidt, J.; Brendel, R.; Bothe, K.; Vogt, M.R.; Kröger, I.; Winter, S.; Schirmacher, A.; Lim, S.; et al. Uncertainty Analysis for the Coefficient of Band-to-Band Absorption of Crystalline Silicon. AIP Adv. 2015, 5, 067168. [Google Scholar] [CrossRef] [Green Version]
  50. Lin, Y.J.; Chu, Y.L. Effect of Reactive Ion Etching-Induced Defects on the Surface Band Bending of Heavily Mg-Doped p -Type GaN. J. Appl. Phys. 2005, 97, 104904. [Google Scholar] [CrossRef]
  51. Weigel, C.; Brokmann, U.; Hofmann, M.; Behrens, A.; Rädlein, E.; Hoffmann, M.; Strehle, S.; Sinzinger, S. Perspectives of Reactive Ion Etching of Silicate Glasses for Optical Microsystems. J. Opt. Microsystems 2021, 1, 040901. [Google Scholar] [CrossRef]
  52. Alhmoud, H.; Brodoceanu, D.; Elnathan, R.; Kraus, T.; Voelcker, N.H. A MACEing Silicon: Towards Single-Step Etching of Defined Porous Nanostructures for Biomedicine. Prog. Mater. Sci. 2021, 116, 100636. [Google Scholar] [CrossRef]
  53. Arafat, M.Y.; Islam, M.A.; Mahmood, A.W.B.; Abdullah, F.; Nur-E-Alam, M.; Kiong, T.S.; Amin, N. Fabrication of Black Silicon via Metal-Assisted Chemical Etching—A Review. Sustainability 2021, 13, 766. [Google Scholar] [CrossRef]
  54. Kim, H.J.; Kim, B.; Lee, D.; Lee, B.-H.; Cho, C. Fabrication of Surface-Enhanced Raman Scattering Substrate Using Black Silicon Layer Manufactured through Reactive Ion Etching. J. Sens. Sci. Technol. 2021, 30, 267–272. [Google Scholar] [CrossRef]
  55. Gervinskas, G.; Seniutinas, G.; Hartley, J.S.; Kandasamy, S.; Stoddart, P.R.; Fahim, N.F.; Juodkazis, S. Surface-Enhanced Raman Scattering Sensing on Black Silicon. Ann. Phys. 2013, 525, 907–914. [Google Scholar] [CrossRef]
  56. Deng, Y.L.; Juang, Y.J. Black Silicon SERS Substrate: Effect of Surface Morphology on SERS Detection and Application of Single Algal Cell Analysis. Biosens. Bioelectron. 2014, 53, 37–42. [Google Scholar] [CrossRef] [PubMed]
  57. Lin, B.W.; Tai, Y.H.; Lee, Y.C.; Xing, D.; Lin, H.C.; Yamahara, H.; Ho, Y.L.; Tabata, H.; Daiguji, H.; Delaunay, J.J. Aluminum-Black Silicon Plasmonic Nano-Eggs Structure for Deep-UV Surface-Enhanced Resonance Raman Spectroscopy. Appl. Phys. Lett. 2022, 120, 51102. [Google Scholar] [CrossRef]
Materials 16 01948 g001 550

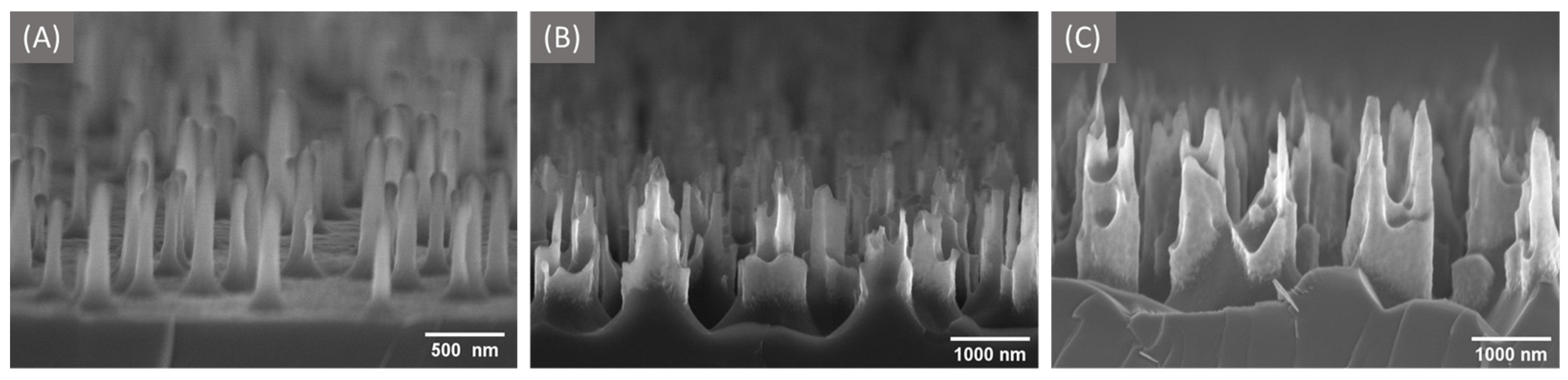

Figure 1. The micro-structured silicon surface obtained at the etching time of (A) 18 min, (B) 25 min, (C) 30 min.
Figure 1. The micro-structured silicon surface obtained at the etching time of (A) 18 min, (B) 25 min, (C) 30 min.
Materials 16 01948 g001
Materials 16 01948 g002 550

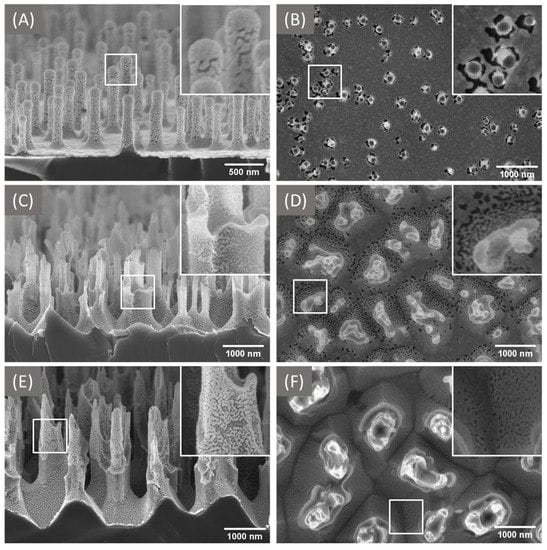

Figure 2. SEM side- and top-view images of the bSi18 (A,B), bSi25 (C,D), bSi30 (E,F), sputtered with Au. Inset images (B–F) are 800 × 800 nm and (A) is 400 × 400 nm.
Figure 2. SEM side- and top-view images of the bSi18 (A,B), bSi25 (C,D), bSi30 (E,F), sputtered with Au. Inset images (B–F) are 800 × 800 nm and (A) is 400 × 400 nm.
Materials 16 01948 g002
Materials 16 01948 g003 550

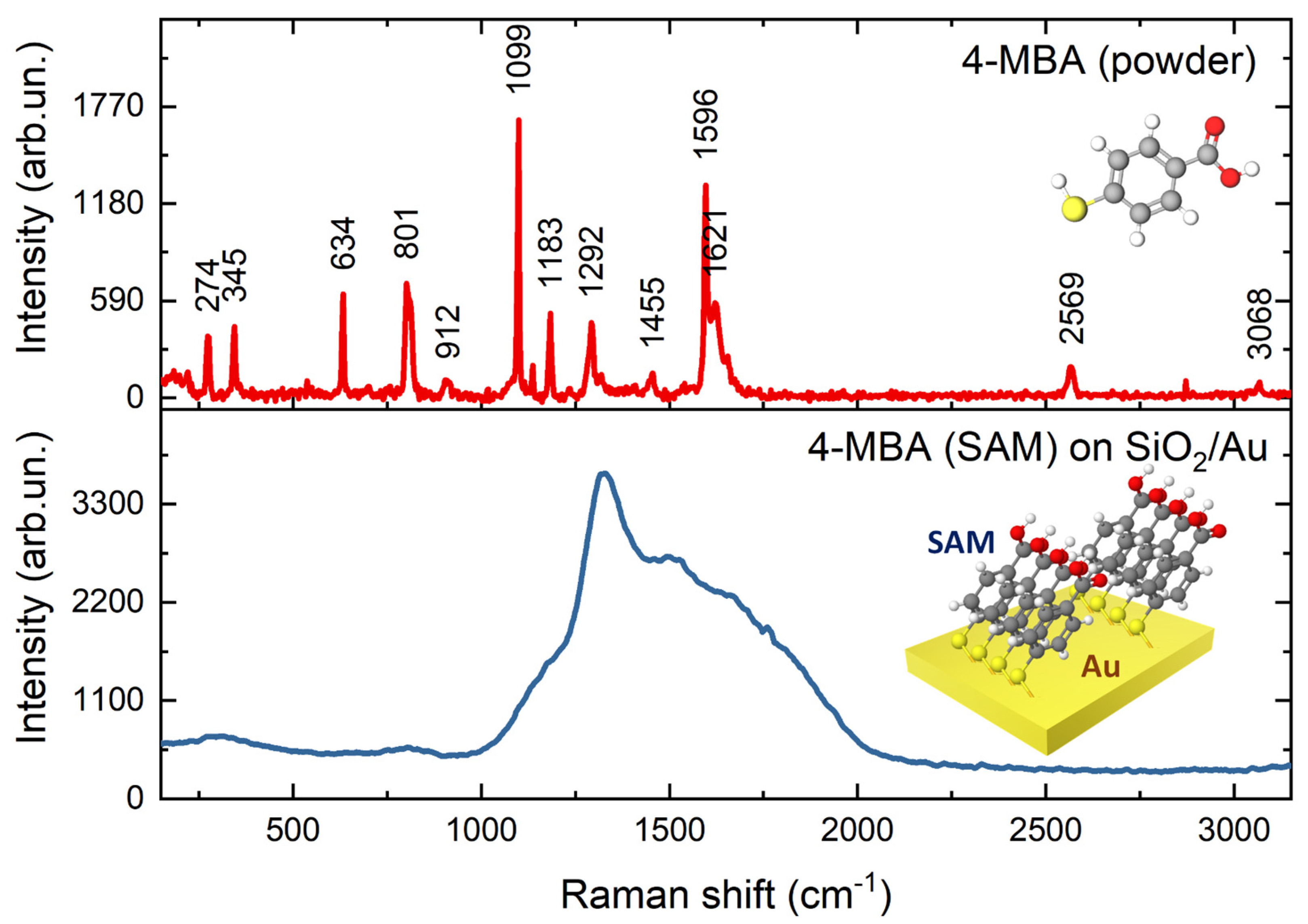

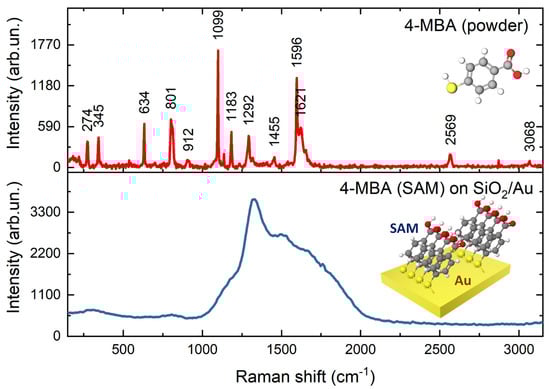

Figure 3. Raman spectra of 4-MBA powder and SAM of 4-MBA molecules on SiO2/Au. Measurements were performed at the following conditions: λex = 785 nm, laser power = 3 mW, accumulation time = 10 s. 4-MBA composition: Gray—carbon atoms, red—oxygen atoms, yellow—sulfur atom, white—hydrogen atoms.
Figure 3. Raman spectra of 4-MBA powder and SAM of 4-MBA molecules on SiO2/Au. Measurements were performed at the following conditions: λex = 785 nm, laser power = 3 mW, accumulation time = 10 s. 4-MBA composition: Gray—carbon atoms, red—oxygen atoms, yellow—sulfur atom, white—hydrogen atoms.
Materials 16 01948 g003
Materials 16 01948 g004 550

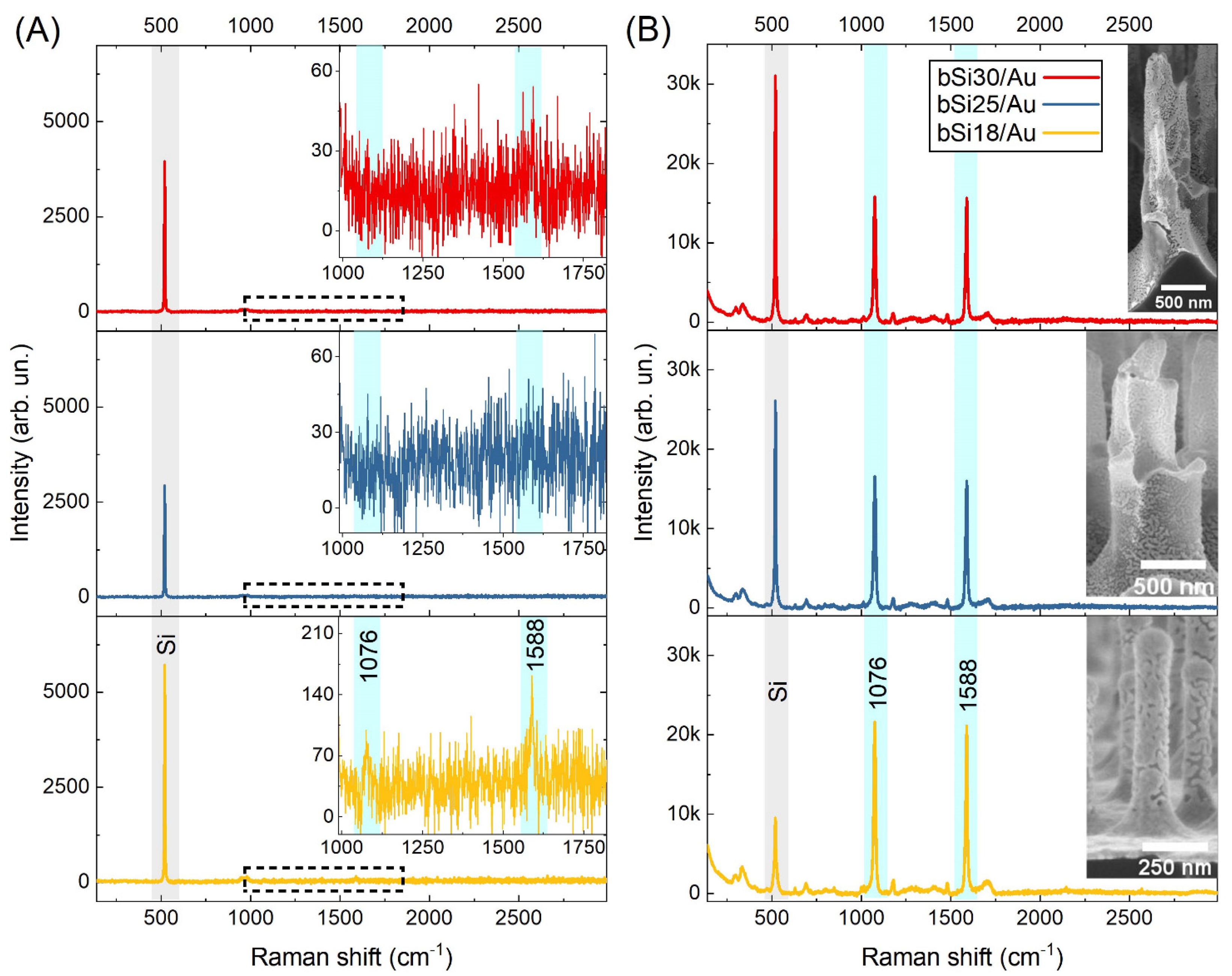

Figure 4. SERS spectra of 4-MBA on (A) 514 nm (10 s, 5 mW) and (B) 785 nm (10 s, 3 mW) excitation wavelengths on bSi/Au samples.
Figure 4. SERS spectra of 4-MBA on (A) 514 nm (10 s, 5 mW) and (B) 785 nm (10 s, 3 mW) excitation wavelengths on bSi/Au samples.
Materials 16 01948 g004
Materials 16 01948 g005 550

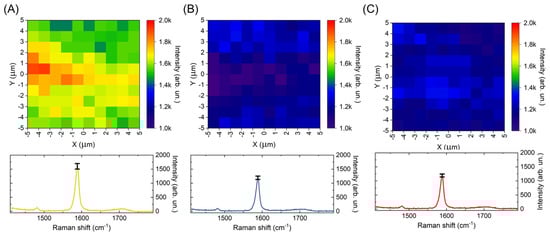

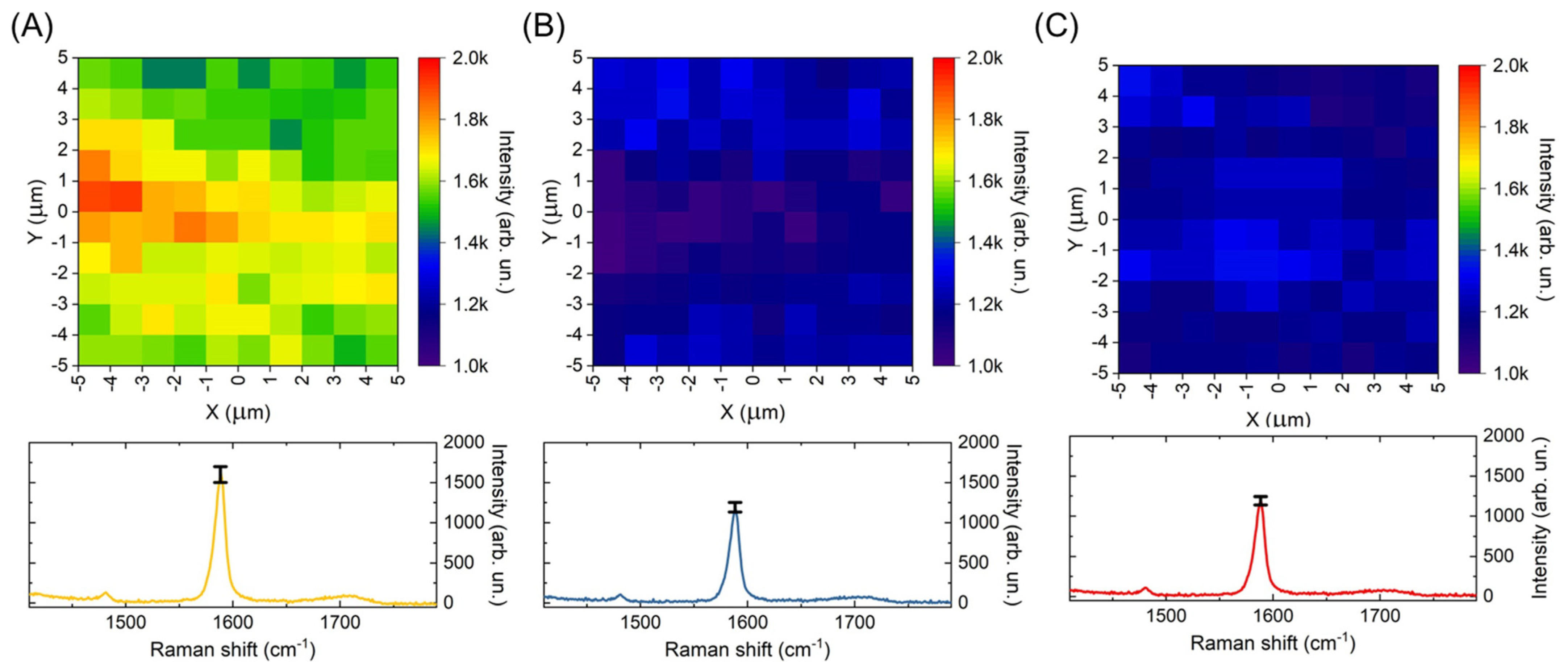

Figure 5. Spatial distributions of SERS signal on 1588 cm−1 for 4-MBA on (A) bSi18/Au, (B) bSi25/Au and (C) bSi30/Au samples.
Figure 5. Spatial distributions of SERS signal on 1588 cm−1 for 4-MBA on (A) bSi18/Au, (B) bSi25/Au and (C) bSi30/Au samples.
Materials 16 01948 g005
Materials 16 01948 g006 550

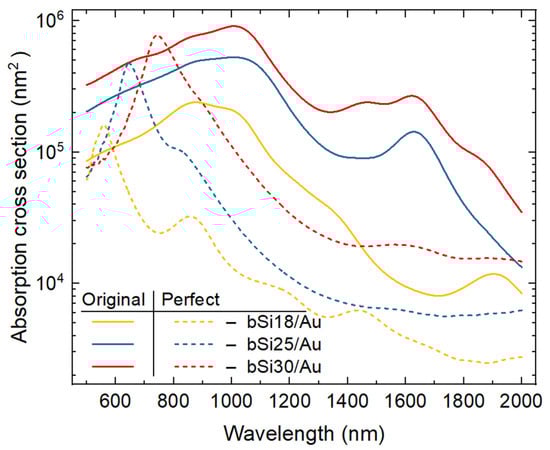

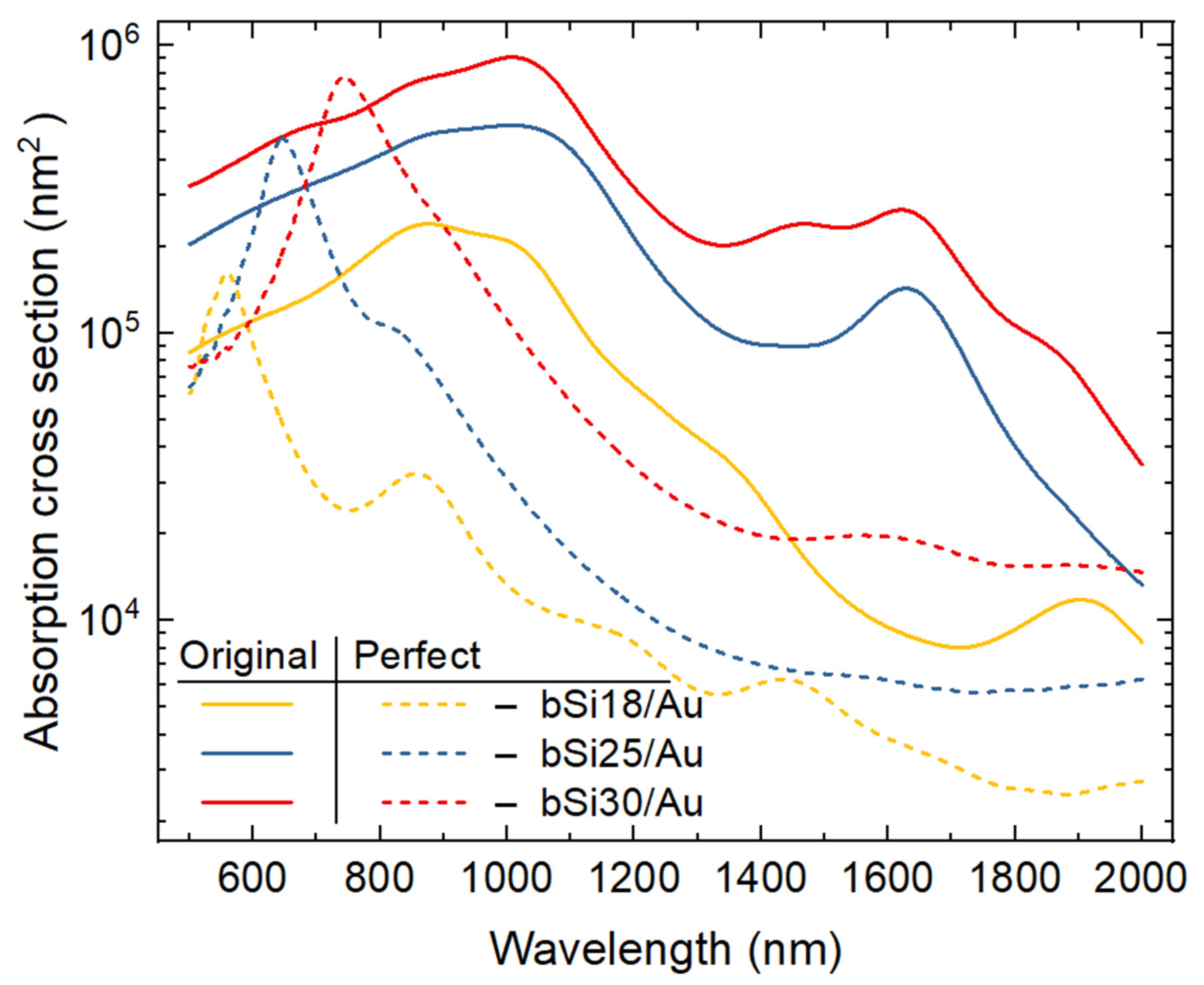

Figure 6. Absorption cross-section of individual pillars of bSi18, bSi25 and bSi30 geometry (taken from Table 3), either coated with perfect gold layer without cracks (perfect, dashed lines) or by defected gold-comprising cracks (original, solid lines).
Figure 6. Absorption cross-section of individual pillars of bSi18, bSi25 and bSi30 geometry (taken from Table 3), either coated with perfect gold layer without cracks (perfect, dashed lines) or by defected gold-comprising cracks (original, solid lines).
Materials 16 01948 g006
Materials 16 01948 g007 550

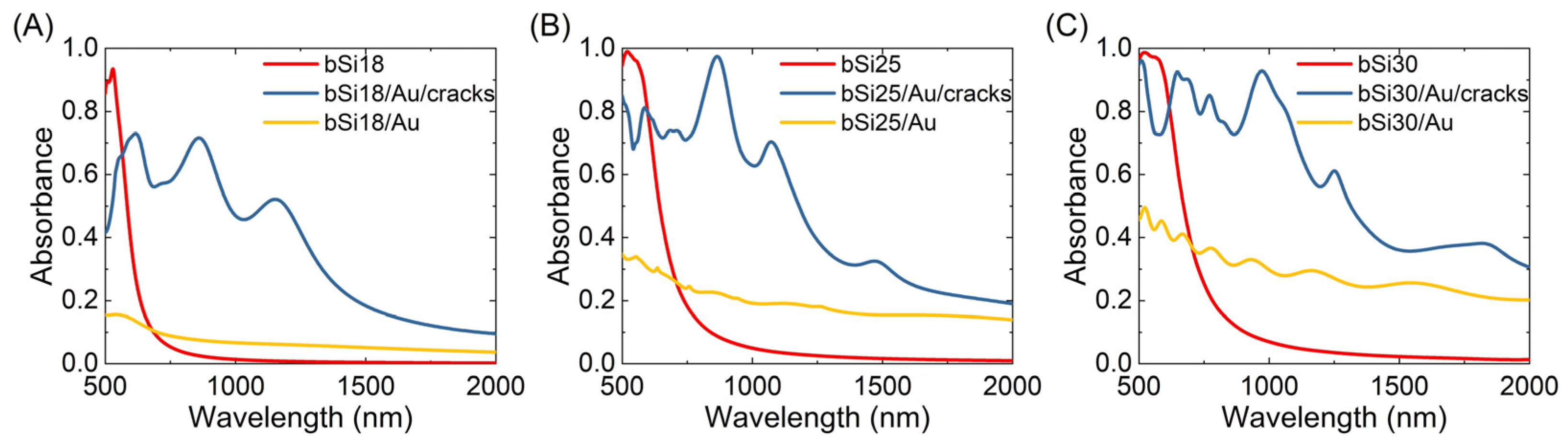

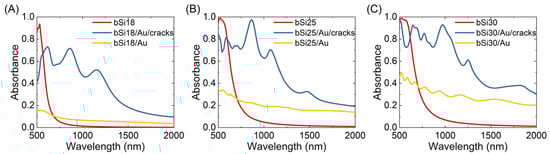

Figure 7. Calculated absorbance spectra for array of pillars of bare, covered with continuous and cracked gold layer bSi of the following three different geometries: bSi18 (A), bSi25 (B) and bSi30 (C). Geometrical parameters are taken from Table 3. Silicon refractive index, n, and extinction coefficient, k, were taken in the intervals 4–3.46 and 0.03–4.2 × 10−8, respectively, for the wavelengths 500–2000 nm [49] in the simulations.
Figure 7. Calculated absorbance spectra for array of pillars of bare, covered with continuous and cracked gold layer bSi of the following three different geometries: bSi18 (A), bSi25 (B) and bSi30 (C). Geometrical parameters are taken from Table 3. Silicon refractive index, n, and extinction coefficient, k, were taken in the intervals 4–3.46 and 0.03–4.2 × 10−8, respectively, for the wavelengths 500–2000 nm [49] in the simulations.
Materials 16 01948 g007
Table
Table 1. Deposition/etching parameters for bSi fabrication.
Table 1. Deposition/etching parameters for bSi fabrication.
GassesFlow (sccm)Time (min)RF (W)ICP (W)Pressure (mTorr)DC Bias (V)Temperature (°C)He-Backside Cooling (sccm)
DepositionC4F8/SF640:112029520100205
EtchingSF6/O210:918–30300301002010
Table
Table 2. Geometrical parameters of structures covering the Si substrate at different etching times.
Table 2. Geometrical parameters of structures covering the Si substrate at different etching times.
Etching Time (min)Height (nm)Apex Thickness (nm)Base Thickness (nm)Pillars Density,
pcs/μm2
Materials 16 01948 i001Materials 16 01948 i002Materials 16 01948 i003Materials 16 01948 i004Materials 16 01948 i005
18639 ± 126112 ± 21110 ± 324.33
251625 ± 298125 ± 36638 ± 1551.12
302217 ± 433144 ± 63832 ± 3770.56
Table
Table 3. Parameters of the structures and surfaces of the bSi.
Table 3. Parameters of the structures and surfaces of the bSi.
SampleThickness of Au Layer (nm)Type of GeometryArea Uncovered with Au (%)
bSi1825 ± 5Cylindrical pillars 8.24 (98 μm2 was analyzed)
bSi2514 ± 5Cylindrical pillars on stump9.03 (49 μm2 was analyzed)
bSi3013 ± 4Spiked mountainsDifficult to analyze. Very mosaic structure
Table
Table 4. Assignment of the characteristic bands of both Raman spectra of bulk 4-MBA and SERS spectra of SAM of 4-MBA on bSi18/Au [45,46].
Table 4. Assignment of the characteristic bands of both Raman spectra of bulk 4-MBA and SERS spectra of SAM of 4-MBA on bSi18/Au [45,46].
4-MBA Bulk (cm−1)4-MBA on bSi18/Au (cm−1)Peak Assignments
257 (w)ν(Au-S)
–520 (m)Si (E2g mode)
634 (m) #632 (w)ν6b + δ(COOH) deformation
–691 (m)γ(CH) out of plane
801 (m)–ν10a in-plane aromatic ring breathing mode + -COH deformation
–848 (w)β(COO–)
912 (w)–β(SH)
1099 (s)1076 (s)ν12(a1) in-plane aromatic ring breathing mode + ν(CS)
1183 (m)1182 (w)ν9(a1) + δ(CH) deformation
1292 (m)–ν3
1455 (w)1481 (w)ν(CC) + γ(CH)
1596 (s)1588 (s)ν8a(a1) totally symmetric aromatic ring vibration
1621 (m)–ν(C=O), ν(OC) + δ(HOC)
–1706 (m)ν(C=O), COOH are hydrogen bonded [46]
2569 (m)–ν(SH) stretching mode
# The vibrational modes are as follows: ν—stretching; β—bending; δ—deformation; γ—out of plane deformation. (w), (m) and (s) indicate ‘weak’, ‘medium’ and ‘strong’ bands in the spectra, respectively.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Golubewa, L.; Rehman, H.; Padrez, Y.; Basharin, A.; Sumit, S.; Timoshchenko, I.; Karpicz, R.; Svirko, Y.; Kuzhir, P. Black Silicon: Breaking through the Everlasting Cost vs. Effectivity Trade-Off for SERS Substrates. Materials 2023, 16, 1948. https://doi.org/10.3390/ma16051948

AMA Style

Golubewa L, Rehman H, Padrez Y, Basharin A, Sumit S, Timoshchenko I, Karpicz R, Svirko Y, Kuzhir P. Black Silicon: Breaking through the Everlasting Cost vs. Effectivity Trade-Off for SERS Substrates. Materials. 2023; 16(5):1948. https://doi.org/10.3390/ma16051948

Chicago/Turabian Style

Golubewa, Lena, Hamza Rehman, Yaraslau Padrez, Alexey Basharin, Sumit Sumit, Igor Timoshchenko, Renata Karpicz, Yuri Svirko, and Polina Kuzhir. 2023. "Black Silicon: Breaking through the Everlasting Cost vs. Effectivity Trade-Off for SERS Substrates" Materials 16, no. 5: 1948. https://doi.org/10.3390/ma16051948

APA Style

Golubewa, L., Rehman, H., Padrez, Y., Basharin, A., Sumit, S., Timoshchenko, I., Karpicz, R., Svirko, Y., & Kuzhir, P. (2023). Black Silicon: Breaking through the Everlasting Cost vs. Effectivity Trade-Off for SERS Substrates. Materials, 16(5), 1948. https://doi.org/10.3390/ma16051948

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
