Enhanced Desulfurization by Tannin Extract Absorption Assisted by Binuclear Sulfonated Phthalocyanine Cobalt Polymer: Performance and Mechanism

Abstract

Removal of hydrogen sulfide (H₂S) from coke oven gas has attracted increasing attention due to economic and environmental concerns. In this study, tannin extract (TE) absorption combined with binuclear sulfonated phthalocyanine cobalt organic polymer (OTS) and binuclear sulfonated phthalocyanine cobalt (PDS) with a fixed bed reactor is used for removal of H₂S. The effect of gas flow rate, concentration of H₂S, co-existence of organic sulfide compounds and O₂ were investigated. Then, the effect of total alkalinity content of TE, NaVO₃, OTS and PDS was studied in detail. The experimental results demonstrated that 100% H₂S conversion could maintain for 13 h at a total alkalinity of 5.0 g/L, TE concentration of 4.0 g/L, NaVO₃ concentration of 5 g/L, and OTS and PDS concentration of 0.2 g/L and 0.2 g/L, respectively. The OTS and PDS showed synergistic effect on boosting TE desulfurization efficiency. The results provide a new route for the investigation of liquid catalyzed oxidation desulfurization in an efficient and low-cost way.

1. Introduction

With the increase in the energy demand and rapid development of chemical industry and automobile consumption, the requirements for coke are constantly rising [1,2]. Coke is often produced by carbonization of coal in the steel industry. Coke oven gas (COG) is considered as a valuable by-product in the coking process, which contains ~55–60% H₂, ~23–27% CH₄, ~5–9% CO, ~1.9–4% CO₂, ~3–5% N₂, and ~0.4–0.8% O₂ along with C₂H₆ and other hydrocarbons, H₂S and NH₃, in small quantities [3,4,5]. The COG can be utilized to produce high value-added chemical products such as hydrogen, methanol and synthetic natural gas. However, the existence of H₂S may cause the poisoning of the catalysts used in the follow-up utilization of COG, such as the Ni-based catalysts. Additionally, H₂S is also highly corrosive to steel equipment and poisonous to human beings. It is of great importance to remove H₂S from COG for health and environmental concerns. The main technologies for H₂S removal from COG in traditional coking industries include the Takahax method (TH) [6], Anthraquinone disulfonic acid method (ADA) [7,8], tannin extract absorption [9,10] and the PDS method [11]. Among them, tannin extract absorption and PDS method are promising methods due to their low cost and high efficiency.

Tannin extract is a water-soluble polyphenolic substance and a kind of polymer with molecular weights of 500–3000, of which the main component is tannins. Tannin is a mixed complex, containing numerous spilt hydroxy aromatic substances with a strong ability of oxygen adsorption. It also can act as a complexing agent to produce water-soluble vanadium complex with vanadium compounds. Tannins are extracted from the boiled stalks, leaves, and barks of plants [12,13]. In typical tannic extract technology (TE) for H₂S removal, the H₂S could be oxidated into elemental sulfur in the presence of an oxidant such as pentavalent vanadium. Gao et al. [14,15] have investigated the H₂S absorption by pentavalent vanadium and tannic extract with oxidization state solution using cyclic voltammetry method. H₂S could be absorbed to produce bisulfide ion HS^- and polysulfide ion S_x²⁻. Then, these sulfur-containing substances were oxidized by pentavalent vanadium into sulfur, which could be easily separated from the liquid solution. However, the polysulfide ions S_x²⁻ is also the main resource to generate byproducts such as thiocyanate, thiosulfate and sulfate due to its activity to react with oxygen [16,17]. These sulfur-containing compounds will cause the decline of the efficiency of desulfurization. In this regard, many efforts have been made to inhibit the production of the byproducts. Ji and co-workers [18] have conducted the research by using OTS as an additive in tannin extract absorption, which is binuclear sulfonated phthalocyanine cobalt organic polymer. The results showed that the addition of OTS could reduce the production of byproduct, where the OTS could promote the reaction of NaSCN to form NaHCO₃. Nonetheless, the exhausted absorption solution was hardly to disposed. Equally importantly, the influence of the reaction condition on the desulfurization in tannin extract absorption is not clear, which would have great implications in an industrial application.

The PDS method is another promising technology for desulfurization which is widely used in Chinese industries, in which the binuclear sulfonated phthalocyanine cobalt is used as a catalyst to facilitate the oxidation of H₂S [19]. The PDS method could prevent the reagent from HCN poisoning, and also possesses many advantages such as high sulfur capacity and low consumption of alkali and high oxidation speed because it can provide various double Co-N₄ active sites to boost the reaction. However, the formation of S_x²⁻ cannot be avoided, leading to the deep-oxidated products of sulfur containing salts. Indeed, it is urgent to find a new approach with high efficiency, low cost and less byproduct production.

Herein, we explore a novel method combining the improved tannic extract absorption with OTS and PDS methods for H₂S removal. The PDS compound showed good capacity for O₂ activation in the solution. The OTS polymer plays a vital role in the solubility of tannin extract. The NaVO₃ is used first to replace V₂O₅ as an oxidant. Firstly, the reaction parameters including total alkalinity, content of tannin, Na₂CO₃, NaHCO₃ and NaVO₃ are thoroughly investigated to obtain an optimal reaction condition. Then, different additives including OTS, PDS, CuCl₂, MnCl₂, MgCl₂, CaCl₂, hydroquinone and picric acid are used for the comparative study. Multiple analytical technologies are employed to elucidate the reaction mechanism. Such acquired results could pave a new way for designing a flexible approach for H₂S removal from industrial off-gas.

2. Experimental

2.1. Materials and Chemicals

Sodium carbonate (Na₂CO₃) and Sodium bicarbonate (NaHCO₃) were purchased from Tianjin Chemical Reagent Co., Ltd., (Tianjin, China). Sodium metavanadate (NaVO₃) was bought from Shanghai Macklin Biochemical Co., Ltd., (Shanghai, China). Tannin extract (TE), OTS and PDS were purchased from Guangxi Chemical Research Institute Co., Ltd., (Nanning, China). CuCl₂, MgCl₂, MnCl₂, CaCl₂, hydroquinone and picric acid were bought from Shanghai Aladdin Biochemical Technology Co., Ltd., (Shanghai, China). All reagents were used without further purification.

2.2. Batch Absorption Experiments

Absorption solution (200 mL) for H₂S removal was prepared by taking different ratios of NaHCO₃ and Na₂CO₃ to control the pH of the solution, and taking different masses of NaVO₃ and TE in a 250 mL flask and placing them in a water bath with a magnetic stirrer at room temperature. The H₂S from the gas cylinder was diluted with N₂ (99.99%) to 300–1100 ppm, where the simulated gas stream total flow rate (Q) was fixed at 150–350 mL·min⁻¹. The concentrations of H₂S in the inlet and outlet gas from the reaction system were measured by a 9790 gas chromatograph (Jiangsu Fuli Analytical Instrument Co., Ltd., China) with a flame photometric detector (FTD) at 150 °C. In a typical batch experiment, 0.8 g Na₂CO₃, 0.8 g NaHCO₃, 0.8 g TE and 0.6 g NaVO₃ were added to 200 mL deionized water, and the Q was kept at 200 mL·min with 500 ppm H₂S. The experimental equipment was shown in Figure S1.

2.3. Characterization Methods

The crystal phases were measured by the powder X-ray diffraction (XRD) patterns (Rigaku, Tokyo, Japan). The XRD systems were equipped with CuKα radiation (λ = 0.15406 nm) at a scanning rate of 1°/min in an angle of 2θ from 10° to 80°.

The valances of the surface element were recorded by X-ray photoelectron spectra (XPS) (ESCALAB 250Xi, Thermo Fisher Scientific) using Al Kα radiation. All the samples were calibrated using the C 1s peak of contaminant carbon of 284.8 eV as standard.

3. Results and Discussion

3.1. Optimization of Reaction Parameters

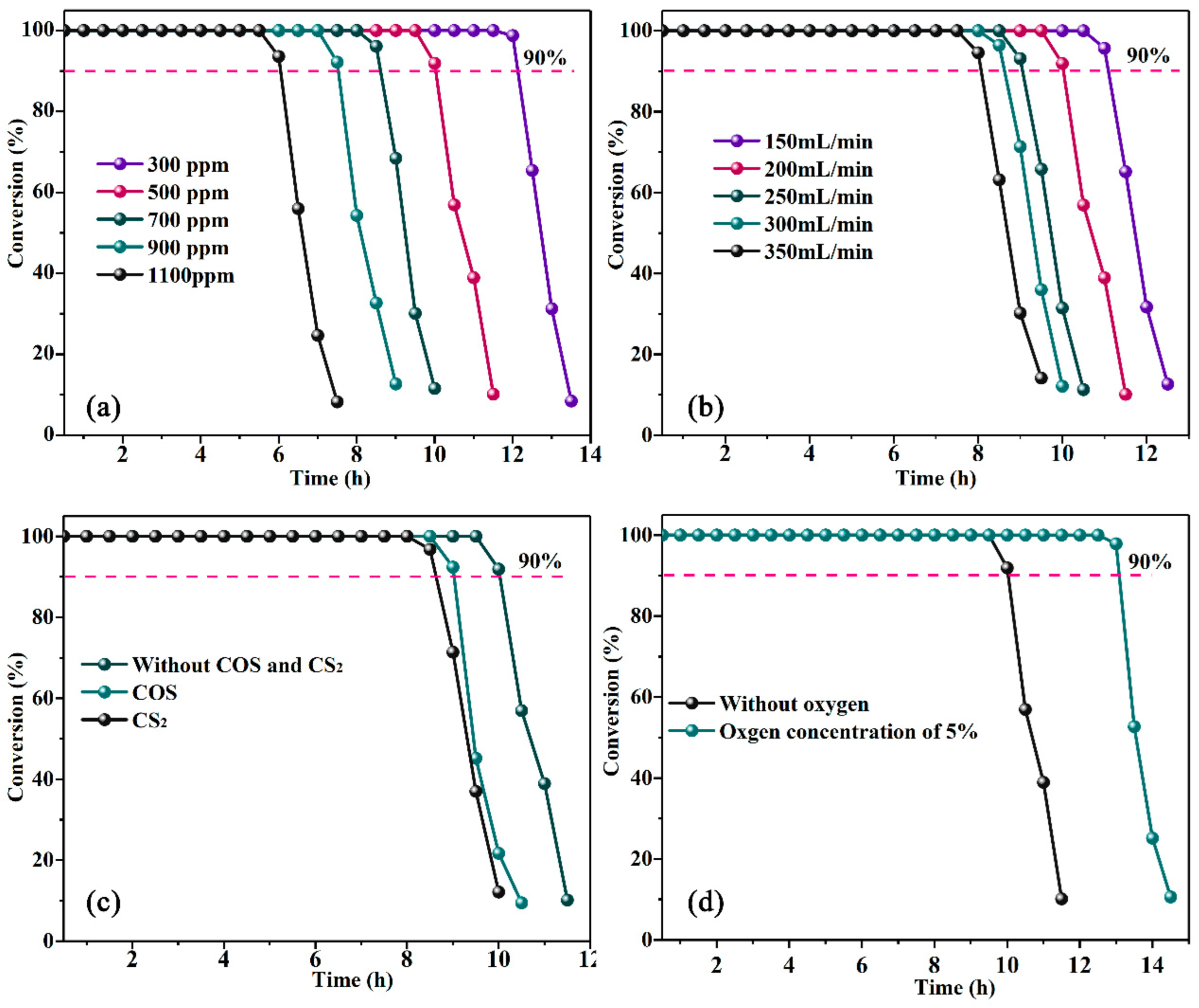

The TE technology is highly dependent on the operation condition, so we conducted investigation to optimize the reaction parameters. The gas flow rate, concentration of H₂S, organic sulfur compound and content of oxygen was thoroughly investigated, as shown in Figure 1. From Figure 1b, the desulfurization rate could obtain 100% at the first 6 h for all gas flow rates. With the time prolonged, the desulfurization rate began to decrease first in a high flow rate. It may be because the higher flow rate makes the contact between H₂S and NaVO₃ quick. As a result, the time of consuming NaVO₃ turns to be quick, followed by the deactivation of the solution. The effect of concentration of H₂S has shown the same trend as the gas flow rate (Figure 1a). When H₂S is 1100 ppm, the 100% removal rate could sustain for about 6 h. With the decreasing of concentration of H₂S, the duration time of the 100% removal rate could sustain for up to 12 h at 300 ppm. In order to figure out the influence of organic sulfur compounds, we imported COS or CS₂ separately with H₂S (Figure 1c). It is worth noting that the COS or CS₂ could be removed completely together with H₂S at the first 8 h. However, after 8 h, the removal rate began to descend in the presence of COS or CS₂, while the duration could sustain for 10 h without COS and CS₂. It means that COS and CS₂ could be transferred into H₂S in the experimental condition, which will consume NaVO₃, resulting in the reducing of the activity. The reaction was also investigated in the existence of 5% O₂, as shown in Figure 1d. The reaction could be enhanced considerably in the presence of O₂, and the duration of the 100% removal rate achieved 13 h, which is 3 h more than that of without O₂. However, the byproducts will be produced afterwards. Additionally, the oxidation of multi-phenol structures into quinoid structures in TE could be completed by O₂, where the quinoid structure plays a key role in the reaction from V⁴⁺ to V⁵⁺.

3.2. Effect of Total Alkalinity and Na₂CO₃ Content

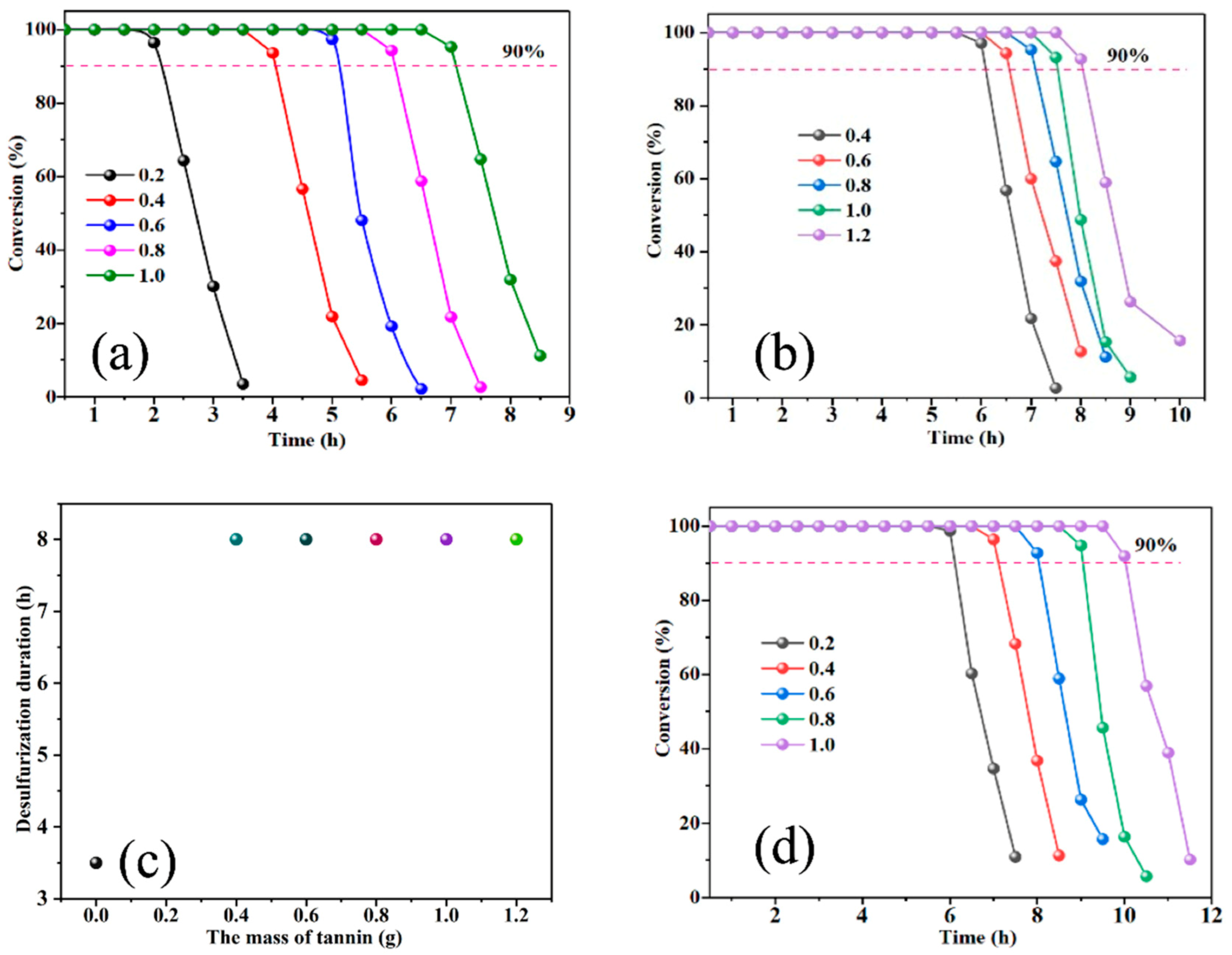

The efficiency of TE technology was deeply influenced by the total alkalinity, which could be regulated by the dosage of NaHCO₃. The impact of the amount of NaHCO₃ was investigated, and the results were shown in Figure 2a. The obtained results showed that the duration increased with the increasing of the total alkalinity. When the total alkalinity was 0.2, the absorbent was exhausted quickly in 2 h. When the total alkalinity was 1.0, the 100% conversion could be kept for 7 h, which was much longer than that of the other total alkalinity. Then, the total alkalinity was kept at 1.0 and the amount of Na₂CO₃ was adjusted from 0.4 g to 1.2 g, where the amount of NaHCO₃ was adjusted correspondingly. The efficiency of desulfurization was shown in Figure 2b. It can be seen that the performance in the H₂S removal increased gradually with the increase in the amount of Na₂CO₃ when the total alkalinity is constant. The highest duration time of higher than 90% efficiency can be sustained for more than 8 h when the amount of Na₂CO₃ was 1.2 g. The reason could be attributed to the higher alkalinity of Na₂CO₃ than NaHCO₃. The acidic gas H₂S could react with the OH⁻ in the solution to form HS⁻ and S²⁻. In the same total alkalinity, more Na₂CO₃ could produce more OH⁻ ions, leading to higher H₂S removal efficiency to form HS⁻ for further oxidation.

3.3. Effect of Content of TE

After optimizing the total alkalinity and content of Na₂CO₃, the effect of the content of TE was also investigated thoroughly, as shown in Figure 2c. The desulfurization duration was studied through varying the content of TE from 0.4 to 1.2 g. It could be observed that by varying the content of TE, the desulfurization duration could not be changed, of which the time was about 8 h. It can be concluded that the TE did not participate in the H₂S oxidation and absorption directly. According to previous research [18], the product sodium divanadate of the reaction between NaVO₃ and S²⁻ could be re-oxidated into NaVO₃ in the presence of TE and O₂. The reason was that quinoid structure in TE plays a key role in the oxidation process, while the multi-phenol structure has a negative effect on the oxidation which was the dominant species in TE. As a result, the content of TE in the anaerobic desulfurization exhibited a negligible effect on the H₂S removal performance. It means that a small dosage of TE was enough for the highest activity. It was worth noting that the desulfurization duration could only sustain for 3.5 h without TE addition. The tannin extract plays a key role in complexing the vanadium compounds and the releasing of elemental sulfur. It means that the complexing effect with vanadium compounds to avoid the deposition of vanadium compounds in the water solution, which could extend the desulfurization activity.

3.4. Effect of Content of NaVO₃

As NaVO₃ is the main component in the TE technology, we further investigated the influence of the content of NaVO₃ on the efficiency of H₂S removal. The results were shown in Figure 2d. When the amount of NaVO₃ was 0.2 g, the H₂S could be completely removed by adsorbent in about 6 h. With the increasing of the amount of NaVO₃, the duration of completed desulfurization extended gradually. When the amount of NaVO₃ was 1.2 g, the duration had reached 10 h, which was about twice as high than that of 0.2 g. It was interesting to see that when the adsorbent began to lose activity, the speed of inactivation was fast, indicating that the activity of absorbent was positive correlated to the content of NaVO₃. The high efficiency of high content of NaVO₃ could be attributed to the existence of high valence state V⁵⁺, which has considerable oxidability. Moreover, the lattice oxygen in NaVO₃ could directly take part in the oxidation of H₂S into elemental sulfur, instead of the dissolved oxygen in the aqueous solution. In the reaction, V⁵⁺ had transferred into V⁴⁺ as well as the transformation from lattice oxygen to active oxygen species. In this regard, the reaction could be enhanced by increasing the content of NaVO₃.

3.5. TE Technology Combined with OTS and PDS

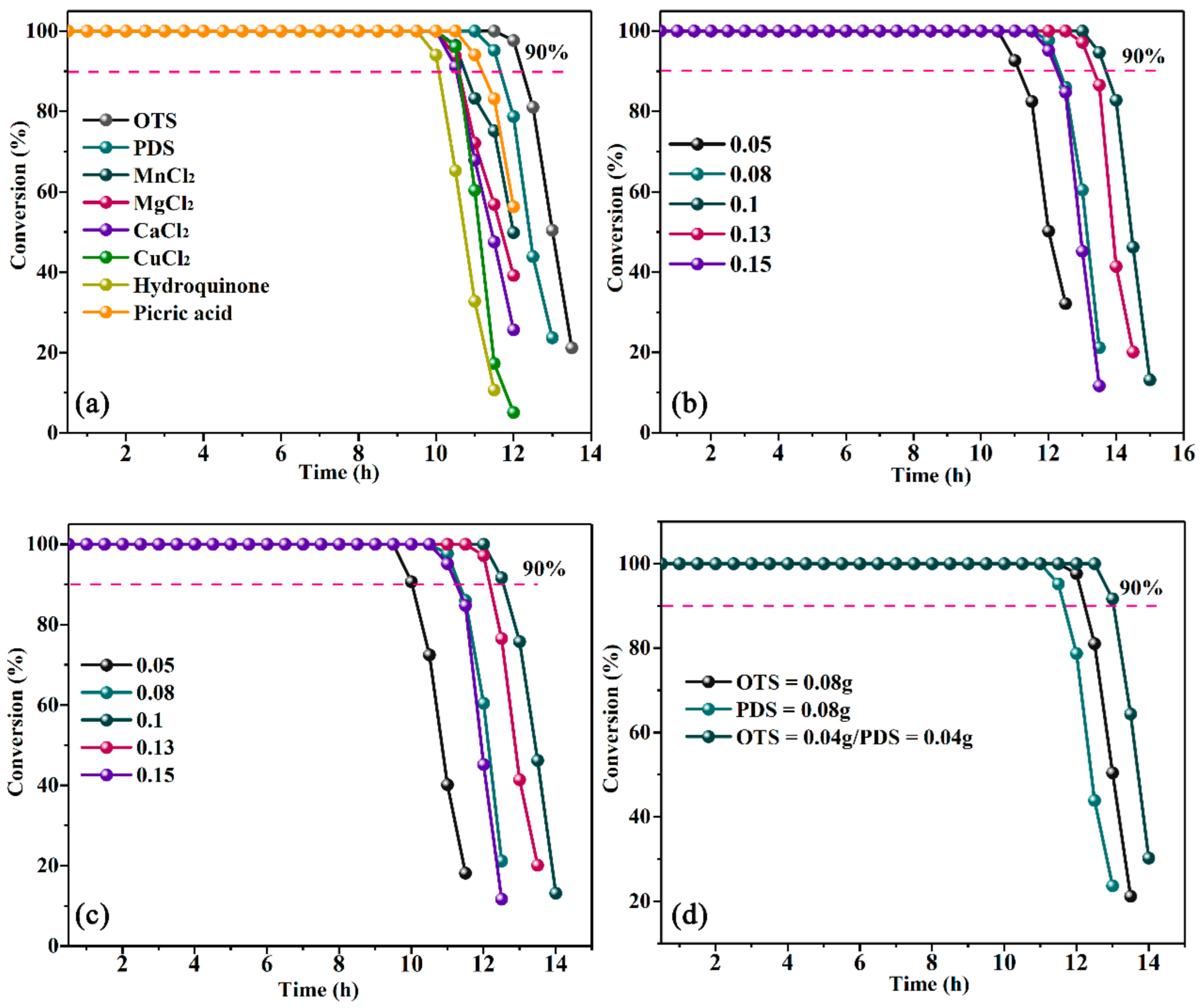

In order to enhance the efficiency of TE method, we conducted the TE technology combined with OTS and PDS addition singly and simultaneously. Additionally, CuCl₂, MnCl₂, MgCl₂, CaCl₂, hydroquinone and picric acid were used as a single additive for comparison, as depicted in Figure 3a. It is clear to see that the inorganic metal salts and organic substances both demonstrate good catalytic performance in the TE process. They acted as the catalysts for the transformation from low valence V⁴⁺ to high valence V⁵⁺, resulting in the recovery of oxidants. The results showed that OTS has the best activity, while hydroquinone was the worst among those additives. The activity is in this order: OTS > PDS > MgCl₂ = CaCl₂ > picric acid > MnCl₂ > CuCl₂ > hydroquinone. The effect of OTS content was first investigated by adding different dosages of OTS into the TE system. The results were shown in Figure 3b. It is apparent that the addition of OTS could enhance the desulfurization efficiency to a large extent. Even a low amount of 0.05 g could prolong the duration from 8 h to 10 h. The longest duration of 100% efficiency was achieved by 0.1 g OTS, which was about 13.5 h. When a larger dosage of OTS than 0.1 g was added into the TE system, the activity began to descend, because the transition metal center could form a coordination compound with TE, which could boost the reaction synergistically, while excess additions will inhibit this effect. Meanwhile, the effect of PDS was also investigated separately, and the result was shown in Figure 3c. The addition of PDS demonstrated the same trend as OTS. It could achieve the highest activity at 0.1 g, then, the duration gradually descended with more OTS addition. Furthermore, the desulfurization efficiency was studied by adding both OTS and PDS. It can be seen from Figure 3d that the desulfurization efficiency could be enhanced by OTS or PDS addition only. When OTS and PDS were put into the system simultaneously, the efficiency was further boosted to about 13 h, and maintain about 100% conversion. It can be directly inferred that the co-addition of OTS and PDS has a synergistical positive effect on the desulfurization. The reason could be attributed to the different roles of OTS and PDS played in the tannin extract adsorption. When sulfonated salts such as OTS and PDS exist in the solution, the undissolved substances in the solution of tannin extract could be reduced. They could provide not only Co-N₄ active sites, but also the C₄ sites in the benzene ring which could coordinate with the ligands such as HS⁻ and S²⁻. When the OTS and PDS were added into the system simultaneously, a novel polymer was formed, leading to a higher conversation duration than adding singly. In this regard, OTS and PDS could supply considerable active sites for coordination with sulfur contained compounds. Importing the OTS and PDS into TE method, TE could be more dissolved and the catalytic activity could be enhanced due to the complexing effect of OTS polymer and PDS.

3.6. Insights into the Mechanism

From Figure 2, Na₂CO₃, NaHCO₃, TE and NaVO₃ play an important role in the removal of H₂S when the tannin extract absorption method was used. In Figure 2d, it maintained for 2 h adsorbing H₂S stably when NaVO₃ was not added. It indicated that NaCO₃ and NaHCO₃ maintain the stability of the solution environment. From Figure 2c, the experimental results maintain for 8 h while increasing the mass of TE. It indicated that excessive TE was not necessary in the desulfurization process. To explore the H₂S reaction mechanism, the characterization methods of XRD and XPS were used.

XPS analysis was performed on the samples to figure out the transfer and accumulation of surface sulfur element as time goes on.

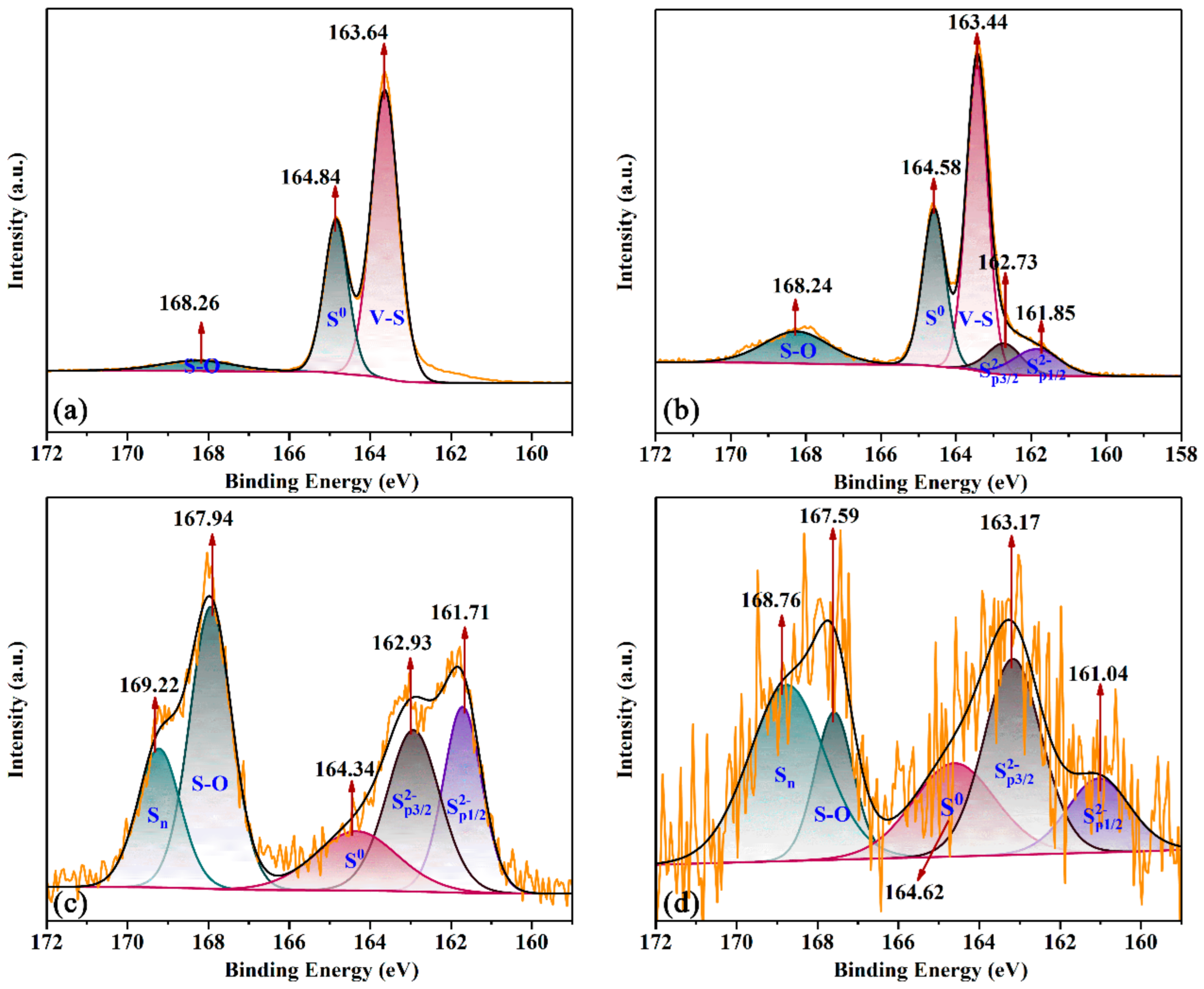

Figure 4 presents the S 2p XPS spectra of the sample. Six different kinds of sulfur peaks in the spectrum were attributed to S 2p (Figure 4). The main surface species were ${\mathsf{S}}_{\mathsf{P}1/2}^{2-}$, ${\mathsf{S}}_{\mathsf{P}3/2}^{2-}$, V-S, element S (S⁰), S-O and S_n [20,21]. For ${\mathsf{S}}_{\mathsf{P}1/2}^{2-}$ and ${\mathsf{S}}_{\mathsf{P}3/2}^{2-}$, the peaks disappeared at 1 h, then appeared at 161.85 eV and 162.73 eV separately, followed by a shift to lower binding energy (BE) of 161.71 eV and a higher value of 162.93 eV. Lastly, it had the same tendency of lower BE of ${\mathsf{S}}_{\mathsf{P}1/2}^{2-}$ and higher ${\mathsf{S}}_{\mathsf{P}3/2}^{2-}$ [22,23,24]. It indicated that S²⁻ was transferred to other S species rapidly and the orbitals of S 2p were broken up (i.e., ${\mathsf{S}}_{\mathsf{P}3/2}^{2-}$ joined to chemical reaction while ${\mathsf{S}}_{\mathsf{P}1/2}^{2-}$ was steady and dispersed). As for the V-S, the peaks appeared at 163.64 eV and 163.44 eV at 1 h and 4 h separately [25,26]. Then, the peaks disappeared in the following experiments. It indicated that V-S formed stably due to the negligible low-shifting BE. The V transferred to the S to the active sites because of disappearing of V-S peaks. The S⁰ peaks always formed in the reaction process. It indicated that S⁰ was formed in the reaction. Over time, the BE displacement is 164.84 eV, 164.58 eV, 164.34 eV, 164.62 eV. It demonstrated that the products of S⁰ shift to the direction of low bounding energy with low stability in the reaction process. However, other products were formed to enhance the stability of S⁰ after 8 h. With regard to S-O, it appeared at BE of 168.26 eV, 168.24 eV, 167.94 eV and 167.59 eV the whole time. It indicated that S-O was unstable due to the low shift of BE in the process. It was clear to see that the peak area of S-O in the case of 8 h was much lower than at 7 h. It may be because the V transferred to the S to the active sites of O after V-S disappearing. As for the S_n peaks, it was formed after 7 h, and the BE were 167.94 eV and 168.74 eV. It indicated that the product of S_n was unsteady because of the reducing BE. Moreover, the formation of S_n was a benefit to the stabilization of S⁰.

Figure 5 presents the S 2p XPS spectra from the optimum amount of Na₂CO₃ at different times. It maintained the optimum total alkalinity. Compared with Figure 4a, the peaks of S²⁻ were appearing while V-S was disappearing in Figure 5a. It indicated that the reaction is dominated by the migration of sulfur ions with the increase in hydrolysis temperature in the solution. At 4 h (Figure 5b), the peak of S_n was formed while it was not in Figure 4b. It indicated that the reaction promotes the formation of product S with the increase in hydrolysis temperature in the solution. In Figure 5c, the peak areas of S_n and S⁰ were higher than that in Figure 4c. It indicated that the reaction promotes the formation of products of S and S_n with the increase in hydrolysis temperature in the solution.

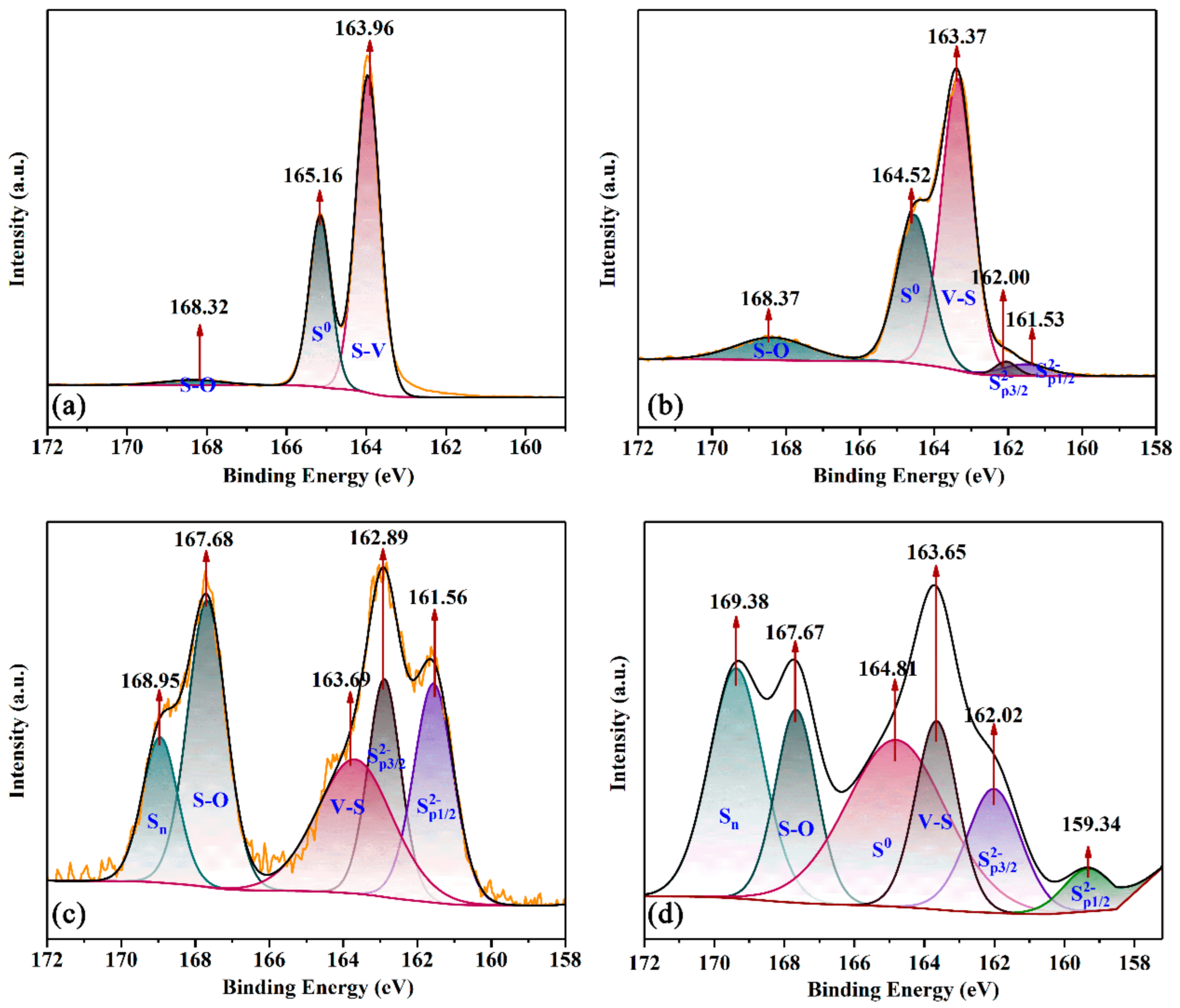

Figure 6 presents the S 2p XPS spectra from the optimum amount of NaVO₃ at different times. It maintained the optimum amount of Na₂CO₃. Compared with Figure 5a, the peaks of V-S were appearing while S²⁻ was disappearing in Figure 6a. It indicated that V-S was formed with the increasing mass of NaVO₃. At 4 h (Figure 6b), the peak of S_n disappeared while it was formed in Figure 5b. It indicated that the reaction was not conducive to the formation of products of S_n in solution. In Figure 5d, the peak of V-S still exists. It indicated that V-S appeared in the whole reaction. It was hard to detect due to the low content of NaVO₃.

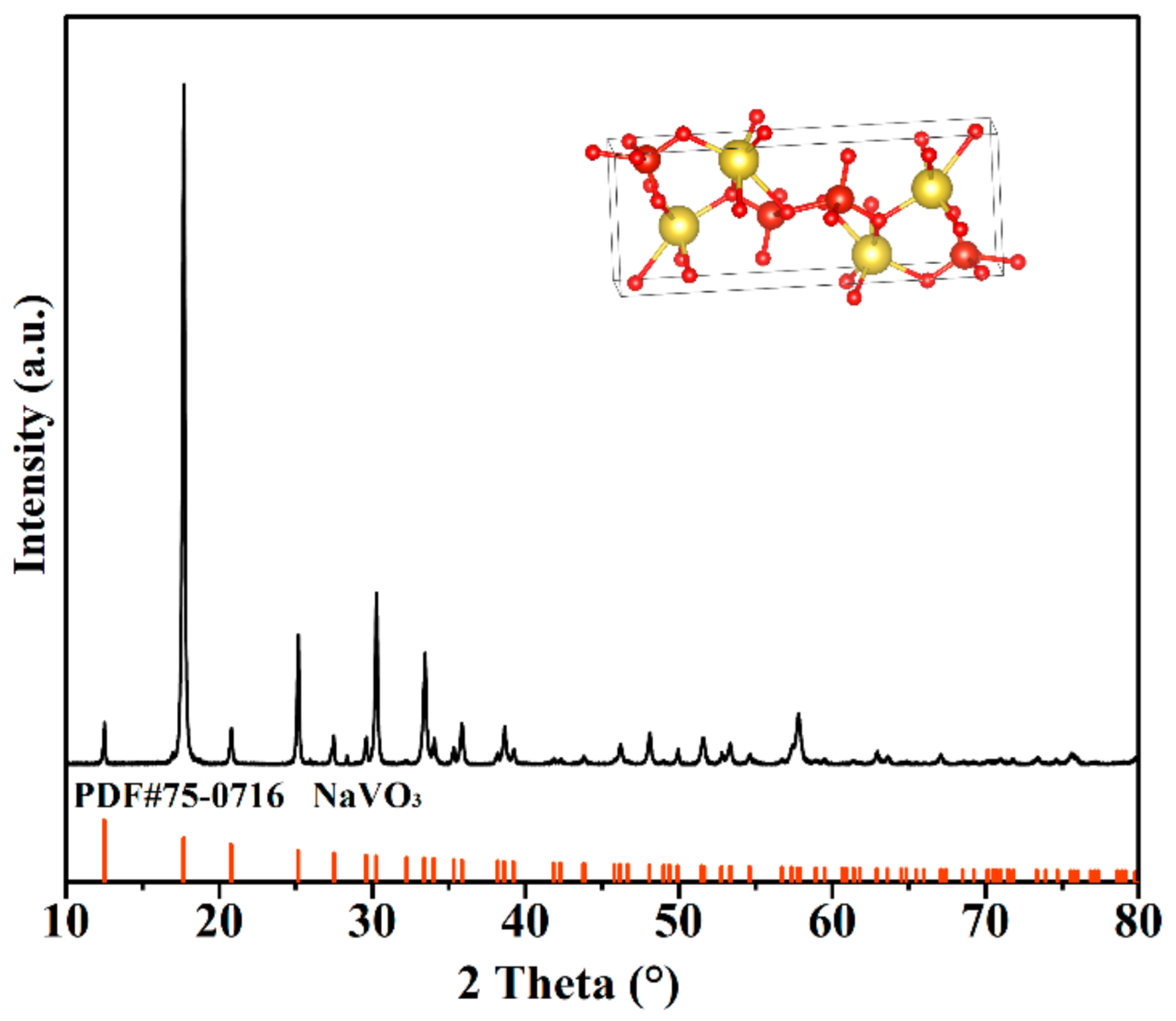

The results of the fresh and exhausted residue after filtration of absorbent were studied to explain the details of the main reaction products and mechanisms. The XPS results indicated that H₂S was oxide by NaVO₃ to form the product of S₀ and Sn. The XRD of NaVO₃ was shown in Figure 7. The results show that the crystalline phases were NaVO₃(PDF #75-0716). It was of an orthorhombic lattice type with a space group Pnma. As a result, the possible reaction mechanism is as followed:

$${\mathrm{Na}}_2{\mathrm{CO}}_3+{\mathrm{H}}_2\mathrm{S}\to \mathrm{NaHS}+{\mathrm{NaHCO}}_3$$

(1)

$$2{\mathrm{V}}^{5+}+{\mathrm{HS}}^{-}\to 2{\mathrm{V}}^{4+}+{\mathrm{H}}^{+}+\mathrm{S}\downarrow$$

(2)

$$\mathrm{TQ}+{\mathrm{V}}^{4+}+2{\mathrm{H}}_2\mathrm{O}\to \mathrm{YHQ}+{\mathrm{V}}^{5+}+{\mathrm{OH}}^{-}$$

(3)

$$\mathrm{TQ}+{\mathrm{HS}}^{-}\to \mathrm{YHQ}+\mathrm{S}\downarrow$$

(4)

where the quinoid structure of TE is denoted as TQ, and the multi-phenol structure of TE is denoted as YHQ. The addition of OTS or PDS will enhance the oxidation reaction (2), as they provided transition metal active centers for the oxidation of HS⁻ to elemental S. They take part in the redox cycle of V⁵⁺-V⁴⁺-V⁵⁺ as active catalysts. The PDS and OTS were binuclear sulfonated phthalocyanine cobalt compounds and its polymer, and they provided active Co-N₄ sites to active O₂. As a result, the V⁴⁺ could be easily oxidated back into the active phase of V⁵⁺.

In addition, the YHQ could be oxidated by O₂ in the following regeneration process to return to TQ, forming H₂O₂ at the same time. The H₂O₂ could also oxidate the V⁴⁺ transferring to V⁵⁺, HS- into elemental sulfur. The reactions are as follows:

$$2\mathrm{YHQ}+{\mathrm{O}}_2\to 2\mathrm{TQ}+{\mathrm{H}}_2{\mathrm{O}}_2$$

(5)

$${\mathrm{H}}_2{\mathrm{O}}_2+{\mathrm{V}}^{4+}\to {\mathrm{V}}^{5+}+2{\mathrm{OH}}^{-}$$

(6)

$${\mathrm{H}}_2{\mathrm{O}}_2+{\mathrm{HS}}^{-}\to {\mathrm{H}}_2\mathrm{O}+\mathrm{S}\downarrow +{\mathrm{OH}}^{-}$$

(7)

It is worth noting that further oxidated products such as S₂O₃²⁻ and S₂O₄²⁻ will be produced if the desulfurization solution contains NaHS in the presence of oxygen in the regeneration process. Therefore, the content of TE and NaVO₃ are the key factors influencing the formation of byproducts, which should be controlled carefully.

4. Conclusions

In this study, the tannin extract technology combined with binuclear sulfonated phthalocyanine cobalt polymer (OTS) and compound (PDS) for H₂S removal was thoroughly investigated. The reaction parameters including gas flow rate, concentration of H₂S, co-existence of COS or CS₂ and O₂ were first optimized. High gas flow rate and concentration of H₂S could lead to quick activity loss of desulfurization solution. The organic sulfur-containing compounds (COS and CS₂) could be removed simultaneously. Then, the total alkalinity, the content of TE, NaVO₃, OTS and PDS were studied in detail. The results demonstrate that the suitable conditions for the H₂S removal are a total alkalinity of 5.0 g/L, TE concentration of 4.0 g/L, NaVO₃ concentration of 5 g/L, and OTS and PDS concentrations of 0.2 g/L and 0.2 g/L, respectively. OTS could be beneficial for the solubility of TE. In addition, OTS and PDS have shown a catalytical effect on the redox cycles of V⁵⁺-V⁴⁺-V⁵⁺ and TQ-YHQ-TQ synergistically by supplying both Co-N₄ and C₄ in benzene ring active sites, which facilitates the H₂S oxidation into elemental sulfur. This combined method provides new ideas for the development and research of desulfurization in industrial applications.
