A Novel Method for Early Fatigue Damage Diagnosis in 316L Stainless Steel Formed by Selective Laser Melting Technology
Abstract
:1. Introduction

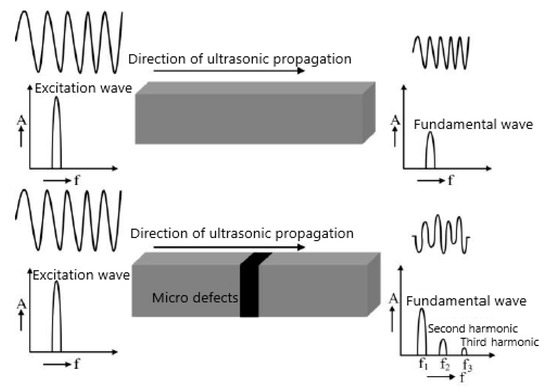

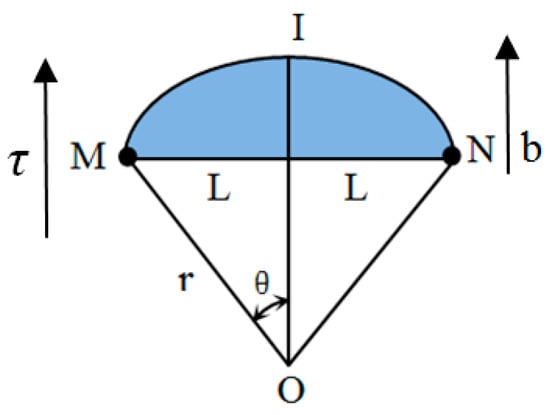

2. Theoretical Model of Acoustic Nonlinearity Caused by Early Fatigue Damage
3. Experimental Procedures

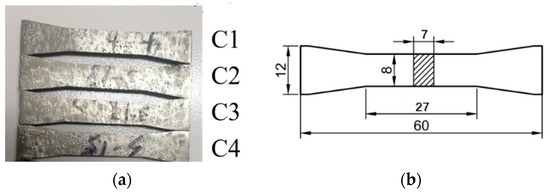

3.1. Material and Specimen Preparation

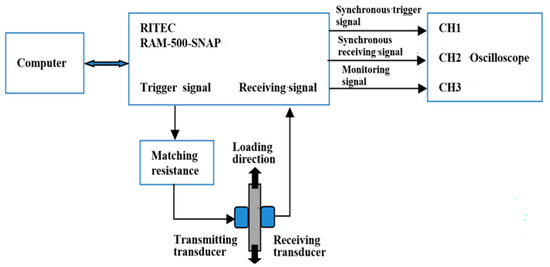

3.2. Experimental Setup and Data Collection Method
4. Method for Fatigue Damage Diagnosis in 316L Stainless Specimen

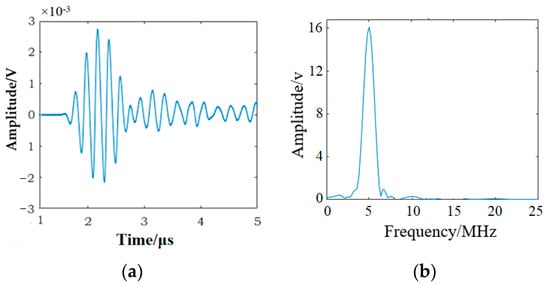

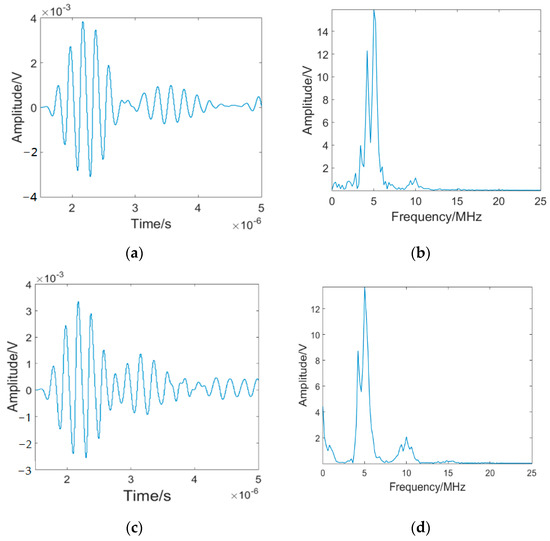

4.1. Fast Fourier Transform (FFT)
4.2. EMD-ESI-FFT

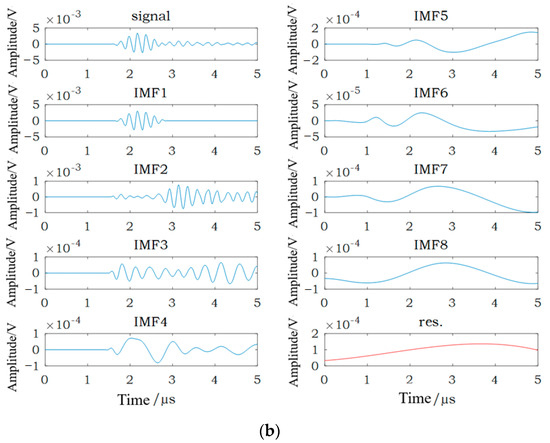

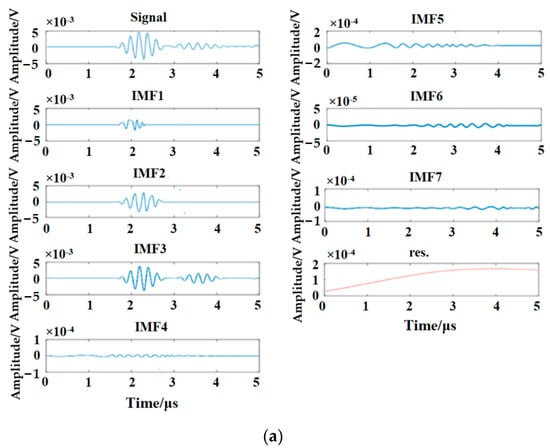

4.2.1. Empirical Mode Decomposition (EMD)
- Throughout the data segment, the result of subtracting the number of extreme points and zero crossings of the signal is less than or equal to 1.
- At any point on the time axis, the mean value of the upper and lower envelopes fitted by the maximum and minimum points is zero. That is, the upper and lower envelopes are locally symmetrical with the time axis as the axis of symmetry.
- The maximum points in x(n) are screened out, and cubic spline interpolation is performed on them to fit the upper envelope of xmax(n). Similarly, the lower envelope xmin(n) of x(n) can be obtained. The mean value of the upper and lower envelope is obtained at each time point:
- 2.
- Subtract the amplitude of m(n) from the original signal x(n) to obtain a new signal h(n):h(n) = x(n) − m(n)
- 3.
- If h(n) does not meet the IMF requirements, x(n) = h(n), and continue the steps (1) and (2). When h(n) meets the requirements, c1(n) = h(n), and extract c1(n) from x(n):r1(n) = x(n) − c1(n)
- 4.
- Repeat steps (1) and (2) for signal r1(n) to obtain c2(n). By analogy, continue to repeat steps (1) and (2) to obtain all the components that meet the IMF requirements.
- 5.
- When the residual component rL(n) becomes a monotonic function sequence or a constant series, the loop ends and the EMD is completed. The original signal x(n) is decomposed into a series of steady-state signals c1(n), c2(n), c3(n), …, cL(n) and a residual component rL(n); the residual component rL(n) represents the overall change trend of the signal.

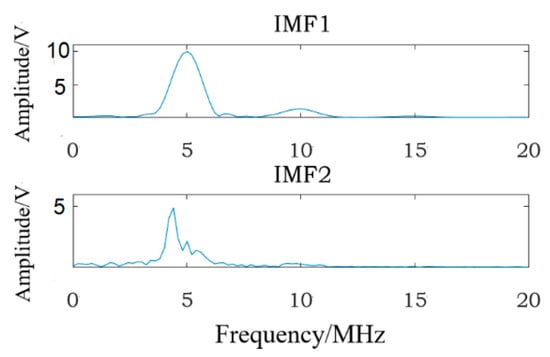

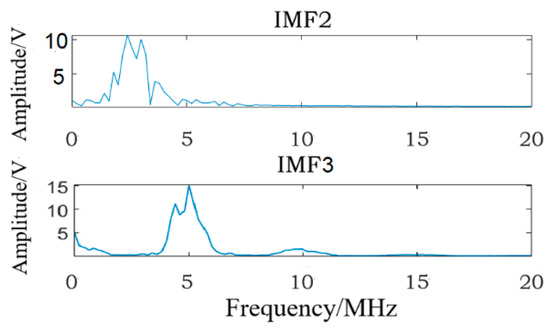

4.2.2. Extract the Specific IMF and Obtain the Fatigue Damage Information
4.3. Results and Discussion

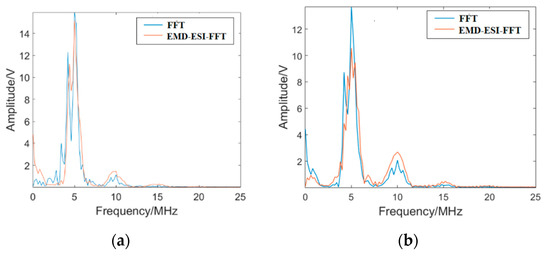

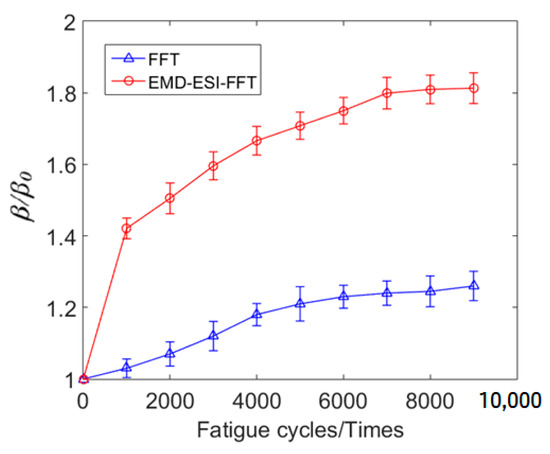

4.3.1. Comparison of FFT and EMD-ESI-FFT
4.3.2. Transmission Electron Microscope (TEM) Experimental Results
5. Conclusions
- Eliminating interference signals and extracting effective information characterizing material damage are key techniques for nonlinear ultrasonic testing. The EMD-ESI-FFT method for fatigue damage diagnosis was proposed in this paper. In the process of nonlinear ultrasonic testing, the nonlinear acoustic effect caused by fatigue damage has the characteristics of localization, and the distortion process time is relatively short. EMD-ESI-FFT can filter out the redundant interference signals in the original signal, which is more conducive to analyzing the nonlinear distortion process and evaluating the damage degree of materials.
- According to the principle of higher harmonic generation, the fatigue damage information is usually extracted by the classical FFT method. The ultrasonic signals have nonlinear and unsteady characteristics; FFT signal processing technology cannot effectively filter the interference signals in the ultrasonic signal. Theoretical analysis reveals that EMD is the process of transforming unsteady signals into steady signals. The unsteady signal can be regarded as a combination of multiple IMFs. Extracting the instantaneous frequency of a single IMF can characterize the characteristics of each frequency band in the unsteady signal due to fatigue damage information only existing in a specific IMF. The method to extract the specific IMF is described in this paper. Experimental results indicate that compared with FFT, the EMD-ESI-FFT method is more sensitive in identifying the early damage in SLM 316L stainless parts induced by fatigue loading, which is equivalent to improving the early fatigue micro-damage identification and diagnosis ability and can better ensure the service safety of important metal parts.
- According to the theoretical model of acoustic nonlinearity caused by early fatigue damage, the results of nonlinear ultrasonic testing agree well with TEM experimental analysis and the theoretical model of acoustic nonlinearity caused by dislocations. Therefore, the change in β/β0 reflects the generation and evolution of dislocation structure during the low-cycle fatigue regime of the SLM 316L stainless steel specimen and reveals the early fatigue damage mechanism of this metal part.
- The future development direction is the combination of nonlinear ultrasonic testing technology with big data and cloud computing to realize the full-time structural health monitoring of important components. Through the fusion analysis and data mining of historical data, the remaining life of components and materials can be predicted and the safety and reliability of important components in service can be improved.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Liu, B.; Zhao, Z.Y.; Bai, P.K.; Liang, M.J.; Guan, R.G. The compressive behavior of a porous 316L stainless steel prepared by se-lective laser melting. Lasers Eng. 2019, 42, 381–390. [Google Scholar]
- Qiao, R.; Yan, X. The Characterization of Fatigue Damage of 316L Stainless Steel Parts Formed by Selective Laser Melting with Harmonic Generation Technique. Materials 2022, 15, 718. [Google Scholar] [CrossRef] [PubMed]
- Lin, J.; Ma, N.; Lei, Y.; Murakawa, H. Measurement of residual stress in arc welded lap joints by cosα X-ray diffraction method. J. Mater. Process. Technol. 2017, 243, 387–394. [Google Scholar] [CrossRef]
- Plessis, A.D.; Roux, S.G.; Guelpa, A. Comparison of medical and industrial X-ray computed tomography for non-destructive testing. Case Stud. Nondestruct. Test. Eval. 2016, 6, 17–25. [Google Scholar] [CrossRef]
- Jasiūnienė, E.; Mažeika, L.; Samaitis, V.; Cicėnas, V.; Mattsson, D. Ultrasonic non-destructive testing of complex titanium/carbon fibre composite joints. Ultrasonics 2019, 95, 13–21. [Google Scholar] [CrossRef] [PubMed]
- Yan, X.-L.; Dong, S.-Y.; Xu, B.-S.; Cao, Y. Progress and Challenges of Ultrasonic Testing for Stress in Remanufacturing Laser Cladding Coating. Materials 2018, 11, 293. [Google Scholar] [CrossRef] [PubMed]
- Khathyri, F.; Elkihel, B.; Delaunois, F. Non-Destructive Testing by Ultrasonic and Thermal Techniques of an Impacted Composite Material. Int. J. Adv. Sci. Eng. Inf. Technol. 2018, 8, 2360–2366. [Google Scholar] [CrossRef]
- Stubendekova, A.; Janousek, T.L. Impact of defect extent on swept frequency eddy current responses in non-destructive evalu-ation. Electr. Eng. 2017, 99, 1275–1281. [Google Scholar] [CrossRef]
- Janousek, L.; Stubendekova, A.; Smetana, M. Novel insight into swept frequency eddy-current non-destructive evaluation of material defects. Measurement 2018, 116, 246–250. [Google Scholar] [CrossRef]
- Kutman, M.K.; Muftuler, F.Z.B.; Harmansah, C.; Guldu, O.K. Use of Bacteria as Fluorescent Penetrant for Penetrant Testing (PT). J. Nondestruct. Eval. 2020, 39, 1–6. [Google Scholar] [CrossRef]
- Shelikhov, G.S.; Glazkov, Y.A. On the improvement of examination questions during the nondestructive testing of magnetic powder. Russ. J. Nondestruct. Test. 2011, 47, 112–117. [Google Scholar] [CrossRef]
- Kim, Y.; Lim, H.J.; Sohn, H. Nonlinear ultrasonic modulation based failure warning for aluminum plates subject to fatigue loading. Int. J. Fatigue 2018, 114, 130–137. [Google Scholar] [CrossRef]
- Vetrone, J.; Obregon, J.E.; Indacochea, E.J.; Ozevin, D. The characterization of deformation stage of metals using acoustic emission combined with nonlinear ultrasonics. Measurement 2021, 178, 109407. [Google Scholar] [CrossRef]
- Yan, X.; Xu, X. Method for accurately measuring of acoustic time difference based on optimal threshold. Measurement 2020, 171, 108769. [Google Scholar] [CrossRef]
- Kim, H.; Kim, T.; Morrow, D.; Jiang, X. Stress Measurement of a Pressurized Vessel Using Ultrasonic Subsurface Longitudinal Wave With 1–3 Composite Transducers. IEEE Trans. Ultrason. Ferroelectr. Freq. Control. 2019, 67, 158–166. [Google Scholar] [CrossRef] [PubMed]
- Mao, H.Y.; Zhang, Y.H.; Mao, H.L.; Huang, Z.F.; Fana, J.W.; Li, X.X.; Li, X.P. The fatigue damage evaluation of gear in sugarcane presser using higher order ultrasonic nonlinear coefficients. Results Phys. 2018, 10, 601–606. [Google Scholar] [CrossRef]
- Choi, S.; Ryu, J.; Kim, J.S.; Jhang, K.Y. Comparison of linear and nonlinear ultrasonic coefficients in characterizing grain size and mechanical properties of 304L stainless steel. Metals 2019, 9, 1279. [Google Scholar] [CrossRef]
- Jiao, J.; Sun, J.; Li, N.; Song, G.; Wu, B.; He, C. Micro-crack detection using a collinear wave mixing technique. NDT E Int. 2013, 62, 122–129. [Google Scholar] [CrossRef]
- Liu, P.P.; Jang, J.H.; Sohn, H. Crack localization by laser-induced narrowband ultrasound and nonlinear ultrasonic modulation. Smart Struct. Syst. 2020, 25, 301–310. [Google Scholar]
- Jang, J.; Liu, P.; Kim, B.; Kim, S.-W.; Sohn, H. Silicon wafer crack detection using nonlinear ultrasonic modulation induced by high repetition rate pulse laser. Opt. Lasers Eng. 2020, 129, 106074. [Google Scholar] [CrossRef]
- Yang, J.; Luo, L.; Yang, K.; Zhang, Y. Ultrasonic Phased Array Sparse TFM Imaging Based on Virtual Source and Phase Coherent Weighting. IEEE Access 2020, 8, 185609–185618. [Google Scholar] [CrossRef]
- Zhou, Z.G.; Liu, S.M. Nonlinear ultrasonic techniques used in nondestructive testing. A review. J. Mech. Eng. 2011, 47, 2–11. [Google Scholar] [CrossRef]
- Gebrekidan, S.; Kang, T.; Kim, H.-J.; Song, S.-J. Nonlinear ultrasonic characterization of early degradation of fatigued Al6061-T6 with harmonic generation technique. Ultrasonics 2018, 85, 23–30. [Google Scholar] [CrossRef]
- Xu, W.; Su, Z.Q.; Radzienski, M.; Cao, M.S.; Ostachowicz, W. Nonlinear pseudo-force in a breathing crack to generate har-monics. J. Sound Vib. 2021, 492, 115734. [Google Scholar] [CrossRef]
- Zhan, X.L.; Sun, L.M.H. Detection of crack coefficients of aluminum plates based on nonlinear ultrasonic. Laser Optoelec-Tronics Prog. 2021, 58, 1716002. [Google Scholar]
- Yan, D.; Drinkwater, B.W.; Neild, S.A. Measurement of the ultrasonic nonlinearity of kissing bonds in adhesive joints. NDT E Int. 2009, 42, 459–466. [Google Scholar] [CrossRef]
- Lim, H.J.; Sohn, H. Online prognosis of fatigue crack at welded joints using nonlinear ultrasonic modulation. In Proceedings of the Conference on Sensors and Smart Structures Technologies for Civil, Mechanical, and Aerospace Systems, Denver, CO, USA, 4–7 March 2019. [Google Scholar]
- Wang, J.; Wen, Z.; Pei, H.; Gu, S.; Zhang, C.; Yue, Z. Thermal damage evaluation of nickel-based superalloys based on ultrasonic nondestructive testing. Appl. Acoust. 2021, 183, 108329. [Google Scholar] [CrossRef]
- Ghosh, D.; Kumar, R.; Ganguli, A.; Mukherjee, A. Nondestructive Evaluation of Rebar Corrosion–Induced Damage in Concrete through Ultrasonic Imaging. J. Mater. Civ. Eng. 2020, 32, 04020294. [Google Scholar] [CrossRef]
- Zhang, J.; Xuan, F.-Z. Fatigue damage evaluation of austenitic stainless steel using nonlinear ultrasonic waves in low cycle regime. J. Appl. Phys. 2014, 115, 204906. [Google Scholar] [CrossRef]
- Gonchar, A.V.; Kurashkin, K.V.; Andreeva, O.V.; Anosov, M.S.; Klyushnikov, V.A. Fatigue life prediction of structural steel using acoustic birefringence and characteristics of persistent slip bands. Fatigue Fract. Eng. Mater. Struct. 2021, 45, 101–112. [Google Scholar] [CrossRef]
- Yun, H.G.; Rayhana, R.; Pant, S.; Genest, M.; Liu, Z. Nonlinear ultrasonic testing and data analytics for damage characteriza-tion: A review. Measurment 2021, 186, 110155. [Google Scholar]
- Sampath, S.; Jang, J.; Sohn, H. Ultrasonic Lamb wave mixing based fatigue crack detection using a deep learning model and higher-order spectral analysis. Int. J. Fatigue 2022, 163, 107028. [Google Scholar] [CrossRef]
- Suzuki, T.; Hikata, A.; Elbaum, C. An harmonicity due to glide motion of dislocations. J. Appl. Phys. 1964, 35, 2761–2766. [Google Scholar] [CrossRef]
- Hikata, A.; Sewell, J.F.A.; Elbaum, C. Generation of Ultrasonic Second and Third Harmonics due to Dislocations. II. Phys. Rev. 1966, 151, 442–449. [Google Scholar] [CrossRef]
- Granato, A.; Lücke, K. Theory of Mechanical Damping Due to Dislocations. J. Appl. Phys. 1956, 27, 583–593. [Google Scholar] [CrossRef]
- Cantrell, J.H. Quantitative assessment of fatigue damage accumulation in wavy slip metals from acoustic harmonic generation. Philos. Mag. 2006, 86, 1539–1554. [Google Scholar] [CrossRef]
- Owen, M. Practical Signal Processing; Cambridge University Press: Cambridge, UK, 2012. [Google Scholar]
- Huang, N.E.; Shen, S.S.P. Hilbert-Huang Transform and Its Application, 2nd ed.; National Defense Industry Press: Beijing, China, 2017. [Google Scholar]
- Hikata, A.; Elbaum, C. Generation of ultrasonic second and third harmonics due to dislocations. I. Phys. Rev. 1966, 144, 469. [Google Scholar] [CrossRef]
- Bachurin, D.V.; Murzaev, R.T.; A Nazarov, A. Ultrasonic influence on evolution of disordered dislocation structures. Model. Simul. Mater. Sci. Eng. 2017, 25, 085010. [Google Scholar] [CrossRef]
- Masurkar, F.; Tse, P.; Yelve, N.P. Evaluation of inherent and dislocation induced material nonlinearity in metallic plates using Lamb waves. Appl. Acoust. 2018, 136, 76–85. [Google Scholar] [CrossRef]
- Zhu, W.; Deng, M.; Xiang, Y.; Xuan, F.-Z.; Liu, C.; Wang, Y.-N. Modeling of ultrasonic nonlinearities for dislocation evolution in plastically deformed materials: Simulation and experimental validation. Ultrasonics 2016, 68, 134–141. [Google Scholar] [CrossRef]
Chemical Composition | Cr | C | Mo | Ni | Mn | Si | P | O | Fe |
---|---|---|---|---|---|---|---|---|---|
Mass Fraction (%) | 17.6 | 0.04 | 2.05 | 12.05 | 0.3 | 0.85 | 0.04 | <0.1 | Bal. |
Scanning Speed (mm/s) | Laser Power (W) | Layer Thickness (μm) | Scanning Interval (μm) | Spot Diameter (μm) | Volume Fraction of Oxygen (%) |
---|---|---|---|---|---|
780 | 260 | 25 | 70 | 85 | ≤0.03 |
