A Review on Cementitious and Geopolymer Composites with Lithium Slag Incorporation
Abstract
:1. Introduction
2. Physiochemical and Microscopic Analysis of LS
2.1. Physical Properties of Raw LS

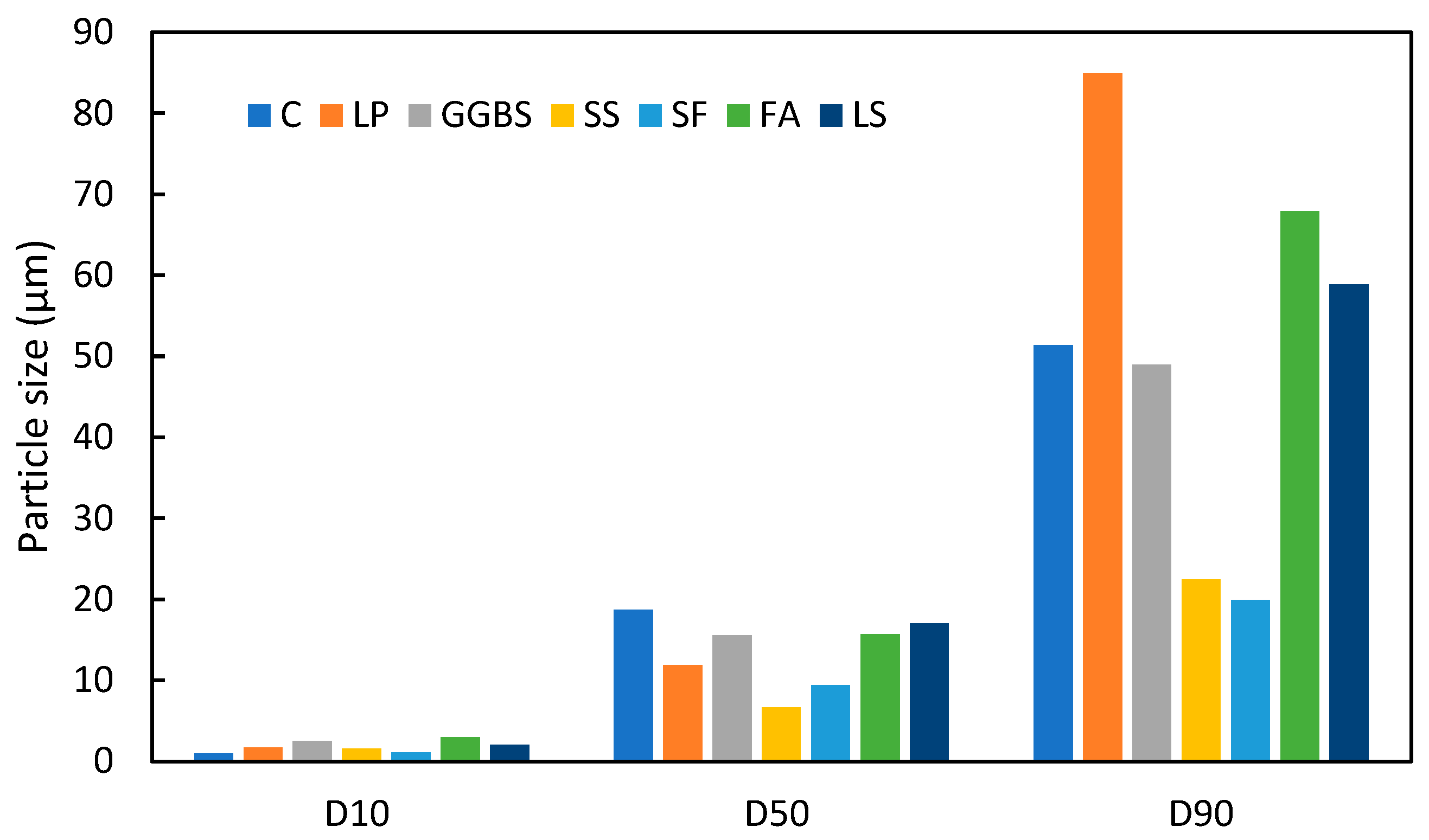

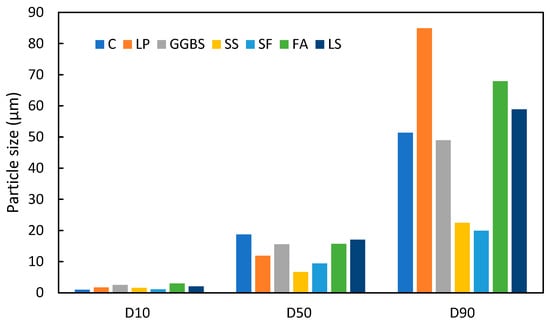

2.1.1. Particle Size Distribution
2.1.2. Density, Specific Surface Area, and Moisture Content
2.2. Chemical Properties of LS

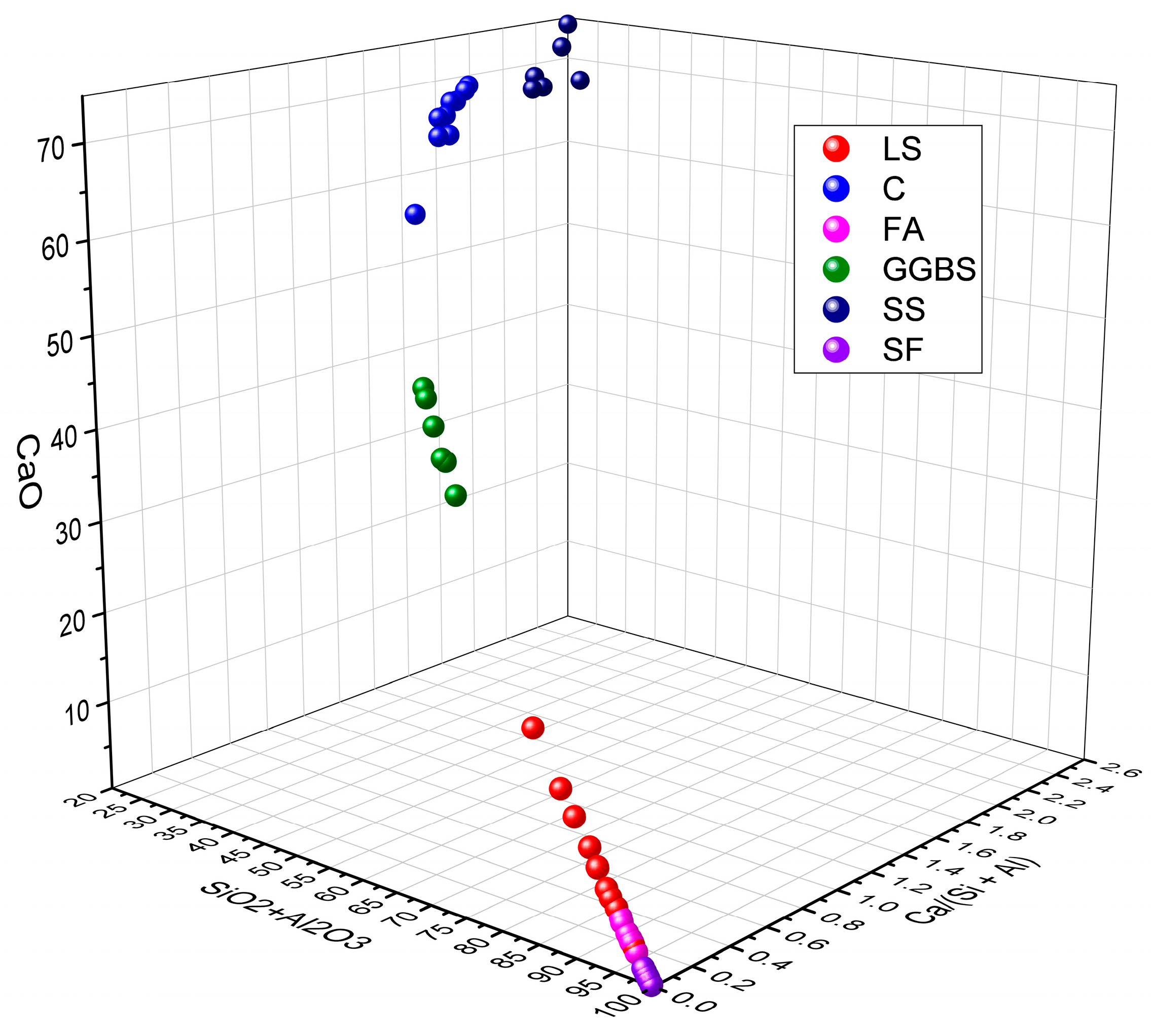

2.2.1. Chemical Composition

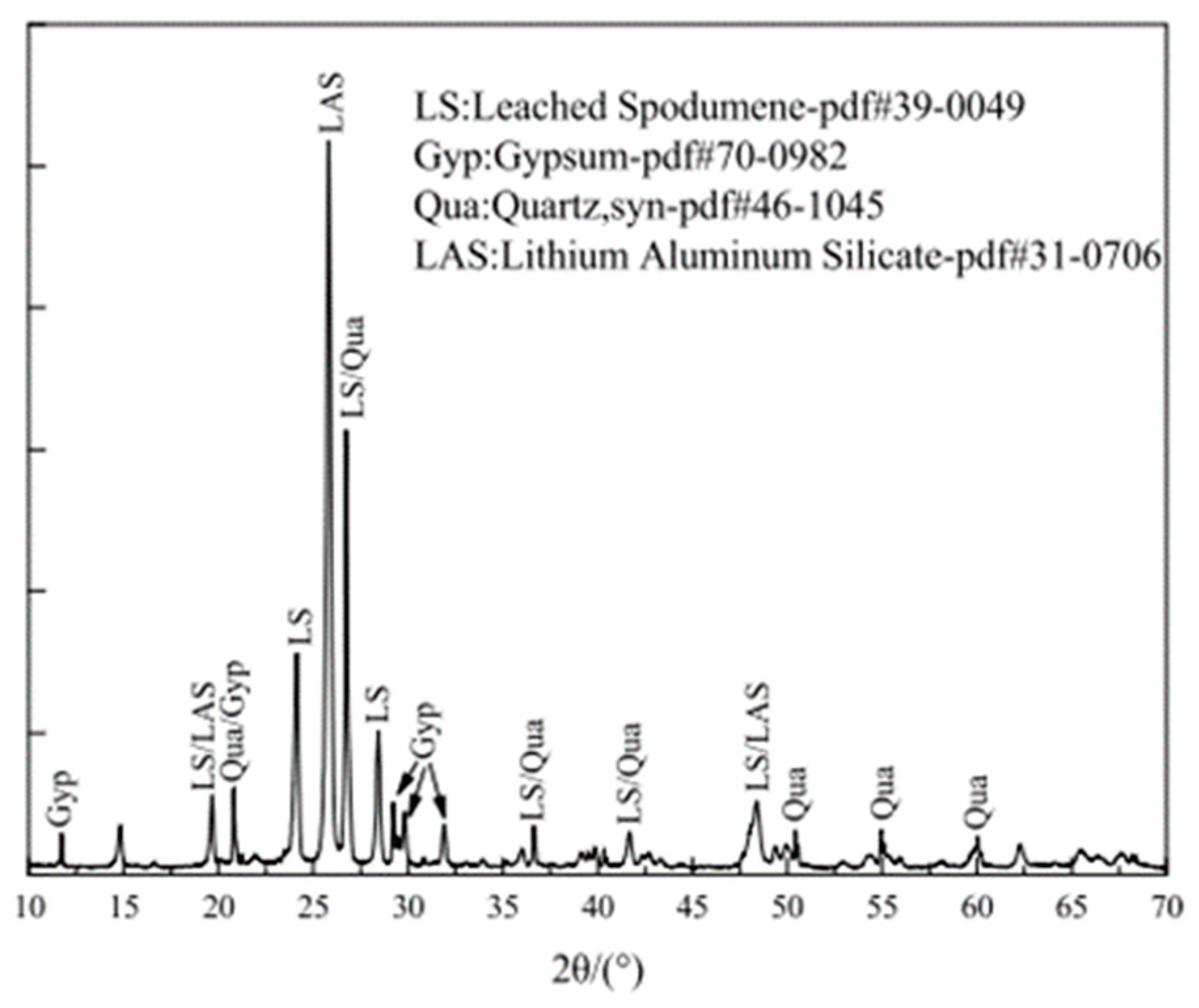

2.2.2. XRD Results
2.3. Microscopic Analysis of LS

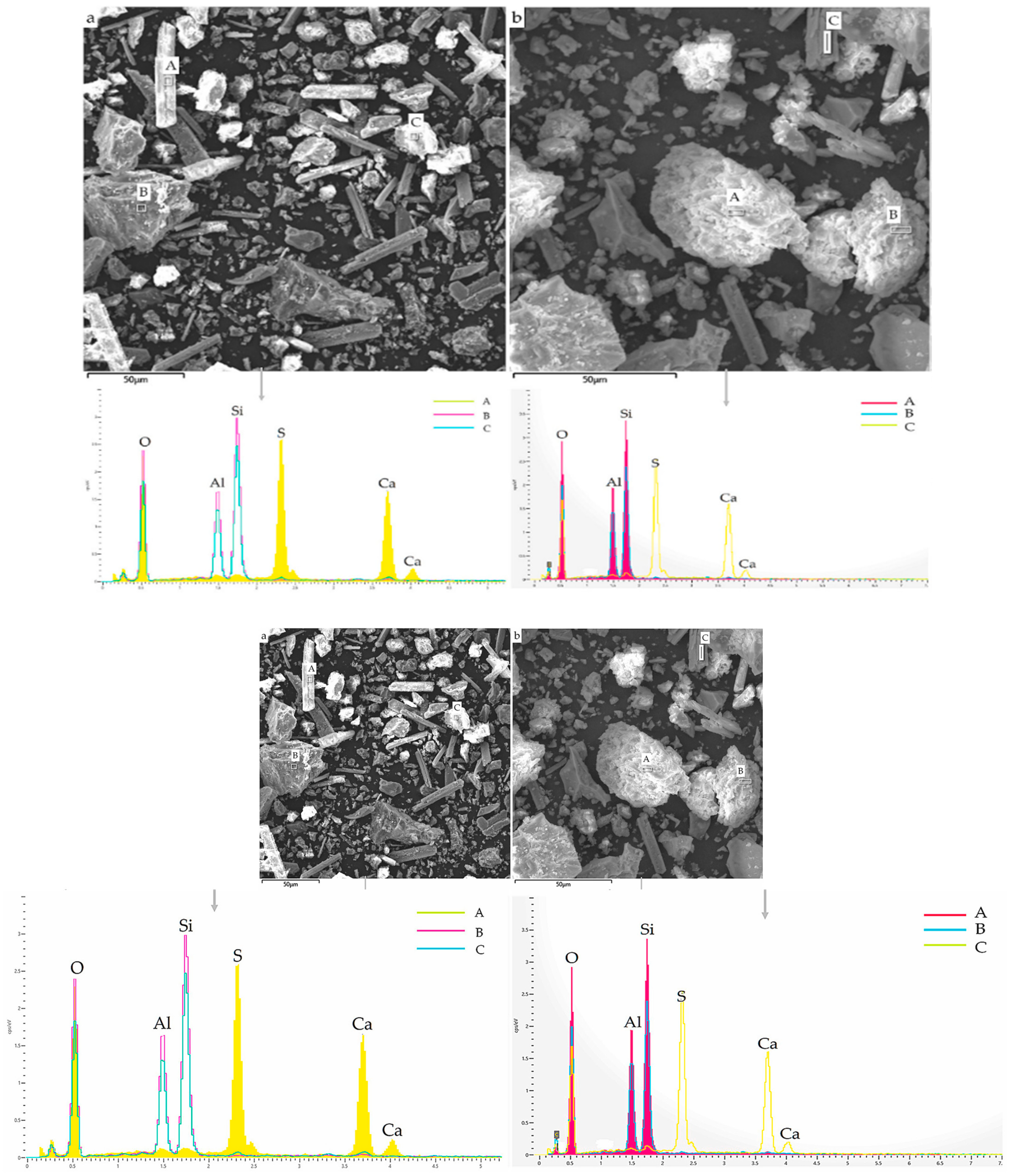

2.3.1. SEM-EDS Analysis

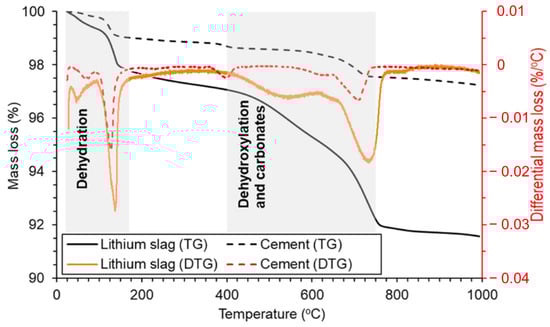

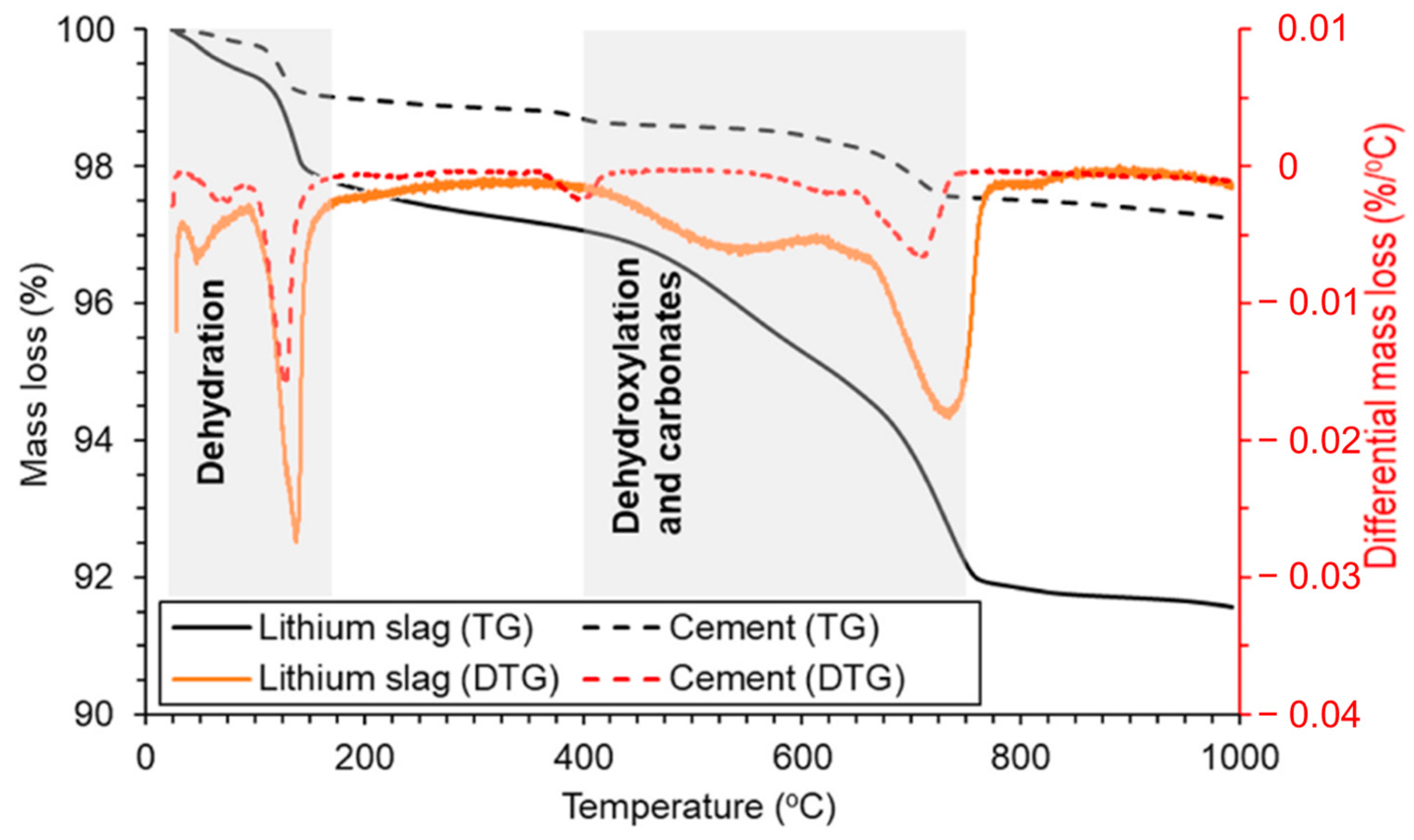

2.3.2. TG-DTG Analysis
2.3.3. NMR and XPS Analysis
3. Fresh State Properties of Cementitious Composites with LS Incorporation

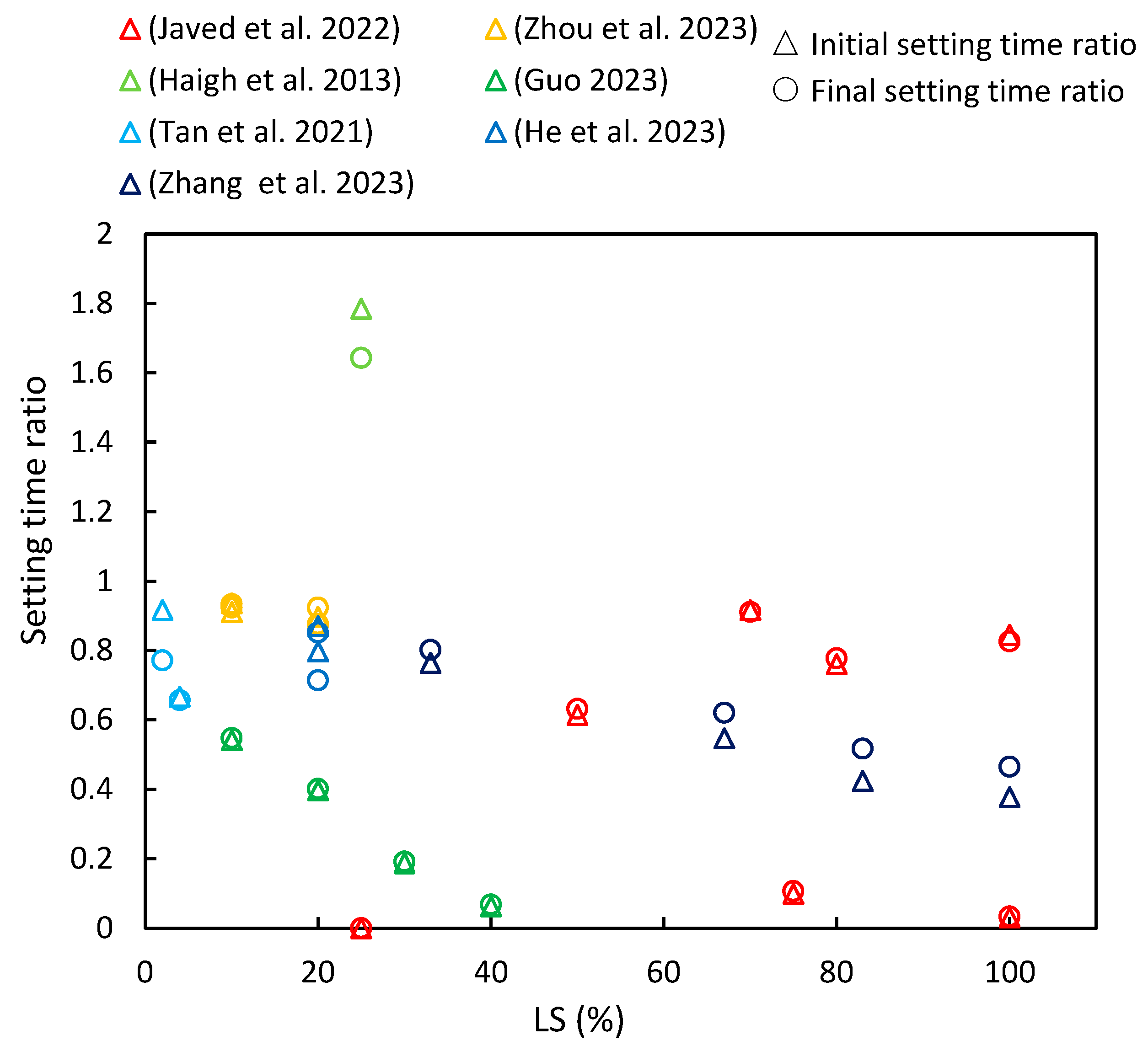

3.1. Setting Time

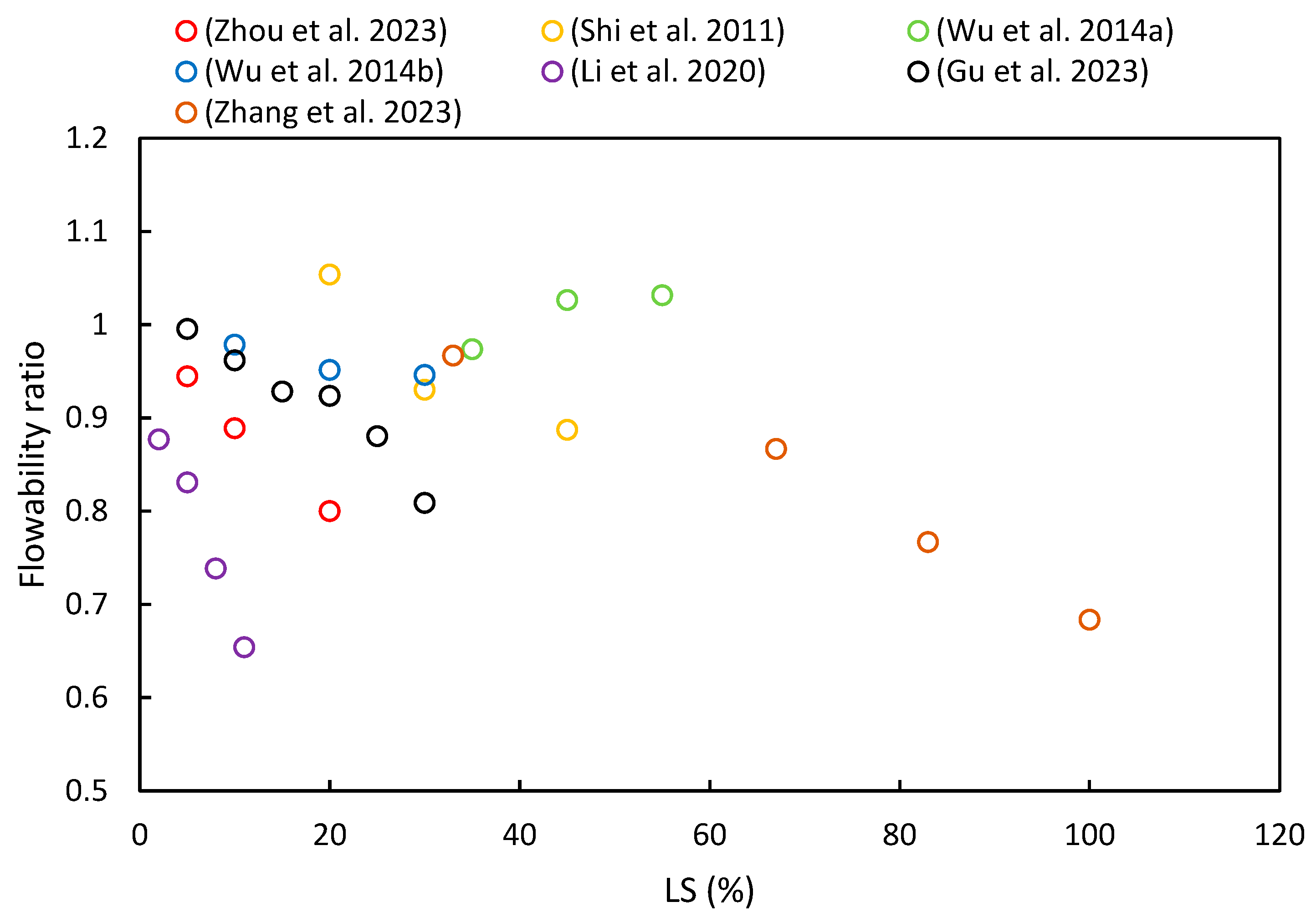

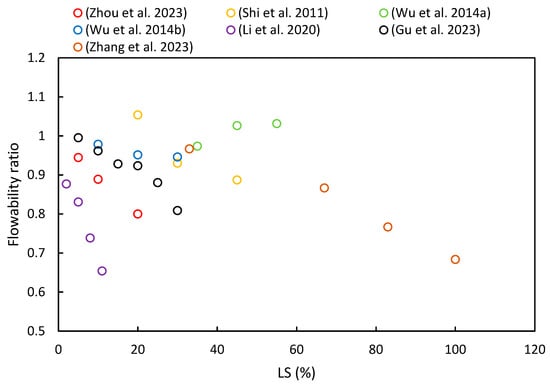

3.2. Flowability
3.3. Rheology
4. Mechanical Properties of Cementitious Composites with LS Incorporation

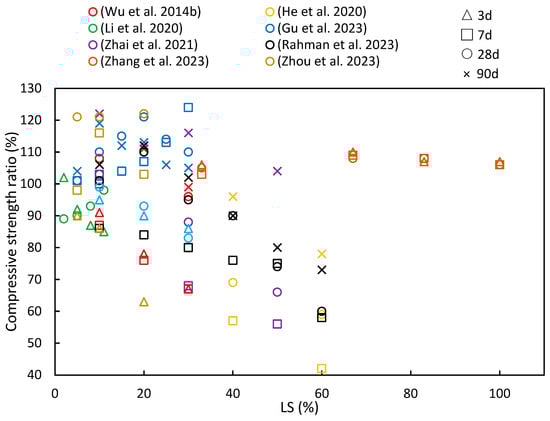

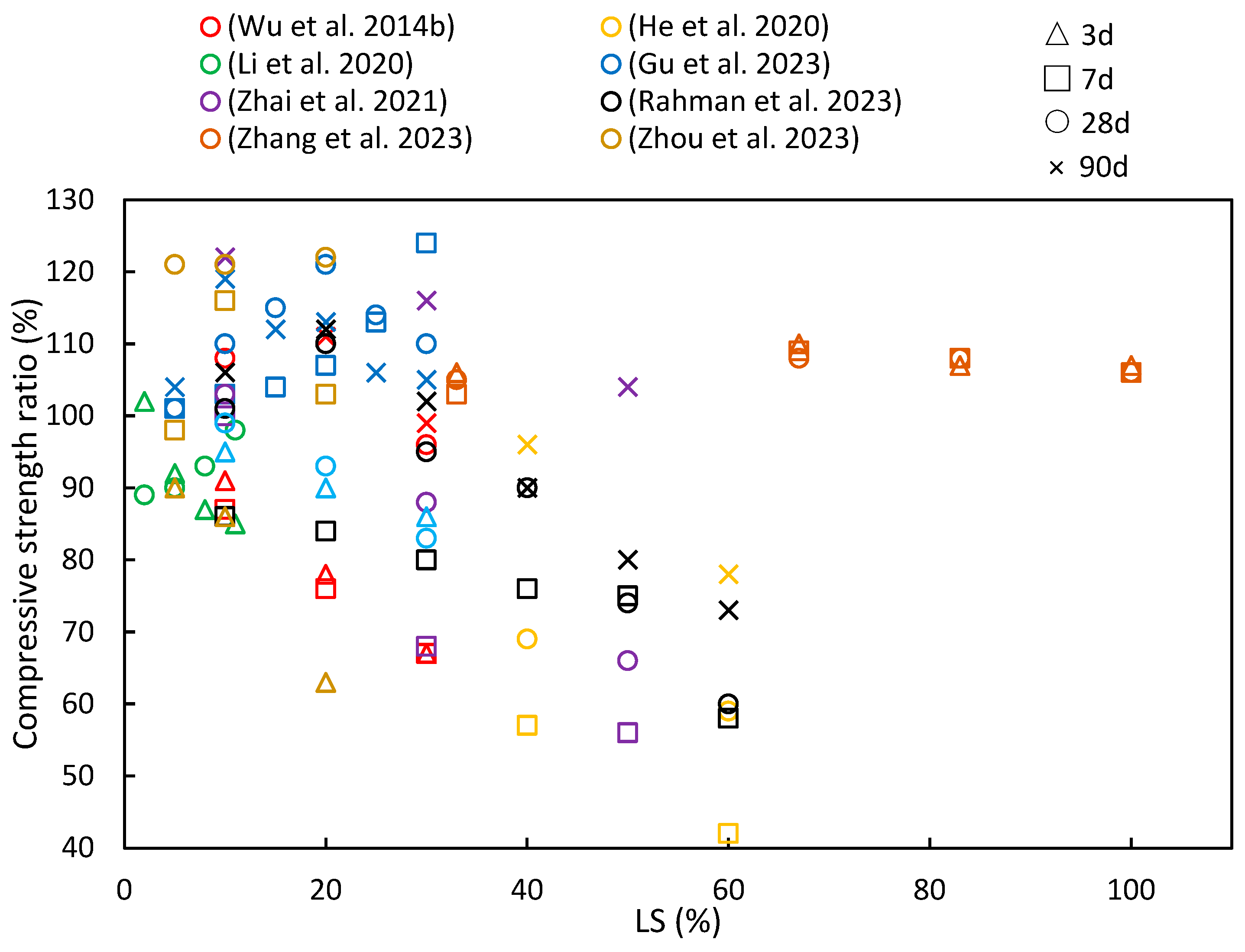

4.1. Compressive Strength

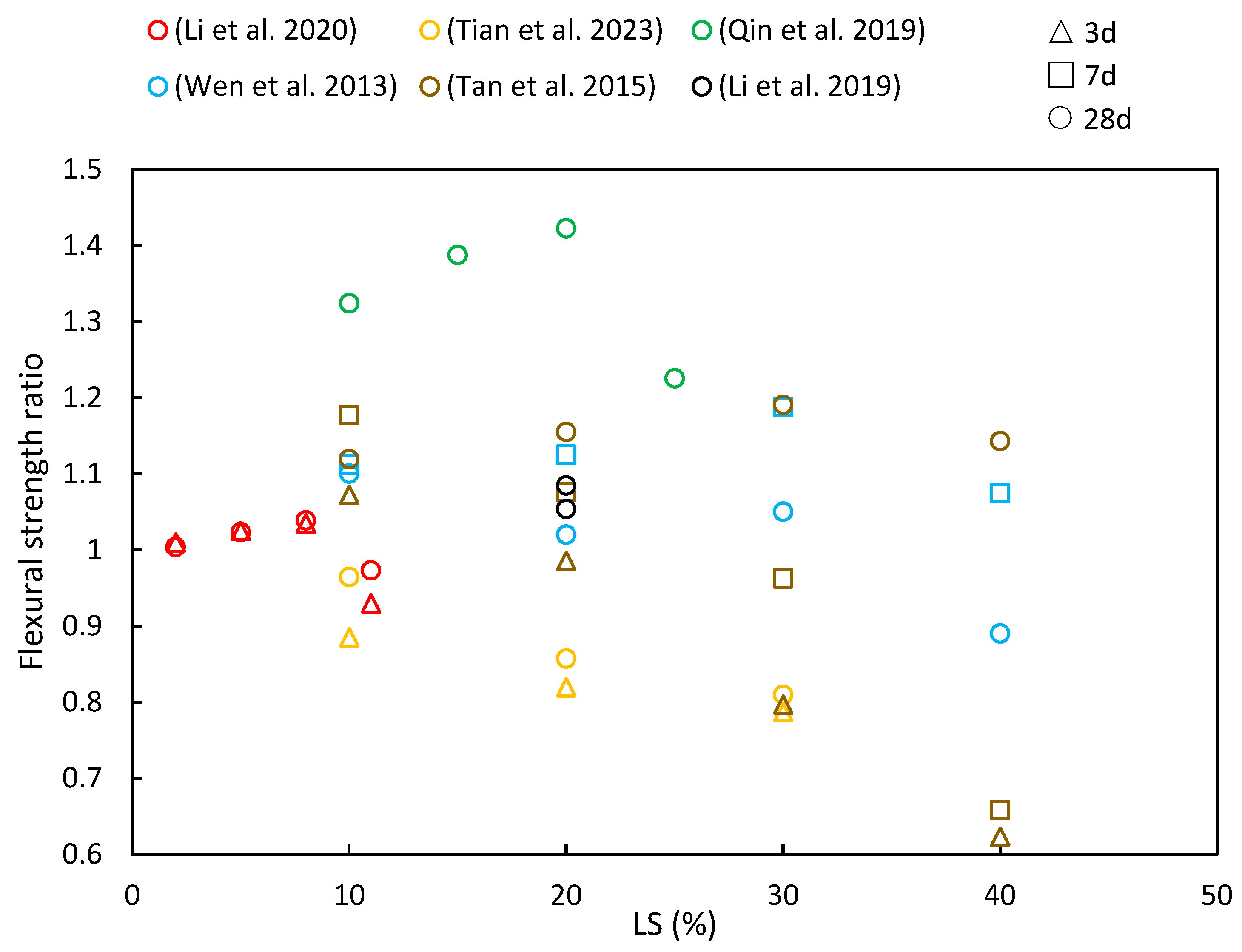

4.2. Flexural Strength

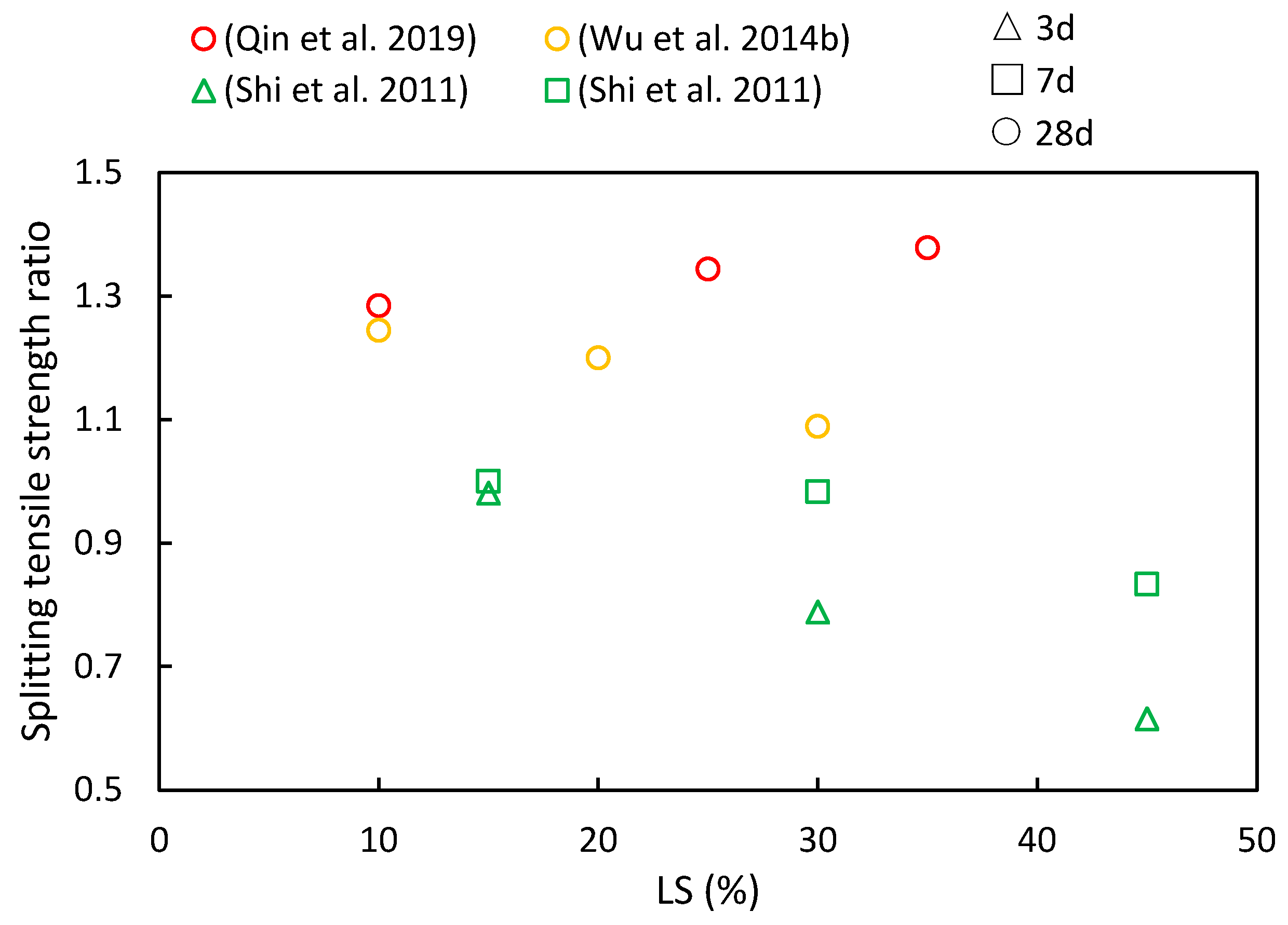

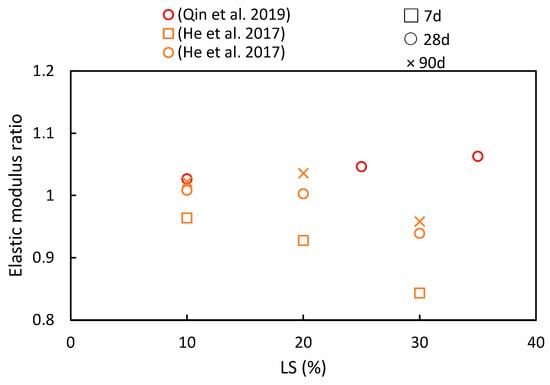

4.3. Splitting Tensile Strength and Elastic Modulus
5. Durability of Cementitious Composites with LS Incorporation

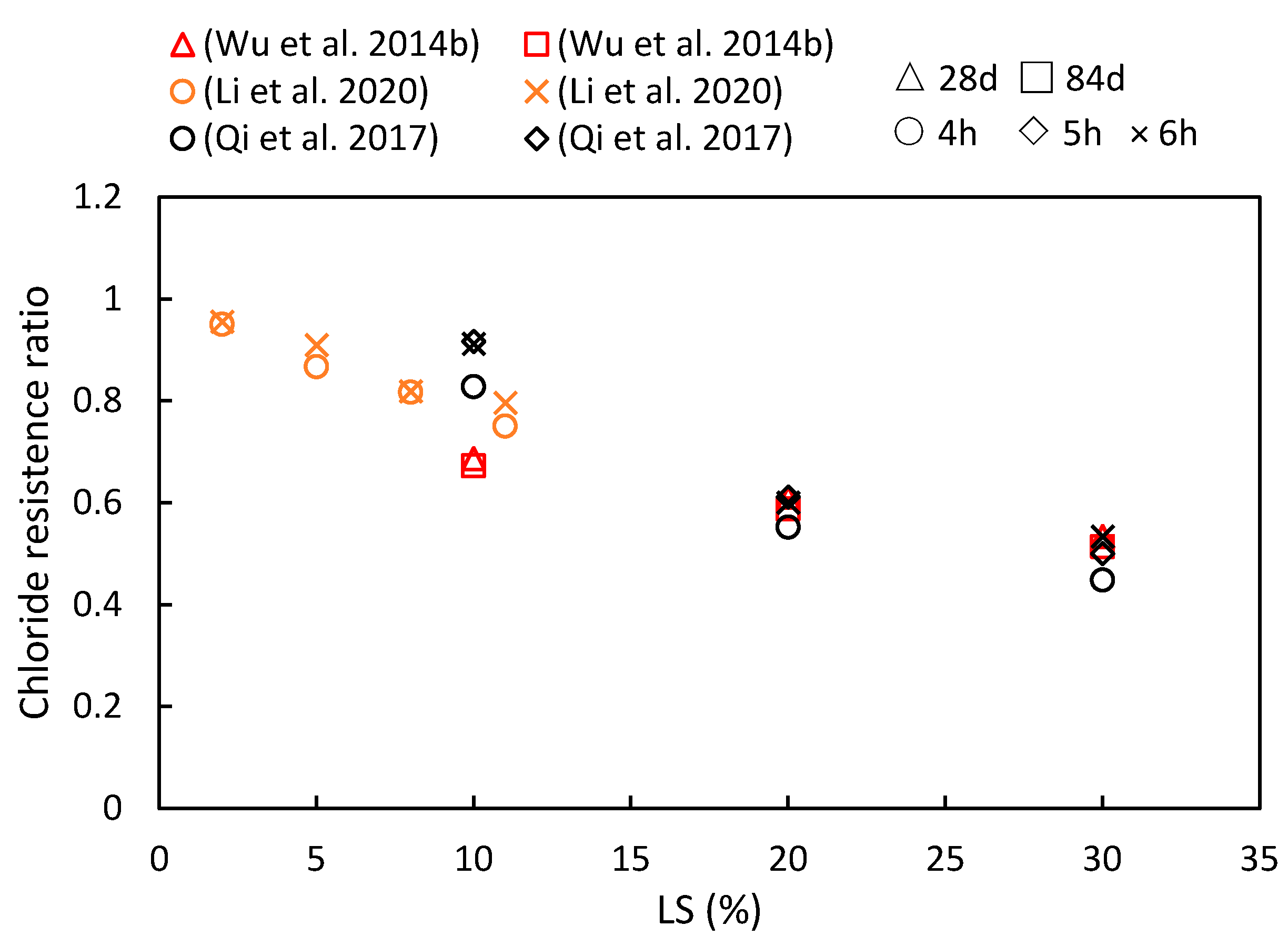

5.1. Chloride Resistance

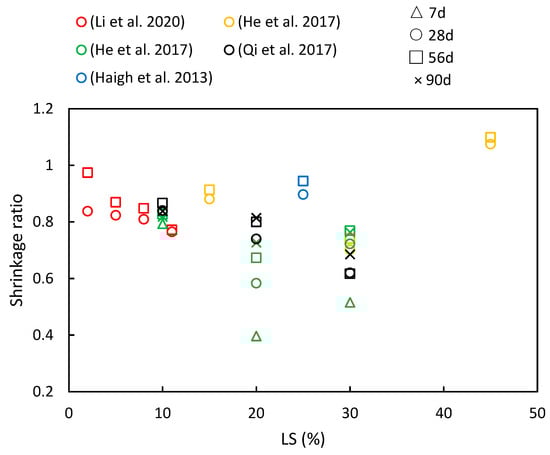

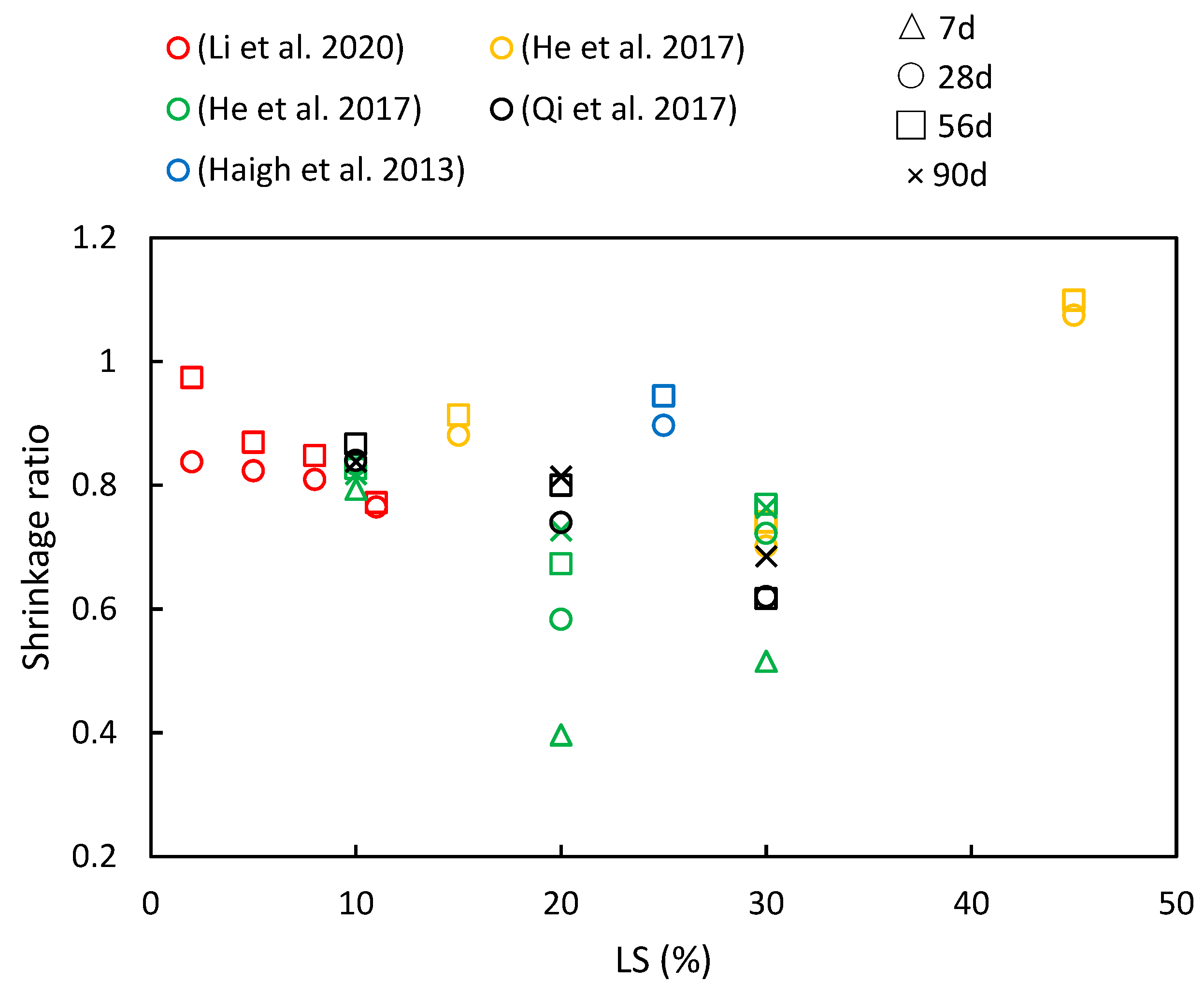

5.2. Shrinkage
5.3. Sulfate Attack and Carbonation
6. Chemical and Microstructural Investigations of Cementitious Composites with LS Incorporation
6.1. Hydration Heat
6.2. Pore Structure

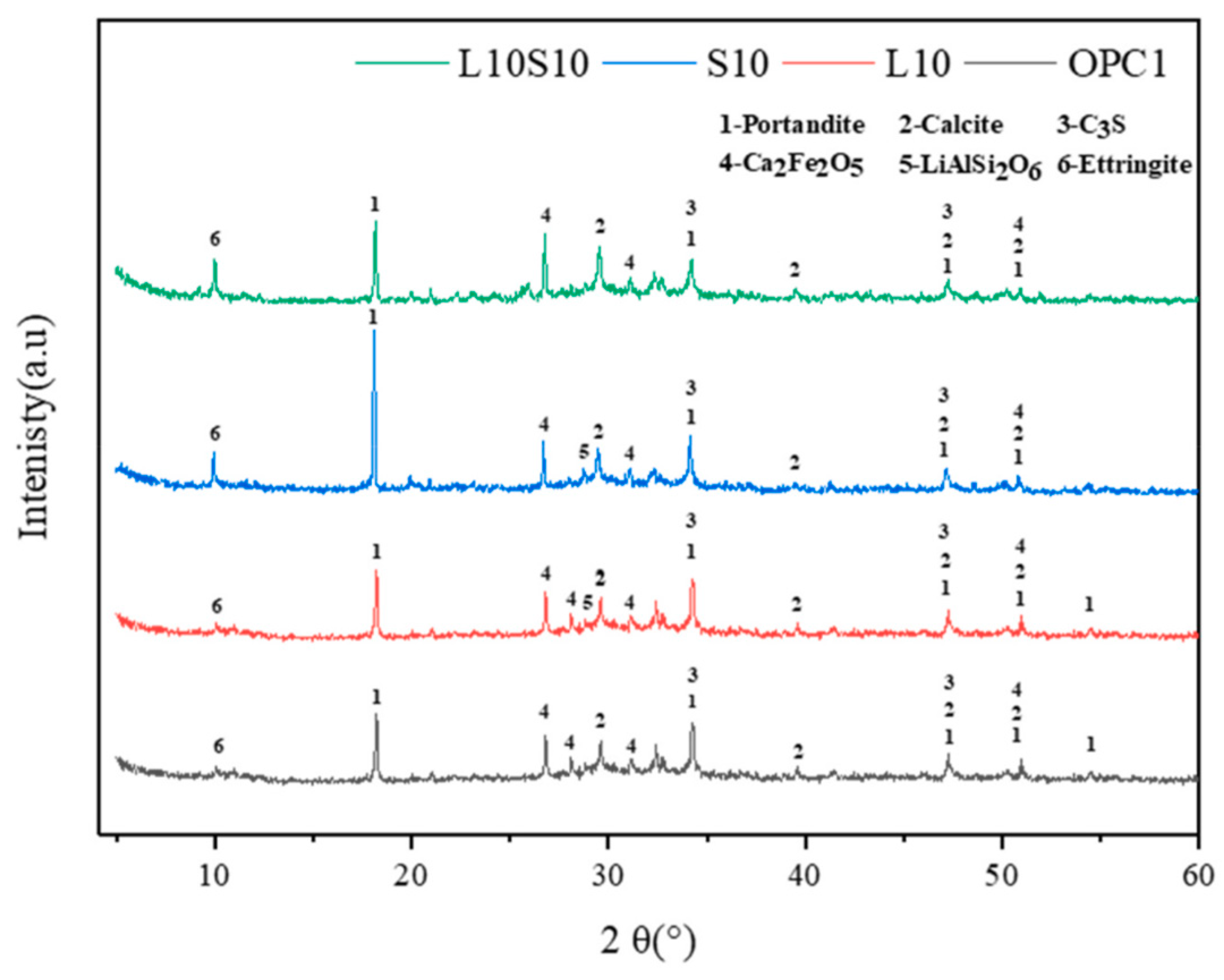

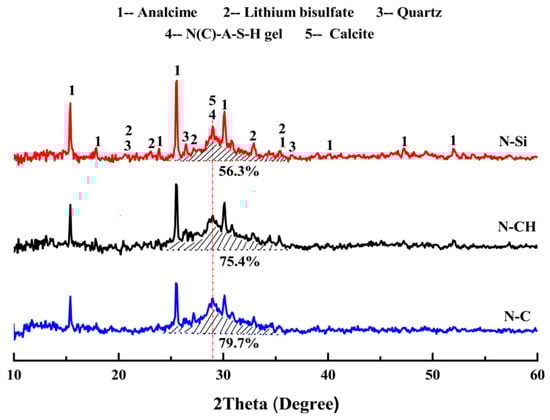

6.3. XRD Analysis

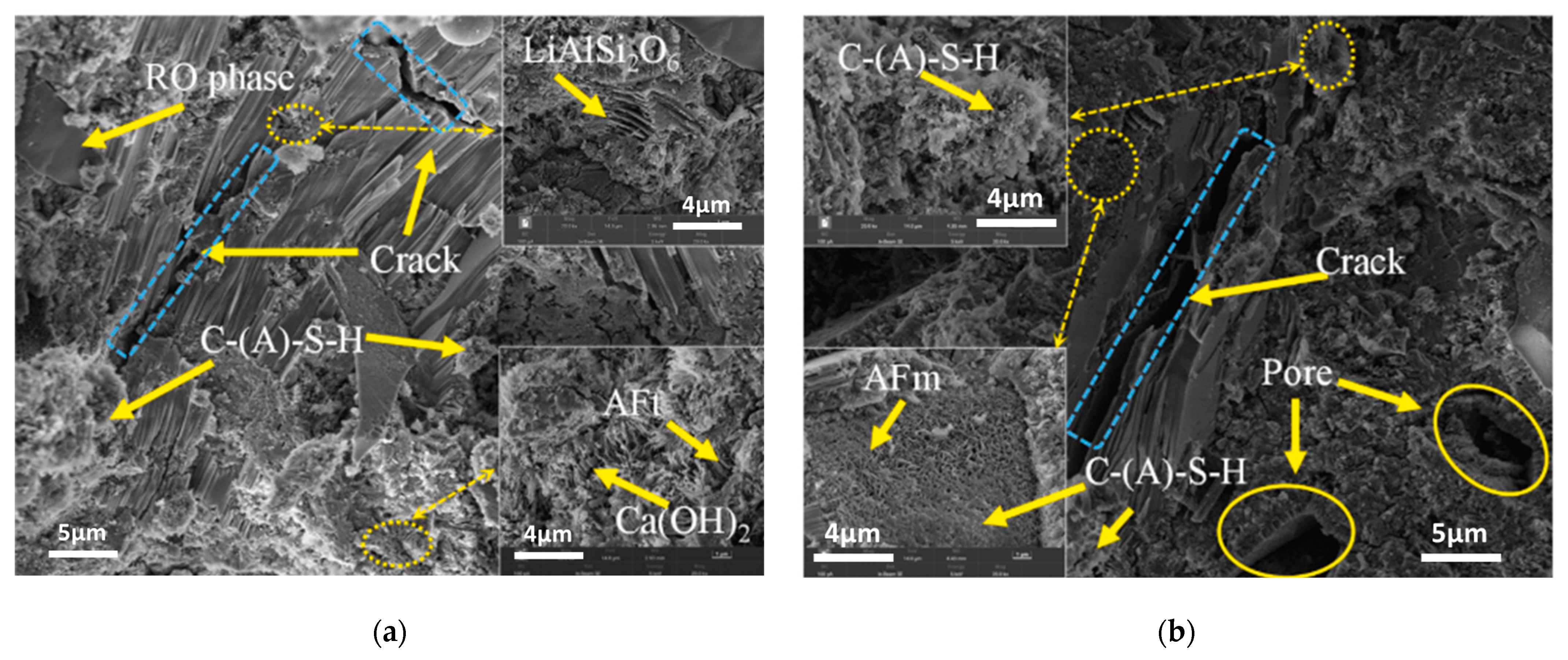

6.4. SEM Analysis

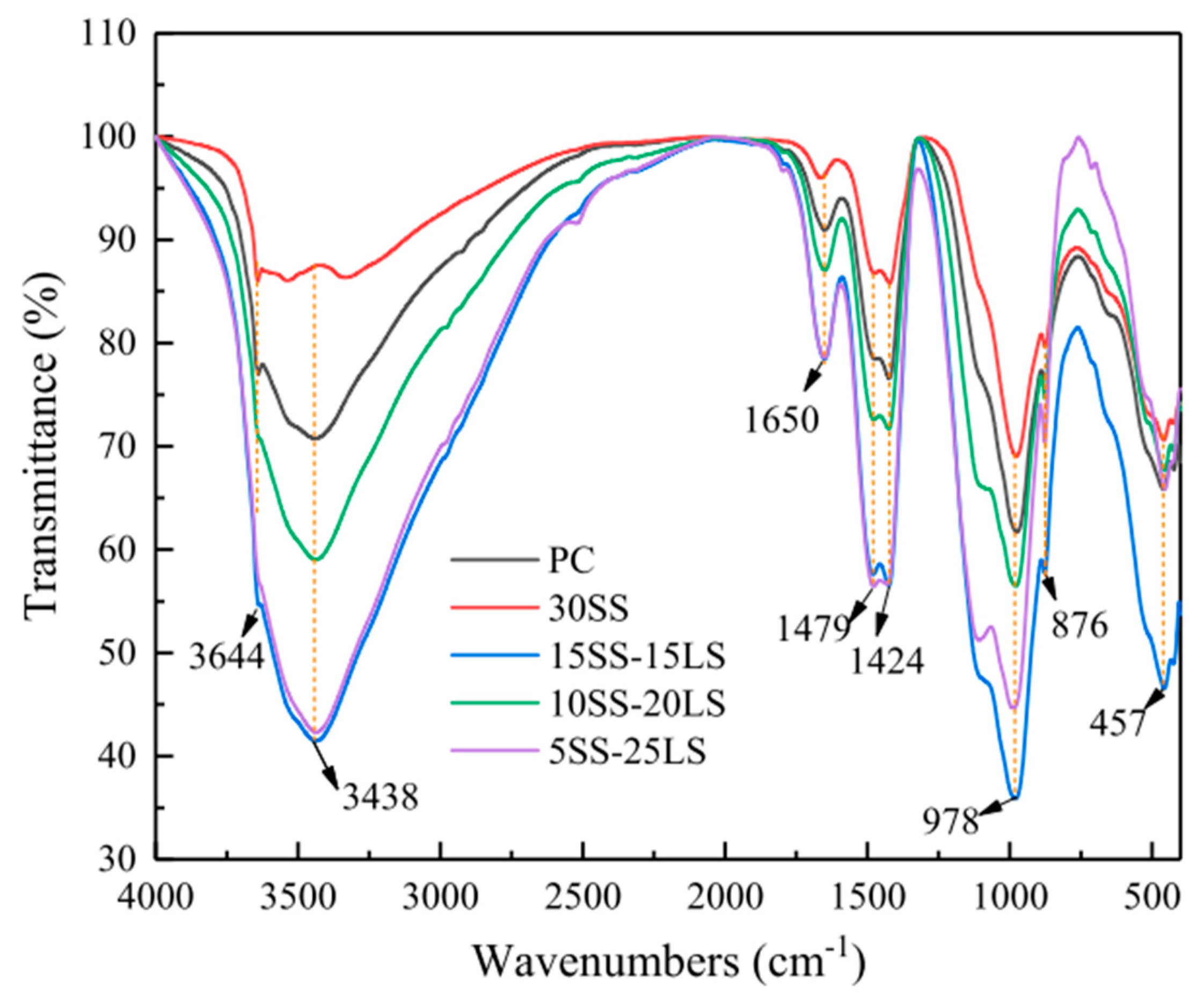

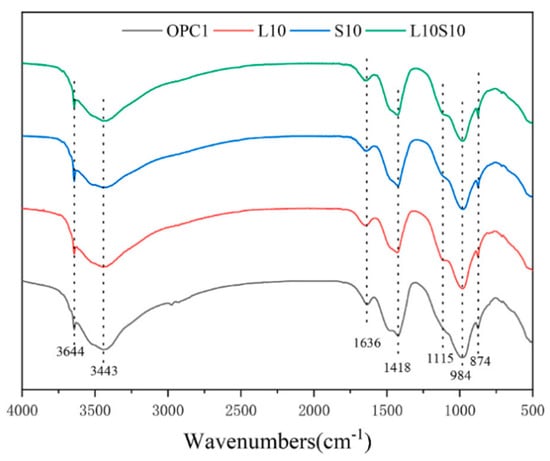

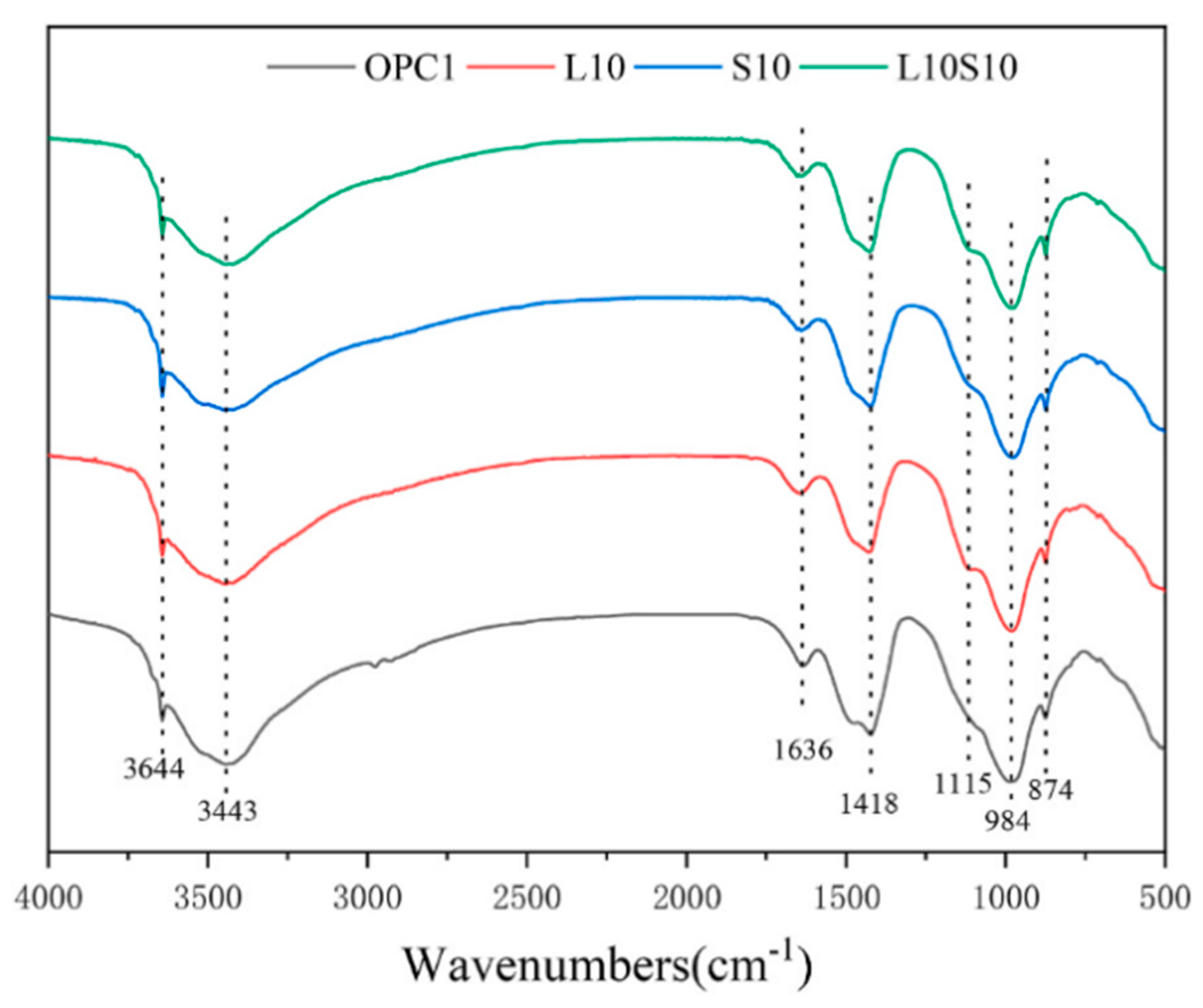

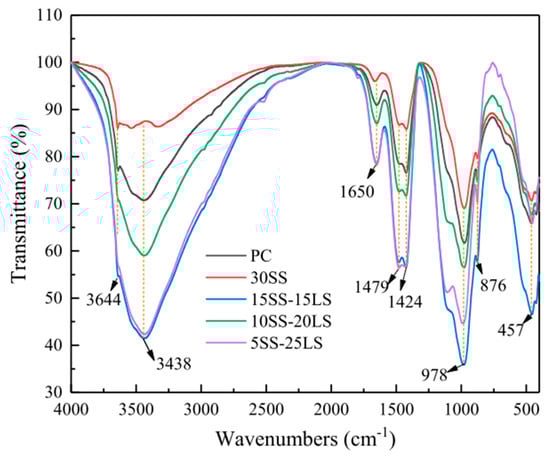

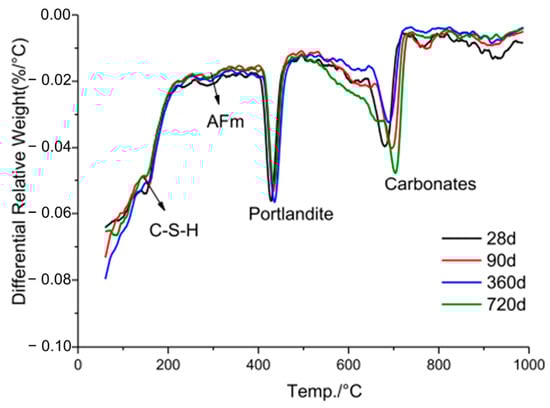

6.5. FTIR and TG Analysis
7. Cost, Energy, and Carbon Emission Comparisons
Materials | Cost (USD/t) | Embodied CO2 (kg/t) | Embodied Energy (MJ/t) |
---|---|---|---|
LS | 10 [5] | 67 [118] | 2230 [22] |
GGBS | 100 [119] | 67 [118] | 1590 [119] |
MK | 220 [120] | 400 [121] | 2500 [120] |
FA | 50 [122] | 8 [123] | 833 [121] |
SF | 200 [124] | 14 [125] | 100 [126] |
C | 467.5 [127] | 900 [128] | 5000 [129] |
LP | 150 [130] | 75 [118] | 350 [121] |
8. Conclusions
- (1)
- The PSD of LS closely resembles that of FA and GGBS. This similarity suggests that LS can exhibit similar effects related to densification and nucleation when integrated into concrete, thus resembling the behavior of FA and other SCMs. Mechanical treatment of LS enhances the dissolution of aluminum, lithium, and silicon in LS, thereby expediting early hydration in LS–cement systems.
- (2)
- LS exhibits variations in SiO2 + Al2O3 and Ca/(Si + Al) within the ranges of 70.29–80.77% and 0.02–0.14%, respectively. This composition aligns LS with FA, which is characterized by high SiO2 and Al2O3 contents and a low CaO content. This similarity categorizes LS as a low-calcium precursor with chemical reactivity akin to that of FA.
- (3)
- In most of the literature examined, an increase in LS content was shown to lead to a reduction in the initial and final setting times of LS–cement and LS–geopolymer systems. Moreover, the studies determined that flowability decreased with an increase in LS content due to its irregular shape, strong water absorption characteristics, and elevated formation of AFt in the initial stages of hydration.
- (4)
- A recurring trend in most of the reviewed literature indicates that as LS content increases, the compressive strength, flexural strength, and splitting tensile strength ratios initially increase, with diminishing returns beyond a 30% threshold. This suggests an optimal LS content for achieving favorable mechanical properties. Additionally, with longer curing periods, there is a noticeable upward trend in the compressive strength, flexural strength, and splitting tensile strength ratios.
- (5)
- LS plays a crucial role in enhancing chloride ion migration resistance and reducing shrinkage in cementitious systems. Furthermore, as the composite ages, the resistance of the cementitious system to chloride ions becomes more robust. However, the behavior of drying shrinkage exhibits various trends.
- (6)
- The mechanisms through which LS operates within cementitious composites can be classified into three main categories. Firstly, there is the filling effect: the fine-grained nature of LS improves particle packing, and its fine particles act as pore blockers, thereby reducing interconnectivity between pores and effectively lowering porosity. Secondly, there is the pozzolanic effect: LS reacts with calcium hydroxide to generate additional hydration products, thereby refining large pores and bridging the gap between the paste and aggregates. Thirdly, there is the nucleation effect: LS provides nucleation sites, thereby promoting the preferential production and development of hydration products in these specific locations.
- (7)
- LS not only exhibits similar pozzolanic activity to FA, but it also comes at just one-fifth of the price of FA. This makes LS an economically attractive option for concrete or geopolymer production, thereby significantly reducing manufacturing costs. Moreover, the embodied CO2 and embodied energy of LS are comparable to GGBS, slightly higher than those of FA and SF, and significantly lower than those of MK, LP, and cement. Therefore, LS exhibits the potential for solid waste recycling and sustainable development.
9. Outlook
- (1)
- Current research on the grinding and chemical treatment of LS is limited. Further exploration is needed to enhance its utilization efficiency through physical and chemical modifications.
- (2)
- More research is required to understand the tensile properties of cementitious composites incorporating LS and their durability evolution in specific environments, such as freeze–thaw cycles and exposure to coupled acid–base and salt conditions.
- (3)
- Further exploration into the performance of LS in high-performance concrete, such as UHPC and engineered cementitious composites, is warranted.
- (4)
- The rheological properties of LS when incorporated into cement pastes and its subsequent performance in 3D printing applications deserve closer attention.
- (5)
- Investigation into the hydration mechanisms of LS when used in specialized cements, such as SAC and limestone calcined clay cement, requires further research.
- (6)
- The current quantitative research on the pozzolanic reactivity of LS is limited. A thorough assessment of the pozzolanic reactivity of LS is needed to confirm its suitability as an SCM in cement blends.
