Application of Mesoporous Silicas for Adsorption of Organic and Inorganic Pollutants from Rainwater
Abstract
:1. Introduction

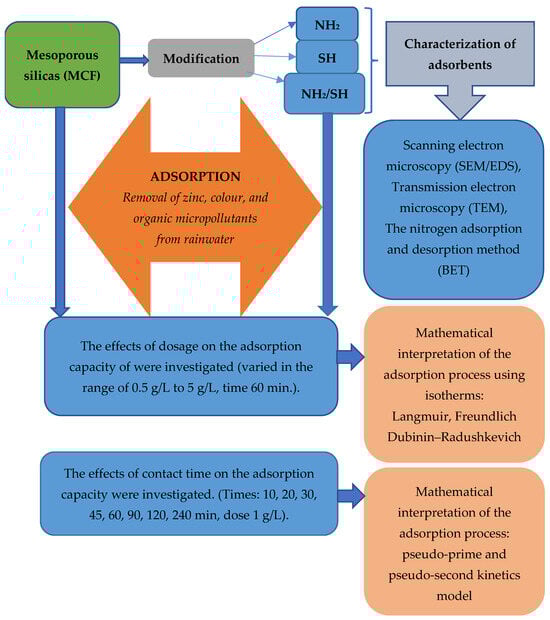

2. Materials and Methods
2.1. The Subject of the Study
2.2. Analysis of Organic Micropollutants
2.3. Analysis of Physicochemical Parameters
2.4. Synthesis and Modification of MCF Materials
2.5. Adsorption Process
2.6. Characterization of Adsorbents
- The surface morphologies of the minerals studied were investigated by scanning electron microscopy (SEM/EDS). The scanning electron microscope used for the JSM 6360LA was manufactured by JEOL-Japan (Tokyo, Japan).
- The textures of the materials were also examined using transmission electron microscopy (TEM, Tecnai G2 apparatus operating at 200 kV).
- The structural properties of the adsorbents were determined by measuring the surface areas and pore size distributions using the low-temperature nitrogen adsorption and desorption technique, according to the Brunauer–Emmett–Teller (BET) method.

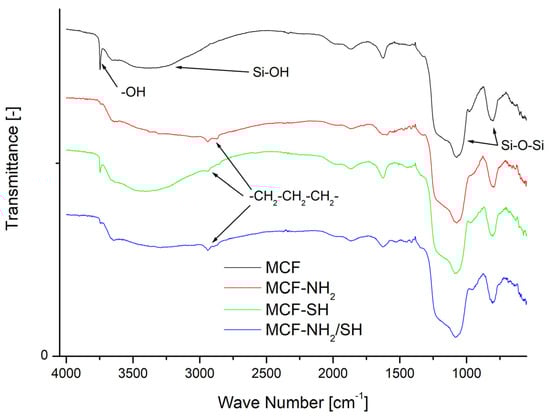

- The determination of functional groups and vibrational spectra was performed using FTIR spectroscopy.
2.7. Statistical Analysis of the Results
3. Results and Discussion

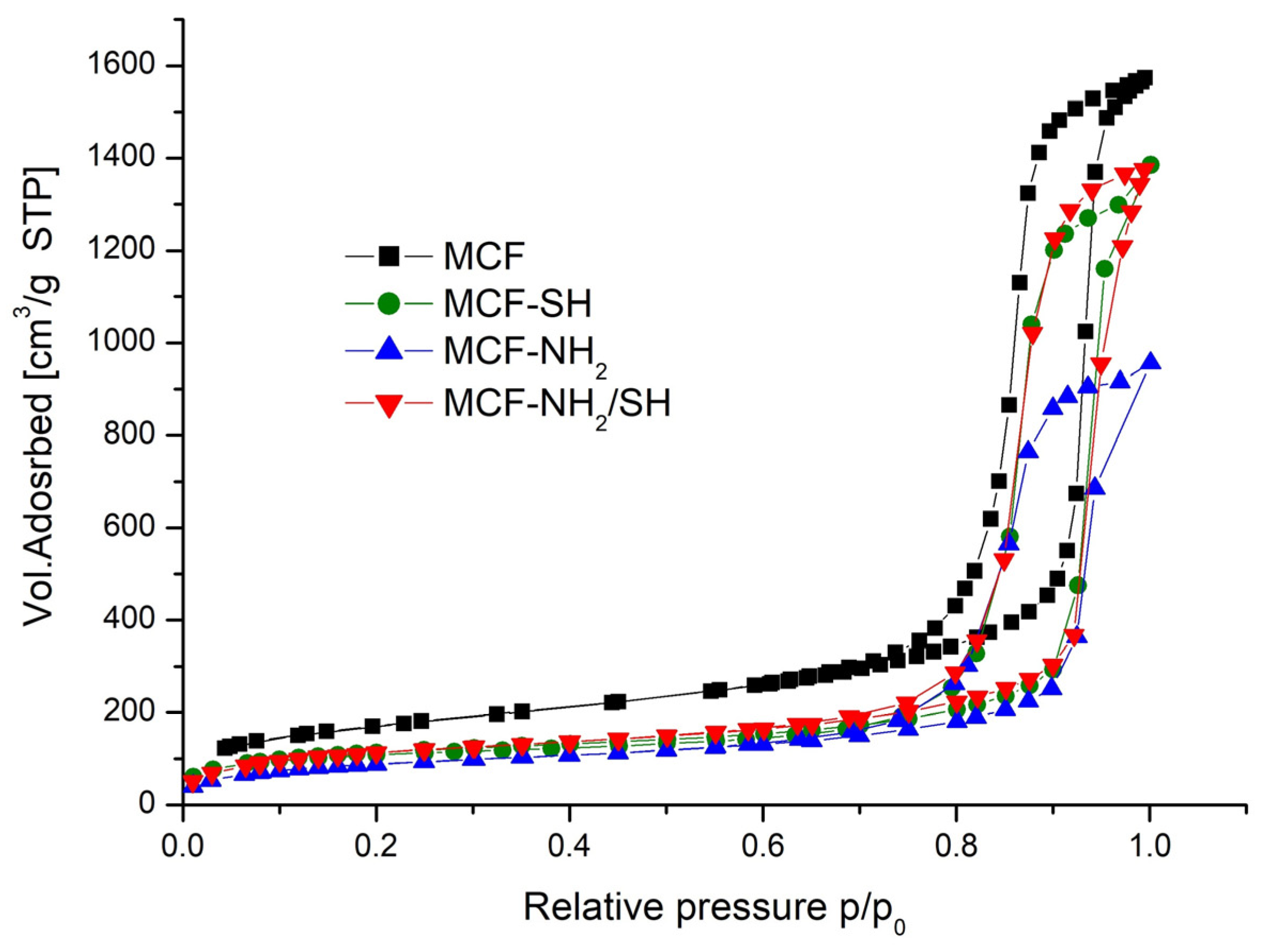

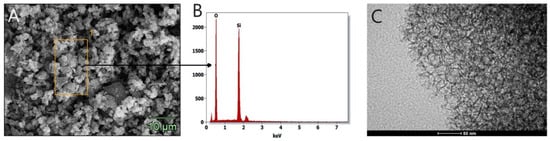

3.1. Characteristics of MCF
3.2. Characteristics of Rainwater

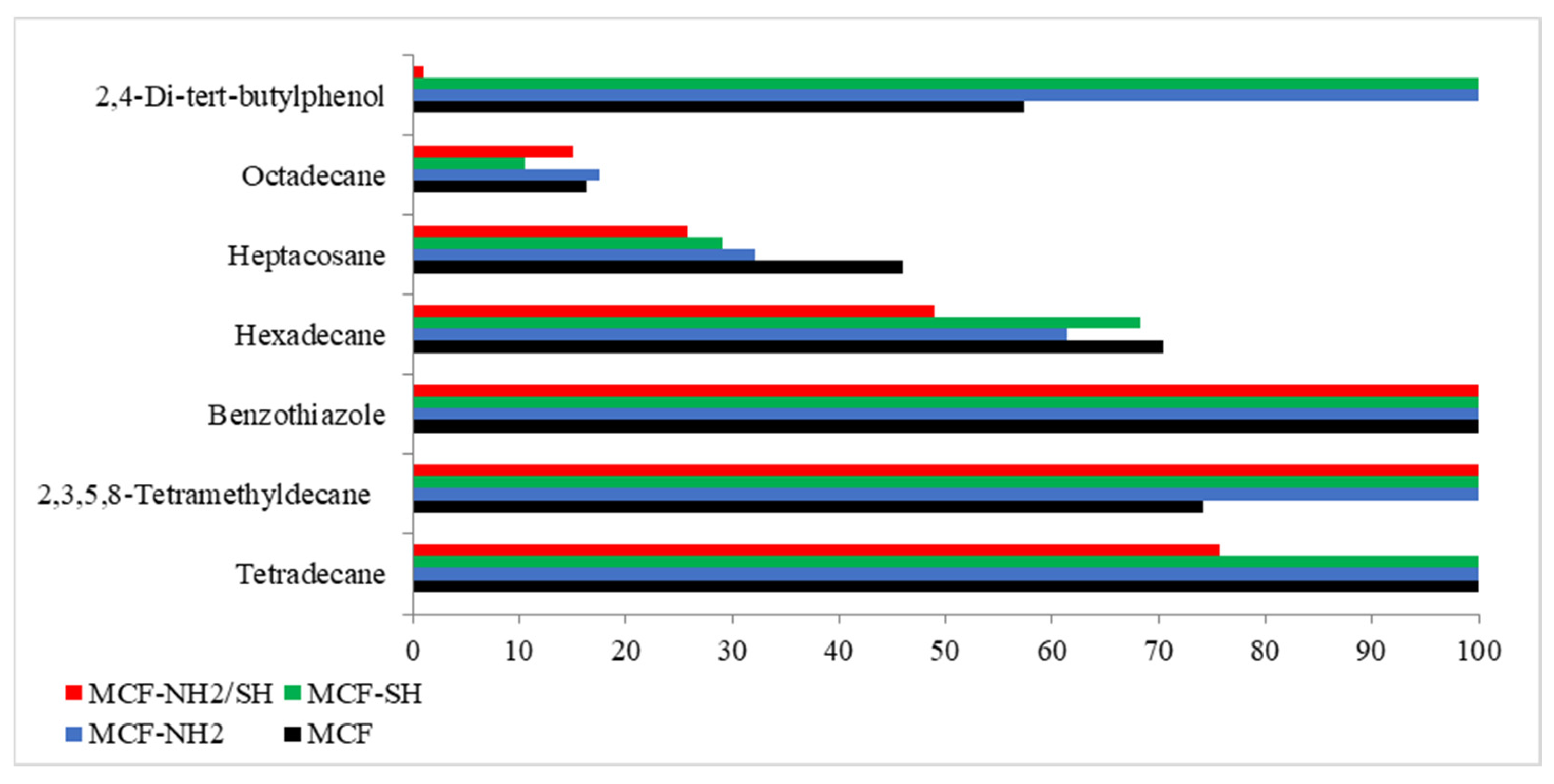

3.3. Efficiency of Adsorption of Micropollutants Using Silica

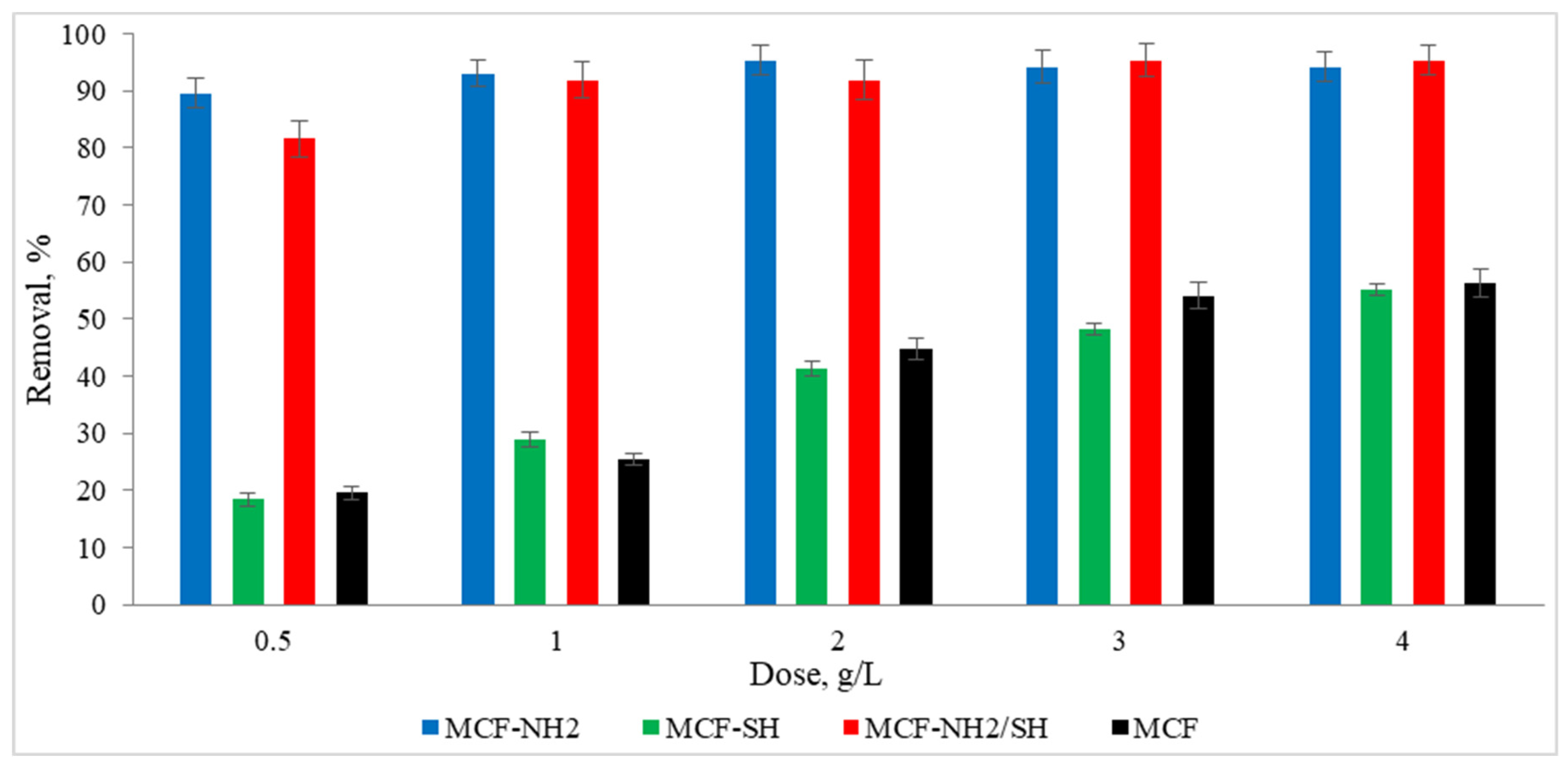

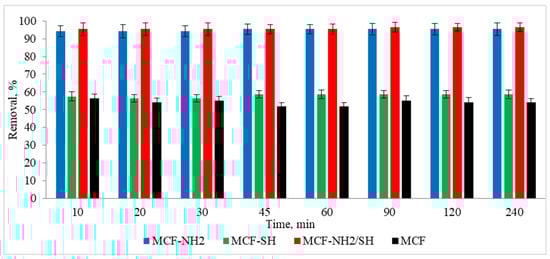

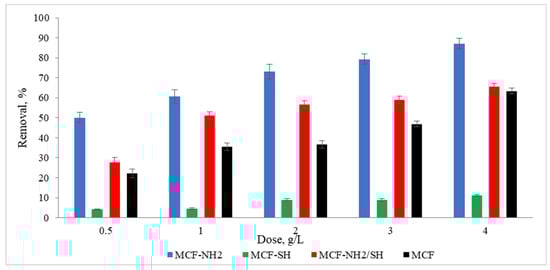

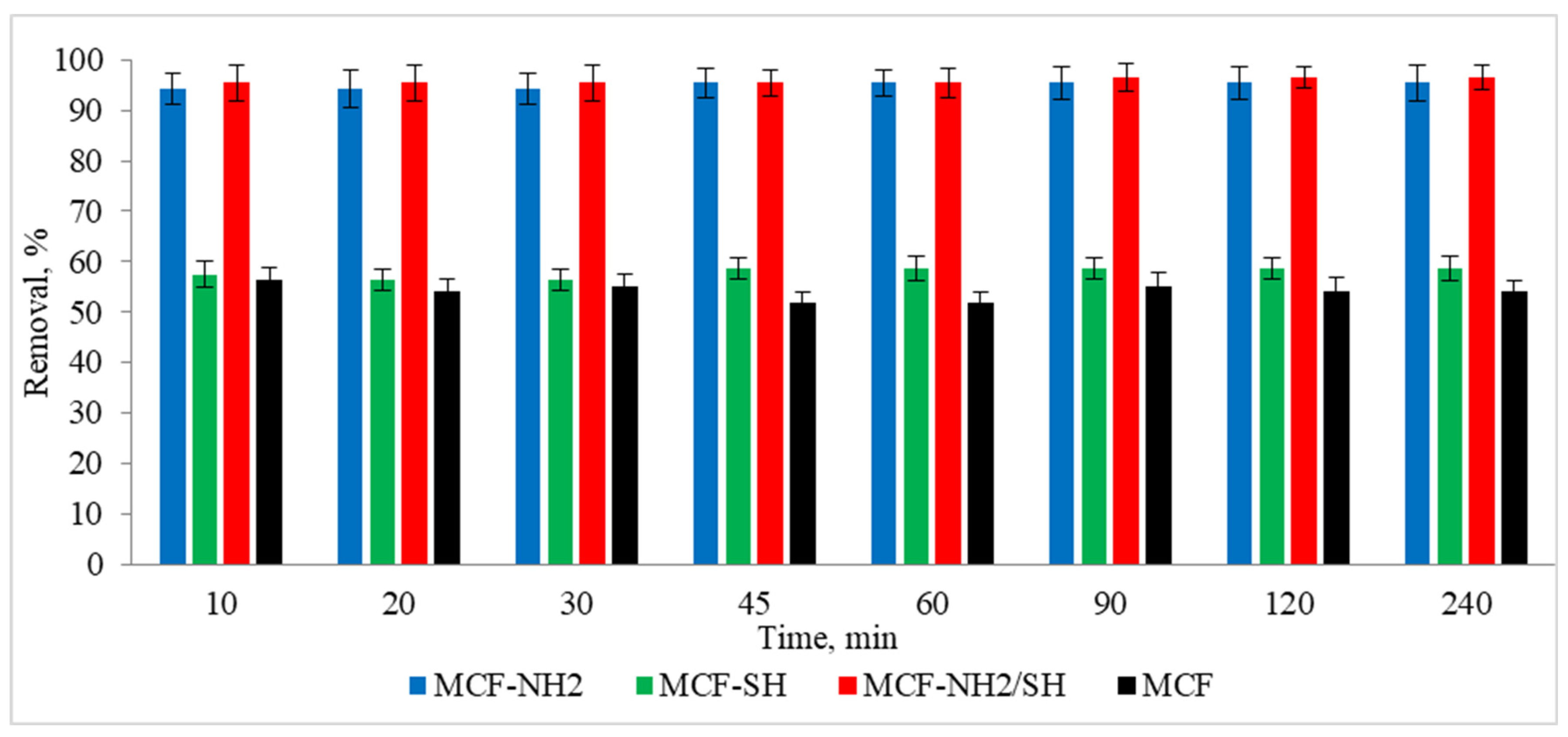

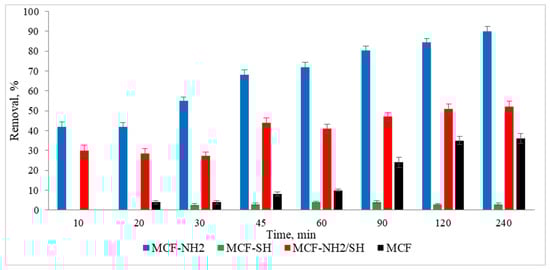

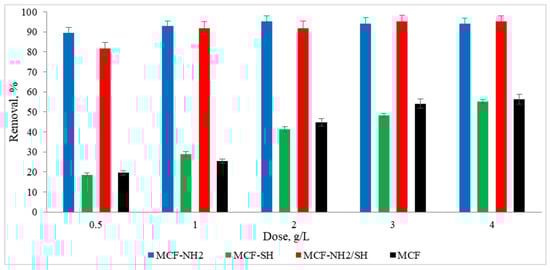

3.4. Effects of Process Time and Adsorbent Dose on the Efficiency of Zinc and Colour Adsorption Efficiency from Rainwater

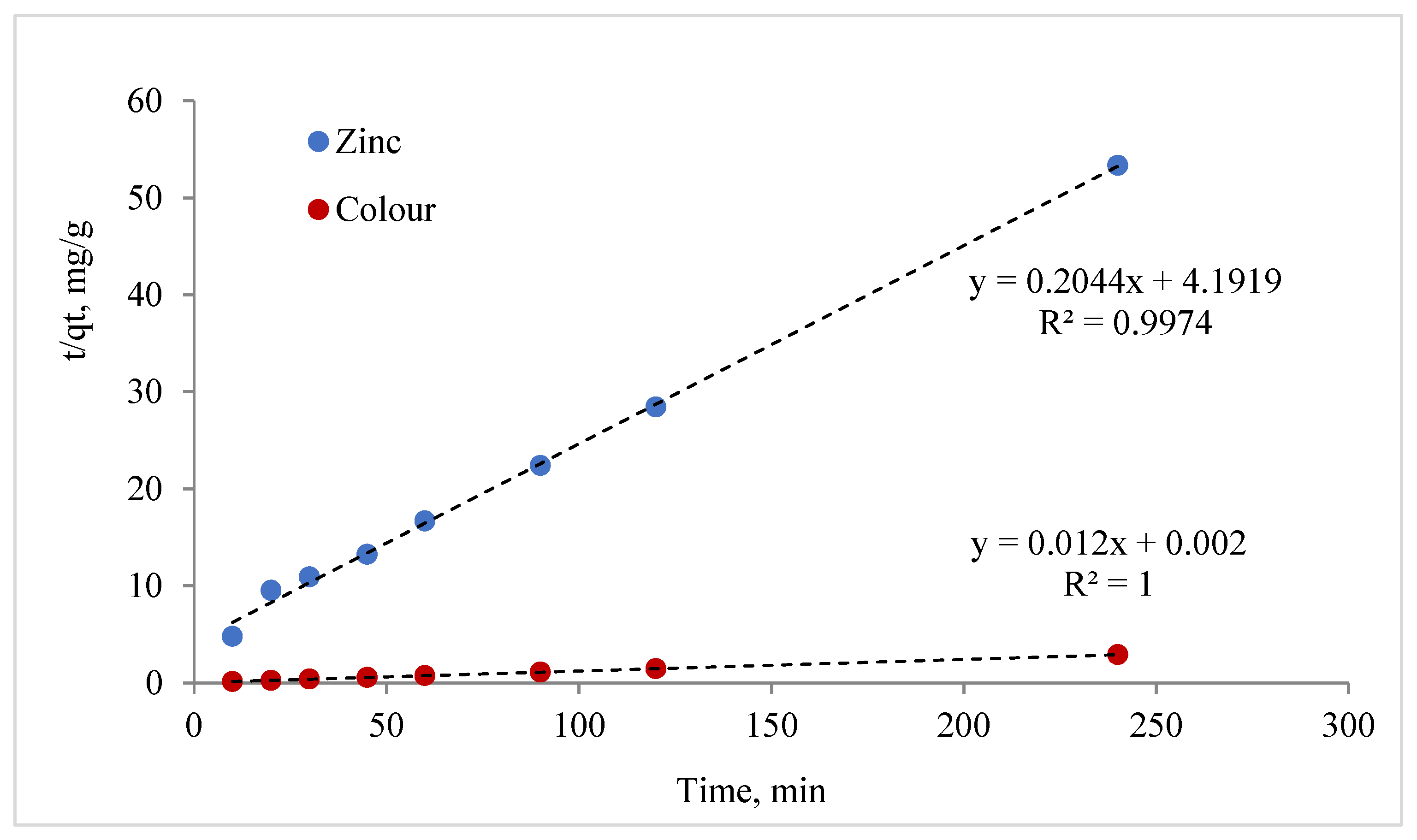

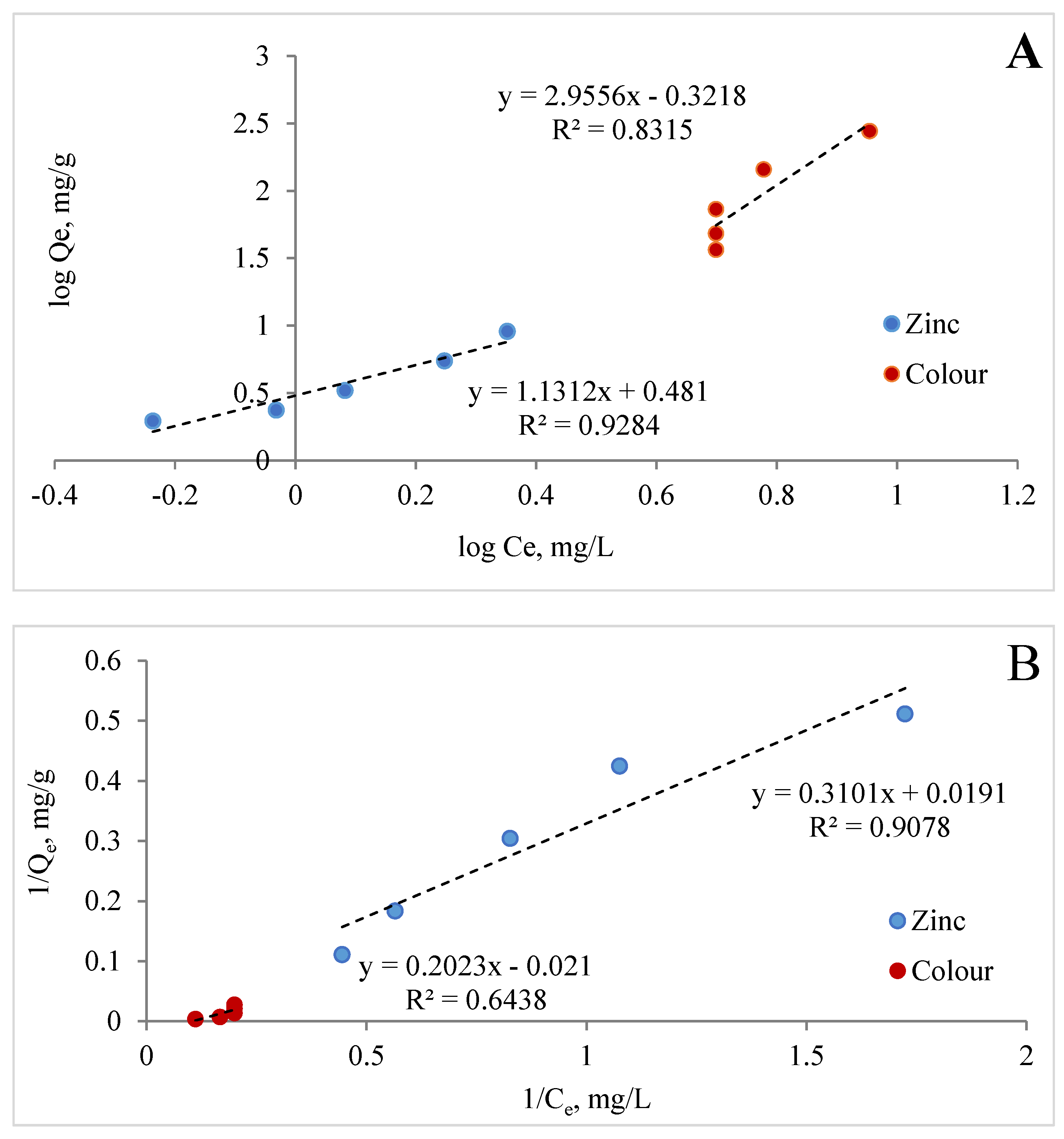

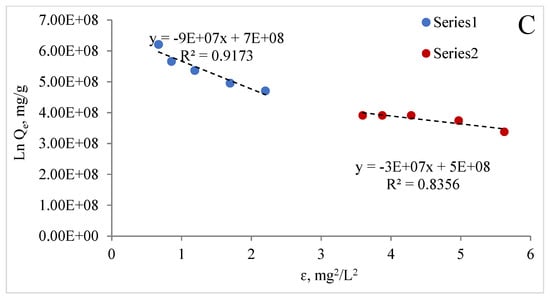

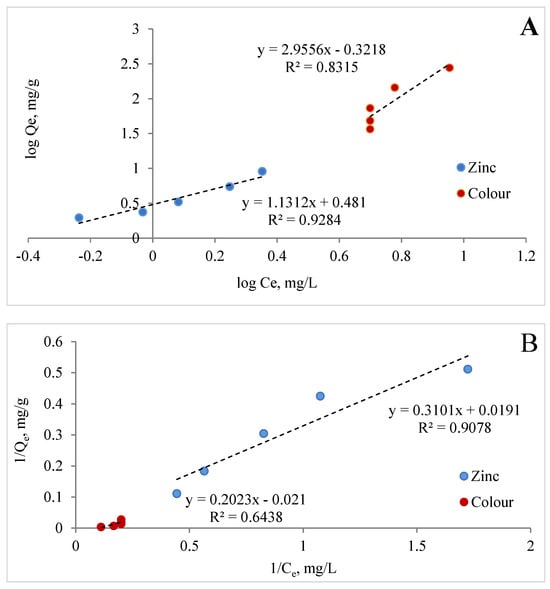

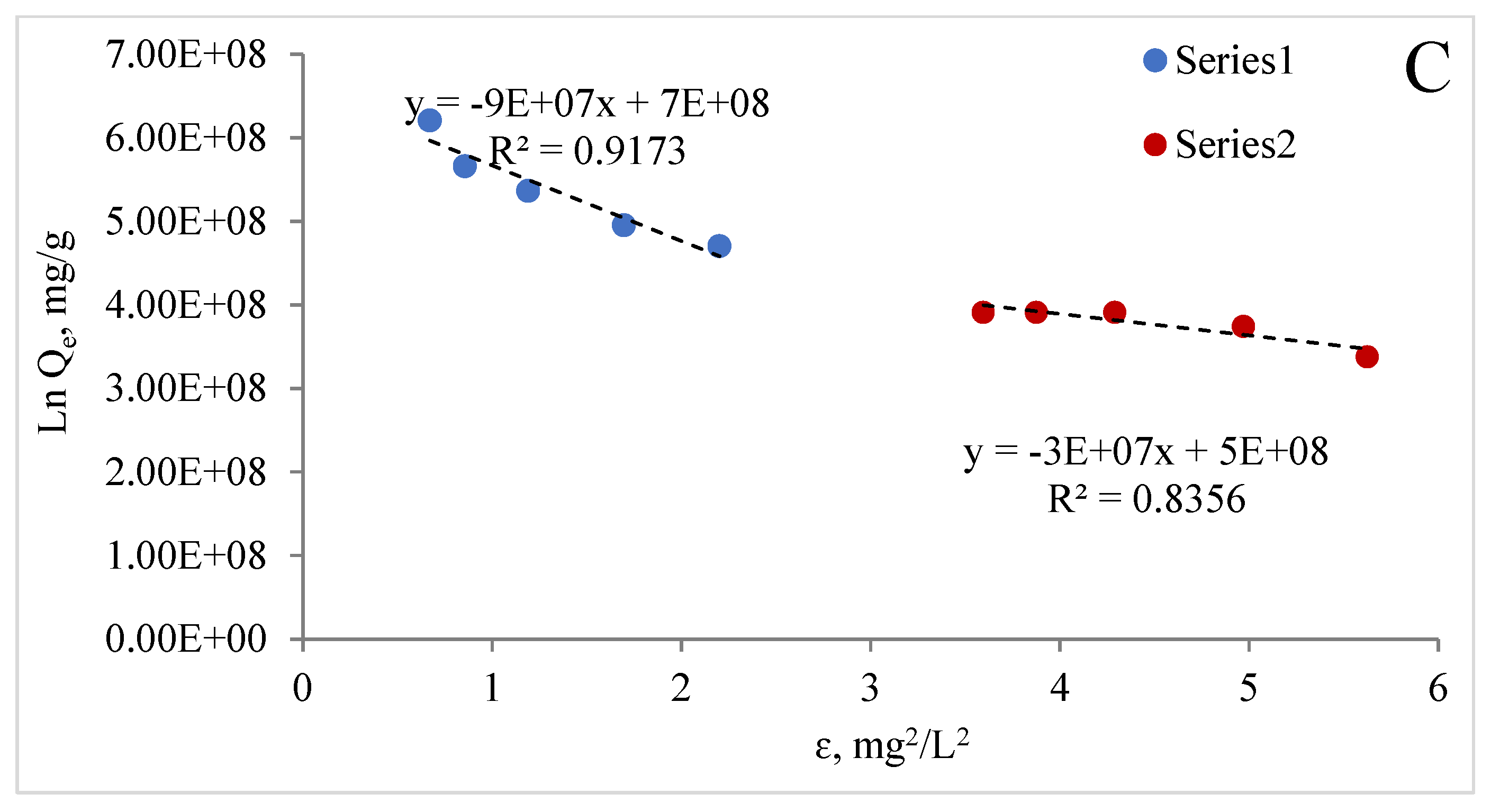

3.5. Zinc Adsorption and Colour Isotherms and Kinetics for MCF-NH2
4. Conclusions
- The results of the analysis of rainwater by the applicable Polish Regulation on the quality of rainwater show that the permissible concentration of zinc was exceeded. In addition, various compounds such as alkanes, phenol derivatives, and benzothiazole were found.
- MCF-NH2 was found to be effective in the adsorption of zinc ions and colour.
- On the other hand, MCF-NH2/SH showed high colour removal efficiency, while in the case of zinc removal it was less effective than MCF-NH2. Studies confirm the effectiveness of modified MCF in the removal of organic micropollutants, especially phenolic compounds and benzothiazole. However, the alkanes were not adsorbed, probably due to their low polarity and weak intermolecular interactions.
- It was found that the adsorption of zinc and colour by MCF-NH2 can be consistent with the Langmuir and Freundlich isotherm models. Research suggests that functionalization of silica carriers may affect their ability to remove heavy metals. In conclusion, adsorption is affected by the mechanisms of both chemisorption and pore-filling, and functional groups on the surfaces of porous materials form stable compounds with heavy metals.
- It was found that the adsorption was carried out according to second-order kinetics—the model used can be used to determine the relevant kinetic parameters.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Gabr, M.E.; El Shorbagy, A.M.; Faheem, H.B. Assessment of Stormwater Quality in the Context of Traffic Congestion: A Case Study in Egypt. Sustainability 2023, 15, 13927. [Google Scholar] [CrossRef]
- Generowicz, A.; Gronba-Chyła, A.; Kulczycka, J.; Harazin, P.; Gaska, K.; Ciuła, J.; Ocłoń, P. Life Cycle Assessment for the environmental impact assessment of a city’ cleaning system. The case of Cracow (Poland). J. Clean. Prod. 2023, 382, 135184. [Google Scholar] [CrossRef]
- Emmanuel, E.; Balthazard-Accou, K.; Osnick, J. Impact of Urban Wastewater on Biodiversity of Aquatic Ecosystems. In Environmental Management, Sustainable Development and Human Health; CRC Press/Balkema: Boca Raton, FL, USA, 2009; Chapter 29. [Google Scholar]
- Gronba-Chyła, A.; Generowicz, A.; Kwaśnicki, P.; Cycoń, D.; Kwaśny, J.; Grąz, K.; Gaska, K.; Ciuła, J. Determining the Effectiveness of Street Cleaning with the Use of Decision Analysis and Research on the Reduction in Chloride in Waste. Energies 2022, 15, 3538. [Google Scholar] [CrossRef]
- Göbel, P.; Dierkes, C.; Coldewey, W.G. Storm water runoff concentration matrix for urban areas. J. Contam. Hydrol. 2007, 91, 26–42. [Google Scholar] [CrossRef] [PubMed]
- Zhang, D.-Q.; Gersberg, R.; Ng, J.; Tan, S. Conventional and decentralized urban stormwater management: A comparison through case studies of Singapore and Berlin, Germany. Urban Water J. 2015, 14, 113–124. [Google Scholar] [CrossRef]
- Yang, Y.; Zhang, X.; Jiang, J.; Han, J.; Li, W.; Li, X.; Leung, K.M.Y.; Snyder, S.A.; Alvarez, P.J.J. Which Micropollutants in Water Environments Deserve More Attention Globally? Environ. Sci. Technol. 2022, 56, 13–29. [Google Scholar] [CrossRef] [PubMed]
- Kumar, A.; Deepika; Tyagi, D.; Tarkeshwar; Kapinder. Organic Micropollutants and Their Effects on the Environment and Human Health. In Organic Micropollutants in Aquatic and Terrestrial Environments; Bhadouria, R., Tripathi, S., Singh, P., Singh, R., Singh, H.P., Eds.; Springer: Cham, Switzerland, 2024. [Google Scholar] [CrossRef]
- Villagómez-Márquez, N.; Abrell, L.; Foley, T.; Ramírez-Andreotta, M.D. Organic micropollutants measured in roof-harvested rainwater from rural and urban environmental justice communities in Arizona. Sci. Total Environ. 2023, 876, 162662. [Google Scholar] [CrossRef] [PubMed]
- Gasperi, J.; Sebastian, C.; Ruban, V.; Delamain, M.; Percot, S.; Wiest, L.; Mirande, C.; Caupos, E.; Demare, D.; Kessoo, M.D.K.; et al. Micropollutants in urban stormwater: Occurrence, concentrations, and atmospheric contributions for a wide range of contaminants in three French catchments. Environ. Sci. Pollut. Res. 2014, 21, 5267–5281. [Google Scholar] [CrossRef] [PubMed]
- Lee, T.H.Y.; Srinuansom, K.; Snyder, S.A.; Ziegler, A.D. Atmosphere-Transported Emerging and Persistent Contaminants (EPCs) in Rainfall and Throughfall: Insights from a Rural Site in Northern Thailand. Atmosphere 2023, 14, 1603. [Google Scholar] [CrossRef]
- Fuchte, H.E.; Beck, N.; Bieg, E.; Bayer, V.J.; Achten, C.; Krauss, M.; Schäffer, A.; Smith, K.E.C. A look down the drain: Identification of dissolved and particle bound organic pollutants in urban runoff waters and sediments. Environ. Pollut. 2022, 302, 119047. [Google Scholar] [CrossRef] [PubMed]
- Iroegbulema, I.U.; Egereonu, U.U.; Ogukwea, C.E.; Egereonub, J.C.; Okorocand, N.J.; Nwoko, C.I.A. Assessment of Heavy Metals in Rainwater from Metropolis and Suburbs, Lagos State, Nigeria. Int. J. Environ. Clim. Chang. 2023, 13, 831–857. [Google Scholar] [CrossRef]
- Başak, B.; Alagha, O. Trace metals solubility in rainwater: Evaluation of rainwater quality at a watershed area, Istanbul. Env. Monit. Assess. 2010, 167, 493–503. [Google Scholar] [CrossRef] [PubMed]
- Cheng, M.-C.; You, C.-F.; Lin, F.-J.; Huang, K.-F.; Chung, C.-H. Sources of Cu, Zn, Cd and Pb in rainwater at a subtropical islet offshore northern Taiwan. Atmos. Environ. 2011, 45, 1919–1928. [Google Scholar] [CrossRef]
- Sharma, P.; Rai, V. Assessment of rain water chemistry in the Lucknow metropolitan city. Appl. Water Sci. 2018, 8, 67. [Google Scholar] [CrossRef]
- Hatt, B.E.; Deletic, A.; Fletcher, T.D. Integrated treatment and recycling of stormwater: A review of Australian practice. J. Environ. Manag. 2006, 79, 102–113. [Google Scholar] [CrossRef] [PubMed]
- Ciuła, J.; Gaska, K.; Siedlarz, D.; Koval, V. Management of sewage sludge energy use with the application of bi-functional bioreactor as an element of pure production in industry. E3S Web Conf. 2019, 123, 01016. [Google Scholar] [CrossRef]
- Ewis, D.; Ba-Abbad, M.M.; Benamor, A.; El-Naas, M.H. Adsorption of organic water pollutants by clays and clay minerals composites: A comprehensive review. Appl. Clay Sci. 2022, 229, 106686. [Google Scholar] [CrossRef]
- Azha, S.F.; Shahadat, M.; Ismail, S.; Ali, S.W.; Ahammad, S.Z. Prospect of clay-based flexible adsorbent coatings as cleaner production technique in wastewater treatment, challenges, and issues: A review. J. Taiwan Inst. Chem. Eng. 2021, 120, 178–206. [Google Scholar] [CrossRef]
- Tehrani, N.H.M.H.; Ardjmand, M.; Bazmi, M.; Rashidi, A.; Zadeh, M.R.M. Polydopamine-modified mesoporous silica materials as a novel adsorbent for superior CO2 adsorption: Experimental and DFT study. J. Environ. Chem. Eng. 2023, 11, 110451. [Google Scholar] [CrossRef]
- Addy, M.; Losey, B.; Mohseni, R.; Zlotnikov, E.; Vasiliev, A. Adsorption of heavy metal ions on mesoporous silica-modified montmorillonite containing a grafted chelate ligand. Appl. Clay Sci. 2012, 59–60, 115–120. [Google Scholar] [CrossRef]
- Ciuła, J.; Kowalski, S.; Wiewiórska, I. Pollution Indicator of a Megawatt Hour Produced in Cogeneration—The Efficiency of Biogas Purification Process as an Energy Source for Wastewater Treatment Plants. J. Ecol. Eng. 2023, 24, 232–245. [Google Scholar] [CrossRef] [PubMed]
- Ueta, I.; Hayashibe, M.; Sumiya, K.; Ariizumi, Y.; Fujimura, K.; Saito, Y. Polydimethylsiloxane-coated macroporous silica adsorbent in thermal desorption gas chromatography. J. Chromatogr. Open 2023, 3, 100084. [Google Scholar] [CrossRef]
- Li, H.; Chen, X.; Shen, D.; Wu, F.; Pleixats, R.; Pan, J. Functionalized silica nanoparticles: Classification, synthetic approaches and recent advances in adsorption applications. Nanoscale 2021, 13, 5998–16016. [Google Scholar] [CrossRef] [PubMed]
- Wieszczycka, K.; Wojciechowska, I.; Filipowiak, K.; Buchwald, T.; Nowicki, M.; Dudzinska, P.; Strzemiecka, B.; Voelkel, A. Novel iminepyridinium-modified silicas as super-adsorbents for metals ions. Appl. Surf. Sci. 2022, 596, 153555. [Google Scholar] [CrossRef]
- Angotzi, M.S.; Mameli, V.; Cara, C.; Borchert, K.B.L.; Steinbach, C.; Boldt, R.; Schwarz, D.; Canna, C. Meso- and macroporous silica-based arsenic adsorbents: Effect of pore size, nature of the active phase, and silicon release. Nanoscale Adv. 2021, 3, 6100–6113. [Google Scholar] [CrossRef]
- Wang, P.; Du, M.; Zhu, H.; Bao, S.; Yang, T.; Zou, M. Structure regulation of silica nanotubes and their adsorption behaviors for heavy metal ions: pH effect, kinetics, isotherms and mechanism. J. Hazard. Mat. 2015, 286, 533–544. [Google Scholar] [CrossRef] [PubMed]
- Chaabane, L.; Nikolantonaki, M.; Weber, G.; Bezverkhyy, I.; Chassagnon, R.; Assifaoui, A.; Bouyer, F. Functionalization of SBA-15 mesoporous silica for highly efficient adsorption of glutathione: Characterization and modeling studies. J. Taiwan Inst. Chem. Eng. 2023, 152, 105169. [Google Scholar] [CrossRef]
- Antony, J.; Gonzalez, S.V.; Bandyopadhyay, S.; Yang, J.; Rønning, M. Silica-modified bismutite nanoparticles for enhanced adsorption and faster solar photocatalytic degradation of methylene blue. Catal. Today 2023, 413–415, 113986. [Google Scholar] [CrossRef]
- Cheng, L.; Sun, X.; Li, Q.; Yang, J.; Wang, R.; Sun, X.; Wei, L. Construction of C8/threonine-functionalized mesoporous silica aerogel based on mixed-mode and its adsorption properties for both anionic and cationic dyes. Powder Technol. 2024, 434, 119360. [Google Scholar] [CrossRef]
- Shan, W.; Zhang, Y.; Shu, Y.; Zhang, D.; Xing, C.; Xiong, Y. Enhanced adsorption and separation of Re(VII) using organic-inorganic hybrid silica adsorbent. Microporous Mesoporous Mater. 2021, 317, 110996. [Google Scholar] [CrossRef]
- Da’na, E. Adsorption of heavy metals on functionalized-mesoporous silica: A review. Microporous Mesoporous Mater. 2017, 247, 145–157. [Google Scholar] [CrossRef]
- Cao, Y.; Malekshah, R.E.; Heidari, Z.; Pelalak, R.; Marjani, A.; Shirazian, S. Molecular dynamic simulations and quantum chemical calculations of adsorption process using amino-functionalized silica. J. Mol. Liq. 2021, 330, 115544. [Google Scholar] [CrossRef]
- Lamy-Mendes, A.; Torres, R.B.; Vareda, J.P.; Lopes, D.; Ferreira, M.; Valente, V.; Girão, A.V.; Valente, A.J.M.; Durães, L. Amine Modification of Silica Aerogels/Xerogels for Removal of Relevant Environmental Pollutants. Molecules 2019, 24, 3701. [Google Scholar] [CrossRef] [PubMed]
- Kudlek, E. Decomposition of contaminants of emerging concern in advanced oxidation processes. Water 2018, 10, 955. [Google Scholar] [CrossRef]
- Jarzębski, A.B.; Szymańska, K.; Bryjak, J.; Mrowiec-Białoń, J. Covalent immobilization of trypsin on to siliceous mesostructured cellular foams to obtain effective biocatalysts. Catal. Today 2007, 124, 2–10. [Google Scholar] [CrossRef]
- Szymańska, K.; Bryjak, J.; Jarzębski, A.B. Immobilization of Invertase on Mesoporous Silicas to Obtain Hyper Active Biocatalysts. Top. Catal. 2009, 52, 1030–1036. [Google Scholar] [CrossRef]
- Kamińska, G.; Bohdziewicz, J. Potential of various materials for adsorption of micropollutants from wastewater. Environ. Prot. Eng. 2016, 42, 161–178. [Google Scholar] [CrossRef] [PubMed]
- Marszałek, A.; Kamińska, G.; Fathy Abdel Salam, N. Simultaneous adsorption of organic and inorganic micropollutants from rainwater by bentonite and bentonite-carbon nanotubes composites. J. Water Process Eng. 2022, 46, 102550. [Google Scholar] [CrossRef]
- Maury, S.; Buisson, P.; Pierre, A.C. Porous texture modification of silica aerogels in liquid media and its effect on the activity of a lipase. Langmuir 2001, 17, 6443–6446. [Google Scholar] [CrossRef]
- Zhang, X.; Guan, R.-F.; Wu, D.-Q.; Chan, K.-Y. Enzyme immobilization on amino-functionalized mesostructured cellular foam surfaces, characterization and catalytic properties. J. Mol. Catal. B Enzym. 2005, 33, 43–50. [Google Scholar] [CrossRef]
- Karbowiak, T.; Saada, M.A.; Rigolet, S.; Ballandras, A.; Weber, G.; Bezverkhyy, I.; Soulard, M.; Patarin, J.; Bellat, J.-P. New insights in the formation of silanol defects in silicalite-1 by water intrusion under high pressure. Phys. Chem. Chem. Phys. 2010, 12, 11454–11466. [Google Scholar] [CrossRef] [PubMed]
- Chrzanowska, A.; Derylo-Marczewska, A.; Wasilewska, M. Mesocellular silica foams (MCFs) with tunable pore size as a support for lysozyme immobilization: Adsorption equilibrium and kinetics, biocomposite properties. Int. J. Mol. Sci. 2020, 21, 5479. [Google Scholar] [CrossRef] [PubMed]
- Ciemięga, A.; Maresz, K.; Mrowiec-Białoń, J. Meervein-Ponndorf-Vereley reduction of carbonyl compounds in monolithic siliceous microreactors doped with Lewis acid centres. Appl. Catal. A Gen. 2018, 560, 111–118. [Google Scholar] [CrossRef]
- Szymańska, K.; Bryjak, J.; Mrowiec-Białoń, J.; Jarzębski, A.B. Application and properties of siliceous mesostructured cellular foams as enzymes carriers to obtain efficient biocatalysts. Microporous Mesoporous Mater. 2007, 99, 167–175. [Google Scholar] [CrossRef]
- Regulation of the Minister of Maritime Economy and Inland Navigation. Journal of Laws 2019, item 1311. Available online: https://isap.sejm.gov.pl/isap.nsf/DocDetails.xsp?id=WDU20190001311 (accessed on 2 May 2024).
- Sieber, G.; Beisser, D.; Rothenberger, J.; Shah, M.; Schumann, M.; Sures, B.; Boenigk, J. Microbial community shifts induced by plastic and zinc as substitutes of tire abrasion. Sci. Rep. 2022, 12, 18684. [Google Scholar] [CrossRef] [PubMed]
- Wicke, D.; Matzinger, A.; Sonnenberg, H.; Caradot, N.; Schubert, R.-L.; Dick, R.; Heinzmann, B.; Dünnbier, U.; von Seggern, D.; Rouault, P. Micropollutants in Urban Stormwater Runoff of Different Land Uses. Water 2021, 13, 1312. [Google Scholar] [CrossRef]
- Jakubowicz, P.; Fitobór, K.; Gajewska, M.; Drewnowska, M. Detection and Removal of Priority Substances and Emerging Pollutants from Stormwater: Case Study of the Kołobrzeska Collector, Gdańsk, Poland. Sustainability 2022, 14, 1105. [Google Scholar] [CrossRef]
- Westbrook, C.K.; Pitz, W.J.; Herbinet, O.; Curran, H.J.; Silke, E.J. A comprehensive detailed chemical kinetic reaction mechanism for combustion of n-alkane hydrocarbons from n-octane to n-hexadecane. Combust. Flame 2009, 156, 181–199. [Google Scholar] [CrossRef]
- Feltracco, M.; Mazzi, G.; Barbaro, E.; Rosso, B.; Sambo, F.; Biondi, S.; Gambaro, A. Occurrence and phase distribution of benzothiazoles in untreated highway stormwater runoff and road dust. Environ. Sci. Pollut. Res. 2023, 30, 107878–107886. [Google Scholar] [CrossRef] [PubMed]
- Struk-Sokołowska, J.; Gwoździej-Mazur, J.; Jurczyk, Ł.; Jadwiszczak, P.; Kotowska, U.; Piekutin, J.; Canales, F.A.; Kaźmierczak, B. Environmental risk assessment of low molecule benzotriazoles in urban road rainwaters in Poland. Sci. Total Environ. 2022, 839, 156246. [Google Scholar] [CrossRef] [PubMed]
- Men, C.; Liu, R.; Xu, F.; Wang, Q.; Guo, L.; Shen, Z. Pollution characteristics, risk assessment, and source apportionment of heavy metals in road dust in Beijing, China. Sci. Total Environ. 2018, 612, 138–147. [Google Scholar] [CrossRef] [PubMed]
- Kim, L.-H.; Kayhanian, M.; Zoh, K.-D.; Stenstrom, M.K. Modeling of highway stormwater runoff. Sci. Total Environ. 2005, 348, 1–18. [Google Scholar] [CrossRef] [PubMed]
- Jensen, D.M.R.; Thomsen, A.T.H.; Larsen, T.; Egemose, S.; Mikkelsen, P.S. From EU Directives to Local Stormwater Discharge Permits: A Study of Regulatory Uncertainty and Practice Gaps in Denmark. Sustainability 2020, 12, 6317. [Google Scholar] [CrossRef]
- Novaes, C.A.F.O.; Marques, R.C. Regulation of urban stormwater management is not a matter of choice, but performance. Water Policy 2022, 24, 1325–1342. [Google Scholar] [CrossRef]
- Bichai, F.; Ashbolt, N. Public health and water quality management in low-exposure stormwater schemes: A critical review of regulatory frameworks and path forward. Sustain. Cities Soc. 2017, 28, 453–465. [Google Scholar] [CrossRef]
- Hafezian, S.M.; Biparva, P.; Bekhradnia, A.; Azizi, S.N. Amine and thiol functionalization of SBA-15 nanoparticles for highly efficient adsorption of sulforaphane. Adv. Powder Technol. 2021, 32, 779–790. [Google Scholar] [CrossRef]
- Xie, Y.; Lyu, S.; Zhang, Y.; Cai, C. Adsorption and Degradation of Volatile Organic Compounds by Metal–Organic Frameworks (MOFs): A Review. Materials 2022, 15, 7727. [Google Scholar] [CrossRef] [PubMed]
- Pourhakkak, P.; Taghizadeh, M.; Taghizadeh, A.; Ghaedi, M. Adsorbent. In Adsorption: Fundamental Processes and Applications, Interface Science and Technology; Ghaedi, M., Ed.; Elsevier: Amsterdam, The Netherlands, 2021; Volume 33, pp. 71–210. [Google Scholar] [CrossRef]
- Nakanishi, K.; Tomita, M.; Kato, K. Synthesis of amino-functionalized mesoporous silica sheets and their application for metal ion capture. J. Asian Ceram. Soc. 2015, 3, 70–76. [Google Scholar] [CrossRef]
- Melnyk, I.V.; Tomina, V.V.; Stolyarchuk, N.V.; Seisenbaeva, G.A.; Kessler, V.G. Organic dyes (acid red, fluorescein, methylene blue) and copper(II) adsorption on amino silica spherical particles with tailored surface hydrophobicity and porosity. J. Mol. Liq. 2021, 336, 116301. [Google Scholar] [CrossRef]
- Li, J.; Miao, X.; Hao, Y.; Zhao, J.; Sun, X.; Wang, L. Synthesis, amino-functionalization of mesoporous silica and its adsorption of Cr(VI). J. Colloid Interface Sci. 2008, 318, 309–314. [Google Scholar] [CrossRef] [PubMed]
- Wang, J.; Zheng, S.; Liu, J.; Xu, Z. Tannic acid adsorption on amino-functionalized magnetic mesoporous silica. Chem. Eng. J. 2010, 165, 10–16. [Google Scholar] [CrossRef]
- Aguado, J.; Arsuaga, J.M.; Arencibia, A.; Lindo, M.; Gascón, V. Aqueous heavy metals removal by adsorption on amine-functionalized mesoporous silica. J. Hazard. Mater. 2009, 163, 213–221. [Google Scholar] [CrossRef] [PubMed]
- Huynh, J.; Palacio, R.; Allavena, A.; Gallard, H.; Descostes, M.; Mamède, A.-S.; Royer, S.; Tertre, E.; Batonneau-Gener, I. Selective adsorption of U(VI) from real mine water using an NH2-functionalized silica packed column. Chem. Eng. J. 2021, 405, 126912. [Google Scholar] [CrossRef]
- Jayalath, S.; Larsen, S.C.; Grassian, V.H. Surface adsorption of Nordic aquatic fulvic acid on amine-functionalized and non-functionalized mesoporous silica nanoparticles. Environ. Sci. Nano 2018, 5, 2162–2171. [Google Scholar] [CrossRef]
- Ebrahimi-Gatkash, M.; Younesi, H.; Shahbazi, A.; Heidari, A. Amino-functionalized mesoporous MCM-41 silica as an efficient adsorbent for water treatment: Batch and fixed-bed column adsorption of the nitrate anion. Appl. Water Sci. 2017, 7, 1887–1901. [Google Scholar] [CrossRef]
- Nayab, S.; Farrukh, A.; Oluz, Z.; Tuncel, E.; Tariq, S.R.; Rahman, H.; Kirchhoff, K.; Duran, H.; Yameen, B. Design and Fabrication of Branched Polyamine Functionalized Mesoporous Silica: An Efficient Absorbent for Water Remediation. ACS Appl. Mater. Interfaces 2014, 6, 4408–4417. [Google Scholar] [CrossRef]
- Flores, D.; Almeida, C.M.R.; Gomes, C.R.; Balula, S.S.; Granadeiro, C.M. Tailoring of Mesoporous Silica-Based Materials for Enhanced Water Pollutants Removal. Molecules 2023, 28, 4038. [Google Scholar] [CrossRef]
- Brigante, M.; Pecini, E.; Avena, M. Magnetic mesoporous silica for water remediation: Synthesis, characterization and application as adsorbent of molecules and ions of environmental concern. Microporous Mesoporous Mater. 2016, 230, 1–10. [Google Scholar] [CrossRef]
- Zhao, H.; Nagy, K.L.; Waples, J.S.; Vance, G.F. Surfactant-Templated Mesoporous Silicate Materials as Sorbents for Organic Pollutants in Water. Environ. Sci. Technol. 2000, 34, 22. [Google Scholar] [CrossRef]
- Wang, T.; Li, Y.; Wu, J.; Hu, Y. Pivotal role of pH value in the preparation of mesoporous silica with high surface area for toluene adsorption. Mater. Lett. 2024, 364, 136381. [Google Scholar] [CrossRef]
- Mobasherpour, I.; Salahi, E.; Ebrahimi, M. Thermodynamics and kinetics of adsorption of Cu(II) from aqueous solutions onto multi-walled carbon nanotubes. J. Saudi Chem. Soc. 2014, 18, 792–801. [Google Scholar] [CrossRef]
- Makara, A.; Kowalski, Z.; Sówka, I. Possibility to eliminate emission of odor from pig manure using AMAK filtration method. Desalin. Water Treat. 2016, 57, 1543–1551. [Google Scholar] [CrossRef]
- Zhang, Y.; Jia, S.; Yuan, X.; Ding, L.; Ai, T.; Yuan, K.; Wang, W.; Magagnin, L.; Jiang, Z. High-efficiency removal of Pb (II) and Cu (II) by amidoxime functionalized silica aerogels: Preparation, adsorption mechanisms and environmental impacts analysis. Sep. Purif. Technol. 2024, 335, 126079. [Google Scholar] [CrossRef]
- Wang, H.; Kang, J.; Liu, H.; Qu, J. Preparation of organically functionalized silica gel as adsorbent for copper ion adsorption. J. Environ. Sci. 2009, 21, 1473–1479. [Google Scholar] [CrossRef] [PubMed]
- Zhang, P.; He, M.; Teng, W.; Li, F.; Qiu, X.; Li, K.; Wang, H. Ordered mesoporous materials for water pollution treatment: Adsorption and catalysis. Green Energy Environ. 2023. [Google Scholar] [CrossRef]
Parameter | Determination Method |
---|---|
pH | The multifunctional analyser CX-461 (Elmetron, Zabrze, Poland). |
Conductivity | |
TOC | TOC-L series analyser (Shimadzu, Kioto, Prefektura Kioto, Japan). |
COD | Test Method—UV–Vis Spectroquant® Prove 100 (Merck, Kenilworth, NJ, USA). (Measuring ranges: NO3—0.2–20 mgN-NO3/L, PO4—0.5–30 mgP-PO4/L), colour—0–2500 mgPt/L, COD—10–150 mgO2/L, Cu—0.02–6.0 mgCu/L, Ni—0.02–6.0 mgNi/L, Pb—0.01–5.0 mgPb/L, Zn—0.2–5.0 mgZn/L. |
Nitrate nitrogen | |
Phosphate phosphorus | |
Colour | |
Copper | |
Nickel | |
Zinc | |
Lead |
Sample | SBET [m2/g] | VpN2 [cm3/g] | dp [nm] | dw [nm] |
---|---|---|---|---|
MCF | 480 | 2.1 | 24 | 15 |
MCF-NH2 | 300 | 1.5 | 19.7 | 13.0 |
MCF-SH | 370 | 1.8 | 23.1 | 14.3 |
MCF-NH2/SH | 380 | 1.9 | 22.1 | 14.9 |
Parameter | Unit | Rainwater | Polish Regulation [47], Journal of Laws 2019, Item 1311 |
---|---|---|---|
pH | - | 6.7 | 6.5–9.0 |
Conductivity | mS/cm | 5.78 | - |
Colour | mgPt/L | 21 | - |
TOC | mgC/L | 2.64 | 30.0 |
COD | mgO2/L | 63 | 125.0 |
Hardness | mval/L | 3.2 | - |
N-NO3− | mg/L | 3.3 | 30 |
P-PO43− | mg/L | 0.0 | 1.0 |
Zn | mg/L | 4.7 | 2.0 |
Cu | mg/L | 0.00 | 0.5 |
Ni | mg/L | 0.07 | 0.5 |
Pb | mg/L | 0.00 | 0.5 |

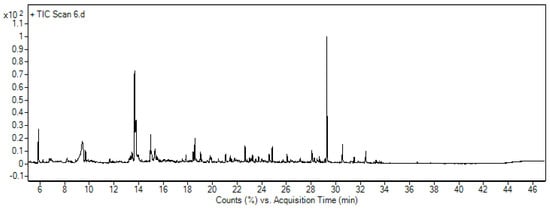

Compounds | Rt [min] | CAS Number | Molar Mass [g/mol] |
---|---|---|---|
Neodecanoic acid | 14.977 | 26896-20-8 | 214.34 |
Benzothiazole | 15.058 | 95-16-9 | 135.19 |
2-Hydroxyhexadecyl butanoate | 15.346 | 145590-21-9 | 314.5 |
Hexanoic acid, 2-ethyl-, methyl ester | 15.496 | 7425-23-2 | 158.24 |
Pentanoic acid, 2-acetyl-4-methyl-, methyl ester | 16.059 | 38629-82-0 | 186.23 |
Phenol, 2,6-dimethoxy- | 18.442 | 91-17-8 | 182.21 |
(1R,2R,3S,5R)-(-)-2,3-Pinanediol | 18.573 | 4770-94-9 | 166.22 |
2-Piperidinone, N-[4-bromo-n-butyl]- | 19.043 | 27761-74-8 | 242.10 |
Benzyl oleate | 21.445 | 3687-45-4 | 316.46 |
5-tert-Butylpyrogallol | 21.814 | 96-26-4 | 214.24 |
2,4-Di-tert-butylphenol | 22.652 | 96-76-4 | 206.32 |
Hexadecane | 24.635 | 544-76-3 | 226.43 |
Dodecane, 2,6,10-trimethyl- | 24.86 | 3341-81-3 | 224.43 |
Heptacosane | 27.813 | 629-80-1 | 396.86 |
Tetradecane, 2,6,10-trimethyl- | 28.075 | 594-82-1 | 226.43 |
Octadecane | 29.289 | 593-45-3 | 254.51 |
Diisobutyl phthalate | 30.553 | 84-69-5 | 278.34 |
Dibutyl phthalate | 32.454 | 84-74-2 | 278.34 |
Adsorbent | Langmuir | Freundlich | Dubinin–Radushkevich | |||||
---|---|---|---|---|---|---|---|---|
Qm (mg/g) | KL (L/mg) | R2 (-) | KF ((mg/g) L/mg)n) | n (-) | R2 (-) | E (J/mol) | R2 (-) | |
Zinc | 52.36 | 0.06 | 0.91 | 3.03 | 0.88 | 0.93 | 1054.9 | 0.917 |
Colour | 47.62 | 0.10 | 0.64 | 2.10 | 0.34 | 0.83 | 1825.74 | 0.836 |
Adsorbate | Pseudo-First-Order Equation Parameters | Pseudo-Second-Order Equation Parameters | ||||
---|---|---|---|---|---|---|
K1 (1/min) | Qe (mg/g) | R2 | K2 (g/(mg·min)) | Qe (mg/g) | R2 | |
Zinc | 0.0205 | 13.82 | 0.989 | 0.01 | 4.89 | 0.997 |
Colour | 0.001 | 34.94 | 0.389 | 0.072 | 83.3 | 1 |
