New Calamitic Mesogens Exhibiting Aggregation-Induced Emission (AIE)

by
Saurav Paul
1,
Bimal Bhushan Chakraborty
1,
Nandiraju V. S. Rao
1 and
Sudip Choudhury
1,2,*
1
Department of Chemistry, Assam University, Silchar 788011, India
2
Centre for Soft Matter, Department of Chemistry, Assam University, Silchar 788011, India
*
Author to whom correspondence should be addressed.
Materials 2024, 17(14), 3587; https://doi.org/10.3390/ma17143587 (registering DOI)
Submission received: 27 July 2023 / Revised: 25 August 2023 / Accepted: 28 August 2023 / Published: 20 July 2024
Browse Figures
Review Reports Versions Notes

Abstract

:
Aggregation-induced emitters or AIEgens are generally signified by their stronger photoluminescence in aggregation than in the solution state. Due to high emission efficiency in aggregate and solid states and good processability, organic AIEgens drew attention to the development of advanced luminescent materials. However, as mesogenic materials self-assemble to a different molecular arrangement in different phases, achieving liquid crystallinity and AIE properties in the same molecule would provide a valuable tool to develop solvent-independent AIEgenic materials. With this goal, the present work reports the synthesis of new organic thermotropic liquid crystalline compounds exhibiting aggregation-induced emission (AIE). The synthesized compounds exhibit strong green luminescence in a solid state which sharply quenches upon entering smectic mesophase by heating. This is in addition to the exhibition of dispersion medium (solvent)-dependent emission, thus providing a dual mode of AIE. The mesogenic property of the synthesized compounds was studied by XRD, POM, and DSC. The AIE was studied by fluorescence spectroscopy and variable temperature fluorescence microscopy. A DFT study was carried out to gain an insight into the AIEgenic behavior of the material.

1. Introduction

Since the discovery of the phenomenon of aggregation-induced emission (AIE) in 2001, luminogens exhibiting aggregation-induced emission (AIEgens) have gained much interest [1]. Such luminogens have emerged as the advanced material of choice with applications in various fields such as chemical sensing [2,3], light emitting devices, bio-imaging [4,5,6,7], etc. AIEgens show very weak emission in solution but emit strongly in an aggregated or solid state. They often exhibit unique advantages like high photostability, high solid quantum yield, and no aggregation-caused quenching (ACQ) effect, thereby offering very promising candidacy in fields such as OLEDs, stimuli-responsive sensing, and theranostics [8,9,10,11]. Various organic cores, such as tetraphenylethene (TPE) [12,13,14], Triphenylamine [15], Tolane [16], cyanostilbene [17], diazafluorenone [18,19], etc., have been employed to design AIEgens. Apart from organic compounds, AIEgens containing transition metals, such as Cu(I) [20], Zn(II) [21], Ir(III) [22], Pt(II) [23], Au(I) [24], etc., have been reported. A comprehensive review of transition metal-containing AIEgenic materials was published by Alam et al. [25]. Recently, Voskuhl and Giese [26] reported a very informative review on mesogens with AIE properties.
The design of compounds co-exhibiting AIE and mesogenicity is quite challenging. This is because the way molecules aggregate is a key factor in both AIE (aggregation-induced emission) and liquid crystallinity [26]. However, designing molecules with the right balance of properties for both mesogenicity and AIE is challenging. While there are reports of mesogenic compounds with good fluorescence [27,28,29,30,31,32], there are very few reports of mesogens that exhibit AIE.
After Yuan’s report in 2012 for the first time about the AIE behavior of TPE-based mesogens [33], the majority of the AIE-based mesogens have been designed around the tetraphenylethene (TPE), cyanostilbene (CST), and tolane (TOL) as the emitting motif [26]. AIE-based liquid crystalline materials have been synthesized using 3-[4-(diphenylamino)phenyl]acrylonitrile [34], pentylcyclohexyl [35], and methacrylate [36]. Aggregation-dependent emissions of H-bonded mesogen have recently been reported by our group [37]. Usually, to design mesogenic materials that exhibit AIE behavior, three approaches are adopted, viz., (i) the covalent attachment of AIEgenic emitter to mesogenic compounds, (ii) the doping of a mesogen with an AIEgen, and (iii) the formation of suitable supramolecular assemblies employing noncovalent interactions, (like metal/ligand interactions, hydrogen bonding, charge transfer, etc.). Amongst these three, the supramolecular approach is, so far, the least investigated one [26].
With continued interest in the design of AIE exhibiting mesogenic compounds based on structurally simpler calamitic architecture, here we report a new fluoro-terminated single side chain Schiff base mesogen exhibiting AIE property.

2. Materials and Methods

2.1. Materials and Instruments

All the chemicals were purchased from Sigma Aldrich (St. Louis, MO, USA) and used as obtained. Solvents were procured from Merck (Rahway, NJ, USA). Polarized optical microscopy (POM) was performed on a Nikon LV100 equipped with Instec Hotstage (Nikon Instruments Inc., Melville, NY, USA). DSC, FTIR, UV-Visible, powder XRD, and Elemental analysis were conducted on PerkinElmer Pyris 1 (PerkinElmer, Waltham, MA, USA), Bruker Alpha II (Bruker, Billerica, MA, USA), Jasco V730 (Jasco, Oklahoma City, Oklahoma), Rigaku Ultima IV (Rigaku, Tokyo, Japan), and PerkinElmer 2400 CHN Analyser, respectively.

2.2. Synthesis of the AIEgenic Compounds

The synthesis procedure for the target AIEgenic compounds is outlined in Scheme 1. Alkoxy benzoic acid (1) was prepared by the alkylation of Ethyl 4-hydroxybenzoate by Williamson ether synthesis followed by hydrolysis. Alkoxy benzoic acid so obtained was esterified with 2,4-Dihydroxybenzaldehyde using DCC/DMAP to obtain 4-formyl-3-hydroxyphenyl, 4-alkoxybenzoate (2). This compound (2) was then treated with 4-fluoro-3-nitroaniline to obtain the target compound (4F3NAn, n = 12, 14, 16). Synthetic details and spectroscopic analysis are presented in Supplementary Information (Figures S1–S6 in Supplementary Information).

3. Results

3.1. Absorption Spectroscopy of the Synthesised Compounds

The absorption spectrum of the compounds is shown in Figure 1. The UV-Vis spectrum of 4F3NA12 has been recorded in different solvents like hexane, ethylacetate, ethanol, chloroform, and acetonitrile and we found two absorption bands at 270 nm and 330 nm, respectively, in every case (Figure 1a). Absorption spectra of all the compounds (as chloroform solution) are shown in Figure 1b.

3.2. Fluorescence Study of the AIEgens

The solid-state fluorescence spectra of the compounds were recorded with the Ocean Optics QE65Pro spectrometer coupled with a - sample stage through optic fiber. All the compounds of the 4F3NAn series exhibited strong fluorescence at around 550 nm in solid state upon excitation with 330 nm radiation. The fluorescence disappeared completely when the compounds were dissolved in chloroform. The fluorescence spectra of the compound 4F3NA12 in the solid state are shown in Figure 2a. The solid-state fluorescence spectra of the other compounds are presented in Supplementary Information (Figures S7 and S8). The image of the solid-state emission under a UV chamber (Ex 365 nm, broadband) is shown in Figure 2b. The strong fluorescence of the compound (in the solid state) was quenched upon dissolution in chloroform. Then, ethanol was used as a solvent where the compound was sparingly soluble. It exhibited some weak fluorescence arising from the tiny solid particles suspended in the solvent. Figure 2c represents the visual image of the compound in a UV chamber showing no emission from the clear chloroform solution, and some fluorescence in EtOH where the compound is sparingly soluble. This indicates that the compound loses its luminescence property in fully solvated conditions and the aggregation of the molecules is necessary for fluorescence to occur.
The AIE effect in the compound 4F3NA12 was studied using two solvents, chloroform and ethanol, of varying ratios. As Schiff’s base is incompatible with water, hence water was not used as a solvent. Since the compounds dissolve in chloroform but not ethanol, the solutions of 4F3NA12 were prepared in chloroform/ethanol mixtures with different volume/volume (v/v) ratios of ethanol, ranging from 0% to 100%, and the fluorescence spectrum of each solution was recorded with an excitation wavelength of 330 nm (Figure 3a). An increase in the ethanol fraction of >70% in the solvent mixture triggered a sharp increase in the fluorescence intensity indicating the onset of aggregation-induced emission. A higher ethanol fraction caused a significant increase in fluorescence, thereby confirming the AIE property of the compound (Figure 3b).

3.3. FT-IR Study of 4F3NA12

The FT-IR spectrum of 4F3NA12 as a representative compound is shown in Figure 4. The two peaks nearly at 2915 cm−1 and 2846 cm−1 appear which are attributed to the alkyl chain of 4F3NA12 indicating the existence of the long alkyl chain in the synthesized organic molecule. These two peaks arise due to the asymmetric and symmetric –CH stretching mode of CH2 groups, respectively. The characteristic C=O stretching of the ester group appeared at 1735 cm−1.The peak at 1600 cm−1 affirms the presence of the imine group in the system.

3.4. Polarized Optical Microscopy

The optical textures of 4F3NAn (n = 12, 14, 16) were investigated using polarized optical microscopy connected with a hot stage to explore the characteristic textures and mesomorphic phases (Figure 5a–f). All the synthesized compounds in this series were found to be stable during the course of repeated heating and cooling.
When the compound 4F3NA12 was heated to 100 °C, the material melted and formed a typical thread-like smectic A texture (Figure 5b). This mesophase remained stable until 173 °C, at which point it transformed to an isotropic state. In the cooling cycle, as it cooled down from isotropic melt, the focal conic fan texture (Figure 5c) co-existed with regions of homeotropic alignment (molecules perpendicular to the plane of observation), and both characteristics of the SmA phase appeared. The texture persisted until it crystallized at 74 °C. In the mesophase, the presence of the focal conic fan texture suggests a layered arrangement, and the homeotropic region indicates molecular orthogonality with respect to the layer planes [38], which are characteristics of the smectic A phase.
The other two compounds of the series, 4F3NA14 and 4F3NA16, also showed similar liquid crystalline behavior. The SmA to crystal transition (in 4F3NA14), isotropic to SmA transition through bâtonnet growth (in 4F3NA16), and co-existing focal conic and homeotropic regions of SmA (4F3NA16) are presented in Figure 5d, 5e, 5f, respectively.

3.5. Differential Scanning Calorimetry (DSC) of the Mesogens

All the synthesized mesogens exhibited two transitions during both the heating and cooling cycles in DSC run at 5 °C/min under N2 atmosphere and the observations are consistent with the results obtained from the POM studies. The DSC thermogram of the representative compound 4F3NA12 is presented in Figure 6. The thermograms of all the compounds can be found in the Supplementary Information (Figures S10–S12). During the heating cycle, two endothermic peaks at 97 °C and at 176 °C correspond to the Cr-> SmA and SmA-> Iso transitions, respectively. Upon cooling, an exotherm with an onset temperature of 174 °C marks the transition of SmA from the isotropic melt, followed by another peak at 70 °C corresponding to the crystallization from the mesophase. The enthalpy change associated with the Cr-SmA transition was found to be significantly higher compared to that of the SmA-Iso transition. This observation suggests a substantially higher degree of disorder between the crystalline phase and the SmA mesophase compared to the disorder between the SmA and isotropic phases. Phase transition temperatures as per the DSC analysis for all the compounds in the series are presented in Table 1.

3.6. Variable Temperature X-ray Diffraction

X-ray diffraction measurements were carried out on the compound 4F3NA12 to explore the mesophases and study the geometric structure parameters. The powder XRD patterns of an unaligned sample 4F3NA12 during cooling from isotropic melt exhibited sharp signals in the small-angle region (Figure 7a) and a lower intensity broad peak in the wide-angle region (Figure 7a Inset). Figure 7b represents the change in the XRD pattern of the virgin sample at different temperatures. The sharp intense peak (Figure 7a) corresponds to layer ordering with layer spacing, d = 35.6 Å, which is larger than the calculated molecular length, L = 31.4 Å (single molecule, gaseous state, DFT optimized). The experimental layer thickness is found to be 1.13 times the theoretical molecular length, indicating a partial bilayer nature in the SmA phase (Figure 8a). Different plausible partially overlapped SmA arrangements are presented in Figure 8b–e. However, keeping the facts that the d-L of about 4.2 Å (also, there is a possibility of short-range intermolecular H-bonding between O-H as HBD and NO2 as HBA), the arrangements 7d and 7e were ruled out. Similarly, the continuous array of H-bonded ensemble as in Figure 8c seems improbable because such extensive lateral hydrogen bonding would significantly tilt the molecules, leading to L > d, which contradicts the XRD results and POM data. The H-bonded dimeric molecular arrangement represented in Figure 8a and schematically shown in Figure 8b aligns well with the XRD data. The broad diffuse reflection in the wide-angle region corresponding to 3.91 Å indicates the expected fluidic nature of the LC phase. In Figure 7b, the room temperature XRD pattern was recorded with the virgin powder sample with randomly oriented crystals. Then, the temperature was raised to 120 °C, equilibrated for 5 min, and the XRD pattern was recorded to detect the SmA mesophase. The temperature was then gradually decreased to 100 °C, 80 °C, and 40 °C, and the XRD pattern was recorded after 5 min equilibration at each case. During the process of crystallization from a semisolid mesophase (inside the sample holder), the preferred orientation of the tiny newly grown crystals might have taken place. That is why the XRD patterns recorded with the virgin sample at room temperature and that taken during the cooling cycle at 40 °C exhibited different peak ratios.

3.7. Variable Temperature Fluorescent Microscopy of the AIEgens

The aggregation-induced emission (AIE) properties of the synthesized organic mesogens were studied using a temperature-controlled fluorescent microscope. The microscope was interfaced with a spectrofluorometer via an optic fiber cable. During the absorption study, all the compounds (4F3NAn) in this series exhibited their first absorption around 330nm. Under the fluorescent microscope, the virgin sample at room temperature (solid state) exhibited green fluorescence (emission λmax around 550 nm) upon irradiation through a 300–360 nm band cube filter. As the temperature increased, the fluorescence of the sample was sharply quenched upon the onset of the SmA phase. Further increase in the temperature resulted in the transition of the sample to an isotropic state, remaining non-fluorescent. All three compounds exhibited the same emission behavior under the fluorescent microscope. Figure 9 demonstrates the crystalline texture (at room temperature) and SmA texture (at 155 °C) of 4F3NA12 under crossed polarizers and the corresponding fluorescence microscopy image maintaining the sample position unchanged.
The observed green emission in the solid state originates primarily from the core structure of the material where a number of aromatic cores have been connected through conjugation. The structure contains an electron donor and acceptor group which provides the system the ability to show fluorescence in the solid state. It has been observed that the presence of donor/acceptor groups in two ends or in the middle of such organic core offers greater control over their fluorescence property [39]. In the solid state, the collaterality of the two imine-connected terminal rings (necessary for the exhibition of the fluorescence) is maintained due to the restriction of intramolecular rotations (RIR). However, in the mesophase, the molecule enjoys more vibrational and rotational freedom. Different parts, specifically the aromatic rings of the molecule, could rotate about a single bond. Such rotations remove the restriction of intramolecular rotations (RIR). The rotation of the terminal aromatic rotor dissipates the excited-state energy, letting the absorbed energy decay without luminescence, thereby quenching the fluorescence. Further, π-π interaction in the solid state of this molecule may also augment the emission process by decreasing the HOMO-LUMO energy barrier, as reported in other systems [40].

3.8. Computational Study

To gain an insight into the AIEgenic behavior exhibited by the 4F3NAn series mesogens, DFT, TD-DFT, and molecular dynamic studies were performed on the smallest member of the series, 4F3NA12. The structure was optimized by the GAUSSIAN 09 software [41] under DFT at the level of B3LYP with basis set 6-31G(d) [42,43] and visualized using the Avogadro [44,45] suite. The optimized structure (Figure 10a) showed the imine-connected aromatic rings A and B to be in the same plane providing efficient pi conjugation. Ring C is not co-planner with A and B due to the ester linkage and hence, does not effectively contribute to the pi conjugation of the other two rings. Therefore, it is assumed that the co-planner, conjugated, and intramolecular H-bonded rigid part of the molecule (containing rings A and B) is responsible for the exhibition of fluorescence, and therefore, any shift of this coplanarity would lead to the quenching of the luminescence.
To model the effect of elevated temperature on the conformation, the molecule was subjected to molecular dynamics under an MM2 force field with a 2.0 fs step interval. After equilibration at 300 K (25 °C), the temperature was allowed to rise up to 373K (100 °C) at a heating rate of 1.000 Kcal/atom/ps. The simulation (of 5000 steps) was performed with a single molecule in the gas phase to eliminate all the possible restrictive interactions (intermolecular interactions, solvent effects, etc.) and to allow maximal conformational changes. The interplanar angle between the rings A and B was observed to vary between 0° and 63°, and no instance of the coplanarity of ring C with ring B was detected within the simulation timeframe.
Keeping the simulated range of the interplanar angle between the rings A and B in view, six structures were prepared from the original optimized structure with different A/B interplanar angles. The interplanar angle between rings A and B was changed to 15°, 30°, 45°, 60°, 75°, and 90° keeping the other structural features unchanged to prepare the structures D15, D30, D45, D60, D75, and D90 (Figure 10b). The absorption spectrum of all seven structures was calculated through DFT with the TD-SCF method. The energy profile of the important orbitals is presented in Figure 10c.
The computational analysis of the optimized structure correctly predicted two absorption peaks similar to the experimental observation. The difference between the peak positions between the computed and experimental spectrum seems to be due to the different physical conditions involved and the donor/acceptor-type architecture of the molecule. However, as the objective here was only to observe the trend in the absorption with the change in the A/B interplanar angle (Figure S13, in Supplementary Information), this difference was not significant. The molecular orbitals (MOs) of the 4F3NA12 molecule (optimized structure) are illustrated in Figure 10d. The electron contour shows that the MO 142 (HOMO) is mostly contributed by the conjugated pi system of the rings A and B. The MO 143 (LUMO) is formed from exclusive contribution from the atomic orbitals from ring A. The first excitation (460 nm) is solely due to the HOMO → LUMO transition with a coefficient of 0.69708. The second excitation (393 nm) is due to three transitions 138 → 143 (Coeff 0.12717), 140 → 143 (Coeff 0.18488), and 141 → 143 (Coeff 0.66654), with the 141 → 143, i.e., (HOMO-1) → LUMO transition being the most dominant one. The excitation from 140 → 143 and 141 → 143 involves intramolecular charge transfer to LUMO from HOMO-1 and HOMO-2, respectively. With the gradual increase in the A/B interplanar angle, the first excitation involving 142 → 143 (HOMO → LUMO) transition exhibited a gradual blue shift due to a reduction in coplanarity between the rings A and B, resulting in a less conjugated pi system. At the same time, the oscillator strength steadily increased for the second transition primarily due to the 140 → 143 and 141 → 143 charge transfer transitions (Table 2 and Figure 10c,d).

4. Discussion

All the compounds in this series exhibited strong fluorescence in the solid state, and they were non-fluorescent when dissolved completely in a solvent (like chloroform). In ethanol, where the compound is only sparingly soluble, it exhibited low fluorescence arising from the tiny solid particles suspended in the solvent medium. The observation affirms the AIEgenic behavior of the compound.
All three compounds reported in this work exhibited thermotropic liquid crystalline properties. Upon heating, the compounds in the series transitioned from the crystalline solid phase to the smectic A mesophase (confirmed by XRD), which transformed to the isotropic state upon further heating. The phase sequence shown by the compounds was reversible. When the fluorescence properties of the compounds at different phases were investigated with variable temperature fluorescence microscopy, it was revealed that the fluorescence observed at the crystal (solid) state sharply quenches upon transition to the liquid crystalline state. It indicates that the difference in the molecular arrangement between the crystalline and SmA mesophase was sufficient to trigger the onset of the emission or the quenching of it (Figure 11a).
The molecular arrangement in the mesophase was studied with variable temperature XRD. The XRD analysis affirmed the partial bilayer nature in the SmA phase of the compound. The smectic layer was found to be 1.13 times the theoretical molecular length. This indicates the existence of a substantial pi-pi interaction in the mesophase to maintain the partial bilayered smectic self-assembly. Such a strong pi-pi stacking interaction could be detrimental to the AIE phenomenon [46] and might be responsible for the observed quenching of fluorescence in the liquid crystalline state.
The computational study showed that with the gradual coplanarity between ring A and ring B, the first excitation involving the 142 → 143 (HOMO → LUMO) transition exhibited a gradual blue shift due to a less conjugated pi system. At the same time, the oscillator strength steadily increased for the second transition primarily due to the 140 → 143 and 141 → 143 charge transfer transitions (Table 2 and Figure 10c,d). As reported by Hudson, such charge transfer transitions can reduce the fluorescence efficiency of the system [47].
Keeping that in view, dimeric systems with antiparallel, parallel with -NO2 groups in the same side, and parallel with -NO2 groups on the opposite side (coded as AntiParallel, P-SynNO2, and P-AntiNO2, respectively) were prepared from the original optimized structure (Figure 10b). A gap of 3.6Å was kept between the planes of ring B of the two molecules for effective intermolecular pi-pi interaction [48] and the absorption profile was computed. All three systems exhibited sharply lowered HOMO-LUMO gap (Figure 10c) and consequently, a significant red shift (about 22% decrease in absorption wavelength) in absorption maxima (Table 2) compared to those in the single molecule, D0 (the electron map of all the HOMO and LUMO’s are consolidated in Figures S14 and S15 with the DOS profile of the D0 in Figure S16 in the Supplementary Information).
As mentioned earlier, in the solid state, the required degree of collaterality of the rings A and B necessary for the exhibition of the fluorescence is maintained due to the restriction of intramolecular rotations (RIR). In contrast, a fully solvated environment grants rotational freedom to the terminal aromatic ring. The rotation of the terminal aromatic rotor dissipates the excited-state energy, letting the absorbed energy decay without luminescence—similar to a typical AIEgen, like tetraphenylethene (TPE). However, for the compounds under study, the liquid crystal state might not permit the complete free rotation of the terminal ring due to the inherent self-assembly of the molecules. Here, in the mesophase, the rotational twisting of the terminal aromatic ring (Figure 11b) seems to be enough to quench the emission due to (i) a significant reduction in the pi-system conjugation as evidenced by a marked increase in the HOMO/LUMO gap, (ii) pi-pi stacking in the mesophase, and (iii) the increased dominance of the charge transfer transitions reducing the fluorescence efficiency [47]. Additionally, the in-plane/out-of-plane group-swinging vibrational motions may have augmented the non-radiative decay of the excited-state energy [49].

5. Conclusions

A new series of organic AIEgenic liquid crystalline compounds based on a simple calamitic framework have been successfully synthesized and reported. All the members of the series showed aggregation-induced emission. The compounds emitted green fluorescence in the solid state and their emission disappeared upon solvation or upon entering into the mesophase by the elevation of temperature. In the synthesized compounds, the emission seems to be very sensitive to molecular aggregation; indeed, the molecular self-assembly of the smectic liquid crystalline arrangement was insufficient to retain the fluorescence observed in the solid state. Due to the intricate interplay of noncovalent interactions governing aggregation-induced emission (AIE) and the dependence of AIE properties on a molecule’s rotational freedom and intramolecular vibrations, merging these fascinating material characteristics—AIE and liquid crystallinity—within a single molecule holds immense promise for the development of advanced materials with diverse applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma17143587/s1, Detailed Synthesis; Spectroscopic analysis; Figure S1–S6: 1H and 13C NMR spectrum of 4F3NAn (n = 12, 14, 16); Figure S7–S9: DSC Thermograms of 4F3NAn (n = 12, 14, 16); Figure S10: Consolidated plot of all calculated UV-Vis spectra of 4F3NA12; Figure S11: Electron map of MOs from structure D0; Figure S12: Electron map of HOMO and LUMO of the different orientation of the dimeric system of 4F3NA12; Figure S13: Calculated DOS profile of the compound 4F3NA12.

Author Contributions

Conceptualization, S.C. and N.V.S.R.; methodology, S.P. and B.B.C.; software, S.C.; validation, B.B.C. and S.P.; formal analysis, S.P. and B.B.C.; resources, N.V.S.R. and S.C.; data curation, S.P. and B.B.C.; writing—original draft preparation, S.P.; writing—review and editing, S.C.; supervision, S.C.; funding acquisition, S.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work received financial support in the form of an INSPIRE fellowship to SP from DST, Government of India, a Research fellowship to BBC from UGC, Government of India, and a CORE Research Grant to SC from SERB, Government of India.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the Supplementary Materials.

Acknowledgments

The authors express thankfulness to the DST-FIST program of the Chemistry Department, Assam University for the XRD facility.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. He, Z.; Ke, C.; Tang, B.Z. Journey of Aggregation-Induced Emission Research. ACS Omega 2018, 3, 3267–3277. [Google Scholar] [CrossRef] [PubMed]
  2. Shellaiah, M.; Sun, K.-W. Pyrene-Based AIE Active Materials for Bioimaging and Theranostics Applications. Biosensors 2022, 12, 550. [Google Scholar] [CrossRef] [PubMed]
  3. Borelli, M.; Iasilli, G.; Minei, P.; Pucci, A. Fluorescent Polystyrene Films for the Detection of Volatile Organic Compounds Using the Twisted Intramolecular Charge Transfer Mechanism. Molecules 2017, 22, 1306. [Google Scholar] [CrossRef] [PubMed]
  4. Chan, J.; Dodani, S.C.; Chang, C.J. Reaction-Based Small-Molecule Fluorescent Probes for Chemoselective Bioimaging. Nat. Chem. 2012, 4, 973–984. [Google Scholar] [CrossRef] [PubMed]
  5. Ueno, T.; Nagano, T. Fluorescent Probes for Sensing and Imaging. Nat. Methods 2011, 8, 642–645. [Google Scholar] [CrossRef] [PubMed]
  6. Chen, Y.; Bai, Y.; Han, Z.; He, W.; Guo, Z. Photoluminescence Imaging of Zn2+ in Living Systems. Chem. Soc. Rev. 2015, 44, 4517–4546. [Google Scholar] [CrossRef] [PubMed]
  7. Filipek, P.; Karoń, K.; Hellwig, H.; Szłapa-Kula, A.; Filapek, M. The Role of Intermolecular Interaction on Aggregation-Induced Emission Phenomenon and OLED Performance. Materials 2022, 15, 8525. [Google Scholar] [CrossRef] [PubMed]
  8. Mei, J.; Leung, N.L.C.; Kwok, R.T.K.; Lam, J.W.Y.; Tang, B.Z. Aggregation-Induced Emission: Together We Shine, United We Soar! Chem. Rev. 2015, 115, 11718–11940. [Google Scholar] [CrossRef] [PubMed]
  9. Carlos, L.D.; Ferreira, R.A.S.; de Zea Bermudez, V.; Julián-López, B.; Escribano, P. Progress on Lanthanide-Based Organic–Inorganic Hybrid Phosphors. Chem. Soc. Rev. 2011, 40, 536–549. [Google Scholar] [CrossRef]
  10. Mei, J.; Hong, Y.; Lam, J.W.Y.; Qin, A.; Tang, Y.; Tang, B.Z. Aggregation-Induced Emission: The Whole Is More Brilliant than the Parts. Adv. Mater. 2014, 26, 5429–5479. [Google Scholar] [CrossRef]
  11. Wang, C.; Li, Z. Molecular Conformation and Packing: Their Critical Roles in the Emission Performance of Mechanochromic Fluorescence Materials. Mater. Chem. Front. 2017, 1, 2174–2194. [Google Scholar] [CrossRef]
  12. La, D.D.; Bhosale, S.V.; Jones, L.A.; Bhosale, S.V. Tetraphenylethylene-Based AIE-Active Probes for Sensing Applications. ACS Appl. Mater. Interfaces 2018, 10, 12189–12216. [Google Scholar] [CrossRef] [PubMed]
  13. Liu, L.; Zhang, W.; Zhong, M.-Q.; Jia, M.-H.; Jiang, F.; Zhang, Y.; Xiao, C.-D.; Xiao, X.; Shen, X.-C. Tetraphenylethene Derivative That Discriminates Parallel G-Quadruplexes. RSC Adv. 2022, 12, 14765–14775. [Google Scholar] [CrossRef] [PubMed]
  14. Sharath Kumar, K.S.; Girish, Y.R.; Ashrafizadeh, M.; Mirzaei, S.; Rakesh, K.P.; Hossein Gholami, M.; Zabolian, A.; Hushmandi, K.; Orive, G.; Kadumudi, F.B.; et al. AIE-Featured Tetraphenylethylene Nanoarchitectures in Biomedical Application: Bioimaging, Drug Delivery and Disease Treatment. Coord. Chem. Rev. 2021, 447, 214135. [Google Scholar] [CrossRef]
  15. Nishino, K.; Uemura, K.; Gon, M.; Tanaka, K.; Chujo, Y. Enhancement of Aggregation-Induced Emission by Introducing Multiple o-Carborane Substitutions into Triphenylamine. Molecules 2017, 22, 2009. [Google Scholar] [CrossRef] [PubMed]
  16. Tong, J.; Wang, Y.J.; Wang, Z.; Sun, J.Z.; Tang, B.Z. Crystallization-Induced Emission Enhancement of a Simple Tolane-Based Mesogenic Luminogen. J. Phys. Chem. C 2015, 119, 21875–21881. [Google Scholar] [CrossRef]
  17. Ma, Y.; Cametti, M.; Džolić, Z.; Jiang, S. AIE-Active Bis-Cyanostilbene-Based Organogels for Quantitative Fluorescence Sensing of CO 2 Based on Molecular Recognition Principles. J. Mater. Chem. C 2018, 6, 9232–9237. [Google Scholar] [CrossRef]
  18. Lewkowicz, A.; Bogdanowicz, R.; Bojarski, P.; Pierpaoli, M.; Gryczyński, I.; Synak, A.; Mońka, M.; Karczewski, J.; Struck-Lewicka, W.; Wawrzyniak, R.; et al. The Luminescence of 1,8-Diazafluoren-9-One/Titanium Dioxide Composite Thin Films for Optical Application. Materials 2020, 13, 3014. [Google Scholar] [CrossRef]
  19. Lewkowicz, A.; Pierpaoli, M.; Walczewska-Szewc, K.; Czarnomska, M.; Bojarski, P.; Bogdanowicz, R.; Pogorzelski, S.; Kułak, L.; Karczewski, J. Nonconventional 1,8-Diazafluoren-9-One Aggregates for Green Light Enhancement in Hybrid Biocompatible Media. Materials 2022, 15, 5012. [Google Scholar] [CrossRef]
  20. Xin, X.-L.; Chen, M.; Ai, Y.; Yang, F.; Li, X.-L.; Li, F. Aggregation-Induced Emissive Copper(I) Complexes for Living Cell Imaging. Inorg. Chem. 2014, 53, 2922–2931. [Google Scholar] [CrossRef]
  21. Evans, D.A.; Lee, L.M.; Vargas-Baca, I.; Cowley, A.H. Aggregation-Induced Emission of Bis(Imino)Acenaphthene Zinc Complexes: Photophysical Tuning via Methylation of the Flanking Aryl Substituents. Organometallics 2015, 34, 2422–2428. [Google Scholar] [CrossRef]
  22. Zhao, Q.; Li, L.; Li, F.; Yu, M.; Liu, Z.; Yi, T.; Huang, C. Aggregation-Induced Phosphorescent Emission (AIPE) of Iridium( iii ) Complexes. Chem. Commun. 2008, 6, 685–687. [Google Scholar] [CrossRef] [PubMed]
  23. Zhao, J.; Feng, Z.; Zhong, D.; Yang, X.; Wu, Y.; Zhou, G.; Wu, Z. Cyclometalated Platinum Complexes with Aggregation-Induced Phosphorescence Emission Behavior and Highly Efficient Electroluminescent Ability. Chem. Mater. 2018, 30, 929–946. [Google Scholar] [CrossRef]
  24. Manimaran, B.; Thanasekaran, P.; Rajendran, T.; Lin, R.-J.; Chang, I.-J.; Lee, G.-H.; Peng, S.-M.; Rajagopal, S.; Lu, K.-L. Luminescence Enhancement Induced by Aggregation of Alkoxy-Bridged Rhenium(I) Molecular Rectangles. Inorg. Chem. 2002, 41, 5323–5325. [Google Scholar] [CrossRef]
  25. Alam, P.; Climent, C.; Alemany, P.; Laskar, I.R. “Aggregation-Induced Emission” of Transition Metal Compounds: Design, Mechanistic Insights, and Applications. J. Photochem. Photobiol. C Photochem. Rev. 2019, 41, 100317. [Google Scholar] [CrossRef]
  26. Voskuhl, J.; Giese, M. Mesogens with Aggregation-induced Emission Properties: Materials with a Bright Future. Aggregate 2022, 3, e124. [Google Scholar] [CrossRef]
  27. Lei, Z.-Y.; Cai, Y.-H.; Leea, G.-H.; Lai, C.K. Luminescent Mesogenic Dimeric Borondifluoride Complexes. Liq. Cryst. 2021, 48, 955–973. [Google Scholar] [CrossRef]
  28. Peng, H.; Chen, Y.; Chen, L.; He, X.; Li, F. Luminescent Mesogen Jacketed Poly(1-Alkyne) Bearing Lateral Terphenyl with Hexyloxy Tail: Luminescent Mesogen Jacketed Poly(1-Alkyne). J. Polym. Sci. A Polym. Chem. 2010, 48, 5679–5692. [Google Scholar] [CrossRef]
  29. Marin, L.; Zabulica, A.; Sava, M. Symmetric Liquid Crystal Dimers Containing a Luminescent Mesogen: Synthesis, Mesomorphic Behavior, and Optical Properties. Soft Mater. 2013, 11, 32–39. [Google Scholar] [CrossRef]
  30. Chiriac, L.F.; Iliş, M.; Cîrcu, V. Luminescent Lanthanides Complexes with Mesogenic Pyridone Ligands: Emission and Liquid Crystals Properties. Polyhedron 2020, 190, 114748. [Google Scholar] [CrossRef]
  31. Vinayakumara, D.R.; Ulla, H.; Kumar, S.; Satyanarayan, M.N.; Adhikari, A.V. New Fluorescent Columnar Mesogens Derived from Phenanthrene–Cyanopyridone Hybrids for OLED Applications. Mater. Chem. Front. 2018, 2, 2297–2306. [Google Scholar] [CrossRef]
  32. Romanova, K.A.; Datskevich, N.P.; Taidakov, I.V.; Vitukhnovskii, A.G.; Galyametdinov, Y.G. Luminescent Characteristics of Some Mesogenic Tris(β-Diketonate) Europium(III) Complexes with Lewis Bases. Russ. J. Phys. Chem. 2013, 87, 2108–2111. [Google Scholar] [CrossRef]
  33. Yuan, W.Z.; Yu, Z.-Q.; Lu, P.; Deng, C.; Lam, J.W.Y.; Wang, Z.; Chen, E.-Q.; Ma, Y.; Tang, B.Z. High Efficiency Luminescent Liquid Crystal: Aggregation-Induced Emission Strategy and Biaxially Oriented Mesomorphic Structure. J. Mater. Chem. 2012, 22, 3323. [Google Scholar] [CrossRef]
  34. Lu, H.; Zhang, S.; Ding, A.; Yuan, M.; Zhang, G.; Xu, W.; Zhang, G.; Wang, X.; Qiu, L.; Yang, J. A Luminescent Liquid Crystal with Multistimuli Tunable Emission Colors Based on Different Molecular Packing Structures. New J. Chem. 2014, 38, 3429. [Google Scholar] [CrossRef]
  35. Chen, Y.; Lin, J.; Yuan, W.; Yu, Z.; Lam, J.W.; Tang, B.Z. 1-((12-Bromododecyl)Oxy)-4-((4-(4-Pentylcyclohexyl)Phenyl)Ethynyl) Benzene: Liquid Crystal with Aggregation-Induced Emission Characteristics. Sci. China Chem. 2013, 56, 1191–1196. [Google Scholar] [CrossRef]
  36. Yang, M.; Liu, Z.; Yang, B.; Zhang, H. Design, Synthesis and Properties of Hemiphasmidic Luminescent Liquid Crystal Polymers with the AIEE Effect. New J. Chem. 2019, 43, 4205–4215. [Google Scholar] [CrossRef]
  37. Chakraborty, B.B.; Anwar, S.; Das, S.; Paul, S.B.; Mohiuddin, G.; De, J.; Choudhury, S. Aggregation Dependent Fluorescence Switching in Benzothiazole Derivative Based H-Bonded Mesogen. Liq. Cryst. 2018, 45, 1644–1653. [Google Scholar] [CrossRef]
  38. Cook, A.G.; Wardell, J.L.; Brooks, N.J.; Seddon, J.M.; Martínez-Felipe, A.; Imrie, C.T. Non-Symmetric Liquid Crystal Dimer Containing a Carbohydrate-Based Moiety. Carbohydr. Res. 2012, 360, 78–83. [Google Scholar] [CrossRef]
  39. Shirota, Y.; Kinoshita, M.; Noda, T.; Okumoto, K.; Ohara, T. A Novel Class of Emitting Amorphous Molecular Materials as Bipolar Radical Formants: 2-{4-[Bis(4-Methylphenyl)Amino]Phenyl}- 5-(Dimesitylboryl)Thiophene and 2-{4-[Bis(9,9-Dimethylfluorenyl)Amino]Phenyl}- 5-(Dimesitylboryl)Thiophene. J. Am. Chem. Soc. 2000, 122, 11021–11022. [Google Scholar] [CrossRef]
  40. Zhang, H.Y.; Zhang, Z.L.; Ye, K.Q.; Zhang, J.Y.; Wang, Y. Organic Crystals with Tunable Emission Colors Based on a Single Organic Molecule and Different Molecular Packing Structures. Adv. Mater. 2006, 18, 2369–2372. [Google Scholar] [CrossRef]
  41. Hiscocks, J.; Frisch, M.J. Gaussian 09; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  42. Becke, A.D. Density-functional Thermochemistry. III. The Role of Exact Exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef]
  43. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti Correlation-Energy Formula into a Functional of the Electron Density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [PubMed]
  44. Avogadro: An Open-Source Molecular Builder and Visualization Tool. Version 1.2.0. Available online: http://avogadro.cc/ (accessed on 26 June 2022).
  45. Hanwell, M.D.; Curtis, D.E.; Lonie, D.C.; Vandermeersch, T.; Zurek, E.; Hutchison, G.R. Avogadro: An Advanced Semantic Chemical Editor, Visualization, and Analysis Platform. J. Cheminform. 2012, 4, 17. [Google Scholar] [CrossRef] [PubMed]
  46. Ali, I.; Sharma, S.; Bezbaruah, B. Quantum Mechanical Study on the π-π Stacking Interaction and Change in Conformation of Phenolic Systems with Different Intermolecular Rotations. Computational Chemistry 2018, 6, 71–86. [Google Scholar] [CrossRef]
  47. Hudson, G.A.; Cheng, L.; Yu, J.; Yan, Y.; Dyer, D.J.; McCarroll, M.E.; Wang, L. Computational Studies on Response and Binding Selectivity of Fluorescence Sensors. J. Phys. Chem. B 2010, 114, 870–876. [Google Scholar] [CrossRef]
  48. Zong, L.; Xie, Y.; Wang, C.; Li, J.-R.; Li, Q.; Li, Z. From ACQ to AIE: The Suppression of the Strong π–π Interaction of Naphthalene Diimide Derivatives through the Adjustment of Their Flexible Chains. Chem. Commun. 2016, 52, 11496–11499. [Google Scholar] [CrossRef]
  49. Leung, N.L.C.; Xie, N.; Yuan, W.; Liu, Y.; Wu, Q.; Peng, Q.; Miao, Q.; Lam, J.W.Y.; Tang, B.Z. Restriction of Intramolecular Motions: The General Mechanism behind Aggregation-Induced Emission. Chem. Eur. J. 2014, 20, 15349–15353. [Google Scholar] [CrossRef]
Materials 17 03587 sch001
Scheme 1. Synthesis of the compound 4F3NAn (n = 12, 14, 16). Reagents and conditions: (i) KOH and CnH2n+1Br (n = 12, 14, 16). A total of 95% ethanol, reflux 36 hours; (ii) NaOH (aq), reflux 10 hours, HCl; (iii) DCM, DMAP, and DCC, stir 48 h; (iv) abs. ethanol, glacial acetic acid, reflux 4 h.
Scheme 1. Synthesis of the compound 4F3NAn (n = 12, 14, 16). Reagents and conditions: (i) KOH and CnH2n+1Br (n = 12, 14, 16). A total of 95% ethanol, reflux 36 hours; (ii) NaOH (aq), reflux 10 hours, HCl; (iii) DCM, DMAP, and DCC, stir 48 h; (iv) abs. ethanol, glacial acetic acid, reflux 4 h.
Materials 17 03587 sch001
Materials 17 03587 g001

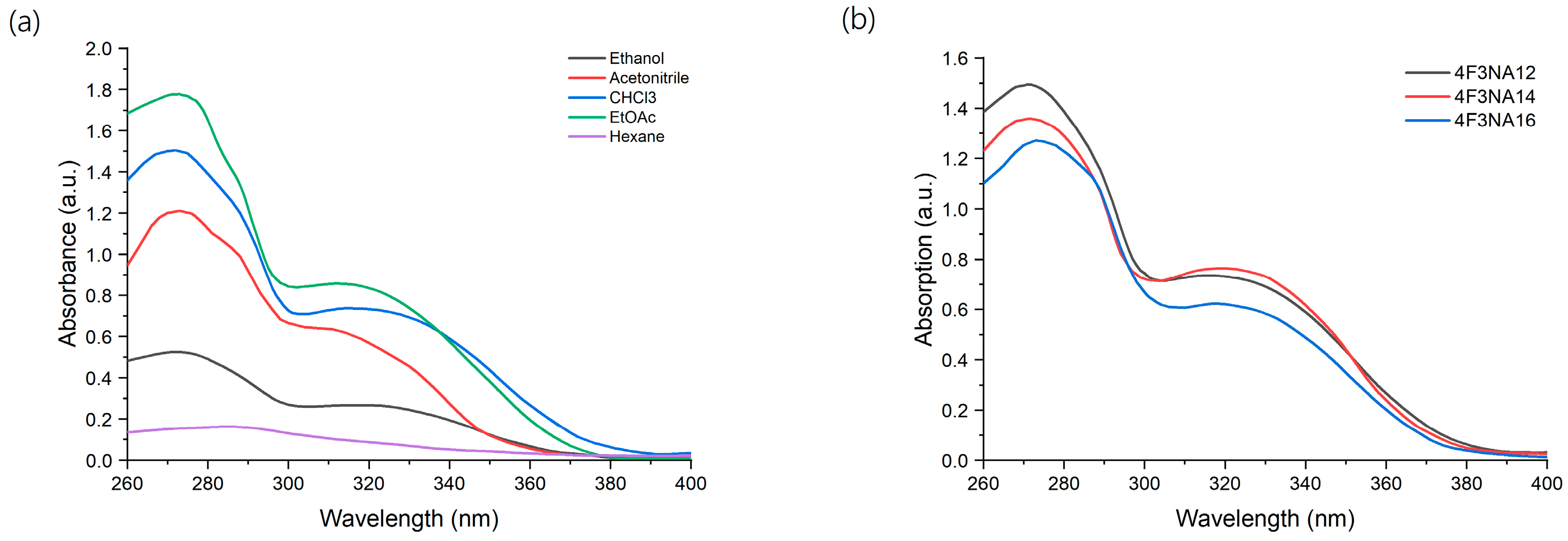

Figure 1. (a) UV-Vis spectra of 4F3NA12 in different solvents and (b) the absorption spectra of all the compounds (as chloroform solution, 0.01 mg/mL).
Figure 1. (a) UV-Vis spectra of 4F3NA12 in different solvents and (b) the absorption spectra of all the compounds (as chloroform solution, 0.01 mg/mL).
Materials 17 03587 g001
Materials 17 03587 g002
Figure 2. (a) Fluorescence spectra of 4F3NA12 in solid state, (b) solid state emission in UV chamber (365 nm), and (c) solution state emission in UV chamber (Ex 365 nm, broadband).
Figure 2. (a) Fluorescence spectra of 4F3NA12 in solid state, (b) solid state emission in UV chamber (365 nm), and (c) solution state emission in UV chamber (Ex 365 nm, broadband).
Materials 17 03587 g002
Materials 17 03587 g003

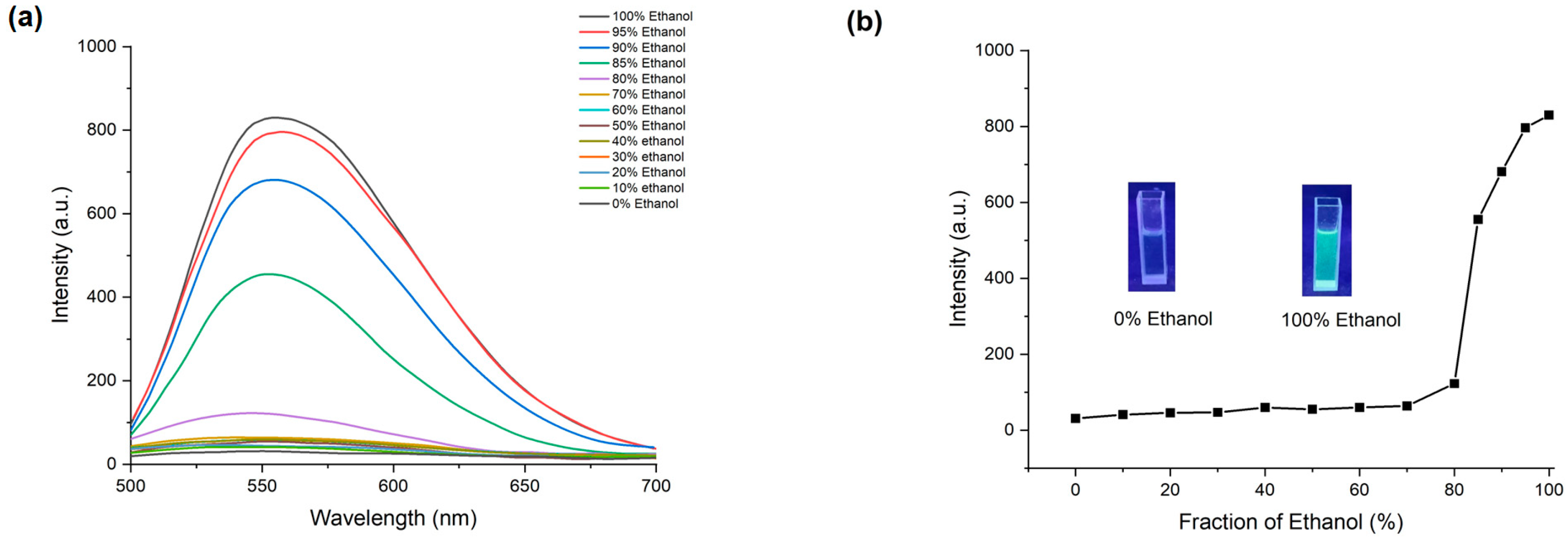

Figure 3. AIE effect of 4F3NA12. (a) The fluorescence spectra of the 4F3NA12 solutions (0.01 mg mL−1) at different ethanol/chloroform ratios; (b) line plot for the changes in the fluorescence intensity for 4F3NA12 with a gradual increase in ethanol percentage in ethanol/chloroform mixture (Insets are the photographs of the 4F3NA12 solutions excited by UV light of 360 nm, for reference).
Figure 3. AIE effect of 4F3NA12. (a) The fluorescence spectra of the 4F3NA12 solutions (0.01 mg mL−1) at different ethanol/chloroform ratios; (b) line plot for the changes in the fluorescence intensity for 4F3NA12 with a gradual increase in ethanol percentage in ethanol/chloroform mixture (Insets are the photographs of the 4F3NA12 solutions excited by UV light of 360 nm, for reference).
Materials 17 03587 g003
Materials 17 03587 g004

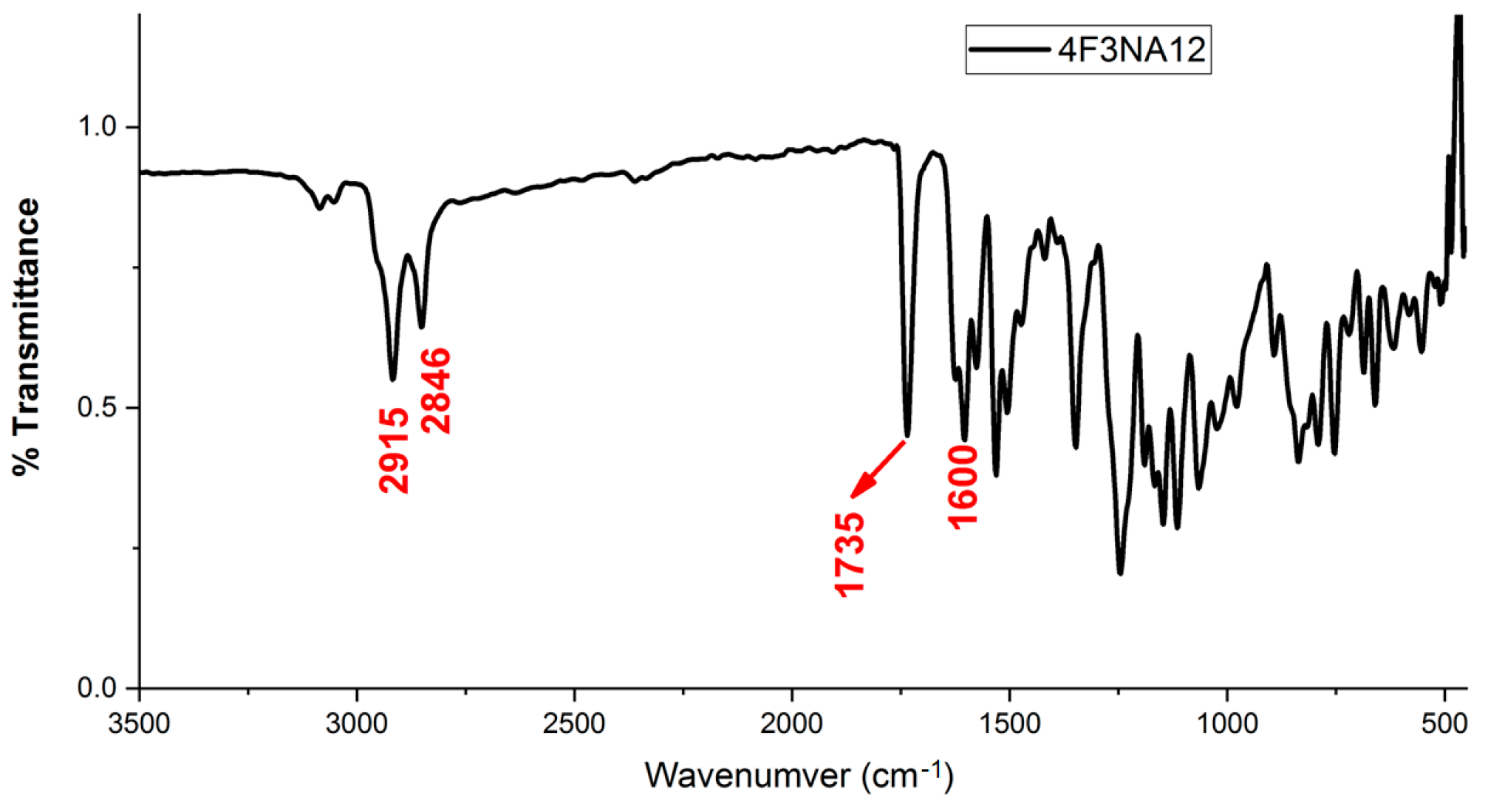

Figure 4. FT-IR spectrum of 4F3NA12.
Figure 4. FT-IR spectrum of 4F3NA12.
Materials 17 03587 g004
Materials 17 03587 g005
Figure 5. The optical textures (with crossed polarizers) observed in the synthesized compounds. (a) 4F3NA12 at solid 38 °C, (b) 4F3NA12 at 145 °C (heating cycle), (c) SmA focal conic of 4F3NAC12 at 155 °C (cooling cycle), (d) SmA to Cr transition in 4F3NA14 at 70 °C (cooling cycle), (e) the growth of smectic A as bâtonnet from isotropic melt in 4F3NA16 at 176 °C (cooling cycle), and (f) the complete formation of SmA focal conic 4F3NAC16 at 160 °C (cooling cycle).
Figure 5. The optical textures (with crossed polarizers) observed in the synthesized compounds. (a) 4F3NA12 at solid 38 °C, (b) 4F3NA12 at 145 °C (heating cycle), (c) SmA focal conic of 4F3NAC12 at 155 °C (cooling cycle), (d) SmA to Cr transition in 4F3NA14 at 70 °C (cooling cycle), (e) the growth of smectic A as bâtonnet from isotropic melt in 4F3NA16 at 176 °C (cooling cycle), and (f) the complete formation of SmA focal conic 4F3NAC16 at 160 °C (cooling cycle).
Materials 17 03587 g005
Materials 17 03587 g006

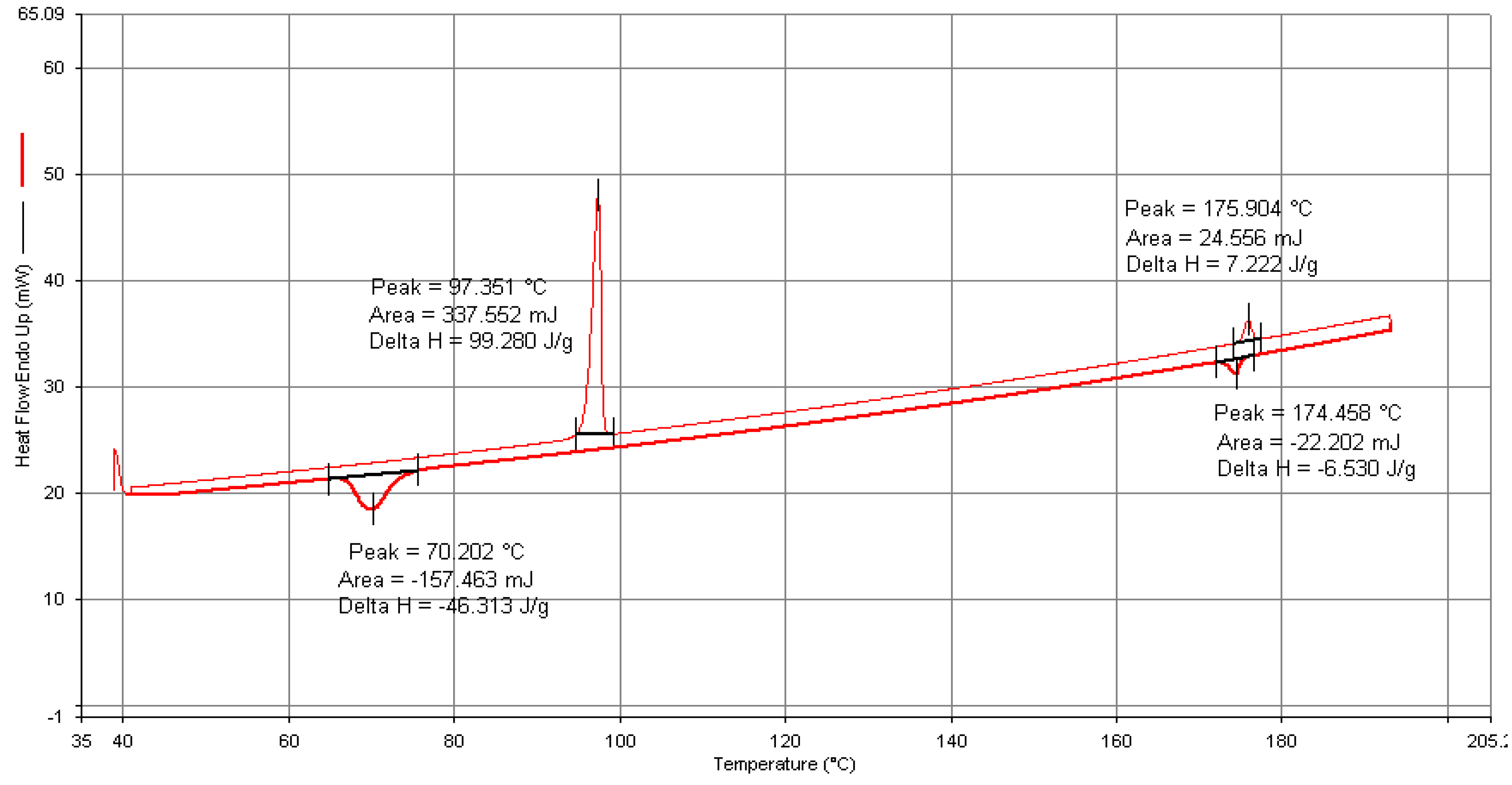

Figure 6. DSC thermogram of compound 4F3NA12.
Figure 6. DSC thermogram of compound 4F3NA12.
Materials 17 03587 g006
Materials 17 03587 g007

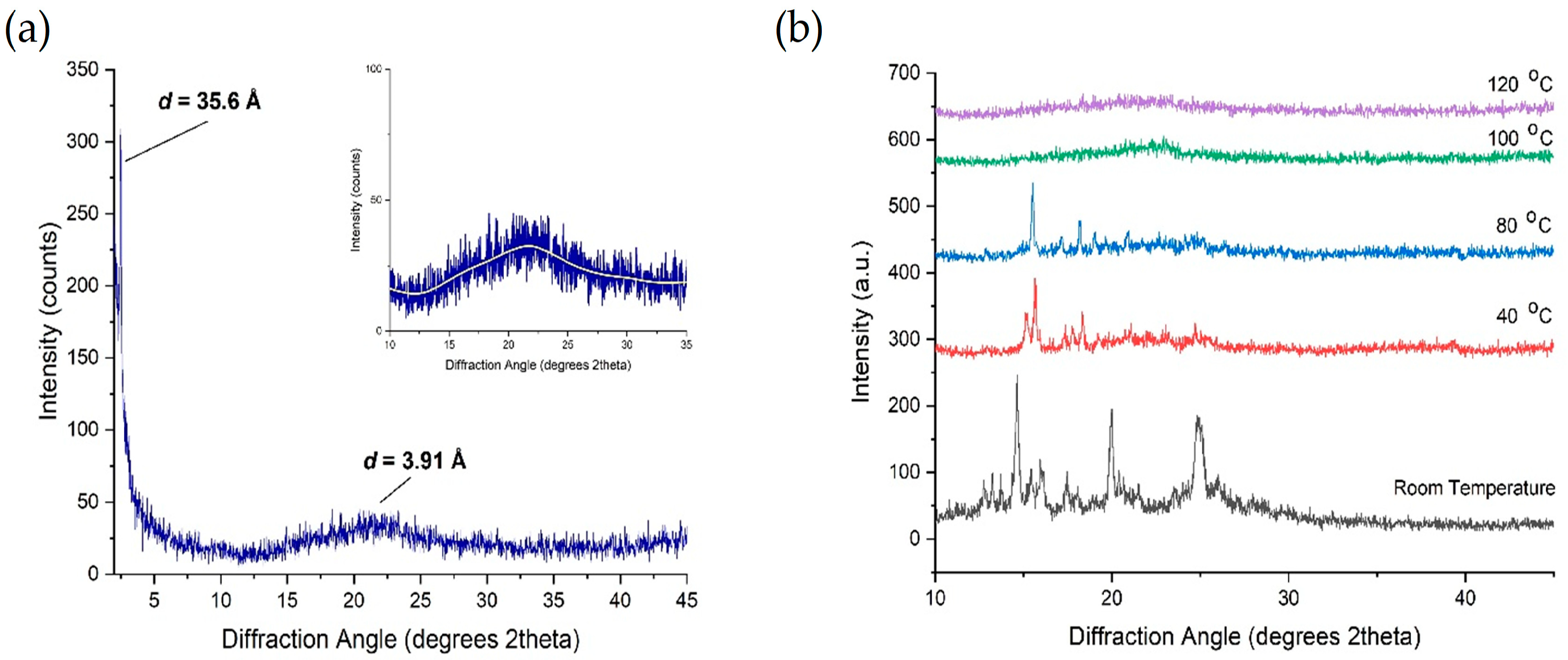

Figure 7. (a) XRD pattern of 4F3NA12 at 120 °C (Inset showing the broad peak in the wide-angle region) and (b) the XRD pattern of 4F3NA12 at different temperatures.
Figure 7. (a) XRD pattern of 4F3NA12 at 120 °C (Inset showing the broad peak in the wide-angle region) and (b) the XRD pattern of 4F3NA12 at different temperatures.
Materials 17 03587 g007
Materials 17 03587 g008
Figure 8. (a) Representation of the partial bilayer arrangement of the mesogen (4F3NA12) in the SmA phase and (b–e) the different possible molecular self-assemblies.
Figure 8. (a) Representation of the partial bilayer arrangement of the mesogen (4F3NA12) in the SmA phase and (b–e) the different possible molecular self-assemblies.
Materials 17 03587 g008
Materials 17 03587 g009
Figure 9. (Left): the crystalline texture of 4F3NA12 at room temperature under crossed polarizers and the same region in fluorescence mode excited with a 300–360 nm band cube filter; (right): the SmA texture exhibited under crossed polarizers and the quenching of fluorescence observed in fluorescence mode.
Figure 9. (Left): the crystalline texture of 4F3NA12 at room temperature under crossed polarizers and the same region in fluorescence mode excited with a 300–360 nm band cube filter; (right): the SmA texture exhibited under crossed polarizers and the quenching of fluorescence observed in fluorescence mode.
Materials 17 03587 g009
Materials 17 03587 g010

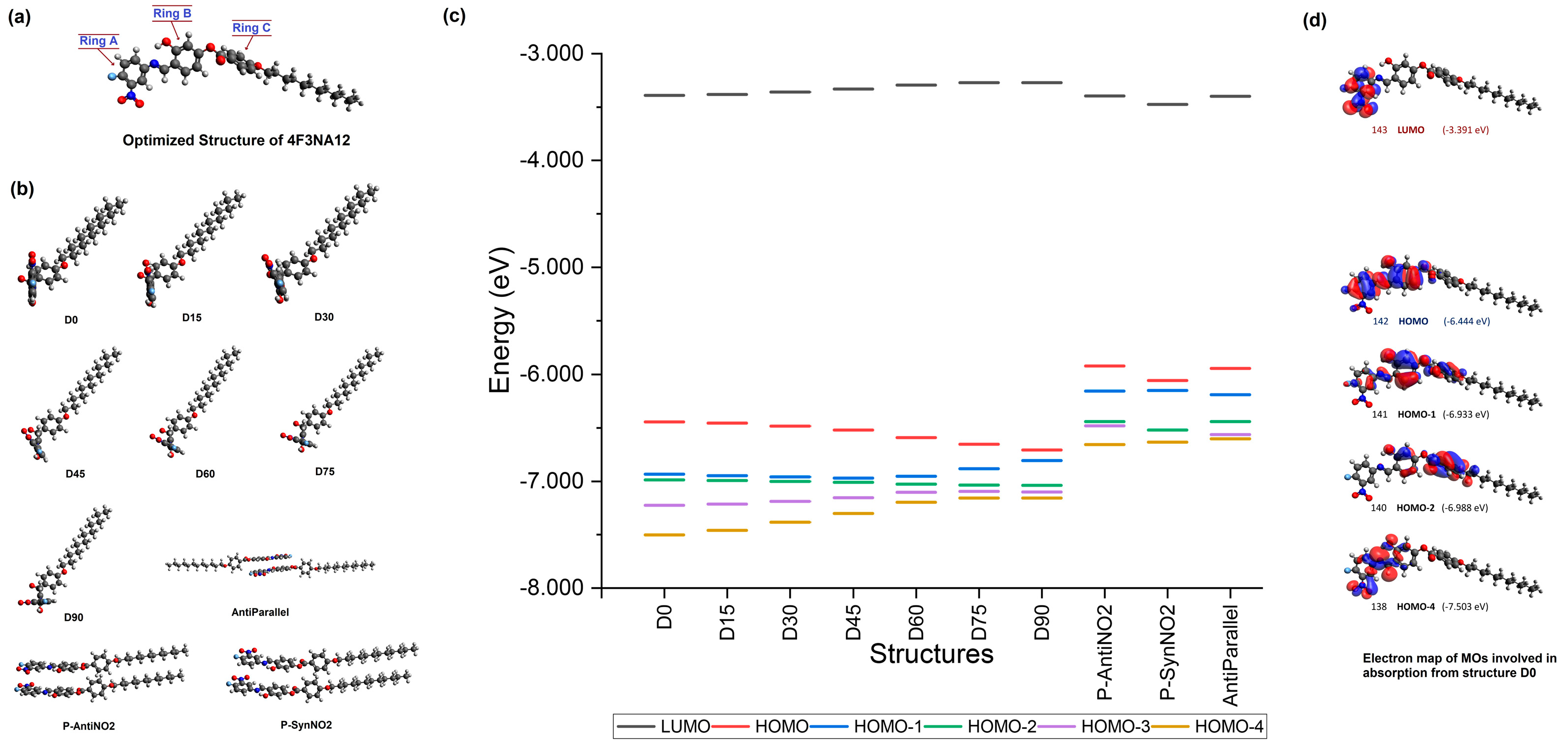

Figure 10. (a) Optimized structure of 4F3NA12, (b) the structures used for absorption calculation, (c) the calculated energy profile plot of the important MOs of the structures, (d) the electron map of the MOs of structure D0 involved in absorption. [A larger version of the image is presented in Supplementary Information].
Figure 10. (a) Optimized structure of 4F3NA12, (b) the structures used for absorption calculation, (c) the calculated energy profile plot of the important MOs of the structures, (d) the electron map of the MOs of structure D0 involved in absorption. [A larger version of the image is presented in Supplementary Information].
Materials 17 03587 g010
Materials 17 03587 g011
Figure 11. (a) Schematic presentation of the switching of the fluorescence of the AIEgens with phase transition. (b) The rotational twisting of the terminal aromatic ring in the SmA mesophase (alkoxy chain not shown).
Figure 11. (a) Schematic presentation of the switching of the fluorescence of the AIEgens with phase transition. (b) The rotational twisting of the terminal aromatic ring in the SmA mesophase (alkoxy chain not shown).
Materials 17 03587 g011
Table 1. Phase transition temperatures (DSC) of the synthesized compounds in the series.
Table 1. Phase transition temperatures (DSC) of the synthesized compounds in the series.
CompoundCycleT (°C)TransitionΔH (Jg−1)
4F3NA12Heating97.3Cr-SmA99.28
175.9SmA-I7.22
Cooling174.4I-SmA−6.53
70.2SmA-Cr−46.31
4F3NA14Heating91.6Cr-SmA62.73
176.8SmA-I8.02
Cooling176.1I-SmA−8.10
71.3SmA-Cr−66.24
4F3NA16Heating95.7Cr-SmA61.32
177.8SmA-I6.70
Cooling176.7I-SmA−5.97
76.8SmA-Cr−61.43
Table 2. Computed excitation energies, oscillator strengths, and molecular orbitals (MOs) involved.
Table 2. Computed excitation energies, oscillator strengths, and molecular orbitals (MOs) involved.
Sl.Structure of 4F3NA12Wavelength, nm
(Energy, eV)		Oscillator StrengthMOsCoeff
1.Optimized structure (D0)
(0° interplanar angle)		460 nm (2.6945 eV)0.0195142 → 1430.69708
393 nm (3.1538 eV)0.0025138 → 143
140 → 143
141 → 143 		0.12717
0.18488
0.66654
2.15° interplanar angle (D15)456 nm (2.7142 eV)0.0195142 → 1430.69697
389 nm (3.1864 eV)0.0023140 → 143
141 → 143 		0.23311
0.66021
3.30° interplanar angle (D30)448 nm (2.7644 eV)0.0192142 → 1430.69622
383 nm (3.2303 eV)0.0041140 → 143
141 → 143 		0.29930
0.63615
4.45° interplanar angle (D45)438 nm (2.8267 eV)0.0192142 → 1430.69492
379 nm (3.2684 eV)0.0041138 → 143
140 → 143
141 → 143 		−0.10977
−0.33742
0.60236
5.60° interplanar angle (D60)423 nm (2.9283 eV)0.0201142 → 1430.69106
380 nm (3.2612 eV)0.0205138 → 143
140 → 143
141 → 143 		0.23224
0.20295
0.61032
6.75° interplanar angle (D75)413 nm (3.0005 eV)0.0216141 → 143
142 → 143		0.12919
0.68171
388 nm (3.1941 eV)0.0218138 → 143
140 → 143
141 → 143 		0.15019
0.65842
−0.12315
7.90° interplanar angle (D90)407 nm (3.0463 eV)0.0237141 → 143
142 → 143		−0.30499 0.62002
398 nm (3.1095 eV)0.0218140 → 143
141 → 143 		0.61911
0.29803
8.Dimer parallel with -NO2 in anti-orientation
(P-AntiNO2)		590 nm (2.1020 eV)0.0039284 → 285
284 → 286		0.68746
0.12455
537 nm (2.3078 eV)0.0041277 → 285
277 → 286
284 → 286		−0.50568
−0.22074
0.39764
9.Dimer parallel with -NO2 in syn-orientation
(P-SynNO2)		551 nm (2.2503 eV)0.0100283 → 285
284 → 285		0.60833
0.32632
535 nm (2.3160 eV)0.0002276 → 285
277 → 285		−0.23282
−0.63600
10.Dimer in antiparallel orientation (AntiParallel)598 nm (2.0715 eV)0.0046283 → 285
283 → 286
284 → 285
284 → 286		0.12905
−0.28007
−0.12311
0.60811
592 nm (2.0932 eV)0.0061283 → 285
283 → 286
284 → 285
284 → 286		0.24809
0.10671
0.62925
0.12603
Note: For Sl. 1–7, the MOs 142 and 143 are the LUMO and HOMO, respectively. In Sl. 8–10, the MOs 284 and 285 are LUMO and HOMO, respectively.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Paul, S.; Chakraborty, B.B.; Rao, N.V.S.; Choudhury, S. New Calamitic Mesogens Exhibiting Aggregation-Induced Emission (AIE). Materials 2024, 17, 3587. https://doi.org/10.3390/ma17143587

AMA Style

Paul S, Chakraborty BB, Rao NVS, Choudhury S. New Calamitic Mesogens Exhibiting Aggregation-Induced Emission (AIE). Materials. 2024; 17(14):3587. https://doi.org/10.3390/ma17143587

Chicago/Turabian Style

Paul, Saurav, Bimal Bhushan Chakraborty, Nandiraju V. S. Rao, and Sudip Choudhury. 2024. "New Calamitic Mesogens Exhibiting Aggregation-Induced Emission (AIE)" Materials 17, no. 14: 3587. https://doi.org/10.3390/ma17143587

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
