Effects of Curing Conditions on Pore Structure of Ultra-High-Strength Shotcrete (UHSSC) Based on X-ray Computed Tomography
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials and Mix of UHSSC

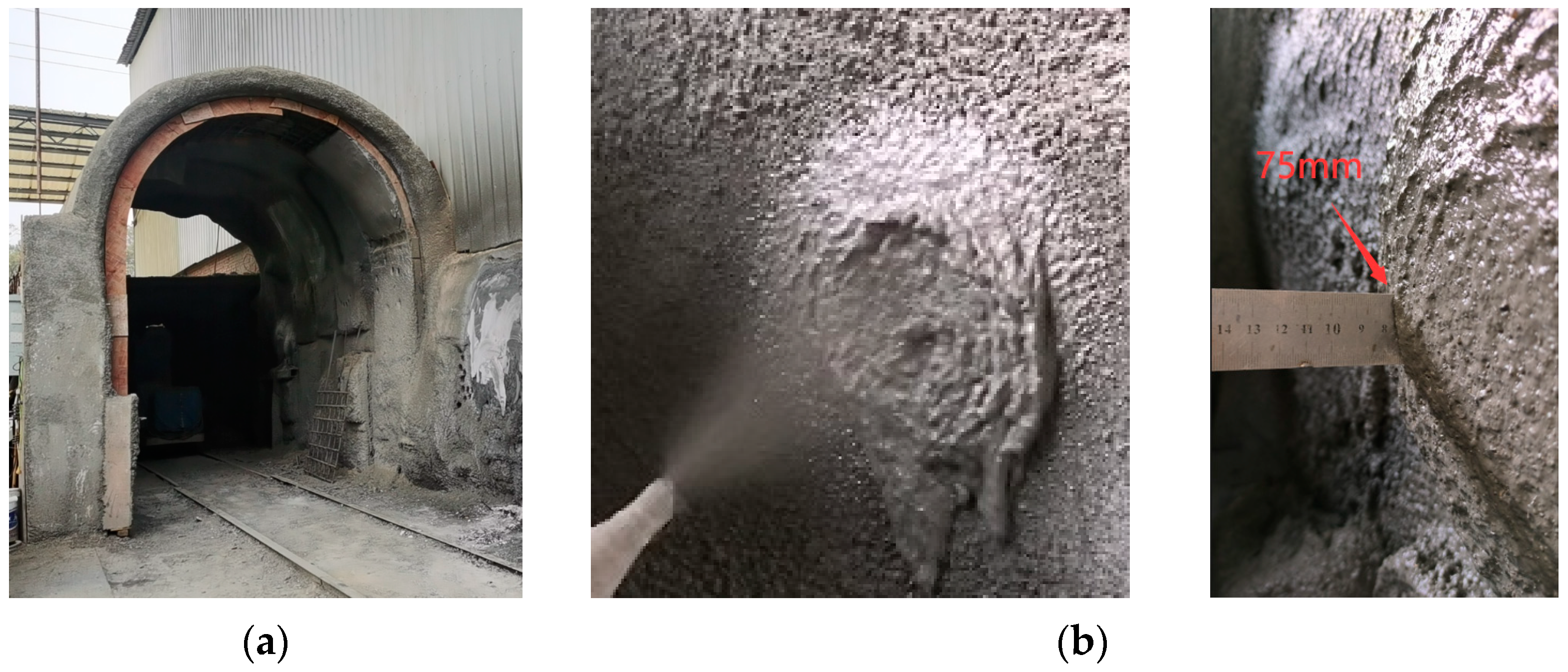

2.2. Preparation of Concrete Specimens
2.3. CT Analysis Methods
2.3.1. Principles of CT Image

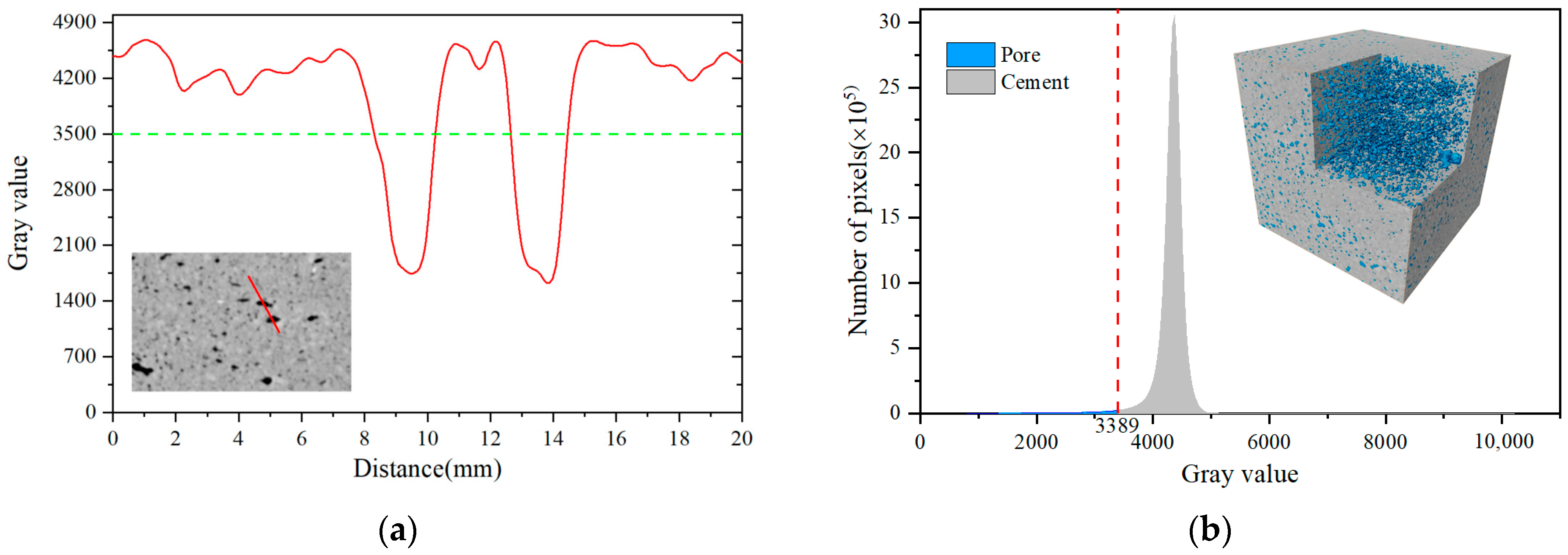

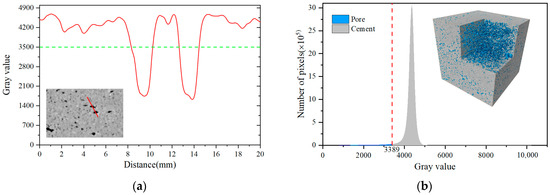

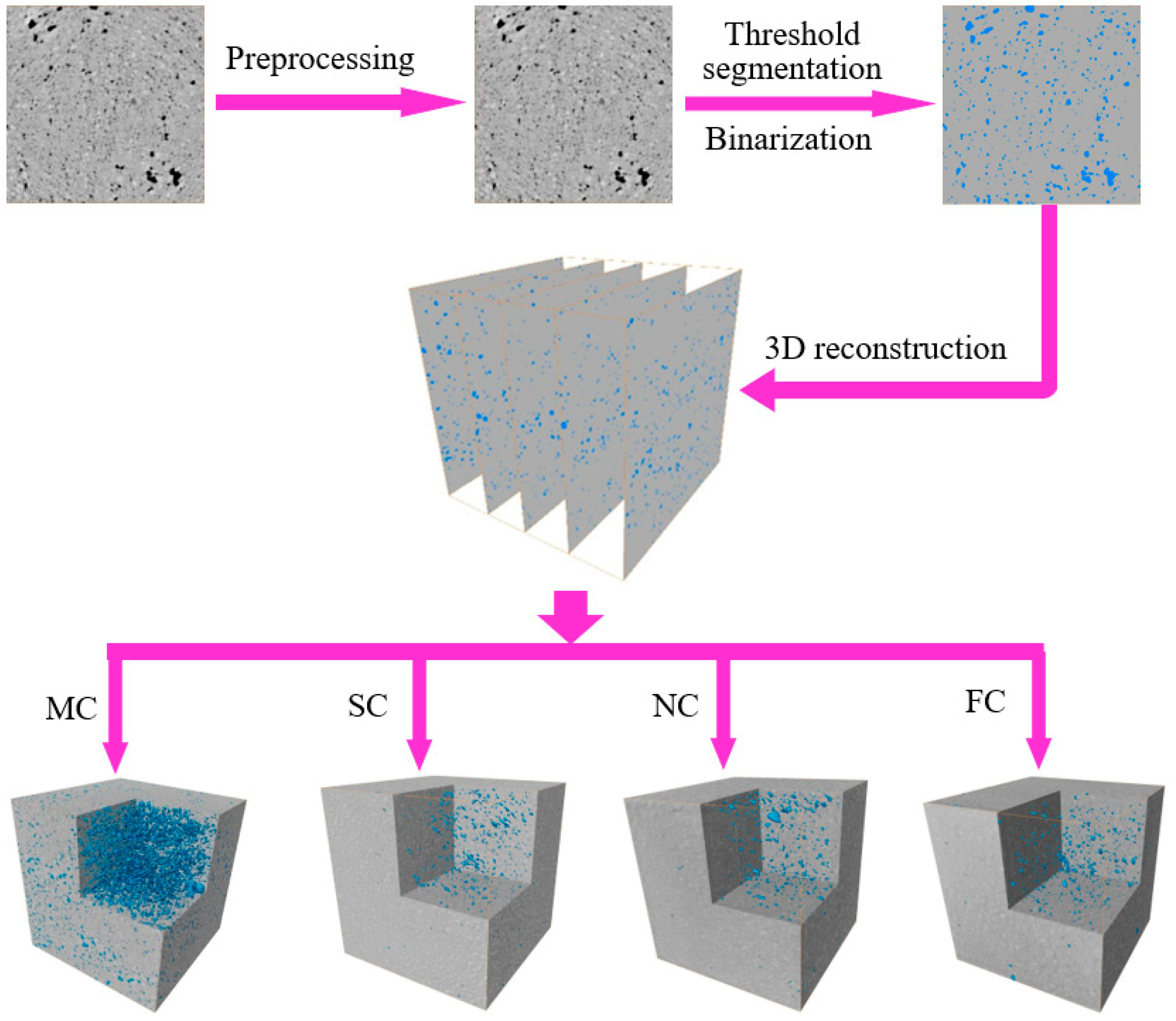

2.3.2. CT Image Processing Method
3. Results and Discussion

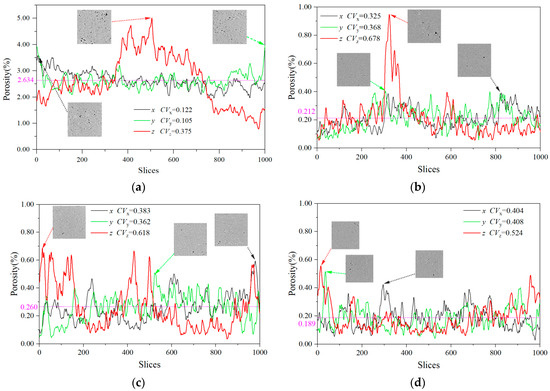

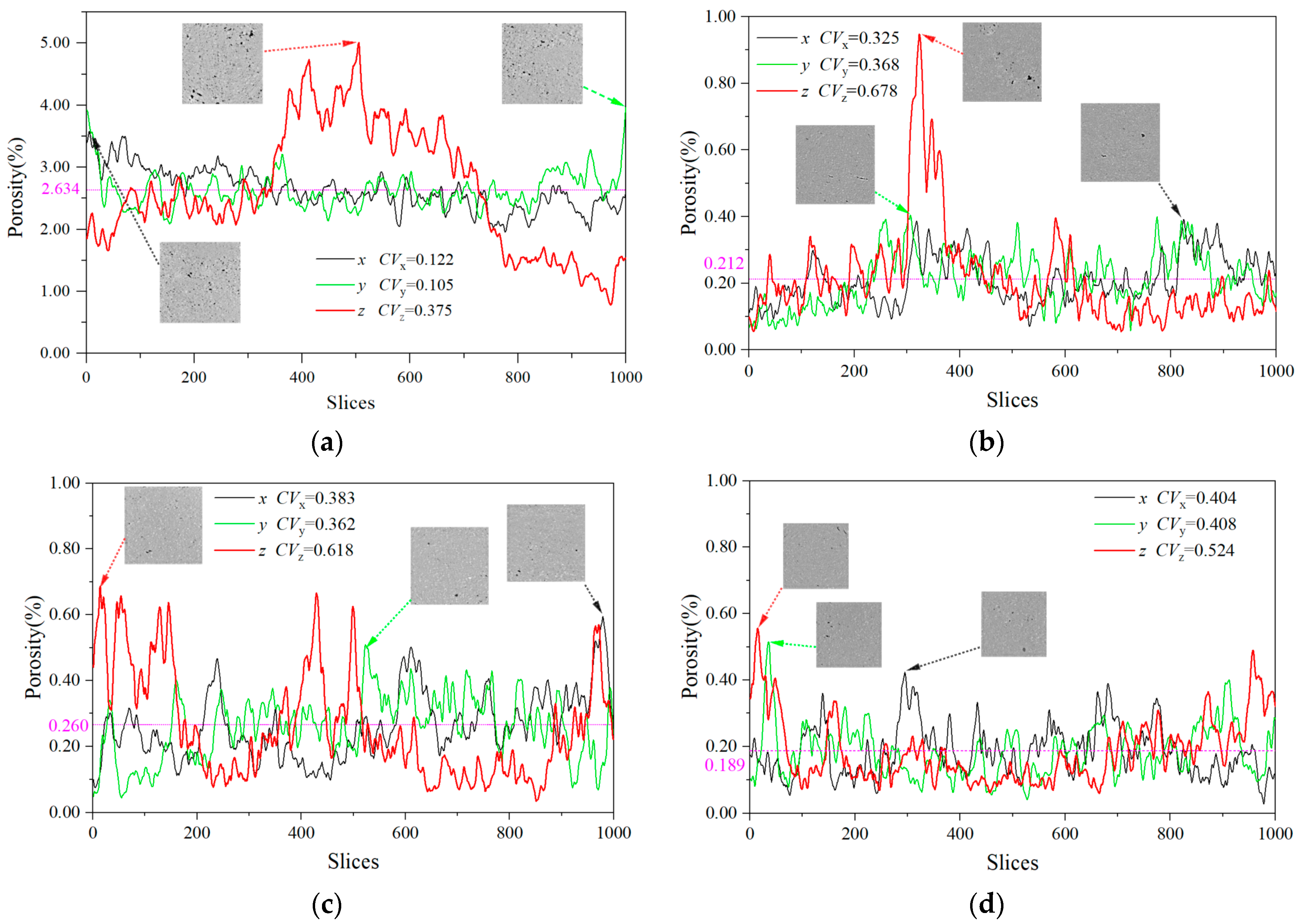

3.1. Porosity

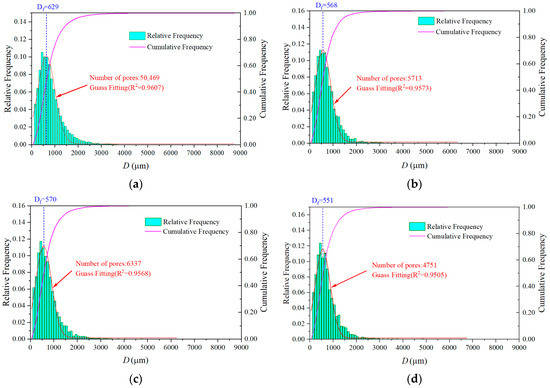

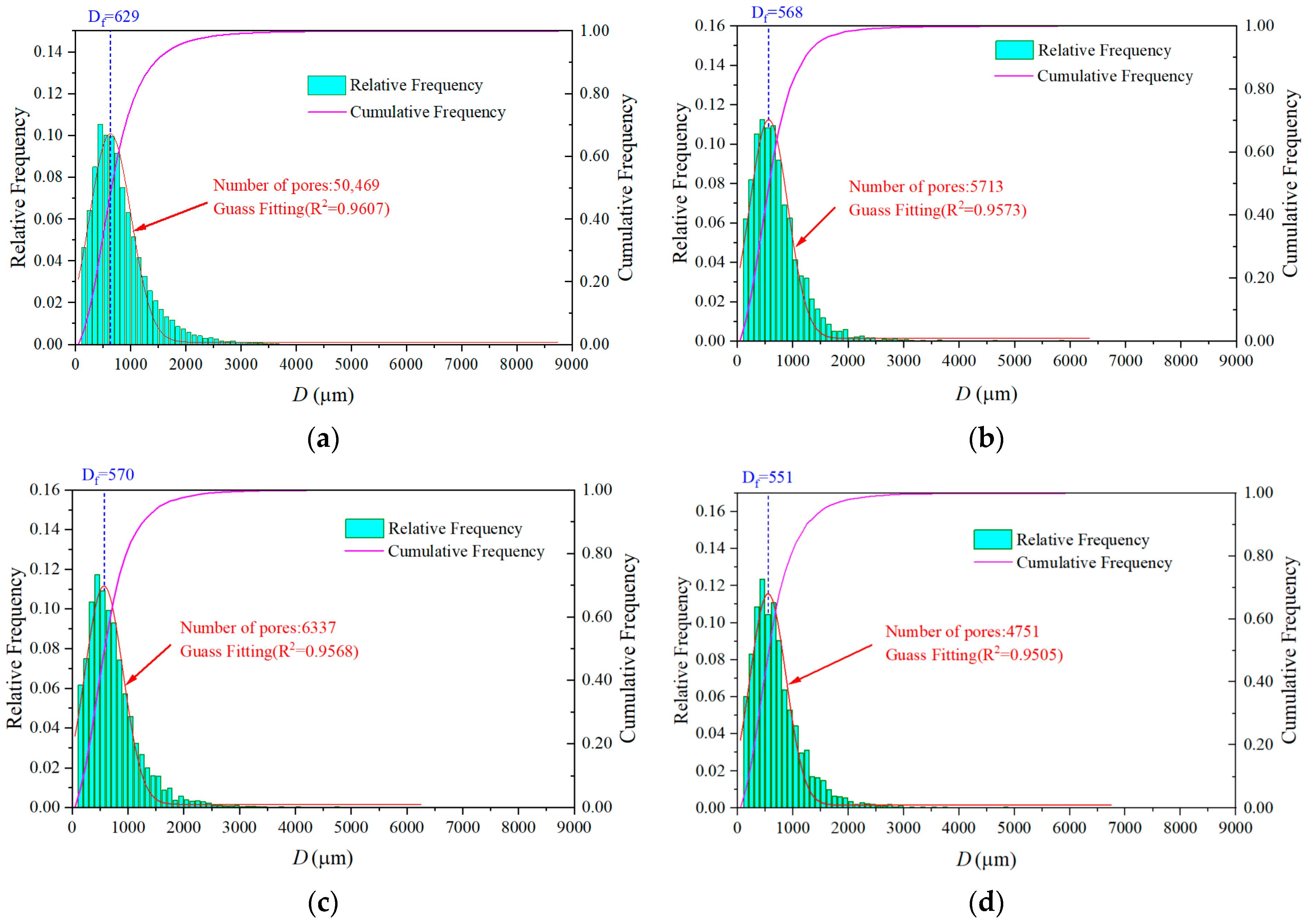

3.2. Pore Size Distribution

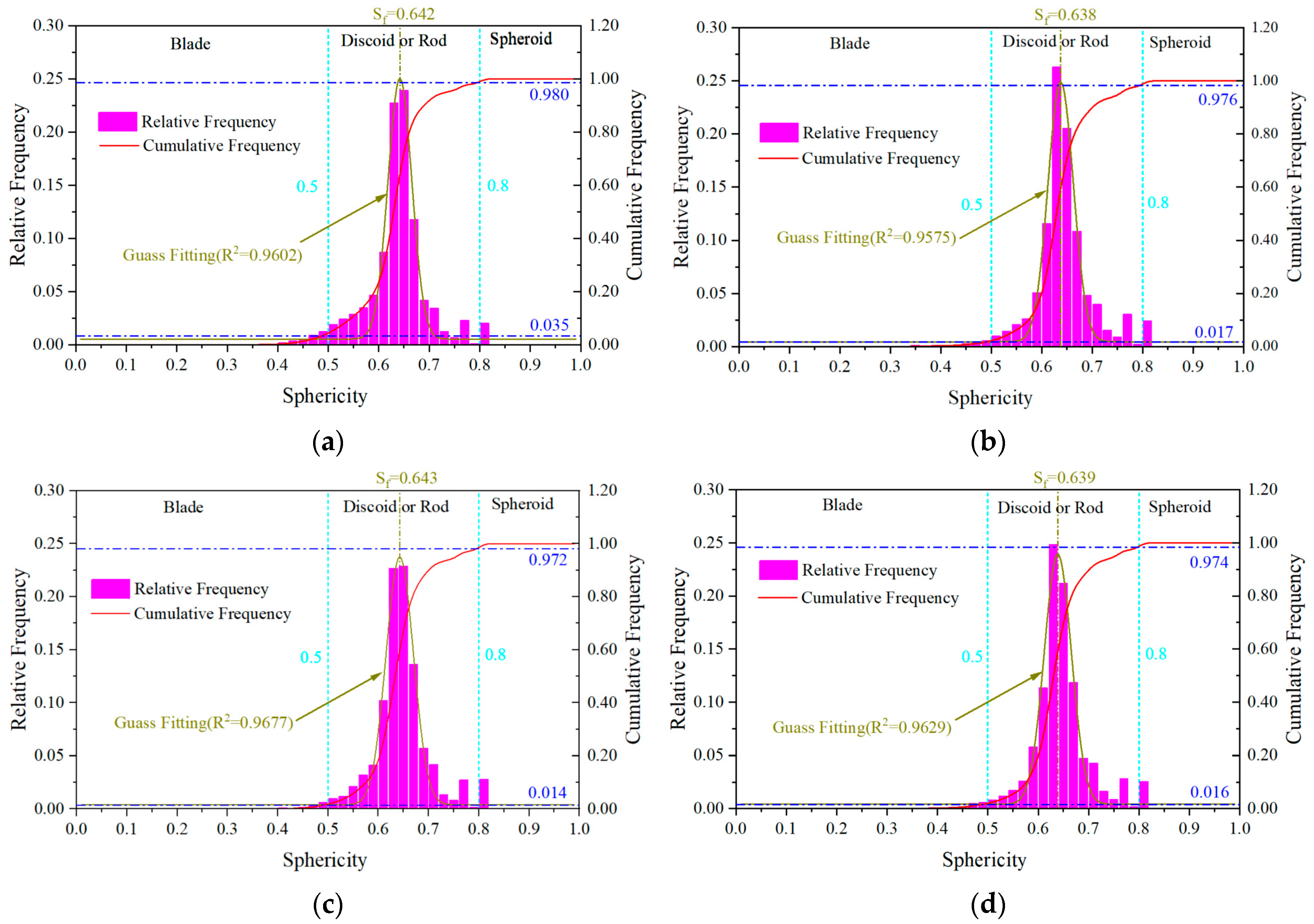

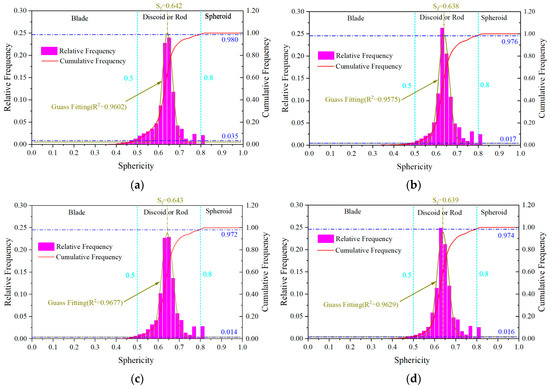

3.3. Pore Morphology Analysis

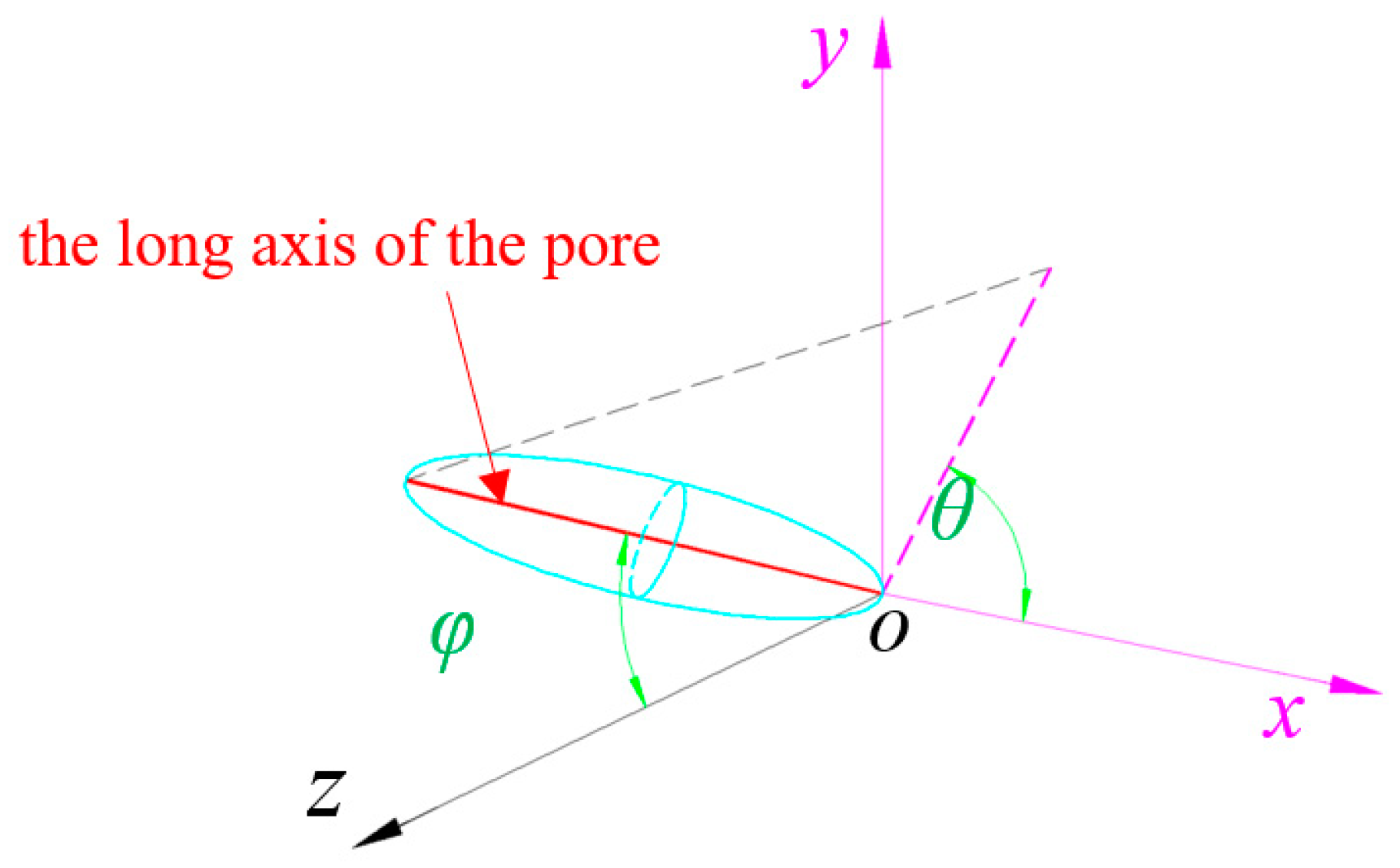

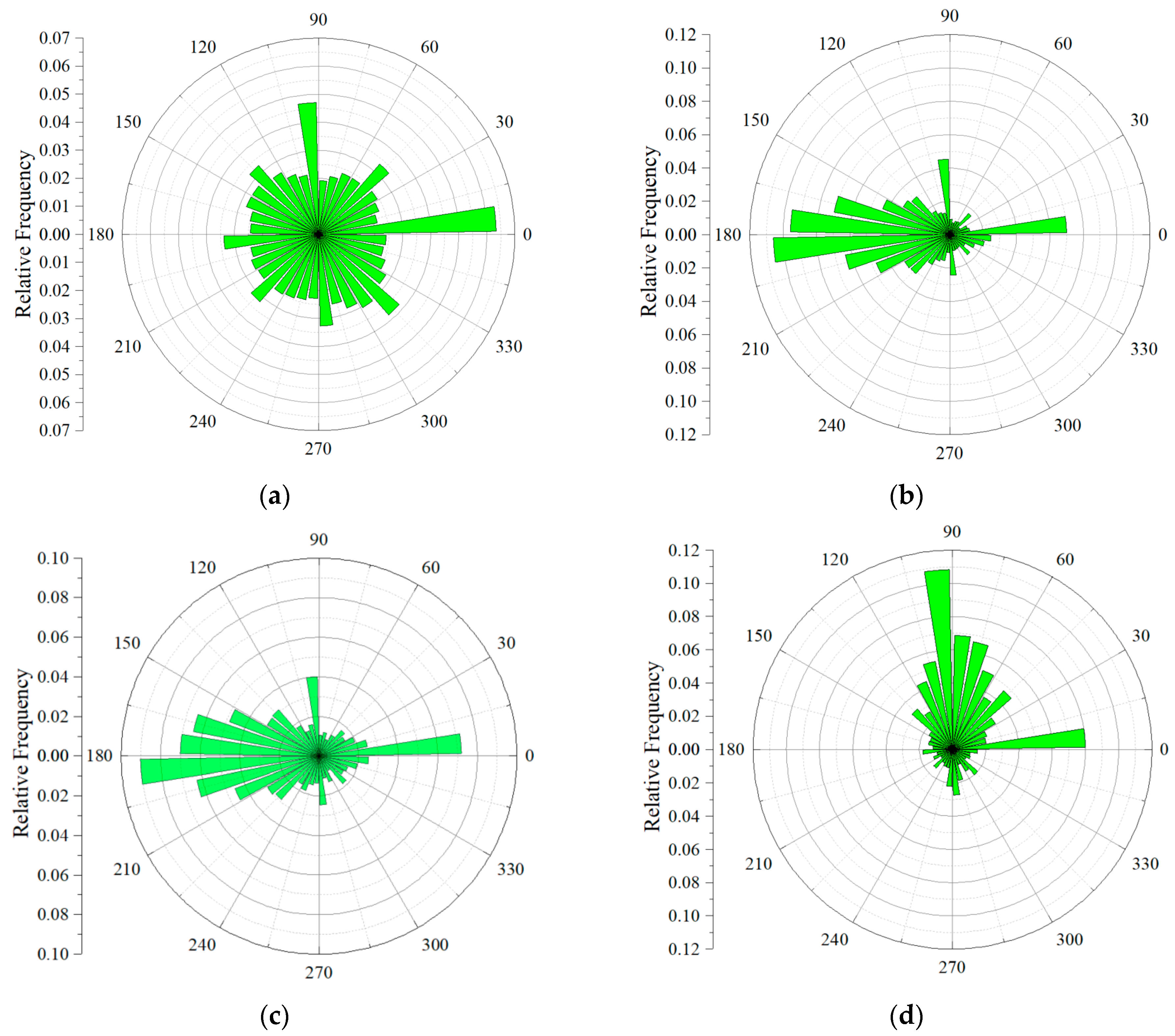

3.4. Anisotropy Analysis
3.5. Analysis of the Influence of Pore Parameters on Compressive Strength
4. Conclusions
- (1)
- The new spray process significantly reduced the porosity and pore size, so the concrete became denser and the compressive strength was significantly improved. The curing conditions affected the hydration and porosity of UHSSC. Under natural curing conditions, the hydration degree was the highest, the maximum pore size was the smallest, and the compressive strength was the highest, reaching 95.8 MPa, but the porosity was the highest.
- (2)

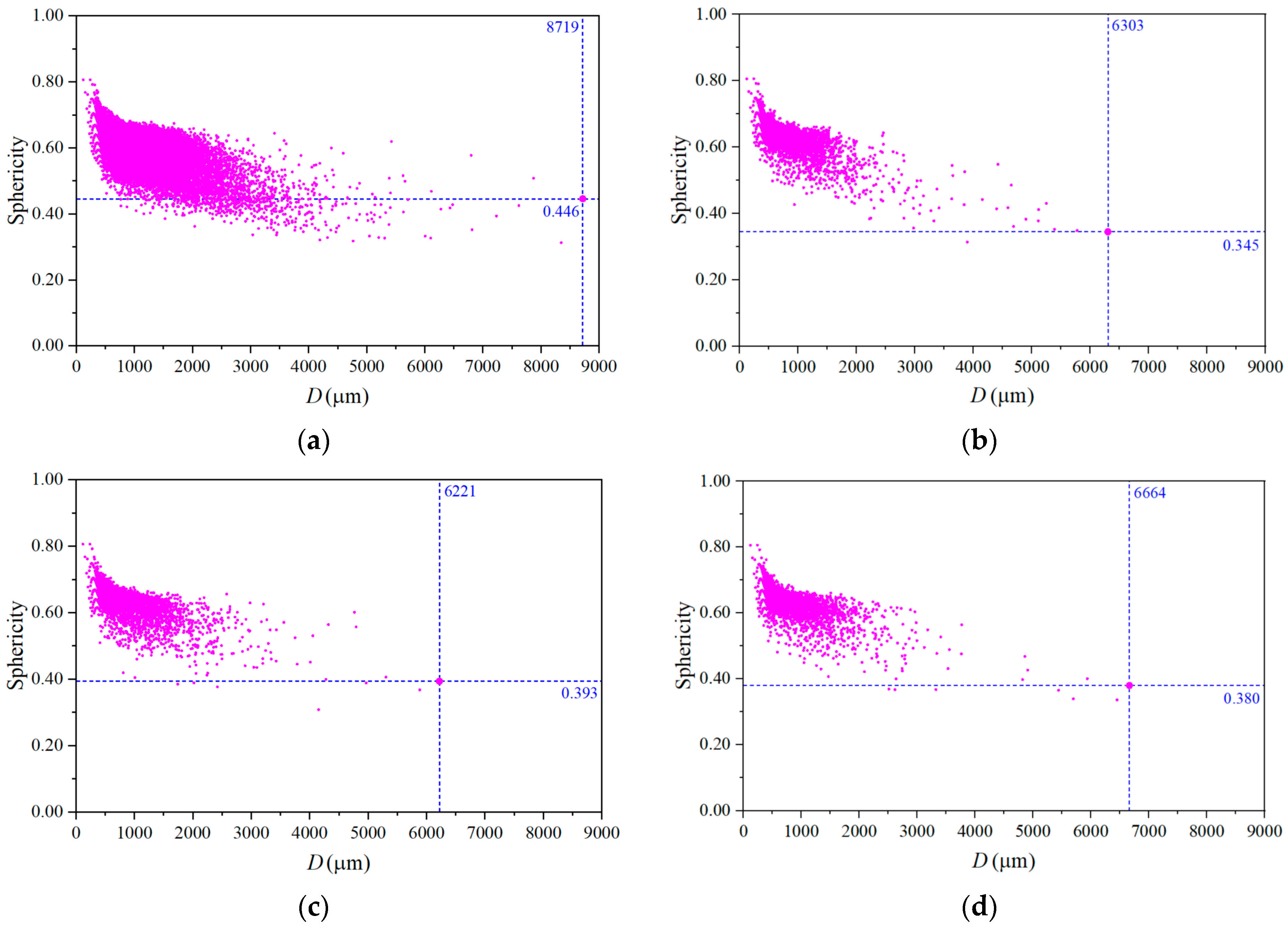

- The sphericity of pores was closely related to pore size. The sphericity tended to decrease as the pore size increased. The new spray process would reduce the sphericity of the large pores. The curing condition had a certain influence on the sphericity distribution of UHSSC pores. Under the film curing, the proportion of special-shaped pores (S < 0.4) was the largest, and its compressive strength was the smallest.
- (3)
- There was a good correlation between pore characteristic parameters and the compressive strength of UHSSC under different curing conditions. In particular, the large pore size (D ≥ 5000 µm) and special-shaped pores (S < 0.4) had obvious effects on the strength of UHSSC, and the grey correlation coefficients were 0.8539 and 0.8080, respectively.
- (4)

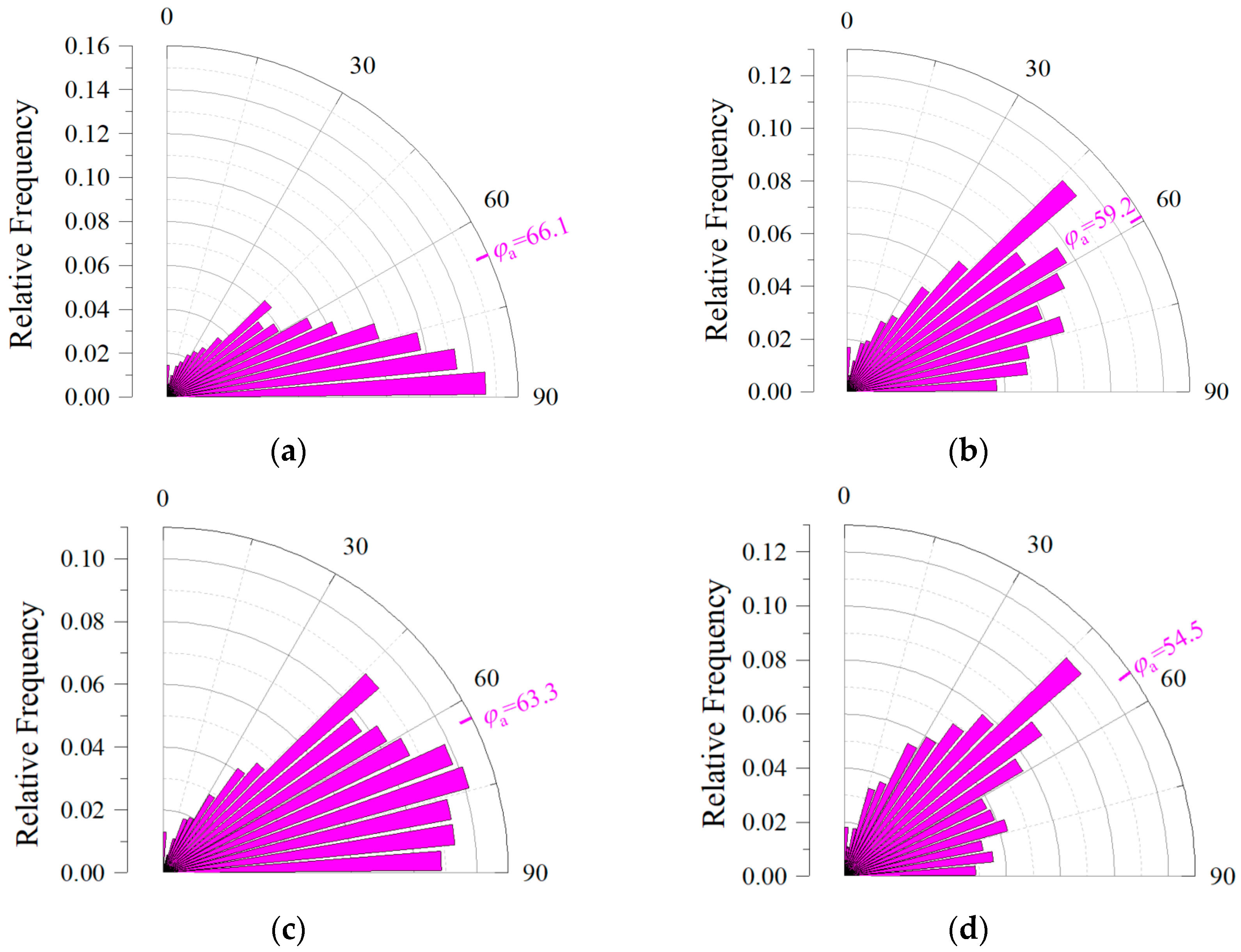

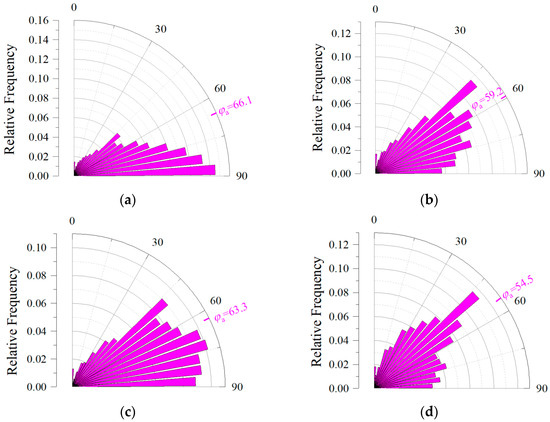

- The pores of UHSSC were obviously directional, the parameter θ was concentrated in a certain direction, and the parameter φ was significantly reduced compared with the poured specimen. In addition, there were differences in the parameter φ of UHSSC under different curing conditions. This indicated that the anisotropy of UHSSC may be more prominent than that of the poured specimen and was affected by the curing conditions at the same time. Further research is needed on this issue.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- JGJ/T 372-2016; Technical Specification for Application of Sprayed Concrete. Ministry of Housing and Urban-Rural Development of the People’s Republic of China: Beijing, China, 2016.
- Mutaz, E.; Dafalla, M.; AI-Mahbashi, A.M.; Serati, M. Utilizing Crushed Limestone as a Sustainable Alternative in Shotcrete Applications. Materials 2024, 17, 1486. [Google Scholar] [CrossRef] [PubMed]
- Cui, Y.; Tan, Z.; Zhou, Z.; Wu, J.; Wang, J. Preparation and application of low rebound liquid alkali-free accelerator for shotcrete. Constr. Build. Mater. 2023, 367, 130220. [Google Scholar] [CrossRef]
- Khooshechin, M.; Tanzadeh, J. Experimental and mechanical performance of shotcrete made with nanomaterials and fiber reinforcement. Constr. Build. Mater. 2018, 165, 199–205. [Google Scholar] [CrossRef]
- Xiao, S.; Yang, J.; Liu, Z.; Yang, W.; He, J. Effects of Steel Fiber Content on Compressive Properties and Constitutive Relation of Ultra-High Performance Shotcrete (UHPSC). Buildings 2024, 14, 1503. [Google Scholar] [CrossRef]
- Chen, L.; Zhang, Y.; Li, P.; Pan, G. Rebound Characteristics of Wet-Shotcrete Particle Flow Jet from Wall Based on CFD-DEM. Buildings 2024, 14, 977. [Google Scholar] [CrossRef]
- Takeda, H.; Kawaguchi, T.; Yoshimoto, H.; Fujiwara, S.; Sato, K. Material properties and construction performance of ultra-high strength sprayed concrete. In Tunnels and Underground Cities: Engineering and Innovation Meet Archaeology, Architecture and Art; Peila, D., Viggiani, G., Celestion, T., Eds.; Taylor & Francis Group: Naples, Italy; London, UK,, 2019; pp. 3162–3171. [Google Scholar]
- Heidarnezhad, F.; Zhang, Q. Shotcrete based 3D concrete printing: State of art, challenges, and opportunities. Constr. Build. Mater. 2022, 323, 126545. [Google Scholar] [CrossRef]
- David, M.; Freund, N.; Dröder, K.; Lowke, D. The effects of nozzle diameter and length on the resulting strand properties for shotcrete 3D printing. Mater. Struct. 2023, 56, 157. [Google Scholar] [CrossRef]
- Rehman, A.U.; Birru, B.M.; Kim, J.H. Set-on-demand 3D Concrete Printing (3DCP) construction and potential outcome of shotcrete accelerators on its hardened properties. Case Stud. Constr. Mater. 2023, 18, e01955. [Google Scholar] [CrossRef]
- Briendl, L.G.; Mittermayr, F.; Röck, R.; Steindl, F.R. The hydration of fast setting spray binder versus (aluminum sulfate) accelerated OPC. Mater. Struct. 2022, 55, 74. [Google Scholar] [CrossRef]
- Kanda, T.; Saito, T.; Sakata, N.; Hiraishi, M. Tensile and Anti-Spalling Proper-ties of Direct Sprayed ECC. J. Adv. Concr. Technol. 2003, 1, 269–282. [Google Scholar] [CrossRef]
- Wang, Y.; Shi, C.; Ma, Y.; Xiao, Y.; Liu, Y. Accelerators for shotcrete–Chemical composition and their effects on hydration, microstructure and properties of cement-based materials. Constr. Build. Mater. 2021, 281, 122557. [Google Scholar] [CrossRef]
- Lagerblad, B.; Fjällberg, L.; Vogt, C. Shrinkage and durability of shotcrete. In Shotcrete: Elements of a System; Stefan, B., Ed.; CRC Press: London, UK, 2010; pp. 173–180. [Google Scholar]
- Park, H.G.; Sung, S.K.; Park, C.G.; Won, J.P. Influence of a C12A7 mineral-based accelerator on the strength and durability of shotcrete. Cem. Concr. Res. 2008, 38, 379–385. [Google Scholar] [CrossRef]
- Prudencio, L.R., Jr. Accelerating admixtures for shotcrete. Cem. Concr. Compos. 1998, 20, 213–219. [Google Scholar] [CrossRef]
- Sheng, Y.; Xue, B.; Li, H.; Qiao, Y.; Chen, H.; Fang, J.; Xu, A. Preparation and performance of a new-type alkali-free liquid accelerator for shotcrete. Adv. Mater. Sci. Eng. 2017, 2017, 1264590. [Google Scholar] [CrossRef]
- Galan, I.; Baldermann, A.; Kusterle, W.; Dietzel, M.; Mittermayr, F. Durability of shotcrete for underground support-Review and update. Constr. Build. Mater. 2019, 202, 465–493. [Google Scholar] [CrossRef]
- Won, J.P.; Choi, B.R.; Lee, J.W. Experimental and statistical analysis of the alkali-silica reaction of accelerating admixtures in shotcrete. Constr. Build. Mater. 2012, 30, 330–339. [Google Scholar] [CrossRef]
- Han, J.; Wang, K.; Shi, J.; Wang, Y. Influence of sodium aluminate on cement hydration and concrete properties. Constr. Build. Mater. 2014, 64, 342–349. [Google Scholar] [CrossRef]
- Martinez-Ramirez, S.; Palomo, A. Microstructure studies on Portland cement pastes obtained in highly alkaline environments. Cem. Concr. Res. 2001, 31, 1581–1585. [Google Scholar] [CrossRef]
- Wang, J.; Niu, D.; Zhang, Y. Microstructure and mechanical properties of accelerated sprayed concrete. Mater. Struct. 2016, 49, 1469–1484. [Google Scholar] [CrossRef]
- Han, J.; Wang, K.; Wang, Y.; Shi, J. Study of aluminum sulfate and anhydrite on cement hydration process. Mater. Struct. 2016, 49, 1105–1114. [Google Scholar] [CrossRef]
- Salvador, R.P.; Rambo, D.A.S.; Bueno, R.M.; Lima, S.R.; Figueiredo, A.D. Influence of accelerator type and dosage on the durability of wet-mixed sprayed concrete against external sulfate attack. Constr. Build. Mater. 2020, 239, 117883. [Google Scholar] [CrossRef]
- Jiang, Z.; Pan, Y.; Lu, J.; Wang, Y. Pore structure characterization of cement paste by different experimental methods and its influence on permeability evaluation. Cem. Concr. Res. 2022, 159, 106892. [Google Scholar] [CrossRef]
- Diamond, S. Mercury porosimetry: An inappropriate method for the measurement of pore size distributions in cement-based materials. Cem. Concr. Res. 2000, 30, 1517–1525. [Google Scholar] [CrossRef]
- Giesche, H. Mercury porosimetry: A general (practical) overview. Part. Syst. Charact. 2006, 23, 9–19. [Google Scholar] [CrossRef]
- Muller, A.C.A.; Scrivener, K.L. A reassessment of mercury intrusion porosimetry by com-parison with 1H NMR relaxometry. Cem. Concr. Res. 2017, 100, 350–360. [Google Scholar] [CrossRef]
- Scrivener, K.I. Backscattered electron imaging of cementitious microstructures: Under-standing and quantification. Cem. Concr. Compos. 2004, 26, 935–945. [Google Scholar] [CrossRef]
- Song, Y.; Dai, G.; Zhao, L.; Bian, Z.; Li, P.; Song, L. Permeability prediction of hydrated cement paste based on its 3D image analysis. Constr. Build. Mater. 2020, 247, 118527. [Google Scholar] [CrossRef]
- Wang, R.; Gao, X.; Zhang, J.; Han, G. Spatial distribution of steel fibers and air bubbles in UHPC cylinder determined by X-ray CT method. Constr. Build. Mater. 2018, 160, 39–47. [Google Scholar] [CrossRef]
- Cosić, K.; Korat, L.; Ducman, V.; Netinger, I. Influence of aggregate type and size on properties of pervious concrete. Constr. Build. Mater. 2015, 78, 69–76. [Google Scholar] [CrossRef]
- Guo, Y.; Chen, X.; Chen, B.; Wen, R.; Wu, P. Analysis of foamed concrete pore structure of railway roadbed based on X-ray computed tomography. Constr. Build. Mater. 2021, 273, 121773. [Google Scholar] [CrossRef]
- Ren, D.; Xu, J.; Su, S.; Tian, G.; Chen, X.; Zhang, A.; Ai, C. Characterization of internal pore size distribution and interconnectivity for asphalt concrete with various porosity using 3D CT scanning images. Constr. Build. Mater. 2023, 400, 132751. [Google Scholar] [CrossRef]
- Luo, D.; Niu, D. Influences of water-to-cement ratio and curing condition on water absorption of internal curing concrete. J. Build. Struct. 2019, 40, 9. (In Chinese) [Google Scholar] [CrossRef]
- Ruan, B.; Yuan, Z.; Zhang, J.; Zheng, S.; Zhang, X.; Nie, R. Effect of curing conditions on the unconfined compressive strength and microstructure of cemented aeolian sand reinforced with polypropylene fiber. J. Railw. Sci. Eng. 2022, 19, 6. (In Chinese) [Google Scholar] [CrossRef]
- Li, M.; Qian, J.; Xu, S.; Wang, L. Effects of Different Curing Conditions on Near-Surface Layer Properties of Concrete. J. Build. Mater. 2009, 12, 5. (In Chinese) [Google Scholar] [CrossRef]
- Tasdemir, C. Combined effects of mineral admixtures and curing conditions on the sorptivity coefficient of concrete. Cem. Concr. Res. 2003, 33, 1637–1642. [Google Scholar] [CrossRef]
- Hao, W.; Guo, B.; Guo, Y.; Jiang, R.; Zhao, F.; Wang, B. Effects of Curing Methods on the Permeability and Mechanism of Cover Concrete. J. Build. Mater. Sci. 2023, 5, 20–31. [Google Scholar] [CrossRef]
- GB175-2007; Common Portland Cement. Standardization Administration of the People’s Republic of China: Beijing, China, 2007.
- JG/T 568-2019; Aggregate for High Performance Concrete. Ministry of Housing and Urban-Rural Development of the People’s Republic of China: Beijing, China, 2019.
- Otsu, N. A Threshold Selection Method from Gray-Level Histograms. IEEE Trans. Syst. Man Cybern. 1979, 9, 62–66. [Google Scholar] [CrossRef]
- Kuang, X.; Ying, G.; Ranieri, V.; Sansalone, J.M.A. Examination of Pervious Pavement Pore Parameters with X-ray Tomography. J. Energy Eng. 2015, 141, 04015021. [Google Scholar] [CrossRef]
- Wang, J.; Niu, D.; Zhang, Y. Mechanical properties, permeability and durability of accelerated shotcrete. Constr. Build. Mater. 2015, 95, 312–328. [Google Scholar] [CrossRef]
- Kruger, J.; Plessis, A.D.; Zijl, G.V. An investigation into the porosity of extrusion-based 3D printed concrete. Addit. Manuf. 2021, 37, 101740. [Google Scholar] [CrossRef]
- Ma, G.; Li, Z.; Wang, L.; Wang, F.; Sanjayan, J. Mechanical anisotropy of aligned fiber reinforced composite for extrusion-based 3D printing. Constr. Build. Mater. 2019, 202, 770–783. [Google Scholar] [CrossRef]
- Barrett, P.J. The shape of rock particles, a critical review. Sedimentology 1980, 27, 291–303. [Google Scholar] [CrossRef]
- Schmitt, M.; Halisch, M.; Müller, C.; Fernandes, C.P. Classification and quantification of pore shapes in sandstone reservoir rocks with 3-D X-ray micro-computed tomography. Solid Earth 2016, 7, 285–300. [Google Scholar] [CrossRef]
- Kong, L.; Ostadhassan, M.; Li, C.; Tamimi, N. Pore characterization of 3D-printed gypsum rocks: A comprehensive approach. J. Mater. Sci. 2018, 53, 5063–5078. [Google Scholar] [CrossRef]
- Zingg, T. Beitrag zur Schotteranalyse. Ph.D. Thesis, Swiss Federal Institute of Technology, Zurich, Switzerland, 1935. [Google Scholar]
- Liu, H.; Liu, C.; Bai, G.; Wu, Y.; He, C.; Zhang, R.; Wang, Y. Influence of pore defects on the hardened properties of 3D printed concrete with coarse aggregate. Addit. Manuf. 2022, 55, 102843. [Google Scholar] [CrossRef]
- Aslanidi, O.V.; Nikolaidou, T.; Zhao, J.; Smaill, B.H.; Gilbert, S.H.; Holden, A.V.; Lowe, T.; Withers, P.J.; Stephenson, R.S.; Jarvis, J.C.; et al. Application of micro-computed tomography with iodine staining to cardiac imaging, segmentation, and computational model development. IEEE Trans. Med. Imaging 2012, 32, 8–17. [Google Scholar] [CrossRef] [PubMed]
- Yuan, Z.; Chen, B.; Chen, J.; Gao, Z. Characterization of pore structure of foamed concrete and its influence on performance. Acta Mater. Compos. Sin. 2023, 40, 4117–4127. (In Chinese) [Google Scholar] [CrossRef]
- Chen, J.; Qin, Y.; Xiao, J.; Lu, Y. Pore Structure Characteristics of Recycled Concrete with Lithium Slag Based on CT Technology. J. Build. Mater. 2021, 24, 4117–4127. (In Chinese) [Google Scholar] [CrossRef]
- Zhang, P.; Shi, D.; Han, P.; Jiang, W. Analysis of the Relationship between Mechanical Properties and Pore Structure of MSW Incineration Bottom Ash Fine Aggregate Concrete after Freeze-Thaw Cycles Based on the Gray Theory. J. Renew. Mater. 2023, 11, 669–688. [Google Scholar] [CrossRef]
Water | Cement | SF | FA | AS | Superplasticizer | PP | VE |
---|---|---|---|---|---|---|---|
0.295 | 1.0 | 0.128 | 0.103 | 1.282 | 0.005 | 0.1% | 0.077 |
No. | Forming Process | Curing Regime | Curing Conditions |
---|---|---|---|
SC | Spraying | Standard curing | In curing room (20 ± 2 °C and relative humidity ≥ 95%) |
NC | Natural curing | Indoors, continue sprinkling water curing for 13 days and then placed for 14 days | |
FC | Film curing | Indoors, samples were sealed with plastic film to prevent moisture evaporation | |
MC | Pouring | Standard curing | In curing room (20 ± 2 °C and relative humidity ≥ 95%) |
Parameter | MC | SC | NC | FC | |
---|---|---|---|---|---|
Compressive strength/MPa | A | 74.9 | 88.7 | 100.7 | 80.9 |
B | 77.3 | 93.5 | 96.9 | 83.2 | |
C | 64.1 | 92.2 | 89.9 | 90.4 | |
Average | 72.1 | 91.5 | 95.8 | 84.8 | |
Porosity/% | 2.634 | 0.212 | 0.260 | 0.189 | |
Dmax/µm | 8719 | 6303 | 6221 | 6664 | |
Df/µm | 629 | 568 | 570 | 551 | |
Sf | 0.642 | 0.638 | 0.643 | 0.639 |
Characteristic Parameter | Porosity | Dmax | Df | Sf |
---|---|---|---|---|
Correlation | 0.6837 | 0.6689 | 0.7472 | 0.7827 |
Pore Sphericity Distribution | Proportion of Pores/% by Volume | Correlation | ||
---|---|---|---|---|
SC | NC | FC | ||
0–0.4 | 0.018732 | 0.013535 | 0.018917 | 0.8080 |
0.4–0.5 | 0.037657 | 0.027366 | 0.025949 | 0.6569 |
0.5–0.6 | 0.068311 | 0.097745 | 0.060358 | 0.6467 |
0.6–0.7 | 0.086530 | 0.120322 | 0.083490 | 0.7021 |
0.7–0.8 | 0.000501 | 0.000549 | 0.000439 | 0.7311 |
0.8–1 | 0.000034 | 0.000045 | 0.000031 | 0.6826 |
Pore Sphericity Distribution/µm | Proportion of Pores/% by Volume | Correlation | ||
---|---|---|---|---|
SC | NC | FC | ||
≥5000 | 0.0180 | 0.0112 | 0.0193 | 0.8539 |
5000 > d ≥ 4000 | 0.0148 | 0.0186 | 0.0077 | 0.6864 |
4000 > d ≥ 3000 | 0.0153 | 0.0188 | 0.0095 | 0.7105 |
3000 > d ≥ 2000 | 0.0303 | 0.0565 | 0.0391 | 0.6636 |
2000 > d ≥ 1000 | 0.0887 | 0.1054 | 0.0779 | 0.7930 |
1000 > d ≥ 0 | 0.0447 | 0.0490 | 0.0352 | 0.7935 |
