Piecewise Linear Strength Models for Analyzing Multiple Failure Mechanisms in Rocks Materials
Abstract
:1. Introduction
2. Related Work

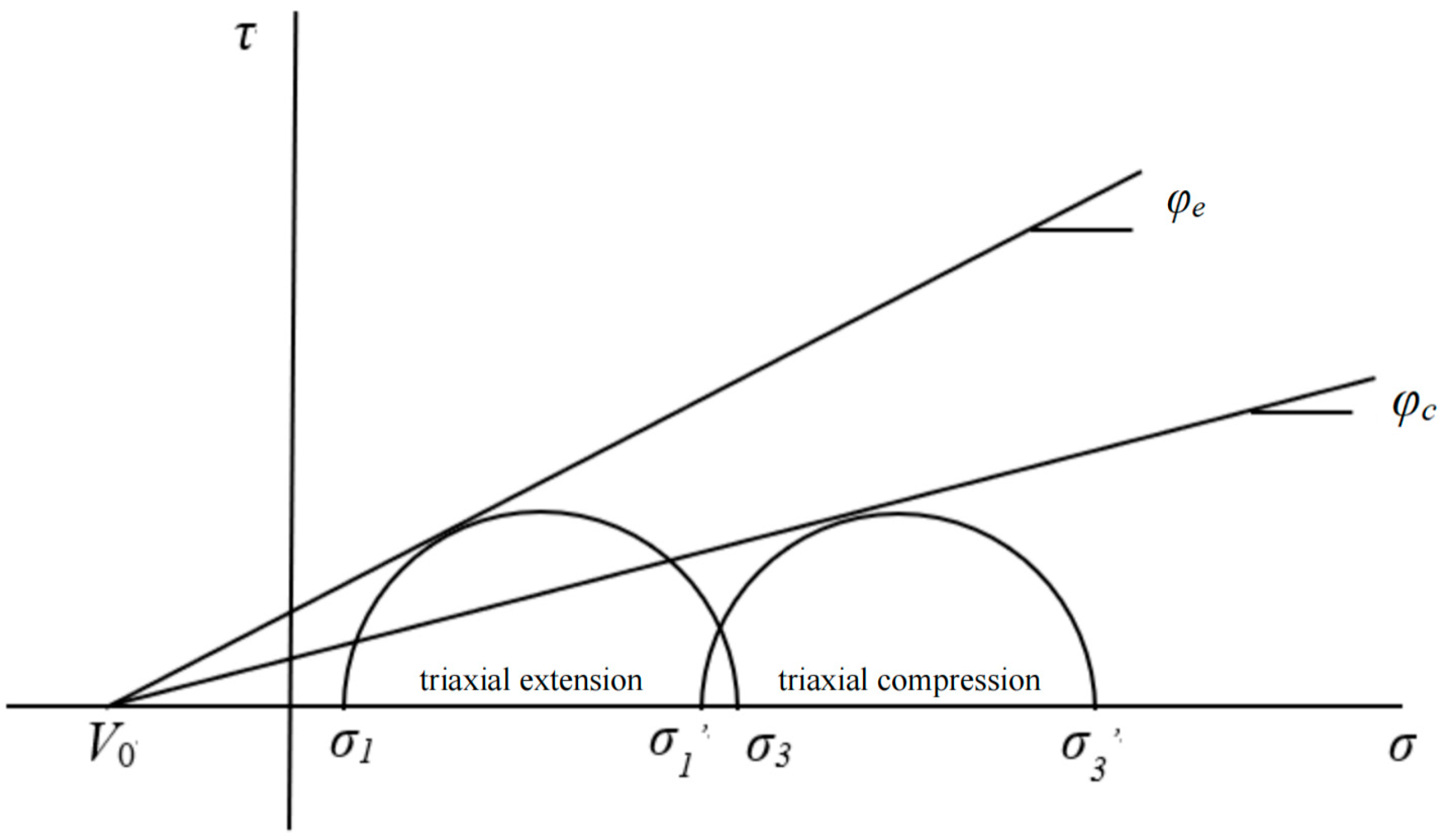

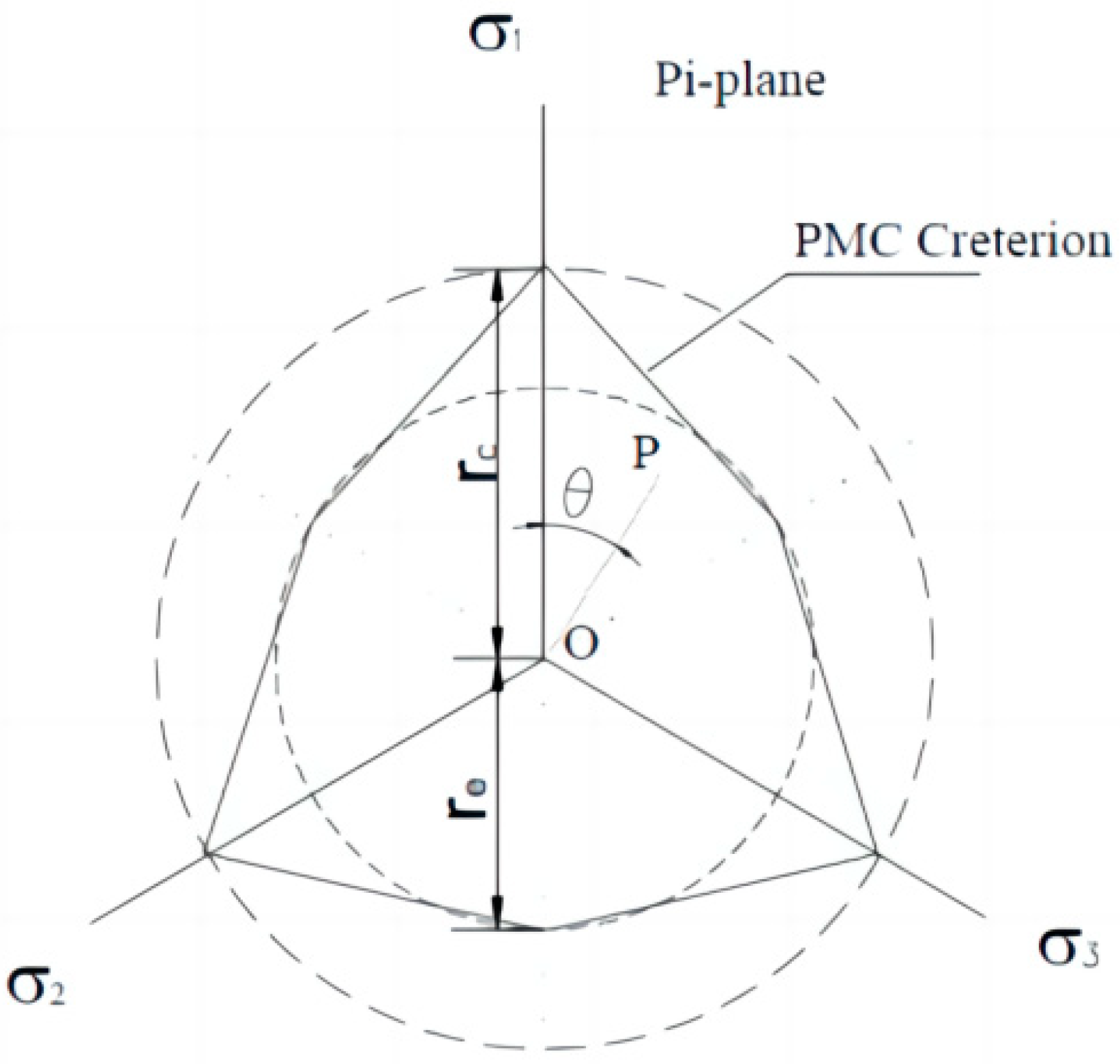

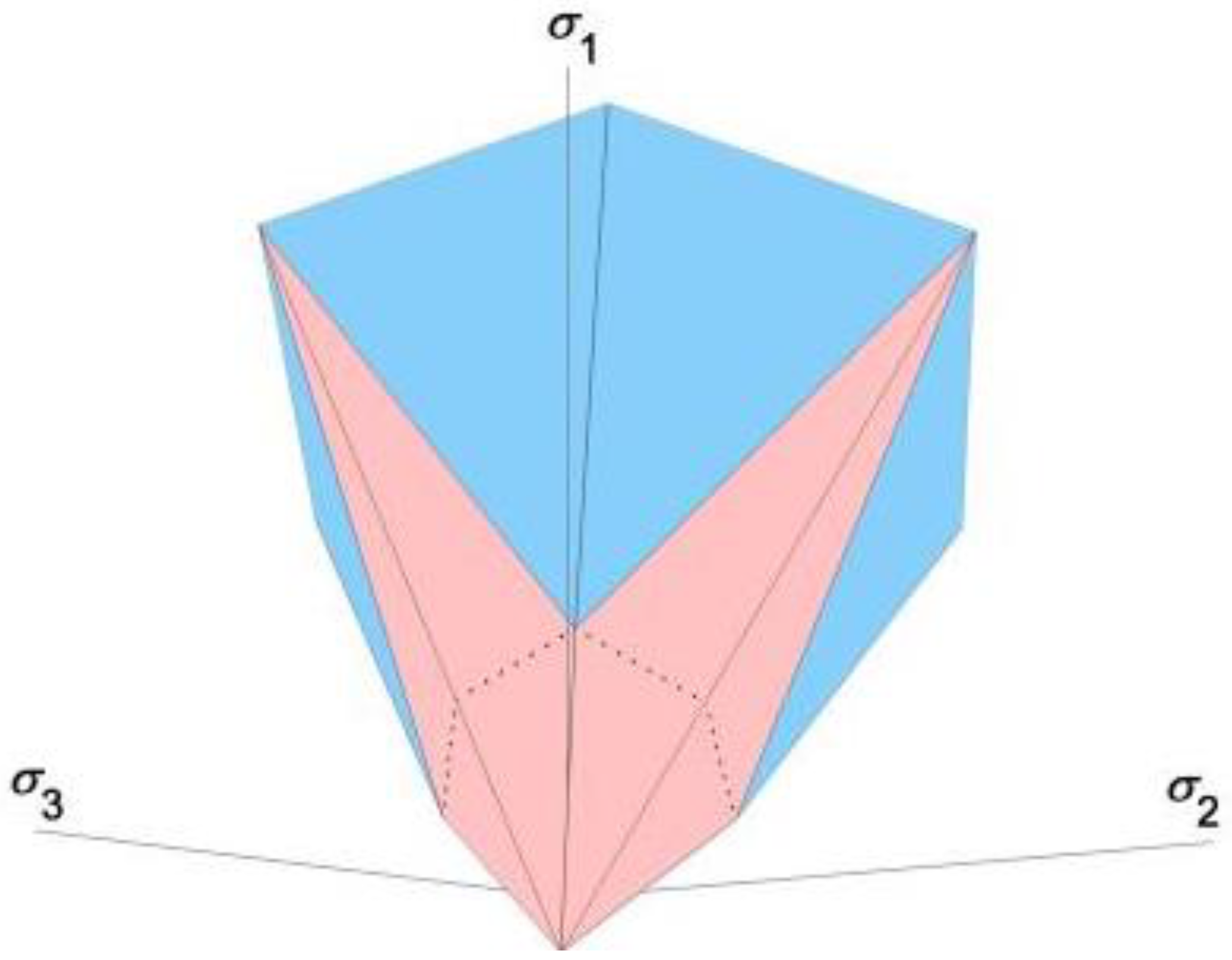

2.1. PMC Model

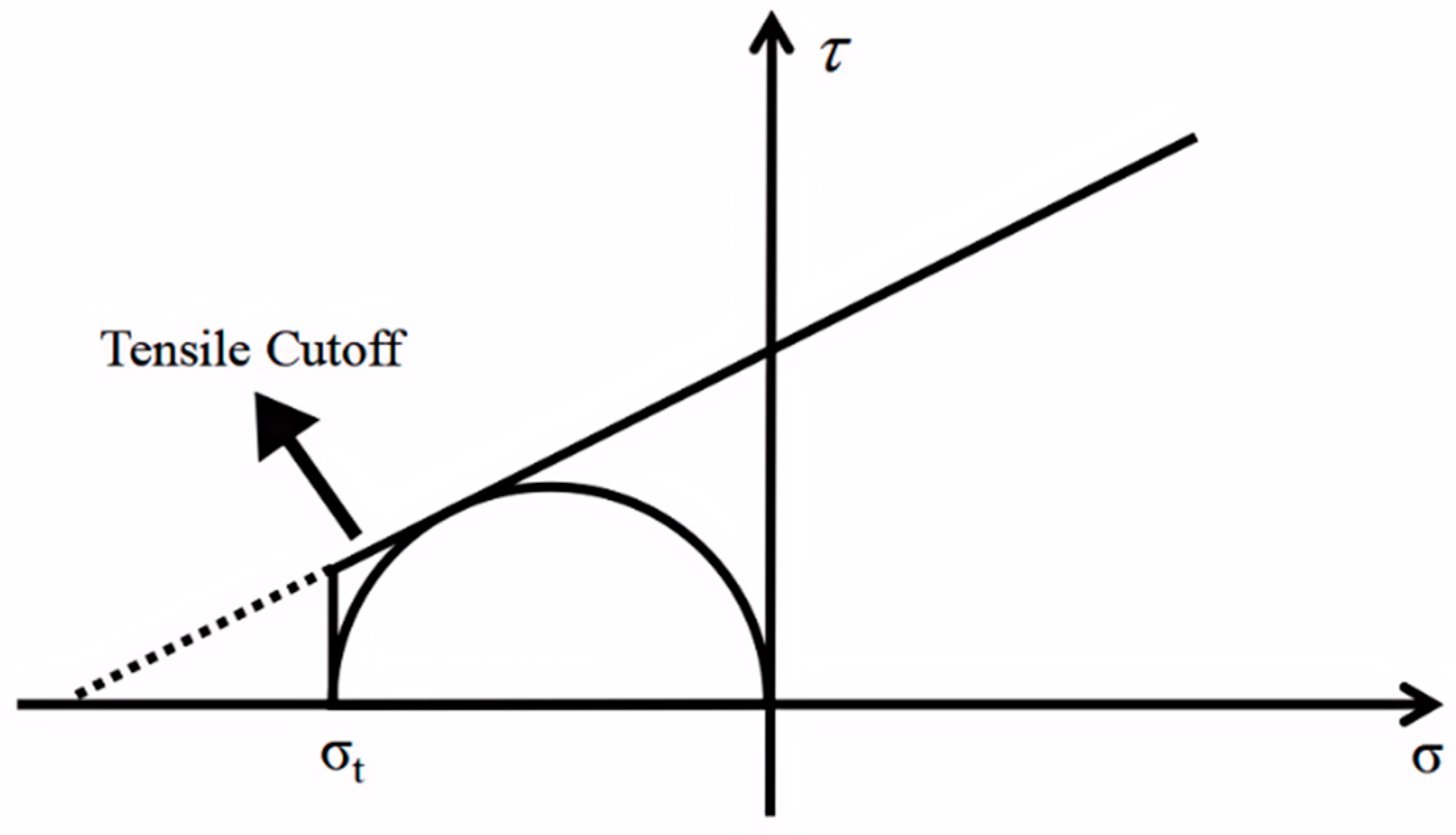

2.2. Extensional-Strain Criterion and Brittle Failure
3. Methodology

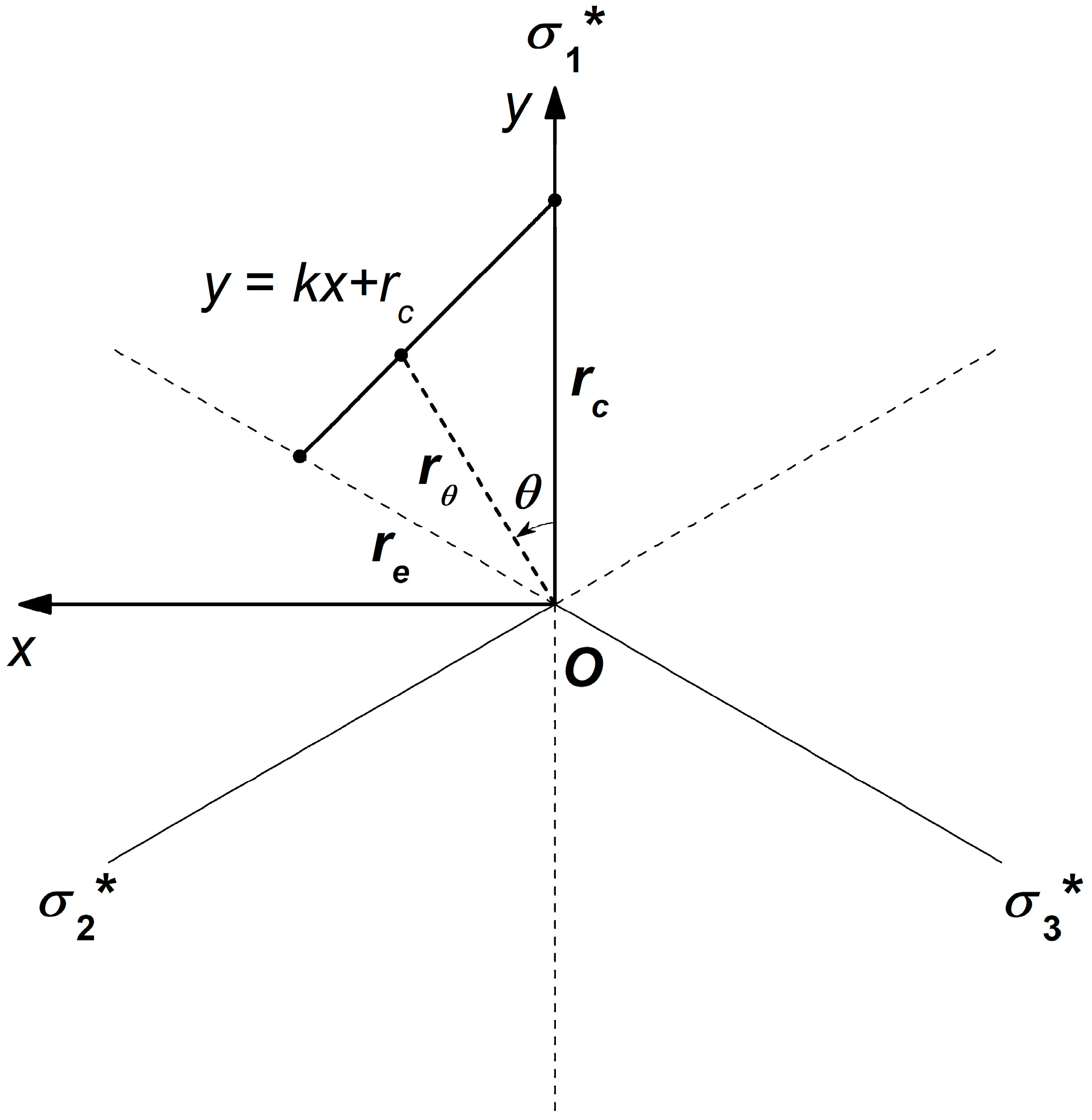

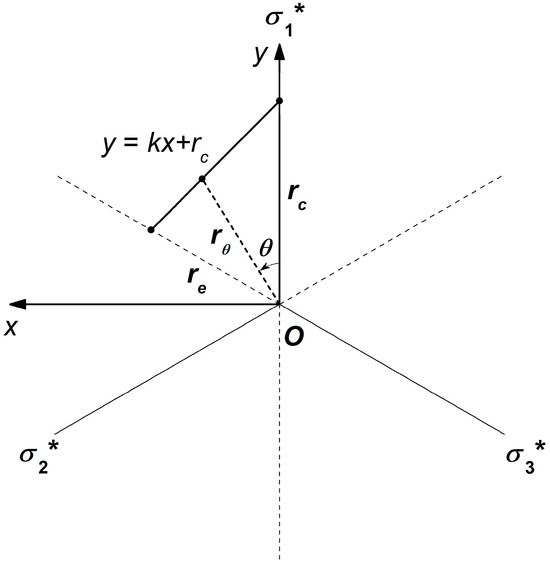

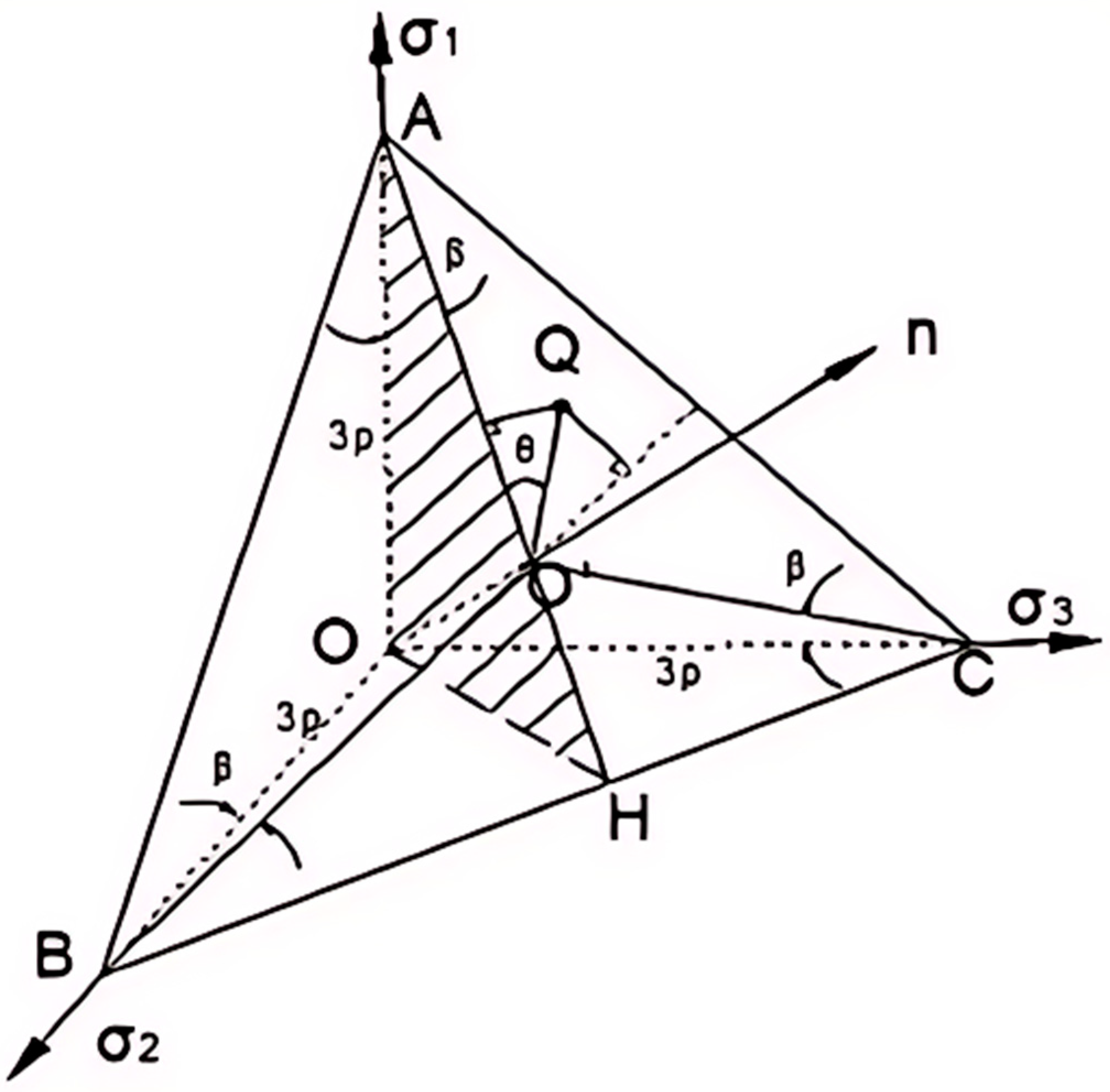

3.1. Proposal of the PMC Model Considering Extensional Strain

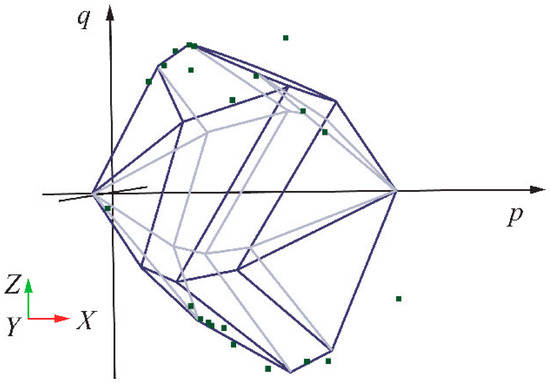

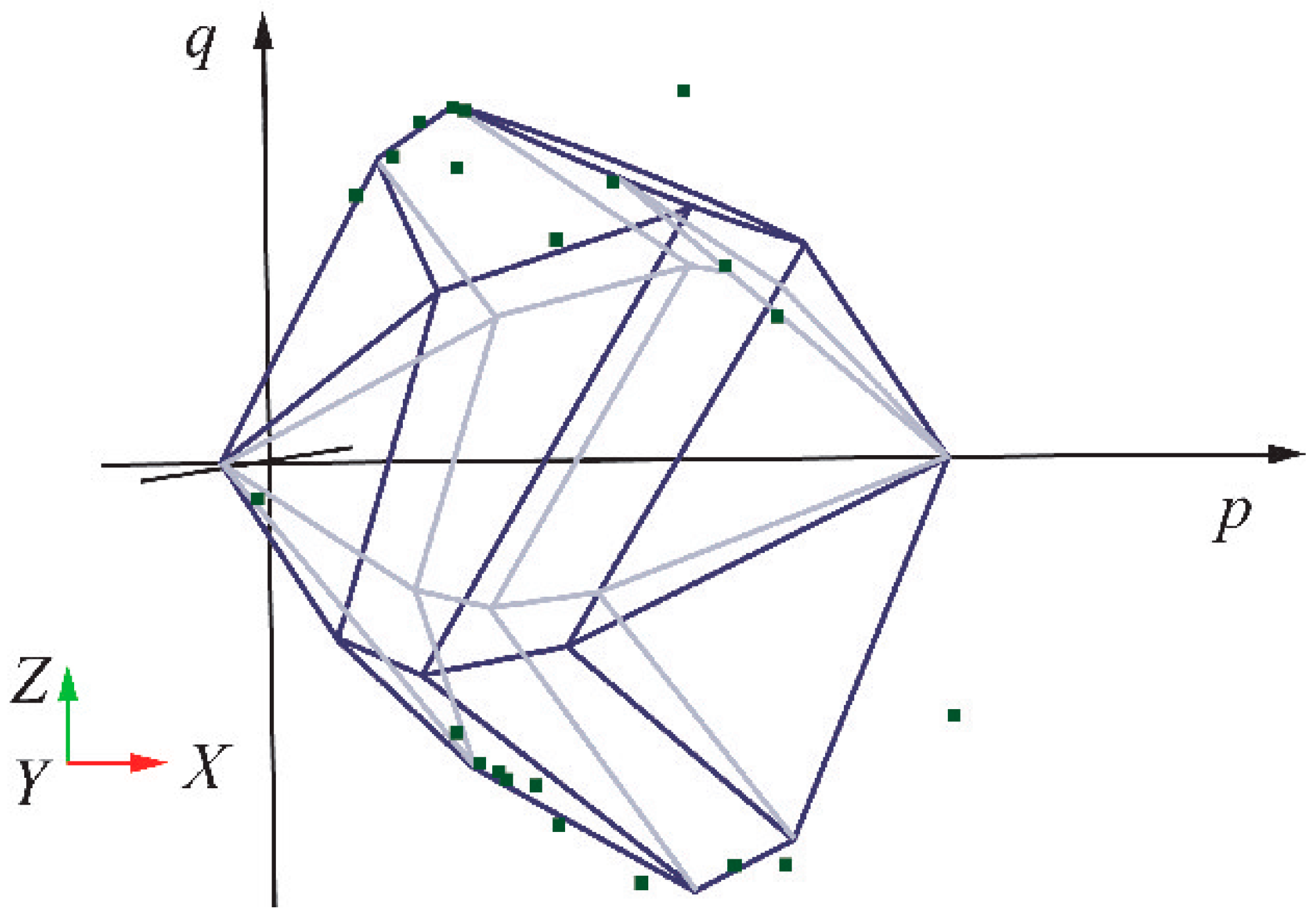

3.2. Unified Equation of the Multiple Failure Mechanism Model
3.3. Parameter Fitting Method
4. Experiments
4.1. Experimental Conditions

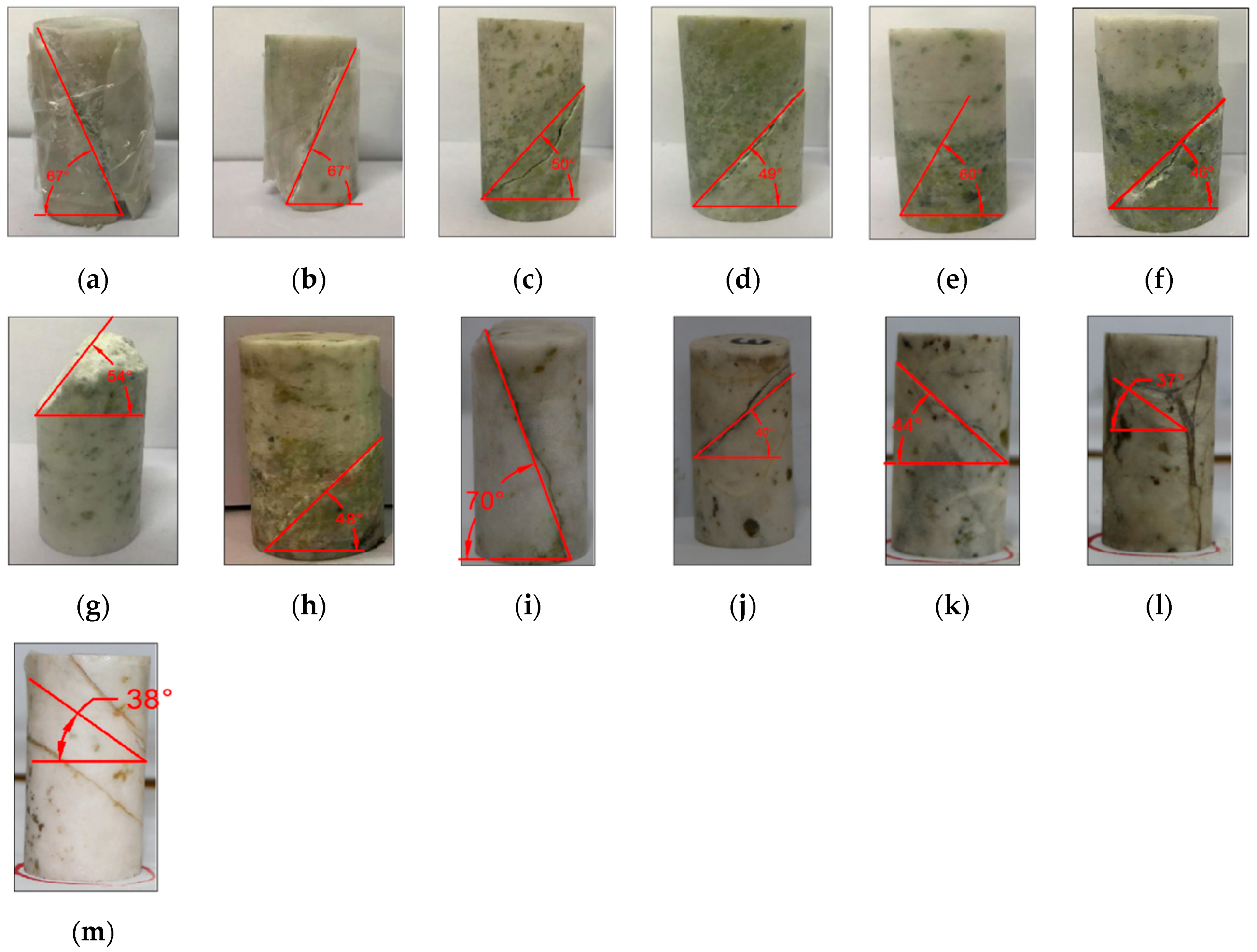

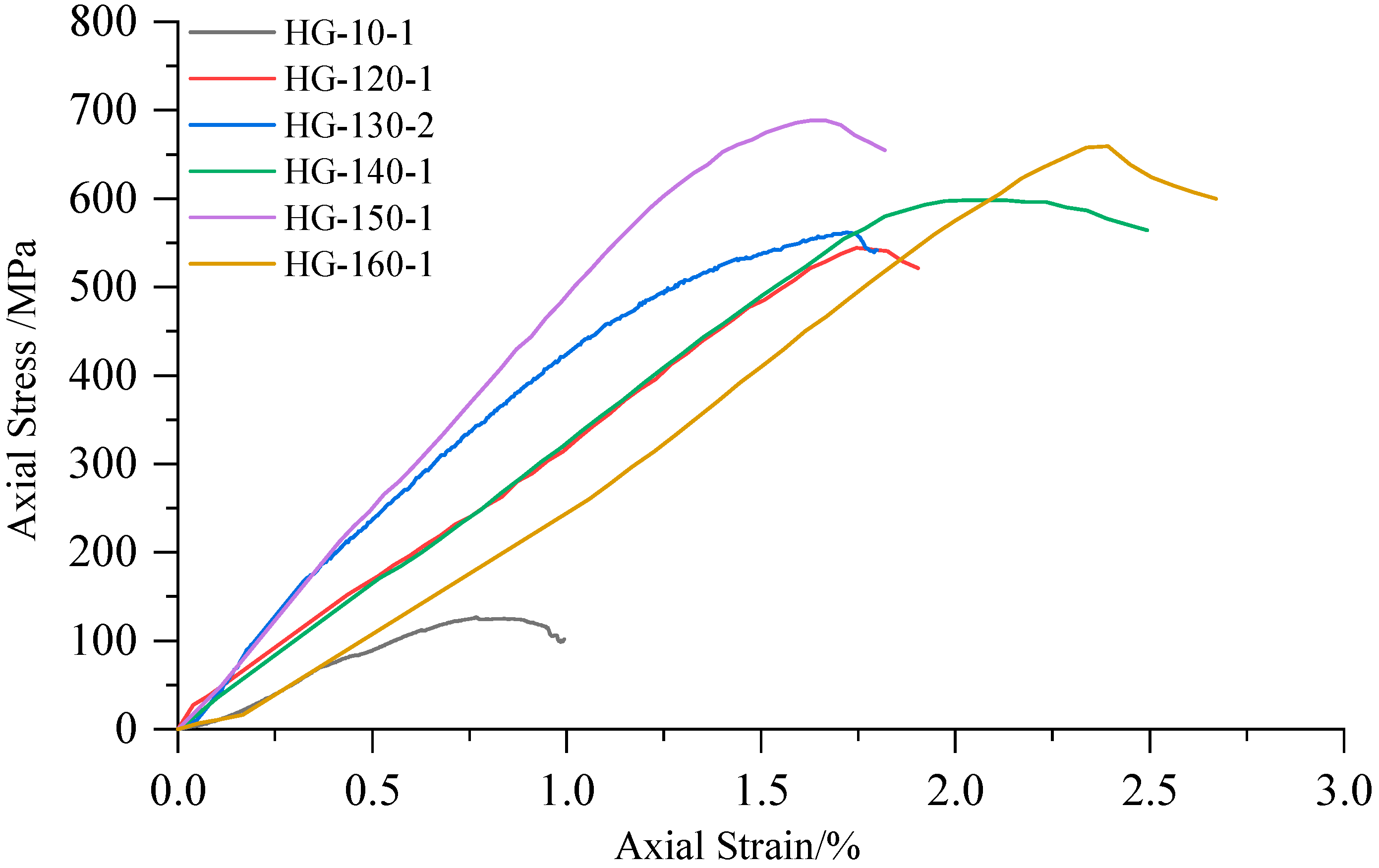

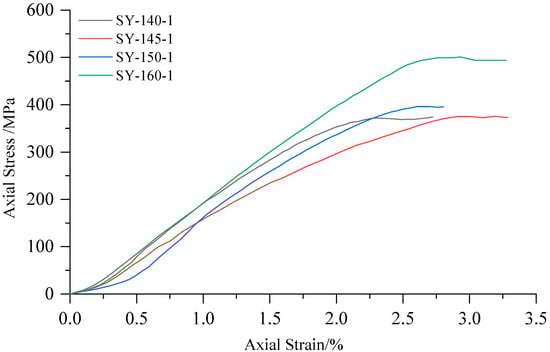

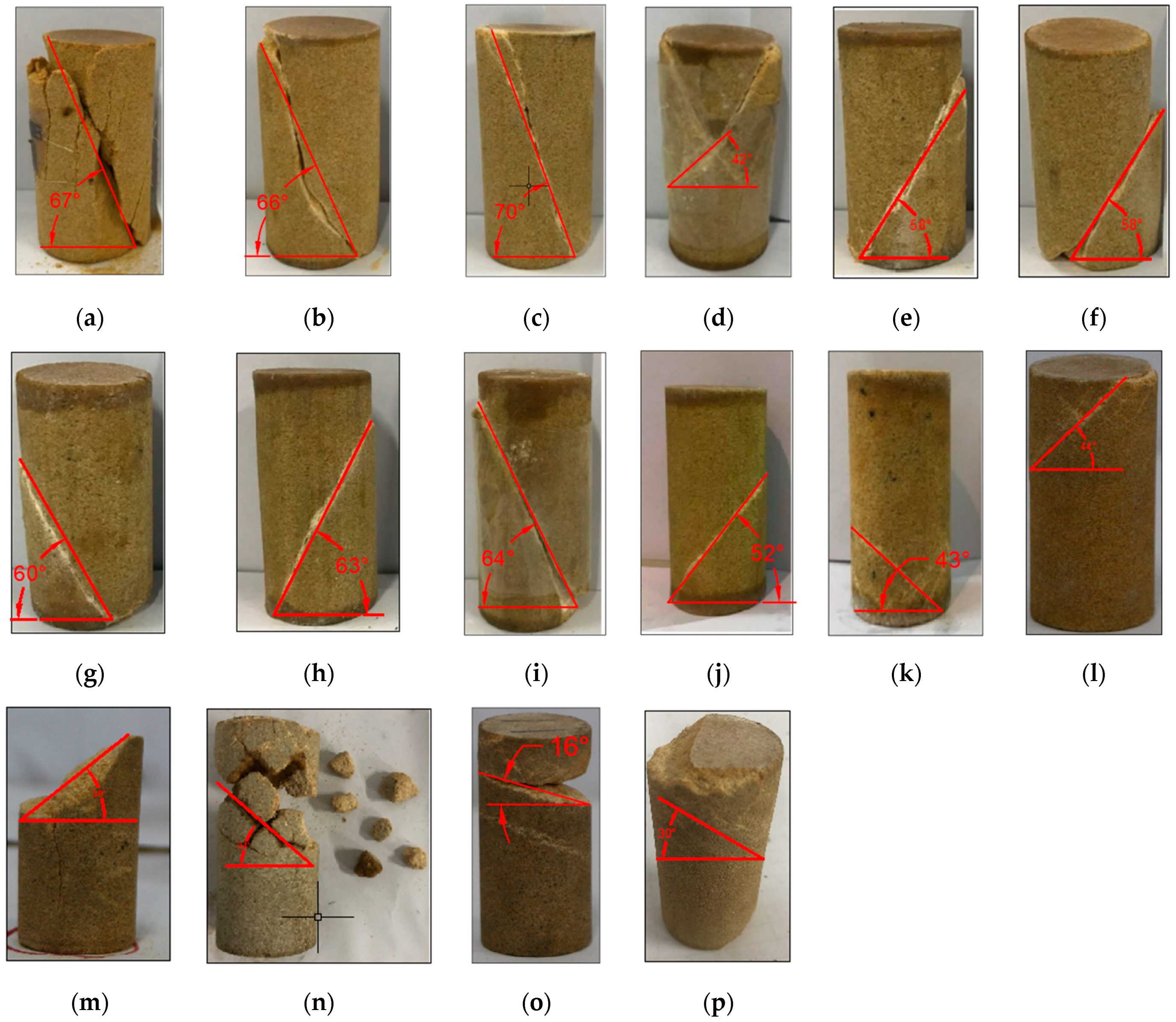

4.2. Experimental Results

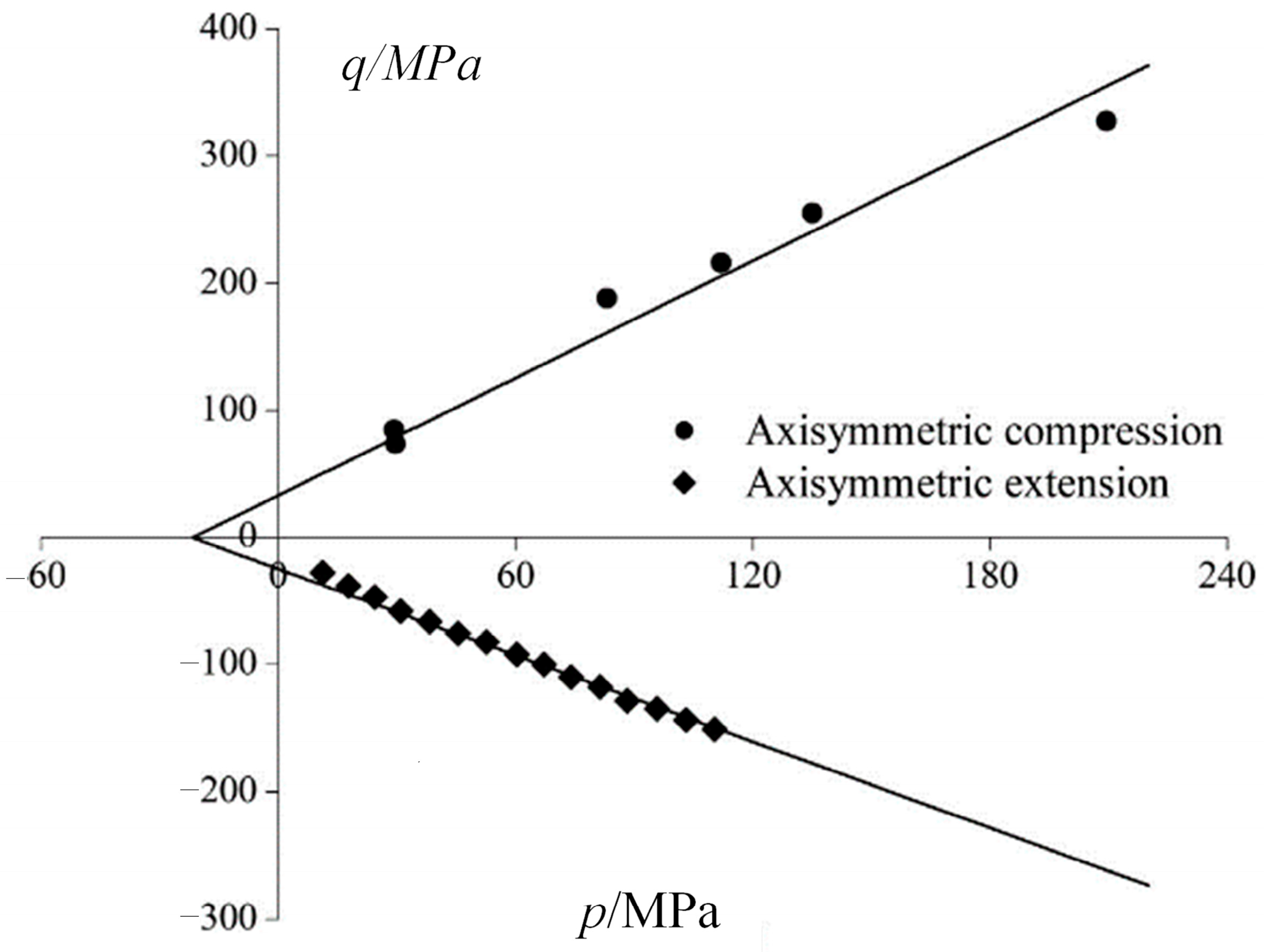

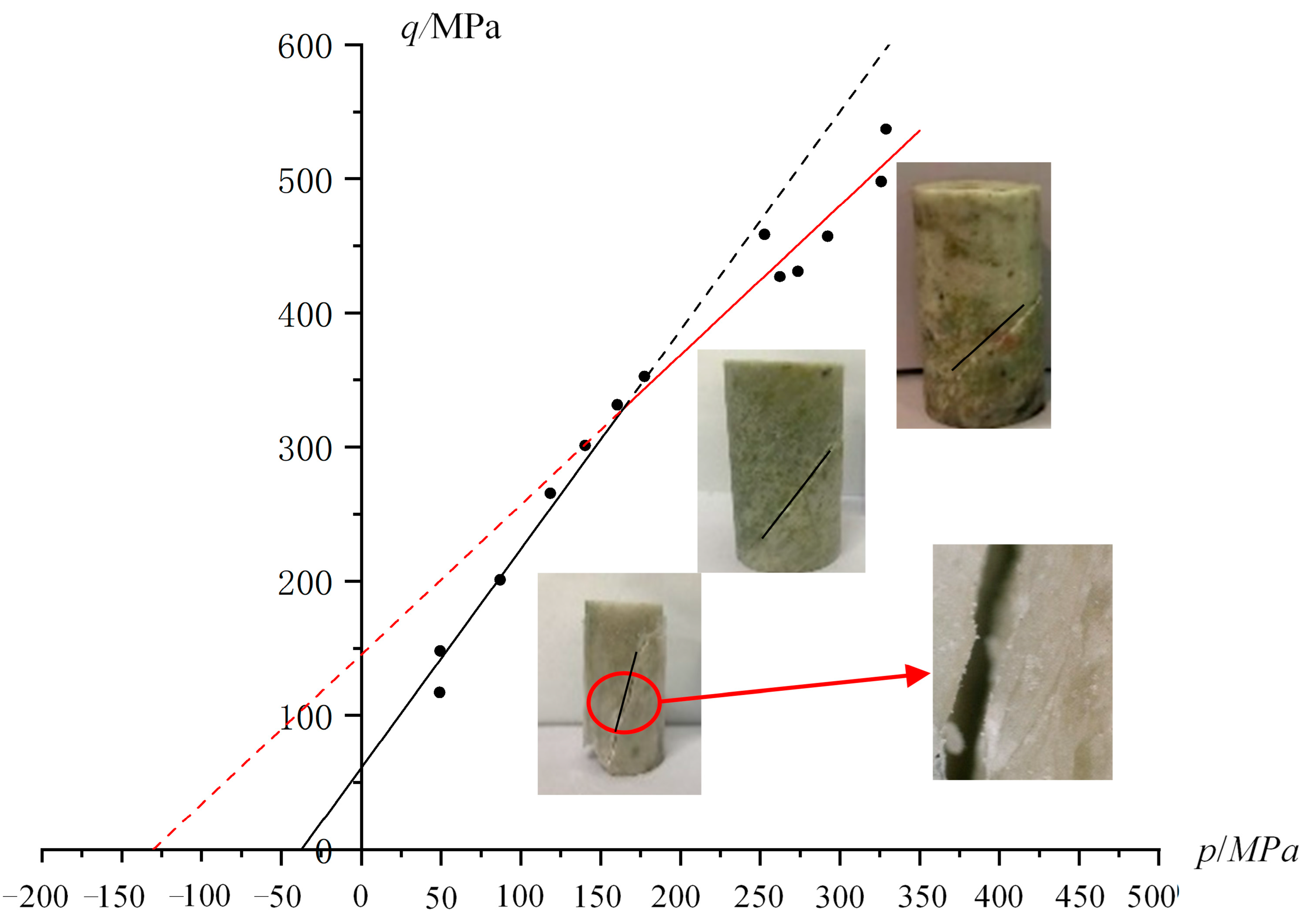

4.3. Applicability of the PMC Model for Strength with Multiple Failure Mechanisms
5. Conclusions
- (1)

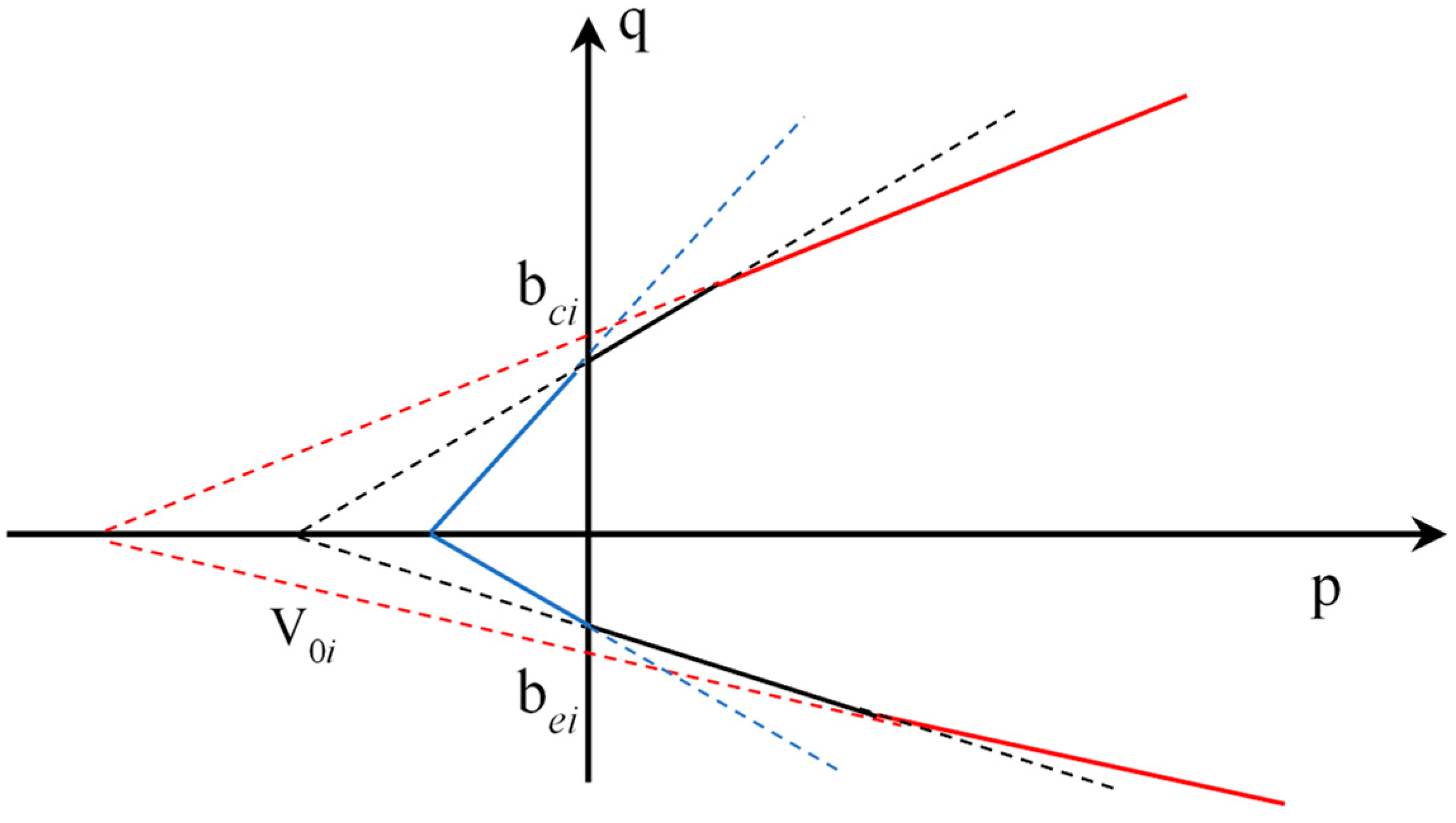

- In light of the limitations of traditional rock strength theories, which consider only the impact of a single failure mechanism, and recognizing that tensile and splitting failures of rocks under low-stress conditions conform to the maximum elongation strain theory while shear-type failures occur at high-pressure levels, a multiple failure mechanism theory model for rocks has been proposed based on the PMC piecewise linear model. This model establishes a unified expression for multiple failure modes in the form of inequalities. Experimental verification has demonstrated that this criterion can effectively achieve nonlinear fitting for granite, sandstone, and other rock types.
- (2)
- The rock multiple failure mechanism theory model’s failure criterion can encompass the MC strength theory, the PMC strength model, and the 12-sided PMC model. It can also be extended to derive the asymmetric PMC-BPMC model, which considers isotropic yield. By integrating the principles of plastic flow rules and hardening laws, the model can be expanded to analyze and explain the mechanisms of pore collapse phenomena in rocks under high pressure, corresponding to the specialized “cap” yield model mentioned in the text.
- (3)

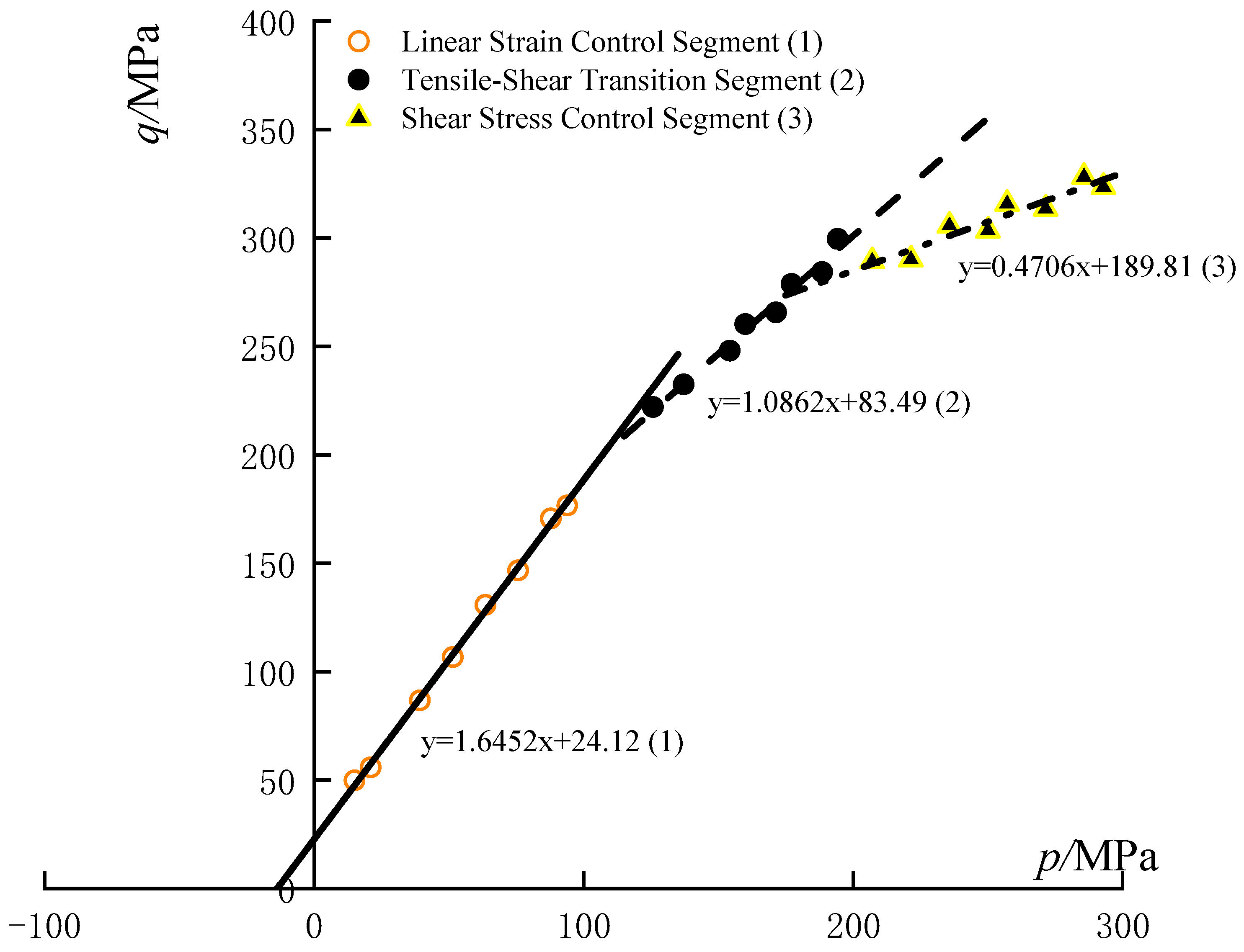

- Using experimental data from Jinchuan granite and Sichuan yellow sandstone, the rock multiple failure mechanism theory model was fitted for n = 1 (considering only shear failure), n = 2 (considering the transition from shear failure to tensile failure), and n > 2 (coexistence of tensile and shear failure). The results indicate that the rock strength exhibits distinct segmented strength characteristics, consistent with the strength patterns under the influence of multiple failure mechanisms. This validates the applicability of the multiple failure mechanism theory model to rock materials. However, since this study only considers generalized shear stress, mean stress, and stress Lode angle parameters in the rock failure process, other minor stress influences and environmental factors were not discussed, presenting certain limitations.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Labuz, J.F.; Zang, A. Mohr-Coulomb failure criterion. In The ISRM Suggested Methods for Rock Characterization, Testing and Monitoring; Springer International Publishing: Cham, Switzerland, 2014; pp. 227–231. [Google Scholar] [CrossRef]
- Skrzypkowski, K.; Zagórski, K.; Zagórska, A. Determination of the Extent of the rock destruction Zones around a gasification Channel on the basis of Strength Tests of Sandstone and Claystone Samples Heated at High Temperatures up to 1200 C and Exposed to Water. Energies 2021, 14, 6464. [Google Scholar] [CrossRef]
- Li, X.; Feng, F.; Li, D. Numerical simulation of rock failure under static and dynamic loading by splitting test of circular ring. Eng. Fract. Mech. 2018, 188, 184–201. [Google Scholar] [CrossRef]
- Paul, B. Generalized pyramidal fracture and yield criteria. Int. J. Solids Struct. 1968, 4, 175–196. [Google Scholar] [CrossRef]
- Paul, B. Macroscopic criteria for plastic flow and brittle fracture. Fracture 1968, 2, 313–496. [Google Scholar]
- Meyer, J.P.; Labuz, J.F. Linear failure criteria with three principal stresses. Int. J. Rock Mech. Min. Sci. 2013, 60, 180–187. [Google Scholar] [CrossRef]
- Makhnenko, R.; Labuz, J. Plane strain testing with passive restraint. Rock Mech. Rock Eng. 2014, 47, 2021–2029. [Google Scholar] [CrossRef]
- Zeng, F.; Li, Y.; Labuz, J.F. Paul-Mohr-Coulomb failure criterion for geomaterials. J. Geotech. Geoenviron. Eng. 2018, 144, 06017018. [Google Scholar] [CrossRef]
- Dehler, W.; Labuz, J.F. Stress path testing of an anisotropic sandstone. J. Geotech. Geoenviron. Eng. 2007, 133, 116–119. [Google Scholar] [CrossRef]
- Stacey, T.R. A simple extension strain criterion for fracture of brittle rock. Int. J. Rock Mech. Min. Sci. Geomech. Admin. 1981, 18, 469–474. [Google Scholar] [CrossRef]
- Huang, S. Study on Mechanical Model of Brittle Rock under High Stress Condition and Its Engineering Applications; Institute of Rock and Soil Mechanics, Graduate School of Chinese Academy of Sciences, Wuhan Institute of Geotechnical Mechanics: Wuhan, China, 2008. [Google Scholar]
- Paul, B. A modification of the coulomb-mohr theory of fracture. J. Appl. Mech. 1961, 28, 259–268. [Google Scholar] [CrossRef]
- Zhou, H.M.; Xiong, S.H.; Liu, X.H.; Yang, Z.H.; Kong, X.H. In-situ tension-shear tests and strength criterion studies on TGP shiplock slope rock mass. Yanshilixue Yu Gongcheng Xuebao Chin. J. Rock Mech. Eng. 2005, 24, 4418–4421. [Google Scholar]
- Sun, J. Theory and Practice of Underground Engineering Design; Shanghai Science and Technology Publishing House: Shanghai, China, 1996. [Google Scholar]
- Zhou, H.M.; Xu, P.; Sheng, Q.; Yu, Y. Application of new technology of rock mechanics test in TGP. J. Yangtze River Sci. Res. Inst. 2001, 18, 68. [Google Scholar]
- Liu, F.Z. Study on mechanical property of rock in tension and tension shear state. J. Yangtze River Sci. Res. Inst. 1996, 13, 35. [Google Scholar]
- Zhu, Z.L.; Li, J.L.; Wang, K.P. Experimental research on rock tension-shear strength and creep rupture related to the three gorges project. J. Univ. Hydraul. Electr. Eng. 1998, 20, 16–19. [Google Scholar]
- Jianlin, L. Experimental study on rheological properties of rock in tension and shear. J. Geotech. Eng. 2000, 22, 299–303. [Google Scholar]
- Li, P.; Yin, Y. Modification of Drucker-Prager criterion in tensile shear region. Chin. J. Rock Mech. Eng. 2010, 29, 3029–3033. [Google Scholar]
- Folta, B.L. Strength Testing Under Multi-Axial Stress States; University of Minnesota: Minneapolis, MN, USA, 2016. [Google Scholar]
- Labuz, J.F.; Zeng, F.; Makhnenko, R.; Li, Y. Brittle failure of rock: A review and general linear criterion. J. Struct. Geol. 2018, 112, 7–28. [Google Scholar] [CrossRef]
- Fairhurst, C.E.; Hudson, J.A. Draft ISRM suggested method for the complete stress-strain curve for intact rock in uniaxial compression. Int. J. Rock Mech. Min. Sci. 1999, 36, 279–289. [Google Scholar]
- Bobich, J.K. Experimental Analysis of the Extension to Shear Fracture Transition in Berea Sandstone; Texas A&M University: College Station, TX, USA, 2005. [Google Scholar]
- Guo, S.; Qi, S.; Zou, Y.; Zheng, B. Numerical studies on the failure process of heterogeneous brittle rocks or rock-like materials under uniaxial compression. Materials 2017, 10, 378. [Google Scholar] [CrossRef] [PubMed]
- Wen, J.; Tang, L.; Zhang, S.; Zhan, Q.; Wang, Y. Qualitative and quantitative investigations on the failure effect of critical fissures in rock specimens under plane strain compression. Materials 2023, 16, 611. [Google Scholar] [CrossRef] [PubMed]
σ/MPa | P/kN | σ/MPa | P/kN | σ/MPa | P/kN |
---|---|---|---|---|---|
5 | 3.5 | 65 | 45.5 | 125 | 87.5 |
10 | 7 | 70 | 49 | 130 | 91 |
15 | 10.5 | 75 | 52.5 | 135 | 94.5 |
20 | 14 | 80 | 56 | 140 | 98 |
25 | 17.5 | 85 | 59.5 | 145 | 101.5 |
30 | 21 | 90 | 63 | 150 | 105 |
35 | 24.5 | 95 | 66.5 | 155 | 108.5 |
40 | 28 | 100 | 70 | 160 | 112 |
45 | 31.5 | 105 | 73.5 | 165 | 115.5 |
50 | 35 | 110 | 77 | 170 | 119 |
55 | 38.5 | 115 | 80.5 | 175 | 122.5 |
60 | 42 | 120 | 84 | 180 | 126 |
Number | Wave Velocity/km/s | σ2/MPa | σ3/MPa | σ1/MPa | p/MPa | q/MPa | /° |
---|---|---|---|---|---|---|---|
SY-0-1 | 1.43 | 0 | 0 | 49 | 16 | 49 | −30 |
SY-10-1 | 1.58 | 10 | 10 | 107 | 42 | 97 | −30 |
SY-20-1 | 1.69 | 20 | 20 | 173 | 71 | 153 | −30 |
SY-30-1 | 1.42 | 30 | 30 | 222 | 94 | 192 | −30 |
SY-40-1 | 1.54 | 40 | 40 | 219 | 100 | 179 | −30 |
SY-50-1 | 1.43 | 50 | 50 | 267 | 122 | 217 | −30 |
SY-60-2 | 1.5 | 60 | 60 | 274 | 131 | 214 | −30 |
SY-65-1 | 1.52 | 65 | 65 | 322 | 151 | 257 | −30 |
SY-70-1 | 1.46 | 70 | 70 | 361 | 167 | 291 | −30 |
SY-90-1 | 1.46 | 90 | 90 | 398 | 193 | 308 | −30 |
SY-110-2 | 1.72 | 110 | 110 | 377 | 199 | 267 | −30 |
SY-140-2 | 1.43 | 140 | 140 | 430 | 237 | 290 | −30 |
SY-145-1 | 1.61 | 145 | 145 | 477 | 256 | 332 | −30 |
SY-150-1 | 1.46 | 150 | 150 | 460 | 253 | 310 | −30 |
SY-160-2 | 1.62 | 160 | 160 | 502 | 274 | 342 | −30 |
SY-170-1 | 1.45 | 170 | 170 | 490 | 277 | 320 | −30 |
HG-0-1 | 8.78 | 0 | 0 | 148 | 49 | 148 | −30 |
HG-10-1 | 8.33 | 10 | 10 | 127 | 49 | 117 | −30 |
HG-20-1 | 8.56 | 20 | 20 | 221 | 87 | 201 | −30 |
HG-30-1 | 8.33 | 30 | 30 | 296 | 119 | 266 | −30 |
HG-40-2 | 8.45 | 40 | 40 | 341 | 140 | 301 | −30 |
HG-50-1 | 8.78 | 50 | 50 | 381 | 160 | 331 | −30 |
HG-60-1 | 8.36 | 60 | 60 | 413 | 178 | 353 | −30 |
HG-100-1 | 7.89 | 100 | 100 | 559 | 253 | 459 | −30 |
HG-120-1 | 8.33 | 120 | 120 | 547 | 262 | 427 | −30 |
HG-130-2 | 8.38 | 130 | 130 | 561 | 274 | 431 | −30 |
HG-140-1 | 8.82 | 140 | 140 | 597 | 292 | 457 | −30 |
HG-150-1 | 7.14 | 150 | 150 | 687 | 329 | 537 | −30 |
HG-160-1 | 8.33 | 160 | 160 | 658 | 326 | 498 | −30 |
Material | φc/° | φe/° | V0/kPa |
---|---|---|---|
Berea Sandstone | 37.7 | 44.2 | 21.7 |
Failure Mechanism Number n | φc/° | φe/° | V0/kPa |
---|---|---|---|
1 | 42.853 | 42.853 | 27.712 |
2 | 28.020 | 28.020 | 130.953 |
Failure Mechanism Number n | V0/MPa | φc/° | φe/° |
---|---|---|---|
1 (low-pressure failure segment) | 14.66 | 40 | 40 |
2 (transition segment) | 76.87 | 27 | 27 |
3 (high-pressure failure segment) | 403.31 | 13 | 13 |
