Article

Impact of Mechanochemical Activation (MChA) on Characteristics and Dye Adsorption Behavior of Sawdust-Based Biocarbons

by
Barbara Wawrzaszek
1,
Barbara Charmas
1,*,
Katarzyna Jedynak
2 and
Ewa Skwarek
3
1
Department of Chromatography, Institute of Chemical Sciences, Faculty of Chemistry, Maria Curie-Sklodowska University, Maria Curie-Sklodowska Sq. 3, 20-031 Lublin, Poland
2
Institute of Chemistry, Faculty of Natural Sciences, Jan Kochanowski University, Uniwersytecka Str. 7, 25-406 Kielce, Poland
3
Department of Radiochemistry and Environmental Chemistry, Institute of Chemical Sciences, Faculty of Chemistry, Maria Curie-Sklodowska University, Maria Curie-Sklodowska Sq. 3, 20-031 Lublin, Poland
*
Author to whom correspondence should be addressed.
Materials 2024, 17(18), 4458; https://doi.org/10.3390/ma17184458
Submission received: 11 August 2024 / Revised: 6 September 2024 / Accepted: 8 September 2024 / Published: 11 September 2024
(This article belongs to the Special Issue Adsorption Materials and Their Applications)
Browse Figures
Versions Notes

Abstract

:
The increase in environmental pollution due to the development of industry and human activity has resulted in intensive development of research on the possibility of its purification. A very effective method is the pollutants’ adsorption from the air and water environment. For adsorption to be effective, materials with a specific structure and a well-developed surface decorated with numerous functionalities, e.g., biocarbons (BC), are necessary. An effective method of activating biocarbons is mechanochemical milling, an environmentally friendly procedure. This paper describes the possibility of using mechanochemical activation (MChA) of non-porous biocarbons to develop surface and porosity for their use in processes of pollutant adsorption. BC was characterized based on N2 adsorption, thermogravimetry (TGA), SEM/EDS imaging, Fourier (ATR-FTIR) and Raman spectroscopies, as well as titration using the Boehm method and determination of zeta potential. The adsorption capacity of BC for methylene blue (MB) was studied. It was proven that the solvent-free MChA made it possible to obtain microporous biocarbons, causing an intensive increase in the surface area and pore volume and the generation of oxygen functionalities. The biocarbons had predominantly acidic (mainly carboxylic) or basic functionalities and exhibited an amorphous structure. BC proved to be effective in adsorbing MB from aqueous solutions.

1. Introduction

Carbon materials (nanotubes, graphene, fullerenes, and porous carbons) attract more and more attention due to their easy accessibility, tunable surface, good conductivity, as well as chemical and physical stability. These characteristics mean they are extensively used in many research areas, including separation [1], catalysis [2], adsorption [3,4,5], and energy storage [6,7,8]. Activated carbons (AC) are relatively low cost and possess desirable properties, and thus they are one of the most commonly applied carbon materials. They can be manufactured taking into account the sustainability issues and the principle of green chemistry, which involve products and processes designs that minimize the use and production of harmful substances. The precursors of this type of material are, among others, natural materials, i.e., biomass, which is produced as a waste material in industry and households. Waste disposal is an important issue, so its use as a precursor of carbon materials is in line with environmental issues.
Environmental pollution caused by the intensive development of industry has prompted scientists to look for effective methods of its purification. Activated carbons obtained from biomass (biocarbons, BC) are an excellent solution to the problems associated with adsorption of air and water impurities. However, effective adsorption on BC depends mainly on the chemical composition (carbon content and heteroatoms, which can constitute additional adsorption centers) and structural characteristics of the carbon skeleton (porous structure and large surface area rich in highly reactive oxygen functionalities). Biocarbons are obtained through the process of pyrolysis. Carbonizates, formed by the thermal conversion of biomass in an oxygen-free atmosphere in the temperature range of 300–800 °C [9], are non-porous. For their use in the adsorption process, it is necessary to increase the surface area and pore volume, as well as introduce surface functionalities. Physical (CO2 [10] and H2O [11]) or chemical (e.g., H3PO4 [7,12], KOH [5,13], and ZnCl2 [14]) activators can improve the surface structure properties of biocarbon and adsorption capacity, thus being very effective, and they are widely used. However, the use of such activators has numerous disadvantages: (1) chemical activation, which consumes large amounts of harmful activating reagents, such as H3PO4, KOH, or ZnCl2, corrodes equipment, and produces large amounts of wastewater, polluting the environment; (2) chemical activation processes, including breaking, impregnation, carbonization, and leaching of activating reagents, are of low efficiency; (3) physical activation, in most cases by CO2 [10] or steam [11], often does not allow for the generation of AC with a very large surface area.
The search for new, “clean” methods of activating carbon materials following the principles of green chemistry resulted in the use of mechanochemistry. This unconventional method converts the mechanical energy generated during the collision of grinding balls into heat, allowing chemical reactions to take place. Mechanochemistry offers numerous advantages over traditional solvent-based procedures, such as simplicity, mild and short process conditions, scaling-up, and essentially no waste products [15]. Performing the reaction without solvents is advantageous because this is an environmentally friendly and low-cost process. Mechanochemistry has been successfully used for porous carbon materials’ synthesis for over twenty years [16,17]. Initially, graphite was used as a starting material. It was found that graphite grinding in ball mills leads to a phase transition from the hexagonal to the turbostratic one in the short term and the amorphous one in the long term [16]. In both turbostratic and amorphous carbons, the components of the graphene layer are distorted, resulting in the formation of a nanoporous structure. In addition, carbon nanoparticles are produced by ball-milling graphite. Aggregation of these particles can also cause nanopores’ formation. In the case of biocarbon activation, a significant advantage is fast and effective shredding, resulting in the formation of new surfaces as well as structural and network defects, which results in intensive surface development and the introduction of new functionalities [18,19]. Ball milling is effective in obtaining ceramic powders [20] and nanomaterials, including those with photocatalytic properties [21,22], in conducting solvent-free organic reactions [23], and in the degradation of pollutants and spent materials [24,25].
However, to the authors’ knowledge, the mechanochemical biocarbon activation is relatively rarely discussed in the literature, but understanding its potential as a “green activation” method opens up enormous possibilities in the area of obtaining and tailoring materials with desired properties, without the use of toxic, aggressive reagents, the release of harmful products, in a shorter time, and with smaller expenses. In this paper, the possibility of using mechanochemical activation of biomass-based biocarbons under conditions free of chemical activators as an alternative, green method of biocarbon activation is investigated. Mixed-wood sawdust was selected as a renewable source of carbon. The biomass sawdust produced during wood processing in households came from deciduous and coniferous trees (1:1 in this study). The material is diverse in terms of elemental composition and inorganic impurities content due to different harvest times, species diversity, storage conditions, and processing. Our research is focused on the examination of the trend of the structure and surface chemistry changes of biocarbons under the influence of mechanochemical activation.

2. Materials and Methods

2.1. Materials

Sawdust from mixed trees (deciduous/coniferous, ~1/1) collected from the households was used as a carbon precursor. All reagents: hydrochloric acid (HCl—35%), sodium hydroxide (NaOH, purity 98%), sodium carbonate (Na2CO3, purity 99%), and sodium bicarbonate (NaHCO3, purity 99%), purchased from Standard (Poland), were analytical grade. Methylene blue (purity > 82%) was obtained from Chempur (Poland).

2.2. Biocarbon Preparation

The sawdust was washed with tap and distilled water for dust removal, and then dried for 24 h at 105 °C. The dried material was ground and fractionated, and the fraction in the range of 1–2 mm was used for the study. The pyrolysis process conducted in a nitrogen atmosphere (flow rate 100 cm3/min and heating rate 10 °C/min), to a temperature of 500 °C, was followed by a one-hour isothermal stage. The obtained starting material was designated BC-500. To develop the surface, the materials were mechanochemically activated in a planetary ball mill (Pulverisette 7, Fritsch, Germany). A sample of approximately 2 g of BC-500 biocarbon was placed in a grinding vessel (80 mL) containing 25 silicon nitride beads with a diameter of 10 mm. The speed of grinding was 300 and 800 rpm for 1 and 3 h, changing the direction of mill rotation every 15 min. After the modification, the biocarbons were labeled BC-531, BC-533, BC-581, and BC-583, where the first digit (5) indicates the pyrolysis temperature, the second digit indicates the rotation (3 means 300 rpm and 8 means 800 rpm), and the third digit indicates the grinding time (1 or 3 h). For example, BC-531 is a biocarbon obtained at a temperature of 500 °C, mechanochemically modified at a rotation speed of 300 rpm for 1 h.

2.3. Methods

2.3.1. Low-Temperature Adsorption/Desorption Nitrogen

The low-temperature nitrogen adsorption/desorption method (−196 °C; ASAP 2405 analyzer, Micromeritics, Norcross, GA, USA) was used to determine the structural parameters: specific surface area (SBET), pore size distribution (PSD), and pore volumes (Vmi and Vme) [26,27,28]. The procedures are included in the Supplementary Material (SM).

2.3.2. SEM/EDS Analysis

The morphology of the biocarbon surface was examined by means of a Quanta 3D FEG scanning electron microscope (FEI) (FEI, Field Electron and Ion Co., Hillsboro, OR, USA) under the low-vacuum conditions at 5 kV. X-ray spectroscopy with energy dispersion (SED/EDS; acceleration: 20 kV) (EDAX, Mahwah, NJ, USA) was used in the qualitative and quantitative analyses.

2.3.3. Thermogravimetric Analysis

Thermogravimetric analysis was conducted by means of Derivatograph C (Paulik, Paulik and Erdey, MOM, Hungary). The ~30 mg samples were introduced in ceramic crucibles, and the reference substance there was Al2O3. Some measurements were performed in the air atmosphere (20–1200 °C; heating rate 10 °C/min). The TG and DTA curves were recorded. Moreover, to perform an approximate analysis of the materials, the analyses were also conducted in the atmosphere of N2 (20–900 °C; temperature increase: 10 °C/min). The volatile matter content (VM%) was estimated from the TGA data (N2; 150–900 °C). The ash content (A%) was found to be a residue after the complete thermal degradation of organic substances in the O2 atmosphere. The content of fixed carbon (FC%) was calculated from the relationship: FC% = 100 − (A% + VM%). The parameters were determined referring to the dry matter. The thermostability index was estimated based on the formula: Cthermo = %FC/(%FC + %VC) [29].

2.3.4. Raman Spectroscopy

For the degree of the order of the biocarbon structure, the via reflex Raman spectra (Microscope DMLM Leica Research Grade, Reflex, Renishaw, UK) was estimated using an argon laser with a 785 nm wavelength.

2.3.5. FTIR-ATR

The FTIR-ATR spectra were recorded using a 400-FTIR/FT-NIR spectrometer (Perkin-Elmer, Waltham, MA, USA), with the single-diamond reflection and the attenuated total reflection (ATR) endurance cell. The samples were dried and powdered before testing. The spectra were recorded in the range of 4000–650 cm−1 with a 4 cm−1 resolution.

2.3.6. Potentiometric Titration

The Boehm titration [30] was used for determination of oxygen surface functionalities. Carbon weights ~0.2 g poured with 10 cm3 of NaOH, HCl, NaHCO3, and Na2CO3 solutions (0.05 N) were placed in a thermostatic bath (25 °C, 140 rpm, 24 h). After the neutralization process, the concentrations of the solutions were determined by applying the potentiometric titration method (Titrino, Metrohm).

2.3.7. Surface pH

The pH of the biocarbons was examined based on the procedure presented in [31]. Here, ~0.4 g of biocarbon weights was poured with distilled water (20 cm3). Then, it was placed in a shaker (25 °C, 140 rpm, 24 h). Next, the pH of the supernatants was measured.

2.3.8. Surface Charge Density Determination

For points of zero charge (pHpzc) and surface charge densities, the potentiometric titration method was used [32]. The procedure is included in the Supplementary Material.

2.3.9. Electrophoretic Mobility Measurements

The electrophoretic mobility of the tested biocarbons was estimated using zeta potential (ζ) and the isoelectric point (pHiep) [33]. The details are presented in the Supplementary Material.

2.3.10. Adsorption Kinetics

In the adsorption studies, three temperatures (298 K, 308 K, and 315 K) were applied, and methylene blue as an impurity. To discuss the processes taking place, the pseudo-first-order (PFO; Equation S1) and pseudo-second-order (PSO; Equation S2) models, as well as the Webber–Morris intraparticle diffusion model (IPD; Equation S3), were applied [34]. All details of the experimental conditions are included in the Supplementary Material.

2.3.11. Adsorption Isotherms

The investigation of the adsorption isotherms was performed at 298 K, 308 K, and 315 K. MB concentrations were 100–1400 mg/dm3. The adsorption process was described based on the experimental data (Equation S4) using the linear forms of the Langmuir (Equation S5), Freundlich (Equation S6), and Dubinin–Radushkevich (Equation S7) equations [34,35,36,37]. The ε parameter and adsorption energy were calculated (Equations S8 and S9). The thermodynamic functions: free energy (ΔG°), enthalpy (ΔH°), and entropy (ΔS°; Equations S10 and S11), were also determined [38]. All details of the experimental conditions and calculations are included in the Supplementary Material.

3. Results and Discussion

Table 1 presents the results of the elemental EDS analysis of the biocarbons. As biocarbons were obtained from organic waste materials, their elemental composition is closely related to the structure of the starting material. The elemental analysis of EDS showed that the starting biocarbon contained 92.6% carbon and 6.2% oxygen, which is due to the presence of lignin, cellulose, and hemicellulose in the starting material [39]. The data in Table 1 indicate that the mechanochemical modification resulted in a gradual decrease in the carbon content while increasing the oxygen content, but the total carbon and oxygen content of the biocarbons remained stable (~99%). The efficiency of these changes was greater when using a higher mill speed (Table 1). The decrease in the carbon content could result from the degradation of organic structures affected by mechanochemical treatment, causing the volatilization of low-molecular organic compounds, while the increase in the oxygen content was associated with the formation of new surface functionalities. The increase in surface functionalities was also confirmed by the values of atomic ratios (O/C; Table 1), which increased as a result of the mechanochemical modification of biocarbons. The presence of other elements (~1%) resulted from their occurrence in the starting material, and the varying content was due to the heterogeneity of the waste material. In the studied materials, in addition to carbon and oxygen, silicon (0.19–0.35%), potassium (0.11–0.2%), and calcium (0.37–0.55%), as well as Na, Mg, P, and S (at the level of 0.01–0.05%; Table 1), were present.
The increase in the number of surface functional groups was confirmed by neutralizing the functional groups according to the method proposed by Boehm [11,30]. This acid–base titration determines the amount of surface acid or basic oxygen groups occurring on activated carbon, carbon black, graphene, or carbon nanotube surfaces. The method uses NaOH, Na2CO3, NaHCO3, and HCl, and its main idea is the determination of the number of acidic sites, assuming that NaOH neutralizes the carboxyl, lactone, and phenolic groups, Na2CO3 neutralizes the carboxyl and lactone groups, whereas NaHCO3 neutralizes only the carboxyl ones. The number of alkaline groups is determined by HCl titration.
The initial biocarbon was characterized by the acidic and basic groups, with triple the predominance of the latter (Table 2). The mechanochemical modification caused a gradual increase in the number of both types of functional groups [40]. The content of basic functionalities after the initial increase due to the use of MChA remained at a similar level (~0.44 mgR/g). It is worth noting that biocarbons milled at 300 rpm (BC-531 and BC-533) were characterized by a predominance of basic groups, while increasing the rotation rate to 800 rpm (samples BC-581 and BC-583; Table 2) resulted in an intensive increase in acidic groups. The carboxyl groups also appeared to be absent in the starting biocarbon (for BC-533, BC-581, and BC-583). The increase in the number of acidic groups after milling was caused by oxygen chemisorption on the unsaturated carbon atoms at the edges of the graphene layers and on the basal plane defects [40]. The presence of functional groups affected the surface pH, which decreased (from 8.8 to 7.5; Table 2) gradually after the application of MChA (Table 2). In the case of the BC-581 and BC-583 samples, despite the evident predominance of acidic groups, the pH of the materials was ≥7.5. This was probably due to the fact that functional groups of a basic nature are strong bases [31].
The presence of surface functional groups was also confirmed by the FTIR-ATR analysis (Figure 1). The small band occurring at 3618 cm−1 for the samples subjected to the mechanochemical modification corresponded to the symmetrical and asymmetrical tensile vibrations of the O-H groups [5]. The band at ~3050 cm−1 indicated the tensile vibrations of C-H in the aromatic rings [41]. Occurring at 1589 cm−1, the band was associated with the vibrations of C=C or those of the C=O group present in the oxygen functional groups, such as ketones, carboxylic acid groups, and amides [42]. The bands in the range of 1500–1100 cm−1 were associated with the presence of C=O carbonyl groups [43]. The bands at 1379 cm−1 corresponded to the vibrations of the carboxyl group O=C-O [44], which was confirmed by the Boehm method. The bands occurring in the area of 900–750 cm−1 were associated with the C-H deformation vibrations outside the plane of the aromatic rings [45]. For all modified biocarbons, an increase in the intensity of the bands associated with the oxygen-containing groups was observed, which was confirmed by an increase in the content of surface oxygen functional groups for the studied materials.
The purpose of activating biocarbons for their potential applications as materials with good sorption properties is, in addition to activation by the introduction of surface functional groups, the effective development of surface and porosity. The efficiency of surface development depends on the pyrolysis conditions (temperature and time), but it is known that mechanochemical modification makes it possible to obtain biocarbons with a better developed and ordered structure and porosity [46,47]. BC-500 biocarbon, obtained at a temperature of 500 °C, was characterized by a very poorly developed surface area and pore volume, although micropores constitute ~99% of this material (Table 3).
Figure 2 shows the isotherms of low-temperature nitrogen adsorption/desorption (Figure 2a) and pore volume distribution curves (Figure 2b) for the biocarbons subjected to mechanochemical activation. The shape of the isotherms was intermediate between types I and IV after IUPAC. In the low relative pressure range (<0.1), the sorption capacity increased rapidly as p/p0 increased. This was due to strong adsorption in the micropores. As the relative pressure increased, the isotherm increased steadily in the medium- and high-pressure areas, and the adsorption and desorption curves began to become inconsistent. This resulted in the formation of a hysteresis loop, indicating the formation of a small number of mesopores [48]. It can be seen that the isotherms were arranged higher and higher (Figure 2a), which suggests that both the extension of the modification time and the increase in the speed of rotation of the mill resulted in better surface development (Figure 2a). The pore volume distribution curves (Figure 2b) indicated an intense increase in the volume of pores with a dominant radius of ~0.8 nm (Figure 2b, inset a) due to the mechanochemical modification and the formation of a mesoporous structure (Figure 2b, inset b), with a simultaneous increase in the value of the mean pore radius (Rav; Table 3) of the modified biocarbons. The greatest development of the mesoporous structure was observed for the samples milled at 800 rpm (BC-581 and BC-583).
The structural parameters determined based on the nitrogen adsorption/desorption isotherms are presented in Table 3. Mechanochemically treated biocarbons had a much larger specific surface area (SBET~224.6 to 508.3 m2/g, ~14–17 times increase; Figure 3) compared to the initial biocarbon (SBET = 29.5 m2/g), which was caused by the breakdown and cracking of biocarbon particles and the formation of a new network of pores, thus increasing the specific surface area of the materials [49,50]. All determined parameters (Table 3) increased due to the grinding process and the increase in the process parameters (time and rotation speed). Since the total surface area was very intensively developed (14–16-fold increase in SBET (Figure 3a) and 6–7-fold increase in Vmi (Figure 3b)), a decrease in the share of micropores (%Smi and %Vmi; Table 3) was observed, with a simultaneous increase in the share of mesopores (%Sme and %Vme; Table 3). This was also confirmed by the hysteresis loops appearing on the isotherms determined for the mechanochemically modified biocarbons. This was due to the degradation of larger biocarbon particles as a result of milling and development of a microporous structure [51]. Increasing the grinding time (from 1 to 3 h, samples BC-531 vs. BC-533 or BC-581 vs. BC-583) did not cause significant changes in the surface. However, significant changes were observed when the rotation speed was increased (from 300 to 800 rpm, e.g., BC-531 and BC-581; Figure 3).
The SEM images (Figure 4) of the starting biocarbon (BC-500) and biocarbons treated with MChA (BC-531 and BC-581) clearly showed the changes in the particle morphology due to the mechanochemical modification. The surface of the output biocarbon (Figure 4a) revealed a compact structure, including numerous channels and fissures, indicating that the original precursor structure was preserved in the pyrolysis process [52]. The mechanochemically treated biocarbons took the form of granular, irregular particles in the micrometer range. It can be observed that the increase in the rotation rate caused much more intense changes in morphology, causing the layered structure of the biocarbon to change into ultrafine particles [53].
Thermal analysis allowed the biocarbon thermal stability assessment (Figure 5). The TG% curves indicated that the thermal degradation occurred in one stage. It started at approximately 350 °C for the baseline BC-500 and approximately 280 °C for the activated biocarbons (Figure 5a). The lower temperature of the onset of thermal decomposition of activated biocarbons could be due to the reduction of biocarbon particles as a result of mechanochemical milling, which improved heat transfer and reduced thermal stability [54]. Faster burning of small biocarbon particles could be the cause of the intense maximum on the DTA curve observed for materials milled for 3 h (BC-533 and BC-583; Figure 5b). The complete decomposition of BC-500 was found at a temperature of approximately 600 °C. The activated biocarbons, especially those ground for 3 h (BC-533 and BC-583), were more thermally resistant, and their decomposition was over at ~700 °C (Figure 5).
The biocarbons were characterized by a small content of inorganic residues (%A; Table 4), which was mainly due to the structure of the carbon precursor. The increase in %A as a result of the application of MChA can be attributed to the degradation of carbon compounds during milling, which is consistent with the results of the elemental analysis presented in Table 1. As follows from the proximate analysis (Table 4), activation increased the volatile carbon (%VC) content with a concomitant decrease in the fixed carbon (%FC) share in the biocarbons, as well as a decrease in the proportion of thermostable fraction (Cthermo). This was related to the formation of aerobic functional groups in the mechanochemical process, which were easily thermally degraded and reduced the stability of the biocarbons.
Raman spectroscopy was used to determine the bond type, size of domain, and internal stresses in the amorphous or nanocrystalline carbon materials. Typically, carbons are characterized by wide bands at 1300–1600 cm−1. The D-band (~1350 cm−1) corresponded to the breathing mode vibrations in the aromatic carbon ring of the nanocrystalline carbon structures. However, the G-band (~1580 cm−1) originated from the stretching vibrations of sp2 carbon in rings and chain structures. The main parameters determining the type of structure of the carbon material were the position of the G-band and the intensity ratio, ID/IG (Figure 6). Based on the relationship between these values, one can state the content of the sp3 phase and the type of structure prevailing in the biocarbon [55]. No change in the position of the bands was observed. However, the peak intensities increased slightly. This indicates that the mechanochemical treatment resulted in the formation of biocarbon particles with large structural defects [56]. The calculated ID/IG ratios (Figure 6) close to 1 indicate a large number of such defects in the obtained materials. This ratio increased with the grinding time and rotation speed increasing.
The data presented in Table 2 and Table 3 clearly indicate that the mechanochemically activated carbonaceous materials based on sawdust had a completely different acidic–basic nature of the surface. This indicates their applicability for adsorption purposes. The mechanochemical activation and, particularly, the processing time cause noticeable differences in the textural structure. The pH range from 3 to 11, zeta potential, and surface charge density measurements were typical of this type of material, which neither dissolved under acidic conditions nor precipitated in the tested system under the alkaline conditions. Moreover, the pHpzc values enabled the determination of the pH range in which the surface charge density was negative below pHpzc and positive above pHpzc. This was very helpful for characterizing the adsorption process. The ionic strength value in the electrochemical studies was selected in the way enabling the most effective determination of experimental parameters for the electrical double layer, which is consistent with the literature data [57,58].
Figure 7 presents the pH impact on the surface charge density (Figure 7a) and zeta potential (Figure 7b) of the tested materials dispersed in the electrolyte. The intersection of the curves with the X-axis enabled the determination of the surface charge density and the zeta potential (ζ) values equal to zero. This enabled us to determine the points of zero charge (pzc) and isoelectric points (iep) of biocarbons. These points, the specific pH values, namely, pHpzc and pHiep, are characteristic of each adsorbent–adsorbate system [59]. The pHpzc and pHiep values are presented in Table 5. The pHpzc value for the sample BC-583 was 3.35, which indicates the biocarbon’s acidic nature and the basic nature of the remaining samples.
At the pH values lower than pHpzc, the biocarbon surface was positively charged. Thus, the adsorption of negatively charged adsorbates is preferred. At the pH values above pHpzc, the solid surface charge had a negative sign, and then the electrostatic attraction with positively charged adsorbates was promoted. The isoelectric points of the tested materials were located at lower pH values and were equal to pH < 2 for all the samples (Figure 7b). A difference between the pHpzc and pHiep values is often observed. This can result from the electrical double layer (EDL) overlapping formed on the opposite adsorbent pores walls, which affects the ionic composition of the diffusion EDL parts [60]. Additionally, in Figure 7b, one can observe that the highest values of the zeta potential were for the BC-583 sample processed at the largest grinder speed and for the longest time. In the pH range of 4 to 11 for this sample, it can be considered colloidal stable.
To sum up, considering the electrostatic interactions of the biocarbon and dye, MB (cationic dye) should be strongly adsorbed on the negatively charged carbon surface at pH > pHpzc. The pHpzc value for BC-583 was 3.35, which indicates a negatively charged biocarbon surface. Therefore, this carbon was tested for the sorption capacity with regard to MB. It was characterized by the best developed specific surface area (SBET = 508 m2/g) and the largest pore volume (Vp = 0.34 cm3/g). Figure 8 shows the fitting of the experimental data (Figure 8a) to the linear forms of the pseudo-first-order (Figure 8b) and pseudo-second-order (Figure 8c) kinetic equations for the biocarbon. The calculated kinetic parameters and the correlation coefficient (R2) are presented in Table 6. The obtained data were much better described by the pseudo-second-order model, as indicated by the higher value of the fit factor (R2 > 0.99). Fitting to the PSO model suggested the chemisorption mechanism of the adsorption [61].
The MB adsorption was also characterized by the Webber–Morris intramolecular diffusion model. The course of the relationship qt = f(t1/2) (Figure 8d) made it possible to determine the mechanism of adsorption. For all temperatures, multilinear, three-stage relationships were obtained. The first, the fastest one, was related to the transport of dye molecules to the adsorbent surface. Then, the diffusion of dye molecules inside the pores to the adsorbent inner surface took place, as described by the second part of the qt = f(t1/2) relationship. The third stage indicated the equilibrium state of the system. The designated IPD parameters are presented in Table 6. The calculated c > 0 parameter suggested that intraparticle diffusion had a significant impact on adsorption but was not a speed-determining step [62].

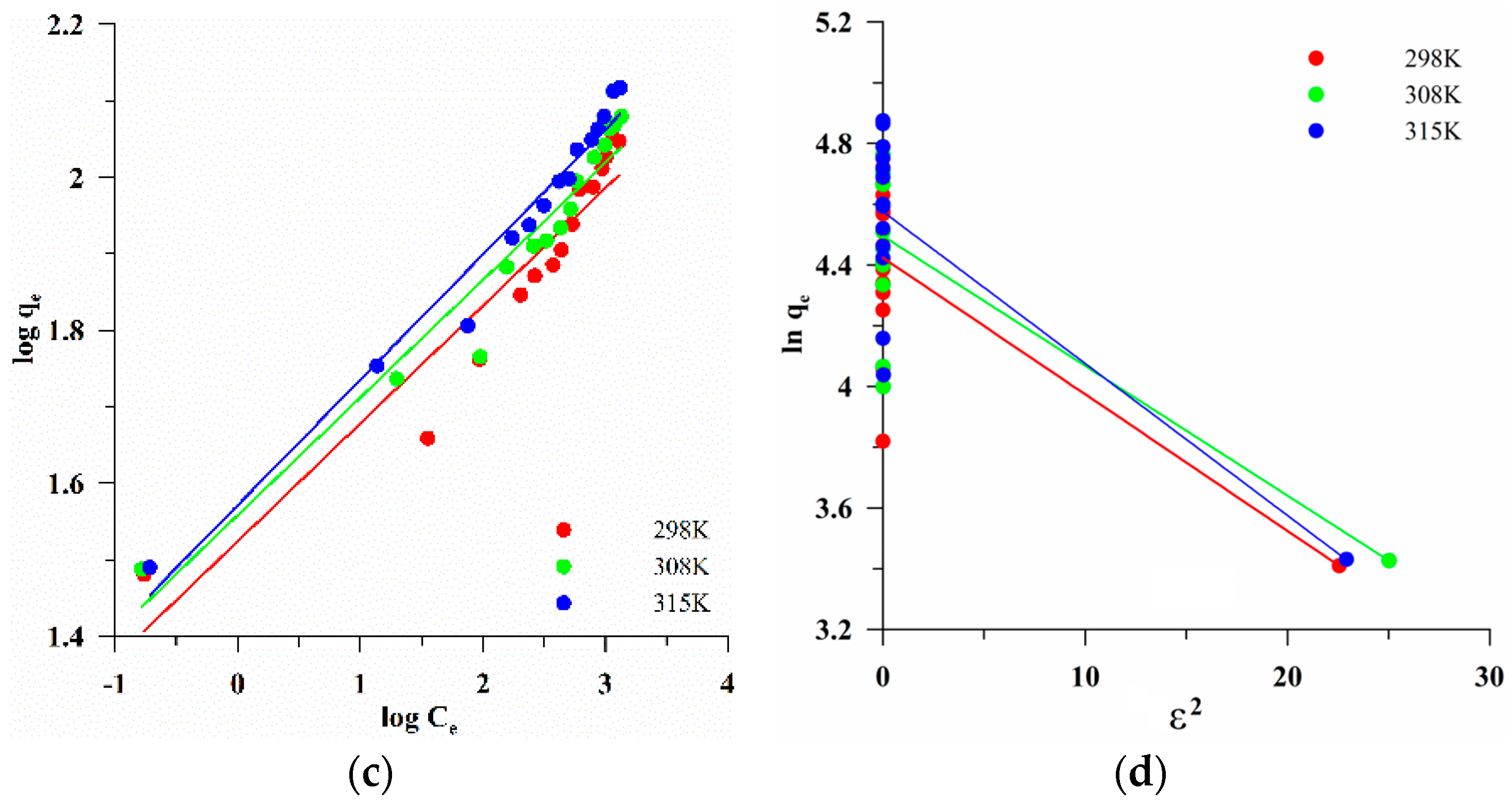

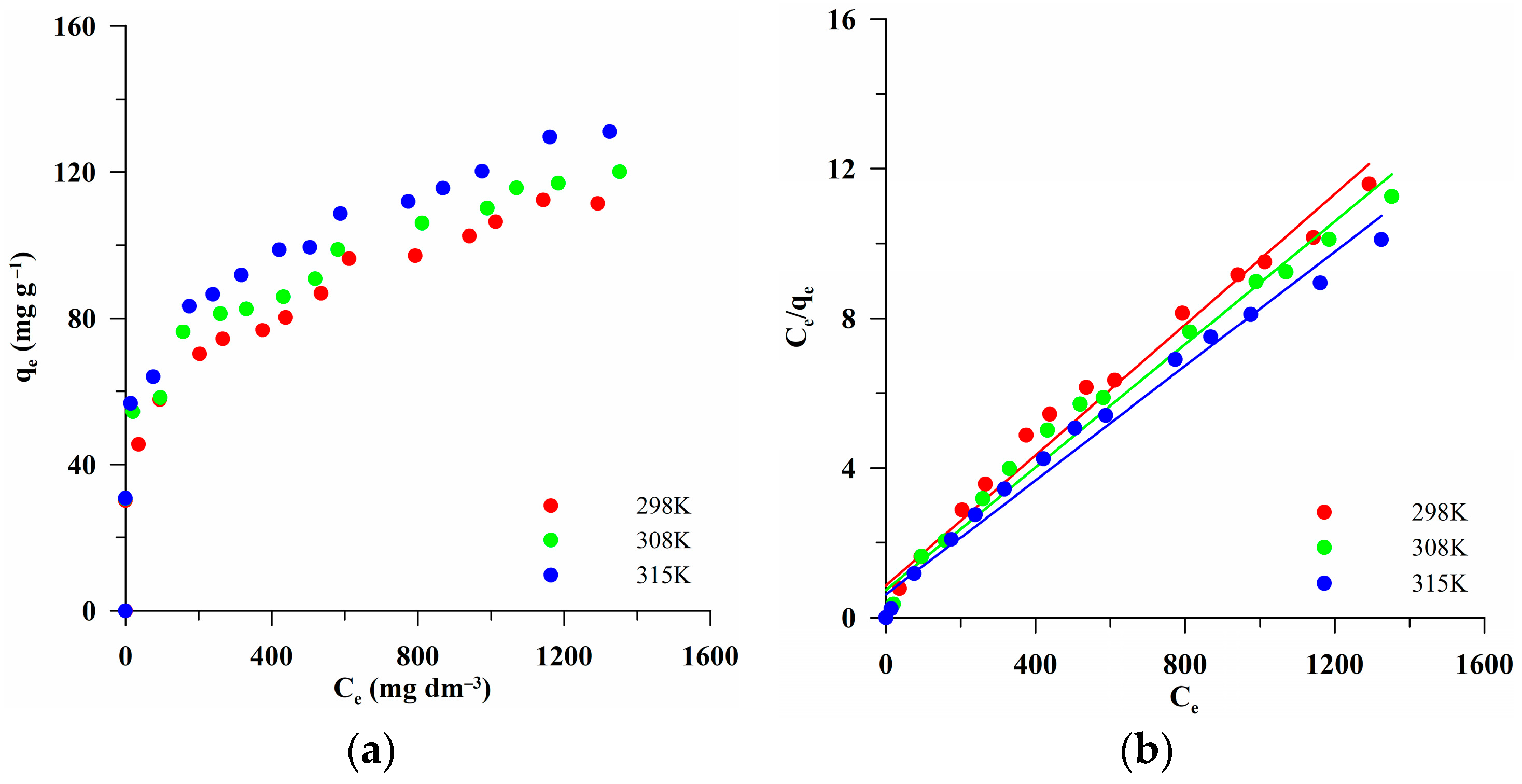

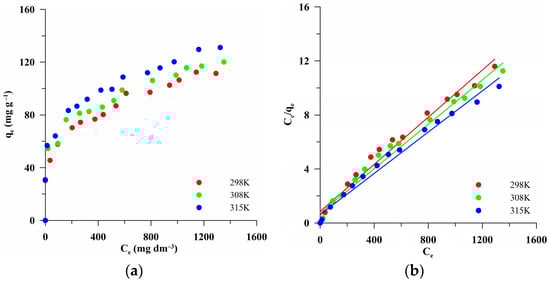

To describe the adsorption process, experimental adsorption data (Figure 9a) were fitted to the linear models of adsorption isotherms: the Langmuir (Figure 9b), Freundlich (Figure 9c), and Dubinin–Radushkevich (Figure 9d) ones. The initial data and the standard deviations are presented in Table S1 in the Supplementary Material (SM). With the temperature increases, an increase in the value of qe,exp was observed. This indicated that in this case, adsorption was an endothermic process. The maximum sorption capacity (130.98 mg/g) occurred at a temperature of 315 K. This could be due to the greater mobility of the dye particles at a higher temperature, which facilitates diffusion into the inner layer of the adsorbent. The parameters of the equations determined based on linear adjustments of the Langmuir, Freundlich, and Dubinin–Radushkevich isotherms are presented in Table 7. High values of the R2 > 0.97 suggested that the adsorption process was better characterized by the Langmuir equation. Determination of the adsorption energy (E; Table 7) based on the Dubinin–Radushkevich model was intended to find out whether the MB adsorption process on the tested adsorbent proceeded as physical or chemical adsorption. The E values smaller than 8 kJ/mol indicate physical adsorption, while those in the range of 8–16 kJ/mol point to chemical adsorption [37]. The obtained E values changed with the increasing temperature, being 3.33, 3.41, and 3.26 kJ/mol (Table 7). However, the obtained results did not indicate a type of adsorption. The small R2 coefficient (0.52–0.58) and significantly lower values (qm,cal) compared to the experimental data (qm,exp; Table 7) indicated that this model is not suitable for the interpretation of the tested process.
Thermodynamics of the adsorption process is another key aspect that makes understanding the adsorption nature possible. The thermodynamic parameters of the adsorption process (the free enthalpy (∆G°), enthalpy (∆H°), and entropy (∆S°)) were calculated (Table 8).
The values of ∆G° (<0) indicated that the adsorption was a spontaneous process [63], and a decrease in ∆G° with the increasing temperature suggested an increase in the process spontaneity. This could be related to the increase in the energy of the adsorbate molecules, which affected the adsorption process. The positive value ∆H° testified to the endothermic nature of the process [64]. As follows from the positive value ΔS°, completion of the dye adsorption proceeded according to the degree of disorder, which increased within the solid/liquid interface. This could be the result of adsorbed water molecules’ displacement per adsorbed MB molecule, leading to an increase in the system freedom degree, treated as a whole [65].

4. Conclusions

It was proven that the effectiveness and efficiency of surface development and porosity in the process of mechanochemical solvent-free activation of biocarbons depend on the applied conditions (time and speed of mill rotation). Materials with an amorphous structure, microporous structure, well-developed surface (419–508 m2/g), and pore volume (0.196–0.34 cm3/g), decorated with surface functionalities (mainly acidic), were obtained. The most effective structural changes were observed during the 3 h activation at 800 rpm. As follows from the electrokinetic studies, biocarbons can adsorb pollutants effectively. It was proven that the MB adsorption proceeded according to the PSO model as well as the Langmuir theory, and intramolecular diffusion had a significant impact on the desorption speed; however, it was not a limiting process.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma17184458/s1, Methods; Table S1: Experimental results of adsorption isotherms for the BC-583 material.

Author Contributions

Conceptualization, B.W., B.C. and K.J.; methodology, B.W., B.C. and K.J.; formal analysis, B.C.; investigation, B.W., B.C., K.J. and E.S.; writing—original draft preparation, B.W., B.C., K.J. and E.S.; writing—review and editing, B.C.; visualization, B.W. and B.C.; supervision, B.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partially funded by the Ministry of Science and Higher Education, Poland (research project SUPB.RN.23.254).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Avila, A.M.; Araoz, M.E. Merging Renewable Carbon-Based Materials and Emerging Separation Concepts to Attain Relevant Purification Applications in a Circular Economy. Ind. Eng. Chem. Res. 2023, 62, 4793–4799. [Google Scholar] [CrossRef]
  2. Zhou, L.; Fu, P.; Wen, D.; Yuan, Y.; Zhou, S. Self-Constructed Carbon Nanoparticles-Coated Porous Biocarbon from Plant Moss as Advanced Oxygen Reduction Catalysts. Appl. Catal. B Environ. 2016, 181, 635–643. [Google Scholar] [CrossRef]
  3. Bhomick, P.C.; Supong, A.; Baruah, M.; Pongener, C.; Sinha, D. Pine Cone Biomass as an Efficient Precursor for the Synthesis of Activated Biocarbon for Adsorption of Anionic Dye from Aqueous Solution: Isotherm, Kinetic, Thermodynamic and Regeneration Studies. Sustain. Chem. Pharm. 2018, 10, 41–49. [Google Scholar] [CrossRef]
  4. Kaźmierczak, B.; Molenda, J.; Swat, M. The Adsorption of Chromium (III) Ions from Water Solutions on Biocarbons Obtained from Plant Waste. Environ. Technol. Innov. 2021, 23, 101737. [Google Scholar] [CrossRef]
  5. Wu, F.; Chen, L.; Hu, P.; Zhou, X.; Zhou, H.; Wang, D.; Lu, X.; Mi, B. Comparison of Properties, Adsorption Performance and Mechanisms to Cd(II) on Lignin-Derived Biochars under Different Pyrolysis Temperatures by Microwave Heating. Environ. Technol. Innov. 2022, 25, 102196. [Google Scholar] [CrossRef]
  6. Sumangala Devi, N.; Hariram, M.; Vivekanandhan, S. Modification Techniques to Improve the Capacitive Performance of Biocarbon Materials. J. Energy Storage 2021, 33, 101870. [Google Scholar] [CrossRef]
  7. Minakshi, M.; Samayamanthry, A.; Whale, J.; Aughterson, R.; Shinde, P.A.; Ariga, K.; Kumar Shrestha, L. Phosphorous—Containing Activated Carbon Derived From Natural Honeydew Peel Powers Aqueous Supercapacitors. Chem. Asian J. 2024, 2, e202400622. [Google Scholar] [CrossRef]
  8. Haripriya, M.; Manimekala, T.; Dharmalingam, G.; Minakshi, M.; Sivasubramanian, R. Asymmetric Supercapacitors Based on ZnCo2O4 Nanohexagons and Orange Peel Derived Activated Carbon Electrodes. Chem. Asian J. 2024, 19, e202400202. [Google Scholar] [CrossRef]
  9. Amer, M.; Elwardany, A. Biomass Carbonization. In Renewable Energy—Resources, Challenges and Applications; Al Qubeissi, M., El-kharouf, A., Serhad Soyhan, H., Eds.; IntechOpen: Rijeka, Croatia, 2020. [Google Scholar]
  10. Al-Khalid, T.T.; Haimour, N.M.; Sayed, S.A.; Akash, B.A. Activation of Olive-Seed Waste Residue Using CO2 in a Fluidized-Bed Reactor. Fuel Process. Technol. 1998, 57, 55–64. [Google Scholar] [CrossRef]
  11. Charmas, B.; Wawrzaszek, B.; Jedynak, K. Effect of Pyrolysis Temperature and Hydrothermal Activation on Structure, Physicochemical, Thermal and Dye Adsorption Characteristics of the Biocarbons. ChemPhysChem 2024, 25, e202300773. [Google Scholar] [CrossRef]
  12. Prauchner, M.J.; Sapag, K.; Rodríguez-Reinoso, F. Tailoring Biomass-Based Activated Carbon for CH4 Storage by Combining Chemical Activation with H3PO4 or ZnCl2 and Physical Activation with CO2. Carbon 2016, 110, 138–147. [Google Scholar] [CrossRef]
  13. Huang, H.; Tang, J.; Gao, K.; He, R.; Zhao, H.; Werner, D. Characterization of KOH Modified Biochars from Different Pyrolysis Temperatures and Enhanced Adsorption of Antibiotics. RSC Adv. 2017, 7, 14640–14648. [Google Scholar] [CrossRef]
  14. Park, H.; Kim, J.; Lee, Y.-G.; Chon, K. Enhanced Adsorptive Removal of Dyes Using Mandarin Peel Biochars via Chemical Activation with NH4Cl and ZnCl2. Water 2021, 13, 1495. [Google Scholar] [CrossRef]
  15. Szczęśniak, B.; Borysiuk, S.; Choma, J.; Jaroniec, M. Mechanochemical Synthesis of Highly Porous Materials. Mater. Horiz. 2020, 7, 1457–1473. [Google Scholar] [CrossRef]
  16. Chen, Y.; Fitz Gerald, J.; Chadderton, L.T.; Chaffron, L. Nanoporous Carbon Produced by Ball Milling. Appl. Phys. Lett. 1999, 74, 2782–2784. [Google Scholar] [CrossRef]
  17. Salver-Disma, F.; Tarascon, J.-M.; Clinard, C.; Rouzaud, J.-N. Transmission Electron Microscopy Studies on Carbon Materials Prepared by Mechanical Milling. Carbon 1999, 37, 1941–1959. [Google Scholar] [CrossRef]
  18. Peterson, S.C.; Jackson, M.A.; Kim, S.; Palmquist, D.E. Increasing Biochar Surface Area: Optimization of Ball Milling Parameters. Powder Technol. 2012, 228, 115–120. [Google Scholar] [CrossRef]
  19. Ohara, S.; Tan, Z.; Abe, H. Novel Mechanochemical Synthesis of Carbon Nanomaterials by a High-Speed Ball-Milling. Adv. Mater. Res. 2011, 284–286, 755–758. [Google Scholar] [CrossRef]
  20. Ding, J.; Tsuzuki, T.; McCormick, P.G. Ultrafine Alumina Particles Prepared by Mechanochemical/Thermal Processing. J. Am. Ceram. Soc. 1996, 79, 2956–2958. [Google Scholar] [CrossRef]
  21. Jarvis, K.A.; Wang, C.-C.; Manthiram, A.; Ferreira, P.J. The Role of Composition in the Atomic Structure, Oxygen Loss, and Capacity of Layered Li–Mn–Ni Oxide Cathodes. J. Mater. Chem. A 2014, 2, 1353–1362. [Google Scholar] [CrossRef]
  22. Kieback, B.F.; Kubsch, H.; Bunke, A. Synthesis and Properties of Nanocrystalline Compounds Prepared by High-Energy Milling. J. Phys. IV France 1993, 03, C7-1425–C7-1428. [Google Scholar] [CrossRef]
  23. Shearouse, W.C.; Mack, J. Diastereoselective Liquid Assisted Grinding: ‘Cracking’ Functional Resins to Advance Chromatography-Free Synthesis. Green Chem. 2012, 14, 2771. [Google Scholar] [CrossRef]
  24. Kucio, K.; Charmas, B.; Sydorchuk, V.; Khalameida, S.; Khyzhun, O. Synthesis and Modification of Ce-Zr Oxide Compositions as Photocatalysts. Appl. Catal. A General 2020, 603, 117767. [Google Scholar] [CrossRef]
  25. Akhgar, B.N.; Pourghahramani, P. Impact of Mechanical Activation and Mechanochemical Activation on Natural Pyrite Dissolution. Hydrometallurgy 2015, 153, 83–87. [Google Scholar] [CrossRef]
  26. Gregg, S.J.; Sing, K.S.W. Adsorption, Surface Area and Porosity, 2nd ed.; Academic Press: London, UK, 1982. [Google Scholar] [CrossRef]
  27. Gun’ko, V.M.; Mikhalovsky, S.V. Evaluation of Slitlike Porosity of Carbon Adsorbents. Carbon 2004, 42, 843–849. [Google Scholar] [CrossRef]
  28. Gun’ko, V.M.; Do, D.D. Characterisation of Pore Structure of Carbon Adsorbents Using Regularisation Procedure. Colloids Surf. A Physicochem. Eng. Asp. 2001, 193, 71–83. [Google Scholar] [CrossRef]
  29. Calvelo Pereira, R.; Kaal, J.; Camps Arbestain, M.; Pardo Lorenzo, R.; Aitkenhead, W.; Hedley, M.; Macías, F.; Hindmarsh, J.; Maciá-Agulló, J.A. Contribution to Characterisation of Biochar to Estimate the Labile Fraction of Carbon. Org. Geochem. 2011, 42, 1331–1342. [Google Scholar] [CrossRef]
  30. Boehm, H.P. Surface Oxides on Carbon and Their Analysis: A Critical Assessment. Carbon 2002, 40, 145–149. [Google Scholar] [CrossRef]
  31. Nowicki, P.; Skrzypczak, M.; Pietrzak, R. Effect of Activation Method on the Physicochemical Properties and NO2 Removal Abilities of Sorbents Obtained from Plum Stones (Prunus domestica). Chem. Eng. J. 2010, 162, 723–729. [Google Scholar] [CrossRef]
  32. Janusz, W. Adsorption of Sodium and Chloride Ions at the Rutile/Electrolyte Interface—Parameters of the Electric Double Layer. Mater. Chem. Phys. 1989, 24, 39–50. [Google Scholar] [CrossRef]
  33. Paientko, V.; Oranska, O.I.; Gun’ko, V.M.; Skwarek, E. Selected Textural and Electrochemical Properties of Nanocomposite Fillers Based on the Mixture of Rose Clay/Hydroxyapatite/Nanosilica for Cosmetic Applications. Molecules 2023, 28, 4820. [Google Scholar] [CrossRef] [PubMed]
  34. Benjelloun, M.; Miyah, Y.; Akdemir Evrendilek, G.; Zerrouq, F.; Lairini, S. Recent Advances in Adsorption Kinetic Models: Their Application to Dye Types. Arab. J. Chem. 2021, 14, 103031. [Google Scholar] [CrossRef]
  35. Chen, S.; Qin, C.; Wang, T.; Chen, F.; Li, X.; Hou, H.; Zhou, M. Study on the Adsorption of Dyestuffs with Different Properties by Sludge-Rice Husk Biochar: Adsorption Capacity, Isotherm, Kinetic, Thermodynamics and Mechanism. J. Mol. Liq. 2019, 285, 62–74. [Google Scholar] [CrossRef]
  36. Bazan-Wozniak, A.; Cielecka-Piontek, J.; Nosal-Wiercińska, A.; Pietrzak, R. Adsorption of Organic Compounds on Adsorbents Obtained with the Use of Microwave Heating. Materials 2022, 15, 5664. [Google Scholar] [CrossRef] [PubMed]
  37. Kurdziel, K.; Raczyńska-Żak, M.; Dąbek, L. Equilibrium and Kinetic Studies on the Process of Removing Chromium(VI) from Solutions Using HDTMA-Modified Halloysite. Desalination Water Treat. 2019, 137, 88–100. [Google Scholar] [CrossRef]
  38. Ebisike, K.; Elvis Okoronkwo, A.; Kanayo Alaneme, K.; Jeremiah Akinribide, O. Thermodynamic Study of the Adsorption of Cd2+ and Ni2+ onto Chitosan—Silica Hybrid Aerogel from Aqueous Solution. Results Chem. 2023, 5, 100730. [Google Scholar] [CrossRef]
  39. Mallakpour, S.; Sirous, F.; Hussain, C.M. Sawdust, a Versatile, Inexpensive, Readily Available Bio-Waste: From Mother Earth to Valuable Materials for Sustainable Remediation Technologies. Adv. Colloid Interface Sci. 2021, 295, 102492. [Google Scholar] [CrossRef]
  40. Xiang, W.; Zhang, X.; Chen, K.; Fang, J.; He, F.; Hu, X.; Tsang, D.C.W.; Ok, Y.S.; Gao, B. Enhanced Adsorption Performance and Governing Mechanisms of Ball-Milled Biochar for the Removal of Volatile Organic Compounds (VOCs). Chem. Eng. J. 2020, 385, 123842. [Google Scholar] [CrossRef]
  41. Lopez-Tenllado, F.J.; Motta, I.L.; Hill, J.M. Modification of Biochar with High-Energy Ball Milling: Development of Porosity and Surface Acid Functional Groups. Bioresour. Technol. Rep. 2021, 15, 100704. [Google Scholar] [CrossRef]
  42. Figueiredo, J.L.; Pereira, M.F.R.; Freitas, M.M.A.; Órfão, J.J.M. Modification of the Surface Chemistry of Activated Carbons. Carbon 1999, 37, 1379–1389. [Google Scholar] [CrossRef]
  43. Jing, F.; Pan, M.; Chen, J. Kinetic and Isothermal Adsorption-Desorption of PAEs on Biochars: Effect of Biomass Feedstock, Pyrolysis Temperature, and Mechanism Implication of Desorption Hysteresis. Env. Sci. Pollut. Res. 2018, 25, 11493–11504. [Google Scholar] [CrossRef] [PubMed]
  44. Lyu, H.; Yu, Z.; Gao, B.; He, F.; Huang, J.; Tang, J.; Shen, B. Ball-Milled Biochar for Alternative Carbon Electrode. Env. Sci. Pollut. Res. 2019, 26, 14693–14702. [Google Scholar] [CrossRef] [PubMed]
  45. Vaughn, S.F.; Kenar, J.A.; Thompson, A.R.; Peterson, S.C. Comparison of Biochars Derived from Wood Pellets and Pelletized Wheat Straw as Replacements for Peat in Potting Substrates. Ind. Crops Prod. 2013, 51, 437–443. [Google Scholar] [CrossRef]
  46. Zhang, L.; Gonçalves, A.A.S.; Jaroniec, M. Synthesis of Nanoporous Carbonaceous Materials at Lower Temperatures. Front. Chem. 2023, 11, 1277826. [Google Scholar] [CrossRef]
  47. Lin, X.; Liang, Y.; Lu, Z.; Lou, H.; Zhang, X.; Liu, S.; Zheng, B.; Liu, R.; Fu, R.; Wu, D. Mechanochemistry: A Green, Activation-Free and Top-Down Strategy to High-Surface-Area Carbon Materials. ACS Sustain. Chem. Eng. 2017, 5, 8535–8540. [Google Scholar] [CrossRef]
  48. Zuo, J.; Li, W.; Xia, Z.; Zhao, T.; Tan, C.; Wang, Y.; Li, J. Preparation of Modified Biochar and Its Adsorption of Cr(VI) in Aqueous Solution. Coatings 2023, 13, 1884. [Google Scholar] [CrossRef]
  49. Xiao, Y.; Lyu, H.; Tang, J.; Wang, K.; Sun, H. Effects of Ball Milling on the Photochemistry of Biochar: Enrofloxacin Degradation and Possible Mechanisms. Chem. Eng. J. 2020, 384, 123311. [Google Scholar] [CrossRef]
  50. Pathak, D.D.; Grover, V. Mechanochemistry: Synthesis That Uses Force. In Handbook on Synthesis Strategies for Advanced Materials; Tyagi, A.K., Ningthoujam, R.S., Eds.; Indian Institute of Metals Series; Springer: Singapore, 2021; pp. 657–682. [Google Scholar]
  51. Yuan, Y.; Zhang, N.; Hu, X. Effects of Wet and Dry Ball Milling on the Physicochemical Properties of Sawdust Derived-Biochar. Instrum. Sci. Technol. 2020, 48, 287–300. [Google Scholar] [CrossRef]
  52. Ma, X.; Zhou, B.; Budai, A.; Jeng, A.; Hao, X.; Wei, D.; Zhang, Y.; Rasse, D. Study of Biochar Properties by Scanning Electron Microscope—Energy Dispersive X-ray Spectroscopy (SEM-EDX). Commun. Soil Sci. Plant Anal. 2016, 47, 593–601. [Google Scholar] [CrossRef]
  53. Zhang, Q.; Wang, J.; Lyu, H.; Zhao, Q.; Jiang, L.; Liu, L. Ball-Milled Biochar for Galaxolide Removal: Sorption Performance and Governing Mechanisms. Sci. Total Environ. 2019, 659, 1537–1545. [Google Scholar] [CrossRef]
  54. Nasrullah, A.; Khan, A.S.; Bhat, A.H.; Din, I.U.; Inayat, A.; Muhammad, N.; Bakhsh, E.M.; Khan, S.B. Effect of Short Time Ball Milling on Physicochemical and Adsorption Performance of Activated Carbon Prepared from Mangosteen Peel Waste. Renew. Energy 2021, 168, 723–733. [Google Scholar] [CrossRef]
  55. Ferrari, A.C.; Robertson, J. Raman Spectroscopy of Amorphous, Nanostructured, Diamond–like Carbon, and Nanodiamond. Philos. Trans. R. Soc. Lond. Ser. A Math. Phys. Eng. Sci. 2004, 362, 2477–2512. [Google Scholar] [CrossRef] [PubMed]
  56. Yusof, J.M.; Salleh, M.A.M.; Rashid, S.A.; Ismail, I.; Adam, S.N. Characterisation of carbon particles (CPs) derived from dry milled kenaf biochar. J. Eng. Sci. Technol. 2014, 10, 125–131. [Google Scholar]
  57. Samad, J.E.; Hashim, S.; Ma, S.; Regalbuto, J.R. Determining Surface Composition of Mixed Oxides with pH. J. Colloid Interface Sci. 2014, 436, 204–210. [Google Scholar] [CrossRef] [PubMed]
  58. Janusz, W. The Structure of the Electrical Double Layer at the LiChrospher-Type Adsorbent/Aqueous Electrolyte Solution Interface. Adsorpt. Sci. Technol. 1996, 14, 151–161. [Google Scholar] [CrossRef]
  59. Guilhen, S.N.; Watanabe, T.; Silva, T.T.; Rovani, S.; Marumo, J.T.; Tenório, J.A.S.; Mašek, O.; de Araujo, J.G. Role of Point of Zero Charge in the Adsorption of Cationic Textile Dye on Standard Biochars from Aqueous Solutions: Selection Criteria and Performance Assessment. Recent Prog. Mater. 2022, 4, 10. [Google Scholar] [CrossRef]
  60. Ji, Q.; An, X.; Liu, H.; Guo, L.; Qu, J. Electric Double-Layer Effects Induce Separation of Aqueous Metal Ions. ACS Nano 2015, 9, 10922–10930. [Google Scholar] [CrossRef]
  61. Szczepanik, B.; Banaś, D.; Kubala-Kukuś, A.; Szary, K.; Słomkiewicz, P.; Rędzia, N.; Frydel, L. Surface Properties of Halloysite-Carbon Nanocomposites and Their Application for Adsorption of Paracetamol. Materials 2020, 13, 5647. [Google Scholar] [CrossRef]
  62. Rodríguez, A.; García, J.; Ovejero, G.; Mestanza, M. Adsorption of Anionic and Cationic Dyes on Activated Carbon from Aqueous Solutions: Equilibrium and Kinetics. J. Hazard. Mater. 2009, 172, 1311–1320. [Google Scholar] [CrossRef]
  63. Aragaw, T.A.; Alene, A.N. A Comparative Study of Acidic, Basic, and Reactive Dyes Adsorption from Aqueous Solution onto Kaolin Adsorbent: Effect of Operating Parameters, Isotherms, Kinetics, and Thermodynamics. Emerg. Contam. 2022, 8, 59–74. [Google Scholar] [CrossRef]
  64. Al-Ghouti, M.A.; Al-Absi, R.S. Mechanistic Understanding of the Adsorption and Thermodynamic Aspects of Cationic Methylene Blue Dye onto Cellulosic Olive Stones Biomass from Wastewater. Sci. Rep. 2020, 10, 15928. [Google Scholar] [CrossRef] [PubMed]
  65. Abdoul, H.J.; Yi, M.; Prieto, M.; Yue, H.; Ellis, G.J.; Clark, J.H.; Budarin, V.L.; Shuttleworth, P.S. Efficient Adsorption of Bulky Reactive Dyes from Water Using Sustainably-Derived Mesoporous Carbons. Environ. Res. 2023, 221, 115254. [Google Scholar] [CrossRef] [PubMed]
Materials 17 04458 g001

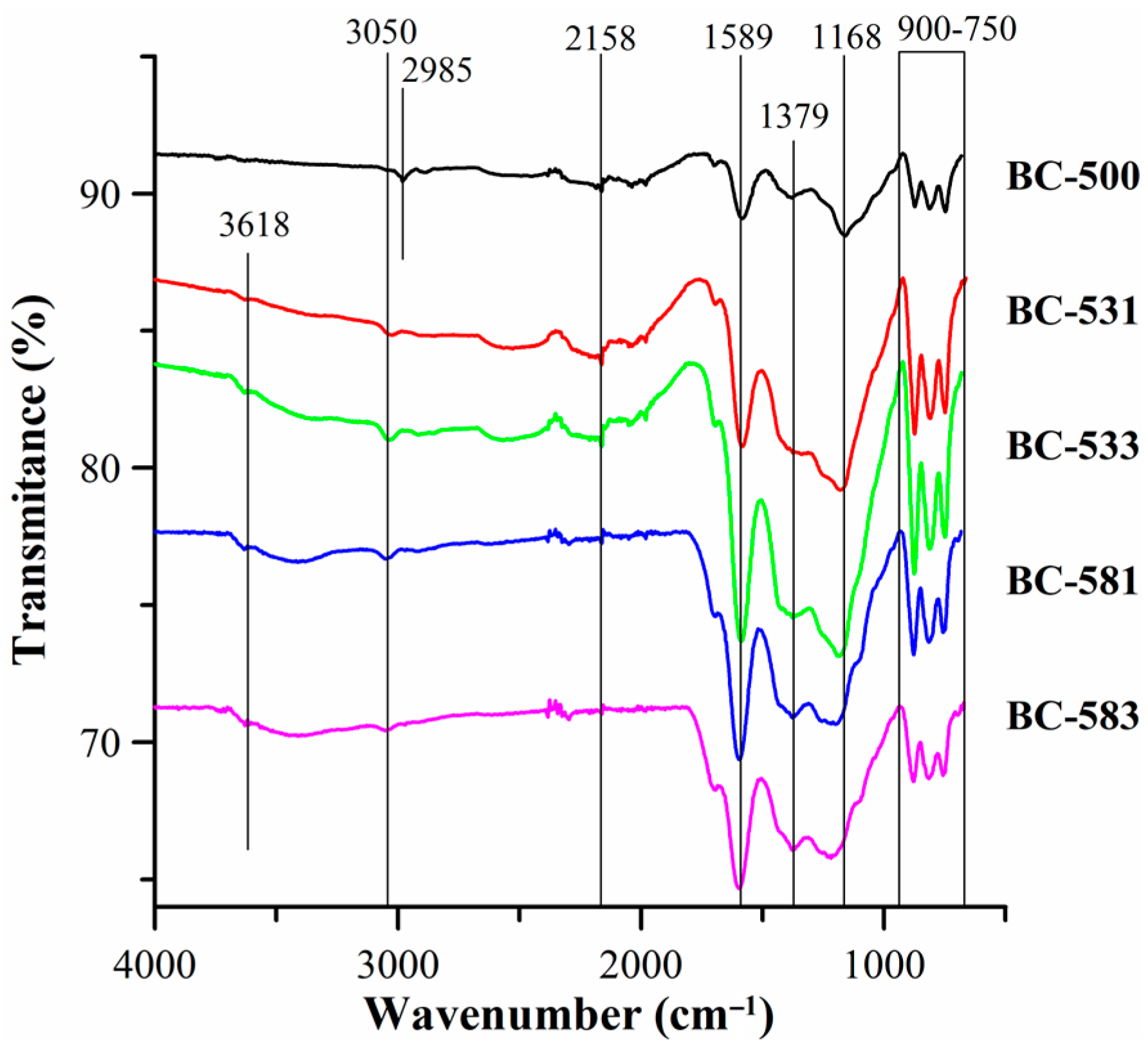

Figure 1. ATR-FTIR spectra of the biocarbons.
Figure 1. ATR-FTIR spectra of the biocarbons.
Materials 17 04458 g001
Materials 17 04458 g002

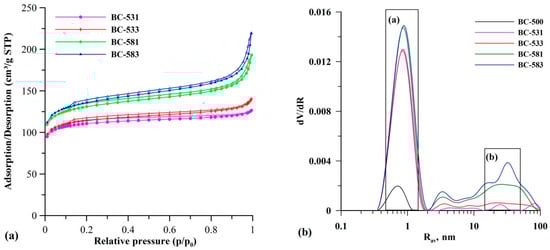

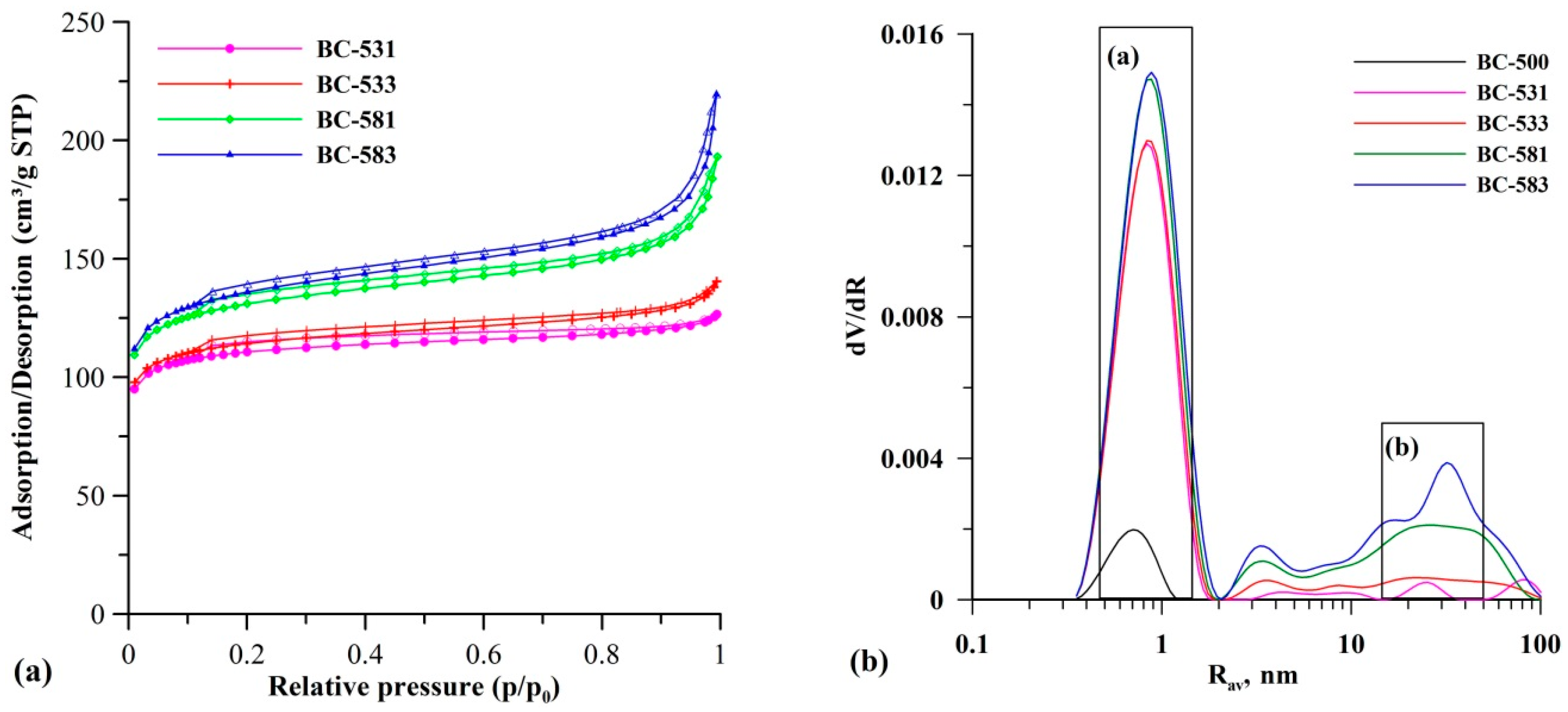

Figure 2. Low-temperature N2 adsorption/desorption isotherms (a) and pore volume distribution curves (b) obtained for the tested biocarbons.
Figure 2. Low-temperature N2 adsorption/desorption isotherms (a) and pore volume distribution curves (b) obtained for the tested biocarbons.
Materials 17 04458 g002
Materials 17 04458 g003

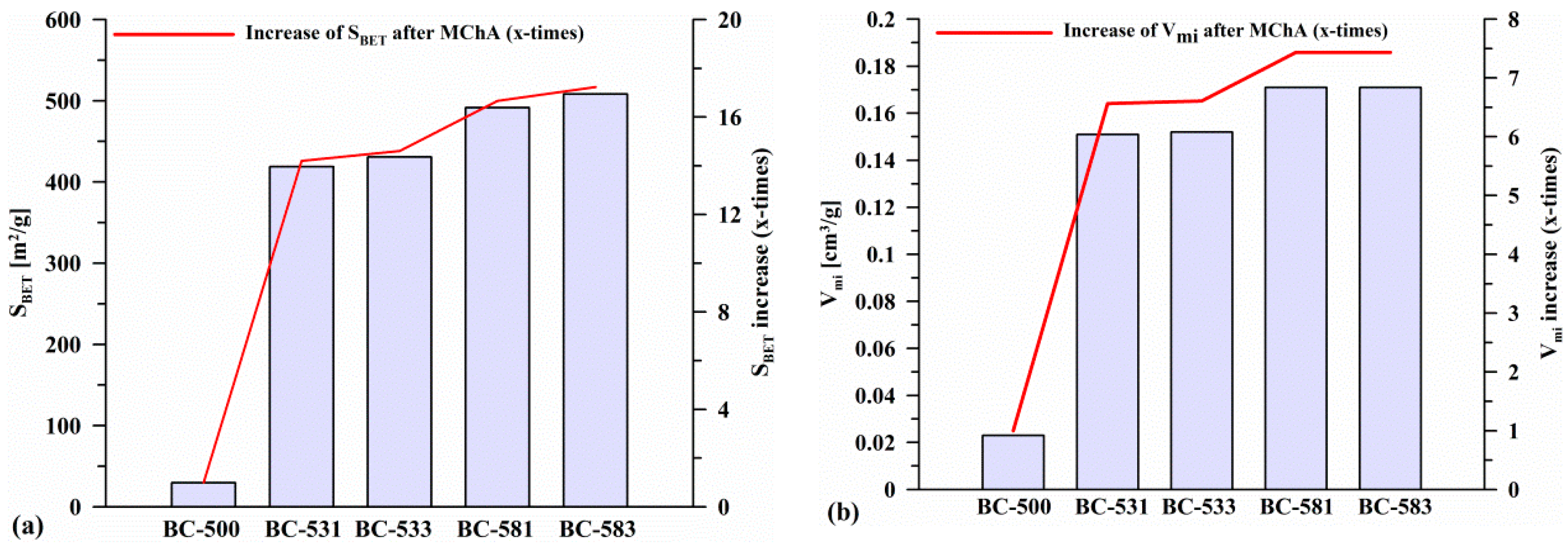

Figure 3. Changes in SBET (a) and Vmi (b) of the initial and mechanochemically activated biocarbons.
Figure 3. Changes in SBET (a) and Vmi (b) of the initial and mechanochemically activated biocarbons.
Materials 17 04458 g003
Materials 17 04458 g004aMaterials 17 04458 g004b
Figure 4. SEM images of the biocarbons: BC-500 (a,d), BC-531 (b,e), and BC-581 (c,f) at 1000× and 10,000× magnification.
Figure 4. SEM images of the biocarbons: BC-500 (a,d), BC-531 (b,e), and BC-581 (c,f) at 1000× and 10,000× magnification.
Materials 17 04458 g004aMaterials 17 04458 g004b
Materials 17 04458 g005

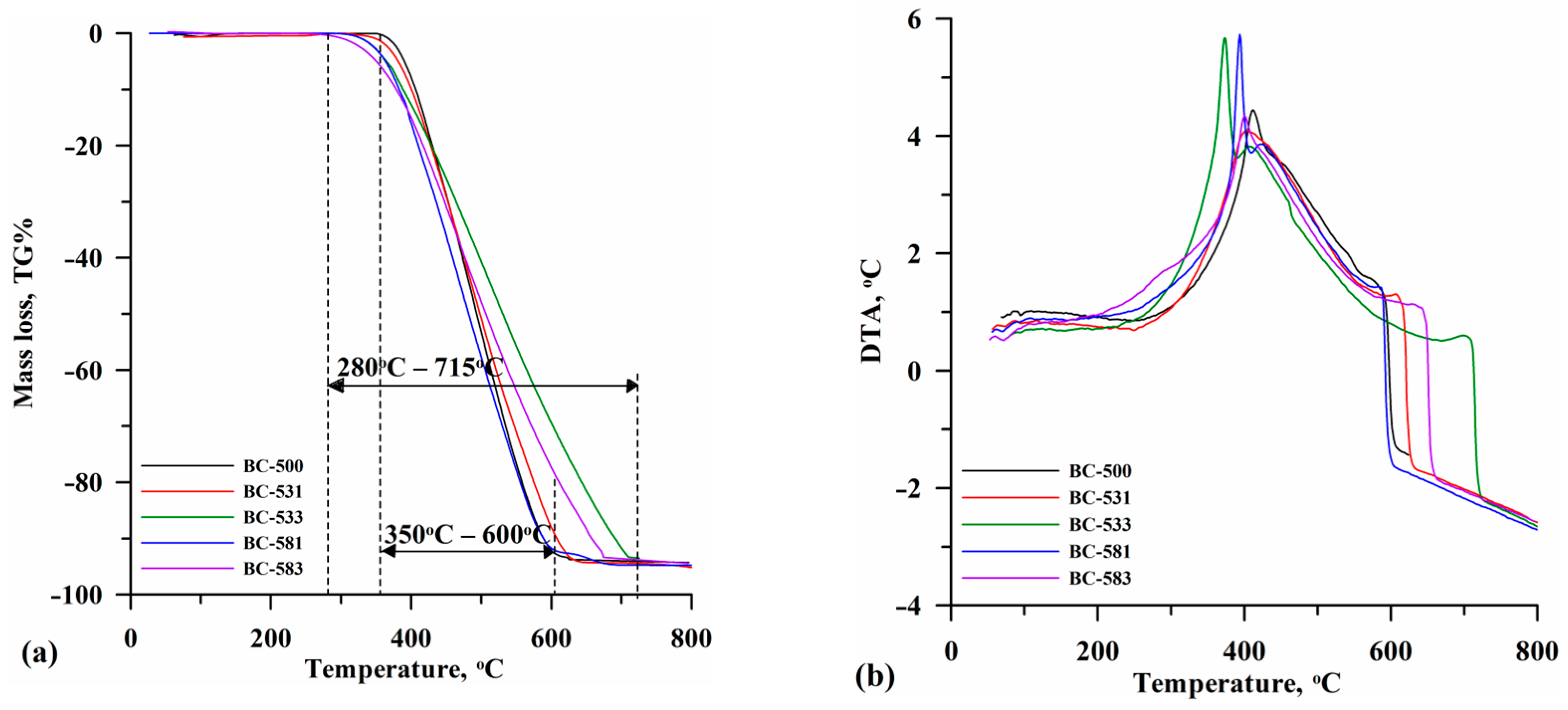

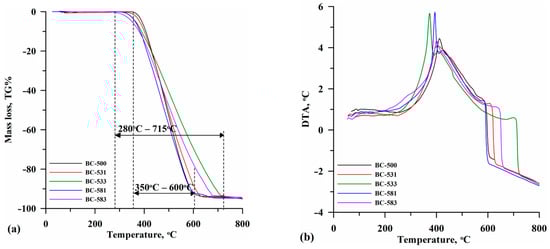

Figure 5. TG% (a) and DTA (b) results obtained for the tested biocarbons.
Figure 5. TG% (a) and DTA (b) results obtained for the tested biocarbons.
Materials 17 04458 g005
Materials 17 04458 g006

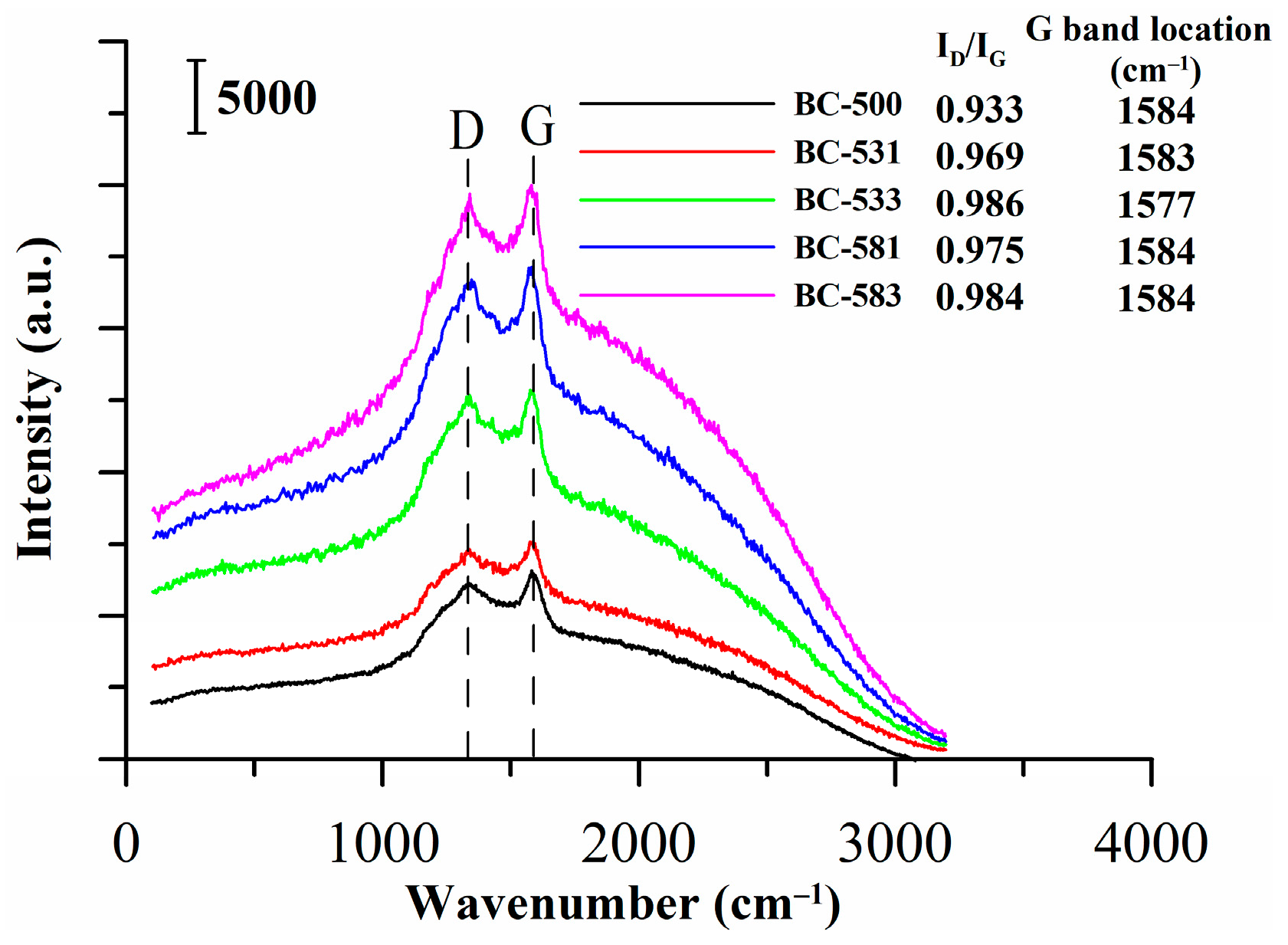

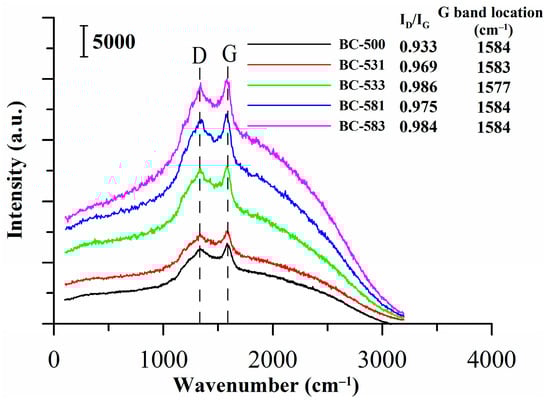

Figure 6. Raman spectra of the biocarbons.
Figure 6. Raman spectra of the biocarbons.
Materials 17 04458 g006
Materials 17 04458 g007

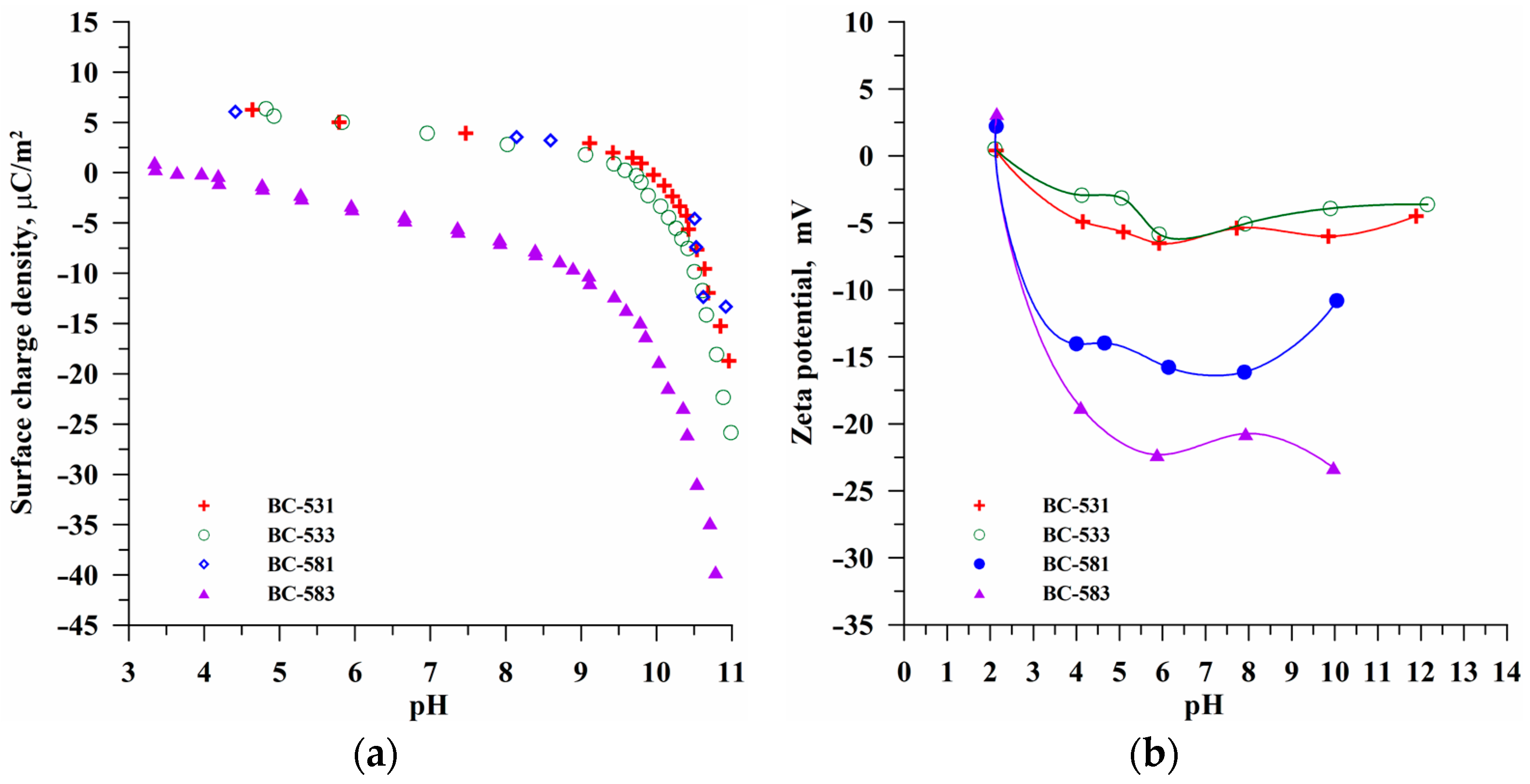

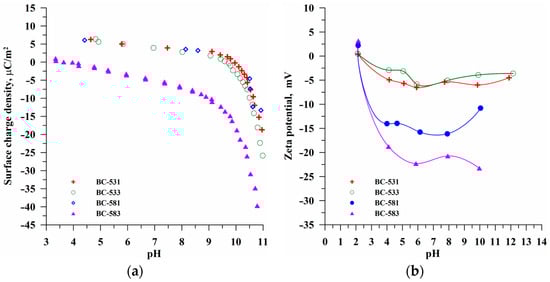

Figure 7. The dependencies of biocarbon particles’ surface charge density (a) and zeta potential (b) in 0.001 mol/dm3 NaCl.
Figure 7. The dependencies of biocarbon particles’ surface charge density (a) and zeta potential (b) in 0.001 mol/dm3 NaCl.
Materials 17 04458 g007
Materials 17 04458 g008

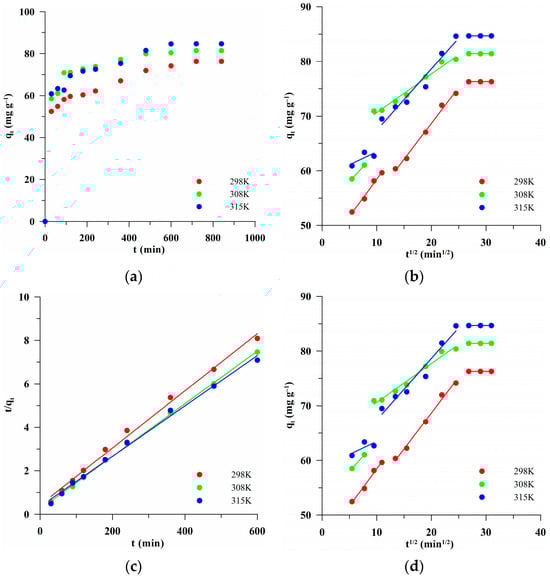

Figure 8. Experimental kinetic data (a). Models of pseudo-first-order (b) and pseudo-second-order (c) kinetics and the intra-particle diffusion model (d) at different temperatures for the sample BC-583.
Figure 8. Experimental kinetic data (a). Models of pseudo-first-order (b) and pseudo-second-order (c) kinetics and the intra-particle diffusion model (d) at different temperatures for the sample BC-583.
Materials 17 04458 g008
Materials 17 04458 g009aMaterials 17 04458 g009b
Figure 9. Experimental MB adsorption isotherms (a) and linear fittings of isotherms according to the Langmuir (b), Freundlich (c), and Dubinin–Radushkevich (d) models for the sample BC-583.
Figure 9. Experimental MB adsorption isotherms (a) and linear fittings of isotherms according to the Langmuir (b), Freundlich (c), and Dubinin–Radushkevich (d) models for the sample BC-583.
Materials 17 04458 g009aMaterials 17 04458 g009b
Table 1. The elemental composition (%w/w) of the selected biocarbons.
Table 1. The elemental composition (%w/w) of the selected biocarbons.
BiocarbonC (%)O (%)Na (%)Mg (%)Al (%)Si (%)P (%)S (%)K (%)Ca (%)O/C *
BC-50092.626.220.030.080.050.190.040.020.200.550.05
BC-53190.488.670.030.060.050.180.030.020.110.370.07
BC-58188.1410.80.050.080.080.350.010.010.110.370.9
O/C *—The atomic ratio based on the EDS analysis.
Table 2. The surface functionalities and supernatant pH values of biocarbons.
Table 2. The surface functionalities and supernatant pH values of biocarbons.
BiocarbonAcidic Surface Groups * Σ acidic * Σ basic * Σ *pH
Carboxyl *Phenolic *Lactone *
BC-500-0.07690.02740.10430.31280.41717.2
BC-531-0.12510.04100.16610.42850.59468.8
BC-5330.04740.20890.05890.31520.43160.74688.5
BC-5810.02480.34990.12980.50800.38440.88368.0
BC-5830.12140.51560.21620.85330.45751.31087.5
* (mgR/g); Σ —The total surface oxygen groups.
Table 3. The structural characteristics of the obtained biocarbons.
Table 3. The structural characteristics of the obtained biocarbons.
CarbonSBETSmi%SmiSme%SmeVpVmi%VmiVme%VmeΔwRav
BC-50029.529.299.00.20.70.0230.02398.70.0011.30.5150.68
BC-531419.0370.288.448.711.60.1960.15177.20.03920.10.2472.95
BC-533430.9372.086.358.513.60.2170.15269.80.05525.40.2523.87
BC-581491.7413.884.276.515.60.2990.17157.10.09531.90.2427.15
BC-583508.3414.581.591.618.00.3400.17150.40.11834.60.2499.18
Here, SBET—the specific surface area (m2/g); Smi—the micropore surface (m2/g); %Smi—the share of micropore surface (%); Sme—the mesopore surface (m2/g); %Sme—the share of mesopore surface (%); Vp—the pore volume determined as the sum of the micro-, meso-, and macro-pore volumes (cm3/g); Vmi—the micropore volume (cm3/g); %Vmi—the share of micropore volume (%); Vme—the mesopore volume (cm3/g); Rav—the average pore radius (nm); Δw—the deviation from the assumed slit-shaped pore model.
Table 4. The proximate analysis (%A, %VC, and %FC) of mechanochemically activated biocarbons, as well as the thermostability index determined using TGA.
Table 4. The proximate analysis (%A, %VC, and %FC) of mechanochemically activated biocarbons, as well as the thermostability index determined using TGA.
Biocarbon%A%VC%FCCthermo
BC-5005.613.081.40.862
BC-5312.119.878.10.796
BC-5333.517.079.50.828
BC-5815.118.076.90.818
BC-5838.321.070.70.778
Table 5. The parameters of the electrical double layer.
Table 5. The parameters of the electrical double layer.
SamplepHpzcpHiep
BC-531 9.94 <2
BC-533 9.65 <2
BC-581 8.62 <2
BC-583 3.35 <2
Table 6. The kinetics parameters of PFO, PSO, and IPD models for the adsorption of methylene blue on BC-583.
Table 6. The kinetics parameters of PFO, PSO, and IPD models for the adsorption of methylene blue on BC-583.
Temp.
(K)		PFO ModelPSO ModelIPD Model
k1R2k2R2kid1c1R2kid2c2R2
2980.0040.95640.00040.99471.3644.800.98531.3242.360.9912
3080.00530.96750.00060.99931.1752.391.00000.7163.570.9780
3150.00860.74350.00040.99530.4858.710.55941.1356.150.9538
Here, k1—the pseudo-first-order rate constant (min−1); k2—the pseudo-second-order rate constant (g mg−1 min−1); R2—the correlation factor; kid—the intraparticle diffusion rate constant (mg g−1 min1/2); c—the boundary layer thickness (mg g−1).
Table 7. The parameters of the Langmuir, Freundlich, and Dubinin–Radushkevich adsorption isotherm models.
Table 7. The parameters of the Langmuir, Freundlich, and Dubinin–Radushkevich adsorption isotherm models.
ModelParameterTemperature (K)
298308315
Langmuirqm,exp112.10120.08130.98
qm,cal114.94121.95131.58
KL0.01020.01120.0123
R20.97880.98240.9826
FreundlichKf33.658936.157637.2563
n6.6186.5066.105
R20.90270.94100.9697
Dubinin–Radushkevichqm,cal83.4089.5989.60
β0.0450.0430.047
E3.333.413.26
R20.52300.57720.5777
Here, qm,exp—the amount of adsorbed substance per 1 g of adsorbent in the equilibrium state (mg g−1); qm,cal—the maximum amount of adsorbed substance (mg g−1); KL—the Langmuir adsorption equilibrium constant (dm−3 mg−1); Kf—the Freundlich constant, which indicates the adsorption capacity (mg1–1/n L1/n g−1); n—the empirical constant describing the adsorbent surface heterogeneity; β—the constant associated with the sorption energy (mol2/kJ2); ε—the Polanyi potential; R—the gas constant (kJ/mol K); T—the absolute temperature (K); E—the adsorption energy (kJ/mol).
Table 8. The thermodynamic parameters.
Table 8. The thermodynamic parameters.
Temperature (K)∆G°ΔH°ΔS°
298−20.2715.01134.13
308−20.49
315−20.74
Here, ∆G°—the free energy (kJ/mol); ∆H°—the enthalpy (kJ/mol); ∆S°—the entropy (J/mol*K).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wawrzaszek, B.; Charmas, B.; Jedynak, K.; Skwarek, E. Impact of Mechanochemical Activation (MChA) on Characteristics and Dye Adsorption Behavior of Sawdust-Based Biocarbons. Materials 2024, 17, 4458. https://doi.org/10.3390/ma17184458

AMA Style

Wawrzaszek B, Charmas B, Jedynak K, Skwarek E. Impact of Mechanochemical Activation (MChA) on Characteristics and Dye Adsorption Behavior of Sawdust-Based Biocarbons. Materials. 2024; 17(18):4458. https://doi.org/10.3390/ma17184458

Chicago/Turabian Style

Wawrzaszek, Barbara, Barbara Charmas, Katarzyna Jedynak, and Ewa Skwarek. 2024. "Impact of Mechanochemical Activation (MChA) on Characteristics and Dye Adsorption Behavior of Sawdust-Based Biocarbons" Materials 17, no. 18: 4458. https://doi.org/10.3390/ma17184458

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
