Simple Scaling as a Tool to Help Assess the Closure-Free da/dN Versus ΔKeff Curve in a Range of Materials

1
Centre of Expertise for Structural Mechanics, Department of Mechanical and Aerospace Engineering, Monash University, Clayton, VIC 3800, Australia
2
ARC Industrial Transformation Training Centre on Surface Engineering for Advanced Materials, Faculty of Science, Engineering and Technology, Swinburne University of Technology, John Street, Hawthorn, VIC 3122, Australia
*
Author to whom correspondence should be addressed.
Materials 2024, 17(22), 5423; https://doi.org/10.3390/ma17225423
Submission received: 28 September 2024 / Revised: 25 October 2024 / Accepted: 3 November 2024 / Published: 6 November 2024

Abstract

:
Recent studies have proposed a simple formula, which is based on Elber’s original approach to account for R-ratio effects, for determining the crack closure-free ΔKeff versus da/dN curve from the measured R-ratio-dependent ΔK versus da/dN curves. This approach, which is termed “Simple Scaling,” has been shown to collapse the various R-ratio-dependent curves onto a single curve. Indeed, this approach has been verified for a number of tests on metals, polymers, and a medium-entropy alloy. However, it has not yet been used to help assess/determine the closure-free ΔKeff versus da/dN curve. The current paper addresses this shortcoming and illustrates how to use this methodology to assess the ΔKeff versus da/dN curves given in the open literature for tests on a number of steels, aluminum alloys, STOA Ti-6Al-4V, a magnesium alloy, and Rene 95. As such, it would appear to be a useful tool for assessing fatigue crack growth.

1. Introduction

It has long been known that the ΔK versus da/dN curves measured using ASTM E647-23b [1] fatigue standard tests on long cracks can be R-ratio dependent. (Here, K is the stress intensity factor; Kmin and Kmax are the minimum and maximum values of K in a load cycle, respectively; ΔK = KmaxKmin; R = Kmin/Kmax; N is the number of cycles; and a is the crack length). To account for this effect, Elber [2,3] introduced the concept of an effective stress intensity factor (ΔKeff), which is defined as follows:
ΔKeff = U(R) ΔK
where the function U(R) is chosen such that, for long cracks that experience plastic wake-induced crack closure, the resultant ΔKeff versus da/dN curves all fall onto a single curve regardless of the R-ratio. Equation (1) is also commonly written as follows:
ΔKeff = (KmaxKo) = U(R) ΔK
where Ko is defined as the value of stress intensity factor at which the crack first opens. As such, the equation for Ko is expressed as follows:
Ko= Kmax (1 − U(R) × R)
It follows from Equation (3) that the general formula for the load at which a crack opens, which we will define as Po, is given by:
Po= Pmax (1 − U(R) × R)
where Pmax is the maximum load in the cycle.
As noted by Paris et al. [4], Paris et al. [5], Schijve [6], and Jones [7], crack closure approaches are now widely used to assess the damage tolerance of aerospace components, and numerous formulae for determining the function U(R) and hence the R-ratio-independent ΔKeff versus da/dN curve have been proposed (see [2,3,4,5,6,8,9,10,11,12,13,14]). As a result, methods for determining ΔKeff can now be found in the fatigue test standard ASTM E647-23b. The methods discussed in ASTM E647-23b [1] include determining the “crack opening force” from compliance measurements and using the adjusted compliance ratio (ACR) approach, which was first developed by Donald et al. [15] and is discussed in more detail in the paper by Donald and Paris [16]. These approaches are discussed in ASTM E647-23b Appendices X2 and X4 [1], respectively. (Despite this, as mentioned by Kujawski et al. [17] and Gonzalez et al. [18], there is still a debate about the physics associated with crack closure and the concept of a crack opening force).
It should also be noted that the test protocol outlined in Sections 8.5 and 8.6 of the fatigue test standard ASTM E647-23b [1] recommends that, for da/dN ≤ 10−8 m/cycle, load reduction approaches are used to determine the crack growth curve. For da/dN ≥ 10−8 m/cycle, the “constant-force amplitude” test procedure is recommended. In this approach, the amplitude of the load ΔP (=PmaxPmin), where Pmin and Pmax are the minimum and maximum loads in a cycle, respectively, is kept constant throughout the test. This results in ΔK increasing as the crack grows. However, Section 8.7 also allows for tests where Kmax is kept constant and notes that this test procedure can help to determine more conservative values of the near threshold behavior. It should also be noted that, for tests on long cracks, ASTM E647-23b requires the test specimens to be pre-cracked. In the context of this paper, it should also be noted that compression pre-cracking constant amplitude (CPCA) followed by load reduction (CPLR) methods are now often used to generate the ΔK versus da/dN curves for da/dN ≤ 10−8 m/cycle (see [19,20,21]). Furthermore, as in [19,20], a back face strain gauge is also sometimes used to monitor both the crack length and the crack opening. In this context, it should also be noted that Gonzales et al. [18] revealed that such back face strain gauge measurements do not necessarily reflect the actual (true) crack opening load. The paper by Schönbauer et al. [22] revealed that, for 17-4PH steel, R-ratio effects disappeared when da/dN was plotted as a function of ΔKKth. Here, ΔKth is the ASTM-defined fatigue threshold, i.e., the value of ΔK at da/dN = 10−10 m/cycle. This observation was subsequently supported by the results presented in [23,24] for the growth of cracks in a range of metals and a medium-entropy alloy:
  • Aerospace aluminum alloys 2024-T3, 7075-T651, 7050-T7451, 6013-T651, 2324-T39, 7085-T7452, 2524-T3, and 7049;
  • 304L stainless steel;
  • Titanium alloy Ti622;
  • Selective laser melt (SLM)-built Inconel 625 and the Chinese super alloy GH4169;
  • Laser powder bed fusion (LPBF)-built Hastelloy X;
  • Medium-entropy cantor alloy CrCoNi.
Reference [24] also revealed that, from a mathematical standpoint, U(R) can be expressed as follows:
U(R) = ΔKeff,da/dNKda/dN(R)
where ΔKeff,da/dN, and ΔKda/dN(R) are the values of ΔKeff and ΔK(R) at a given (low) value of da/dN, respectively. (Various alternative formulae for the function U(R) can be found in [4,5,6,7,8,9,10,11,12,13,14,15,16,18]). Reference [24] also noted that what this means is that, for metals that conform to Elber’s original hypothesis, R-ratio effects are merely a reflection of the change in the fatigue threshold and that, for metals that conform to Elber’s original hypothesis, the ΔKKth versus da/dN curves should be independent of the R-ratio. Furthermore, ref. [24] also found that there were several instances when expressing da/dN as a function of ΔKKth was able to reveal that the effect of temperature on the ΔK versus da/dN curves was also (to a first approximation) merely a reflection of the change in the fatigue threshold due to the change in temperature. The subsequent paper [25] extended these observations to account for the effect of different molecular weights on the growth of cracks in high-density polyethene and to understand the effect of different specimen geometries, R-ratios, and different levels of irradiation on crack growth in high-density polyethene.
Whereas ref. [24] focused on R-ratio effects in metals and high-entropy alloys and ref. [25] focused on crack growth in high-density polyethene, refs. [23,26,27,28,29,30] addressed the problem of delamination growth in composites. References [23,26,27,28,29,30] revealed that the Δ√G versus da/dN curves, where G is the energy release rate associated with delamination growth in composites, were often a strong function of the length of the pre-crack prior to testing and that this effect was due to retardation effects due to fiber bridging. Papers [23,26,27,28,29,30] also reported that expressing da/dN as a function of Δ√G/Δ√Gth also often collapsed the various pre-crack length-dependent Δ√G versus da/dN curves onto a single curve. As such, these various observations helped to clarify the fracture mechanics parameters associated with different test procedures, test temperatures, different levels of irradiation, and a range of non-metallic materials, both polymers and fiber composite laminates. As such, the Simple Scaling variant of Elber’s original hypothesis would appear to have the advantage over other approaches in that can help clarify the underlying parameters for a wide class of problems and for tests where, whilst the R-ratio is fixed, the test conditions are different, for example, different test temperatures, different levels of irradiation, or (as in the case of delamination growth in composites) different levels of pre-cracking. However, to date, the Simple Scaling approach has not been used to help assess closure-free ΔKeff versus da/dN curves.

2. Materials and Methods

Reference [24] was the first to reveal that plotting da/dN in terms of non-dimensional ratio ΔKKth could be useful for assessing the fracture mechanics parameters governing the effects of both temperature and R-ratio on the ΔK versus da/dN crack growth curves. This was achieved by considering their effects on the curves associated with (i) 304L stainless steel, (ii) the Chinese super alloy GH4169, and (iii) the medium-entropy cantor alloy CrCoNi.
To further investigate this observation, we examine the ΔK versus da/dN curves presented in [31,32] for crack growth in titanium alloy Ti-6Al-4V ELI tested at −4 °K (−269 °C), 25 °C, and 250 °C. This study also reveals that when da/dN is expressed in terms of ΔKKth, then, to a first approximation, the different temperature-dependent ΔK versus da/dN curves essentially collapse onto a single curve that is independent of both the R-ratio and the test temperature. This finding further highlights the advantages of plotting da/dN in terms of the ratio ΔKKth and thereby further illustrates the usefulness of Equation (5) for assessing the effect of the test temperature on fatigue crack growth. This particular material, i.e., Ti-6Al-4AV ELI, was chosen since it is used in the F-35 Lightning II.
We next evaluate if Equation (5) can be used to rapidly assess, and possibly improve, the ΔKeff versus da/dN curves given in the open literature for a range of metals:
  • The R = 0.1, 0.4, 0.7, 0.9, and 0.95 ΔK versus da/dN curves given by Newman [19] for the growth of long cracks in 9310 steel;
  • The R = 0.8, 0.5, 0.3, and 0.1 ΔK versus da/dN curves given by Boyce and Ritchie [33] and the ΔK versus da/dN curve given by Newman, Vizzini, and Yamada [34] for STOA Ti-6Al-4V;
  • The R = 0.1, 0.4, 0.7, 0.8, and 0.9 ΔK versus da/dN curves and the ΔKeff versus da/dN curve given in [35] for aluminum alloy 7075-T7351;
  • The R = 0.7, 0.5, 0.3, 0.1, and −1.0 ΔK versus da/dN curves given by Donald and Lados [36] for aluminum alloy 2324-T39;
  • The R = 0.7 and 0.1 ΔK versus da/dN curves and the corresponding ΔKeff versus da/dN curve given in [37] for aluminum alloy 7249-T6511;
  • The R = 0.1 and 0.7 ΔK versus da/dN curves and the ΔKeff versus da/dN curves given by Newman, Vizzini, and Yamada [34] for magnesium alloy Mg AZ91E;
  • The R = 0.95, 0.7, 0.4, and 0.1 ΔK versus da/dN curves and the ΔKeff versus da/dN curves given by Yamada and Newman [20] for crack growth in 4340 steel;
  • The R = 0.5 and 0.1 ΔK versus da/dN curves and the corresponding ΔKeff versus da/dN curve given by Liaw et al. [38] for a Mn-Cr austenitic steel;
  • The ΔK versus da/dN curves given by Newman and Piascik [39] for the super alloy Rene 95. These were Kmax tests with Kmax values of 22, 88, and 132 MPa √m.
Unless otherwise stated, the various ΔK versus da/dN tests studied in this paper were ATSTM E647-23b [1] standard compact tension (CT) specimens, ala ASTM test standard E647, and the tests were performed in accordance with the test protocol outlined in Sections 8.5–8.7 of the test standard ASTM E647-23b [1]. Furthermore, unless otherwise stated, all tests were performed at room temperature.
Whilst, in each case, it is shown that Equation (5) yields da/dN versus ΔKeff curves that can be quickly and easily obtained, there are instances, for example, when the estimates for the ΔKeff versus da/dN curves obtained by alternative methods do not coincide sufficiently, and it can help to resolve anomalies.

3. Crack Growth in Ti-6Al-4V over a Range of R-Ratios and Test Temperatures

In the introduction, we highlighted that refs. [22,23,24,25] had revealed that this Simple Scaling approach would appear to have the advantage over other approaches for modeling crack closure and had the potential to help clarify the underlying parameters for a wide class of problems and for tests where, whilst the R-ratio is fixed, the test conditions are different, for example, different test temperatures, different levels of irradiation, or (as in the case of delamination growth in composites) different levels of pre-cracking. To further investigate this potential, let us examine the R = 0.5, 0.06, and -1 ΔK versus da/dN curves given in [31] for the growth of long cracks in titanium alloy Ti-6Al-4V ELI tested at 25 °C and 250 °C, which are reproduced in Figure 1. With the exception of the R = 0.1 room temperature test labeled “R = 0.1, RT, 20 Hz”, which was performed at a test frequency of 20 Hz, all tests were performed at a test frequency of 5 Hz. The R = 0.1 ΔK versus da/dN curves given in [32] for the growth of long cracks in titanium alloy Ti-6Al-4V ELI tested at room temperature and at −4 °K (−269 °C) are also reproduced in Figure 1. Figure 1 highlights that the ΔK versus da/dN curves have a strong dependency both on the R-ratio and the test temperature.
However, Figure 2 reveals that if da/dN is plotted against ΔKKth, then, to a first approximation, all of the different curves shown in Figure 1 now essentially collapse onto a curve that is independent of both the R-ratio and the test temperature. (Here, it should be noted that since not all of the curves had data down to a growth rate of 10−10 m/cycle, the value of ΔKth was chosen so as to make the various curves coincide at a crack growth rate of just over 10−8 m/cycle). The observation that, when plotted in this fashion, the different curves shown in Figure 1 essentially collapse suggests that, for Ti-6Al-4V ELI, both the test temperature and the R-ratio effects were primarily due to their effect on the fatigue threshold. This observation supports comments given in [24] on the insights that can be gained by plotting da/dN against ΔKKth. Whilst this phenomenon may not hold for other materials, it would nevertheless appear to support the statement given in the Introduction that there are clear advantages in taking the time to plot da/dN against ΔKKth. The values of used in Figure 2 are given in Table 1.

4. Crack Growth in 9310 Steel

The room temperature R = 0.1, 0.4, 0.7, 0.9, and 0.95 ΔK versus da/dN curves given by Newman [19] for the growth of long cracks in 9310 steel are reproduced in Figure 3. This study reported that, for da/dN ≤ 10−8 m/cycle, compression pre-cracking constant amplitude (CPCA) and load reduction (CPLR) methods were used to generate the ΔK versus da/dN curves. A back face strain gauge (BFS) gauge was used both to monitor crack growth and to determine the load at which the crack opened.
In [19], the ΔKeff versus da/dN curves were determined using the “analytical crack closure equation” given by Newman [10], with the constraint factor set to 2.5. The resultant ΔKeff versus da/dN curves are shown in Figure 4. Figure 4 reveals that the various estimated ΔKeff versus da/dN curves have not fully collapsed onto a single R-ratio-independent curve. However, it is reasonable to expect that, at R = 0.95, there should be minimal crack closure so that these curves should be expected to collapse onto the R = 0.95 ΔKeff versus da/dN curve. The corresponding ΔKeff versus da/dN curves obtained using Equation (5), i.e., Simple Scaling, are shown in Figure 5, where we see that these curves are now tightly grouped. The values of the function U(R) (= ΔKeff,da/dNKda/dN(R)) used in Figure 5 to estimate the closure-free curve are given in Table 2. Table 2 also contains the value of da/dN at which Equation (5) made the various curves coincide.
An important feature that is rarely commented on and is aptly illustrated in Figure 4 and Figure 5 is that Elber’s crack closure formulation would appear to only account for the effect of R-ratio in what is generally referred to as Regions I and II. This feature is also apparent in the ΔKeff versus da/dN curves given in [20] for the growth of long cracks in 4340 steel. This dataset is examined later in this paper.

5. Crack Growth in STOA TI-6AL-4V

Let us next examine the R = 0.8, 0.5, 0.3, and 0.1 ΔK versus da/dN curves given by Boyce and Ritchie [33] for STOA Ti-6Al-4V and the curve given in [33] for a high Kmax test, i.e., Kmax = 56.5 MPa √m, for which R ≥ 0.91 and hence can be expected to essentially be closure free. These curves are shown in Figure 6 along with the ΔKeff versus da/dN curve given in [34], which was obtained using the “analytical” crack closure equation [10] with a constraint factor of 2. Here, see that the ΔKeff versus da/dN curve given in [34] underestimates the crack closure-free curve, i.e., the Kmax = 56.5 MPa √m curve given in [33].
The closure-free ΔKeff versus da/dN curves determined using Equation (5) and the “updated” estimate of the ΔKeff versus da/dN curve given in [34], which was obtained by applying Equation (5) to the ΔKeff versus da/dN curve given in [34] and shown in Figure 6, are shown in Figure 7. Here, we again see that making use of Equation (5) not only collapses the various ΔKeff versus da/dN curves onto what is essentially a single curve, but it also enables the ΔKeff versus da/dN curve given in [34] to be collapsed onto what is essentially the same curve. The values of the function U(R) (= ΔKeff,da/dNKda/dN(R)) used in Figure 7 are given in Table 2.

6. Crack Growth in 7075-T7351

Consider the R = 0.1, 0.4, 0.7, 0.8, and 0.9 ΔK versus da/dN curves and the ΔKeff versus da/dN curve given in [35] for aluminum alloy 7075-T7351. These curves, which are shown in Figure 8, were obtained following the test protocols outlined in Sections 8.5 and 8.6 of ASTM E647-23b [1].
The corresponding ΔKeff versus da/dN curves determined using Equation (5), i.e., using Simple Scaling, are shown in Figure 9. Here, we see that in comparison to the ΔKeff versus da/dN curves given in [35], these curves are now tightly grouped. To illustrate this, Figure 9 also contains plots of the ΔKeff versus da/dN curves given in [35] that were determined from the R = 0.1 and R = 0.9 curves shown in Figure 8. The values of the function U(R) (=ΔKeff,da/dNKda/dN(R)) used in Figure 9 are given in Table 2.
Figure 9 also contains a plot of the tabulated da/dN versus ΔKeff curve given in [35]. Here, we see that as a result of the relatively poor estimate of the R = 0.1 ΔKeff versus da/dN curve, which differs significantly from the R = 0.9 curve, the tabulated curve starts off (at low values of da/dN) with values that are close to that of the R = 0.9 curve and veers toward the R = 0.1 ΔKeff versus da/dN curve as the value of da/dN increases. As such, as the value of da/dN increases, this tabulated curve underestimates both the ΔKeff versus da/dN curve obtained using Equation (5) and the R = 0.9 ΔK versus da/dN curve.

7. Crack Growth in Aluminum Alloy 2324-T39

As previously mentioned, ASTM E647-23b also suggests using what is termed the adjusted compliance ratio (ACR) test procedure, which was first developed by Donald et al. [15], to determine the ΔKeff versus da/dN curves. To investigate how the Simple Scaling formulation can be used in conjunction with this approach, let us consider the R = 0.7, 0.5, 0.3, 0.1, and -1.0 ΔK versus da/dN curves given in [36] for aluminum alloy 2324-T39. These curves, which are shown in Figure 10, were obtained using the test protocol outlined in Sections 8.5 and 8.6 of ASTM E647-23b [1]. This study found that the ACR-corrected curves did not collapse onto a single cure. This can be seen in Figure 11, which presents the ACR-corrected R = 0.1 and 0.7 da/dN versus ΔKeff curves. (Here, it should be noted that in [36], the R = 0.7 ΔKeff versus da/dN curve coincided with the R = 0.7 da/dN versus ΔK curve). As a result, ref. [36] suggested expressing da/dN as a function of both ΔKeff and Kmax. Figure 11 also presents the da/dN versus ΔKeff curves determined using Simple Scaling, i.e., Equation (5). As can also be seen in Figure 11, the need to express da/dN as a function of both ΔKeff and Kmax vanishes if Equation (5) is used to determine the various da/dN versus ΔKeff curves. The values of the function U(R) (=ΔKeff,da/dNKda/dN(R)) used in Figure 11 are given in Table 2.

8. Crack Growth in Aluminum Alloy 7249-T6511

Let us next consider crack growth in aluminum alloy 7249-T6511. The R = 0.7 and 0.1 ΔK versus da/dN curves and the corresponding ΔKeff versus da/dN curve given in [37] are shown in Figure 12. This study reported that, for da/dN ≤ 10−8 m/cycle, compression pre-cracking constant amplitude (CPCA) and compression pre-cracking load reduction (CPLR) methods were used to generate the ΔK versus da/dN curves. A back face strain gauge was used to monitor both the crack length and the crack opening. The ΔKeff versus da/dN curves were determined using the “analytical crack closure equation” [10], with the constraint factor set to 1.8.
Figure 12 also contains the ΔKeff versus da/dN curve obtained using Equation (2), i.e., using the Simple Scaling approach. Here, we again see that Equation (5) yields a ΔKeff versus da/dN curve that is in good agreement with that given in [37]. The values of the function U(R) (=ΔKeff,da/dNKda/dN(R)) used in Figure 12 are given in Table 2.

9. Crack Growth in Mg AZ91E

Let us next consider the R = 0.1 and 0.7 ΔK versus da/dN curves and the ΔKeff versus da/dN curves given in [34] for magnesium alloy Mg AZ91E, which is used in helicopters. (The heat treatment was not given in [34]). These curves are shown in Figure 13 along with the da/dN versus ΔKeff curve determined using Equation (5). As can be seen in Figure 13, the da/dN versus ΔKeff curve given in [34] and the curve estimated using Equation (5) are in good agreement. The values of the function U(R) (=ΔKeff,da/dNKda/dN(R)) used in Figure 13 are given in Table 2.

10. Crack Growth in 4340 Steel

Figure 14 presents the R = 0.95, 0.7, 0.4, and 0.1 ΔK versus da/dN curves given in [20] for high-strength steel 4340. This study reported that these tests used a back face strain gauge to monitor both the crack length and the crack opening force, and that, for da/dN ≤ 10−8 m/cycle, compression pre-cracking constant amplitude (CPCA) and load reduction (CPLR) methods were used to generate the ΔK versus da/dN curves. Figure 15 presents the corresponding R = 0.95, 0.7, 0.4, and 0.1 da/dN versus ΔKeff curves obtained using Equation (5), as well as the curve obtained in [34] using the ASTM E647 crack opening test protocol for the R = 0.4 test. This curve is labeled R = 0.4 OP1. Figure 15 also contains the ΔKeff versus da/dN curve given in [35] for crack growth in this material. In this (latter) instance, i.e., in [35], the tests studied were limited to R-ratios that were less than or equal to 0.7. (In this context, it should be noted that, in [20], the R = 0.95 ΔKeff versus da/dN curve coincided with the R = 0.95 ΔK versus da/dN curve).
Figure 15 reveals that Equation (5) yields curves that are in good agreement with the high R-ratio tests. The exception to this observation is the ΔKeff versus da/dN curve given in [20] and referred to in Figure 15 as the “Newman 2007 ΔKeff versus da/dN curve”. This latter curve underestimates both the R = 0.95 and the R = 0.4 OP1 curves and would thus appear to be erroneous/invalid. The values of the function U(R) (= ΔKeff,da/dNKda/dN(R)) used in Figure 15 are given in Table 2.

11. Crack Growth in Mn-Cr Austenitic Steel

Let us next consider the crack growth data presented in [38] for Mn-Cr austenitic steel. The R = 0.5 and 0.1 ΔK versus da/dN curves are shown in Figure 16. Figure 17 presents the ΔKeff versus da/dN curve given in [38], which was obtained from the R = 0.5 curve using what was termed an “unloading elastic compliance technique”—see [38] for details—along with the ΔKeff versus da/dN curve obtained using the Simple Scaling approach. (Here, it should be noted that, in [38], the R = 0.5 ΔKeff versus da/dN curve essentially coincided with the R = 0.5 ΔK versus da/dN curve. Consequently, in the Simple Scaling approach, the R = 0.1 curve was scaled so as to match the R = 0.5 curve at a crack growth rate (da/dN) of approximately 10−8 m/cycle). As can be seen in Figure 17, Equation (5) yields an ΔKeff versus da/dN curve that is in good agreement with that given in [38]. The values of the function U(R) (=ΔKeff,da/dNKda/dN(R)) used in Figure 17 are given in Table 2.

12. Crack Growth in Rene 95

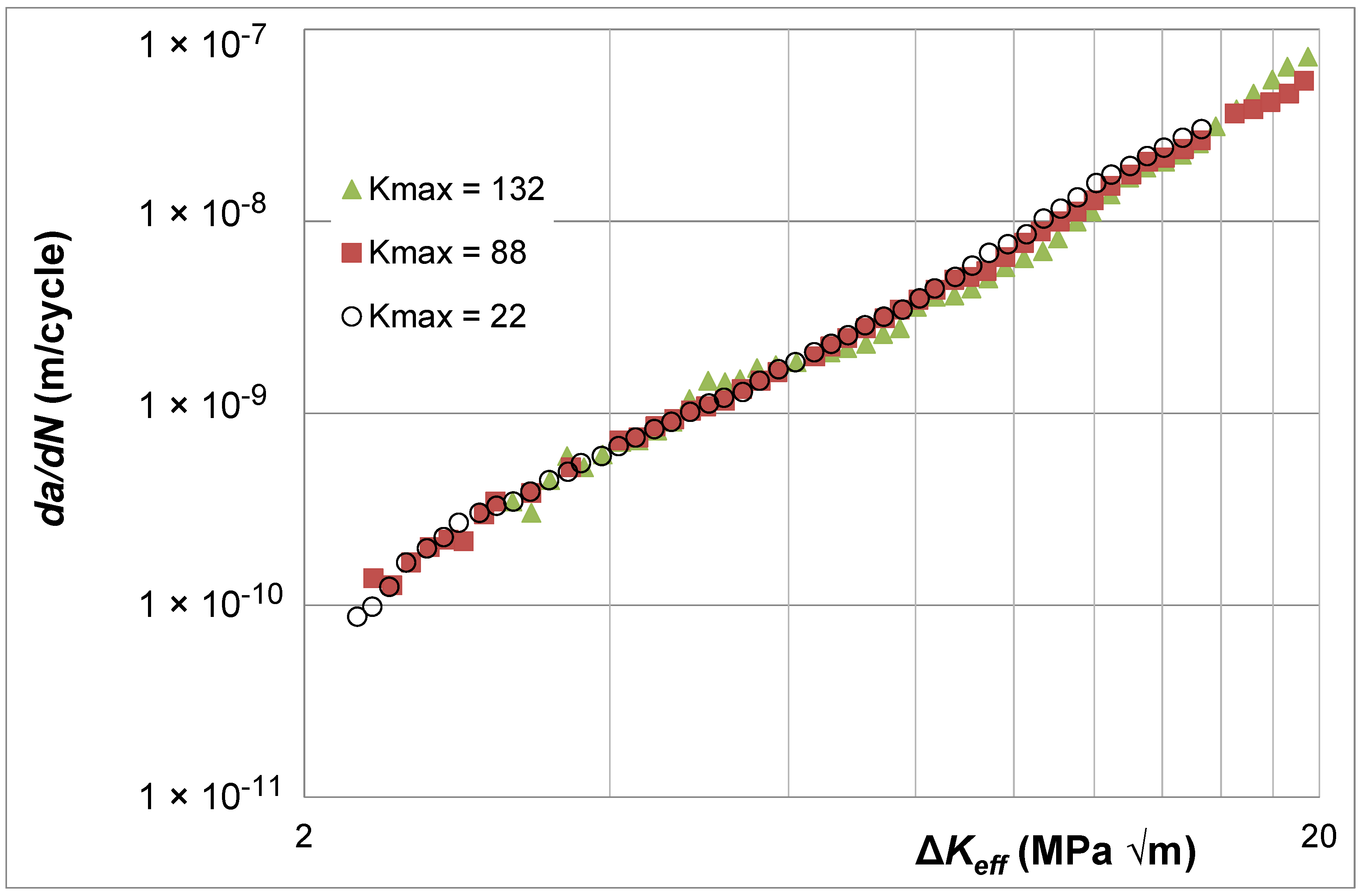

Let us finally consider the ΔK versus da/dN curves given in [39] for super alloy Rene 95. These were Kmax tests with Kmax values of 22, 88, and 132 MPa √m. The ΔK versus da/dN curves are shown in Figure 18. Here, we see that the ΔK versus da/dN curves associated with Kmax = 88 MPa √m and 132 MPa √m essentially coincide, which suggests that these curves essentially represent (are close to) the ΔKeff versus da/dN curve for Rene 95. Figure 19 illustrates that using Simple Scaling collapses the Kmax = 22 MPa √m curve onto the same curve. The values of the function U(R) (=ΔKeff,da/dNKda/dN(R)) used in Figure 19 are listed in Table 2.
Table 2. Values of the function U(R) used in Figure 5, Figure 7, Figure 9, Figure 11, Figure 12, Figure 13, Figure 15, Figure 17 and Figure 19.
Table 2. Values of the function U(R) used in Figure 5, Figure 7, Figure 9, Figure 11, Figure 12, Figure 13, Figure 15, Figure 17 and Figure 19.
MaterialR-RatioU(R) = ΔKeff,da/dNKda/dN(R)Value of da/dN (m/Cycle)
at Which the Curves Were Matched
9310 steel0.951.002 × 10−9
0.90.9602 × 10−9
0.70.8292 × 10−9
0.40.7912 × 10−9
0.10.7132 × 10−9
STOA Ti-6Al-4V0.80.82010−9
0.50.69710−9
0.30.61510−9
0.10.52310−9
Kmax = 51.6 MPa √m1.0010−9
ΔKeff curve in [34]0.810−9
7075-T73510.91.002 × 10−9
0.80.882 × 10−9
0.70.782 × 10−9
0.40.622 × 10−9
0.10.472 × 10−9
2324-T390.71.0010−8
0.50.84810−8
0.30.70710−8
0.10.62410−8
−10.30310−8
7249-T65110.71.0010−8
0.10.7010−8
4340 steel0.951.0010−8
0.70.88910−8
0.40.75510−8
0.10.75010−8
0.4 OP10.87810−8
Mg AZ91E0.71.0010−8
0.10.62010−8
Mn-Cr Austenitic steel0.71.010−8
0.10.82610−8
Rene 95Kmax = 132 MPa √m1.010−9
Kmax = 88 MPa √m1.010−9
Kmax = 22 MPa √m0.8210−9

13. Discussion

A plot of the relationship between U(R) and R determined in each of the various studies is given in Figure 20. Unfortunately, there does not appear to be any discernable trend. Nevertheless, the current paper, when taken together with the numerous examples presented in [22,23,24], would appear to support the hypothesis that for many conventionally manufactured metals, R-ratio effects are, to a first approximation, merely a reflection of the effect of mean stress on the fatigue threshold. However, it should be noted that this observation does not hold for additively manufactured (AM) metals. Indeed, it is now known [40,41,42] that, for a given AM material, crack growth is a function of both the fatigue threshold and the cyclic fracture toughness. It is also known [40,41,42] that there are numerous instances when both the damage tolerance and the durability of an AM material can be modeled using the governing crack growth equation determined for its conventionally manufactured counterpart and merely making allowances for the changes in the fatigue threshold and the cyclic fracture toughness terms that are associated with the particular build process and the orientation of the crack to the build direction. Unfortunately, there is currently no explanation for this observation. Nevertheless, the authors suspect that the explanation for the current observation (for conventionally manufactured materials) and the observation referred to above for AM materials are linked. The challenge is to discover the fundamental physics behind these various observations.

14. Conclusions

This paper has attempted to illustrate how the Simple Scaling formula for Elber’s crack closure function U(R), i.e., Equation (5), is a useful addition to the tools available for assessing crack growth. However, it should be stressed that, whilst this approach has been shown to help for nine different materials, it may not always be applicable. In other words, it is merely a tool that may be useful for assessing fatigue crack growth.
In this context, the present paper has shown how Simple Scaling is able to determine the closure-free ΔKeff versus da/dN curves for nine different conventionally manufactured metals. The present paper also illustrates its use when studying the effects of both the test temperature and R-ratio on crack growth in titanium alloy Ti-6Al-4V ELI. In this instance, we see that when da/dN is plotted against ΔKKth, then, to a first approximation, all of the different curves now essentially collapse onto a curve that is independent of both the R-ratio and the test temperature.
As aptly illustrated in [23,24,25,26], this formulation has potential applications outside of assessing the closure-free crack growth curve. Indeed, it has previously been shown to be useful in identifying the fracture mechanics parameters that govern the variability in the growth of cracks in materials ranging from medium-entropy alloys to polymers and the delamination growth in composites with different levels of pre-cracking.
As such, the Simple Scaling variant of Elber’s original hypothesis would appear to have the advantage over other approaches in that it can help to clarify the important parameters for a wide cross-section of problems. It also has the potential to tackle problems where, whilst the R-ratio is fixed, the test conditions are different, for example, different test temperatures, different levels of irradiation, etc. The ability of other approaches to perform this task for tests where the R-ratio is fixed and the question is “what is the effect of different test temperatures or different levels of irradiation?” is somewhat limited.
A feature of this Simple Scaling approach to assessing the closure-free ΔKeff versus da/dN curve is that it is consistent with Elber’s original hypothesis, that it can be quickly and easily performed, and that there are instances, for example when the estimates for the ΔKeff versus da/dN curves obtained by other approaches do not coincide sufficiently, where it may help to further collapse these curves onto what is essentially a single ΔKeff versus da/dN curve.

Author Contributions

Concept and Methodology—R.J.; Original Draft Preparation—A.S.M.A.; analysis and curator of the data—D.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was performed as part of a US Army Research Laboratory funded program of work entitled “Cold Spray For Research and Development Phase 3”, administered by LIFT Technology, Michigan, USA.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data will be made available at the completion of the project.

Acknowledgments

The findings and conclusions or recommendations expressed in this paper are those of the authors and do not necessarily reflect the views of LIFT Technology.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. ASTM E647-23b; Standard Test Method for Measurement of Fatigue Crack Growth Rates. ASTM International: West Conshohocken, PA, USA, 2023.
  2. Elber, W. Fatigue crack cyclic closure under cyclic tension. Eng. Fract. Mech. 1970, 2, 37–45. [Google Scholar]
  3. Elber, W. The Significance of Crack Closure; ASTM STP 486; ASTM International: West Conshohocken, PA, USA, 1971; pp. 230–242. [Google Scholar] [CrossRef]
  4. Paris, P.C.; Tada, H.; Donald, J.K. Service load fatigue damage—A historical perspective. Int. J. Fatigue 1999, 21, S35–S46. [Google Scholar] [CrossRef]
  5. Paris, P.C.; Lados, D.; Tada, H. Reflections on identifying the real ΔKeffective in the threshold region and beyond. Eng. Fract. Mech. 2008, 75, 299–305. [Google Scholar] [CrossRef]
  6. Schijve, J. Fatigue of structures and materials in the 20th century and the state of the art. Int. J. Fatigue 2003, 25, 679–702. [Google Scholar] [CrossRef]
  7. Jones, R. Fatigue crack growth and damage tolerance. Fatigue Fract. Eng. Mater. Struct. 2014, 37, 463–483. [Google Scholar] [CrossRef]
  8. Schijve, J. Some formulas for the crack opening stress level. Eng. Fract. Mech. 1981, 14, 461–465. [Google Scholar] [CrossRef]
  9. Newman, J.C., Jr. A Crack-Closure Model for Predicting Fatigue Crack Growth Under Aircraft Spectrum Loading; ASTM STP 748; American Society for Testing and Materials: Philadelphia, PA, USA, 1981; pp. 53–84. [Google Scholar]
  10. Newman, J.C., Jr. A crack opening stress equation for fatigue crack growth. Int. J. Fatigue 1984, 24, R131–R135. [Google Scholar] [CrossRef]
  11. Zhang, S.; Marissen, R.; Schulte, K.; Trautmann, K.K.; Nowack, H.; Schijve, J. Crack propagation studies on Al7475 on the basis of constant amplitude and selective variable amplitude loading histories. Fatigue Eng. Mater. Struct. 1987, 10, 315–332. [Google Scholar] [CrossRef]
  12. van Kuijk, J.J.A.; Alderliesten, R.C.; Benedictus, R. Unraveling the myth of closure corrections: Sharpening the definition of opening and closure stresses with an energy approach. Int. J. Fatigue 2020, 143, 106016. [Google Scholar] [CrossRef]
  13. Kumar, R.; Singh, K. Influence of stress ratio on fatigue crack growth in mild steel. Eng. Fract. Mech. 1995, 50, 377–384. [Google Scholar] [CrossRef]
  14. Ribeiro, V.; Correia, J.; Lesiuk, G.; Gonçalves, A.; De Jesus, A.; Berto, F. Application and discussion of various crack closure models to predict fatigue crack growth in 6061-T651 aluminium alloy. Int. J. Fatigue 2021, 153, 106472. [Google Scholar] [CrossRef]
  15. Donald, J.K.; Bray, G.H.; Bush, R.W. An Evaluation of the adjusted compliance ratio technique for determining the effective stress intensity factor. In 29th National Symposium on Fatigue and Fracture Mechanics; ASTM STP 1332; Panontin, T.L., Sheppard, S.D., Eds.; American Society for Testing and Materials: Philadelphia, PA, USA, 1988; pp. 674–695. [Google Scholar]
  16. Donald, K.; Paris, P.C. An evaluation of ΔK estimation procedure on 6061-T6 and 2024-T3 aluminum alloys. Int. J. Fatigue 1999, 21, S47–S57. [Google Scholar] [CrossRef]
  17. Kujawski, D.; Sadananda, K.; Vasudevan, A.K.; Ricker, R.E. On 50 years of fatigue crack closure dispute. Fatigue Fract. Eng. Mater. Struct. 2023, 46, 2816–2829. [Google Scholar] [CrossRef]
  18. Gonzalez, J.A.O.; de Castro, J.T.P.; Meggiolaro, M.A.; Gonzalez, G.L.G.; de Franca Freire, J.L. Challenging the “ΔKeff is the driving force for fatigue crack growth” hypothesis”. Int. J. Fatigue 2020, 136, 105577. [Google Scholar] [CrossRef]
  19. Newman, J.C., Jr. Fatigue And Crack Growth under Constant and Variable-Amplitude Loading in 9310 Steel Using “Rainflow-on-the-Fly” Methodology. Metals 2021, 11, 807. [Google Scholar] [CrossRef]
  20. Yamada, Y.; Newman, J.C., Jr. Crack closure under high load ratio and Kmax test conditions. Procedia Eng. 2010, 2, 71–82. [Google Scholar] [CrossRef]
  21. Newman, J.C., Jr.; Ruschau, J.J.; Hill, M.R. Improved test method for very low fatigue-crack-growth-rate data. Fatigue Fract. Eng. Mater. Struct. 2011, 34, 270–279. [Google Scholar] [CrossRef]
  22. Schönbauer, B.M.; Stanzl-Tschegg, S.E.; Perlega, A.; Salzman, R.N.; Rieger, N.F.; Turnbull, A.; Zhou, S.; Lukaszewicz, M.; Gandy, D. The influence of corrosion pits on the fatigue life of 17-4PH steam turbine blade steel. Eng. Fract. Mech. 2015, 147, 158–175. [Google Scholar] [CrossRef]
  23. Jones, R.; Peng, D.; Sing Raman, R.K.; Kinloch, A.J.; Michopoulos, J. Thoughts on two approaches for accounting for the scatter in fatigue delamination growth curves. Compos. Struct. 2021, 258, 113175. [Google Scholar] [CrossRef]
  24. Jones, R.; Ang, A.; Phan, N.D.; Nicholas, M. On the link between plastic wake induced crack closure and the fatigue threshold. Metals 2024, 14, 523. [Google Scholar] [CrossRef]
  25. Jones, R.; Kinloch, A.J.; Ang, A.S.M. Modelling Fatigue Crack Growth in High-Density Polyethylene and Acrylonitrile Butadiene Styrene Polymers. Polymers 2024, 16, 1299. [Google Scholar] [CrossRef] [PubMed]
  26. Michel, S.; Murphy, N.; Kinloch, A.J.; Jones, R. On Cyclic-Fatigue Crack Growth in Carbon-Fibre-Reinforced Epoxy-Polymer Composites. Polymers 2004, 16, 435. [Google Scholar] [CrossRef] [PubMed]
  27. Yao, L.; Alderliesten, R.; Zhao, M.; Benedictus, R. Bridging effect on Mode I fatigue delamination behavior in composite laminates. Compos. A 2014, 63, 103–109. [Google Scholar] [CrossRef]
  28. Yao, L.; Sun, Y.; Guo, L.; Zhao, M.; Jia, L.; Alderliesten, R.C. A modified Paris relation for fatigue delamination with fibre bridging in composite laminates. Compos. Struct. 2017, 176, 556–564. [Google Scholar] [CrossRef]
  29. Murri, G.B. Effect of data reduction and fiber-bridging on Mode I delamination characterization of unidirectional composites. J. Compos. Mater. 2014, 48, 2413–2424. [Google Scholar] [CrossRef]
  30. Yao, L.; Chuai, M.; Li, H.; Chen, X.; Quan, D.; Alderliesten, R.C.; Beyens, M. Temperature effects on fatigue delamination behavior in thermoset composite laminates. Eng. Fract. Mech. 2024, 295, 109799. [Google Scholar] [CrossRef]
  31. Zhu, Y.; Xiong, J.; Lv, Z.; Zhao, Y. Testing and evaluation for fatigue crack growth rates of Ti-6Al-4V/ELI and 7050-T7452 alloys at high temperatures. Chin. J. Aeronaut. 2018, 31, 1388–1398. [Google Scholar] [CrossRef]
  32. Yuri, T.; Onon, Y.; Ogata, T. Effect of test frequency on fatigue crack growth rates of Ti-6Al-4V Eli alloy at cryogenic temperatures. AIP Conf. Proc. 2006, 824, 153–160. [Google Scholar]
  33. Boyce, B.L.; Ritchie, R.O. Effect of load ratio and maximum stress intensity on the small crack fatigue threshold in Ti-6Al-4V. Eng. Fract. Mech. 2001, 68, 129–147. [Google Scholar] [CrossRef]
  34. Newman, J.C., Jr.; Vizzini, A.J.; Yamada, Y. Fatigue Crack Growth Databases and Analyses for Threshold Behavior in Rotorcraft Materials; DOT/FAA/AR-10/3; Office of Research and Technology Development: Washington, DC, USA, 2013; p. 20591. [Google Scholar]
  35. Newman, J.C., Jr. Analyses of Fatigue Crack Growth Databases for Use in a Damage Tolerance Approach for Aircraft Propellers and Rotorcraft; DOT/FAA/AR-07/49; Office of Research and Technology Development: Washington, DC, USA, 2007; p. 20591. [Google Scholar]
  36. Donald, J.K.; Lados, D.A. An integrated methodology for separating closure and residual stress effects from fatigue crack growth rate data. Fatigue Fract. Eng. Mater. Struct. 2006, 30, 223–230. [Google Scholar] [CrossRef]
  37. Newman, J.C., Jr.; Walker, K.C. Fatigue-crack growth in two aluminium alloys and crack-closure analyses Under constant-amplitude and spectrum loading. Theor. Appl. Fract. Mech. 2019, 100, 307–318. [Google Scholar] [CrossRef]
  38. Liaw, P.K.; Leax, T.R.; Fabis, T.R.; Donald, J.K. Fatigue crack growth behavior in a Mn-Cr austenitic steel. Eng. Fract. Mech. 1987, 26, 1–13. [Google Scholar] [CrossRef]
  39. Newman, J.A.; Piascik, R.S. Near-Threshold Fatigue Crack Growth Behavior of Fine-Grain Nickel-Based Alloys, NASA/TM-2003-212443, Langley Research Centre, August 2003. Available online: https://ntrs.nasa.gov/citations/20030067932 (accessed on 4 November 2024).
  40. Jones, R.; Ang, A.; Peng, D.; Champagne, V.K.; Michelson, A.; Birt, A. Modelling Crack Growth in Additively Manufactured Inconel 718 and Inconel 625. Metals 2023, 13, 1300. [Google Scholar] [CrossRef]
  41. Jones, R.; Ang, A.; Aston, R.W.; Schoenborn, N.D.; Champagne, V.K.; Peng, D.; Phan, N.D. On the Growth of Small Cracks in 2024-T3 and Boeing Space, Intelligence and Weapon Systems AM LPBF Scalmalloy®. Fatigue Fract. Eng. Mater. Struct. 2024, 1–13. [Google Scholar] [CrossRef]
  42. Jones, R.; Rans, C.; Iliopoulos, A.P.; Michopoulos, J.G.; Phan, N.; Peng, D. Modelling the Variability and the Anisotropic Behaviour of Crack Growth in SLM Ti-6Al-4V. Materials 2021, 14, 1400. [Google Scholar] [CrossRef]
Figure 1. The ΔK versus da/dN curves for Ti-6Al-4V ELI tested at −4 °K (−269 °C), 25 °C, and 250 °C (The da/dN versus ΔK curves are adapted from [31,32]).
Figure 1. The ΔK versus da/dN curves for Ti-6Al-4V ELI tested at −4 °K (−269 °C), 25 °C, and 250 °C (The da/dN versus ΔK curves are adapted from [31,32]).
Materials 17 05423 g001
Figure 2. The ΔKKth versus da/dN curves for Ti-6Al-4V ELI tested at −4 °K (−269 °C), 25 °C, and 250 °C.
Figure 2. The ΔKKth versus da/dN curves for Ti-6Al-4V ELI tested at −4 °K (−269 °C), 25 °C, and 250 °C.
Materials 17 05423 g002
Figure 3. The ΔK versus da/dN curves for 9310 steel (Adapted from [19]).
Figure 3. The ΔK versus da/dN curves for 9310 steel (Adapted from [19]).
Materials 17 05423 g003
Figure 4. The ΔKeff versus da/dN curves given in [19] for 9310 steel (Adapted from [19]).
Figure 4. The ΔKeff versus da/dN curves given in [19] for 9310 steel (Adapted from [19]).
Materials 17 05423 g004
Figure 5. The ΔKeff versus da/dN curves for 9310 steel determined using Equation (5).
Figure 5. The ΔKeff versus da/dN curves for 9310 steel determined using Equation (5).
Materials 17 05423 g005
Figure 6. The ΔK versus da/dN curves given in [33] for STOA Ti-6Al-4V and the corresponding ΔKeff versus da/dN curve given in [34] (These curves are adapted from [33,34]).
Figure 6. The ΔK versus da/dN curves given in [33] for STOA Ti-6Al-4V and the corresponding ΔKeff versus da/dN curve given in [34] (These curves are adapted from [33,34]).
Materials 17 05423 g006
Figure 7. The ΔKeff versus da/dN curves obtained using Equation (5) and the corresponding updated Newman, Vizzini, Yamada curve given in [34] (The Newman, Vizzini, Yamada curve is adapted from [34]).
Figure 7. The ΔKeff versus da/dN curves obtained using Equation (5) and the corresponding updated Newman, Vizzini, Yamada curve given in [34] (The Newman, Vizzini, Yamada curve is adapted from [34]).
Materials 17 05423 g007
Figure 8. The ΔK versus da/dN curves for 7075-T7351 (These curves are adapted from [35]).
Figure 8. The ΔK versus da/dN curves for 7075-T7351 (These curves are adapted from [35]).
Materials 17 05423 g008
Figure 9. The ΔKeff versus da/dN curves obtained using Equation (5), i.e., Simple Scaling, the ΔKeff curve given in [35] that was determined from the R = 0.1 data, and the tabulated da/dN versus ΔKeff curve given in [35] (The da/dN versus ΔKeff curves are adapted from [33,39]).
Figure 9. The ΔKeff versus da/dN curves obtained using Equation (5), i.e., Simple Scaling, the ΔKeff curve given in [35] that was determined from the R = 0.1 data, and the tabulated da/dN versus ΔKeff curve given in [35] (The da/dN versus ΔKeff curves are adapted from [33,39]).
Materials 17 05423 g009
Figure 10. The R = 0.7, 0.5, 0.3, 0.1, and −1.0 ΔK versus da/dN curves for 2324-T39 (These curves are adapted from [36]).
Figure 10. The R = 0.7, 0.5, 0.3, 0.1, and −1.0 ΔK versus da/dN curves for 2324-T39 (These curves are adapted from [36]).
Materials 17 05423 g010

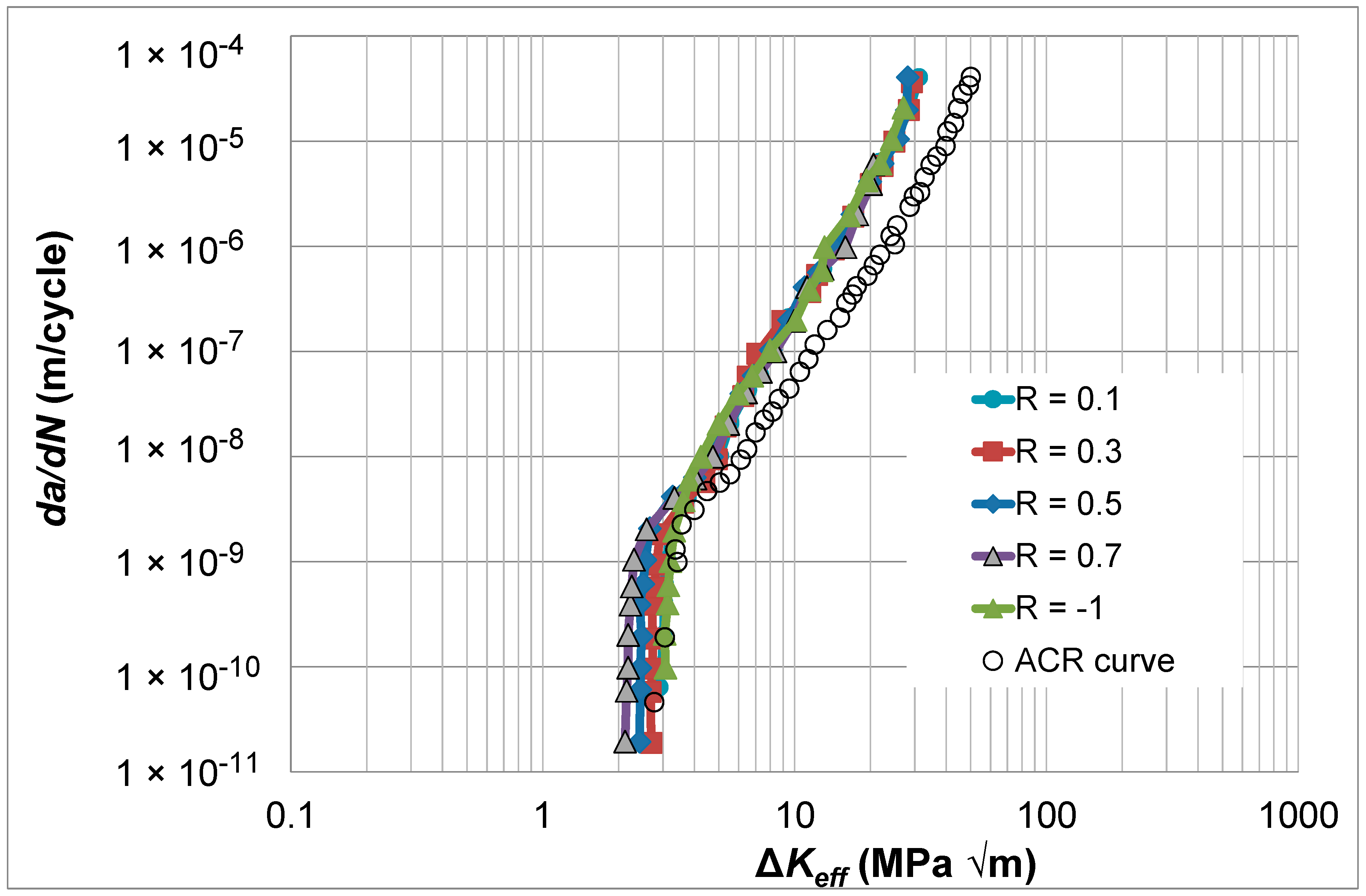

Figure 11. The R = 0.7, 0.5, 0.3, 0.1, and −1.0 ΔKeff versus da/dN curves obtained using Simple Scaling, i.e., Equation (5), and the corresponding ACR curve given in [36] for 2324-T39, which is adapted from [36].
Figure 11. The R = 0.7, 0.5, 0.3, 0.1, and −1.0 ΔKeff versus da/dN curves obtained using Simple Scaling, i.e., Equation (5), and the corresponding ACR curve given in [36] for 2324-T39, which is adapted from [36].
Materials 17 05423 g011
Figure 12. The R = 0.7 and 0.1 ΔK versus da/dN curves, the ΔKeff versus da/dN curve given in [37], and the ΔKeff versus da/dN curve obtained using Simple Scaling for aluminum alloy 7249-T6511 (The da/dN versus ΔKeff curve and the da/dN versus ΔK curves are adapted from [37]).
Figure 12. The R = 0.7 and 0.1 ΔK versus da/dN curves, the ΔKeff versus da/dN curve given in [37], and the ΔKeff versus da/dN curve obtained using Simple Scaling for aluminum alloy 7249-T6511 (The da/dN versus ΔKeff curve and the da/dN versus ΔK curves are adapted from [37]).
Materials 17 05423 g012
Figure 13. The R = 0.1 and 0.7 ΔK versus da/dN curves, the da/dN versus ΔKeff curve obtained using Equation (5), and the ΔKeff versus da/dN curve given in [34] for magnesium alloy Mg AZ91E (The da/dN versus ΔKeff curve and the da/dN versus ΔK curves and are adapted from [34]).
Figure 13. The R = 0.1 and 0.7 ΔK versus da/dN curves, the da/dN versus ΔKeff curve obtained using Equation (5), and the ΔKeff versus da/dN curve given in [34] for magnesium alloy Mg AZ91E (The da/dN versus ΔKeff curve and the da/dN versus ΔK curves and are adapted from [34]).
Materials 17 05423 g013
Figure 14. The R = 0.95, 0.7, 0.4, and 0.1 ΔK versus da/dN curves for 4340 steel (The da/dN versus ΔK curves are adapted from [20]).
Figure 14. The R = 0.95, 0.7, 0.4, and 0.1 ΔK versus da/dN curves for 4340 steel (The da/dN versus ΔK curves are adapted from [20]).
Materials 17 05423 g014
Figure 15. The ΔKeff versus da/dN curves obtained using Equation (5) (Simple Scaling) and the corresponding curves given in Newman 2007 [20] for 4340 steel (The da/dN versus ΔKeff curve is adapted from [20]).
Figure 15. The ΔKeff versus da/dN curves obtained using Equation (5) (Simple Scaling) and the corresponding curves given in Newman 2007 [20] for 4340 steel (The da/dN versus ΔKeff curve is adapted from [20]).
Materials 17 05423 g015
Figure 16. The R = 0.1 and 0.5 ΔK versus da/dN curves for Mn-Cr (The da/dN versus ΔK curves are adapted from [38]).
Figure 16. The R = 0.1 and 0.5 ΔK versus da/dN curves for Mn-Cr (The da/dN versus ΔK curves are adapted from [38]).
Materials 17 05423 g016
Figure 17. The ΔKeff versus da/dN curves obtained for Mn-Cr and the corresponding curve given in [38].
Figure 17. The ΔKeff versus da/dN curves obtained for Mn-Cr and the corresponding curve given in [38].
Materials 17 05423 g017
Figure 18. The ΔKeff versus da/dN curves for Rene 95 (The da/dN versus ΔK curves are adapted from [39]).
Figure 18. The ΔKeff versus da/dN curves for Rene 95 (The da/dN versus ΔK curves are adapted from [39]).
Materials 17 05423 g018
Figure 19. The ΔKeff versus da/dN curves determined using Equation (5) for the data shown in Figure 18.
Figure 19. The ΔKeff versus da/dN curves determined using Equation (5) for the data shown in Figure 18.
Materials 17 05423 g019
Figure 20. The U(R) versus R curves obtained in this study.
Figure 20. The U(R) versus R curves obtained in this study.
Materials 17 05423 g020
Table 1. The values of ΔKth used in Figure 2.
Table 1. The values of ΔKth used in Figure 2.
R-Ratio and Test TemperatureΔKth (MPa √m)
R = 0.5, 25 °C4.8
R = 0.06, 25 °C6.4
R = 0.06, 250 °C5.8
R = −1, 25 °C12.5
R = −1, 250 °C11.1
R = 0.1, RT. 20 Hz4.9
R = 0.1, RT6.0
R = 0.1, 4 °K, Test 15.9
R = 0.1, 4 °K, Test 25.1
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jones, R.; Ang, A.S.M.; Peng, D. Simple Scaling as a Tool to Help Assess the Closure-Free da/dN Versus ΔKeff Curve in a Range of Materials. Materials 2024, 17, 5423. https://doi.org/10.3390/ma17225423

AMA Style

Jones R, Ang ASM, Peng D. Simple Scaling as a Tool to Help Assess the Closure-Free da/dN Versus ΔKeff Curve in a Range of Materials. Materials. 2024; 17(22):5423. https://doi.org/10.3390/ma17225423

Chicago/Turabian Style

Jones, Rhys, Andrew S. M. Ang, and Daren Peng. 2024. "Simple Scaling as a Tool to Help Assess the Closure-Free da/dN Versus ΔKeff Curve in a Range of Materials" Materials 17, no. 22: 5423. https://doi.org/10.3390/ma17225423

APA Style

Jones, R., Ang, A. S. M., & Peng, D. (2024). Simple Scaling as a Tool to Help Assess the Closure-Free da/dN Versus ΔKeff Curve in a Range of Materials. Materials, 17(22), 5423. https://doi.org/10.3390/ma17225423

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
