Article

Investigation of the Photocatalytic Performance, Mechanism, and Degradation Pathways of Rhodamine B with Bi2O3 Microrods under Visible-Light Irradiation

by
Dechong Ma
1,2,*,
Jiawei Tang
1,
Guowen He
1,2 and
Sai Pan
1,2
1
College of Materials and Chemical Engineering, Hunan City University, Yiyang 413000, China
2
Key Laboratory of Low Carbon and Environmental Functional Materials of College of Hunan Province, Hunan City University, Yiyang 413000, China
*
Author to whom correspondence should be addressed.
Materials 2024, 17(4), 957; https://doi.org/10.3390/ma17040957
Submission received: 19 January 2024 / Revised: 13 February 2024 / Accepted: 16 February 2024 / Published: 19 February 2024
(This article belongs to the Special Issue Advanced Nanostructured Materials for Catalytic Applications)
Browse Figures
Versions Notes

Abstract

:
In the present work, the photodegradation of Rhodamine B with different pH values by using Bi2O3 microrods under visible-light irradiation was studied in terms of the dye degradation efficiency, active species, degradation mechanism, and degradation pathway. X-ray diffractometry, polarized optical microscopy, scanning electron microscopy, fluorescence spectrophotometry, diffuse reflectance spectra, Brunauer–Emmett–Teller, X-ray photoelectron spectroscopy, Fourier-transform infrared spectroscopy, UV–visible spectrophotometry, total organic carbon, and liquid chromatography–mass spectroscopy analysis techniques were used to analyze the crystal structure, morphology, surface structures, band gap values, catalytic performance, and mechanistic pathway. The photoluminescence spectra and diffuse reflectance spectrum (the band gap values of the Bi2O3 microrods are 2.79 eV) reveals that the absorption spectrum extended to the visible region, which resulted in a high separation and low recombination rate of electron–hole pairs. The photodegradation results of Bi2O3 clearly indicated that Rhodamine B dye had removal efficiencies of about 97.2%, 90.6%, and 50.2% within 120 min at the pH values of 3.0, 5.0, and 7.0, respectively. In addition, the mineralization of RhB was evaluated by measuring the effect of Bi2O3 on chemical oxygen demand and total organic carbon at the pH value of 3.0. At the same time, quenching experiments were carried out to understand the core reaction species involved in the photodegradation of Rhodamine B solution at different pH values. The results of X-ray photoelectron spectroscopy, Fourier-transform infrared spectroscopy, and X-ray diffractometer analysis of pre- and post-Bi2O3 degradation showed that BiOCl was formed on the surface of Bi2O3, and a BiOCl/Bi2O3 heterojunction was formed after acid photocatalytic degradation. Furthermore, the catalytic degradation of active substances and the possible mechanism of the photocatalytic degradation of Rhodamine B over Bi2O3 at different pH values were analyzed based on the results of X-ray diffractometry, radical capture, Fourier-transform infrared spectroscopy, total organic carbon analysis, and X-ray photoelectron spectroscopy. The degradation intermediates of Rhodamine B with the Bi2O3 photocatalyst in visible light were also identified with the assistance of liquid chromatography–mass spectroscopy.

1. Introduction

Rhodamine B (RhB) is a synthetic dye with a bright pink color that is often used in the textile, paint, pharmaceutical, fluorescent water tracer, food, and cosmetic industries [1,2]. It has been experimentally proven that RhB is harmful to the environment, human body, and aquatic biota due to its carcinogenic properties and non-biodegradability [3,4,5,6]. Therefore, taking into account the hazards and harmful effects of wastewater, it is worthwhile to try to remove RhB pollutants from it. The common removal methods for RhB are photocatalytic degradation [7,8,9,10,11,12,13,14,15,16,17,18,19,20,21], adsorption [22,23,24], ion exchange [25,26], electrochemical [27,28], and biological treatment [29,30]. Among these methods, photocatalytic degradation is considered to be an effective technique for the removal of RhB [31,32]. Therefore, further research is needed to develop photocatalysts for the efficient degradation of RhB.
Bi2O3 has a low band gap (2.3–3.3 eV) [33], and photogenerated electron–hole pairs (e––h+) are formed in Bi2O3 under the action of incident light, which has been proven to be a potential photocatalyst for the removal of RhB dyes [34,35,36,37]. In the last decade, due to its low toxicity and potentially high-activity photocatalysts, Bi2O3 in a variety of forms, such as nanoparticles [38,39,40], needles [41], nanorods [42,43,44], nanobelts [45,46], thin films [47], and flower-like forms [48,49,50,51], has been synthesized through chemical precipitation [52,53], hydrothermal [54,55], microwave [56], chemical deposition [57], and electrospinning methods [58], and it has been used for the photocatalytic removal of RhB pollutants.
Recently, Bi2O3 was used as a highly efficient photocatalyst to decompose RhB in the presence of different light sources due to the different reactive oxygen species (ROSs) generated by Bi2O3 in the presence of light [59,60]. Generally, Bi2O3 can degrade RhB pollutants through the production of reactive substances (•O−2, •OH, h+, and e−) [61,62]. Liu et al. [63] reported that Bi2O3 nanoparticles exhibited good activity against RhB pollutants due to the microstructure of the Bi2O3 nanoparticles and the oxygen vacancy defects of the fluorite structure. Furthermore, their capture experiments confirmed that the RhB photodegradation process was contributed to by •O−2 and h+. Meena and co-authors [64] found that very small amounts of Bi2O3 nanoparticles could completely reduce RhB pollutants with an excess of NaBH4 within 15 min of irradiation, and the results showed that e− and •O−2 played an important role in the photodegradation of RhB with Bi2O3 nanoparticles. Teng et al. [65] reported that both •OH and •O−2 radicals were important reactants in the photocatalytic process of RhB (10 mg/L) at a pH value of 10 using α-Bi2O3 nanoparticles as photocatalysts that were driven by sunlight. Bera et al. [66] found that RhB•+ and •OH radicals produced by RhB dye might be the main degrading agents in the degradation of RhB with α-β Bi2O3 as photocatalysts. As far as we know, however, there are few studies on the catalytic degradation of active substances of RhB with Bi2O3 at different pH values under visible light. Moreover, the possible degradation pathways of RhB with Bi2O3 microrods as photocatalysts have rarely been reported.
In this study, Bi2O3 microrods was fabricated for use as a catalytic material via chemical precipitation. The photocatalytic activity of the Bi2O3 microrods against RhB at different pH values was studied by using UV-vis spectroscopy. The structural characteristics, morphology, band gap values, PL spectra, surface chemical components, and degradation pathway of RhB with the synthesized Bi2O3 microrods were also determined by using XRD, POM, SEM, PL, DRS, BET, XPS, FT-IR, UV-Vis, and TOC analyses. In addition, the possible mechanism of photocatalytic degradation of RhB with Bi2O3 at different pH values was deduced according to the results of XRD, radical capture, FTIR, TOC, and XPS analyses. The degradation intermediates of RhB with the Bi2O3 photocatalyst in visible light were also identified with the assistance of liquid chromatography–mass spectroscopy (LC-MS), and a reasonable mechanism path was drawn according to LC-MS.

2. Materials and Methods

2.1. Materials

Though HNO3 was not, H2SO4, H2O2, and HCl were of technical grade and purchased from Tianjin Damao (Tianjin, China); P25 TiO2 nanoparticles (P25, Degussa Co., Frankfurt am Main, Germany) and other reagents, including Bi(NO3)3·5H2O, NaOH, and RhB were analytically pure and were also purchased from Tianjin Damao (Tianjin, China). Ascorbic acid (AC, AR), K2Cr2O7, isopropyl alcohol (IPA, AR), Ag2SO4, and glucose were obtained from Sinopharm (Shanghai, China) without further purification.

2.2. Preparation of Bi2O3 Microrods

In a typical synthesis process, 10 mL of 1 mol/L Bi(NO3)3 solution (0.02 mol HNO3 solution, 98 wt%) was first transferred into a three-way flask and stirred evenly. Then, NaOH (3.0 g) was dissolved in 70 mL of distilled water, slowly dripped into the above solution in a stirred state, and heated at 70 °C for 50 min. After the reaction was completed, the as-prepared yellow products were separated through vacuum filtration and washed with ethanol and deionized water; then, the samples were dried at 60 °C for 4 h.

2.3. Characterizations

The crystal structure and morphology of the Bi2O3 crystals were determined via X-ray diffractometry (XRD, D8 ADVANCE, Bruker AXS, Karlsruhe, Germany), polarized optical microscopy (POM, KER3101-500S, Nanjing Kell Instrument Co., Ltd., Nanjing, China), and scanning electron microscopy (SEM, Hitachi S-4800, Tokyo, Japan). The surface characteristics and chemical composition of the Bi2O3 microrods were characterized via FTIR spectrophotometry with tests ranging from 500 to 4000 cm−1 (FTIR, Nicolet IS5; Thermo Fisher Scientific Escalab, Waltham, MA, USA) and XPS (Hitachi AXIS SUPRA+; Hitachi High-Technologies Corp., Japan). The N2 adsorption–desorption curves and pore size distribution of the Bi2O3 microrods were obtained through BET (BET, 3H-2000PM1, Beishide Instrument-S&T Co., Ltd., Beijing, China). The photo-luminescent characteristics of the as-prepared Bi2O3 microrods were evaluated with a fluorescence spectrophotometer (PL, Hitachi F-7000, Japan). The degradation pathways and intermediates of RhB with Bi2O3 were evaluated by using liquid chromatography–mass spectroscopy (LC-MS) (Waters I-Class; Waterworld technology (Shanghai) Co., Ltd., Shanghai, China). The TOC of the reaction system of the RhB solution with Bi2O3 microrods was measured with a TOC analyzer (Shimadzu TOC-LCPH; Shimadzu, Tokyo, Japan). The concentration of the RhB solution and diffuse reflectance spectrum of the Bi2O3 catalyst were measured by using UV-1800 or UV-2550 (Shimadzu, Tokyo, Japan).

2.4. Photocatalytic Experiment on Bi2O3 Microrods

In a typical photocatalytic experiment, under laboratory conditions, 30 mg of yellow microrod-shaped Bi2O3 powders and 100 mL of 10 ppm RhB solution (pH = 3, adjusted with HCl) were added successively to a 100 mL beaker with ultrasonic dispersion for 5 min to mix the Bi2O3 powders with the RhB solution to form a uniform suspension. Then, the beaker was placed in a darkroom, and the suspension was continuously stirred for 2 h. Subsequently, the beaker was placed under a 500 W iodine–tungsten lamp for illumination with stirring for 2 h. In this process, the distance from the iodine–tungsten lamp to the surface of the RhB solution was kept at 20 cm, and 2 mL of RhB solution was taken at intervals. Then, the Bi2O3 powder in the RhB solution was removed with a centrifuge and reserved.

3. Results and Discussion

3.1. Characterization

Figure 1 shows the XRD patterns of the Bi2O3 powders with Bi(NO3)3 as a precursor at 70 °C for 50 min in alkaline solutions. It was obvious that all of the diffraction peaks were matched with the standard card of as-synthesized Bi2O3 powders (JCPDS No. 71-2274), and no impurities were observed, which indicated that the sample obtained was high-purity Bi2O3. These results of the XRD patterns with intense and sharp diffraction peaks indicated that the as-prepared Bi2O3 sample was well crystalized.
The concentration of the NaOH solution was a major factor affecting the growth rate, morphology, and size of the Bi2O3 crystals. While keeping other experimental parameters unchanged, we studied the effects of the morphology of Bi2O3 by changing the content of NaOH. Figure 2 shows POM and SEM images of the Bi2O3 microrods with different contents of NaOH while maintaining the volume of the NaOH solution at 70 mL and using a reaction time of 50 min. As Figure 2a shows, the Bi2O3 nanomaterials obtained were composed of Bi2O3 microrods at the NaOH content of 0.3 g. As the NaOH content was increased, the particle size of the Bi2O3 microrods increased (Figure 2b), and the scale uniformity of the Bi2O3 crystals decreased, while some of the crystals adhered to each other, as Figure 2c shows, which was consistent with the SEM images in Figure 2d. The SEM images (Figure 2d) clearly showed that the as-synthesized Bi2O3 had rod-like structures with a ratio of the length (~50 µm) to the diameter of about 10 (3–4 µm). In addition, as the reaction temperature increased, the rod-shaped Bi2O3 crystals became shorter, and the products consisted of microrods and irregular particles (see Supporting Information Figure S1).

3.2. Band Gap Energy Value

The optical band gap values of the Bi2O3 microrods were analyzed by using UV-vis DSR and UV-vis spectra based on the Kubelka–Munk method [67,68], as illustrated in Figure 3. Figure 3a shows that the variations in the band gap energy values of the Bi2O3 microrods were in the range of 2.25–3.18 eV. These results were supported by the UV–DRS spectrum analysis, as depicted in Figure 3b, where the band gap energy values of 2.79 eV obtained for the Bi2O3 microrods were consistent with the experimental findings [69,70,71]. The outcomes demonstrated that the as-prepared Bi2O3 microrods with a band gap of 2.79 eV were enough to activate photocatalysis under visible light.

3.3. PL Analysis of the Bi2O3 Microrods

The efficiency of photocatalysis was determined by the separation of e– and h+. The recombination rates of both e– and h+ in the Bi2O3 microrods were studied by using photoluminescence spectroscopy (PL) with an excitation wavelength of 434 nm, voltage of 700 V, and scan speed of 240 nm/min, as depicted in Figure 4. Figure 4 shows that a strong emission was generated at 654 nm due to the probability of charge separation and recombination between the CB and VB of the as-prepared Bi2O3 microrods. In the PL spectrum, there was a significant reduction in PL intensity below 640 nm, resulting in lower charge recombination rates and better charge carrier separation, which led to higher photocatalytic efficiency [48].

3.4. Adsorption and Degradation of RhB with Bi2O3 Microrods

Figure 5 shows the N2 adsorption–desorption isotherms, aperture distribution curve, and RhB solution photodegradation curve of the Bi2O3 microrods (see Figure 2d) at different pH values in a dark room. Figure 5a shows that the Bi2O3 microrods are a mesoporous material with a type IV and H 3 hysteresis loop [72]. BET analysis revealed that the BET surface area, pore volume, and average pore size of the Bi2O3 microrods were 4.7846 m2/g, 0.012 cm3/g, and 10.032 nm, respectively. These results confirmed that the large surface area and pore volume of the Bi2O3 microrods could expose more active sites, which was beneficial for the subsequent adsorption and photocatalysis of RhB. Figure 5b shows the blank experimental results of RhB degradation when catalyzed at different pH values in a dark room. As shown in Figure 5b, in the absence of a catalyst, the degradation of RhB could be ignored in the presence of darkness for 120 min. The curves plotted in the presence of the Bi2O3 microrod catalysts at the pH values of 3.0, 5.0, and 7.0 showed only 9.4%, 8.6%, and 8.1% decolorization after 120 min in the dark, respectively, confirming that the decolorization of RhB solutions was dominated by surface adsorption.
The photocatalytic properties of RhB with the Bi2O3 microrods under visible light at a pH of 3.0 are shown in Figure 6. Figure 6a summarizes the degradation efficiencies and λmax shifts (maximum wave peak displacement of RhB) of RhB with the irradiation time when using the Bi2O3 microrods in a typical photocatalytic experiment at a pH of 3.0. The maximum peak of RhB shifted blue, and the maximum absorbance gradually decreased with the increase in the illumination time, as shown in Supplementary Figure S2. After 120 min of irradiation, 97.2% degradation of RhB was achieved with the Bi2O3 microrods as photocatalysts, as shown in Figure 6a(1). Compared with hydrogen-peroxide-activated commercial P25 TiO2, the degradation efficiency of RhB with P25 TiO2 under visible light was only 55.4%, as shown in Supplementary Figure S3; therefore, the as-prepared Bi2O3 microrod catalysts were also suitable for commercial application. According to Figure 6a(2), the maximum absorption peak varied gradually from 554 to 498 nm with the prolongation of the visible-light exposure time, and the hypochromic shifts of λmax were caused by the deethylation of RhB, which was confirmed by the FTIR spectra before and after RhB degradation (see Supplementary Figure S4). As shown by the decolorization of the RhB dyes, it is possible that other colorless organic molecules were formed during the degradation process, but this was not identified in the decolorization reaction. The mineralization of RhB using Bi2O3 was confirmed by the amounts of TOC and COD remaining in the decolorized RhB solutions; these were detected using a TOC analyzer and the common volumetric method, respectively. The removal efficiencies of COD and TOC in the degraded RhB solution were 67.6% and 62.6%, respectively, after 120 min treatment, as seen in Figure 6b(1,2). According to the results of the TOC analysis (Figure 6b(2)), the TOC removal efficiency increased with the extension of the illumination time, and more than 62.6% of the carbon in the RhB solution produced CO2 products [73,74].
The concentration of H+ ions in the solution is another key factor for the photodegradation of RhB dyes. Plots of the pH dependence of RhB degradation with different irradiation times are depicted in Figure 7. It can be seen in Figure 7a that the Bi2O3 microrod sample showed different photodegradation activity at different pH values. Within 120 min of irradiation, the degradation percentage of RhB in the environments of the pH value of 3.0, pH value of 5.0, and pH value of 7.0 was 97.2%, 90.6% and 50.2%, respectively. Figure 7b shows that the rate constant values (min−1) were 0.02761, 0.01698, and 0.00504 at the pH values of 3.0, 5.0, and 7.0 respectively. The rate constant values exhibited a maximum at the pH value of 3.0, as seen in the lower inset of Figure 7b. Greater RhB degradation at a lower pH value could be seen in this result, and this was attributed to the increased formation and accumulation of H2O2 and •OH radicals at acidic pH levels [66,75], which led to an increase in the degradation rate of RhB, resulting in a higher degradation rate higher H+ concentration than those at neutral levels (pH = 7.0). The results of the pH dependence experiments showed that the as-prepared Bi2O3 microrods exhibited good photocatalytic performance for RhB removal at a higher H+ concentration.
Figure 8 reveals the visible-light photodegradation percentage of RhB with the Bi2O3 microrod catalyst for six cycles and the XRD patterns of the Bi2O3 microrods after six degradation cycles at different pH values. Clearly, the degradation efficiency of RhB dropped from 10.9% and 13.9% to 86.3% and 36.3% after six repetitions at the pH values of 3.0 and 7.0, respectively, as depicted in Figure 8a. Further, in order to verify the stability of the Bi2O3 microrods, XRD was employed to analyze their structure after the sixth cycle of degradation at pH values of 3.0 and 7.0, respectively. The XRD patterns of the Bi2O3 microrods after six trials at a pH value of 3.0 showed that their purity was relatively low, and several peaks of BiOCl appeared (marked with solid red hearts) in the XRD pattern in Figure 8b(1). The main reason was that the Bi2O3 microrods were dissolved by HCl during the photodegradation of RhB in the acidic environment, and BiOCl was formed on the surface of the Bi2O3 microrods. According to the descriptions in Figure 8b(2), all of the diffraction peaks of the Bi2O3 microrods after the sixth cycle of degradation at a pH value of 7.0 were matched with the standard card of the Bi2O3 microrods (JCPDS No. 71-2274), which indicated that the degraded Bi2O3 microrods retained a relatively high purity.

3.5. XPS and FTIR Analyses of the Bi2O3 Microrods

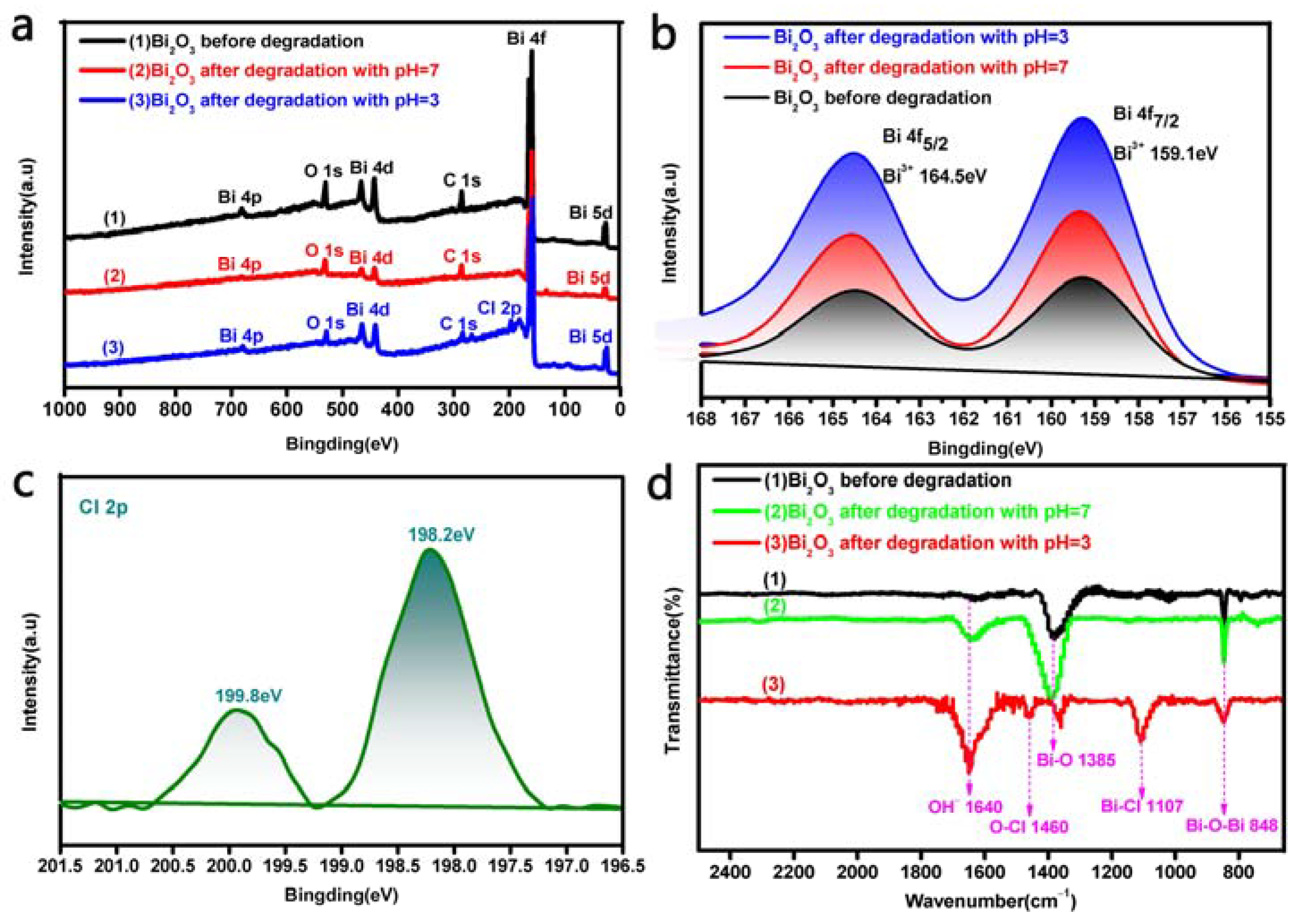

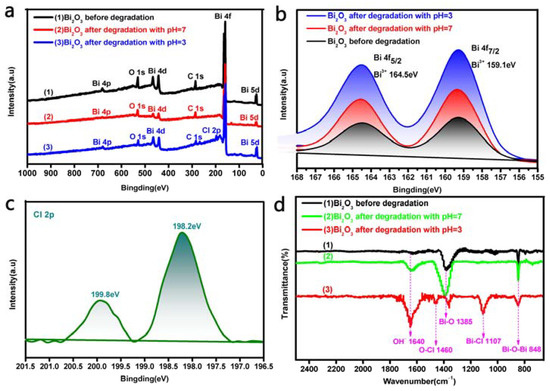

The elements and chemical components of pre- and post-photocatalytic degradation Bi2O3 microrods at different pH values were analyzed using XPS and FTIR determination, and the results are displayed in Figure 9. The elements of C, Bi, and O can be observed in full-scan spectrum shown in Figure 9a, which indicates that these three elements coexisted in Bi2O3 before and after degradation. The presence of C may have been introduced into the environment during sample preparation [76,77]. A new element, Cl, was observed in the Bi2O3 after photodegradation at a pH value of 3.0, as shown in Figure 9a(3). High-resolution XPS (HR-XPS) analysis of Bi4f in the pre- and post-photocatalytic degradation Bi2O3 samples (Figure 9b) showed that two feature peaks of the binding energies of 159.1 and 164.5 eV corresponded to Bi 4f7/2 and Bi 4f5/2 of the trivalent bismuth ion (Bi3+), respectively [78,79]. Figure 9c displays the HR-XPS analysis of the post-degradation Bi2O3 microrods, from which we can see that the two highest-intensity peaks located at around 199.8 and 198.2 eV corresponded to Cl 2p1/2 and Cl 2p3/2 in the region of Cl 2p, respectively, which demonstrated that BiOCl was easily produced on the surface of Bi2O3 after degradation in the acidic environment [80].
The structural characteristics of Bi2O3 microrods pre- and post-degradation at different pH values were further determined via FTIR analysis, and the results are illustrated in Figure 9d. Figure 9d(1,2) show that the spectrum of pre- and post-degradation Bi2O3 at the pH value of 7.0 displayed two typical adsorption peaks at about 1385 and 848 cm−1, which were related to the Bi-O bond and Bi-O-Bi bond stretching vibration and symmetrical stretching, respectively [81,82,83]. The FTIR spectra after Bi2O3 degradation at a pH value of 3.0 shown in Figure 9d(3) demonstrate that the adsorption peaks of 1460 cm–1 and 1107 cm–1 in the degraded Bi2O3 microrods were caused by O-Cl and Bi-Cl bond vibrations [84,85], respectively. In conclusion, BiOCl crystals were easily produced on the surface of the Bi2O3 crystals under acidic conditions based on the results of the XPS, FTIR, and XRD (Figure 8b) analyses of pre- and post-degradation Bi2O3.

3.6. Photodegradation Pathways of RhB with Bi2O3

To reveal the degradation pathway and mechanism of RhB with the Bi2O3 photocatalyst, the intermediates were determined by using LC-MS, as depicted in Figure 10. According to Figure 10, some pre- and post-degradation products were found in LC-MS, and they had strong signs at m/z 443, 359, 315, 287, 242, 222, 214, 208, 200, 182, 166, 152, 138, 134, 118, and 108.
According to the intermediates analyzed with LC-MS during the reaction and in the previous literature [86,87], a possible RhB degradation pathway was proposed, as shown in Figure 11. Figure 11 displays that the degradation process of RhB mainly consisted of five steps: deethylation, decarboxylation, de-amination, ring opening, and mineralization. Initially, ethyl, carboxyl, and amino groups were removed from RhB molecules and formed multiple intermediates through ROS (•O−2 and •OH) attack, such as C22H19N2O3 (m/z 359), C20H14NO3 (m/z 315), C19H15N2O (m/z 287), C14H12NO3 (m/z 242), C12H14O4 (m/z 222), C13H12NO2 (m/z 214), C14H8O2 (m/z 208), C13H12O2 (m/z 200), and C13H10O (m/z 182). Then, there was a key ring-opening reaction, where the ring-opening reactions fragmented the aforementioned intermediates into low-molecular-weight organics, small fatty acids, and fatty alcohols, e.g., C8H6O4 (m/z 166), C8H8O3 (m/z 152), C8H10O2 (m/z 138), C5H10O4 (m/z 134), C6H14O2 (m/z 118), and C7H8O (m/z 108). Finally, the small molecules were further oxidized and mineralized into CO2 and H2O.

3.7. Degradation Mechanism

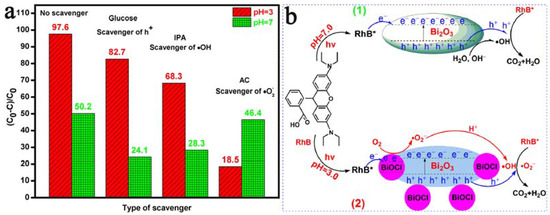

The types of active substances formed during photodegradation and the possible mechanism of the catalytic degradation of RhB with Bi2O3 microrods at the pH values of 7.0 and 3.0 were determined with a radical-trapping experiment, and the results are displayed in Figure 12a. In general, glucose, IPA, and AC were introduced as scavengers of h+, •OH, and •O−2 during photodegradation, respectively. Figure 12b(1) shows that, on the basis of the photocatalytic experiments at a pH value of 3.0, the degradation rates of RhB were 18.5% and 68.3% after the addition of AC and IPA, respectively. However, the photodegradation of RhB had little change after adding glucose, indicating that there was a small amount of h+ during the catalytic process. The experimental results indicated that •O−2 and •OH were the effective active substances in the photodegradation process of RhB with Bi2O3 microrods at a pH value of 3.0. Figure 12b(2) displays that hole (h+) or hydroxyl radicals (•OH) were the effective active substances in the photodegradation of RhB with Bi2O3 microrods at a pH value of 7.0. The photodegradation of RhB was hard to change after adding AC compared with that in the blank experiment (without a scavenger). The results indicated that the absence of •O−2 during the degradation of RhB and the effective active species were h+ and •OH in the photodegradation of RhB with Bi2O3 microrods at a pH value of 7.0.
According to the above discussion, a possible photocatalytic mechanism of RhB with Bi2O3 microrods at the pH values of 7.0 and 3.0 was proposed, as depicted in Figure 12b. As can been seen in Figure 12b(1), the mechanism of photocatalytic degradation of RhB with Bi2O3 was summarized at a pH value of 7.0. In the presence of visible light, e− in the VB of the semiconducting Bi2O3 microrod photocatalyst was excited to CB, and VB produced photogenerated h+, which partially complexed with e− of CB; then, some photogenerated h+ reacted with H2O or OH− to form •OH. Thus, RhB molecules reacted with the effective active substances of h+ and •OH and formed multiple small intermediates, which were mineralized into CO2 and H2O. At the same time, a rational photocatalytic degradation mechanism of RhB with Bi2O3 microrods under acidic conditions was also proposed (pH value = 3.0), and a schematic is shown in Figure 12(2). During the initial degradation, the surface layer of the Bi2O3 microrods was dissolved by HCl, and a heterojunction of BiOCl/Bi2O3 was formed with a small amount of BiOCl on the surface of the Bi2O3 samples, which would facilitate the migration of photoinduced charge carriers [88]. Furthermore, the addition of HCl made it easier for O2 to capture the e− of photocatalyst CB and produce •O−2, which could further convert •OH in the presence of H+. After multiple photodegradation cycles, the contact probability of Bi2O3 with RhB decreased with the increase in BiOCl content on the surface of Bi2O3 in the BiOCl/Bi2O3 heterostructure (Figure 8b, XRD pattern); the photocharge carrier migration was weakened, and the removal rate of RhB significantly decreased.

4. Conclusions

In summary, the results of the POM and SEM analyses showed that the Bi2O3 catalyst with a microrod-like structure was prepared with a chemical precipitation method. The results of the PL spectra and DRS (the band gap value of the Bi2O3 microrods is 2.79 eV) revealed that the absorption spectrum extended to the visible region, which resulted in a high separation and low recombination rate of e− and h+. The photodegradation results of Bi2O3 clearly indicated that about 97.2%, 90.6%, and 50.2% degradation of RhB dyes was observed within 120 min at the pH values of 3.0, 5.0, and 7.0, respectively. The TOC removal efficiency increased with the extension of the illumination time, and more than 62.6% of the carbon in the RhB solution produced CO2 products. The experimental results indicated that •O−2, •OH, and h+ or •OH were the effective active substances in the degradation process of RhB with Bi2O3 microrods at the pH values of 3.0 and 7.0, respectively. The results also revealed that a heterojunction of BiOCl/Bi2O3 was formed with a small amount of BiOCl on the surface of Bi2O3 samples based on the results of XRD, XPS, and FTIR analysis techniques. Furthermore, the effective active substances and possible mechanisms of photocatalytic degradation of Bi2O3 at different pH values were analyzed based on the results of XRD, radical capture, FTIR, TOC, and XPS analyses. The degradation process of RhB mainly consisted of five steps: deethylation, decarboxylation, de-amination, ring opening, and mineralization.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma17040957/s1, Figure S1: POM (a–c) images of microrods obtained at different reaction temperatures: (a) 70 °C, (b) 75 °C, and (c) 80 °C; (d) SEM images of microrods at a reaction temperature of 80 °C Figure S2: UV–visible spectral changes in the RhB solution with Bi2O3 microrods as photocatalysts; Figure S3: Photodecomposition curves of RhB solutions under visible-light irradiation with P25 TiO2 photocatalysts; Figure S4: The FTIR spectra of pre-degradation and post-degradation RhB solution with Bi2O3 microrods as photocatalysts.

Author Contributions

Conceptualization, D.M. and G.H.; methodology, D.M. and J.T.; validation, D.M. and G.H.; formal analysis, D.M., J.T. and S.P.; investigation, D.M.; resources, D.M. and G.H.; data curation, S.P.; writing—original draft preparation, D.M.; writing—review and editing, G.H.; supervision, G.H.; project administration, G.H.; funding acquisition, D.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Natural Science Foundation of Hunan Province (Grant no. 2022JJ50269) and the Key Project Foundation of Hunan Provincial Education Department (Grant no. 20A094).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

We thank all of the authors for their equal contributions to the completion of this research.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Visitacion-Carrillo, S.; Colombano, S.; Fatin-Rouge, N.; Davarzani, D. Fluorescent dyes as partitioning tracers for the estimation of NAPL-Mass saturation in porous media. Ground Water Monit. Remediat. 2023, 43, 82–91. [Google Scholar] [CrossRef]
  2. Venkatraman, S.K.; Vijayakumar, N.; Bal, D.K.; Mishra, A.; Gupta, B.; Mishra, V.; Wysokowski, M.; Koppala, S.; Swamiappan, S. Degradation of environmentally harmful textile dye rhodamine B using silicate ceramic photocatalysts. Inorg. Chem. Commun. 2022, 142, 109674. [Google Scholar] [CrossRef]
  3. Saravanan, S.; Carolin, C.F.; Kumar, P.S.; Chitra, B.; Rangasamy, G. Biodegradation of textile dye Rhodamine-B by Brevundimonas diminuta and screening of their breakdown metabolites. Chemosphere 2022, 308, 136266. [Google Scholar] [CrossRef]
  4. Lim, S.; Shi, J.L.; Gunten, U.; McCurry, D.L. Ozonation of organic compounds in water and wastewater: A critical review. Water Res. 2022, 213, 118053. [Google Scholar] [CrossRef]
  5. Kouassi, N.L.B.; Doubi, B.H.G.; Diabate, D.; Blonde, L.D.; Albert, T. Recycling of alum sludge for Rhodamine B removal from industrial effluents. Chem. Afr. 2023, 6, 485–498. [Google Scholar] [CrossRef]
  6. Kuruthukulangara, N.; Asharani, I.V. Photocatalytic degradation of Rhodamine B, a carcinogenic pollutant, by MgO nanoparticles. Inorg. Chem. Commun. 2024, 160, 111873. [Google Scholar] [CrossRef]
  7. Astuti, Y.; Elesta, P.P.; Widodo, D.S.; Widiyandari, H.; Balgis, R. Hydrazine and urea fueled-solution combustion method for Bi2O3 synthesis: Characterization of physicochemical properties and photocatalytic activity. Bull. Chem. React. Eng. Catal. 2020, 15, 104–111. [Google Scholar] [CrossRef]
  8. Thakur, V.; Singh, S.; Kumar, P.; Rawat, S.; Srivastava, V.C.; Lo, S.-L.; Štangar, U.L. Photocatalytic behaviors of bismuth-based mixed oxides: Types, fabrication techniques and mineralization mechanism of antibioticsm. Chem. Eng. J. 2023, 475, 146100. [Google Scholar] [CrossRef]
  9. Saeed, M.; Alwadai, N.; Ben Farhat, L.; Baig, A.; Nabgan, W.; Iqbal, M. Co3O4-Bi2O3 heterojunction: An effective photocatalyst for photodegradation of rhodamine B dye. Arab. J. Chem. 2022, 15, 103732. [Google Scholar] [CrossRef]
  10. Zahid, A.H.; Han, Q.F. A review on the preparation, microstructure, and photocatalytic performance of Bi2O3 in polymorphs. Nanoscale 2021, 13, 17687–17724. [Google Scholar] [CrossRef] [PubMed]
  11. Yasin, M.; Saeed, M.; Muneer, M.; Usman, M.; ul Haq, A.; Sadia, M.; Altaf, M. Development of Bi2O3-ZnO heterostructure for enhanced photodegradation of rhodamine B and reactive yellow dyes. Surf. Interfaces 2022, 30, 101846. [Google Scholar] [CrossRef]
  12. Maggu, C.; Singla, S.; Basu, S. Unleashing the power of sunlight: Bi2O3/Sb2S3 photocatalysis for sustainable wastewater remediation of Tetracycline and Rhodamine-B. J. Environ. Manag. 2024, 349, 119424. [Google Scholar] [CrossRef]
  13. Jain, S.; Kumar, N.; Sharma, S.; Parmar, D.; Sharma, R.K.; Tahir, M.; Kumari, K.; Rani, G. A facile synthesis of Bi2O3/SnS2 and Ag@Bi2O3/SnS2 nanostructures and their enhanced photodegradation application toward RhB. Mater. Today Sustain. 2023, 24, 100539. [Google Scholar] [CrossRef]
  14. Sharma, A.; Mittal, A.; Sharma, S.; Kumari, K.; Maken, S.; Kumar, N. Cu2+-doped α-β phase heterojunctions in Bi2O3 nanoparticles for enhanced photocatalytic degradation of organic dye rhodamine B. Appl. Nanosci. 2022, 12, 151–164. [Google Scholar] [CrossRef]
  15. Rajan, K.D.; Srinivasan, D.; Gotipamul, P.P.; Khanna, S.; Chidambaram, S.; Rathinam, M. Design of a novel ZnBi2O4/Bi2O3 type-II photo-catalyst via short term hydrothermal for enhanced degradation of organic pollutants. Mater. Sci. Eng. B-Adv. 2022, 285, 115929. [Google Scholar] [CrossRef]
  16. Sharma, A.; Mittal, A.; Sharma, S.; Tahir, M.; Parmar, D.; Singh, P.; Kumar, N. Integrating Ni, Pt, and Pd on biphasic Cu-doped Bi2O3 for physicochemical characteristics and superior light driven elimination of pollutants. Catal. Surv. Asia 2024, 28, 101–116. [Google Scholar] [CrossRef]
  17. Sharma, S.; Sharma, A.; Chauhan, N.S.; Tahir, M.; Kumari, K.; Mittal, A.; Kumar, N. TiO2/Bi2O3/PANI nanocomposite materials for enhanced photocatalytic decontamination of organic pollutants. Inorg. Chem. Commun. 2022, 146, 110093. [Google Scholar] [CrossRef]
  18. Hashemi, E.; Poursalehi, R.; Delavari, H. Structural, optical and photocatalytic activity of multi-heterojunction Bi2O3/Bi2O2CO3/(BiO)4CO3(OH)2 nanoflakes synthesized via submerged DC electrical discharge in urea solution. Nanoscale Res. Lett. 2022, 17, 75. [Google Scholar] [CrossRef]
  19. Mandal, R.K.; Pradhan, S.K. Superior photocatalytic performance of mechanosynthesized Bi2O3-Bi2WO6 nanocomposite in wastewater treatment. Solid. State Sci. 2021, 115, 106587. [Google Scholar] [CrossRef]
  20. Sharma, A.; Sharma, S.; Mphahlele-Makgwane, M.M.; Mittal, A.; Kumari, K.; Kumar, N. Polyaniline modified Cu2+-Bi2O3 nanoparticles: Preparation and photocatalytic activity for Rhodamine B degradation. J. Mol. Struct. 2023, 1271, 134110. [Google Scholar] [CrossRef]
  21. Sharma, A.; Kumari, M.; Tahir, M.; Jain, S.; Sharma, S.; Kumar, N. An energy saving and water- based synthesis of Bi2O3@Fe-succinate MOF: A visible light mediated approach towards water decontamination. J. Mol. Liq. 2023, 386, 122429. [Google Scholar] [CrossRef]
  22. Goto, Y.; Nema, Y.; Matsuoka, K. Removal of zwitterionic Rhodamine B using foam separation. J. Oleo Sci. 2020, 69, 563–567. [Google Scholar] [CrossRef]
  23. Al-Gheethi, A.A.; Azhar, Q.M.; Kumar, P.S.; Yusuf, A.A.; Al-Buriahi, A.K.; Mohamed, R.M.S.R.; Al-shaibani, M.M. Sustainable approaches for removing Rhodamine B dye using agriculturalwaste adsorbents: A review. Chemosphere 2022, 287, 132080. [Google Scholar] [CrossRef]
  24. Saigl, Z.M. Various adsorbents for removal of Rhodamine B dye: A review. Indones. J. Chem. 2021, 21, 1039–1056. [Google Scholar] [CrossRef]
  25. Vadivel, M.; Jayakumar, S.; Philip, J. Rapid removal of rhodamine dye from aqueous solution using casein-surfactantcomplexes: Role of casein-surfactant interaction. J. Disper. Sci. Technol. 2022, 43, 928–943. [Google Scholar] [CrossRef]
  26. Bhat, A.H.; Chishti, H.T.N. Adsorption of rhodamine-B by polypyrrole Sn (IV) tungstophosphate nanocomposite cation exchanger: Kinetic-cum-thermodynamic investigations. Sep. Sci. Technol. 2022, 58, 287–301. [Google Scholar] [CrossRef]
  27. Ahsaine, H.A.; BaQais, A.; Arab, M.; Bakiz, B.; Benlhachemi, A. Synthesis and electrocatalytic activity of bismuth tungstate Bi2WO6 for Rhodamine B electro-oxidation. Catalysts 2022, 12, 1335. [Google Scholar] [CrossRef]
  28. Boulahbel, I.; Bechiri, O.; Meddah, S.; Samar, M.E. Degradation of Rhodamine B dye in aqueous medium using electro-Fenton and sono-electro-Fenton process. Desalin. Water Treat. 2022, 271, 297–306. [Google Scholar] [CrossRef]
  29. Çelik, M.S.; Çetinus, Ş.A.; Yenidünya, A.F.; Çetinkaya, S.; Tüzün, B. Biosorption of Rhodamine B dye from aqueous solution by Rhus coriaria L. plant: Equilibrium, kinetic, thermodynamic and DFT calculations. J. Mol. Struct. 2023, 1272, 134158. [Google Scholar] [CrossRef]
  30. Souza, F.H.M.; Leme, V.F.C.; Costa, G.O.B.; Castro, K.C.; Giraldi, T.R.; Andrade, G.S.S. Biosorption of Rhodamine B using a low-cost biosorbent prepared from inactivated aspergillus oryzae cells: Kinetic, equilibrium and thermodynamic studies. Water Air Soil. Pollut. 2020, 231, 242. [Google Scholar] [CrossRef]
  31. Benalioua, B.; Benyamina, I.; Mansour, M.; Mensri, K.; Bentouami, A.; Boury, B. Synthesis of a new multi-heterojunction photocatalyst BiOI/Bi2O3/MgO and its photocatalytic efficiency in the degradation of Rhodamine B under visible light. Desalin. Water Treat. 2023, 281, 265–275. [Google Scholar] [CrossRef]
  32. Jain, S.; Sharma, A.; Yadav, S.; Kumar, N.; Dahiya, H.; Makgwane, P.R.; Bandegharaei, A.H.; Jindal, J. A facile synthesis of Ag incorporated Bi2O3/CuS nanocomposites as photocatalyst for degradation of environmental contaminants. Inorg. Chem. Commun. 2023, 157, 111266. [Google Scholar] [CrossRef]
  33. Latif, A.; Memon, A.M.; Gadhi, T.A.; Bhurt, I.A.; Channa, N.; Mahar, R.B.; Ali, I.; Chiadò, A.; Bonelli, B. Bi2O3 immobilized 3D structured clay filters for solar photocatalytic treatment of wastewater from batch to scaleup reactors. Mater. Chem. Phys. 2022, 276, 125297. [Google Scholar] [CrossRef]
  34. Astuti, Y.; Musthafa, F.; Arnelli, A.; Nurhasanah, I. French fries-like bismuth oxide: Physicochemical properties, electrical conductivity and photocatalytic activity. Bull. Chem. React. Eng. Catal. 2022, 17, 146–156. [Google Scholar] [CrossRef]
  35. Zhou, L.; Xie, M.L.; Su, H.; Chen, R.L.; Pang, Y.X.; Lou, H.M.; Yang, D.J.; Qiu, X.Q. In situ oxidation of ethylene glycol coupled with Bi2O3 epitaxial growth to prepare Bi2O3/BiOCOOH heterojunctions with oxygen vacancies for efficient photocatalytic lignin degradation. Colloids Surf. A Physicochem. Eng. Asp. 2023, 664, 131134. [Google Scholar] [CrossRef]
  36. Pham, H.-H.; You, S.-J.; Wang, Y.-F.; Cao, M.T.; Pham, V.-V. Activation of potassium peroxymonosulfate for rhodamine B photocatalytic degradation over visible-light-driven conjugated polyvinyl chloride/Bi2O3 hybrid structure. Sustain. Chem. Pharm. 2021, 19, 100367. [Google Scholar] [CrossRef]
  37. Leng, D.H.; Wang, T.T.; Du, C.C.; Pei, X.X.; Wan, Y.X.; Wang, J.L. Synthesis of β-Bi2O3 nanoparticles via the oxidation of Bi nanoparticles: Size, shape and polymorph control, anisotropic thermal expansion, and visible-light photocatalytic activity. Ceram. Int. 2022, 48, 18270–18277. [Google Scholar] [CrossRef]
  38. Pious, A.; Muthukumar, S.; Singaravelu, D.K.; Nantheeswaran, P.; Mariappan, M.; Sivasubramanian, A.; Ameen, F.; Gancarz, M.; Veerappan, A. Micelle assisted synthesis of bismuth oxide nanoparticles for improved chemocatalytic degradation of toxic Congo red into non-toxic products. New J. Chem. 2023, 48, 96–104. [Google Scholar] [CrossRef]
  39. Alaizeri, Z.M.; Alhadlaq, H.A.; Aldawood, S.; Akhtar, M.J.; Ahamed, M. Bi2O3-Doped WO3 nanoparticles decorated on rGO sheets: Simple synthesis, characterization, photocatalytic performance, and selective cytotoxicity toward human cancer cells. ACS Omega 2023, 8, 25020–25033. [Google Scholar] [CrossRef]
  40. Ranjith, R.; Vignesh, S.; Balachandar, R.; Suganthi, S.; Raj, V.; Ramasundaram, S.; Sundar, J.K.; Shkir, M.; Oh, T.H. Construction of novel g-C3N4 coupled efficient Bi2O3 nanoparticles for improved Z-scheme photocatalytic removal of environmental wastewater contaminant: Insight mechanism. J. Environ. Manag. 2023, 330, 117134. [Google Scholar] [CrossRef]
  41. Divya, J.; Shivaramu, N.J.; Purcell, W.; Roos, W.D.; Swart, H.C. Effects of annealing temperature on the crystal structure, optical and photocatalytic properties of Bi2O3 needles. Appl. Surf. Sci. 2020, 520, 146294. [Google Scholar] [CrossRef]
  42. Hernández-Gordillo, A.; Medina, J.C.; Bizarro, M.; Zanella, R.; Monroy, B.M.; Rodil, S.E. Photocatalytic activity of enlarged microrods of α-Bi2O3 produced using ethylenediamine-solvent. Ceram. Int. 2016, 42, 11866–11875. [Google Scholar] [CrossRef]
  43. Raza, W.; Khan, A.; Alam, U.; Muneer, M.; Bahnemann, D. Facile fabrication of visible light induced Bi2O3 nanorod using conventional heat treatment method. J. Mol. Struct. 2016, 1107, 39–46. [Google Scholar] [CrossRef]
  44. Sood, S.; Umar, A.; Mehta, S.K.; Kansal, S.K. α-Bi2O3 nanorods: An efficient sunlight active photocatalyst for degradation of Rhodamine B and 2,4,6-trichlorophenol. Ceram. Int. 2015, 41, 3355–3364. [Google Scholar] [CrossRef]
  45. Arshad, H.; Tahir, M.U.; Rehman, F.; Wang, L.; Wang, J.D.; Su, X.T.; Yang, C. Facile synthesis of bismuth oxide nanostructures derived from solvent-mediated oxalates and their visible-light-driven photocatalytic removal of organic pollutants. Appl. Surf. Sci. 2022, 574, 151678. [Google Scholar] [CrossRef]
  46. Bera, K.K.; Majumdar, R.; Chakraborty, M.; Bhattacharya, S.K. Phase control synthesis of α, β and α/β Bi2O3 hetero-junction with enhanced and synergistic photocatalytic activity on degradation of toxic dye, Rhodamine-B under natural sunlight. J. Hazard. Mater. 2018, 352, 182–191. [Google Scholar] [CrossRef]
  47. Falsetti, P.H.E.; Soares, F.C.; Rodrigues, G.N.; Del Duque, D.M.S.; de Oliveira, W.R.; Gianelli, B.F.; de Mendonça, V.R. Synthesis and photocatalytic performance of Bi2O3 thin films obtained in a homemade spin coater. Mater. Today Commun. 2021, 27, 102214. [Google Scholar] [CrossRef]
  48. Sudapalli, A.M.; Shimpi, N.G. Hierarchical self-assembly of 0D/2D β-Bi2O3 crossandra flower morphology exhibits excellent photocatalytic activity against bromophenol dyes. Opt. Mater. 2022, 132, 112849. [Google Scholar] [CrossRef]
  49. Sharmila, M.; Mani, R.J.; Kader, S.M.A. Synthesis of bismuth oxide nanoflowers using natural honey. Mater. Today Proc. 2021, 45, 3908–3910. [Google Scholar] [CrossRef]
  50. Guo, X.G.; Liang, T.T.; Rager, M.; Cui, X. Low-temperature controlled synthesis of novel bismuth oxide (Bi2O3) with microrods and microflowers with great photocatalytic activities. Mater. Lett. 2018, 228, 427–430. [Google Scholar] [CrossRef]
  51. Bano, Z.; Muhmood, T.; Xia, M.Z.; Lei, W.; Wang, F.Y. Ultrathin nanosheets of graphitic carbon nitride heterojunction with flower like Bi2O3 for photodegradation of organic pollutants. Mater. Res. Express 2018, 5, 055030. [Google Scholar] [CrossRef]
  52. Sánchez-Martínezn, D.; Juárez-Ramírez, I.; Torres-Martínez, L.M.; León-Abarte, I.D. Photocatalytic properties of Bi2O3 powders obtained by an ultrasound-assisted precipitation method. Ceram. Int. 2016, 42, 2013–2020. [Google Scholar] [CrossRef]
  53. Liu, G.; Li, S.; Lu, Y.Y.; Zhang, J.; Feng, Z.C.; Li, C. Controllable synthesis of a-Bi2O3 and g-Bi2O3 with high photocatalytic activity by a-Bi2O3/g-Bi2O3/a-Bi2O3 transformation in a facile precipitation method. J. Alloys Compd. 2016, 689, 787–799. [Google Scholar] [CrossRef]
  54. Xu, Z.; Shi, Y.X.; Li, L.L.; Sun, H.R.; Amin, M.D.S.; Guo, F.; Wen, H.; Shi, W.L. Fabrication of 2D/2D Z-scheme highly crystalline carbon nitride/δ-Bi2O3 heterojunction photocatalyst with enhanced photocatalytic degradation of tetracycline. J. Alloys Compd. 2022, 895, 162667. [Google Scholar] [CrossRef]
  55. Yu, X.; Feng, Q.G.; Ma, D.H.; Lin, H.Y.; Liu, Z.; Huang, Y.; Huang, X.Q.; Dong, X.Y.; Lei, Y.; Wang, D.B. Facile synthesis of α/β-Bi2O3 hetero-phase junction by a solvothermal method for enhanced photocatalytic activities. Mol. Catal. 2021, 503, 111431. [Google Scholar] [CrossRef]
  56. Kirubanithy, K.; Jayaraj, S.K.; Beura, R.; Paramasivam, T. Detailed structural and optical studies of the microwave synthesized β-Bi2O3 nanostructured photocatalysts: Photocatalytic applications on anionic and cationic organic dyes. Environ. Nanotechnol. Monit. Manag. 2022, 17, 100629. [Google Scholar] [CrossRef]
  57. Ratovaa, M.; Redfern, J.; Verran, J.; Kelly, P.J. Highly efficient photocatalytic bismuth oxide coatings and their antimicrobial properties under visible light irradiation. Appl. Catal. B-Environ. 2018, 239, 223–232. [Google Scholar] [CrossRef]
  58. Lim, G.-D.; Yoo, J.-H.; Ji, M.; Lee, Y.-I. Visible light driven photocatalytic degradation enhanced by α/β phase heterojunctions on electrospun Bi2O3 nanofibers. J. Alloys Compd. 2019, 806, 1060–1067. [Google Scholar] [CrossRef]
  59. Sharma, A.; Tahir, M.; Ahamad, T.; Kumar, N.; Sharma, S.; Kumari, M.; Khan, M.A.M.; Takhur, S.; Raizada, P. Improved charge transfer and enhanced visible light photocatalytic activity of Bi2O3@Fe-MOF for degradation of Rhodamine B and Triclopyr. J. King Saud Univ. Sci. 2023, 35, 102922. [Google Scholar] [CrossRef]
  60. Liaqat, M.; Riaz, K.N.; Iqbal, T.; Nabi, G.; Rizwan, M.; Shakil, M. Fabrication of novel BiVO4/Bi2O3 heterostructure with superior visible light induced photocatalytic properties. Nanotechnology 2023, 34, 015711. [Google Scholar] [CrossRef]
  61. Köwitsch, I.; Schäfer, A.; Hornig, D.; Mehring, M. Photocatalytic water purification under visible light using carbon nitride materials and β-Bi2O3 immobilized on electrospun polyvinyl acetate fibers. SN Appl. Sci. 2022, 4, 64. [Google Scholar] [CrossRef]
  62. Liang, Y.C.; Liang, K.W. Tuning the heterophase junction in Bi2O3 hybrid crystals with enhanced photocatalytic activity. CrystEngComm 2023, 25, 5035–5049. [Google Scholar] [CrossRef]
  63. Liu, G.; Gao, C.P.; Liu, X.M.; Wang, X.Y.; Liu, M.M.; Chen, Y.L.; Wang, G.X.; Teng, Z.C.; Yang, W.L. Nanostructured δ-Bi2O3: Synthesis and their enhanced photocatalytic activity under visible light. Mater. Chem. Phys. 2022, 291, 126668. [Google Scholar] [CrossRef]
  64. Meena, P.L.; Surela, A.K.; Poswal, K.; Saini, J.K.; Chhachhia, L.K. Biogenic synthesis of Bi2O3 nanoparticles using Cassia fistula plant pod extract for the effective degradation of organic dyes in aqueous medium. Biomass Conv. Bioref. 2024, 14, 3793–3809. [Google Scholar] [CrossRef]
  65. Teng, D.G.; Qu, J.; Li, P.; Jin, P.; Zhang, J.; Zhang, Y.; Cao, Y.J. α-Bi2O3 nanosheets: An efficient material for sunlight-driven photocatalytic degradation of Rhodamine B. Ceram. Int. 2022, 48, 29580–29588. [Google Scholar]
  66. Bera, K.K.; Chakraborty, M.; Mondal, M.; Banik, S.; Bhattacharya, S.K. Synthesis of α-β Bi2O3 heterojunction photocatalyst and evaluation of reaction mechanism for degradation of RhB dye under natural sunlight. Ceram. Int. 2020, 46, 7667–7680. [Google Scholar] [CrossRef]
  67. Kubelka, P.; Munk, F. Ein beitrag zur optik der farbanstriche. Z. Technol. Phys. 1931, 12, 593–601. [Google Scholar]
  68. Landi, S.; Segundo, I.R.; Freitas, E.; Vasilevskiy, M.; Carneiro, J.; Tavares, C.J. Use and misuse of the Kubelka-Munk function to obtain the band gap energy from diffuse reflectance measurements. Solid State Commun. 2022, 341, 114573. [Google Scholar] [CrossRef]
  69. Vega-Mendoza, M.S.; Luévano-Hipólito, E.; Torres-Martínez, L.M. Design and fabrication of photocatalytic coatings with α/β-Bi2O3 and recycled-fly ash for environmental remediation and solar fuel generation. Ceram. Int. 2021, 47, 26907–26918. [Google Scholar] [CrossRef]
  70. Köhler, R.; Siebert, D.; Kochanneck, L.; Ohms, G.; Viöl, W. Bismuth oxide faceted structures as a photocatalyst produced using an atmospheric pressure plasma Jet. Catalysts 2019, 9, 533. [Google Scholar] [CrossRef]
  71. Bashir, A.; Mestry, S.S.; Vashishtha, P.; Gupta, G.; Bhaduri, G.A. Fuel-dependent, shape-selective, distinct blue and green photoluminescence from α-Bi2O3 and β-Bi2O3 synthesised using microwave combustion. Luminescence 2023, 38, 568–575. [Google Scholar] [CrossRef]
  72. Majhi, D.; Das, K.; Bariki, R.; Padhan, S.; Mishra, A.; Dhiman, R.; Dash, P.; Nayak, B.; Mishra, B.G. A facile reflux method for in situ fabrication of a non-cytotoxic Bi2S3/β-Bi2O3/ZnIn2S4 ternary photocatalyst: A novel dual Z-scheme system with enhanced multifunctional photocatalytic activity. J. Mater. Chem. A 2020, 8, 21729–21734. [Google Scholar] [CrossRef]
  73. Qi, Y.; Zhao, J.J.; Wang, H.T.; Zhang, A.M.; Li, J.P.; Yan, M.F.; Guo, T.Y. Shaddock peel-derived N-doped carbon quantum dots coupled with ultrathin BiOBr square nanosheets with boosted visible light response for high-efficiency photodegradation of RhB. Environ. Pollut. 2023, 325, 121424. [Google Scholar] [CrossRef]
  74. Rathi, A.; Basu, S.; Barman, S. Efficient eradication of antibiotic and dye by C-dots@zeolite nanocomposites: Performance evaluation, and degraded products analysis. Chemosphere 2022, 298, 134260. [Google Scholar] [CrossRef]
  75. Jain, S.; Mittal, A.; Kumari, V.; Sharma, A.; Jindal, J.; Makgwane, P.R.; Kumar, V.; Kumar, N.; Kumari, K. A facile synthesized Z-scheme Bi2O3/SnS/Ag ternary nanocomposite: An expedited visible photocatalysis by plasmonic silver for efficient organic decontamination. Opt. Mater. 2023, 145, 114434. [Google Scholar] [CrossRef]
  76. Nie, G.D.; Lu, X.F.; Lei, J.Y.; Yang, L.; Wang, C. Facile and controlled synthesis of bismuth sulfide nanorods-reduced graphene oxide composites with enhanced supercapacitor performance. Electrochim. Acta 2015, 154, 24–30. [Google Scholar] [CrossRef]
  77. Zatsepin, A.F.; Kuznetsova, Y.A.; Zatsepin, D.A.; Wong, C.-H.; Law, W.-C.; Tang, C.-Y.; Gavrilov, N.V.; Boukhwalov, D.V. Bismuth-doped gadolinium oxide films for UV-Vis multicolor conversion: Combined XPS, DFT and photoluminescence study. J. Alloys Compd. 2023, 949, 169815. [Google Scholar] [CrossRef]
  78. Song, D.X.; Li, M.X.; Yang, F.; Yu, M.H.; Li, Z.Z.; Chen, J.; Zhang, X.S.; Zhou, W. Plasmon Bi in-situ anchored on BiOCl nanosheets assembled microspheres towards optimized photothermal-photocatalytic performance. Chin. Chem. Lett. 2024, 35, 108591. [Google Scholar] [CrossRef]
  79. Sun, X.; Zhai, H.J.; Sun, Z.; Liu, Z.; Yin, Z.M.; Zhang, S.; Shi, L.; Qu, X.F. From one to three: In-situ transformation of Bi3O4Cl to Bi/BiOCl/Bi3O4Cl core-shell nanocomposites with highly photocatalytic activities. Surf. Interfaces 2023, 40, 103017. [Google Scholar] [CrossRef]
  80. Zheng, J.; Liu, J.C.; Feng, X.Y.; Liu, J.R.; Zong, S.; Liu, L.L.; Fang, Y.X. Outstanding photo-thermo synergy in aerobic oxidation of cyclohexane by bismuth tungstate-bismuth oxychloride high-low heterojunction. J. Colloid Interface Sci. 2023, 651, 304–318. [Google Scholar] [CrossRef]
  81. Astuti, Y.; Andianingrum, R.; Haris, A.; Darmawan, A. The role of H2C2O4 and Na2CO3 as precipitating agents on the physichochemical properties and photocatalytic activity of bismuth oxide. Open Chem. 2020, 18, 129–137. [Google Scholar] [CrossRef]
  82. Astuti, Y.; Amri, D.; Widodo, D.S.; Widiyandari, H.; Balgis, R.; Ogi, T. Effect of fuels on the physicochemical properties and photocatalytic activity of bismuth oxide, synthesized using solution combustion method. Int. J. Technol. 2020, 11, 26–36. [Google Scholar] [CrossRef]
  83. Astuti, Y.; Listyani, B.M.; Suyati, L.; Darmawan, A. Bismuth oxide prepared by sol-gel method: Variation of physicochemical characteristics and photocatalytic activity due to difference in calcination temperature. Indones. J. Chem. 2021, 21, 108–117. [Google Scholar] [CrossRef]
  84. Pizarro-Castillo, L.; Mera, A.C.; Cabello-Guzmán, G.; Bernal, C.; Bizarro, M.; Carrasco, C.; Blesa, M.-J.; Rodríguez, C.A. The effect of sintering temperature on the properties of the BiOCl films for potential application in DSSC. Ceram. Int. 2023, 49, 16305–16313. [Google Scholar] [CrossRef]
  85. Younis, S.; Taj, A.; Mujahid, A.; Yazdi, A.A.; Xu, J.; Bhatti, H.N.; Khan, W.S.; Bajwa, S.Z. Ultrathin 2D bismuth oxychloride nanosheets as novel catalytic interfaces for detection of biomolecules. Mater. Sci. Eng. B 2022, 278, 115651. [Google Scholar] [CrossRef]
  86. Premalatha, N.; Miranda, L.R. A magnetic separable 3D hierarchical BiOI/rGO/Fe3O4 catalyst for degradation of Rhodamine B under visible light: Kinetic studies and mechanism of degradation. Mater. Sci. Eng. B-Adv. 2022, 276, 115576. [Google Scholar] [CrossRef]
  87. Ahmad, M.; Qureshi, M.T.; Rehman, W.; Alotaibi, N.H.; Gul, A.; Hameed, R.S.A.; Al Elaimi, M.; Abd El-kader, M.F.H.; Nawaz, M.; Ullah, R. Enhanced photocatalytic degradation of RhB dye from aqueous solution by biogenic catalyst Ag@ZnO. J. Alloys Compd. 2022, 895, 162636. [Google Scholar] [CrossRef]
  88. Gao, C.P.; Liu, G.; Liu, X.M.; Wang, X.Y.; Liu, M.M.; Chen, Y.L.; Jiang, X.; Wang, G.X.; Teng, Z.C.; Yang, W.L. Flower-like n-Bi2O3/n-BiOCl heterojunction with excellent photocatalytic performance for visible light degradation of Bisphenol A and Methylene blue. J. Alloys Compd. 2022, 929, 167296. [Google Scholar] [CrossRef]
Materials 17 00957 g001

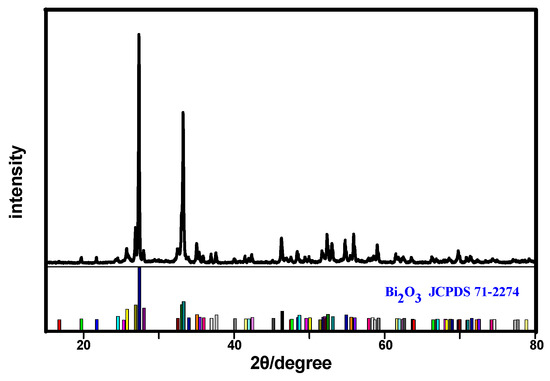

Figure 1. XRD pattern of the as-synthesized Bi2O3 microrods.
Figure 1. XRD pattern of the as-synthesized Bi2O3 microrods.
Materials 17 00957 g001
Materials 17 00957 g002
Figure 2. POM images of the Bi2O3 microrods with different contents of NaOH: (a) 0.3 g, (b) 0.35 g, and (c) 0.4 g; (d) SEM images of the microrods with 0.4 g of NaOH.
Figure 2. POM images of the Bi2O3 microrods with different contents of NaOH: (a) 0.3 g, (b) 0.35 g, and (c) 0.4 g; (d) SEM images of the microrods with 0.4 g of NaOH.
Materials 17 00957 g002
Materials 17 00957 g003

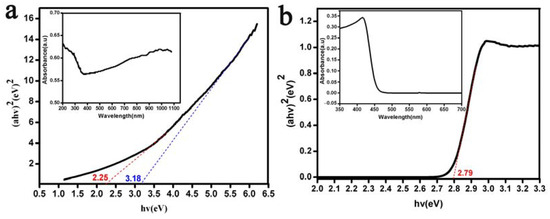

Figure 3. (a) UV-vis absorption and (b) UV-vis DSR spectra of the Bi2O3 microrods.
Figure 3. (a) UV-vis absorption and (b) UV-vis DSR spectra of the Bi2O3 microrods.
Materials 17 00957 g003
Materials 17 00957 g004

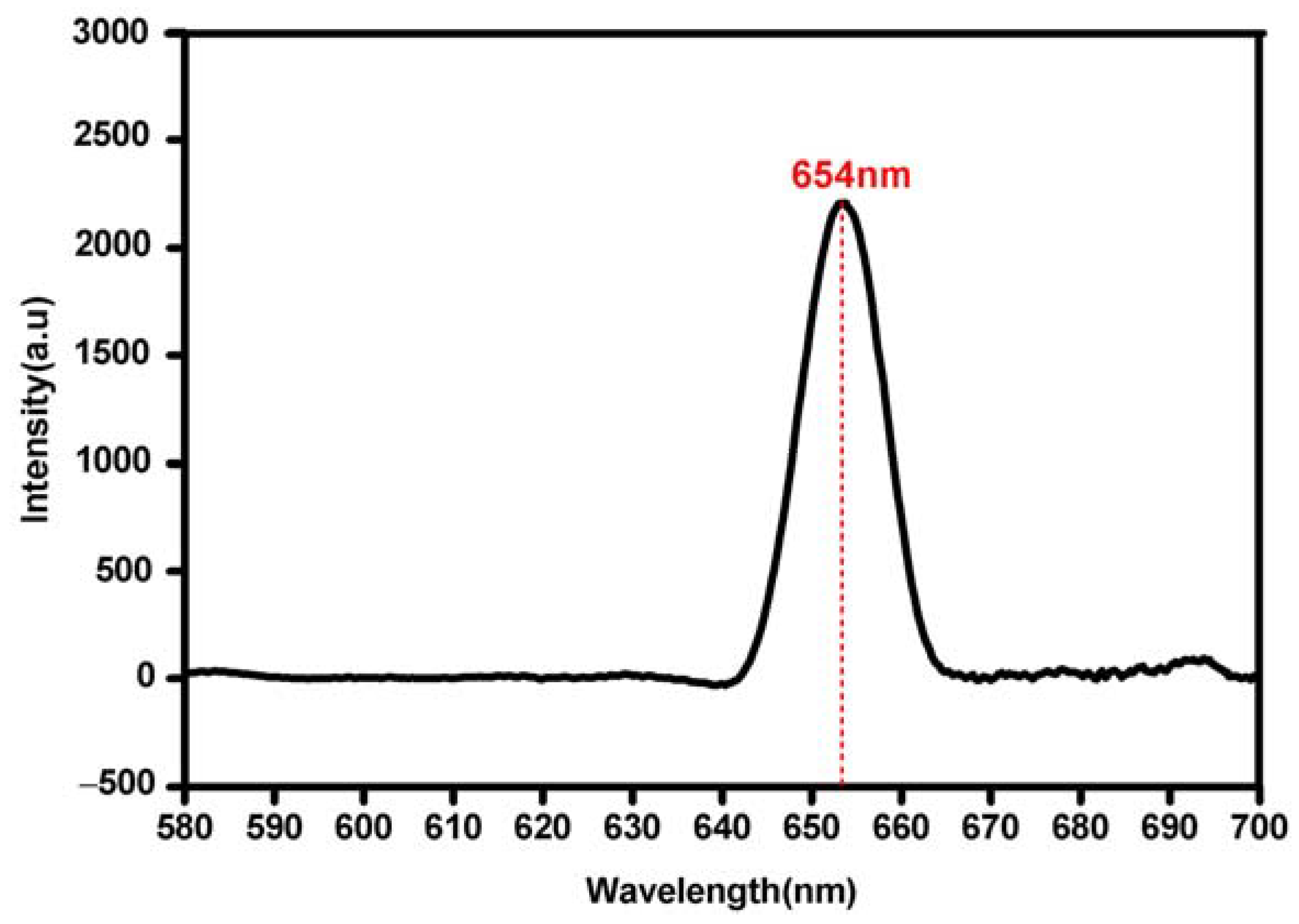

Figure 4. PL spectra of the as-synthesized Bi2O3 microrods.
Figure 4. PL spectra of the as-synthesized Bi2O3 microrods.
Materials 17 00957 g004
Materials 17 00957 g005

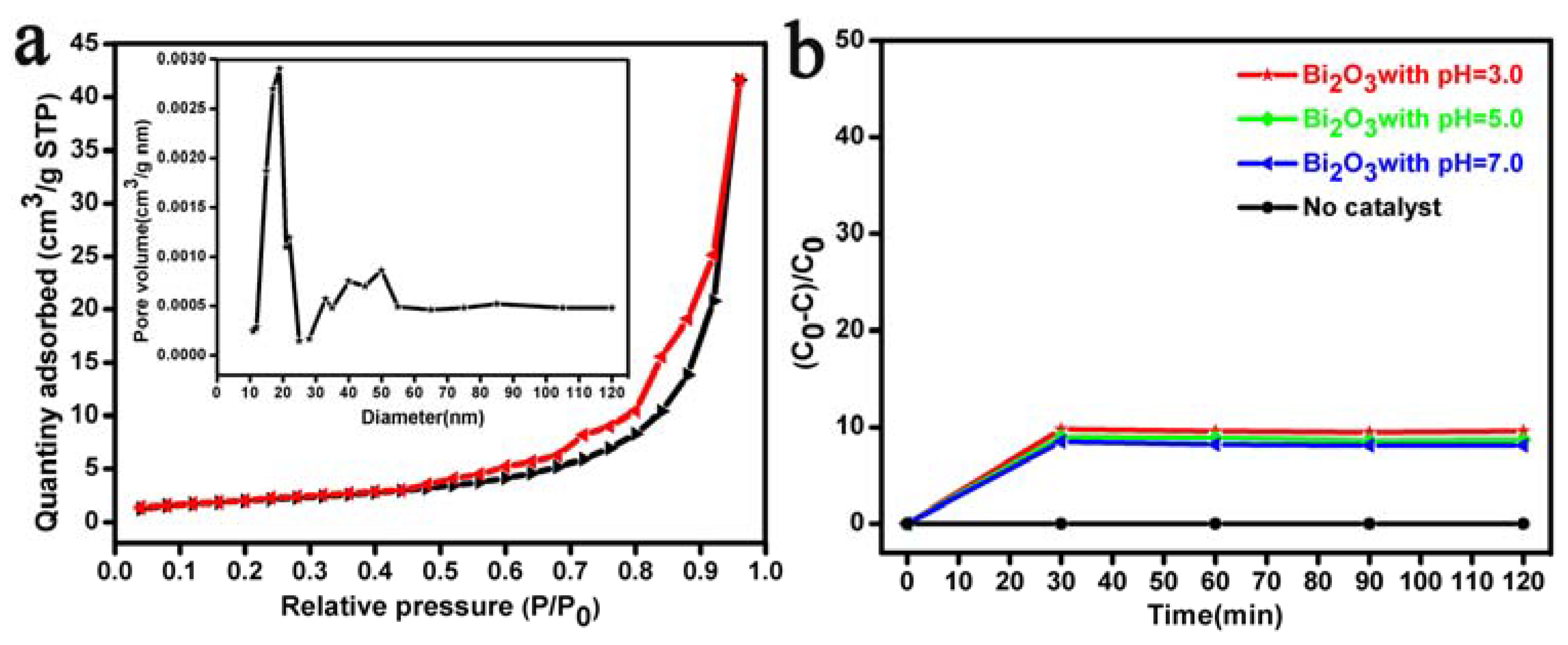

Figure 5. (a) N2 adsorption–desorption isotherms (the inset is their aperture distribution curve in (a)) of the Bi2O3 microrods; (b) blank experiment on the degradation of RhB solutions by Bi2O3 microrod catalysts in a dark room at a pH of 3.0–7.0.
Figure 5. (a) N2 adsorption–desorption isotherms (the inset is their aperture distribution curve in (a)) of the Bi2O3 microrods; (b) blank experiment on the degradation of RhB solutions by Bi2O3 microrod catalysts in a dark room at a pH of 3.0–7.0.
Materials 17 00957 g005
Materials 17 00957 g006

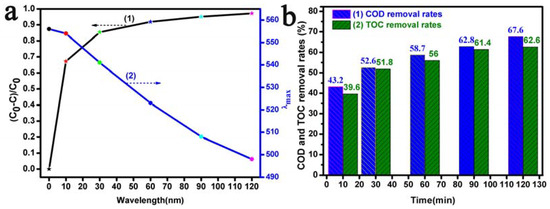

Figure 6. (a) (1) Degradation efficiencies and (a) (2) λmax shifts; (b) efficiency of the removal of COD and TOC from RhB solutions with Bi2O3 microrods as photocatalysts in a typical photocatalytic experiment at a pH of 3.0.
Figure 6. (a) (1) Degradation efficiencies and (a) (2) λmax shifts; (b) efficiency of the removal of COD and TOC from RhB solutions with Bi2O3 microrods as photocatalysts in a typical photocatalytic experiment at a pH of 3.0.
Materials 17 00957 g006
Materials 17 00957 g007
Figure 7. (a) The degradation rate and (b) corresponding pseudo-first-order kinetic data (the variation of the rate constant is presented in the lower inset) of RhB using the as-prepared Bi2O3 microrods as a photocatalyst at the pH values of (1) 3.0, (2) 5.0, and (3) 7.0.
Figure 7. (a) The degradation rate and (b) corresponding pseudo-first-order kinetic data (the variation of the rate constant is presented in the lower inset) of RhB using the as-prepared Bi2O3 microrods as a photocatalyst at the pH values of (1) 3.0, (2) 5.0, and (3) 7.0.
Materials 17 00957 g007
Materials 17 00957 g008
Figure 8. (a) Cycling experiments and (b) XRD images of the Bi2O3 microrods after the sixth cycle of degradation of RhB with pH values of 3.0 and 7.0.
Figure 8. (a) Cycling experiments and (b) XRD images of the Bi2O3 microrods after the sixth cycle of degradation of RhB with pH values of 3.0 and 7.0.
Materials 17 00957 g008
Materials 17 00957 g009
Figure 9. (a–c) The results of XPS and (d) FTIR analysis of pre- and post-photodegradation Bi2O3 microrods.
Figure 9. (a–c) The results of XPS and (d) FTIR analysis of pre- and post-photodegradation Bi2O3 microrods.
Materials 17 00957 g009
Materials 17 00957 g010
Figure 10. LC-MS spectra of the RhB solution before and after photodegradation with Bi2O3 microrods as a photocatalyst under irradiation.
Figure 10. LC-MS spectra of the RhB solution before and after photodegradation with Bi2O3 microrods as a photocatalyst under irradiation.
Materials 17 00957 g010
Materials 17 00957 g011
Figure 11. The possible degradation pathways of RhB with Bi2O3 microrods at a pH value of 3.0.
Figure 11. The possible degradation pathways of RhB with Bi2O3 microrods at a pH value of 3.0.
Materials 17 00957 g011
Materials 17 00957 g012
Figure 12. (a) Degradation profiles of RhB with Bi2O3 microrods without a scavenger and with glucose, IPA, and AC as scavengers of h+, •OH, and •O−2. (b) Degradation mechanism of Bi2O3 microrods at pH values of (1) 7.0 and (2) 3.0.
Figure 12. (a) Degradation profiles of RhB with Bi2O3 microrods without a scavenger and with glucose, IPA, and AC as scavengers of h+, •OH, and •O−2. (b) Degradation mechanism of Bi2O3 microrods at pH values of (1) 7.0 and (2) 3.0.
Materials 17 00957 g012
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ma, D.; Tang, J.; He, G.; Pan, S. Investigation of the Photocatalytic Performance, Mechanism, and Degradation Pathways of Rhodamine B with Bi2O3 Microrods under Visible-Light Irradiation. Materials 2024, 17, 957. https://doi.org/10.3390/ma17040957

AMA Style

Ma D, Tang J, He G, Pan S. Investigation of the Photocatalytic Performance, Mechanism, and Degradation Pathways of Rhodamine B with Bi2O3 Microrods under Visible-Light Irradiation. Materials. 2024; 17(4):957. https://doi.org/10.3390/ma17040957

Chicago/Turabian Style

Ma, Dechong, Jiawei Tang, Guowen He, and Sai Pan. 2024. "Investigation of the Photocatalytic Performance, Mechanism, and Degradation Pathways of Rhodamine B with Bi2O3 Microrods under Visible-Light Irradiation" Materials 17, no. 4: 957. https://doi.org/10.3390/ma17040957

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
