1. Introduction
High-entropy alloys (HEAs) and their nitrides (HENs) are recently discovered structural [
1] and functional [
2] materials that are already involved in the development of many new and important high-tech applications [
3,
4] due to their outstanding properties such as hardness and strength [
5,
6], fatigue resistance [
7,
8], fracture toughness [
9], high-temperature oxidation resistance [
10,
11], corrosion resistance [
12,
13], and electrical and magnetic properties [
14,
15]. These HEA properties have been attributed to four effects: (a) the high entropy, offering the thermodynamics for stabilizing the simple structure; (b) the sluggish diffusion effect, which slows the growth of second phase nuclei out of a single-phase solid solution; (c) the severe lattice distortion due to the presence of atoms having different radii, which provides excess strength and contributes to the slow kinetics in HEAs; and (d) the cocktail effect, which could synergistically enhance the properties by alloying [
1,
2].
As a result of their particularly high mechanical properties (hardness, ballistic impact, wear) [
16,
17] and good behavior in chemical environments, high-entropy alloys from the AlCoCrFeNi system have been among the most studied metallic materials in recent years [
18,
19,
20,
21]. The microstructures of alloys largely depend on the proportion of alloying elements. Thus, chemical elements such as Al, Cr, and Fe are bcc phase formers, while Ni, Co, and N are fcc stabilizing elements.
Many high-tech applications in the nuclear industry, photocatalysis, or corrosion protection [
3,
4,
12,
13,
22,
23,
24,
25,
26] require the use of thin films, which also have cost benefits, since some elements used in HEA are rather expensive. HEA and HEN thin films were deposited by magnetron sputtering [
22] or pulsed laser deposition (PLD) [
23]. Recently, we described the deposition of thin HEA and HEN films on Si substrates using the PLD technique starting from AlCoCrFeNi
x alloys with a nominal Ni molar content, x, of 0.4, 1.2, and 2.0, respectively [
27]. The PLD technique has the advantage that it requires small area targets and the optimization of the growth process is rather simple. Elemental compositional analysis performed using Energy Dispersive X-ray Spectroscopy (EDS) in a Scanning Electron Microscope (SEM) confirmed that the PLD technique provided a good stoichiometric transfer from the target to thin film. The bulk alloys used for targets were obtained by the Vacuum Arc Remelting (VAR) method, varying the nickel content upon alloying from high purity raw materials. More details about the VAR method and bulk HEAs properties can be found in refs. [
28,

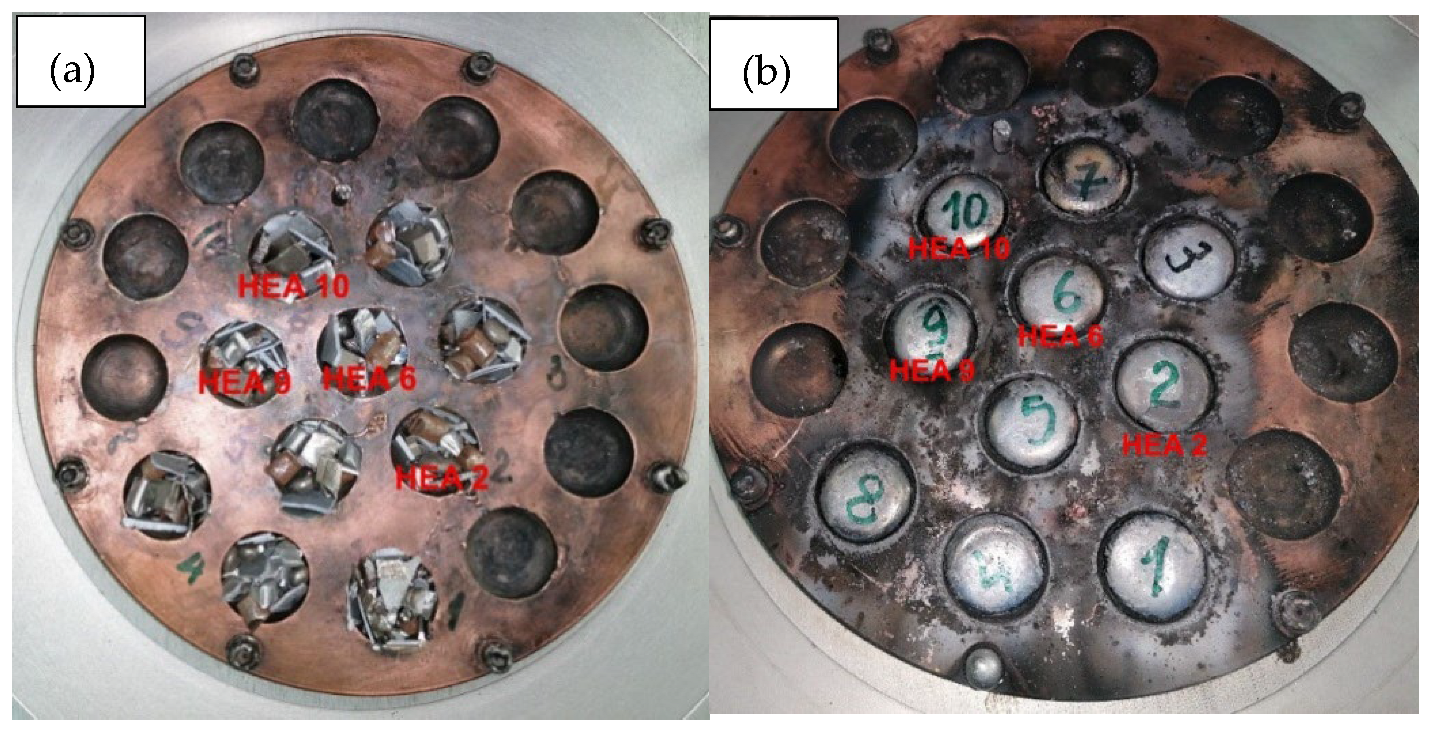

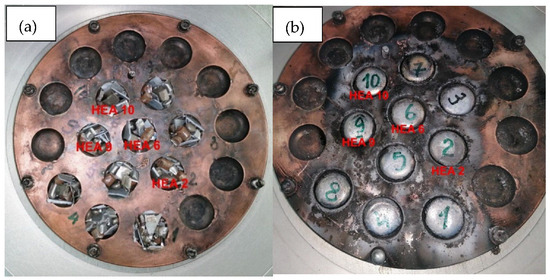

29]. After the synthesis process, the elaborated alloys were used as targets for thin films’ growth using the PLD technique. The structure, chemical elemental composition, surface, and electrochemical and mechanical properties of thin films deposited on Ti substrates were analyzed to understand the effect of composition on the crystalline structure and their corrosion resistance. These studies are required if one wants to explore the use of HEA and HEN thin films as protective coatings for bio-medical applications.
3. Results and Discussion

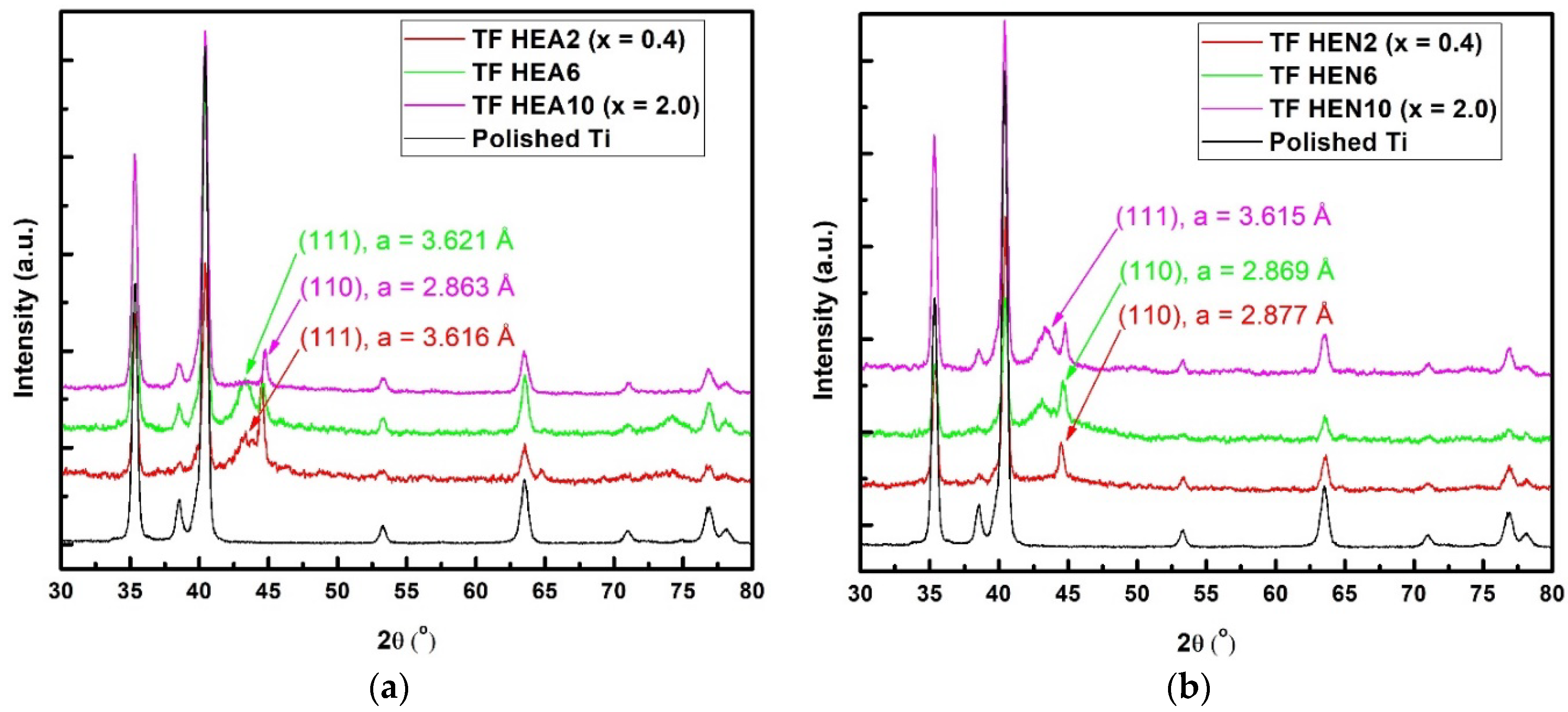

The GIXRD patterns acquired from a bare Ti substrate and films deposited on Ti under high vacuum or N
2 atmosphere from the three different targets used in this study are displayed in

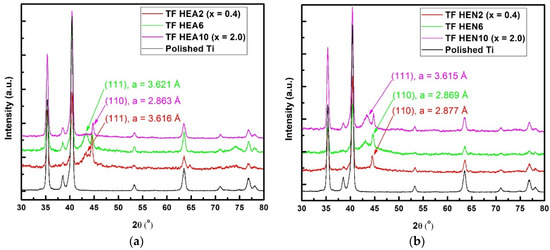

Figure 2. The GIXRD patterns acquired from HEN2 and HEA10 films exhibited only the peaks corresponding to the bcc phase, while the rest of the films exhibited peaks from both the fcc and bcc phases. It seems that during the high nonequilibrium deposition process characteristic for PLD, the Ni concentration no longer plays the most important role in deciding which crystalline phase the film will adopt. The lattice parameters of the bcc phases were quite close to the lattice parameter of pure bcc Fe (a = 2.8665 Å), while the lattice parameters of the fcc phases were close to those of pure Ni (a = 3.5245 Å). The main diffraction peaks’ positions and grain sizes estimated using the HighScorePlus 4.1 software from Malvern are displayed in
Table 2. It was found that for all deposited films the bcc phase had larger crystallites than the fcc phase. Also, the HEN6 film exhibited smaller crystallites and a larger lattice parameter for the fcc phase, while the bcc phase exhibited a lattice parameter smaller than that of the target used.

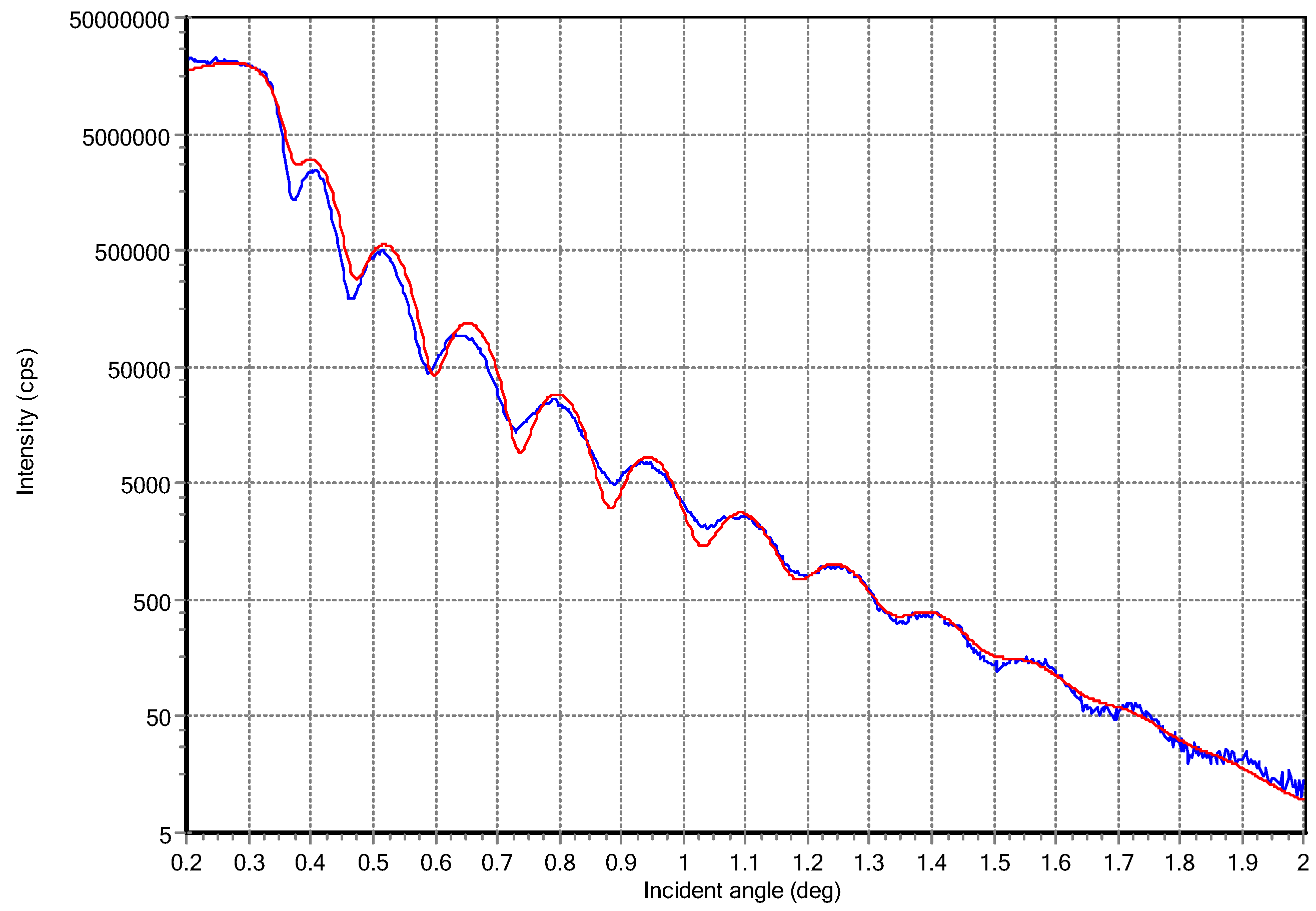

A typical XRR curve intensity acquired at very low incidence angles from a very thin HEA2 film, deposited for 2 min only, and its simulation obtained using the software package Reflectivity version 1.3a, are displayed in
Figure 3. The simulation results indicated a density of 5.9 g/cm

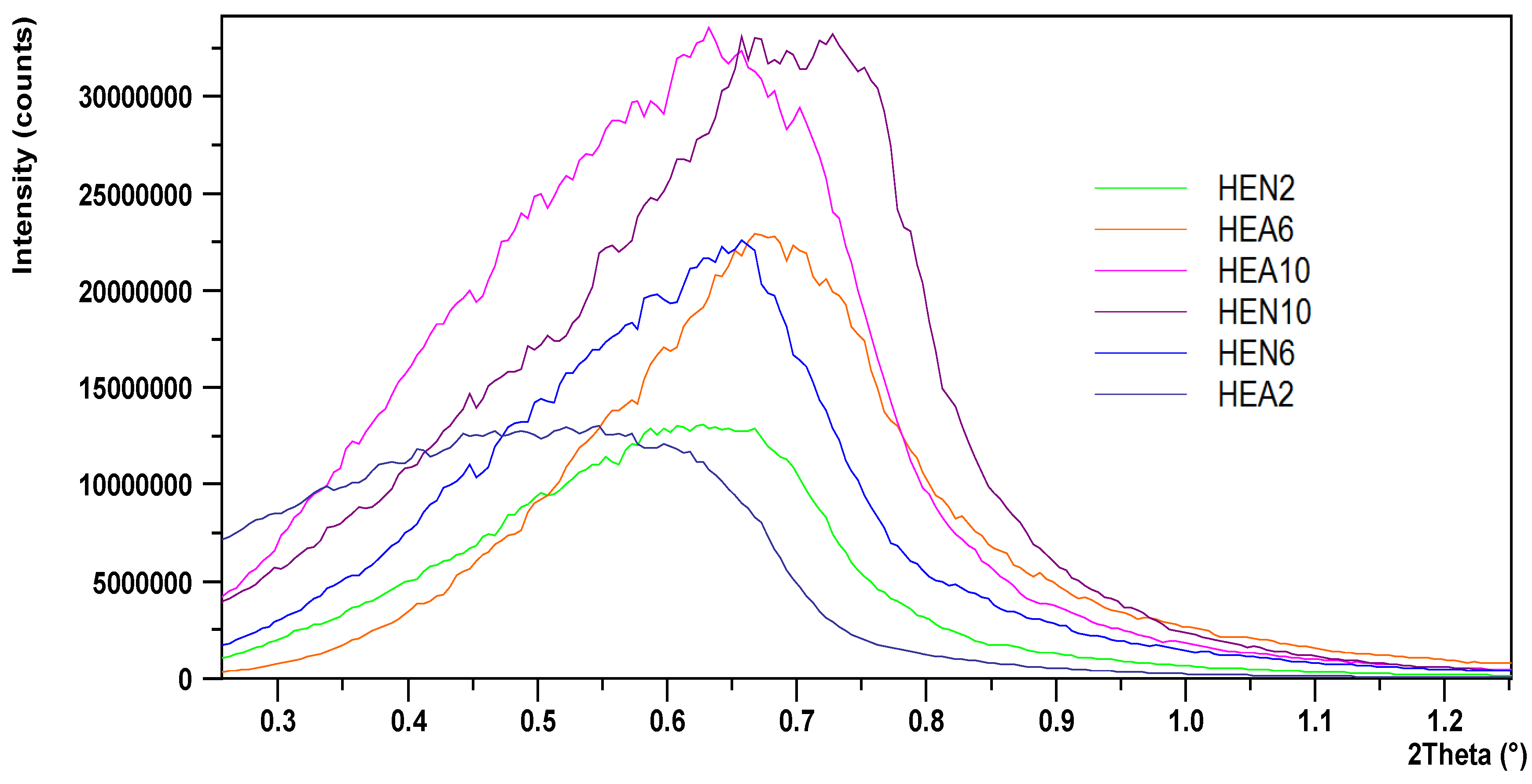

3, a surface roughness of around 1 nm, and a thickness of 25.7 nm, which gives a deposition rate of 0.0054 nm/pulse. Films thicker than 125 nm that were used for electrochemical measurements exhibited rougher surface morphologies and did not show oscillations to estimate their thickness based on XRR measurements. The region of the critical angle, which is proportional to the film’s density, for the acquired XRR curves from the deposited films, is displayed in
Figure 4. The curves were vertically shifted for a better view of the differences. One can note an increase in the critical angle values for films containing more Ni, since Ni has a higher mass density than Al. The mass densities increased from 5.9 g/cm
3 for HEA2 film up to 8.4 g/cm
3 for HEN10 film. Also, another trend that was observed was that for the films deposited under N
2, the critical angle was larger than the values measured for films deposited under vacuum, apart from HEN6 film, which exhibited a lower density that HEA6 film.
The compositions of the synthesized targets and deposited thin films measured by EDS are presented in
Table 3. The nickel concentration in experimental alloys was increased from above 9 at. % to more than 30 at. %. This increase in the percentage of nickel led to a gradual reduction in the concentration of other chemical elements.
The results for hardness, nH, and reduced Young’s modulus obtained from nanoindentation measurements are displayed in
Table 4. There could be some errors due to the rather limited thickness of the deposited films (around 175 to 200 nm, calculated based on the deposition rate and deposition time), so we tried to use similar penetration depths (hc) for the measurements. One could observe that with the increase in the nickel content, the nanohardness and the reduced Young’s modulus, E
r, values of the films also increased, which was just the opposite of the behavior observed for bulk alloys (targets).
The second observation is that the nitride HEA films exhibited higher hardness values than the films deposited under vacuum. We think that these results, obtained using very small indentation depths, were more relevant for these thin films than those reported earlier [
27]. Micro-scratch tests with the diamond tip of the nanoindentor were also performed. The films were very adherent, with no cracks or delamination being detected up to a lateral force of 10 mN. The estimated friction coefficients between the diamond tip and the films, which are also displayed in
Table 4, were very low.
XPS investigations indicated that the composition of the deposited films on Ti substrates was like that of employed targets and of films deposited on Si and reported in ref. [
27]. When comparing the lateral homogeneity of the composition, it was observed that PLD-grown films, regardless of the substrate used, were better than the targets. Since the deposition rate was rather low, the laser beam had enough time to scan a large portion of the target surface for a 0.1 nm increase in the thickness of the deposited film; therefore, the film’s composition corresponded to the average target composition on the laser track and it was very uniform. XPS investigations also revealed that the deposited films contained less than 5–8 at.% oxygen, while those deposited under N
2 contained several percentages of N atoms bonded in metallic nitride compounds.
OCP represents a parameter that varies due to instability at the film surface–solution interface, so therefore it indicates the corrosion tendency of the investigated material. If the OCP value increases with time, then a passive layer will form on the film surface. This growth is attributed to the passive layer thickening that becomes an even better protector, giving the film anti-corrosive properties. As one can observe in
Table 5, all investigated films have the tendency to passivate when immersed in Ringer’s solution, with the highest increase being observed for the thin HEN6 film. The pure Ti sample has an insignificant variation due to the presence on its surface of a high-quality passive layer of titanium dioxide, TiO
2, which is protective and inert in contact with Ringer’s solution.
The repassivation potential represents the potential at which the passive layer is again intact and the highest values, close to that of Ti, as one can observe in

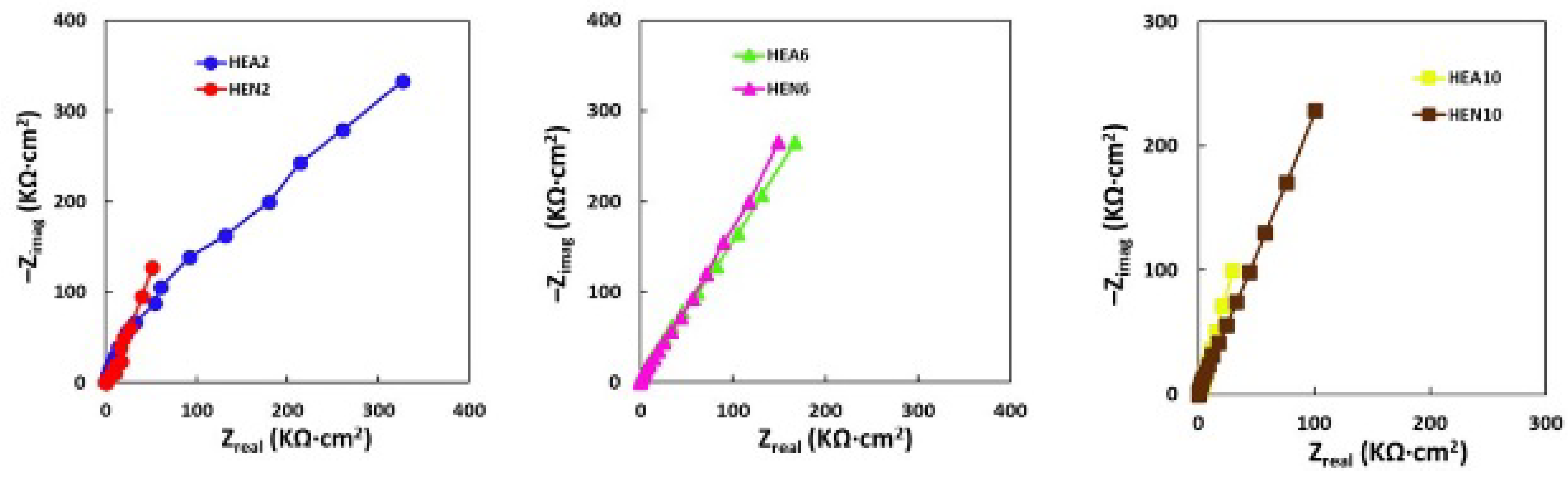

Table 6, was measured for the thin HEN6 film. This means that among all investigated samples this one had the largest stability domain. Such layers are not just a chemical barrier, but also a physical one in the corrosion process. For all samples, a near-capacitive response was detected and characterized in Nyquist plots, as one can see for instance on each row of
Figure 5 below.

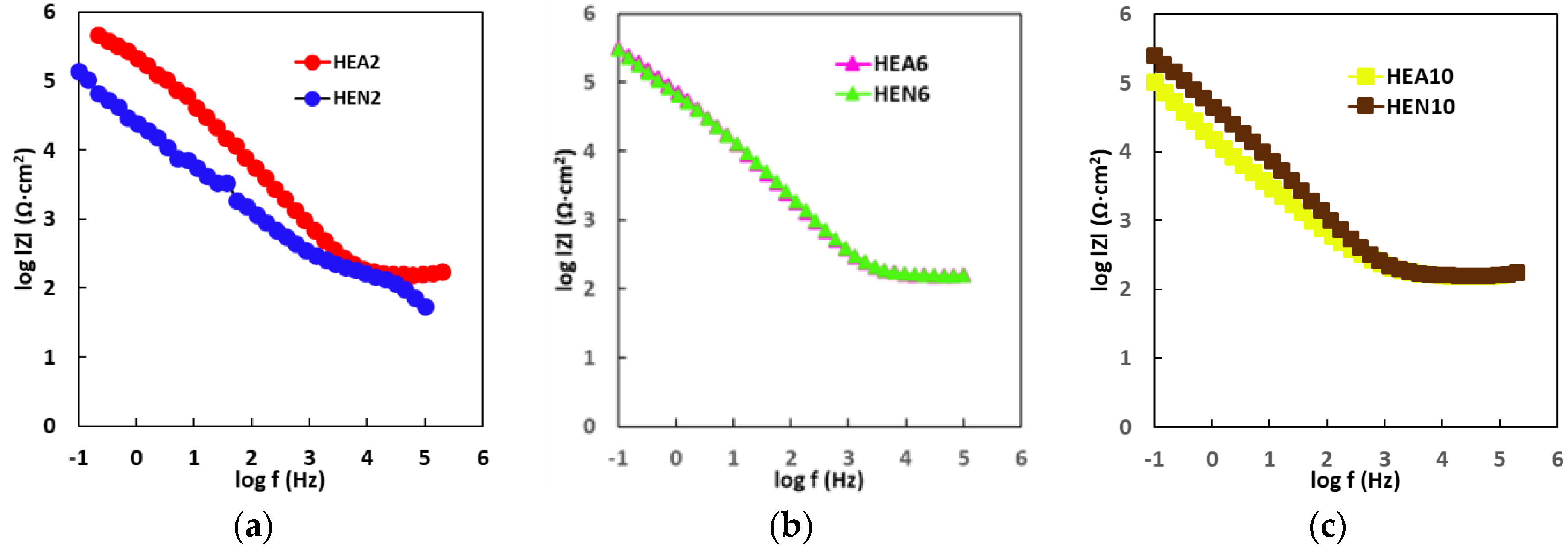

As one can observe from
Figure 6, where Bode- |Z| plots are displayed, for high frequencies almost constant values (horizontal line) of log |Z| versus log (f) were measured, with a phase angle approaching 0° (this is the response of simulated body fluid impedance) in the higher frequency band (1–100 kHz). From the same figure, it appears that the Bode-phase plots show a linear slope the Bode-phase plots of about −1 in log |Z| as the frequency diminishes; meanwhile, the phase angle values approach 80° in the wide low- and mid-frequency range (see

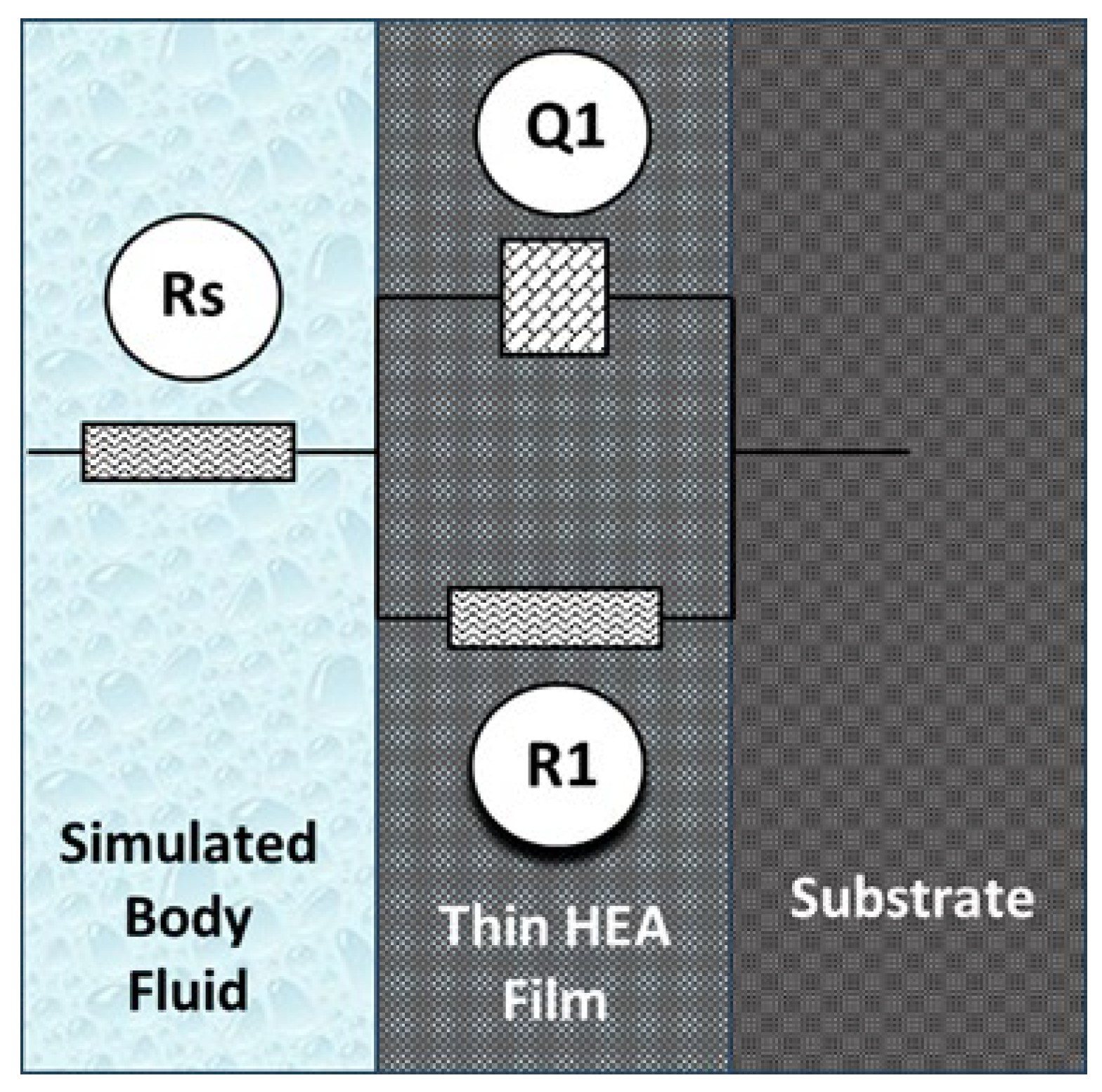

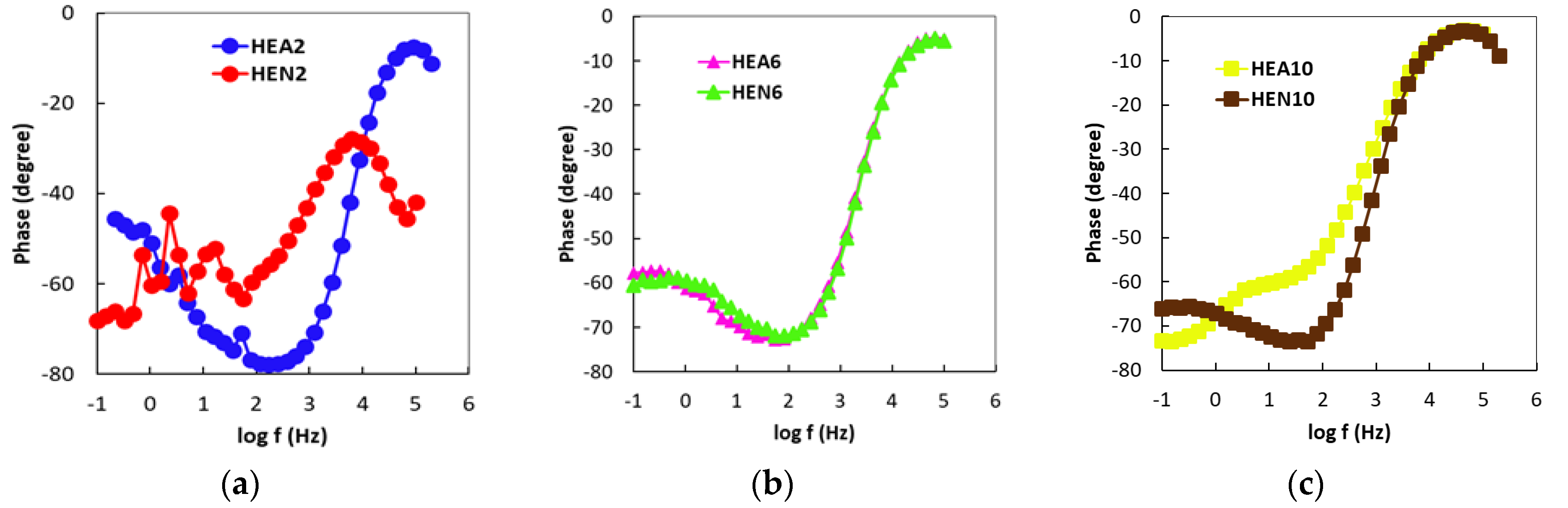

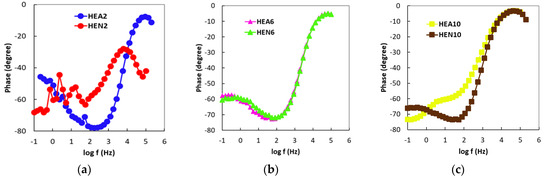

Figure 7). Note that this is the expected characteristic behavior of a compact passive film capacitor. The equivalent circuit illustrated in
Figure 8 represents the simplest circuit that can be used to fit the experimental data, considering only the charge transfer process. The following components are included in the circuit that has been proposed:
- -
R1 represents the resistance of the electrolyte, and the value of this resistance can be determined by sweeping at high frequencies.
- -
The charge transfer resistance component, Rct, is denoted by the letter R2.
- -
It is possible to establish a connection between the interactions that take place at the electrode/electrolyte interface and the capacitance of the double layer Cdl called Q1. In order to take into account the heterogeneities of the passivated surface, a constant phase element (CPE) has been selected as an alternative to an ideal capacitance.
After fitting the experimental data with the equivalent circuit and comparing the values of R2, as shown in
Table 6 for all samples, it can be concluded that the lowest resistance is found for HEN10 and HEN2. For the rest of the samples, the corrosion resistance was higher than that of pure Ti. From all films tested, HEN6 exhibited the best corrosion properties. It is worth mentioning that this film also exhibited the highest N concentration [
35,
36] and the smallest grain size for both bcc and fcc phases.
4. Conclusions
High-entropy alloys from the AlCoCrFeNix system, with Ni molar ratio x equal to 0.4, 1.2, and 2.0, respectively, were obtained by melting under a protective atmosphere of high-purity argon, with minimal losses of the constituent chemical elements during the technological process. By increasing the nickel content, a change in the microstructure, from pure bcc to a mixture of bcc + fcc phases and finally to a pure fcc structure, was observed. These HEA materials were used as targets in a PLD system to grow thin films, either under high vacuum or a N2 atmosphere on Si and highly polished Ti substrates. The deposited films generally reproduced the targets’ chemical composition quite well, but not their phase structure. Films deposited under nitrogen incorporated nitrogen atoms in their lattice, bonded to metal atoms in nitride type compounds, and exhibited a higher density, higher hardness, and better electrochemical properties than the films deposited under high vacuum.
The measured OCP values increased over time for all films, implying that a passive layer was forming on their surface when immersed in SBF solution, with the HEN6 film exhibiting the highest increase. The highest repassivation potential was exhibited by the same film. Impedance measurements indicated high corrosion resistance values for HEA2, HEA6, and HEN6 samples. Overall, HEN6 films, which showed the smallest grain sizes for both phases and the highest N content, exhibited the best corrosion behavior among the investigated films [
35,
36]. It was noticed that for 24 h of immersion in SBF solution, this film was also a physical barrier to the corrosion process, not only a chemical one. It can be concluded that PLD is an excellent technique to obtain thin HEA or HEN films starting from HEA-synthesized samples, especially when the synthesized alloys used as targets have rather small dimensions.
