Comparative Review of Marshall and Superpave Mix Designs: Enhancing Asphalt Performance with Polymers

by
Gulzar Hussain Jatoi
1,2,
Giuseppe Loprencipe
1,* and
Laura Moretti
1
1
Department of Civil, Building and Environmental Engineering, Sapienza University of Rome, Via Eudossiana 18, 00184 Rome, Italy
2
Department of Civil Engineering, Aror University of Art, Architecture, Design and Heritage, RCW Rohri Bypass, Sukkur 65170, Sindh, Pakistan
*
Author to whom correspondence should be addressed.
Materials 2025, 18(18), 4273; https://doi.org/10.3390/ma18184273
Submission received: 22 July 2025 / Revised: 29 August 2025 / Accepted: 9 September 2025 / Published: 12 September 2025
(This article belongs to the Special Issue Sustainability in Asphalt, Concrete and Pavement Materials: Design, Performance, and Characterization)
Browse Figures
Versions Notes

Abstract

The durability of asphalt pavements is crucial for sustainable road infrastructures. This systematic review compares the Marshall and Superpave asphalt mix design protocols, with a particular focus on the integration of polymer-modified bitumen (PMB) and rejuvenators. Although the Marshall method remains widely used for its simplicity and cost-efficiency, its empirical basis limits its effectiveness to meet modern pavement performance demands. In contrast, the Superpave system offers improved resistance to rutting, longer fatigue life, and better mitigation of moisture damage. The review traces the evolution of asphalt mix design, identifies current challenges, and emphasizes the need for transitioning toward performance-based frameworks. Special attention is given to the incorporation of polymers such as Styrene–Butadiene–Styrene (SBS), Styrene–Butadiene–Rubber (SBR), and Polyethylene (PE), which significantly enhance the mechanical properties of asphalt mixtures. The role of rejuvenators in restoring aged binders and enabling pavement recycling is also examined. Finally, the manuscript provides strategic recommendations for adopting Superpave to enhance pavement durability and reduce lifecycle maintenance costs. Overall, this comprehensive review advances knowledge on asphalt mix design, fostering innovation and sustainability while promoting long-term resilience in road pavement infrastructures.

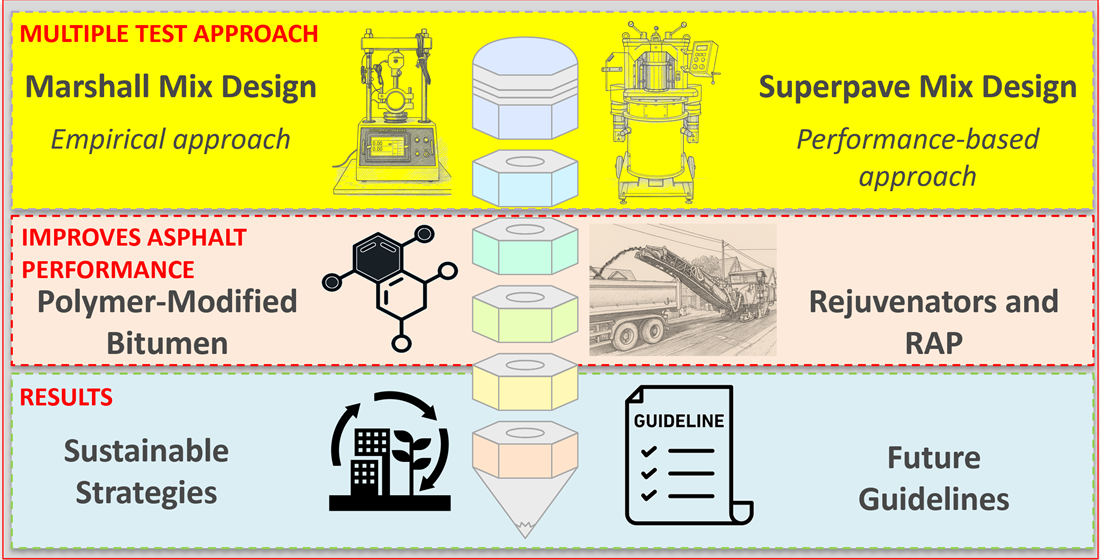

Graphical Abstract

1. Overview of Asphalt Mix Design

As road infrastructure faces increasing traffic volumes and higher service demands, performance-based materials have become essential in addressing road durability challenges [1]. The design of asphalt mixtures plays a pivotal role in long-lasting and high-performing pavements [2]. The Marshall mix design remains widely used due to its simplicity, low equipment requirements, and cost-effectiveness [3]. However, despite these advantages, the Marshall method is inherently empirical, relying primarily on parameters such as stability and flow, which limit its ability to predict long-term field performance under varying climatic conditions and traffic load [3]. To address these limitations, the Strategic Highway Research Program introduced the Superpave (Superior Performing Asphalt Pavements) mix design approach. Superpave integrates mechanistic–empirical principles, incorporating binder performance grade (PG), aggregate angularity, and volumetric properties, while simulating field compaction more accurately through the gyratory compactor. This results in better alignment between laboratory predictions and field performance [4,5]. The Superpave system allows engineers to tailor mixtures to specific climate and traffic conditions, thereby offering enhanced resistance to rutting, fatigue, and moisture susceptibility [3,5]. The transition toward performance-oriented design is particularly critical in rapidly urbanizing regions with escalating traffic demand. For instance, studies in Pakistan have demonstrated that the widespread use of paving-grade 60/70 binders fails to meet performance requirements, reducing pavement lifespan and increasing maintenance works [3,5]. Farooq et al. [5] reported that Superpave mixtures had a higher indirect tensile strength (ITS) and resilient modulus (MR) than Marshall mixtures, indicating improved performance under traffic-induced stresses. Similarly, Zumrawi and Edrees [3] found that conventional mixes provided poorer rutting and thermal crack resistance compared to Superpave mixes in hot climate regions [3]. In this context, polymer-modified bitumens (PMBs) containing SBS or SBR have been shown to effectively improve fatigue life and resistance to permanent deformation [6]. The integration of performance-based approaches further facilitates material compatibility with local climate zones while enabling the utilization of recycled materials and sustainable practices [7].
Bitumen, the most expensive component in asphalt mixtures, plays a pivotal role in determining pavement performance, particularly under extreme climatic conditions and heavy traffic demands [8]. Polymer modification has emerged as a critical advancement for enhancing binder properties. This process involves blending polymers with the base binder to improve viscoelastic behavior [9]. In recent years, PMBs, especially those modified with Styrene–Butadiene–Styrene (SBS), Styrene–Butadiene Rubber (SBR) and rubber, and plastomers including Polyethylene (PE), Polypropylene (PP) and Ethylene-Vinyl Acetate (EVA), have further demonstrated improvements in the mechanical performance of asphalt mixtures (Figure 1).
PMB has significantly enhanced rutting resistance, thermal stability, fatigue life, crack resistance, elasticity, and aging performance [9,10]. PMBs are particularly effective in high-temperature environments where unmodified bitumen is prone to excessive deformation. The interaction between bitumen and polymers can be either physical or chemical, depending on the polymer type. For instance, SBS absorbs maltenes from the binder, swelling up to nine times its original volume and forming a gel-like network that greatly improves elasticity and cohesion [11]. In addition, the incorporation of rejuvenators plays a critical role in restoring the rheological properties of aged binders, thereby enabling the effective utilization of reclaimed asphalt pavement (RAP) and supporting the circular economy within the asphalt industry [7]. Their effectiveness has been confirmed by the observed reduction in global virgin bitumen consumption between 2021 and 2024 [9,12]. By facilitating RAP recycling, rejuvenators contribute to the production of asphalt mixtures with improved durability and mechanical performance [13]. This not only strengthens recycling loops within the asphalt sector but also saves natural resources through reduced reliance on virgin bitumen.
The objective of review is to investigate the influences of polymer-modified asphalt (PMA) on the performance of the asphalt mixtures with respect to fatigue, rutting, and cracking resistance, and moisture susceptibility. The evaluation compares the performances achieved through the Marshall Mix Design and Superpave Mix Design, with the aim of determining whether recent changes in mix design have significantly influenced the polymers utilization. Furthermore, the review discusses how these advancements in mix design affect the long-term durability and service life of asphalt pavements, with particular emphasis on the effectiveness of rejuvenators in enhancing recycled asphalt content and supporting sustainable pavement practices.

2. Types of Polymers

Elastomers are thermoplastic polymers characterized by their rubber-like elasticity. Common examples include SBS, SBR, styrene–isoprene–styrene (SIS), and styrene–ethylene–butylene–styrene (SEBS) [14,15]. These polymers are widely applied in asphalt modification because they enhance elastic recovery while improving fatigue and crack resistance. In particular, SBS and SBR have demonstrated significant improvements in elastic recovery, fatigue resistance, and crack mitigation, especially under low-temperature conditions [9,10,16,17]. When mixed with bitumen, elastomers swell and form a continuous elastic network that substantially improves the rheological properties of bitumen under varying stress and temperature conditions [12,18]. This swelling process undergoes visco-rubber/viscoelastic phase inversion, producing a polymer-rich phase that allows viscoelastic behavior to dominate the asphalt matrix [12]. The key benefits of elastomer modification include enhanced elastic recovery, improved resistance to fatigue and cracking, superior low-temperature performance, and increased resistance to aging and oxidation [18,19,20].
According to Table 1 [9], even small amounts of elastomer can significantly reduce asphalt penetration while raising the softening point of the binder. For instance, the addition of 5% SBS by weight can increase the softening point to as high as 95 °C [21]. Moreover, elastomer-modified binders demonstrate elastic recovery exceeding 50% at 5 °C [3,21]. SBS elastomers are also employed to enhance elastic recovery and rutting resistance in mixtures containing waste motor oils, which help reduce binder viscosity and lower mixing and compaction temperatures [22].
Plastomers are thermoplastic polymers that behave like plastics and are primarily used to enhance the stiffness, rigidity, and rutting resistance of asphalt binders. However, their incorporation often reduces binder flexibility at low temperatures. Common plastomers used in asphalt modification include polyethylene (PE), polypropylene (PP), ethylene-vinyl acetate (EVA), ethylene/methacrylic acid copolymer (EMA), and ethylene-butyl acrylate copolymer (EBA) [9,10]. Among these, EVA is one of the most widely applied plastomers, known for improving the rigidity, stiffness, and rutting resistance of bitumen binders. Nonetheless, EVA modification may also decrease the flexibility of bitumen under low-temperature conditions. According to Table 2, the performance of plastomer-modified asphalt varies depending on the type and dosage of plastomer used. For instance, asphalt modified with a small amount of EVA undergoes significant crystallization, yielding properties comparable to low-density polyethylene (LDPE). At moderate concentrations, EVA enhances binder compatibility and storage stability [23]. However, when the EVA content exceeds 4 wt%, the degree of crystallization decreases, which may lower resistance to low-temperature cracking [23,24,25]. Moreover, excessively high EVA dosages can result in poor compatibility with bitumen, thereby diminishing the overall performance benefits [25]. Although plastomers are generally cost-effective, they significantly improve rutting resistance and high-temperature performance. Furthermore, certain plastomers (e.g., EVA) provide better storage stability due to their polar functional groups, which enhance interaction with the bitumen matrix [17,25,26].
Furthermore, combining polymer modification with sustainable materials (e.g., graphene additives, recycled plastics, and rejuvenators) offers a dual benefit: improved pavement performance [27] and reduced environmental impact [28,29,30]. When incorporated through either dry or wet processes, these modifiers enhance binder stiffness, extend fatigue life, and increase recyclability.
Table 3 compares the characteristics of elastomers and plastomers [10,26,31,32,33,34].

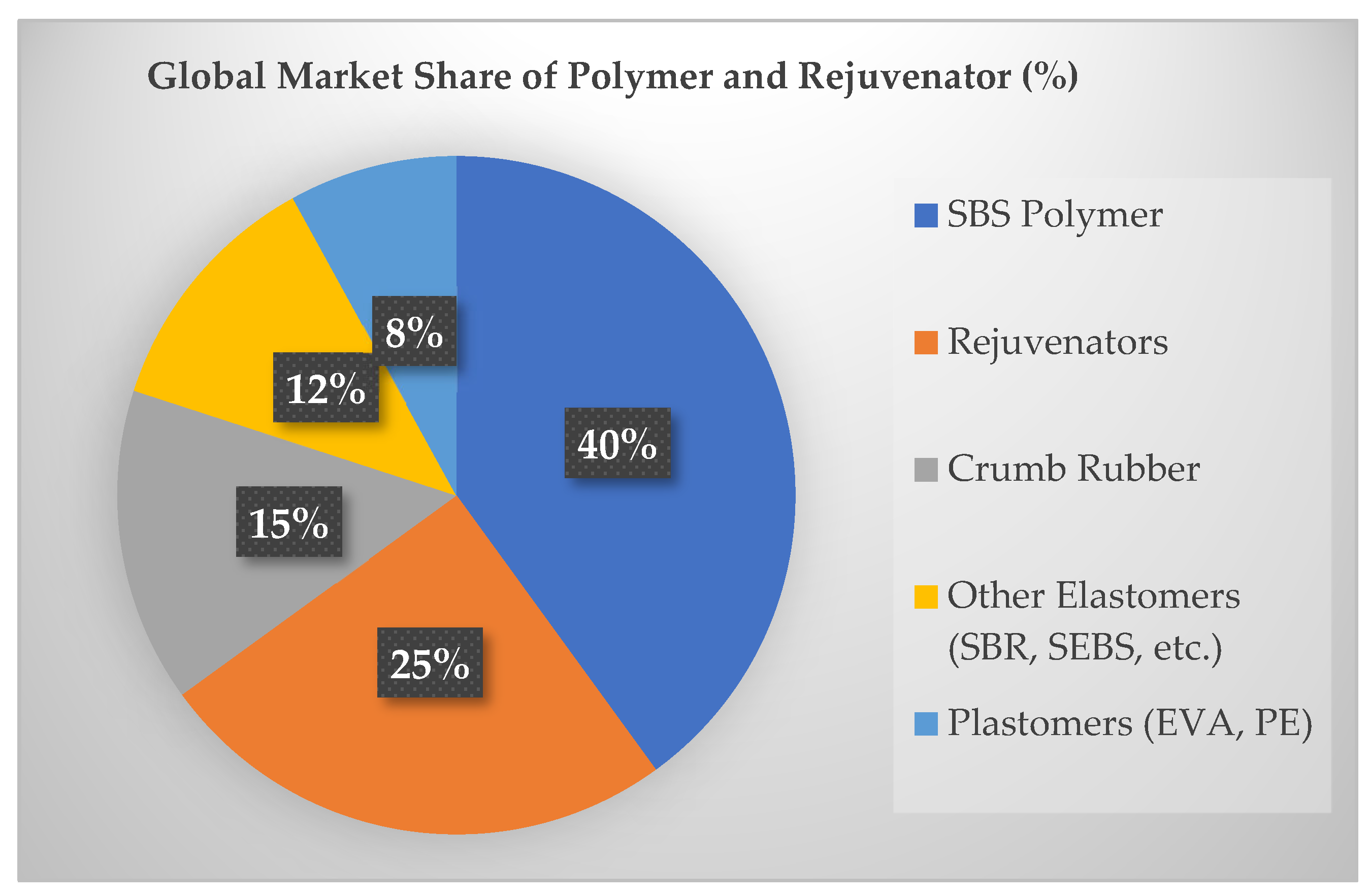

Figure 2 shows the global percentage of polymer types used in asphalt mixtures, along with the corresponding market share of rejuvenators [12,35,36].
Modifying bitumen with plastomers and elastomers plays a crucial role in enhancing the performance and durability of asphalt mixtures [37]. PMA can better withstand harsh environmental conditions [23] and heavy traffic loads by improving mechanical properties, making it a highly effective solution [19,38].
Similarly, the incorporation of recycled materials into asphalt mixtures improves sustainability and reduces the environmental impact of road construction [39]. Recent advancements include the use of bio-polymers such as poly β-hydroxybutyrate-co-β-hydroxy valerate (PHBV), which serve as “green” alternatives to petroleum-based modifiers [40]. Furthermore, the assessment of microplastic (MP) release from recycled polymer-modified asphalt has become increasingly important for evaluating potential environmental impacts [41].

3. Methodology

3.1. Design

This review adopts a systematic literature review (SLR) approach to collect, analyze, and synthesize data [42] on the performance of PMAs and recent developments in asphalt mix design. The primary focus is on comparing the Marshall and Superpave mix design methods while examining the role of SBS and SBR in improving asphalt performance. Additionally, the review emphasizes sustainability by exploring the integration of recycled plastics into asphalt mixtures. Overall, the study seeks to summarize and evaluate current knowledge, highlighting the transition from Marshall to Superpave mix design and assessing the influence of different polymers on asphalt mixture performance.
The methodology involves identifying research gaps and emerging trends, as well as comparing outcomes across various PMAs. The review critically evaluates previous scientific studies to determine their relevance for asphalt design, with a particular focus on the effects of polymer compounds on fatigue and rutting resistance. Following the PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) guidelines, only scientifically rigorous and thematically relevant studies were included [43]. This structured approach enhances validity, reduces potential biases, and strengthens the overall quality of the findings. It enables a detailed comparison of methods, practices, and results the impact of PMA’s on pavement durability [44].
The review process was guided by predefined goals and research questions, aligned with PRISMA criteria. Initially, keywords were refined to capture the most relevant scientific papers. Subsequently, filters were applied to narrow the scope of literature. After careful screening and selection, the publications were analyzed, categorized, and discussed systematically to ensure comprehensive coverage of the topic.

3.2. Study Question

Traditionally, asphalt mixtures were designed using the conventional Marshall design method, which was since been largely replaced by the performance-based Superpave mix design approach. Unlike the Marshall method, Superpave better replicates actual field conditions, thereby addressing common pavement failures. In addition, various polymers have been incorporated into asphalt binders to further improve performance. Polymer modification has been shown to significantly enhance rutting resistance, fatigue resistance, and moisture susceptibility.
This study focuses on comparing the Marshall and Superpave approaches in the scientific literature. Guided by the development of a suitable research question (Table 4), a systematic literature review was conducted to ensure a comprehensive and structured evaluation of existing studies.
This review ensured a comprehensive and systematic collection of relevant information by searching major scientific databases, including Web of Science (WoS), Scopus, and ScienceDirect. These platforms provided access to high-quality publications related to PMA mixtures. Research articles were retrieved using optimized search strings (Table 5), with several combinations of search phrases applied in each database to align with the questions in Table 4. Keywords such as polymer-modified asphalt, asphalt mixtures, Marshall mix, and Superpave mix were specifically employed to capture relevant literature. Using this approach, a total of 1115 publications were retrieved, including articles, review papers, and conference proceedings.

3.3. Data Filtering

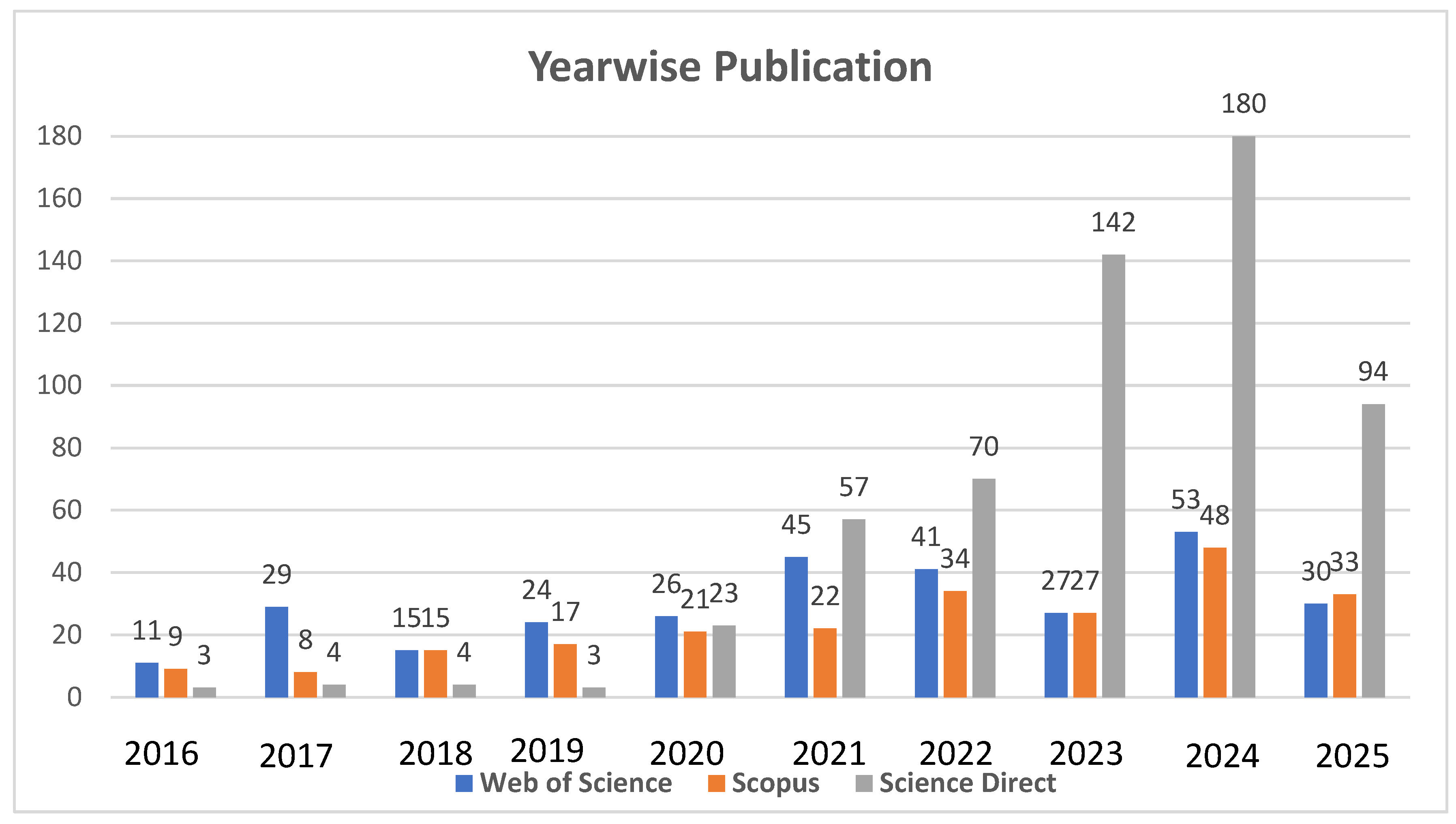

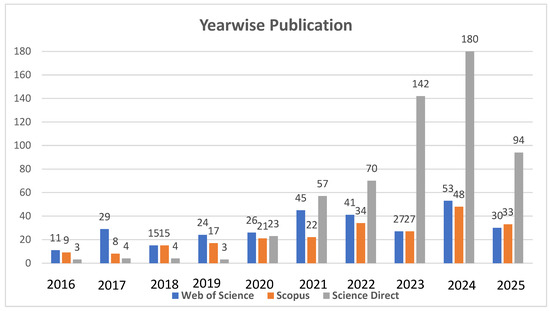

Several filters were applied during the research process to ensure the quality, consistency, and relevance of the selected studies. A structured methodology was followed for data extraction, organization, and analysis [44]. After carefully screening, studies were documented, justified, and extracted in alignment with the research objectives and questions. Key characteristics considered included PMB, RAP content, design methods, and mechanical properties of asphalt mixtures. A consensus process was used to validate the collected data, allowing for comparisons findings across various studies to identify patterns, differences, and comparisons across studies to identify patters, similarities, and differences. Only studies meeting the eligibility criteria were included, and all information was systematically organized (Figure 3). The publication trend shows that 2016 recorded the fewest relevant publications, with only 23 across all three databases. In subsequent years, the number of publications steadily increased, peaking in 2024 with 281 publications. Notably, since 2021 there has been a marked surge in outputs from ScienceDirect, which accounted for the highest number in 2024, with 180 publications directly related to this study.
The VOS Viewer tool (version 1.6.20) identified four keyword clusters in the selected studies:
1
The green cluster focuses on the performance of asphalt mixtures, particularly the behavior of reclaimed asphalt under various conditions (e.g., moisture, stress, temperature, and aging). It addresses critical issues such as rutting, fatigue, cracking, and durability.
2
The red cluster concentrates on the mechanical properties of asphalt mixtures, especially when recycled materials are incorporated. Key aspects include durability, toughness, strength, and microstructure, often examined within a broader sustainability framework.
3
The blue cluster examines the rheological and material properties of asphalt binders and mixtures, especially when modified with polymers, rejuvenators, additives, and recycled materials.
4
The yellow cluster investigates rejuvenators and binders, focusing on the use of soft bitumen and rejuvenating agents to restore aged asphalt binders in reclaimed mixtures. This cluster emphasizes improving flexibility and ensuring compatibility with high percentages of RAP.

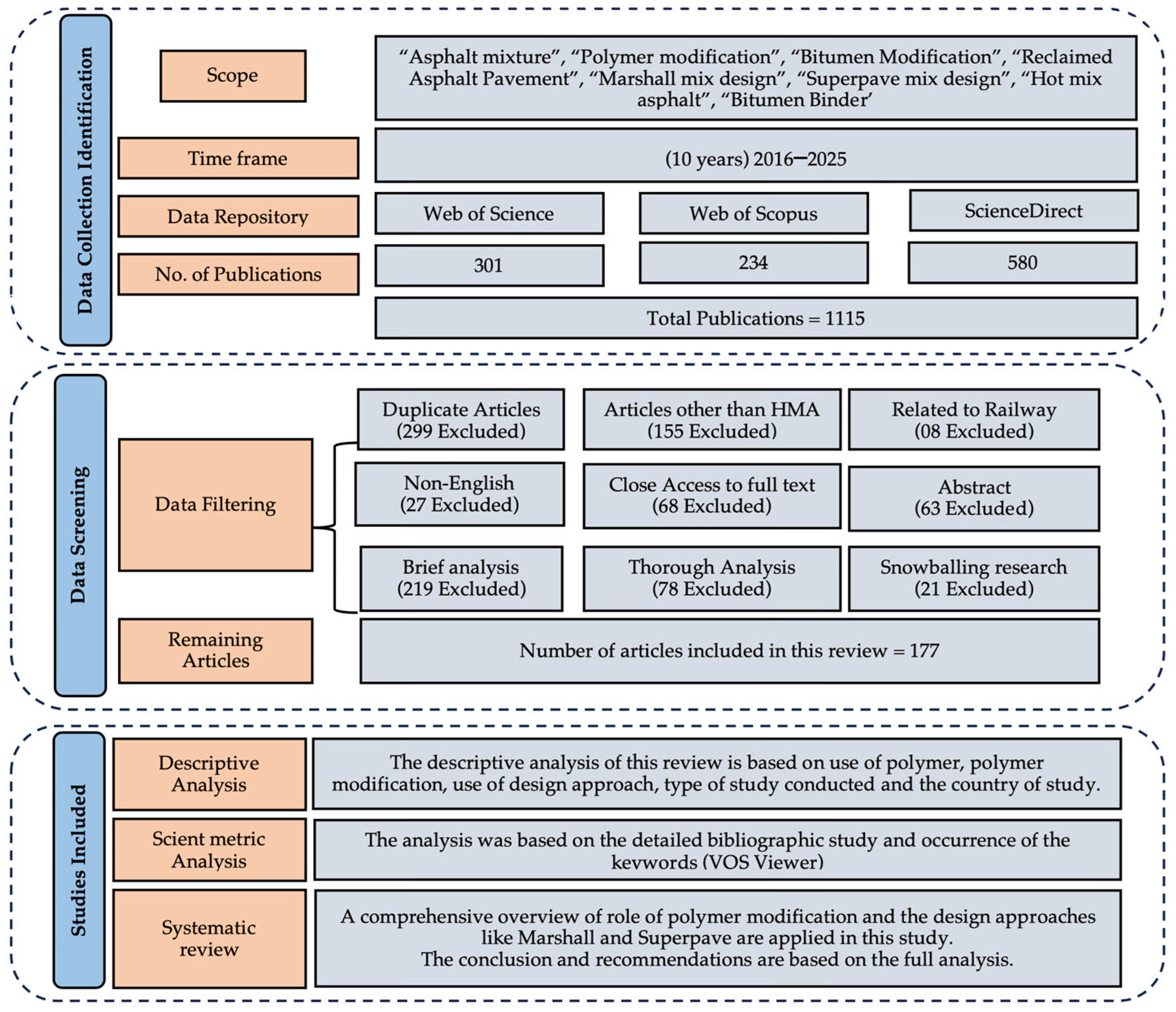

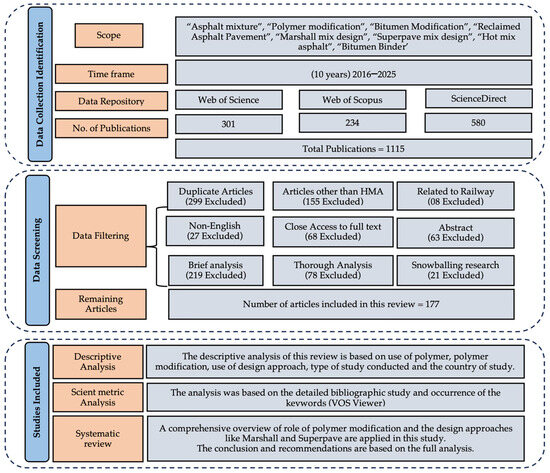

Figure 4 presents the PRISMA diagram illustrating the systematic review search and filtering process. The screening involved several steps, including the removal of duplicate records, exclusion of closed-access articles, elimination of studies related to railway ballast or track layering, and filtering based on titles and abstracts. From the initial 1115 publications identified, 177 met the eligibility criteria and were included in this review. Among these, 15 significant studies are summarized in Table 6.

4. Discussion

A comprehensive systematic review of scientific studies was conducted to evaluate, identify, and select research specifically addressing polymer modification of bitumen and asphalt, comparisons between Marshall and Superpave mixtures, and the performance of PMAs. This review also examined the effects of elastomers and plastomers on the mechanical properties of asphalt mixtures within the framework of various design methods. To ensure quality and relevance, only studies meeting strict selection criteria were included. The final set of studies covers a broad range of research objectives, methodologies, and approaches. Many of them directly compare the Marshall and Superpave mix design methods [3,4,5], highlighting both approaches as efficient and suitable under challenging conditions. Additionally, numerous studies investigate the role of polymers and rejuvenators in asphalt mixtures to mitigate pavement failures [9,10,45,52,53]. Findings on Marshall versus Superpave mix designs are consistent with those from similar research [3,4,5,51,54,55]. Other studies emphasize polymer modification and the incorporation of rejuvenators during asphalt mixing, showing how these measures can reduce road distress. Comparisons between Marshall and Superpave mixtures reveal that Superpave tends to outperform Marshall under repeated loading.
In this section, a detailed analysis of selected elastomers (e.g., SBS and SBR), plastomers (e.g., PP and PE), and rejuvenators is proposed. Their performance is compared within Marshall and Superpave mix design framework. The discussion also explores how polymer modification influences the mechanical behavior of asphalt mixtures and evaluates its effectiveness in high-traffic and high-temperature conditions.

4.1. Elastomer Modified Asphalt in Comparison of Marshall Versus Superpave Method

4.1.1. Styrene Butadiene Styrene (SBS)

SBS is a thermoplastic elastomer widely used to enhance asphalt performance. Incorporation of SBS improves the bitumen elasticity, fatigue resistance, and resistance to temperature susceptibility [56,57,58]. Its higher stiffness and elasticity also reduce permanent deformation [59]. The dynamic shear resistance (DSR) tests demonstrate that SBS-modified bitumen exhibits an increased complex modulus (G*) and a reduced phase angle (δ), resulting in improved rutting resistance [33]. Due to its elastic nature, SBS improves fatigue resistance under repeated cyclic loading [6,59,60]. Moreover, SBS-modified binders show slower oxidative aging, confirmed by laboratory tests such as DSR and FTIR aging indices [6,61].
In Marshall stability design, the inclusion of SBS increases stability, thereby improving load-bearing capacity and rutting resistance. Flow values remain within the optimum range, demonstrating a balance between flexibility and stiffness [6]. Additionally, SBS-modified mixtures exhibit superior resistance to stripping and moisture due to stronger adhesion between aggregate and binder, as indicated by surface free energy and pull-off tests [62]. However, the empirical Marshall method cannot fully capture the improvements in fatigue and rutting resistance provided by SBS; these properties are better evaluated using the Superpave method [63].

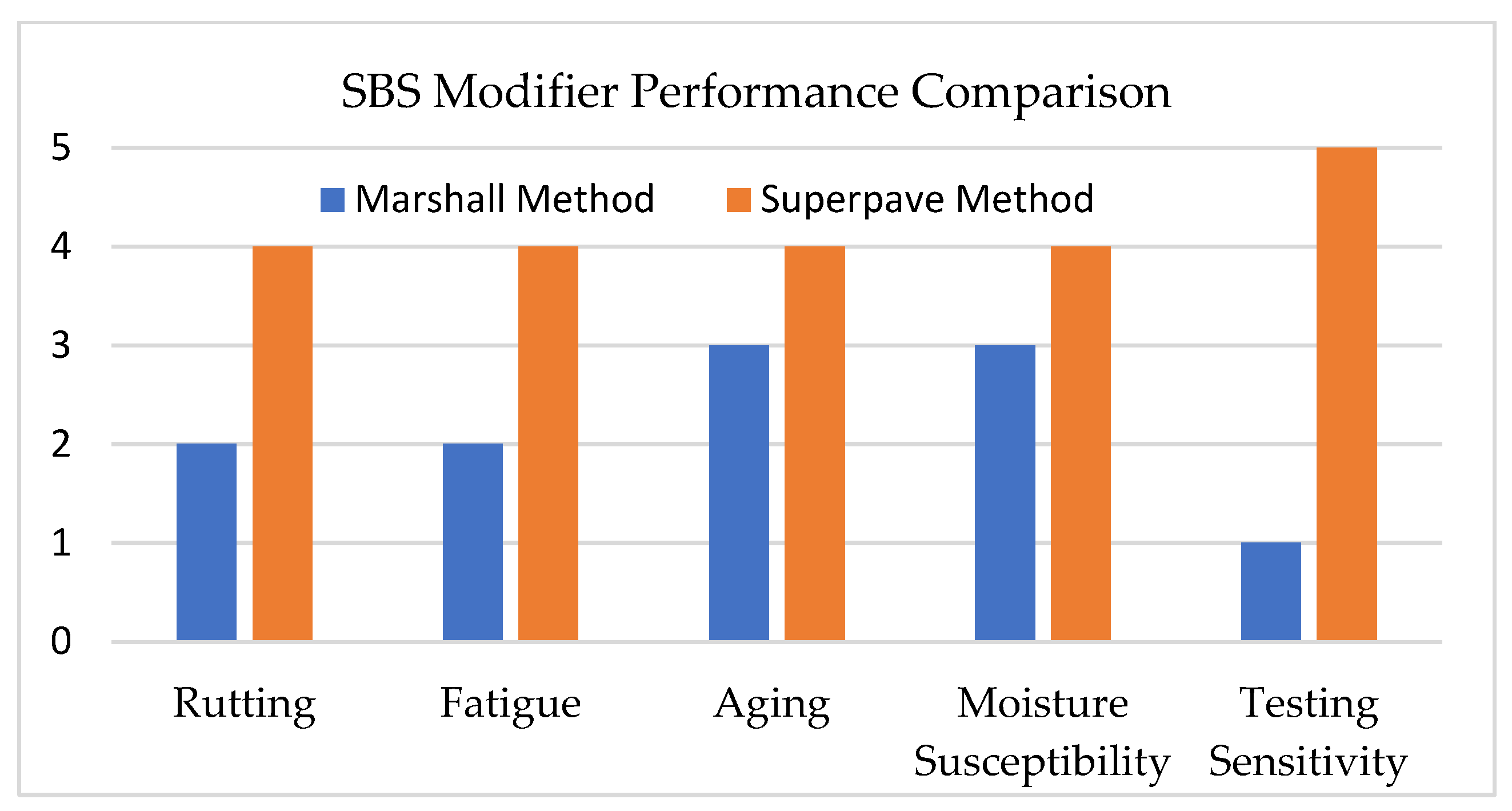

Figure 5 shows the performance of SBS as an asphalt modifier under both methods [6,9,11,33,37,45,52,53,60,61,62,64,65,66,67,68]. Each score was derived by interpreting the test capabilities and performance outcomes of both methods, according to a qualitative scale from 0 to 5, where 0 means very poor, 1 poor, 2 fair, 3 good, 4 very good, and 5 excellent.

4.1.2. Styrene Butadiene Resin (SBR)

SBR is an important asphalt modifier that improves key performance parameters in both mix design methods, though its benefits are more accurately assessed under the Superpave framework [69]. In Superpave testing, SBR enhances resistance to rutting, particularly in mixtures containing RAP. It also improves fatigue resistance through greater elastic recovery and increased durability under repeated loading [37,53,70,71]. Furthermore, SBR enhances moisture resistance, as demonstrated by higher tensile strength ratio (TSR) values and improved indirect tensile strength (ITS) [9,70]. However, SBR-modified binders are more susceptible to oxidative aging. Superpave aging protocols, such as Rolling thin film oven test and Pressure Aging Vessel, provide specific insights into this behavior [9,26,72]. While the Marshall method also reflects improvements in stability and moisture resistance, its empirical nature does not capture the mechanistic advantages of SBR [73].

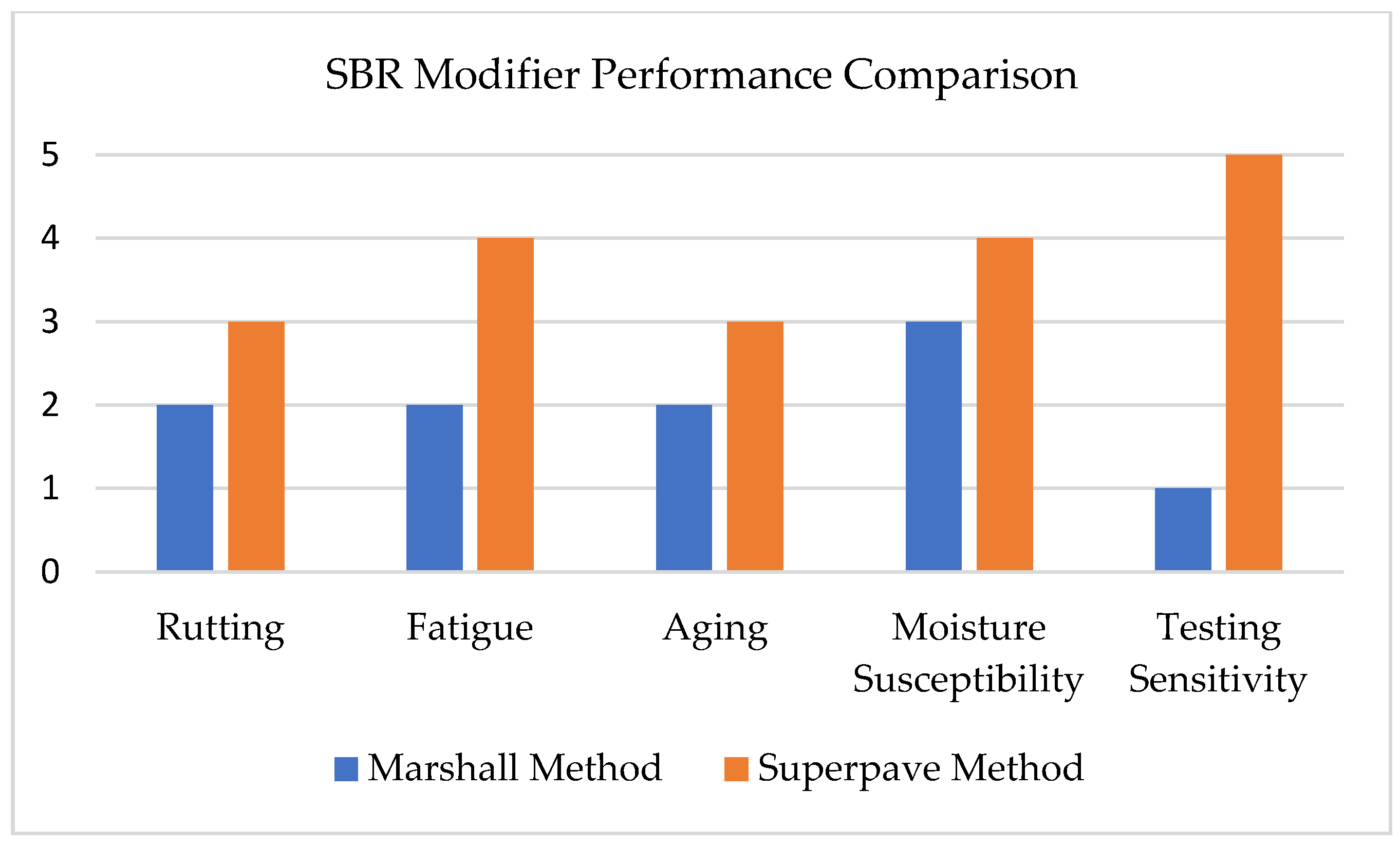

Figure 6 shows the performance of SBR as an asphalt modifier in both methods [9,10,11,70,71,73,74,75,76,77,78]. The representation criterium complies with that in Figure 5.

4.2. Plastomers Modified Asphalt in Comparison of Marshall Versus Superpave Method

4.2.1. Polyethylene (PE)

Polyethylene (PE), a plastomer often used in recycled form, is a widely applied modifier due to its ability to improve high-temperature performance, rutting resistance, and stiffness. Positive effects of PE-modified binders have been documented in both methods [79,80,81]. According to Superpave protocols, PE increases PG of binders, particularly in hot climates, by significantly reducing non-recoverable creep compliance and enhancing the asphalt stiffness [82,83,84]. In the Marshall mix design, PE increases Marshall stability, reduces flow values, and raises the softening point. However, excessive PE content can lead to brittleness and reduced ductility [85,86]. Laboratory studies show that adding 5–7% PE can increase rutting resistance by up to 33% and resilient modulus by 55% compared to virgin bitumen [85].
Challenges with PE modification arise from its nonpopular nature and crystalline structure, which lead to compatibility issues, storage instability, and phase separation. To address these limitations, strategies such as co-blending PE with elastomers (e.g., SBS), chemical pretreatment, or the addition of nanoclay and pyrolytic wax have been explored to improve dispersion and reduce brittleness [80,87].
Overall, PE enhances high-temperature and deformation performance in both design methods. However, its limitations demand supplementary treatments or hybrid modification strategies.

4.2.2. Polypropylene (PP)

Polypropylene, a hydrocarbon thermoplastic polymer, is also employed as an asphalt modifier to improve mixture performance. Recently, the use of post-consumer PP has been studied as a sustainable approach [88,89]. PP enhances high-temperature stability, rutting resistance, and aging resistance, especially in hot regions and under heavy traffic [75,89,90,91].
In Superpave mix design, PP-modified binders exhibit superior rheological performance, with increased G* and reduced δ, leading to better rutting resistance [92]. The results from DSR and Multiple Stress Creep and Recovery tests confirm that PP fibers significantly reduce non-recoverable creep compliance and improve percent recovery, indicating better elastic recovery and deformation resistance. PP also improves oxidative aging resistance and moisture tolerance [9,89,93].
Within the Marshall framework, PP increases stability, stiffness modulus, and TSR. Incorporation of 2–6% PP raises optimum bitumen content, reduces moisture susceptibility, and increases softening point and stiffness while reducing penetration values. However, higher PP contents can reduce ductility, increase viscosity, and cause phase separation, thereby reducing processability [9,85,93,94,95]. Pretreatment techniques, such as pyrolysis to produce polypropylene wax (PPW), have been proposed to improve workability, minimize segregation, and enhance bonding between binder and aggregates [96]. The inclusion of PPW in both methods enhances rutting resistance and facilitates the use of warm mix asphalt technologies, reducing energy consumption during production [80,89,93].

4.3. Rejuvenators

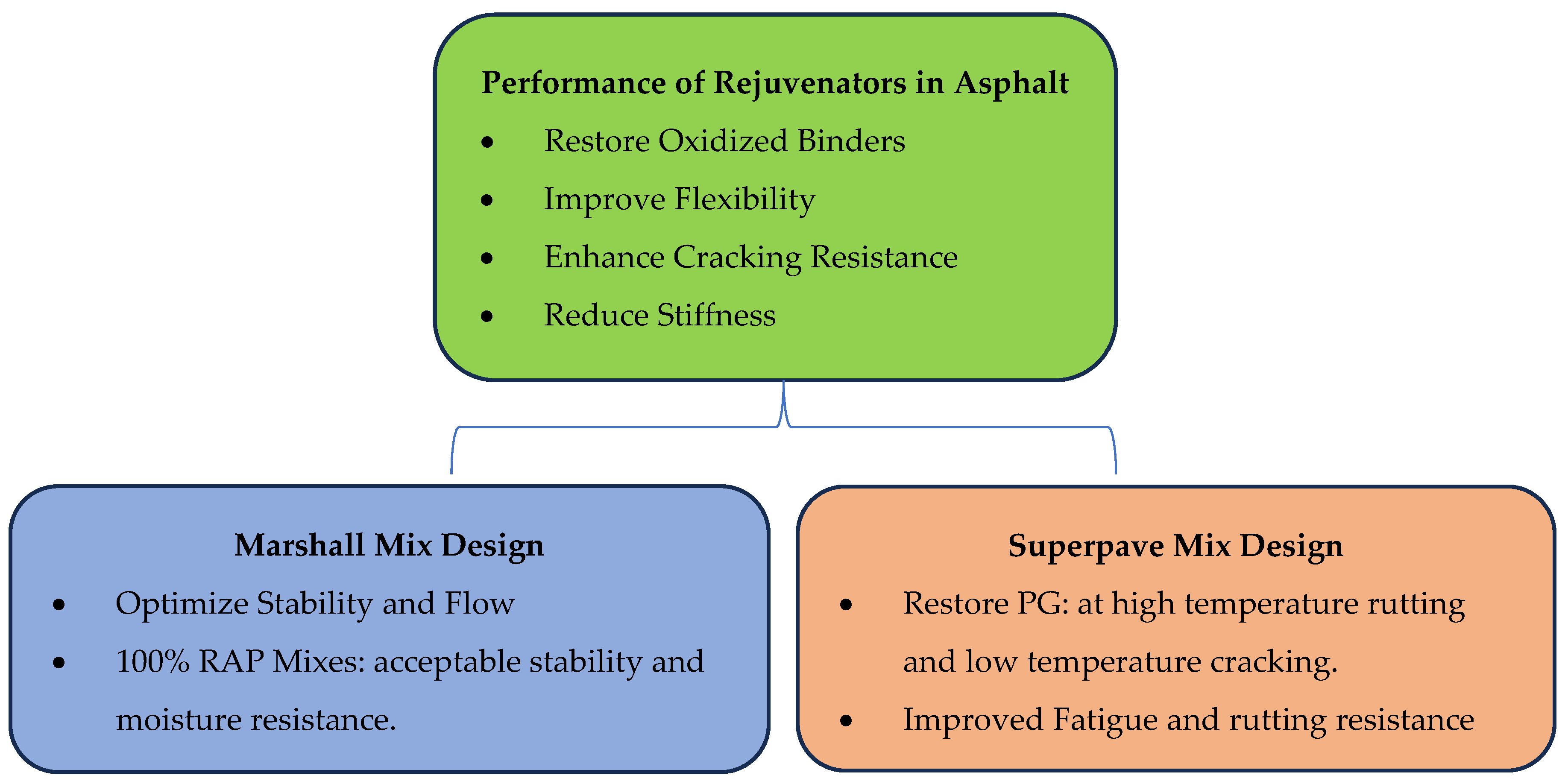

Rejuvenators play a critical role in sustainable asphalt pavement practices by restoring the properties of RAP. Their primary function is to reverse binder oxidation, thereby improving workability, enhancing cracking resistance, and reducing stiffness [28,97,98].
In Superpave mix design, rejuvenators restore binder PG properties, ensuring compliance with high-temperature rutting and low-temperature cracking requirements. Vijayan et al. [7] demonstrated that a plant-based rejuvenator, combined with RAP and plastic-modified asphalt via the dry process, maintained satisfactory mechanical performance even after two recycling times. Improvements were observed in rutting resistance, moisture sensitivity, and fatigue properties [7,99,100,101]. In Marshall mix design, rejuvenators enhance stability and flow values by softening aged binders [99]. Full-scale mixtures containing up to 100% RAP, when adequately treated with rejuvenators, achieved acceptable stability and moisture resistance. Results based on traditional Marshall criteria—such as air voids and voids in mineral aggregate (VMA)—support their suitability [99,102,103]. According to [28], the synergistic effect of rejuvenators with the recycled polymers gave satisfactory properties even after multiple recycling cycles. Figure 7 summarizes the performance of rejuvenators in both mix design methods.

5. Conclusions

This review compared two methods of asphalt design (i.e., Marshall and Superpave) incorporating polymer modification and rejuvenators. The findings confirm that the Marshall method is an empirical widely adopted approach that is not performance-based and cannot predict long-term durability under high traffic loads and harsh climatic conditions. In contrast, the Superpave method provides a mechanistic–empirical design that enhances viscoelastic properties and resistance to moisture damage under varying traffic and climate conditions. The incorporation of polymers such as SBS, SBR, PP, and PE improves elasticity, stiffness, resistance to rutting, fatigue, and aging, while PMB offers an affordable option to enhance road performance. The addition of rejuvenators allows recycling RAP and plastic waste, supporting circular economy practices, restoring the rheological properties of aged binders, and contributing to sustainable development.
This review encourages further investigation into cost-effective solutions for local polymer modification, durability monitoring, and bridging the gap between sustainable asphalt practices and economy feasibility. It also highlights key future research directions, emphasizing the need to shift toward mechanistic–empirical design approaches. Future studies should also prioritize the selection of polymers based on local conditions, with a focus on economical modifiers (e.g., recycled plastics), and evaluate their performance through Marshall and Superpave methods. Additionally, long-term monitoring is crucial to assess the durability and efficiency of PMA, with particular emphasis on resistance to viscoelastic property degradation, moisture susceptibility, and overall performance in real-world conditions.

Author Contributions

Conceptualization, G.H.J. and G.L.; methodology, G.H.J.; validation, G.L. and L.M.; data curation, G.H.J.; writing—original draft preparation, G.H.J. and L.M.; writing—review and editing, G.L. and L.M.; visualization, G.H.J.; supervision, G.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
PMBPolymer-Modified Bitumen
PMAPolymer-Modified Asphalt
SBSStyrene–Butadiene–Styrene
SBRStyrene–Butadiene Rubber
SEBSStyrene–Ethylene–Butylene–Styrene
RAPReclaimed Asphalt Pavement
RCARecycled Concrete Aggregate
DSRDynamic Shear Rheometer
PGPerformance Grade
ITSIndirect Tensile Strength
ITSRIndirect Tensile Strength Ratio
EVAEthylene-Vinyl Acetate
PEPolyethylene
LDPELow-Density Polyethylene
HDPEHigh-Density Polyethylene
XRDX-ray Diffraction
PHBVβ-hydroxybutyrate-co-β-hydroxy valerate
FTIRFourier Transform Infrared Spectroscopy

References

  1. Malluru, S.; Islam, S.M.I.; Saidi, A.; Baditha, A.K.; Chiu, G.; Mehta, Y. A State-of-the-Practice Review on the Challenges of Asphalt Binder and a Roadmap Towards Sustainable Alternatives—A Call to Action. Materials 2025, 18, 2312. [Google Scholar] [CrossRef]
  2. Lee, J.-S.; Lee, S.-Y.; Le, T.H.M. Developing Performance-Based Mix Design Framework Using Asphalt Mixture Performance Tester and Mechanistic Models. Polymers 2023, 15, 1692. [Google Scholar] [CrossRef]
  3. Zumrawi, M.M.E.; Edrees, S.A.S. Comparison of Marshall and Superpave Asphalt Design Methods for Sudan Pavement Mixes. Int. J. Sci. Tech. Adv. 2016, 2, 29–35. [Google Scholar]
  4. Al Kaaf, K.; Ibeabuchi, V.T. Marshall Asphalt Mix and Superior Performance Asphalt Mix in Oman: A Comparative Study. Eng. Technol. Appl. Sci. Res. 2023, 13, 12258–12263. [Google Scholar] [CrossRef]
  5. Farooq, G.; Hussain, A.; Yanjun, Q.; Ding, H.; Shamim, A. Performance Evaluation of Marshall and Superpave Asphalt Mix Design Methods: A Volumetrics-Analysis Based Approach. Aust. J. Civ. Eng. 2025, 38, 1–15. [Google Scholar] [CrossRef]
  6. Meng, Y.; Li, H.; Yang, X.; Li, G.; Li, Y.; Xu, G. Study on the Adhesion Properties of SBS Modified Asphalt-Aggregate with Polyphosphoric Acid and Sugarcane Bagasse Fiber under Salt Erosion. Constr. Build. Mater. 2025, 466, 140269. [Google Scholar] [CrossRef]
  7. Vijayan, V.; Manthos, E.; Mantalovas, K.; Di Mino, G. Multi-Recyclability of Asphalt Mixtures Modified with Recycled Plastic: Towards a Circular Economy. Results Eng. 2024, 23, 102523. [Google Scholar] [CrossRef]
  8. Mushtaq, F.; Huang, Z.; Shah, S.A.R.; Zhang, Y.; Gao, Y.; Azab, M.; Hussain, S.; Anwar, M.K. Performance Optimization Approach of Polymer Modified Asphalt Mixtures with PET and PE Wastes: A Safety Study for Utilizing Eco-Friendly Circular Economy-Based SDGs Concepts. Polymers 2022, 14, 2493. [Google Scholar] [CrossRef]
  9. Yang, Q.; Lin, J.; Wang, X.; Wang, D.; Xie, N.; Shi, X. A Review of Polymer-Modified Asphalt Binder: Modification Mechanisms and Mechanical Properties. Clean. Mater. 2024, 12, 100255. [Google Scholar] [CrossRef]
  10. Sengoz, B.; Isikyakar, G. Analysis of Styrene-Butadiene-Styrene Polymer Modified Bitumen Using Fluorescent Microscopy and Conventional Test Methods. J. Hazard. Mater. 2008, 150, 424–432. [Google Scholar] [CrossRef]
  11. Porto, M.; Caputo, P.; Loise, V.; Eskandarsefat, S.; Teltayev, B.; Oliviero Rossi, C. Bitumen and Bitumen Modification: A Review on Latest Advances. Appl. Sci. 2019, 9, 742. [Google Scholar] [CrossRef]
  12. Freedonia Group. Global Asphalt (Bitumen) Report. 2025. Available online: https://www.freedoniagroup.com/industry-study/global-asphalt-bitumen (accessed on 29 May 2025).
  13. Bastidas-Martínez, J.G.; Rondón-Quintana, H.A. Assessment of Asphalt Binder Content, Temperature and Loading Rate in Indirect Tensile Strength and Resilient Modulus Tests of a Hot-Mix Asphalt—Comparison with Marshall Design Method. Constr. Build. Mater. 2024, 426, 136158. [Google Scholar] [CrossRef]
  14. Pipintakos, G.; Škulteckė, J.; Vaitkus, A.; Šernas, O.; Soenen, H.; Van Den Bergh, W. Optimising Bitumen Modification: How Styrene–Butadiene–Styrene (SBS) Characteristics and Content Affect Bitumen Behaviour. Road Mater. Pavement Des. 2025, 26, 443–463. [Google Scholar] [CrossRef]
  15. Ruge Cárdenas, J.C.; Lozano, D.A.; Moreno, L.A.; Gomez, F.A.M.; Bastidas, J.G. Asphalts and Modified Dense Bituminous Mixtures with Rubber of Military Boots. DYNA 2020, 87, 120–128. [Google Scholar] [CrossRef]
  16. Naser, A.M.; Abd El–Wahab, H.; Moustafa El Nady, M.A.E.F.; Mostafa, A.E.A.; Lin, L.; Sakr, A.G. Preparation and Characterisation of Modified Reclaimed Asphalt Using Nanoemulsion Acrylate Terpolymer. Pigm. Resin Technol. 2019, 48, 363–374. [Google Scholar] [CrossRef]
  17. Alataş, T.; Yilmaz, M. Effects of Different Polymers on Mechanical Properties of Bituminous Binders and Hot Mixtures. Constr. Build. Mater. 2013, 42, 161–167. [Google Scholar] [CrossRef]
  18. Jasso, M.; Perez Jaimes, J.S.; Tellez Vega, E.F. Mechanism and Development of Thermo-Rheological Properties of Asphalts Modified by Reactive Polymer Systems. Materials 2023, 16, 6631. [Google Scholar] [CrossRef]
  19. Emtiaz, M.; Imtiyaz, M.N.; Majumder, M.; Idris, I.I.; Mazumder, R.; Rahaman, M.M. A Comprehensive Literature Review on Polymer-Modified Asphalt Binder. CivilEng 2023, 4, 901–933. [Google Scholar] [CrossRef]
  20. Lin, P.; Huang, W.; Tang, N.; Xiao, F. Performance Characteristics of Terminal Blend Rubberized Asphalt with SBS and Polyphosphoric Acid. Constr. Build. Mater. 2017, 141, 171–182. [Google Scholar] [CrossRef]
  21. Dong, R.; Gao, A.; Zhu, Y.; Xu, B.; Du, J.; Ping, S. The Development of a New Thermoplastic Elastomer (TPE)-Modified Asphalt. Buildings 2023, 13, 1451. [Google Scholar] [CrossRef]
  22. Fernandes, S.; Peralta, J.; Oliveira, J.; Williams, R.; Silva, H. Improving Asphalt Mixture Performance by Partially Replacing Bitumen with Waste Motor Oil and Elastomer Modifiers. Appl. Sci. 2017, 7, 794. [Google Scholar] [CrossRef]
  23. Zhu, J.; Birgisson, B.; Kringos, N. Polymer Modification of Bitumen: Advances and Challenges. Eur. Polym. J. 2014, 54, 18–38. [Google Scholar] [CrossRef]
  24. Xie, J.; Wu, S.; Lin, J.; Cai, J.; Chen, Z.; Wei, W. Recycling of Basic Oxygen Furnace Slag in Asphalt Mixture: Material Characterization & Moisture Damage Investigation. Constr. Build. Mater. 2012, 36, 467–474. [Google Scholar] [CrossRef]
  25. Ameri, M.; Mansourian, A.; Sheikhmotevali, A.H. Investigating Effects of Ethylene Vinyl Acetate and Gilsonite Modifiers upon Performance of Base Bitumen Using Superpave Tests Methodology. Constr. Build. Mater. 2012, 36, 1001–1007. [Google Scholar] [CrossRef]
  26. Zhang, F.; Yu, J. The Research for High-Performance SBR Compound Modified Asphalt. Constr. Build. Mater. 2010, 24, 410–418. [Google Scholar] [CrossRef]
  27. Moretti, L.; Fabrizi, N.; Fiore, N.; D’Andrea, A. Mechanical Characteristics of Graphene Nanoplatelets-Modified Asphalt Mixes: A Comparison with Polymer- and Not-Modified Asphalt Mixes. Materials 2021, 14, 2434. [Google Scholar] [CrossRef]
  28. Di Mino, G.; Vijayan, V.; Eskandarsefat, S.; Venturini, L.; Mantalovas, K. Investigating the Multi-Recyclability of Recycled Plastic-Modified Asphalt Mixtures. Infrastructures 2023, 8, 84. [Google Scholar] [CrossRef]
  29. D’angelo, S.; Ferrotti, G.; Cardone, F.; Canestrari, F. Asphalt Binder Modification with Plastomeric Compounds Containing Recycled Plastics and Graphene. Materials 2022, 15, 516. [Google Scholar] [CrossRef]
  30. Bruno, S.; Carpani, C.; Loprencipe, G.; Venturini, L.; Vita, L. Modified Asphalt with Graphene-Enhanced Polymeric Compound: A Case Study. Infrastructures 2024, 9, 39. [Google Scholar] [CrossRef]
  31. Abdalfattah, I.A.; Mogawer, W.S.; Stuart, K. Recycled Polyethylene (RPE) Modified Asphalt Mixtures: Performance Predictions Using Pavement Mechanistic-Empirical Design and Evaluation of Return on Investment. Constr. Build. Mater. 2022, 356, 129164. [Google Scholar] [CrossRef]
  32. Polacco, G.; Berlincioni, S.; Biondi, D.; Stastna, J.; Zanzotto, L. Asphalt Modification with Different Polyethylene-Based Polymers. Eur. Polym. J. 2005, 41, 2831–2844. [Google Scholar] [CrossRef]
  33. Eldouma, I.B.; Xiaoming, H. Evaluation of the Additives’ Behaviour to Determine the Best Modifier for Improving Asphalt Performance at High Temperature. Adv. Civ. Eng. 2021, 2021, 8879415. [Google Scholar] [CrossRef]
  34. Punith, V.S.; Veeraragavan, A. Behavior of Asphalt Concrete Mixtures with Reclaimed Polyethylene as Additive. J. Mater. Civ. Eng. 2007, 19, 500–507. [Google Scholar] [CrossRef]
  35. Polymer Modified Bitumen Market Size, Share, Growth Analysis, By Product (Elastomeric Polymers, Plastomeric Polymers), By Grade (PMB 40, PMB 70), By Application (Road Construction, Roofing Systems), By Region-Industry Forecast 2024–2031. Available online: https://www.giiresearch.com/report/sky1596895-polymer-modified-bitumen-market-size-share-growth.html?utm_source=chatgpt.com (accessed on 28 May 2025).
  36. Asphalt Additives Market Size, Share|Industry Report, 2019–2025. Available online: https://www.grandviewresearch.com/industry-analysis/asphalt-additives-market (accessed on 26 August 2025).
  37. Spadoni, S.; Paolo Ingrassia, L.; Mocelin, D.; Richard Kim, Y.; Canestrari, F. Comparison of Asphalt Mixtures Containing Polymeric Compounds and Polymer-Modified Bitumen Based on the VECD Theory. Constr. Build. Mater. 2022, 349, 128725. [Google Scholar] [CrossRef]
  38. Jexembayeva, A.; Konkanov, M.; Aruova, L.; Kirgizbayev, A.; Zhaksylykova, L. Performance Optimization Approach of Polymer-Modified Asphalt Mixtures with PET and PE Waste. Polymers 2024, 16, 3308. [Google Scholar] [CrossRef]
  39. Xu, L.; Du, Y.; Loprencipe, G.; Moretti, L. Rheological and Fatigue Characteristics of Asphalt Mastics and Mixtures Containing Municipal Solid Waste Incineration (MSWI) Residues. Sustainability 2023, 15, 8356. [Google Scholar] [CrossRef]
  40. Tabaković, A.; Lemmens, J.; Tamis, J.; van Vliet, D.; Nahar, S.; Suitela, W.; van Loosdrecht, M.; Leegwater, G. Bio-Polymer Modified Bitumen. Constr. Build. Mater. 2023, 406, 133321. [Google Scholar] [CrossRef]
  41. Duan, Y.; Wu, K.; Serrat, C.; Arteaga-Larios, F.; Brown, H.; DuBois, C.J.; Buttlar, W.G.; Deng, B. Assessment of Microplastics Production from Waste Plastics-Modified Asphalt Pavement. Resour. Conserv. Recycl. 2024, 202, 107329. [Google Scholar] [CrossRef]
  42. Phillips, M.; Reed, J.B.; Zwicky, D.; Van Epps, A.S.; Buhler, A.G.; Rowley, E.M.; Zhang, Q.; Cox, J.M.; Zakharov, W. Systematic Reviews in the Engineering Literature: A Scoping Review. IEEE Access 2024, 12, 62648–62663. [Google Scholar] [CrossRef]
  43. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. Declaración PRISMA 2020: Una guía actualizada para la publicación de revisiones sistemáticas. Rev. Española De Cardiol. 2021, 74, 790–799. [Google Scholar] [CrossRef]
  44. Moher, D.; Liberati, A.; Tetzlaff, J.; Altman, D.G.; Prisma Group. Preferred Reporting Items for Systematic Reviews and Meta-Analyses: The PRISMA Statement. Ann. Intern. Med. 2009, 151, 264–269. [Google Scholar] [CrossRef]
  45. Viscione, N.; Lo Presti, D.; Veropalumbo, R.; Oreto, C.; Biancardo, S.A.; Russo, F. Performance-Based Characterization of Recycled Polymer Modified Asphalt Mixture. Constr. Build. Mater. 2021, 310, 125243. [Google Scholar] [CrossRef]
  46. Sabouri, M. Evaluation of Performance-Based Mix Design for Asphalt Mixtures Containing Reclaimed Asphalt Pavement (RAP). Constr. Build. Mater. 2020, 235, 117545. [Google Scholar] [CrossRef]
  47. Zaumanis, M.; Poulikakos, L.D.; Partl, M.N. Performance-Based Design of Asphalt Mixtures and Review of Key Parameters. Mater. Des. 2018, 141, 185–201. [Google Scholar] [CrossRef]
  48. Gul, W.A.; Guler, M. Rutting Susceptibility of Asphalt Concrete with Recycled Concrete Aggregate Using Revised Marshall Procedure. Constr. Build. Mater. 2014, 55, 341–349. [Google Scholar] [CrossRef]
  49. Yu, H.; Zhou, S.; Qian, G.; Zhang, C.; Shi, C.; Yao, D.; Ge, J. Evaluation of the Microscale Structure and Performance of Asphalt Mixtures under Different Design Methods. Constr. Build. Mater. 2023, 400, 132810. [Google Scholar] [CrossRef]
  50. Kassab, T.G. Comparative Study of Hot Asphalt Mixtures Properties Designed by Marshall and Superpave Methods. MEJ-Mansoura Eng. J. 2021, 46, 41–51. [Google Scholar] [CrossRef]
  51. Jafari Haghighatpour, P.; Aliha, M.R.M. Effect of Marshal and Gyratory Compaction Methods on Cracking Characteristics of Hot Mix Asphalt Concrete Materials under All Three Basic Modes of Fracture. Theor. Appl. Fract. Mech. 2022, 117, 103207. [Google Scholar] [CrossRef]
  52. Ceccon Carlesso, G.; Trichês, G.; Staub De Melo, J.V.; Marcon, M.F.; Padilha Thives, L.; Da Luz, L.C. Evaluation of Rheological Behavior, Resistance to Permanent Deformation, and Resistance to Fatigue of Asphalt Mixtures Modified with Nanoclay and SBS Polymer. Appl. Sci. 2019, 9, 2697. [Google Scholar] [CrossRef]
  53. Daryaee, D.; Ameri, M.; Mansourkhaki, A. Utilizing of Waste Polymer Modified Bitumen in Combination with Rejuvenator in High Reclaimed Asphalt Pavement Mixtures. Constr. Build. Mater. 2020, 235, 117516. [Google Scholar] [CrossRef]
  54. Asi, I.M. Performance Evaluation of SUPERPAVE and Marshall Asphalt Mix Designs to Suite Jordan Climatic and Traffic Conditions. Constr. Build. Mater. 2007, 21, 1732–1740. [Google Scholar] [CrossRef]
  55. Jitsangiam, P.; Chindaprasirt, P.; Nikraz, H. An Evaluation of the Suitability of SUPERPAVE and Marshall Asphalt Mix Designs as They Relate to Thailand’s Climatic Conditions. Constr. Build. Mater. 2013, 40, 961–970. [Google Scholar] [CrossRef]
  56. Kaya, F.; Aslan, Ş.; Fahad, M.; Madarász, K.; Rosta, S.; Nagy, R.; Fischer, S. Performance of PMMA and SBS Modified Asphalt Mixtures in Railway Supplementary Layers and Road Pavements. Period. Polytech. Transp. Eng. 2025, 53, 334–346. [Google Scholar] [CrossRef]
  57. Polacco, G.; Kříž, P.; Filippi, S.; Stastna, J.; Biondi, D.; Zanzotto, L. Rheological Properties of Asphalt/SBS/Clay Blends. Eur. Polym. J. 2008, 44, 3512–3521. [Google Scholar] [CrossRef]
  58. Sun, X.; Qin, X.; Liu, Z.; Yin, Y. Damaging Effect of Fine Grinding Treatment on the Microstructure of Polyurea Elastomer Modifier Used in Asphalt Binder. Measurement 2025, 242, 115984. [Google Scholar] [CrossRef]
  59. Babagoli, R.; Ameli, A.; Shahriari, H. Laboratory Evaluation of Rutting Performance of Cold Recycling Asphalt Mixtures Containing SBS Modified Asphalt Emulsion. Pet. Sci. Technol. 2016, 34, 309–313. [Google Scholar] [CrossRef]
  60. Xu, S.; Fan, Y.; Feng, Z.; Ke, Y.; Zhang, C.; Huang, H. Comparison of Quantitative Determination for SBS Content in SBS Modified Asphalt. Constr. Build. Mater. 2021, 282, 122733. [Google Scholar] [CrossRef]
  61. Zhang, D.; Zhang, H.; Shi, C. Investigation of Aging Performance of SBS Modified Asphalt with Various Aging Methods. Constr. Build. Mater. 2017, 145, 445–451. [Google Scholar] [CrossRef]
  62. Gou, J.; Guo, M.; Xie, X.; Du, X. Unravelling the Adhesion Mechanism of Recycled SBS-Modified Asphalt: Integrating Surface Free Energy, Atomic Force Microscopy and Molecular Dynamics. Constr. Build. Mater. 2025, 483, 141672. [Google Scholar] [CrossRef]
  63. Li, H.; Wang, H.; Lin, J.; Yang, J.; Yao, Y. Study on the Effect of SBS/HVA/CRM Composite-Modified Asphalt on the Performance of Recycled Asphalt Mixtures. Polymers 2024, 16, 3226. [Google Scholar] [CrossRef]
  64. Eskandarsefat, S.; de Ferrariis, L.; Allen, B.; Roworth, P.; Venturini, L.; Fumagalli, M. Asphalt Mixture Modification via a Recycled-Plastic Modifier: Laboratory Studies and Pavement Analysis. In Proceedings of the 8th Eurasphalt & Eurobitume Congress, Budapest, Hungary, 19–21 June 2024. [Google Scholar]
  65. Russo, F.; Eskandarsefat, S.; Venturini, L.; Viscione, N. A Complete Study on an Asphalt Concrete Modified with Graphene and Recycled Hard-Plastics: A Case Study. Case Stud. Constr. Mater. 2022, 17, e01437. [Google Scholar] [CrossRef]
  66. Wang, C.; Wang, Y. Physico-Chemo-Rheological Characterization of Neat and Polymer-Modified Asphalt Binders. Constr. Build. Mater. 2019, 199, 471–482. [Google Scholar] [CrossRef]
  67. Lin, P.; Yan, C.; Huang, W.; Li, Y.; Zhou, L.; Tang, N.; Xiao, F.; Zhang, Y.; Lv, Q. Rheological, Chemical and Aging Characteristics of High Content Polymer Modified Asphalt. Constr. Build. Mater. 2019, 207, 616–629. [Google Scholar] [CrossRef]
  68. Xu, X.; Sreeram, A.; Leng, Z.; Yu, J.; Li, R.; Peng, C. Challenges and Opportunities in the High-Quality Rejuvenation of Unmodified and SBS Modified Asphalt Mixtures: State of the Art. J. Clean. Prod. 2022, 378, 134634. [Google Scholar] [CrossRef]
  69. The Research for High-Performance SBR Compound Modified Asphalt—ScienceDirect. Available online: https://www.sciencedirect.com/science/article/pii/S0950061809003407 (accessed on 4 June 2025).
  70. Ren, X.; Sha, A.; Jiang, W.; Wu, W.; Jiao, W.; Li, J.; Li, J. Effect of EVA on the Rheological Properties of SBR-Modified Asphalt Binder and Its Behavioral Evolution during the Thermo-Oxidative Aging Process. Constr. Build. Mater. 2024, 454, 139159. [Google Scholar] [CrossRef]
  71. Liang, P.; Liang, M.; Fan, W.; Zhang, Y.; Qian, C.; Ren, S. Improving Thermo-Rheological Behavior and Compatibility of SBR Modified Asphalt by Addition of Polyphosphoric Acid (PPA). Constr. Build. Mater. 2017, 139, 183–192. [Google Scholar] [CrossRef]
  72. Cháves-Pabón, S.B.; Rondón-Quintana, H.A.; Bastidas-Martínez, J.G. AGING OF ASPHALT BINDERS AND ASPHALT MIXTURES. SUMMARY PART II: AGING SIMULATION AND AGING REDUCTION TECHNIQUES. Int. J. Civ. Eng. Technol. 2019, 10, 274–287. [Google Scholar]
  73. Li, Y.; Wu, S.; Dai, Y.; Li, C.; Song, W.; Li, H.; Li, C.; Shu, B. Transitions of Component, Physical, Rheological and Self-Healing Properties of Petroleum Bitumen from the Loose Bituminous Mixture after UV Irradiation. Fuel 2020, 262, 116507. [Google Scholar] [CrossRef]
  74. Ren, S.; Liang, M.; Fan, W.; Zhang, Y.; Qian, C.; He, Y.; Shi, J. Investigating the Effects of SBR on the Properties of Gilsonite Modified Asphalt. Constr. Build. Mater. 2018, 190, 1103–1116. [Google Scholar] [CrossRef]
  75. Zhang, Q.; Hou, D.; Li, Z.; Wang, H.; Dong, S. Evaluation of the Thermal Stability and Micro-Modification Mechanism of SBR/PP-Modified Asphalt. Polymers 2024, 16, 456. [Google Scholar] [CrossRef]
  76. Zhu, C.; Zhang, H.; Xu, G.; Shi, C. Aging Rheological Characteristics of SBR Modified Asphalt with Multi-Dimensional Nanomaterials. Constr. Build. Mater. 2017, 151, 388–393. [Google Scholar] [CrossRef]
  77. Han, Y.; Tian, J.; Ding, J.; Shu, L.; Ni, F. Evaluating the Storage Stability of SBR-Modified Asphalt Binder Containing Polyphosphoric Acid (PPA). Case Stud. Constr. Mater. 2022, 17, e01214. [Google Scholar] [CrossRef]
  78. Wang, F.; Ma, R.; Li, Y.; Sun, M.; Wang, Y.; Sun, Y.; Cheng, P. Weathering Aging Resistance in Seasonal Frozen Regions: A Comparative Study of SBS- and SBR-Modified Asphalt Binders through Rheological and Morphological Characterization. Sci. Rep. 2025, 15, 13625. [Google Scholar] [CrossRef]
  79. Al-Shawabkeh, A.F.; Awwad, M.T.; Al-Rousan, T.M. Using Recycled Plastic Waste to Improve the Performance of Hot-Mix Asphalt. Proc. Inst. Civ. Eng. Waste Resour. Manag. 2022, 176, 118–128. [Google Scholar] [CrossRef]
  80. Vargas, C.; Hanandeh, A.E. The Utilisation of Polyethylene Waste Pyrolytic Wax as an Additive to Enhance the Performance of Virgin and Polypropylene-Modified Bitumen. Int. J. Pavement Res. Technol. 2024, 17, 929–951. [Google Scholar] [CrossRef]
  81. Usman, N.; Idrus Bin Mohd Masirin, M.; Abdullahi Ahmad, K.; Ahmed Wurochekke, A. Reinforcement of Asphalt Concrete Mixture Using Recycle Polyethylene Terephthalate Fibre. Indian J. Sci. Technol. 2016, 9, 107143. [Google Scholar] [CrossRef]
  82. Dalhat, M.A.; Al-Abdul Wahhab, H.I. Performance of Recycled Plastic Waste Modified Asphalt Binder in Saudi Arabia. Int. J. Pavement Eng. 2017, 18, 349–357. [Google Scholar] [CrossRef]
  83. Mehmood, S.A.; Khan, M.I.; Ahmed, S.; Al-Nawasir, R.; Choudhry, R.M. From Waste to Roads: Improving Pavement Performance and Achieving Sustainability with Recycled Steel Slag and Low-Density Polyethylene. Buildings 2025, 15, 476. [Google Scholar] [CrossRef]
  84. Olukanni, D.O.; Adegoke, D.A.; Akinmejiwa, A.A.; Bassey, D.E.; Adediran, J.A. EVALUATION OF ASPHALT PRODUCED FROM WASTE TYRE AND POLYETHYLENE TEREPHTHALATE-BASED BITUMEN WITH PARAFFIN WAX AS REJUVENATOR. J. Solid Waste Technol. Manag. 2023, 49, 270–279. [Google Scholar] [CrossRef]
  85. Ullah, S.; Qabur, A.; Ullah, A.; Aati, K.; Abdelgiom, M.A. Enhancing High-Temperature Performance of Flexible Pavement with Plastic-Modified Asphalt. Polymers 2024, 16, 2399. [Google Scholar] [CrossRef]
  86. Ullah, R.; Hafeez, I.; Haroon, W.; Haider, S. Evaluating the Effect of Plastomer Modified Asphalt Mixture on High/Low Temperature Performance. Mehran Univ. Res. J. Eng. Technol. 2021, 40, 680–691. [Google Scholar] [CrossRef]
  87. Masad, E.; Roja, K.L.; Rehman, A.; Abdala, A.A. A Review of Asphalt Modification Using Plastics: A Focus on Polyethylene; Texas A&M University at Qatar: Doha, Qatar, 2020. [Google Scholar] [CrossRef]
  88. Souza, R.S.; Visconte, L.L.Y.; Da Silva, A.L.N.; Costa, V.G. Thermal and Rheological Formulation and Evaluation of Synthetic Bitumen from Reprocessed Polypropylene and Oil. Int. J. Polym. Sci. 2018, 2018, 7940857. [Google Scholar] [CrossRef]
  89. Kathari, P.M. Rheological Properties of Polypropylene Reinforced Asphalt Binder. Transp. Infrastruct. Geotech. 2016, 3, 109–126. [Google Scholar] [CrossRef]
  90. Kim, Y.-M.; Kim, K. Evaluation of Thermal Aging Susceptibility of Recycled Waste Plastic Aggregates (Low-Density Polyethylene, High-Density Polyethylene, and Polypropylene) in Recycled Asphalt Pavement Mixtures. Polymers 2025, 17, 731. [Google Scholar] [CrossRef]
  91. Cháves-Pabón, S.B.; Rondón-Quintana, H.A.; Bastidas-Martínez, J.G. AGING OF ASPHALT BINDERS AND ASPHALT MIXTURES. SUMMARY PART I: EFFECT ON PHYSICAL-CHEMICAL PROPERTIES. Int. J. Civ. Eng. Technol. 2019, 10, 259–273. [Google Scholar]
  92. Gholampour, A.; Hosseini-Poul, S.-A.; MohammadNezhad, S.; Nematzadeh, M.; Ozbakkaloglu, T. Effect of Polypropylene and Polyvinyl Alcohol Fibers on Mechanical Behavior and Durability of Geopolymers Containing Lead Slag: Testing, Optimization, and Life Cycle Assessment. Constr. Build. Mater. 2025, 462, 139960. [Google Scholar] [CrossRef]
  93. Zhou, G.; Li, C.; Wang, H.; Zeng, W.; Ling, T.; Jiang, L.; Li, R.; Liu, Q.; Cheng, Y.; Zhou, D. Preparation of Wax-Based Warm Mixture Additives from Waste Polypropylene (PP) Plastic and Their Effects on the Properties of Modified Asphalt. Materials 2022, 15, 4346. [Google Scholar] [CrossRef]
  94. Mohammed, S.F.; Ismael, M.Q. Effect of Polypropylene Fibers on Moisture Susceptibility of Warm Mix Asphalt. Civ. Eng. J. 2021, 7, 988–997. [Google Scholar] [CrossRef]
  95. Al-Hadidy, A.I. Engineering Behavior of Aged Polypropylene-Modified Asphalt Pavements. Constr. Build. Mater. 2018, 191, 187–192. [Google Scholar] [CrossRef]
  96. Wu, S.; Montalvo, L. Repurposing Waste Plastics into Cleaner Asphalt Pavement Materials: A Critical Literature Review. J. Clean. Prod. 2021, 280, 124355. [Google Scholar] [CrossRef]
  97. Abdalla, A.; Alsalihi, M.; Khafagy, M.; Ibrahim, H.; Faheem, A.F. Upcycled Waste for Sustainable Roads: Exploring the Synergistic Effects of off-Spec Fly Ashes and Rejuvenators on Asphalt Binder Aging. Constr. Build. Mater. 2025, 467, 140377. [Google Scholar] [CrossRef]
  98. Hu, Y.; Omairey, E.; Hughes, D.; Bailey, H.; Watkins, M.; Twitchen, J.; Airey, G.D.; Sreeram, A. Recovering the Properties of Aged Bitumen Using Bio-Rejuvenators Derived from Municipal Wastes. Constr. Build. Mater. 2024, 438, 137268. [Google Scholar] [CrossRef]
  99. Zaumanis, M.; Mallick, R.B.; Frank, R. 100% Recycled Hot Mix Asphalt: A Review and Analysis. Resour. Conserv. Recycl. 2014, 92, 230–245. [Google Scholar] [CrossRef]
  100. Cabette, M.; Micaelo, R.; Pais, J. The Use of Bio-Oil from Biodiesel Production for Enhancing the Bitumen Healing. Constr. Build. Mater. 2023, 409, 134033. [Google Scholar] [CrossRef]
  101. Yan, K.; Lan, H.; Duan, Z.; Liu, W.; You, L.; Wu, S.; Miljković, M. Mechanical Performance of Asphalt Rejuvenated with Various Vegetable Oils. Constr. Build. Mater. 2021, 293, 123485. [Google Scholar] [CrossRef]
  102. Bilema, M.; Aman, M.Y.; Hassan, N.A.; Memon, Z.A.; Omar, H.A.; Yusoff, N.I.M.; Milad, A. Mechanical Performance of Reclaimed Asphalt Pavement Modified with Waste Frying Oil and Crumb Rubber. Materials 2021, 14, 2781. [Google Scholar] [CrossRef]
  103. Hashim, T.M.; Nasr, M.S.; Jebur, Y.M.; Kadhim, A.; Alkhafaji, Z.; Baig, M.G.; Adekunle, S.K.; Al-Osta, M.A.; Ahmad, S.; Yaseen, Z.M. Evaluating Rutting Resistance of Rejuvenated Recycled Hot-Mix Asphalt Mixtures Using Different Types of Recycling Agents. Materials 2022, 15, 8769. [Google Scholar] [CrossRef]
Materials 18 04273 g001

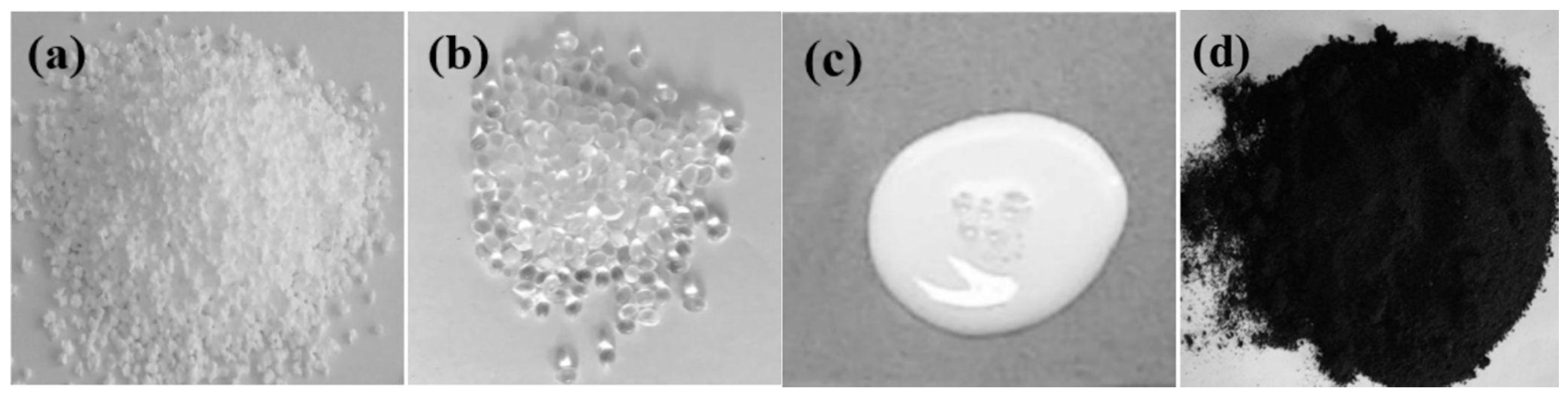

Figure 1. Polymers used for the modification: (a) SBS, (b) EVA, (c) SBR, and (d) rubber [9].
Figure 1. Polymers used for the modification: (a) SBS, (b) EVA, (c) SBR, and (d) rubber [9].
Materials 18 04273 g001
Materials 18 04273 g002
Figure 2. Global market share of polymer and rejuvenator.
Figure 2. Global market share of polymer and rejuvenator.
Materials 18 04273 g002
Materials 18 04273 g003
Figure 3. Year-wise publication in different databases.
Figure 3. Year-wise publication in different databases.
Materials 18 04273 g003
Materials 18 04273 g004
Figure 4. PRISMA study flow chart.
Figure 4. PRISMA study flow chart.
Materials 18 04273 g004
Materials 18 04273 g005
Figure 5. SBS Polymer Performance Comparison.
Figure 5. SBS Polymer Performance Comparison.
Materials 18 04273 g005
Materials 18 04273 g006
Figure 6. SBR Polymer Performance Comparison.
Figure 6. SBR Polymer Performance Comparison.
Materials 18 04273 g006
Materials 18 04273 g007
Figure 7. Performance of Rejuvenators.
Figure 7. Performance of Rejuvenators.
Materials 18 04273 g007
Table 1. Summary of 150/220 grade asphalt characteristics through elastomer modification [9].
Table 1. Summary of 150/220 grade asphalt characteristics through elastomer modification [9].
Asphalt Binder160/220 Grade Asphalt (Control)SBS (5% by Weight)SEBS (3% by Weight)SBR (5% by Weight)Polybutadiene Rubber (1.5% by Weight)
Penetration @ 25 °C (dmm)160–22070–11060–100100–130106
Softening point (°C)35–4375–9565–855648
Elastic recovery, @ 5 °C (%)N/d>50>50>70>80
Fraass breaking point (°C)−15−20−18−15−30
Table 2. Summary of the effect of plastic on asphalt and asphalt mixtures [9].
Table 2. Summary of the effect of plastic on asphalt and asphalt mixtures [9].
Polymers70/100 Grade Asphalt (Control)EVA 18/150 (5% by Weight)EVA 30/45 (5% by Weight)LDPE (4% by Weight)
Penetration at 25 °C (dmm)70–10038–485547
softening point (°C)43–5158–685753
Elastic Recovery, @ 5 °C (%)20505082
Frass breaking point (°C)−10−18−18−3
Table 3. Characteristics of Elastomers and Plastomers.
Table 3. Characteristics of Elastomers and Plastomers.
CharacteristicsElastomersPlastomers
NatureThermoplastic elastomers behave like rubberThermoplastics (behave like plastic)
Main Types UsedSBS, SBR, SEBS, SISPE, EVA, PP, EBA
CostHigher cost, but effective in small dosesLower-cost, recycled plastics are widely available
Compatibility with AsphaltExcellent compatibility
forms a network in the binder		Moderate to poor
requires compatibilizers
Elastic RecoveryExcellent elastic recoveryLimited elastic behavior
Rutting ResistanceVery high
especially for SBS mixtures		High at higher temperatures
especially with EVA
Low-Temperature PerformanceProvides excellent flexibility and crack resistancePoor
brittle at low temps
SustainabilitySome options use reclaimed rubber (SBR)PE, PP sourced from waste
ChallengesOxidation of butadiene (SBR)Crystallization, storage stability, and low elasticity
Table 4. Study questions.
Table 4. Study questions.
Question 1How PMB improves the performance of the mixture.
Question 2Have the recent changes in approach to mix design led to any substantial differences in results between Marshall and Superpave using PMA?
Table 5. Repository and Search String.
Table 5. Repository and Search String.
ScienceDirectScopusWeb of Science
asphalt mixtures OR Polymer modified asphalt AND Rejuvenators OR recycled aggregate OR Marshall OR SuperpaveTITLE-ABS-KEY (asphalt mixtures OR Polymer modified asphalt AND Rejuvenators OR recycled aggregate OR Marshall OR Superpave) AND PUBYEAR > 2015 AND PUBYEAR < 2026 AND (LIMIT-TO (DOCTYPE, “ar”) OR LIMIT-TO (DOCTYPE, “re”)) AND (LIMIT-TO (LANGUAGE, “English”))“(TS = ((“asphaltic mixture” OR asphalt OR bitumen OR “asphalt concrete” OR pavement) AND (polymer OR “polymeric compound” OR polyethylene OR polypropylene OR “polymer modifier” OR “polymer additive” OR “plastic waste”) AND (“reclaimed aggregate” OR “recycled aggregate” OR RAP OR “reclaimed asphalt pavement” OR “construction and demolition waste” OR C&DW)) AND DT = (Article OR Review))”
580234301
Total1115
Table 6. Significant studies compliant with the goals of the review.
Table 6. Significant studies compliant with the goals of the review.
Refs.MaterialsTests and MethodsKey TakeawaysGaps or Limitations
[9]Plastomers
Elastomers
Rubber		Dynamic Shear Rheometer
Viscosity
Elastic recovery
Multiple Stress Creep and Recovery
PG Grading
Creep		Enhanced rutting resistance, improved fatigue resistance, increased high temperature stiffness, and reduced cracking.
Plastomers improve high temperature stiffness but may be brittle
Elastomers enhances resistance to rutting and fatigue
Rubber improves resistance to fatigue but has dispersion issues.		Lack of long-term performance data and issues with rubber dispersion.
[11]SBS, SBR, EVA, RubberRheological Analysis
Spectroscopy
Microscopy
XRD		SBS improves rutting and aging resistance, SBR enhances elasticity, and wax enhances workability in the mixture.Limited focus with SBS on high temperature stability.
[45]Recycled plastics (dry/wet process),
SBS,
EVA,
PE, PP, PET		wheel tracker tests
stiffness
rutting
fatigue		Enhanced stiffness, resistance fatigue, rutting, superior moisture recycled plastic modified asphalts.
Recycled plastic enhances rutting and fatigue resistance.		The need for further research on the performance of Superpave with high recycled content.
[5]SBS, SBRDynamic modulus and fatigue resistanceImproved fatigue resistance and moisture susceptibility, better rutting resistance than Marshall. SBS and SBR improve fatigue and rutting resistance.Lack of long-term field validation and economic feasibility.
[3]SBS, SBRVolumetrics
Mechanical characteristics of Marshall and Superpave		Improved rutting and fatigue resistance especially in high-temperature fluctuations. Superpave outperforms Marshall under heavy traffic and extreme temperatures.Limited data on Superpave’s applicability in low-income regions.
[46]SBS, RAP
Virgin Asphalt		Gyratory Compaction
Dynamic modulus test
Cyclic direct tension test
FlexPaveTM (version 1.1) software		Enhanced rutting resistance with high RAP content but may reduce flexibility.Performance effect of high RAP content on low temperature remains underexplored.
[47]SBR, SBS and Crumb RubberFatigue test and wheel trackingEnhanced fatigue and aging resistance particularly at high temperatures. SBS and SBR performs enhanced high temperature fatigue resistance while crumb rubber provides better ductility.Limited studies on long term field performance on crumb rubber modified asphalts.
[48]Recycled concrete aggregateMarshall compaction, creep test, tensile strength ratiosLower deformation resistance with fine graded mixtures, improved rutting resistance in coarse mixtures.
Mixtures gradation has bigger impact on rutting resistance than RCA content.		Lack of long-term performance with recycled concrete aggregate (RCA) in asphalt mixtures.
[49]SBS, PEtensile strength ratios
uniaxial dynamic modulus testing		Enhanced stiffness and moisture susceptibility resistance.
SBS enhance flexibility and PE improves high temperature stability.		Need for more studies on EVA modified asphalt in low-temperature areas.
[50]PE, EVATensile strength
dynamic modulus		Improved rutting and cracking resistance, particularly in heavy-traffic and high-temperature areas. PE and EVA enhance high temperature performance; EVA may cause brittleness at low temperatures.Need for more studies on EVA long term field performance.
[30]Graphene, recycled plasticLab tests, Falling Weight Deflectometer, fatigue and rutting test.Improved stiffness, fatigue resistance, and rutting performance.
Graphene enhances stiffness and fatigue resistance, while recycled plastics reduce carbon footprint.		Need for long-term filed performance data for graphene modified asphalt.
[28]Recycled plasticRheological tests, stiffness and penetrationMulticycle recyclability without loss of performance, stable binder properties, recycled plastics shows high recyclability with stable binder properties across multiple cycles and hence promotes sustainability.Limited research on environmental impact assessment (EIA), and performance in extreme climates.
[7]Recycled plastic, EVAFatigue testRecycled plastic offers excellent sustainability and mechanical performance across multiple cycles.Need for more studies on impact of recycled materials aging.
[51]RAP, virgin asphaltGyratory compaction, fracture toughness testRAP improves fracture resistance but may decrease shear resistanceFurther investigation on RAP’s impact on cracking and shear resistance needed
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jatoi, G.H.; Loprencipe, G.; Moretti, L. Comparative Review of Marshall and Superpave Mix Designs: Enhancing Asphalt Performance with Polymers. Materials 2025, 18, 4273. https://doi.org/10.3390/ma18184273

AMA Style

Jatoi GH, Loprencipe G, Moretti L. Comparative Review of Marshall and Superpave Mix Designs: Enhancing Asphalt Performance with Polymers. Materials. 2025; 18(18):4273. https://doi.org/10.3390/ma18184273

Chicago/Turabian Style

Jatoi, Gulzar Hussain, Giuseppe Loprencipe, and Laura Moretti. 2025. "Comparative Review of Marshall and Superpave Mix Designs: Enhancing Asphalt Performance with Polymers" Materials 18, no. 18: 4273. https://doi.org/10.3390/ma18184273

APA Style

Jatoi, G. H., Loprencipe, G., & Moretti, L. (2025). Comparative Review of Marshall and Superpave Mix Designs: Enhancing Asphalt Performance with Polymers. Materials, 18(18), 4273. https://doi.org/10.3390/ma18184273

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
