Article

Structure and Properties of Strontium-Modified Zn–Al–Cu Alloys

by
Mariusz Krupiński
1,
Krzysztof Labisz
2 and
Beata Krupińska
1,*
1
Faculty of Mechanical Engineering, Silesian University of Technology, Konarskiego Str. 18a, 44-100 Gliwice, Poland
2
Faculty of Transport and Aviation Engineering, Silesian University of Technology, Krasińskiego Str. 8, 40-019 Katowice, Poland
*
Author to whom correspondence should be addressed.
Materials 2025, 18(4), 797; https://doi.org/10.3390/ma18040797
Submission received: 2 December 2024 / Revised: 31 January 2025 / Accepted: 8 February 2025 / Published: 11 February 2025
(This article belongs to the Special Issue Phase Transformations in Metal Alloys)

Abstract

:
(1) In recent years, an increase in the available functionality of non-ferrous alloys has been observed based on the modification and optimization of their chemical composition. This study investigated the effect of Sr addition on the structure and properties of hypereutectic Zn–Al–Cu alloys. The objective was to determine how a modification with Al–Sr master alloy affects the crystallization kinetics, microstructure, hardness, and abrasive wear resistance and whether the modification of the phase composition reduces the corrosion resistance. (2) The total influence of strontium was determined based on the microstructure, phase composition, and derivative curve changes of the tested Zn–Al–Cu alloys with added Sr. Optical microscopy, scanning electron microscopy (SEM), and transmission electron microscopy (TEM) were used to analyze the influence of chemical and phase composition, and thermo-derivative analysis (TDA) was used to investigate the crystallization kinetics of zinc alloys with different chemical compositions. (3) Sr modification caused the formation of primary Al2Sr phases in the Zn alloy and also secondary Zn13Sr and Al4Sr phases (depending on the melting temperature of the alloy). (4) The primary and secondary intermetallic phases with strontium increased the hardness by approx. 20% and the abrasion resistance by approx. 7.5%.

1. Introduction

Zinc alloys are used for the mass production of components with high dimensional accuracy. They are characterized by the possibility of using them at a higher casting speed, while ensuring increased durability of the die, which predisposes them to large-scale production of small castings. Zinc alloy castings are widely used in the automotive and electronics industries as well as in mechanical engineering [1].
In order to improve the mechanical properties, including the hardness and abrasion resistance, of zinc casting alloys, the procedure of modifying the casting structure is used. This involves changing the morphology of the structural components of the alloy, primarily by reducing the interfacial distance of the α′ + η eutectic, fragmenting the components’ structures, and (as in the case of La and Ce) changing the morphology of the α′ phase [2,3].
An important factor leading to an improvement in the quality of cast products is the appropriate use of knowledge about crystallization and its mechanisms, which allows the production of castings with optimal microstructure and properties. In the case of casting alloys, the crystallization process takes place over a temperature range determined by the values for the beginning and end of crystallization, i.e., between the liquidus and solidus temperatures, which depend primarily on the alloy composition, cooling rate, and the thermodynamic conditions of transformation. The free energy values for the liquid and solid phases depend on the concentration of the remaining components in the liquid phase [4,5,6].
The main zinc alloying elements are Cu, which influences the formation of the hexagonal ε phase (Zn4Cu) and the hexagonal τ phase (Zn3Cu intermetallic compound). The τ phase crystallizes at a concentration range of 0.6–0.7% Cu in the alloy and causes dimensional changes in the castings [7]. Moreover, the addition of Ti causes fragmentation of α-phase dendrites due to heterogeneous nucleation of this phase on Al3Ti and Zn3Ti secretions [8,9].
ZnAl25 alloys require a melting point of about 700–750 °C, which can cause the alloy to oxidize and can lead to increasing energy costs. A newly developed master added in the melting process shows good solubility at much lower temperatures, i.e., about 500 °C in Zn–Al alloys, thus avoiding harmful overheating and saving energy costs [10]. The casting temperature also has a significant impact on the mechanical properties of zinc castings, which has also been confirmed by the authors of [11]. The best tensile strength values were achieved for Zn–Al alloys with 4.6 wt.% Al, for a soaking temperature of 460 °C before alloy casting.
Strontium is a frequently used modifier of the microstructure of metal alloys because it is a long-term modifier, its effects persisting even after many melts of the alloy [12,13]. Additionally, the Sr used as a modifier for Zn–Al alloys does not negatively affect corrosion resistance, which has been confirmed by previous test results [14].
Ref. [15] investigated the effect of heat treatment of ZA-27 alloys on sliding wear behavior. The heat treatment caused a decrease in hardness and tensile strength, but also an increase in elongation. The heat-treated alloy samples achieved higher tribological behavior compared with the cast samples, both in terms of friction and wear resistance. The improved tribological behavior of the heat-treated alloys, despite their reduced hardness, may be the result of breaks and discontinuities in the dendritic structure. Dendritic segregation influences the phenomena involved in the structural transformations occurring both during solidification and cooling in the solid state [16].
This investigation describes the effect of strontium modification on the following:
  • the crystallization kinetics of the hypereutectic Zn–Al–Cu alloy solidifying between temperatures of 450 °C and 700 °C,
  • the formation and distribution of Sr-containing intermetallic phases,
  • the influence of the microstructure on the mechanical properties and corrosion resistance.

2. Materials and Methods

The tests were performed on laboratory-produced alloys to which appropriate amounts of Al and Cu alloying elements and an Al–Sr master alloy were introduced (with 10% mass concentration of Sr). The mass concentration of aluminum was set to obtain hypereutectic alloys, i.e., in a range from 8 to 12%. The copper content was kept in a range of about 1 wt.%. The melts were made in a resistance furnace in chamotte-graphite crucibles, using a protective argon atmosphere. The manufactured alloys were cast into properly prepared metal crucibles made of carbon steel. The control tests of the mass concentrations of the Al, Cu, and Sr alloy additives were carried out by ICP-OES with a Jobin-Yvon-Horiba ULTIMA 2 device. The chemical composition of the obtained alloys is given in Table 1.
Thermal analysis of the tested alloys was performed on the UMSA MT5 device, patent no. 60/339,358. From the previously produced casts, samples for thermal tests were prepared, with dimensions of ø30 × 35 mm, which were then melted in a graphite crucible and smeared with a boron nitride suspension. Type K thermocouples were each placed in the same place (in the heat node), the position of which was determined during the preliminary tests.
Metallographic examinations were performed using a Zeiss Axio Observer metallographic microscope (SEM, Thornwood, NY, USA) employing a computer image analysis system at magnifications from 50 to 500 times and an Olympus LEXT OLS4000 confocal microscope (Tokyo, Japan). The prepared specimens were etched in 10% HF. The etching time and the concentration of the reagent were experimentally selected for each tested alloy.
Qualitative and quantitative X-ray microanalysis, as well as the analysis of the surface distribution of the alloying elements, were performed on specimens in a direction transverse to the casting direction using an Oxford LINK EDS ISIS X-ray spectrometer (EDS, Oxford, Oxford Instruments, Abingdon, UK) at an accelerating voltage of 15 kV and a JEOL JXA 733 X-ray microanalyzer (Oxford, Oxford Instruments, Abingdon, UK).
Microstructural investigations of thin foils and phase identification of the precipitates were performed using a JEOL 3010CX TEM (FEI Company, Hillsboro, OR, USA), at an accelerating voltage of 300 kV, with the use of the selected area diffraction (SAD) technique, allowing for the identification of phase components. The resolution allows it to very accurately determine the phases occurring in this alloy or in even smaller structural components [17]. The obtained diffractograms were analyzed using specialized software dedicated to solving electron diffractograms. The procedure for making thin films consisted of cutting thin plaques from the material to be tested, then grinding these to a maximum thickness of 80 μm, and cutting disks with a diameter of 3 mm. The cut discs were then polished using a Gatan 691 (PIPS ™, Pleasanton, CA, USA) ion polishing system until one or more holes were visible. Ion polishing was carried out using an ionized argon beam at a voltage of 3.5 kV, directed at an angle of 3.5–4.5° to the sample surface.
In order to determine the resistance to erosive wear of Zn–Al–Cu alloys after the specified modifications, tests were performed in accordance with ASTM G 76–95 (the standard test method for conducting erosion tests by solid particle impingement) [18]. The device was calibrated prior to the tests. The results showed that the mass loss of the reference sample complied with the conditions specified in the standard. The tests of resistance to erosive wear were carried out for a test duration of 10 min and set erodent (Al2O3) incidence angles of 90°.
The abrasion resistance tests were carried out using a tribometer (ball on plate), in which a steel ball with a diameter of 6 mm made a reciprocating movement on the surface of the tested samples with a maximum surface roughness of Ra 0.1 at a speed of 40 mms−1 and a pressure of 10 N. The total friction path was 50 m.
The hardness was measured using a Zwick ZHR 4150 hardness tester (WroclawPoland, Europe), using the Rockwell hardness method on the HRA scale. To obtain a correct result, at least 10 measurement points were performed for each measurement, and a statistical analysis of the obtained results was performed.
Corrosion resistance tests (for 18 samples) were carried out in a salt spray chamber CC450iP—Ascott (Ascott, Singapore) according to the guidelines contained in ISO 9227: 2006: Corrosion tests in artificial atmospheres—Salt spray tests [19]. The samples were weighed before testing. The standard salt spray corrosion resistance test consisted of the following steps: preparation of a 5% brine solution; placing the samples at a 15-degree angle in the salt chamber; starting the test; taking photographs after 2, 6, 24, 48, and 96 h; drying the samples after the test; rinsing the samples with running water; and drying again with a stream of air. The samples were then cleaned of corrosion products in glycine.
Before testing, the samples were weighed, placed in a salt chamber (at an angle of 15°), and treated with a 5% brine solution for several dozen hours. After testing, the samples were rinsed with a stream of water, rinsed in aqueous glycine according to the standard, and weighed to confirm the removal of the corrosion products. The mass loss of the sample Vc (1) was determined from the dependence Vp (2), which revealed the linear corrosion rate described by the relationship in Equation (1):
Vc = Δmk · (A·tk)−1
Vp = (Vc · 365) · (1000 · d)−1
  • A description of the designations in the formulas is as follows:
  • Vc—loss of mass/g · (m2 · day)−1,
  • mk—sample mass change/g,
  • A—active sample surface against corrosion/m2,
  • tk—duration of corrosion/day,
  • Vp—linear corrosion rate/mm · year−1,
  • d—material density/g · (cm3)−1.

3. Results and Discussion

3.1. Thermo-Derivative Analysis (TDA)

The driving force of crystallization in the case of alloys is the difference between the free energy of the liquid and the energy of the mixture of liquid and solid phases over the range of the concentration of the second component for the liquid and solid phases. It was therefore found useful, both from a practical and theoretical point of view, to learn more about the influence of Sr addition on the crystallization kinetics and thus the microstructural and mechanical properties of the ZnAl8Cu1Sr1 alloy.
The characteristic cooling curve and derivative curve for ZnAl8Cu1Sr1 as-cast alloys cooling freely at a rate of 0.1 °C∙s−1 are shown in Figure 1a. Analyzing the course of the crystallization process based on the curves obtained, it could be concluded that the alloy did not show significant changes in the stages of the crystallization of individual components in comparison with the crystallization effects recorded for the ZnAl10Cu1 alloy.
Analyzing the course of the crystallization process based on the obtained curves of changes in temperature and the dT·dt−1 derivative, it was found that the process of α-phase nucleation began at the TL temperature, which is illustrated on the derivative curve in the form of a slight inflection at point I and a temporary decrease in the cooling rate of the alloy. The thermal effects accompanying the process of nucleation and the growth of α crystals provided additional heat to the mixture of liquid and solid phase being formed; however, the heat balance of the cooling ingot was negative. The chemical composition of the remaining liquid changed according to the liquidus line of the Zn–Al diagram, which was also confirmed by the studies in [20]. In this range, an approximately constant negative value of the dT·dt−1 derivative was observed. The liquid became increasingly enriched with zinc, and, after reaching the temperature T(Al+Zn), nucleation of the α + η eutectic took place. As a result of further cooling, the remaining liquid theoretically crystallized at a constant temperature, TE(Al+Zn) (dT·dt−1 = 0), creating the α + η eutectic (point II). Crystallization ended when the melt reached the temperature TSol (Figure 1a). In experimental practice, the recording of temperatures characteristic of the beginning and end of the eutectic transformation showed a slight difference; it was assumed that the solidus temperature TSol was the temperature value corresponding to point III (end of eutectic solidification). The differences become visible when the melting temperature of the liquid alloy increased to 700 °C. The crystallization then started from the Al4Sr phase at 657 °C (Figure 1b). Only at the next point did the α phase crystallize. Table 2 shows the reactions that occurred in the tested alloys during solidification and in the solid state, as well as the temperature at characteristic points. Data are provided for both the alloy with the addition of strontium and the reference alloy without any Sr. There were no differences in the crystallization temperature of the α phase and α + η eutectic caused by the difference in the mass concentration of Al and the addition of Sr to the alloy.
Figure 2. Microstructure of the alloy cooling freely with a rate 0.1 °C∙s−1. (a) ZnAl10Cu1, (b) ZnAl8Cu1Sr1.
Figure 2. Microstructure of the alloy cooling freely with a rate 0.1 °C∙s−1. (a) ZnAl10Cu1, (b) ZnAl8Cu1Sr1.
Materials 18 00797 g002

3.2. Microstructure and Phase Composition

The analysis of the effects of phase transformations during the crystallization of alloys was supplemented with structural studies. The microstructure of the ZnAl10Cu1 alloy is shown in Figure 2a. The structural components were the α′ phase and the α′ + η eutectic. The metallographic analyses of the strontium-modified Zn–Al–Cu alloys confirmed the presence of the α′ phase and the “fine eutectic” formed during the monotectoid transformation, as well as the α′ + η eutectic (Figure 2b). Moreover, optical microscopy tests revealed the Al2Sr phase in the form of partially quasi-spherical and/or rectangular precipitates with straight edges (Figure 3 and Figure 4, Table 3).
The Al2Sr intermetallic phase occurred in the alloy, having a melting point of 928 °C [21]. The Al2Sr phase was shown to be the primary phase because there were no visible thermal effects on the derivative curve for the tested alloys, both at the melting point of 450 °C and at 700 °C. The Al2Sr phase, with an average microhardness of 400.54 HV0.01, was also responsible for the increase in hardness and abrasion resistance of the tested alloys. In the alloy solidified from a temperature of 700 °C, the Al4Sr [12] phase crystallized at a temperature of 657 °C; this phase was a structural component of the investigated material. Part of the strontium addition went into solution even at 450 °C and formed Zn13Sr phases during solidification. Similar results were obtained by researchers in [22].
Figure 5 shows the surface distribution of the elements that are components of the ZnAl8Cu1Sr1 alloy structure.
TEM investigations confirmed the presence of intermetallic strontium phases, especially of the Al2Sr phase present in the eutectic; the noted phase particle had a zone axis of [100] as well as [1–10] (Figure 6). The morphologies of these phases were relatively similar to each other, the particles having a bulk globular shape with a size of ca. 5 to 100 μm.
In some cases, the Sr phase particles were discovered with zone axes of [−12–1] and [−2–71], with a size up to 40 μm, and with more sharp edges compared with the Al2Sr phase particles (Figure 7).

3.3. Erosion Wear Resistance Results

Figure 8 shows an image of the abrasion observed with a confocal microscope, which provided the possibility of assessing the height of the abrasion, measuring its depth, and presenting the surface (in a color scale).
The abrasion was clear in the image captured by a confocal microscope (Figure 8), which provided high measurement resolution and allowed evaluations of the height in the surface images (using a color scale). The accumulation of material on the surface of the test sample (red color) and the indentations (dark blue color) were created as a result of the reciprocating movement of the ball; the ZnAl8Cu1Sr1 alloy was more evenly worn over the entire friction path. This indicated increased uniformity in terms of the distribution of fine-grained structural components and related properties.
The presence of many primary phases in the microstructure led to a more significant increase in abrasion resistance, as observed following modifications with strontium Al2Sr, Al4Sr, and Zn13Sr. The wear area was 7.5% lower compared with the alloy without Sr addition (Table 4, Figure 12). This difference was caused by the uniform distribution of the primary phases Al2Sr and secondary phases Al4Sr, in the α′ + η. eutectic. Based on the obtained results of the wear trace tests, typical wear features characteristic of abrasive wear were noted, including grooves, but also dents and plastic deformation, indicating material displacement during the abrasion resistance test.
By introducing additional alloying elements (modifiers) to the zinc, changes in the physical properties of the material, such as resistance to abrasion, but also changes in the effects of the erosive action of the environment, were expected. For this reason, research was undertaken to assess the surface erosivity of the tested alloys (Figure 9). A stream of Al2O3 was directed onto the sample surface. The test results clearly indicated an increase in the erosive wear resistance of strontium-modified alloys. The mass loss after erosion test for the ZnAl10Cu1 alloy is 0.024 g, and for the ZnAl8Cu1Sr1 alloy is 0.016 g. The mass loss results from the erosion resistance test are presented in a summary graph (Figure 12).

3.4. Hardness Results

The increased uniformity of the distribution of hard, fine-grained structural components and the related mechanical properties was the reason for the increased HRA hardness of the tested alloys (Table 5, Figure 12).
The presence of many intermetallic phases in the microstructure led to a more significant increase in abrasion resistance and hardness, as observed following modifications with strontium. Therefore, the influence of the modifier (i.e., Sr) on the corrosion resistance was also investigated (Section 3.5).

3.5. Corrosion Results

The mass losses recorded for the unmodified and Sr-modified alloys were very similar: ZnAl10Cu1 alloy = 0.084 g∙(m2∙day)−1 and ZnAl8Cu1Sr1 alloy = 0.077 g∙(m2∙day)−1 (Figure 10).
Corrosion tests in salt water indicated that the presence of Al in Zn–Al alloys can hinder passivation. This was also confirmed by other researchers in their studies [22]. A salt spray corrosion test revealed that the Sr-modified alloy, cooling freely at a rate of 0.1 °C∙s−1, exhibited a mass loss comparable to that of unmodified alloys. The occurrence of lamellar eutectic, in which both phases are mutually separated, reduces the rate of corrosion processes, in contrast to the precipitation of intermetallic phases. In the studies, the occurrence of intergranular corrosion was observed, which is confirmed by other researchers [22]. Tests showed that the products of corrosion, apart from oxides, were zinc chloride (Figure 11). This behavior resulted from the smaller specific surface of the grain boundaries [23], as well as the formation of intermetallic phases containing Sr, which reduced the cathodic reduction of oxygen and the formation of a passive layer.
Figure 12 compares the tested properties and corrosion resistance of ZnAl10Cu1 and ZnAl8Cu1Sr1 alloys. The graph shows an increase in the hardness of the alloy with the addition of Sr, with a simultaneous decrease in the wear surface measured both in the ball-on-plate test and in the erosion resistance test.

4. Conclusions

The conducted studies showed that the modification of the chemical composition with the Al–Sr master alloy increased the resistance to abrasive wear and erosion, as mentioned in [24], but not as a result of the modification of the structural components of the alloy. In multicomponent systems, the exact values of the start and end temperatures of the solidification of structural components can be determined using TDA, and these values can differ significantly compared with two-component systems.
In general, the following can be stated:
  • in Zn–Al–Cu alloys modified with Sr, the structural components, i.e., α′ and the α′ + η eutectic, were not modified, and the temperature of the beginning and end of crystallization of the phases and eutectic did not change either.
  • the change in the mass concentration of Al (in the range from 8 to 10 wt.%) in eutectic Zn–Al–Cu alloys did not change the start and end temperatures of solidification of the α′ phase and α′ + η eutectic. It changed the area between the derivation and calorimetric curves, which changed the share of individual phases.
  • the improvement in mechanical properties occurred as a result of the presence of the primary Al2Sr and secondary Al4Sr phases (in alloys melted at 700 °C), as well as intermetallic phases (Zn13Sr).
  • in the alloy structure, in addition to the aluminum–strontium phases, there were also pure Sr phases. These hard intermetallic phases improved the mechanical properties, while not worsening the resistance to corrosion.
  • the difference in corrosion resistance measured according to the standard ISO 9227: 2006: (Corrosion tests in artificial atmospheres—Salt spray tests) [19] did not exceed 9%, the alloy with Sr being more resistant.
  • the addition of Sr also caused a shift in the end temperature of the monotectoid transformation TFα+E(α+η)→α′+E(α′+η) by about 12 °C and also caused a shift in time toward higher values compared with the alloy without the addition of strontium.

Author Contributions

Conceptualization, M.K.; methodology, M.K.; formal analysis, M.K., K.L. and B.K.; investigation, M.K., K.L. and B.K.; writing—original draft preparation, M.K., K.L. and B.K.; writing—review and editing, M.K., K.L. and B.K.; project administration, M.K.; All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author(s).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pola, A.; Tocci, M.; Goodwin, F.E. Review of Microstructures and Properties of Zinc Alloys. Materials 2020, 10, 253. [Google Scholar] [CrossRef]
  2. Krupinski, M. Crystallization kinetics and microstructural analysis of lanthanum-modified zinc alloys. J. Alloys Compd. 2021, 890, 161784. [Google Scholar] [CrossRef]
  3. Krupinski, M. Effect of addition Ce on crystallisation kinetics and structure of Zn-Al-Cu alloys. Arch. Met. Mater. 2018, 63, 1173–1178. [Google Scholar] [CrossRef] [PubMed]
  4. Bäckerud, L.; Król, E.; Tamminen, J. Solidification Characteristics of Aluminum Alloys 1; Skanaluminium: Oslo, MN, USA, 1986. [Google Scholar]
  5. Bäckerud, L.; Chai, G.; Tamminen, J. Solidification Characteristics of Aluminum Alloys 2; Skanaluminium: Des Plaines, IL, USA, 1990. [Google Scholar]
  6. Krupiński, M.; Labisz, K.; Tański, T.; Krupińska, B.; Król, M.; Polok-Rubiniec, M. Influence of Mg addition on crystallisation kinetics and structure of the Zn-Al-Cu alloy. Arch. Met. Mater. 2016, 61, 785–790. [Google Scholar]
  7. Ghosh, G.; Humbeeck, J.V. Ternary alloys. In Aluminium—Copper—Zinc, MSIT, 187 Landolt-Börnste in New Series IV/11A2, Updated by Pierre Perrot; Northwestern University: Evanston, IL, USA, 1992; p. 203. [Google Scholar]
  8. Krajewski, W.K.; Greer, A.L.; Krajewski, P.K. Trends in the development of high-aluminium zinc alloys of stable structure and properties. Arch. Met. Mater. 2013, 58, 845–847. [Google Scholar] [CrossRef]
  9. Savaskan, T.; Pürçek, G.; Murphy, S. Sliding wear of cast zinc-based alloy bearings under static and dynamic loading conditions. Wear 2002, 252, 693–703. [Google Scholar] [CrossRef]
  10. Krajewski, W.K. Structure and properties of high-aluminium zinc alloys inoculated with Ti addition. Arch. Foundry 2005, 5, 231–240. [Google Scholar]
  11. Yang, L.J. The effect of casting temperature on the properties of squeeze cast aluminium and zinc alloys. J. Mater. Process Technol. 2003, 140, 391–396. [Google Scholar] [CrossRef]
  12. Krupinski, M.; Krol, M.; Krupinska, B.; Mazur, K.; Labisz, K. Influence of Sr addition on microstructure of the hypereutectic Zn-Al-Cu alloy. J. Therm. Anal. Calorim. 2018, 133, 255–260. [Google Scholar] [CrossRef]
  13. Lipiński, T. Effect of combinative cooled addition of strontium and aluminium on mechanical properties AlSi12 alloy. J. Achiev. Mater. Manuf. Eng. 2017, 83, 5–11. [Google Scholar] [CrossRef]
  14. Choudhury, P.; Das, S. Effect of microstructure on the corrosion behavior of a zinc–aluminium alloy. J. Mater. Sci. 2005, 40, 805–807. [Google Scholar] [CrossRef]
  15. Babić, M.; Mitrović, S.; Jeremic, B. The influence of heat treatment on the sliding wear behavior of a ZA-27 alloy. Tribol. Int. 2010, 43, 16–21. [Google Scholar] [CrossRef]
  16. Agapie, M.; Varga, B. Dendritic Segregation of Zn-Al Eutectoid Alloys. Metals 2018, 8, 924. [Google Scholar] [CrossRef]
  17. Boncel, S.; Zniszczoł, A.; Pawlyta, M.; Labisz, K.; Dzido, G. Heat transfer nanofluid based on curly ultra-long multi-wall carbon nanotubes. Heat. Mass. Transf. 2017, 54, 333–339. [Google Scholar] [CrossRef]
  18. ASTM G76-95; Standard Test Method for Conducting Erosion Tests by Solid Particle Impingement Using Gas Jets. ASTM International: West Conshohocken, PA, USA, 2017.
  19. ISO 9227: 2006; Corrosion Tests in Artificial Atmospheres—Salt Spray Tests. International Organization for Standardization: Geneva, Switzerland, 2006.
  20. Zobac, O.; Kroupa, A.; Richter, K.W. Experimental study of the Al–Cu–Zn ternary phase diagram. J. Mater. Sci. 2020, 55, 10796–10810. [Google Scholar] [CrossRef] [PubMed]
  21. Okamoto, H. Al-Sr (Aluminum-Strontium). J. Phase Equilibria Diffus. 2005, 26, 394. [Google Scholar] [CrossRef]
  22. Kaewmaneekul, T.; Lothongkum, G. Effect of aluminium on the passivation of zinc–aluminium alloys in artificial seawater at 80 °C. Corros. Sci. 2013, 66, 67–77. [Google Scholar] [CrossRef]
  23. Osório, W.R.; Freire, C.M.; Garcia, A. The effect of the dendritic microstructure on the corrosion resistance of Zn–Al alloys. J. Alloys Compd. 2005, 397, 179–191. [Google Scholar] [CrossRef]
  24. Gutiérrez-Menchaca, J.; Torres-Torres, D.; Garay-Tapia, A.M. Microstructural, mechanical and thermodynamic study of the as-cast Zn–Al–Sr alloys at high Sr content 829. J. Alloys Compd. 2020, 829, 154511. [Google Scholar] [CrossRef]

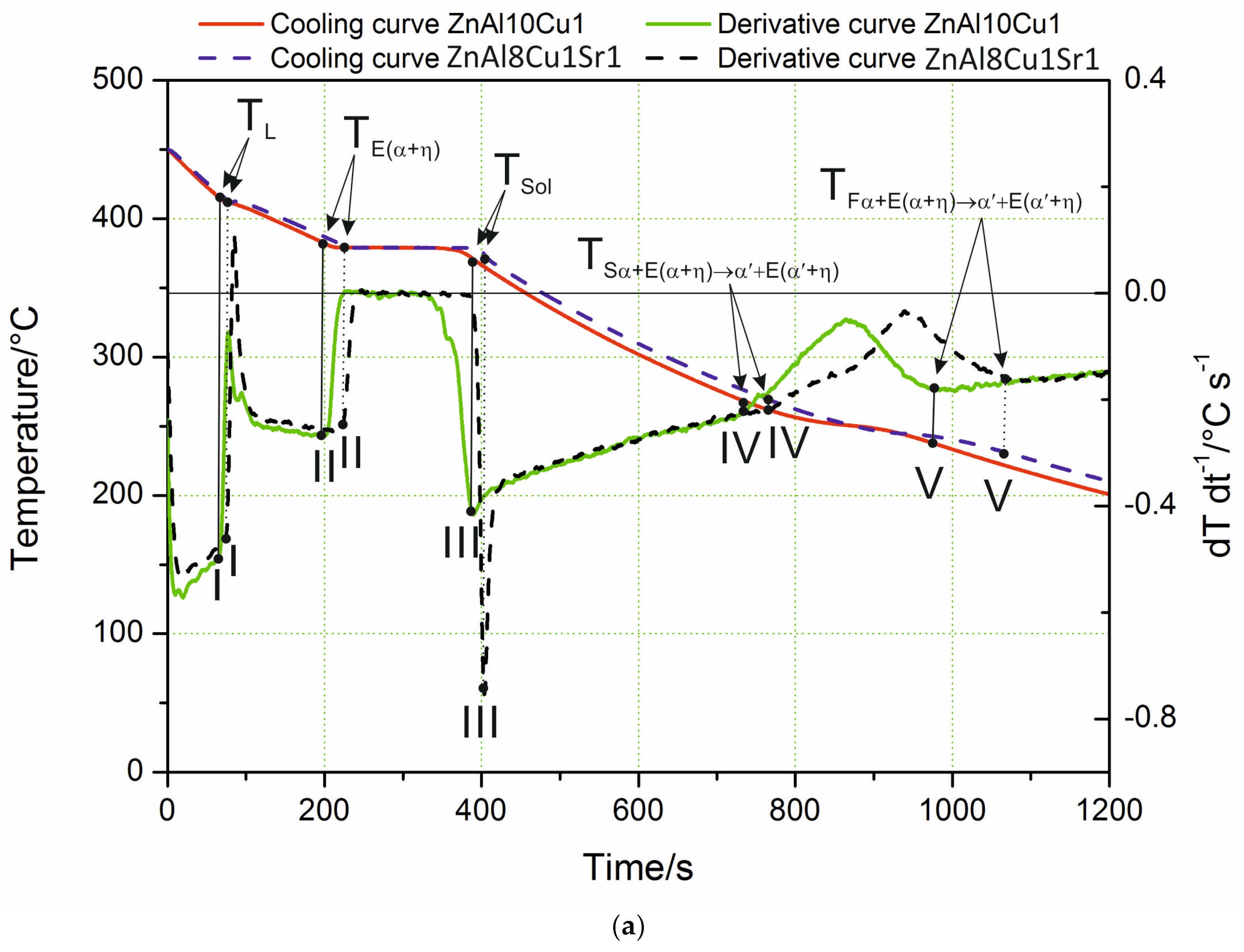

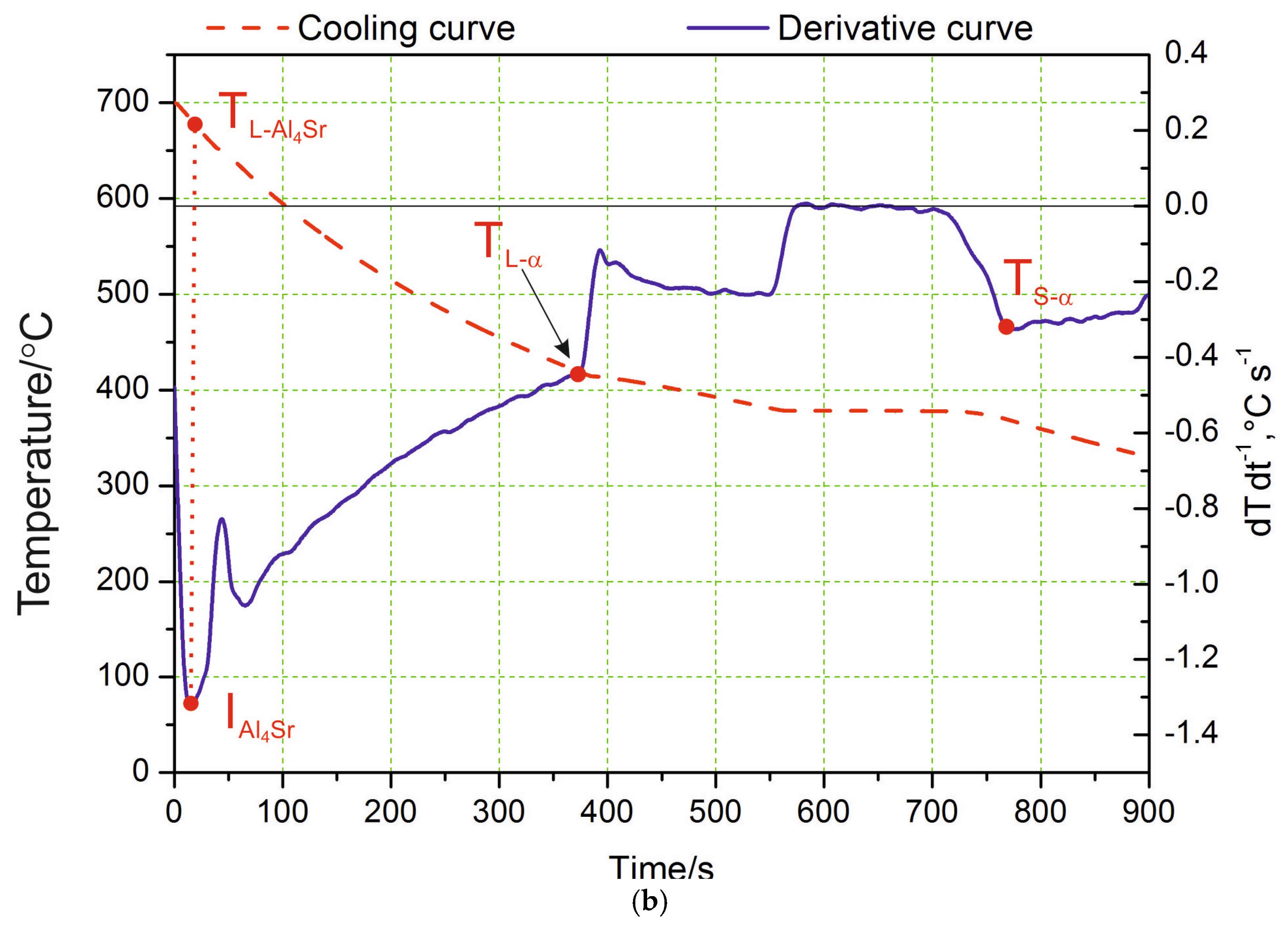

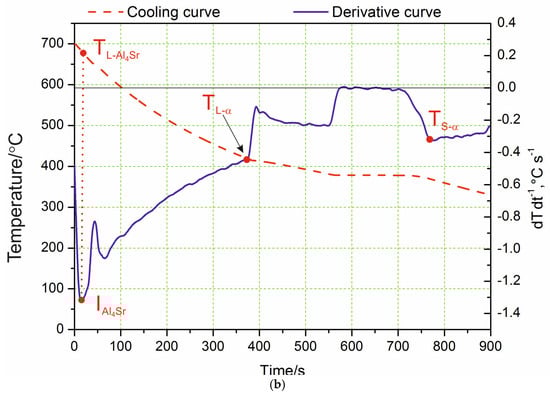

Figure 1. (a) Cooling curve and derivative curve of the tested alloys cooled at a rate of 0.1 °C∙s−1 from a temperature of 450 °C (Table 2). (b) Cooling curve and derivative curve of the tested alloys cooled at a rate of 0.1 °C∙s−1 from a temperature of 700 °C (Table 2).
Figure 1. (a) Cooling curve and derivative curve of the tested alloys cooled at a rate of 0.1 °C∙s−1 from a temperature of 450 °C (Table 2). (b) Cooling curve and derivative curve of the tested alloys cooled at a rate of 0.1 °C∙s−1 from a temperature of 700 °C (Table 2).
Materials 18 00797 g001aMaterials 18 00797 g001b
Figure 3. Alloy microstructure of ZnAl8Cu1Sr1, cooling rate 0.1 °C∙s−1, #1—Al2Sr.
Figure 3. Alloy microstructure of ZnAl8Cu1Sr1, cooling rate 0.1 °C∙s−1, #1—Al2Sr.
Materials 18 00797 g003
Figure 4. Microstructure of the ZnAl8Cu1Sr1 alloy with marked Sr phases (point 1 and 2 on Figure 4) with the performed wavelength dispersive X-ray spectroscopy (WDS) analysis (Table 3).
Figure 4. Microstructure of the ZnAl8Cu1Sr1 alloy with marked Sr phases (point 1 and 2 on Figure 4) with the performed wavelength dispersive X-ray spectroscopy (WDS) analysis (Table 3).
Materials 18 00797 g004
Figure 5. Microstructure of the ZnAl8Cu1Sr1 alloy cooled with a rate of 0.1 °C∙s−1, secondary electron TEM image (SE) as well as elemental mapping: (a) SE; (b) Al; (c) Zn; (d) Sr.
Figure 5. Microstructure of the ZnAl8Cu1Sr1 alloy cooled with a rate of 0.1 °C∙s−1, secondary electron TEM image (SE) as well as elemental mapping: (a) SE; (b) Al; (c) Zn; (d) Sr.
Materials 18 00797 g005

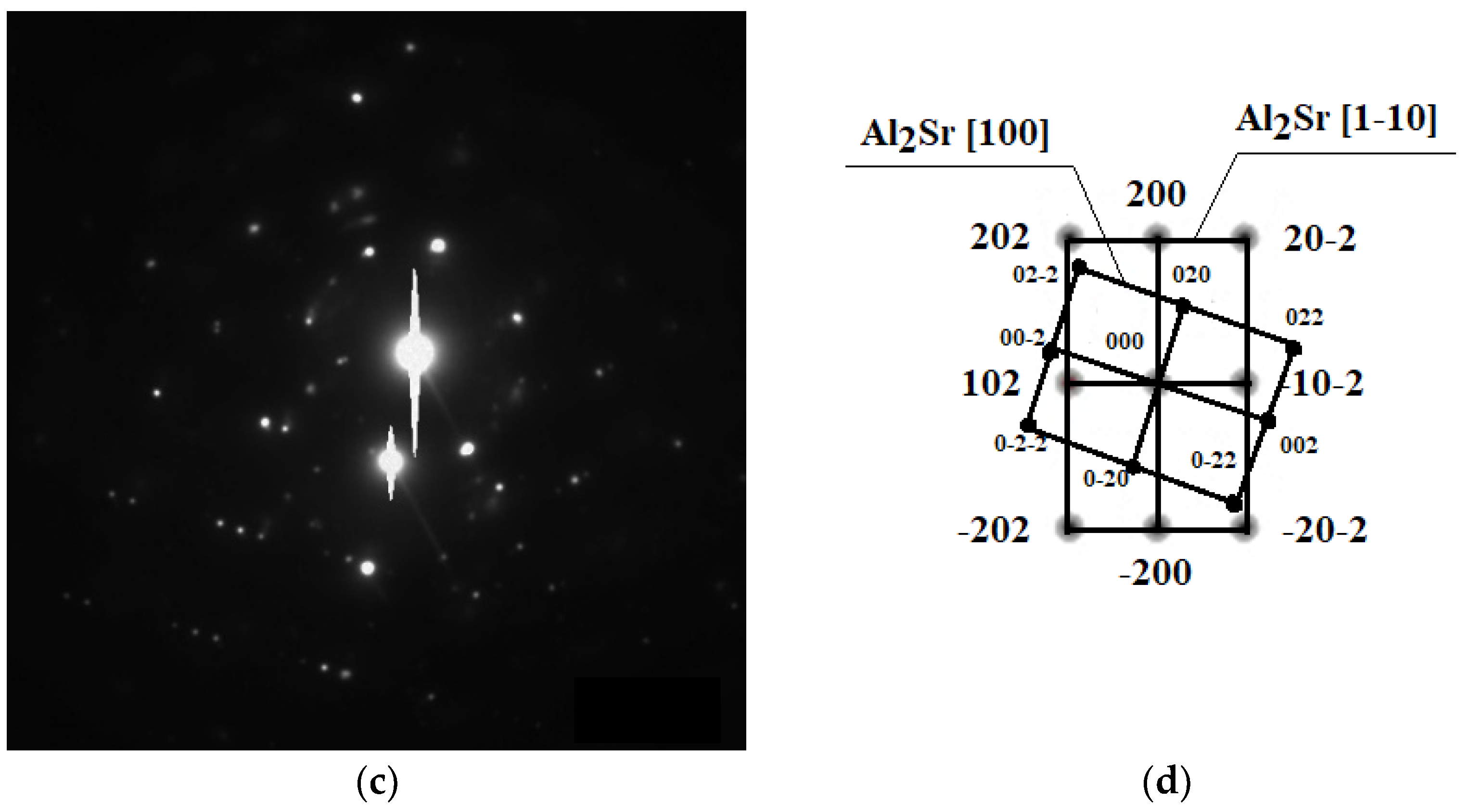

Figure 6. TEM microstructure of the investigated alloys. (a) Bright field image of the Al2Sr phase, (b) dark field image of the Al2Sr particle, (c) diffraction pattern of the determined phase, and (d) solution of the diffraction pattern presented in (c).
Figure 6. TEM microstructure of the investigated alloys. (a) Bright field image of the Al2Sr phase, (b) dark field image of the Al2Sr particle, (c) diffraction pattern of the determined phase, and (d) solution of the diffraction pattern presented in (c).
Materials 18 00797 g006aMaterials 18 00797 g006b
Figure 7. TEM microstructure of the investigated alloys. (a) Bright field image of the Sr phase, (b) dark field image of the Sr particle, (c) diffraction pattern of the determined phases, and (d) solution of the diffraction pattern presented in (c).
Figure 7. TEM microstructure of the investigated alloys. (a) Bright field image of the Sr phase, (b) dark field image of the Sr particle, (c) diffraction pattern of the determined phases, and (d) solution of the diffraction pattern presented in (c).
Materials 18 00797 g007
Figure 8. Image of the wear trace after the ball-on-plate test for the alloy cooled at a rate of 1 °C∙s−1. (a) ZnAl10Cu1—wipe; (b) ZnAl10Cu1—image in a color scale; (c) ZnAl8Cu1Sr1—wipe; (d) ZnAl8Cu1Sr1—image in a color scale.
Figure 8. Image of the wear trace after the ball-on-plate test for the alloy cooled at a rate of 1 °C∙s−1. (a) ZnAl10Cu1—wipe; (b) ZnAl10Cu1—image in a color scale; (c) ZnAl8Cu1Sr1—wipe; (d) ZnAl8Cu1Sr1—image in a color scale.
Materials 18 00797 g008
Figure 9. Alloys after erosion test at an angle of incidence of the erodent of 90°. (a) ZnAl10Cu1; (b) ZnAl8Cu1Sr1.
Figure 9. Alloys after erosion test at an angle of incidence of the erodent of 90°. (a) ZnAl10Cu1; (b) ZnAl8Cu1Sr1.
Materials 18 00797 g009

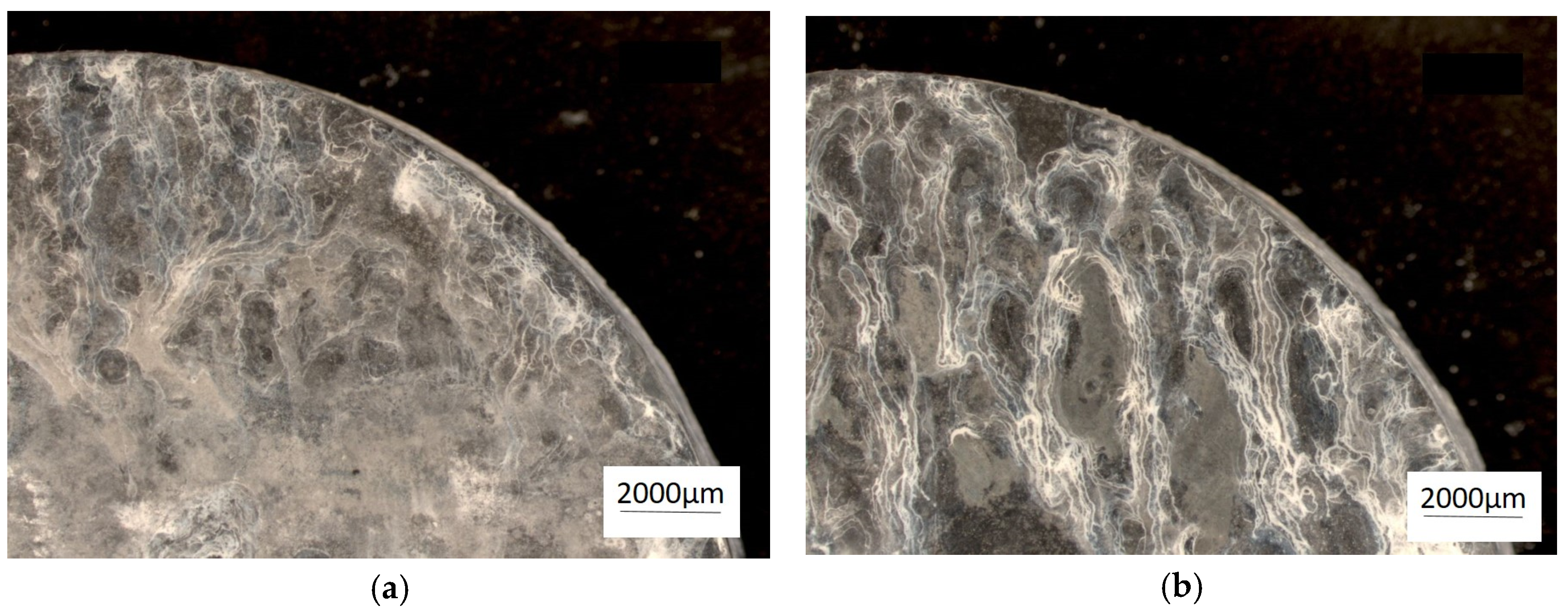

Figure 10. Chosen samples after corrosion test in a salt mist atmosphere. (a) ZnAl10Cu1 and (b) ZnAl8Cu1Sr1.
Figure 10. Chosen samples after corrosion test in a salt mist atmosphere. (a) ZnAl10Cu1 and (b) ZnAl8Cu1Sr1.
Materials 18 00797 g010
Figure 11. The microstructure of the alloy after the corrosion test with EDS analysis in the marked area.
Figure 11. The microstructure of the alloy after the corrosion test with EDS analysis in the marked area.
Materials 18 00797 g011

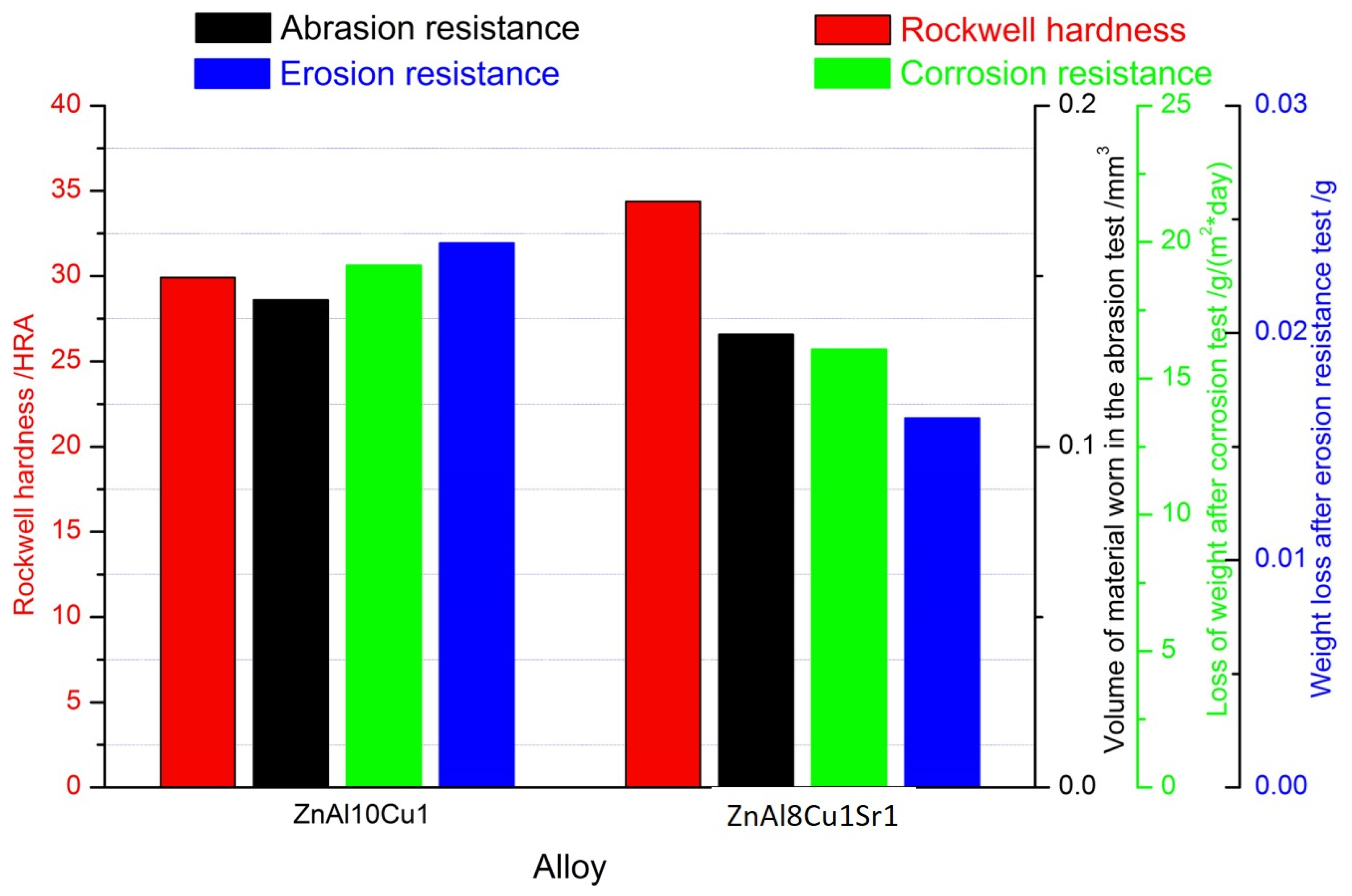

Figure 12. The properties of tested alloys: ZnAl10Cu1 and ZnAl8Cu1Sr1.
Figure 12. The properties of tested alloys: ZnAl10Cu1 and ZnAl8Cu1Sr1.
Materials 18 00797 g012
Table 1. Chemical composition of the investigated alloys.
Table 1. Chemical composition of the investigated alloys.
AlloyAlloy DescriptionMass Concentration of Alloying Elements, %
AlCuSrZn
1ZnAl8Cu1Sr18.510.931.02balance
2ZnAl10Cu110.020.98-balance
Table 2. Crystallization temperature of phases and eutectics, as well as the beginning and end of monotectoid transformation.
Table 2. Crystallization temperature of phases and eutectics, as well as the beginning and end of monotectoid transformation.
Markings on Figure 2a,bReactionTemperature, °C
ZnAl8Cu1Sr1ZnAl10Cu1ZnAl8Cu1Sr1ZnAl10Cu1
IAl4SrL → Al4Sr-657-
IL → αL → α415415
IIL → E(α+η)L → E(α+η)411410
IIIL → SolL → Sol372370
IVSα+E(α+η)→α′+E(α′+η)Sα+E(α+η)→α′+E(α′+η)273270
VFα+E(α+η)→α′+E(α′+η)Fα+E(α+η)→α′+E(α′+η)224236
Table 3. The results of the quantitative WDS analysis of the chemical composition of the ZnAl8Cu1Sr1 alloy, performed in the places marked in Figure 4.
Table 3. The results of the quantitative WDS analysis of the chemical composition of the ZnAl8Cu1Sr1 alloy, performed in the places marked in Figure 4.
Analysis PointMass Concentration of the Element, %
AlSrCuZn
15.323.63.267.9
25.725.32.166.9
Table 4. Value of the volume of the wear trace of the tested alloys.
Table 4. Value of the volume of the wear trace of the tested alloys.
AlloyThe Volume of Material Worn in the Abrasion TestVolume Difference Compared with the Sample Without Modification
mm3mm3%
ZnAl10Cu10.1400
ZnAl8Cu1Sr10.13−0.01−7.4
Table 5. Statistical analysis of the hardness measurements of the tested alloys.
Table 5. Statistical analysis of the hardness measurements of the tested alloys.
AlloyHardness Mean Value,
HRA
Standard DeviationChange of the Average Hardness Value, %
ZnAl10Cu129.911.430.00
ZnAl8Cu1Sr135.292.3817.97
