Article

HTPFA-Coated AlB2 with Enhanced Combustion Performance as a High-Energy Fuel

by
Jiangfeng Wang
,
Wanjun Zhao
*,
Chen Shen
,
Yapeng Ou
and
Qingjie Jiao
State Key Laboratory of Explosion Science and Technology, Beijing Institute of Technology, Beijing 100081, China
*
Author to whom correspondence should be addressed.
Materials 2025, 18(7), 1452; https://doi.org/10.3390/ma18071452
Submission received: 22 February 2025 / Revised: 17 March 2025 / Accepted: 22 March 2025 / Published: 25 March 2025
Browse Figures
Versions Notes

Abstract

:
High-energy boron-based fuel aluminum-diboride (AlB2) has attracted much attention in the field of solid propellants. However, the low reactivity of AlB2 hindered its further application. In this study, highly reactive AlB2@hydroxyl-terminated perfluoropolyether alcohol (AlB2@HTPFA) composites with a core–shell structure were prepared by coating AlB2 with functionalized fluoropolymers by using a facile one-step in situ polymerization method. AlB2@HTPFA composites with varying polymer contents (0, 5, 10, and 15 wt%) were obtained. The in situ polymerization strategy enables precise control over the polymer coating thickness and interfacial interactions, which is critical for optimizing the reactivity and thermal stability of composites. The morphology and structure were characterized, and the microcore–shell structure of AlB2@HTPFA was obtained. Compared with raw AlB2, the combustion efficiency of coated fuel increased by 4.1%, 5.6%, and 7.5%, respectively, with varying polymer contents. Meanwhile, the reactivity of AlB2@HTPFA (5 wt%) was 0.65 MPa/s, which is ~1.5 times that of AlB2. Additionally, the ignition and combustion characteristics of AlB2@HTPFA were investigated by laser ignition experiments with potassium perchlorate (KP) as an oxidant. The results revealed that AlB2@HTPFA/KP composites showed a greatly reduced combustion duration compared to uncoated AlB2. The ignition and combustion enhancement mechanism of AlB2@HTPFA was proposed. During the ignition process, the existence of HTPFA can result in a pre-ignition reaction, thus raising its reaction activity. This work provided a promising candidate for high-energy fuel that can be used in energetic materials.

1. Introduction

AlB2, a boron-based compound, has attracted large amounts of interests for application in energetic materials due to its higher volumetric heat of 122–140 kJ/cm3, higher energy release rate, and higher combustion efficiency [1,2,3,4,5] compared with one of boron [6,7,8]. Moreover, AlB2 could reduce the ignition delay of high-energy formulations by 2–2.5 times [9,10]. However, during the combustion of AlB2, B2O3 with a low melting point (450 °C) and a high boiling point (1860 °C) [11] emerged as an impervious liquid film on the surface, preventing AlB2 contacting with oxygen and thus reducing combustion efficiency in the initial stages. It has been reported that the combustion characteristics of boron-containing fuels could be improved by changing their surface chemicals [12,13,14]. To the best of our knowledge, there were few studies about the coating of AlB2. Currently, fluorine-containing organic compounds (FCOCs), particularly polymers rich in fluorine, are interesting candidates for being employed as energetic additives [15,16]. In the realm of energy materials, FCOC-containing substable hybrid composites have drawn more and more attention recently. According to the reported literature [17,18,19,20], FCOCs were frequently added to materials containing aluminum to enhance the ignition and combustion performance. It can be attributed to the fact that fluoropolymers, acting as oxidizing agents, could stimulate surface exothermic reactions between the alumina shells and fluorine, thus enhancing ignition and combustion [21,22,23]. Wang et al. [24] conducted a comparative study of the ignition and combustion properties of Al-PVDF, Al-Viton (hexafluoropropylene and vinylidene fluoride), and Al-THV (tetrafluoroethylene, hexafluoropropylene, and vinylidene fluoride), revealing that the content of fluorine played an important role in determining the combustion characteristics of energetic composites. In contrast to coating B with metal and organic chemicals, fluorine-containing materials could also be utilized [25]. Fluorinated modification materials for boron-based fuels primarily include metal fluorides, fluorinated graphene, and fluoropolymers. Current studies on fluoropolymer coatings for boron-based fuels, including trifluoroethylene-HFP copolymer (Viton A) [26], trifluoroethylene-HFP copolymer (THF) [27], polyvinylidene fluoride (PVDF) [28], and polytetrafluoroethylene (PTFE) [29], demonstrate their capacity to reduce ignition delay, improve combustion duration, and enhance combustion efficiency. This performance enhancement arises partly from the fluorination reaction where B2O3 reacts with fluorine to form BF3 releasing 188.99 kcal/m3 [30,31,32]—which promotes boron oxidation kinetics [28,33], thereby enabling fluorine-containing polymers to optimize boron combustion. However, there were insufficient data stating the mechanism of the effect of fluorinated oxides on the energetic behavior of AlB2.
Fluoropolymers could be introduced into the system through chemical and physical methods. Viton A, THF, and PVDF are typically coated via recrystallization methods, whereas PTFE coatings are prepared through high-energy ball milling combined with recrystallization. Beyond these approaches, electrospinning [34,35] represents another common yet relatively complex fabrication process for fluoropolymer coatings. Usually, linking organic fluorine to the molecular network structure with chemical reaction could be clarified as the chemical method, for instance, end-hydroxy fluoroelastomer cured with isocyanate, end-carboxy fluoroelastomer cured with epoxy resin [36], and the fluorine modification of adhesive followed by curing agent reaction [37,38,39]. Considering the high fluorine content, inertia, and liquid state at room temperature, HTPFA was chosen as the fluorine-containing organic substance for the study of AlB2 [40,41]. Additionally, the hydroxyl group on the alcohol can be grafted into the adhesive network by reacting with the isocyanate group in the curing agent, improving the stability [42,43]. Notably, this study pioneers the selection of HTPFA as a fluoropolymer for coating AlB2 via a one-step in situ polymerization method. To the best of our knowledge, the coating of AlB2 with PFA has been implemented for the first time.
In this work, the AlB2 colloid was modified through the addition of specified amounts of HTPFA and poly(1,6-diisocyanatohexane) (N100) curing agent, utilizing a one-step in situ polymerization method. The morphology, thermal characteristics, ignition, and combustion characteristics of coated AlB2 were examined and compared with those of AlB2. In addition, the function of the HTPFA polymers in the combustion of AlB2 was clarified, which displayed guidance to utilize AlB2@HTPFA as a new high-energy fuel in energetic materials.

2. Materials and Methods

2.1. Materials

The raw AlB2 with a median particle size of 7.9 μm was supplied from Tangshan Weihao Magnesium Powder Co., Ltd. (Qian’an City, China) and manufactured by sintering technique before being used. The impurities were mostly unreacted with Al. N100 was brought from Shanghai McLean Biochemical Science and Technology Co., Ltd. (Shanghai, China). HTPFA was provided by Jiangsu Aikang Biomedical Research and Development Co., Ltd. (Nanjing, China). Butyl dilaurate (T12) with a purity of 95% as catalyst was acquired from Beijing Tongguang Fine Chemical Company (Beijing, China). The acetone used as the dispersion of N100 with an HPLC purity of 99.7% was provided by Beijing Tongguang Fine Chemical Company. The potassium perchlorate (KClO4) with a purity of 99.99%, employed as an oxidizer for laser ignition, was provided by Aladdin Company. For the laser ignition tests, KClO4 was selected as the oxidizing agent since it was a significant oxidant employed in the development of composites with impact safety [44,45].

2.2. Sample Preparation

To investigate the effect of HTPFA content on the properties of AlB2, three types of coated AlB2 with HTPFA mass ratios of 5 wt%, 10 wt%, and 15 wt% were prepared, respectively. The detailed preparation steps are as follows.
Firstly, a specific amount of N100 was added into the mixture of HTPFA and AlB2, which had been dissolved in the acetone under magnetic stirring. Secondly, a specific amount of T12 was added dropwise, which was followed by further magnetic stirring for three hours at room temperature. After filtration, washing, and drying at 55 °C for three hours, three different types of coated AlB2 were eventually obtained due to the reaction generating carbamate between the hydroxyl group on HTPFA and the isocyanate on N100. AlB2@HTPFA-5, AlB2@HTPFA-10, and AlB2@HTPFA-15 were the corresponding notations. The mass ratio of the two components of the composites AlB2@HTPFA was calculated using simulations of complete oxidation reactions, and the composites utilized in the laser ignition tests were made by physically combining for 30 min, 50 wt% of AlB2@HTPFA, and 50 wt% of KClO4.

2.3. Characterizations

A scanning electron microscope (SEM, SU8020, Hitachi, Tokyo, Japan) and an energy dispersive spectrometer (EDS) were used to analyze the morphology and elemental distribution of AlB2 and AlB2@HTPFA. The particle size distribution of AlB2@HTPFA was analyzed by a laser particle size analyzer (Malvern Mastersizer 2000, Malvern Panalytical, Malvern, UK). The crystalline phase of AlB2 and AlB2@HTPFA was analyzed by X-ray diffraction (XRD, D8 ADVANCE, BRUCKER, Karlsruhe, Germany) at 40 kV/40 mA, with a 2θ range of 5–90° in the pace of 0.02°/0.1 s. AlB2 and AlB2@HTPFA were subjected to XPS experiments using X-ray photoelectron spectroscopy (XPS, Escalab 250Xi, Thermo, Waltham, MA, USA).
Thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC, STA449F3, NETZSCH, Selb, Germany) were simultaneously conducted to investigate the thermal reaction behaviors of the AlB2 and AlB2 @HTPFA. The sample of about 3 mg was heated from 25 °C to 1200 °C in an air atmosphere (50 mL/min) at a heating rate of 10 °C/min. The samples were analyzed using Bruker VERTEX 70 (Rosenheim, Germany) and Netzsch STA 449 F3 (Selb, Germany)-coupled thermogravimetric-Fourier transform infrared spectroscopy (TG-FTIR) analysis in which the sample of about 3 mg was heated from room temperature to 1000 °C in air atmosphere (50 mL/min) with a heating rate of 10 °C/min, while the FTIR spectral analysis ran. The scanning range of the FTIR detector was 4000~400 cm−1 with a resolution of 4 cm−1. A microcomputer automated calorimeter (MAC, TRHW-7000C, Hebi Tianrun Electronic Technology Co., Ltd., Hebi, China) was used to determine the calorific value of AlB2 and AlB2 @HTPFA. In this experiment, approximately 0.2 g of the samples was put into the calorimeter inflated with oxygen under 3 MPa, and the heat release was measured.
A constant volume combustion cell test of 30 mg of samples was conducted by the flame ignition method with an oxygen atmosphere (~3 MPa) to characterize the energy response and work capacity of the AlB2 and AlB2@HTPFA. The flame was generated by the tip of a nichrome wire, which was heated by a controlled DC current. The sensor recorded the changes in pressure during the vigorous oxidation process with time, and the measurements were repeated three times for each sample and averaged. Laser ignition experiments were used to assess the ignition combustion process of AlB2 and AlB2@HTPFA. The samples were ignited by a carbon dioxide laser (Shanghai Yuhong Laser Equipment Co., Ltd., Shanghai, China), and the flame was filmed at 8000 fps using a high-speed video camera (X113). The ignition power and ignition time were adjusted to 50 W and 500 ms, respectively. To study the combustion process of the particles using high-speed pictures, 30 mg of mechanically mixed samples was fired in the air and placed in the center of the ignition table.

3. Results and Discussion

3.1. Characterization of Morphology and Components

The microstructure of AlB2 and AlB2@HTPFA was examined by SEM, and the morphology was shown in Figure 1. The majority of the raw AlB2 was irregular particles, while the AlB2@HTPFA particles were equally dispersed with no visible agglomeration. In comparison to the raw AlB2, as the content of the surface coating increased, the surface of AlB2@HTPFA gradually became smooth, demonstrating that the surface morphology of AlB2 might be altered by controlling the HTPFA polymer content.
The EDS results in Figure 2a indicated that the Al, B, and O elements were distributed evenly on the surface of AlB2, confirming the presence of oxide shells. In addition to Al, B, and O, the surface of the AlB2@HTPFA in Figure 2b–d was uniformly distributed with F elements, verifying that the HTPFA polymer was uniformly distributed on the surface of AlB2, proving the feasibility of the preparation method. The quantitative analysis results from EDS have been added to the Supporting Information (Table S1). The data reveal a gradual increase in surface F content with higher coating ratios, which conclusively confirms the successful coating of AlB2 by HTPFA.
Additionally, a laser particle size analyzer was used to characterize the particle size distribution of AlB2@HTPFA. The particle sizes of AlB2@HTPFA samples were regularly distributed, as illustrated in Figure 3a, and there was no evident agglomeration. The median diameters of the AlB2@HTPFA particles were 8.55 μm, 8.94 μm, and 9.22 μm, respectively, which is larger than that of the pristine AlB2 (7.9 μm), which demonstrates the feasibility of comparing the performances of AlB2 and AlB2@HTPFA. The XRD patterns of AlB2 and AlB2@HTPFA in Figure 3b revealed that the raw AlB2 was composed of Al and AlB2, and the presence of oxide shells was not detected since the oxide shell is amorphous. The crystalline composition of AlB2@HTPFA was identical to that of the AlB2, indicating that there was no change in the crystal structure of AlB2 during the preparation of the AlB2@HTPFA samples. There is no appearance of HTPFA patterns due to its amorphous form.
To clarify the adsorption form of polymers on the surface of AlB2, an XPS of AlB2@HTPFA-10 was conducted [46]. As shown in Figure 4, the interface contact form between AlB2 and HTPFA was characterized, and the Al 2s, O 1s, C 1s, and F 1s peaks can be observed, which indicates the successful coating of HTPFA on AlB2 for AlB2@HTPFA-10.
The chemical states of Al, B, O, and F in AlB2@HTPFA-10 were investigated using split-peak fitting (Figure 5), which revealed C-O bonds (531.8 eV) and two O-F bonds (535.7 eV) in the O 1s peaks (536.8 eV), and two peaks (688.15 eV) with C-F bonds (689.1 eV) in the F 1s spectra, originated from HTPFA. There were no new Al-F or B-F bonds formed, indicating that the polymer was physically adsorbed on the surface of AlB2.
The XRD results of pristine AlB2 (Figure 3b) show diffraction peaks corresponding only to crystalline Al (PDF#04-0787) and AlB2 (PDF#65-2351), with no detectable diffraction peaks for aluminum oxide or boron oxide. This confirms the amorphous nature of the oxide shell (e.g., Al2O3 and B2O3), as XRD is only sensitive to crystalline phases. The XPS B 1s spectrum (Figure 5) reveals a weak peak at 187.5 eV, attributed to B-O bonds, indicating trace surface oxidation. However, the oxide layer thickness is insufficient to form a crystalline phase. After HTPFA coating, the intensity of the B-O peak decreases significantly, demonstrating the coating’s ability to suppress oxidation.

3.2. Oxidation Process

TGA and DSC were used to investigate the oxidation process of AlB2 and AlB2@HTPFA in air. The DSC and TG curves shown in Figure 6 display that the reaction process of the AlB2@HTPFA samples can be divided into three stages based on mass changes: the decomposition of polymer (stage I), the initial oxidation of AlB2 (stage II), and the AlB2 decomposition oxidation reaction (stage III). There was no first-stage response observed in the curves of AlB2. The TGA/DSC curves of HTPFA have been added to the Supporting Information (Figure S1), and the TGA/DSC parameters have been quantified in the table (Table S2).
The decomposition of the polymer ranged from 25 °C to 400 °C. The weight loss of AlB2@HTPFA samples could be observed between 230 °C and 400 °C, indicating that polymer decomposition on the surface of the samples occurred at this temperature, and the mass loss was positively correlated with the ratio of the polymer shell. As the temperature increased, exothermic peaks developed in different samples at about 600 °C (Figure 6a), accompanied by a slow rise in mass due to the minor-quantity Al in the sample reacting with O2 and producing Al2O3 (Equation (1)) [47,48]. Al melted endothermically at about 660 °C, as seen by the endothermic peak in Figure 6a. The initial oxidation of AlB2 and AlB2@HTPFA occurred between 880 °C and 1000 °C when AlB2 interacted exothermically with O2 to produce Al2O3 and B2O3 (Equation (3)), and simultaneously amorphous alumina first changed into γ-Al2O3 [49]. Compared with amorphous alumina, the γ-Al2O3 owned greater density, which created more voids in the oxide shell, increasing the oxygen diffusion rate and sample quality during this phase.
AlB2 decomposition oxidation reaction ranged from 1000 °C to 1200 °C. At high temperatures, AlB2 transformed into AlB12, which was influenced by parameters such as ball milling time and sintering time during the sintering preparation process of raw AlB2, corresponding to the conversion temperatures ranging from 956 ° C to 1350 °C reported by different researchers [50,51,52]. Endothermic peaks near 980 °C were observed in various samples (Figure 6b). Based on the temperature of AlB12 observed in Figure 7, the breakdown temperature of AlB2 in this investigation was near 980 °C. The decomposition process of AlB2 yielded a large amount of Al liquid, and, at higher temperatures, the presence of Al liquid could aid the oxidation process through rapid exothermic reactions and increased transport [48], immediately oxidizing on contact with air [53], resulting in a rapid increase in mass (Equation (4)).
To determine the decomposition products of AlB2@HTPFA in the first stage, the AlB2@HTPFA-10 was chosen for Fourier infrared testing with temperatures ranging from 25 °C to 600 °C. As the FTIR spectra of the products show in Figure 7a, the FTIR curve of the sample remained unchanged at 50 °C. At the initial decomposition temperature of 240 °C, significant absorption peaks could be observed around 1250 cm−1, corresponding to the bending vibration peaks of the C-F bond. Combined with the mass-to-charge ratio (m/e) of 19 in the mass spectrometry, which may correspond to F−, it indicates the presence of fluoride-containing compounds in the decomposition products. The appearance of these absorption peaks suggests that the polymer initially decomposes mainly into CxFy during the initial stage of decomposition, which is consistent with the mass loss from 25 °C to 240 °C in the thermogravimetric (TG) curve shown in Figure 6b.
When the temperature is raised to 300 °C, three new distinct absorption peaks appear at 750 cm−1, 984 cm−1, and 1110 cm−1. Based on mass spectrometry analysis, they are, respectively, the symmetric vibration peak of the Al-F bond (750 cm−1) and the stretching vibration peaks of the C-O-C ether bond [36] (984 cm−1 and 1110 cm−1). Since no formation of Al-F or B-F bonds was found in the X-ray photoelectron spectroscopy (XPS) analysis of AlB2@HTPFA, the appearance of the Al-F bond at this time may be due to the reaction between HF decomposed from HTPFA and the Al2O3 on the surface. It is worth noting that HF was not detected in the infrared spectrum. This may be because the branched structure of HTPFA reduces the release of HF, resulting in most of the decomposition products existing in the form of C-F, and the small amount of HF generated reacts immediately with the oxides. As the temperature rises, the peaks of other substances remain basically unchanged, while the peaks of CxFy first gradually weaken and then remain basically constant. This may be because after decomposition, some of the products react with the oxides on the surface of AlB2, reducing the content of F−. There are no other gas products that change significantly, indicating that the polymer decomposes completely at approximately 300 °C.
Furthermore, to determine the intermediate products of AlB2 and modified AlB2 in the oxidation process, the reaction products of raw AlB2 and AlB2@HTPFA-10 samples at three different temperatures were characterized by XRD. Figure 8 exhibited that the diffraction peaks of AlB2 gradually weakened, and the peaks of α-Al2O3 began to appear in the process of the temperature approaching 1000 °C, indicating that the alumina underwent the crystalline phase transition in this process. It was suggested that in this process, the crystalline phase of alumina was changed from γ to α [47,49]. In addition, a small amount of unreacted Al remained in the product, and the AlF3 peaks were not identified in the AlB2@HTPFA at this temperature, owing to the small quantity of coating or the volatilization of some AlF3. As the reaction progressed, Al2O3 and B2O3 combined to form Al4B2O9 (2Al2O3·B2O3) at temperatures below 1035 °C, which decomposed to Al18B4O33 (9Al2O3·2B2O3) at higher temperatures [54,55], and the mass continued to grow. Although Al18B4O33 occurred at higher temperatures, it cooled and changed into Al2O3 and Al18B4O33 [56]; thus, the products were dominated by Al2O3 and Al4B2O9 with no B2O3, indicating that B2O3 was amorphous at this point.
The TGA curves of AlB2@HTPFA resembled that of AlB2. Aside from the conventional oxidation process of AlB2, it involved the reaction of surface fluoropolymer. The overall weight gain of AlB2, AlB2@HTPFA-5, AlB2@HTPFA-10, and AlB2@HTPFA-15 during the entire reaction phase was 118.63%, 80.76%, 80.47%, and 73.39%, respectively, indicating that certain compounds remaining on the surface of AlB2 were formed by the disintegration of the HTPFA coating layer at 400 °C. Because of the low permeability of these compounds, the oxygen transport on the surface of AlB2 was hindered. It indicated that some of the products produced by the decomposition of the HTPFA coating layer at 400 °C remained on the surface of AlB2. It was noted that the products showed poor breathability, which prevented the oxygen passage on the surface of AlB2. That was why the first and second oxidation peak temperatures of AlB2@HTPFA were more than 2 °C higher than those of AlB2.
Al + 0.75O2 → 0.5Al2O3, ∆H = −826.7 kJ/mol
AlB2 + 2.25O2 → 0.5Al2O3 + B2O3, ∆H = −2241.1 kJ/mol
AlB2 → 1/6AlB12 + 5/6Al, ∆H = 18.9 kJ/mol
AlB12 + 9.75O2 → 0.5Al2O3 + 6B2O3, ∆H = −8727.1 kJ/mol
Al2O3 + 0.5B2O3 → 0.5Al4B2O9, ∆H = −155.6 kJ/mol

3.3. Calorimeter and Combustion Test

To investigate the energy release of AlB2 and AlB2@HTPFA, the calorific value of samples was examined, and the findings are displayed in Figure 9. The heat of combustion increased initially and then decreased as the content of HTPFA increased. Due to the fact that Al produces more heat during the fluorination process (70.40 MJ/kg) compared with the oxidation process (36.29 MJ/kg) [57], AlB2@HTPFA-5 exhibited a higher calorific value than the basic raw AlB2. However, as the amount of the surface coating layer grows, the total calorific value drops due to the low calorific value of fluoropolymer. The results indicated that the HTPFA coating layer promoted the energy release of AlB2, and the energy-releasing rate steadily increased by 4.1%, 5.6%, and 7.5%, respectively, with the increasing HTPFA content. Therefore, it followed that exothermic fluorination between the surface oxide shells and fluorine stimulated the overall reactivity of AlB2, leading to a deeper degree of reactivity and improved energy efficiency of the modified AlB2@HTPFA.
The pressure change of AlB2 and AlB2@HTPFA with time was measured by the pressure cell. The rate of the pressure change was used to describe the vigorous oxidation process, which could be quantified as the rate of pressurization (MPa/ms), as shown in Equation (6).
Pressurization rate:
v = (Pmax − Pi)/(tmax − ti)
where Pmax represents the maximum pressure, Pi represents the pressure when the ignition process begins, tmax represents the time until the pressure reaches its maximum value, and ti represents the ignition time.
The peak pressure of AlB2@HTPFA was higher than that of AlB2, as shown in Figure 10a. Figure 10b demonstrated that the pressurization rate of AlB2@HTPFA-5, AlB2@HTPFA-10, and AlB2@HTPFA-15 was all higher (0.65 MPa/s, 0.58 MPa/s, and 0.43 MPa/s, respectively) than that of AlB2 (0.41 MPa/s). It can be attributed to the fact that during the ignition process, the surface coating layer broke down quickly and reacted with the surface oxides of AlB2, causing an AlB2 preignition reaction (PIR) to occur before oxidation, promoting the contact between AlB2 and O2, deepening the reaction degree and speeding up the reaction rate.

3.4. Laser Ignition Measurement

The ignition and combustion processes of energetic materials with KP as the oxidant were characterized by a laser ignition test with results depicted in Figure 11. AlB2/KP has a combustion time of 410.2 ms. The AlB2@KP burned for a shorter period of time after adding the HTPFA. Compared with AlB2/KP, AlB2@HTPFA-5/KP, AlB2@HTPFA-10/KP, and AlB2@HTPFA-15/KP exhibited reductions of 97.7 ms, 134.0 ms, and 211.9 ms, respectively. AlB2@HTPFA-15/KP reached the maximum flame with approximately 105.8 ms, which was earlier than AlB2@HTPFA-5/KP and produced more gaseous products, for the reason that as the content of the fluorine polymer on the surface increased, the decomposition of the fluorine polymer and oxidant produced a significant number of gaseous products in addition to the pre-ignition reaction between the oxide and fluorine polymer on the AlB2 surface. The diffusion and reaction processes involving AlB2 particles were accelerated. As a result, coating AlB2 with HTPFA polymer could improve the reactivity and reduce the combustion duration of AlB2-based energy materials.
It was crucial to note that laser ignition combustion test findings were different from those of combustion in a confined environment. The former was performed with the condition of adding oxygen in a restricted region, and the later was achieved with the condition of adding oxidant in an open area. It was found that during the ignition of AlB2@HTPFA, the confined region might prevent the diffusion of AlB2 particles. A portion of the poorly permeabilized decomposition products would stay on the AlB2 surface and impede the burning of AlB2 particles, causing the decrease in reactivity with the increasing coating concentration.
To investigate the effect of AlB2@HTPFA on the combustion process further, the products were collected and studied by XRD (Figure 12). It was revealed that the products were predominantly composed of Al2O3, B2O3, KAlCl4, and Al4B2O9. It was found that AlB12 was present in the product of AlB2/KP due to the existence of HTPFA, while AlB12 was absent from the product of AlB2@HTPFA-10/KP. AlB12 was an intermediate product of AlB2 in the high-temperature oxidation process, indicating that mixed with KP, the reaction of AlB2@HTPFA in the rapid ignition process was more complete than that of AlB2.
Consequently, the ignition and combustion enhancement mechanism of AlB2 coated with HTPFA was proposed. It could be concluded that during the burning of AlB2@HTPFA-10/KP powder, the HTPFA on the surface broke down and reacted quickly, and the gas products’ HF reacted with the oxide shell on the surface of AlB2, generating a significant quantity of gas [6,58]. A pre-ignition reaction was obtained in this stage. The HF gas encouraged the diffusion of AlB2 particles and the interaction between AlB2 and KP, which could accelerate the combustion reaction of the composite fuel. As shown in Figure 11, high contents of HTPFA in AlB2@HTPFA-10/KP are beneficial for enhancing combustion rates. Additionally, the high combustion performance of AlB2 was obtained by adding the functionalized fluoropolymer. That was of great significance to designing and fabricating AlB2@functionalized fluoropolymer towards the potential application in high-energy propellant.

4. Conclusions

In this study, AlB2 coated with different contents (5 wt%, 10 wt%, and 15 wt%) of the HTPFA polymer was prepared. According to SEM, EDS, and particle size distribution analyses, the F element distributed uniformly on the surface of AlB2@HTPFA, and the particles dispersed evenly without noticeable agglomeration. The results of XRD and XPS analysis demonstrated that HTPFA polymer adheres to the surface of AlB2 particles. According to the thermal investigation, the oxidation peak temperature of samples increased as the amount of fluorine polymer increased. The results of combustion heat release indicated that AlB2@HTPFA-5 releases more energy than AlB2, and the combustion efficiency is increased by 4.1%. Meanwhile, the reactivity of AlB2@HTPFA-5 was 0.65 MPa/s, which is ~1.5 times that of AlB2. The ignition measurement illustrated that the pre-ignition interaction of the HTPFA polymer with surface oxide could accelerate the reaction and promote combustion efficiency. As a result, coating AlB2 with HTPFA polymer is a potential approach for regulating the ignition and combustion characteristics of AlB2 fuel, providing a viable way for the further application of AlB2 as a fuel in energetic materials.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma18071452/s1, Table S1: EDS results; Figure S1: DSC/TG curves of HTPFA (Heating rate: 10 °C/min under air atmosphere); Table S2: Thermodynamic Parameters of Samples; Table S3: Compatibility of AlB2@HTPFA-10 with Contact Materials; Figure S2: First light times for the 9 different boron-PTFE mixtures are shown. Four experiments were conducted for each condition using 200 W/cm2; Figure S3: Images recorded from high speed video. Image A: PM1 (7.5 wt% PTFE); Image B: MM2 (15 wt% PTFE); Images C: PM3 (30 wt% PTFE); Image D: MM3 (30 wt% PTFE); Figure S4: Ignition process of samples: (a) AlB2/KP (b) AlB2@HTPFA-5/KP (c) AlB2@HTPFA-10/KP (d) AlB2@HTPFA-15/KP [30].

Author Contributions

Conceptualization, J.W. and Q.J.; Methodology, W.Z. and C.S.; Validation, J.W., C.S. and Y.O.; Formal Analysis, W.Z. and Q.J.; Investigation, J.W.; Resources, Y.O.; Data Curation, J.W. and W.Z.; Writing—Original Draft Preparation, J.W.; Writing—Review and Editing, W.Z.; Supervision, Q.J.; Project Administration, Q.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research work was supported by the National Natural Science Foundation of China (Grant No. 22105067).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Padwal, M.; Castaneda, D.; Natan, B. Hypergolic combustion of boron-based propellants. Proc. Combust. Inst. 2021, 38, 6703–6711. [Google Scholar] [CrossRef]
  2. Korotkikh, A.G.; Arkhipov, V.A.; Slyusarsky, K.V.; Sorokin, I.V. Study of Ignition of High-Energy Materials with Boron and Aluminum and Titanium Diborides. Combust. Explos. Shock. Waves 2018, 54, 350–356. [Google Scholar] [CrossRef]
  3. Sivan, J.; Haas, Y.; Grinstein, D.; Kochav, S.; Yegudayev, G.; Kalontarov, L. Boron particle size effect on B/KNO3 ignition by a diode laser. Combust. Flame 2015, 162, 516–527. [Google Scholar] [CrossRef]
  4. Zhou, S.; Zhou, X.; Tang, G.; Guo, X.; Pang, A. Differences of thermal decomposition behaviors and combustion properties between CL-20-based propellants and HMX-based solid propellants. J. Therm. Anal. Calorim. 2020, 140, 2529–2540. [Google Scholar] [CrossRef]
  5. Chintersingh, K.L.; Nguyen, Q.; Schoenitz, M.; Dreizin, E.L. Combustion of boron particles in products of an air–acetylene flame. Combust. Flame 2016, 172, 194–205. [Google Scholar] [CrossRef]
  6. Deng, P.; Chen, P.; Fang, H.; Liu, R.; Guo, X. The combustion behavior of boron particles by using molecular perovskite energetic materials as high-energy oxidants. Combust. Flame 2022, 241, 112118. [Google Scholar] [CrossRef]
  7. Dayanand, S.; Boppana, S.B.; Hemanth, J.; Telagu, A. Microstructure and corrosion characteristics of in situ aluminum diboride metal matrix composites. J. Bio-Tribo-Corros. 2019, 5, 1–10. [Google Scholar] [CrossRef]
  8. Kenawy, S.H. Synthesis and Characterization of Aluminum Borate Ceramic Whiskers. Int. J. Appl. Ceram. Technol. 2011, 8, 783–792. [Google Scholar] [CrossRef]
  9. Wang, X.; Liu, R.; He, Y.; Fu, Y.; Wang, J.; Li, A.; Guo, X.; Wang, M.; Guo, W.; Zhang, T. Determination of detonation characteristics by laser-induced plasma spectra and micro-explosion dynamics. Opt. Express 2022, 30, 4718–4736. [Google Scholar] [CrossRef]
  10. Yanovskii, L.S.; Varlamova, N.I.; Borodako, P.V.; Popov, I.M. On influence of energy-producing additives upon the service characteristics of aviation fuels. Russ. Aeronaut. 2013, 56, 314–318. [Google Scholar] [CrossRef]
  11. Weast, R.C.; Astle, M.J.; Beyer, W.H.; Company, C.R.; Selby, S.M.; Lide, D.R.; Frederikse, H.P.R.; Haynes, W.M.; Bruno, T.J. CRC handbook of chemistry and physics. Am. J. Med. Sci. 1982, 257, 423. [Google Scholar]
  12. Liu, T.K.; Luh, S.P.; Perng, H.C. Effect of Boron Particle Surface Coating on combustion of solid propellants for ducted rockets. Propellants Explos. Pyrotech. 2010, 16, 156–166. [Google Scholar] [CrossRef]
  13. Vellaisamy, U.; Biswas, S. Effect of metal additives on neutralization and characteristics of AP/HTPB solid propellants. Combust. Flame 2021, 234, 111627. [Google Scholar] [CrossRef]
  14. Pang, W.; Fan, X.; Zhang, W.; Xu, H.; Li, J.; Li, Y.; Shi, X.; Li, Y. Application of Amorphous Boron Granulated with Hydroxyl-Terminated Polybutadiene in Fuel-Rich Solid Propellant. Propellants Explos. Pyrotech. 2011, 36, 360–366. [Google Scholar] [CrossRef]
  15. Lyu, J.Y.; Chen, S.; He, W.; Zhang, X.; Tang, D.; Liu, P.; Yan, Q. Fabrication of High-Performance Graphene Oxide doped PVDF/CuO/Al Nanocomposites via Electrospinning. Chem. Eng. J. 2019, 368, 129–137. [Google Scholar] [CrossRef]
  16. Yang, Y.; Zhao, F.; Xu, H.; Pei, Q.; Jiang, H.; Yi, J.; Xuan, C.; Chen, S. Hydrogen-enhanced combustion of a composite propellant with ZrH2 as the fuel. Combust. Flame 2018, 187, 67–76. [Google Scholar] [CrossRef]
  17. Ma, X.; Li, Y.; Hussain, I.; Yang, G.; Zhang, K. Core–Shell Structured Nanoenergetic Materials: Preparation and Fundamental Properties. Adv. Mater. 2020, 32, 2001291. [Google Scholar] [CrossRef]
  18. He, W.; Li, Z.H.; Chen, S.; Yang, G.; Yang, Z.; Liu, P.; Yan, Q. Energetic Metastable n-Al@PVDF/EMOF Composite Nanofibers with Improved Combustion Performances. Chem. Eng. J. 2019, 41, 123146. [Google Scholar] [CrossRef]
  19. Zhu, Y.; Zhou, X.; Wu, C.; Cheng, H.; Lu, Z.; Zhang, K. Si Wire Supported MnO2/Al/Fluorocarbon 3D Core/Shell Nanoenergetic Arrays with Long-Term Storage Stability. Chin. Ophthalmic Res. 2017, 7, 6678. [Google Scholar] [CrossRef]
  20. Deng, S.; Jiang, Y.; Huang, S.; Shi, X.; Zhao, J.; Zheng, X. Tuning the morphological, ignition and combustion properties of micron-Al/CuO thermites through different synthesis approaches. Combust. Flame 2018, 195, 303–310. [Google Scholar] [CrossRef]
  21. Li, X.; Huang, C.; Yang, H.; Li, Y.; Cheng, Y. Thermal reaction properties of aluminum/copper (II) oxide/poly(vinylidene fluoride) nanocomposite. J. Therm. Anal. Calorim. 2016, 124, 899–907. [Google Scholar]
  22. DeLisio, J.B.; Hu, X.; Wu, T.; Egan, G.C.; Young, G.; Zachariah, M.R. Probing the Reaction Mechanism of Aluminum/Poly(vinylidene fluoride) Composites. J. Phys. Chem. B 2016, 120, 5534–5542. [Google Scholar] [CrossRef] [PubMed]
  23. He, W.; Liu, P.; He, G.; Gozin, M.; Yan, Q. Highly Reactive Metastable Intermixed Composites (MICs): Preparation and Characterization. Adv. Mater. 2018, 30, 1706293. [Google Scholar] [CrossRef]
  24. Wang, H.; Rehwoldt, M.; Kline, D.J.; Wu, T.; Wang, P.; Zachariah, M.R. Comparison study of the ignition and combustion characteristics of directly-written Al/PVDF, Al/Viton and Al/THV composites. Combust. Flame 2019, 201, 181–186. [Google Scholar] [CrossRef]
  25. Young, G.; Stoltzi, C.A.; Mayo, D.H.; Roberts, C.W.; Milby, C.L. Combustion Behavior of Solid Fuels Based on PTFE/Boron Mixtures. Combust. Sci. Technol. 2013, 185, 1261–1280. [Google Scholar] [CrossRef]
  26. Pang, W.Q. Boron-Based Fuel-Rich Propellant: Properties, Combustion and Technology Aspects; Taylor & Francis Group: Abingdon, UK; CRC Press: Boca Raton, FL, USA, 2019. [Google Scholar]
  27. Keerthi, V.; Nie, H.; Pisharath, S.; Hng, H.H. Combustion characteristics of fluoropolymer coated boron powders. Combust. Sci. Technol. 2020, 194, 1183–1198. [Google Scholar] [CrossRef]
  28. Ulas, A.; Kuo, K.K.; Gotzmer, C. Ignition and combustion of boron particles in fluorine-containing environments. Combust. Flame 2001, 127, 1935–1957. [Google Scholar] [CrossRef]
  29. Young, G.; Roberts, C.W.; Stoltz, C.A. Ignition and combustion enhancement of boron with polytetrafluoroethylene. J. Propuls. Power 2015, 31, 386–392. [Google Scholar] [CrossRef]
  30. Hedman, T.D.; Demko, A.R.; Kalman, J. Enhanced ignition of milled boron-polytetrafluoroethylene mixtures. Combust. Flame 2018, 198, 112–119. [Google Scholar] [CrossRef]
  31. Jiang, Y.; Demko, A.R.; Baek, J.; Shi, X.; Vallez, L.; Ning, R.; Zheng, X. Facilitating laser ignition and combustion of boron with a mixture of graphene oxide and graphite fluoride. Appl. Energy Combust. Sci. 2020, 1, 100013. [Google Scholar] [CrossRef]
  32. Xu, Y.; Cui, Q.Z.; Zhao, C.W. Liquid phase in-situ synthesis of LiF coated boron powder composite and performance study. Def. Technol. 2020, 16, 635–641. [Google Scholar] [CrossRef]
  33. Zhou, T.; Li, X.; Liu, C.; Shi, X.; Wu, B.; Duan, X.; Yang, G. Butterfly wing fans the fire: High efficient combustion of CWs/CL-20/AP nanocomposite for light ignited micro thruster using multi-channeled hierarchical porous structure from butterfly wing scales. Combust. Flame 2021, 231, 111505. [Google Scholar] [CrossRef]
  34. Cheng, L.; Yang, H.; Yang, Y.; Li, Y.; Meng, Y.; Li, Y.; Song, D.; Chen, H.; Artiaga, R. Preparation of B/Nitrocellulose/Fe particles and their effect on the performance of an ammonium perchlorate propellant—ScienceDirect. Combust. Flame 2020, 211, 456–464. [Google Scholar] [CrossRef]
  35. Yan, L.; Zhu, B.; Chen, J.; Sun, Y. Study on nano-boron particles modified by PVDF to enhance the combustion characteristics. Combust. Flame 2023, 248, 112556. [Google Scholar] [CrossRef]
  36. Tang, W.; Zeng, T.; Hu, J.; Li, J.; Yang, R. Investigation on the thermal decomposition of the elastomer containing fluoroolefin segment by DSC-TG-MS-FTIR. Polym. Adv. Technol. 2021, 32, 4880–4890. [Google Scholar] [CrossRef]
  37. Ge, Z.; Zhang, X.; Dai, J.; Li, W.; Luo, Y. Synthesis, characterization and properties of a novel fluorinated polyurethane. Eur. Polym. J. 2009, 45, 530–536. [Google Scholar] [CrossRef]
  38. Wang, X.; Xu, J.; Li, L.; Liu, Y.; Li, Y.; Dong, Q. Influences of fluorine on microphase separation in fluorinated polyurethanes. Polymer 2016, 98, 311–319. [Google Scholar] [CrossRef]
  39. Wen, J.; Sun, Z.; Xiang, J.; Fan, H.; Chen, Y.; Yan, J. Preparation and characteristics of waterborne polyurethane with various lengths of fluorinated side chains. Appl. Surf. Sci. 2019, 494, 610–618. [Google Scholar] [CrossRef]
  40. Cobranchi, D.P.; Botelho, M.; Buxton, L.W.; Buck, R.C.; Kaiser, M.A. Vapor pressure determinations of 8-2 fluorortelomer alcohol and 1-H perfluorooctane by capillary gas chromatography: Relative retention time versus headspace methods. J. Chromatogr. A 2006, 1108, 248–251. [Google Scholar] [CrossRef]
  41. Silva, G.M.C.; Morgado, P.; Haley, J.D.; Montoya, V.M.T.; McCabe, C.; Martins, L.F.G.; Filipe, E.J.M. Vapor pressure and liquid density of fluorinated alcohols: Experimental, simulation and GC-SAFT-VR predictions. Fluid Phase Equilibria 2016, 425, 297–304. [Google Scholar] [CrossRef]
  42. Ou, Y.; Sun, Y.; Jiao, Q. Properties related to linear and branched network structure of hydroxyl terminated polybutadiene. e-Polymers 2018, 18, 267–274. [Google Scholar] [CrossRef]
  43. Ma, M.; Kwon, Y. Preparation of energetic polyurethane binders with enhanced properties by nonmigratory reactive monocyclic plasticizers. Eur. Polym. J. 2019, 123, 109414. [Google Scholar] [CrossRef]
  44. Shimada, S. Thermosonimetry and thermomicroscopy of the decomposition of NaClO4 and KClO4. J. Therm. Anal. 1993, 40, 1063–1068. [Google Scholar] [CrossRef]
  45. Lee, J.-S. Thermal properties and firing characteristics of the Zr/KClO4/Viton A priming compositions. Thermochim. Acta 2002, 392, 147–152. [Google Scholar] [CrossRef]
  46. Tan, L.; Lu, X.; Liu, N.; Yan, Q. Further enhancing thermal stability of thermostable energetic derivatives of dibenzotetraazapentene by polydopamine/graphene oxide coating. Appl. Surf. Sci. 2021, 543, 148825. [Google Scholar] [CrossRef]
  47. Trunov, M.A.; Schoenitz, M.; Zhu, X.; Dreizin, E.L. Effect of polymorphic phase transformations in Al2O3 film on oxidation kinetics of aluminum powders. Combust. Flame 2005, 140, 310–318. [Google Scholar] [CrossRef]
  48. Shang, Y.; Chen, S.; Yu, Z.; Huang, R.; He, C.; Ye, Z.; Zhang, W.; Chen, X. Silver(I)-based molecular perovskite energetic compounds with exceptional thermal stability and energetic performance. Inorg. Chem. 2022, 61, 4143–4149. [Google Scholar] [CrossRef]
  49. Noor, F.; Zhang, H.; Korakianitis, T.; Wen, D. Oxidation and ignition of aluminum nanomaterials. Phys. Chem. Chem. Phys. PCCP 2013, 15, 20176–20188. [Google Scholar] [CrossRef]
  50. Zhu, S.; Cao, X.; Cao, X.; Feng, Y.; Lin, X.; Han, K.; Li, X.; Deng, P. Metal-doped (Fe, Nd, Ce, Zr, U) graphitic carbon nitride catalysts enhance thermal decomposition of ammonium perchlorate-based molecular perovskite. Mater. Des. 2021, 199, 109426. [Google Scholar] [CrossRef]
  51. Yan, T.; Liu, P.; Song, N.; Liu, J.; Ou, Y. Thermally active nano-aluminum particles with improved flowability prepared by adsorbing multi-component layer. Combust. Flame 2021, 234, 111680. [Google Scholar] [CrossRef]
  52. Hall, A.; Economy, J. The Al (L) + AlB12 AlB2 peritectic transformation and its role in the formation of high aspect ratio AlB2 flakes. J. Phase Equilibria 2000, 21, 63–69. [Google Scholar] [CrossRef]
  53. Velasco, F.; Guzman, S.; Moral, C.; Bautista, A. Oxidation of micro-sized aluminium particles: Hollow alumina spheres. Oxid. Met. 2013, 80, 403–422. [Google Scholar] [CrossRef]
  54. Blackburn, P.E.; Büchler, A.; Stauffer, J.L. Thermodynamics of Vaporization in the Aluminum Oxide—Boron Oxide System1a. J. Phys. Chem. 1966, 70, 2469–2474. [Google Scholar] [CrossRef]
  55. Nagai, T.; Ogasawara, Y.; Maeda, M. Thermodynamic measurement of (Al2O3 + B2O3) system by double Knudsen cell mass spectrometry. J. Chem. Thermodyn. 2009, 41, 1292–1296. [Google Scholar] [CrossRef]
  56. Whittaker, M.L.; Sohn, H.Y.; Cutler, R.A. Oxidation kinetics of aluminum diboride. J. Solid State Chem. 2013, 207, 163–169. [Google Scholar] [CrossRef]
  57. Crouse, C.A.; Pierce, C.J.; Spowart, J.E. Synthesis and reactivity of aluminized fluorinated acrylic (AlFA) nanocomposites. Combust. Flame 2012, 159, 3199–3207. [Google Scholar] [CrossRef]
  58. Yan, T.; Liu, P.; Song, N.; Ou, Y. Insight into combustion characteristics of micro- and nano-sized boron carbide. Combust. Flame 2023, 251, 112721. [Google Scholar] [CrossRef]
Materials 18 01452 g001
Figure 1. SEM images of (a) AlB2, (b) AlB2@HTPFA-5, (c) AlB2@HTPFA-10, and (d) AlB2@HTPFA-15.
Figure 1. SEM images of (a) AlB2, (b) AlB2@HTPFA-5, (c) AlB2@HTPFA-10, and (d) AlB2@HTPFA-15.
Materials 18 01452 g001
Materials 18 01452 g002
Figure 2. EDS images of (a) AlB2, (b) AlB2@HTPFA-5, (c) AlB2@HTPFA-10, and (d) AlB2@HTPFA-15.
Figure 2. EDS images of (a) AlB2, (b) AlB2@HTPFA-5, (c) AlB2@HTPFA-10, and (d) AlB2@HTPFA-15.
Materials 18 01452 g002
Materials 18 01452 g003

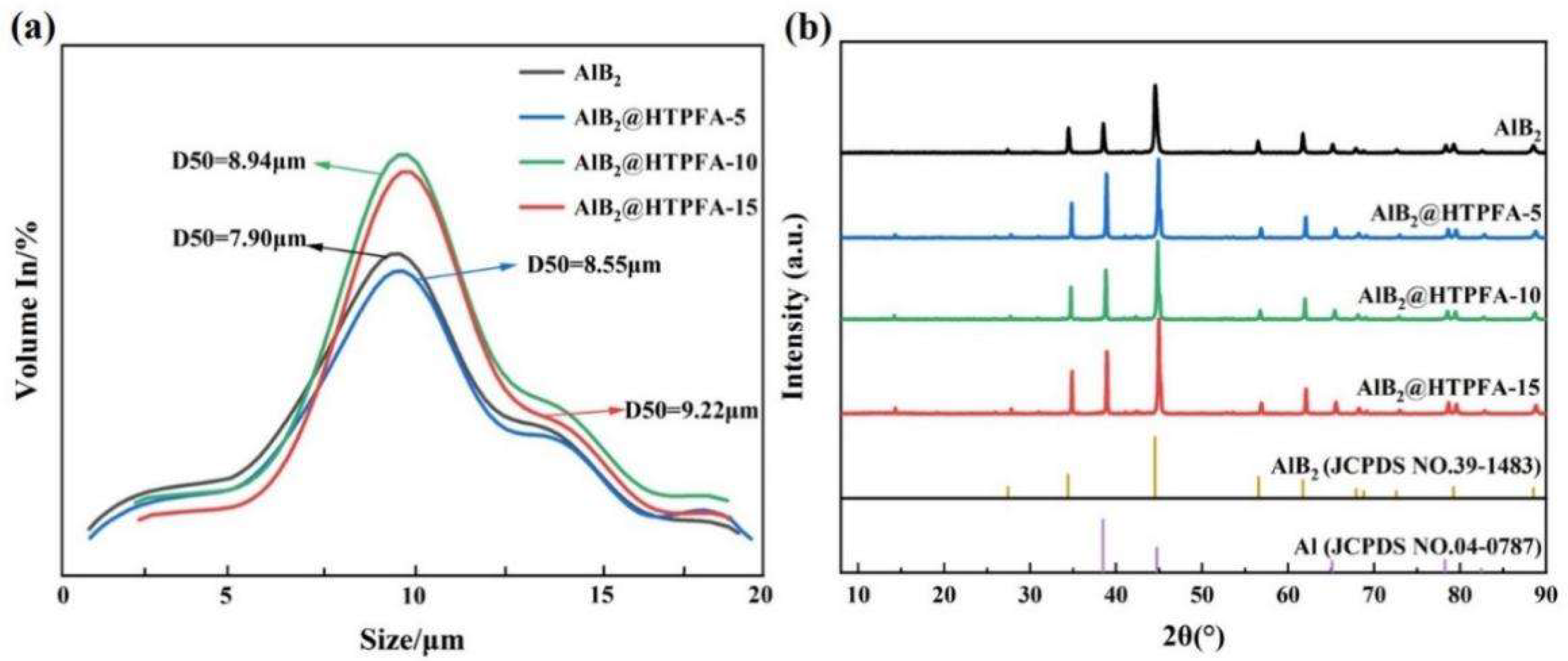

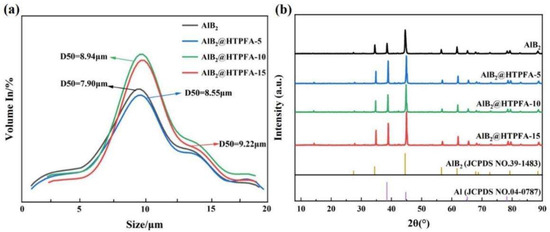

Figure 3. Particle size distribution curve (a) and XRD patterns (b) of AlB2 and AlB2@HTPFA.
Figure 3. Particle size distribution curve (a) and XRD patterns (b) of AlB2 and AlB2@HTPFA.
Materials 18 01452 g003
Materials 18 01452 g004

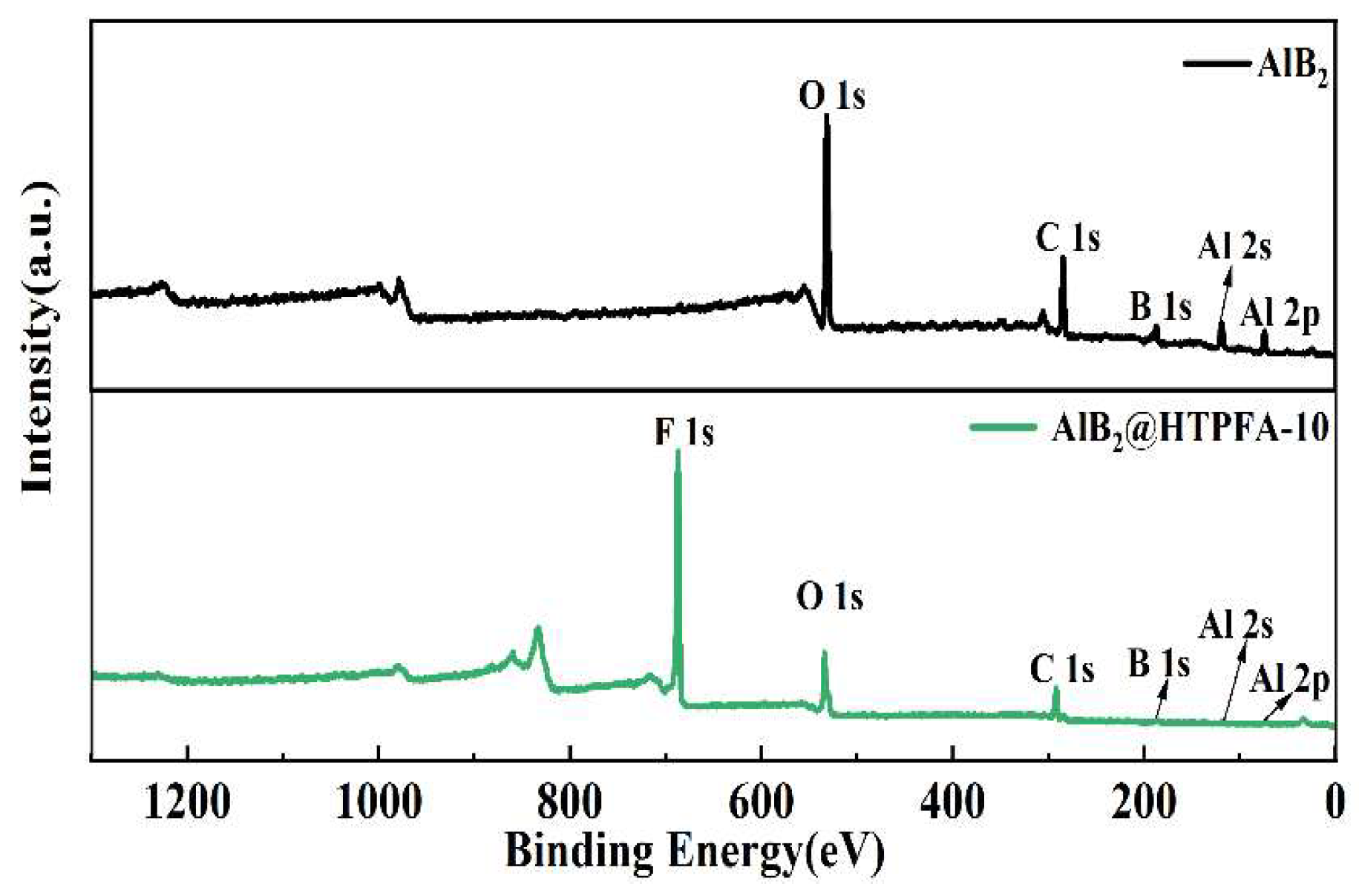

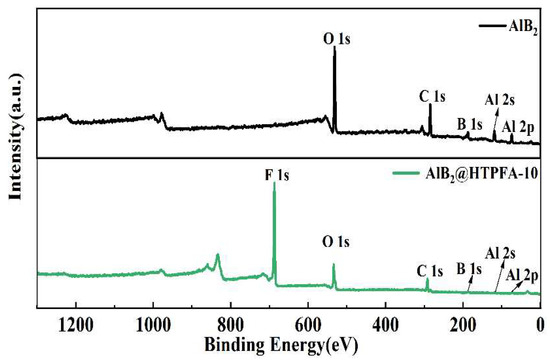

Figure 4. XPS spectra of AlB2 and AlB2@HTPFA-10.
Figure 4. XPS spectra of AlB2 and AlB2@HTPFA-10.
Materials 18 01452 g004
Materials 18 01452 g005

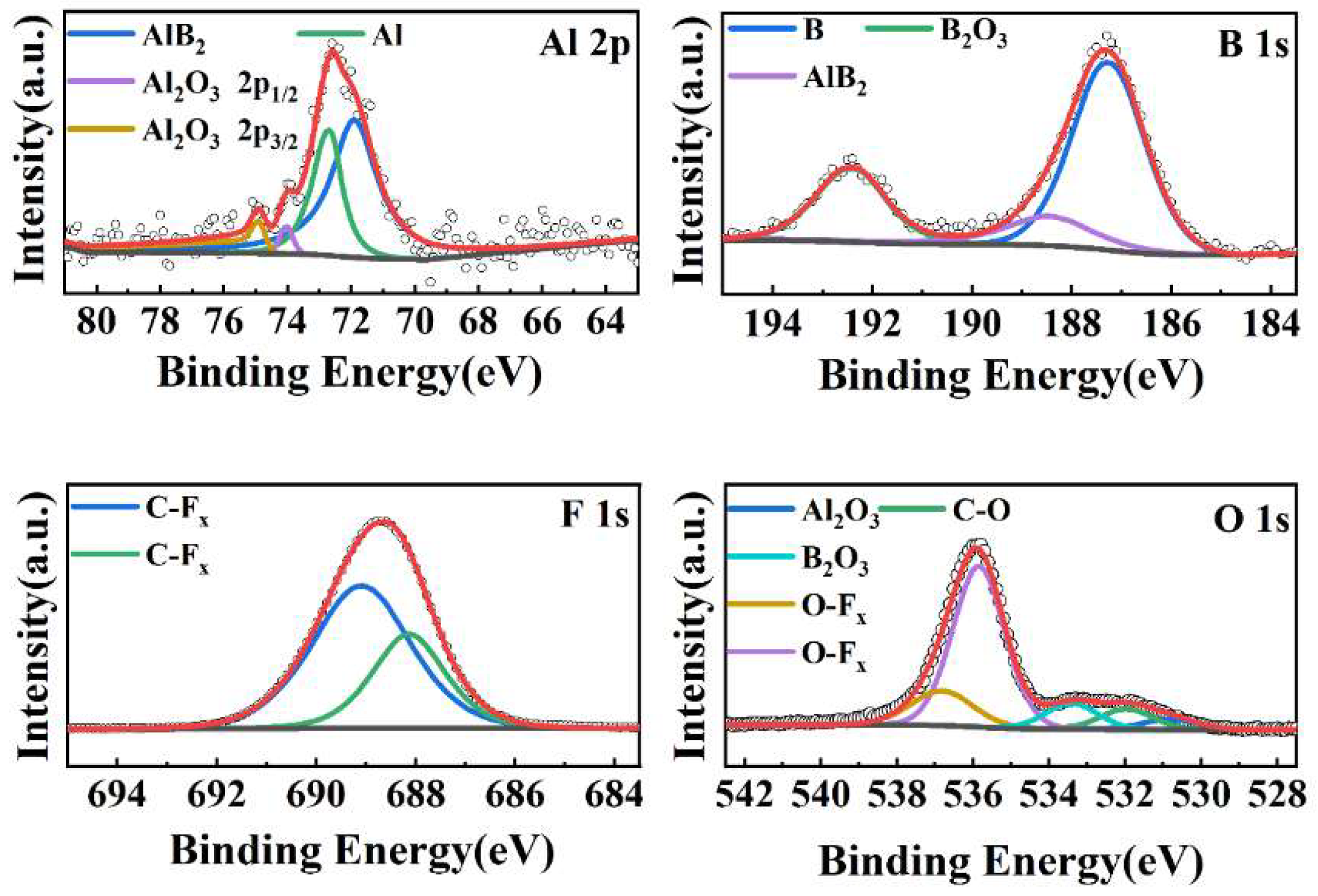

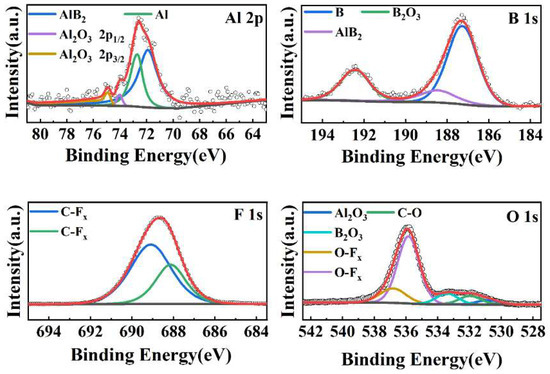

Figure 5. XPS spectra of Al 2p peaks, B 1s peaks, F 1s peaks, and O 1s peaks for AlB2@HTPFA-10.
Figure 5. XPS spectra of Al 2p peaks, B 1s peaks, F 1s peaks, and O 1s peaks for AlB2@HTPFA-10.
Materials 18 01452 g005
Materials 18 01452 g006

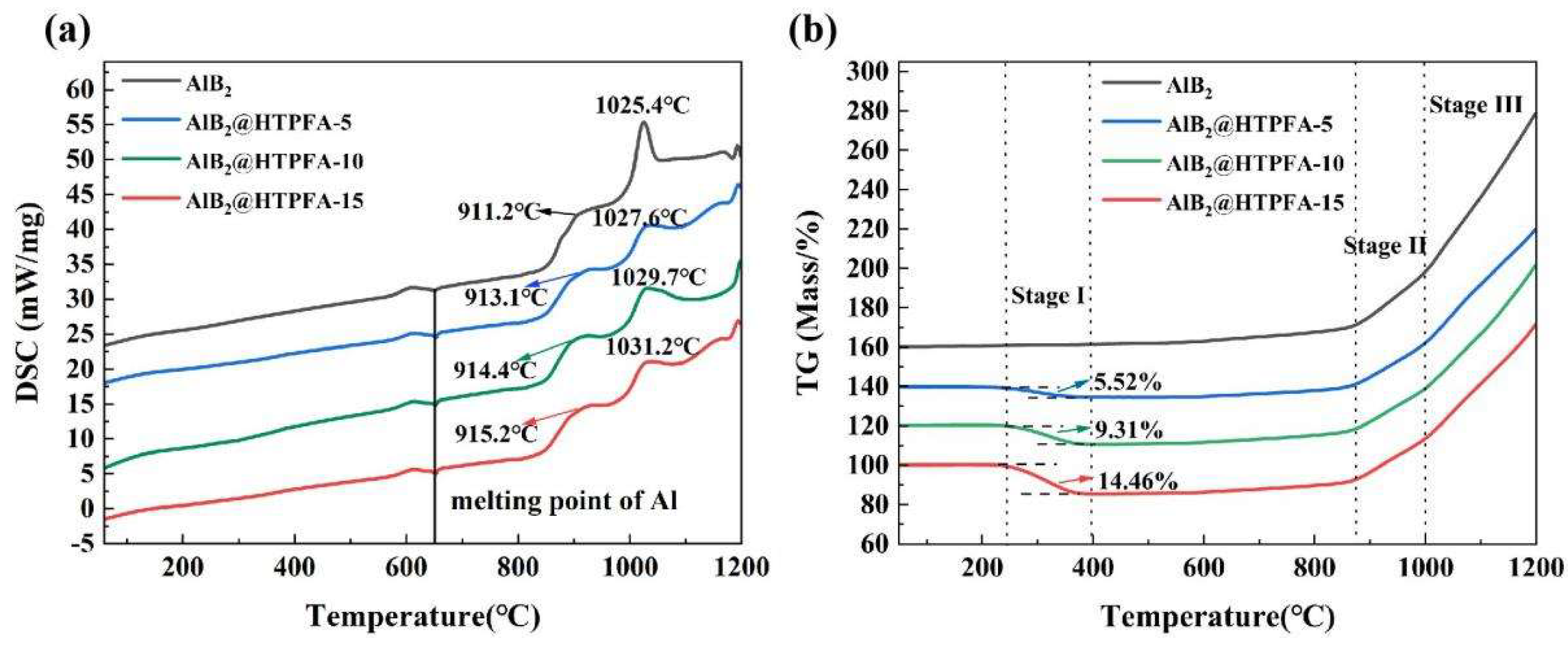

Figure 6. DSC/TG curves of AlB2 and AlB2@HTPFA samples: (a) DSC (b) TG.
Figure 6. DSC/TG curves of AlB2 and AlB2@HTPFA samples: (a) DSC (b) TG.
Materials 18 01452 g006
Materials 18 01452 g007

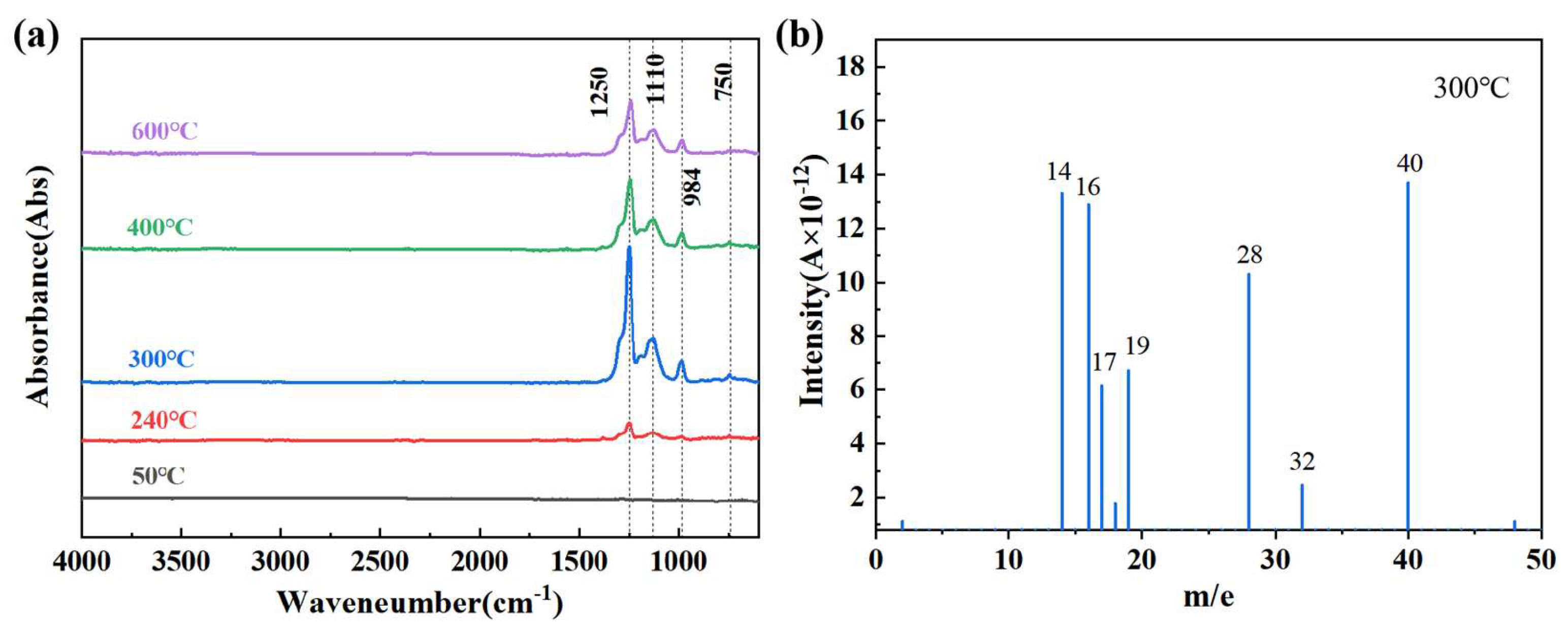

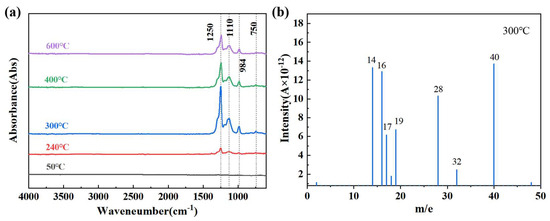

Figure 7. FTIR spectra of decomposition products of AlB2@HTPFA-10 at different temperatures (a) and MS spectra of decomposition products at 300 °C (b).
Figure 7. FTIR spectra of decomposition products of AlB2@HTPFA-10 at different temperatures (a) and MS spectra of decomposition products at 300 °C (b).
Materials 18 01452 g007
Materials 18 01452 g008

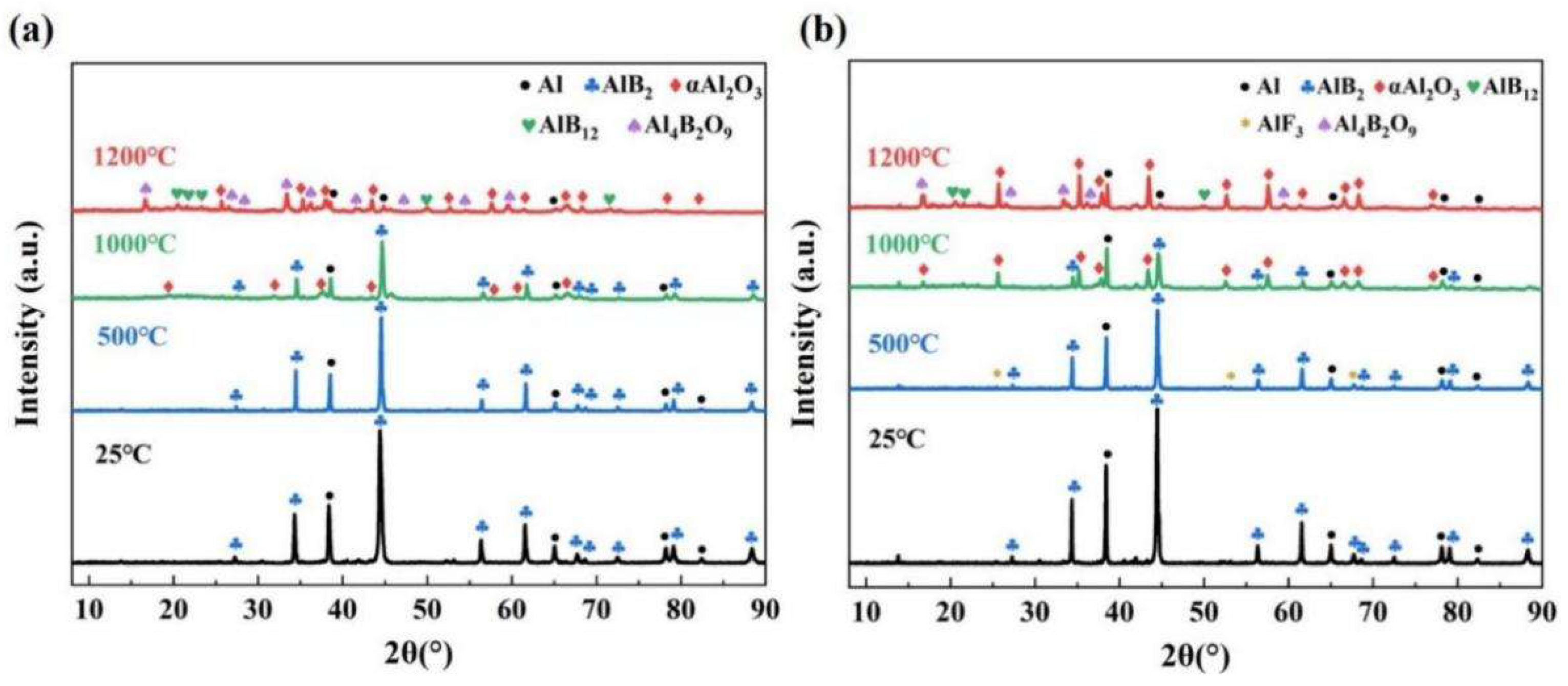

Figure 8. X-ray diffraction patterns of samples at different temperatures: (a) AlB2 and (b) AlB2@HTPFA-10.
Figure 8. X-ray diffraction patterns of samples at different temperatures: (a) AlB2 and (b) AlB2@HTPFA-10.
Materials 18 01452 g008
Materials 18 01452 g009

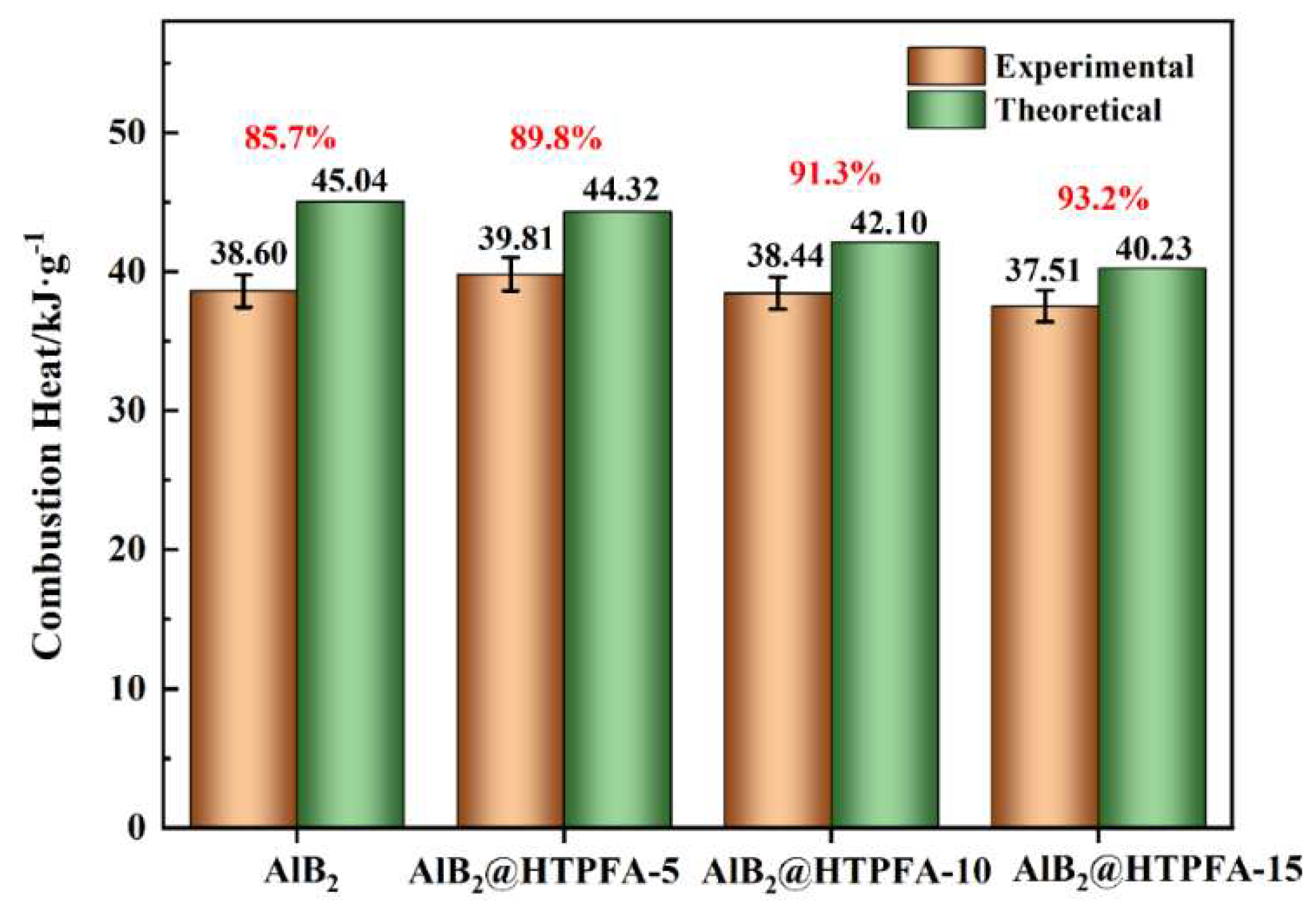

Figure 9. Test results of the calorific value and calculated energy efficiency.
Figure 9. Test results of the calorific value and calculated energy efficiency.
Materials 18 01452 g009
Materials 18 01452 g010

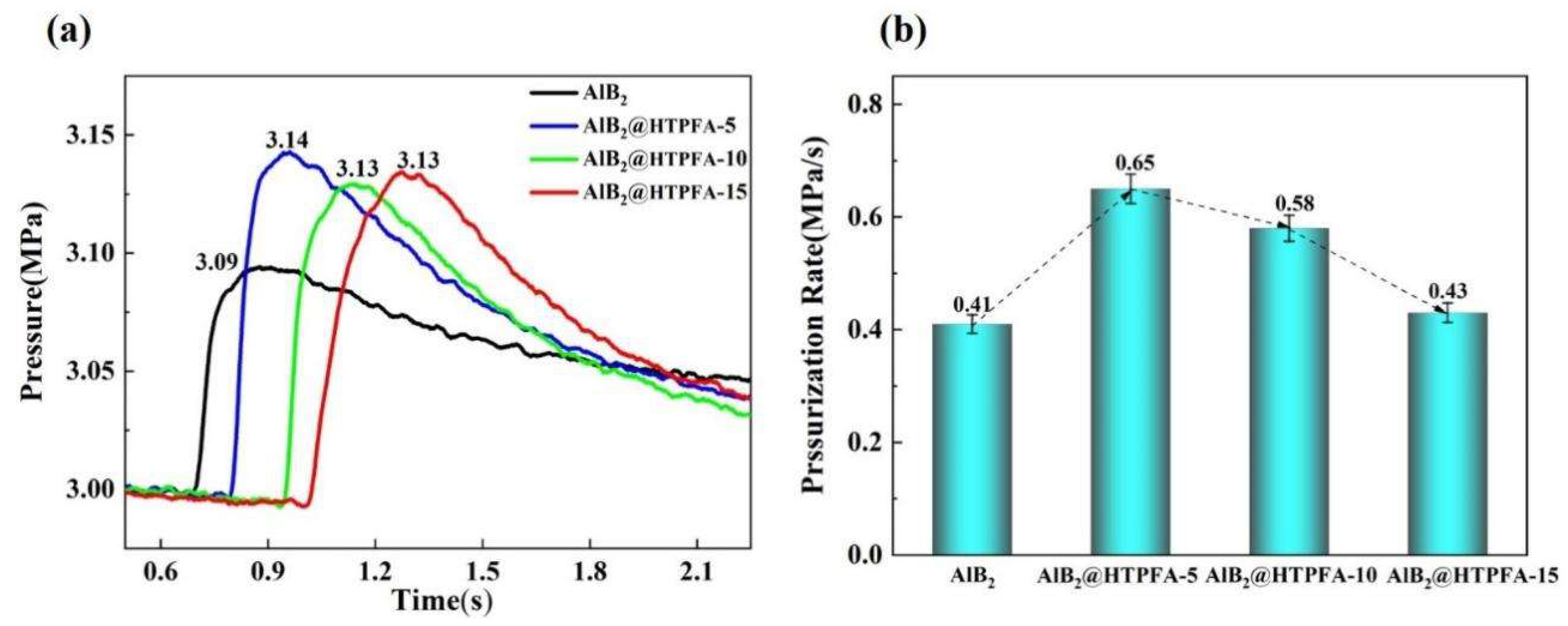

Figure 10. (a) The pressure changed with time and (b) the pressurization rate of AlB2 and AlB2@HTPFA.
Figure 10. (a) The pressure changed with time and (b) the pressurization rate of AlB2 and AlB2@HTPFA.
Materials 18 01452 g010
Materials 18 01452 g011
Figure 11. Ignition process of samples: (a) AlB2/KP, (b) AlB2@HTPFA-5/KP, (c) AlB2@HTPFA-10/KP, (d) AlB2@HTPFA-15/KP.
Figure 11. Ignition process of samples: (a) AlB2/KP, (b) AlB2@HTPFA-5/KP, (c) AlB2@HTPFA-10/KP, (d) AlB2@HTPFA-15/KP.
Materials 18 01452 g011
Materials 18 01452 g012

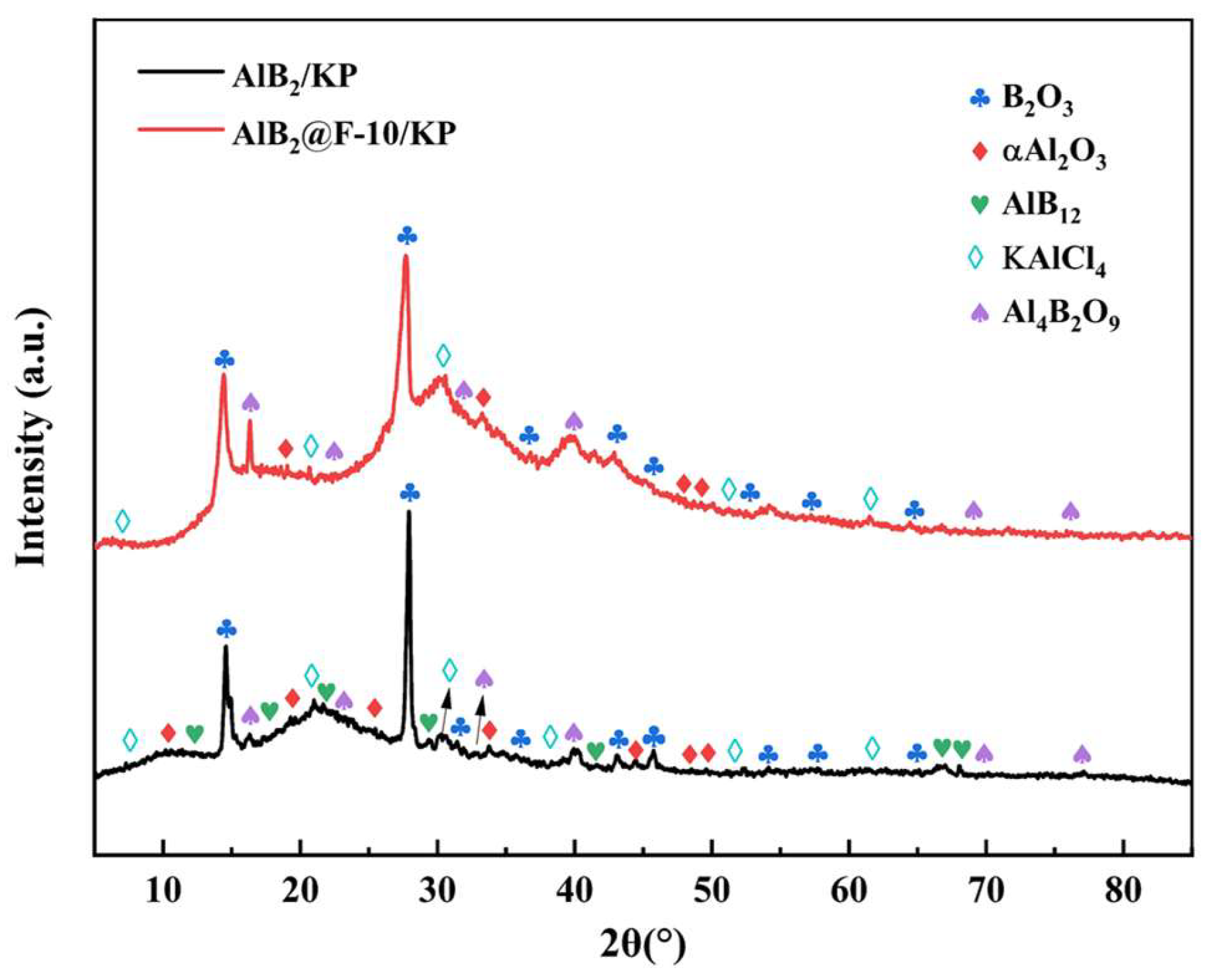

Figure 12. X-ray diffraction patterns of AlB2/KP and AlB2@HTPFA-10/KP.
Figure 12. X-ray diffraction patterns of AlB2/KP and AlB2@HTPFA-10/KP.
Materials 18 01452 g012
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, J.; Zhao, W.; Shen, C.; Ou, Y.; Jiao, Q. HTPFA-Coated AlB2 with Enhanced Combustion Performance as a High-Energy Fuel. Materials 2025, 18, 1452. https://doi.org/10.3390/ma18071452

AMA Style

Wang J, Zhao W, Shen C, Ou Y, Jiao Q. HTPFA-Coated AlB2 with Enhanced Combustion Performance as a High-Energy Fuel. Materials. 2025; 18(7):1452. https://doi.org/10.3390/ma18071452

Chicago/Turabian Style

Wang, Jiangfeng, Wanjun Zhao, Chen Shen, Yapeng Ou, and Qingjie Jiao. 2025. "HTPFA-Coated AlB2 with Enhanced Combustion Performance as a High-Energy Fuel" Materials 18, no. 7: 1452. https://doi.org/10.3390/ma18071452

APA Style

Wang, J., Zhao, W., Shen, C., Ou, Y., & Jiao, Q. (2025). HTPFA-Coated AlB2 with Enhanced Combustion Performance as a High-Energy Fuel. Materials, 18(7), 1452. https://doi.org/10.3390/ma18071452

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
