Study of ZrO₂ Gate Dielectric with Thin SiO₂ Interfacial Layer in 4H-SiC Trench MOS Capacitors

Abstract

The transition of SiC MOSFET structure from planar to trench-based architectures requires the optimization of gate dielectric layers to improve device performance. This study utilizes a range of characterization techniques to explore the interfacial properties of ZrO₂ and SiO₂/ZrO₂ gate dielectric films, grown via atomic layer deposition (ALD) in SiC epitaxial trench structures to assess their performance and suitability for device applications. Scanning electron microscopy (SEM) and atomic force microscopy (AFM) measurements showed the deposition of smooth film morphologies with roughness below 1 nm for both ZrO₂ and SiO₂/ZrO₂ gate dielectrics, while SE measurements revealed comparable physical thicknesses of 40.73 nm for ZrO₂ and 41.55 nm for SiO₂/ZrO₂. X-ray photoelectron spectroscopy (XPS) shows that in SiO₂/ZrO₂ thin films, the binding energies of Zr 3d_5/2 and Zr 3d_3/2 peaks shift upward compared to pure ZrO₂. Electrical characterization showed an enhancement of E_BR (3.76 to 5.78 MV·cm⁻¹) and a decrease of I_{ON_EBR} (1.94 to 2.09 × 10⁻³ A·cm⁻²) for the SiO₂/ZrO₂ stacks. Conduction mechanism analysis identified suppressed Schottky emission in the stacked film. This indicates that the incorporation of a thin SiO₂ layer effectively mitigates the small bandgap offset, enhances the breakdown electric field, reduces leakage current, and improves device performance.

1. Introduction

The current SiC MOSFET market is experiencing a new phase of growth, fueled by the rapid expansion of the renewable energy sector [1]. In this context, high-performance SiC MOSFETs are progressively replacing traditional silicon-based power devices [2]. Among materials, SiC has attracted increasing interest in power electronics and renewable energy conversion systems owing to its low on-resistance, high voltage resistance, high-frequency switching capability, and excellent high-temperature reliability [3]. The evolution of SiC MOSFETs from traditional planar to trench-based architectures has led to notable performance improvements, such as higher current density, reduced on-resistance, faster switching speeds, and enhanced blocking voltages [4,5]. However, the introduction of trench structures has also brought technical challenges to the gate dielectric layer [6,7]. Advanced methods such as electron holographic tomography can now be used to study the internal device potential [8]. Despite the high critical breakdown electric field of SiC, the electric field concentrations at the trench corners may subject the oxide layer to excessive stress, severely impacting device reliability and stability [8,9,10]. Therefore, optimizing the design of the gate oxide layer and addressing interface engineering challenges in trench structures have become critical research and development priorities in the field of SiC devices [11,12,13].

Various alternative gate dielectric materials have so far been explored to address these challenges [14]. Wirths et al. demonstrated that integrating high-k dielectrics in place of traditional SiO₂ in planar SiC MOSFETs effectively mitigates interface trap density, stabilizes threshold voltage behavior, and enhances operational reliability, thereby advancing device performance [15,16,17]. Among high-k materials, Al₂O₃, including certain ALON compounds, has been thoroughly investigated [18,19,20,21]. However, zirconia (ZrO₂) has emerged as a promising candidate due to its high dielectric constant and wide bandgap (5.8 eV) [18]. In this view, Wang et al. investigated the impact of inserting a thin SiO₂ interlayer between ZrO₂ and SiC using first-principles calculations, predicting that such a structure could increase band offset, reduce leakage current, and preserve the dielectric advantages of ZrO₂ [22]. However, the traditional thermal oxidation process of SiC/SiO₂ interfaces often results in the low density of interface states (D_it), reducing channel mobility [23]. This problem can be solved by optimizing interface engineering to lower interface trap density as a critical focus.

In this study, high-performance gate oxide layers with exceptional uniformity were synthesized using atomic layer deposition (ALD) for the comparative assessment of interfacial characteristics in ZrO₂-based and SiO₂/ZrO₂ trench capacitors. Compared to previous studies, this work provides a more complete experimental assessment of SiO₂/ZrO₂ gate dielectric stacks in trench MOS structures. The trench depth, width, and the growth of high-k thin films were studied by scanning electron microscopy (SEM). Comprehensive material validation was performed through multi-technique analysis, including surface morphology examination with atomic force microscopy (AFM), optoelectronic property evaluation by spectroscopic ellipsometry (SE), and chemical composition analysis via X-ray photoelectron spectroscopy (XPS). SE analysis provided critical data on layer thickness and optical bandgap, revealing that the integration of SiO₂ interfacial layers systematically modulated the energy band structure. Key electrical parameters, such as the dielectric breakdown field intensity (E_BR) and conduction current at the breakdown (I_{ON_EBR}), were quantified through current–voltage (I-V) profiling. Additionally, capacitance–voltage (C-V) hysteresis analysis allowed for precise determination of D_it and effective oxide charge (N_eff), while further investigation of leakage current mechanisms was conducted through I-V curve modeling, providing a detailed understanding of the dominant transport pathways.

Compared to ZrO₂ alone, the fabricated SiO₂/ZrO₂ stacked dielectric exhibited a higher E_BR and lower I_{ON_EBR}, underscoring the feasibility and potential of SiO₂/ZrO₂ stacked dielectrics as a promising solution for gate oxide applications in trench-structured SiC MOSFETs.

2. Experimental Section

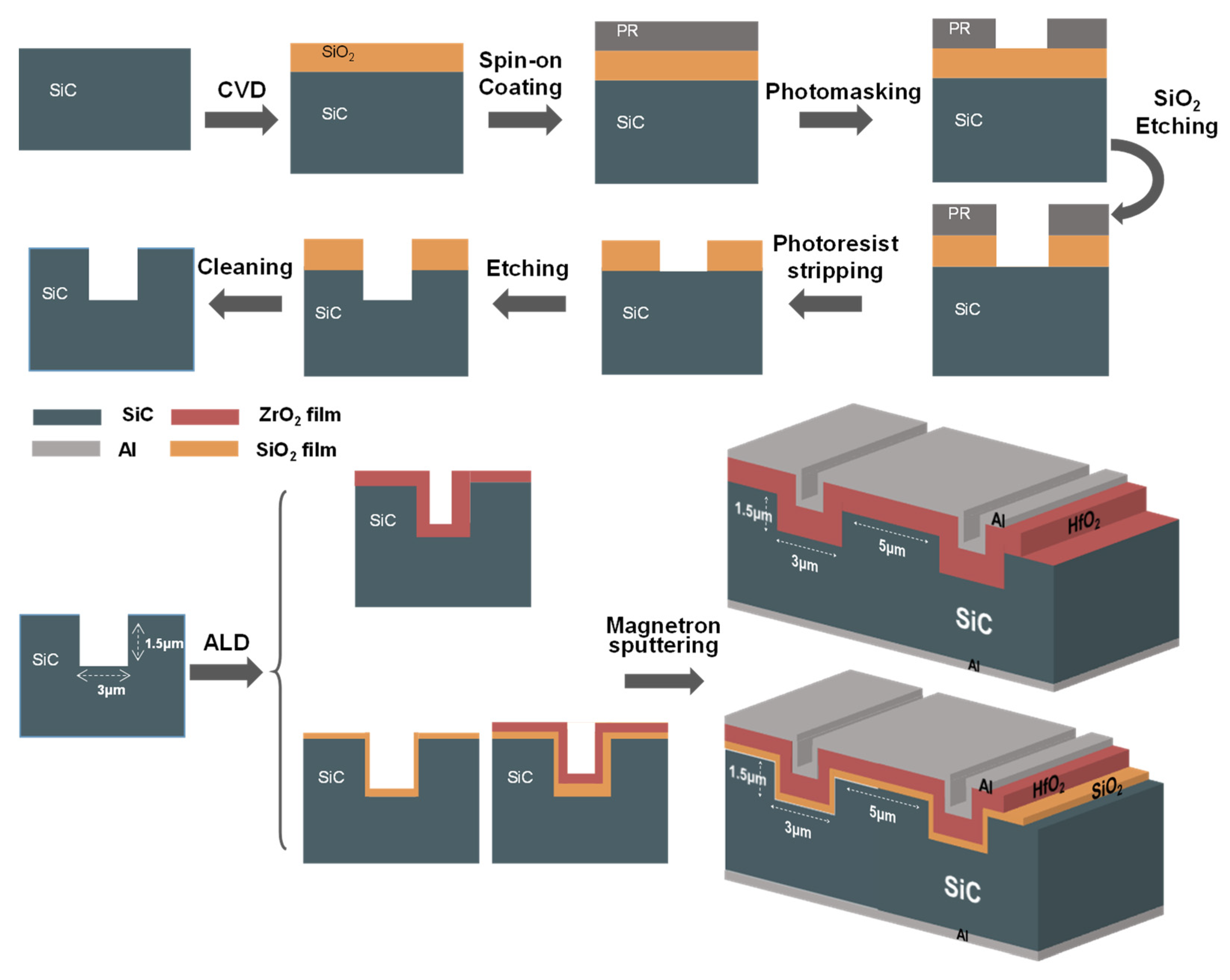

The sample preparation process of the films and a scheme of the final product are depicted in Figure 1. The experiment commenced with a 4H-SiC epitaxial wafer (n-doped, (0001) orientation with 4° off-axis) as the substrate. A 2.5 µm-thick SiO₂ masking layer was initially grown via chemical vapor deposition (CVD, SINO-Plasma 8000, amteglobal, Wuxi, China). Next, photolithography (ABM/6/350/NUV/DCCD/M, ABM Inc., San Jose, CA, USA) was employed to pattern the mask, defining trench arrays with 3 µm width. Following SiO₂ layer patterning through dry etching, the residual photoresist was stripped via solvent treatment, enabling subsequent reactive ion etching of the SiC substrate to define trench architectures. The finalized structures exhibited precise dimensional control with trench widths of 3 µm, vertical depths of 1.5 µm, and inter-trench spacing of 5 µm. To ensure mask integrity, buffered oxide etch (BOE) was selectively applied to remove residual oxides from unpatterned regions.

After the formation of clean trench structures, the gate dielectric layer was deposited using an atomic layer deposition (ALD, Exploiter E200SP, SuperALD, Shenzhen, China) system at 270 °C. For the single-layer ZrO₂ film, 400 deposition cycles were sufficient. For the SiO₂/ZrO₂ stacked dielectrics, sequential deposition of 10 nm SiO₂ (precursor: plasma) and 30 nm ZrO₂ (precursor: CpZr(NMe₂)₃) resulted in a composite dielectric layer with a total thickness of approximately 40 nm after 400 cycles, demonstrating excellent thickness uniformity. Finally, 200 nm aluminum electrodes were deposited on both device surfaces via magnetron sputtering, with standardized 200 × 200 μm² test contacts formed. A schematic representation of the obtained ZrO₂ thin film and SiO₂/ZrO₂ stacked film samples is also shown in Figure 1.

Following etching and ALD, the cleaved samples were fixed onto the sample stage using conductive adhesive. To improve conductivity, a thin layer of gold was applied to the sample surface using sputtering for 30 s. The cross sections were analyzed using a scanning electron microscope (SEM, Sigma 300, ZEISS, Oberkochen, Germany) to evaluate the trench etching quality and the uniformity of the film deposition within the trench.

Additional analysis of the ALD-deposited films was performed by determining the film thickness through spectroscopic ellipsometry (SE, Woollam RC2, J.A. Woollam, Lincoln, NE, USA). The SiC substrate was characterized using B-spline curves and the Cauchy dispersion model to determine the film thickness and optical parameters, enabling detailed characterization of the gate dielectric layer. The surface morphology was analyzed using atomic force microscopy (AFM, BRUKER BRK0003, Bruker Corporation, Karlsruhe, Germany) over a 5 µm × 5 µm area, with raw data processed by NanoScope analysis (3.0) (Billerica, MA, USA) software to determine surface roughness. X-ray photoelectron spectroscopy (XPS, ESCALAB 250Xi, Thermo Scientific, Waltham, MA, USA) examined the chemical states of the films, with all XPS spectra calibrated to the C 1s peak at a binding energy of 284.8 eV.

The electrical characterization of thin-film devices was systematically performed utilizing a TS2000-HP probe system (MPI Corporation, Hsinchu, Taiwan) coupled with a Keithley 4200A-S parametric analyzer (Tektronix Inc., Beaverton, OR, USA). Current–voltage characteristics were recorded through progressive elevation of the gate bias until dielectric failure occurred, enabling determination of both E_BR and I_{ON_EBR} in metal–oxide–semiconductor structures. Capacitance–voltage profiling was implemented through gate voltage scanning under alternating current excitation (30 mV amplitude) across multiple frequency settings. Subsequent analysis of capacitance–voltage relationships permitted quantitative evaluation of D_it and N_eff in the fabricated capacitors. All measurements were performed at room temperature.

3. Results

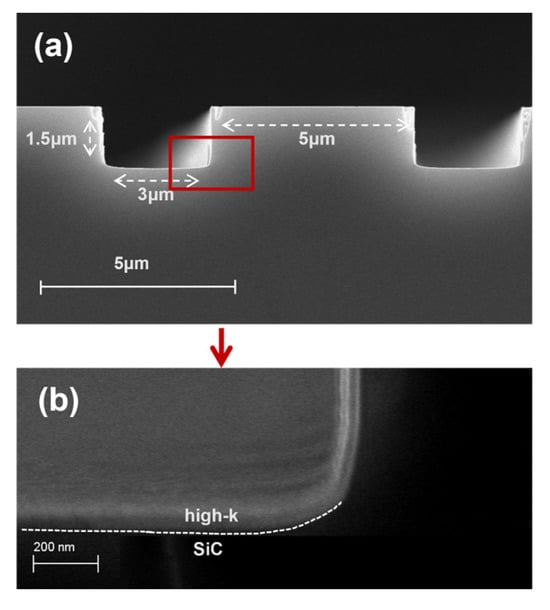

In this study, ZrO₂ and SiO₂/ZrO₂ gate dielectric films were grown by atomic layer deposition, and their characteristics were studied by various analytical techniques. The trench structures observed by SEM in Figure 2a revealed the deposition films with trench widths of 3 µm, vertical depths of 1.5 µm, and a trench pitch of 5 µm. The SEM image in Figure 2b shows a gate oxide layer that was grown using ALD. The high-k layer demonstrated excellent uniformity and consistency across the entire trench surface, even at the trench corners. Thus, the ALD process can be used to deposit films with precisely controlled film thickness and uniformity, outperforming the traditional dry oxidation method.

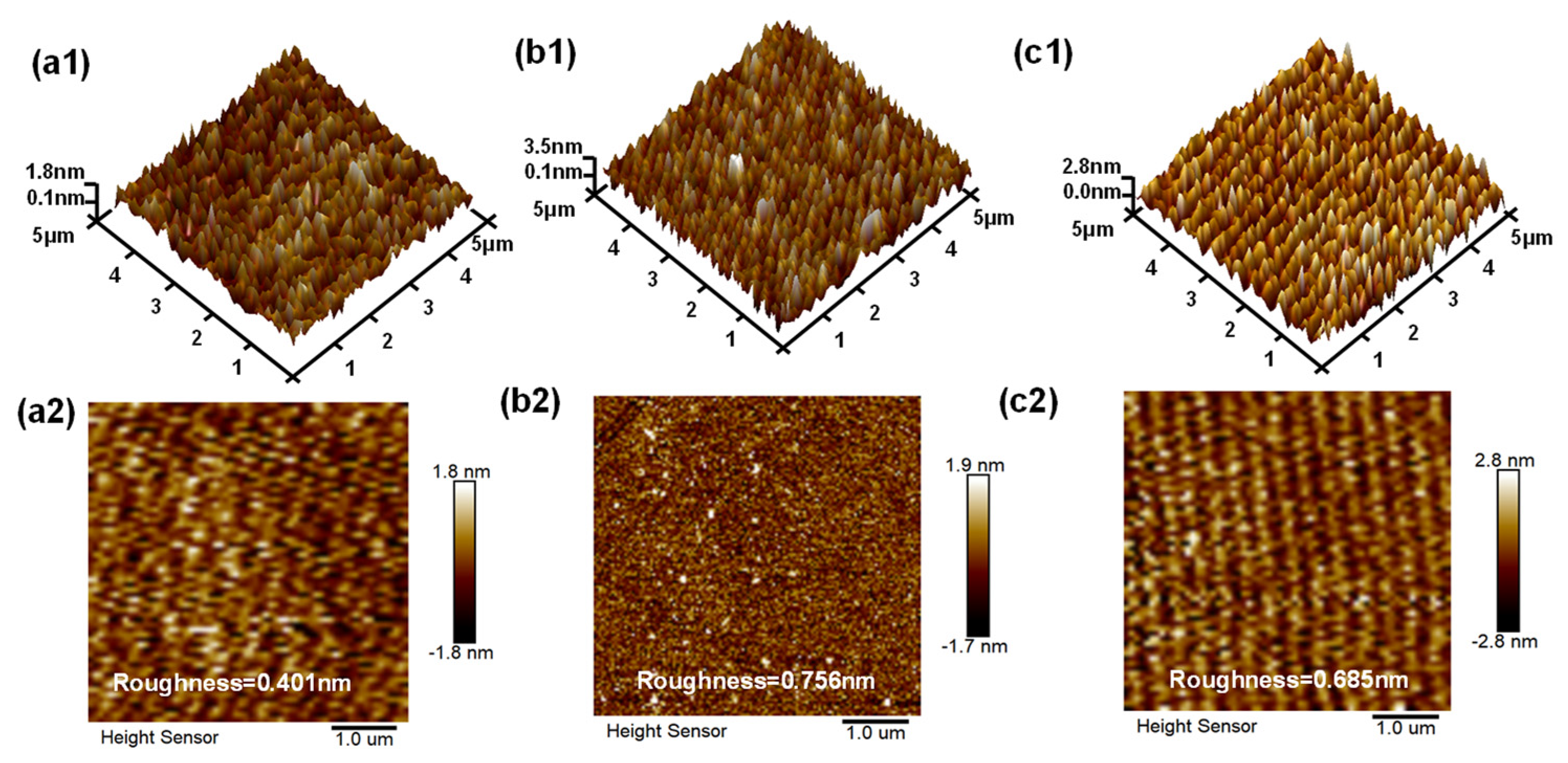

The surface morphologies and roughnesses of ZrO₂ thin films, SiO₂/ZrO₂ stacked films, and the interfacial SiO₂ layer analyzed by AFM are compared in Figure 3. Both types of films exhibited relatively smooth surfaces, with a roughness value of 0.401 nm for ZrO₂ thin films and 0.756 nm for SiO₂/ZrO₂ stacked films. Further analysis of the surface profiles revealed roughness within a sub-1 nm range, indicating the deposition of films with a smooth surface finish. By comparison, the surface roughness of the SiO₂/ZrO₂ stacked films was slightly higher than that of single-layer ZrO₂ films. Such an increase in roughness can be attributed to the physical and chemical differences between SiO₂ and ZrO₂, which might induce interfacial stress or defects during the deposition process. Additionally, the multilayer nature of the stacked structure may have contributed to cumulative roughness since each additional layer introduced a minor increment to the overall surface roughness

Spectroscopic ellipsometry (SE) was employed to systematically analyze multiple regions of the deposited thin films to ensure measurement reliability and determine their thicknesses. The ZrO₂ single-layer film exhibited an average thickness of 40.73 nm, while the SiO₂ and ZrO₂ layers in the SiO₂/ZrO₂ bilayer structure measured 10.73 nm and 30.82 nm, respectively. Figure 4a,b present the experimental Ψ and Δ parameters, while the corresponding refractive index (n) and extinction coefficient (k) are shown in Figure 4c.

The optical bandgap can be determined using the Tauc method, which is based on the relationship (αhν)² ∝ (hν − E_g), where α is the absorption coefficient, ν is photon frequency, and E_g is the optical bandgap [24]. This method relies on the fact that, for semiconductors, most electrons in the valence and conduction bands are located near the bandgap. When the energy of incident photons approaches the bandgap, electrons can absorb the photon energy. In this method, the absorption coefficient (α) is calculated using the relationship α = 4πk/λ, where λ is the wavelength of the incident light. The results are displayed in Figure 4. The optical bandgap is extracted by plotting (αhν)² versus the photon energy (hν) and then linearly extrapolating the results to zero [25].

Using this approach, the optical bandgaps of the ZrO₂ and SiO₂/ZrO₂ composite films were determined to be 5.21 eV and 5.88 eV, respectively [26]. Despite the relatively thin SiO₂ layer, its inherent high bandgap (approximately 9 eV) contributed to bandgap tuning in the composite film, thereby enhancing the device’s breakdown voltage and reducing leakage current. Therefore, the presence of the SiO₂ buffer layer in the stack structure can significantly enhance the overall device performance by adjusting the bandgap [27,28].

XPS analysis was employed to probe the elemental composition and chemical bonding states of the dielectric surfaces. Figure 5a displays the full-range XPS spectra for both ZrO₂ and SiO₂/ZrO₂ films. The O 1s core-level XPS spectra and peak deconvolutions for both thin films are presented in Figure 5b. For the ZrO₂ thin film, the O 1s peak can be deconvoluted into two components at 529.6 eV and 530.7 eV. By comparison, the O 1s peak of SiO₂/ZrO₂ thin film can be deconvoluted into two components at 530.3 eV and 531.4 eV.

As shown in Figure 5c, he Zr 3d core-level XPS spectra exhibit well-resolved spin–orbit doublets (Zr 3d_5/2 and Zr 3d_3/2) for both ZrO₂ and SiO₂/ZrO₂ thin films, with a characteristic splitting energy of 2.4 eV. For the pristine ZrO₂ film, the binding energies of Zr 3d_5/2 and Zr 3d_3/2 were determined to be 181.8 eV and 184.2 eV, respectively [29]. Upon SiO₂ interlayer incorporation, these values showed a systematic positive shift to 182.4 eV and 184.8 eV. The experimentally observed area ratio between Zr 3d_5/2 and Zr 3d_3/2 peaks was calculated to be 59:41 for ZrO₂ and 58:42 for SiO₂/ZrO₂, closely approximating the theoretical 3:2 ratio dictated by spin–orbit coupling effects [30]. This ratio is consistent with the expected energy level splitting determined by the spin–orbit coupling effect. Spin–orbit coupling, which is the interaction between the spin angular momentum and the orbital angular momentum of an electron, causes energy level splitting. In this case, the spin–orbit coupling of the Zr 3d orbitals results in a consistent area ratio of the Zr 3d_5/2 and Zr 3d_3/2 peaks, reflecting the similar electronic states of Zr atoms in both samples.

The O 1s core-level and Si 2p XPS spectra of the SiO₂ interlayer, along with their peak deconvolutions, are presented in Figure 5d,e. The O 1s peak can be deconvoluted into two components at 532.7 eV and 533.9 eV [31]. The stronger covalent bonding in SiO₂ may have resulted in a higher electron cloud density around oxygen atoms, leading to higher binding energy of the O 1s peak when compared to that in ZrO₂.

Overall, the XPS results demonstrate that in the SiO₂/ZrO₂ thin film, the binding energies of both the Zr 3d_5/2 and Zr 3d_3/2 peaks are shifted upward compared to those in pure ZrO₂. This indicates that charge redistribution or polarization at the interface has altered the electronic environment of the Zr atoms, leading to an increase in their binding energies.

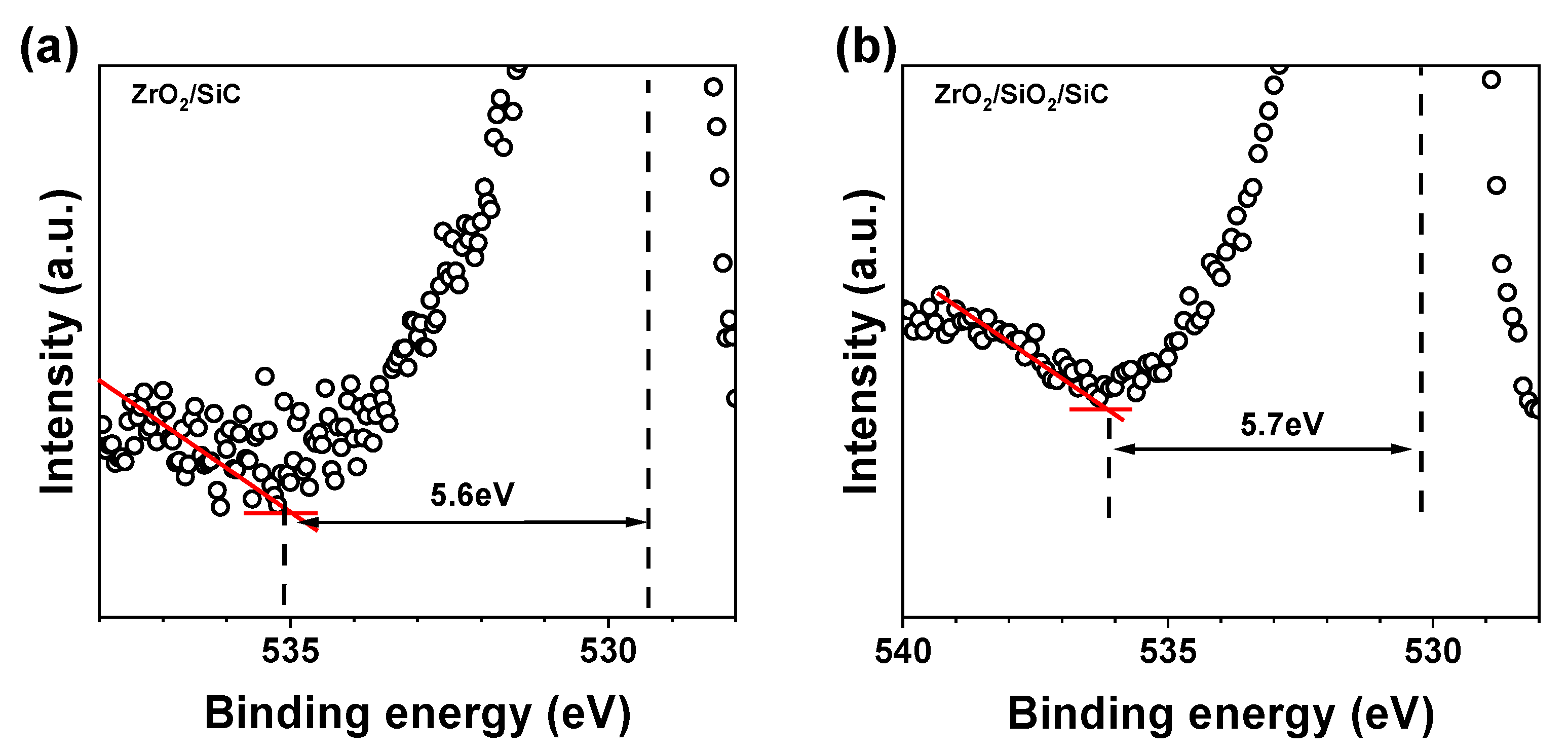

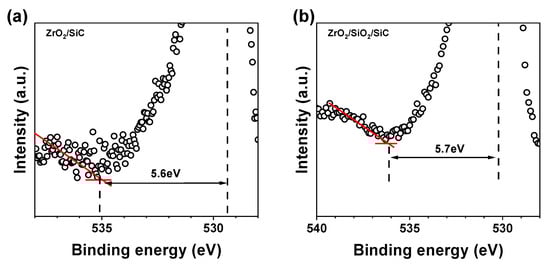

As illustrated in Figure 6a,b, the O 1s energy loss spectra (ELS) for both ZrO₂ and SiO₂/ZrO₂ were analyzed by examining the energy differences between the O 1s peak positions. This approach enables the determination of the material’s band gap, as the onset of energy loss corresponds to the excitation of electrons from the valence band to the conduction band. The energy separation between the O 1s peak and the threshold energy loss provides an estimate of the band gap. Using this method, the band gaps were found to be 5.6 eV for ZrO₂ and 5.7 eV for SiO₂/ZrO₂ [32]. The discrepancy between E_g values derived from ELS and Tauc methods can be attributed to their distinct probing mechanisms. ELS emphasizes localized electronic transitions near the surface, while Tauc analysis reflects bulk optical absorption. These results align with the optical bandgap values obtained from previous fitting analysis.

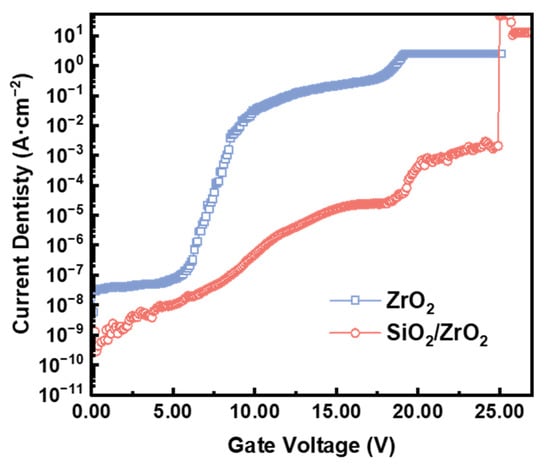

The comparative current density–voltage (J-V) characteristics of ZrO₂-based MOS capacitors and their SiO₂/ZrO₂ stacked counterparts are illustrated in Figure 7. Current density values were normalized to the square electrode area using the relationship $\mathrm{J}={\displaystyle \frac{\mathrm{I}}{\mathrm{A}}}$, where A donates the electrode area and I represents the measured current [33]. The J-V curves of both devices exhibited plateaus at lower voltages, followed by a gradual increase as the electric field intensified. However, no distinct breakdown phenomenon was observed for the single-layer ZrO₂ capacitor, even at higher electric fields. Interestingly, the conduction current stabilized at sustained levels, displaying typical features of a metastable “soft breakdown” state [34]. The analysis revealed that the single-layer ZrO₂ devices failed at a dielectric breakdown voltage of 19.1 V, corresponding to a critical field intensity of 3.76 MV·cm⁻¹, which is notably lower than the theoretical breakdown field of bulk ZrO₂. By contrast, the SiO₂/ZrO₂ stacked heterostructure exhibited significantly improved dielectric strength, with a breakdown voltage of 24.9 V and a corresponding field strength of 5.78 MV·cm⁻¹. The improvement in breakdown performance stems from two synergistic mechanisms: on one hand, the wide bandgap of SiO₂ (9 eV, higher than ZrO₂’s 5.8 eV) enables the formation of a more favorable staggered band alignment at the ZrO₂/SiC interface; on the other hand, the effective reduction in oxygen vacancy density substantially suppresses trap-assisted conduction pathways mediated by defect states, thereby collectively enhancing the dielectric properties. Therefore, the addition of the SiO₂ layer not only reduced the I_{ON_EBR} but also enhanced the E_BR, highlighting the critical role of the stacked structure in optimizing dielectric performance.

A methodical analysis of charge transport phenomena under low-leakage conditions was performed via rigorous numerical simulations across diverse gate electric field regimes. Linear regions of experimental current–voltage profiles were systematically examined to quantify key transport parameters. These parameters were subsequently implemented within computational models aligned with established theoretical frameworks, enabling precise reconstruction of individual conduction pathways.

Current leakage phenomena in MOS capacitor architectures originate from five principal mechanisms: (i) direct quantum tunneling across ultrathin dielectrics, (ii) trap-assisted tunneling (TAT) [35], (iii) Schottky emission [36], (iv) field-enhanced Poole–Frenkel (P-F) conduction [37], and (v) Fowler–Nordheim (F-N) tunneling [38]. Given that direct tunneling occurs primarily in thin oxide films, this study focused on a detailed characterization of TAT, Schottky emission, P-F emission, and F-N tunneling processes. The governing equations for each transport mechanism, along with their associated physical constants and fitting parameters, are summarized in

Table 1. Conduction plots and analytical model equations of different gate leakage current mechanisms.

Conduction Mechanisms	Conduction Plot	Analytical Model Equations
TAT	$\ln \left(JE\right)$$\mathrm{vs}. {\displaystyle \frac{1}{E}}$	$J_{\mathrm{T}\mathrm{A}\mathrm{T}}={\displaystyle \frac{2q{c}_{\mathrm{T}}{N}_{\mathrm{T}}{\varphi }_{\mathrm{T}}\mathrm{e}\mathrm{x}\mathrm{p}\left(-\frac{D{{\mathsf{\varphi }}_T}^{\frac{3}{2}}}{E_{ox}}\right)}{3E_{ox}}}$	[35]
Schottky emission	$\ln \left(J\right)$$\mathrm{vs}.\sqrt{E}$	$J_{SE}=A^{\ast }{T}^2\mathrm{e}\mathrm{x}\mathrm{p}\left({\displaystyle \frac{-q\left({\mathsf{\varphi }}_B-\sqrt{\frac{q{E}_{ox}}{4\prod {\epsilon }_{ox}}}\right)}{kT}}\right)$	[36]
P-F emission	$\ln \left({\displaystyle \frac{J}{E}}\right)$$\mathrm{vs}.\sqrt{E}$	$J_{PF}=q{N}_c\mu E_{ox}\mathrm{e}\mathrm{x}\mathrm{p}\left({\displaystyle \frac{-q\left({\varphi }_t-\sqrt{\frac{q{E}_{ox}}{\pi {\epsilon }_0{k}_r}}\right)}{kT}}\right)$	[37]
F-N tunneling	$\ln ({\displaystyle \frac{J}{E^2}}$$) \mathrm{vs}.{\displaystyle \frac{1}{E}}$	$J_{FN}=A{E_{ox}}^2\mathrm{e}\mathrm{x}\mathrm{p}\left(-{\displaystyle \frac{B}{E_{ox}}}\right)$	[38]

.

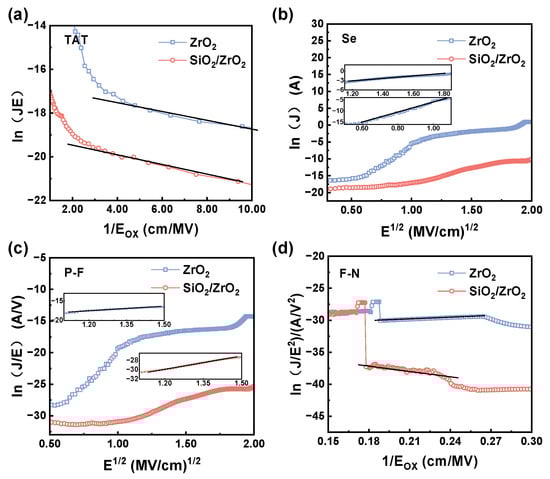

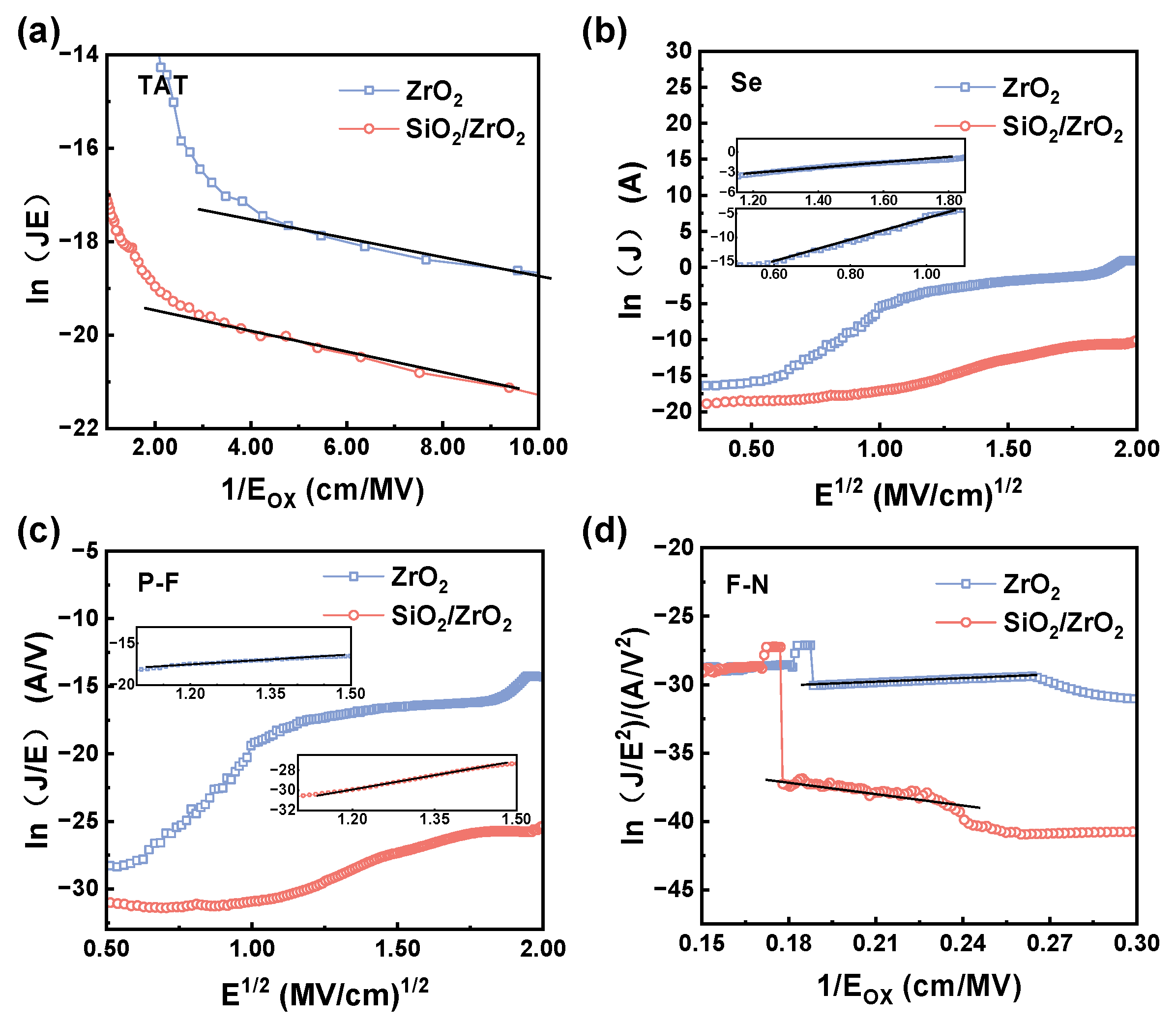

The TAT effect occurs when electrons tunnel into trap states within the dielectric film, followed by a transition into the conduction band of the dielectric. As shown in Figure 8a, both ZrO₂ and SiO₂/ZrO₂ dielectric exhibited TAT behavior, indicating the formation of traps within the samples. These traps facilitated the capture and release of electrons at low voltages, creating well-defined TAT conduction pathways [39]. At low-to-moderate bias conditions, TAT is the dominant conduction mechanism, as the applied electric field is insufficient to trigger significant thermal excitation of carriers.

However, as the applied voltage increases, TAT transitions into P-F emission, where charge carriers are thermally excited from bulk dielectric trap states to the conduction band. Under applied electric fields, charge carriers are thermally activated from bulk dielectric trap states to the conduction band, leading to P-F emission [40]. As depicted in Figure 8c, this emission mechanism was primarily observed in both samples under intermediate to strong field conditions, with its dominance increasing proportionally to the magnitude of the applied bias.

Schottky emission refers to the thermally activated transfer of electrons from the semiconductor to the conduction band of the insulator, similar to thermionic emission observed in metal–semiconductor junctions [41]. As shown in Figure 8b, the lower barrier height of ZrO₂ facilitated Schottky emission, while the higher barrier provided by the SiO₂ interlayer effectively suppressed this mechanism, reducing leakage current in the SiO₂/ZrO₂ stack. Additionally, tunneling effects at moderate electric field strengths caused a sharp increase in current, which contributed to the reduced the dielectric breakdown field intensity (E_BR) and enhanced leakage current [42]. This observation is consistent with previous findings in high-k dielectric stacks, where SiO₂ interlayers have been demonstrated to effectively block electron injection and suppress Schottky emission [43].

Under elevated gate bias conditions, electrons traversed the triangular energy barrier via quantum tunneling mechanisms, initiating F-N tunneling phenomena under intense electric fields. This behavior was consistently observed in both dielectric configurations, with the characteristic tunneling profiles comprehensively illustrated in Figure 8d. This transition from P-F to F-N conduction is dictated by the electric field strength and the barrier shape at the dielectric interface.

In summary, the leakage current behavior in ZrO₂ thin films was predominantly governed by multiple mechanisms: TAT, Schottky emission, P-F emission, and F-N tunneling. The SiO₂/ZrO₂ stacked structure demonstrated leakage characteristics primarily dominated by TAT, P-F emission, and F-N tunneling, with SiO₂ interlayer serving as a key modulator of charge transport pathways. Notably, Schottky emission was identified as a major contributor to leakage current variability in ZrO₂ films, highlighting its distinct role compared to the bilayer configuration. This difference underscores the efficacy of the SiO₂ interlayer in suppressing specific conduction mechanisms while maintaining overall dielectric integrity.

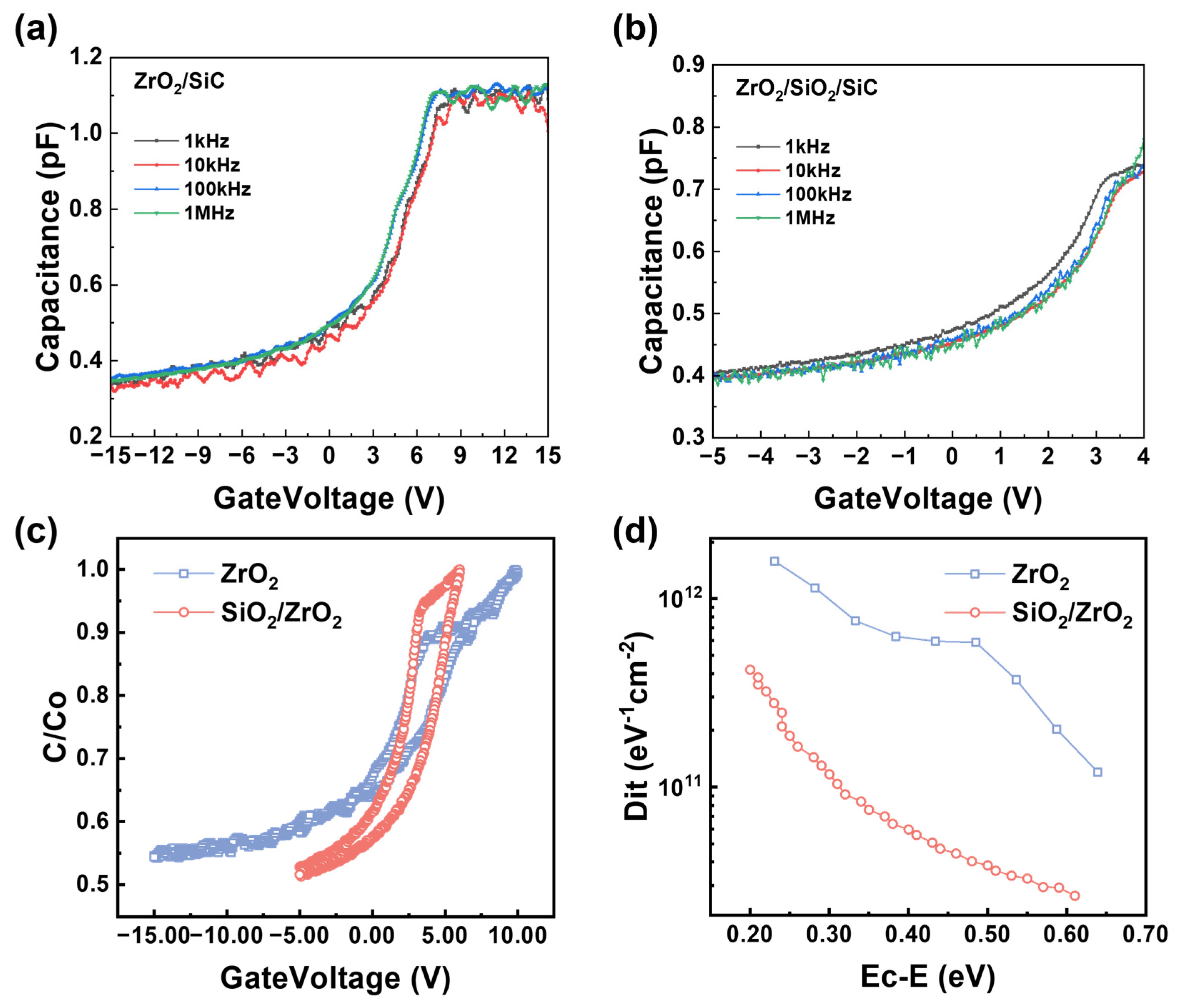

The interfacial properties of MOS capacitors were investigated by measuring the C-V curves of ZrO₂ and SiO₂/ZrO₂ trench MOS capacitors at frequencies of 1 kHz, 10 kHz, 100 kHz, and 1 MHz. As shown in Figure 9a,b, minimal curve scatterings were observed in both samples, indicating the high quality of both gate dielectrics.

To further characterize the interfacial properties, normalized C-V hysteresis measurements were performed at a frequency of 1 MHz. As shown in Figure 9c, under an AC signal of 30 mV, the voltage was swept from negative bias to positive bias and back to negative bias. This cyclic testing protocol effectively captured the dynamic charge trapping and de-trapping behaviors at the dielectric–semiconductor interfaces, with the width of the closed hysteresis loop serving as a key indicator of interfacial quality and its potential degradation or improvement. For the SiO₂/ZrO₂ stacked structure, the weighted average method was employed to calculate its effective permittivity (${\epsilon }_{\mathrm{o}\mathrm{x}}={\displaystyle \frac{d_{{\mathrm{S}\mathrm{i}\mathrm{O}}_2}}{d_{\mathrm{t}\mathrm{o}\mathrm{t}\mathrm{a}\mathrm{l}}}}·{\epsilon }_{{SiO}_2}+{\displaystyle \frac{d_{{\mathrm{Z}\mathrm{r}\mathrm{O}}_2}}{d_{\mathrm{t}\mathrm{o}\mathrm{t}\mathrm{a}\mathrm{l}}}}·{\epsilon }_{{\mathrm{Z}\mathrm{r}\mathrm{O}}_2}$). The effective permittivity of the SiO₂/ZrO₂ stack was calculated to be approximately 16 [42]. The flat-band voltage (V_FB ) values for ZrO₂ and SiO₂/ZrO₂ MOS capacitors were determined as 4.3 V and 3.4 V, respectively [22]. The reduction in flat-band voltage shift highlighted the significant impact of the introduced SiO₂ layer into the stack.

During high-frequency C-V testing, boundary traps exhibit a delayed response to small AC signal variations due to their slower charge capture and release dynamics. However, these traps can gradually charge or discharge as the DC gate voltage is swept. As a result, when the gate voltage is swept from negative to positive or vice versa, the charge state of these interface traps affects the C-V curve, leading to hysteresis between the high-frequency C-V measurements. This hysteresis occurs because the interface traps are unable to fully charge or discharge at high frequencies, leading to a mismatch between charge accumulation/release and the voltage sweep, thus causing hysteresis [44]. Since the unstacked ZrO₂ dielectric displayed more significant hysteresis than the SiO₂/ZrO₂ stacked dielectric, the lower hysteresis in the stacked structure suggests a reduction in slow trap density, which aligns with the quantitatively lower the low density of interface states (D_it) values obtained through the high–low frequency method.

As shown in Figure 9d, the D_it values calculated at E_C-0.2 eV by the high–low frequency method were estimated to be 1.58 × 10¹² eV⁻¹·cm⁻² for ZrO₂ and 4.19 × 10¹¹ eV⁻¹·cm⁻² for the SiO₂/ZrO₂ stack [45]. Thus, both gate dielectric samples contained certain defects, aligning with the TAT mechanism observed under moderate electric fields. The lower D_it value of the SiO₂/ZrO₂ can be attributed to the passivation effect of the SiO₂ interlayer [46]. Material characterization via XPS and SE previously demonstrated that SiO₂ forms a stable, uniform interface layer with reduced oxygen vacancy density, which correlates directly with the measured improvement in D_it. On the other hand, the SiO₂ interlayer serves as a buffer, alleviating the lattice mismatch between ZrO₂ and the SiC substrate. In the stacked structure, the buffering effect of the SiO₂ layer isolated ZrO₂ from direct contact with SiC, mitigating the impact of oxygen vacancies on D_it.

Furthermore, the degradation of channel mobility is primarily influenced by acoustic phonon scattering, surface roughness scattering, and interface defect scattering, with interface defect scattering being the dominant factor. This suggests that the suppression of interface defects via the SiO₂ interlayer can mitigate mobility degradation, thereby improving channel conduction efficiency and device reliability. The increase in D_it may also be related to defects introduced during the etching process, where interface quality could be improved through annealing. Nevertheless, the D_it values of both ZrO₂ and SiO₂/ZrO₂ samples were overall relatively low, indicating good electrical performance.

The N_eff within the oxide layer can be quantitatively derived from the flat-band voltage (V_FB) [23]. The N_eff of ZrO₂ and SiO₂/ZrO₂ dielectric MOS capacitors were calculated as −3.63 × 10¹² cm⁻² and −1.71 × 10¹² cm⁻². As summarized by the electrical and interfacial properties of the MOS capacitors in

Table 2. Electrostatic and interfacial performance metrics of MOS capacitor structures by ZrO₂ and SiO₂/ZrO₂ dielectric.

	EBR (MV·cm−1)	VFB (V)	EBR (MV·cm−1)	ION_EBR (A·cm−2)	Dit (eV−1·cm−2) EC-0.2 eV	Neff (cm−2)
ZrO2	3.76	4.3	3.76	1.94	1.58 × 1012	−3.63 × 1012
SiO2/ZrO2	5.78	3.4	5.78	2.09 × 10−3	4.19 × 1011	−1.71 × 1012

, the negative N_eff values contributed to the forward shift of the flat-band voltage V_FB. The fixed charges or interface traps within the dielectric layer, particularly in the presence of defective oxide layers, can capture or release electrons, thereby influencing the V_FB. The negative fixed charges in the oxide layer cause the accumulation of electrons at the semiconductor–oxide interface when the gate voltage is low, resulting in a forward shift of the V_FB [47]. For n-type semiconductors, this shift causes an increased accumulation of electrons at the interface. The introduction of a SiO₂ interlayer into the SiO₂/ZrO₂ stacked structure reduced V_FB shifts and lowered the N_eff, thereby improving the interface quality of the devices. This improvement can primarily be attributed to the SiO₂ interlayer’s ability to mitigate the effects of interface traps and other charge-related defects within the dielectric stack, resulting in enhanced electrical performance and reliability.

4. Conclusions

In summary, this study successfully fabricated MOS capacitors featuring ALD-grown ZrO₂ and SiO₂/ZrO₂ gate dielectric layers on 4H-SiC trench structures. The AFM measurements showed roughnesses of both films less than 1 nm, indicating relatively smooth surfaces. The band gap energy of the SiO₂/ZrO₂ film is higher than that of the ZrO₂ film, as evidenced by both the O 1s energy loss spectrum fitting and the (αhν)² versus photon energy analysis. The electrostatic evaluations highlighted distinct variations in dielectric behavior. The ZrO₂ single-layer configuration displayed an E_BR of 3.76 MV·cm⁻¹, accompanied by I_{ON_EBR} reaching 1.94 A·cm⁻². Mechanistic investigations identified TAT, Schottky emission, PF emission, and F-N tunneling as the principal conduction pathways governing leakage in the monolithic ZrO₂ system. By comparison, the SiO₂/ZrO₂ bilayer architecture achieved an enhanced E_BR of 5.78 MV·cm⁻¹ with I_{ON_EBR} reduced to 2.09 × 10⁻³ A·cm⁻², reflecting a 54% improvement in E_BR in leakage current compared to the ZrO₂ monolayer. Within the stacked configuration, leakage mechanisms were predominantly mediated by TAT, PF emission, and F-N tunneling, with Schottky emission effectively suppressed through the interfacial SiO₂ layer. The C-V hysteresis tests indicated a larger hysteresis in ZrO₂, consistent with calculated D_it. As a result, the higher interface trap density in ZrO₂ thin films had a more pronounced impact on the electrical performance. The incorporation of a thin SiO2 interlayer effectively addressed the small bandgap offset, enhancing the bandgap from 5.21 eV to 5.88 eV and reducing I_{ON_EBR}. However, the etching process induces interfacial defects in the trench structures, which could negatively impact device performance. Post-treatment techniques showed promise in mitigating these interface issues, with future investigations potentially focusing on methods such as annealing to further enhance interface quality. Additionally, research into other high-k materials, such as Y₂O₃, Ta₂O₅, and La₂O₃, could be considered. This comparative study provides a comprehensive evaluation of the electrical behavior of ZrO₂ and SiO₂/ZrO₂ stacked dielectric configurations in SiC trench capacitors, offering valuable insights for optimizing future SiC trench-gate MOSFET designs.
