Two-Way Bending Properties of Shape Memory Composite with SMA and SMP

by
Hisaaki Tobushi
1,*,
Shunichi Hayashi
2,
Yoshiki Sugimoto
3 and
Kousuke Date
1
1
Department of Mechanical Engineering, Aichi Institute of Technology / 1247 Yachigusa, Yakusa-cho, Toyota, 470-0392, Japan
2
SMP Technologies Inc./Shendagaya, 3-50-11, Shibuyaku, Tokyo, 151-0051, Japan
3
Citizen Machinery, Co., Ltd./4107-6 Miyota, Kitasaku, Nagano, 389-0206, Japan
*
Author to whom correspondence should be addressed.
Materials 2009, 2(3), 1180-1192; https://doi.org/10.3390/ma2031180
Submission received: 16 July 2009 / Revised: 20 August 2009 / Accepted: 24 August 2009 / Published: 1 September 2009
(This article belongs to the Special Issue Composite Materials)
Browse Figures
Versions Notes

Abstract

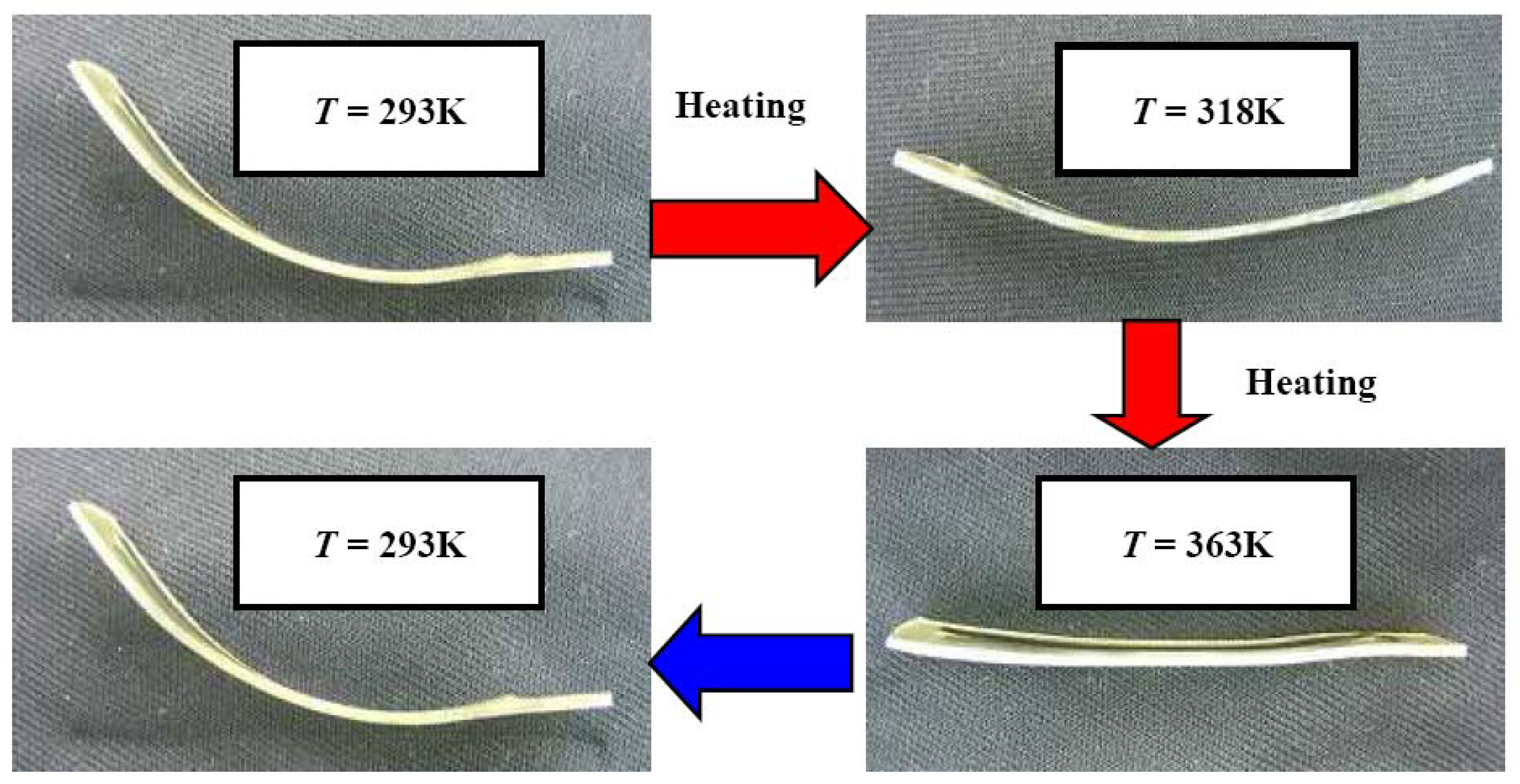

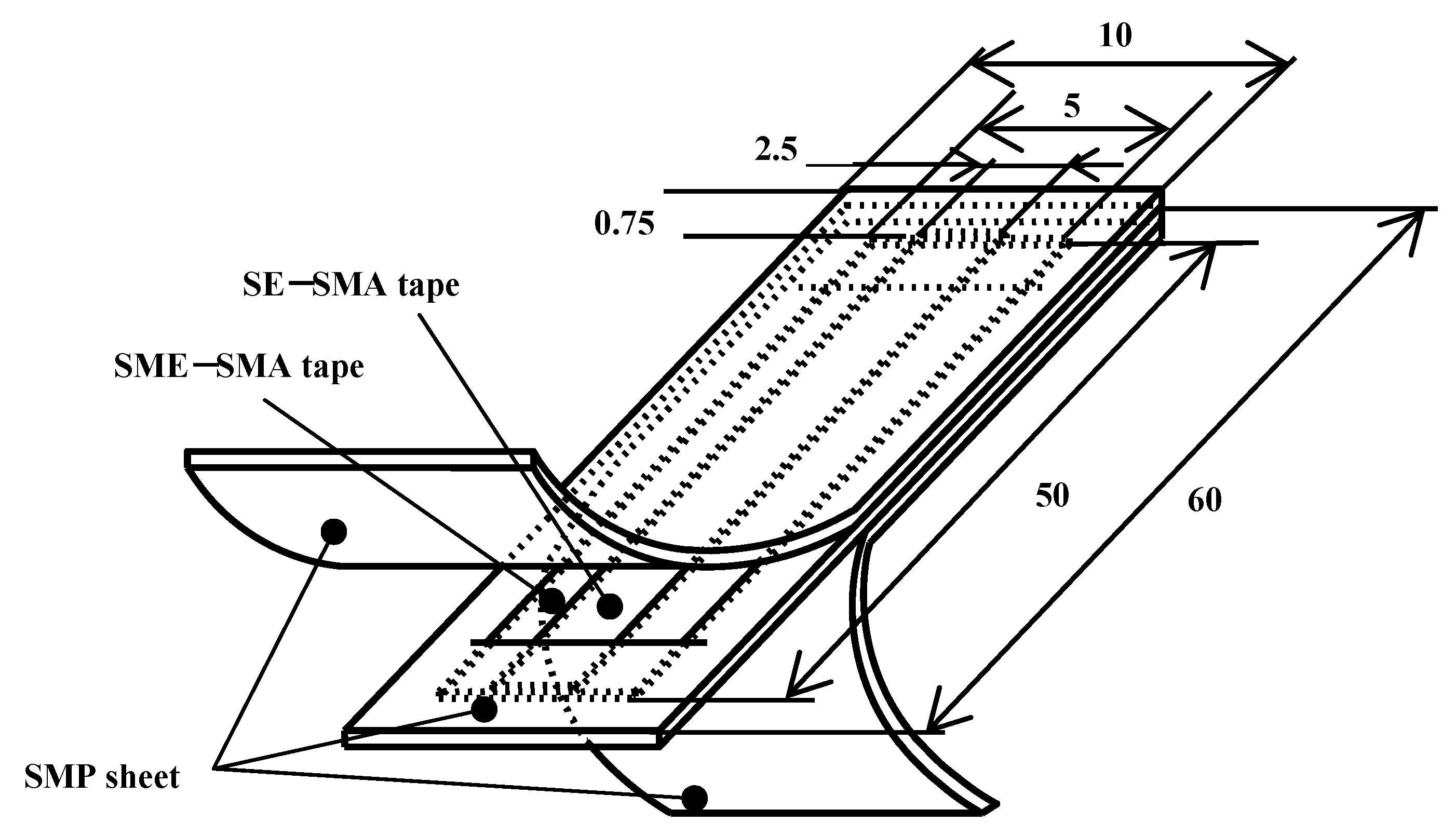

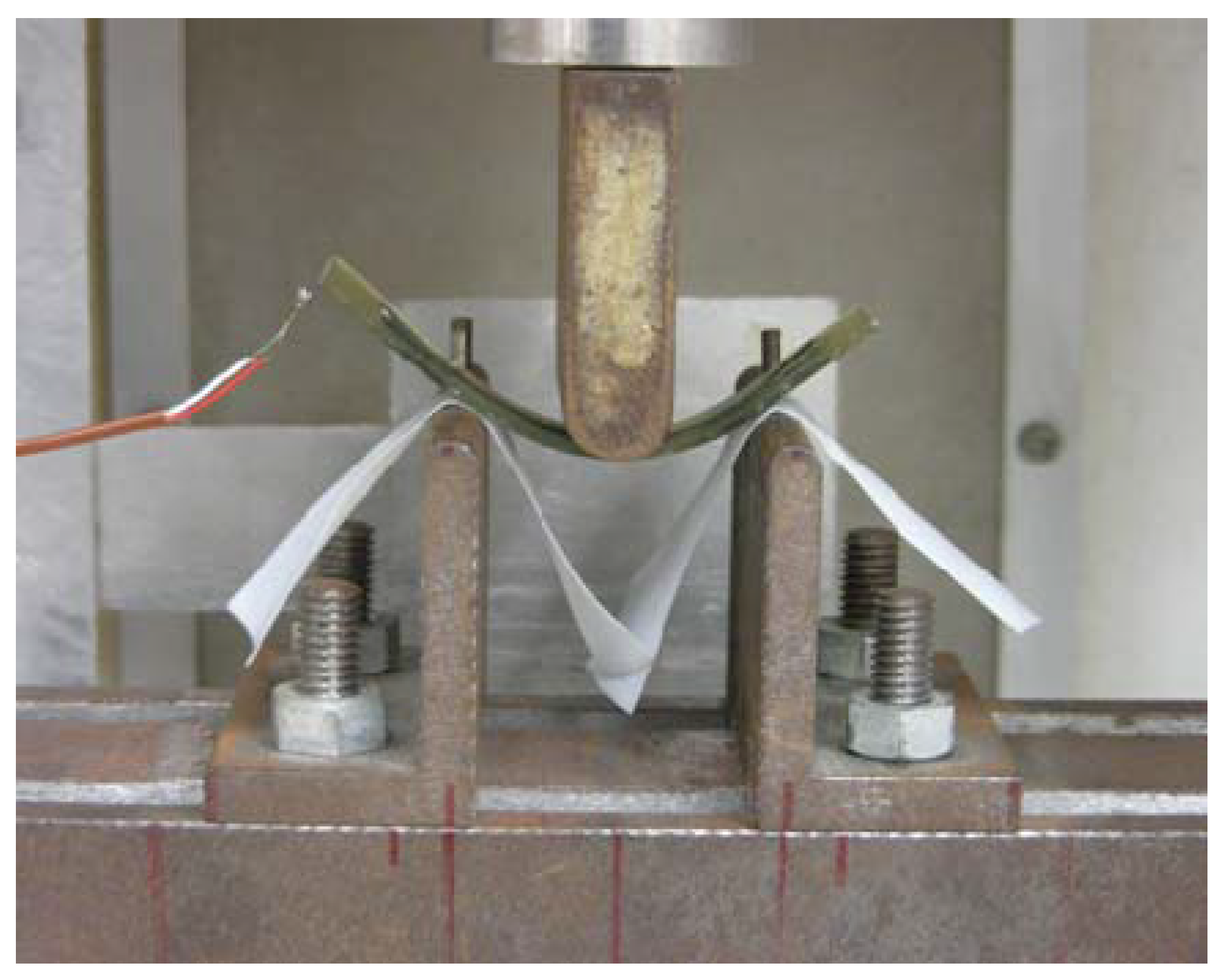

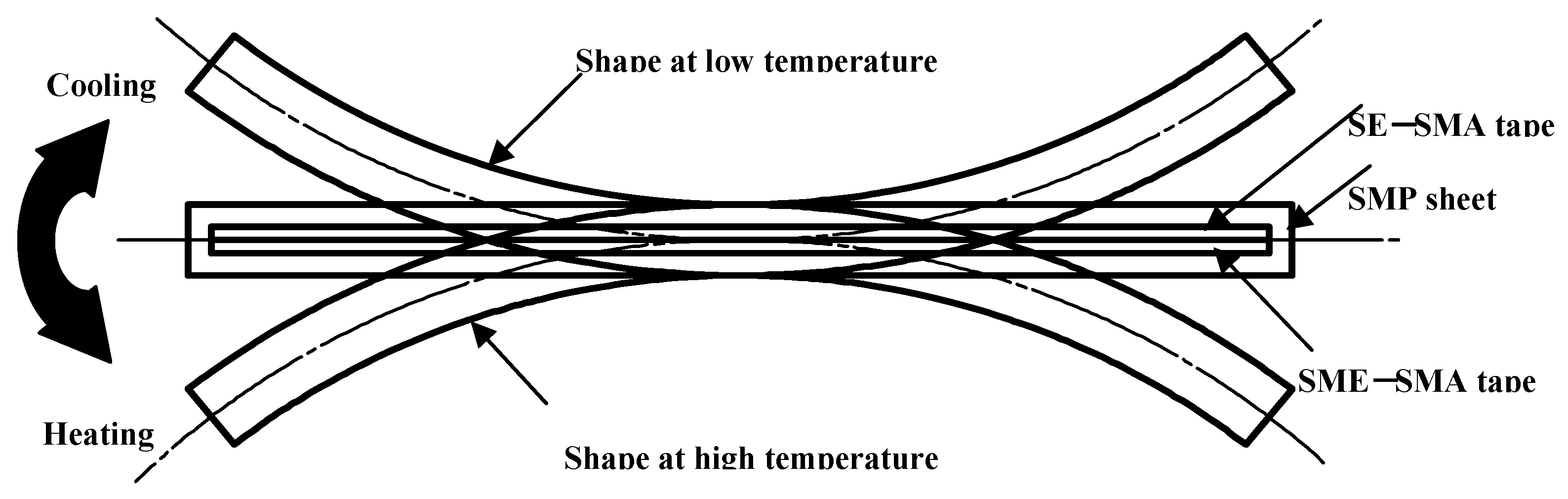

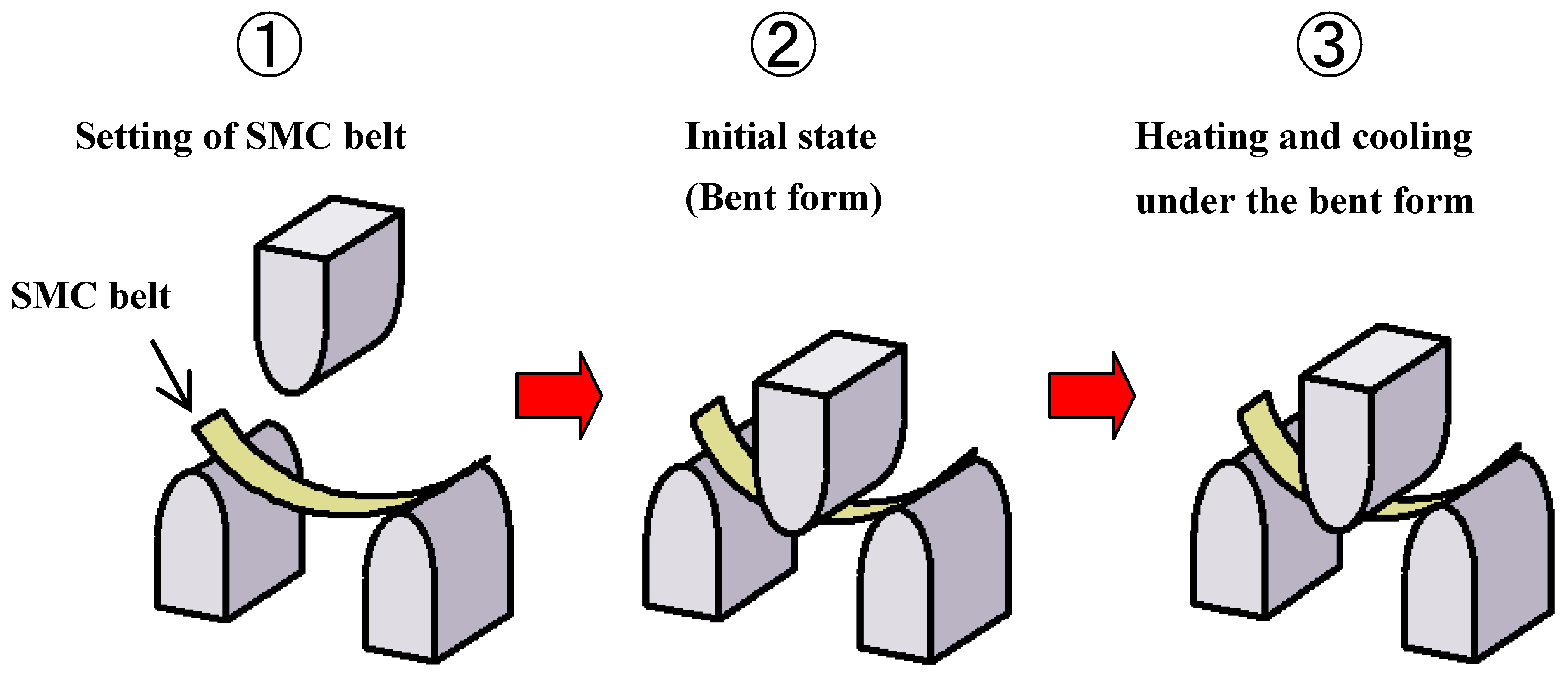

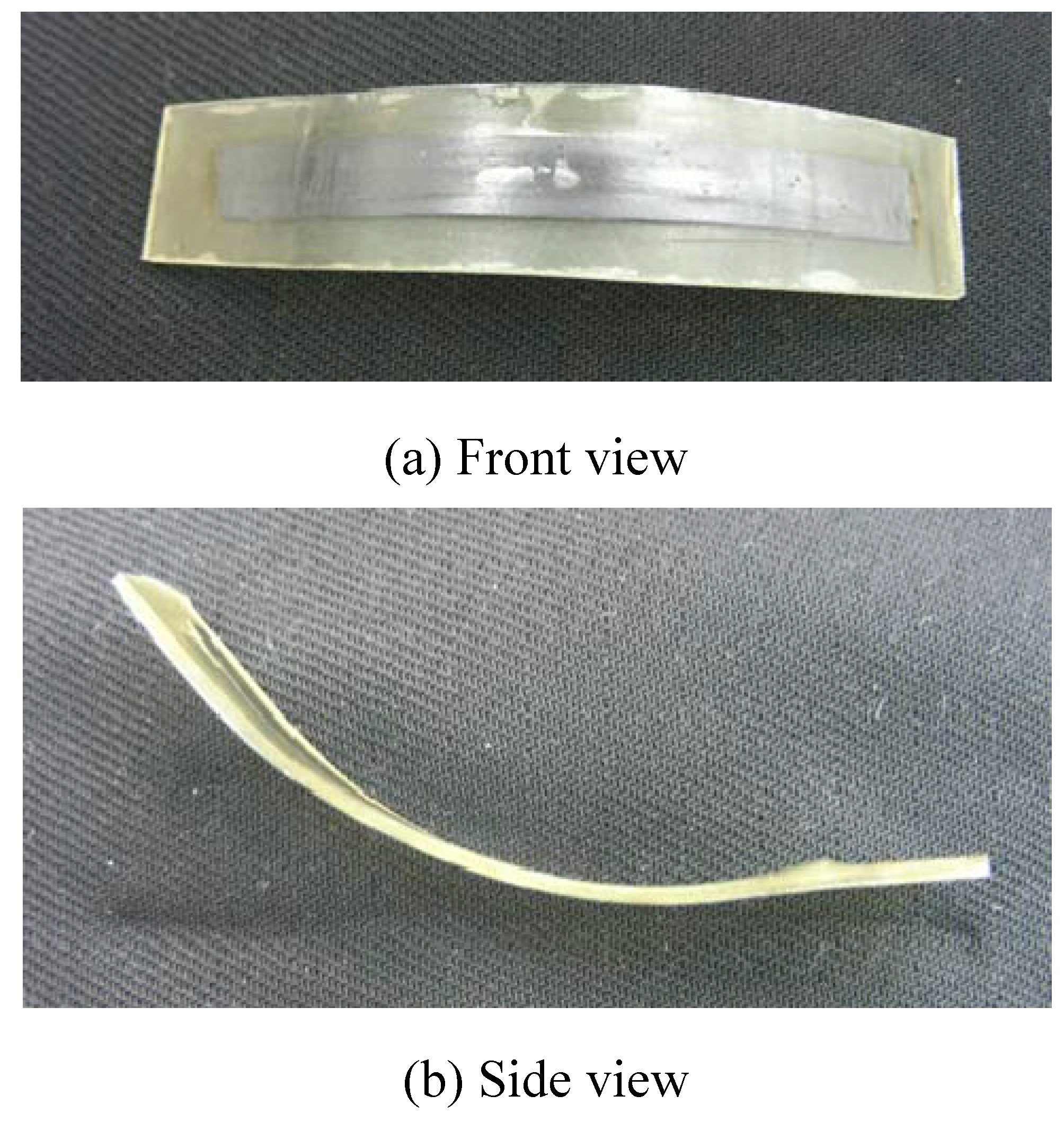

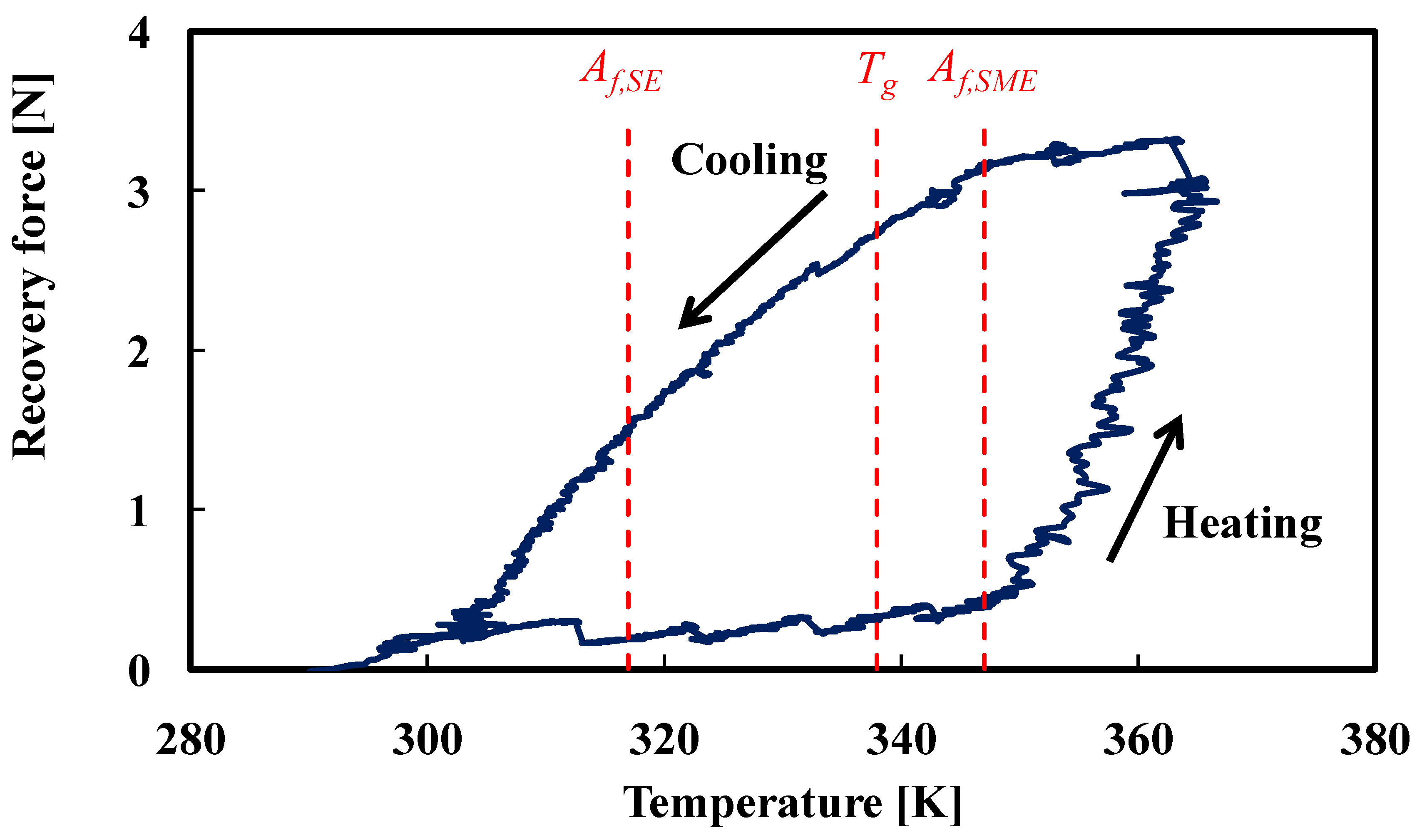

A shape memory composite (SMC) was fabricated with a shape memory alloy (SMA) and a shape memory polymer (SMP), and its two-way bending deformation and recovery force were investigated. The results obtained can be summarized as follows: (1) two kinds of SMA tapes which show the shape memory effect (SME) and superelasticity (SE) were heat-treated to memorize the round shape. The shape-memorized round SMA tapes were arranged facing in the opposite directions and were sandwiched between the SMP sheets. The SMC belt can be fabricated by using the appropriate factors: the number of SMP sheets, the pressing force, the heating temperature and the hold time. (2) The twoway bending deformation with an angle of 56 degrees in the fabricated SMC belt is observed based on the SME and SE of the SMA tapes during heating and cooling. (3) If the SMC belt is heated and cooled by keeping the bent form, the recovery force increases during heating and degreases during cooling based on the two-way properties of the SMC. (4) The development and application of high-functional SMCs are expected by the combination of the SMA and the SMP with various kinds of phase transformation temperatures, volume fractions, configurations and heating-cooling rates.
Keywords: shape memory alloy; shape memory polymer; shape memory effect; superelasticity; composite; two-way deformation; bending; recovery force shape memory alloy; shape memory polymer; shape memory effect; superelasticity; composite; two-way deformation; bending; recovery force
