A Proposal of Printed Table Digitization Algorithm with Image Processing

Abstract

Nowadays, digital transformation (DX) is the key concept to change and improve the operations in governments, companies, and schools. Therefore, any data should be digitized for processing by computers. Unfortunately, a lot of data and information are printed and handled on paper, although they may originally come from digital sources. Data on paper can be digitized using an optical character recognition (OCR) software. However, if the paper contains a table, it becomes difficult because of the separated characters by rows and columns there. It is necessary to solve the research question of “how to convert a printed table on paper into an Excel table while keeping the relationships between the cells?” In this paper, we propose a printed table digitization algorithm using image processing techniques and OCR software for it. First, the target paper is scanned into an image file. Second, each table is divided into a collection of cells where the topology information is obtained. Third, the characters in each cell are digitized by OCR software. Finally, the digitalized data are arranged in an Excel file using the topology information. We implement the algorithm on Python using OpenCV for the image processing library and Tesseract for the OCR software. For evaluations, we applied the proposal to 19 scanned and 17 screenshotted table images. The results show that for any image, the Excel file is generated with the correct structure, and some characters are misrecognized by OCR software. The improvement will be in future works.

1. Introduction

Nowadays, digital transformation (DX) is the key concept to changing the working styles and improving the operations in governments, companies, and schools. In [1], DX is defined as the strategy of enabling business innovations predicated on the incorporation of digital technologies into operational processes, products, solutions, and customer interactions. DX can leverage the opportunities of new technologies and their impacts on businesses by focusing on the creation and monetization of digital assets. Therefore, any data should be digitized and processed by computers and networks.

Unfortunately, a lot of data and information are still handled on paper. People often feel comfortable accessing data and managing them on paper. Actually, a lot of data printed on paper were originally generated using computers digitally and were printed out using software fonts. Therefore, data on paper are often digitized using an optical character recognition (OCR) software. However, when the paper contains tables, it is difficult to digitalize them correctly, because, in a table, the characters are usually separated by rows and columns, called cells, and the characters in one cell are related to each other. Thus, the recognition of the characters in a table while keeping the relationships between the cells is far more difficult than that of normal texts.

Therefore, the research question in this paper is “how to convert a printed table on paper into an Excel table by keeping the relationships between the cells in the table?”. Table formats can be diverse among documents, which further increases the difficulty of the solution to this question. To control the difficulty, we limit the table layouts to two that have been commonly used in this paper. For both layouts, it is possible to find and keep the relationships between the left-side cells and the right-side cells in each row for every column.

In the first layout, the table structure is a simple grid, which is the basic one. In this layout, the number of columns is constant from the first row to the last row in the table, and the number of rows is also constant from the leftmost column to the rightmost column, as shown in Figure 1. In the second layout, the table structure is a little bit more complex. The number of columns is constant from the top row to the bottom row in the table, but the number of rows may increase at some columns from the leftmost column to the rightmost column, as shown in Figure 2.

In this paper, we propose the printed table digitization algorithm for digitizing a printed table on paper using image processing techniques and an optical character recognition (OCR) software. The table layout is limited to either one of the abovementioned layouts. In this algorithm, first, the printed table is divided into a collection of cells where the topology information between the cells is extracted. Second, the characters in each cell are digitized by applying the OCR software. Finally, the digitized data are arranged into one Excel table using the topology information. We implement the proposed algorithm on Python using OpenCV for the image processing library and Tesseract for the OCR software.

For evaluations, we applied the proposal to 19 scanned and 17 screenshotted table images. The results show that for any image, the Excel file is generated with the correct structure, and some characters are misrecognized by the adopted OCR software. The improvement will be in future works.

The rest of this paper is organized as follows: Section 2 discusses related works in the literature. Section 3 introduces the adopted software in this paper. Section 4 describes the target table layout printed on paper. Section 5 presents the proposed algorithm. Section 6 evaluates the proposal. Finally, Section 7 concludes this paper with future works.

2. Related Works in the Literature

In this section, we introduce some related works in the literature.

In [2], Ohta et al. proposed a method based on the dataset provided by the ICDAR 2013 table competition and evaluation measures based on the adjacency relations between cells. They can be used to estimate implicitly ruled lines for recognizing the table structure. From the results of 156 tables, they found the structure for most tables by integrating the explicit and implicit ruled lines.

In [3], Phan et al. proposed an algorithm to digitize the tables in a document and the articles based on Cascade R-CNN HRNet. It can be used to detect and classify tables, and integrate image processing algorithms to improve the table data. The results show that this algorithm can identify the table of hydrological data with an accuracy rate of 98%. The algorithm was proved to be effective on real data of the hydrometeorological stations.

In [4], Sahoo et al. proposed an algorithm to find the tables in a document and the articles based on machine learning. It can be used to find tables, including bordered, borderless, or partially bordered tables in PDF files. From the results of extracted tables, they show that the tables extracted from PDF files can be well extracted into Excel files. The results showed that the algorithm is an efficient solution for table detection in diverse documents.

In [5], Amitha et al. proposed a web application based on optical character recognition (OCR). It can be used to convert the attendance register image to Excel conversion. From the results of extracted tables, they showed that this web application can capture an image, upload it, and view the extracted text. The results showed that the web application is helpful for literacy education under different circumstances.

In [6], Nagy et al. proposed an algorithm based on category hierarchies, which can be used to convert the web tables into the structured collections of relational tables and resource definition framework (RDF) triples. They found that over 1.5 million table cells were classified into ten categories, where among the 1520 tables tested, only 16 were not analyzed. The results showed that the formalization and exploitation of intrinsic structural table constraints open the way for algorithmic conversions of vast amounts of tabulated data to uniform standard data analysis formats.

In [7], Minghao Li et al. proposed a new image-based table detection and recognition dataset built with novel weak supervision from Word and Latex documents on the internet. They used TableBank, which contains 417K high-quality labeled tables, to build several strong baselines using state-of-the-art models with deep neural networks. Experiments show that image-based table detection and recognition with deep learning is a promising research direction.

3. Adopted Technologies

In this section, we introduce two software used in this paper. First, OpenCV is used to recognize and extract the tables from the scanned image of a paper containing them, and separate the characters in each table into collection cells. Second, Tesseract is used to recognize the characters in these cells. Python is used to implement the algorithm, where the digitalized data is imported into Excel using the pandas library. The two pieces of software must be installed by the user of the algorithm.

3.1. OpenCV

OpenCV (Open Source Computer Vision Library) is the open-source library of programming functions that are mainly aimed at real-time computer vision [8]. In the algorithm implementation, opencv-python version 4.6.0.66 is adopted to call OpenCV functions from the Python program. The following four tasks are completed by OpenCV functions in this algorithm:

• Recognize every intersection of the horizontal line and the vertical line to find the location of the cells in the table.
• Divide the table into a collection of rectangles using the intersections.
• Arrange the rectangles from left to right and top to bottom by recognizing the boundary of the horizontal and vertical lines.
• Recognized rectangles sometimes are too large or too small. The rectangle will have multiple cells if it is too large, and it will have none if it is too small. In order to prevent both of these situations, we restrict the rectangle’s size range.

3.2. Tesseract

Tesseract is open-source software to recognize the characters in an image file. It can be executed from the command-line interface. For this algorithm, Tesseract is imported into Python through the pytesseract package. After using OpenCV to divide the table into a collection of cells, Tesseract will recognize the characters in each cell and return the digitalized result.

4. Target Table Layout

In this section, we describe the layout of the target printed table on paper.

4.1. Table Layout

The proposed algorithm assumes that the table has the following features:

• The table basically has a grid structure of multiple rows and multiple columns.
• Two adjacent horizontal lines make one row, and two adjacent vertical lines make one column in the table.
• All the vertical lines connect the top horizontal line and the bottom horizontal line.
• Some horizontal lines including the top one and the bottom one connect the leftmost vertical line and the rightmost vertical line.
• Other horizontal lines connect the intermediate vertical line and the rightmost vertical line.
• A cell represents the rectangle area surrounded by two adjacent horizontal lines and two adjacent vertical lines.
• The number of cells in every row is equal.
• The number of cells in one column may be different by the column.
• A cell has one or multiple cells at the right neighbor and has one cell at the top/ bottom neighbors.

4.2. Example Table

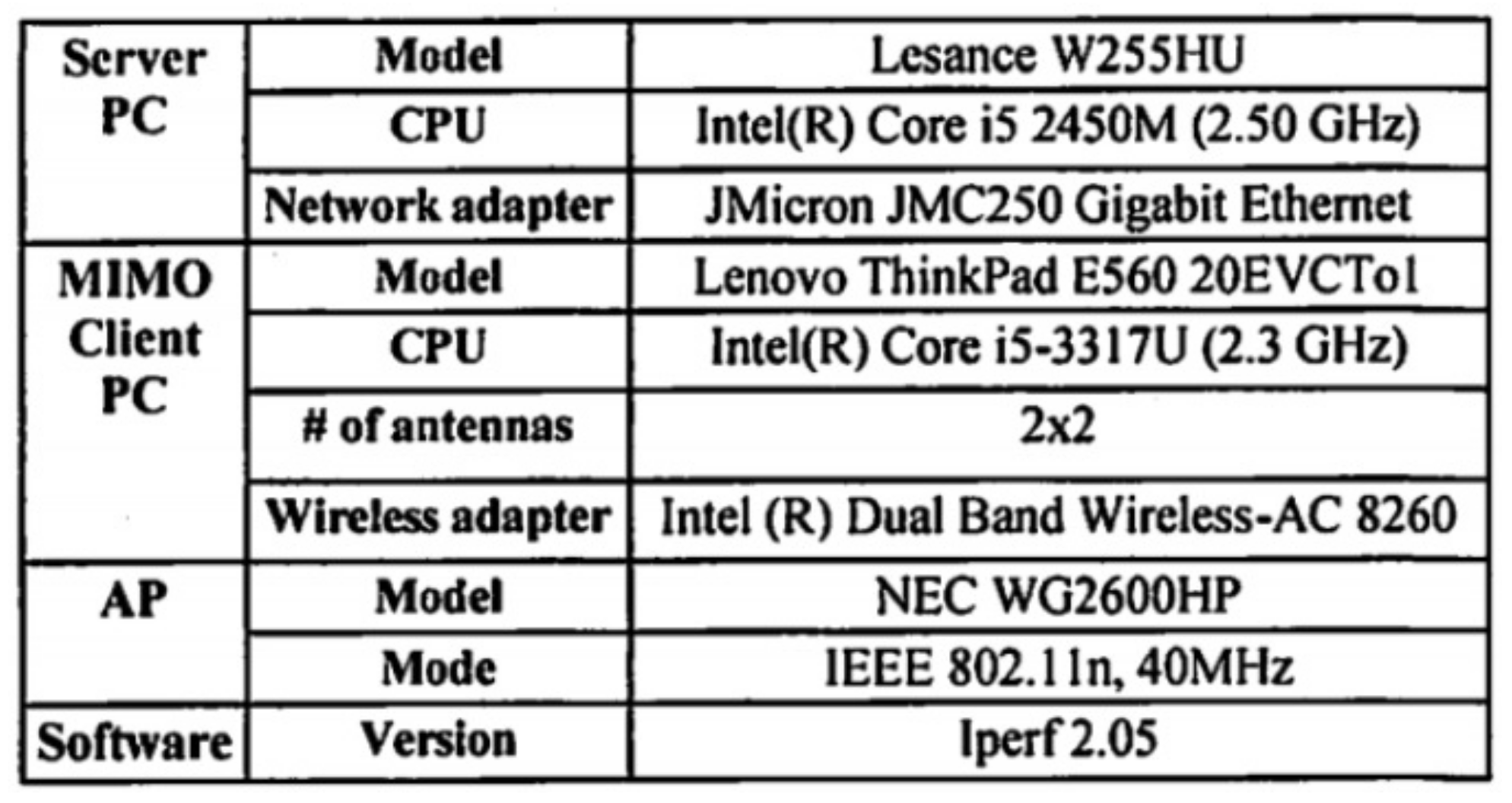

Figure 3 illustrates an example target printed table of the algorithm. This table structure is often used. Four vertical lines make three columns. Five horizontal lines connect the leftmost vertical line and the rightmost one. Six horizontal lines connect the second vertical line and the rightmost one. Thus, the number of cells in the second column and third column is ten.

4.3. Topology Information

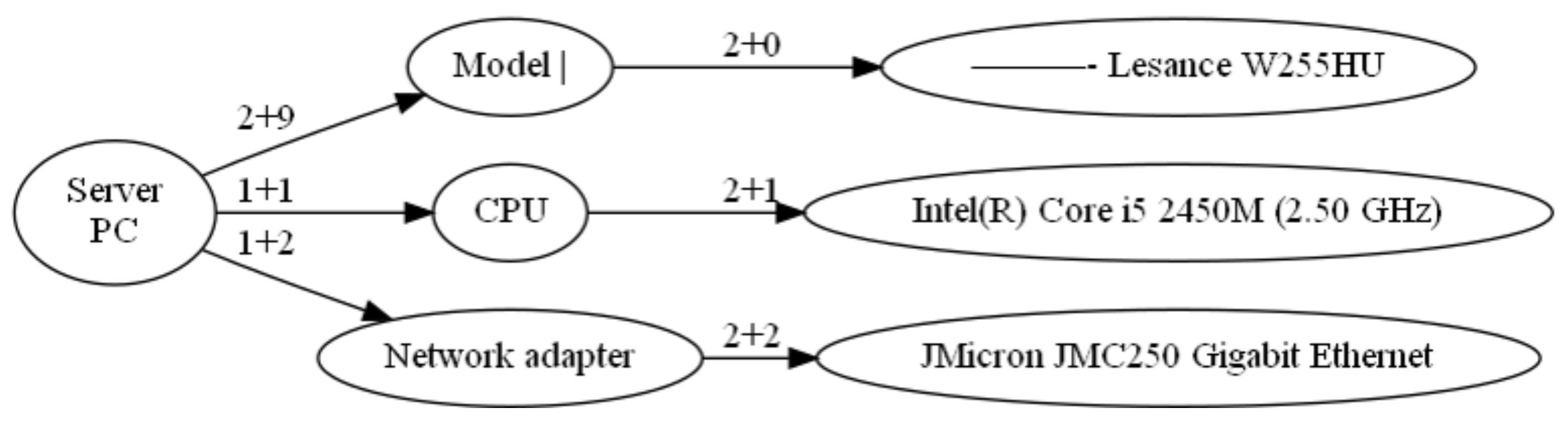

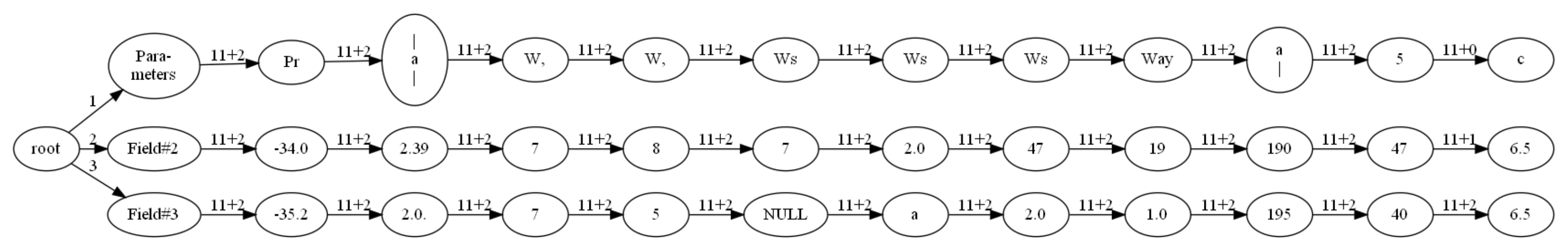

In the proposed algorithm, after dividing the printed table into a collection of cells and recognizing the characters in each cell, the digitized data for each cell are arranged into one table according to the topology information of the cells. This topology information is actually described by a tree for each row. The root node of the tree represents the cell bounded by the leftmost vertical line and the second vertical line. Then, its child node in the tree represents its right neighbor cell in the table. Figure 4 shows the topology information tree for the cells at the first row of the table in Figure 3.

In order to obtain the table structure accurately, we use the cells’ position, width, and height. The columns in this type of table are exactly the same as in a regular table, so we can classify all the cells into columns by finding their locations. Next, start with the first grid in the leftmost column, and find the child nodes of the grid by determining the height of the column and the latter column of this column. In the next step, find the child nodes of the first cell in the leftmost column by determining the height of the column and the height of the latter column. It can be seen that if the height of the cell in the leftmost column is fuzzy and equal to the height of the two cells in the latter column, they are the child nodes of the cell in the leftmost column. Specific algorithms are described in the next section.

5. Proposed Algorithm

In this section, we present the proposed printed table digitization algorithm.

5.1. Symbols in Algorithm

First, we define the symbols for the algorithm.

• I: the scanned color image of the paper.
• $I_{bin}$: reversed binary image of I.

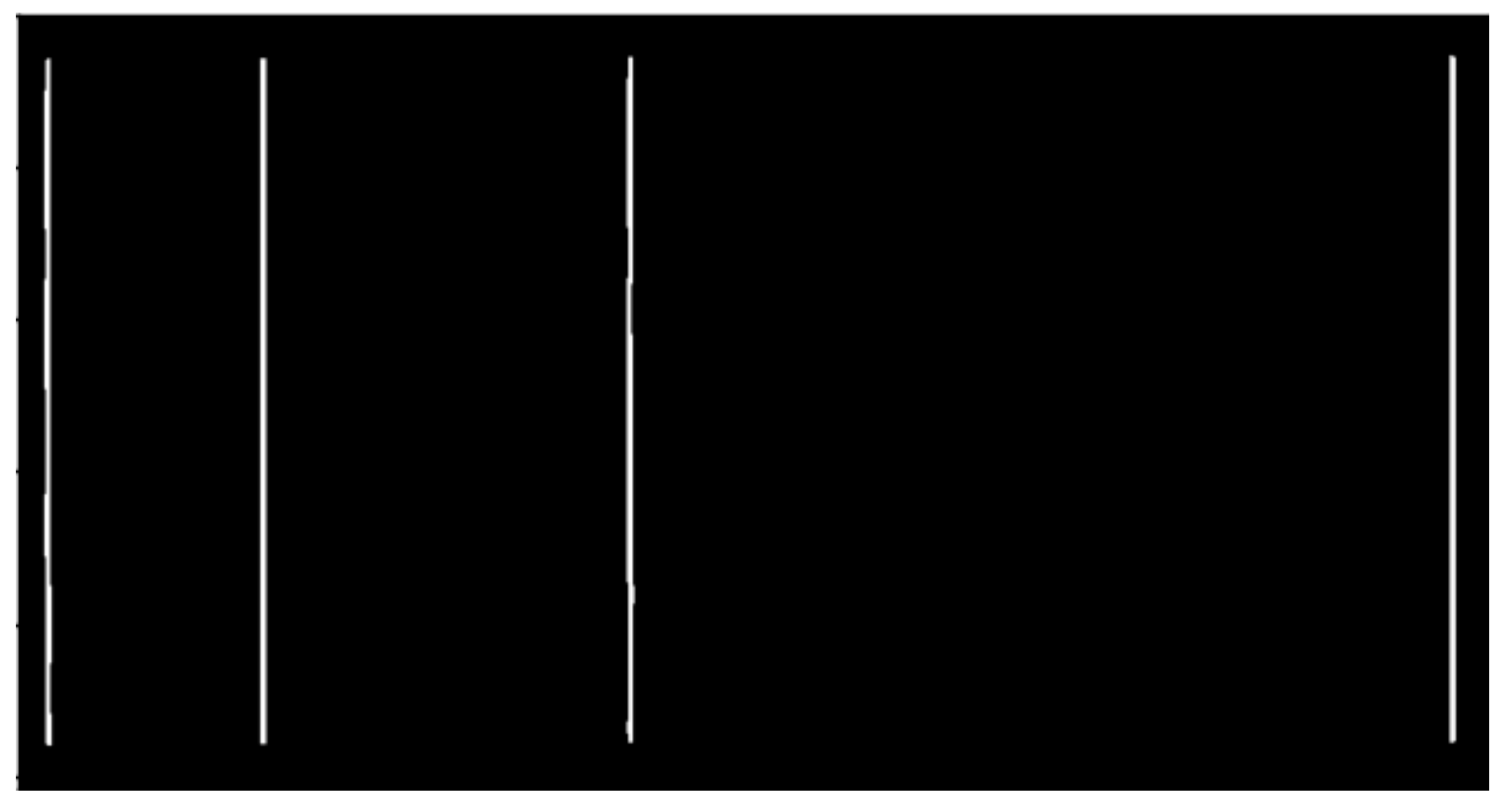

• $k_{ver}$: the definition of a vertical kernel for detecting all vertical lines in an image.
• $k_{hor}$: the definition of a horizontal kernel for detecting all horizontal lines in an image.
• $I_{ver}$: the binary image with only vertical lines of I.
• $L_{ver}$: the vertical lines of $I_{ver}$.
• $I_{hor}$: the binary image with only horizontal lines of I.
• $L_{hor}$: the horizontal line of $Ihor$.
• $I_{vh}$: combine $L_{ver}$ and $L_{hor}$.
• $L_{cnts}$: the contours of $I_{vh}$.
• $l_i$: each contour of $L_{cnts}$.
• $r_i$: the rectangles of $l_i$.
• R: the array of $r_i$.
• $L_{cnts1}$: the sorting result of $L_{cnts}$.
• $R_1$: the R after sorting.
• $R_2$: the array of rectangular which only contains a single cell.
• $c_i$: each Cell class.
• C: the array of $c_i$
• $x_i$: the horizontal coordinate of $c_i$.
• $y_i$: the vertical coordinates of $c_i$.
• $w_i$: the width of $c_i$.
• $h_i$: the height of $c_i$.
• $nam{e}_i$: the name of $c_i$ that uses pytesseract to recognize.
• $row$: the number of rows in I.
• $Root$: the root node of the cardinal tree.
• $ro{w}_{ci}$: the $c_i$ of each column, for example, when $row=1$, we have $row{1}_{ci}$, when $row=2$, we have $row{2}_{ci}$
• $ro{w}_{ci+1}$: the $c_i$ of each column, for example, $row{1}_{ci+1}$ is the next class of $row{1}_{ci}$.
• $Tree$: the structure of I’s table.
• E: the output Excel table.

5.2. Procedure in Algorithm

Next, we describe the procedure of the algorithm.

(1)

Make the color image I of each table by scanning the paper.

(2)

Transform the color image I into the black-and-white binary image $I_{bin}$ by applying the thresholds function in OpenCV to I.

(3)

Reference [9], obtain the vertical kernel $k_{ver}$ and the horizontal kernel $k_{hor}$ by applying the getStructuringElement function in OpenCV to $I_{bin}$.

(4)

Obtain the binary image $I_{ver}$ that only has vertical lines by applying the erode function in OpenCV to $I_{bin}$. Figure 5 shows the binary image with only vertical lines for the printed table in Figure 3.

(5)

Extract the vertical lines $L_{ver}$ by applying the dilate function in OpenCV to $I_{ver}$.

(6)

Reference [9], obtain the binary image $I_{hor}$ that only has horizontal lines by applying the erode function in OpenCV to $I_{bin}$. Figure 6 shows the binary image with only horizontal lines for the printed table in Figure 3.

(7)

Extract the horizontal lines $L_{hor}$ by applying the dilate function in OpenCV to $I_{hor}$.

(8)

Make the binary image $I_{vh}$ that represents the table frame by combining the vertical lines $L_{ver}$ and the horizontal lines $L_{hor}$ into one image, applying the addWeighted function in OpenCV to $L_{ver}$ and $L_{hor}$. Figure 7 shows the table frame image.

(9)

Obtain the contour information of each cell in the table and store them in the array $L_{cnts}$ by applying the findContours function in OpenCV to $I_{vh}$.

(10)

Find the rectangular $r_i$ for each contour $l_i$ of $L_{cnts}$ by applying the boundingRect function in OpenCV to every contour of $L_{cnts}$, and make the array R of $r_i$.

(11)

Sort $r_i$ in R from the leftmost one to the rightmost one according to the coordinates of $r_i$ by applying the zip method and the sort method in Python to R, and make the array $L_{cnts1}$ and the array $R_1$.

(12)

Remove all excessively large or small rectangles in $R_1$, to avoid rectangles that contain multiple cells or have no cells. Produce the $R_2$ with every rectangle containing a cell.

(13)

Create Cell. Create class $c_i$ for each rectangle in $R_2$, collect $x_i$, $y_i$, and $w_i$ of each rectangle in $R_2$, and put them into $c_i$ as member variables.

(14)

Obtain the character recognition result $nam{e}_i$ by applying the imagetostring function in pytesseract to each cell.

(15)

Sort the $c_i$, in which the $x_i$ and $y_i$ of each $c_i$ are arranged from left to right and from top to bottom. Arrange $c_i$ with similar $x_i$ into a column in the order of $y_i$ from small to large to output $ro{w}_{ci}$

(16)

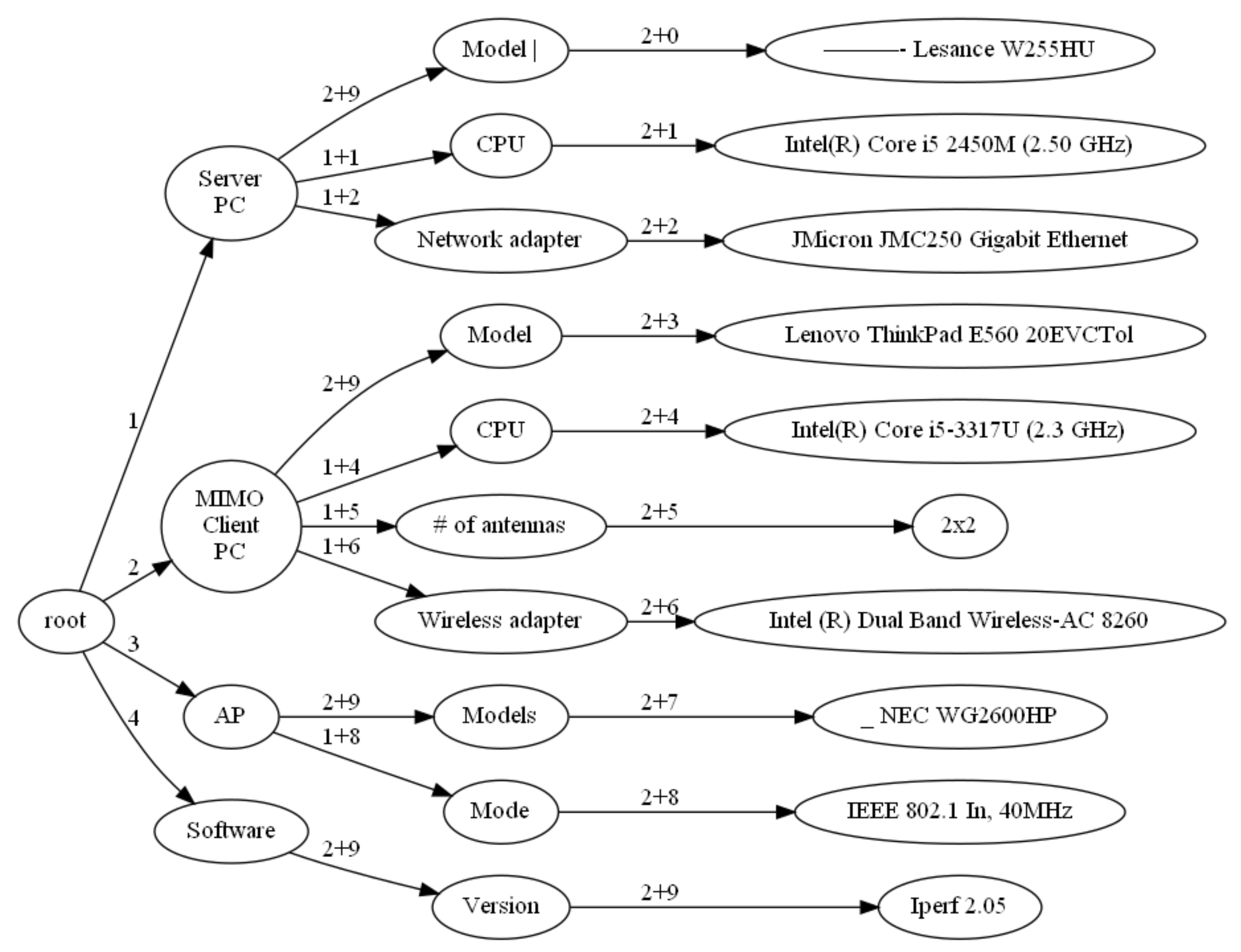

Create the multi-tree class $Tree$ to describe the structure of the table with the root node $Root$. The child nodes of this root node are all $c_i$ with a row equal to 1.

(17)

Confirm the child node of $row{2}_{ci}$, if $row{1}_{ci}$’s $h_i$ is approximately equal to $row{2}_{ci}$’s $h_i$, the child node of $row{1}_{ci}$ is $row{2}_{ci}$. Otherwise, let $row{2}_{ci}$’s $h_i$ plus $row{2}_{ci+1}$’s $h_{i+1}$, and make the sum of $row{2}_{ci}$’s $h_i$ and $row{2}_{ci+1}$’s $h_{i+1}$ compare with $row{1}_{ci}$’s $h_i$. If the two are approximately equal, the child node of $row{1}_{ci}$ is $row{2}_{ci}$ and $row{2}_{ci+1}$. If the two are not approximately equal, it can be done again in the above way.

(18)

Follow the previous step to get the child node of $row{2}_{ci}$, the child node of $row{2}_{ci}$, up to the last column, and obtain the tree $Tree$ composed of $c_i$, which represents the structure of the table cell structure. Figure 8 shows the tree.

(19)

Preorder the $Tree$ and put each $c_i$’s $nam{e}_i$ in the leaf node’s $nam{e}_i$ in the order from the root node to the leaf node. Each leaf node’s $nam{e}_i$ contains one row of the table, and then output each leaf node’s $nam{e}_i$ in order to get the list of table information.

(20)

Convert the list to the Excel table E using openpyxl package and output it. Figure 9 shows this Excel file.

(21)

Merge the cells corresponding to the same node in the tree in step (18) into one cell in the Excel table E using the openpyxl package, and output it. Figure 10 shows the final output Excel file.

6. Evaluations

In this section, we evaluate the proposed algorithm by applying it to 19 scanned table images and 17 screenshotted table images that are obtained from websites. They satisfy the table layout features in Section 4.1.

6.1. Accuracy Index

To evaluate the accuracy of the proposal, we consider the rate of correctly recognizing the table cell structure and the rate of correctly recognizing the characters in each cell.

For the former index of recognizing table structure, the proposed algorithm achieved the $100\%$ accuracy. It recognized the cell structure correctly for any image.

For the latter index of recognizing characters, the rate p is calculated by the following equation:

$$p={\displaystyle \frac{c{h}_1}{c{h}_2}}\times 100\%$$

(1)

where $c{h}_1$ represents the total number of characters in the tested table images except for spaces and tabs, and $c{h}_2$ does the total number of correctly recognized characters.

Because it is a very fuzzy concept to identify the quality of a table, a core comparison value is needed to determine the quality of the table identified by the algorithm.

In this paper, the evaluation standard of our algorithm is p. The closer p is to $100\%$, the better the recognition result is. The closer p is to $0\%$, the worse the recognition result is. In this paper, we believe that forms with $p\ge 80\%$ have a qualified recognition effect.

The output result of the algorithm is only related to the algorithm itself and the input table. Therefore, we control the algorithm unchanged, only change the input table, and observe the relationship between the input table and p.

6.2. Character Recognition Accuracy Results

Figure 11 and Figure 12 show the character recognition rates for the 19 scanned table images and the 17 screenshotted table images, respectively. From them, the rates for the scanned table images at 2, 5, 10, 16, 18, and 19 are lower than $90\%$. We will analyze the reasons.

Here, we discuss reasons why the character recognition rates for the scanned table images at 2, 5, 10, 16, and 18 are lower than $90\%$.

6.2.1. Table Image at 2

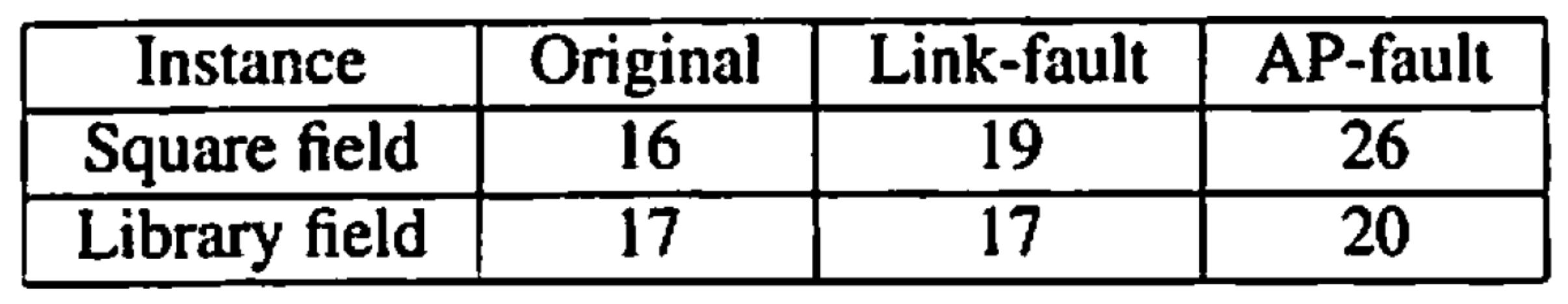

Figure 13, Figure 14 and Figure 15 show the scanned table image, the table structure by the algorithm, and the output Excel table. The character recognition rate is given by:

$$p=\frac{\frac{10}{10}+\frac{1}{2}+\frac{0}{1}+\frac{1}{1}+\frac{1}{1}+\frac{1}{1}+\frac{5}{5}+\frac{5}{5}+\frac{4}{4}+\frac{3}{3}+\frac{4}{4}+\frac{2}{3}}{12}\times 100\%=\approx 84.66\%.$$

(2)

This table contains several subscripts, decimal points, and Greek letters, which are not correctly recognized by Tesseract OCR software.

6.2.2. Reasons for Table Image at 5

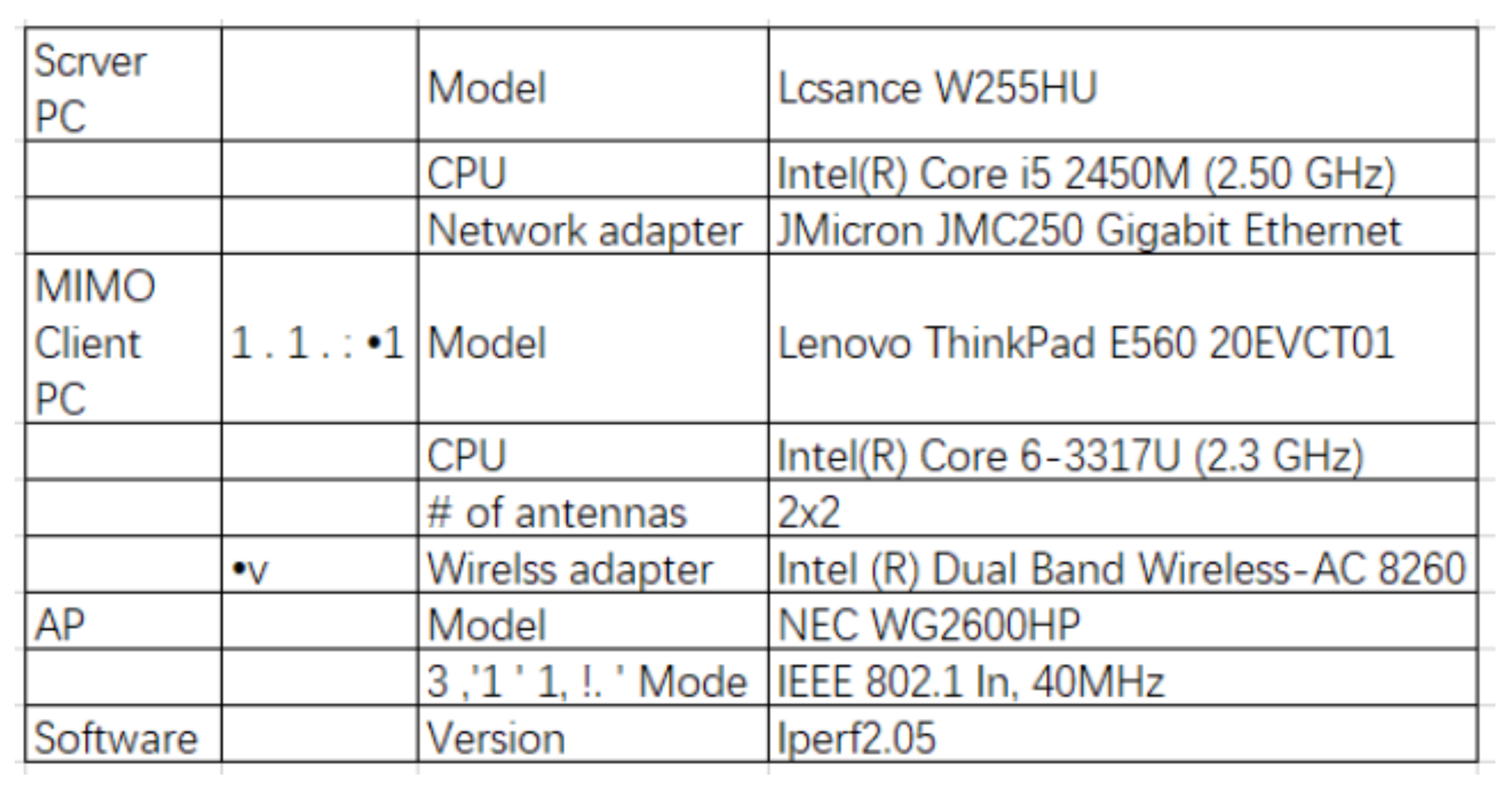

Figure 16, Figure 17 and Figure 18 show the scanned table image, the table structure by the algorithm, and the output Excel table.

The character recognition rate is given by:

$$p=\frac{\frac{10}{10}+\frac{1}{2}+\frac{0}{1}+\frac{1}{2}+\frac{1}{2}+\frac{1}{2}+\frac{1}{2}+\frac{1}{2}+\frac{1}{4}+\cdots +\frac{3}{3}+\frac{2}{2}+\frac{3}{3}}{36}\times 100\%$$

(3)

$$p\approx 82.13\%$$

(4)

This table contains several subscripts, decimal points, and Greek letters, which are not correctly recognized by Tesseract OCR software.

6.2.3. Reasons for Table Image at 10

Figure 19, Figure 20 and Figure 21 show the scanned table image, the table structure by the algorithm, and the output Excel table. The character recognition rate is given by:

$$p=\frac{\frac{8}{8}+\frac{8}{8}+\frac{9}{9}+\frac{7}{7}+\frac{11}{11}+\frac{1}{2}+\frac{2}{2}+\frac{1}{2}+\frac{12}{12}+\frac{0}{2}+\frac{2}{2}+\frac{2}{2}}{12}\times 100\%$$

(5)

$$p\approx 83.33\%$$

(6)

This table contains several cells which contain characters that are very close to the cell edge, which are not correctly recognized by Tesseract OCR software.

6.2.4. Reasons for Table Image at 16

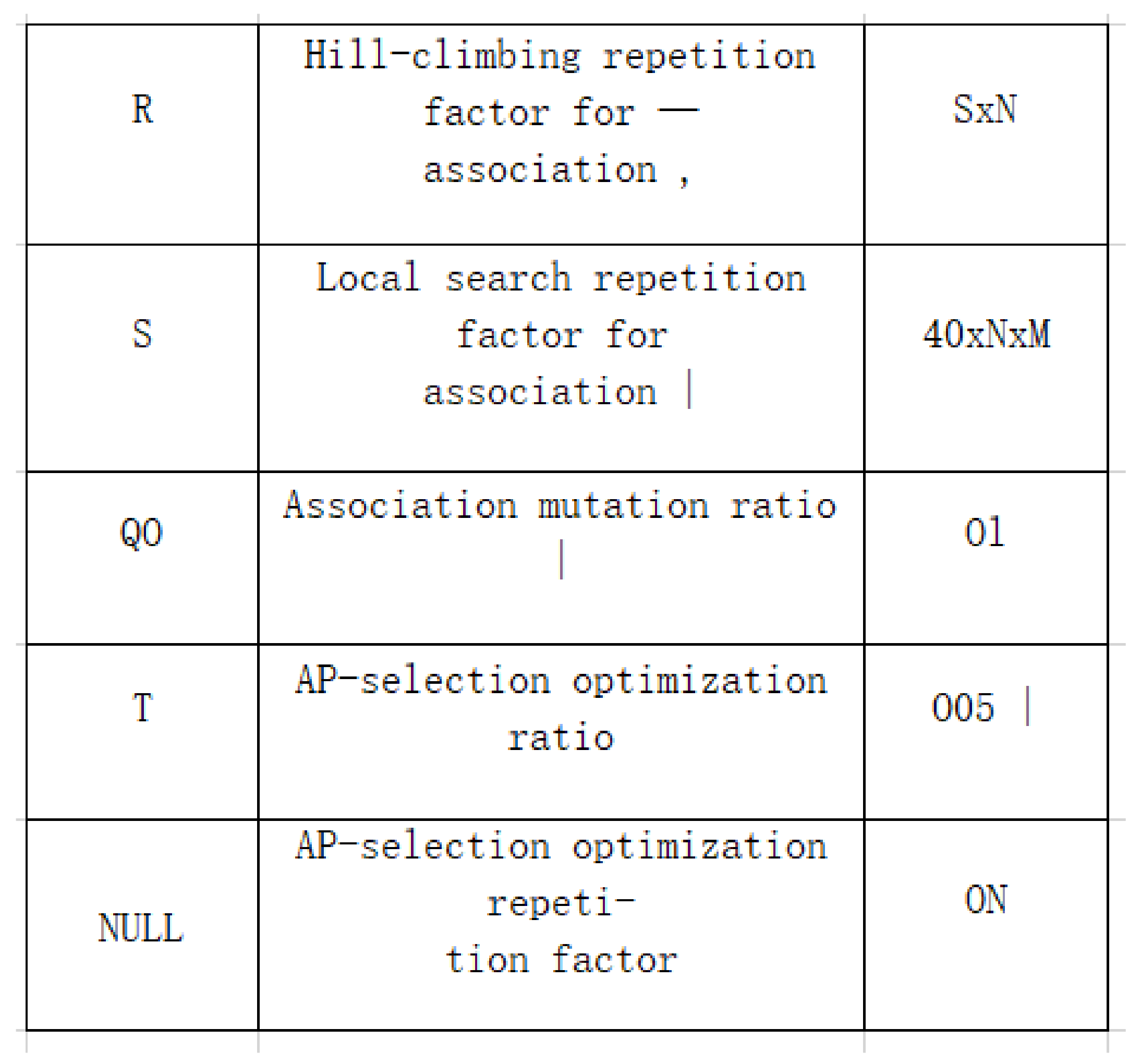

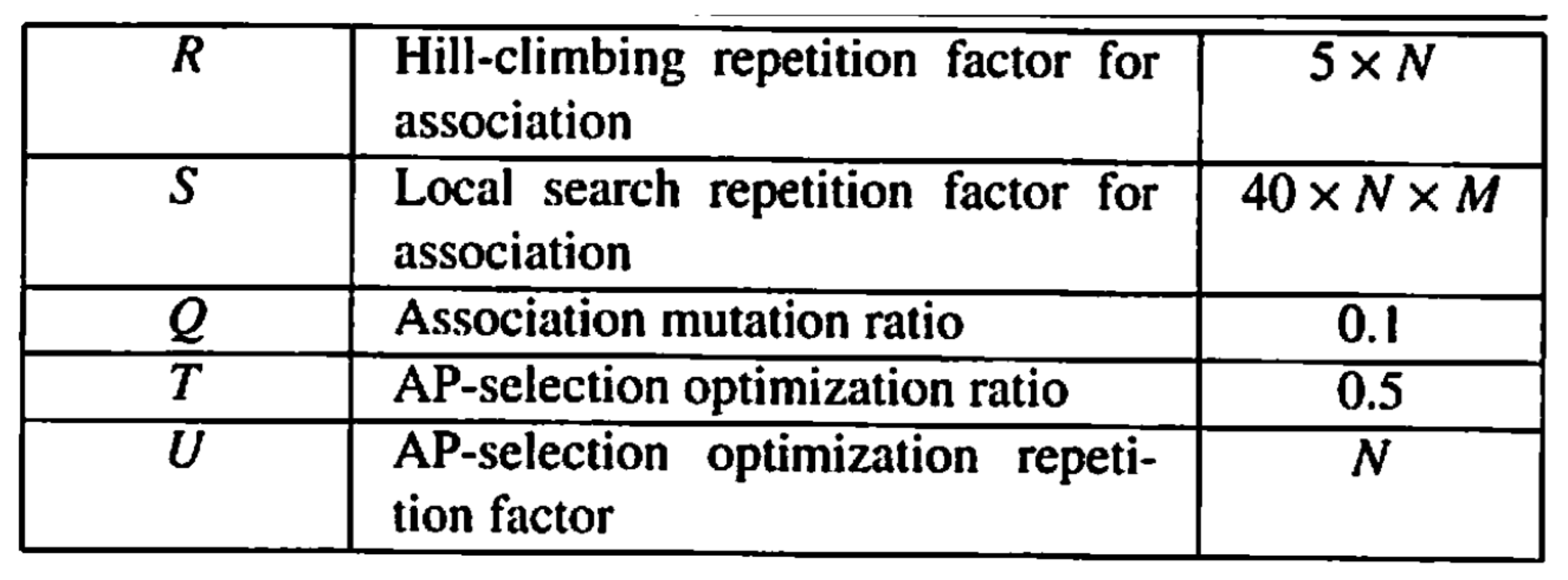

Figure 22, Figure 23 and Figure 24 show the scanned table image, the table structure by the algorithm, and the output Excel table. The character recognition rate is given by:

$$p=\frac{\frac{0}{20}+\frac{6}{6}+\frac{6}{6}+\frac{6}{6}+\frac{6}{6}+\frac{6}{6}+\cdots +\frac{11}{12}+\frac{6}{6}+\frac{6}{6}+\frac{6}{6}+\frac{6}{6}+\frac{6}{6}}{19}\times 100\%$$

(7)

$$p\approx 83.73\%$$

(8)

This table contains several subscripts and vertical characters, which are not correctly recognized by Tesseract OCR software.

6.2.5. Reasons for Table Image at 18

Figure 25, Figure 26 and Figure 27 show the scanned table image, the table structure by the algorithm, and the output Excel table. The character recognition rate is given by:

$$p=\frac{\frac{1}{1}+\frac{42}{42}+\frac{2}{3}+\frac{41}{41}+\frac{6}{6}+\frac{1}{1}+\frac{24}{24}+\frac{2}{3}+\cdots +\frac{1}{1}+\frac{29}{29}+\frac{39}{39}+\frac{1}{1}}{15}\times 100\%$$

(9)

$$p\approx 86.53\%$$

(10)

This table contains several cells which contain characters that are very close to the cell edge, which are not correctly recognized by Tesseract OCR software.

6.3. Conclusion of This Section

Through applications, we found the following weakness of the adopted OCR software Tesseract:

• When a cell size is small, it often recognizes the border as a character.
• It is difficult to correctly recognize vertical texts, subscripts, and Greek letters.
• It is more difficult to recognize a scanned image than a screenshot because it is usually blurry and has more noise.

6.4. Comparison with Microsoft Software

Microsoft offers software for the same purpose as our algorithm for Excel users [10,11]. Therefore, we applied this software to the same set of table images. Then, we found that the table cell structure was not correctly recognized in some images. For example, for the image in Figure 28 it obtains the result in Figure 29, which is the regular grid structure and has unnecessary cells. On the other hand, our algorithm obtains the correct structure in Figure 30.

When using the Office application, we also found that the software could not recognize tables as complex as in Figure 31. In the future, we will also try to make this algorithm directly identify this type of table.

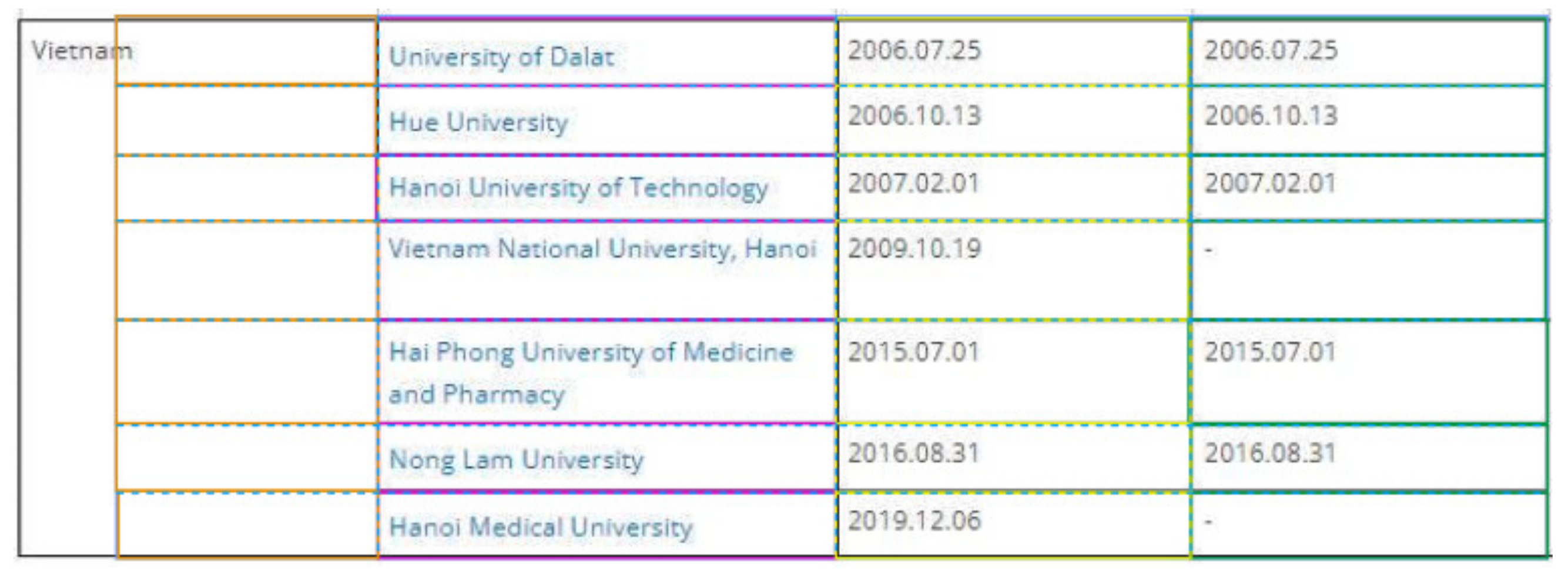

• Too many dotted lines are generated as in Figure 32.
• The location of the generated box is different from the original as in Figure 33, Figure 34 and Figure 35.
• The dotted line is generated around the center of a cell as in Figure 36.

6.5. Comparison with Nanonets Software

Here, we considered another table recognition software by Nanonets in [12]. This software generates the dotted lines from the lines in the table images and recognizes the cell boxes from them. We applied it to the same table images. Then, we found that the accuracy of this software is not sufficient, and the following problems appeared:

7. Conclusions

This paper presented the printed table digitization algorithm using image processing techniques and an optical character recognition (OCR) software. For evaluations, the proposal was applied to 19 scanned and 17 screenshotted table images. It was confirmed that the table structure was correctly recognized for all of them, whereas some characters were misrecognized by the adopted OCT software. In future works, we will improve the character recognition accuracy by refining the OCR software, extending the proposal to printed tables that have more complex structures, and applying it to various table images.
