Machinery-Induced Damage to Soil and Remaining Forest Stands—Case Study from Slovakia

by
Zuzana Dudáková (Allmanová)
1,*,
Michal Allman
1,
Ján Merganič
1 and
Katarína Merganičová
2,3
1
Department of Forest Harvesting, Logistics and Ameliorations, Faculty of Forestry, Technical University in Zvolen, T.G. Masaryka 24, 960 01 Zvolen, Slovakia
2
Faculty of Forestry and Wood Sciences, Czech University of Life Sciences Prague, Kamýcká 129, 6-Suchdol, 16500 Praha, Czech Republic
3
Department of Biodiversity of Ecosystems and Landscape, Slovak Academy of Sciences, Štefánikova 3, P.O. Box 25, 814 99 Bratislava, Slovakia
*
Author to whom correspondence should be addressed.
Forests 2020, 11(12), 1289; https://doi.org/10.3390/f11121289
Submission received: 27 October 2020 / Revised: 24 November 2020 / Accepted: 29 November 2020 / Published: 30 November 2020
(This article belongs to the Section Forest Ecology and Management)
Browse Figures
Review Reports Versions Notes

Abstract

:
The paper deals with the damage of the remaining stand and soil caused by harvesting using three ground-based forest operations methods (harvester-forwarder/cable skidder/animal-tractor). It compares the impact of the most common harvesting technologies applied in Slovakia and in Central Europe and thus contributes with valuable information to the knowledge on the suitability of their application in forests stands dominated by broadleaved tree species. Harvesting was performed in five forest stands located at the University Forest Enterprise of Technical University in Zvolen in central Slovakia from August to October 2019. Damage to remaining trees was assessed from the point of its size, type, and position of damage along stem. We expected lower damage of remaining trees in stands where harvesters were used because of the applied cut-to-length short wood system and fully mechanized harvesting system. In addition, we examined soil bulk density and soil moisture content in ruts, space between ruts, and in undisturbed stand to reveal the impact of harvesting machinery on soil. We expected greater soil bulk densities and lower soil moisture content in these stands due to the greatest weight of harvesters and in ruts created by machinery compared with undisturbed stand soil. The highest percentage of damaged remaining trees equal to 20.47% and 23.36% was recorded for harvester forest operations, followed by skidder (19.44%) and animal forest operations with 19.86% and 14.47%. Factorial ANOVA confirmed significant higher soil compaction in stands where harvesters were used (higer bulk density) than in stands where skidding was performed with the skidder and animal power. Higher soil moisture content was recorded in ruts created by harvesters and the skidder. The lowest soil moisture content was in undisturbed stands irrespective of the applied forest operation method.

1. Introduction

Research on the damage caused by forest operations to the remaining trees and soils in forest stands started at the beginning of the twentieth century and is becoming more important as the use of mechanized wood harvesting has been increasing since then [1]. The main impacts of logging on forests include damage to the residual stand, natural regeneration and soil surface [2]. The frequency, type, location, and patterns of damage to residual trees vary with stand characteristics, applied harvesting system, forest operations, and planning [3,4] describe the following types of residual stand damages: root abrasion and breakage, bole wounds, broken branches and crown damages. The most common damage to residual trees is bole wounds including scarring (bark removal with sapwood exposure) and gouging (removal of wood fibres with the scar). Physical damage to tree roots and boles can result in loss of tree vigour and reduce tree growth and timber value [5]. Further, damaged trees are more susceptible to fungal infections [6]. Each harvesting system can cause distinctive damage to remaining crop trees. These damages can be caused by both felling and extracting, regardless of the technological level of machines or experience of operators. Extracting usually causes more severe damage to the remaining trees, especially when winching and skidding are applied [7]. A number of authors have dealt with the assessment of stand damage by harvesting forest operations [3,8,9].
Each harvesting system can cause soil degradation in forest ecosystems [10]. Soil as a critical element for forest sustainable management is a relatively nonrenewable natural resource [11]. Damage to forest soil can be characterised mainly by rutting, soil displacement and soil compaction caused by passage of machinery or load [12,13]. Soil compaction is in fact one of the main causes of soil degradation because it reduces soil production capacity, and leads to degradation processes, such as erosion or floods [13]. Intensity of soil compaction depends mainly on soil physical properties, followed by the load weight, terrain slope, used forest operations etc. [14]. Soil compaction causes changes in soil structure, disturbance of soil aggregates, reduction of porosity [10,15,16], and increase of bulk density [7,17]. Reduction of the space between aggregates reduces soil water content [18]. The impact of compaction varies depending on many factors such as number of passages, used harvesting machines, skid trail slope, site characteristics, production season [10]. The number and the frequency of machine passages on soil has a substantial effect on damage type [19].
The objective of this research was to compare the damage to the residual stand and soil by three different ground-based yarding methods: harvester-forwarder/cable skidder/animal-tractor. We hypothesized lower residual stand damages by cut-to-length logging (CTL) technologies because they are based on a short wood and a fully mechanized harvesting system. We examined physical soil parameters (soil bulk density and soil moisture content) in undisturbed stand parts and ruts after the application of the above mentioned three forest operation methods. We expected higher bulk densities in ruts compared with undisturbed stand soils due to the passage of forestry machinery, and higher bulk densities in stands where harvesters were applied because of their highest weight. From the point of soil moisture content, we expected greater values in undisturbed stand soils compared to the ruts.

2. Material and Methods

Measurements were performed at the University Forest School Enterprise of Technical University in Zvolen (UFSE), (48°37′08.2″ N 19°03′24.5″ E), the area of which is situated in a central part of Slovakia near (3 km) Zvolen. Brown forest soils covering almost 85% of forest area are most frequent at UFSE, although at lower elevations illimerised soils can also be found. Annual precipitation total fluctuates between 600 and 1000 mm, and mean annual temperature from 4 to 8 °C (Table 1). In the stands, where regeneration felling according to the shelterwood system was performed, forest operations were performed with skidders and harvester. In the thinned stands with age above 50 years forest operations were performed with animal power. Felling in stands was conducted between August and October 2019. We examined soil damage and residual stand damage at places directly affected by forest operations performed by the three technologies, namely skidder, animal, and harvester, and compared it with the situation in the remaining forest stands. In two forest stands (366a, and 366c), planned felling was performed with John Deere 1270 D harvester and John Deere 1110 E forwarder. The harvester produced assortments in 4 m lengths (short wood system). In two other forest stands (566 and 537), skidding was performed with a moderately heavy horse in combination with a universal wheeled tractor Zetor 7245 (long wood system). Skidding in the stand 507 was performed with HSM 805 HD (long wood system) (Table 2).

2.1. Assessment of Stand Damage

To assess the damage level of the remaining stands and soil after felling, square sample plots of 20 × 20 m size were established in individual stands. [20] stated that the size of the statistical sample should be sufficient if sample plots cover 10% of the total stand area in stands up to 50,000 m2 and 5% of the total stand area in stands larger than 50,000 m2 (Figure 1). Several authors determine the extent of measurements with regard to the size of the examined stand [21,22,23,24]. Based on the forest stand area and nomogram (Figure 1), we determined the required number of sample plots (Figure 2). At each sample plot, we assessed felling intensity, intensity of damage to the remaining stand, position of wounds along stem and wound size. Hence, at each sample plot we recorded numbers of felled and remaining trees, from which we could calculate intensity of felling treatments. Felling intensity is one of significant factors, which affects the damage intensity of the remaining stand. Some authors state that the percentage of stand damage increases with the increasing harvesting intensity [25,26,27]. The number of felled trees was determined by counting all fresh stumps.
The percentage of damage of residual trees is one of indicators, which determine the level of damage under specific forest operations. It can be quantified as a ratio of the number of damaged trees to the total number of trees that remained in the stand after felling. This indicator is used to compare damage between individual stands and harvesting technologies applied in forest operations [28].
For the assessment of wound position along the stem we applied the classification according to [29], who specified four categories based on the tree parts: roots, buttress roots, stems at a height from 0.3 m to 1 m, stems above 1 m height (Table 3).
At each sample plot we measured the dimensions of individual wounds with a meter and calculated their areas in cm2. Wounds smaller than 10 cm2 were not recorded. Afterwards, we classified wounds into individual categories (Table 4) based on the classification scheme of [29]. We also assessed the intensity of stem damage. Damage intensity was determined based on the classification scheme by [30] presented in Table 5.

2.2. Assessment of Soil Damage

To determine the changes in soil and particularly the level of soil compaction after the passage of forest machinery we took soil samples from the stands. At each sample plot, we took two samples from intact soil unaffected by forest operations, two samples from ruts, and two samples from the space between the ruts. Location of soil sampling points is presented in Figure 2. Our aim was to compare the bulk density of individual sampling points and to reveal the increase in soil bulk density due to soil compaction caused by machinery passage. Soil samples with volume of 100 cm3 were extracted with an Eijkelkamp soil column cylinder auger set. Soil samples were subsequently weighed in laboratory. We recorded the weight of fresh samples prior to drying, and the weight of dried samples. Samples were dried at a temperature of 105 °C for 24 h. Relative soil moisture was determined based on the gravimetric soil water content that was calculated from the weights of fresh and dried soil samples using the following equation: Soil moisture (%) = (Fresh soil weight − Dry soil weight)/Dry soil weight * 100.

3. Results

In the first part of our data analysis we dealt with the assessment of stand damage in all stands and the comparison of different forest operations from the point of their impact on the remaining forest stand. The calculated values for individual forest stands are shown in Table 6.
The comparison of measured values revealed the highest damage intensity in the case of harvesters (20.47% and 23.36%), while the lowest damage intensity was observed in the forest stand 566, where animal power was used (14.47%). Moderate values of damage intensity were recorded for skidders (19.44%).
From the point of total wound area, the largest sum was recorded in the forest stand 366a (8630 cm2), where harvesters were applied. The smallest sum of wound areas was revealed in the stand 566 (4790 cm2), where skidding was performed with animal power. However, in the stand 537, where a horse was also used, the total damaged area of wounds on trees was greater (7190 cm2). From the point of mean wound area, the greatest mean values were recorded in the forest stands, where harvesters were applied (222.27 cm2 and 200.69 cm2). The smallest mean wound areas were revealed in the forest stand, where the skidder was used (145.32 cm2). Although all forest stands were prevailingly composed of broadleaved tree species, they differed in their dominant tree species (Table 1). In stands 366a and 366c, where harvesters were applied, and in stand 507 Sessile oak dominated, while in stands 537 and 566 beech was the dominant tree species (Table 1). Oaks have thicker outer bark than beech or some coniferous species, e.g., Norway spruce or Silver fir that occurred in stand 537. Hence, from the point of tree species composition we could expect greater damage in stands dominated by species with thinner bark. In spite of that, the greatest damage was observed in stands dominated by oak, where forest operations were performed with harvesters.
Next, we dealt with the location of wounds along the stem (Table 3). The results of the comparison between individual forest operations technologies are presented in Figure 3.
In Figure 3 we can see that the wounds most frequently occurred on buttress roots. In the case of harvester technologies, 51% of wounds were observed on buttress roots. The smallest proportion of wounds was recorded on stems at a height above 1 m. These wounds mainly occurred during tree felling. Roots were most damaged by skidders, as in stands where they were applied 16.1% of all wounds were observed on roots.
The level of damage was assessed based on Table 5. All wounds at sample plots were classified into one class from five damage classes (Figure 4).
The results revealed that wounds were most frequently classified into damage class 3, i.e., wood exposed but undamaged (Table 5). The highest proportion of the wounds in this damage class (79.8%) was recorded for animal power, while the lowest proportion (56.3%) was observed in the case of harvesters. The highest damage class 5, i.e., wood damaged and heavily damaged, was observed only in forest stands, where harvesters were applied (2.7% of all wounds).
From the point of soil damage, we focused on the comparison of bulk density values. We were expecting higher values of bulk density in ruts than in untouched parts inside stands, and moderate values of bulk density in spaces between ruts. The results are presented in Table 7.
The results confirmed the differences in bulk density. The greatest difference in bulk density of 0.14 g·cm−3 was observed between the stand and the rut in the forest stand 537, where a combination of animal power and the universal wheeled tractor was applied. In the forest stand 566, the difference between the stand and the rut was 0.1 g·cm−3. The smallest differences were revealed for harvesters. In the forest stand 366c, the difference between the stand and the rut was 0.02 g·cm−3. The highest mean bulk densities in the middle between the ruts (centre) and in the rut equal to 1.20 and 1.17 g·cm−3, respectively, were recorded in the forest stand 366a. The difference between the mean values representing the stand and the middle space between the ruts in 366a was 0.05 g·cm−3. These minimum differences were partly caused by the harvest residuals occurring at some parts of the skid trail used by the harvester. In the case of the skidder technology, the greatest difference of 0.11 g·cm−3 between the stand and the rut was found in the forest stand 507.
Factorial ANOVA (Figure 5) was used to compare soil characteristics between forest stands and measurement locations. The results showed significant differences in the level of soil compaction between individual stands (F = 14.95; p = 0.00) but not between the position of measurement (F = 2.95; p = 0.054) in individual stands. Differences between stands and position of measurements (stand*locations) were significant (F = 2.26; p = 0.0251), (Figure 5).
Duncan’s test was used to analyse differences between dried soil samples from ruts. The results of Duncan’s test confirmed the significant difference between stands where harvesters were used and other stands. Bulk densities of soil in stands with harvesters were in the range from 1.12 g·cm−3 to 1.17 g·cm−3, while in stands where skidding was performed with skidders or a combination animal + tractor they were only 1.06 g·cm−3 or 1.01–1.03 g·cm−3, respectively. These results indicate that harvesters caused higher soil compaction than skidders or combined animal power and tractor. Duncan’s test did not confirm a significant difference between skidder and animal power + tractor (Table 8).
The analysis of soil moisture revealed the greatest differences between sampling locations for skidder. In the stand 507, the soil moisture inside the stand was 20.14%, while in the rut and in the space between the ruts it was 28.40% and 21.70%, respectively. The difference in the soil moisture between the stand and the rut was 8.26%. On the contrary, the smallest differences were observed in the stand, where a combination of a horse and a universal wheeled tractor was used. Here the lowest soil moisture was found in the stand. The differences of the soil moisture in the stand from the centre and the rut were 0.81 and 0.11%, respectively. These minimum differences resulted mainly from dragging stems along the skid trail. The overall lowest values of soil moisture were measured for harvesters. The differences between the mean soil moisture in the stand and in the rut were 4.82% and 5.98% in the stands 366a and 366c, respectively. Factorial ANOVA (Figure 6) revealed significant differences in soil moisture content between individual stands (F = 36.441; p = 0.00) as well as between measurement locations: stand, rut, centre in individual stands (F = 10.777; p = 0.00). Differences between stands and their position of measurements (stand * locations) were not significant (F = 1.27; p = 0.257), (Figure 6). The results of Duncan’s test confirmed significant differences between stands with the skidder and animal skidding and stands with harvester logging. The highest moisture content of 28.40% was revealed in the stand with skidder, followed by tractor + animal in the range from 21.38% to 25.71%. The lowest soil moisture content in ruts (between 15.29% and 17.60%) was found for harvesters (Table 9).

4. Discussion

Our results revealed that the lowest mean relative damage of the remaining stand equal to 17.17% was recorded for the animal power in combination with the universal wheeled tractor. Other authors recorded stand damage caused by animal power from 12.17% [31] to 37.29% [32]. In the case of forest skidders, the percentage of damage to the remaining forest stand (17.76%) was substantially lower than the value published by [33], who reported stand damage equal to 44.64%. [34] found residual stand damage by skidder 49.9%. [29] reported the maximum value of stand damage equal to 21.2% if a forest skidder and a short wood method was applied. Interesting results were presented by [35], who analysed tree damage in beech stands after felling with BOBCAT 733 and LKT 81. They analysed 1789 trees at four plots, out of which 388 trees were damaged (i.e., 21.17%). The relative damage at individual plots fluctuated from 17 to 28%. In our case, harvesters damaged the remaining stand most with the mean stand damage of 21.92% in stands with a mean slope of 15%. According to [36], mean stand damage by harvesters is 17%. However, [37] found stand damage by harvesters equal to only 7.36%. [38] dealt with the damage of tree roots in a spruce stand after harvesting with a tracked harvester, and revealed 15.1% stand damage. From the point of wound size, we found the greatest mean wound size equal to 201 and 222 cm2, which according to [29] represents “great” damage, in the stands where harvesters were used. Lower values (171 and 194 cm2) were recorded in the case of animal power, while the wounds were of medium size. The smallest mean sizes of wounds equal to 145 and 161 cm2, classified as wounds of medium size, were found in the stands harvested by skidders. [35] reported that wounds at heights between 30 and 100 cm represented 40% of all wounds, and their mean wound size fluctuated between 466 to 1190 cm2. [35] states wounds at tree roots were from 10 to 200 cm2 large in mixed beech-oak stands. [39] compared the mean size of wounds that occurred during forest operations performed by skidders and harvesters. He revealed the smallest mean sizes of 134.21 and 200 cm2 in stands, where a tracked harvester was applied (spruce-thinning). This was followed by a wheeled harvester with 255.43 and 388.89 cm2 large wounds (oak-thinning), and the largest wounds of 395.13 and 505.81 cm2 were observed in the case of skidders (oak and pine, shelterwood) [39].
If we considered tree species composition, the lowest damage would be expected in stands composed of tree species with thick outer bark, such as oak or pine. Thicker bark should protect vascular cambium from logging injuries. Bark protection against a direct impact from a falling stem or from harvesting equipment would be expected to increase with greater impact strength and higher bark density [40]. Tree species with thinner bark such as Norway spruce and Silver fir are highly susceptible to wounds and decays [41,42]. Despite our expectations, we observed the greatest damage in oak stands, where harvesters were used. Harvesters were originally developed for forest operations in coniferous stands, but recently they have been applied also in broadleaved forests, particularly in Central Europe [43]. The effectiveness of harvester application in broadleaved forests depends on tree quality [44], which can also affect damage to remaining trees. If harvested trees have long and big crowns with numerous and thick limbs and branches, logging with a harvester can increase damage to the remaining stand. Another way to explain this phenomenon is the impact of an operator, since [45,46] showed that operator’s skills can have a direct impact on the degree of damage but training (experience) [47,48] can lead to lower damages. [49] also identified the human factor as a key factor affecting damage extent.
Harvesting time within a year can also have a significant impact on stand damage. In our study, harvesting was performed from August to October, when tree species are less susceptible to damage than in early spring [50].
Soil damage intensity was analysed on the base of soil bulk density and soil moisture. In all but two forest stands we found the highest bulk density in ruts after the passage of machinery, and the lowest bulk density inside the stands. The highest value of bulk density in ruts was recorded in the forest stand 366a, where the harvester was used, but the differences between the individual sample locations were low reaching 0.05 g·cm−3. The greatest difference in dry soil bulk density between the stand and the rut of 0.14 g·cm−3 was observed for animal skidding, while the lowest difference equal to 0.02 g·cm−3 was found for harvesters. Factorial ANOVA did not reveal significant differences between measurement locations, which was very “surprising” for us. One explanation of small differences in the case of skidding with animals and skidders is the fact that the load is pulled on the ground. In such a case, the space between ruts is also affected due to which soil compaction occurs not only in the ruts but also between them. [51] analysed the changes in soil bulk density in stands and ruts after the passage of universal tractors and forest skidders, and found that in both cases the bulk density in ruts increased by 0.26 g·cm−3. Factorial ANOVA confirmed significant differences in soil compaction between stands. Soil in stands 366a and 366c, where harvesters were used, was more compacted in ruts than in other stands, where different harvesting technologies were used for forest operations. Similar results were presented by [24], who found that wheeled harvesters caused the increase of bulk density by 35.4%, while skidders increased the bulk density by only 30.3%. [52] dealt with critical thresholds of soil damage for several soil properties, and specified the threshold bulk density, at which roots still grow, from 1.5 to 1.7 g·cm−3. These values were not exceeded in any of the examined cases in our study.
Factorial ANOVA confirmed significant differences in soil moisture content between individual stands and between positions of measurement (stand, rut, centre in individual stands). The results of Duncan’s test confirmed the difference between skidder and animal technologies versus harvesters. The moisture content was lower in ruts of stands where harvesters were used. The relationship between bulk density and soil moisture was examined by [53], who found that bulk density decreased with the increasing soil moisture. The study was performed after the passage of wheeled forwarders on soils with various soil moisture. In our case we observed greater soil moisture in stands (507, 566, 537), where skidder and animal technology with a wheeled tractor were used, in comparison to harvesters, which were used in stands with lower soil moisture and greater bulk densities.

5. Conclusions

Timber harvesting has a significant influence on forest environment. Its direct impacts are visible on the remaining forest stands in the form of wounds on remaining trees as well as on the soil in the form of ruts. Currently, a great number of forest harvesting technologies can be applied to perform harvesting forest operations with different impacts on remaining trees and soil. Our study revealed greatest damage in stands where shelterwood regeneration harvesting was performed by harvesters (20 and 23%), while stand damage caused by a skidder and a long wood system was lower (19%) at comparable felling intensity and stand characteristics. Animal skidding applied in thinning operations of similar intensity resulted in 14% and 19% stand damage. Forest operations have substantial negative impacts also on forest soil. Soil damage is observed via changes in physical characteristics of the soil. Common methods used to estimate soil damage severity include the measurement of soil bulk density. Our results confirmed significant differences between stands where harvesters were used and other stands. The bulk densities of soil from stands with harvesters were in the range from 1.12 g·cm−3 to 1.17 g·cm−3. The results confirmed our expectations that the highest values of soil bulk density were found after forest operations performed with harvesters, but the critical values of bulk density were not exceeded. Limit values for root growth vary from 1.4 g cm−3 for clay soils to 1.8 g·cm−3 for sand and loamy sand soils. Soil in stands where a skidder or animal power were applied, had lower soil bulk density and thus, damage to soil was not of such an extent that would limit further root growth.

Author Contributions

Conceptualization, Z.D. and M.A.; methodology, Z.D. and M.A.; investigation, Z.D. and M.A.; data curation, Z.D.; writing—original draft preparation, Z.D. and M.A.; writing—review and editing, Z.D., M.A., K.M., J.M.; visualization, Z.D.; project administration, J.M.; funding acquisition, J.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Slovak Research and Development Agency (APVV) [grant number 18-0305] “Utilisation of progressive methods for evaluation of forest logging impacts on forest ecosystems and road network”, by [grant number 15-0714] “Mitigation of climate change risk by optimization of forest harvesting scheduling”, by Scientific Grant Agency VEGA [grant number 1/0241/20] “Optimization and environmental impact of logging technologies in close to nature forest management”, the grant ‘EVA4.0’, No. CZ.02.1.01/0.0/0.0/16_019/0000803 financed by OP RDE, and the project: Scientific support of climate change adaptation in agriculture and mitigation of soil degradation (ITMS2014 + 313011W580) supported by the Integrated Infrastructure Operational Programme funded by the ERDF.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Picchio, R.; Venanzi, R.; Latterini, F.; Marchi, E.; Laschi, A.; Lo Monaco, A. Corsican pine (Pinus laricio Poiret) stand management: Medium and long lasting effects of thinning on biomass growth. Forests 2018, 9, 257. [Google Scholar] [CrossRef] [Green Version]
  2. Naghdi, R.; Lotfalian, M.; Bagheri, I.; Jalali, A.M. Damages of skidder and animal logging to forest soils and natural regeneration. Croat. J. For. Eng. J. Theory Appl. For. Eng. 2009, 30, 141–149. [Google Scholar]
  3. Bustos, O.; Egan, A.; Hedstorm, W. A comparison of residual stand damage along yarding trails in a group selection harvest using four different yarding methods. North. J. Appl. 2010, 27, 56–61. [Google Scholar] [CrossRef] [Green Version]
  4. Han, S.K.; Cho, M.J.; Baek, S.A.; Yun, J.U.; Cha, D.S. The Characteristics of Residual Stand Damages Caused by Skyline Thinning Operations in Mixed Conifer Stands in South Korea. J. For. Environ. Sci. 2019, 35, 197–204. [Google Scholar]
  5. Shigo, A.L. Tree Decay: An Expanded Concept USDA Department of Agriculture; U.S. Government Printing Office: Washington, DC, USA, 1979; No. 419. [Google Scholar]
  6. Vasiliauskas, R. Damage to Trees due to Forestry Operations and its Pathological Significance in Temperate Forests: A Literature Review. J. For. 2001, 74, 319–336. [Google Scholar] [CrossRef] [Green Version]
  7. Picchio, R.; Tavankar, F.; Bonyad, A.; Mederski, P.S.; Venanzi, R.; Nikooy, M. Detailed analysis of residual stand damage due to winching on steep terrains. Small-Scale For. 2019, 18, 255–277. [Google Scholar] [CrossRef] [Green Version]
  8. Nichols, M.T.; Lemin, R.C., Jr.; Ostrofsky, W.D. The impact of two harvesting systems on residual stems in a partially cut stand of northern hardwoods. Can. J. For. Res. 1994, 24, 350–357. [Google Scholar] [CrossRef]
  9. Becker, P.; Jensen, J.; Meinert, D. Conventional and mechanized logging compared for Ozark hardwood forest thinning: Productivity, economics, and environmental impact. North. J. Appl. For. 2006, 23, 264–272. [Google Scholar] [CrossRef] [Green Version]
  10. Solgi, A.; Najafi, A. The impacts of ground-based logging equipment on forest soil. J. For. Sci. 2014, 60, 28–34. [Google Scholar] [CrossRef] [Green Version]
  11. Tavankar, F.; Bonyad, A.E.; Nikooy, M.; Picchio, R.; Venanzi, R.; Calienno, L. Damages to soil and tree species by cable-skidding in Caspian forests of Iran. For. Syst. 2017, 26, 11. [Google Scholar] [CrossRef] [Green Version]
  12. Kozlowski, T.T. Soil compaction and growth of woody plants. Scand. J. For. Res. 1999, 14, 596–619. [Google Scholar] [CrossRef]
  13. Hamza, M.A.; Anderson, W.K. Soil compaction in cropping systems: A review of the nature, causes and possible solutions. Soil Tillage Res. 2005, 82, 121–145. [Google Scholar] [CrossRef]
  14. Ferenčík, M.; Slugeň, J. Evaluation of damages caused by the cut-to-length technology on beech stand after salvage felling. Acta Fac. For. Zvolen 2012, 54, 29–41, ISSN 0231-5785. [Google Scholar]
  15. Cambi, M.; Certini, G.; Neri, F.; Marchi, E. The impact of heavy traffic on forest soils: A review. For. Ecol. Manag. 2015, 338, 124–138. [Google Scholar] [CrossRef]
  16. Solgi, A.; Naghdi, R.; Marchi, E.; Laschi, A.; Keivan Behjou, F.; Hemmati, V.; Masumian, A. Impact Assessment of Skidding Extraction: Effects on Physical and Chemical Properties of Forest Soils and on Maple Seedling Growing along the Skid Trail. Forests 2019, 10, 134. [Google Scholar] [CrossRef] [Green Version]
  17. Gebauer, R.; Neruda, J.; Ulrich, R.; Martinková, M. Soil Compaction—Impact of Harvesters’ and Forwarders’ Passages on Plant Growth, Sustainable Forest Management—Current Research. Available online: https://www.intechopen.com/books/sustainable-forest-management-current-research (accessed on 15 October 2020).
  18. Poršinsky, T.; Sraka, M.; Stankić, I. Comparison of two approaches to soil strength classifications. J. Theory Appl. For. Eng. 2006, 27, 17–26. [Google Scholar]
  19. Arvidsson, J. Subsoil compaction caused by heavy sugarbeet harvesters in southern Sweden: I. Soil physical properties and crop yield in six field experiments. Soil Tillage Res. 2001, 60, 67–78. [Google Scholar] [CrossRef]
  20. Lukáč, T. Viacoperačné Stroje v Lesnom Hospodárstve (Multioperational Machines in Forestry); Vydavateľstvo Technickej Univerzity vo Zvolene: Zvolen, Slovakia, 2005; pp. 112–113. ISBN 80-228-1348-6. [Google Scholar]
  21. Ulrich, R.; Schlaghamerský, A.; Štorek, V. Harvester Technics Using in Thinning; MZLU v Brně: Brno, Czech Republic, 2002; p. 85. [Google Scholar]
  22. Slamka, M.; Radocha, M. Results of harvesters and forwarders operations in Slovakian forests. Cent. Eur. For. J. 2010, 56, 1–15. [Google Scholar] [CrossRef] [Green Version]
  23. Schürger, J. Evaluation of the Negative Impact of Skidders in Cableway Terrains. Ph.D. Thesis, Technical university in Zvolen, Zvolen, Slovakia, 2012; pp. 1–198. [Google Scholar]
  24. Allman, M.; Jankovský, M.; Messingerová, V.; Allmanová, Z.; Ferenčík, M. Soil compaction of various Central European forest soils caused by traffic of forestry machines with various chassis. For. Syst. 2015, 24, 6. [Google Scholar] [CrossRef] [Green Version]
  25. Fjeld, D.; Granhus, A. Injuries after selection harvesting in multi-stored spruce stands–the influence of operating systems and harvest intensity. J. For. Eng. 1998, 9, 33–40. [Google Scholar]
  26. Sist, P.; Nolan, T.; Bertault, J.G.; Dykstra, D. Harvesting intensity versus sustainability in Indonesia. For. Ecol. Manag. 1998, 108, 251–260. [Google Scholar] [CrossRef]
  27. Nakou, A.; Sauter, U.H.; Kohnle, U. Improved models of harvest-induced bark damage. Ann. For. Sci. 2016, 73, 233–246. [Google Scholar] [CrossRef] [Green Version]
  28. Picchio, R.; Mederski, P.S.; Tavankar, F. How and How Much, Do Harvesting Activities Affect Forest Soil, Regeneration and Stands? Curr. For. Rep. 2020, 6, 115–128. [Google Scholar]
  29. Meng, W. Baumverletzungen durch Transportvorgänge bei der Holzernte: Ausmass und Verteilung; Folgeschäden am Holz und Versuch ihrer Bewertung. Ph.D. Thesis, Baden-Württemberg Ministerium für Ernährung, Landwirtschaft und Umwelt, Selbstverlag der Landesforstverwaltung Freiburg, Baden-Württemberg, Germany, 1978; p. 159. [Google Scholar]
  30. Buttora, A.; Schager, G. Holzernteschäden in Durchforstungsbeständen, Nr. 288; Eidgenössische Anstalt für das forstliche Versuchswesen: Birmensdorf, Switzerland, 1986; pp. 1–47. [Google Scholar]
  31. Maličký, M. Damage of the Remaining Stand and Soils after Skidding by Different Technologies in the Area of Forest District Slovenská Ľupča. Master’s Thesis, Technical University in Zvolen, Zvolen, Slovakia, 2016; p. 72. [Google Scholar]
  32. Máliš, P. Demage of the remaining stand by forestry machines on University Forest Entreprise in Zvolen. Master’s Thesis, Technical University in Zvolen, Zvolen, Slovakia, 2017; p. 57. [Google Scholar]
  33. Allman, M.; Jankovský, M.; Allmanová, Z.; Ferenčík, M.; Messingerová, V. Negatívne Dopady Ťažbovo-Dopravných Technológií Na Lesnú Pôdu a Možnosti Prevencie v Lesoch Slovenska; Technical University in Zvolen: Zvolen, Slovakia, 2017; p. 132. ISBN 978-80-228-2925-0. [Google Scholar]
  34. Eštok, T. Evaluation of the Timber Skidding by Tractor HSM 805 HD on the Area of the University Forest Enterprise. Master’s Thesis, Technical University in Zvolen, Zvolen, Slovakia, 2017; p. 70. [Google Scholar]
  35. Tsioras, P.; Liamas, D. Hauling damages in a mixed beech-oak stands. In Proceedings of the Formec 2010 “Forest Engineering: Meeting the Needs of the Socienty and the Enviroment”, Padova, Italy, 11–14 July 2010. [Google Scholar]
  36. Slugeň, J. Environmental aspects of the work of the harvester Timberjack 1270 D and the Forwarder Timberjack 1110 D under the conditions of the forest enterprise Slovenská Ľupča. Acta Fac. For. Zvolen 2009, 51, 97–108, ISSN 0231-5785. [Google Scholar]
  37. Kučera, M. Damage of the Remaining Stand by Harvester Technologies. Master’s Thesis, Technical University in Zvolen, Zvolen, Slovakia, 2015; p. 56. [Google Scholar]
  38. Korten, S. Ökosystem management I; Technische Universität Munchen: München, Germany, 2004. [Google Scholar]
  39. Allman, M.; Allmanová, Z.; Jankovský, M.; Ferenčík, M.; Messingerová, V. Damage of the remaining stands caused by various types of logging technology. Acta Univ. Agric. Silvic. Mendel. Brun. 2016, 64, 379–385. [Google Scholar] [CrossRef] [Green Version]
  40. Wiedenbeck, J.; Smith, T.K. Hardwood management, tree wound response, and wood product value. For. Chron. 2019, 94, 292–306. [Google Scholar]
  41. Kohnle, U.; Kändler, G. Is Silver fir (Abies alba) less vulnerable to extraction damage than Norway spruce (Picea abies)? Eur. J. For. Res. 2007, 126, 121–129. [Google Scholar] [CrossRef]
  42. Metzler, B.; Hecht, U.; Nill, M.; Brüchert, F.; Fink, S.; Kohnle, U. Comparing Norway spruce and silver fir regarding impact of bark wounds. For. Ecol. Manag. 2012, 274, 99–107. [Google Scholar] [CrossRef]
  43. Mederski, P.S.; Bembenek, M.; Karaszewski, Z.; Pilarek, Z.; Łacka, A. Investigation of log length accuracy and harvester efficiency in processing of oak trees. Croat. J. For. Eng. J. Theory Appl. For. Eng. 2018, 39, 173–181. [Google Scholar]
  44. Slugeň, J.; Peniaško, P.; Messingerová, V.; Jankovský, M. Productivity of a John Deere harvester unit in deciduous stands. Acta Univ. Agric. Silvic. Mendel. Brun. 2014, 62, 231–238. [Google Scholar] [CrossRef] [Green Version]
  45. Stampfer, K.; Limbeck-Lilienau, B.; Steinmüller, T. Bestandesschäden bei der mechanisierten Holzernte am Steilhang. Bündner Wald 2002, 55, 37–42. [Google Scholar]
  46. Schoettle, R.; Pfeil, C.; Boes, T.; Ilg, H.D. Vorkonzentrierung durch Raupenharvester steigert Rückeleistung mit Seilschlepper. AFZ/Der Wald 1999, 18, 32–934. [Google Scholar]
  47. Kelley, R.S. Stand damage from whole-tree harvesting in Vermont hardwoods. J. For. 1983, 81, 95–96. [Google Scholar]
  48. Sirén, M. Tree damage in single-grip harvester thinning operations. J. For. Eng. 2001, 12, 29–38. [Google Scholar]
  49. Nill, M. Rindenschäden durch Holzernte in Baden-Württemberg-Ursachen und Prognose; Freiburg Forstl: Freiburg, Germany, 2011; Volume 50, p. 161. [Google Scholar]
  50. Einspahr, D.W.; Van Eperen, R.H.; Fiscus, M.H. Morphological and bark strength characteristics important to wood/bark adhesion in hardwoods. Wood Fiber Sci. 2007, 16, 339–348. [Google Scholar]
  51. Allmanová, Z. Soil Compaction and Changes of Carbon Dioxide Concentration in Soils Caused by Forestry Machine Traffic. Master’s Thesis, Technical University in Zvolen, Zvolen, Slovakia, 2013; p. 124. [Google Scholar]
  52. Lhotský, J. Zhutňovaní Půd a Opatření Proti Němu; Ústav zemnědelských a potravinářských informací: Praha, Czech Republic, 2000; pp. 1–62. [Google Scholar]
  53. Gerasimov, Y.; Katarov, V. Effect of bogie track and slash reinforcement on sinkage and soil compaction in soft terrains. J. Theory Appl. For. Eng. 2010, 31, 35–45. [Google Scholar]
Forests 11 01289 g001 550

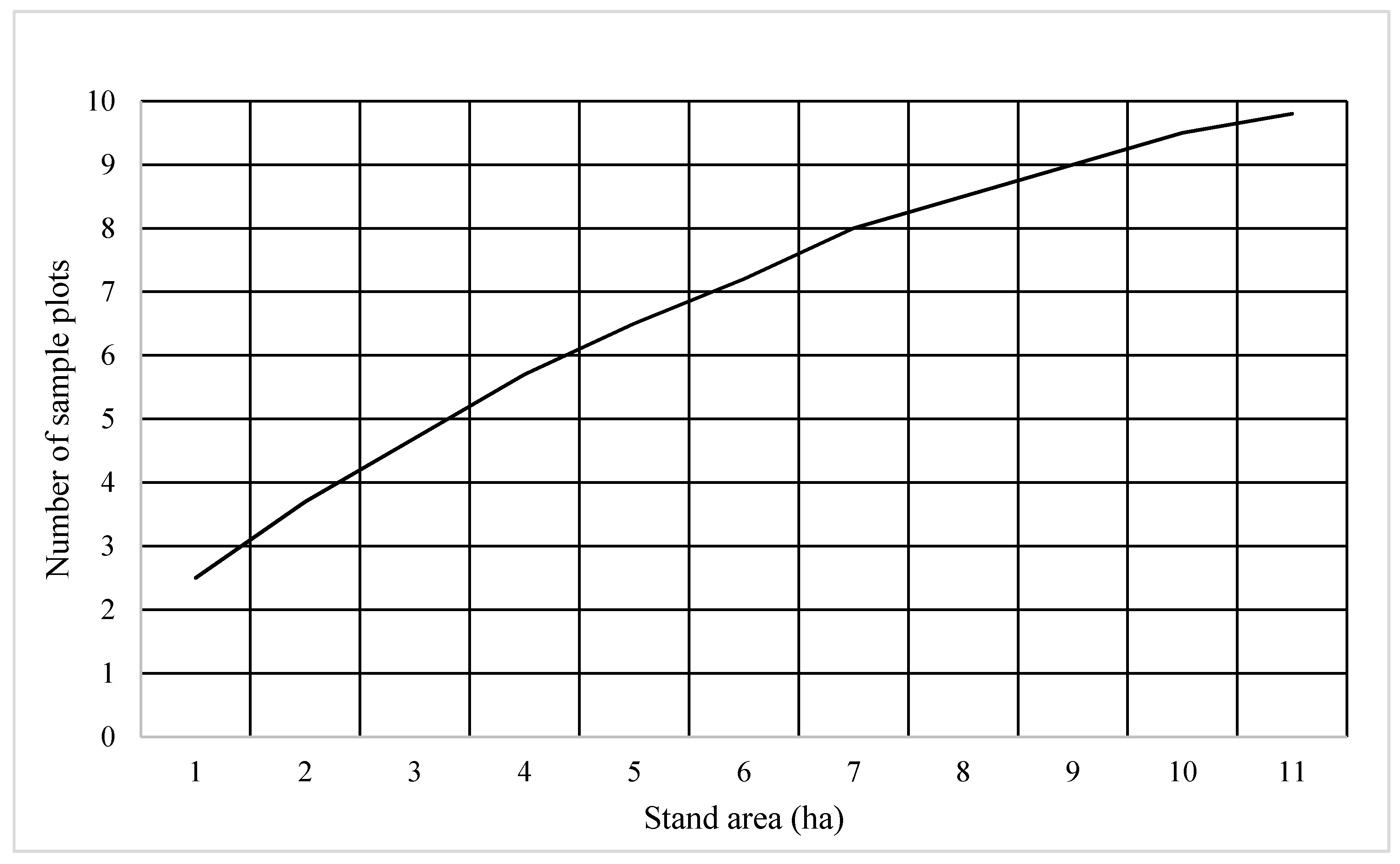

Figure 1. A nomogram designed to determine the number of sample plots in a forest stand [20].
Figure 1. A nomogram designed to determine the number of sample plots in a forest stand [20].
Forests 11 01289 g001
Forests 11 01289 g002 550
Figure 2. Shape and dimensions of sample plots, and location of soil sampling points (stand, centre = space between ruts, ruts).
Figure 2. Shape and dimensions of sample plots, and location of soil sampling points (stand, centre = space between ruts, ruts).
Forests 11 01289 g002
Forests 11 01289 g003 550

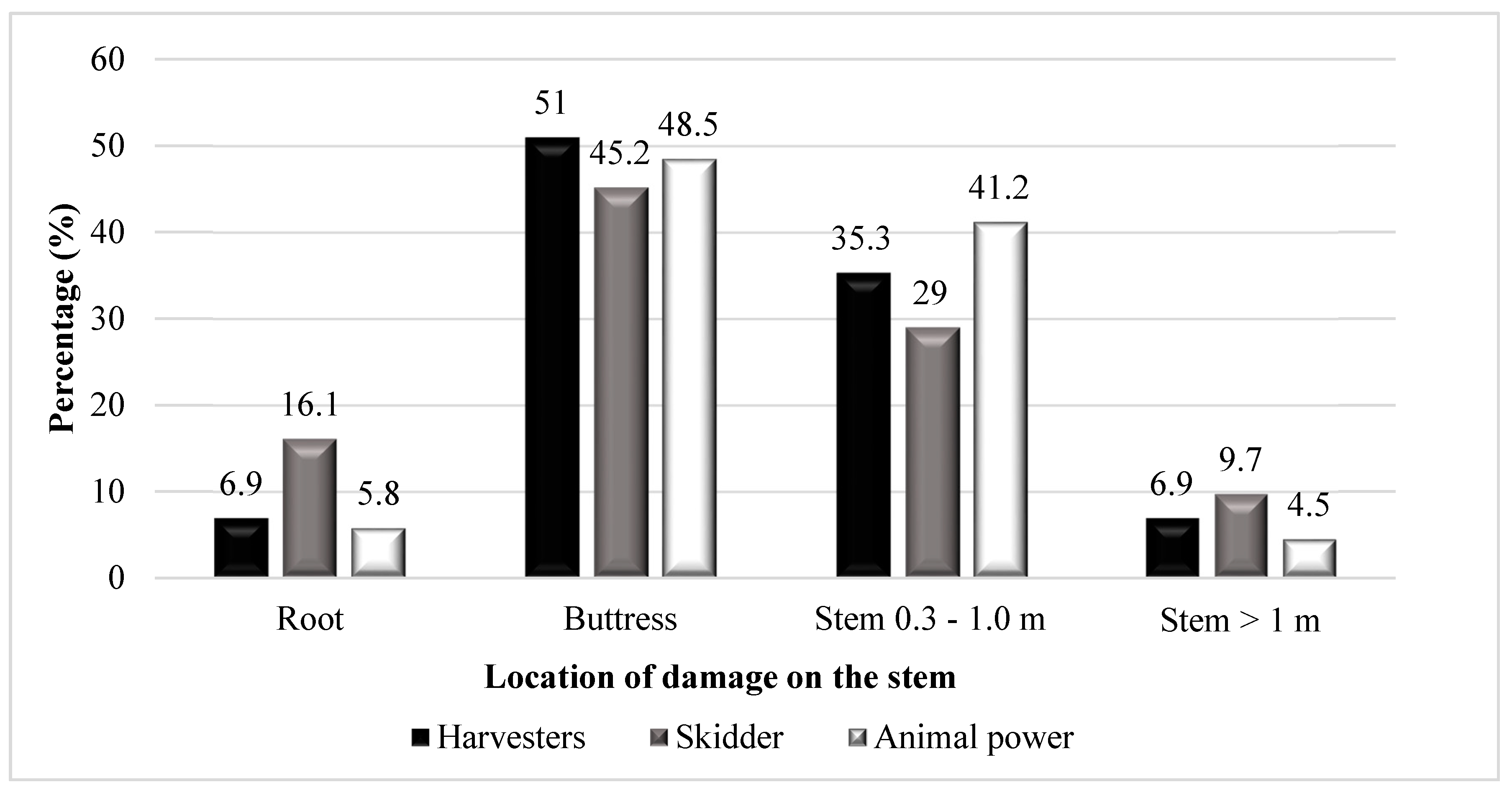

Figure 3. Percentage proportion of wounds at different locations along the stem.
Figure 3. Percentage proportion of wounds at different locations along the stem.
Forests 11 01289 g003
Forests 11 01289 g004 550
Figure 4. Relative distribution of wounds in individual damage classes (Table 5) with regard to individual applied technologies.
Figure 4. Relative distribution of wounds in individual damage classes (Table 5) with regard to individual applied technologies.
Forests 11 01289 g004
Forests 11 01289 g005 550

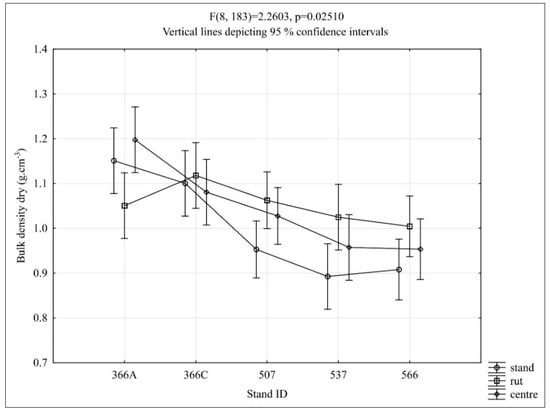

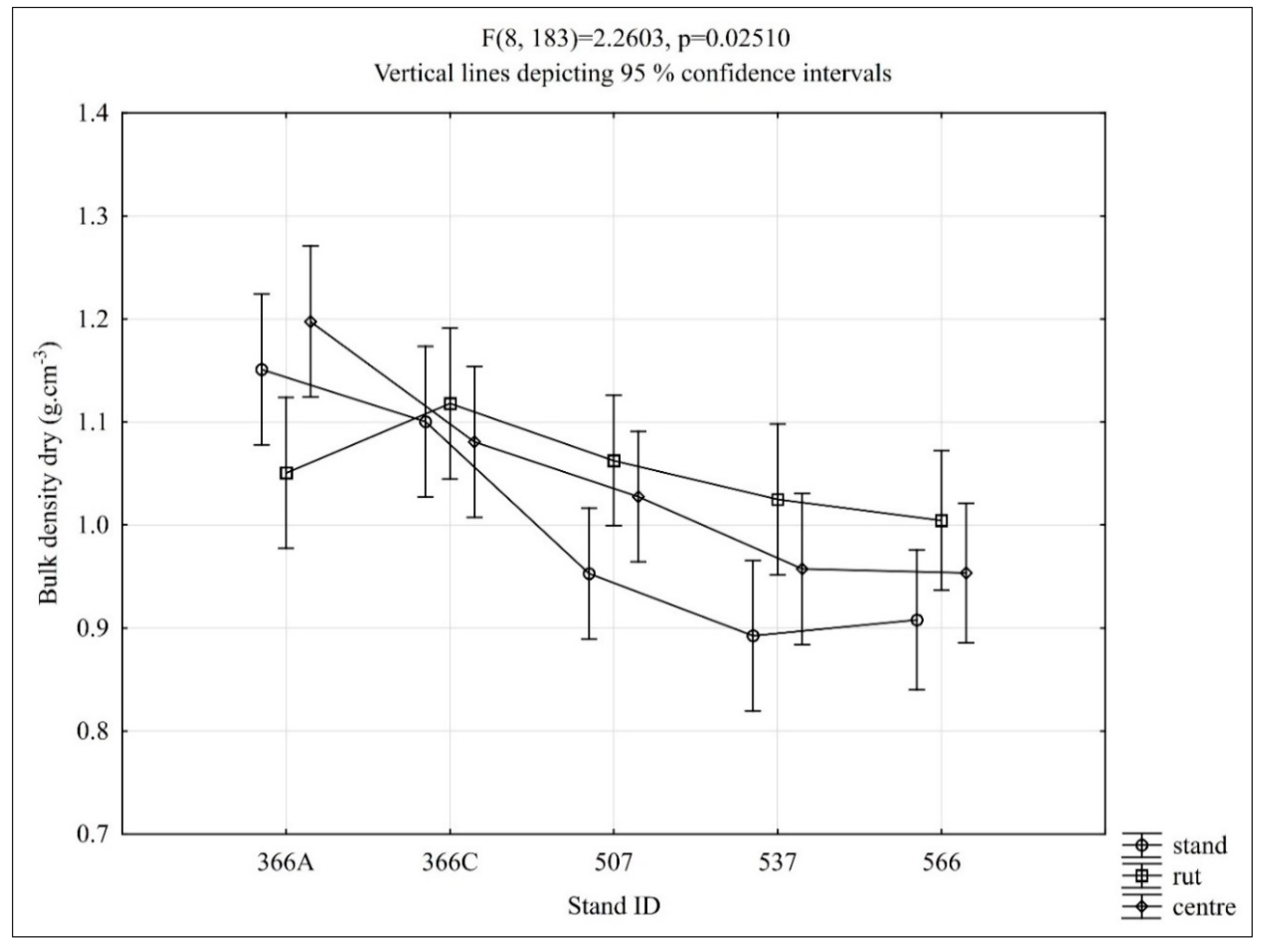

Figure 5. Analysis of differences in average bulk density of dried soil samples between individual stands and measurement locations.
Figure 5. Analysis of differences in average bulk density of dried soil samples between individual stands and measurement locations.
Forests 11 01289 g005
Forests 11 01289 g006 550

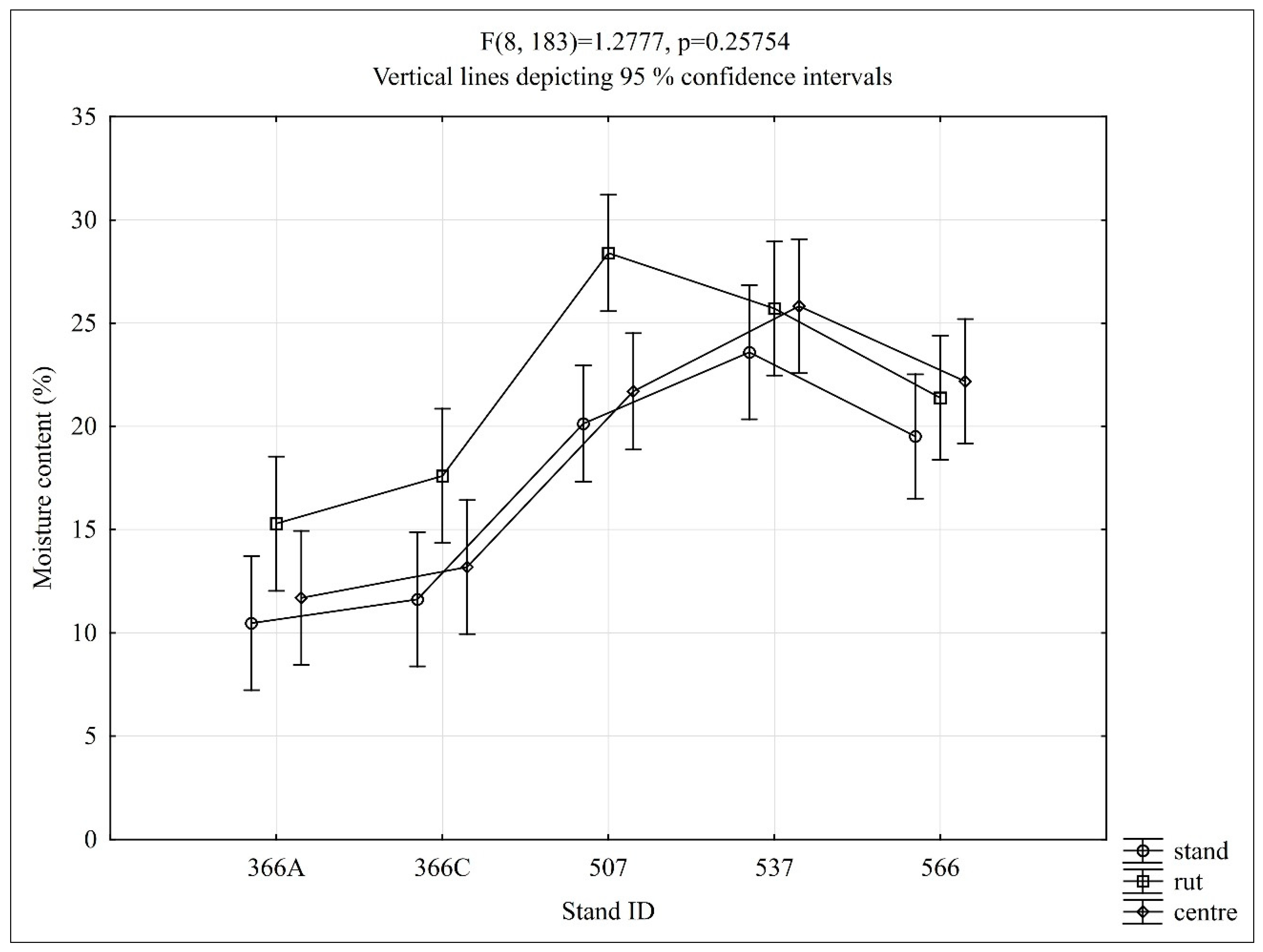

Figure 6. Average soil moisture values in individual stands and measurement locations.
Figure 6. Average soil moisture values in individual stands and measurement locations.
Forests 11 01289 g006
Table
Table 1. Overview of basic stand characteristics before felling.
Table 1. Overview of basic stand characteristics before felling.
Forest Stand366a366c507537566
TechnologyJohn Deere 1270D
CTL tech.		John Deere 1270D
CTL tech.		HSM805HD
skidder		Horse + Zetor 7245
Animal tech.		Horse + Zetor 7245
Animal tech.
Age (years)1001001157065
Area (ha)4.364.517.534.455.52
Slope (%)1515104070
AspectNEESESESE
Stocking 0.840.990.730.800.80
Tree species (%)Sessile oak 92; Pine 6; Hornbeam 2Sessile oak 98; Beech 1; Hornbeam 1Sessile oak 67; Pine 22; Beech 11Beech 70; Fir 20; Spruce 10Beech 50; Sessile oak 25; Hornbeam 25
Mean stem volume (m3)Sessile oak 0.84; Pine 1.63; Hornbeam 0.48Sessile oak 0.87; Beech 0.64; Hornbeam 0.17Sessile oak 1.33; Pine 1.29; Beech 1.81Beech 0.86; Fir 1.78; Spruce 1.50Beech 0.51; Sessile oak 0.37; Hornbeam 0.26
Soil typeIlimerised soilIlimerised soilIlimerised soilBrown forest soilBrown forest soil
Number of sample plots66867
Felled volume (m3)238174382164123
Table
Table 2. Basic information on applied technologies.
Table 2. Basic information on applied technologies.
Machine TypeJohn Deere 1270DJohn Deere 1110 EHSM 805 HDZetor 7245
Dimensions width/length/height (mm)2766/11600/
3850		2700/9820/
3870		2400/5800/
3200		2260/4530/
2780
Weight (kg)17,49917,30098004100
EngineJohn Deere 6090HTJJohn Deere 6068HTJVolvo Penta, four-cylinderZ 7201
Power (kW)16013612946
Maximum speed (km/hour)25--25
Winch--Double drum ADLER HY 20SGSingle drum
Pulling force (kN)--2 × 100 kN30.49 kN
Front tyres600 × 26.5, 20 PR Forest King F NK710 × 26.5−20Nokian Forest King TRS LS-2 23.1–269.5–24
Back tyres600 × 34, 14 PR Forest King F NK710 × 26.5−20Nokian Forest King TRS LS-2 23.1–2618.4–26
Table
Table 3. Classification of damage location on the tree [29].
Table 3. Classification of damage location on the tree [29].
Damage LocationCharacteristics
RootRoot damage (aboveground) at a distance of 0.21 to 1.0 m from the stem
Buttress rootDamage of the butt part of a stem at a distance of maximum 0.2 m from the stem and to the height of 0.3 m on stem
StemStem damage at a height between 0.3–1.0 m
StemStem damage at a height above 1 m
Table
Table 4. Classification of wounds based on the wound size [29].
Table 4. Classification of wounds based on the wound size [29].
Wound CategoryDamage Size (cm2)Characteristic
0<10meaningless
111–50very small
251–100little
3101–200medium size
4201–300large
5>300very large
6Root rupture–breakagedestructive
Table
Table 5. Classification of damage intensity [30].
Table 5. Classification of damage intensity [30].
Damage Intensity ClassDamage Characteristics
1. The top layer of bark is damagedThe outer bark is damaged, cambium is undamaged, the tree reacts with low resin outflow, low risk of fungal infection
2. Bark crushed (wrinkled)Bark is wrinkled, but holds on a stem, fungal infection risk is low
3. Wood exposed but undamagedBark is peeled off, wood is exposed but undamaged, fungal infection risk is moderate
4. Wood exposed and slightly damagedBark is peeled off, wood is exposed and slightly damaged, high risk of fungal infection
5. Wood exposed, and heavily damagedBark is peeled off, wood is exposed and heavily damaged, risk of fungal infection is very high
Table
Table 6. Overview of stand damage results in individual forest stands.
Table 6. Overview of stand damage results in individual forest stands.
Stand ID366a366c507537566
Number of assessed trees at sample plots127137144141159
Number of damaged trees at sample plots2632282823
Damage intensity (%)20.4723.3619.4419.8614.47
Felling intensity (%)18.5916.9618.1818.0216.32
Sum of wound areas (cm2)73358630683071904790
Mean wound area/classification according to MENG222.27
large 		200.69
medium size		145.32
medium size		194.32
medium size		171
medium size
Table
Table 7. Comparison of bulk density and soil moisture measured in stands, ruts, and in spaces between ruts (centre).
Table 7. Comparison of bulk density and soil moisture measured in stands, ruts, and in spaces between ruts (centre).
Stand366a366c507537566
Bulk density stand (g·cm−3)1.151.100.950.890.91
Bulk density rut (g·cm−3)1.171.121.061.031.01
Bulk density centre (g·cm−3)1.201.081.030.960.95
Moisture stand (%)10.4711.6220.1423.5919.51
Moisture rut (%)15.2917.6028.4025.7121.38
Moisture centre (%)11.6913.1921.7025.8222.19
Table
Table 8. Duncan’s test of soil bulk density in ruts.
Table 8. Duncan’s test of soil bulk density in ruts.
Duncan’s Test, Average Dry Bulk Density (g·cm−3)
Approximate Likelihood of Post Hoc Tests
Error: Between Groups = 0.01783, Degrees of Freedom = 193.00
Stand366a
1.1331		366c
1.0998		507
1.0143		537
0.95824		566
0.95525
366A 2.70 × 10−11.33 × 10−4 *3.00 × 10−6 *4.00 × 10−6 *
366C2.70 × 10−1 4.72 × 10−31.50 × 10−5 *6.00 × 10−6 *
5071.33 × 10−4 *4.72 × 10−3 * 6.33 × 10−26.37 × 10−2
5373.00 × 10−6 *1.50 × 10−5 *6.33 × 10−2 9.21 × 10−1
5664.00 × 10−6 *6.00 × 10−6 *3.37 × 10−29.21 × 10−1
* Significant difference.
Table
Table 9. Duncan’s test of soil moisture content in ruts after compaction.
Table 9. Duncan’s test of soil moisture content in ruts after compaction.
Duncan’s Test, Soil Moisture Content (%)
Approximate Likelihood of Post Hoc Tests
Error: Between Groups = 36.525, Degrees of Freedom = 193.00
Stand366a
12.484		366c
14.135		507
23.413		537
25.043		566
21.028
366A 2.27 × 10−13.00 × 10−6 *4.00 × 10−6 *1.10 × 10−5 *
366C2.27 × 10−1 1.10 × 10−5 *3.00 × 10−6 *9.00 × 10−6 *
5073.00 × 10−6 *1.10 × 10−5 * 2.33 × 10−18.12 × 10−2
5374.00 × 10−6 *3.00 × 10−6 *2.33 × 10−1 4.68 × 10−3 *
5661.10 × 10−5 *9.00 × 10−6 *8.12 × 10−24.68 × 10−3 *
* Significant difference.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Dudáková, Z.; Allman, M.; Merganič, J.; Merganičová, K. Machinery-Induced Damage to Soil and Remaining Forest Stands—Case Study from Slovakia. Forests 2020, 11, 1289. https://doi.org/10.3390/f11121289

AMA Style

Dudáková Z, Allman M, Merganič J, Merganičová K. Machinery-Induced Damage to Soil and Remaining Forest Stands—Case Study from Slovakia. Forests. 2020; 11(12):1289. https://doi.org/10.3390/f11121289

Chicago/Turabian Style

Dudáková (Allmanová), Zuzana, Michal Allman, Ján Merganič, and Katarína Merganičová. 2020. "Machinery-Induced Damage to Soil and Remaining Forest Stands—Case Study from Slovakia" Forests 11, no. 12: 1289. https://doi.org/10.3390/f11121289

APA Style

Dudáková, Z., Allman, M., Merganič, J., & Merganičová, K. (2020). Machinery-Induced Damage to Soil and Remaining Forest Stands—Case Study from Slovakia. Forests, 11(12), 1289. https://doi.org/10.3390/f11121289

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
