Interaction of Biochar Type and Rhizobia Inoculation Increases the Growth and Biological Nitrogen Fixation of Robinia pseudoacacia Seedlings

Abstract

Adding biochar to soil can change soil properties and subsequently affect plant growth, but this effect can vary because of different feedstocks and methods (e.g., pyrolysis or gasification) used to create the biochar. Growth and biological nitrogen fixation (BNF) of leguminous plants can be improved with rhizobia inoculation that fosters nodule development. Thus, this factorial greenhouse study examined the effects of two types of biochar (i.e., pyrolysis and gasification) added at a rate of 5% (v:v) to a peat-based growth substrate and rhizobia inoculation (yes or no) on Robinia pseudoacacia (black locust) seedlings supplied with ¹⁵NH₄¹⁵NO₃. Seedling and nodule growth, nitrogen (N) content, and δ¹⁵N × 1000 were evaluated after 3 months. While addition of biochar without inoculation had no effect on seedling growth, inoculation with rhizobia increased seedling growth, BNF, and N status. Inoculated seedlings had reduced δ¹⁵N, indicating that N provided via fertilization was being diluted by N additions through BNF. Biochar type and inoculation interacted to affect seedling growth. Combining inoculation with either biochar type increased seedling leaf, stem, and total biomass, whereas gasifier biochar and inoculation improved all seedling growth variables and nodule biomass.

1. Introduction

Global forest restoration and afforestation have the potential to be major ways to mitigate climate change effects [1,2]. Establishing more trees on the landscape can restore some degraded forests and thereby maintain or improve forest functions [3], such as carbon sequestration [4], biodiversity [5], social sustainability [6], and resilience to climate change [7,8]. Lack of natural regeneration, however, requires planting seedlings [9], and the need for high quality, nursery-grown seedlings to meet global needs is immense [10,11]. In particular, seedlings must be able to readily grow on harsh sites, especially those that are droughty or degraded, as the need for reforestation or afforestation on these types of sites is becoming more common [12].

Symbiotic root microorganisms such as mycorrhizae and rhizobia can improve tree establishment, especially on droughty sites or where soil has been severely degraded, such as mining sites [13,14,15]. Rhizobia, well-known soil microorganisms that colonize the roots of non-leguminous plants and infect the roots of leguminous plants [16], can increase nodulation and biological nitrogen (N) fixation (BNF), which subsequently can improve plant survival and outplanting performance [16,17,18,19,20,21]. Compared to non-inoculated plants, those inoculated with rhizobia had more growth under field and nursery conditions [16,20,22,23]. Thus, rhizobia inoculation during nursery production has the potential to improve seedling quality and thereby alleviate limiting factors on the outplanting site (identified by implementing the Target Plant Concept; [24]) that threaten reforestation success, especially poor soil N availability. Rhizobia improve the ability of seedlings to adapt to environmental and climatic change. Rhizobia inoculation improved the resistance of plants to environmental stresses in arid areas [25]. Under an elevated CO₂ level, similar to that expected with climate change, symbiotic microbes persisted and increased plant growth and photosynthesis [26], as well as enhanced nodule development, plant nutrition, and N₂ fixation rates [27].

Biochar is a stable, recalcitrant, and carbon-rich product, used as a soil amendment in agriculture and forest systems [28,29,30]. Site preparation and seedling quality may also be improved by incorporating biochar into the reforestation program [31]. In forest systems, converting forest residues to biochar, rather than disposing of them through piling and burning, a practice that can damage soils, can instead maintain soil quality and potential forest productivity [31]. This biochar, added to soil, can increase soil surface area and porosity and decrease bulk density, thus improving hydraulic conductivity and water retention capacity [32], soil fertility [33], nutrient availability [32], and biological properties [34,35,36,37].

Biochar as an amendment to, or as a replacement for, Sphagnum peatmoss or other soilless media components (e.g., vermiculite) has shown positive effects on seedling propagation, either to the seedlings directly or toward a more sustainable use of resources (e.g., reduced irrigation needs) in soilless growing environments [38,39,40,41,42,43].

Biochar is produced by thermal decomposition of biomass through different technologies, such as pyrolysis and gasification, both of which combust biomass in a very low oxygen environment. Pyrolysis occurs at 300 to 700 °C, with biochar, gas and bio-oil as final products, whereas gasification occurs at more than 700 °C, yielding more energy, more ash, and less biochar than pyrolysis [44]. The biochars from these two processes have physical and chemical properties that influence their suitability as a soil amendment in agricultural production [44]. Applying biochar from pyrolysis to soil has been reported to improve crop growth and yield, attributed mostly to improvements in soil nutrient availability and microbial activity [35,36,45]. Hansen et al. [46] reported that adding biochar from gasification increased soil organic carbon, cation exchange capacity, and pH. Gasification biochar has potential to accelerate crop productivity by increasing soil water retention and enhancing root growth [47]. Currently, most research has focused on the effects on soil properties and/or plant growth caused by biochar from either pyrolysis or gasification [36,47], but few studies have compared the two types of biochar [44].

Although many studies have investigated the advantages of biochar application in crop production (e.g., maize (Zea mays L.), groundnut (Arachis hypogaea L.), and soybean (Glycine max (L.) Merr.)), only a few studies have focused on its application to produce tree seedlings for forest restoration (e.g., Japanese zelkova (Zelkova serrata (Thunb.) Makino), ponderosa pine (Pinus ponderosa Lawson and C. Lawson), interior Douglas-fir (Pseudotsuga menziesii (Mirb.) Franco var. glauca (Beissn.) Franco), Masson’s pine (Pinus massoniana (Lamb.)), and Chinese fir (Cunninghamia lanceolata (Lamb.) Hook.)) [43,48,49,50,51]. Following that pattern, only a few studies with agricultural crops have examined the interaction of rhizobia inoculation with biochar amendment. They do, however, report a synergistic effect of rhizobia and biochar addition on growth and physiology of maize, groundnut [16,52] and soybean nodulation. To the best of our knowledge, this is the first effort to look at the interaction of biochar and rhizobia inoculation on a forest tree species.

For this study, we chose the legume black locust (Robinia pseudoacacia L.), a native tree to the eastern United States that is now widely naturalized across the temperate regions of Europe, Asia, Australia, New Zealand, and Africa [53]. It is commonly grown in nurseries that produce seedlings in containers because it is an important species for afforestation on abandoned farmlands, erosion control, and soil stabilization on disturbed sites [54,55]. Our overall objective was to assess the effects of biochar produced by two methods (pyrolysis and gasification) and added to a peat substrate with or without rhizobia inoculation on the subsequent growth and N dynamics of black locust seedlings.

2. Materials and Methods

2.1. Experimental Design and Seed Sowing

To test our hypotheses, we designed a two-factor, completely randomized experiment with 2 biochar types (pyrolysis and gasification) and none as control and 2 rhizobia inoculation levels (yes or no). Black locust seeds (collected in 2012 in Kentucky, USA; Lawyer Nursery Inc., Plains, MT, USA) were submerged in 70 °C water (the heat source was removed immediately) and left for 24 h to cool to ambient temperature (seeds:water = 15 g:500 mL). Black locust seeds were inoculated with appropriate rhizobia (the proprietary inoculant contained 2 strains; Plant Probiotics Company, Indianapolis, IN, USA) (rhizobia:seeds = 1 g:100 g; 3 × 10⁸ colony forming units/100 g of seeds) before sowing [21]. Inoculated black locust seeds were sowed into Ray Leach SC10RA containers (volume 158 cm³; density 528 seedling/m²; diameter 3.8 cm × length 18 cm; Stuewe and Sons, Inc., Tangent, OR, USA). Containers were filled by hand with 3:1 Sphagnum peatmoss:vermiculite (v:v) (Forestry #1, Sun Gro Horticulture Ltd., Agawam, MA, USA) amended with 5% biochar on a volume basis. We choose this rate because the literature shows application rates of 5% to 40% have shown benefits to seedling growth in containers (e.g., [43,56]) but rates above 25% have also been shown to be deleterious (e.g., [50]). Thus, we added biochar at 5% v:v to avoid potential negative effects of elevated levels of biochar while still comparing biochar type. The 2 types of biochar tested in this study were pyrolysis (nutshells, Cool Planet Company, Greenwood Village, CO, USA) and gasification (forest mill residue, Tucker Engineering Associates, Locust, NC, USA). The characteristics of pyrolysis- and gasification-based biochar are shown in

Table 1. The characteristics of biochar.

Biochar Type	pH	Density (g/mL)	Pore Volume (cm3/g)	C (%)	N (%)
Pyrolysis	7.1	0.53	0.09	76.4	0.56
Gasification	10.2	0.17	0.016	91.5	0.89

Note: Pyrolysis biochar characteristics are from Cool Planet Company, Greenwood Village, CO, USA. Gasification biochar characteristics are from Anderson et al. [44].

. Both biochars were passed through a 2 mm mesh for uniformity. The experiment was conducted in a fully-controlled greenhouse at the USDA Forest Service, Rocky Mountain Research Station in Moscow, ID, USA (46.72° N, 117.00° W; 798 m elevation). The greenhouse maintained a temperature of 28 °C day/16 °C night, and 16-h photoperiod with light intensity of 700–2300 Lux.

2.2. Seedling Culture

Eight replications were considered for each treatment (i.e., biochar type and inoculation combination) therefore 48 containers were planted in total. All containers were misted daily until emergence (about 10 days). Subsequently, all containers were irrigated when the amount of water in the substrate, determined gravimetrically, was ≤75% of the total water capacity of the substrate [57]. Water was added to replenish the media to 100% to avoid leaching of nutrients. Fertilization started 14 days after planting (DAP). Once each week, when irrigation was required, we provided each seedling with 2 mg N (20 mg N total during a 10-week growing cycle). This was achieved via application of 15 mL of nutrient solution containing NH₄NO₃, 75% H₃PO₄, KH₂PO₄, CaCl₂, and MgSO₄ at 4.89, 1.95, 2.65, 3.78, and 9.95 × 10⁻³ mol/L. Additionally, micronutrients (sulfur (S), 13%; manganese (Mn), 8%; iron (Fe), 7.5%; copper (Cu), 2.3%; boron (B), 1.35%; molybdenum (Mo), 0.04%; Peters Professional^® S.T.E.M.^TM, the Scotts Company, Marysville, OH, USA) and Sprint 330 (chelated iron (Fe), 10% Fe, Becker Underwood, Inc., Ames, IA, USA) were added at 15 mg/L and 20 mg/L, respectively. If the 15 mL of nutrient solution was insufficient to return the substrate to 100% container capacity, additional plain water was added. We supplied N as NH₄NO₃ amended ¹⁵NH₄¹⁵NO₃ enriched to 98% ¹⁵N (Sigma Aldrich, St. Louis, MO, USA) to measure differential dilution of absorbed ¹⁵N-labeled fertilizer through N-fixation by rhizobia [58]. The ratio of ¹⁵N:¹⁴N was 0.0037:1. Seedlings were re-inoculated to ensure inoculation after 28 DAP by adding 5 mL inoculant solution (rhizobia:water = 0.5 g:1.25 L) to each seedling. We rotated trays every 14 days to minimize edge effects.

After 3 months of growing, we measured the height and the root-collar diameter (RCD) on the 8 seedlings per biochar type × inoculation combination and separated them into leaves, stems, roots, and nodules. To count the nodules, the root systems were gently washed and separated. All samples were dried for 72 h at 65 °C to determine biomass. Within each treatment, we randomly paired 2 seedlings and mixed each of their tissue types to generate 4 replications for ¹⁴N and ¹⁵N analysis. The concentration of ¹⁵N and ¹⁴N in each tissue of seedlings was determined using a continuous flow isotope ratio mass spectrometer (Finnigan Delta PlusXP, Thermo Fisher Scientific, Breman, Germany) at the Washington State University Stable Isotope Core Laboratory (Pullman, WA, USA). N isotope ratio (δ¹⁵N) was expressed as:

$$\mathsf{\delta }{}^{15}\mathrm{N}=\left(\left({}^{15}\mathrm{N} \mathrm{sample}/{}^{14}\mathrm{N} \mathrm{sample}\right)/\left({}^{15}\mathrm{N} \mathrm{air}/{}^{14}\mathrm{N} \mathrm{air}\right)-1\right)\times 1000$$

(1)

2.3. Statistical Analyses

Analysis of variance (two-way ANOVA) was performed to examine the effects of independent variables, (biochar type and inoculation) and their interaction on the dependent variables seedling height (cm), RCD (mm), biomass (g) of leaves, stem, root, nodule, and total plant, nodule number with 8 replications, and N content (mg) and isotopic N (δ¹⁵N × 1000) with 4 replications (SPSS Inc., Chicago, IL, USA). Data were log-transformed to meet the required assumptions for analysis (noted in tables and figures where applicable) when assumptions for equal variances and normality were not met. Significant treatment effects were determined using Duncan’s tests. Results were considered significant at α = 0.05. Visualizations for the robust presentation and comparison of relative values were created using SigmaPlot (version 12.5; Systat Software, San Jose, CA, USA).

3. Results

3.1. Plant Growth

Biochar type and inoculation significantly interacted to affect height, RCD, and leaf, stem, root, nodule, and total biomass of seedlings (

Table 2. p-Values for final black locust seedling morphological characteristics.

Independent Variables	Height (cm)	Root-Collar Diameter (mm)	Biomass (g)
			Leaves	Stem	Root	Nodule	Total
Biochar type (B)	0.001	0.933	<0.0001	0.043	0.001	<0.0001	<0.0001
Inoculation (I)	<0.0001	<0.0001	<0.0001	<0.0001	<0.0001	<0.0001	<0.0001
B × I	0.001	0.038	0.011	0.004	0.004	<0.0001	0.001

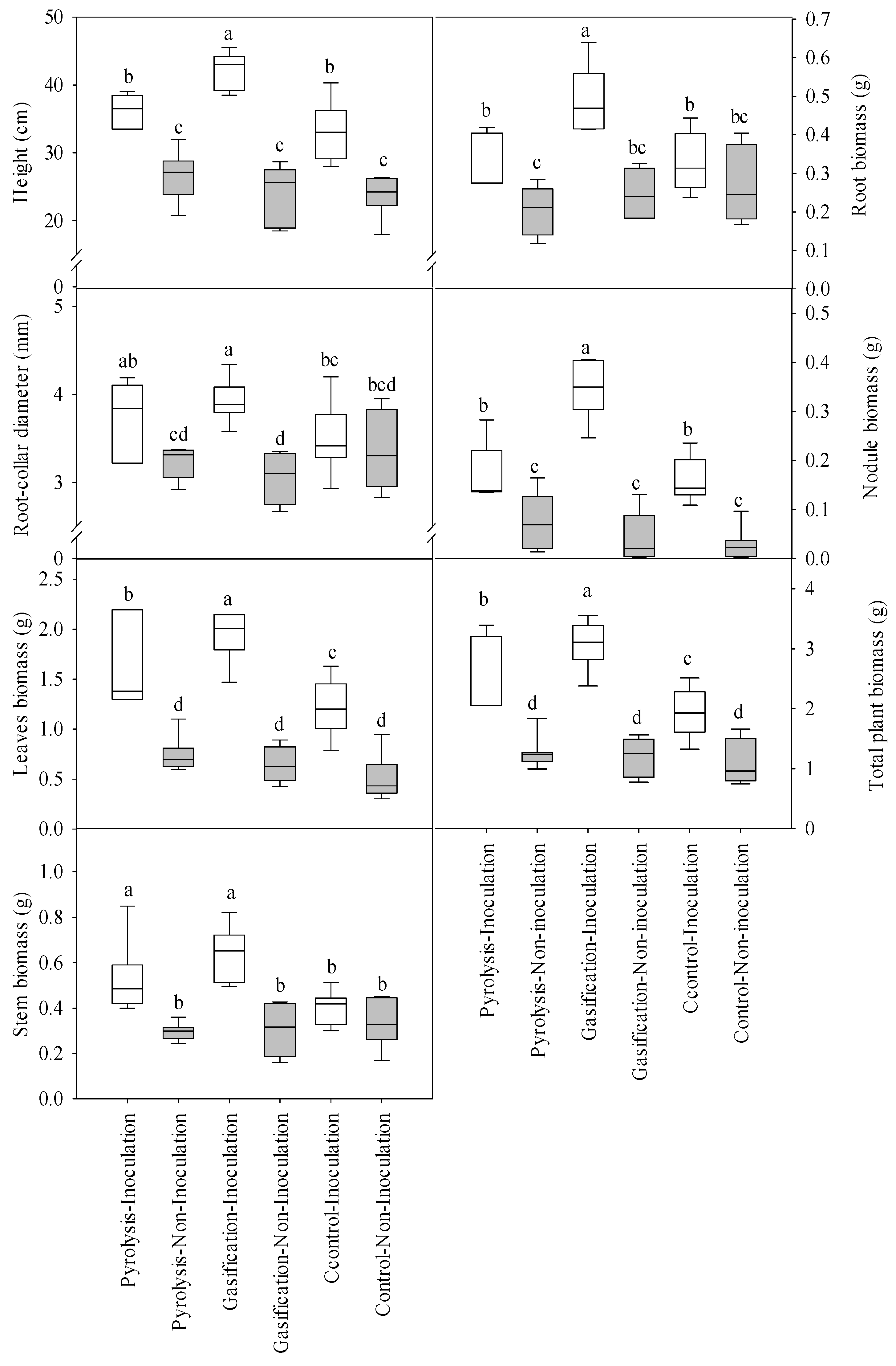

). For all treatments, the combination of biochar from gasification plus inoculation yielded the greatest height (42.2 cm), RCD (3.92 mm), and leaf (1.95 g), stem (0.63 g), root (0.49 g), nodule (0.34 g), and total (3.07 g) plant biomass after 3 months growing in the greenhouse (Figure 1). These seedlings had significantly more height (17–77%) and leaf (18–277%), root (51–142%), nodule (98–1103%), and total plant (22–175%) biomass than the other treatments, as well as significantly more RCD (5–21%), and stem biomass (18–113%) except for inoculated seedlings grown with biochar from pyrolysis (Figure 1). Biochar type had no effect on non-inoculated seedling height, RCD, or the biomass of leaf, stem, and total plant biomass, whereas when combined with inoculation, biochar from gasification yielded seedlings with significantly more height, root, nodule, and total plant biomass than its pyrolysis and control cohorts. Inoculation alone significantly increased all seedling morphological attributes (Table 2) such as height (44%), RCD (19%), and leaf (147%), stem (80%), root (65%), nodule (267%), and total (123%) biomass.

3.2. Nitrogen Absorption

Biochar type and inoculation significantly interacted to affect the N content of leaves and stems (

Table 3. p-Values for final black locust seedling nitrogen content and δ¹⁵N × 1000.

Independent Variables	Nitrogen Content (g/kg)			δ15N × 1000
	Leaves	Stem	Root	Leaves	Stem	Root
Biochar types (B)	0.001	0.003	0.030	0.003	<0.0001	0.004 z
Inoculation (I)	<0.0001	<0.0001	<0.0001	<0.0001	<0.0001	<0.0001
B × I	0.041	0.018	0.058	0.040	0.057	0.064 z

Note: ^z p value represents log-transformed data.

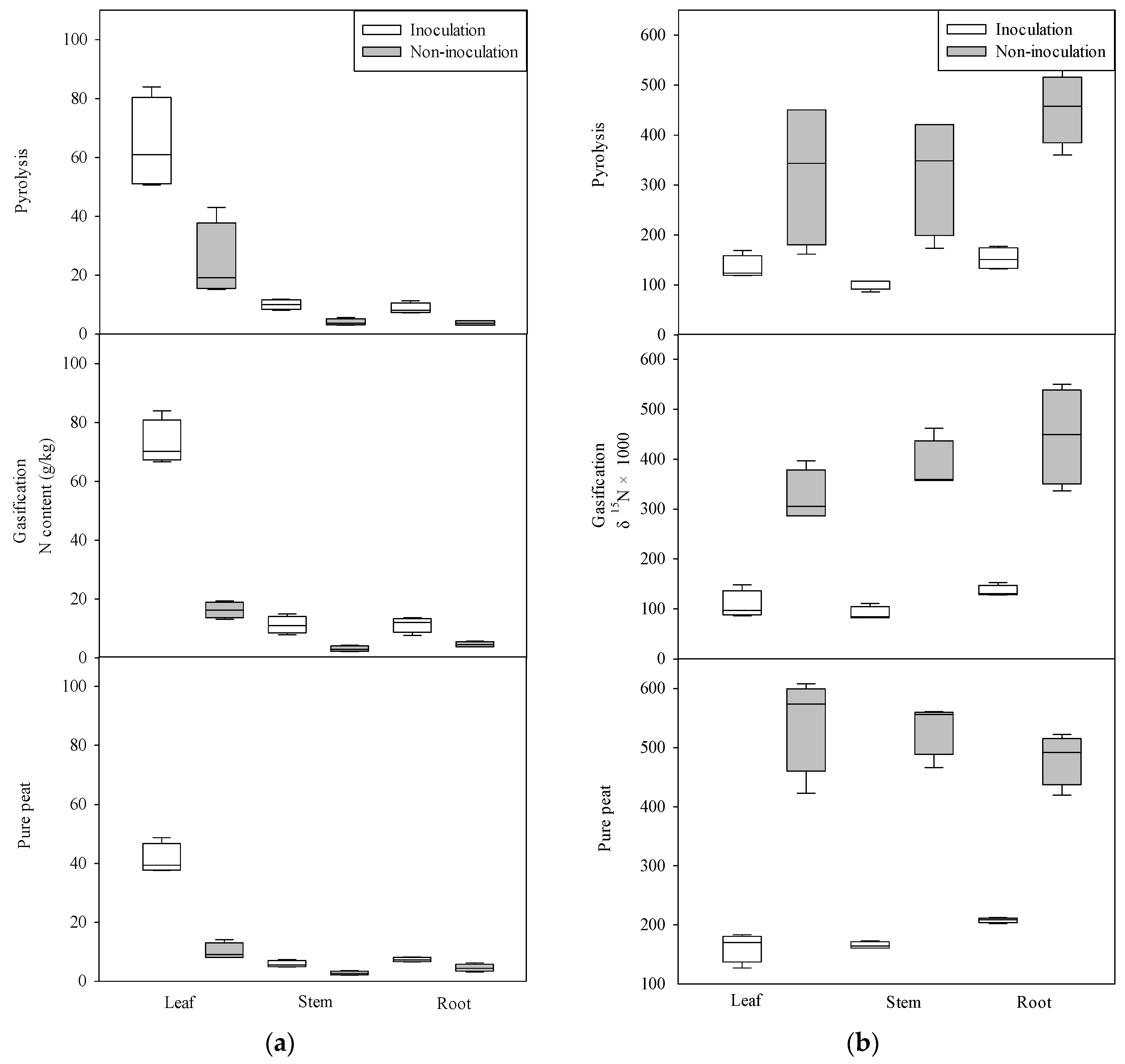

). Combining inoculation with biochar from gasification or biochar from pyrolysis yielded similar results for leaf N content (68.45 g/kg) and stem N content (10.61 g/kg), that were significantly greater (13–712% for leaf and 12–308% for stem N) than in all other treatments (Figure 2a). Compared to non-inoculation treatments, inoculation alone significantly increased leaf (253%), stem (173%), and root (112%) N content whereas biochar without inoculation had no effect on tissue N content. Inoculated seedlings grown with biochar had enhanced tissue N contents when compared with control seedlings.

The value of ¹⁵N in leaves was significantly affected by the interaction of biochar type and inoculation (Table 3). While inoculation always decreased leaf, stem, and root δ¹⁵N compared to non-inoculated seedlings (Figure 2b), leaf δ¹⁵N of seedlings grown with biochar from gasification and inoculated had significantly lower δ¹⁵N than their inoculated cohorts. Not surprisingly, inoculation alone significantly affected δ¹⁵N of seedling leaves, stems, and roots (Table 3). When comparing biochar types without inoculation, seedlings grown with biochar from pyrolysis and gasification had similar leaf and stem δ¹⁵N that was significantly lower than values observed for control seedlings. When inoculated, control seedlings had significantly higher root δ¹⁵N than their biochar-treated cohorts.

4. Discussion

The benefits of combining N fertilization and rhizobia inoculation to black locust seedling growth, in containers in a greenhouse, were recently reported by Zhang et al. [21]. They found N form (i.e., inorganic or organic) applied at a rate of 2 mg N/plant during a 12-week growing cycle was not a significant factor. We also obtained acceptable seedling growth using NH₄NO₃ applied at 2 mg N/plant during our 10-week growing cycle. Thus, we believe that this N supply rate provides an appropriate baseline for evaluating biochar effects on seedling growth and rhizobia abundance and activity.

The influence of biochar on plant growth has been studied in soil and soilless growth media. In soil systems, researchers have reported that biochar addition can increase plant growth [35,36,59]. Improved growth may be a response to enhanced soil nutrient availability [60] and/or increased soil surface area, porosity, cation exchange capacity, and/or microbiota activities [16,61]. Improvement in growth may also be a function of reduced physiological stress caused by pathogens [62].

In soilless growth media, work with woody plants has shown that biochar rate affects plant growth. For ponderosa pine, Matt et al. [43] report neutral effects on seedling growth up to 45% (v:v) pyrolytic biochar in a 3:1:1 ratio of peat, perlite, and vermiculite growing medium, whereas Dumroese et al. [49] report neutral and deleterious effects on growth when pyrolytic biochar was ≤25% and ≥50% (v:v), respectively, in a peatmoss medium. Pelletizing pyrolytic biochar by combining it with wood flour reduced ponderosa pine growth, even at the lowest amount tested in a peatmoss medium (25%; v:v) [49]. Sarauer and Coleman [50] state that biochar applied at 25% or 50% by volume progressively impeded Douglas-fir growth and seedling photosynthetic rate. Biochar can be substituted for growing medium by 20% (v:v) with container Japanese zelkova seedlings [48]. In our study, we noted that 5% (v:v) biochar had no effect on seedling growth.

Promotion of legume plant growth through rhizobia inoculation has been achieved for species such as soybean [59], koa (Acacia koa A. Gray) [20], and groundnut [52], as well as for some non-legumes, such as wheat [63] and maize [16], suggesting that the inoculation response on seedling growth is not plant species dependent. In our study, inoculation resulted in more nodule biomass and more seedling growth than that observed in non-inoculated plants, similar to the results of Zhang et al. [21]. Moreover, inoculation increased plant N content in our seedlings, similar to what has been reported by Jayakumar and Tan [23], Dumroese et al. [20], and Zhang et al. [21]. This enhanced N status supports increased photosynthesis, leading to the additional growth [16,52].

In addition to greater nodule biomass, our inoculated seedlings had reduced δ¹⁵N in all tissues relative to the non-inoculated seedlings, revealing that dilution of fertilizer-supplied isotopic N was occurring because of additions of BNF within the nodules, similar to the results for several species (grain legumes [64]; grain legumes [58]; lentils [65]; and black locust [21]).

In our study, combining the addition of pyrolytic biochar with inoculation sometimes had a synergistic effect on seedling growth compared to those only inoculated, whereas addition of gasifier biochar always had a synergistic effect (Figure 1). An improved growth of seedlings provided by a combination of biochar and inoculation with microorganisms has been noted for maize [16], soybean [66], groundnut [52], and neem (Melia azedarach L. [67]). Inoculation and subsequent BNF within nodules dilute the proportion of N supplied by fertilization (i.e., increases N content within the plants). Interestingly, the root δ¹⁵N of seedlings cultivated with biochar was higher than the δ¹⁵N leaf and stem values (Figure 2), suggesting that N provided by the fertilizer and absorbed from the soil accumulated more in the roots of inoculated seedlings, whereas in non-inoculated seedlings it was more readily transferred to the aerial portions of the seedlings.

The lower bulk density of biochar, along with its ability to increase substrate porosity [68], may improve soil organic matter [68], resulting in increased water retention, more beneficial to plant and microorganism growth [16,47], and provide more host sites for microorganisms [32]. Although we cannot definitively state why gasifier biochar in concert with inoculation yielded the most seedling growth, its initial supply of N (Table 1; [69]) and greater amounts of surface porosity [68] may contribute more desirable refuges for microorganism growth [35] than pyrolytic biochar.

Cultivating container plants for forest restoration activities requires increasing the amounts of soilless media used for production and aggravates environmental concerns about the use of nonrenewable resources [49]. Biochar could be a potential alternative amendment in the growing substrate of container plants because plants with biochar grew similar to (our results), or even better [16,52] than, those without biochar. In addition, inoculation can increase plant growth and the ability of herbal and woody plants to resist stress [13,25]. The synergetic effect of rhizobia and biochar on leguminous plants for restoration improves seedling quality and may help land managers achieve specific target plant criteria necessary to overcome environmental limitations on outplanting sites.

Cumulatively, many researchers have demonstrated that rates of biochar from 5% to 40% can have positive benefits on seedling quality during nursery production, e.g., [32,43,49,56]. Our work presented here also showed that biochar type has a role. Thus, researchers and restoration specialists have a wide palette of potential biochar rates and types that can be combined to meet reforestation challenges identified through the Target Plant Concept. For example, on one hand, a lower rate of biochar along with rhizobia inoculation may be advantageous for leguminous seedlings intended for a low-fertility restoration site because our work shows more BNF with gasifier biochar, and biochar added to soil can improve nutrient availability, e.g., [32,33]. On the other hand, because biochar improves water retention capacity, e.g., [32], a higher rate may be more desired to offset soil water limitations on a droughty site. A high rate may also be desired when carbon sequestration is an objective of site restoration, e.g., [38].

5. Conclusions

In summary, we grew black locust seedlings with two different types of biochar (pyrolysis and gasification) and a no-biochar control, with and without inoculation with symbiotic rhizobia, at a robust rate of N supply. Biochar added at a rate of 5% (v:v) to a peatmoss medium without inoculation had no effect on seedling growth. Inoculation with rhizobia, independent of biochar, increased growth and seedling N status, compared to the non-inoculated plants because of increased BNF associated with enhanced nodule development. Combining gasifier biochar and rhizobia inoculation enhanced the growth and N content of black locust seedlings the most. Our results suggest the potential benefits to seedling quality by matching biochar types to specific restoration species, particularly when the biochar is applied in concert with inoculation of symbiotic microorganisms.
