Digital Examination of Vegetation Changes in River Floodplain Wetlands Based on Remote Sensing Images: A Case Study Based on the Downstream Section of Hailar River

1
School of Information Science & Technology, Beijing Forestry University, Beijing 100083, China
2
Engineering Research Center for Forest-Oriented Intelligent Information Processing, National Forestry and Grassland Administration, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Forests 2021, 12(9), 1206; https://doi.org/10.3390/f12091206
Submission received: 11 August 2021 / Revised: 1 September 2021 / Accepted: 3 September 2021 / Published: 5 September 2021
(This article belongs to the Section Forest Inventory, Modeling and Remote Sensing)

Abstract

:
The Hailar River is an important river in the Inner Mongolia Autonomous Region, China. It plays an extremely important role in maintaining the ecological balance of the region. However, in recent decades, the Hailar River and its surrounding areas have been developed at a high rate and its wetland resources have faced various threats. In this study, vegetation changes in the Hailar River wetlands were analyzed using remote sensing data from the Landsat TM (1987, 2001, and 2010) and Landsat OLI-TIRS (2019) satellites. A vegetation change model was developed using Matlab software to assess vegetation changes in the area. There were significant changes in the wetland vegetation of the lower Hailar River study site between 1987 and 2019. There was an increase in open sand habitat with a sparse vegetation area of 1.08 km2, a decrease in grassland area of 13.17 km2, and an increase in the forest area of 15.91 km2. The spatial distribution of the normalized difference vegetation index (NDVI) varied across the study site and was high overall. The vegetation types varied with distance from the river. There are two possible explanations for positive and negative vegetation change trends. In areas where the water supply is sufficient and relatively stable, the cover of forest vegetation was gradually increasing and the herbaceous plant community is gradually evolving into a scrub woodland plant community. In areas where the water supply is lacking, there are changes in the sense of a decrease of forest vegetation and an increase of open sand habitat with sparse vegetation. Therefore, this study suggests that the existing wetlands should be protected, used wisely, and developed rationally to provide sustainable resources for the next generation.

1. Introduction

River floodplain wetlands are valuable natural resources for human beings. They have the functions of regulating regional ecological conditions and environments and provide irreplaceable direct and indirect services to humans [1,2,3]. In recent years, rivers and river floodplain wetlands around the world have undergone change [4,5,6,7]. These changes greatly affect terrestrial and aquatic environments, such as by altering wildlife ecosystems and threatening regional sustainable development [8,9]. Therefore, the study of vegetation changes in river-floodplain wetlands is key to their conservation and the management and planning of wetland resources.
There are wetlands on both sides of the main section of the Hailar River, which are key to reducing ecological risks and building ecological patterns in the river basin. They are critical ecological corridors linking the elements of the river basin’s ecosystem. These ecological corridors are extremely important areas linking the water-containing ecological functions of the Greater Khingan Range and are also ecological security maintenance areas for biodiversity protection, climate regulation, and food and water supplies [9]. They are of great importance to regional wind control and sand fixation, vegetation restoration, and the construction of ecological communities comprising mountains, water, forests, lakes, and grasslands, which cover the whole watershed and its elements.
In recent years, remote sensing technology has developed rapidly, allowing researchers to gain its advantages of cost- and time-savings for the monitoring of wetland vegetation. This has made it possible to monitor long-term vegetation changes in river-floodplain wetlands [10,11]. The use of remote sensing (RS) and geographic information system (GIS) techniques to study vegetation changes along river floodplain wetlands is an ongoing focus of research on regional and global scales. This includes monitoring of land cover classification, vegetation changes, water use, and species diversity [11].
More than 100 vegetation indices are currently in use, especially the normalized difference vegetation index (NDVI), which is the most commonly applied indicator in environmental and climate change studies [12]. The NDVI is normalized by the relationship between the near-infrared (NIR) reflectance of a given remotely sensed image and the red band (RED) [13]. Many researchers have used NDVI to assess crop cover [13], vegetation [13], and agricultural drought [14]. Vegetation indices are simple measurement parameters used for environmental resource management and provide information that is useful for assessing the Earth’s plant cover and crop growth at the pixel level based on satellite images [15]. These methods provide different ideas for the study of wetland vegetation around rivers. However, few studies have been conducted on river-floodplain wetlands in the lower section of the Hailar River [16,17]. This study focuses on vegetation changes at the pixel level in river-floodplain wetlands in this region.
This study takes the downstream section of the Hailar River in the Inner Mongolia Autonomous Region, China, as the research object. Remote sensing images are used to explore vegetation changes in the river floodplain wetlands on both sides of the river. This study hopes to achieve the following main objectives: (1) To quantitatively assess vegetation changes and the spatial distribution of river-floodplain wetlands in the lower section of the Hailar River over the past 30 years; (2) to explore vegetation changes in the river floodplain wetlands, and; (3) to identify areas with significant vegetation changes in order to inform decision-makers and, thus, improve sustainable wetland planning policies.

2. Materials and Methods

2.1. Study Site

The Hailar River is located in Hulunbeier City, Inner Mongolia Autonomous Region, China (Figure 1). It originates at the western foot of the Greater Khingan Range in the territory of Urqihan Town, Yakeshi City, and is the upstream section of the Erguna River. It flows in an east-west direction (Figure 1) at a location of approximately 49.12° N and 119.39° E. The wetlands and swamps of the river are widespread, so that water can readily diffuse and seep during high water levels, resulting in a lower runoff volume downstream than upstream. The tributaries on the west bank are densely packed and the river network is dendritic in structure. The banks of the main streams and tributaries are covered with pristine forests and secondary forests with well-developed vegetation and strong water-supporting effects and form the main flow-producing area of the Hailar River.
The vegetation cover on both sides of the main stream of the Hailar River is relatively high and plant growth is vigorous. The vegetation type is mainly scrub, mixed scrub, and natural pasture, with relatively few trees. The scrub vegetation is mainly marsh willow (Salix rosmarinifolia L. var brachypoda (Traktv. Et Mey) Y. L. Chou), yellow willow (Salix gordejevii Y. L. Chang et Skv.), and brome (Caragana sinica (Buc’hoz) Rehder). The forests include coniferous forests (Larix gmelinii (Rupr.) Kuzen, Pinus sylvestris var. mongolica Litv.) and mixed coniferous and broad-leaf forests (Larix gmelinii (Rupr.) Kuzen, Betula platyphylla Suk., Picea asperata Mast.).

2.1.1. Data Sources

Current remote sensing satellite data provide diverse data options for the extraction of forest vegetation information. Considering the large area of the study site, Landsat 5 TM/8 OLI-TIRS 1T level images for this study were acquired from NASA (Table 1). The images cover the whole study site with the rank number 123,026 and were acquired in the summer growing period (July–August) of 1987–2019. Only images with <2% cloud were used. In this study, image data were acquired on 24 July 1987, 15 August 2001, 23 July 2010, and 16 July 2019, based on the key phenological periods of forest and grassland vegetation. Landsat provides medium- and high-resolution earth observations, which greatly reduces the data cost of large-scale remote sensing monitoring of forests and improves its timeliness. Data on the dominant tree species were obtained from the Hailar Regional Forestry Bureau.

2.1.2. Primary Data Processing

Radiance was calculated using the Radiometric Calibration tool (Radiometric Calibration) in ENVI 5.3, using an MTL.txt metadata file as input data. The output data was set to BIL format by line band. The output data type was set to floating-point data, the scale factor was automatically set to 0.1 and, to obtain the atmospherically corrected reflectance product, the radiation file was entered into the One-Angle Atmospheric Analysis of Hyperline-of-Sight (FLAASH) atmospheric calibration module. The Atmospheric Correction Module (ACM) of FLAASH in ENVI 5.3 was used, which automatically enters the appropriate correction parameters from the radiometric images. Other parameters (e.g., date, time-of-flight, and ground elevation) must be entered manually. We set the atmospheric model to Temperate and the Aerosol model to Rural, while the Aerosol retrieval was automatically set to 2-band K-T (Kaufman-Tanley method). The input parameters varied from scene to scene. The values of all reflectance products ranged between 0 and 1, and all of the obtained reflectance products were geometrically refined. The selected 10 alignment points were evenly distributed within the image experiment area and the errors were all less than 1. The normalized vegetation index was then calculated by the waveform calculation tool.

2.2. Methods

2.2.1. NDVI Vegetation Index

The NDVI was selected from the vegetation extraction model of remote sensing images. The NDVI is sensitive to the chlorophyll content of leaves and can be obtained using Equation (1) [18].
NDVI = (NIR − RED)/(NIR + RED)
NIR is the reflection value of the near-infrared band, RED is the reflection value of the red light band. Many researchers have used the NDVI for vegetation change monitoring (e.g., [19,20]). Through their studies, it was found that changes in NDVI can reflect vegetation changes.
The NDVI values were transformed into the range of (−1 to +1) so that the best classification features could be obtained by the best differentiation threshold. Table 2 and Table 3 show the most common NDVI differentiation thresholds and corresponding categories according to the Remote Sensing Phenology Foundation [21] and [22]. According to the findings of [11,23,24], when extracting vegetation changes for a wetland study site, a uniform NDVI extraction threshold should be used. It has been shown that different NDVI vegetation extraction thresholds can be used for all classification extracted images.

2.2.2. Vegetation Classification

In this study, the NDVI was used to show the distribution status of wetland vegetation. The NDVI values were extracted from four time series of Landsat images and classified using an iso-clustering unsupervised classification technique. The results were then used to compare the changes in wetland categories across the four time points of remote sensing images. The NDVI was reclassified into five categories: dense forest, sparse forest, grassland, open sand habitat with sparse vegetation, and no vegetation.
Vector data from a survey of the dominant tree species in forest land in 2016 were obtained from the Hailar District Forestry Bureau and combined with NDVI data extracted from the 2016 Landsat summer vegetation growth bloom period. By calculating the NDVI of the dominant tree species in the area of interest, NDVI classes were calculated as dominant tree species NDVI = 0.4–1, grassland= 0.2–0.4, and open sand habitat with sparse vegetation = 0.1–0.2, as shown in Figure 2. Combined with the NDVI classification thresholds provided by [22], this study classified NDVI into three categories as shown in Table 4: open sand habitat with sparse vegetation, grassland, and forest. The dominant tree species within sparse and dense forests in the study site had similar compositions and were dominated by Populus L., Salix Rosmarinifolia L. var brachypoda (Traktv. Et Mey) Y. L. Chou, Salix gordejevii Y. L. Chang et Skv. Therefore, in this study, sparse forests with NDVI values of 0.4–0.6 and dense forests with NDVI values of 0.6–1 were combined into one category; i.e., forests. The dominant vegetation types within different NDVI classification thresholds are shown in Table 4. This classification allows the assessment of changes that have occurred in wetland vegetation over the past three decades.
Iso-clustering unsupervised classification is a multivariate spatial analysis tool used to classify raster bands. The minimum number of classes is two and there is no maximum number of clusters, but the minimum class size should be 10 times larger than the number of layers in the input raster band [25]. The generated classes were grouped and manually recoded using the Reclassification Spatial Analyzer tool in ArcMap software.

2.2.3. Change Detection

Digital change detection is a method of assessing differences in vegetation in different time periods. It has the ability to quantify temporal effects using multispectral image data. There are several methods for accomplishing digital change detection by comparing two or more images of a study site from different periods. Examples are inter-pixel comparison and classification comparison [26]. In this study, three change scenes based on 2019 data in relation to 1987, 2001, and 2010 data were compared using a classification method (the time of data acquisition for this study started in 1987, and the summer 2001 image was chosen as representative because there were no suitable classification images from the summer of 2000). In this study, a spatial model was developed based on Matlab for the analysis and comparison of NDVI change. The modeling process is shown in the flowchart in Figure 3.
Landsat images cannot distinguish between different types of grassland and forest vegetation. In the four time points analyzed in this study (1987, 2001, 2010, 2019), the rainfall in the lower Hailar region was not sufficient to flood the swampy wetlands. Therefore, swampy wetlands are counted among the grassland vegetation types in this study. Meanwhile, the different types of forest vegetation were classified. There are expanding sandy areas on both sides of the Hailar River [27], namely, the Hailar Sands. Through field research of the sandy places surrounding the study site, the open sand habitat with sparse vegetation in this study was considered to include sandy areas without any vegetation or with sparse vegetation.

3. Results

3.1. Accuracy Verification

Table 5 shows the overall classification accuracy assessment and kappa statistics for the NDVI results for 1987, 2001, 2010, and 2019.
Vegetation cover change detection based on the NDVI vegetation index is applicable to most wetlands with >40% vegetation cover [28]. Comparison of past and present Landsat images helps to understand the latest status of wetlands, which can provide a basis for environmental decision-making and management.

3.2. Vegetation Change and Spatial Distribution

This study mapped the vegetation cover status of wetlands in the lower Hailar River section in 1987, 2001, 2010, and 2019 to analyze the patterns of change that have occurred over the past three decades. Figure 4 shows the NDVI classification maps for the summer vegetation growth spurt at four time points in 1987, 2001, 2010, and 2019. Table 6 shows the areas of bare soil, grassland, and forest in the study site (in km2 and as percentages of the total area, based on NDVI).
The detailed vegetation status of the wetlands in the upper section of the Hailar River is shown below. The total area of all categories shows fluctuating changes in the wetland area during the study period. Over the past 30 years, vegetation cover (grassland, woodland) accounted for about 311.13 km2 or 97.91% of the total land cover of the entire study site.
Open sand habitat with sparse vegetation: During the study period, open sand habitat with sparse vegetation in the study site decreased, then increased, and then decreased again. In 1987, the area of open sand habitat with sparse vegetation was 4.96 km2 (1.57%); by 2019, its coverage increased to 6.04 km2 (1.91%), an increase of 1.08 km2 at an average rate of 0.033 km2 (0.34%) per year. At the four time points, the largest area of open sand habitat with sparse vegetation occurred in the summer of 2010 and was 11.32 km2.
Grassland: During the study period, this category showed a more significant change than the other two. Grassland change can be divided into two intervals: an increase followed by a decrease. Between 1987 and 2010, the total area of the grassland category increased from 55.79 km2 (17.66%) in 1987 to 82.65 km2 (26.26%) in 2010, a total increase of 27.19 km2 over this time period at an average rate of 1.24 km2 per year. Between 2010 and 2019, the grassland area decreased from 82.98 km2 to 42.62 km2, a total decrease of 40.36 km2 at an average rate of 4.04 km2 per year. The total decrease in grassland area during 1987–2019 was 13.17 km2.
Forest: During the study period, this category showed a clearly opposite trend to that of grassland. Forest change can likewise be divided into two intervals of change: a decrease followed by an increase. Between 1987 and 2010, the total area of forest decreased from 255.21 km2 (80.77%) in 1987 to 221.65 km2 (70.15%) in 2010, a total decrease of 33.56 km2 at an average rate of 1.53 km2 per year. Between 2010 and 2019, the forest area increased from 221.65 km2 to 271.12 km2, a total increase of 49.47 km2 at an average rate of 4.95 km2 per year. There was an overall increase in the area of forest of 15.91 km2 from 1987–2019.

3.3. Vegetation Change Inspection

Vegetation changes in the different NDVI categories were determined relative to the state in summer 2019; hence, for the periods 1987–2019, 2001–2019, and 2010–2019.
As shown in Figure 5 and Table 7, from 1987–2019, the total open sand habitat with sparse vegetation area converted to vegetation (forest and grassland) was 39.3 km2. At the same time, the area converted from vegetation to open sand habitat with sparse vegetation was 39.76 km2; so, in this time period, the area of open sand habitat with sparse vegetation increased by 0.46 km2. From 2001–2019, the total open sand habitat with sparse vegetation area converted to vegetation (forest and grassland) was 27.07 km2. Meanwhile, the area of vegetation converted to an open sand habitat with sparse vegetation was 37.15 km2. So, in this time period, the area of open sand habitat with sparse vegetation increased by 10.08 km2. From 2010–2019, the total area of open sand habitat with sparse vegetation converted to vegetation (forest and grassland) was 86.56 km2; meanwhile, the area of vegetation converted to open sand habitat with sparse vegetation was 24.94 km2. Within this time period, the area of bare soil decreased by 61.65 km2 and, in the three time periods, a large area of grassland was converted to forest and a small area of forest was converted to grassland.

4. Discussion

4.1. Vegetation Change Digital Model Evaluation

Remote sensing technology provides an accurate, rapid, and cost-effective method for wetland change detection [11]. Various digital methods can be used to detect changes by comparing two or more images of a study site from different periods, such as pixel-to-pixel comparison before and after vegetation change [26]. The classification change detection method is one of the most appropriate and commonly used change detection techniques. This technique can easily provide a change matrix from which transfers between one vegetation type and another can be visualized. This method identifies areas of change as pixel-by-pixel differences between categories after obtaining a classification image [29]. This can clearly show areas of change as well as transformation categories. The model proposed in this study estimates the process of vegetation change by studying different periods.
In this long-term study, based on Landsat data of the summer growth season in 2019, we detected change at three time points in 1987, 2001, and 2010. We generated a digital spatial model of vegetation change through Matlab programming and used it to detect changes in an NDVI map. The model proposed in this study has certain advantages in quantifying vegetation change in the floodplain wetlands. This evaluation method based on remote sensing imagery and Matlab modeling has good operability and detection accuracy. It is not only suitable for research on vegetation diversity in submerged areas but also provides a valuable reference for river management decision-makers pursuing wetland protection and other aspects.

4.2. Reasons for the Differences in the Spatial Distribution of Vegetation

The degree of connection between the main channel of a river and a riverine wetland will affect riverine wetland vegetation [30]. It was found that, in the natural state, the composition and structure of plant communities, and their changes, are closely related to flooding occurrence [31].
The overall high NDVI values observed near riverbanks indicate that most of the vegetation near these locations benefits from water recharge from the Hailar River. The fertile silt left after periodic flooding also improves the nutrient content of the soil on both banks, and water vapor improves the surrounding microclimate, thus forming a high-biomass plant belt along the riverbanks. Even plants of sandy open sand habitat with sparse vegetation (Caragana microphylla Lam, Cleistogenes squarrosa (Trin.) Keng, etc.) form high biomass and high canopy closure plant communities near riverbanks, which greatly weaken the mobility of sand dunes. In the horizontal direction, the vegetation type varied with distance from the riverbank. In Figure 6, the riverbank vegetation types, in the direction from the river to the habitats more distant from the river, are forest (Populus L., Salix Rosmarinifolia L. var brachypoda (Traktv. Et Mey) Y. L. Chou, Salix gordejevii Y. L. Chang et Skv., Caragana sinica (Buc’hoz) Rehder, Pinus sylvestris var. mongolica Litv., mixed forests, etc.), grassland mixed with forest, and grassland. As shown in Table 4, the NDVI thresholds for grassland are lower than those of forest, so the NDVI tends to decrease with distance from the riverbanks. Due to the special environment of riverine wetland systems, wetland vegetation development is associated with the river. The results show that the direct impact of the river on the vegetation on both sides of the river decreases with distance. If river runoff decreases and flood cycles become longer, it will adversely affect the wetland forest and riverine meadow ecosystems that depend on periodic flooding, leading to degradation of wetland forest areas, reductions in near-riparian wetland grassland areas, and degradation of wetland grassland systems [32,33].

4.3. Vegetation Change Process and Its Influences

Figure 7 shows the changes in NDVI categories occurring in the three time periods 1987–2019, 2001–2019, and 2010–2019. Figure 7A shows that of the first three transformation categories, the changes occurring between 2010–2019 are obvious, while the conversion of forest to open sand habitat with sparse vegetation and grassland changed significantly between 1987–2019. Figure 7B shows that within the three time periods, among the six transformation categories, the conversion of grassland to forest changed most significantly, followed by conversion of forest to grassland, indicating that more pronounced vegetation changes occurred within the three time periods.
Vegetation change in floodplain wetlands is affected by many man-made and natural factors, such as water supply, rainfall, and runoff [34,35,36]. The environment in the study site of the lower Hailar River is complex and diverse with a variety of ecosystems, such as swampy wetlands, river meadows, scrub, and forest. This area is a transition area between the river system and the surrounding environment and is an important ecological transition zone in this watershed, which is the most active part of the ecosystem in terms of energy and material transfer, and transformation [37,38] and is very sensitive to external changes. These ecosystems are more dependent on runoff recharge from the Hailar River and periodic flood recharge, and their vegetation trends have both positive and negative possibilities. In areas with sufficient and stable water recharge, the vegetation gradually develops for the better, herbaceous plant communities gradually evolve into scrub woodland plant communities, bare soil areas remain stable, and biodiversity continues to grow. For areas lacking in water recharge, the speed of land desertification may exceed the speed of vegetation recovery, due to the influence of the adjacent.
Hulunbuir Sandy Land, thus forming a vicious cycle and leading to reverse ecosystem changes, such as vegetation changes to open sand habitat with sparse vegetation.
Human activities also affect vegetation changes. In this study, statistics of the Hailar Region for 1987, 1995, and 2019 were collected from Statistical Yearbooks. Table 8 shows that when regional GDP increases at a relatively fast rate (more than 10 times that of the previous period), the population growth rate slows down, the growth rate of industrial production slows down, the growth rate of food production declines, and the growth rate of arable land increases by 266.99%. The increase in population and economic output leads to an increase in the scale of industrial and domestic water consumption in the river basin, resulting in an increase in the intensity of water resources development. These human development activities interact with the surrounding ecosystems and have become the main driving force in land expansion, agricultural intensification, and water resource exploitation in the Hailar area, and have profound impacts on the vegetation of floodplain wetlands.
In recent years, Chinese national and local governments have issued a series of wetland vegetation protection projects. For example, in 2003, the Chinese government approved the 2002–2030 National Wetland Protection Plan, which aims to restore natural wetlands and establish nature reserves [39]. In 2011, Russia and China adopted the Russia-China Amur River Basin Transboundary Protection Zone Development Strategy to 2020, which announced that the protection of wetlands would be a top priority [40]. Through a series of human interventions, wetlands have been restored and their vegetation protected. Therefore, in order to protect and restore wetland ecosystems, it is still necessary to sustainably manage natural wetlands [39].
This research suggests that in the process of rapid urbanization, industrialization, and agricultural modernization, human beings should take greater responsibility for protecting well-developed wetlands and prevent their degradation. This requires, for example, better management of farmland irrigation, wetland development, and water resources.

5. Conclusions

Remote sensing technology provides an accurate, fast, and economical method of vegetation change detection. It solves the difficulty and time-consuming implementation of traditional techniques. In this study, vegetation classification maps were produced by an unsupervised classification tool and comparative calculations of change in coverage of vegetation classes were conducted. A vegetation change detection model based on Matlab was used to analyze the changes between different categories. The main conclusions are:
(1)
The wetlands in the lower Hailar River study site underwent significant changes in vegetation between 1987 and 2019. Open sand habitat with sparse vegetation areas increased by 1.08 km2; grassland areas decreased by 13.17 km2 and forest areas increased by 15.91 km2.
(2)
The spatial distribution of NDVI values differed across the study site. The NDVI was high overall and the vegetation types varied with distance from the riverbank. NDVI tended to decrease with distance from the riverbanks and the main vegetation types were, from near to far, forest (Populus L., Salix Rosmarinifolia L. var brachypoda (Traktv. Et Mey) Y. L. Chou, Salix gordejevii Y. L. Chang et Skv., Caragana sinica (Buc’hoz) Rehder, Pinus sylvestris var. mongolica Litv., mixed forests, etc.), grassland mixed with forest, and grassland.
(3)
The ecological environment of the lower Hailar River study site is complex and diverse. It contains a variety of ecosystems such as swampy wetland, river meadow, scrub, and woodland. All of these ecosystems are dependent on runoff recharge from the Hailar River and periodic flood recharge. There are two possibilities for positive and negative vegetation change trends. In areas where the water supply is sufficient and relatively stable, the cover of forest vegetation was gradually increasing and the herbaceous plant community gradually evolves to scrub woodland. In areas where the water supply is lacking, there are changes in sense of decrease of forest vegetation and increase of open sand habitat with sparse vegetation.
(4)
This study suggests that in the process of rapid urbanization, industrialization, and agricultural modernization, humans should take greater responsibility for protecting well-developed wetlands and, at the same time, better manage farmland irrigation, wetland development, and water resources.

Author Contributions

Conceptualization, X.D. and Z.C.; methodology, X.D.; software, X.D.; validation, X.D. and Z.C.; formal analysis, X.D..; investigation, X.D.; resources, X.D.; data curation, X.D.; writing—original draft preparation, X.D.; writing—review and editing, X.D.; visualization, X.D..; supervision, Z.C.; project administration, Z.C.; funding acquisition, Z.C. Both authors have read and agreed to the published version of the manuscript.

Funding

This research received the Fundamental Research Funds for the Central Universities (Grant No. 2018BLRD18).

Data Availability Statement

Data is not available.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Beeton, A.M. Large freshwater lakes: Present state, trends, and future. Environ. Conserv. 2002, 29, 21–38. [Google Scholar] [CrossRef]
  2. Hampton, S.E.; Izmest’Eva, L.R.; Moore, M.V.; Katz, S.L.; Silow, E.A. Sixty years of environmental change in the world’s largest freshwater lake—Lake Baikal, Siberia. Glob. Chang. Biol. 2009, 14, 1947–1958. [Google Scholar] [CrossRef] [Green Version]
  3. Williamson, C.E.; Saros, J.E.; Vincent, W.F.; Smol, J.P. Lakes and reservoirs as sentinels, integrators, and regulators of climate change. Limnol. Oceanogr. 2010, 54, 2273–2282. [Google Scholar] [CrossRef]
  4. Lennox, B.; Spooner, I.; Jull, T.; Patterson, W.P. Post-glacial climate change and its effect on a shallow dimictic lake in Nova Scotia, Canada. J. Paleolimnol. 2010, 43, 15–27. [Google Scholar] [CrossRef]
  5. Gao, H.; Bohn, T.J.; Podest, E.; Lettenmaier, D.P. On the cause of the shrinking of Lake Chad. Environ. Res. Lett. 2011, 6, 034021. [Google Scholar] [CrossRef] [Green Version]
  6. Ariztegui, D.; Anselmetti, F.S.; Robbiani, J.M.; Bernasconi, S.M.; Brati, E.; Gilli, A.; Lehmann, M.F. Natural and human-induced environmental change in southern Albania for the last 300 years—Constraints from the Lake Butrint sedimentary record. Glob. Planet. Chang. 2010, 71, 183–192. [Google Scholar] [CrossRef] [Green Version]
  7. Du, Y.; Xue, H.; Wu, S.; Ling, F.; Xiao, F.; Wei, X. Lake area changes in the middle Yangtze region of China over the 20th century. J. Environ. Manag. 2011, 92, 1248–1255. [Google Scholar] [CrossRef]
  8. Hamilton, S.K.; Sippel, S.J.; Melack, J.M. Seasonal inundation patterns in two large savanna floodplains of South America: The Llanos de Moxos (Bolivia) and the Llanos del Orinoco (Venezuela and Colombia). Hydrol. Process. 2004, 18, 2103–2116. [Google Scholar] [CrossRef]
  9. Decharme, B.; Douville, H.; Prigent, C.; Papaa, F. A new river flooding scheme for global climate applications: Off-line evaluation over South America. J. Geophys. Res. Atmos. 2008, 113, D11. [Google Scholar] [CrossRef]
  10. Ozesmi, S.L.; Bauer, M.E. Satellite remote sensing of wetlands. Wetl. Ecol. Manag. 2002, 10, 381–402. [Google Scholar] [CrossRef]
  11. Eid, A.; Olatubara, C.O.; Ewemoje, T.A.; Farouk, H.; El-Hennawy, M.T. Coastal wetland vegetation features and digital Change Detection Mapping based on remotely sensed imagery: El-Burullus Lake, Egypt. Int. Soil Water Conserv. Res. 2020, 8, 66–79. [Google Scholar]
  12. Silva, T.S.F.; Costa, M.P.F.; Melack, J.M.; Novo, E.M.L.M. Assessment. Remote sensing of aquatic vegetation: Theory and applications. Environ. Monit. Assess. 2008, 140, 131–145. [Google Scholar] [CrossRef] [PubMed]
  13. Ahmed, N. Application of NDVI in Vegetation Monitoring Using GIS and Remote Sensing in Northern Ethiopian Highlands. Abyssinia J. Sci. Technol. 2016, 1, 12–17. [Google Scholar]
  14. Peters, A.J.; Walter-Shea, E.A.; Ji, L.; Via, A.; Svoboda, M.D. Drought monitoring with NDVI-based Standardized Vegetation Index. Photogramm. Eng. Remote. Sens. 2002, 68, 71–75. [Google Scholar]
  15. Bhandari, K.; Kumar, A.; Singh, K. Feature Extraction using Normalized Difference Vegetation Index (NDVI): A Case Study of Jabalpur City. Procedia Technol. 2012, 6, 612–621. [Google Scholar] [CrossRef] [Green Version]
  16. Chi, D.; Wang, H.; Li, X.; Liu, H.; Li, X. Estimation of the ecological water requirement for natural vegetation in the Ergune River basin in Northeastern China from 2001 to 2014. Ecol. Indic. 2017, 92, 141–150. [Google Scholar] [CrossRef]
  17. Xie, S.; Wang, X.; Yang, T.; Huang, B.; Ouyang, Z. Effect of highways on breeding birds: Example of Hulunbeier, China. Glob. Ecol. Conserv. 2021, 27, e01554. [Google Scholar] [CrossRef]
  18. Shao, Y.; Lunetta, R.S.; Wheeler, B.; Iiames, J.S.; Campbell, J.B. An evaluation of time-series smoothing algorithms for land-cover classifications using MODIS-NDVI multi-temporal data. Remote. Sens. Environ. 2016, 174, 258–265. [Google Scholar] [CrossRef]
  19. Das, K. NDVI and NDWI based Change Detection Analysis of Bordoibam Beelmukh Wetlandscape, Assam using IRS LISS III data. ADBU J. Eng. Technol. 2017, 6, 2. [Google Scholar]
  20. Liu, H.; Zheng, L.; Yin, S.J. Multi-perspective analysis of vegetation cover changes and driving factors of long time series based on climate and terrain data in Hanjiang River Basin, China. Arab. J. Geosci. 2018, 11, 509. [Google Scholar] [CrossRef] [Green Version]
  21. Taufik, A.; Ahmad, S. Land cover classification of Landsat 8 satellite data based on Fuzzy Logic approach. IOP Conf. 2016, 37, 012062. [Google Scholar] [CrossRef] [Green Version]
  22. Gandhi, G.M.; Parthiban, S.; Thummalu, N.; Christy, A. Ndvi: Vegetation Change Detection Using Remote Sensing and Gis—A Case Study of Vellore District. Procedia Comput. Sci. 2015, 57, 1199–1210. [Google Scholar] [CrossRef] [Green Version]
  23. Dehm, D.; Becker, R.; Godre, A. SUAS Based Multispectral Imagery for Monitoring Wetland Inundation and Vegetation. Preprints 2019, e201911032. Available online: https://www.preprints.org/manuscript/201911.0326/v1 (accessed on 11 May 2021).
  24. Li, N.; Li, L.; Lu, D.; Zhang, Y.; Wu, M. Detection of coastal wetland change in China: A case study in Hangzhou Bay. Wetl. Ecol. Manag. 2018, 27, 103–124. [Google Scholar] [CrossRef]
  25. Dhodhi, M.K.; Saghri, J.A.; Ahmad, I.; Ul-Mustafa, R. D-ISODATA: A Distributed Algorithm for Unsupervised Classification of Remotely Sensed Data on Network of Workstations. J. Parallel Distrib. Comput. 1999, 59, 280–301. [Google Scholar] [CrossRef]
  26. Othman, A.A.; Al-Saady, Y.I.; Al-Khafaji, A.K.; Gloaguen, R. Environmental change detection in the central part of Iraq using remote sensing data and GIS. Arab. J. Geosci. 2014, 7, 1017–1028. [Google Scholar] [CrossRef]
  27. Zeng, L.; Yi, S.; Lu, H.; Chen, Y.; Lei, F.; Xu, Z.; Wang, X.; Zhang, W. Response of dune mobility and pedogenesis to fluctuations in monsoon precipitation and human activity in the Hulunbuir dune field, northeastern China, since the last deglaciation. Glob. Planet. Chang. 2018, 168, 1–14. [Google Scholar] [CrossRef]
  28. Huete, A.R. A soil-adjusted vegetation index (SAVI). Remote. Sens. Environ. 1988, 25, 295–309. [Google Scholar] [CrossRef]
  29. Cheruiyot, M.; Gathuru, G.; Koske, J.; Soy, R. Land Cover Changes in the Malewa River Basin, Kenya. Environ. Sci. Eng. 2019, 8, 90–106. [Google Scholar] [CrossRef]
  30. Franklin, S.B.; Kupfer, J.A.; Pezeshki, R.; Gentry, R.; Smith, R.D. Efficacy of the hydrogeomorphic model (HGM): A case study from western Tennessee. Ecol. Indic. 2009, 9, 267–283. [Google Scholar] [CrossRef]
  31. Richards, D.R.; Moggridge, H.L.; Warren, P.H.; Maltby, L. Impacts of hydrological restoration on lowland river floodplain plant communities. Wetl. Ecol. Manag. 2020, 28, 419. [Google Scholar] [CrossRef]
  32. Karimi, S.S.; Saintilan, N.; Wen, L.; Valavi, R. Application of Machine Learning to Model Wetland Inundation Patterns Across a Large Semiarid Floodplain. Water Resour. Res. 2019, 55, 8765–8778. [Google Scholar] [CrossRef]
  33. Wen, L.; Macdonald, R.; Morrison, T.; Hameed, T.; Saintilan, N.; Ling, J. From hydrodynamic to hydrological modelling: Investigating long-term hydrological regimes of key wetlands in the Macquarie Marshes, a semi-arid lowland floodplain in Australia. J. Hydrol. 2013, 500, 45–61. [Google Scholar] [CrossRef]
  34. Cai, Y.; Liang, J.; Zhang, P.; Wang, Q.; Sun, J. Review on strategies of close-to-natural wetland restoration and a brief case plan for a typical wetland in northern China. Chemosphere 2021, 285, 131534. [Google Scholar] [CrossRef] [PubMed]
  35. Addy, S.; Wilkinson, M.E. Embankment lowering and natural self-recovery improves river-floodplain hydro-geomorphic connectivity of a gravel bed river. Sci. Total. Environ. 2021, 770, 144626. [Google Scholar] [CrossRef]
  36. Karim, F.; Dutta, D.; Marvanek, S.; Petheram, C.; Ticehurst, C.; Lerat, J.; Kim, S.; Yang, A. Assessing the impacts of climate change and dams on floodplain inundation and wetland connectivity in the wet–dry tropics of northern Australia. J. Hydrol. 2015, 522, 80–94. [Google Scholar] [CrossRef]
  37. Dépret, T.; Gautier, E.; Hooke, J.; Grancher, D.; Virmoux, C.; Brunstein, D. Hydrological controls on the morphogenesis of low-energy meanders (Cher River, France). J. Hydrol. 2015, 531, 877–891. [Google Scholar] [CrossRef]
  38. Mukherjee, K.; Pal, S. Hydrological and landscape dynamics of floodplain wetlands of the Diara region, Eastern India. Ecol. Indic. 2020, 121, 106961. [Google Scholar] [CrossRef]
  39. Mao, D.; Luo, L.; Wang, Z.; Wilson, M.C.; Zeng, Y.; Wu, B.; Wu, J. Conversions between natural wetlands and farmland in China: A multiscale geospatial analysis. Sci. Total. Environ. 2018, 634, 550–560. [Google Scholar] [CrossRef]
  40. Egidarev, E.; Simonov, E.; Darman, Y. Amur-Heilong River Basin: Overview of Wetland Resources. In The Wetland Book; Springer: Berlin/Heidelberg, Germany, 2018. [Google Scholar]
Figure 1. Location of the study site.
Figure 1. Location of the study site.
Forests 12 01206 g001
Figure 2. The vector diagram of dominant tree species in 2016 and the NDVI of the corresponding year ((A) Survey data of typical tree species in 2016 provided by the forestry department; (B) NDVI distribution of typical tree species in 2016 calculated based on the survey data provided by the forestry department).
Figure 2. The vector diagram of dominant tree species in 2016 and the NDVI of the corresponding year ((A) Survey data of typical tree species in 2016 provided by the forestry department; (B) NDVI distribution of typical tree species in 2016 calculated based on the survey data provided by the forestry department).
Forests 12 01206 g002
Figure 3. Flow chart.
Figure 3. Flow chart.
Forests 12 01206 g003
Figure 4. NDVI maps of the Hailar River from (A) 1987, (B) 2001, (C) 2010, and (D) 2019.
Figure 4. NDVI maps of the Hailar River from (A) 1987, (B) 2001, (C) 2010, and (D) 2019.
Forests 12 01206 g004
Figure 5. NDVI category changes occurring in the three time periods of (A) 1987–2019, (B) 2001–2019, and (C) 2010–2019.
Figure 5. NDVI category changes occurring in the three time periods of (A) 1987–2019, (B) 2001–2019, and (C) 2010–2019.
Forests 12 01206 g005
Figure 6. The description of vegetation types in the study area.(I: Is an enlarged view of a typical area in the picture II; II: It is a typical area with well-developed river floodplain wetland vegetation in the study area).
Figure 6. The description of vegetation types in the study area.(I: Is an enlarged view of a typical area in the picture II; II: It is a typical area with well-developed river floodplain wetland vegetation in the study area).
Forests 12 01206 g006

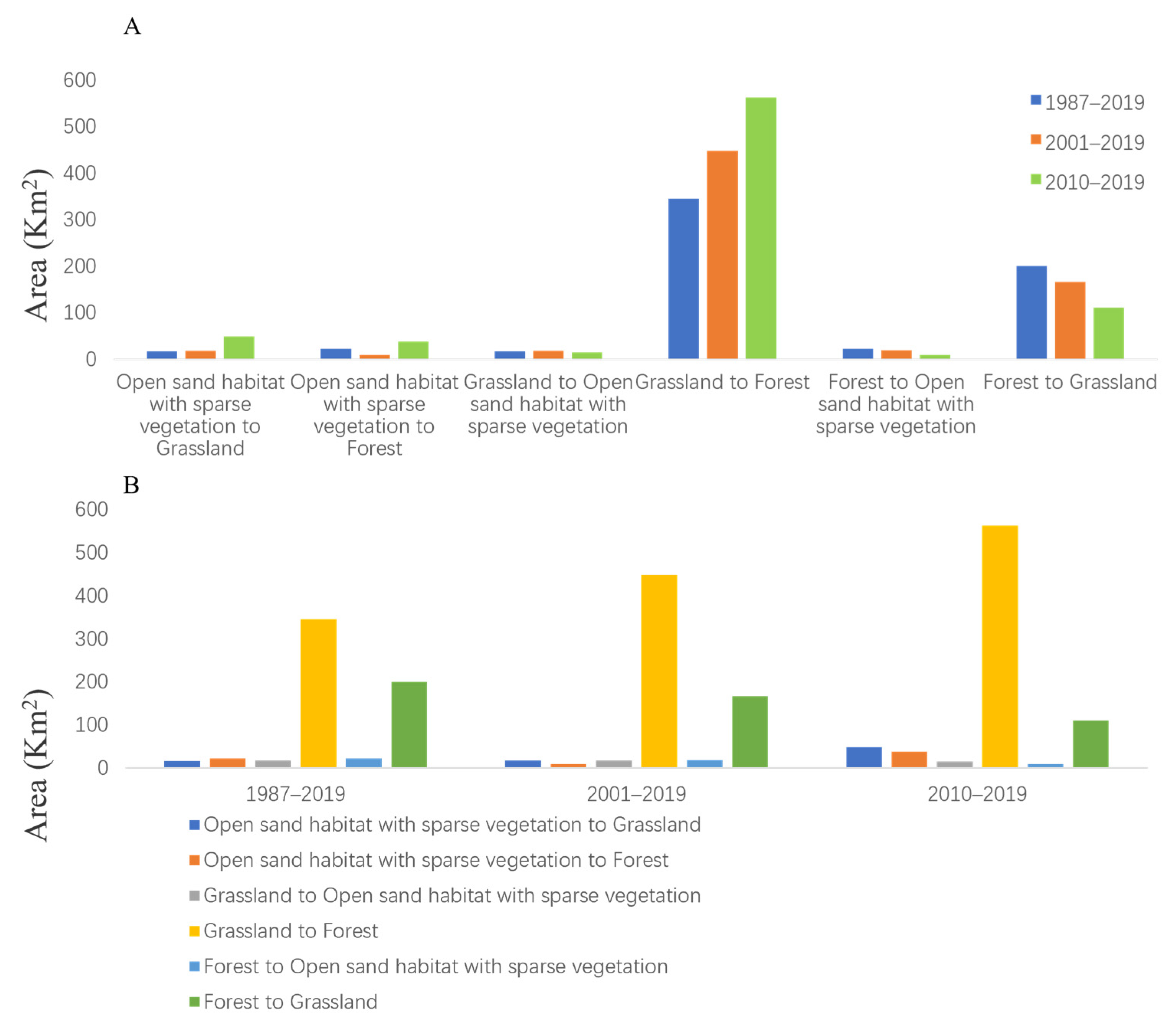

Figure 7. Comparison of vegetation changes within different periods ((A) the changes of the three categories in three different time periods; (B) the changes of the 6 conversion categories in the same time.).

Figure 7. Comparison of vegetation changes within different periods ((A) the changes of the three categories in three different time periods; (B) the changes of the 6 conversion categories in the same time.).
Forests 12 01206 g007
Table 1. Landsat5 TM/8 OLI data situation.
Table 1. Landsat5 TM/8 OLI data situation.
SatelliteBandNominal Spectral LocationSatelliteBandNominal Spectral Location
Landsat5 TM1BlueLandsat8 OLI1Costal/Aerosol
2Green2Blue
3Red3Green
4Near IR4Red
5SWIR-15Near IR
6LWIR6SWIR-1
7SWIR7SWIR-2
8Panchromatic
9Costal/Aerosol
Table 2. Base classification of normalized difference vegetation index (NDVI) values according to remotely sensed phenology [22].
Table 2. Base classification of normalized difference vegetation index (NDVI) values according to remotely sensed phenology [22].
NDVI RangeClass
≤0.1Low NDVI
0.2–0.5Mid NDVI
0.6–0.9High NDVI
Table 3. NDVI values according to [22].
Table 3. NDVI values according to [22].
NDVI RangeClass
0–0.1Barren areas of rocks, sand or snow
0.2–0.3Shrubs and grasslands
0.6–0.8Temperate woodland and tropical rainforest
Close to 0Open sand habitat with sparse vegetation
Negative valueWater
Table 4. NDVI classification.
Table 4. NDVI classification.
NDVIClassVegetation Description
0.6–1Dense woodlandPopulus L., Salix Rosmarinifolia L. var brachypoda (Traktv. Et Mey) Y. L. Chou, Salix gordejevii Y. L. Chang et Skv., Caragana sinica (Buc’hoz) Rehder, Pinus sylvestris var. mongolica Litv., mixed forests, etc.
0.4–0.6Sparse woodlandPopulus L., Salix Rosmarinifolia L. var brachypoda (Traktv. Et Mey) Y. L. Chou, Salix gordejevii Y. L. Chang et Skv.
0.2–0.4GrasslandFilifolium sibiricum (L.) Kitam., Stipa baicalensis Roshev., Leymus chinensis (Trin.) Tzvel., Potentilla chinensis Ser., etc.
0.1–0.2Open sand habitat with sparse vegetationSoil covered with sparse weeds
−1–0.1No vegetationWater
Table 5. Accuracy assessment and kappa statistics of multi-temporal data from NDVI classification images.
Table 5. Accuracy assessment and kappa statistics of multi-temporal data from NDVI classification images.
TimeNDVI
Classification AccuracyKappa Statistic
198792.10%0.884
200191.50%0.875
201093.50%0.812
201991.00%0.911
Table 6. Areas of the study site (km2 and percentages) based on NDVI classes.
Table 6. Areas of the study site (km2 and percentages) based on NDVI classes.
CodeClass1987200120102019
Km2%km2%km2%km2%
1Open sand habitat with sparse vegetation4.961.574.221.3411.323.586.041.91
2Grassland55.7917.6670.8522.4282.9826.2642.6213.49
3Forest255.2180.77244.3077.32221.6570.15271.1285.81
Total 315.95100319.37100315.96100319.78100
Table 7. Changes in the area occurring in the three time periods.
Table 7. Changes in the area occurring in the three time periods.
CodeChange Type1987–20192001–20192010–2019
Area (km2)(%)Area (km2)(%)Area (km2)(%)
12Open sand habitat with sparse vegetation to Grassland16.82.6917.992.6548.926.22
13Open sand habitat with sparse vegetation to Forest22.53.69.081.3437.644.79
21Grassland to Open sand habitat with sparse vegetation17.432.7918.272.6915.281.94
23Grassland to Forest345.4955.28448.8366.05563.6371.68
31Forest to Open sand habitat with sparse vegetation22.333.5718.882.789.631.22
32Forest to Grassland200.4632.07166.5224.5111.1614.14
Total 625.01100679.57100786.25100
Table 8. Social and economic indicators reflecting human activity in the Hailar River area in 1987, 1995, and 2019.
Table 8. Social and economic indicators reflecting human activity in the Hailar River area in 1987, 1995, and 2019.
Indicator1987199520191987–1995 Rate of Change (%)1996–2019 Rate of Change (%)
Gross regional product (10,000s of yuan)289,664994,28611,930,295243.251099.89
Population (10,000s)12.522.2128.7477.6829.40
Total industrial output (10,000s of yuan)24,65280,986109,068.1228.5234.68
Output of main foodstuffs (tons)872044,77887,456413.5195.31
Cultivated land area (km2)188242.13888.628.79266.99
