Next Article in Journal
Chloroplast Genomic Variation in Euonymus maackii Rupr. and Its Differentiation Time in Euonymus
Previous Article in Journal
Contribution of Community-Managed Sal-Based Forest in Climate Change Adaptation and Mitigation: A Case from Nepal
Previous Article in Special Issue
Determination of the Chemical Composition of Eucalyptus spp. for Cellulosic Pulp Production


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Forests
Volume 13
Issue 2
10.3390/f13020263
forests-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles thumb_up
...
Endorse textsms
...
Comment
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Evaluation of Pulp and Papermaking Properties of Melia azedarach

by
Megersa Bedo Megra
1,
Rakesh Kumar Bachheti
1,2,*,
Mesfin Getachew Tadesse
1 and
Limenew Abate Worku
1
1
Department of Industrial Chemistry, College of Applied Sciences, Addis Ababa Science and Technology University, Addis Ababa P.O. Box 16417, Ethiopia
2
Centre of Excellence in Biotechnology and Bioprocessing, Addis Ababa Science and Technology University, Addis Ababa P.O. Box 16417, Ethiopia
*
Author to whom correspondence should be addressed.
Forests 2022, 13(2), 263; https://doi.org/10.3390/f13020263
Submission received: 25 October 2021 / Revised: 2 December 2021 / Accepted: 31 December 2021 / Published: 8 February 2022
(This article belongs to the Special Issue Forests Sustainable Application: Production of Pulp and Paper)
Browse Figures
Review Reports Versions Notes

Abstract

:
As the world’s population rises, there is a greater need for additional pulpwood for paper production worldwide. Therefore, this research aimed to evaluate the pulp and papermaking characteristics of Melia azedarach. Proximate chemical analysis, fiber morphology, pulping, bleaching, and physical tests were carried out to check the suitability of raw material. The proximate chemical analysis results showed that M. azedarach has a holocellulose content of 72.95% and a lignin content of 22.14%. Fiber morphology assessment revealed that the fibers were 0.571 mm long, 13.45 μm wide, and had a 2.52 μm cell wall thickness. Kraft pulping of M. azedarach was performed at different active alkali contents (5%, 10%, 15%, 20%, and 25%) and temperatures (150 °C, 160 °C, 170 °C, 180 °C, and 190 °C), keeping the sulfidity constant at 25%. The maximum pulp yield was 41.81% at an active alkali content of 15%, a temperature of 170 °C, and a cooking time of 90 min. The effect of pulping on the fiber morphology was studied using scanning electron microscopy, which showed that the fiber’s surface before pulping was tight and arranged in an orderly way, with a relatively complex texture. After pulping, lignin, hemicellulose, and cellulose were removed, and the fiber became softer and more loosened, containing micropores. The pulp produced was bleached, and sheet preparation and testing were performed. The prepared paper sheets had a tensile index of 23.3 Nm/g, a burst index of 1.4 kPa m2/g, and a tear index of 4.0 mN m2/g. This study concluded that M. azedarach could be a raw material for the pulp and papermaking industries. The results indicated that M. azedarach is also a potential alternative resource for pulp and paper production in Ethiopia.

Graphical Abstract

1. Introduction

Pulp and paper production is the oldest practice for producing valuable products. Paper is a cultural good and occupies an essential place in the daily life of people, in many forms from packing material to high-quality paper. Paper products are primarily used for office paper, cardboard, packaging material, newspaper, etc. Pulp and paper are produced in almost all countries; however, a few countries such as the United States, China, Japan, and Canada are large producers and make up more than half of the world’s paper production [1,2]. The demand for paper products is increasing year by year around the world, and the number of paper industries is also increasing. These industries need raw materials to generate and meet global paper demand. Wood, non-wood material (grasses and agricultural residue), and recycled papers are some of the raw materials for paper products [3,4].
Fibrous raw materials used for the production of pulp and paper are of two types: primary and secondary fibers. Primary fibers come from natural plant material, primarily wood or non-wood plants, whereas recycled paper is the source of secondary fibers. Wood accounts for approximately 90% of the conventional raw material used in pulp and paper production in countries like the United States of America and Canada. The pulp and paper industry, in general, obtains cellulose from hardwood or softwood materials rather than non-wood materials [5].
M. azedarach is a very adaptable deciduous tree that tolerates a wide range of climates and soils. In arid regions such as Saudi Arabia, and in semiarid areas, afforestation occurs in warm temperatures with low relative humidity and high transpiration. It adapts well to hot climates, poor soils, and dry seasonal conditions [6]. It is an evergreen tree that grows naturally in China, India, and Iran; however, it has also spread into other countries within Africa, northern Australia, North America, southern Europe, tropical South America, and parts of Ethiopia. Previous studies on this plant showed that it has been used for medicinal purposes such as antioxidative, analgesic, anti-inflammatory, insecticidal, rodenticidal, anti-diarrheal, deobstruent, diuretic, antidiabetic, cathartic, emetic, antirheumatic, and anti-hypertensive purposes, but that its papermaking properties have not been evaluated [7,8,9].
In Ethiopia, the demand for paper and paper products is increasing constantly. There is high consumption of, and need for, paper and pulp products in the country. The demand for pulp and paper products such as writing and printing paper, packing paper, paper for sanitary uses, etc., has grown fast with continuous development [10]. From 2009 to 2016, Ethiopia’s imported paper and pulp increased from nearly 82,000 to 154,000 tons and from 4000 to 8000 tons, respectively [11]. These data indicate that the country did not satisfy the customers’ needs. For this reason, researchers and scientists are searching for new raw materials for the pulp and paper industry. Many studies have been carried out on the isolation of phytochemicals from plants and their pharmaceutical properties. However, there is no study on the proximate chemical analysis, optimization of kraft pulping, bleaching, and physical testing of sheets prepared from M. azedarach.

2. Materials and Methods

2.1. Chemicals and Instrument

The chemicals used in this study were analytical grade: NaOH (99%, lab chemical), NaOCl (5%, Fine Chemical plc., Addis Ababa, Ethiopia), H2O2 (30%, Dallul Pharmaceutical plc), CH3COCH3 (99%, analytical reagent, Sigma-Aldrich), Na2S (60%, Sigma-Aldrich), CH3COOH (96.5%, Sigma-Aldrich), H2SO4 (98%, India), safranin (C20H19ClN4) (95.5%), KI (99%, Sigma-Aldrich, Addis Ababa, Ethiopia), CH3CH2OH (97%, Ethiopia), C6H6 (99%, Sigma-Aldrich, Addis Ababa, Ethiopia), NaClO2 (80%), KMnO4 (99.4%, India), KI and Na2S2O2. Some of the common types of apparatus and instruments used in these experiments were: sieves with different mesh sizes (60 μm, 125 μm, 150 μm), crucible, filtering crucible, autoclave (maximum temperature 450 °C, locally made) oven, desiccators, beaker and Erlenmeyer flask, thermometer, crushing machine, reflux condenser, disintegrator, tensile measuring machine, tear machine, sheet molding machine, sheet press machine, freeness tester, beating machine, and burst measuring machine, furnace (XMT-F9), analytical balance (AUW320), heating mantle, microtome (Leica RM2255), water bath, scanning electron microscope(Inspect F50, F.E.I.), and Motic microscope (BA210) for fiber morphology analysis.

2.2. Sample Collection, Preparation, and Chemical Composition Determination

M. azedarach plant samples were collected from East Showa, Meki, Ethiopia. The part of the plant used in this research was the plant stem. The samples were cleaned and cut into chips of length 2.0–2.5 cm. The chips were reduced to a coarse powder following TAPPI T-257 cm-85 [12] to determine the chemical composition. The M. azedarach wood stalk was chipped and ground in a Wiley mill. The sample powder was screened to give a particle size range from 40 to 100 mesh. The samples were analyzed in the proximate chemical analysis according to the Technical Association of the Pulp and Paper Industry (TAPPI) standard methods: moisture percentage (TAPPI 264 cm-07) [13], ash content (TAPPIT-211 om-93) [14], holocellulose (Wise method) [15], Klason lignin (TAPPIT-222 om-98) [16], cold water solubility (TAPPIT-207 cm-99) [17], hot water solubility (TAPPIT-207 cm-99) [17], 1% NaOH solubility (TAPPI 212 om-02) [18] and alcohol- benzene solubility (TAPPIT-204 cm-07) [19].

2.3. Pulping Process

The cooking was carried out in a digester with various active alkali charges of pulping liquor of 5%, 10%, 15%, 20%, and 25%, with sulfidity at 25%, at temperatures of 150 °C, 160 °C, 170 °C, 180 °C, and 190 °C. The selected operating conditions were used to determine the optimum condition for producing high pulp yield. The digester was filled with 200 g of oven-dried chips, and the wood ratio between chips and liquid was 1:5. The chips and white liquor were added to the digester [10]. The dry pulp produced from the optimized pulping conditions (cooking temperature 170 °C, cooking time 90 min, and 15% active alkali) were used for sheet preparation. A total of 400 g of air-dried pulp of M. azedarach was mixed with 23 L of tap water, and the consistency of the pulp slurry was checked by dividing the weight of the dry pulp by the total weight of the slurry and multiplying by 100. Following this, the pulp sheet was prepared. The prepared paper sheets were tested using basic physical tests such as tensile, tear, and burst index tests. To increase the physical strength of a sheet made from M. azedarach, 1% to 4% waste cotton was added, and the sheets were prepared. The physical properties such as tensile index, tear index, and burst index were measured based on (TAPPI, T-403cm-97, TAPPI T-227 om-99, and TAPPI T-414om-98) [20,21,22].

2.4. Bleaching Process

The optimized dried pulp of M. azedarach was submitted to an oxidative delignification process using sodium hypochlorite and hydrogen peroxide as bleaching chemicals. This bleaching process had two stages, using sodium hypochlorite and hydrogen peroxide solution. The extraction stage used NaOH with the subsequent addition of H2O2 solution as a reinforcing agent [23]. Initially, the pulp slurry with 10% NaClO was bleached at a temperature of 40 °C for 120 min. At the second stage of bleaching, the pulp slurry with 8% consistency was adjusted using 0.07 N NaOH aqueous solution mixed with the corresponding amount of 5% H2O2 and stirred at 70 °C for 50 min. The pH of the bleaching solution was 11, but at the end of the reaction this was reduced to approximately 10.

2.5. Hand Sheet-Making Procedure

The dried M. azedarach pulp from the experiment with the best yield was used for the sheet preparation procedure, where 400 g of air-dried pulp was mixed with 23 L of water to make a pulp slurry with a consistency of 1.9%. The pulp slurry was added to a beating machine and beaten by circulation. The freeness of the slurry was checked every ten minutes of the beating time. This was done by taking 128 mL of slurry from the beater (containing 2 g of moisture-free fiber) and then diluting it to 1000 mL with distilled water and measuring the freeness value. When the freeness of the pulp was 30 CSF, 800 mL of sample was taken from the beater, diluted with 2 L of water (0.62% consistency) and disintegrated at 1500 rpm for five minutes. The beaten and disintegrated pulp suspension was taken from the disintegrator, diluted with 4 L of water, and agitated well by hand. A total of 404 mL from the diluted suspension was taken, and 60 g/m2 sheets were prepared using a sheet forming machine. Once the sheets were prepared, two-stage pressing was followed by the application of 0.62 MPa pressure for four minutes in the pressing machine. Then, the stocks were removed from the press and attached to the drying plates to be driedin the oven at 130 °C for 45 min. The prepared paper sheets were tested using basic physical tests such as tear index, tensile index, and burst index (TAPPI T-403cm-97, 2002) [21].

2.6. Raw Wood Microscopy

For cell measurement, slices with a thickness of 20 µm were cut using a Leica sliding microtome. Then, the slices were immersed in safranin solution (1 g/100 mL of water) and then 30%, 50%, 75%, and 97% alcohol concentrations, respectively, for one minute, to remove excess safranin solution that may cause cells to be invisible. Furthermore, slices were immersed in xylene for 1 min and placed on the slide (standard 7.5 cm × 2.5 cm), and a small amount of M. azedarach was dropped on, covered using a slide cover and allowed to dry at room temperature. Finally, an image was taken with a camera attached to the Motic BA210 microscope, and 31 cell dimensions (lumen diameters and cell wall thicknesses) were measured using the Motic software [24].
For the fiber length and width investigation, a sample of matchstick size was taken, and 50% nitric acid was used for the maceration processes. Matchstick-size samples were placed in test tubes, immersed completely in nitric acid solution, and kept in a water bath at 70 °C for 5 h to obtain separation of white-colored fibers. After cooling, the nitric acid was drained off, and the macerated fibers were washed with distilled water and filtered using Whatman Grade 1 filter paper to separate the fibers. Images were acquired using a camera attached to the Motic BA210 microscope. Then, the dimensions of 30 fibers (fiber length and fiber width) were measured using the Motic software [25].

3. Results and Discussion

3.1. Proximate Chemical Analysis of M. azedarach

Proximate chemical analysis of the wood sample is important to determine the plant characteristics in order to evaluate the pulp and papermaking properties. The results shown in Table 1 indicates that the pulp from M. azedarach is suitable for papermaking because the experimental values are comparable with those of common wood pulps used to make paper, such as Eucalyptus globulus [26].
In Table 1, the holocellulose content of M. azedarach was 72.95%, which was greater than that of Pinus densiflora at 51.62%, Phragmites australis at 62.56%, and Amaranthus hybridus stalks at 62.41%. However, this value is similar to those of Eucalyptus globulus and Hibiscus cannabinus. Therefore, this plant is desirable for the pulp and paper industry and has a high pulp yield [31].
The ash content of M. azedarach presented in Table 1 is 3.67%. The value indicates that the plant contains some inorganic compounds and elements such as calcium, magnesium, potassium, carbonates, silicates, calcium, manganese, silicon, and sodium, which can be found mainly in the wood. The value of the ash content is within the range of softwood and hardwood (0.5–10%) [31,32].
The ash value of M. azedarach is higher than that of Eucalyptus globulus (0.66%) and Hibiscus cannabinus (1.56%). It is lower than that of Datura stramonium (9.57%), Amaranthus hybridus (11.03%), and Phragmites australis (7.51%) but comparable with that of Pinus densiflora (4.45%). High ash contents are undesirable for pulping because of normal alkali consumption; they result in problems during recovery of the cooking liquor and operational issues in material handling, pulp washing, and pulp beating. Ash, as trace elements, interferes with H2O2 and O2 delignification, and alkali earth metals pass onward as a pulp component [33,34]. The lignin content of M. azedarach is 22.14%, which is higher than the lignin contents of Datura stramonium (15.79%), Phragmites australis (18.25%), Hibiscus cannabinus (18.50%), and Amaranthus hybridus (17.55%) but lower than those of Pinus densiflora (43.24%) and Eucalyptus globulus (29.9%). Therefore, the lignin content was also at satisfactory levels (<30%) for M. azedarach stalks [31]. Cold-water-soluble substances remove non-structural substances such as inorganic compounds, tannins, gums, and sugars present in wood pulp. Hot water also removes starch from biomass, but cold water does not. A hot alkaline solution was used to extract low-molecular-weight carbohydrates, mainly hemicellulose. The pulp solubility indicates how well cellulose is broken down during pulping and bleaching and is related to the strength and other properties of the pulp. The experimental values presented in Table 1 for the cold-water, hot-water, and hot-alkaline solubilities of M. azedarach are 6.34%, 12.46%, and 23.48%, respectively. The cold-water solubility of M. azedarach is higher than that of Pinus densiflora (2.98%), Eucalyptus globulus (2.38%), Hibiscus cannabinus (4.56%), and Datura stramonium (5.4%) [26]. The hot-water solubility of M. azedarach was higher than those of Pinus densiflora (7.53%), Hibiscus cannabinus (6.42%), and Eucalyptus globulus (4.31%). However, it was lower than those of Phragmites australis (18.05%), Amaranthus hybridus (20.25%), and Datura stramonium (18.29%). The hot-alkaline solubility of M. azedarach (23.48%) was higher than Eucalyptus (16.8%). This may be due to the easily degradable cell walls in alkaline solution and the presence of low-molar-mass carbohydrates and other alkali-soluble materials. The plant is susceptible to decay [23]. However, the value is lower than those of Pinus densiflora (47.42%), and Amaranthus hybrid (40.40%). Generally, the biomass plants listed in Table 1 are satisfactory for producing pulp and paper, including M. azedarach, although the pulp yield varies with different pulping methods [33,35]. The ethanol-benzene extraction of wood measures the content of substances such as waxes, fats, resins, plant sterols, non-volatile hydrocarbons, low-molecular-weight heparin, salts, and other water-soluble substances. The value of the ethanol-benzene extract of M. azedarach presented in Table 1 is 5.25%, which is higher than that of Eucalyptus globulus (3.0%) but lower than that of Datura stramonium (11.66%). The experimental result was similar to those of Pinus densiflora (5.81%) and Hibiscus cannabinus (4.28%) [33].

3.2. Fiber Morphology

The properties of natural fibers such as fiber dimensions (length, diameter, and thickness of the cell wall) influence the quality and end use of pulp and paper products. Softwoods are the preferred raw materials for strong paper, mainly due to the length and fineness of their fibers. However, hardwoods are the preferred raw materials for pulp used in printing paper [36]. The fiber diameter is the thickness of an individual fiber [35]. The lumen width is the inside space of a tubular structure, and it affects the beating of the pulp. A larger lumen width results in better pulp beating because of the penetration of liquid into the empty spaces of the fibers [36,37,38]. The fiber morphology (dimensions) of M. azedarach and other papermaking biomass materials are listed in Table 2.
The morphological results for M. azedarach shown in Table 2 are a fiber length of 0.571 mm, a fiber width of 13.45 μm, a lumen diameter of 13.03 μm, and a wall thickness of 2.52 μm. Basic strengths were measured based on the image in Figure 1. The fiber length of M. azedarach was 0.571 mm, which is categorized as a short wood fiber. This value is comparable with that of Prunus armeniaca (0.717 mm) and lower than Delonix regiahas (1.34 μm), Aningera robusta (1.76 μm), Senna siamea (1.29 μm), and Ficus exasperata (1.86–1.20 μm), while the fiber width (13.75 μm) and wall thickness (3.85 μm) are similar to those of Prunus armeniaca (13.75 μm and 3.85 μm, respectively) and lower than those of Ficus exasperate, Aningeria robusta, and Delonix regiahas (Table 2). The values of other fiber morphological properties such as felting power/slenderness ratio, Runkel ratio, elasticity coefficient (flexibility ratio), and wall rigidity also affect paper products.
The Runkel ratio of M. azedarach (0.39) is almost comparable with that of Delonix regiahas (0.55); however, it is less than those of Spondias mombin (0.66), Ficus exasperate (1.09–0.75), Aningeria robusta (0.79), Senna siamea (0.70), and Prunus armeniaca (1.0). The Runkel ratio is commonly used to assess a fibrous material’s suitability for pulp and paper manufacture. A wood species with a Runkel ratio greater than one will have rigid, less flexible fibers with poor bonding capacity. Fibers with a low ratio (<1) make high-quality pulp and paper [44].
The wall rigidity of M. azedarach (18.73%) is similar to other biomass materials such as the minimum value of Ficus exasperate (19.52%) and the minimum value of Spondias mombin (19.78%), but the mean wall rigidity value of M. azedarach is greater than that of Delonix regiahas (16.95%). The mean value of the slenderness ratio (42.47) of the studied plant is greater than that of Delonix regiahas (36.03) but less than those of Aningeria robusta (57.43), Senna siamea (65.82), and the maximum value of Ficus exasperate (94.71), while it is comparable with those of Prunus armeniaca, Spondias mombin, and Ficus exasperate (Table 2). The mean value of the elasticity coefficient (flexibility ratio) of M. azedarach is greater than those of all the biomass materials listed in Table 2; this indicates that M. azedarach is more flexible than these plants [45].
Figure 1A,B indicates the results for fiber length and width of M. azedarach fibers using a Motic microscope with 40 × 10 magnified images. The results indicate that the average fiber length was 0.571 mm and the average fiber width was 13.45 μm. This showed that the plant could be categorized as a short-fiber wood. The fiber was extracted in a water bath at 70 °C for 5 h to obtain separated white-colored fibers [25]. Figure 1C,D shows that that the lumen width was on average 13.03 μm and the cell wall thickness was 2.52 μm, with images magnified by 10 × 10. A 50% alcohol concentration was used for 1 min to remove excess safranin solution that could obscure the cells. The slide was coveredand allowed to dry at room temperature. The image was taken using the Motic software [24].

3.3. Pulping and Pulp Yield of M. azedarach

The pulp cooking process is usually carried out to remove the lignin from wood and make pulp for the papermaking process [46]. The parameters used in this pulping process were temperature (150–190 °C), active alkali (5%, 10%, 15%, 20%, and 25%), and cooking time (60 min, 90 min, 100 min, and 120 min), with sulfidity maintained at 25%. The primary purpose of the cooking process is to reduce the lignin content from fiber, to produce pulp. The experimental data shown in Table 3 indicate that the total pulp yield and screened yield increased up to the optimum temperature, but the value of the kappa number decreased. The total pulp yield, screened pulp yield, and kappa number values at the optimized condition (temperature 170 °C, active alkali 15%, and cooking time 90 min) were 42.11%, 41.81%, and 15.4, respectively. The highest pulp yield was produced at the optimum condition. When the temperature increased from 170 °C to 180 °C with constant active alkali (15%) and cooking time (90 min), the pulp yield and kappa number decreased from 41.81 to 39.79 and from 15.4 to 14.1, respectively. As the active alkali increased from 15% to 20% at constant temperature (170 °C) and time (90 min), the pulp yield and kappa number decreased from 41.8 to 21.76 and 15.4 to 10.4, respectively. At constant temperature (170 °C) and active alkali (20%), the pulp yield and kappa number decreased from 30.22% to 21.76% and 12.8% to 9.4, respectively.
Generally, cooking with an excess of active alkali, a high temperature greater than the optimum temperature, and a long cooking time greater than the optimum time caused fiber degradation and removed most of the lignin from the raw wood. Using an active alkali load that was too low produced more unexpected rejection in the pulp. Rejection is caused by wood chips and raw fiber in the cooking process, because if the delignification process is not completed, the pulp quality decreases [47]. Furthermore, too low a kappa number indicates a low lignin content in the pulp. A high value of the kappa number shows a high content of residual lignin in the pulp. The cellulose content in the pulp affects pulp quality, difficulty of bleaching, and pulp strength [10]. From the experimental results shown in Table 3, the pulping condition with an active alkaline content of 15%, a cooking time of 90 min, and a cooking temperature of 170 °C was selected in this Kraft pulping process, to give a high yield.
Figure 2a shows that as the temperature increased, the pulp yield also increased up to the optimum point (at 170 °C); however, as the temperature increased above the optimum point, the pulp yield decreased, due to the degradation of cellulose at these temperatures. Figure 2b indicates that as the active alkaline content increased from 5% to 15%, the pulp yield increased, but at active alkaline contents greater than 15%, the pulp yield decreased due to degradable fiber. In Figure 2c, the pulp yield increases with an increase in cooking time, and Figure 2d shows the effect of active alkali concentration on the kappa number. The kappa number decreases with increasing active alkali concentration due to an increase in lignin degradation and lignin removal.

3.4. Effect of Pulping on Fiber Morphology

The experimental results in Figure 3A show that the M. azedarach wood was tight and arranged in an orderly way, and the texture was relatively hard, as shown by scanning electron microscopy. The image of the produced pulp in Figure 3B indicates the removal of lignin, hemicellulose, and cellulose because the fiber becomes soft and more loosened and contains cracks and micropores.

3.5. Bleaching Results

The bleaching process in this experiment had several stages. The first two stages primarily released and extracted lignin, and the subsequent stages removed the lignin residues and finished the product. These bleaching sequences were applied to maximize the bleaching effect of each component.
The optimum pulp yield of M. azedarach was bleached using sodium hypochlorite and hydrogen peroxide, as shown in Table 4. This bleaching process had two stages, using sodium hypochlorite and hydrogen peroxide solution in the extraction stage and using NaOH with the subsequent addition of H2O2 solution as a reinforcing agent. Initially, the pulp slurry with 10% NaClO was bleached at a temperature of 40 °C for 120 min, as shown in Figure 4C. The kappa number was reduced from 15.4 to 5.3. This number indicates that residual lignin was also present in the pulp. In the second stage of bleaching, samples of 8% consistency (adjusted using 0.07 N NaOH aqueous solutions) were mixed with the corresponding amount of 5% H2O2 and stirred at 70 °C for 50 min. This bleaching process is environmentally friendly because of the peroxide chemical used in the second-stage bleaching. The pH of the bleaching solution was 11, but at the end of the reaction it was reduced to approximately 10. After the second bleaching stage, the kappa number decreased to 2.4, and the brightness also increased from left to right, as shown in Figure 4 [48].

3.6. Paper Sheet Physical Test

The pulp sheet of M. azedarach was prepared at a laboratory scale Figure 5B,C and the physical properties such as bursting strength, tearing strength, and tensile strength were measured. The results for the mean values of the physical properties for the pulp obtained from M. azedarach gave a burst index of 1.4 kPam2/g, a tear index of 4.0 mNm2/g, and a tensile index of 23.3 Nm/g, as listed in Table 5.
The burst index of M. azedarach (1.4 kPam2/g) was almost the same as those of Melocanna baccifera (1.18–4.95 kPam2/g) and Eucalyptus globulus (0.9–10.2 kPam2/g); however, when compared with the others, this was a small value, due to the short fibers of the plant. The tear index of M. azedarach (4.0 mNm2/g) was similar to those of Tephrosia candida (4.32 mNm2/g), Neyraudia reynaudiana (3.73 mNm2/g), and Eucalyptus globulus (2.9–11.8 mNm2/g), but was lower than that of Hibiscus cannabinus (5.88 mNm2/g). The tensile index of M. azedarach pulp (23.3 N mg−1) was less than for other biomass materials listed in Table 5.
As shown in Table 6, the pulp was blended with waste cotton to increase the physical strength of the sheet made from M. azedarach. In Ethiopia, traditional weaving and other weaving processes use a lot of cotton. At present, leftover cotton waste is thrown away [35]. Therefore, waste cotton was collected and blended with the produced M. azedarach pulp to modify the physical strength of the pulp.
The results show that the sheet pulp produced with blended cotton waste had good physical strength. The basic physical strengths of M. azedarach pulp, such as burst index tear index, and tensile index were measured for blends with 1 to 4% waste cotton. The burst index of M. azedarach pulp blended with 1% waste cotton increased from 1.4 to 2.1. This is almost comparable with the value for Neyraudia reynaudiana (2.75 kPam2/g) (Table 6). The tear index increased from 4.0 to 6.3, similar to that of Hibiscus cannabinus (5.88 mNm2/g). The tensile index also increased from 23.3 to 28.4 Nm/g, which is comparable with the range of the tensile index for Eucalyptus globulus (28–43 Nm/g). Previous research indicated that the physical strength values (burst index, tear index, and tensile index) gradually increased with an increasing amount of blended cotton [49].

4. Conclusions

This study focused on the evaluation of the pulp and papermaking process using M. azedarach wood. The proximate laboratory results indicated that M. azedarach has 72.95% holocellulose and 22.14% lignin; this result is similar to hardwood compositions. The ash content of M. azedarach lies between hardwoods and softwoods. The fiber morphology characteristics of M. azedarach, such as fiber length, fiber width, lumen diameter, and wall thickness, were found to be within the hardwood range. The optimized pulping process give a maximum yield of 41.81% with active alkali of 15%, a cooking time of 90 min, and a temperature of 170 °C, with 25% sulfidity. The burst index (1.4 kPam2/g) and tear index (4.0 mNm2/g) of M. azedarach are found to be in the range of different species of eucalyptus and Melocanna baccifera. The tensile index (Nm/g) of M. azedarach pulp was 23.3 Nm/g. To increase the physical strength of the pulp, M. azedarach pulp was blended with waste cotton. The sheet pulp produced using blended cotton waste showed good physical strength. It is possible to conclude that the M. azedarach could be raw material for pulp and paper production; however, pilot plant studies are required to check this raw material, in order for it to be fully recommended to the pulp and paper industries.

Author Contributions

M.B.M. drafted and wrote the paper. L.A.W. prepared various tables and figures required for the manuscript, corrected and rewrote the paper based on the journal format, and made corrections following the reviewers’ comments. R.K.B. and M.G.T. provided guidance during the development of the idea and wrote and revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Data are contained within the article or are available upon request from the section editors.

Acknowledgments

The authors thank the Addis Ababa Science and Technology University (AASTU), Addis Ababa University School of Chemical and Bioengineering, Ethiopian Environmental and Forest Research Institute Wood Technology Research Center, and the Ethiopian Pulp and Paper Share Company for supporting this research and providing funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lin, L.; Yan, R.; Liu, Y.; Jiang, W. In-depth investigation of enzymatic hydrolysis of biomass wastes based on three major components: Cellulose, hemicellulose and lignin. Bioresour. Technol. 2010, 101, 8217–8223. [Google Scholar] [CrossRef] [PubMed]
  2. Kumar, V.; Pathak, P.; Bhardwaj, N.K. Facile chemo-refining approach for production of micro-nano fibrillated cellulose from bleached mixed hardwood pulp to improve paper quality. Carbohydr. Polym. 2020, 238, 116186. [Google Scholar] [CrossRef]
  3. Caparrós, S.; Díaz, M.J.; Ariza, J.; López, F.; Jiménez, L. New perspectives for Paulownia fortunei L. valorization of the auto hydrolysis and pulping processes. Bioresour. Technol. 2008, 99, 741–749. [Google Scholar] [CrossRef] [PubMed]
  4. Abd El-Sayed, E.S.; El-Sakhawy, M.; El-Sakhawy, M.A. Non-wood fibers as raw material for pulp and paper industry. Nord. Pulp Pap. Res. J. 2020, 35, 215–230. [Google Scholar] [CrossRef]
  5. Syarifah, S.M.; Kassim, A.S.M.; Aripin, A.M.; Ishak, N.; Fadilat, A.; Adnan, S. Bio-mechanical pulping of bacteria pre-treatment on oil palm biomass for hand sheet production. Int. J. Eng. Technol. 2019, 8, 177–183. [Google Scholar]
  6. El-Juhani, L.I. Evaluation of some wood quality measures of eight-year-old Melia azedarach trees. Turk. J. Agric. For. 2011, 35, 165–171. [Google Scholar]
  7. Bachheti, R.K.; Dwivedi, H.; Rana, V.; Rai, I.; Joshi, A. Characterization of fatty acids in Melia azedarach L. seed oil. Int. J. Curr. Res. Rev. 2012, 4, 108–114. [Google Scholar]
  8. Sharma, D.; Paul, Y. Preliminary and pharmacological profile of Melia azedarach L.: An overview. J. Appl. Pharm. Sci. 2013, 3, 133–138. [Google Scholar]
  9. Natalli, N.G.; Cottiglia, F.; Bueno, C.A.; Alché, L.E.; Leonti, M.; Vargiu, S.; Bifulco, E.; Menkissoglu-Spiroudi, U.; Caboni, P. Cytotoxic tirucallane triterpenoids from M. azedarach fruits. Molecules 2010, 15, 5866–5877. [Google Scholar] [CrossRef] [Green Version]
  10. Ardina, V.; Irwan, B.; Prajitno, D.H.; Roesyadi, A. Active alkali charges effect on kraft pulping process of Acacia mangium and Eucalyptus pellita. In Proceedings of the American Institute of Physics Conference, Surakarta, Indonesia, 12 May 2018; AIP Publishing LLC: Melville, NY, USA, 2018; Volume 2014, p. 020036. [Google Scholar]
  11. Annex, C. The Stockholm Convention on Persistent Organic Pollutants; United Nations Environmental Programme: Geneva, Switzerland, 2008; Volume 29, pp. 9–26. [Google Scholar]
  12. Tappi, T. Sampling and Preparing Wood for Analysis; T 257 cm-85; 1985; Available online: https://www.tappi.org/content/sarg/t257.pdf (accessed on 12 August 2021).
  13. Tappi, T. Preparation of Wood for Chemical Analysis Test Method; T264 cm-07; 1997; Available online: https://tappi.micronexx.com/CD/TESTMETHODS/T264.pdf (accessed on 8 August 2021).
  14. Tappi, T. Ash in Wood, Pulp, Paper and Paperboard: Combustion at 525 °C; T 211 om-93; 1993; Available online: https://www.tappi.org/content/sarg/t211.pdf (accessed on 12 August 2021).
  15. Wise, L.E.; Murphy, M.; Daddieco, A.A. Chlorite holocellulose, its fractionation and bearing on summative wood analysis and on studies on the hemicellulose. Tech. Assoc. Pap. 1946, 29, 210–218. [Google Scholar]
  16. Tappi, T. Acid-Insoluble Lignin in Wood and Pulp; T 222 om-98; 1998; Available online: https://www.tappi.org/content/SARG/T222.pdf. (accessed on 10 August 2021).
  17. Tappi, T. Water Solubility of Wood and Pulp; T 207 cm-99; TAPPI Press: Atlanta, GA, USA, 1999. [Google Scholar]
  18. Tappi, T. One Percent Sodium Hydroxide Solubility of Wood and Pulp; T 212 om-98; TAPPI Press: Atlanta, GA, USA, 1998. [Google Scholar]
  19. Tappi, T. Solvent Extractives of Wood and Pulp; T 204 cm-97; TAPPI Press: Atlanta, GA, USA, 1997. [Google Scholar]
  20. Tappi, T. Bursting Strength of Paper; T 403 om-97; TAPPI Press: Atlanta, GA, USA, 1997. [Google Scholar]
  21. Tappi, T. Freeness of Pulp (Canadian Standard Method); T 227 om-99; TAPPI Press: Atlanta, GA, USA, 1999. [Google Scholar]
  22. Tappi, T. Internal Tearing Resistance of Paper (Elmendorf-Type Method); T 414 om-98; TAPPI Press: Atlanta, GA, USA, 1998. [Google Scholar]
  23. Berhanu, H.; Kiflie, Z.; Miranda, I.; Lourenço, A.; Ferreira, J.; Feleke, S.; Yimam, A.; Pereira, H. Characterization of crop residues from false banana/Ensete ventricosum/in Ethiopia in view of a full-resource valorization. PLoS ONE 2018, 13, e0199422. [Google Scholar] [CrossRef]
  24. Ishiguri, F.; Aiso, H.; Hirano, M.; Yahya, R.; Wahyudi, I.; Ohshima, J.; Iizuka, K.; Yokota, S. Effects of radial growth rate on anatomical characteristics and wood properties of 10-year-old Dysoxylummollissimum trees planted in Bengkulu, Indonesia. Tropics 2016, 25, 23–31. [Google Scholar] [CrossRef] [Green Version]
  25. Mahesh, S.; Kumar, P.; Ansari, S.A. A rapid and economical method for the maceration of wood fibers in Boswellia serrata Roxb. Trop. Plant Res. 2015, 2, 108–111. [Google Scholar]
  26. Neelagar, R.; Yathish, R.; Srinivasa, S.; Vasappa, R.K. Characterization of paper and pulp properties from weed species. J. Appl. Biol. 2018, 6, 61–63. [Google Scholar]
  27. Lal, P.S.; Sharma, A.; Best, V. Pine needle-An evaluation of pulp and paper making potential. J. For. Prod. Ind. 2013, 2, 42–47. [Google Scholar]
  28. Gómez-Sánchez, M.D.; Sánchez, R.; Espinosa, E.; Rosal, A.; Rodríguez, A. Production of cellulosic pulp from reed (Phragmites australis) to produce paper and paperboard. Bioprocess Eng. 2017, 1, 65–68. [Google Scholar]
  29. Dutt, D.; Upadhyay, J.S.; Singh, B.; Tyagi, C.H. Studies on Hibiscus cannabinus and Hibiscus sabdariffa as an alternative pulp blend for softwood: An optimization of kraft delignification process. Ind. Crop. Prod. 2009, 1, 16–26. [Google Scholar] [CrossRef]
  30. Ganie, S.A.; Ara, S.; Agarwal, M.A.; Mehmood, I.M.G.; Mir, S.A. Papermaking potential of Amaranthus hybridus stalks; Sustainable raw material in paper industries. J. Pharmacogn. Phytochem. 2017, 6, 2096–2100. [Google Scholar]
  31. Shakes, J.; Marandi, M.A.; Zeinaly, F.; Sarafian, A.; Saghafi, T. Tobacco residuals as promising lignocellulosic materials for pulp and paper industry. Bioresources 2011, 6, 4481–4493. [Google Scholar]
  32. Anupam, K.; Lal, P.S.; Best, V.; Sharma, A.K.; Swaroop, V. Raw material selection for pulping and paper making using Technique for order of preference by similarity to ideal Solution multiple criteria decision-making design. Environ. Prog. Sustain. Energy 2014, 33, 1034–1041. [Google Scholar] [CrossRef]
  33. Sharma, A.K.; Dutt, D.; Upadhyaya, J.S.; Roy, T.K. Anatomical, morphological, and chemical characterization of Bambusa tulda, Dendrocalamus hamiltonii, Bambu sabalcooa, Malocana baccifera, Bambusa arundinacea and Eucalyptus tereticornis. Bioresources 2011, 6, 5062–5073. [Google Scholar]
  34. Daraei, M. Evaluation and Prediction of Wood Properties in Pulp and Paper Production: Estimation of Wood Chemical Properties and Pulping Results Using Near-Infrared Spectroscopy: A Case Study in Billerud Korsnäs in Gävle. 2016, pp. 1–69. Available online: https://www.diva-portal.org/smash/get/diva2:941001/FULLTEXT01.pdf (accessed on 5 July 2021).
  35. Chaurasia, S.K.; Singh, S.P.; Naithani, S.; Srivastava, P. A Comprehensive study on proximate chemical composition of Melocanna baccifera (Muli Bamboo) and its suitability for pulp and paper production. For. Res. 2016, 5, 168. [Google Scholar]
  36. Emerhi, E.A. Variations in anatomical properties of Rhizophora racemosa (Leech) and Rhizophora harrisonii (G. Mey) in a Nigerian mangrove forest ecosystem. Int. J. For. Soil Eros. 2012, 2, 89–96. [Google Scholar]
  37. Ververis, C.; Georghiou, K.; Christodoulakis, N.; Santas, P.; Santas, R. Fiber dimensions, lignin and cellulose content of various plant materials and their suitability for paper production. Ind. Crop. Prod. 2004, 19, 245–254. [Google Scholar] [CrossRef]
  38. Sangumbe, L.M.V.; Pereira, M.; Carrillo, I.; Mendonça, R.T. An exploratory evaluation of the pulpability of Brachystegia spiciformis and Pericopsis angolensis from the Angolan miombo woodlands. Maderas. Cienc. Y Tecnol. 2018, 20, 183–198. [Google Scholar] [CrossRef] [Green Version]
  39. Ekhuemelo, D.O.; Aidoko, V.O.; Tembe, E.T. Evaluation of pulp and paper making potentials of Ficus exasperate in Makurdi, Nigeria. South Asian J. Biol. Sci. 2018, 1, 61–78. [Google Scholar]
  40. Ajala, O.O.; Noah, A.S. Evaluation of fibre characteristics of Aningeria robusta A. Chev. wood for its pulping potentials. J. For. Res. 2019, 16, 90–97. [Google Scholar]
  41. Tembe, E.T.; Ekhuemelo, D.O.; Aondoaver, B.T. Assessment of fiber characteristics of Spondias mombin L.(Anacardiaceae) for pulp And paper production. Fuma J. Sci. Educ. Res. 2021, 5, 511–516. [Google Scholar]
  42. Gençer, A.; Ozgul, U.; Onat, S.M.; Gunduz, G.; Yaman, B.; Yazici, H. Chemical and morphological properties of Apricot wood (Prunus armeniaca L.) and fruit endocarp. Bartın Orman Fakültesi Derg. 2018, 20, 205–209. [Google Scholar]
  43. Riki, J.T.; Oluwafemi, O.A. Fibre Characteristics of Delonix regia (Hook.) Raf. Wood as Indices of its Suitability for Papermaking. Am. Sci. Res. J. Eng. Technol. Sci. 2021, 70, 34–54. [Google Scholar]
  44. Xu, F.; Zhong, X.C.; Sun, R.S.; Lu, Q. Anatomy, ultrastructure and lignin distribution in cell wall of Caragana korshinskii. Ind. Crop. Prod. 2006, 24, 186–193. [Google Scholar] [CrossRef]
  45. Sharma, N.; Tripathi, S.K.; Bhardwaj, N.K. Utilization of sarkanda for making pulp and paper using elemental chlorine free and total chlorine free bleaching processes. Ind. Crop. Prod. 2020, 149, 112316. [Google Scholar] [CrossRef]
  46. Rullifank, K.F.; Roefinal, M.E.; Kostanti, M.; Sartika, L. Pulp and paper industry: An overview on pulping technologies, factors, and challenges. In I.O.P. Conference Series: Materials Science and Engineering, The International Conference on Chemical Engineering and Applied Sciences (ICCHEAS), Banda Aceh, Indonesia, 23–24 October 2019; IOP Science: Bristol, UK, 2020; Volume 845, p. 012005. [Google Scholar]
  47. Darmawan, A.; Irwan, B.; Ni’mah, H.; Roesyadi, A.; Kurniawansyah, F. Delignification of Abaca Fiber (Musa textilis) as potential substitute for Eucalyptus pellita. In I.O.P. Conference Series: Materials Science and Engineering; The 5th International Conference on Science, Technology and Interdisciplinary Research (IC-STAR 2019), Bandar Lampung, Indonesia, 23–25 September 2019; IOP Science: Bristol, UK, 2020; Volume 857, p. 012021. [Google Scholar]
  48. Mussatto, S.I.; Rocha, G.J.; Roberto, I.C. Hydrogen peroxide bleaching of cellulose pulps obtained from brewer’s spent grain. Cellulose 2008, 15, 641–649. [Google Scholar] [CrossRef] [Green Version]
  49. Saikia, C.; Goswami, T.; Ali, F. Evaluation of pulp and paper making characteristics of certain fast-growing plants. Wood Sci.Technol. 1997, 31, 467–475. [Google Scholar] [CrossRef]
  50. Tripathi, S.K.; Mishra, O.P.; Bhardwaj, N.K.; Varadhan, R. Pulp and paper making properties of bamboo species Melocannabaccifera. Cellul. Chem. Technol. 2018, 52, 81–88. [Google Scholar]
  51. Neiva, D.; Fernandes, L.; Araújo, S.; Lourenço, A.; Gominho, J.; Simões, R.; Pereira, H. Chemical composition and kraft pulping potential of 12 eucalyptus species. Ind. Crop. Prod. 2015, 66, 89–95. [Google Scholar] [CrossRef] [Green Version]
  52. Hemmasi, A.H. Manufacturing paper sheets from olive wood by soda, sulphite and kraft pulping. World Appl. Sci. J. 2012, 18, 510–513. [Google Scholar]
Forests 13 00263 g001 550

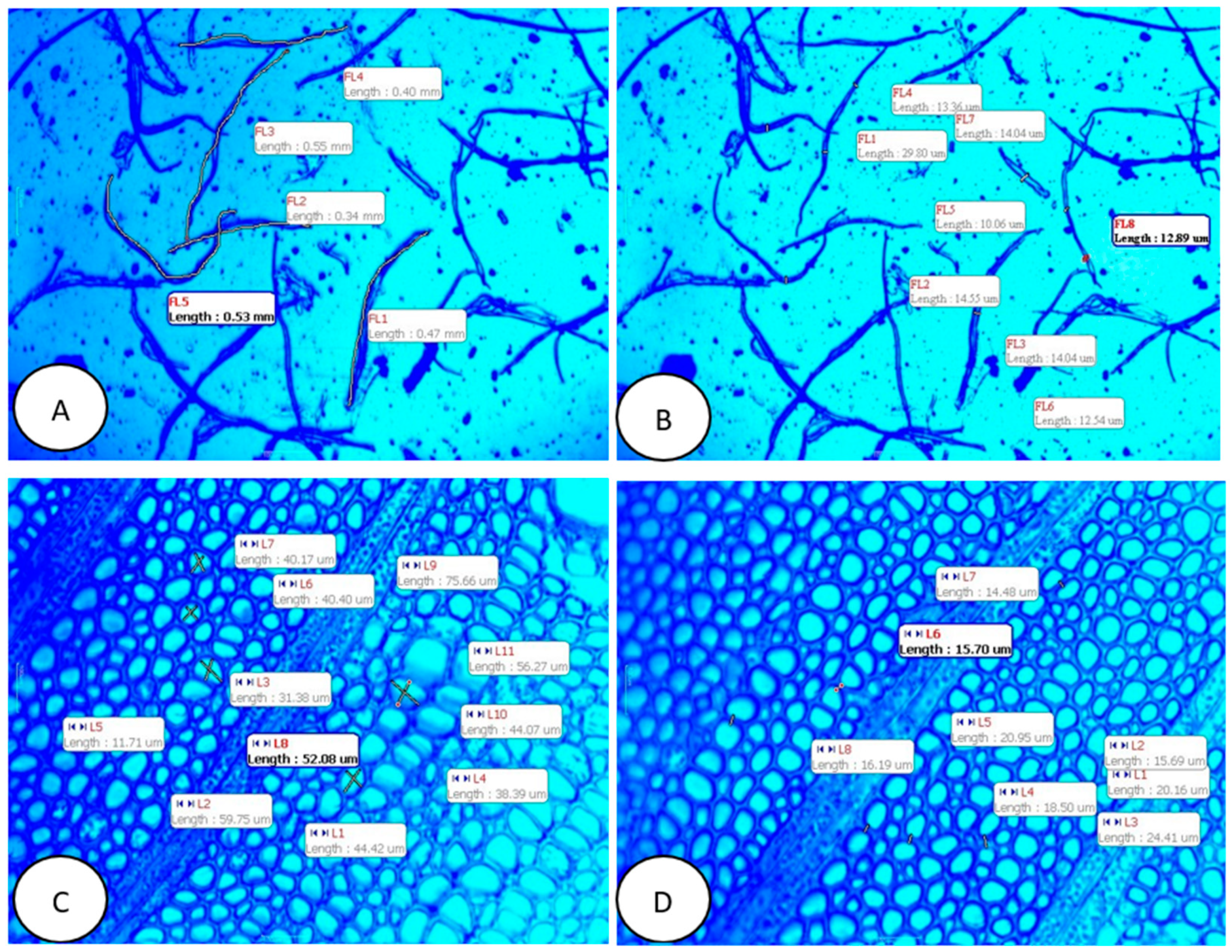

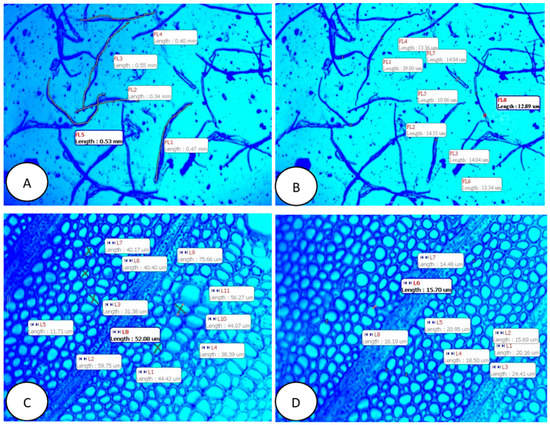

Figure 1. M. azedarach fiber images for fiber length (A), fiber width (B), lumen width (C) and cell wall thickness (D). (A,B) are magnified by 40 × 10, and the lumen width (C) and cell wall thickness (D) are magnified by 10 × 10.
Figure 1. M. azedarach fiber images for fiber length (A), fiber width (B), lumen width (C) and cell wall thickness (D). (A,B) are magnified by 40 × 10, and the lumen width (C) and cell wall thickness (D) are magnified by 10 × 10.
Forests 13 00263 g001
Forests 13 00263 g002 550

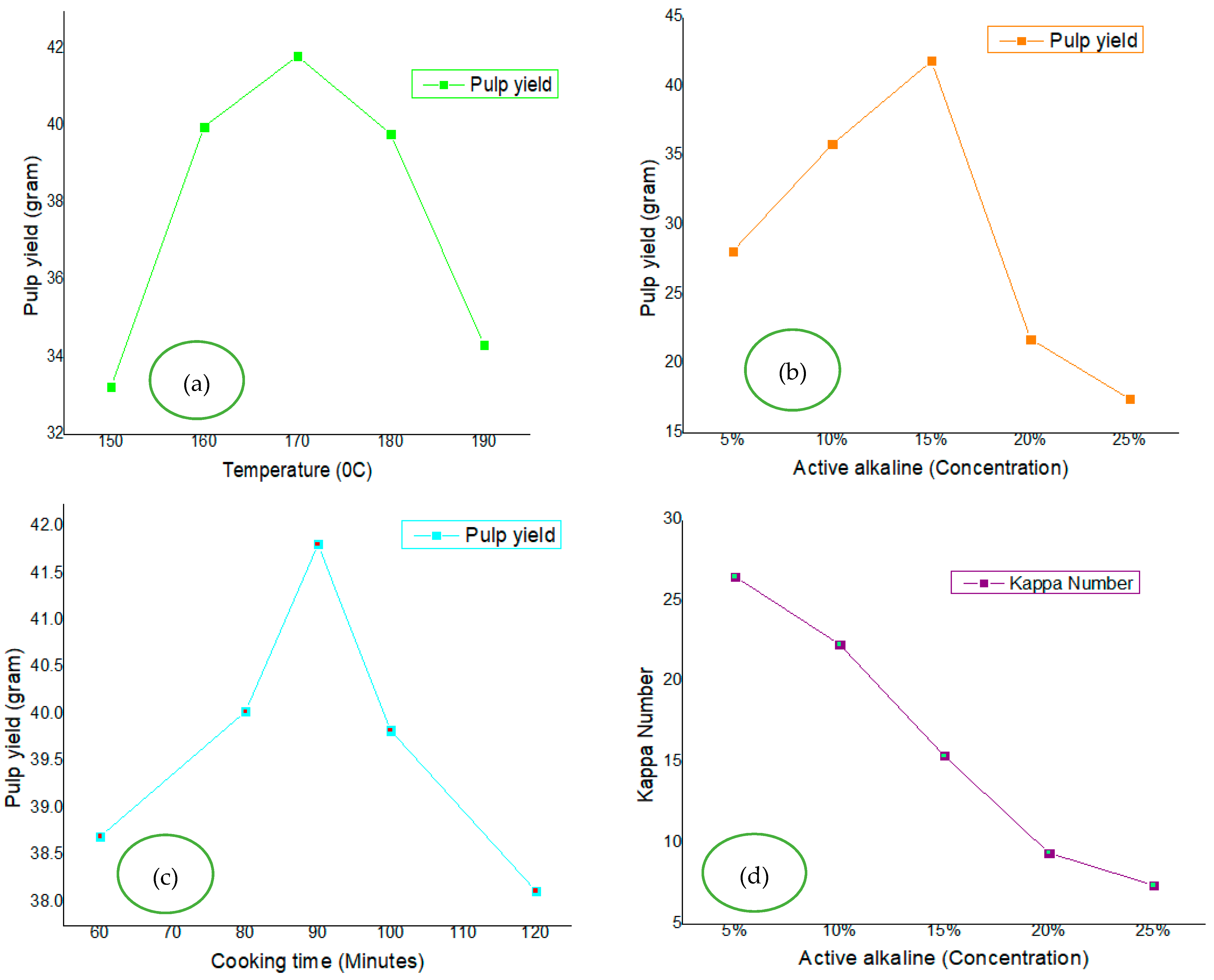

Figure 2. Temperature vs. pulp yield (a), active alkaline vs. pulp yield (b), cooking time vs. pulp yield (c), and active alkaline concentration vs. kappa number (d).
Figure 2. Temperature vs. pulp yield (a), active alkaline vs. pulp yield (b), cooking time vs. pulp yield (c), and active alkaline concentration vs. kappa number (d).
Forests 13 00263 g002
Forests 13 00263 g003 550

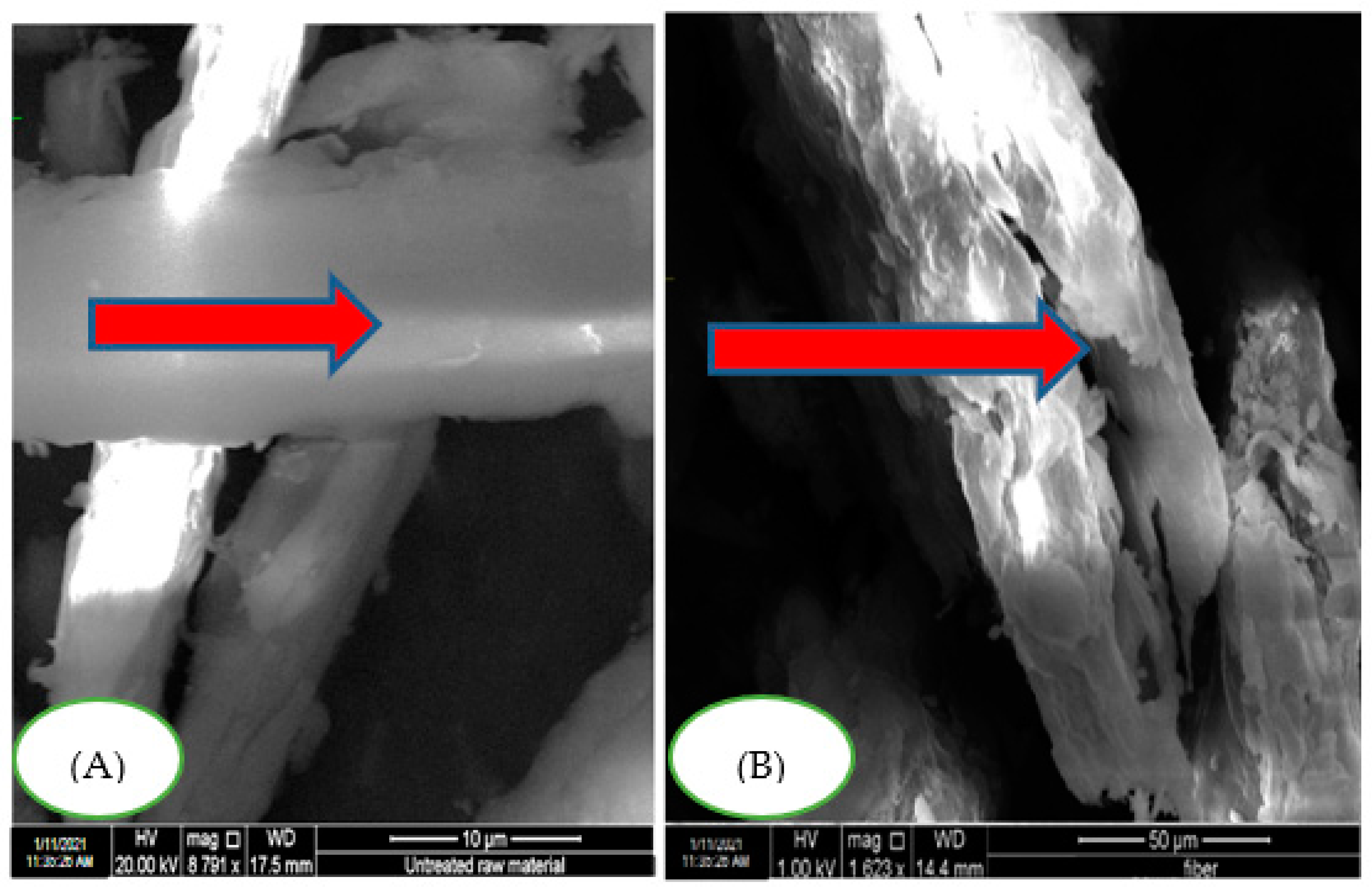

Figure 3. Image of raw M. azedarach wood (A) and produced pulp (B).
Figure 3. Image of raw M. azedarach wood (A) and produced pulp (B).
Forests 13 00263 g003
Forests 13 00263 g004 550

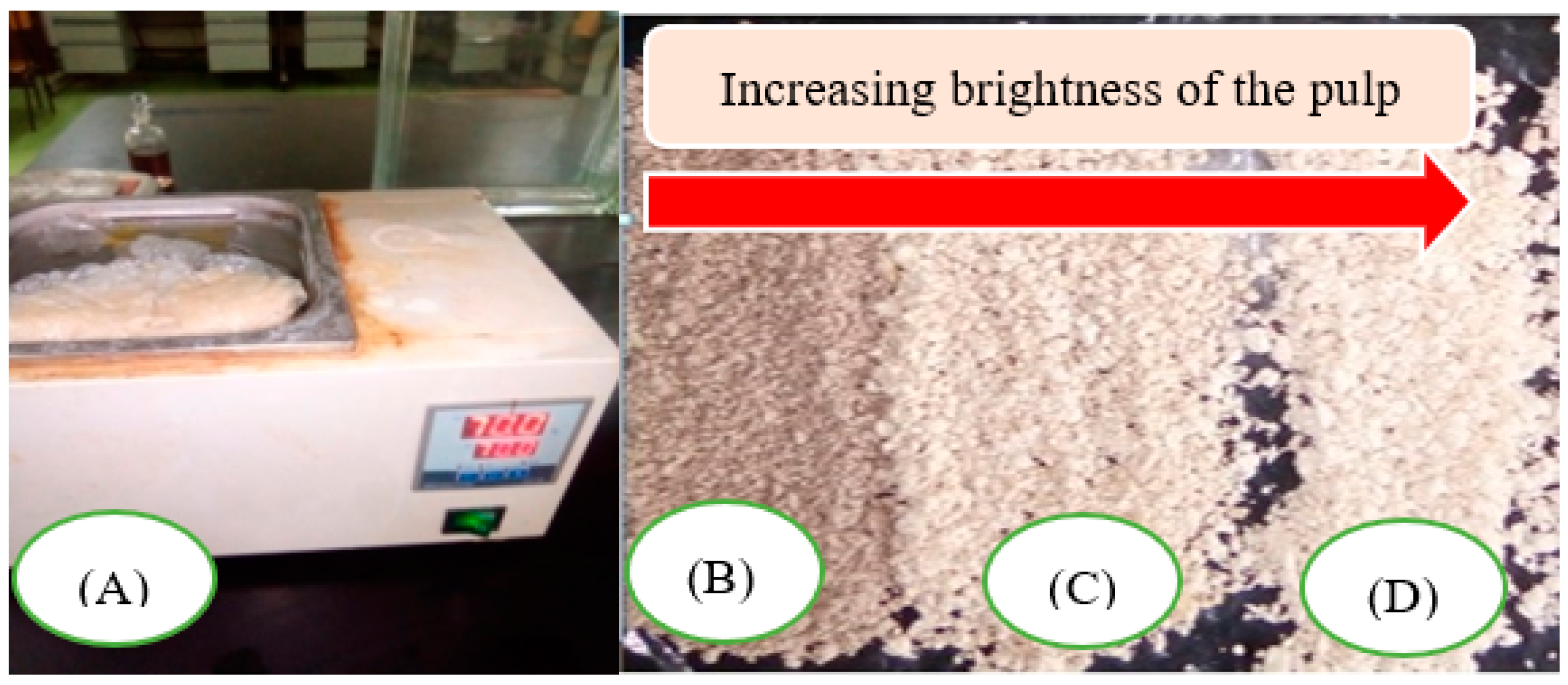

Figure 4. Pulp bleaching stage to determine the amount of lignin left and the amount of bleaching chemical: bleaching process takes place in a water bath (A), unbleached pulp (B), first stage bleaching (C), second stage bleaching (D). (Image taken by Megersa Bedo Megra).
Figure 4. Pulp bleaching stage to determine the amount of lignin left and the amount of bleaching chemical: bleaching process takes place in a water bath (A), unbleached pulp (B), first stage bleaching (C), second stage bleaching (D). (Image taken by Megersa Bedo Megra).
Forests 13 00263 g004
Forests 13 00263 g005 550

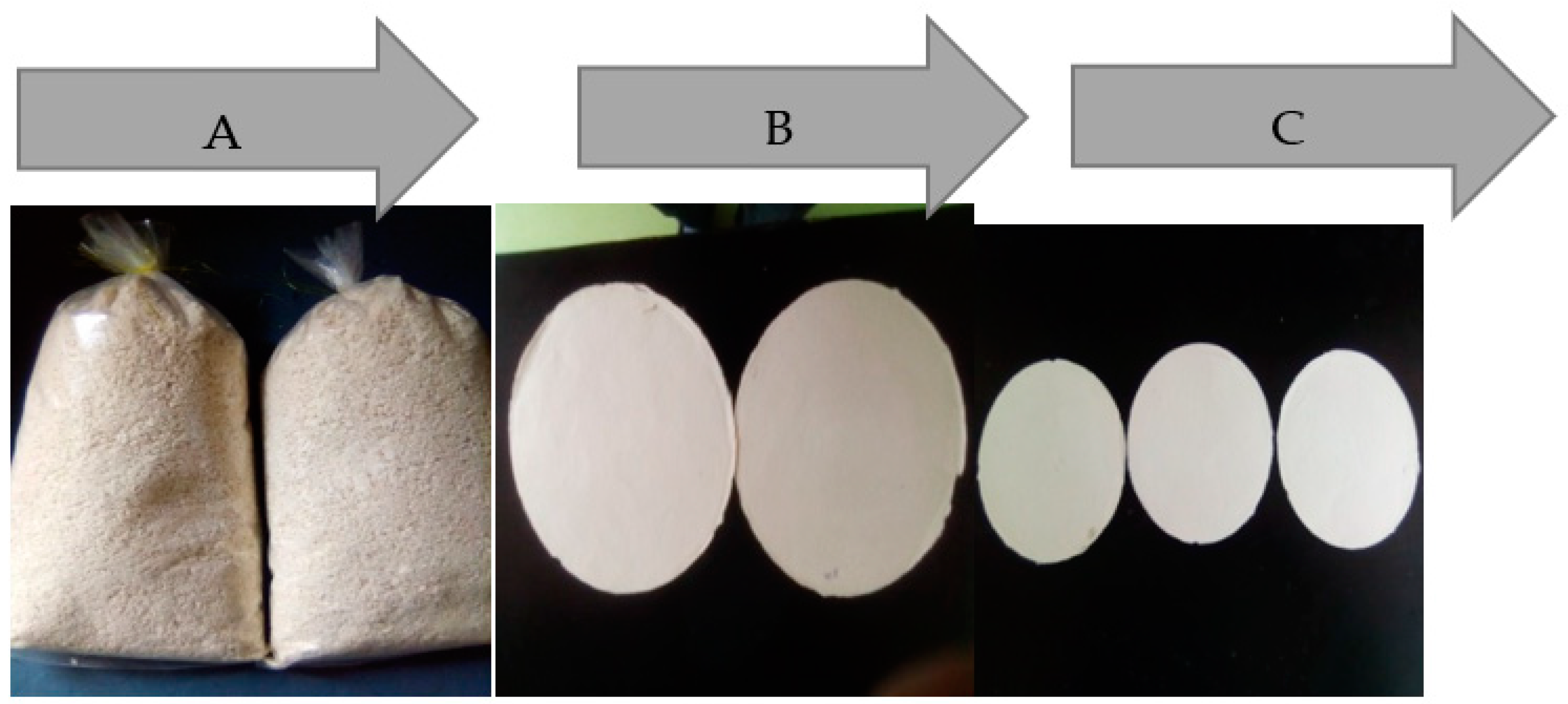

Figure 5. Packed bleached pulp (A), prepared pulp sheet of M. azedarach (B), prepared pulp sheet of M. azedarach blended with waste cotton (C).
Figure 5. Packed bleached pulp (A), prepared pulp sheet of M. azedarach (B), prepared pulp sheet of M. azedarach blended with waste cotton (C).
Forests 13 00263 g005
Table
Table 1. Proximate chemical analysis of M. azedarach and other raw materials.
Table 1. Proximate chemical analysis of M. azedarach and other raw materials.
Raw Material BiomassHolocellulose (%)Klason Lignin (%)Coldwater Solubility (%)Hot Water Solubility (%)Ash (%)Alcohol Benzene Solubility(%)1% NaOHReference
M. adezerach72.9522.146.3412.463.675.2523.48Present study
Pinus densiflora51.6243.242.987.534.455.8147.42[27]
Phragmites australis62.5618.25-18.057.51--[28]
Hibiscus cannabinus71.8018.504.566.421.564.2828.50[29]
Amaranthus hybridus62.4117.55-20.2511.036.6440.40[30]
Datura stramonium66.5515.795.418.299.5711.6635.34[31]
Eucalyptus globulus70.329.92.384.310.663.016.8[27]
Table
Table 2. The mean values of M. azedarach fiber dimensions compared with other papermaking biomass materials.
Table 2. The mean values of M. azedarach fiber dimensions compared with other papermaking biomass materials.
BiomassFiber Length (mm)Fiber Width (μm)Lumen Diameter (μm)Wall Thickness (μm)Runkel
Ratio		Wall Rigidity (%)Slenderness RatioFlexibility Ratio (%)References
M. azedarach0.57113.4513.032.520.3918.7342.4796.9Present study
Ficus exasperate1.86–1.2031.96–20.9818.90–10.426.95–3.761.09–0.7525.45–19.5294.7–44.5660.97–49.11[39]
Senna siamea1.2919.612.24.30.70-65.8262.24[40]
Spondi mombin0.98–1.018.22–21.4710.90–12.983.86–4.600.66–8.8919.78–22.2443.27–46.557.22–60.50[41]
Aningeri robusta1.7629.4716.186.610.79-57.43-[38]
Prunus armeniaca0.71713.756.053.851.0-46.22-[42]
Delonix regiahas1.3439.4226.836.490.5516.9536.0368.45[43]
Table
Table 3. Cooking temperature for Kraft pulping of M. azedarach, with sulfidity at 25%.
Table 3. Cooking temperature for Kraft pulping of M. azedarach, with sulfidity at 25%.
Serial NumberCooking Temperature (°C)Cooking Active Alkali (%)Cooking Time (min)Total Yield (%)Screened Yield (%)Kappa Number
11501012035.7134.3627.6
21601012037.9237.1023.9
31701012038.3237.6720.4
4170109036.0135.8022.3
5170159042.1141.8115.4
61701512038.4338.129.1
7180159040.7339.7914.1
8180109037.3337.0114.6
9170209022.3321.769.4
10170206030.5730.2212.8
11160159040.1439.7816.6
1219059033.4532.7522.6
1317059029.0228.1226.5
14150159034.233.2319.5
15170259018.317.437.3
16170158040.0339.216.5
Table
Table 4. Chemicals used in bleaching the pulp of M. azedarach.
Table 4. Chemicals used in bleaching the pulp of M. azedarach.
Serial Number Chemical UsedTemp. Time (min.) Description Unbleached Pulp Kappa Number 1st Stage Bleached Kappa Number2nd Stage Bleached Kappa Number
1Sodium hypochlorite (H)40 °C120Reaction with hypochlorite in alkaline medium15.45.3-
2Hydrogen peroxide(P)70 °C50Reaction with H2O2 in alkaline medium -5.32.4
Table
Table 5. Physical properties of the pulp sheet in the present study and other raw biomass materials.
Table 5. Physical properties of the pulp sheet in the present study and other raw biomass materials.
BiomassBurst Index (kPam2/g)Tear Index (mNm2/g)Tensile Index (Nm/g)References
M. azedarach1.44.023.3Present study
Hibiscus cannabinus3.435.8837.27[49]
Crotalaria juncea3.929.6147.81[49]
Melocanna baccifera1.18–4.9512.2–13.524–54[50]
Tephrosia candida3.434.3240.45[49]
Eucalyptus globulus0.9–10.22.9–11.828–43[51]
Neyraudia reynaudiana2.753.7338.15[49]
Iranian olive3.671.99-[52]
Table
Table 6. Physical strength of M. azedarach sheets blended with waste cotton.
Table 6. Physical strength of M. azedarach sheets blended with waste cotton.
Waste Cotton Blend with Pulp of M. azedarachBurst Index (kPam2/g)Tear Index (mNm2/g)Tensile Index (Nm/g)
1% 2.16.328.4
2%3.76.935.7
3%6.48.739.2
4%7.310.144.4
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Megra, M.B.; Bachheti, R.K.; Tadesse, M.G.; Worku, L.A. Evaluation of Pulp and Papermaking Properties of Melia azedarach. Forests 2022, 13, 263. https://doi.org/10.3390/f13020263

AMA Style

Megra MB, Bachheti RK, Tadesse MG, Worku LA. Evaluation of Pulp and Papermaking Properties of Melia azedarach. Forests. 2022; 13(2):263. https://doi.org/10.3390/f13020263

Chicago/Turabian Style

Megra, Megersa Bedo, Rakesh Kumar Bachheti, Mesfin Getachew Tadesse, and Limenew Abate Worku. 2022. "Evaluation of Pulp and Papermaking Properties of Melia azedarach" Forests 13, no. 2: 263. https://doi.org/10.3390/f13020263

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
